Evaluation of Split Root Nutrient Film Technique (Sr-NFT) for Hydroponically Grown Lettuce (Lactuca sativa L.) Under Differing Nutrient Concentrations

1. Introduction

Lettuce (Lactuca sativa) is an economically important crop, with over 28.08 million tons of lettuce produced in fields and greenhouses in 2023 [1]. The global lettuce harvested area in 2023 was 1.26 million hectares [1]. Global lettuce production had been increasing until 2018, but growth has slowed in recent years. The United States was the second largest lettuce producing country in 2023, following mainland China, and the third largest in harvested area, following mainland China and India. In 2023, lettuce production in the U.S. was 4.71 million tons, with a production area of 134 thousand hectares. In 2019, lettuce was the third most consumed food in the U.S., after potatoes and tomatoes, with 25.1 pounds consumed per capita per year [2]. Charles et al. showed that the annual yield of lettuce was higher in greenhouse than in field [3]. This is due to year-round production cycles in a greenhouse, while field production is limited by season.

There are a variety of production methods used in greenhouse lettuce cultivation, including nutrient film technique (NFT) and deep water culture (DWC) [4]. The two methods differ mostly by the volume of water that the roots are grown in; NFT uses a shallow stream of water, while DWC fully submerges the root system. DWC is more stable with less fluctuation in nutrient concentration, pH, and water temperature due to its larger volume per plant [4].

Tipburn is a significant physiological issue which reduces the quality and marketable value of lettuce. There are two types of tipburn: inner leaf tipburn and outer leaf marginal necrosis [5]. Inner leaf tipburn is caused by insufficient calcium supply to the growing young leaves. High humidity, lack of airflow, or poor root development will limit plant transpiration, resulting in insufficient calcium supply to the plants. There are three ways to prevent inner leaf tipburn. The first is to ensure that the nutrient solution contains sufficient calcium. The second is to promote transpiration of plants. lower humidity and better ventilation to promote transpiration of the plants. Vertical air flow (VAF) fans can be used to provide sufficient air to the lettuce center. The third is to avoid excessive daily light integrals (DLI). Tipburn occurs more frequently when DLI exceeds 17 mol∙m²∙d^-1 [6].

Previous research has shown tipburn symptoms were greatest at electric conductivity (EC) 1.8 dS∙m^-1, while lower EC exhibited reduced symptoms [7]. However, while lower EC reduced tipburn symptoms, it also resulted in reduced yield [8]. Application of a foliar calcium chloride spray has been shown to reduce tipburn symptoms. However, this approach can lead to excess moisture on the surface of the leaves, potentially contributing to foliar diseases such as powdery mildew [9].

Nutrient delivery can be adjusted both temporally (over time) and spatially (delivering difference concentrations to different parts of the root system). Overall, studies have shown that the higher the nutrient concentration, the more nutrients are absorbed [7,10]. Cresswell showed that when nutrient concentrations were higher during the day than at night, shoot fresh weight did not differ but tipburn was reduced compared to when concentrations were the same during the day and night for lettuce [11]. Masaharu et al. showed that tomatoes and cucumbers absorbed more water and nutrients during the day than at night [12]. Also, the amount of nutrients per unit volume of water absorbed was higher at night than during the day. Both daytime and nighttime water absorption decreases with increased nutrient concentrations. Nutrient absorption, except for Ca, increased during the day and at night as nutrient concentrations were increased. Ca absorption during the day decreases with increasing nutrient solution concentration but increases at night. Francisco et al. investigated whether the daily pattern of absorption of each nutrient was affected by the age of the plants [13]. N, P, and K absorption decreased with age, but not for Ca, Mg, and S. In general, water and nutrients are absorbed by transpiration during the day and osmotic pressure at night. Additionally, this study showed that all nutrients released nutrients both during the day and night. Francisco et al. show that at 25°C and 600 PPF, the nighttime uptake rate of Ca, Mg and S is negative, meaning that nutrients were released [14].

A technique known as Split-root system (SRS) has been used in plant biology studies for decades, allowing for adjusted spatial delivery of nutrients to plant root systems. The oldest study of the split root system is by Wiersum in 1958 [15]. This was a study of the effect of peas on roots in response to single ions in pot culture. Tomatoes grown in different concentrations of nutrient solution under SRS had higher yields and lower blossom end rot (BER) than tomatoes grown in uniform concentrations of nutrient solution [16]. Furthermore, calcium content in leaves and stems was higher at uneven concentrations. Italian ryegrass was supplied with nitrate to only half of the root system via SRS, showing that nitrate-containing roots were able to absorb more nitrate to make up for the deficiency [17]. Root biomass was higher for roots that had uneven nitrate supply than for roots that had even nitrate supply. Corina et al. explored the effects of locally high concentrations of phosphorus on plant growth and nitrate uptake [18]. The results showed that nitrate absorption was inhibited when the entire root was highly phosphate. However, localized high concentrations of phosphate resulted in the same amount of nitrate absorption as plants whose roots were exposed to medium concentrations. Cucumbers grown in SRS with calcium and phosphorus were supplied separately to prevent sedimentation, resulting in increased chlorophyll concentration and stomatal conductance, improved photosynthesis, and increased biomass and yield [19]. In a tomato experiment with SRS supplying nutrient solution and clear water for 30 days, shoot and root dry weight were not found to be significantly different from nutrient solution only [20]. Another tomato experiment found that the combination of high salinity nutrient solution and clear water increased yield over for both high salinity concentrations, but the combination of medium salinity concentration and clear water did not increase it [21]. No research on hydroponic SRS lettuce production has been reported to date. Further, most previous research on SRS has focused on scientific aspects of root nutrient uptake rather than crop yield and quality. For this study, we developed a Split Root Nutrient film technique (SR-NFT) where an NFT channel is divided longitudinally into two separate channels with their own input and drain line. In the system plant roots can be intentionally divided to supply different nutrient solutions to each half without mixing them.

Our experiment had two specific objectives. First, we investigated the impact of SR-NFT on yield and tipburn compared to conventional NFT with the same nutrient concentrations. We hypothesized that uniform nutrient concentrations would not affect plants in NFT and SR-NFT. Second, we investigated the effects of SR-NFT on yield and tipburn at non-uniform nutrient concentrations. We hypothesized that when SRS had uniform nutrient concentrations their growth would not be affected vs. traditional NFT with a single nutrient concentration. However, when SRS had uneven nutrient concentrations plant growth and quality would be impacted.

2. Materials and Methods

2.1. Seedling nursery system

A butterhead lettuce (Lactuca sativa) variety ‘Rex’ was used for this experiment as it is one of the most common butterhead lettuce varieties in control environment agriculture (CEA) and was selected to be suitable for research on the effects of tipburn. Plants were germinated in cell trays (128pcs) in 1-inch rockwool cubes for 1 week, then transplanted into 1-inch net pots and irrigated with nutrient solution in a growth chamber an additional week (Figure 2). During this nursery stage, air pumps and air stones were used to increase the dissolved oxygen in the nutrient solution to allow the roots to grow large enough to extend beyond the rockwool curves to facilitate transplanting in SR-NFT. The nutrient solution was 15 N-5 P-15 K Jack’s CA-MG LX (J.R. Peter’s Inc., Allentown, PA, USA) (0.9 g∙L^-1). Lighting fixtures were used at 340 µmol∙m²∙s^-1 for photoperiod of 16 hour per day result in a DLI of 19.6 µmol∙m²∙s^-1. Plants were kept in a growth chamber with 23 C° (73 F) day and night temperature.

2.2. Growing system

Nutrient film technique (NFT) and split root nutrient film technique (SR-NFT) (Figure 1) channels (HydroCycle 4” Pro NFT Series – 1.5” Deep) were used for this experiment. The SR-NFT was created by fixing plastic plates of 3 mm thick and 23 mm in the center of the NFT channel. The plates were caulked with silicone to provide a water tight seal along the center divider to avoid mixing of the nutrient solution and the plant roots. In the system design, drain lines at the end of the channel returned each EC specific nutrient solution back to the proper reservoir for subsequent recirculation.

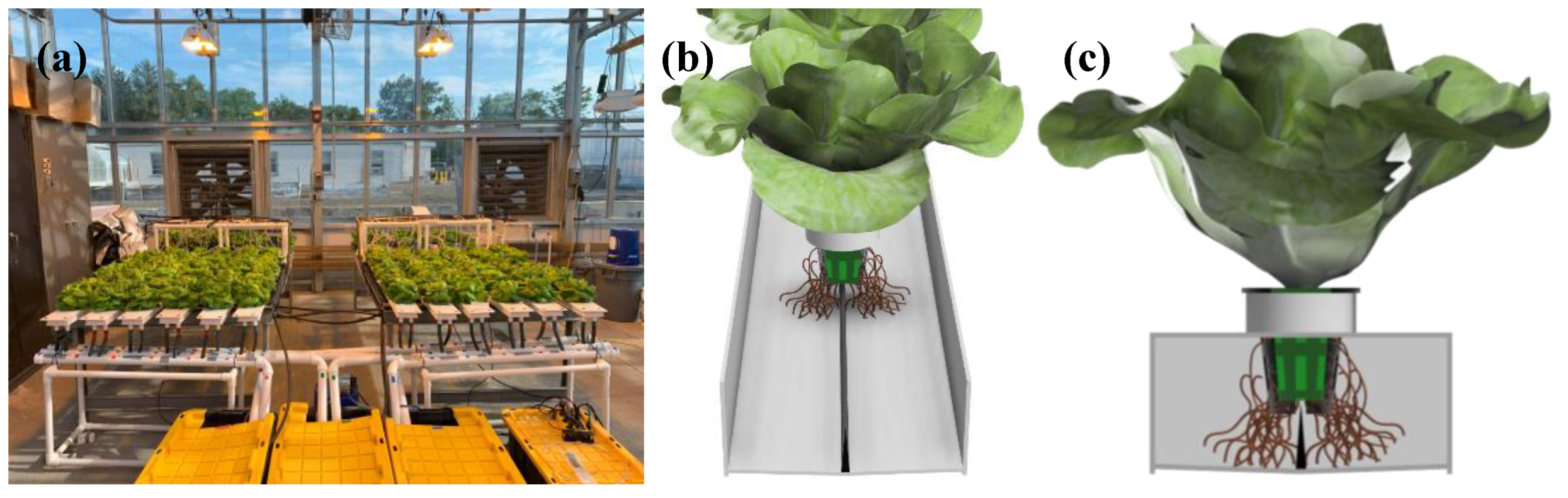

Figure 1. (a) Photographs of the experimental devices, (b) detailed diagram of the split root nutrient film technique, and (c) detailed diagram of the split root nutrient film technique from the front. The photograph was taken just before harvest (6 Weeks).

Figure 1. (a) Photographs of the experimental devices, (b) detailed diagram of the split root nutrient film technique, and (c) detailed diagram of the split root nutrient film technique from the front. The photograph was taken just before harvest (6 Weeks).

Plants were transplanted from the growth chamber to these systems in the greenhouse at 14 days after seeding (Figure 2). All plants were irrigated with the same nutrient solution (EC 1.8 dS∙m^-1) for the initial 2 days or 3 days after transplanting (Figure 2).

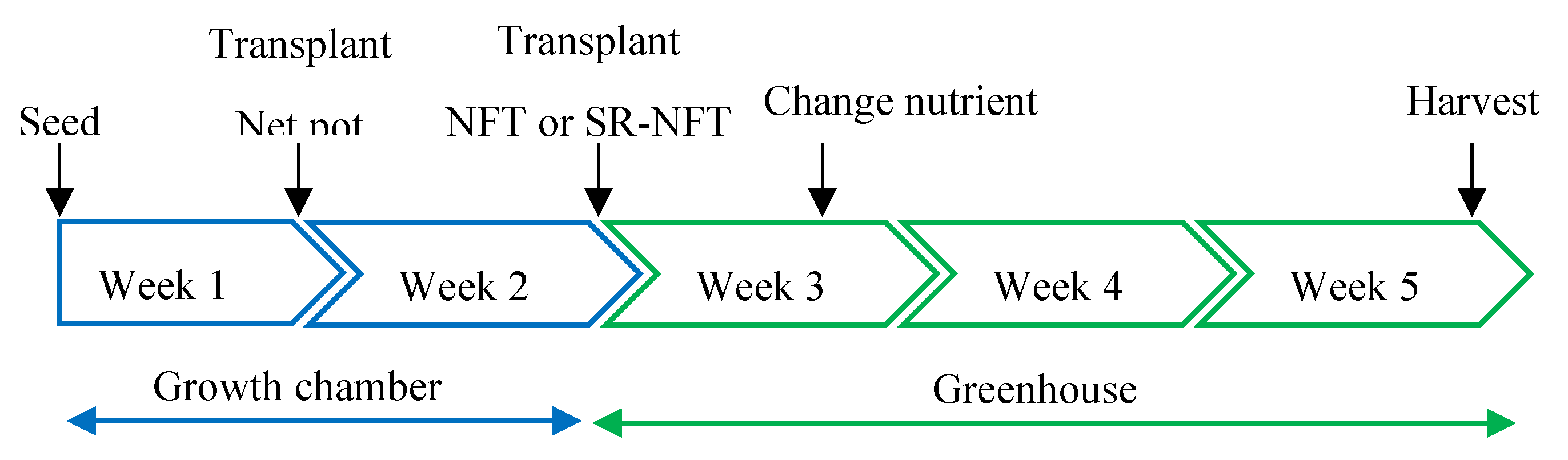

Figure 2. Timeline of this experiment.

Figure 2. Timeline of this experiment.

After that the following treatments were used: Low (L, EC=0.5 dS∙m^-1), Medium (M, EC=1.8 dS∙m^-1), or High (H, EC=3.1 dS∙m^-1). Two emitters (12.1 L∙h^-1) were used to supply nutrients to each NFT channel. For each crop cycle we had two blocks (each with one NFT channel consisting of 7 plants per treatment) with a total of three replicate crop cycles. The following treatments were implemented; control (no split root, traditional NFT): MM and five split root treatments based on a combination of EC conditions (SR-NFT treatments, beginning with an S): SMM, SML, SHM, SHL and SHH (Table 1). The circulating hydroponics nutrient solution was made by combing equal parts (0.99 g∙L^-1 each for EC 1.8 dS∙m^-1, 1.82 g∙L^-1 each for EC 3.1 dS∙m^-1) of 5 N-12 P-26 K part A (J.R. Peter’s Inc., Allentown, PA, USA) and 15.5 N-0 P-0 K YaraLiva Calcinit (Yara International, Oslo, Norway) [22] (Table 2). The clear water had an EC of 0.5 dS∙m^-1. The nutrient solution pH was adjusted daily to a range of 5.5-6.0 using 1 M KOH and 1 M H₂SO₄. Each nutrient solution was measured daily for pH, EC and water temperature (Bluelab Combo Meter; Bluelab, New Zealand) (Table 3).

Table 1. Six experimental treatments. The EC was adjusted to be 0.5, 1.8, and 3.1 dS∙m^-1. System used NFT or SR-NFT.

Treatment	EC (dS∙m-1)		System
	Left	Right
MM	M (1.8)		NFT
SMM	M (1.8)	M (1.8)	SR-NFT
SML	M (1.8)	L (0.5)	SR-NFT
SHM	H (3.1)	M (1.8)	SR-NFT
SHL	H (3.1)	L (0.5)	SR-NFT
SHH	H (3.1)	H (3.1)	SR-NFT

Table 1. Six experimental treatments. The EC was adjusted to be 0.5, 1.8, and 3.1 dS∙m^-1. System used NFT or SR-NFT.

Treatment	EC (dS∙m-1)		System
	Left	Right
MM	M (1.8)		NFT
SMM	M (1.8)	M (1.8)	SR-NFT
SML	M (1.8)	L (0.5)	SR-NFT
SHM	H (3.1)	M (1.8)	SR-NFT
SHL	H (3.1)	L (0.5)	SR-NFT
SHH	H (3.1)	H (3.1)	SR-NFT

Table 2. The nutrient solution recipe.

	ppm
Nitrogen (N)	150
Phosphorus (P)	39
Potassium (K)	162
Calcium (Ca)	139
Magnesium (Mg)	47
Iron (Fe)	2.3
Manganese (Mn)	0.38
Zinc (Zn)	0.11
Boron (B)	0.38
Copper (Cu)	0.113
Molybdenum (Mo)	0.075

Table 2. The nutrient solution recipe.

	ppm
Nitrogen (N)	150
Phosphorus (P)	39
Potassium (K)	162
Calcium (Ca)	139
Magnesium (Mg)	47
Iron (Fe)	2.3
Manganese (Mn)	0.38
Zinc (Zn)	0.11
Boron (B)	0.38
Copper (Cu)	0.113
Molybdenum (Mo)	0.075

Table 3. The pH and EC of three different tanks from the time of transplanting in NFT or SR-NFT and setting the nutrient solution to the conditions in Table 1 to harvest. The tank is adjusted to have Low (EC= 0.5 dS∙m^-1), Middle (EC 1.8 dS∙m^-1) and High (EC= 3.1 dS∙m^-1).

	Tank	1st trial		2nd trial		3rd trial
		Mean	(SE)	Mean	(SE)	Mean	(SE)
pH	High	5.6	(0.04)	6.0	(0.04)	6.0	(0.05)
	Middle	6.0	(0.04)	6.1	(0.06)	6.1	(0.05)
	Low	5.7	(0.05)	6.2	(0.06)	6.2	(0.06)
EC (dS∙m-1)	High	3.1	(0.02)	3.0	(0.03)	3.0	(0.03)
	Middle	1.8	(0.01)	1.8	(0.01)	1.9	(0.02)
	Low	0.5	(0.04)	0.7	(0.03)	0.7	(0.02)

Table 3. The pH and EC of three different tanks from the time of transplanting in NFT or SR-NFT and setting the nutrient solution to the conditions in Table 1 to harvest. The tank is adjusted to have Low (EC= 0.5 dS∙m^-1), Middle (EC 1.8 dS∙m^-1) and High (EC= 3.1 dS∙m^-1).

	Tank	1st trial		2nd trial		3rd trial
		Mean	(SE)	Mean	(SE)	Mean	(SE)
pH	High	5.6	(0.04)	6.0	(0.04)	6.0	(0.05)
	Middle	6.0	(0.04)	6.1	(0.06)	6.1	(0.05)
	Low	5.7	(0.05)	6.2	(0.06)	6.2	(0.06)
EC (dS∙m-1)	High	3.1	(0.02)	3.0	(0.03)	3.0	(0.03)
	Middle	1.8	(0.01)	1.8	(0.01)	1.9	(0.02)
	Low	0.5	(0.04)	0.7	(0.03)	0.7	(0.02)

Temperature and light in the greenhouse were recorded and controlled by the Argus control system. Daily light integral (DLI) is typically set at 17 mol∙m²∙d^-1 for lettuce [23]. In this experiment, however, the DLI was set to higher than DLI 19 mol∙m²∙d^-1 to encourage tipburn expression (Table 4, Figure 3). Photosynthetically Active Radiation was logged using a single full spectrum quantum sensor (SQ-520, Apogee Instruments, Logan, UT, USA) for each block. The supplemental lighting schedule was about 18 to 19 hours daily, fine-scale adjustment was made for each trial to take into account seasonal patterns in ambient DLI to achieve >19 mol∙m²∙d^-1.

Table 4. The temperature (C°) and humidity (%) and DLI (mol∙m^-2∙d^-1) mean and Standard error (SE) of the greenhouse after transplanting.

	1st trial		2nd trial		3rd trial
	Mean	(SD)	Mean	(SD)	Mean	(SD)
Temperature (C°)	22.6	(0.1)	21.9	(0.1)	21.8	(0.1)
Humidity (%)	64.4	(0.6)	64.8	(0.6)	61.3	(0.6)
DLI (mol/m2/d)	20.8	(0.4)	19.3	(0.7)	20.1	(0.5)

Table 4. The temperature (C°) and humidity (%) and DLI (mol∙m^-2∙d^-1) mean and Standard error (SE) of the greenhouse after transplanting.

	1st trial		2nd trial		3rd trial
	Mean	(SD)	Mean	(SD)	Mean	(SD)
Temperature (C°)	22.6	(0.1)	21.9	(0.1)	21.8	(0.1)
Humidity (%)	64.4	(0.6)	64.8	(0.6)	61.3	(0.6)
DLI (mol/m2/d)	20.8	(0.4)	19.3	(0.7)	20.1	(0.5)

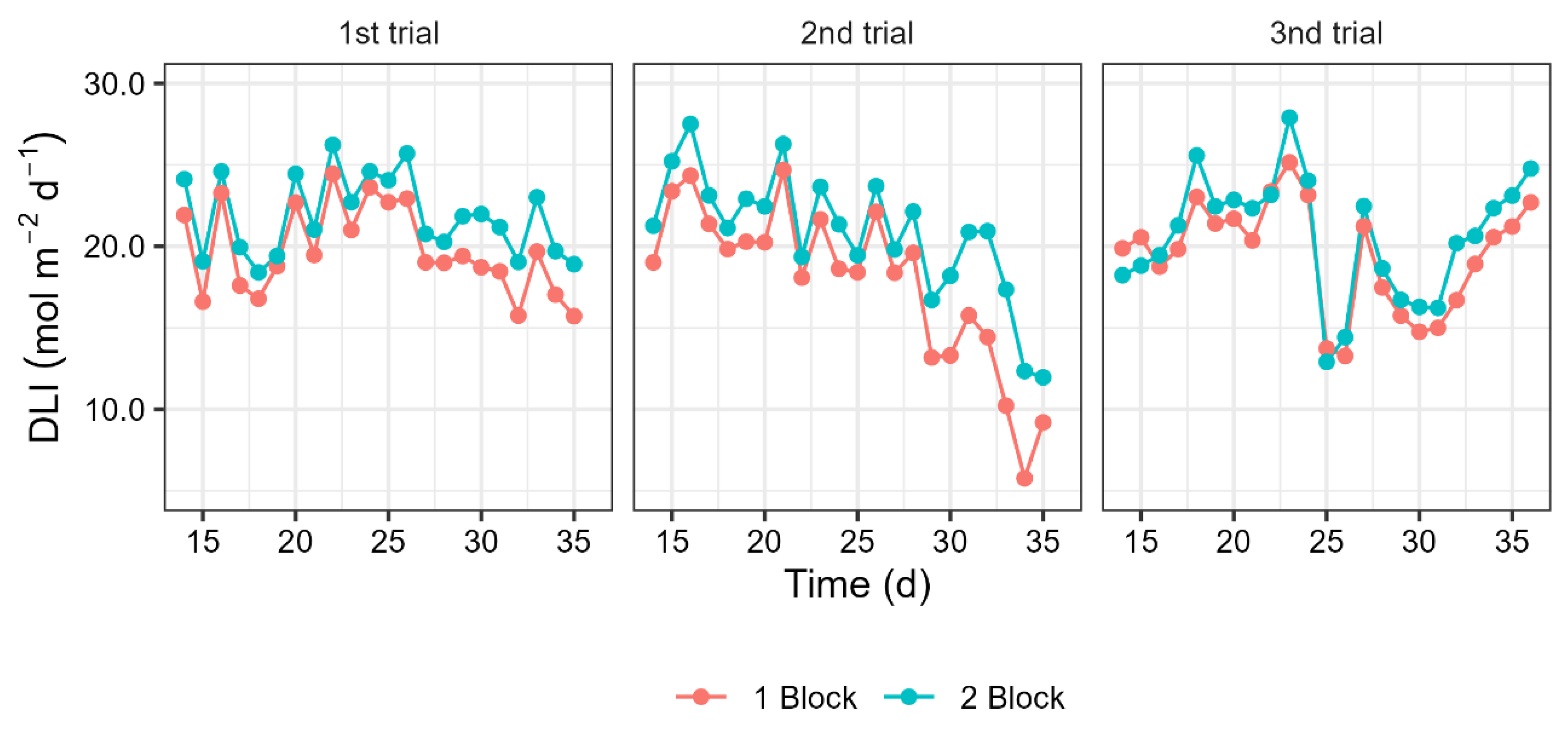

Figure 3. Daily light integral each trial.

Figure 3. Daily light integral each trial.

2.3. Measurements

The following measurements were collected on a weekly basis: tipburn index (The same person evaluated the score from 0 (none) to slight (1 point), medium (3 points), and heavy (5 points) (Figure 4) [24].), height (from base to tallest leaf), diameter (two measurements taken at widest point and perpendicular to that point), and SPAD chlorophyll index (SPAD-502; Konica Minolta Sensing, INC).

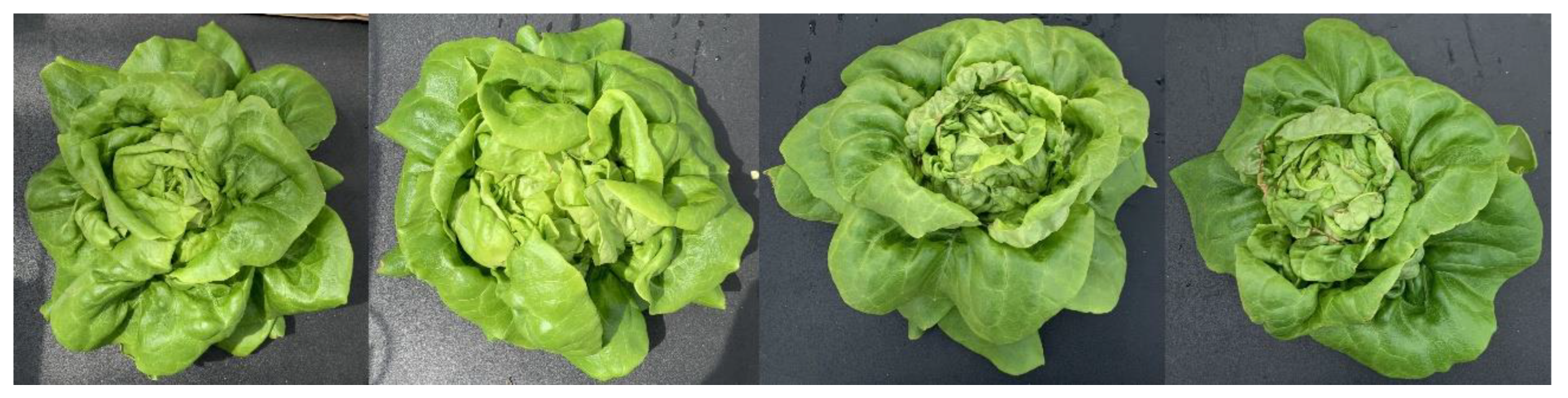

Figure 4. Tipburn index used in this research. Tipburn symptoms were scored from left to light; 0 (none) to slight (1 point), medium (3 points), and heavy (5 points).

Figure 4. Tipburn index used in this research. Tipburn symptoms were scored from left to light; 0 (none) to slight (1 point), medium (3 points), and heavy (5 points).

Volume was calculated assuming an ellipsoid with the following equation:

$$V={\displaystyle \frac{4}{3}}\pi \times {\displaystyle \frac{D_1}{2}}\times {\displaystyle \frac{D_2}{2}}\times H$$

(1)

V =Volume (cm³); D₁ =D₂ = Diameter (cm); H = Height (cm).

All plants were measured for shoot fresh weight (SFW), shoot dry weight (SDW), root dry weight (RDW), leaf count and tipburn count (number of leaves with symptoms of tipburn) at harvest in Week 5. Seedlings were placed in a paper bag and into a mechanical convection oven (Freas 645; Thermo Electron Corp., Marietta, OH, USA) maintained at 70 °C for a minimum of 3 d to measure SDW and RDW. Tissue from 14 plants were pooled together, and ground to a fine powder. Three grams from each sample were submitted for tissue elemental analysis (JR PETERS LABORATORY).

2.4. Statistical analysis

The experiment was replicated over time for three trials. Within each trial there were 2 blocks with each containing all 6 SRS treatments where a randomized complete block design was used to determine the location for each treatment. Each SRS treatment was one NFT channel containing 7 plants. Treatments within a block were re-randomized for each trial. All data was analyzed using Rstudio. Analysis of variance (ANOVA) and Tukey’s honest significance difference (HSD) test were used to determine differences in measurements based on each treatment. Plants used for the data were six plants per block, 36 plants per treatment in total, with the lowest SFW for each treatment excluded.

3. Results

3.1. Shoot

Volume increased over time in all treatments, with SHL showing the largest values, but not significantly different for all treatments and times (Table 5). SPAD decreased once from week 3 of transplanting in all treatments and showed a maximum value in week 5 of the harvest. There are also no significant differences for all treatments and times (Table 5). Tipburn was observed only in SHH in week 3, but not significantly different at all treatments. In Week 4, all treatments showed tipburn expression, with SHH having the highest value, and MM, SMM, and SML showing significant differences from SHH. In Week 5, like Week 4, SHH had the highest value, and MM and SML were significantly different from SHH (Table 5).

Table 5. Volume, SPAD and tipburn index of lettuce ‘Rex’ every week. Data represent means and standard errors (SE) calculated in two blocks of six plants in three replications in a completely randomized block design.

Time	Treatment	Volume (cm3)			SPAD			Tipburn index (1 – 5)
(Weeks)		Mean	(SE)		Mean	(SE)		Mean	(SE)
2	MM	185.1	(18.7)	a1	25.0	(0.5)	a	0.0	(0.0)	a
	SMM	211.4	(19.1)	a	25.3	(0.5)	a	0.0	(0.0)	a
	SML	199.5	(19.3)	a	25.0	(0.5)	a	0.0	(0.0)	a
	SHM	206.8	(19.5)	a	24.9	(0.4)	a	0.0	(0.0)	a
	SHL	204.6	(19.4)	a	24.9	(0.5)	a	0.0	(0.0)	a
	SHH	212.9	(19.7)	a	25.0	(0.5)	a	0.0	(0.0)	a
3	MM	564.3	(32.4)	a	24.2	(0.3)	a	0.0	(0.0)	a
	SMM	640.0	(53.1)	a	24.5	(0.4)	a	0.0	(0.0)	a
	SML	532.1	(39.8)	a	24.5	(0.3)	a	0.0	(0.0)	a
	SHM	577.9	(44.7)	a	24.3	(0.3)	a	0.0	(0.0)	a
	SHL	587.4	(39.3)	a	24.8	(0.3)	a	0.0	(0.0)	a
	SHH	628.4	(43.2)	a	24.8	(0.4)	a	0.1	(0.0)	a
4	MM	1741.6	(65.5)	a	24.8	(0.4)	a	0.4	(0.1)	b
	SMM	1915.4	(80.9)	a	24.9	(0.3)	a	0.4	(0.1)	b
	SML	1682.5	(90.3)	a	24.5	(0.4)	a	0.4	(0.1)	b
	SHM	1815.1	(82.8)	a	25.0	(0.4)	a	0.6	(0.1)	ab
	SHL	1939.4	(74.5)	a	24.8	(0.4)	a	0.6	(0.1)	ab
	SHH	1846.9	(77.2)	a	25.3	(0.4)	a	1.1	(0.2)	a
5	MM	3073.3	(81.9)	a	28.2	(0.4)	a	1.7	(0.2)	b
	SMM	3092.7	(81.9)	a	28.5	(0.4)	a	1.9	(0.2)	ab
	SML	3154.9	(96.6)	a	27.7	(0.3)	a	1.4	(0.2)	b
	SHM	3051.9	(78.3)	a	28.2	(0.4)	a	2.2	(0.2)	ab
	SHL	3326.2	(76.8)	a	28.0	(0.3)	a	2.1	(0.2)	ab
	SHH	3098.6	(79.0)	a	28.9	(0.4)	a	2.7	(0.3)	a

¹ Means with different letters are significantly different using Tukey’s honestly significance difference test at p ≤ 0.05.

Table 5. Volume, SPAD and tipburn index of lettuce ‘Rex’ every week. Data represent means and standard errors (SE) calculated in two blocks of six plants in three replications in a completely randomized block design.

Time	Treatment	Volume (cm3)			SPAD			Tipburn index (1 – 5)
(Weeks)		Mean	(SE)		Mean	(SE)		Mean	(SE)
2	MM	185.1	(18.7)	a1	25.0	(0.5)	a	0.0	(0.0)	a
	SMM	211.4	(19.1)	a	25.3	(0.5)	a	0.0	(0.0)	a
	SML	199.5	(19.3)	a	25.0	(0.5)	a	0.0	(0.0)	a
	SHM	206.8	(19.5)	a	24.9	(0.4)	a	0.0	(0.0)	a
	SHL	204.6	(19.4)	a	24.9	(0.5)	a	0.0	(0.0)	a
	SHH	212.9	(19.7)	a	25.0	(0.5)	a	0.0	(0.0)	a
3	MM	564.3	(32.4)	a	24.2	(0.3)	a	0.0	(0.0)	a
	SMM	640.0	(53.1)	a	24.5	(0.4)	a	0.0	(0.0)	a
	SML	532.1	(39.8)	a	24.5	(0.3)	a	0.0	(0.0)	a
	SHM	577.9	(44.7)	a	24.3	(0.3)	a	0.0	(0.0)	a
	SHL	587.4	(39.3)	a	24.8	(0.3)	a	0.0	(0.0)	a
	SHH	628.4	(43.2)	a	24.8	(0.4)	a	0.1	(0.0)	a
4	MM	1741.6	(65.5)	a	24.8	(0.4)	a	0.4	(0.1)	b
	SMM	1915.4	(80.9)	a	24.9	(0.3)	a	0.4	(0.1)	b
	SML	1682.5	(90.3)	a	24.5	(0.4)	a	0.4	(0.1)	b
	SHM	1815.1	(82.8)	a	25.0	(0.4)	a	0.6	(0.1)	ab
	SHL	1939.4	(74.5)	a	24.8	(0.4)	a	0.6	(0.1)	ab
	SHH	1846.9	(77.2)	a	25.3	(0.4)	a	1.1	(0.2)	a
5	MM	3073.3	(81.9)	a	28.2	(0.4)	a	1.7	(0.2)	b
	SMM	3092.7	(81.9)	a	28.5	(0.4)	a	1.9	(0.2)	ab
	SML	3154.9	(96.6)	a	27.7	(0.3)	a	1.4	(0.2)	b
	SHM	3051.9	(78.3)	a	28.2	(0.4)	a	2.2	(0.2)	ab
	SHL	3326.2	(76.8)	a	28.0	(0.3)	a	2.1	(0.2)	ab
	SHH	3098.6	(79.0)	a	28.9	(0.4)	a	2.7	(0.3)	a

¹ Means with different letters are significantly different using Tukey’s honestly significance difference test at p ≤ 0.05.

Regarding biomass, when medium EC solution was used for both split root sections (i.e. SMM) SFW was not statistically larger than the traditional NFT with medium EC (i.e. MM). However, numerically SFW was 9% greater for SMM vs. MM (Figure 5a). SHL and SHH had a 15% greater SFW than MM. While the treatments SHL and SHH were not statistically greater than SMM, there was a numerical pattern of 5% and 6% greater SFW than SMM SDW showed almost the same pattern as SFW (Figure 5a). SHL, SHH and SHM were 14%, 16% and 14% higher than MM and significantly different. SMM was 5% higher than MM, but not significant difference (Figure 5b). Ft SR-NFT was shown to be equal or higher in both SFW and SDW than traditional NFT.

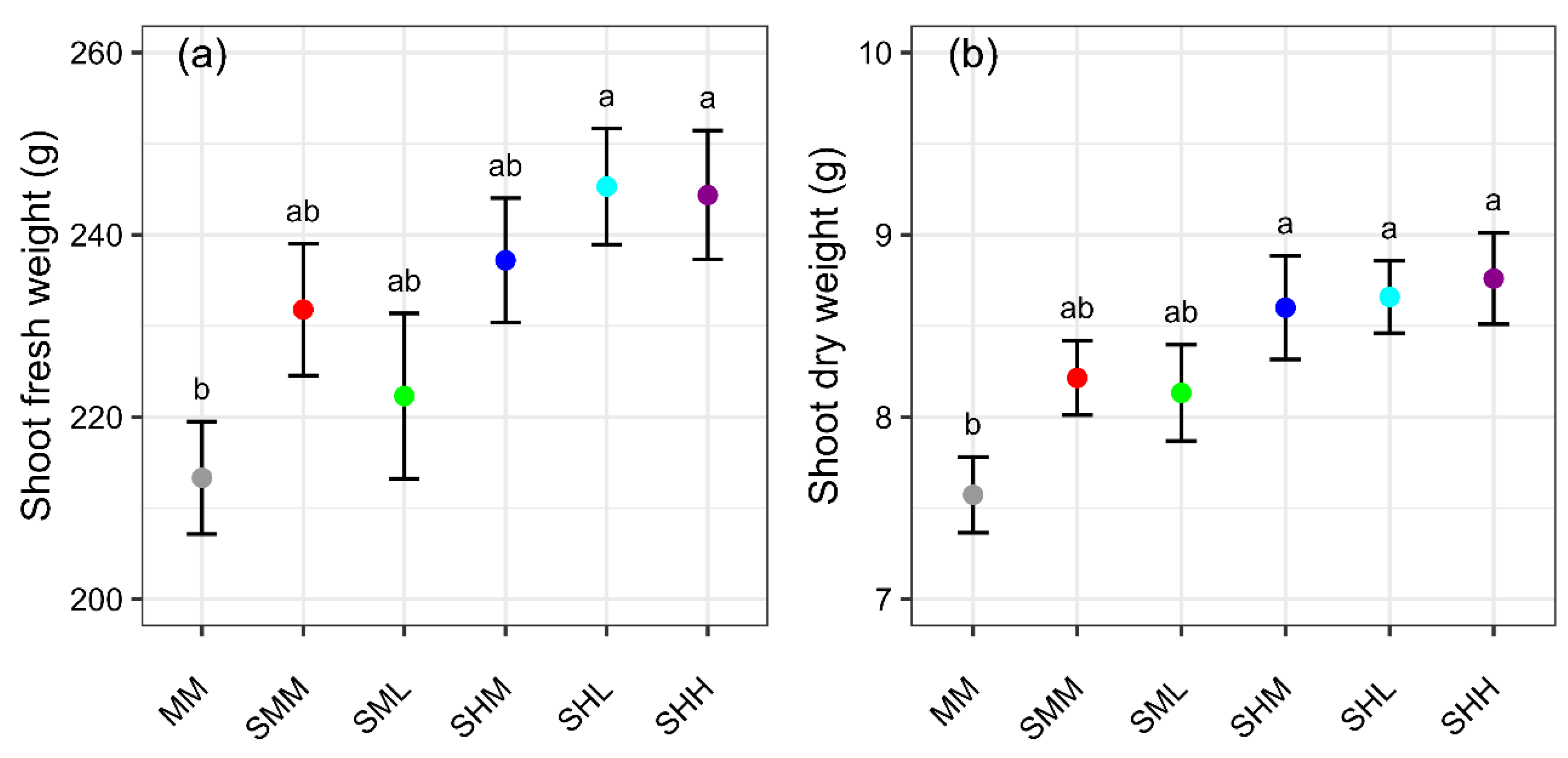

Figure 5. (a) Shoot fresh weight (SFW) and (b) shoot dry weight (SDW) of lettuce ‘Rex’ at harvest (five weeks). Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Figure 5. (a) Shoot fresh weight (SFW) and (b) shoot dry weight (SDW) of lettuce ‘Rex’ at harvest (five weeks). Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

There was no statistically significant difference in the number of leaves at harvest, though there is a numerical pattern similar to SFW/SDW whereby some SR-NFT combinations had more leaves than control treatment MM (Figure 6a). SHH had the greatest number of tipburn leaves which was greater than MM, SMM, and SML. SHL and SHM had statistically the same number of tipburn leaves as MM, SMM, and greater than SML (Figure 6b).

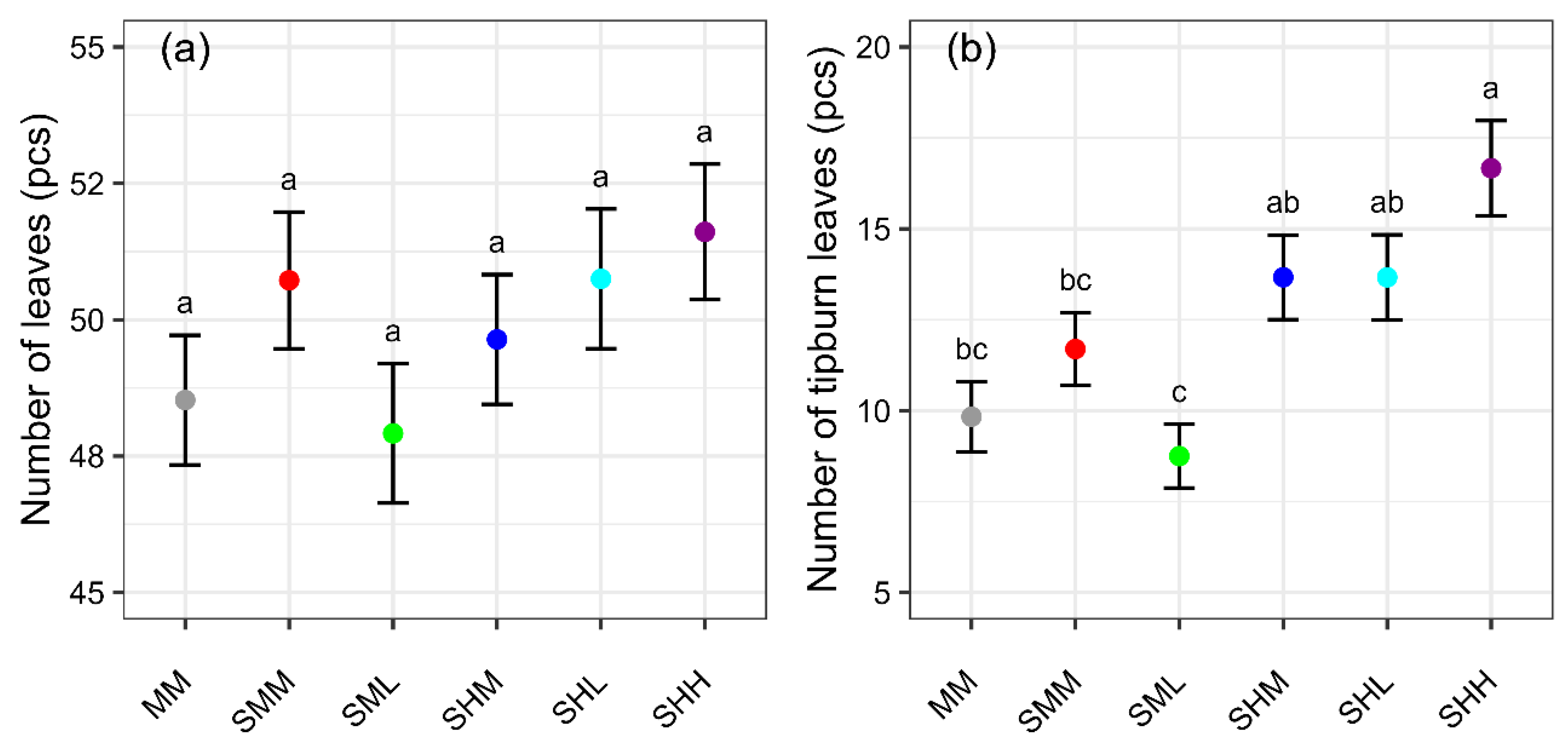

Figure 6. (a) Number of leaves and (b) number of tipburn leaves of lettuce ‘Rex’ at harvest (five weeks). Data represents means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Figure 6. (a) Number of leaves and (b) number of tipburn leaves of lettuce ‘Rex’ at harvest (five weeks). Data represents means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Water content was calculated with the following equation:

$$WC={\displaystyle \frac{SFW-SDW}{SFW}}\times 100$$

(2)

WC =Water content (%), SFW = Shoot fresh weight (g), SDW = Shoot dry weight (g).

Water content was not significantly different based on treatments (Figure 7).

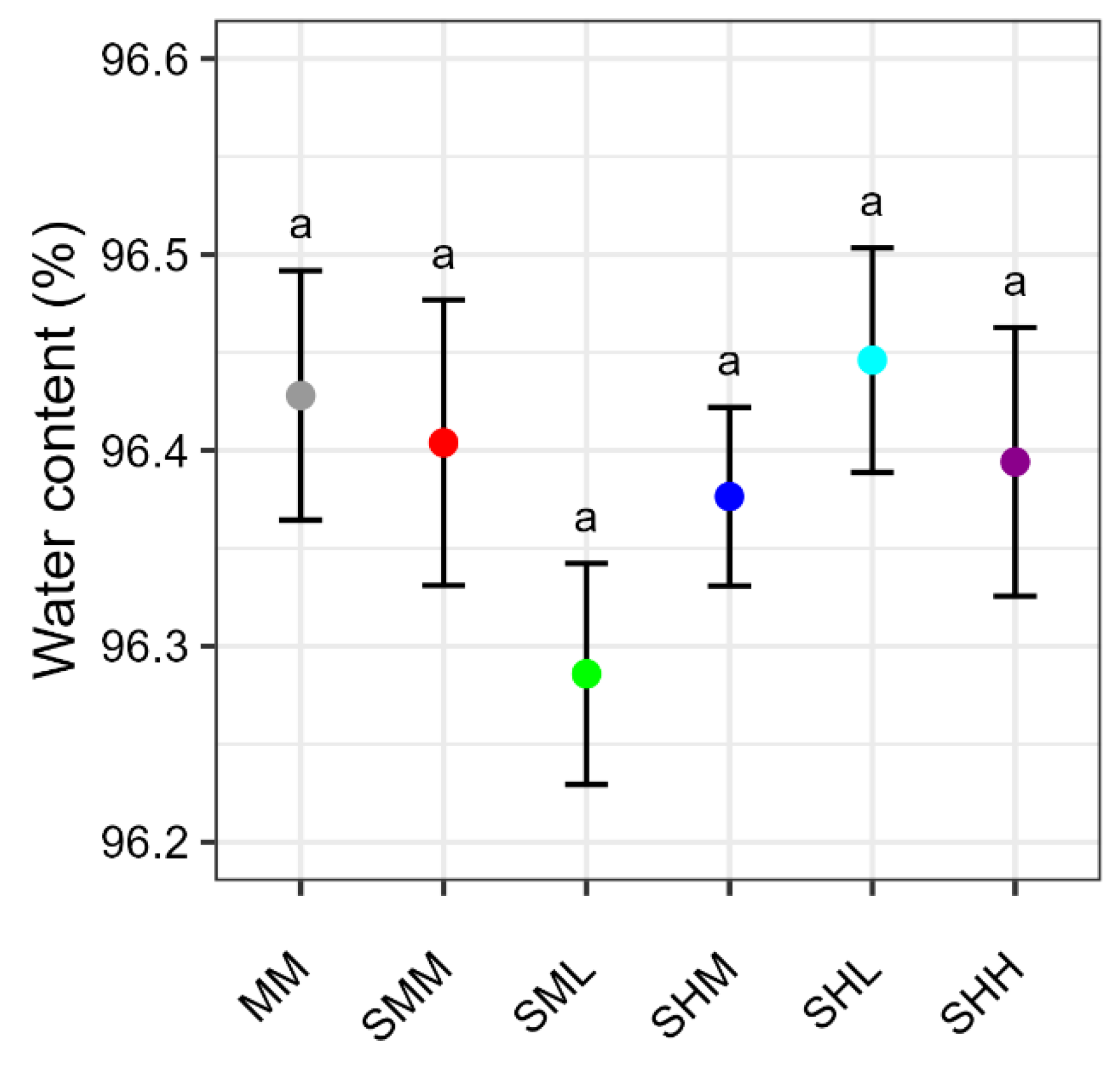

Figure 7. Water content of lettuce ‘Rex’ at harvest (five weeks). Data represents means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Figure 7. Water content of lettuce ‘Rex’ at harvest (five weeks). Data represents means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Leaf tissue nutrient concentration was not affected by split-root treatment for 9 out of 12 evaluated nutrients (N, P, K, Ca, Mg, S, Fe, Mn, B, Cu, Zn, Mo) (Figure 8). The dashed line shows five grades according to Patrick et al. [25]. Below purple indicates deficient levels, between purple and blue low, between blue and red insufficient, between red and green high, and green and above indicate excessive. All except sulfur and copper were sufficient or high. For phosphorus, boron, and molybdenum there was an effect of split-root treatment on leaf concentration. For example, for phosphorus, SHL had greater concentration than SMM. For boron, SMM had greater leaf concentration than MM and SHL while SHL had greater boron concentration than SHL (Figure 8).

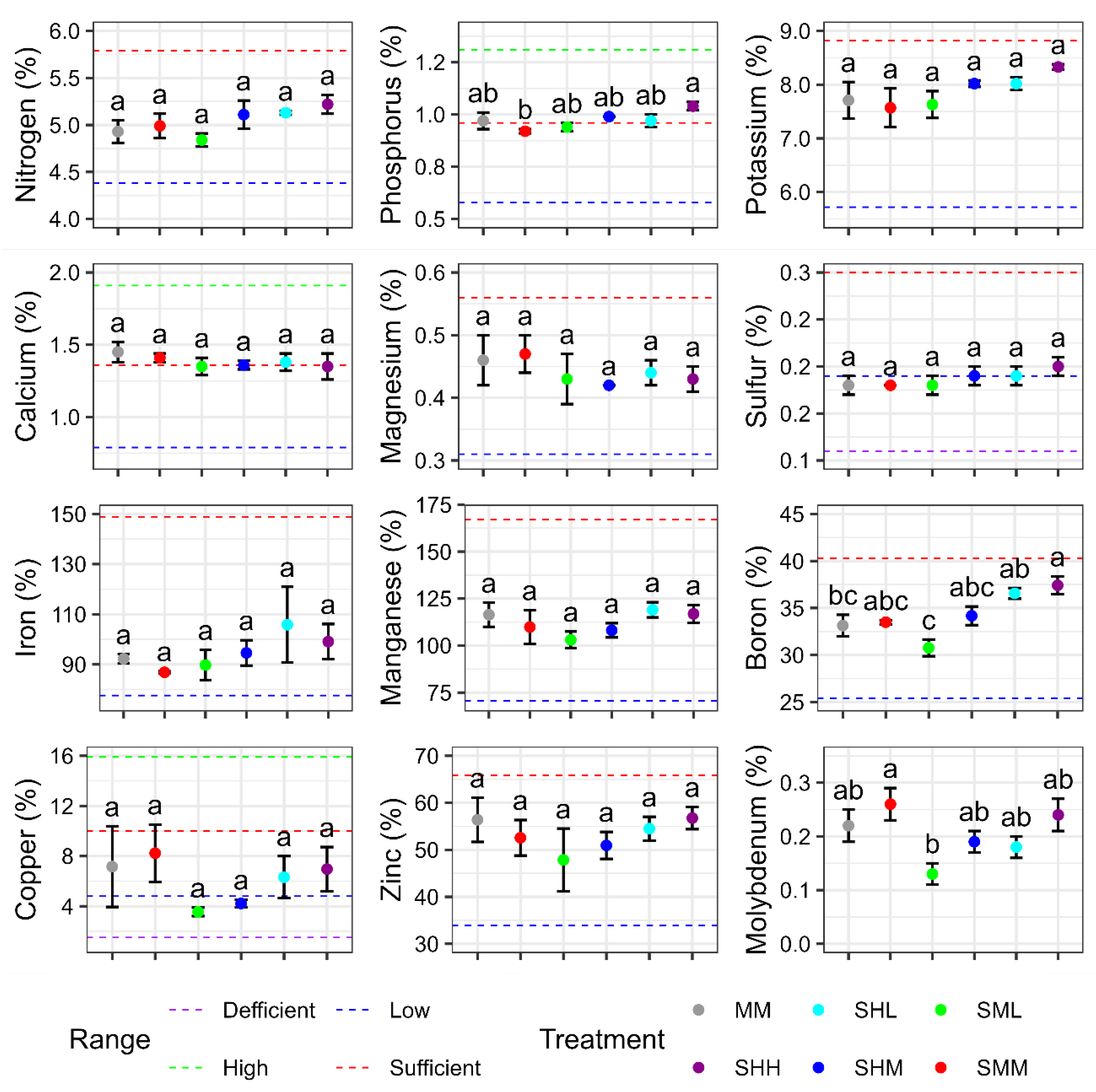

Figure 8. Nutrient concentration for lettuce shoot grown in each treatment. The data is a sample of 14 seedlings mixed per treatment in one trial, repeated three times, and the mean and standard error are expressed as the mean and standard error. The dashed line shows five grades according to Patrick et al. [25]. Below purple indicates deficient, between purple and blue low, between blue and red insufficient, between red and green high, and green and above indicates excessive.

Figure 8. Nutrient concentration for lettuce shoot grown in each treatment. The data is a sample of 14 seedlings mixed per treatment in one trial, repeated three times, and the mean and standard error are expressed as the mean and standard error. The dashed line shows five grades according to Patrick et al. [25]. Below purple indicates deficient, between purple and blue low, between blue and red insufficient, between red and green high, and green and above indicates excessive.

3.2. Root

Total dry weight of roots showed no significant difference between MM and SMM (Figure 9a). SHL exhibited the greatest shoot dry weight which was greater than MM and SMM and SHM. Percent dry matter root was calculated with the following equation:

$$PDMR={\displaystyle \frac{RDW}{RDW+SDW}}\times 100$$

(2)

PDMR = Percent dry matter root (%), PDW = Root dry weight (g), SDW = Shoot dry weight (g).

Percent dry matter root showed almost the same pattern as root dry weight (Figure 9b). MM and SMM were not significantly different. The highest PDMR was for SHL, which was significantly greater than the lowest treatment.

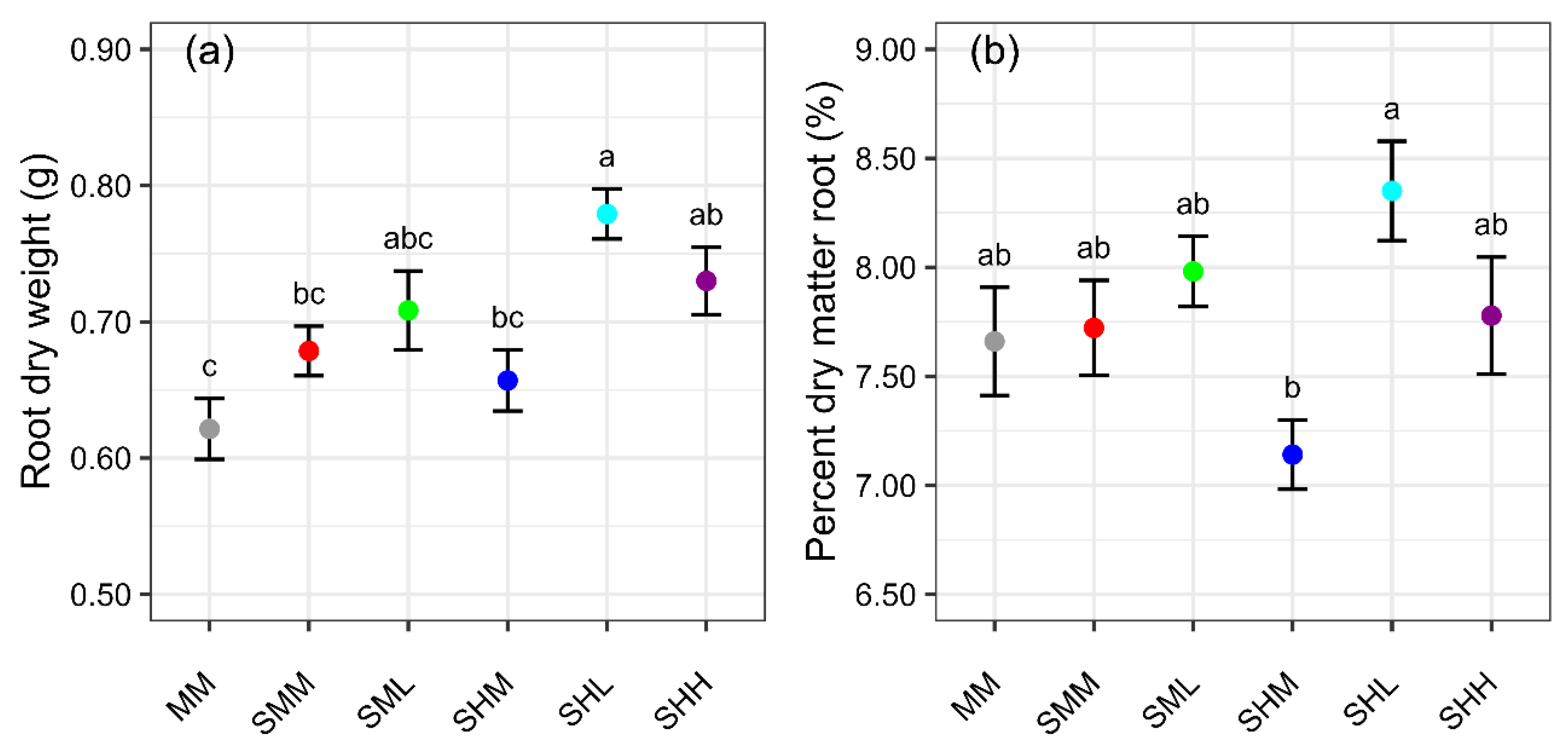

Figure 9. (a) Total root dry weight and (b) percent dry matter root of lettuce ‘Rex’ at harvest (five weeks). Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Figure 9. (a) Total root dry weight and (b) percent dry matter root of lettuce ‘Rex’ at harvest (five weeks). Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

The left side was supplied with a higher or the same concentration of nutrient solution compared to the right side. SMM and SHH had the same concentration of nutrient solution supplied and almost the same RDW on both left and right sides, not significantly different (Figure 10a). The root rate is also close to 50% (Figure 10b). SML and SHM had an EC difference of 1.3 dS∙m^-1 between the left and right nutrient solution. RDWs on the left side of SML and SHM and on the right side of SML and SHM are almost the same and not significantly different (Figure 10a). SML and SHM root rates showed more roots on the left side (Figure 10b). SHH had an EC difference of 2.6 dS∙m^-1 between the left and right nutrient solution. SHL is highest on the left side RDW and significantly different (Figure 10a). SHL was shown to have 67.8% of roots on the left side (Figure 10b).

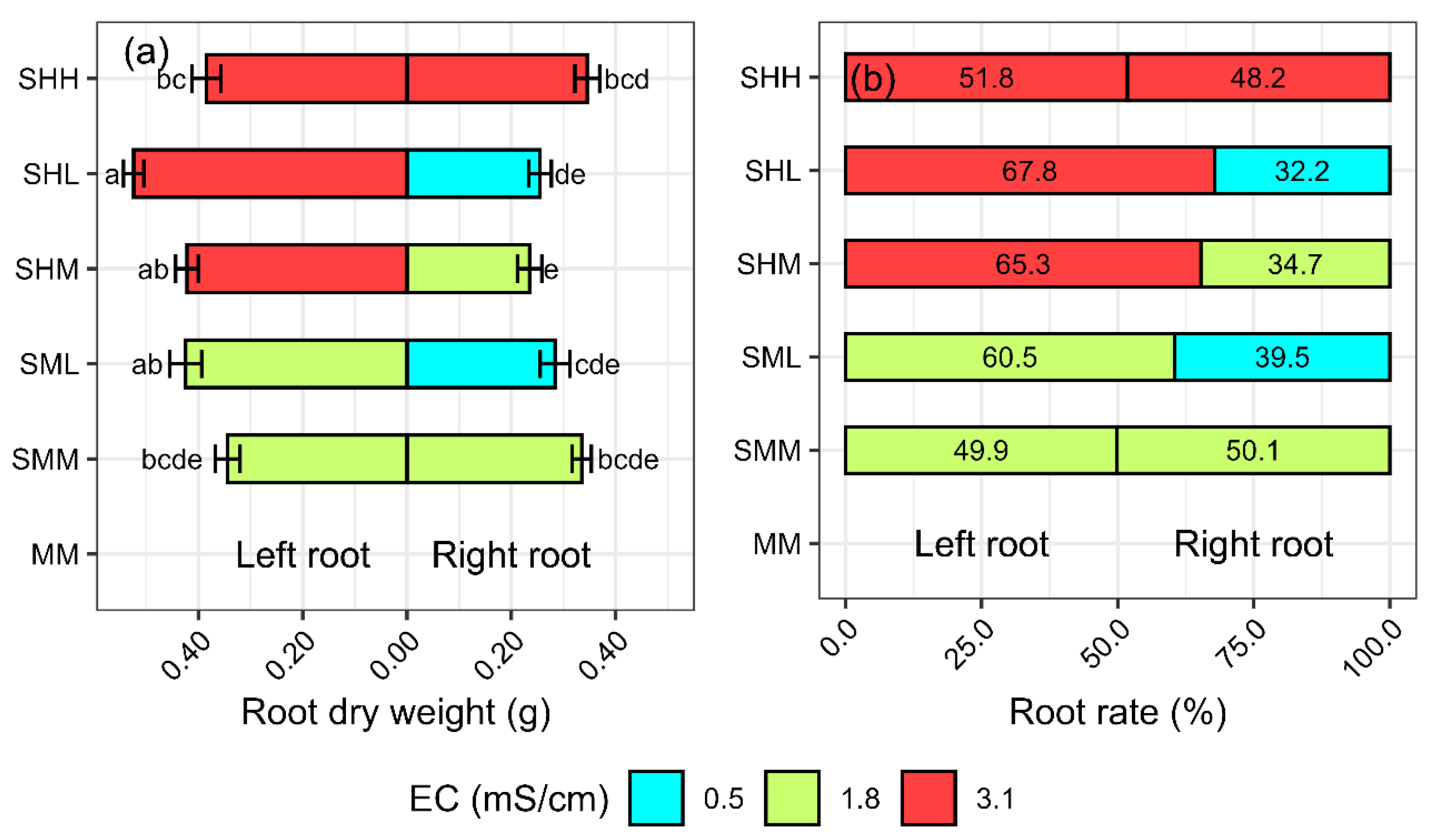

Figure 10. (a) Each root dry weight on the left and right and (b) percentage of each root divided by the total root dry weight of lettuce ‘Rex’ at harvest (five weeks). The values in the graph (b) show the percentage of each root. Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Figure 10. (a) Each root dry weight on the left and right and (b) percentage of each root divided by the total root dry weight of lettuce ‘Rex’ at harvest (five weeks). The values in the graph (b) show the percentage of each root. Data represent means and standard errors calculated in two blocks of six plants in three replications in a completely randomized block design. Letters represent mean separation comparison using Tukey’s Honestly Significant Difference (alpha = 0.05).

Table 6. p-value of shoot fresh weight, shoot dry weight, root dry weight, number of leaves, and number of tipburn leaves.

	Treatment	Trial	Treatment × Trial
Shoot fresh weight	***	***	*
Shoot dry weight	***	***	NS
Root dry weight	***	***	NS
Number of leaves	NS	***	NS
Number of tipburn leaves	***	***	*

NS, *, **, *** denotes nonsignificant or significant at p ≦ 0.05, 0.01, or 0.001, respectively.

Table 6. p-value of shoot fresh weight, shoot dry weight, root dry weight, number of leaves, and number of tipburn leaves.

	Treatment	Trial	Treatment × Trial
Shoot fresh weight	***	***	*
Shoot dry weight	***	***	NS
Root dry weight	***	***	NS
Number of leaves	NS	***	NS
Number of tipburn leaves	***	***	*

NS, *, **, *** denotes nonsignificant or significant at p ≦ 0.05, 0.01, or 0.001, respectively.

4. Discussion

Comparing MM, SMM and SHL, (all had the same average EC of 1.8 dS∙m^-1), SFW was significantly higher (by 15%) for SHL compared to MM. This result indicated that SFW increased with SRS at uneven concentrations. The number of tipburn leaves and calcium concentration in leaf tissue was not significantly different in SHL and MM. This is an interesting finding as typical lettuce plants with a larger biomass have greater incidence of tipburn [23]. Growing tomatoes under uneven nutrient concentrations, resulted in increased SFW and lower incidence of blossom end rot (BER) caused by calcium deficiency more than under uniform nutrient concentrations [17]. There is a strong correlation between the incidence of BER and the amount of exudation. When nutrients are unevenly distributed, exudation increases due to low osmotic pressure in low-concentration areas, resulting in a lower incidence of BER. Supplying low concentrations of nutrients or only calcium nitrate at night reduced tipburn without reducing lettuce yields [11]. The calcium content of young leaves was also found to be higher when supplied at lower concentrations or only with calcium nitrate during the night. The research team hypothesized that supplying low concentrations or calcium nitrate at night increased root pressure, causing the plants to absorb more calcium during the night. Increasing root pressure flow successfully prevented leaf tipburn in cabbage [26]. In an experiment with strawberries, low concentrations of nutrient solution at night causes positive water pressure in the xylem, which results in greater calcium translocation to the leaves [27]. Therefore, we conclude that our experimental SHL treatment decreased tipburn, in part due to the low EC nutrient solution side facilitating greater calcium uptake at night. Francisco et al. showed that when nutrient concentrations were higher at night than during the day, shoot fresh weight did not differ but nutrient content decreased compared to when concentrations were the same during the day and at night for lettuce [28]. This allows the same yield with less fertilizer. The total root dry weight was 25% higher for SHL than MM. The dry weight of SHL root at the higher concentration was 5% greater than at the lower concentration.

All nutrients in leaf tissue were not significantly different between SHL and MM. When P. Laine et al. used SR-NFT to locally supply nitrate to plant roots, root dry weight was greater in the nutrient solution containing nitrate than in the nutrient solution without nitrate [18]. Furthermore, the rate of nitrate uptake was the same as plants that were uniformly supplied with nitrate. These assisted in supplementing the nitrate deficiency. Anna et al. showed that localized supply of nitrate increased the rate of nitrate uptake [29]. Therefore, localized supply of nitrate, or non-uniform concentration, increases the dry weight of roots and the rate of nitrate absorption. The increased dry weight of the roots is also thought to increase the root surface area, and therefore other nutrients may have been absorbed to a greater extent.

Comparing SMM (EC 1.8 dS∙m^-1) and SHH (EC 3.1 dS∙m^-1), which were supplied in even concentration to both sides of the roots, SFW and SDW were higher for SHH than SMM but not significantly different. The number of tipburn leaves were significantly greater for SHH than SMM. However, Samarakoon et al. showed that SFW and tipburn increased from EC 1.4 to 1.8 dS∙m^-1 yet decreased from EC 1.8 to 2.0 dS∙m^-1 [8]. Serio et al. showed that SFW reaches a maximum at EC 1.5 dS∙m^-1 and decreases as EC increases (EC 2.5, 3.5 dS∙m^-1) [30]. Scuderi et al. conducted experiments under high EC (2.8, 3.8, 4.8 dS∙m^-1) and showed that the yield was maximum at EC 2.8 dS∙m^-1 and decreased with increasing EC [31]. Previous research has shown that too high EC decreases SFW, but the suitable EC depends on the cultivar. If the Mattson et al. nutrient solution recipe we referred to uses water with EC 0 dS∙m^-1, the solution will be EC 1.8 dS∙m^-1 [22]. This would suggest that EC 3.1 dS∙m^-1 is too high and therefore SFW would decrease. However, our experiments showed the opposite result. This result may have been affected by the cultivar or SR-NFT, but further research is needed.

There were statistically significant differences observed in the number of tipburn leaves in SR-NFT (SML vs SHM, SHL, SHH). As mentioned above, this result may be due to the lower EC nutrient solution side, which promotes calcium uptake at night, thus leading to reduced tipburn. There were no statistically significant differences found in SFW and SDW with the SR-NFT treatments (SMM, SML, SHM, SHL, SHH). However, numerically SFW and SDW were greater with higher average EC except for SHL. This result matched that of the tomato experiment, where the combination of high concentration and clear water increased yield more than both medium concentrations, but the combination of medium concentration and clear water did not increase yield [21]. These results indicate that the use of clear water on one side is expected to suppress tipburn or increase yield.

We evaluated the comparative performance of traditional NFT (i.e. MM, no split root with EC 1.8 dS∙m^-1) and SR-NFT (i.e. SMM, EC of 1.8 dS∙m^-1 in both sides of the channel) There were no statistically significant differences in all parameters (volume, SPAD, tipburn index, SFW, SDW, number of leaves, number of tipburn leaves, water content, RDW and percent dry matter root). However, numerically SFW, SDW, and RDW were 8-9% greater for SMM vs MM. The Pearson correlation, which measures the degree of correlation between two variables, showed 0.62 (p<0.001) for SFW and RDW. The increase in RDW is thought to have increased the root surface area. Root length and root surface area are related to the plant’s ability to uptake nutrients [32]. These indicate that the roots absorb more water and nutrients by growing more, resulting in increased SFW and SDW.

Future research should focus on clarifying the absorption mechanism with SR-NFT at uneven concentrations to increase the shoot fresh and dry weight and suppress tipburn. In addition, multiple cultivars should be compared to see if there is a consistent SRS response from one cultivar to another. Our experiments were conducted with hydroponics in greenhouses, but in the future, this strategy could be adopted to outdoor field production. As Jing indicated, irrigating every other row would meet the transpiration demands of the crop and providing a small amount of nutrients in the remaining rows would allow for increased yields and tipburn suppression in fields [33]. In addition, if recirculating aquaponics and conventional hydroponics are used with SR-NFT, it could allow aquaponic nutrients to be supplemented with conventional nutrients which are often lacking in aquaponics solutions.

5. Conclusions

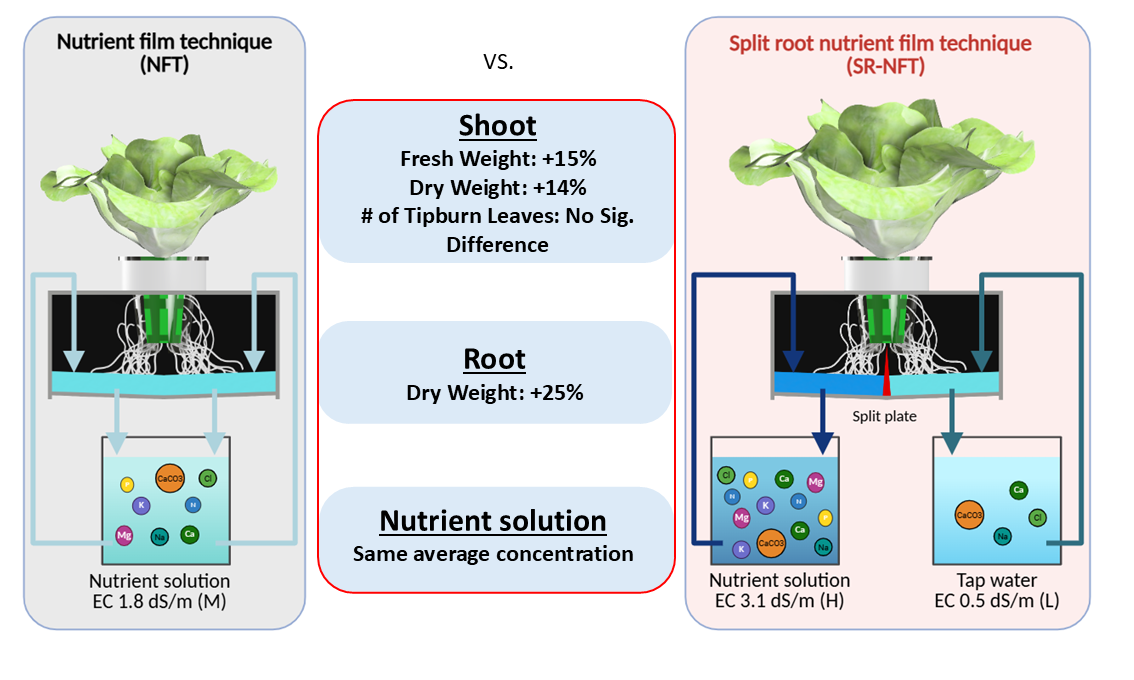

This is the first paper, to our knowledge, to examine the effect of split root nutrient applications on hydroponic lettuce. For the same average concentration of solution (EC 1.8 dS∙m^-1), SR-NFT that supplied different concentrations of solution on the left and right side (i.e. SHL) can increase the shoot fresh weight by 15%, shoot dry weight by 14%, and root dry weight by 25% without increasing tipburn compared to conventional NFT (i.e. MM).

Furthermore, there were no statistically significant differences in all parameters between SR-NFT with the same concentration on the left and right sides (i.e. SMM) and conventional NFT (i.e. MM). This suggests that SRS are more effective when different nutrient concentrations are used.

There were no significant differences in SFW and SDW for SHL vs. SMM, but biomass tended to increase as the average nutrient solution concentration increased in all conditions with the exception of SHL where the concentration difference was greatest. In addition, the lowest concentration (SML) reduced tipburn without reducing the shoot fresh weight in all conditions except SMM. In other words, the use of low EC water on one side is expected to suppress tipburn or increase yield.
