Effects of Aluminium Oxide Content on the Regenerated Magnesia-Calcium Bricks for Cement Rotary Kiln

A peer-reviewed version of this preprint was published in:
Processes 2023, 11(10), 3018. https://doi.org/10.3390/pr11103018

Submitted:

12 September 2023

Posted:

14 September 2023

You are already at the latest version

Abstract
The regenerated magnesia-calcium brick samples that had added 0, 1.5, 3.0 wt.% aluminium oxide (Al2O3) were prepared by using spent magnesia-calcium bricks, fused magnesia and Al2O3 powder additive as the main raw materials. The phases, microstructures, room temperature and hot flexural strength, resistance to cement clinker corrosion and strength of coating adherence were investigated respectively. It indicated that the addition of Al2O3 increased mainly resulting in the content of tetracalcium aluminoferrite (C4AF) and tricalcium aluminate (C3A) increased in the regenerate samples. The bulk density, the room temperature flexural strength and the strength of coating adherence all increased, while the hot flexural strength and corrosion resistance both deteriorated along with the increase of Al2O3 addition. It was because that on the one hand the low melting point phases of C4AF and C3A improved the sinterability of the regenerated samples during the burning stage, on the other hand they melted or existed in liquid phase during the experimental temperature (1573 K and 1823 K) which degraded hot flexural strength and corrosion resistance, and enhanced the strength of coating adherence as the wettability of the liquid phase. The content of Al2O3 in the regenerated magnesia-calcium brick should not be higher than 1.1 wt.%, considering its room and high-temperature performances for cement rotary kiln.
Keywords:
regenerated magnesia-calcium bricks
;
aluminium oxide
;
microstructure
;
flexural strength
;
corrosion resistance
;
coating adherence
Subject:
Chemistry and Materials Science  -   Ceramics and Composites

1. Introduction

Currently, magnesite-chrome bricks have been widely used in cement rotary kiln in China [1]. It has led to serious environmental problems, because the Cr(Ⅲ) is easily oxidized into the toxic Cr(Ⅵ) in magnesite-chrome bricks under natural condition [2], especially spent magnesite-chrome bricks have not been reasonably handle. Therefore, it’s urgently to develop free chrome refractory bricks to substitute for magnesite-chrome bricks in cement rotary kiln [3,4,5].
Magnesia-calcium bricks have been widely used as lining materials in ferrous metallurgy to produce the clean steel such as refining furnace [6], because of their excellent performances [7]. They are also regarded as the substitution of magnesite-chrome bricks for cement rotary kiln [8], because they own the similar operational performances, such as high–temperature resistance, corrosion resistance and good coating adherence, etc. [9,10]. However, the application of magnesia-calcium bricks on cement rotary kiln has been restricted, since they have bad hydration resistance which can result in seriously structural damage [11]. Related researches showed that aluminium oxide (Al2O3) could enhance the hydration resistance of magnesia-calcium bricks [12,13,14].
There are more and more spent magnesia-calcium bricks not being reused effectively [15], because of high impurity content such as Al2O3 that can reduce the usability of regenerated product, and further leads to a new environmental problem. Besides, there was very rare study on the utilization of spent magnesia-calcium bricks [15,16]. A kind of high hydration resistance regenerated magnesia-calcium brick was prepared basing on the spent magnesia-calcium bricks in previous work [14], without removing the impurities of Al2O3 in spent magnesia-calcium bricks. It has not only realized the high reutilization rate of spent magnesia-calcium bricks, but also provided a possible pathway using regenerated magnesia-calcium bricks in the cement rotary kiln to substitute for magnesite-chrome bricks. Nevertheless, high-temperature performances such as high temperature strength and refractoriness need be degraded because of excessive impurity content, particularly the content of Al2O3 [17,18].
Therefore, in this work, the regenerated magnesia-calcium bricks with different content of additive Al2O3 were prepared respectively. The investigation and comparative of their phases, microstructures, room temperature and hot flexural strength, resistance to cement clinker corrosion and strength of coating adherence were carried out successively. This work can also provide a reference for the replacement of hazardous magnesite-chrome bricks in the cement rotary kiln by the regenerated magnesia-calcium bricks.

2. Materials and Methods

2.1. Main Raw Materials of the Regenerated Magnesia-Calcium Bricks

The main raw materials of the regenerated magnesia-calcium bricks were spent magnesia-calcium bricks, fused magnesia and Al2O3 powder additive. The spent magnesia-calcium bricks were from a refining furnace in ferrous industry, the fused magnesia was from a refractory materials plant, and Al2O3 powder additive was a kind of analytical reagent. Their chemical compositions were measured by an 1800 X-ray fluorescence spectrometer (XRF) and the results were shown in Table 1.

2.2. Preparation of the Regenerated Magnesia-Calcium Brick Samples

Figure 1 shows the synthetic process of the regenerated magnesia-calcium bricks. The mixture of the regenerated magnesia-calcium brick green body was prepared by using the main raw materials as show in Table 1, and liquid paraffin as the binder firstly. The green body was prepared by 100 MPa pressing the mixture to form a rectangular of 60 mm × 8 mm × 8 mm subsequently. The regenerated magnesia-calcium brick sample was obtained by firing the green body at 1873 K for 2 h under an air atmosphere finally. In this work, three kinds of regenerated magnesia-calcium brick green bodies containing 0 wt.%, 1.5 wt.%, 3.0 wt.% Al2O3 powder additive were prepared, their compositions were shown in Table 2, and their corresponding fired samples were marked as A0, A1.5, A3.0 respectively.

2.3. Characterization and Performance Test of the Regenerated Magnesia-Calcium Brick Samples

The phase compositions of the regenerated magnesia-calcium samples (regenerated samples) were identified by a MXP21VAHF X-ray powder diffractometry (XRD) analysis. The microstructures and elements distribution of the regenerated samples were investigated by an MLA 250-FEI Quanta scanning electron microscope (SEM) with an energy dispersive spectrometer (EDS). The room temperature flexural strength and strength of coating adherence of the regenerated samples were determined by a WDW–10E microcomputer controlled electronic universal testing machine. The hot flexural strength of the regenerated samples mechanical was determined by a CMT 5204 temperature-mechanical load coupling testing machine at 1573 K. The resistance to cement clinker corrosion and the coating adherence of the regenerated samples were investigated at 1823 K for 3 h as shown in Figure 2.

3. Results

This section may be divided by subheadings. It should provide a concise and precise description of the experimental results, their interpretation, as well as the experimental conclusions that can be drawn.

3.1. Phase Compositions of the Regenerated Magnesia-Calcium Bricks

Figure 3(a) shows that the main phase compositions of the sample A0, A1.5 were identical the magnesia (MgO), free calcium oxide (f–CaO), tricalcium silicate (Ca3SiO5, C3S) and tetracalcium aluminoferrite (Ca2FeAlO5, C4AF), while the main phase compositions of the sample A3.0 were the MgO, f–CaO, C3S, C4AF and tricalcium aluminate (Ca3Al2O6, C3A). It shows that a new phase C3A generated and other phases did not change according to the increase of Al2O3 addition in the regenerated samples.
Figure 3(b) shows that the intensity of character diffraction peaks of f–CaO [ICaO(200)] and MgO [IMgO(111)] were the two highest peaks in the range of 28–42° and varied significantly. The relative intensities of ICaO(200)/IMgO(111) decreased observably along with the increase of increase of Al2O3 addition in the regenerated magnesia-calcium bricks as shown in Figure 4. It also indicates that the content of f–CaO decreased along with the increase of Al2O3 addition in the regenerated samples, because the phase of MgO was exclusive and stable in the regenerated samples as shown in Figure 3.
Figure 3 shows that the elements Fe and Al in the regenerated samples existed only in the C4AF and C3A phases. The standard reaction Gibbs energy of reactions between Fe2O3, Al2O3 and f–CaO which generate C4AF and C3A is shown in Figure 5 [19]. It shows that the phase of C4AF generates preferentially when the impurity elements of Fe and Al exist concurrently, the phase of C3A generates when there is excess Al element impurity (the mole ratio of Fe2O3 to Al2O3 < 1). Besides, preliminary study had proved that the phase of C2F generates when the mole ratio of Fe2O3 to Al2O3 >1 [20].
The theoretical content of the C3S, C4AF C2F, C3A and f–CaO phases (calcium–based phases) in the regenerated samples can be calculated by the Eq. (1) - (7) [21]. The results (as shown in Table 3) indicates that the theoretical content of the C3A phase increased while that of the f–CaO phase decreased as the increasing of Al2O3 addition, and the Fe element of the sample A1.5 and A3.0 all generated the C4AF phase. These calculation results were identical with the phase compositions analysis shown in Figure 3.
w(C3S) = 3.80w(SiO2) (1)
w(C4AF) = 4.77w(Al2O3) (mole ratio of Fe2O3 to Al2O3 > 1) (2)
w(C4AF) = 3.04w(Fe2O3) (mole ratio of Fe2O3 to Al2O3 < 1) (3)
w(C2F) = 1.70[w(Fe2O3)-1.57w(Al2O3)] (4)
w(C3A) = 2.65[w(Al2O3)-0.64w(Fe2O3)] (5)
w(f–CaO) = w(CaO)-1.10w(Al2O3)-0.70w(Fe2O3)-2.80w(SiO2) (mole ratio of Fe2O3 to Al2O3 > 1) (6)
w(f–CaO) = w(CaO)-1.65w(Al2O3)-0.35w(Fe2O3)-2.80w(SiO2) (mole ratio of Fe2O3 to Al2O3 < 1) (7)
w(C3S), w(C4AF), w(C2F), w(C3A), w(f–CaO)—the mass fraction of the calcium–based phases in the regenerated samples, wt.%;
w(SiO2), w(Al2O3), w(Fe2O3), w(CaO)—the mass fraction of the regenerated samples’ composition, wt.%.

3.2. Microstructures of Regenerated Magnesia-Calcium Bricks

Figure 6(a) shows the SEM images of the regenerated samples’ surfaces. The white phases shown in the selected areas 1, 2 and 3 in Figure 6(a) were f–CaO, C4AF or C4AF–C3A, and C3S phases respectively, while the dark phases shown in Figure 6(a) were all MgO phase. Besides, it indicates that the phase of C4AF and C3A showed a tendency of aggregation in the sample A1.5 and A3.0. It is because that the elements of Fe and Al exist in the form of liquid phase at the firing temperature (1873 K), the C3A phase (melting point of 1808 K [19]) and the C4AF phase (melting point of 1688 K [22]) successively crystallized from the liquid phases, and sintered together during the furnace cooling process.
Figure 6(b) shows the SEM images of the regenerated samples’ fractures. It shows that the sample A1.5 and A3.0 both present much more compactness than the sample A0, and the calcium–based phases were more continuous along with the increase of Al2O3 addition. Table 3 shows that the increase of C3A content was the main change among that of the calcium–based phases as Al2O3 addition increasing. Therefore, it can prove that the generation of C3A improved the sinterability of the regenerated samples.
Figure 3 shows that there were too few of the C3A phase to be observed in its character diffraction peak in the sample A1.5. It did not match the theoretical calculation as shown in Table 3. It is because that part of the Al element was dissolved into the C3S phase, reducing generation of the C3A phase [20]. The EDS analysis of the C3S phase in Figure 6(a)–A1.5 is shown in Figure 7. It can be seen a significant solid solution appearing between the Al element and the C3S phase.

3.3. Room Temperature and Hot Flexural Strength of the Regenerated Magnesia-Calcium Bricks

Figure 8 shows the results of the room temperature and hot (1573 K) flexural strength of the samples A0, A1.5 and A3.0. It indicates that the room temperature flexural strength of the regenerated samples enhanced, oppositely, the hot flexural strength of the regenerated samples reduced with Al2O3 addition increasing. It is due to the increasing of the low melting point phases content (C4AF and C3A) as shown in Table 3 that improved the sinterability of the regenerated samples as shown in Figure 6, and subsequently enhanced their bulk density as shown in Figure 8. Thus, it results in the opposite phenomenon between the room temperature strength and the hot flexural strength of the regenerated samples with Al2O3 addition increasing.

3.4. Resistance to Cement Clinker Corrosion of the Regenerated Magnesia-Calcium Bricks

The SEM images of the sample A0, A1.5 and A3.0 cross-section after corrosion resistance experiment are shown in Figure 9(a)–(c). It indicates that the cement clinker corrosion to the regenerated samples was gradually serious as the increasing of Al2O3 addition, and the cement clinker was more prone to corroding the regenerated samples along their calcium–based phases. It is because that the calcium–based phases of the regenerated samples were composed of the C3S, C4AF, C3A and f–CaO phases, among which the phases of C4AF and C3A content increased with Al2O3 addition increasing. It improved the wettability of the regenerated samples, and thus, the melting cement clinker was much easier to corrode the regenerated samples along the areas of these low melt point phases [red arrow pointing out in Figure(a)–(c)] as they all exist in liquid phase form at 1823 K. Figure 9(d) shows an increasing tendency of the regenerated samples’ coating adherence along with the increase of Al2O3 addition. It is because that the reaction areas between the cement clinker and regenerated samples increase with additive Al2O3 increased, resulting in their strength of coating adherence enhanced.
The corrosion of the cement clinker to the phase of MgO was carried out by an elements distribution scanning analysis across their contact areas as shown in Figure 10(a). The analysis results indicate that a reaction layer containing element Ca, Si and Mg existed in the interfacial surface of these contact areas. The thickness d of the reaction layer gradually became larger with Al2O3 addition increasing as shown in Figure 10(b), which also indicates an aggravating corrosion of the cement clinker to the phase of MgO.
Generally, Al2O3 addition had a positive effect on the room temperature performances of the regenerated samples, such as the bulk density and the room temperature flexural strength, on the contrary, it had an adverse effect on the high-temperature performances of the regenerated samples, such as the hot flexural strength and corrosion resistance except of the strength of coating adherence, because of the low melting point phases of C4AF and C3A generating. It had been reported that the room temperature flexural strength and the strength of coating adherence of the chromium–free refractories applied on cement rotary kiln were lager than 21.60 MPa and 0.52 MPa [23], in comparison that of sample A0, A1.5, A3.0 were 68.58 MPa, 70.91 MPa, 93.11 MPa and 1.61 MPa, 2.25 MPa, 7.89 MPa accordingly. It shows that sample A0, A1.5, A3.0 could all meet the room temperature flexural strength and the strength of coating adherence. However, the hot flexural strength of sample A0, A1.5, A3.0 was 9.65 MPa, 4.34 MPa, 3.62 MPa respectively, and it shows that the hot flexural strength of sample A0 was only higher than that of the literature report (lager than 5.4 MPa) [24]. Therefore, the sample A0 can be considered as most suitable regenerated sample for cement rotary kiln, and the content of Al2O3 in the regenerated magnesia-calcium brick should not be higher than 1.1 wt.% (without extra Al2O3 addition).

4. Conclusions

The magnesia-calcium brick samples were prepared by using spent magnesia-calcium brick, fused magnesia and Al2O3 powder additive as the main raw materials, liquid paraffin as the binder, and firing at 1873 K for 2 h under an air atmosphere respectively, among which the Al2O3 powder addition was 0 wt.%, 1.5 wt.%, 3.0 wt.%. The main phase compositions of the sample A0 and A1.5 were MgO, f–CaO, C3S, C4AF, and a new phase C3A was observed in the sample A3.0 besides MgO, f–CaO, C3S, C4AF. There was a solid solution appearance between the Al element and the C3S phase, resulting in the actual content of the C3A phase was lower than the theoretical calculation, and it led to the phase of C3A being not observed in the sample A1.5. The room temperature performances of the regenerated samples such as bulk density and flexural strength enhance along with the increase of Al2O3 addition, since the low melting point phases of C4AF and C3A content increase which improve the sinterability of the regenerated samples. However, the high-temperature performances of the regenerated samples such as hot flexural strength (1573 K) and corrosion resistance (1823 K) degrade as the addition of Al2O3 increasing, because the melting points of the C4AF and C3A phases were close to 1573 K, furthermore, they were in liquid phase form at 1823 K that wetted the regenerates sample to enhance the reaction between the cement clinker and the MgO phase, resulting in the increasing of the strength of coating adherence. The sample A0 can be considered as most suitable regenerated sample for cement rotary kiln, as comparing the main performances with other chromium–free refractories for cement rotary kiln, that is, the total content of Al2O3 in the regenerated magnesia-calcium brick should be no more than 1.1 wt.%.

Author Contributions

Conceptualization, Q.G.-B. and Z.M.; methodology, Q.G.-B., H.Y.-D. and Z.M.; software, Q.G.-B. and W.H.-G.; validation, H.J. and Z.X.-H.; formal analysis, Q.G.-B. and H.J.; investigation, Q.G.-B., H.Y.-D. and P.B.; resources, H.J. and P.B.; data curation, Q.G.-B., W.H.-G. and Z.X.-H.; writing—original draft preparation, Q.G.-B.; writing—review and editing, Z.M., H.Y.-D. and W.H.-G.; visualization, Q.G.-B., H.J. and Z.X.-H.; supervision, P.B. and Z.M.; project administration, Q.G.-B. and P.B. All authors have read and agreed to the published version of the manuscript.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This work was supported by 2023 Zhanjiang Ocean Young Talent Innovation Project of China (2023E0009) and National Natural Science Foundation Outstanding Youth Science Fund project of China (52322806).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Nievoll, J.; Guo, Z.Q.; Shi, S. Performance of magnesia hercynite bricks in large Chinese cement rotary kilns. RHI Bulletin 2006, 3, 15–17. [Google Scholar]
  2. Schacht, C. Refractories Handbook; CRC Press: Boca Raton, FL, USA, 2004; p. 607. [Google Scholar]
  3. Driscoll, M.O. Price temper steel market promise. Ind. Miner. 1994, 324, 35–49. [Google Scholar]
  4. Guo, M.; Jones, P.T.; Parada, S.; Boydens, E.; Dyck, J.V.; Blanpain, B.; Wollants, P. Degradation mechanisms of magnesia–chromite refractories by high–alumina stainless steel slags under vacuum conditions. J. Eur. Ceram. Soc. 2006, 26, 3831–3843. [Google Scholar] [CrossRef]
  5. Gómez–Rodríguez, C.; Antonio–Zárate, Y.; Revuelta–Acosta, J.; Verdeja, L.F.; Fernández–González, D.; López–Perales, J.F.; Rodríguez–Castellanos, E.A.; García–Quiñonez, L.V.; Castillo–Rodríguez, G.A. Research and development of novel refractory of MgO doped with ZrO2 nanoparticles for copper slag resistance. Materials. 2021, 14, 2277. [Google Scholar] [CrossRef] [PubMed]
  6. Zhu, B.Q.; Fang, B.X.; Zhang, W.J.; Li, X.C.; Wan, H.B. Corrosion mechanism of ladle furnace refining slag to fired MgO–CaO bricks. China’s refractories, 2010, 019, 1–4. [Google Scholar]
  7. Wei, Y.W.; Li, N. Refractories for clean steel making. Am. Ceram. Soc. Bull. 2002, 81, 32–35. [Google Scholar]
  8. Qiu, G.B.; Peng, B.; Guo, M.; Zhang, M. Regeneration utilization of spent MgO–CaO bricks for argon oxygen decarburization furnace. J. Chin. Ceram. Soc. 2013, 41, 1284–1289. [Google Scholar]
  9. Soltanieh, M.; Payandeh, Y. Relationship between oxygen chemical potential and steel cleanliness. J. Iron Steel Res. Int. 2005, 12, 28–33, 62. [Google Scholar]
  10. Rabah, M.; Ewais, E.M.M. Multi–impregnating pitch–bonded Egyptian dolomite refractory brick for application in ladle furnaces. Ceram. Int. 2009, 35, 813–819. [Google Scholar] [CrossRef]
  11. Chen, S.J.; Tian, L.; Li, G.H.; Tian, F.R. MgO–CaO refractories, Ed. by L. Song, Metallurgical Industry Press, Beijing, China, 2012; pp. 25, 52–57.
  12. Yu, J.K.; Dai, W.B. Influence of fine α–Al2O3 powder on the properties of the magnesia–calcia refractories. J. Northeast. Univ. (Natural Science), 2003, 24, 1068–1070. [Google Scholar]
  13. Shahraki, A.; Ghasemi–Kahrizsangi, S.; Nemati, A. Performance improvement of MgO–CaO refractories by the addition of nano–sized Al2O3. Mater. Chem. Phys. 2017, 198, 354–359. [Google Scholar] [CrossRef]
  14. Qiu, G.B.; Peng, B.; Li, X.; Guo, M.; Zhang, M. Hydration resistance and mechanism of regenerated MgO–CaO bricks. J. Ceram. Soc. Jpn. 2015, 123, 1–6. [Google Scholar] [CrossRef]
  15. Liang, Y.B.; Shen, X.L. Effects of spent MgO–CaO bricks additive amount on the properties of baking MgO–CaO bricks. Refractories 2008, 42, 392–393. [Google Scholar]
  16. Zhang, W.; Shi, G.; Wei, F.C.; Wang, C.Y. Preparation of magnesia–calcia dry mix from used MgO–CaO bricks. Refractories 2012, 46, 126–128. [Google Scholar]
  17. Yang, W.Z.; Chen, S.J.; Wei, Z.L.; Zhang, F.Q. Effect of Al2O3 additions on characteristic of burned magnesia–calcia brick. J. Anshan Univ. Sci. Technol. 2003, 26, 425–428. [Google Scholar]
  18. Cheng, X.; Liu, L.; Xiao, L.H.; Huo, X.T.; Guo, M.; Zhang, M. , Effect of MgO on corrosion mechanism under LF refining slag for MgAlON–MgO composites synthesized from spent MgO–C brick: Wetting behaviour, reaction process and infiltration mechanism. J. ALLOY. COMPD. 2023, 963, 171278. [Google Scholar] [CrossRef]
  19. Zhu, Z.P.; Jiang, T.; Li, G.H.; Guo, Y.F.; Yang, Y.B. Thermodynamics of reactions among Al2O3, CaO, SiO2 and Fe2O3 during roasting processe. Thermodynamics–Interaction Studies–Solids, Liquids and Gases, Chapter 30; Moreno–pirajan, InTech, 2011, 825–838.
  20. Qiu, G.B.; Peng, B.; Yue, C.S.; Guo, M.; Zhang, M. Properties of regenerated MgO–CaO refractory bricks: impurity of iron oxide. Ceram. Int. 2016, 42, 2933–2940. [Google Scholar] [CrossRef]
  21. Sun, Y.F.; Wang, X.M.; Wang, C. X.; Sun, P.Q. Magnesia and magnesium matrix composite refractories; Metallurgical Industry Press, Beijing, 2010, pp. 25, 32.
  22. Taschler, T. Refractory materials for the copper and lead industry, In Tehran International Conference on Refractories; Iran, 2004; pp. 302–320.
  23. Wang, Z.F.; Chen, J.; Wang, X.T.; Zhang, B.G.; Liu, H. Effects of rare earth oxides on physical properties and coating adhering performance of magnesia refractories. J. Wuhan Univ. Sci. Technol. 2010, 33, 595–598. [Google Scholar]
  24. Zhang, B.X. Research on non–chromium refractory for rotary cement kiln in burning zone. Master Dissertation, University of Science and Technology Liaoning, Anshan Liaoning, 2008. [Google Scholar]
Preprints 84924 g001
Figure 1. The synthetic process flow chart of regenerated magnesia-calcium bricks with Al2O3 powder addition.
Figure 1. The synthetic process flow chart of regenerated magnesia-calcium bricks with Al2O3 powder addition.
Preprints 84924 g001
Preprints 84924 g002
Figure 2. Schematic diagram of the resistance to cement clinker corrosion and the coating adherence experiment of the regenerated magnesia-calcium bricks.
Figure 2. Schematic diagram of the resistance to cement clinker corrosion and the coating adherence experiment of the regenerated magnesia-calcium bricks.
Preprints 84924 g002
Preprints 84924 g003

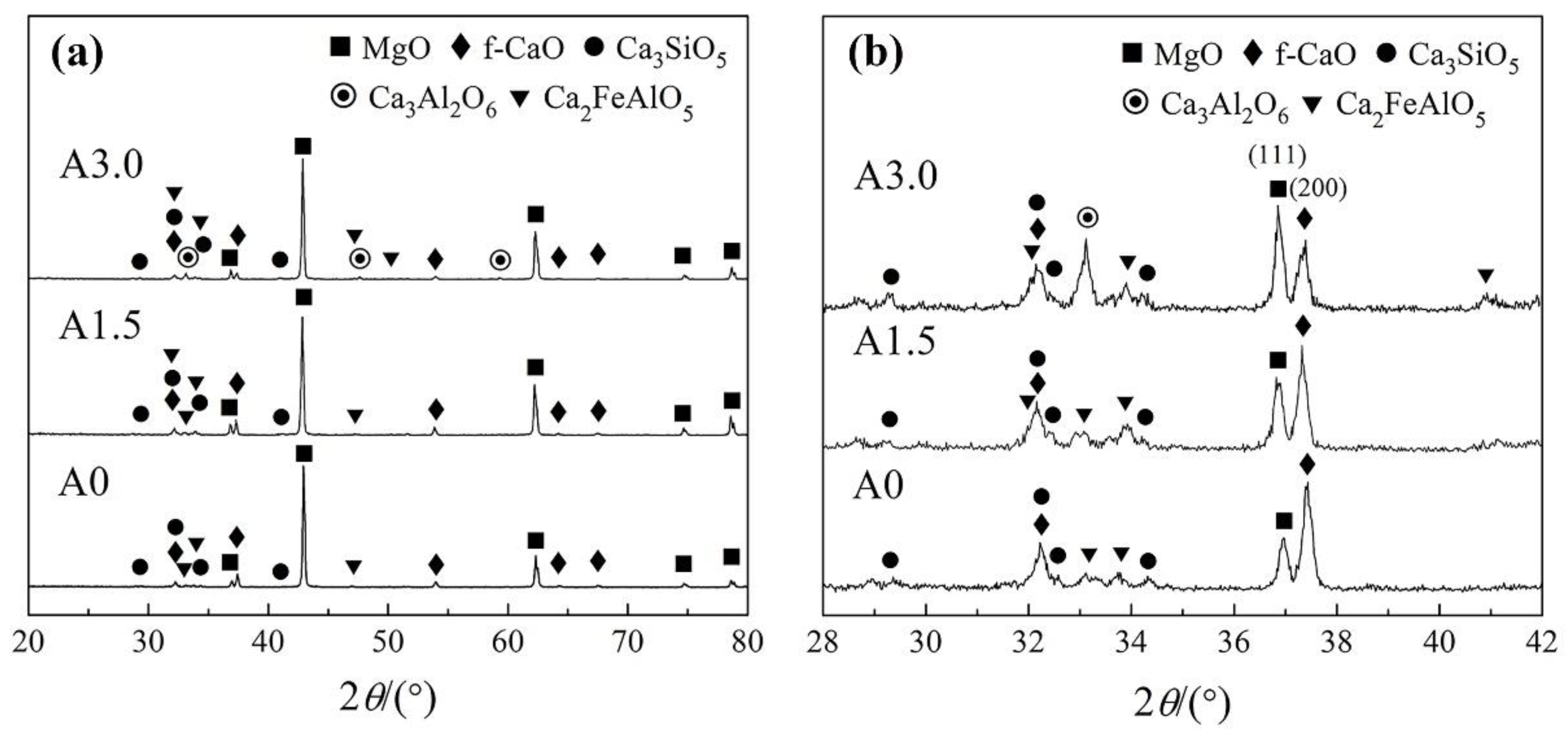

Figure 3. XRD patterns of the sample A0, A1.5 and A3.0: (a) the range of 20–80°; (b) the range of 28–42°.
Figure 3. XRD patterns of the sample A0, A1.5 and A3.0: (a) the range of 20–80°; (b) the range of 28–42°.
Preprints 84924 g003
Preprints 84924 g004

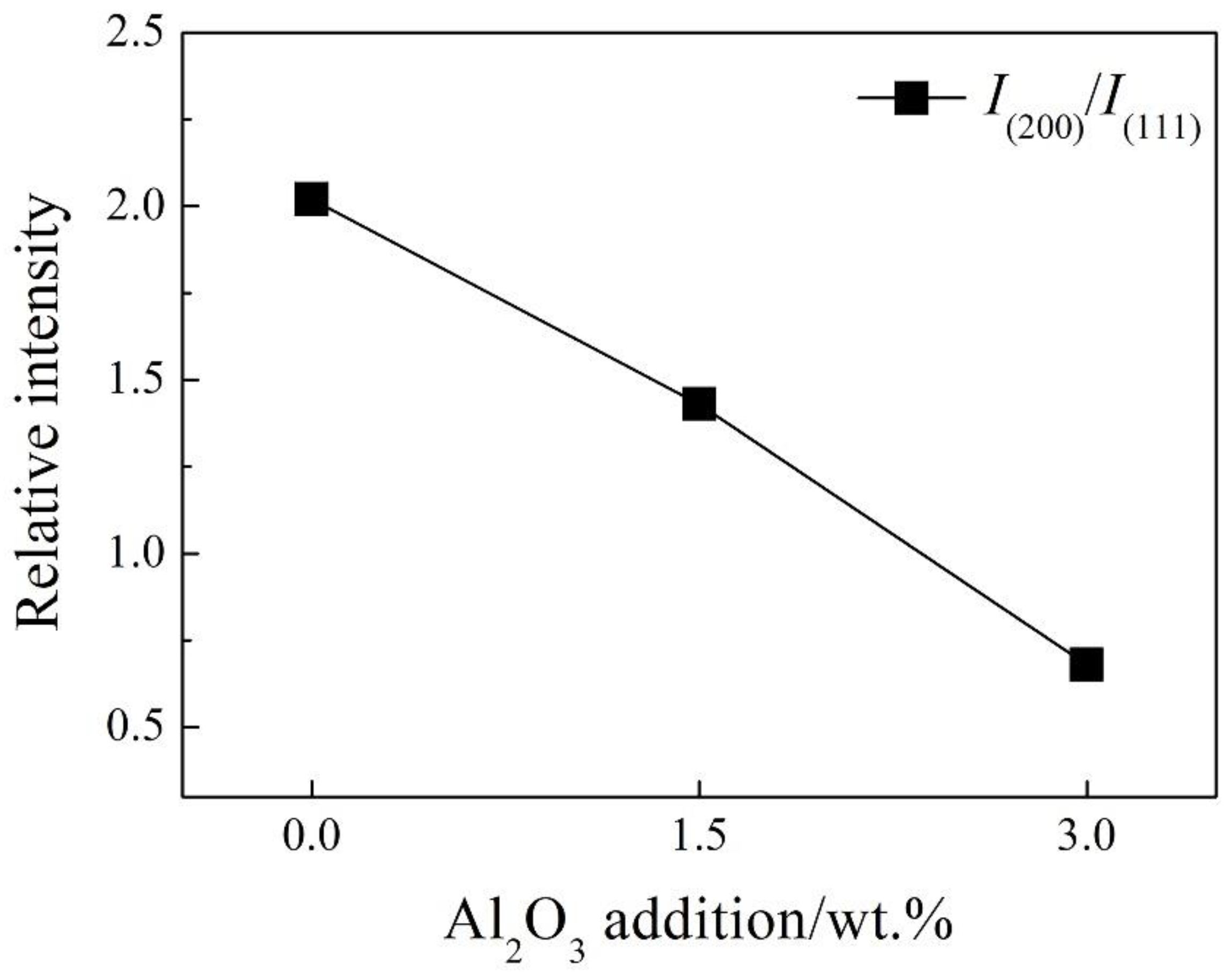

Figure 4. Relative intensities of ICaO(200)/IMgO(111) of the sample A0, A1.5 and A3.0.
Figure 4. Relative intensities of ICaO(200)/IMgO(111) of the sample A0, A1.5 and A3.0.
Preprints 84924 g004
Preprints 84924 g005

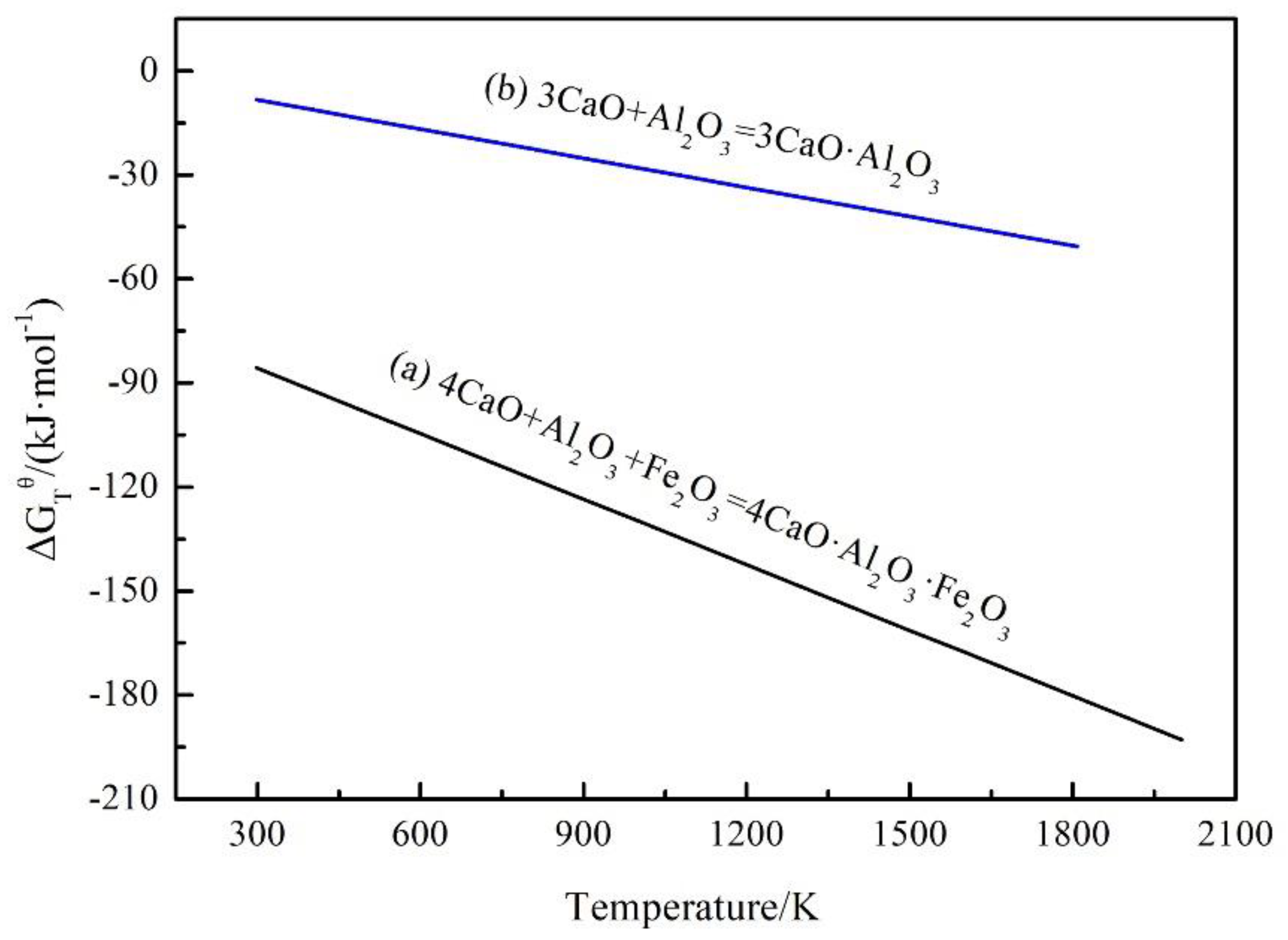

Figure 5. Standard reaction Gibbs energy of the reactions between Fe2O3, Al2O3 and f–CaO vs. temperature in the regenerated samples.
Figure 5. Standard reaction Gibbs energy of the reactions between Fe2O3, Al2O3 and f–CaO vs. temperature in the regenerated samples.
Preprints 84924 g005
Preprints 84924 g006
Figure 6. (a) SEM images of the regenerated samples’ surfaces; (b) SEM images of the regenerated samples’ fractures.
Figure 6. (a) SEM images of the regenerated samples’ surfaces; (b) SEM images of the regenerated samples’ fractures.
Preprints 84924 g006
Preprints 84924 g007
Figure 7. The elements of Ca, Si, Al distribution of the C3S phase in the sample A1.5.
Figure 7. The elements of Ca, Si, Al distribution of the C3S phase in the sample A1.5.
Preprints 84924 g007
Preprints 84924 g008

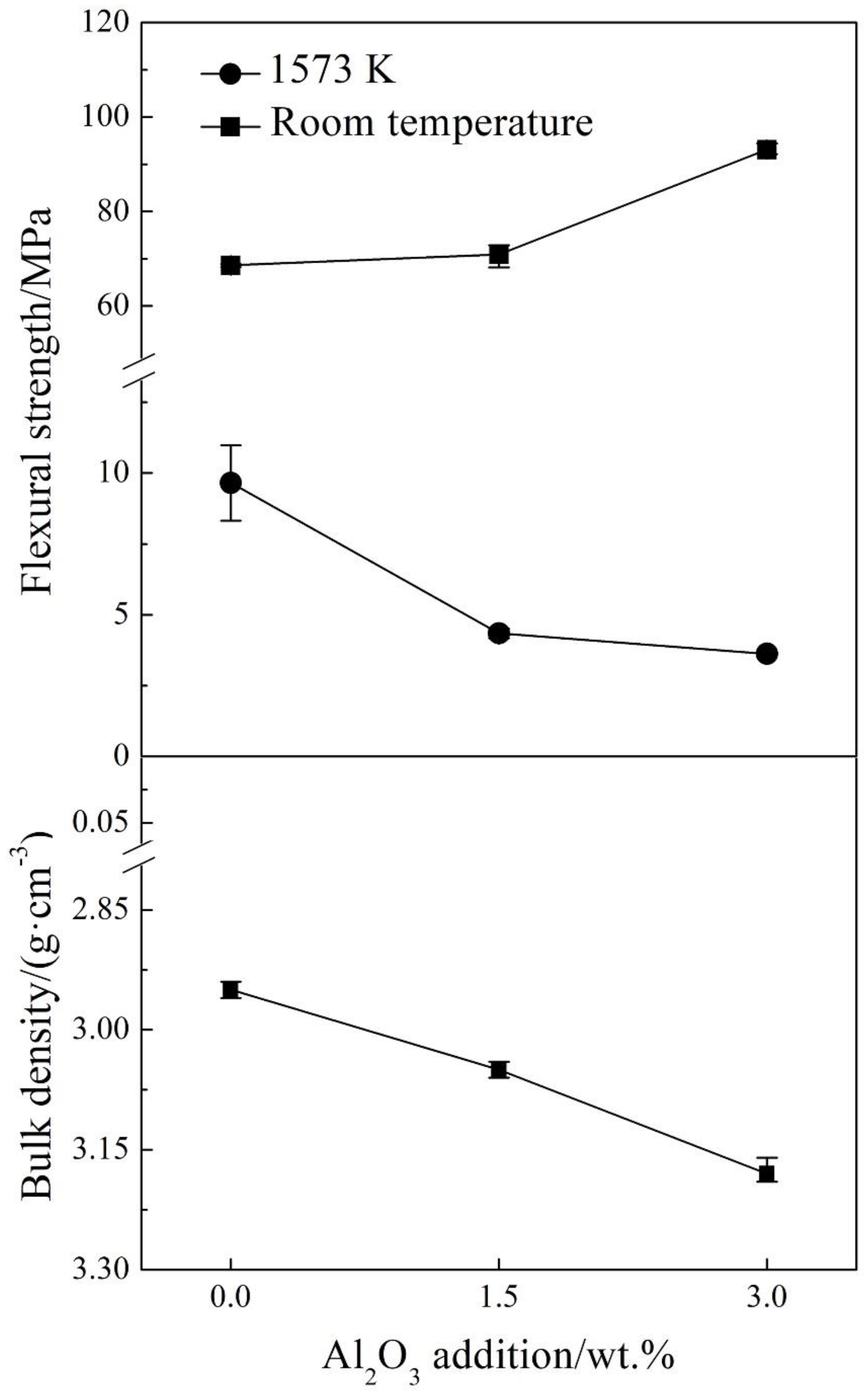

Figure 8. The room temperature and hot flexural strength, and the bulk density of the sample A0, A1.5 and A3.0.
Figure 8. The room temperature and hot flexural strength, and the bulk density of the sample A0, A1.5 and A3.0.
Preprints 84924 g008
Preprints 84924 g009
Figure 9. SEM images of the regenerated samples’ cross-section after corrosion resistance experiment: (a) sample A0; (b) sample A1.5; (c) sample A3.0; (d) strength of coating adherence of the sample A0, A1.5 and A3.0.
Figure 9. SEM images of the regenerated samples’ cross-section after corrosion resistance experiment: (a) sample A0; (b) sample A1.5; (c) sample A3.0; (d) strength of coating adherence of the sample A0, A1.5 and A3.0.
Preprints 84924 g009
Preprints 84924 g010

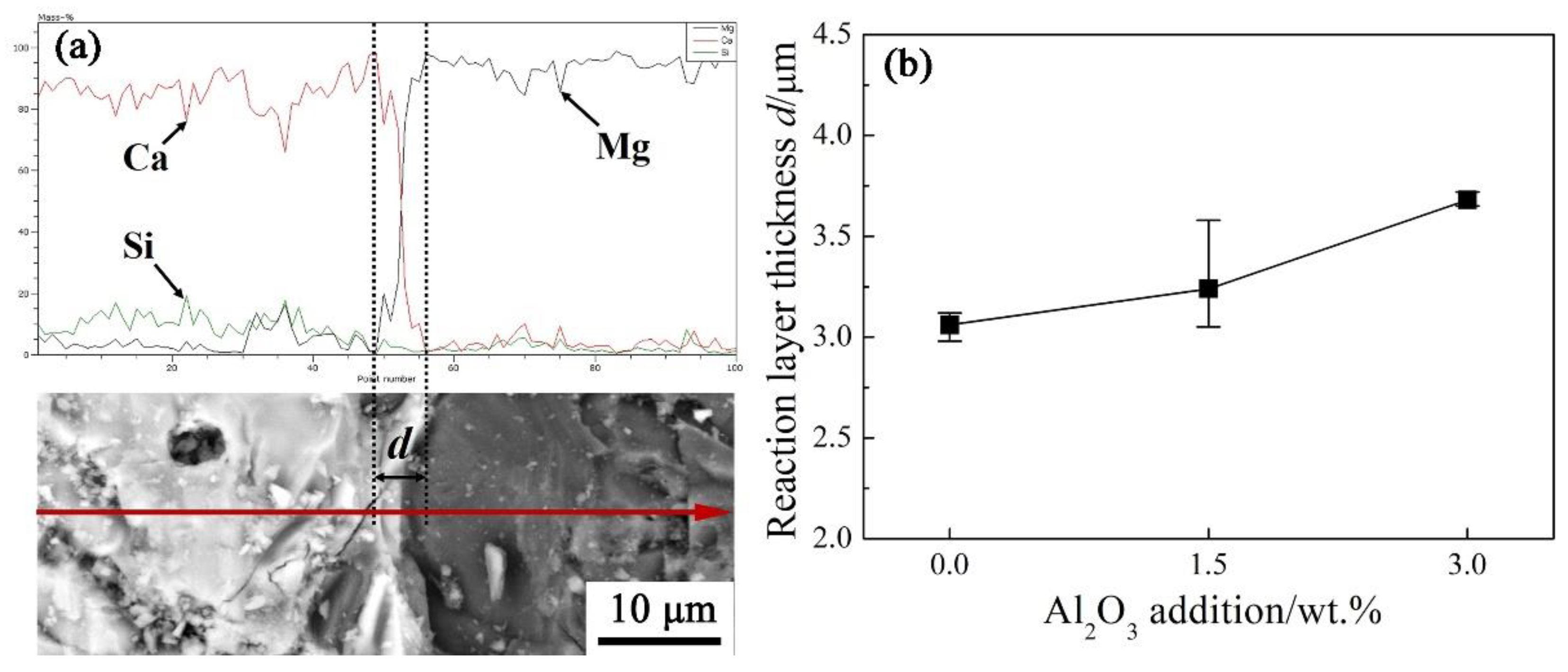

Figure 10. (a) The elements distribution scanning analysis across the contact area of the cement clinker and the MgO phase; (b) reaction layer thickness d of the sample A0, A1.5 and A3.0.
Figure 10. (a) The elements distribution scanning analysis across the contact area of the cement clinker and the MgO phase; (b) reaction layer thickness d of the sample A0, A1.5 and A3.0.
Preprints 84924 g010
Table 1. Compositions of the main raw materials of the regenerated magnesia-calcium bricks (wt.%).
Table 1. Compositions of the main raw materials of the regenerated magnesia-calcium bricks (wt.%).
Constituents MgO CaO SiO2 Fe2O3 Al2O3
Spent magnesia-calcium bricks 58.18 33.92 2.81 2.68 1.51
Fused magnesia 94.16 1.63 2.64 1.00 0.27
Al2O3 powder – – 0.30 0.03 98.75
Table 2. Compositions of the regenerated magnesia-calcium bricks’ green bodies (wt.%).
Table 2. Compositions of the regenerated magnesia-calcium bricks’ green bodies (wt.%).
Samples MgO CaO SiO2 Fe2O3 Al2O3 Al2O3 powder additive
A0 70 23.31 2.66 2.21 1.10 0
A1.5 70 23.31 2.66 2.21 1.10 1.5
A3.0 70 23.31 2.66 2.21 1.10 3.0
Table 3. Theoretical contents of each calcium–based phases in sample A0, A1.5 and A3.0 (wt.%).
Table 3. Theoretical contents of each calcium–based phases in sample A0, A1.5 and A3.0 (wt.%).
Calcium–based phases A0 A1.5 A3.0
C3S 10.11 9.98 9.85
C4AF 5.25 6.62 6.53
C2F 0.82 0.00 0.00
C3A 0.00 3.05 6.81
f–CaO 13.11 10.66 8.12
