Biofuel Production from Glycerol By-Product of the Biodiesel Production Process—A Brief Review

A peer-reviewed article of this preprint also exists.

Submitted:

02 August 2023

Posted:

04 August 2023

You are already at the latest version

Abstract
Biodiesel is seen as a successor to diesel of petrochemical origin, as it can be used in cycle engines and stationary engines, and be obtained from renewable raw materials. Currently, the biodiesel production process on an industrial scale is mostly carried out through the transesterification reaction, also forming glycerol as a product. Pure glycerol is used in the pharmaceutical, cosmetic, cleaning, food and other industries. Even presenting numerous applications, studies indicate that there is a saturation of glycerol in the market which is directly related to the production of biodiesel. This increase causes a commercial devaluation of pure glycerol; making the separation and purification processes unfeasible from an economic point of view. Despite the economic unfeasibility of the aforementioned processes, they continue to be carried out due to environmental issues. Faced with the problem presented, this work aims at a bibliographical review of works that aimed to use glycerol as a raw material for the production process of biofuels, these processes being carried out mostly via fermentation.
Keywords:
biodiesel
;
glycerol
;
biogas
;
biohydrogen
;
bioethanol
Subject:
Engineering  -   Energy and Fuel Technology

1. Introduction

Currently, biodiesel has been standing out as the successor of diesel of petrochemical origin, since there is a worldwide concern with the depletion of fossil fuels, as well as the emission of gases produced from their burning, gases that contribute to the aggravation of the greenhouse effect [1,2]. Biodiesel, like diesel, can be used in cycle engines and stationary engines [3]. The use of biodiesel has some advantages, such as: being obtained from renewable sources, lower rate of emission of gases that contribute to the worsening of the greenhouse effect [4,5].
Biodiesel on an industrial scale is mostly produced through the methyl transesterification reaction using basic homogeneous catalysts, such as sodium hydroxide or potassium hydroxide [6,7,8], and can be obtained from different raw materials, such as: oils vegetable and animal fats [9,10].
During the biodiesel production process via transesterification there is also the formation of glycerol [4,11]. It is estimated that for every 10 kg of biodiesel produced approximately 1 kg of crude glycerol is formed [12,13]. For the commercialization of the glycerol produced from the biodiesel production process, the crude glycerol is subjected to separation and purification processes, thus obtaining pure glycerol [14].
Pure glycerol is used in the food industry as a stabilizer, antioxidant, humectant and emulsifier; in the pharmaceutical industry in cosmetics and medicines; in the chemical industry in the composition of resin and polymers, among others [15,16]. Despite being used in several industrial sectors, there is a saturation of this product in the market, in which the demand for glycerol is smaller than the quantity produced, causing a commercial devaluation of glycerol [17]. According to Zhang et al. (2016) the energy expenditure during the separation and purification processes become unfeasible due to the low economic value attributed to purified glycerol, associating the growing increase of glycerol in the market with the production of biodiesel [18].
It is important to point out that although the separation and purification processes are impracticable, they are necessary, since crude glycerol, that is, without treatment, cannot be discarded in the environment; and its use as fuel is unfeasible because its direct burning produces toxic gases [14].
In this way, this work aims to present the problems about glycerol from the biodiesel production process, and to present works that aimed to use it as a raw material for the production process of other biofuels.

2. Glycerol

The official name of glycerol, according to IUPAC – Union of Pure and Applied Chemistry, is propane – 1, 2, 3 – triol. The molecular formula of glycerol is C3H5(OH)3. Glycerol is a colorless liquid, with an oily appearance, viscous, with relatively high density, colorless, soluble in water and alcohols, and practically insoluble in hydrocarbons [19,20]. Table 1 presents the physicochemical properties of glycerol.
As shown in Table 1, the decomposition point of glycerol is 290 °C. According to Gupta et al. (2012) it is at this temperature that the decomposition of glycerol into acrolein, a toxic and carcinogenic compound, occurs [14].
The glycerol from the biodiesel production process is mostly carried out through the transesterification reaction [21,22]. The transesterification reaction is represented by Figure 1.

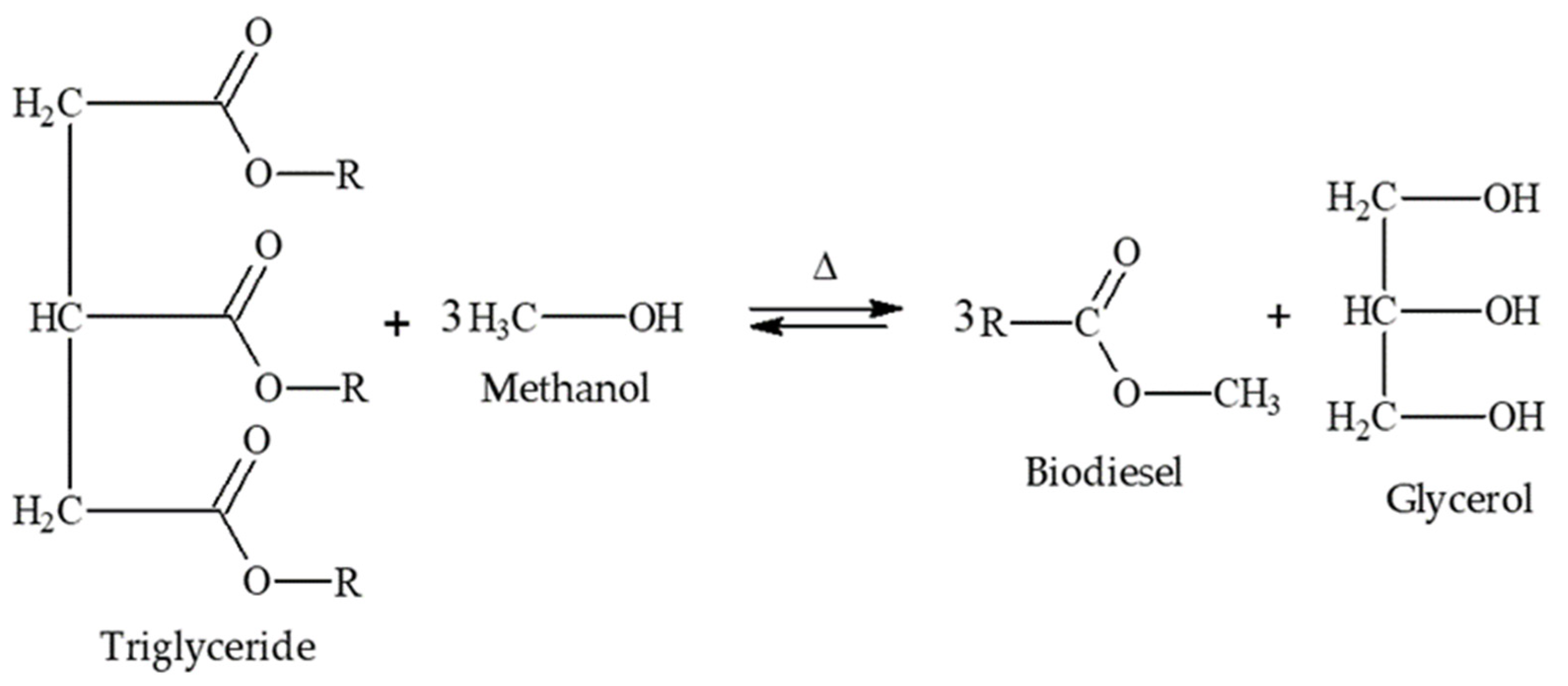

The transesterification reaction is a reversible reaction, so it is necessary to add one of the reagents in excess, in this case, it is common to add alcohol in excess [24,25]. The alcohols frequently used are methanol and ethanol, methanol being the most used, since the use of ethanol in the production process requires a greater excess of product, presents a greater propensity to form soaps, forming an emulsion that makes the process of separation and purification difficult, in addition to the relatively higher commercial price when compared to methanol [26,27]. The catalysts frequently used on an industrial scale are homogeneous alkaline catalysts, especially sodium hydroxide and potassium hydroxide [28]. The use of these catalysts has some advantages, such as lower economic cost, shorter reaction time, higher conversion rates, etc. However, these same catalysts have disadvantages, such as the need for a raw material with a low content of fatty acids, since these catalysts in the presence of fatty acids and alcohol favor the formation of soaps [6,8,29,30,31,32]. It is important to highlight that there are works available in the literature that aimed to propose the use of other catalysts, such as heterogeneous acid catalysts, microbiological catalysts, among others [23,33]. After the transesterification reaction, the reaction product goes to the separation and purification processes, where the catalyst is neutralized, the alcohol added in excess is recovered, and the purified products are obtained for commercialization [34,35,36]. The Figure 2 is a diagram that represents the biodiesel and glycerol production process.

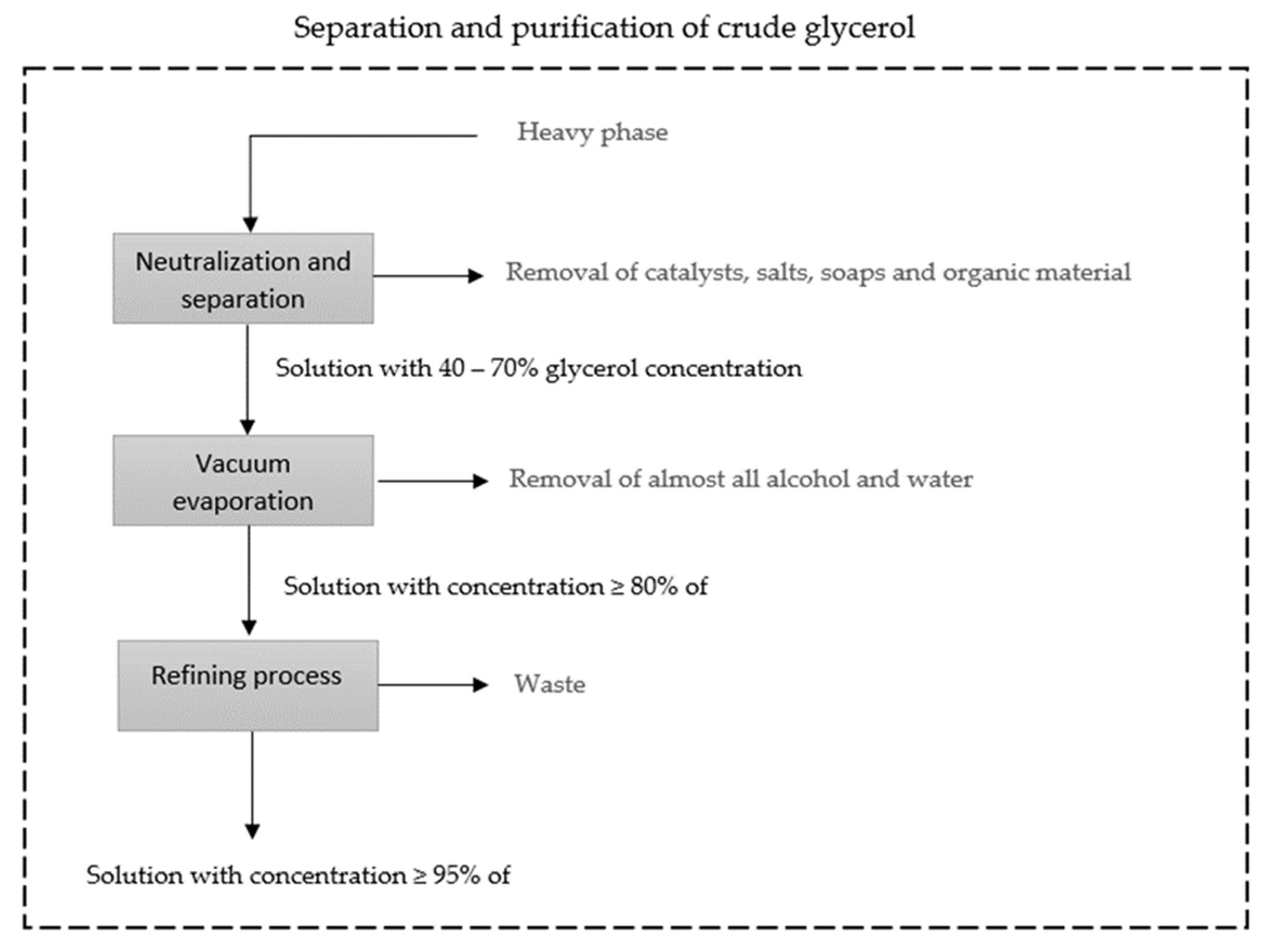

The purification process begins with the separation of the light phase, mostly made up of biodiesel, from the heavy phase, mostly made up of glycerol. The heavy phase, as mentioned, is mostly formed by glycerol, alcohol, water, catalyst, impurities, soaps and non-glycerol organic matter. The glycerol purification process begins with the process of neutralizing the catalyst present in the solution, followed by the process of separating the salts formed in the neutralization process, catalyst residues, soaps and organic material. The resulting solution has a concentration of 40 - 70% of glycerol, this solution undergoes a vacuum evaporation process, where almost all water and alcohol is removed, the resulting solution has a concentration greater than or equal to 80% of glycerol, this The solution, in turn, undergoes a refining process until it reaches the purity level required for commercialization [38,39]. Vacuum distillation is the process often used to obtain purified glycerol [20,38]. Figure 3 is a simplified diagram of the glycerol separation and purification processes.
The biodiesel and glycerol production process is a complex process, which demands a high energy expenditure from the preparation of the raw material to the obtaining of the final products. Reinforcing the need to make glycerol an energetically and economically attractive product, consequently increasing the viability of the biodiesel production process on an industrial scale [40].

3. Biofuel production processes using glycerol as biomass

The use of glycerol as a carbon source for the production of biofuels has been gaining prominence due to its wide availability [18,41]. Another reason that corroborates the development of research in this area is the physicochemical characteristics of glycerol, such as high autoignition temperature and low heating value, causing glycerol to decompose into acrolein at 290 °C [42]. The following topics are intended to present works that aimed to use glycerol as a renewable raw material for the production of fuels.

3.1. Biogas

Recent studies present glycerol as a promising source of organic matter for the production of biogas [43,44,45]. In the biogas production process, glycerol can be used as substrate or co-substrate [46]. Different bacteria are capable of metabolizing glycerol, including those of the Klebsiella, Clostridium and Enterobacter genera [15,47,48,49].
The work carried out by Astals et al. (2012) aimed to produce biogas from the anaerobic digestion of swine effluents using crude glycerol as co-substrates. They added 4% w/w, on a wet basis, of crude glycerol to the bioreactor and obtained a 400% increase in biogas production with respect to monodigestion. The authors conclude that the results are satisfactory, and the increase in biogas production may be due to the increase in organic load, carbon-nitrogen balance and the decrease in ammonia concentration [50].
The work carried out by Siles et al. (2010) aimed to use glycerol in the co-digestion of wastewater formed during the biodiesel production process, with the purpose of treating the effluent, as well as the production of methane. Some of the main factors evaluated by the authors were: biodegradability of the mixture formed by wastewater and glycerol, methane yield coefficient and methane production kinetics. The inoculum used was the active methanogenic granular biomass used to treat wastewater from breweries. According to the authors, this biomass was selected due to its high methanogenic activity. Before forming the mixture, which was subsequently treated, the authors carried out the acidification and centrifugation of the glycerol, with the purpose of removing the catalysts used in the transesterification reaction, and electrocoagulation process in the wastewater. The authors conclude that the results presented were satisfactory, where the mixture showed a high level of biodegradability, the kinetics of methane production remained constant, and the production of 310 mL of CH4/g removed at 1 atm and 25 °C [51].
The work carried out by Beschkov et al. (2012) aimed to develop a mathematical model to describe the production of biogas and other products from the anaerobic digestion of crude glycerol using the bacteria Klebsiella sp. Experiments were carried out in a multistage bioreactor, and the results obtained were used to develop the proposed model. The choice of a multistage reactor is directly related to the intermediates formed during the glycerol digestion process, these intermediates being acidic in character, lowering the pH of the medium and inhibiting the methanogenesis reaction. separate the inhibition zone from the methanogenesis zone. The authors conclude that, although simple, the proposed model allows estimating the number of compartments necessary for the total conversion of glycerol into biogas [52].
The work carried out by Fountoulakis et al. (2009) aimed to verify the influence of adding glycerol in continuous bioreactors that treated small fractions of urban organic waste and wastewater. The authors observed that the methane production rate increased with the addition of crude glycerol. The reactor was inoculated with anaerobic sludge from the municipal sewage treatment plant in the city of Iraklio, Greece. The authors observed the production of 1400 mL CH4/d before without adding glycerol and 2094 mL CH4/d after adding glycerol. And they conclude that the results are satisfactory [46].
The work carried out by Oliveira (2015) aimed to evaluate the optimal conditions for methane production using the macroalgae Sargassum sp. co-digested with glycerol and residual frying oil. The authors noted that without the addition of glycerol and residual oil the biochemical potential of Sargassum sp. was 181 ± 1 L CH4/L of COD and the methane rate increased 56% with the addition of glycerol and 46% with the addition of residual oil. The authors conclude that the addition of glycerol or residual oil is a promising alternative for methane production [53].
The work carried out by Sittijunda and Reungsang (2018) aimed to verify the methane production from the co-digestion of algae biomass with crude glycerol. The authors show that under optimal conditions the maximum methane production was 58.88 mL CH4/L. And the bacteria detected responsible for the digestion of the biomass were Methanosarcina sp., Methanoregula sp., Methanospirillum sp. and Methanoculleus sp.
The work carried out by Baba et al. (2013) aimed to carry out an energy balance in a process plant where crude glycerol is digested. The results presented, according to the authors, are satisfactory in terms of methane production. And according to the analyzes carried out, the digested sludge contained fertilizer components (N: 0.11%, P2O5: 0.036%, K2O: 0.19%). Thus, the authors conclude that crude glycerol is an attractive biomass for methane production and the residual sludge can be used as liquid fertilizer [43].
The work carried out by Chou and Su (2019) aimed to evaluate the feasibility of biogas production by anaerobic co-digestion of wastewater from dairy cattle and crude glycerol. The authors conclude that the conversion of residual crude glycerol into biogas showed satisfactory results and can be applied in the near future on an industrial scale to treat waste from slaughterhouses [54]
The work carried out by Sawasdee et al. (2019) aimed to evaluate the production of biogas from the co-digestion of glucose and glycerol in laboratory-scale batch reactors. The experiments involved varying glycerol/glucose ratios with fixed initial chemical oxygen demand for all conditions. The inoculum was obtained from cassava starch sludge. The highest yield of biogas production was in the 5:5 ratio of glycerol/glucose with a maximum production rate of 8 mL/h [55].

3.2. Hydrogen

Currently, hydrogen is seen as a form of clean energy, since the only product of the combustion process is water [56]. Conventional forms of hydrogen production are from the process of catalytic reforming of petroleum, the steam reforming of methane present in natural gas, however, these methods cannot be considered renewable, since both use raw materials of fossil origin [57,58]. Another conventional method also used for the production of hydrogen is through the electrolysis of water, however, this method demands a high energy cost [56]. Due to the problems involving conventional methods, the conversion of biomass to hydrogen production is presented as an alternative method that aims to minimize environmental impacts [59,60].
The work carried out by Maru et al. (2016) aimed to produce hydrogen through the fermentation process using pure and residual glycerol as raw material. The fermentation process is carried out and compared using three strains, Escherichia coli CECT432, Escherichia coli CECT434 and Enterobacter cloacae MCM2/. Escherichia coli CECT432 was the strain that obtained the highest hydrogen production using pure glycerol, and a co-culture formed by Escherichia coli CECT432 and Enterobacter cloacae MCM2/ showed the highest productivity; this same co-culture was used in the fermentation process using residual glycerol, and according to the authors the results were satisfactory. The authors conclude that the strains metabolize residual glycerol without any purification step, and that the ability to produce H2 without prior purification of residual glycerol is attractive because it avoids extra costs in the process [61].
The work carried out by Sittijunda and Reungsang (2020) proposed the simultaneous study of the production of hydrogen, ethanol and 1,3 – propanediol. The authors used pure and residual glycerol to convert desirable products. The process was carried out via fermentation using a co-culture of Enterobacter sp., Klebsiella sp. and Klebsiella pneumoniae. The authors conclude that the use of crude glycerol as raw material presented satisfactory results [62].
The work carried out by Prakash et al. (2018) aimed to use domestic wastewater and crude glycerol from the biodiesel production process to produce biodiesel to produce hydrogen via the fermentation process. The cultures used were Bacillus thuringiensis strain EGU4 and Bacillus amyloliquefaciens strain CD16. The results were satisfactory, but when comparing the performance of the two cultures, it was detected that the Bacillus amyloliquefaciens strain CD16 had the highest yield. The authors conclude that the results are satisfactory, however, they emphasize the need for biosafety when working with non-sterile sludge [63].
The work carried out by Chen et al. (2021) aimed at producing hydrogen from fermentation processes using raw glycerol as raw material; and compare the yield of fermentation with immobilized and suspended microorganisms. The inoculum used was collected at a wastewater treatment plant in Beijing, China, a pre-treatment by ionizing radiation was performed in order to eliminate hydrogen-consuming bacteria; and the predominant bacterium in the culture was Clostridium sp. The results presented by the authors show greater yield for fermentation that used microorganisms used, as well as greater tolerance to the substrate [64].
The work carried out by Silva et al. (2020) aimed to use semi-continuous reactors for the production of hydrogen and volatile fatty acids via a fermentation process, using residual glycerol as a substrate. The microorganisms used were bacteria of the genus Enterobacter and Clostridium. The reactor that operated using the bacterium of the genus Clostridium showed lower performance. The authors conclude that the yields found for the production of hydrogen using a semi-continuous reactor via a fermentation process with bacteria of the genus Enterobacter are satisfactory and are consistent with the literature [65].
The work carried out by Mirzoyan et al. (2019) aimed to use a mixture of lactose and glycerol for the production of hydrogen via a fermentation process using the bacterium Escherichia coli, at different pH values and different concentrations. The authors conclude that the results are satisfactory and an alternative for the production of renewable hydrogen [66].
The work carried out by Toledo-Alarcon et al. (2020) aimed at producing hydrogen using glycerol as substrate; and verify the impact of sludge pre-treatment on the production process. Two types of inoculum were used, aerobic and anaerobic sludge, and two types of pre-treatment, aeration and thermal shock. The bacterium of the genus Clostridium sp. was detected as dominant in all inocula. The best results were obtained using anaerobic sludge with thermal pre-treatment [67].
Table 3. Production of hydrogen using glycerol as raw material.
Table 3. Production of hydrogen using glycerol as raw material.
Authors Feedstock Microorganism Results
Maru et al. (2016) Pure glycerol and crude glycerol Escherichia coli CECT432, Escherichia coli CECT434 e Enterobacter cloacae MCM2/1 Co-culture of Escherichia coli CECT 432 and Enterobacter cloacae yields 1.26 mol H2/mol residual glycerol
Sittijunda e Reungsang (2020) Pure glycerol and crude glycerol Enterobacter sp., Klebsiella sp. e Klebsiella pneumoniae The yield of hydrogen was 2.90 mol H2/mol pure glycerol and 2.05 mol H2/mol residual glycerol
Prakash et al. (2018) Domestic wastewater and waste glycerol Bacillus thuringiensis EGU4 e Bacillus amyloliquefaciens cepa CD16 The hydrogen yield with Bacillus thuringiensis EGU4 was 100 L H2/L of residual glycerol and Bacillus amyloliquefaciens strain CD16 was 120 L H2/L
Chen et al. (2021) Gycerol Clostridium sp. The yield of hydrogen 0.52 mol H2/mol glycerol for immobilized microorganisms and 0.29 mol H2/mol glycerol for suspended microorganisms
Silva et al. (2020) Gycerol l Enterobacter e Clostridium The hydrogen yield for Enterobacter 0.25 mol H2/mol glycerol and Clostridium 0.01 mol H2/mol glycerol
Mirzoyan et al. (2019) Lactose e glicerol Escherichia coli High H2 yield can be achieved during fermentation of 1 g/L lactose at pH 7.5 with H2 production rate of 21.94 mL/L
Toledo-Alarcon et al. (2020) Glycerol Clostridium sp. The presented results allow a better understanding of the production of H2 in continuous systems, and provide informationfor future industrial applications

3.3. Ethanol

Ethanol is mostly produced from renewable raw materials, especially from sugarcane and corn [68,69]. But, according to the study carried out by Yazdani and González (2007), the cost of producing ethanol from glycerol is almost 40% lower when compared to ethanol produced from corn, taking into account the demand for raw materials and costs. operational [70]. Studies indicate that the production of ethanol from glycerol, derived from the biodiesel production process, is an attractive option for using this by-product as biomass for the production of another biofuel [71,72].
The work carried out by Sunarno et al. (2019) aimed to produce ethanol from crude glycerol using Enterobacter aerogenes TISTR 1468 supplemented by a cheaply available nutrient substrate, in the case of condensed tuna. The authors aimed to find the optimal conditions for the concentration of crude glycerol, tuna condensate, inorganic salts and pH. With 20 g/L of crude glycerol, and the pH maintained at 7, these were the optimal conditions for ethanol production, with a yield of 12.33 g/L [73].
The work carried out by Oh et al. (2011) aimed to produce ethanol using glycerol as a carbon source. A mutant strain was used in the process, Klebsiella pneumoniae GEM167 obtained by irradiation. According to the authors, when comparing production with the control strain, the increase in ethanol production is expressly noticeable when using the mutant strain. The maximum production level was 21.5 g/L, with a productivity of 0.93 g/L/h [74].
The work carried out by Stepanov and Efremenko (2017) aimed to develop and use a biocatalyst in the form of a cryogel immobilizing the yeast Pachysolen tannophilus that can convert glycerol into ethanol in both batch and continuous mode. According to the authors, the conversion of glycerol into ethanol, using this biocatalyst, resulted in a yield of 90% in relation to the theoretical limit [75].
The work carried out by Sunarno et al. (2020) aimed to produce ethanol from crude glycerol using Enterobacter aerogenes TISTR 1468. The authors evaluated the conversion of glycerol into ethanol under aerobic and anaerobic conditions. The evaluation was carried out in a reactor with aeration in a continuous and batch process, the conversion process without aeration was also evaluated. The aeration rate was controlled using a redox potential (OPR). The results presented by the authors show that in the fermentation process without aeration the ethanol yield was 18.78 g/L, with aeration in continuous process it was 30.31 g/L and batch was 12.33 g/L [76].
The work carried out by Suzuki et al. (2015) aimed at producing ethanol using glycerol from the development of a highly ethanol-tolerant Klebsiella variicola mutant, as well as improving the mutant's ethanol production by optimizing the culture conditions. The mutant was obtained from Klebsiella variicola TB-83 was called TB-83D was modified by means of ribosome engineering, being more resistant to streptomycin and tolerant to ethanol. The results that the mutant strain showed higher ethanol production [77].
The work carried out by Vikromvarasiri et al. (2016) used an anaerobic sludge blanket reactor for wastewater treatment to test the possibility of producing ethanol in the fermentation process using glycerol as a co-substrate at various glycerol concentrations. Ethanol concentration and yield were highly dependent on the initial glycerol concentration. The highest ethanol concentration was 11.1 g/L obtained after 72 h of fermentation at an initial concentration of 45 g/L of glycerol. The main ethanol producers have been identified as Enterobacter and Klebsiella strains [78].
The work carried out by Lee et al. (2017) aimed to convert glycerol into ethanol using Enterobacter aerogenes ATCC 29007 immobilized using alginate. The fermentation process was carried out in a continuous stirred tank reactor (CSTR) designed for continuous production with immobilized cells. The experiments were performed using pure glycerol and crude glycerol. Under optimal conditions, the ethanol production and yield were approximately 5.38 g/L and 0.96 mol-ethanol/mol-glycerol with pure glycerol, while the ethanol production and yield were approximately 5.29 g/ L and 0.91 mol ethanol/mol-glycerol with crude glycerol [79].
Table 4. Ethanol production using glycerol as raw material.
Table 4. Ethanol production using glycerol as raw material.
Authors Feedstock Microorganism Results
Sunarno et al. (2019) Crude glycerol Enterobacter aerogenes With 20 g/L of crude glycerol, and the pH maintained at 7, the ethanol production was 12.33 g/L
Oh et al. (2011) Crude glycerol Klebsiella pneumoniae GEM167 The maximum production level was 21.5 g/L, with a productivity of 0.93 g/L/h
Stepanov e Efremenko (2017) Glycerol Pachysolen tannophilus The conversion of glycerol into ethanol, using immobilized yeast, resulted in a yield of 90% in relation to the theoretical limit
Sunarno et al. (2020) Crude glycerol Enterobacter aerogenes TISTR1468 In the fermentation process without aeration, the ethanol yield was 18.78 g/L, with aeration in continuous process it was 30.31 g/L and batch was 12.33 g/L
Suzuki et al. (2015) Glycerol Klebsiella variicola TB-83 e TB-83D The strain TB-83D is effective for the production of ethanol from glycerol, and this strain is a mutant of Klebsiella variicola TB-83
Vikromvarasiri et al. (2016) Crude glycerol and waste water Enterobacter e Klebsiella The highest concentration of ethanol was 11.1 g/L obtained after 72 h of fermentation at an initial concentration of 45 g/L of glycerol
Lee et al. (2017) Pure glycerol and crude glycerol Enterobacter aerogenes ATCC 29007 imobilizado Under optimal conditions, the ethanol production and yield were approximately 5.38 g/L and 0.96 mol-ethanol/mol-glycerol with pure glycerol, while the ethanol production and yield were approximately 5.29 g/ L and 0.91 mol ethanol/mol-glycerol with crude glycerol

4. Considerations

The biodiesel production process is a complex process that demands a high energy and economic expenditure [80,81]. Therefore, it is important for the industrial viability of biodiesel production to add economic value to glycerol, to make glycerol a useful product and not an undesirable by-product [82,83,84].
The production of methane from glycerol is a sustainable alternative to methane extracted from natural gas [85]. Methane production is directly related to biogas production, in this biogas it is important to detect which other gases are present; and thus propose a treatment for the purification of this biogas, as well as the degree of purity of methane [85].
Hydrogen is a promising alternative to fossil fuels because it has a high energy yield (122 kJ/g) and its combustion product is water instead of gases that contribute to the worsening of the greenhouse effect [86]. Hydrogen produced through catalytic cracking of petroleum or through steam reforming of methane present in natural gas cannot be considered a renewable alternative since it is obtained from fossil fuels. The production of hydrogen through water electrolysis demands a high energy cost, making the process unfeasible from an economic point of view. Thus, the fermentation pathway using glycerol as biomass can be attractive both from an environmental and economic point of view for the production of hydrogen [87,88,89].
Currently, ethanol is produced predominantly from sugarcane and corn [90,91]. However, by producing ethanol from glycerol, which is currently seen as a by-product of the biodiesel production process, it is a way of adding economic value to glycerol [92,93]. Another perspective is the use of ethanol produced from glycerol to return to the biodiesel production process as one of the reagents [94].
Another alcohol that can be returned to the process is methanol, which in turn can be obtained from the biogas produced from glycerol, requiring biogas purification processes [95]. The work carried out by Magalhães et al. (2004) proposes the purification of biogas using a packing column and water as solvent at pressures between 6 – 12 bar [96]. After purifying the biogas, methane undergoes an oxidation process in order to obtain synthesis gas, and use catalytic reform to obtain methanol [97,98]. The proposal to use biogas to produce methanol is a way to obtain alcohol from a renewable source, since the methanol produced in the current context is predominantly from natural gas of fossil origin [99,100]. And the methanol produced by this route can return to the biodiesel production process plant and be used as one of the reagents [101,102].
Finally, it is important to highlight that production is mostly carried out through biochemical processes; therefore, it is important that the residues from these processes have an adequate microbiological treatment for biosafety reasons [103]. The biofuels reported in this work can be applied in different industrial sectors; and according to the authors, they are attractive alternatives for the use of glycerol as a raw material.

5. Conclusion

The biodiesel production process is a complex process, which demands a high energy expenditure, consequently a high economic cost. Reinforcing the need to make glycerol an attractive product energetically and economically. Thus, we can conclude that the works presented are alternatives to make the biodiesel production process viable, since they seek to use glycerol as a raw material for the production of other biofuels.
