Metabolic Quantum Limit and Holographic Bound to the Information Capacity of Magnetoencephalography

Submitted:

08 November 2025

Posted:

10 November 2025

You are already at the latest version

Abstract
Magnetoencephalography, the noninvasive measurement of magnetic fields produced by brain activity, utilizes quantum sensors like superconducting quantum interference devices or atomic magnetometers. Here we derive a fundamental, technology-independent bound on the information that such measurements can convey. Using the energy resolution limit of magnetic sensing together with the brain's metabolic power, we obtain a universal expression for the maximum information rate, which depends only on geometry, metabolism, and Planck's constant, and the numerical value of which is 2.6 Mbit/s. At the high bandwidth limit we arrive at a bound scaling linearly with the area of the current source boundary. We thus demonstrate a biophysical holographic bound for metabolically powered information conveyed by the magnetic field. For the geometry and metabolic power of the human brain the geometric bound is 6.6 Gbit/s.
Keywords:
magnetoencephalography
;
quantum sensing
;
information
;
holography
Subject:
Physical Sciences  -   Quantum Science and Technology
As a noninvasive technique imaging brain activity, magnetoencephalography [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16] has a history as long as the superconducting quantum interference devices [17,18,19,20,21,22]. Until relatively recently, these have been the only magnetic sensors sensitive enough to detect the feeble magnetic fields generated by the brain’s electric activity. Optical magnetometers [23,24,25] have become a competitive alternative in terms of magnetic sensitivity without requiring any cryogenics, offering a new perspective on the possibilities of magnetoencephalography [26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46], and addressing some practical limitations of devices based on superconducting sensors [47].
Both superconducting sensors and optical magnetometers can be operated as absolute field sensors or gradiometers, in single or multiple-sensor whole-head arrangements. The measured signals and the relevant noise sources depend on the particular measurement configuration and physical principles governing each sensor type, respectively. To further develop the applications of quantum sensors to neuroscience [48,49,50,51,52,53,54] and medical diagnosis [55,56,57,58,59,60], it is critical to understand how much information is encoded in these measurements [61], in particular, the upper limit to information that can in principle be retrieved, that is, the information capacity of magnetoencephalography (MEG).
We here obtain a quantum limit to the information capacity of MEG in a general way, irrespective of the particular sensor technology or specific configuration used to acquire MEG signals. To do so, we take advantage of recent developments [62,63] in understanding the fundamental quantum limits to magnetic sensing in a technology-independent way. It was shown [62] and thereafter explained [63], that the energy resolution of numerous sensors of different technologies, given in terms of the variance of the magnetic field estimate, the sensor volume and the measurement time, is bounded below by ℏ.
Using the energy resolution limit (ERL), and connecting the current dipole fluctuations in the brain to the metabolic energy consumed to drive those current sources, we arrive at the quantum limit to the information capacity of MEG expressed in terms of three factors: (i) a geometric (pertaining to the lead-field geometry in the continuous space), (ii) a metabolic (energy consumption of transmembrane ion pumps) and (iii) a quantum (ℏ). In the limit of high bandwidth current sources, we obtain a holographic bound depending on the surface of the source’s boundary, not unlike simliar bounds in black hole thermodynamics. The term “metabolic” goes well beyond semantics and lends itself to an inspiring generalization: biochemical energy → physical observable affected by biochemical energy → quantum sensing of physical observable. This conceptual chain, and the coupling between geometry, metabolism and information could have wide consequences for synthesizing quantum with life.
The information conveyed by MEG measurements is so far quantified by considering a discrete sensor array in specific configurations [61,64,65,66]. We treat the continuum case, where the whole volume outside the head is probed. Consider a finite volume V wherein exist current dipoles described by the density J ( x ) , which generates a magnetic field in the space Ω extending beyond the volume V, and being separated by a minimum distance d from the boundary of V. At position r within Ω the magnetic field components are (with α , β = x , y , z )
B α ( r ) = ∫ V L α β ( r , x ) J β ( x ) d x ,
where
L α β ( r , x ) = μ 0 4 π ε α β γ ( r − x ) γ | r − x | 3 .
The above, which holds for the case of homogeneous conductivity in the source region, with J representing the primary currents [67,68,69,70], can be cast into operator form by introducing the lead-field operator L and its adjoint L ∗ :
L [ J ] α ( r ) = ∫ V L α β ( r , x ) J β ( x ) d x ,
L ∗ [ f ] β ( x ) = ∫ Ω L α β ( r , x ) f α ( r ) d r .
Then the field covariance operator is
K Ω = L L ∗ ,
and has kernel K α β ( r , r ′ ) = ∫ V L α γ ( r , x ) L β γ ( r ′ , x ) d x . All spatial correlations of the magnetic field are contained in K Ω . Because L α β 2 ∼ | r − x | − 4 and Ω is separated from V by a finite distance d, the integral ∫ Ω ∫ V L α β 2 d x d r converges. Hence K Ω is a compact, positive trace-class operator with eigenvalues κ ℓ > 0 (having units T 2 m 4 / A 2 ), and ∑ ℓ κ ℓ < ∞ .
We now consider random current dipoles with delta-correlated current densities:
E [ J α ( x ) J β ( y ) ] = V [ J ] δ α β δ ( x − y ) ,
where V [ J ] is the variance of the current-dipole density (having units A 2 / m ), and is the same for all three Cartesian components. Importantly, we consider the magnetic field measured with sensors continuously covering the whole region Ω . Even though the underlying current sources are random, the magnetic field exhibits spatial correlations due to the structure of the lead fields (see End Matter). Additionally, there is additive sensor noise contributing to the measured signal B ˜ ( r ) = B ( r ) + b ( r ) . The noise field has covariance
E [ b α ( r ) b β ( r ′ ) ] = V [ b ] δ α β δ ( r − r ′ ) ,
where V [ b ] reflects the magnetic field estimate variance, taken equal for all three Cartesian components ( V [ b ] has units T 2 m 3 ). Thus, B ˜ α ( r ) = ∫ V L α β ( r , x ) J β ( x ) d x + b α ( r ) describes a linear map from random currents to random fields. Assuming J and b are Gaussian, B ˜ is also Gaussian.
We now evaluate the information conveyed by the measured signal B ˜ ( r ) . The source and noise covariance operators are
E [ J ⊗ J ] = V [ J ] I V ,
E [ b ⊗ b ] = V [ b ] I Ω ,
where I V and I Ω is the identity operator in the Hilbert space of square-integrable vector fields defined in V and Ω , respectively (see End Matter for detailed derivation). Hence the covariance of B ˜ is
B ˜ ≡ E [ B ˜ ⊗ B ˜ ] = V [ J ] K Ω + V [ b ] I Ω .
Let { u ℓ } be an orthonormal eigenbasis of K Ω , K Ω [ u ℓ ] ( x ) = κ ℓ u ℓ ( x ) , 〈 u μ , u ℓ 〉 = δ μ ℓ , where the inner product is 〈 f , g 〉 = ∫ Ω f ( r ) · g ( r ) d r . The projection of the measured field onto the eigenvectors is
β ˜ ℓ = 〈 B ˜ , u ℓ 〉 = 〈 L [ J ] , u ℓ 〉 + 〈 b , u ℓ 〉 ,
Interpreting the two terms in (11) as “signal” and “noise”, and using independence and zero mean, we have E [ β ˜ ℓ ] = 0 and E [ β ˜ ℓ 2 ] = E 〈 L [ J ] , u ℓ 〉 2 + E 〈 b , u ℓ 〉 2 . Using (5) and (8) we get E 〈 L [ J ] , u ℓ 〉 2 = V [ J ] 〈 u ℓ , L L ∗ u ℓ 〉 = V [ J ] κ ℓ , and from (9), E 〈 b , u ℓ 〉 2 = V [ b ] 〈 u ℓ , u ℓ 〉 = V [ b ] . Therefore,
E [ β ˜ ℓ 2 ] = V [ J ] κ ℓ + V [ b ] .
The eigenfunctions u ℓ ( r ) describe spatial magnetic-field patterns that fluctuate independently. Thus, by Shannon’s formula, the total information obtained from a spatially continuous measurement over Ω is
I = 1 2 ∑ ℓ log 2 1 + V [ J ] V [ b ] κ ℓ
The eigenvalues κ ℓ quantify how efficiently random currents in V excite independent magnetic-field modes in Ω . The total information I is finite because ∑ ℓ κ ℓ < ∞ , a consequence of the compactness of K Ω ensured by the finite distance d separating the source volume V from the observation region Ω . The continuous operator K Ω = L L ∗ thus provides a compact, sensor-independent description of magnetic-field correlations in Ω , determined solely by the lead field and the geometry of the source and measurement domains. Its spectrum { κ ℓ , u ℓ } defines the fundamental modes through which information about the currents in V is conveyed to Ω , setting an upper bound on the information accessible to any finite array and avoiding convergence issues in discrete limits related to sensor modeling, noise normalization, or weighting.
The utility of the ERL will now become apparent. For a single magnetometer probing one field component over volume v, the energy resolution per unit bandwidth is ϵ = ( δ B ) 2 v / 2 μ 0 , and the ERL states that ϵ ≳ ℏ . In the continuum limit v → 0 , the product ( δ B ) 2 v remains finite [62], and we identify it with V [ b ] . Thus V [ b ] ≳ 2 μ 0 ℏ W , where W is the measurement’s bandwidth, and hence the sought after MEG capacity (information in bits/s) reads
I W ≤ W 2 ∑ ℓ log 2 1 + V [ J ] 2 μ 0 ℏ W κ ℓ
For the last step of our derivation, we will connect the variance of the current dipole density, V [ J ] , with the metabolic power, P mb , driving the current dipole sources. We follow the standard approach [71] of considering only intra-dendrite axial currents during excitatory postsynaptic potentials (EPSP) as the dominant contribution to MEG signals. Such currents consist of sodium and calcium ions flowing inward and potassium ions flowing outward, resulting in a net transmembrane current I 0 . We approximate the affected dendritic segment with a semi-infinite cylindrical cable of cross section A d and intracellular resistivity ρ [72]. For a localized injection of I 0 at x = 0 , the solution of the cable equation is an axial current I ( x ) = I 0 e − x / λ , where λ is the electrotonic length. This axial current translates into a local current density J ( x ) = I ( x ) / A d . Because this current decays exponentially, points separated by more than λ are effectively uncorrelated. The correlation volume V c = ∫ e − 2 x / λ A d d x = A d λ / 2 characterizes the region within which current fluctuations remain correlated.
Now, the ohmic dissipation in the volume V is ∫ ρ J 2 ( r ) d r . By identifying this with P mb , we get for the spatial average of J 2 , 〈 J 2 〉 V = ( 1 / V ) ∫ J 2 d r = P mb / ρ V . To connect this coarse-grained quantity to the delta-normalized correlation used in Eq. (6) we multiply by the correlation volume V c , obtaining V [ J ] = P mb A d λ / 2 ρ V . In physical terms, P mb / ( ρ V ) gives the mean squared current density, i.e. the height of its spatial correlation function at zero separation, while V c represents the width of that correlation. Replacing the finite-range correlation by a delta function should preserve its total integral (height×width), which leads to the expression above. Substituting into (14) yields
I W ≤ W 2 ∑ ℓ log 2 1 + P mb A d λ 2 ρ V κ ℓ 2 μ 0 ℏ W
This expression is the main result of this work. As stated in the introduction, it is casted in three factors: a geometric factor, κ ℓ , reflecting the geometric coupling of current dipoles into magnetic fields, a metabolic factor, P mb , reflecting the energy driving the current dipoles, and ℏ. The information I W grows with W. If the current dipole source is band-limited to B J , increasing the sampling rate W beyond 2 B J does not increase I. Therefore, the MEG information capacity is given by (14) for W = 2 B J .

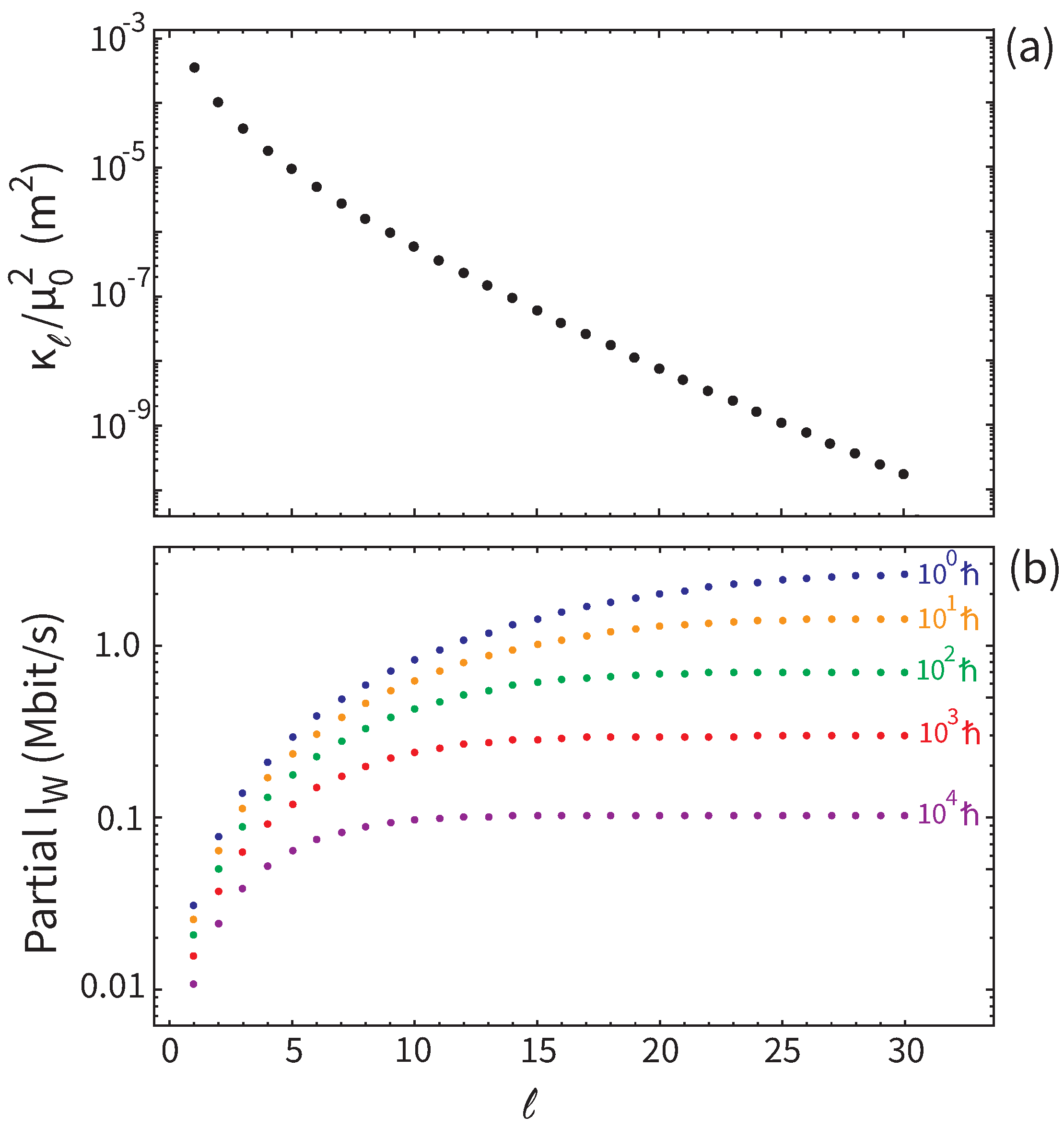

For an analytically tractable example from which we can readily obtain a numerical estimate, we consider a spherical geometry, i.e. a source region of radius a and observation region consisting of points r such that | r | ≥ a + d . We use a head radius a = 8 cm and d = 1.3 cm . The eigenvalues of K Ω , derived in the End Matter, are κ ℓ = μ 0 2 a 2 2 ( ℓ + 1 ) ( 2 ℓ + 1 ) 2 ( 2 ℓ + 3 ) ( a a + d ) 2 ℓ + 1 , with ℓ = 1 , . . . , and they are ( 2 ℓ + 1 ) -degenerate.
To estimate P mb from the metabolic energy budget [73,74,75,76,77,78,79,80,81,82,83], we first evaluate the total transmembrane current I 0 . With E Na ≈ + 60 mV being the sodium equilibrium potential, and a sodium driving force of about 120 mV , the membrane potential is V ≈ − 60 mV (since E Na − V ≈ 120 mV ). For potassium it is E K ≈ − 90 mV , so its driving force is about | V − E K | ≈ 30 mV . Assuming equal conductances for Na+ and K+, the currents scale with their driving forces and have opposite directions, giving I Na ≈ − 4 I K . Using I Na NMDA ≈ 0.64 pA (inward, with 10% carried by Ca2+) and I Na AMPA ≈ 32 pA (inward) [73] yields I Na ≈ 32.6 pA inward and I K ≈ − 8.2 pA outward, so the net current is I 0 = I Na NMDA + I Na AMPA + I K ≈ 24.5 pA inward. The intra-dendritic resistance for a semi-infinite dendritic cable is R in = ρ λ / A d . With A d = π ( 0.5 μ m ) 2 , λ = 0.3 mm , and ρ = 1 Ω m , this gives R in ≈ 380 M Ω . The ohmic power dissipated during an EPSP is then P epsp = 1 2 R in I 0 2 ≈ 115 fW . The corresponding energy, E epsp ≈ 0.115 fJ , dissipated over the 1 ms duration of the EPSP [73], is a small fraction of the free energy resulting from the hydrolysis of ∼ 1.4 × 10 5 ATP molecules [79]. Summed over ∼ 1.1 × 10 10 excitatory cortical neurons, each with ∼ 10 4 successful synaptic events per second [82],, the sought-after power is P mb = 12 mW . Overall, for W = 1000 s − 1 , we find I W ≲ 2.6 Mbit / s . This numerical estimate does not claim to be any more precise than the numerical values used to derive it. It does show, however, that there is quite some room for acquiring more information with MEG, since state-of-the-art systems report capacities at the level of 400 bits per sample [64], which for the same sampling rate translate to 0.4 Mbit/s. These results are visualized in Figure 1, where we plot the eigenvalues κ ℓ (Figure 1a), and the behavior of I W (Figure 1b) as a function of the number of eigenvalues included in the sum in the RHS of (15). For the latter plot we use an ERL which ranges from ℏ (fundamental limit) to 10 4 ℏ , so that we cover a broad sensitivity range.
The above can be probed experimentally, since the metabolic power P mb can be influenced e.g. by sleep-wake transitions, or task engagement. Writing the argument of the logarithm in (15) as 1 + P mb λ ℓ , we define the sensitivity of information to metabolic drive as I W ′ = d I W / d P mb = ( 1 / ln 2 ) ∑ ℓ λ ℓ / ( 1 + λ ℓ P mb ) . In the biological regime under consideration, it is λ ℓ P mb ≫ 1 , thus I W ′ = ( P mb / ln 2 ) ∑ ℓ , where ∑ ℓ is the total number of modes participating. Thus a scaling of I W ′ with P mb can in principle reveal both the metabolic law (15) and the number of modes contributing, although within the demanding constraint that the metabolic power can practically vary in the range of only 5% [75,83].
The information bound intertwining geometric, metabolic, and quantum components can be generalized towards several directions. First, one may derive testable scaling laws linking network geometry to achievable information throughput under fixed energetic cost. Second, the metabolic term invites thermodynamic formulations that connect entropy production and energy dissipation to information, along the lines of the Landauer limit [85], this time introducing a quantum sensing aspect. Perhaps more speculatively stated, by coupling these elements, this bound offers a conceptual framework for understanding quantum human-machine interfaces [86]. Alternatively, deviations from this bound may enable discrimination of biological from artificial systems, i.e. a Turing test based on MEG information.
Regarding the latter point, we will here demonstrate a universal bound on information encoded in a magnetic field produced by a metabolically limited “brain”. This bound is holographic, because it depends on the surface of the boundary of the source volume, instead of the volume itself. This is the biophysical analogue of the holographic area law familiar from black-hole thermodynamics [87].
Indeed, let the current source bandwidth, B J , and accordingly W increase so that in (15) we can make the approximation log 2 ( 1 + x ) ≈ x / ln 2 . Then, setting ∑ ℓ κ ℓ = Tr { K Ω } we get I W ≤ I ⋆ , where
I ⋆ = 1 8 ln 2 P mb A d λ ρ V 1 μ 0 ℏ Tr { K Ω }
The independence of I ⋆ from the sensor bandwidth W reflects a fundamental balance between frequency coverage and quantum noise imposed by the ERL. Shortening the sensor’s measurement time in order to accommodate a fast-changing source leads to increased noise, but at the same time allows faster sampling. In the end the information rate is independent on the sampling rate. Now, for a spherical source it is Tr { K Ω } = μ 0 2 a 2 ( a + d ) 2 + a 2 4 a 2 ln 2 a + d d − a + d 2 a − 2 a 3 ( a + d ) , derived in the End Matter. For the same parameter values used for the numerical estimate of I W , we find the numerical value of the holographic bound, I ⋆ ≈ 6.6 Gbit / s .
Interestingly, we notice that for d ≪ a it is Tr { K Ω } ) ∝ a 2 . The maximum rate at which magnetic information can be exported from a metabolically active system scales linearly with the energy dissipation rate per system’s volume, and with its geometric boundary. In particular, I ⋆ ∝ a 2 / ( ℏ / μ 0 ) , reminiscent of the Bekenstein - Hawking entropy that scales as a 2 / ℏ G . For human brains the effective operating point is many orders of magnitude below the holographic limit, reflecting the narrow bandwidth of neuronal processes. Artificial systems with broader bandwidths could in principle approach the holographic bound, realizing the full geometric information capacity of the magnetic field produced by localized sources. Brains aside, the current result could also be relevant to astrophysical settings [88].
Concluding, using the technology-independent energy resolution limit to magnetic sensing, a spatially continuous measurement, and the brain’s metabolic power sustaining MEG-active current sources, we have formally derived an upper bound to the information capacity of magnetoencephalography. We have also derived a holographic area law applicable to the high bandwidth limit that can in principle be realized with artificial brains. The concepts elaborated herein can promote connections between neuroscience and quantum technology.

Appendix A. Covariance Operators

In the main text we wrote for the expectation of the random current field outer product,
E [ J ⊗ J ] = V [ J ] I V ,
where I V is the identity operator in the space L 2 ( V ; R 3 ) of square-integrable vector fields in the volume V. Here we dwell into this formalism. For any two vector fields u ( x ) and v ( x ) defined in V, their outer product is an operator acting on the vector field f ( x )
( u ⊗ v ) f = u 〈 v , f 〉 V ,
where 〈 v , f 〉 V = ∫ V v ( x ) · f ( x ) d x is the inner product in L 2 ( V ; R 3 ) . For a random current density J ( x ) , the ensemble average of this rank-one operator, E [ J ⊗ J ] , is the covariance operator of the random field J , having kernel the two-point correlator E [ J ⊗ J ] α β ( x , y ) = E [ J α ( x ) J β ( y ) ] . This generalizes the concept of a covariance matrix to the continuous case: instead of discrete indices, the kernel depends on two spatial positions x and y . For delta-correlated current sources it is E [ J α ( x ) J β ( y ) ] = V [ J ] δ α β δ ( x − y ) , thus
( E [ J ⊗ J ] ) f α ( x ) = ∫ V E [ J α ( x ) J β ( y ) ] f β ( y ) d y = V [ J ] f α ( x )
Hence indeed it holds E [ J ⊗ J ] = V [ J ] I V . Now, because the magnetic field is a linear functional of the current distribution, B = L J , where L is the lead-field operator defined in Eq. (3), the outer product of the field can be written directly in terms of that of the current: B ⊗ B = ( L J ) ⊗ ( L J ) = L ( J ⊗ J ) L ∗ . Then, the expectation value reads E [ B ⊗ B ] = L E [ J ⊗ J ] L ∗ . Using (A1), we find E [ B ⊗ B ] = V [ J ] K Ω , where K Ω = L L ∗ is the magnetic field covariance operator introduced in the main text. In other words, the transformation E [ J ⊗ J ] → E [ B ⊗ B ] induced by the lead field operator L describes the geometric aspect of how uncorrelated current dipoles inside the head lead to spatially correlated magnetic fields outside. The operator K Ω , or equivalently its kernel K α β ( r , r ′ ) , contains this geometric information. Its eigenfunctions represent statistically independent field modes and its eigenvalues determine the variance, and hence the conveyed information, of each mode.

Appendix B. Trace and Eigenvalues of K Ω

The mapping from current sources in V to the magnetic field in Ω is described by the linear operator L , with
L [ J ] ( r ) = ∫ V K ( r , r ′ ) J ( r ′ ) d r ′ ,
where K ( r , r ′ ) is the 3 × 3 matrix kernel of L , representing the Biot-Savart law
K ( r , r ′ ) J = μ 0 4 π J × r − r ′ | r − r ′ | 3 .
We assume V = { | r ′ | = ρ ′ ≤ a } and Ω = { | r | = ρ ≥ R } , with a < R , so that the two regions are disjoint and the subsequent integrals converge.
The composition K Ω = L L ∗ is a positive, self-adjoint, compact operator on L 2 ( Ω ) 3 . Its trace is given by the Hilbert–Schmidt norm
∥ L ∥ H S 2 = ∫ Ω ∫ V ∥ K ( r , r ′ ) ∥ F 2 d r d r ′ ,
where ∥ K ∥ F denotes the Frobenius norm ∥ K ∥ F 2 = ∑ i , j = 1 3 | K i j | 2 .
Because K acts as the cross product with u ( r , r ′ ) = ( μ 0 / 4 π ) ( r − r ′ ) / | r − r ′ | 3 , it can be written as the skew-symmetric matrix [ u ] × . Since [ u ] × has singular values ( | u | , | u | , 0 ) , its Frobenius norm satisfies ∥ K ∥ F 2 = 2 | u | 2 . Thus
Tr { K Ω } = μ 0 4 π 2 2 ∫ Ω ∫ V d r d r ′ | r − r ′ | 4 .
To evaluate this double integral, let | r | = ρ ≥ R and | r ′ | = ρ ′ ≤ a . By rotational symmetry,
∫ ∫ d Ω d Ω ′ | r − r ′ | 4 = 8 π 2 ∫ − 1 1 d μ ( ρ 2 + ρ ′ 2 − 2 ρ ρ ′ μ ) 2 = 16 π 2 ( ρ 2 − ρ ′ 2 ) 2 ,
and therefore
∫ Ω ∫ V d r d r ′ | r − r ′ | 4 = 16 π 2 ∫ 0 a ρ ′ 2 d ρ ′ ∫ R ∞ ρ 2 d ρ ( ρ 2 − ρ ′ 2 ) 2 .
Since
∫ R ∞ ρ 2 d ρ ( ρ 2 − ρ ′ 2 ) 2 = R 2 ( R 2 − ρ ′ 2 ) − 1 4 ρ ′ ln R − ρ ′ R + ρ ′ ,
we obtain
∫ 0 a ρ ′ 2 R 2 ( R 2 − ρ ′ 2 ) − 1 4 ρ ′ ln R − ρ ′ R + ρ ′ d ρ ′ = R 2 + a 2 8 ln R + a R − a − a R 4 .
Putting everything together gives
Tr { K Ω } = μ 0 2 R 2 + a 2 4 ln R + a R − a − a R 2 .
This quantity has dimensions μ 0 2 × ( length ) 2 , consistent with the Biot–Savart scaling.
Now, K Ω is rotationally symmetric in the sense that the Biot–Savart kernel K transforms covariantly under rotations. By covariance we mean that for any rotation R ∈ SO ( 3 ) ,
K ( R r , R r ′ ) = R K ( r , r ′ ) R T .
Define the natural unitary representations of SO ( 3 ) on vector fields in Ω and in V by
( U Ω ( R ) B ) ( r ) = R B ( R − 1 r ) ,
( U V ( R ) J ) ( r ′ ) = R J ( R − 1 r ′ ) .
Both U Ω ( R ) and U V ( R ) are unitary on L 2 ( Ω ) 3 and L 2 ( V ) 3 , since rotations preserve the Euclidean norm and the integration measure. The covariance property (A9) implies
U Ω ( R ) L = L U V ( R ) ,
L ∗ U Ω ( R ) = U V ( R ) L ∗ .
Hence U Ω ( R ) K Ω = U Ω ( R ) L L ∗ = L U V ( R ) L ∗ = L L ∗ U Ω ( R ) = K Ω U Ω ( R ) , so that [ K Ω , U Ω ( R ) ] = 0 for all rotations. Thus K Ω decomposes into irreducible subspaces X ℓ with angular momentum ℓ. By Schur’s lemma, K Ω acts as a scalar multiple of the identity on each block, K Ω | X ℓ = κ ℓ I .
For any nonzero field B ∈ X ℓ , K Ω B = κ ℓ B , and taking the inner product gives 〈 B , K Ω B 〉 Ω = κ ℓ 〈 B , B 〉 Ω . Since K Ω = L L ∗ , it follows that 〈 B , L L ∗ B 〉 Ω = 〈 L ∗ B , L ∗ B 〉 V , and therefore κ ℓ = ∥ L ∗ B ∥ V 2 / ∥ B ∥ Ω 2 .
Now, we consider the exterior harmonic field B l m = − ∇ Φ l m , with potential Φ l m = ρ − l − 1 Y l m ( r ^ ) in Ω = { ρ ≥ R } . Its magnitude scales as | B l m | ∼ ρ − ( l + 2 ) , therefore ∥ B ∥ Ω ∼ ∫ R ∞ ρ 2 ρ − 2 ( ℓ + 2 ) d r ∼ R − ( 2 ℓ + 1 ) . As for the numerator, we start with:
L ∗ [ B ] ( r ′ ) = μ 0 4 π ∫ Ω B ( r ) × ( r − r ′ ) | r − r ′ | 3 d r = − μ 0 4 π ∫ Ω ∇ r × B ( r ) | r − r ′ | d r = − μ 0 4 π ∮ ∂ Ω ( − r ^ ) × B ( r ) | r − r ′ | d S = μ 0 4 π ∮ ∂ Ω r ^ × B ( r ) 1 | r − r ′ | d S .
Using the multipole expansion on the boundary ∂ Ω ,
1 | r − r ′ | = ∑ ℓ ′ = 0 ∞ ∑ m ′ = − ℓ ′ ℓ ′ 4 π 2 ℓ ′ + 1 ρ ′ ℓ ′ R ℓ ′ + 1 Y ℓ ′ m ′ ∗ ( r ^ ′ ) Y ℓ ′ m ′ ( r ^ )
and
r ^ × B | ∂ Ω = − r ^ × ∇ ω Y ℓ m R ℓ + 2 ,
we find
L ∗ [ B ] = − μ 0 ∑ ℓ ′ , m ′ R 2 Y ℓ ′ m ′ ∗ ( r ^ ′ ) R ℓ + ℓ ′ + 3 ρ ′ ℓ ′ 2 ℓ ′ + 1 × ∮ ∂ Ω r ^ × ∇ ω Y ℓ m ( r ^ ) Y ℓ ′ m ′ ( r ^ ) d ω .
The surface integral is nonzero only for ℓ = ℓ ′ , so L ∗ [ B ] ∼ ρ ′ ℓ / R 2 ℓ + 1 . Finally, the norm of the vector field results in
∥ L ∗ [ B ] ∥ 2 ∼ ∫ 0 a ρ ′ ℓ R 2 ℓ + 1 2 ρ ′ 2 d r ′ ∼ a 2 ℓ + 3 R 4 ℓ + 2 .
Dividing by the field norm in Ω gives
κ ℓ ∝ a 2 ℓ + 3 R − ( 4 ℓ + 2 ) R − ( 2 ℓ + 1 ) = a 2 a R 2 ℓ + 1 .
Hence the eigenvalues of K Ω scale as κ ℓ ∝ ( a / R ) 2 ℓ + 1 , with the exact proportionality determined by the trace normalization below. Rotational symmetry then implies ( 2 ℓ + 1 ) -fold degeneracy, and consequently Tr { K Ω } = ∑ ℓ ( 2 ℓ + 1 ) κ ℓ . Setting x = a / ( a + d ) = a / R < 1 , and using the identity
∑ ℓ = 0 ∞ 2 ( ℓ + 1 ) ( 2 ℓ + 1 ) ( 2 ℓ + 3 ) x 2 ℓ + 1 = 1 + x 2 4 x 2 ln 1 + x 1 − x − 1 2 x ,
we find that
κ ℓ = μ 0 2 a 2 2 ( ℓ + 1 ) ( 2 ℓ + 3 ) ( 2 ℓ + 1 ) 2 a a + d 2 ℓ + 1 .
However, the ℓ = 0 exterior harmonic corresponds to a monopole-like field in Ω . While such a field cannot be produced by real divergence-free currents, the operator K Ω = L L ∗ acts nontrivially on this mathematical subspace. Thus, to restrict to the physical range of L (mapping actual currents to magnetic fields), the spectral sum is taken from ℓ = 1 upward. Subtracting the monopole contribution gives Tr { K Ω } | ℓ ≥ 1 = Tr { K Ω } − μ 0 2 a 2 2 3 a R , so that the final expression is
Tr { K Ω } | ℓ ≥ 1 = μ 0 2 a 2 [ ( a + d ) 2 + a 2 4 a 2 ln 2 a + d d − a + d 2 a − 2 a 3 ( a + d ) ] .
