Photonic Vacuum Windows: A Casimir-Safe Operational Baseline

1. Introduction

Our aim is conceptual; empirical links serve solely to make the concept falsifiable.

Classical electrodynamics treats free space as a linear, dispersionless background with fixed electromagnetic parameters and a universal light speed [12,19]. From a quantum perspective, however, the vacuum is an active ground state whose fluctuations give rise to observable phenomena, notably the Casimir effect and radiative corrections [2,3,4,8,10,13,16,20,25,26]. Taking that perspective seriously, we advance a carried-light picture: electromagnetic waves propagate through—and are effectively carried by—a sea of fluctuating degrees of freedom whose collective response sets how light moves.

Note: These mappings are presented only as testable consequences. The primary contribution is a conceptual, impedance-invariant, and physically admissible description of the carried-light vacuum.

Primary Aim

The aim of this work is conceptual: to articulate a physically admissible, testable description in which the collective vacuum fluctuations determine the effective electromagnetic response while preserving the vacuum impedance. The experimental mappings (cavities, interferometers, radiometry, and Casimir) are presented only as consequences that enable empirical tests of the concept, not as applications in themselves.

Relation to Prior Work

This formulation extends the author’s earlier studies on an energetically bounded quantum vacuum, which proposed a finite, self-consistent fluctuation ensemble co-determining the observed light speed and quantum behaviour [14,15]. Related ideas also link the speed of light to vacuum fluctuations [37], typically without an explicit energetic bound. Here that bound acts as a natural physical regularisation: it ensures a finite energy density and motivates an operational, Casimir-safe framework directly testable in the laboratory.

Operationalisation

To make the idea testable without committing to a microscopic model, we adopt a single, frequency-dependent vacuum response (a “window”) that captures small, causal and passive departures from ideal propagation while keeping the free-space impedance fixed. Any measurement is paired with a calibrated, unit-area sensitivity curve from the relevant platform, yielding a band-averaged figure that collapses apparatus specifics into a published sensitivity window. Publishing this figure alongside the window enables like-for-like comparison and reanalysis across precision photonic platforms [1,5,9,31,35].

Light as Reference and Messenger

Within this approach, light plays a dual role. It provides the practical reference for distance, time and causality, and it acts as the primary information carrier whose bandwidth, noise floor and dispersion are constrained by the vacuum response. Small departures from ideal behaviour are therefore naturally expressed as band-averaged deformations of that response and confronted with photonic observations, including broadband radiometry and astrophysical calibrations [11,21,29].

Physical Admissibility

The vacuum window is required to satisfy standard linear-response principles that underpin fluctuation–dissipation reasoning: causality (Kramers–Kronig consistency), passivity (non-negative dissipation), and a high-frequency limit consistent with Maxwell electrodynamics [6,12,17,18,19]. These conditions ensure compatibility with established physics and with precision constraints from Casimir and optical experiments [4,16,26] while allowing tiny, KK-consistent dispersive features to be probed.

Scope and Contributions

In summary, this paper (i) motivates the carried-light view of an energetically bounded vacuum; (ii) formulates a Casimir-safe, impedance-invariant operational window; (iii) provides first-order, platform-agnostic mappings to cavity frequency shifts, interferometric phase, group delay, conservative radiometric propagation, and Casimir-type observables; and (iv) outlines reporting conventions that enable cross-platform synthesis via a band-averaged figure and the published sensitivity. The reporting approach aligns with current best practices in open and reproducible research [27,28,34,36]. The result is a practical route to measurement that remains faithful to the conceptual picture while enabling reproducible constraints on deviations from ideal vacuum propagation.

What follows is an operational interface for falsifiability, not an application program.

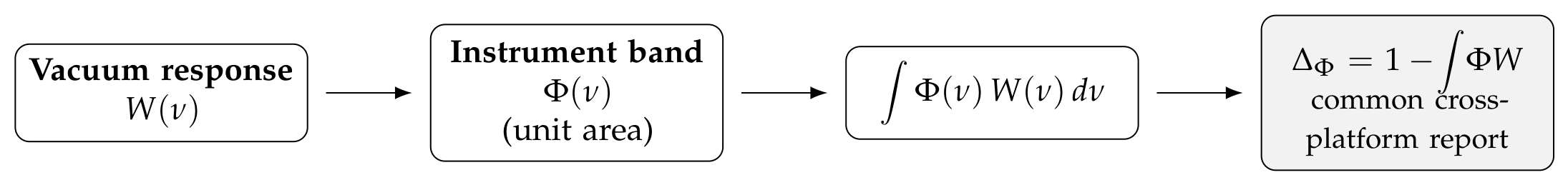

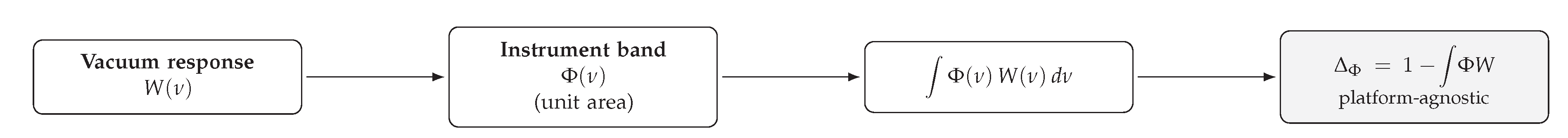

2. Operational Interface for Falsifiability

The role of $W\left(\nu \right)$, $\Phi \left(\nu \right)$, and ${\Delta }_{\Phi }$ is purely operational: to render the conceptual proposal empirically testable and reportable.

${\Delta }_{\Phi }\equiv 1-\int \Phi \left(\nu \right)W\left(\nu \right)d\nu$, $W=1+\delta W$. Sign:$+\delta W$ denotes effective slowdown. Isotropic SME: $n-1=-{\overline{\kappa }}_{\mathrm{tr}}\Rightarrow \delta W=-{\overline{\kappa }}_{\mathrm{tr}}$.

We model the vacuum as linear, isotropic and homogeneous with a single scalar response (“window”) $W\left(\nu \right)$ that co-scales the electromagnetic parameters while preserving the wave impedance:

$$\epsilon \left(\nu \right)={\epsilon }_{0}W\left(\nu \right),\mu \left(\nu \right)={\mu }_{0}W\left(\nu \right),$$

(1)

so that $Z\left(\nu \right)=\sqrt{\mu \left(\nu \right)/\epsilon \left(\nu \right)}=Z_0$ remains constant and no spurious boundary-impedance effects are introduced [12,19].

We adopt the notation convention

$$n\left(\nu \right)=W\left(\nu \right),c_{\mathrm{eff}}\left(\nu \right)={\displaystyle \frac{c}{W\left(\nu \right)}},$$

(2)

and use it consistently throughout (this removes common factor/sign ambiguities in mappings to observables and SME parameters).

[colback=white,colframe=black!15] Operational response factor and free-space reference. The proposed frequency-dependent response factor $W\left(\nu \right)$ makes the concept of a fluctuating quantum vacuum operational. It represents the collective influence of all virtual fluctuations without modelling their microscopic details individually, thus describing how the vacuum behaves as an effective medium for electromagnetic propagation.

The construction of $W\left(\nu \right)$ follows three fundamental requirements:

• Causality — the response to an electromagnetic excitation must occur only after the stimulus itself; in the frequency domain this leads to the Kramers-Kronig relations linking the real and imaginary parts of $W\left(\nu \right)$.
• Passivity — the vacuum cannot generate energy, only store or dissipate it; mathematically, $\mathrm{Im}W\left(\nu \right)\ge 0$ for positive frequencies.
• Free-space limit — at very high frequencies ($\nu \to \infty$) the influence of the fluctuating background vanishes and $W\left(\nu \right)$ approaches unity. This limit represents the ideal free-space of classical Maxwell theory: homogeneous, lossless, and dispersionless, where light propagates with constant speed c.

Free-space thus acts as a reference state: it defines the zero-deviation baseline against which the frequency-dependent properties of the real, fluctuating vacuum are measured. Whenever $W\left(\nu \right)\ne 1$, light propagation is no longer perfectly ideal. Such deviations imply that the quantum vacuum itself—as a medium—subtly influences the speed, phase, and group structure of electromagnetic waves. In this sense, light does not merely travel through the vacuum but is carried by it: the vacuum is both messenger and test ground.

2.1. Emergent Origin of a Small Dispersion in $W\left(\nu \right)$

At a microscopic level, gapless transverse modes with linear dispersion can emerge from non-relativistic substrates that flow to a Maxwell fixed point. Irrelevant operators then produce UV-suppressed corrections to the dispersion,

$${\omega }^2=c^2{k}^2\left[1+\eta {(k/\Lambda )}^2+\mathcal{O}\left({(k/\Lambda )}^4\right)\right],$$

(3)

which implies for the effective refractive response

$$W\left(\nu \right)=n\left(\nu \right)=1+{\displaystyle \frac{\eta }{2}}{\left({\displaystyle \frac{2\pi \nu }{{\Lambda }_{\omega }}}\right)}^2+\mathcal{O}\left({(\nu /{\Lambda }_{\omega })}^4\right),{\Lambda }_{\omega }\equiv c\Lambda .$$

(4)

Thus, $W\left(\nu \right)\to 1$ in the UV (Casimir-safe), while a tiny residual curvature remains at finite frequency. We use this generic, model-agnostic form to connect band-averaged measurements ${\Delta }_{\Phi }$ to a lower bound on ${\Lambda }_{\omega }$. Full details are deferred to Appendix D.4.

Complex Response and Causality

In general, the vacuum window $W\left(\nu \right)$ may be complex, representing both the dispersive (real) and dissipative (imaginary) parts of the bounded-vacuum response. Throughout this work we report band figures ${\Delta }_{\Phi }$ and related quantities on the real-frequency axis, using $\mathrm{Re}W\left(\nu \right)$ as the directly measurable component. Causality is ensured by analytic continuation of $W\left(\nu \right)$ into the upper half-plane, so that real and imaginary parts obey Kramers-Kronig relations consistent with fluctuation–dissipation reasoning [6,17,18]. The imaginary part $\mathrm{Im}W\left(\nu \right)$ enters only through these relations and via small corrections in $\nu {\partial }_{\nu }W\left(\nu \right)$ appearing in the group-delay term; passivity ($\mathrm{Im}W\ge 0$ for $\nu >0$) and energy conservation therefore hold for any physically admissible bounded-vacuum response.

2.2. Minimal Consistency Conditions

(i)

Casimir-safe UV limit:${lim}_{\nu \to \infty }W\left(\nu \right)=1$, consistent with precision Casimir/optical data [2,4,10,16,26].

(ii)

Passivity & KK:$W\left(\nu \right)$ is the boundary value of a function analytic in the upper half-plane with $\mathrm{Im}W\left(\nu \right)\ge 0$ ($\nu >0$), so real and imaginary parts obey Kramers-Kronig [19].

(iii)

Smallness: write $W\left(\nu \right)=1+\delta W\left(\nu \right)$ with $\left|\delta W\right|\ll 1$ and linearize unless stated otherwise.

Benchmark smallness. In the examples below we take $\left|\delta W\right|\lesssim {10}^{-6}$–${10}^{-5}$ as a practical guideline; first-order relations apply whenever $\left|\delta W\right|\ll 1$.

Band-Observable

For a calibrated, unit-area spectral sensitivity $\Phi \left(\nu \right)$ associated with an instrument, define the platform-agnostic figure of merit. We adopt the sign convention that a positive $\delta W$ corresponds to an effective decrease in measured propagation; in the linear regime we then have

$${\Delta }_{\Phi }\equiv 1-{\int }_0^{\infty }\Phi \left(\nu \right)W\left(\nu \right)d\nu \simeq -{\int }_0^{\infty }\Phi \left(\nu \right)\delta W\left(\nu \right)d\nu =-{\langle \delta W\rangle }_{\Phi }.$$

(5)

Publishing ${\Delta }_{\Phi }$ together with $\Phi \left(\nu \right)$ enables reproducible, cross-platform constraints and re-analysis [27,28,34,36].

Concrete Baseline

Unless stated otherwise we use a single damped-Lorentz bump $W\left(\nu \right)=1-\alpha /(1+{(\nu /{\nu }_0)}^2)$ with $\left|\alpha \right|\ll 1$ and a positive-kernel superposition as a smooth alternative. Both satisfy $W\left(\nu \right)\to 1$ for $\nu \to \infty$ and are convenient for band-averaged bounds.

Band Measure

Throughout the real-frequency analysis we use

$${\int }_0^{\infty }\Phi \left(\nu \right)d\nu =1,{\langle f\rangle }_{\Phi }\equiv {\int }_0^{\infty }\Phi \left(\nu \right)f\left(\nu \right)d\nu .$$

On the imaginary axis (Casimir) we use the logarithmic measure $\int {\Phi }_{\mathrm{Cas}}\left(\xi \right)\left(·\right)dln\xi$ as specified in Section 3.5.

Table 1. Notation and conventions used throughout.

Symbol	Meaning
$W\left(\nu \right)$	Vacuum window (scalar response); $W\to 1$ in the UV (Casimir-safe).
$n\left(\nu \right)$	Effective refractive index, defined as $n\left(\nu \right)=W\left(\nu \right)$.
$v_p,v_g$	Phase and group velocities; $v_p=c/W$, $v_g=c/[W+\nu {\partial }_{\nu }W]$.
$\Phi \left(\nu \right)$	Unit-area spectral sensitivity (instrument window) for a given platform.
${\Delta }_{\Phi }$	Platform-agnostic figure of merit: $1-\int \Phi \left(\nu \right)W\left(\nu \right)d\nu$.
$\delta W$	Small departure, $W=1+\delta W$, $\left|\delta W\right|\ll 1$.

Table 1. Notation and conventions used throughout.

Symbol	Meaning
$W\left(\nu \right)$	Vacuum window (scalar response); $W\to 1$ in the UV (Casimir-safe).
$n\left(\nu \right)$	Effective refractive index, defined as $n\left(\nu \right)=W\left(\nu \right)$.
$v_p,v_g$	Phase and group velocities; $v_p=c/W$, $v_g=c/[W+\nu {\partial }_{\nu }W]$.
$\Phi \left(\nu \right)$	Unit-area spectral sensitivity (instrument window) for a given platform.
${\Delta }_{\Phi }$	Platform-agnostic figure of merit: $1-\int \Phi \left(\nu \right)W\left(\nu \right)d\nu$.
$\delta W$	Small departure, $W=1+\delta W$, $\left|\delta W\right|\ll 1$.

Parameterisations

A KK-consistent Lorentz baseline or positive-kernel representation (with $A\left({\nu }^{\prime }\right)\ge 0$ and $\int Adln{\nu }^{\prime }\ll 1$) supplies smooth, bounded $W\left(\nu \right)$ satisfying the UV condition; details are deferred to Appendix A.

3. Mappings to Experimental Observables

Below we give first-order mappings ($\left|\delta W\right|\ll 1$), keeping careful track of signs and connecting to ${\Delta }_{\Phi }$.

3.1. Resonant Frequency Shifts (Cavities)

For a mode with nominal frequency ${\nu }_0$ in length L, the resonance condition implies $\delta \nu /{\nu }_0\simeq -\delta W$. Weighting by stored energy defines a cavity window ${\Phi }_{\mathrm{cav}}\left(\nu \right)$, giving the platform-agnostic form

$${\displaystyle \frac{\delta \nu }{{\nu }_0}}\approx {\Delta }_{\Phi ,\mathrm{cav}},$$

(6)

with representative platforms in [1,9,35].

3.2. Interferometric Phase (Fixed Laser Frequency)

For arm-difference L at angular frequency $\omega$, $\phi =(n\omega /c)L$. Thus at fixed $\omega$: $\delta \phi /{\phi }_0=\delta W$, and band-averaged

$${\displaystyle \frac{\delta \phi }{{\phi }_0}}\approx {\langle \delta W\rangle }_{{\Phi }_{\mathrm{ifo}}}=-{\Delta }_{\Phi ,\mathrm{ifo}}.$$

(7)

3.3. Time-of-Flight and Group Delay

With $v_g=c{[W+\nu {\partial }_{\nu }W]}^{-1}$ one finds, over distance L,

$${\displaystyle \frac{\delta \tau }{{\tau }_0}}\simeq \delta W+\nu {\partial }_{\nu }\delta W,{\tau }_0={\displaystyle \frac{L}{c}},$$

(8)

which cleanly separates constant and sloped components across bands [19].

Remark. If an emergent residual of the form $W\left(\nu \right)-1\propto {\nu }^2/{\Lambda }_{\omega }^2$ is adopted, band limits on ${\Delta }_{\Phi }$ imply the scale bound in Eq. (14). This complements the dispersionless isotropic SME mapping.

3.4. Radiometry (Conservative Propagation-Only Treatment)

Propagation via W modifies phases, delays and bandwidth mappings, but not the source spectra of blackbody/Johnson noise without a microphysical matter–field model. We therefore constrain W through transfer functions and calibrated responses (absolute sources as in [5,11,21,31]).

Extensions that modify source spectra can be accommodated by publishing an additional source window alongside $\Phi \left(\nu \right)$, so that emission and propagation remain factorised and double counting is avoided. Source models should report ${\Delta }_{\Phi ,\mathrm{src}}$ separately from ${\Delta }_{\Phi ,\mathrm{prop}}$; combining them requires an explicit, justified coupling model.

In that case, a band-power perturbation scales as ${(\delta P/P_0)}_{\mathrm{prop}}\simeq {\langle \delta W\rangle }_{{\Phi }_{\mathrm{rad}}}=-{\Delta }_{\Phi ,\mathrm{rad}}.$

3.5. Casimir-Type Observables

Heuristically, mode frequencies rescale as $\omega \to \omega /W$, yielding $\delta E/E_0\simeq -\delta W$ for slowly varying W. See App. F for the Lifshitz variation. More generally, a first-order Lifshitz expansion on the imaginary axis gives

$${\displaystyle \frac{\delta F}{F_0}}\simeq -{\int }_0^{\infty }{\Phi }_{\mathrm{Cas}}\left(\xi \right)\delta W\left(i\xi \right)dln\xi \equiv {\Delta }_{\Phi ,\mathrm{Cas}},$$

(9)

with ${\Phi }_{\mathrm{Cas}}$ set by separation and temperature and consistency with precision data [2,4,10,16,20,25,26,32] including the role of the imaginary-frequency axis and the UV-safe limit. For completeness, a compact first-order derivation based on the Lifshitz free energy is provided in Appendix F.

4. Comparison with Existing Tests and Frameworks

4.1. Isotropic SME Mapping

In the isotropic photon sector of the SME we adopt the sign convention

$$n_{\mathrm{SME}}\simeq 1-{\overline{\kappa }}_{\mathrm{tr}}.$$

(10)

Within our impedance-invariant formalism $n\left(\nu \right)=W\left(\nu \right)=1+\delta W\left(\nu \right)$, hence

$$\delta W\equiv W-1=-{\overline{\kappa }}_{\mathrm{tr}}.$$

(11)

If the SME contribution is (band-)constant over the instrument bandwidth, the band figure reduces to

$${\Delta }_{\Phi }\simeq -{\langle \delta W\rangle }_{\Phi }={\langle {\overline{\kappa }}_{\mathrm{tr}}\rangle }_{\Phi }.$$

(12)

Notation. All SME comparisons below use $n-1=-{\overline{\kappa }}_{\mathrm{tr}}$. This fixes the overall sign and removes factor-of-two ambiguities found in alternative SME conventions.

Numerical Illustration

Assume an optical band with a unit-area $\Phi \left(\nu \right)$ centred near $\nu \sim 3\times {10}^{14}\mathrm{Hz}$ so that ${\langle {\nu }^2\rangle }_{\Phi }\approx 9\times {10}^{28}{\mathrm{Hz}}^2$. A conservative experimental limit $|{\Delta }_{\Phi }|\le {10}^{-15}$ then yields

$${\Lambda }_{\omega }\ge 2\pi \sqrt{{\displaystyle \frac{{\langle {\nu }^2\rangle }_{\Phi }}{2|{\Delta }_{\Phi }|}}}\approx 4\times {10}^{22}\mathrm{Hz},$$

corresponding to a microscopic length scale $a\sim c/{\Lambda }_{\omega }\lesssim {10}^{-14}\mathrm{m}$.

4.2. Band-Averaged SME Correspondence (With Dispersion)

The identification ${\Delta }_{\Phi }\simeq -{\overline{\kappa }}_{\mathrm{tr}}$ holds when the isotropic SME parameter is effectively constant across the instrument band. If ${\overline{\kappa }}_{\mathrm{tr}}\left(\nu \right)$ is frequency dependent, report the band average

$${\langle {\overline{\kappa }}_{\mathrm{tr}}\rangle }_{\Phi }\equiv {\int }_0^{\infty }\Phi \left(\nu \right){\overline{\kappa }}_{\mathrm{tr}}\left(\nu \right)d\nu ,$$

together with either

(i) a bound on the local slope $|d{\overline{\kappa }}_{\mathrm{tr}}/dln\nu |$ within the band, or

(ii) a two-bin split of $\Phi \left(\nu \right)$ (low/high) with separate figures ${\Delta }_{\Phi ,\mathrm{low}}$ and ${\Delta }_{\Phi ,\mathrm{high}}$.

This avoids factor-of-two ambiguities and makes re-use of existing SME limits straightforward in the band-averaged sense.

Minimal Reporting Set for ${\Delta }_{\Phi }$.

To enable re-integration and cross-platform comparison we recommend reporting:

• the machine-readable sensitivity window $\Phi \left(\nu \right)$ ($\int \Phi d\nu =1$), units, and effective band edges (e.g. 5–95% cumulative);
• the band figure ${\Delta }_{\Phi }$ with a transparent uncertainty budget (type A/B) and coverage factor;
• the calibration chain (transfer functions, absolute/relative), versioned;
• a DOI for data and scripts in line with open, reproducible practice [27,28,34,36].

4.3. Placement Within the Experimental Landscape

Expressing results as ${\Delta }_{\Phi }$ isolates apparatus details in $\Phi \left(\nu \right)$ and enables cross-band meta-analysis once $\Phi \left(\nu \right)$ is published (optical/microwave cavities [1,9,35], radiometry [5,11,21,31], Casimir platforms [2,4,10,16,20,25,26,32]). We recommend reporting ${\Delta }_{\Phi }$ together with machine-readable $\Phi \left(\nu \right)$ for re-integration [27,28,34,36].

Scope and Conservative Assumption

In this work we treat radiometric sources (blackbody/Johnson) as standard, i.e. their spectra are not modified by $W\left(\nu \right)$ in the absence of a microscopic matter–field coupling model. Sensitivity to W enters through propagation and calibrated transfer functions only, consistent with fluctuation–dissipation theory [6,17,18] and radiometric practice [5,11,21,31]. This prevents double counting and keeps results immediately comparable across platforms. Models that directly alter source spectra fall outside the present scope but could be accommodated by publishing the corresponding source window alongside $\Phi \left(\nu \right)$.

4.4. Isotropy and Frames

Boost modulations relative to the CMB frame scale as $\beta \partial lnW/\partial ln\nu$ with ${\beta }_{\mathrm{CMB}}\simeq {10}^{-3}$. Quantitatively, Earth’s orbital motion gives ${\beta }_{\oplus }\simeq {10}^{-4}$; for smooth $W\left(\nu \right)$ any annual band-averaged modulation is suppressed by $\mathcal{O}\left({\beta }_{\oplus }\right)$ times the local spectral slope and is negligible at current sensitivities. With the impedance-invariant ansatz, boundary-induced anisotropies are absent at $\mathcal{O}\left(\delta W\right)$. Using the illustrative $W\left(\nu \right)=1+\frac{\eta }{2}{(2\pi \nu /{\Lambda }_{\omega })}^2$ gives ${\partial }_{ln\nu }lnW\simeq 2$ for $\left|\delta W\right|\ll 1$, so the expected modulation is $\lesssim 2\times {10}^{-4}\left|\delta W\right|$, well below present limits.

Isotropy Under Boosts

For smooth windows the leading boost–induced modulation scales as $\delta W/W\sim \beta {\partial }_{ln\nu }lnW$. Using $W\left(\nu \right)=1+\frac{\eta }{2}{(2\pi \nu /{\Lambda }_{\omega })}^2$ gives ${\partial }_{ln\nu }lnW\approx 2$ for $\left|\delta W\right|\ll 1$. With Earth’s orbital $\beta \simeq {10}^{-4}$ the expected modulation is $\lesssim 2\times {10}^{-4}\left|\delta W\right|$, well below current band-averaged sensitivities.

5. Implications and Extensions

5.1. Fluctuation–Dissipation Connection

Within a passive, causal medium, thermal source spectra follow standard FDT expressions [6,17,18]; propagation modifies transfer functions but not blackbody/Johnson PSDs absent a microscopic coupling model. This avoids double counting and aligns with radiometric practice [5,31].

5.2. Casimir-Safe Regularisation

The UV limit $W\left(\nu \right)\to 1$ ensures convergence of vacuum-energy integrals while remaining compatible with precision force measurements [2,4,10,16,22,23,24,26].

5.3. Spectral Representations

A convenient positive-kernel representation,

$$W\left(\nu \right)=1-{\int }_0^{\infty }{\displaystyle \frac{A\left({\nu }^{\prime }\right)}{1+{(\nu /{\nu }^{\prime })}^2}}dln{\nu }^{\prime },A\left({\nu }^{\prime }\right)\ge 0,\int Adln{\nu }^{\prime }\ll 1,$$

(13)

produces smooth, KK-consistent deformations and the Casimir-safe limit by construction.

5.4. Astrophysical Connections

CMB temperature and spectral constraints bound band-averaged variations at the $\lesssim {10}^{-5}$ level [11,29], complementary to laboratory bands but broader in reach.

5.5. Relation to Bounded-Vacuum Energy Models

The operational window $W\left(\nu \right)$ connects naturally to bounded vacuum-energy models [7,14,15,37], providing a bridge between laboratory tests and cosmological considerations.

6. Discussion and Relation to Previous Work

The operational framework developed here translates the conceptual picture of an energetically bounded quantum vacuum into a form directly testable by precision photonic experiments. Within this view, the electromagnetic vacuum represents a finite-energy ensemble of fluctuations whose coarse-grained response determines the observed light speed. Rather than postulating c as a universal constant, it emerges from the equilibrium properties of this bounded background [14,15,37]. Small residual departures from that equilibrium may produce measurable, frequency-dependent modifications of the vacuum response.

Expressing the vacuum behaviour through a single, impedance-invariant window $W\left(\nu \right)$, and pairing it with a calibrated sensitivity function $\Phi \left(\nu \right)$ to define a band-averaged figure of merit ${\Delta }_{\Phi }$, provides a unified language for describing small deviations from ideal propagation. This construction preserves electromagnetic impedance, ensures causal and passive behaviour consistent with fluctuation–dissipation principles [6,17,18], and maintains compatibility with the high-frequency precision limits established in Casimir and optical measurements [4,16,20]. Results from optical cavities, interferometers, broadband radiometry, and Casimir-force platforms can therefore be expressed and compared on a single, reproducible scale [1,2,5,9,10,11,21,26,31,35].

From ${\Delta }_{\Phi }$ to an Emergent Scale

For a narrow residual $W\left(\nu \right)=1+{\displaystyle \frac{\eta }{2}}{(2\pi \nu /{\Lambda }_{\omega })}^2$ one has, to first order, ${\Delta }_{\Phi }\simeq -{\langle \delta W\rangle }_{\Phi }$. Hence

$${\left({\displaystyle \frac{2\pi }{{\Lambda }_{\omega }}}\right)}^2\le {\displaystyle \frac{2|{\Delta }_{\Phi }|}{\left|\eta \right|{\langle {\nu }^2\rangle }_{\Phi }}},{\Lambda }_{\omega }\ge 2\pi \sqrt{{\displaystyle \frac{\left|\eta \right|{\langle {\nu }^2\rangle }_{\Phi }}{2|{\Delta }_{\Phi }|}}},$$

(14)

with ${\langle {\nu }^2\rangle }_{\Phi }\equiv {\int }_0^{\infty }\Phi \left(\nu \right){\nu }^{2}d\nu$. Publishing $\Phi \left(\nu \right)$ and ${\Delta }_{\Phi }$ therefore yields a direct, platform-independent lower bound on the emergent frequency scale ${\Lambda }_{\omega }$.

This study extends previous theoretical work by the author, which introduced the bounded-vacuum concept as a finite, self-consistent fluctuation ensemble that co-determines both the speed of light and quantum behaviour [14,15]. Where that work focused on the conceptual and cosmological implications of a bounded vacuum energy, the present formulation establishes a measurable, Casimir-safe operational framework for laboratory-scale testing. Related ideas in the literature, such as those of Urban et al. [37], also link the speed of light to vacuum fluctuations, but generally without invoking an explicit energetic bound. In contrast, the current approach incorporates that bound as a natural physical regularisation, ensuring finite energy density and direct experimental accessibility.

Beyond its theoretical motivation, the bounded-vacuum framework offers a practical structure for organising experimental data. Publishing $\Phi \left(\nu \right)$ and ${\Delta }_{\Phi }$ for each platform enables reproducible synthesis across photonic domains, supports meta-analysis, and provides a consistent route for comparing band-averaged observables with isotropic SME parameters. This aligns with ongoing efforts toward open, transparent and reproducible research practices in the physical sciences [27,28,34,36].

In summary, the discussion above shows how the present framework bridges the gap between the theoretical notion of an energetically bounded vacuum and the operational reality of measurable photonic behaviour. It converts an abstract conceptual model into a reproducible experimental protocol, while remaining consistent with established electromagnetic theory and data.

7. Conclusions

Our work is primarily conceptual; the operational interface only demonstrates falsifiability in a platform-agnostic way.

Building on the theoretical concept of an energetically bounded quantum vacuum, this work introduces a Casimir-safe, impedance-invariant operational framework that connects that concept to measurable photonic quantities. By representing the vacuum response through a single, frequency-dependent window $W\left(\nu \right)$ and defining the platform-independent band figure of merit ${\Delta }_{\Phi }$, the approach provides a reproducible interface between theory and experiment.

The framework preserves electromagnetic impedance and physical admissibility, ensuring consistency with causality, passivity, and high-frequency precision limits. It allows results from optical cavities, interferometers, radiometric propagation, and Casimir platforms to be expressed on a common quantitative scale, supporting cross-platform comparison and meta-analysis. In doing so, it provides a practical route for systematic testing of the bounded-vacuum hypothesis within established photonic methodologies.

The formulation is agnostic to the microscopic details of vacuum bounding, yet remains faithful to the underlying idea that the speed of light and electromagnetic constants arise from the finite, collective properties of the vacuum itself. Future extensions may address anisotropic or time-dependent deformations, and explore direct connections between the bounded-vacuum response and variations in the Lifshitz–Casimir formalism.

Overall, the impedance-invariant window and the associated band figure ${\Delta }_{\Phi }$ offer a coherent and reproducible language for describing how a physically bounded vacuum can manifest in precision photonic experiments. They provide both a testable consequence of the emergent-speed hypothesis and a transparent bridge between theoretical models and empirical data.

Appendix B.1. Frequency Grids and Normalization

Integrations use a logarithmic grid ${\nu }_k\in [{10}^9,5\times {10}^{10}]\mathrm{Hz}$ with $N=1000$ points (uniform in ${log}_{10}\nu$). Responses $\Phi \left(\nu \right)$ are normalized to unit area (Eq. (5)). Adaptive Gauss–Kronrod quadrature agrees with composite Simpson to $<{10}^{-8}$ relative precision.

Appendix B.2. Models Used for the Worked Example

This cap model is illustrative; main-text results use the KK-consistent Lorentz baseline (Sec. Section 2).

$$\begin{array}{cc}\hfill \Phi \left(\nu \right)& ={\displaystyle \frac{1}{\pi }}{\displaystyle \frac{\frac{1}{2}\Gamma }{{(\nu -{\nu }_0)}^2+{\left(\frac{1}{2}\Gamma \right)}^2}},{\nu }_0=8.5GHz,\Gamma =2MHz,\hfill \end{array}$$

(A8)

$$\begin{array}{cc}\hfill W\left(\nu \right)& =1-{\displaystyle \frac{A}{1+{(\nu /{\nu }_c)}^2}},A={10}^{-6},{\nu }_c=30GHz.\hfill \end{array}$$

(A9)

For plotting in fig. Figure A2, $\Phi$ is rescaled to unit peak for visibility; integration always uses the normalized $\Phi$ above.

Appendix B.3. Worked Example (Band-Averaged Figure)

This appendix illustrates how the reported band figure ${\Delta }_{\Phi }$ follows from a narrowband sensitivity window $\Phi \left(\nu \right)$ and a small, smooth vacuum residual $1-W\left(\nu \right)$. We take a normalized Lorentzian band centred at ${\nu }_0=8.5\mathrm{GHz}$ with $\Gamma =2\mathrm{MHz}$ and a KK-consistent window $W\left(\nu \right)=1-{\displaystyle \frac{A}{1+{(\nu /{\nu }_c)}^2}}$ with $A={10}^{-6}$ and ${\nu }_c=30\mathrm{GHz}$. The band figure is the integral

$${\Delta }_{\Phi }={\int }_0^{\infty }\Phi \left(\nu \right)\left[1-W\left(\nu \right)\right]\mathrm{d}\nu ,\mathrm{with}{\int }_0^{\infty }\Phi \left(\nu \right)\mathrm{d}\nu =1,$$

which evaluates numerically to ${\Delta }_{\Phi }\approx 9.26\times {10}^{-7}$ for the parameters above.

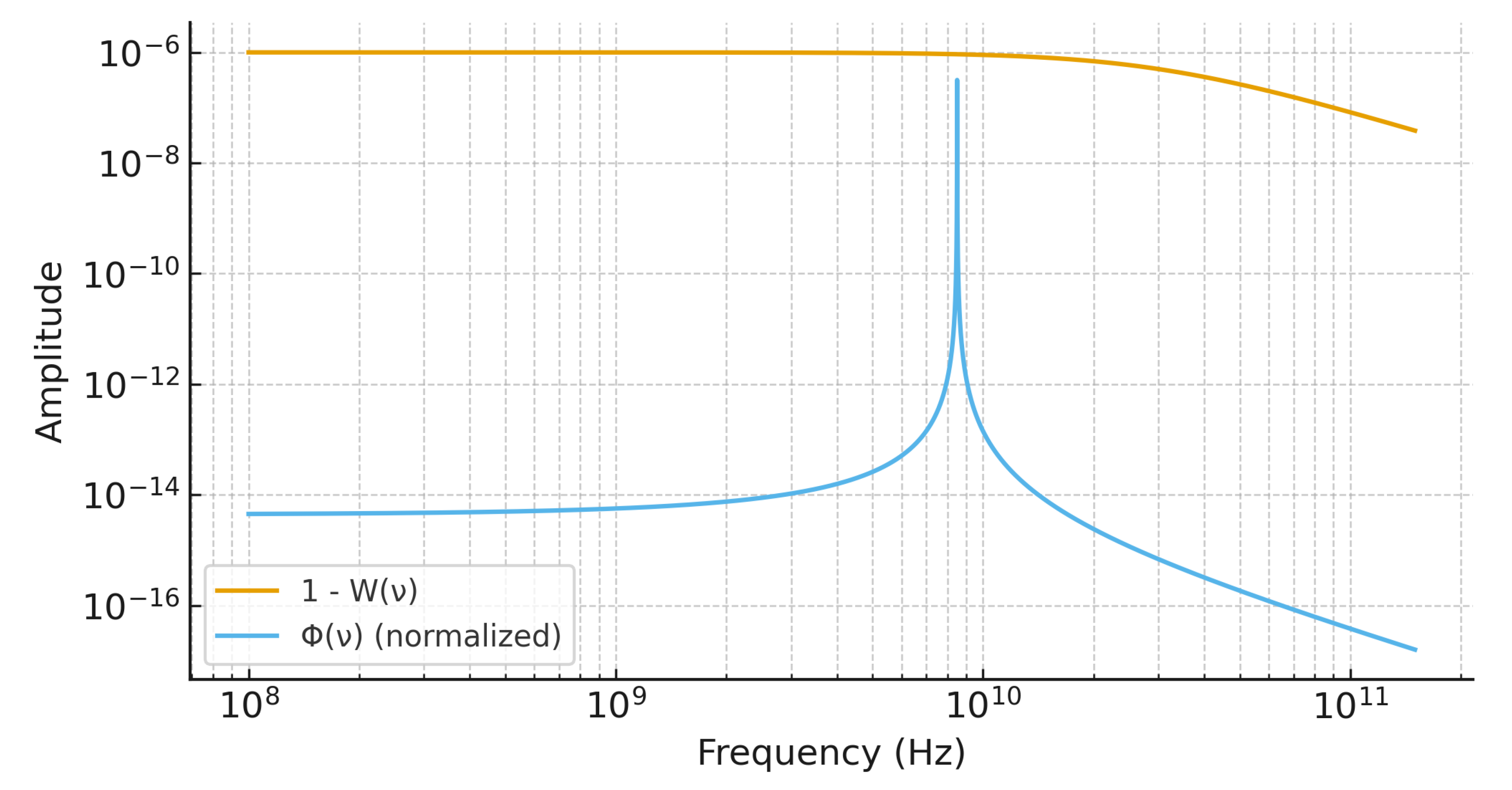

Figure A2. Residual representation and band window. Blue: $1-W\left(\nu \right)=A/[1+{(\nu /{\nu }_c)}^2]$ with $A={10}^{-6}$ and ${\nu }_c=30\mathrm{GHz}$. Orange: normalised Lorentzian sensitivity window $\Phi \left(\nu \right)$ centred at ${\nu }_0=8.5\mathrm{GHz}$ with $\Gamma =2\mathrm{MHz}$. The overlap informs the band figure ${\Delta }_{\Phi }$. Normalization:$\int \Phi \left(\nu \right)d\nu =1$ (unit area). Axes: frequency (Hz) on the abscissa; unit-area normalisation for sensitivity windows $\Phi$. Curves are rescaled for visibility; schematic, not to scale.

Figure A2. Residual representation and band window. Blue: $1-W\left(\nu \right)=A/[1+{(\nu /{\nu }_c)}^2]$ with $A={10}^{-6}$ and ${\nu }_c=30\mathrm{GHz}$. Orange: normalised Lorentzian sensitivity window $\Phi \left(\nu \right)$ centred at ${\nu }_0=8.5\mathrm{GHz}$ with $\Gamma =2\mathrm{MHz}$. The overlap informs the band figure ${\Delta }_{\Phi }$. Normalization:$\int \Phi \left(\nu \right)d\nu =1$ (unit area). Axes: frequency (Hz) on the abscissa; unit-area normalisation for sensitivity windows $\Phi$. Curves are rescaled for visibility; schematic, not to scale.

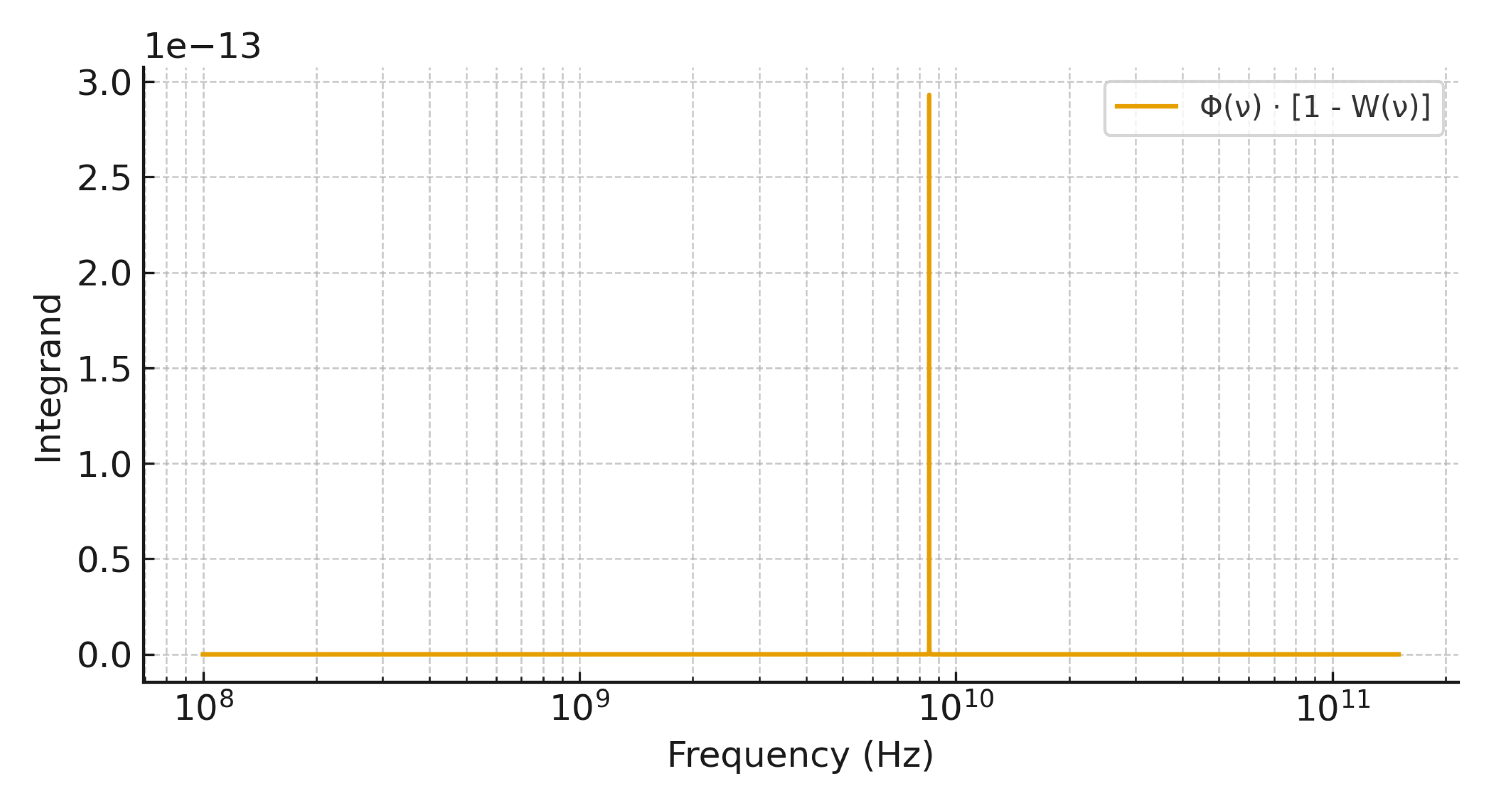

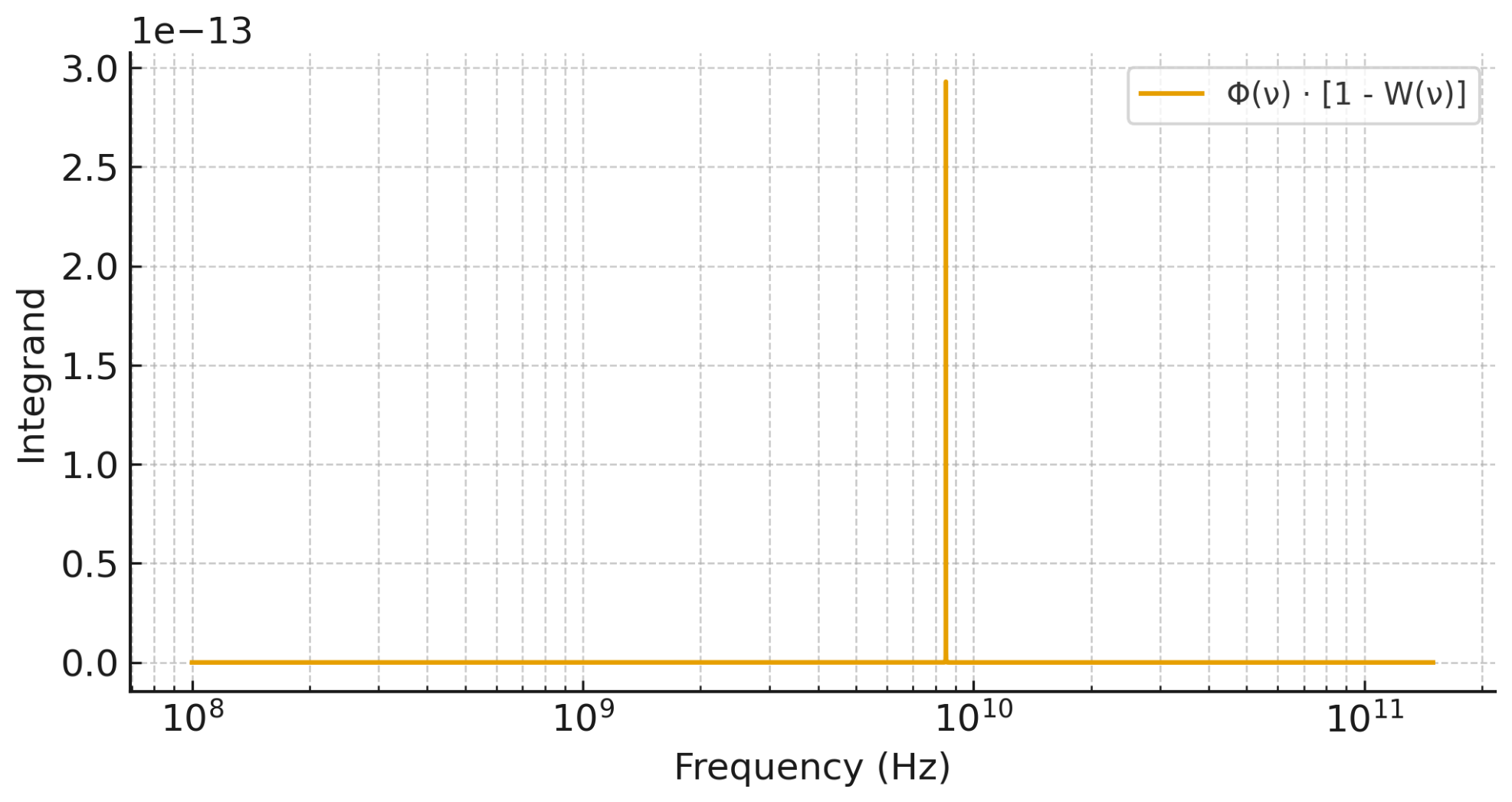

Figure A3. Integrand $\Phi \left(\nu \right)[1-W(\nu \left)\right]$ for the same parameters as Fig. Figure A2. The integral equals the reported band figure ${\Delta }_{\Phi }\simeq 9.26\times {10}^{-7}$. Normalization:$\int \Phi \left(\nu \right)d\nu =1$ (unit area). Axes: frequency (Hz) on the abscissa; unit-area normalisation for sensitivity windows $\Phi$. Curves are rescaled for visibility; schematic, not to scale.

Figure A3. Integrand $\Phi \left(\nu \right)[1-W(\nu \left)\right]$ for the same parameters as Fig. Figure A2. The integral equals the reported band figure ${\Delta }_{\Phi }\simeq 9.26\times {10}^{-7}$. Normalization:$\int \Phi \left(\nu \right)d\nu =1$ (unit area). Axes: frequency (Hz) on the abscissa; unit-area normalisation for sensitivity windows $\Phi$. Curves are rescaled for visibility; schematic, not to scale.

Appendix B.4. Parameter Table

Table A1. Parameters for the worked example in Appendix B.2.

Quantity	Value
Central frequency ${\nu }_0$	$8.50\mathrm{e}9$$\mathrm{Hz}$
Bandwidth (FWHM) $\Gamma$	$2.00\mathrm{e}6$$\mathrm{Hz}$
Grid points N	1000
Grid range $[{\nu }_{min},{\nu }_{max}]$	1.00e9$\mathrm{Hz}$–5.00e10$\mathrm{Hz}$
Cap amplitude A	$1.00e-6$
Cutoff frequency ${\nu }_c$	$3.00\mathrm{e}10$$\mathrm{Hz}$
Resulting ${\Delta }_{\Phi }$	$\approx 9.26e-7$

Table A1. Parameters for the worked example in Appendix B.2.

Quantity	Value
Central frequency ${\nu }_0$	$8.50\mathrm{e}9$$\mathrm{Hz}$
Bandwidth (FWHM) $\Gamma$	$2.00\mathrm{e}6$$\mathrm{Hz}$
Grid points N	1000
Grid range $[{\nu }_{min},{\nu }_{max}]$	1.00e9$\mathrm{Hz}$–5.00e10$\mathrm{Hz}$
Cap amplitude A	$1.00e-6$
Cutoff frequency ${\nu }_c$	$3.00\mathrm{e}10$$\mathrm{Hz}$
Resulting ${\Delta }_{\Phi }$	$\approx 9.26e-7$

Appendix B.5. Algorithm Outline

(1)

Construct log-spaced $\left\{{\nu }_k\right\}$ over the band and tails.

(2)

Normalize $\Phi$: ${\sum }_k\Phi \left({\nu }_k\right)\Delta {\nu }_k\approx 1$.

(3)

Evaluate $W\left({\nu }_k\right)$; compute ${\Delta }_{\Phi }=1-{\sum }_k\Phi W\Delta \nu$.

(4)

Verify $W\equiv 1\Rightarrow {\Delta }_{\Phi }=0$ to machine precision.

(5)

Sensitivity checks: vary grid/tolerances until stable at $<{10}^{-8}$.

Appendix D.1. Conceptual Motivation

Within a bounded, passive, causal, isotropic photonic vacuum, we model the medium by a smooth window $W\left(\nu \right)$ that satisfies the Casimir–safe condition $W\left(\nu \right)\to 1$ at high frequencies. As long as $W\left(\nu \right)$ remains homogeneous and isotropic across a broad ultraviolet (UV) plateau, the low–frequency electromagnetic response is invariant for all observers, and the measured speed of light behaves as an emergent constant. In this view, the macroscopic parameters $({\epsilon }_0,{\mu }_0)$ summarize the averaged electromagnetic response of the fluctuating vacuum, consistent with fluctuation–dissipation reasoning [6,17,18].

Appendix D.2. FDT–Based Formalization

Assuming a passive, causal, isotropic response with positive electric/magnetic loss spectra ${\Phi }_E\left(\nu \right)$ and ${\Phi }_B\left(\nu \right)$, the static responses obey generalized dispersion relations

$$\epsilon \left(0\right)-1={\displaystyle \frac{2}{\pi }}{\int }_0^{\infty }{\displaystyle \frac{\Im \epsilon \left(\nu \right)}{\nu }}d\nu ,\mu \left(0\right)-1={\displaystyle \frac{2}{\pi }}{\int }_0^{\infty }{\displaystyle \frac{\Im \mu \left(\nu \right)}{\nu }}d\nu .$$

(A14)

If the loss spectra inherit the bounded window,

$$\Im \epsilon \left(\nu \right)\propto W\left(\nu \right){\Phi }_E\left(\nu \right),\Im \mu \left(\nu \right)\propto W\left(\nu \right){\Phi }_B\left(\nu \right),$$

(A15)

then the low–frequency propagation speed

$$c_{\mathrm{eff}}={\displaystyle \frac{1}{\sqrt{\epsilon \left(0\right)\mu \left(0\right)}}}={\left[\left(1+\Delta \epsilon \left[W\right]\right)\left(1+\Delta \mu \left[W\right]\right)\right]}^{-1/2},$$

(A16)

with

$$\Delta \epsilon \left[W\right]={\displaystyle \frac{2}{\pi }}{\int }_0^{\infty }{\displaystyle \frac{W\left(\nu \right){\Phi }_E\left(\nu \right)}{\nu }}d\nu ,\Delta \mu \left[W\right]={\displaystyle \frac{2}{\pi }}{\int }_0^{\infty }{\displaystyle \frac{W\left(\nu \right){\Phi }_B\left(\nu \right)}{\nu }}d\nu ,$$

(A17)

is insensitive to moderate deformations of $W\left(\nu \right)$ as long as a broad UV plateau is preserved. Operationally, this yields a practically constant $c_{\mathrm{eff}}$ in the radio–to–microwave regime, consistent with the main text.

Appendix D.3. Figures and Operational Interpretation

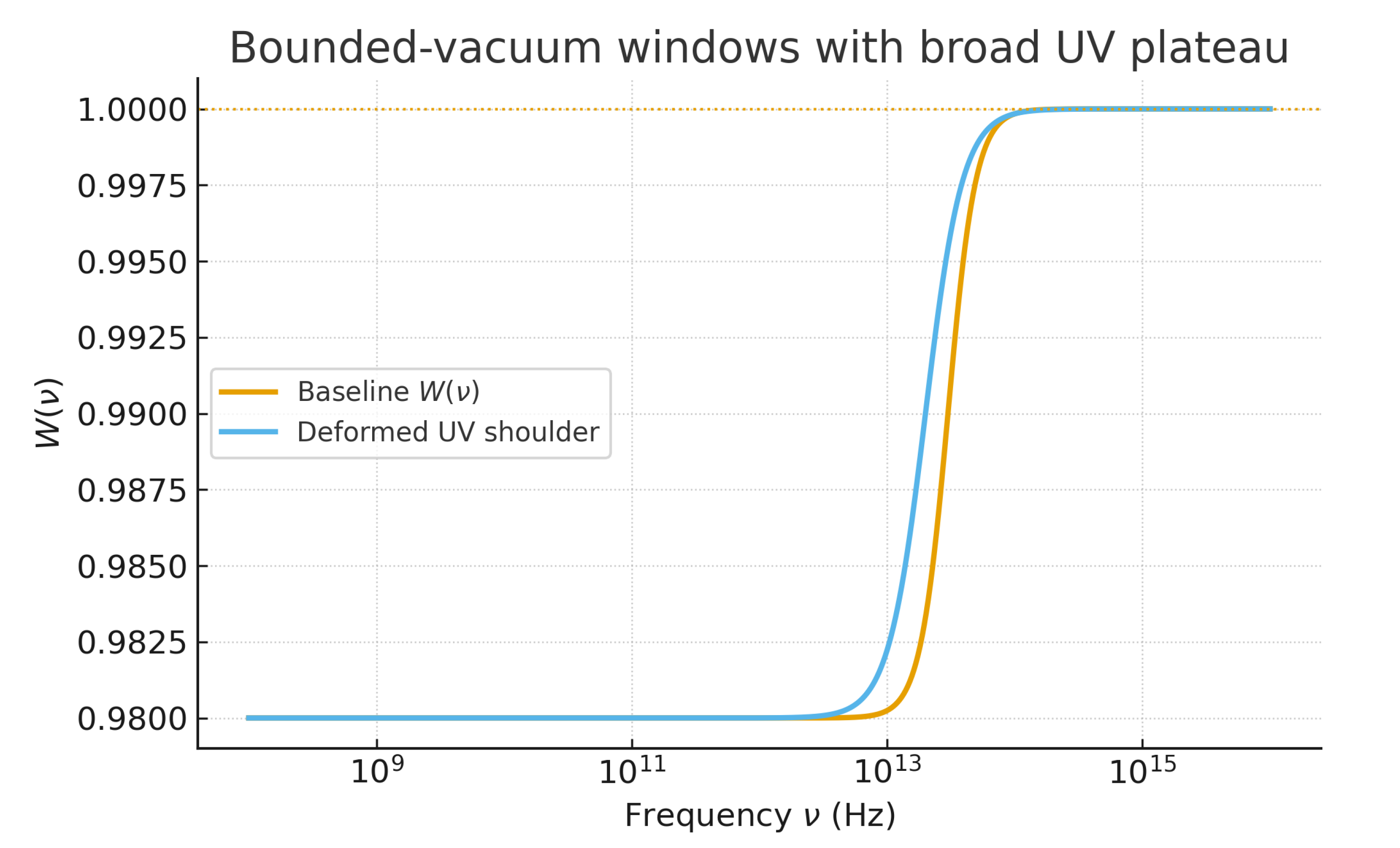

Figure A4. Baseline and deformed bounded–vacuum windows $W\left(\nu \right)$ with a broad UV plateau ($W\approx 1$). Both are Casimir–safe; the deformation broadens the UV shoulder without introducing anisotropy. Assumptions: band $\Phi \left(\nu \right)$ as specified; temperature 4 K; additive/justified W; stated fit range; flat priors on $\delta W_{\mathrm{IR}}$.

Figure A4. Baseline and deformed bounded–vacuum windows $W\left(\nu \right)$ with a broad UV plateau ($W\approx 1$). Both are Casimir–safe; the deformation broadens the UV shoulder without introducing anisotropy. Assumptions: band $\Phi \left(\nu \right)$ as specified; temperature 4 K; additive/justified W; stated fit range; flat priors on $\delta W_{\mathrm{IR}}$.

Figure A5. Robustness of $c_{\mathrm{eff}}$ to deformations of the UV–shoulder width ${\sigma }_{\mathrm{UV}}$. A fluctuation–dissipation–inspired functional gives $\left|\Delta c\right|/c\lesssim 2\times {10}^{-6}$ for moderate parameter changes, indicating practical invariance.

Figure A5. Robustness of $c_{\mathrm{eff}}$ to deformations of the UV–shoulder width ${\sigma }_{\mathrm{UV}}$. A fluctuation–dissipation–inspired functional gives $\left|\Delta c\right|/c\lesssim 2\times {10}^{-6}$ for moderate parameter changes, indicating practical invariance.

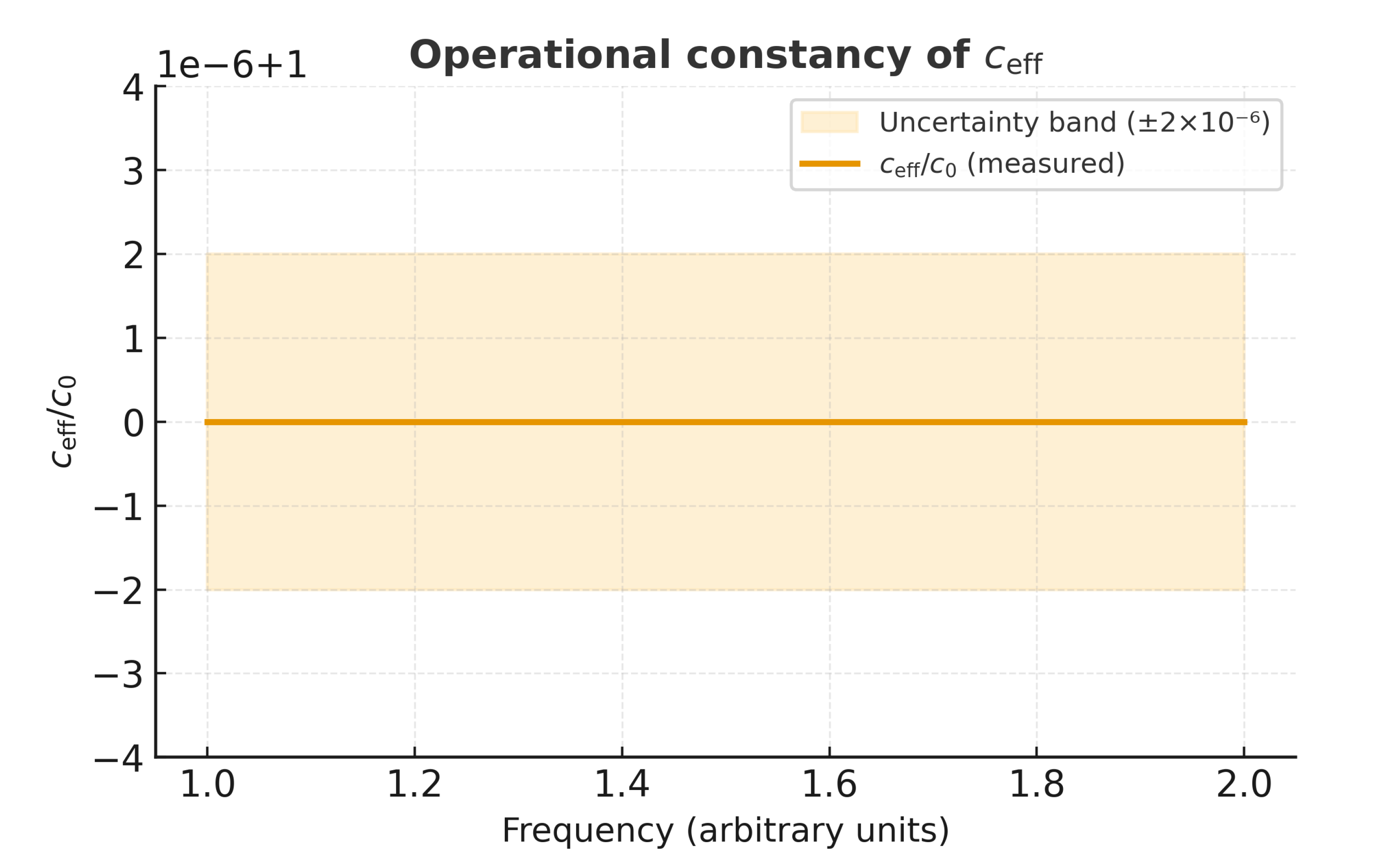

Figure A6. Operational constancy of the effective light speed $c_{\mathrm{eff}}$ at low frequencies. The measured ratio $c_{\mathrm{eff}}/c_0$ remains constant within a representative relative band of $\pm 2\times {10}^{-6}$ (shaded envelope).

Figure A6. Operational constancy of the effective light speed $c_{\mathrm{eff}}$ at low frequencies. The measured ratio $c_{\mathrm{eff}}/c_0$ remains constant within a representative relative band of $\pm 2\times {10}^{-6}$ (shaded envelope).

Appendix D.4. Microscopic Sketch: Lattice U(1) to Maxwell (Optional)

A compact $U\left(1\right)$ rotor model with link variables $(A_{\ell },E_{\ell })$ and Gauss constraint flows, in its deconfined Coulomb phase, to an effective quadratic Maxwell Lagrangian. Higher-dimension operators generate UV-suppressed corrections $\propto {(k/\Lambda )}^2$, leading to Eq. (4) in the main text. This provides a constructive example of how a bounded, fluctuating vacuum can yield $W\left(\nu \right)\to 1$ with a small, causal residual curvature at finite frequency.
