Topography and Nanomechanics of the Tomato Brown Rugose Fruit Virus Suggest a Fragmentation-Driven Infection Mechanism

1. Introduction

Viruses are structurally diverse nanocapsules carrying genetic material, that infect host organisms with an array of molecular tricks. The tomato brown rugose fruit virus (ToBRFV) is a positive-sense single-stranded RNA plant virus classified in the genus Tobamovirus (family Virgaviridae). It was first recognized as a distinct Tobamovirus species in 2016 [1]. The spreading of ToBRFV has caused major agricultural damages globally [1,2,3,4,5,6]. ToBRFV does not have any known insect vectors and is transmitted mechanically (via contact or contaminated tools/seeds), just like other tobamoviruses. ToBRFV virions are non-enveloped, rigid helical rods consisting of many coat protein subunits encapsidating the RNA. A recent transmission electron microscope study measured the dimensions of ToBRFV particles ~274.8 nm by 13.9 nm [7], which is comparable with the 300×18 nm dimensions reported for related tobamoviruses. The capsid has helical symmetry with each coat protein (CP) subunit bound to the genomic RNA. Similarly to the tobacco mosaic virus (TMV), ~2,130 copies of the CP likely assemble per virion, forming a hollow, helical tube around the RNA. The RNA is tightly intercalated along the inner surface of the protein helix. This “crinkled cylindrical” capsid architecture protects the RNA and gives tobamoviruses their characteristic stability. The CP of ToBRFV comprises 159 amino acids (≈17.5 kDa), very similar to other tobamovirus CPs [8], and it mediates particle assembly and aids long-distance movement in plants. ToBRFV contains a single-stranded positive-sense RNA genome 6.392 kb in length, with a 5′ methylated cap and a 3′ tRNA-like structure instead of a poly(A) tail. The genome encodes four open reading frames (ORFs). At the 5′ end, ORF1 and ORF2 overlap via a leaky stop codon and together code for the viral replicase, a 126 kDa protein and a 183 kDa readthrough protein that function as subunits of the RNA-dependent RNA polymerase (RdRP) [8,9]. Further downstream, ORF3 encodes the movement protein (MP) (~28–31 kDa), which enables cell-to-cell spreading through plasmodesmata [8,9]. The final ORF4 encodes the CP (~17.5 kDa) that forms the capsid [8,9]. ORF3 and ORF4 are expressed from subgenomic RNAs produced during replication [8,9]. The genomic RNA also has untranslated regions (UTRs) that are important for replication and encapsidation and, notably, a tRNA-like structure at the 3′ end as in other tobamoviruses. ToBRFV isolates are very similar genetically worldwide (over 99% identity) [10], but if any structural variations exist, they could affect properties such as virulence. It remains unknown whether any mutations in the coat protein or other structural regions of ToBRFV have functional consequences on stability or host interactions. So far, the main resistance-breaking determinant was found in the movement protein [8], not in the CP, and serologically the CP is cross-reactive with TMV and tomato mosaic virus (ToMV). This suggests that the CP structure is highly conserved. We currently lack detailed knowledge of how ToBRFV disassembles inside the host. In TMV, the process by which the coat protein is stripped off the RNA is only partly understood, and for ToBRFV it is entirely inferred. A recent cryo-electron microscopy study pointed out that changes in the local pH and calcium level may modulate the interaction between key glutamates (called Caspar-carboxylates [11]) of neighboring CP, serving as a disassembly switch in TMV [12]. Whether a similar mechanism may operate in ToBRFV and whether structural intermediates are present during disassembly, are not known.

Here we investigated the topographical structure and nanomechanical properties of ToBRFV by using atomic force microscopy and force mapping. We find that ToBRF virions are soft rodlike structures that can be fragmented into unit-length elements which may have important implications on the infection efficiency.

2. Materials and Methods

2.1. Isolation of the ToBRF Virus

The investigated ToBRFV isolate was collected in a tomato-fruit (Solanum lycopersicum)-producing greenhouse in Lébény, Hungary, in May 2022. This location is the same as the one from where the first Hungarian appearance of ToBRFV (genus Tobamovirus) was reported in 2021 [13]. Tomato leaf samples with typical mosaic symptoms were collected. The presence of ToBRFV was verified with RT/PCR and nucleotide sequence determination (GenBank PV324971) as previously reported [14]. The virus was propagated by mechanical inoculation into tomato plants (Solanum lycopersicum cv Moneymaker). Inoculated plants were kept in a growth chamber at 24°C and exposed to a 14/10 (h/h) light/dark cycle. Virus particles were purified by polyethylene glycol precipitation [15]). 100 µl aliquots of the virion suspension were frozen in liquid N₂ and stored at − 80˚C until further use.

2.2. Preparation of ToBRFV samples for AFM

ToBRFV particles were imaged with AFM either in air or in buffer solution. For scanning in air, a 20 μl aliquot of purified ToBRFV sample, diluted appropriately in phosphape buffered saline (PBS, 10 mM K-phosphate, pH 7.2, 140 mM NaCl, 0.02% NaN₃), was pipetted onto freshly cleaved mica and incubated for one minute at room temperature. Subsequently, the surface was rinsed with milliQ water to remove unbound virions, and the sample surface was dried with a gentle stream of high-purity nitrogen gas. When scanning under aqueous buffer conditions, the unbound virions were removed by washing with PBS. After the last wash, 100 µl of PBS was left on the sample, and the imaging was carried out under aqueous buffer conditions.

2.3. AFM Imaging

ToBRFV particles were imaged with AFM by using procedures employed before [16,17,18,19,20]. Briefly, imaging was carried out in AC (tapping, non-contact) mode by using either an Asylum Research MFP3D or a Cypher ES instrument (Oxford Instruments, Santa Barbara, CA). All measurements were performed at room temperature (25 °C). When imaging in air or buffer, we used AC160TS or BL-AC40TS cantilevers (Olympus Corporation, Japan), respectively. The cantilevers were oscillated at or near their resonance frequencies (~290 kHz for AC160TS and ~20 kHzBL-AC40TS) by using piezo or photothermal excitation. Typically, 512x512 pixel scans were obtained at line-scan rates of 0.7-1.5 Hz.

2.4. Force Mapping and Spectroscopy

Individual ToBRFV particles were mechanically manipulated by methods used before [17,19,20]. Briefly, the ToBRFV-coated surface was manipulated by measuring force spectra in indentation-retraction cycles at each pixel (typically 64x64 pixel map). BL-AC40TS (Olympus Corporation, Japan) cantilevers were used, the stiffness of which was calibrated with the thermal method. The typical maximum indentation force was 4 nN. Cantilever movement rate varied between 0.5-1.5 µm/s. Force data were acquired at a sampling rate of 1 kHz.

2.5. Image Processing, Data Analysis, Calculations and Statistics

Post-processing and analysis of AFM images were conducted semi-automatically by using the AsylumResearch AFM driver software (IgorPro, Wavemetrics, Lake Oswego, OR, USA). The process began with flattening the images to eliminate artificial distortions and ensure a planar background. Particles were identified by masking with a threshold at the average half-maximal topographical height. Particle analysis was carried out to obtain the maximum topographical height, length, width, volume and circularity (isoperimetric quotient) of the ToBRFV virions. In excess of 1600 ToBRFV virions were analysed.

The force map data were used to calculate structural (virion height, wall thickness) and mechanical (Young modulus, stiffness, rupture force) parameters of ToBRFV virions. Based on the pixel-to-pixel force (F) data of the force map images, we calculated the spatial distribution of the Young modulus (E) by using the Hertz model as

$$E={\displaystyle \frac{F\pi \left(1-{\upsilon }^2\right)\tan \theta }{2d^2}},$$

(1)

where ν is the Poisson ratio (0.33), θ is the angle between the horizontal plane and the side wall of the conical AFM tip (Olympus AC160TS, cone angle 36˚), and d is the indentation depth. Capsid stiffness (κ) was calculated from the slope of the force versus distance (s) curves within the pixels representing ToBRFV particles identified in the force maps as

$$\kappa ={\displaystyle \frac{\mathsf{\Delta }F}{\mathsf{\Delta }s}}.$$

(2)

The perimeter (P) of the elliptical virion cross section was calculated by using the Ramanujan estimation [21] as

$$P\approx \pi \left[3\left(a+b\right)-\sqrt{\left(3a+b\right)\left(a+3b\right)}\right],$$

(3)

where a and b are the major and minor axes of the ellipse, respectively. From the calculated perimeter we obtained the diameter (D) of the cylindrical ToBRFV particles as

$$D={\displaystyle \frac{P}{\pi }}$$

(4)

Data were analyzed, compared and plotted by using commercial software (MS Excel, IgorPro versions 6 and 8).

2.6. Structural Analysis

The structure of the ToBRFV cap protein was predicted by using AlphaFold using the amino acid sequence of the 17.5 kDa protein (GenBank: WJN56905.1, Fig.S6.a). AlphaFold3 and its associated databases were installed locally following the instructions at https://github.com/google-deepmind/alphafold3, and configured to run on a system with an AMD 16-core processor and an NVIDIA RTX A6000 GPU with 48 GB of VRAM. The PyMOL Molecular Graphics System (Version 2.4 Schrödinger, LLC) was used for analyzing and visualizing the predicted structures.

3. Results

3.1. ToBRFV Virions are Rodlike Particles with Wide Length Distribution

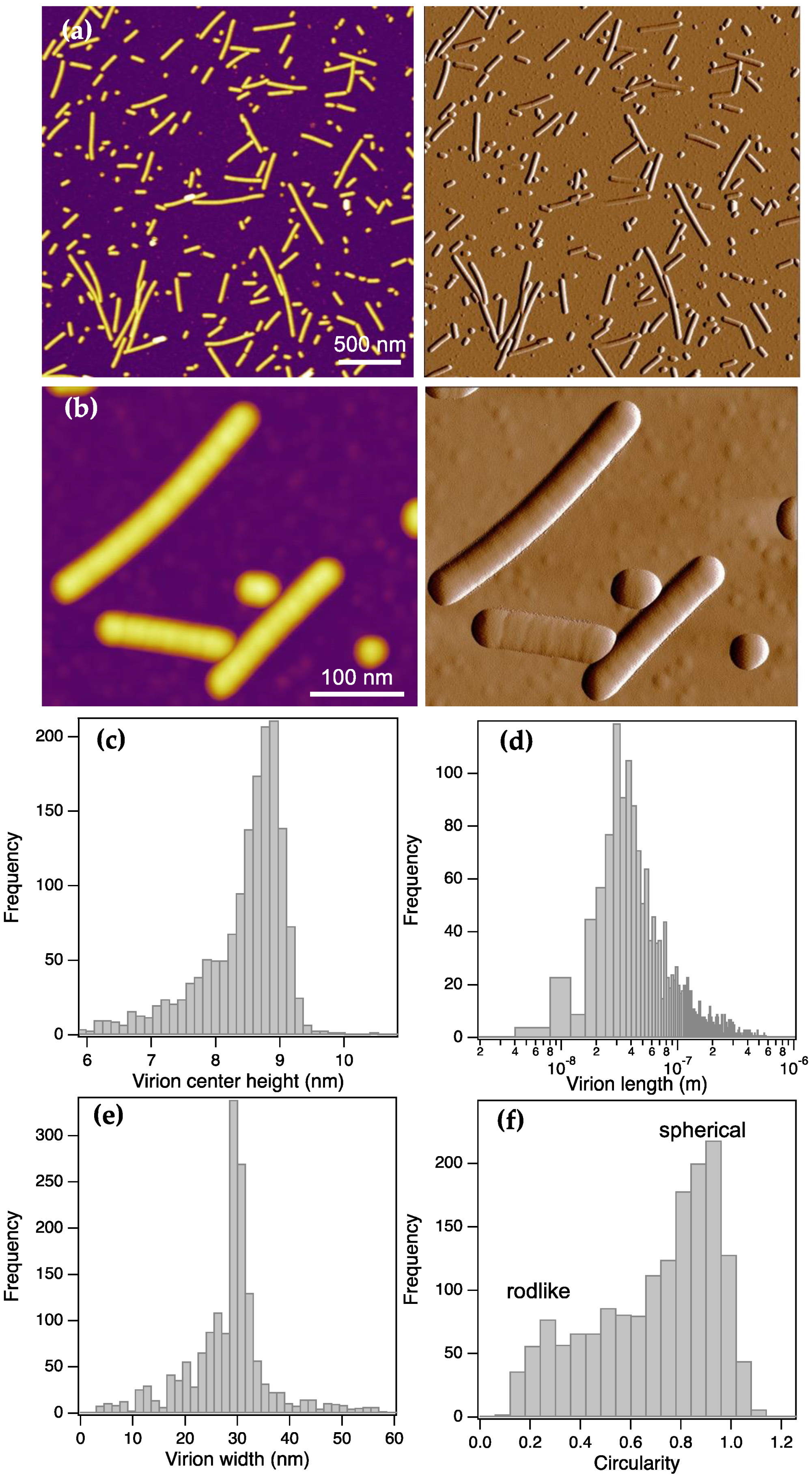

Tomato brown rugose fruit virus (ToBRFV) virions adsorbed to mica surface appeared as rodlike particles (Figure 1a). A pronounced feature was that while the width of the particles was uniform, their length varied greatly. Larger magnification AFM images (Figure 1b) confirmed the rodlike shape of ToBRFV virions. Although most of the virion rods appeared straight, some of them displayed a slight curvature. The width of the rods appeared uniform and their ends rounded. Interestingly, most of the virions displayed cross-striations, seen more clearly in the amplitude-contrast images (Figure 1b right). Some of the virions appeared spherical, indicating that the length of the rods was equal to their width.

To extract structural features of the ToBRFV virions, we carried out particle analysis (Figure 1c-f and Figure S1). The topographical height of the virions, measured as the height from the substrate surface in the particle center, had a peak at 9 nm (Figure 1c and Figure S1a). The length of the virions was distributed across a very wide range (5-1000 nm) and displayed a log-normal distribution with a mode at 30 nm (Figure 1d and Figure S1b). Local modes appeared at longer lengths in the histogram (Figure S1c), suggesting that the ToBRFV virions might be a serial multiple of a unit-length elementary structure. Occasionally we observed viruses with lengths far exceeding the range (Figure S1d), ponting at the capacity of ToBRFV for unhindered axial assembly. The virion width, measured at the half-maximal topographical height, was 28.4 nm (±8.2 nm SD) with a mode at 30 nm (Figure 1e and Figure S1f). Notably the modal width is more than three times as large as the modal virion height, indicating that the virus particles flattened upon binding to the mica surface. The circularity of the ToBRFV AFM image particles (Figure 1f) ranged from 0.05-1.0, which corresponds to the wide shape distribution from long rods to circles, respectively. The histogram indicates that circular particles dominate the sample. Thus, the ToBRFV virus particles are flattened rodlike structures with widely ranging lengths that indicates a propensity for fragmentation.

3.2. Virions Display an Axially Periodic Structure

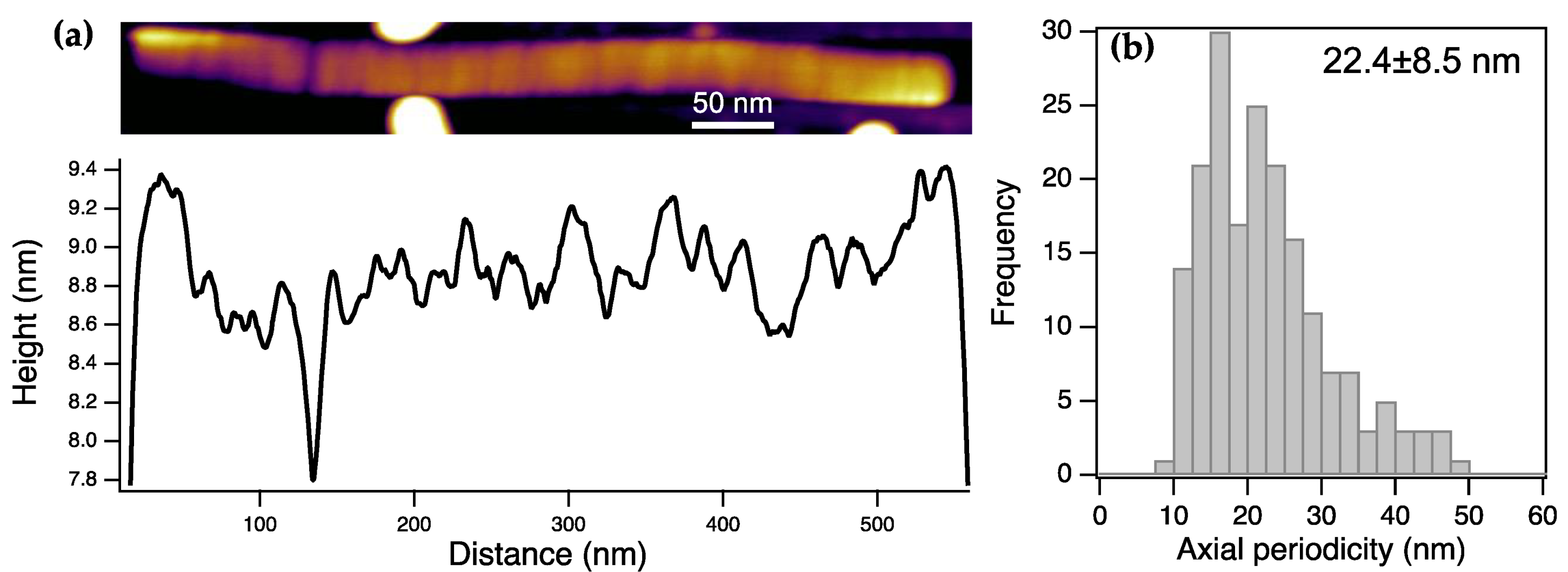

We analyzed the axial topography of individual ToBRFV particles in greater detail (Figure 2). Some virions displayed a cleft along the axial contour, which appeared as if the virion was on the verge of fragmenting (Figure 2a). Along the surface of most of the virions, shallow ridges could be observed. The profile plots along the virion axis revealed periodic variation of topographical height, the peak-to-peak value of which reached up to 0.8 nm which is nearly 10% of the modal virion height. The periodicity of the height variations, measured as the axial distance between consecutive peaks, was 22.4 nm (±8.5 SD) (Figure 2b). It is quite plausible that the ridges correspond to the boundaries across which virion fragmentation, seen in overview AFM images (Figure 1a), occurs. Altogether, the topography of the ToBRFV particles is not smooth but displays ridges which may be sites of fragmentation into structural building blocks.

3.3. ToBRFV virions are Soft and Fragile

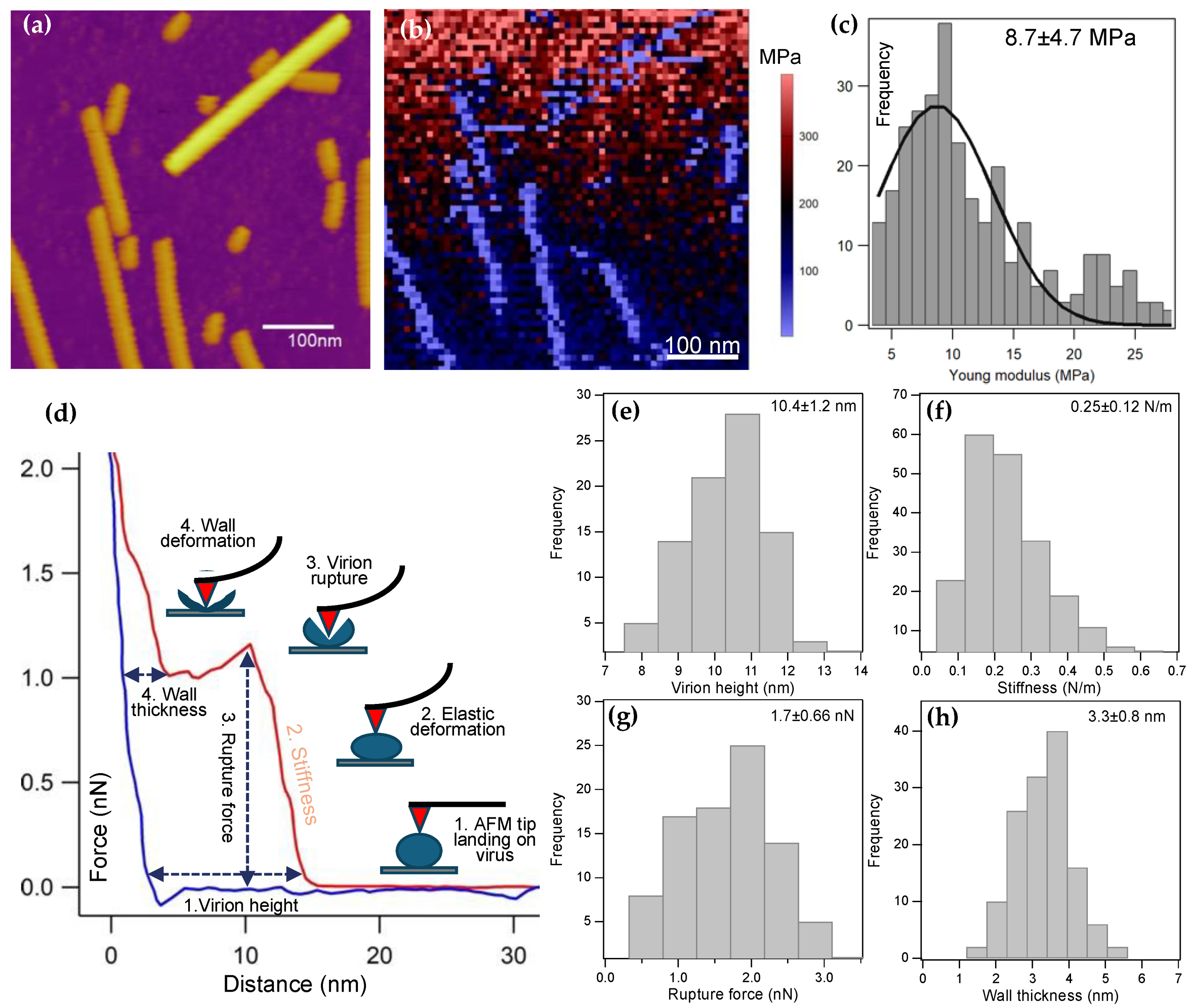

We investigated the nanomechanical behavior of ToBRF virions under aqueous buffer conditions by employing force mapping (Figure 3). In this experimental approach each pixel of the acquired image contains a force versus distance function collected in repeated indentation-retraction cycles. Prior to measuring the force map, we carried out AC-mode AFM imaging of the sample (Figure 3a). Based on the force map we calculated the spatial distribution of the Young modulus (Figure 3b) based on fitting with the Hertz model (Equation (1), Figure S3). The ToBRFV Young modulus histogram, calculated by masking the rigid background, shows a peak centered at 8.7 MPa (±4.7 SD) (Figure 3c), which is nearly three orders of magnitude smaller than that measured for the TMV earlier [22].

Considering that each pixel of the force map contains an entire force-distance function, we investigated these force traces to uncover further structural and mechanical information about ToBRFV. In a typical indentation-retraction curve (Figure 3d), we identified different features and force-driven structural transitions. First, we could identify the instant at which the cantilever tip landed on the virion, which allowed us to measure the topographical height of the capsid. Second, we observed a linear elastic deformation, which allowed us to measure capsid stiffness. Third, we observed a force peak, which corresponds to capsid rupture. Measuring the force associated with the peak allowed us to identify the rupture force which is a measure of viral mechanical stability [20,23]. Finally, we often observed a residual thickness following the capsid-rupture force peak, which may be assigned to the thickness of the back wall of the virion directly in contact with the substrate surface. Measuring this height allowed us to estimate the ToBRFV wall thickness. The virion height histogram (Figure 3e), obtained from the indentation force traces, displayed a gaussian distribution centered at 10.4 nm (±1.2 SD), which is nearly 15% greater than that measured by particle analysis (Figure 1c). Considering that the force mapping experiments were carried out under aqueous buffer conditions in contrast to the dry image acquisition for particle analysis, our results suggest that water plays a role in the structure of ToBRFV. The stiffness results (Figure 3f) showed a mean of 0.25 N/m (±0.12 SD), which is threefold smaller than that measured for T7 phages before [20]. The mean capsid rupture force (Figure 3g) was 1.7 nN (±0.66 SD), which is about one fourth of that measured earlier for the T7 phage [20] or TMV [24]. The wall thickness histogram (Figure 3h) indicated a mean value of 3.3 nm (±0.8 SD). Notably, in some of the force spectra, force peaks and non-linear force traces appeared in the retraction phase of the mechanical cycle (Figure S4), indicating that genomic RNA could be pulled. A height-contrast adjustment test showed that the nanoindentation experiments indeed ruptured the ToBRFV capsids rather than dislodged them from the surface (Supporting Information, Figure S5). Altogether, the ToBRFV capsid appears softer and mechanically less stable than numerous icosahedral and other helical viruses investigated earlier.

4. Discussion

In the present work we investigated the topographical structure and nanomechanical properties of the tomato brown rugose fruit virus (ToBRFV). ToBRFV, a member of the Tobamovirus genus, is a recently emerged virus, the spread of which has caused major agricultural damages globally [1,2,3,4,5,6]. Understanding the detailed features of ToBRFV is important in developing preventive and defensive measures. Furthermore, the structural and mechanical information collected may help us better understand the behavior of further pathogenic tobamoviruses.

ToBRFV appeared in AFM images (Figure 1) as rodlike particles with a remarkably wide length distribution (5-1000 nm), and occasionally even longer viruses could be observed (Figure S1d). The rods displayed rounded ends. However, the rounded end might be the result of convolution between the cylindrical virion and the conical AFM tip. Therefore, at present we are careful with the interpretation, as the ToBRFV virions are likely to be be open-ended cylinders, similarly to TMV [25]. Indeed, recent electron microscopic analysis of ToBRFV particles indicated that they are blunt ended [1]. The length histogram displayed a mode at 30 nm, indicating that a ~30-nm-long element may be a structural unit of the virus, from which it assembles or into which it disassembles. We point out, however, that the particle analysis always assigns the long axis of a particle image to its length, but this long axis might not coincide with the long axis of the virus. In other words, if a ToBRFV fragment is shorter than its width, then the width value is assigned to the particle length because this is the longer value. These short fragments will then increase the population of particles with a length equal to the virion width. Altogether, the length of an elementary structural segment of ToBRFV is smaller than or equal to ~30 nm.

The topographical height of the ToBRFV particles was remarkably (more than threefold) smaller than their width, indicating that they spread across the substrate surface. This behavior reflects the capacity for deformation, hence the ToBRFV virions appear to be rather compliant. The virion height versus length function (Figure S1e) indicates that the peak height (9 nm) is characteristic of virions with a length between 30-60 nm. Below 30 nm the height drops sharply, which is most likely due to breakage of the cylindrical structure altogether. Above 60 nm the height decreases monotonically by ~0.5 nm in virions several hundred nm long. We speculate that the effect may be related to the length-dependence of bending rigidity. From the width and height data one may compute the cross-sectional perimeter, assuming that it is likely to be a flattened ellipse (Figure S2). The isotropic (i.e., equivalent distance units along the x- and y-axes) representation of the cross-sectional height profile (Figure S2) indicates that the width measured at half-maximal topographical height corresponds to the real virion width. Accordingly, the height (Figure 1c) and width (Figure 1e) data correspond to the short and long axes of the cross-sectional ellipse. From these data we approximated the perimeter (equation 3) which allowed us to calculate the diameter (equation 4) of the equilibrium cylindrical ToBRFV virion as 22 nm.

High-resolution AFM images revealed a 22.4 nm (±8.5 SD) periodicity along the long axis of the ToBRFV virions (Figure 2). We hypothesize that the uncovered periodic transverse ridges reflect boundaries of elementary structural units of ToBRFV either from which it is constructed during viral assembly or to which it fragments during infection. Accordingly, the length of the elementary structural unit is ~ 22 nm. Thus, the unit-length structural element of ToBRFV is a right circular cylinder, the height and diameter of which are identical. Conceivably, this unit-length element represents a highly stable configuration; should its length be significantly higher or lower than its diameter, it would be easily deformed by axial or tangential bending forces, respectively.

Nanomechanical manipulation of surface-adsorbed ToBRF virions indicated that they are softer and mechanically less stable than numerous icosahedral or helical viruses investigated so far [20,22]. Interestingly, the height of the ToBRF virions was nearly 15% greater when measured with nanoindentation (wet conditions) than with particle analysis (dry conditions). We suspect that water, via hydration of the coat protein and RNA, plays a role in the structure, and probably the mechanical behavior of ToBRFV. The nanoindentation force spectra revealed that following capsid rupture a compressible structure remains, which we assigned to the back wall of the virion. The mean wall thickness was 3.3 nm (±0.8 SD), which is significantly smaller than that of TMV [25]. Since the measured thickness corresponds to that of the ruptured, broken capsid, it is likely that the structure of the wall has been compromised. Nevertheless, this value provides a lowermost estimate of the capsid wall thickness. Notably, in some of the force spectra, force peaks and non-linear force traces appeared in the retraction phase of the mechanical cycle (Figure S4). The observation indicates that filamentous structures were pulled out of the broken capsid, and the applied mechanical force induced conformational changes resulting in the release of further filament segments. Considering that the length of these filaments often reached beyond 250 nm, which far exceeds the unfolded length of a single coat protein (~60 nm), the filaments likely correspond to the genomic RNA of ToBRFV. Because the force peaks (sometimes reaching several hundred pN) were much greater than the forces required to unfold RNA hairpins (~15 pN) [26], they likely reflect the mechanically-driven dissociation of RNA from the coat proteins constituting the capsid. The results suggest that the genomic RNA of ToBRFV is tightly associated with the capsid wall, hence the coat proteins.

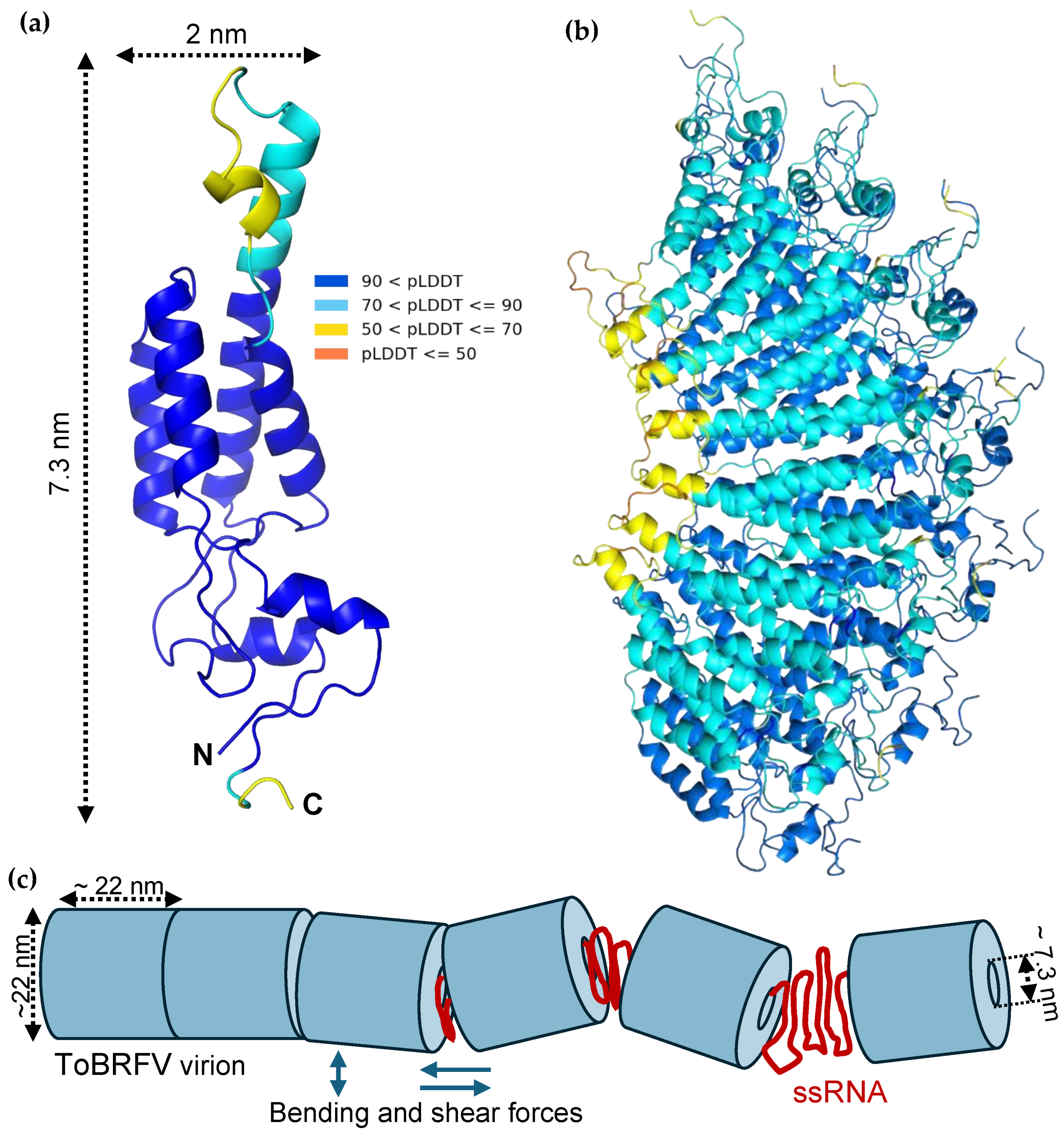

The structural and nanomechanical information gathered in our experiments allow us to propose a model of the ToBRF virion (Figure 4). Given that the nanoindentation experiments provided only a lowermost estimate of the capsid wall, we carried out a sructural prediction of the 17.5 kDa coat protein (CP) of ToBRFV by using AlphaFold (Figure 4a-b and Figure S6), so that the wall thickness could be more precisely estimated. Based on the amino-acid sequence of CP (Figure S6a), AlphaFold predicted a protein dominated by alpha-helices with short disordered regions in the middle and at the C-terminus (Figure 4a). The length of the protein from the C-terminal SER159 to ALA101 located in a disordered loop at the other end of the molecule, is 7.3 nm. This length provides an uppermost estimate of the capsid wall thickness, as the exact orientation of the CP within the wall is not known. However, predictions involving multiple CP molecules (Figure 4b and Figure S6b-d) strongly suggest that this upper estimate represents a plausible in situ thickness. The lower- and uppermost wall thickness estimates form the basis for two models (a and b) (Figure S7), the parameters of which are listed in Table 1. We hypothesize that the genomic ssRNA is helically organized within the core of the cylindrical capsid, similarly to TMV [25]. Importantly, the capsid's inner diameter far exceeds the persistence length of ssRNA (assumed to be identical to ssDNA, ~0.6 nm [27]) in either model; therefore, in contrast to bacteriophages [28], energy need not be invested in the incorporation of the genome. On the contrary, the genomic RNA, aided by its entropic elasticity, likely assists in holding the capsid together. Based on the width of the CP (Figure 4a), we assume that the pitch of the genomic ssRNA helix is 2 nm. Accordingly, the ToBRFV genome (6392 bases) extends across several unit-length cylindrical elements in both models (four and nine). Considering that a ~200 nm average length has been reported recently for ToBRF virions by using electron microscopy [1], model b is likely to more closely reflect the true structural arrangement. We note, however, that the coat proteins must re-arrange considerably to give way to the significant flattening when binging to the substrate surface (Figure S2). Regardless of the model, the unit-length elements and the fragility of ToBRFV may have important implications for the infection mechanism. Conceivably, during infection the virions become exposed to bending and shear forces, leading to fragmentation (Figure 4c). Because the genome spans numerous unit-length elements, the fragmentation results in the exposure of the genome several locations at the same time, which is a much more efficient genome release mechanism than diffusion out of a long cylinder. Whether the unit-length cylindrical units play a role during virus assembly, remains to be investigated.

5. Conclusions

In conclusion, ToBRFV virions are rodlike particles that can be fragmented into unit-length structures. The unit-length element is a right circular cylinder with equal, ~22 nm height and diameter, which likely represents a mechanically optimal structure, allowing concatenation to lengths beyond a micrometer. Fragmentation of the virion permits the exposure of its genome at multiple sites, thereby increasing the efficiency of infection.
