Model Predictive Control for Autonomous Ship Navigation with COLREG Compliance and Chart-Based Path Planning

1. Introduction

The development of Maritime Autonomous Surface Ships (MASS) has the potential to significantly enhance the safety, efficiency, and sustainability of maritime transport. The Maritime Safety Committee (MSC) of the International Maritime Organization (IMO) is currently preparing the MASS Code, which is expected to be adopted as non-mandatory in 2026 and mandatory in 2030 [1].

Recent advancements in autonomous ship navigation have focused on compliance with the International Regulations for Preventing Collisions at Sea (COLREGs), dynamic obstacle avoidance, and path planning under environmental constraints. Since adherence to COLREGs is fundamental for safe autonomous operation, considerable research has been devoted to rule-embedding techniques. Zhang et al. [2] provide a comprehensive survey of collision-avoidance systems and emphasize the persistent challenges in achieving fully autonomous navigation in complex maritime environments. The authors also conclude that collision-free navigation would significantly benefit the integration of MASS autonomy in various maritime scenarios. García Maza critically analyzes COLREG ambiguities, emphasizing the need for homogeneous criteria for the regulation of navigable areas to reduce the possibility of problematic encounters, especially with the emergence of MASS [3]. Rule-based systems, such as Constapel’s operationalized COLREG assessment framework [4], demonstrate how situation statements can formalize encounter scenarios. However, as Chang notes [5], inconsistencies persist in translating COLREGs into machine-interpretable constraints, particularly for multi-ship encounters, and while academic research has focused on developing autonomous collision avoidance (CA), it is producing inconsistent results compared to conventional navigation practices. Also Kim and Park provided insights into the notable disparity between the understanding of COLREG rules by navigators and the automated collision-avoidance algorithms [6]. As a possible solution approach, Lyu addressed these challenges by classifying multi-vessel scenarios using the velocity obstacles algorithm and coupling risk assessment with COLREG responsibilities [7].

In terms of dynamic obstacle avoidance and path planning under environmental constraints, Model Predictive Control (MPC) provides a promising method for balancing trajectory optimization with dynamic constraints. Codesseira validates MPC’s robustness for underactuated ships in path following [8], while Zhang integrates spatial reformulation for time-optimal obstacle avoidance in a hierarchical MPC framework [9]. Tsolakis extends MPC to long-horizon trajectory optimization, incorporating COLREGs as traffic constraints [10]. Xue introduces a human-like MPC with adaptive risk boundaries using control barrier functions, bridging safety and computational efficiency [11]. For coastal navigation, Fagerhaug proposes “Oceanscape”, a graph-based MPC framework that encodes maritime charts into geometric learning structures, enabling COLREG-aware pathfinding in complex environments [12].

Various hybrid and learning-based approaches have been investigated for handling COLREG compliance in dynamic environments. Wen [13] proposed deep reinforcement learning (DRL) based Path Planning for MASS to address collision-avoidance path planning while adhering to the COLREGs, though its reliance on pre-recorded data limits adaptability. Shen [14] proposed a novel differential evolution deep reinforcement learning algorithm to address problems of local and global path planning. He [15] combined MPC with artificial potential fields to address local optima in complex encounters, while Wang [16] applied MPC to underwater vehicle-manipulator systems, demonstrating scalability to dynamic obstacles.

Despite considerable progress in autonomous ship navigation, several key limitations remain. Öztürk [17] identifies insufficient COLREG relevance in velocity obstacle and artificial potential field methods, while Lyu [18] highlights the underutilization of coupled speed-course adjustments in decision-making processes. Fu [19] emphasizes the trade-off between real-time performance and optimality in multi-objective planners. Liu [20] tackles this by integrating digital twins and an enhanced velocity obstacle algorithm to develop an autonomous collision avoidance framework for the ships’ routing waters. Recent research trends focus on embedding COLREG rules by formalizing them as optimization constraints (e.g., [3,10]), improving environmental awareness through the integration of nautical chart data (e.g., [12]) and modeling dynamic obstacles (e.g., [9]), and enhancing real-time adaptability by combining MPC with machine learning (e.g., [11]) or DRL methods (e.g., [14]).

Our work advances these directions by unifying chart-aware path planning and COLREG-constrained MPC for collision avoidance in a single framework, addressing gaps in dynamic coastal navigation identified in [2,5,17]. MPC is particularly well-suited for autonomous maritime applications, as it naturally accommodates motion constraints, predicts future trajectories, and supports multi-objective optimization. The proposed approach incorporates high-resolution coastline data (GSHHG) to model static obstacles such as land masses and coastal structures. These are treated within the MPC optimization in addition to the dynamic targets, enabling simultaneous avoidance of both ships and shorelines. Global path planning algorithms are applied to generate a sequence of route waypoints based on chart data, and the MPC controller ensures accurate trajectory tracking and continuous adaptation to environmental changes.

The proposed framework is implemented in MATLAB as a real-time simulation environment with graphical visualization. The system supports multi-vessel scenarios and demonstrates robust performance in diverse navigation conditions, including restricted waters and open seas. The simulation environment is open-source and publicly available on GitHub [21], providing a valuable tool for the research community to test and develop autonomous navigation strategies.

The main contributions of this paper are as follows:

• Integration of GSHHG cartographic data for shoreline-aware navigation.
• A two-level navigation system combining global path planning with local MPC-based collision avoidance.
• A unified MPC navigation framework for autonomous ships integrating COLREG-compliant collision avoidance and trajectory tracking.
• An open-source, MATLAB-based multi-vessel simulation environment for the development and testing of autonomous navigation strategies.

The rest of the paper is organized as follows: Section 2 presents the methodology with descriptions of a ship model, navigation framework, route following, and MPC-based navigation. Section 3 discusses simulation results, and Section 4 summarizes the conclusions and future research directions.

2. Methodology

2.1. Navigation Levels

The methodology presented in this paper addresses autonomous ship navigation by combining chart-aware path planning and collision-avoidant navigation across two complementary navigation levels:

• Global path planning
• Local collision avoidance and trajectory planning

Global path planning optimizes the ship’s route from the departure point to the destination and results in a sequence of waypoints. Ship’s route optimization is performed in the early stages of navigation using Electronic Chart Display and Information System (ECDIS) and aims to generate a collision-free shortest route from the starting point to the destination point by considering static obstacles and environmental constraints. The global planner operates using pre-existing cartographic data and defines the high-level route structure for the voyage.

Local collision avoidance and trajectory planning, in contrast, are responsible for dynamic decision-making during navigation. This level operates in real-time and ensures that the vessel adheres to COLREG rules while safely avoiding both static (e.g., landmasses, buoys) and dynamic obstacles (e.g., nearby vessels). The local planner must continuously adapt to unpredictable elements in the environment, such as sudden course or speed changes of other ships. To achieve this, the proposed framework utilizes a Model Predictive Control (MPC) approach, which incorporates the vessel’s basic parameters, prediction of future motion, and multi-objective optimization. The local planner receives input from sensors and environmental models—such as AIS-based vessel tracking and ECDIS—to construct a dynamic situational map of the environment. This information is then used in MPC to predict the trajectories of surrounding vessels over a finite time horizon and determine the optimal control actions for our ship. This allows the ship to make context-aware navigation decisions that balance safety, rule compliance, and trajectory efficiency. The local planner also follows a series of pre-planned waypoints from the global planner and adjusts the ship’s heading accordingly, ensuring smooth and continuous operation even in dense traffic or restricted waters.

This study considers two levels (global path planning and local collision avoidance and trajectory planning) and doesn’t take into account the layer of motion control, which refers to ship steering and closed-loop control. The motion control is considered as a physical implementation of navigation commands, issued at the higher navigation levels, which is not relevant within the scope of this study.

2.2. Global Path Planning

The global path planner operates on electronic nautical charts that include coastline geometry, restricted zones, shallow areas, and other navigational constraints. In our study, the Global Self-consistent Hierarchical High-resolution Geography (GSHHG) dataset [22] was used to construct the situational map of the maritime environment. Based on GSHHG data, the marine space was segmented into three regions: open sea, land, and coastal areas. Route planning is restricted to the open sea region and must avoid land masses while maintaining safe distances from shallow coastal zones. The global planner computes a sequence of waypoints that form the reference trajectory from the departure location to the intended destination while avoiding non-navigable zones such as land and restricted coastal waters. The planned route can be updated during the voyage in response to mission changes or updated environmental information.

Commonly used algorithms for global route planning include dynamic programming, A*, Theta*, Dijkstra, trajectory point guidance, and others [23,24,25,26,27,28]. In our study, the Theta* algorithm was selected to implement the global route planner due to efficient pathfinding in complex coastal conditions. The resulting route is a piecewise linear path composed of feasible waypoints that satisfy chart-based constraints and provide a structured input for the local trajectory planner.

To mathematically define the waypoint sequence, let W = [w₀, w₁, ..., w_N] denote the ordered set of waypoints, where each waypoint wᵢ ∈ ℝ² represents a position in a two-dimensional navigational space (latitude and longitude). The waypoint sequence must satisfy the following conditions:

(1)

Start and goal constraints, where p_start and p_goal are the given departure and destination positions, respectively:

w₀ = p_start, w_N = p_goal

(1)

(1)

Feasibility of route segments, where F ⊆ ℝ² denotes the set of feasible (navigable) points defined by the chart data, and line(·,·) represents the straight-line path between two consecutive waypoints:

∀ i ∈ {0, ..., N−1}, line(wᵢ, wᵢ₊₁) ⊆ F

(2)

(3)

Path optimality criterion, which corresponds to minimizing the total path length (although other cost functions may be considered depending on mission requirements and environmental factors):

$$\underset{W}{\min }{\displaystyle \sum _{i=0}^{N-1}}\Vert w\mathrm{ᵢ}₊₁-w\mathrm{ᵢ}\Vert$$

(3)

This formulation ensures that the global path is safe, feasible, and structured in a way that supports local trajectory optimization and control.

2.3. Ship Model

The ship model in this study is simplified within the relevance of the upper two navigation levels (global path planning, and local collision avoidance and trajectory planning), and is defined by the following parameters:

-

ship current location, expressed as latitude and longitude (lat, lon),

-

ship direction (θ) and speed over the ground (S),

-

max turning angle (∆θ_max) (in one iteration of the simulation).

Besides the basic ship parameters, the following zones around the ship, referred to as COLREG application zones in [29], are defined for collision avoidance assessment:

-

Collision zone (defined by radius d_Collision): objects appearing within radius d_Collision from the ship are considered collision cases;

-

COLREG zone (defined by radius d_COLREG): objects appearing within radius d_COLREG from the ship are visible in the scope of the ship’s situational awareness, and considered potentially hazardous and therefore require attention and appropriate response.

Figure 1 presents the ship model and the COLREG application zones, which are in this study defined as follows: d_Collision = 0.5 nm, and d_COLREG = 3 nm.

2.4. Navigation Framework

The proposed navigation framework consists of a hierarchically organized structure integrating global path planning and local collision avoidance into a coherent decision-making system. The core concept is that the ship continuously follows a planned route (route following) generated by the global planner, but switches to a collision avoidance mode when potential hazards are detected within the COLREG zone.

During normal operation in the open sea without immediate hazards, the ship follows the pre-computed global trajectory defined by a sequence of waypoints. This process, referred to as route following, involves adjusting the vessel’s heading to remain on course while maintaining navigational efficiency. Route following assumes no immediate threat and allows for energy-efficient and direct transit.

However, when an obstacle (another vessel or landmass) is detected within the COLREG zone (defined as 3 nm in this study), the system transitions to MPC-based collision avoidance. In this regime, the local planner overrides simple waypoint following and takes full control of navigation by computing control actions using Model Predictive Control. The MPC module uses dynamic models and situational awareness data (AIS, radar, ECDIS) to predict the behavior of surrounding vessels, assess potential collision risks, and generate collision-avoidance maneuvers that comply with COLREG rules.

This transition between route following and MPC-based collision avoidance is continuous and adaptive. The decision logic operates as a supervisory layer that monitors the environment in real time and switches between control modes depending on the proximity and type of obstacles:

• If no vessel or obstacle is present within the COLREG zone, the ship remains in the route-following mode.
• If an object enters the COLREG zone, the MPC-based local planner becomes active in assessing the situation and preparing corrective actions to prevent the object (or multiple objects) from entering the collision zone.

After the conflict is resolved and the environment is clear again, the system reverts to the route-following mode, resuming navigation along the global trajectory. This switching mechanism, presented in Figure 2, ensures a safe, COLREG-compliant, and efficient autonomous navigation process that dynamically adapts to environmental changes and traffic density, particularly in constrained or high-traffic maritime areas.

2.5. Route Following

Route following represents the baseline navigation behavior in the absence of imminent collision threats. During this mode, the vessel is guided along the pre-computed global path defined by the ordered set of waypoints W = [w₀, w₁, ..., w_N], as introduced in Section 2.2. The primary objective is to reach each waypoint sequentially while maintaining heading alignment, minimizing deviations from the nominal route, and ensuring efficient transit.

At each time step t, the ship determines the next waypoint target wᵢ₊₁ based on its current position p(t) ∈ ℝ². A guidance law computes the target heading angle θ_Target(t), which points toward the current target waypoint:

θ_Target(t) = atan(wᵢ₊₁,_lat − p_lat(t), wᵢ₊₁,_lon − p_lon(t))

(4)

To avoid rapid oscillation near waypoint transitions and to ensure smooth path progression, a transition radius r_tran is defined around each waypoint. The ship switches its active target from wᵢ to wᵢ₊₁ once it enters the circular region:

‖p(t) − wᵢ‖ ≤ r_tran

(5)

This simple logic enables robust and efficient waypoint tracking in open waters. The switching radius is, in this study, set to the collision zone radius d_Collision. The motion control system adjusts the actual heading θ(t) toward θ_Target(t) using a proportional control (or more advanced heading controllers). The heading error is defined as:

e_θ(t) = θ_Target(t) − θ(t),

(6)

and the rudder or propulsion system responds accordingly to minimize e_θ over time, subject to the vessel’s dynamic constraints (maximum turning rate ∆θ_max).

Route following remains active as long as no obstacles are detected within the COLREG zone. In such conditions, the system focuses on energy-efficient and accurate progression along the planned trajectory. Once a potential hazard is detected, the supervisory navigation module suspends the route-following mode and activates the MPC-based local planner for collision avoidance.

2.6. MPC-Based Collision Avoidance

The collision avoidance mechanism within our navigation framework is activated when potential hazards are detected within the COLREG zone. This mechanism operates in two sequential steps. First, COLREG rules are applied to assess the type of encounter and ensure regulatory compliance. Second, the MPC-based controller computes optimal collision-avoidance maneuvers for the own ship based on predicted trajectories.

2.6.1. COLREG Compliance

It is expected that the maneuverability of MASS will far exceed that of manned ships, and the avoidance priority should be lower than manned ships under the “unmanned-manned” encounter situation. Therefore, Gao et al [30] proposed to update the maritime navigation regulations for MASS as follows: “Under the maritime encounter situation of unmanned-manned, the avoidance priority of MASS is lower than manned. A MASS underway shall keep out of the way of manned ship and a MASS shall not impede the passage of any other manned navigating vessels.” In accordance with this principle, our navigation framework assumes a conservative behavior for MASS: it always prioritizes avoiding any other vessel, manned or unmanned. As such, MPC-based collision avoidance is used as the default navigation mode.

To ensure formal compliance with COLREGs, we implement a rule-based COLREG layer. This layer operates independently of the MPC-based navigation and modifies the behavior of surrounding vessels in the simulation environment based on rule-based logic. When another ship enters the defined COLREG zone, the rule-based layer evaluates the situation and classifies the encounter into one of the standard types defined by COLREG: head-on, overtaking, or crossing. Encounter classification is based on the relative bearing M^°, relative speed S_R, own and target ship heading (θ_O, θ_T), and courses (C_O, C_T), along with their respective speeds (S_O, S_T). Table 1 summarizes the rule formalization adapted from [3].

These rules are enforced on the simulated behavior of other ships in the environment. When the own ship has the right of way (e.g., when being overtaken or approached from the port side), the heading of the target ship θ_T is adjusted to simulate compliant behavior: θ_T(t+1) = θ_T(t) + ∆θ(t), where ∆θ = ∆θ_max is chosen to gradually steer the ship away from a potential collision course.

However, to ensure safety and robustness, even when own ship has the right of way, the MPC controller continues to generate avoidance maneuvers if the predicted trajectories over the horizon show an imminent risk of collision (e.g., distance less than a safety threshold.

2.6.2. General MPC Formulation

Following the COLREG assessment, the MPC-based collision avoidance strategy is executed for the own ship. At each control step, the MPC module solves an optimization problem over a finite prediction horizon H, where the objective is to determine the optimal control inputs (ship headings) that minimize a cost function while satisfying dynamic constraints. The state vector x and control u are defined as:

x(t) = { lat(t), lon(t), θ(t), S(t) }

(7)

u(t) = Δθ(t)

(8)

where t denotes the discrete time step, (lat, lon) position coordinates, θ heading, S speed over ground, and Δθ the change in heading. The vessel’s motion is described by a simplified kinematic model:

lon(t+1) = lon(t) + S(t) cos(θ(t)) Δt

(9)

lat(t+1) = lat(t) + S(t) sin(θ(t)) Δt

(10)

θ(t+1) = θ(t) + Δθ(t)

(11)

In a general MPC formulation, objective function J is defined over a finite prediction horizon H, and can be represented by terms describing adherence to the reference trajectory (i.e., route following toward the next waypoint w_i+1), minimizing control effort, and avoiding collisions with static obstacles $𝒪$ and nearby vessels $𝒱$:

$$J={\sum }_{h=1}^H\left({‖\begin{array}{c}{x}_h-w_{i+1}\end{array}‖}^2+{\lambda }_u{‖\begin{array}{c}{u}_h\end{array}‖}^2+\sum _{j\in \mathcal{O}}{{\lambda }_{o}P}_{\mathrm{Obstacle}}\left(x_h,o_j\right)+\sum _{i\in \mathcal{V}}{{\lambda }_{c}P}_{\mathrm{Collision}}\left(x_h,x_h^i\right)\right)$$

(12)

Where:

-

x_h​ is the predicted state of the own ship at prediction step h,

-

u_h = Δθ_h is the control input (change in heading),

-

w_i+1 is the position of the next waypoint,

-

$x_h^i$ is the predicted state of vessel i ∈ $𝒱$ at step h,

-

P_Obstacle is a penalty function for proximity to a static obstacle,

-

P_Collision is a penalty function for proximity to another vessel,

-

λ_u, λ_o, λ_c​ are weighting parameters that determine the relative importance of control effort, obstacle avoidance, and collision avoidance.

The cost function is minimized at each control step, subject to the following constraints:

-

Ship dynamics: as defined above (Equations 9–11),

-

Control limits: |Δθ_h| ≤ Δθ_max,

-

Collision avoidance (static): ∀j ∈ $𝒪$, $‖\begin{array}{c}{x}_h-o_j\end{array}‖\ge$ d_Collision,

-

Collision avoidance (dynamic): ∀i ∈ $𝒱$, $‖\begin{array}{c}{x}_h-x_h^i\end{array}‖\ge$ d_Collision.

By solving this constrained optimization problem at each time step using updated situational data, the MPC framework provides adaptive, rule-compliant navigation that accounts for both static and dynamic obstacles. This enables the ship to adapt in real-time to dynamic environmental changes, such as course or speed variations of nearby vessels, and ensures that the ship remains compliant with COLREG rules throughout the navigation. The predicted trajectories of nearby vessels can be calculated based on situational awareness data (AIS, radar, etc.) and extrapolated using a constant velocity model, though more advanced motion prediction models can be integrated. At each control step, the optimal control sequence {Δθ₁, Δθ₂, …, Δθ_H} is computed, and only the first control input Δθ₁​ is applied to the ship model. The process is then repeated at the next time step using updated environmental data (receding horizon approach).

2.6.3. Simplified MPC Formulation

While the general MPC formulation provides a powerful framework for collision avoidance, it may be computationally demanding for real-time applications in resource-constrained systems. Therefore, this study proposes a simplified, heuristic-based version that preserves the predictive control approach and safety guarantees while reducing the computational burden. The proposed simplified MPC strategy consists of the following steps, executed at each control interval:

• 1.Generation of candidate trajectories:

A discrete set of M fan-shaped trajectories is generated from the current ship state x(t), each corresponding to a fixed heading increment Δθ_m ∈ [−Δθ_max, Δθ_max], where m = 1, …, M. Each trajectory τ_m is simulated over the prediction horizon H using the kinematic model (Equations 9–11):

$${\tau }_m={\left\{x_m\right(h\left)\right\}}_{h=1}^H,x_m\left(h+1\right)=f\left(x_m\right(h),\Delta {\theta }_m)$$

(13)

2.

Feasibility filtering:

Each trajectory τ_m is evaluated for potential collisions with:

-

Static obstacles $𝒪$

-

Predicted positions of nearby vessels $𝒱$

A binary feasibility function F(τ_m) is defined as:

$$F\left({\tau }_m\right)=\left\{\begin{array}{c}1,if\forall n,\forall o_j\in O:‖x_m\left(h\right)-o_j‖\ge d_{Collision}\\ and\forall v_i\in V:‖x_m\left(h\right)-{\mathrm{x}}^i\left(\mathrm{h}\right)‖\ge d_{Collision}\\ 0,\mathrm{o}\mathrm{t}\mathrm{h}\mathrm{e}\mathrm{r}\mathrm{w}\mathrm{i}\mathrm{s}\mathrm{e}\mathrm{I}\end{array}\right.$$

(14)

Only trajectories with F(τ_m) = 1 are retained for further evaluation.

3.

>3. Selection of optimal trajectory:

Let w_i+1 be the next waypoint, and θ_Target (Equation 4) the bearing to the waypoint. If the vessel’s current heading θ(t) is within [-90, 90°] of the direction to the next waypoint (the ship is approaching the waypoint), the trajectory whose initial segment most closely aligns with the bearing to the waypoint is selected. Otherwise, the trajectory that ends closest to the next waypoint is chosen. This selection rule is expressed as follows:

• If the current ship heading θ(t) satisfies:

|θ(t) – θ_Ttarget| ≤ 90°

(15)

Then select:

$${\tau }^{*}=\arg \underset{{\tau }_m:F\left({\tau }_m\right)=1}{\min }\left|{\theta }_{\mathrm{m}}\right(1)-{\theta }_{\mathrm{Target}}|$$

(16)

• b. Otherwise, select:

$${\tau }^{*}=\arg \underset{{\tau }_m:F\left({\tau }_m\right)=1}{\min }‖x_{\mathrm{m}}\left(H\right)-w_{i+1}‖$$

(17)

This rule-based trajectory filtering and selection strategy significantly reduces the number of candidate solutions to be evaluated, allowing real-time operation even on low-power systems. Despite its simplicity, the approach preserves key features of MPC, such as receding horizon control and predictive situational awareness. This simplified controller is particularly suitable for near-shore navigation or congested traffic areas, where computational efficiency and rapid response are essential.

An illustrative example of the proposed simplified MPC-based formulation is presented in Figure 3. The own ship is depicted in blue, along with its current set of candidate trajectories. Infeasible trajectories (F(τ_m) = 0), which are discarded, are shown in red, while feasible ones (F(τ_m) = 1), retained for further evaluation, are shown in green. The optimal trajectory τ*, selected according to Equation (16), is highlighted in blue. The magenta line indicates the reference direction toward the next waypoint. Surrounding vessels are shown in red, with their headings and velocities represented as forward-pointing vectors.

2.7. Simulation Setup

To evaluate the performance of the proposed MPC-based navigation strategy, we developed a multi-vessel simulation environment implemented in MATLAB. The simulation framework models vessel dynamics, environmental constraints, rule-based interactions in accordance with COLREGs, and the proposed route following and MCP-based collision avoidance methods. It supports real-time visualization of vessel motion, including heading vectors, the safety zone of the own ship, and predicted trajectories. The simulation environment entitled “MPC-Autonomous-Ship-Navigation” is provided as open source on GitHub [21].

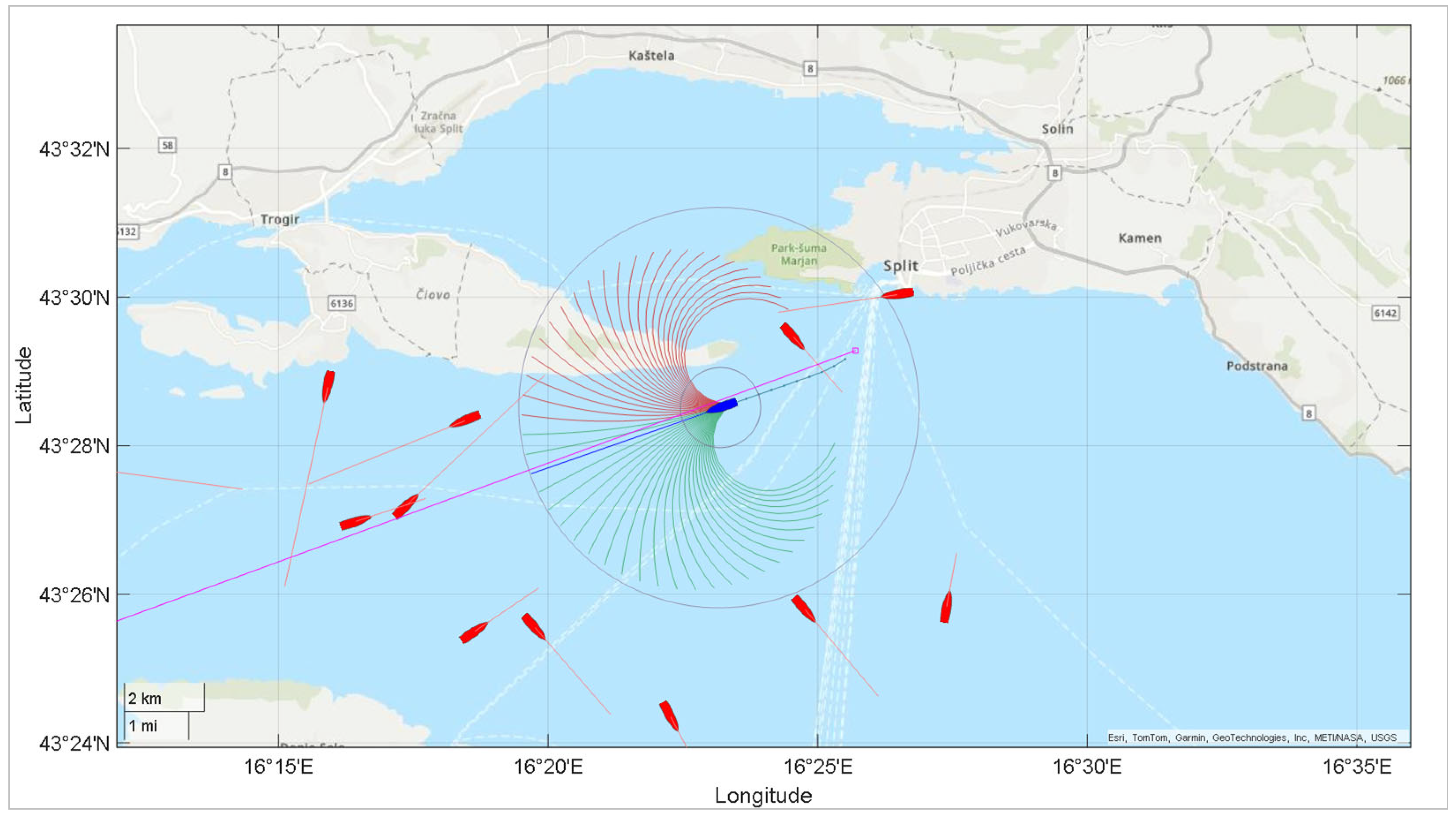

The simulation area is geographically defined in the Adriatic Sea and includes the port of Split and the surrounding islands (Šolta, Vis, Brač, Hvar). Within this area, three initial waypoints (WP1, WP2, WP3) are set to define required stopovers, and a circular route—starting from the port of Split, passing Vis Island, continuing around Hvar Island, and returning to Split—is computed using the Theta* path planner (see Section 2.2). All vessels in the simulation are modeled as point masses with discrete-time kinematic updates. The own ship is controlled using the simplified MPC formulation described in Section 2.6.3, while other ships (target ships) follow predefined trajectories with constant velocities and headings and are subject to COLREG compliance described in Section 2.6.1. When a target ship encounters the coastline, its heading is reversed to maintain motion within the simulation bounds. This results in a highly dynamic and challenging marine environment, well suited for evaluating the proposed method. Key parameters of the simulation are summarized in Table 2.

Ship speed is adjusted in a simulation proportionally in a sense that the path travelled within the specified prediction horizon steps (16 steps) matches the borders of the COLREG zone. Initial positions and headings of surrounding vessels are randomized for each simulation run, yielding diverse and unpredictable encounter scenarios. All scenarios are executed until the ship reaches the final waypoint or until a violation of safety constraints (e.g., collision) is detected. The simulation area, along with the route of the own ship and the positions and headings of surrounding vessels, is illustrated in Figure 4.

3. Results

This section presents simulation results for various COLREG scenarios (summarized in Table 1), which are executed using the simulation environment described in Section 2.7. The examples include coastal navigation, ship-to-ship encounters, and multi-ship interactions, illustrating the performance and adaptability of the proposed navigation framework.

3.1. Coastal Navigation

The first example demonstrates the effectiveness of MPC-based navigation in a coastal environment, where a direct route to the next waypoint would violate safe navigation constraints. Such a situation may arise due to the dynamic presence of other ships in the area, resulting in positions that are no longer collision-free if the ship continues directly toward the next waypoint. In these cases, MPC-based navigation is employed for local path planning and collision avoidance.

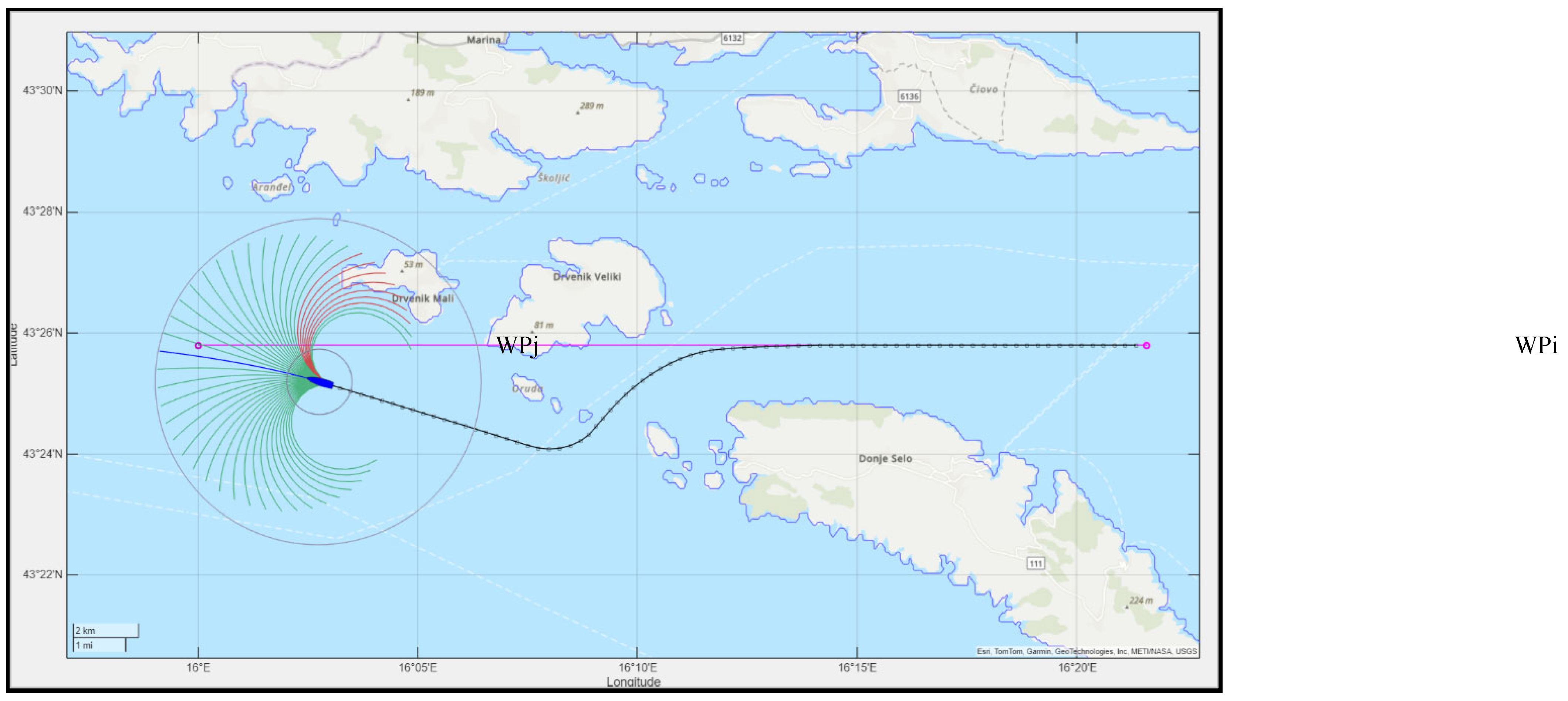

Figure 5 illustrates a scenario in which the direct path from WPi to the next waypoint WPj—obscured by static obstacles (islands)—would lead to a collision. The resulting trajectory (shown as black segments), generated by the MPC-based local planner, successfully avoids the obstacles while guiding the ship toward its next waypoint, demonstrating the system’s capability for safe and efficient coastal navigation. However, it should be noted that the local MPC-based planner only addresses the path planning problem within its limited predictive horizon and may fail in more complex or long-range scenarios, where the use of a global path planner becomes necessary.

3.2. Head-On Encounter

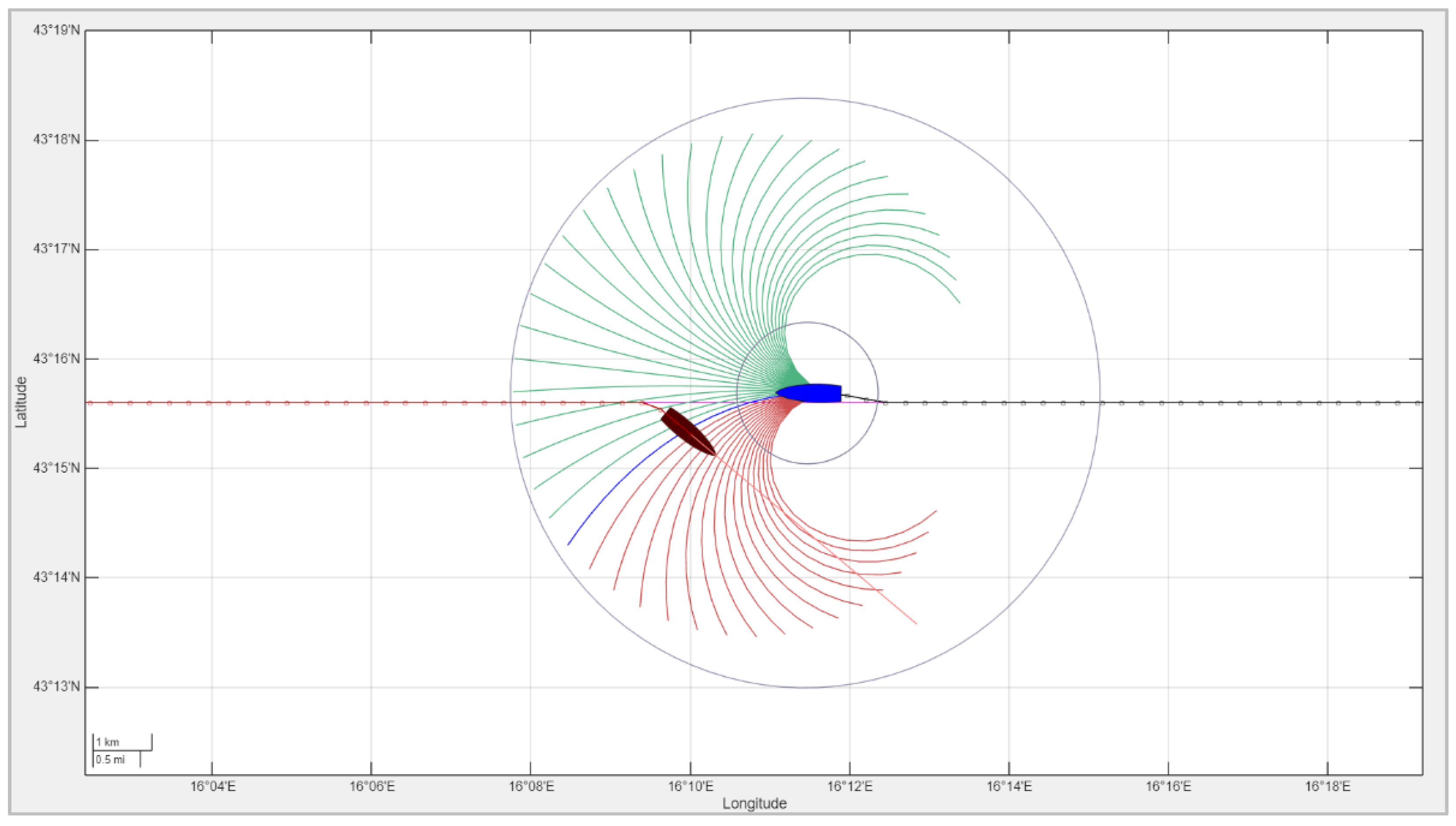

In a head-on scenario, two vessels approach each other on reciprocal or nearly reciprocal courses. According to COLREG Rule 14, both vessels are required to alter their course to starboard to avoid a collision. Figure 6 illustrates such a situation: the other vessel initiates a starboard turn following a predefined maneuver, constrained by its maximum permissible turning angle ∆θ_max, while the own ship, governed by an MPC-based navigation system, computes the optimal avoidance trajectory in real time. Unlike the other vessel, which executes a fixed maneuver, the own ship’s MPC controller determines the minimal course adjustment necessary to avoid a collision, based on the predicted future positions of both ships. The resulting trajectories are shown in Figure 6, with the own ship’s track in black and the other ship’s track in red. As illustrated, both vessels correctly turn to starboard, and the MPC-based decision-making allows the own ship to avoid the collision while minimizing deviation from its intended path. Note: the ship icons in Figure 6 (and in the following Figures) are exaggerated in size for illustrative purposes only and do not represent actual vessel dimensions or separation distances.

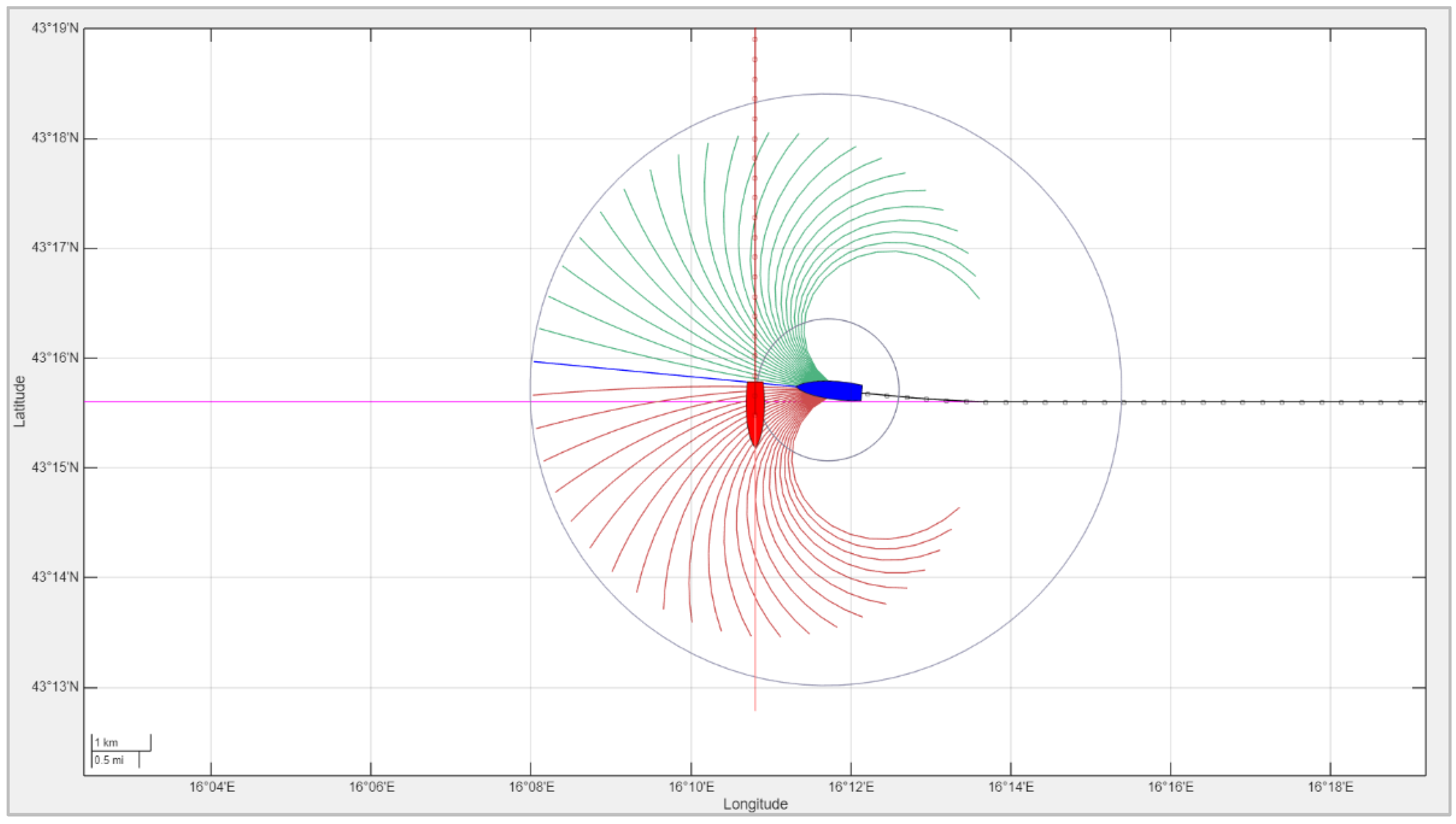

3.3. Crossing Encounter

In crossing encounters, the required maneuver depends on whether the other vessel is approaching from the starboard or port side. According to COLREG Rule 15, when two power-driven vessels are crossing paths in such a manner that involves a risk of collision, the vessel that has the other on her starboard side must give way.

If the other vessel approaches from the port side, it is designated as the give-way vessel and is obliged to take action to avoid a collision. However, if the give-way vessel fails to comply with COLREG obligations, the own ship, controlled by the MPC-based autonomous navigation system, will still initiate a collision-avoidance maneuver to maintain navigational safety. The MPC controller continuously predicts the future trajectories of both vessels and computes avoidance maneuvers when a collision risk is identified within a predictive horizon.

If the other vessel approaches from the starboard side, then the own ship is the give-way vessel and must take action to avoid crossing ahead. Figure 7 illustrates such a scenario, where the other vessel maintains a constant course and speed, while the own ship adjusts its trajectory, computed in real time by the MPC system, to safely give way and pass behind the other vessel. The avoidance maneuver is optimized to be as efficient as possible: the deviation from the original path is minimized, and the own ship returns to its intended course toward the next waypoint as soon as it is safe to do so. This ensures compliance with COLREG rules while maintaining energy- and time-efficient navigation.

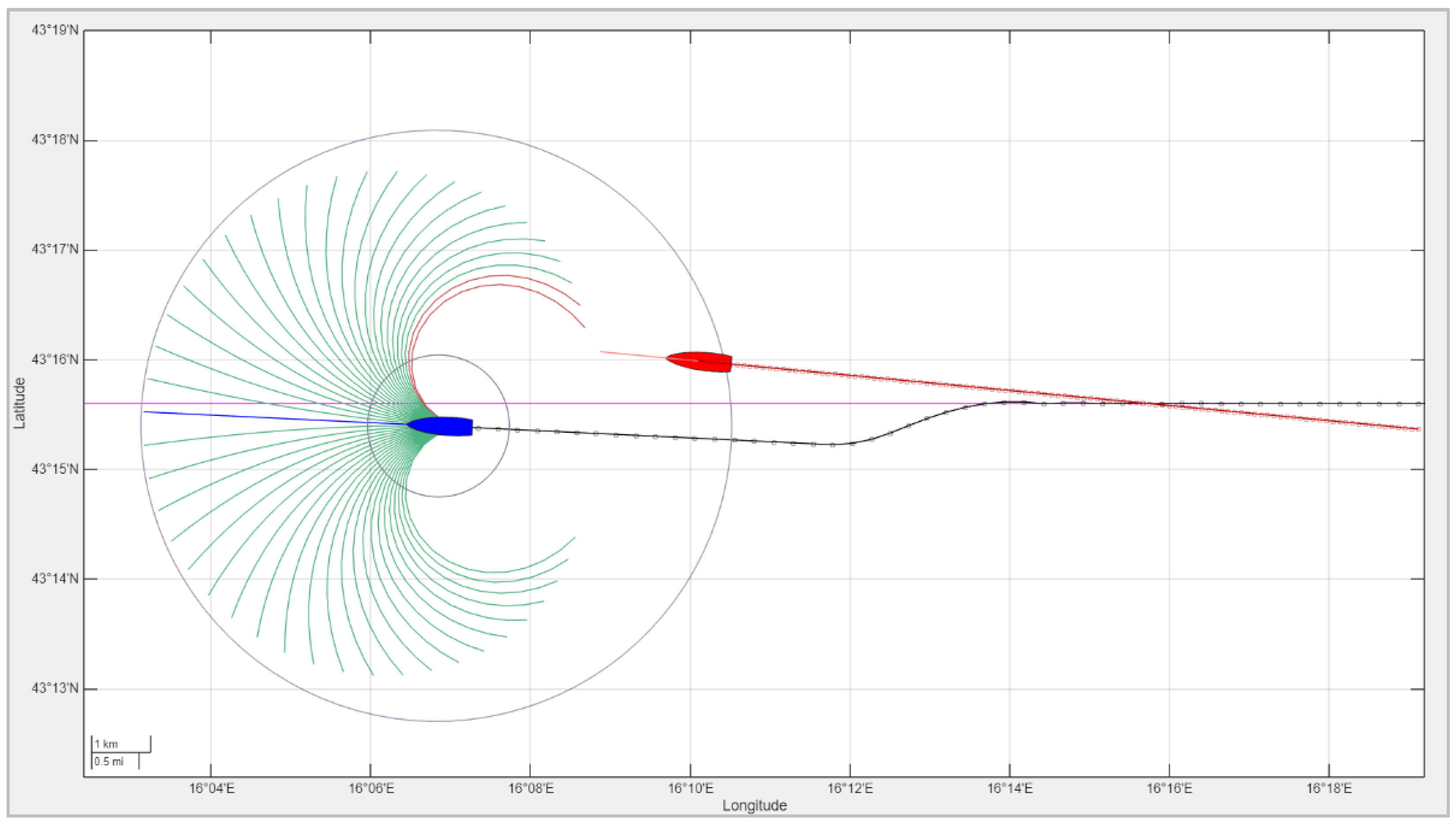

3.4. Overtaking Scenario

When overtaking a slower vessel, special care must be taken to ensure compliance with COLREG Rule 13, which states that any vessel overtaking another shall keep out of the way of the vessel being overtaken, regardless of the relative position. In this scenario, shown in Figure 8, the own ship—navigated by the MPC-based control system—approaches a slower vessel from astern. The other vessel maintains a constant course and speed, without performing any evasive maneuvers. The MPC controller identifies the overtaking condition and autonomously plans a safe overtaking trajectory, in accordance with COLREG recommendations, unless otherwise dictated by traffic or environmental constraints. The maneuver is optimized to avoid collision while minimizing deviation from the intended path. After passing the other vessel at a safe distance, the own ship directs toward the next waypoint.

3.5. Multi-Ship Encounters

Multi-ship encounters represent a more complex and realistic navigation scenario in which the own ship must simultaneously consider multiple nearby vessels with potentially conflicting trajectories. In such situations, the application of COLREGs becomes less straightforward and significantly more challenging, as pairwise interaction rules (e.g., head-on, crossing, overtaking) must be applied in a coordinated and consistent manner. Consequently, multi-ship encounters are currently regarded as an open and challenging research topic, identified in several recent references as a direction for future investigation [7,31,32].

The proposed MPC-based navigation system is designed to address such scenarios by continuously predicting the motion of all surrounding vessels and resolving conflicts using a predictive control approach. The optimization framework prioritizes safety while minimizing deviations from the planned route and maintaining steady progress toward the next waypoint. Figure 9 illustrates an example of a multi-ship encounter involving five vessels approaching from various directions. The subfigures (a, b, c) depict the maritime situation at time steps t = [24,34,44], showing the following developments:

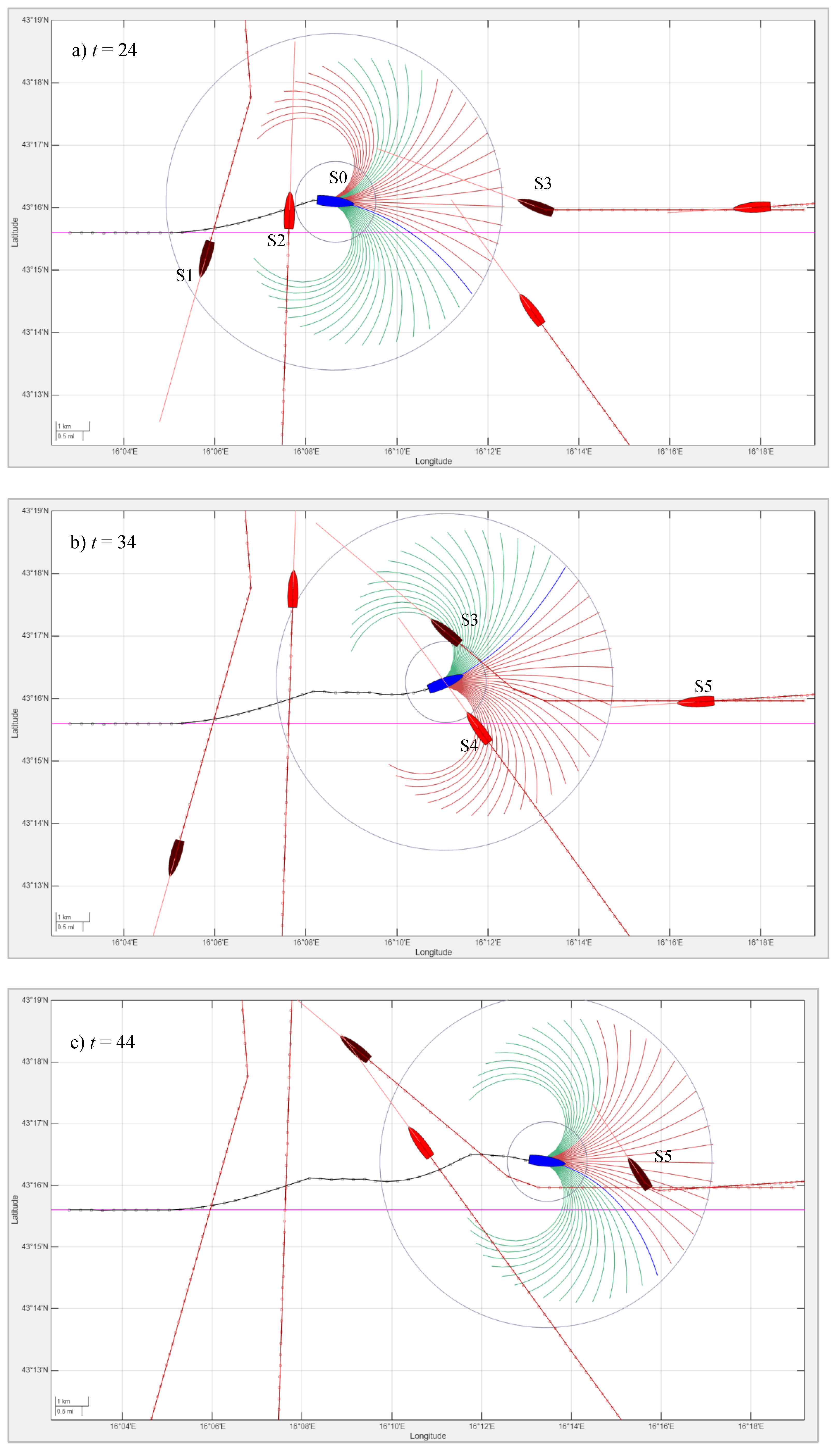

(a).

t = 24: The own ship (S0) navigates between ships S1 and S2. While S1 is obligated to give way, S0 proactively avoids a potential collision with S2.

(a).

(b). t = 34: S0 negotiates a narrow passage between ships S3 and S4. Although S3 alters its heading in accordance with COLREGs, S0 changes course to give way to S4, which is approaching from the starboard side.

(a).

(c). t = 44: S0 encounters a head-on situation with S5, in which both ships begin to alter their headings to avoid a collision.

The own ship (depicted with a black trajectory) dynamically adapts its path to safely navigate through the congested area. In such scenarios, the advantages of model predictive control become apparent: the system evaluates multiple avoidance strategies over a finite prediction horizon and, at each step, selects the option that ensures safe navigation with minimal maneuvering effort. Furthermore, the controller avoids oscillatory or overly conservative behavior by continuously updating the predicted trajectories based on real-time observations. More illustrative examples of dynamic multi-ship navigation are available as video files in the open-source repository associated with this paper [21].

3.7. Discussion

The simulation results demonstrate that the proposed MPC-based navigation framework effectively handles a broad range of maritime scenarios, ranging from simple rule-based encounters (e.g., head-on, crossing, overtaking) to more complex multi-ship interactions in coastal environments. The system demonstrates real-time decision-making and adaptability to dynamic conditions by continuously optimizing the ship’s trajectory within a predictive horizon. One of the key advantages of the MPC approach lies in its ability to resolve conflicting objectives—such as safety, rule compliance, and navigation efficiency—within a unified framework. For example, in both head-on and crossing scenarios, the own ship adjusts its course only as much as necessary, minimizing deviation from the intended path while still achieving collision avoidance. Similarly, in overtaking situations, the controller ensures that the maneuver is not only safe but also efficient in terms of path length and energy expenditure.

The MPC-based navigation becomes especially relevant in multi-ship scenarios, where the complexity of applying COLREG rules increases significantly. Traditional rule-based systems may fail to coordinate interactions involving more than two vessels or may generate overly conservative behavior. In contrast, the MPC controller evaluates future trajectories of all surrounding vessels and selects efficient avoidance strategies that are both collision-free and optimal with respect to route following. The proposed framework provides a promising foundation for further development toward safe, autonomous maritime operations in both constrained and unconstrained environments.

However, some limitations of the proposed approach can be noted. First, the MPC-based controller operates within a finite prediction horizon H, which doesn’t take into account long-term interactions or global obstacles (e.g., long coastlines or traffic separation schemes). As discussed in Section 3.1, local planning alone may fail in complex environments, underscoring the need for integration with a global route planner. In this simulation study, predictive horizon H = 16 was used, however, its length can be adjusted to match the complexity of the navigation context.

Second, the approach assumes that the motion of surrounding vessels can be reasonably predicted over the control horizon. In real-world conditions, where ships may behave unpredictably or violate COLREGs, additional mechanisms—such as intent inference or probabilistic modeling—may be required to ensure safety.

Finally, while the simulations rely on predefined ship dynamics and perfect state estimation, real-world deployment would necessitate robustness to sensor noise, environmental disturbances (e.g., wind, current), and communication delays. Future work may focus on incorporating environmental uncertainty, validating the approach in hardware-in-the-loop simulations, and extending the framework to mixed-traffic scenarios involving human-operated and autonomous vessels.

4. Conclusions

A Model Predictive Control-based approach for autonomous ship navigation, combined with chart-based route planning, is proposed in this paper. The framework integrates dynamic trajectory tracking with COLREG-compliant MPC-based collision avoidance, enabling Maritime Autonomous Surface Ships (MASS) to navigate safely and efficiently in complex maritime environments. Using predefined waypoints and maritime charts, the system generates feasible reference paths, while the MPC controller ensures accurate path following and reactive maneuvering in response to dynamic vessels and coastal obstacles. Landmasses are modeled using GSHHG data, and other ships are treated as COLREG-compliant dynamic agents. Simulations demonstrate successful and robust collision avoidance and regulatory compliance across multi-vessel scenarios. The main novelties of the proposed approach include:

• Seamless integration of MPC, chart-based planning, and COLREG rules in a unified framework.
• A simplified MPC formulation that retains a predictive control approach while reducing computational demands, making it suitable for real-world implementation.
• Implementation of an open-source simulation environment for demonstrating and testing the proposed autonomous ship navigation, supporting multi-ship scenarios, real-time visualization and decision-making analysis.

These contributions highlight the potential of the proposed system in addressing the challenges of autonomous navigation for MASS. The simplified MPC formulation reduces the computational burden while maintaining the integrity of the control approach, thus making it suitable for practical deployment in a variety of autonomous vessels. Additionally, the open-source simulation platform developed in this study [21] provides valuable insights into the performance of the navigation system, allowing for further testing and refinement in different operational settings.

Future work will focus on expanding the simulation framework to include more realistic environmental factors, as well as enhancing the adaptability of the system to more complex, real-time decision-making scenarios. Furthermore, future research will address multi-MASS scenarios, where multiple autonomous ships utilize the same MPC-based navigation approach, requiring detailed analysis of their interactions. Current implementation operates under assumptions about the predictability of surrounding traffic and ideal sensing, and is limited by the finite prediction horizon. Therefore, these limitations also point to additional directions for future work, including integration with global route planners that incorporate environmental uncertainty, and validation in real-world or hardware-in-the-loop settings. The presented MPC framework provides a promising foundation for the development of intelligent, autonomous navigation systems capable of operating safely and efficiently in complex maritime environments. Extending the framework to support heterogeneous traffic—combining global planning, data-driven prediction models, and vessel-to-vessel communication—will be crucial for the practical deployment of autonomous maritime operations.
