Mesoporous MCM-48 and MCM-41 Silicas Modified with Copper by ADP Method as Effective Catalysts for Low-Temperature NH3-SCR – the Role of Synthesis Conditions and Associated Reactions

1. Introduction

Copper is a widely used and versatile metal in catalysis due to its favorable redox properties, low cost, and recyclability [1,2,3]. It plays a key role in various catalytic processes, including hydrogenation, oxidation, and reduction reactions [4,5,6,7]. Copper-based catalysts are particularly attractive for industrial applications, where cost and availability are crucial factors. The increasing interest in developing Cu-based heterogeneous catalysts is largely driven by their potential as cost-effective alternatives to precious metals such as platinum and palladium [1,8]. Therefore, continued research on innovative and more efficient Cu-based catalysts is essential to achieving superior catalytic performance.

Mesoporous silica materials were identified as highly promising support materials for copper catalysts due to a range of unique properties, such as uniform porous structure and extensive surface area, along with relatively simple synthesis methods. Mesoporous silicas were first synthesized in 1992 by Mobil Oil Company researchers, and their synthesis is based on surfactant-directed method [9,10]. This process involves surfactants self-organizing in solution to form micellar structures, around which the silica source condenses. The final step requires the removal of organic surfactant from the mesoporous silica’s pore system, typically through calcination or, less frequently, solvent extraction [11,12]. Mesoporous silica materials, unlike zeolites, possess significantly larger pores, which are crucial for facilitating effective internal diffusion of larger reactants in catalytic processes [13]. This advantage allows them to accommodate bulkier species that would otherwise be excluded from the narrower micropores of zeolites, enhancing catalytic efficiency and broadening the scope of potential applications. Nonetheless, a major drawback of these materials is the challenge of uniformly depositing catalytically active components on the surface of mesoporous silicas. In comparison to zeolites, pure mesoporous silica materials lack ion-exchange properties, making it impossible to deposit metal cations (e.g., copper) using traditional ion-exchange methods [14,15]. Ion-exchange properties can be achieved by incorporating heteroatoms with a 3+ oxidation state (e.g. aluminum) into the amorphous silicas. However, unlike zeolites, the non-uniform distribution of aluminum cations within the silica matrix results in acid sites with varying strengths and locations. Additionally, the surface density of these acid sites and ion-exchange positions is lower compared to those found in zeolites [16]. An alternative modification approach is impregnation, which is relatively simple and cost-effective. However, it is very challenging, if not impossible, to control the form and aggregation of the deposited copper species, which is significant for achieving high catalytic selectivity [17]. Another important method for functionalizing pure silica materials is molecular designed dispersion (MDD) method, which allows the deposition of monomeric metal forms into the support [18,19]. This method involves grafting organometallic compounds on the silica surface through a selective reaction between the active phase precursor and the support’s silanol groups, followed by drying and calcination. During calcination, the organic functional groups decompose, resulting in a highly dispersed form of metals. However, the grafting method is complex and expensive, requiring a dry, inert atmosphere. Specialized equipment is necessary to maintain these reaction conditions, which greatly limits the feasibility of this method for industrial applications [17,20]. Promising and quite simple method used for the preparation of finely dispersed copper species on silica’s surface is ammonia driven deposition precipitation (ADP) method [21,22]. This technique involves the use of ammonia to form complexes with copper ions, which facilitates the deposition of these ions on various supports, such as mesoporous silicas. The ADP method fundamentally relies on ammonia increasing the solution’s pH above the point of zero charge, leading to the formation of [Cu(NH₃)₄(H₂O)₂]²⁺ complexes. These complexes then interact electrostatically with the negatively charged surfaces of the support, promoting uniform deposition and preventing metal aggregation during thermal treatment (e.g. calcination) [22,23,24]. In consequence of this, this method allows for high metal dispersion on the support material, resulting in a larger active surface area and improved catalytic activity. Moreover, ADP process is relatively simple, water-based, and can be performed under mild conditions, making it cost-effective and scalable for industrial applications.

Among the significant applications of copper-modified mesoporous silicas is their role in the low-temperature selective catalytic reduction of NOₓ using ammonia (NH₃-SCR) [25]. This process plays a crucial role in lowering NOₓ emissions from industrial and transport sources, contributing to the reduction of air pollution. Traditional catalytic system (V₂O₅–TiO₂) is known to perform well between 300 and 400°C [26]. However, modern industrial processes require NOₓ reduction at lower temperatures. Since electrostatic precipitators, which remove particulates from exhaust gases, function at 250°C or lower, there is a growing need for low-temperature catalysts to improve NH₃-SCR efficiency under these conditions [25,26]. A promising solution to this challenge is the use of copper-modified mesoporous silicas as catalysts. These materials demonstrated high activity and selectivity in NOₓ reduction at lower temperatures, making them a strong candidate for enhancing NH₃-SCR performance in industrial applications.

The primary focus of the presented studies is the development of catalysts for the low-temperature NH₃-SCR process, specifically by testing porous materials as supports for copper catalysts obtained through modification by the ADP method. The regular porous structure of MCM-48 silica as well as its very high surface area, provide favorable conditions for copper dispersion, which can contribute to achieving high NO conversion values. The constant development of these catalysts holds promise for more sustainable and cost-effective solutions in industrial catalysis and environmental protection.

2. Results and Discussion

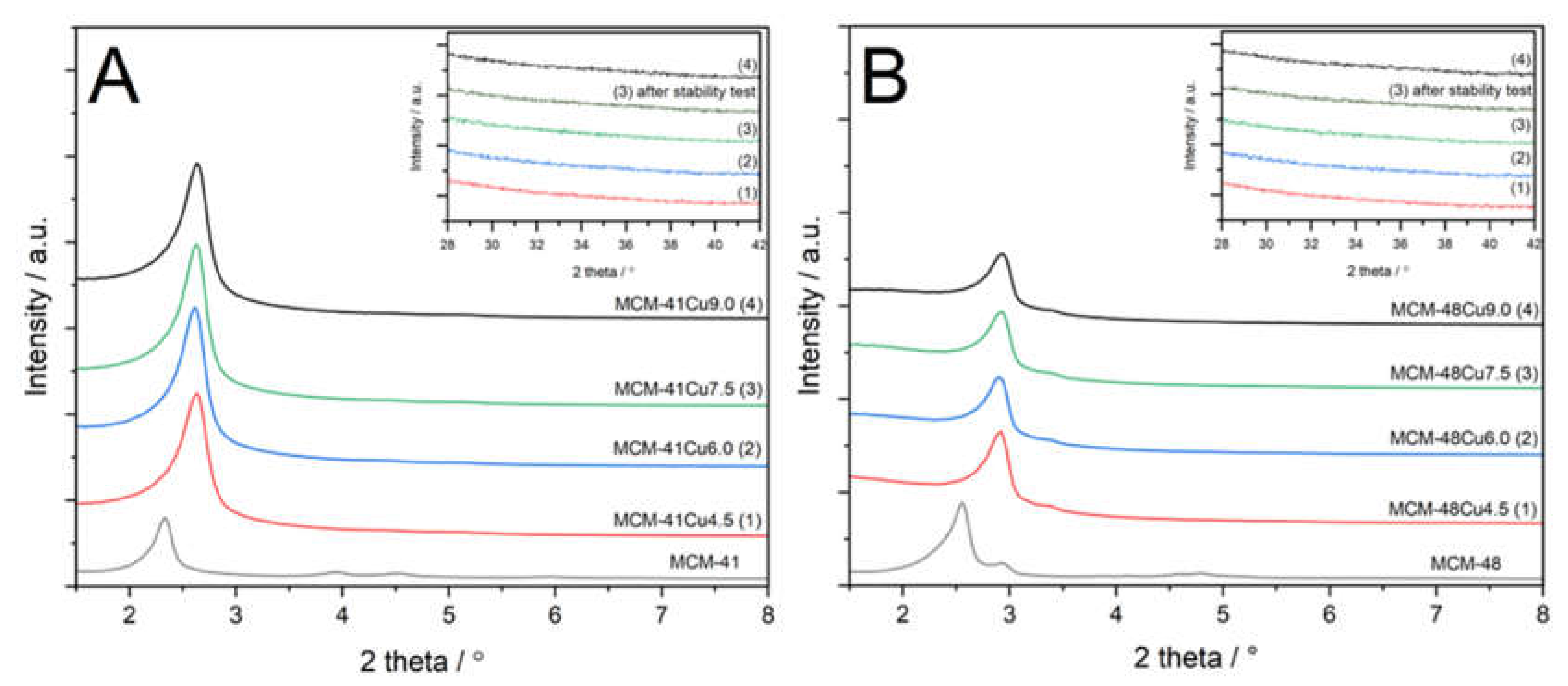

The porous structure of parent MCM-41 and MCM-48, as well as their modifications with copper, was analyzed using XRD method and low-temperature nitrogen adsorption-desorption. The diffractograms recorded for mesoporous silicas, shown in Figure 1, confirm successful synthesis of MCM-41 and MCM-48 materials. In the case of MCM-41 (Figure 1A), characteristic reflections of (100), (110), and (200) indicate the hexagonal porous structure typical of MCM-41 materials [29]. The deposition of copper by ADP method resulted in a shift of (100) reflection to higher 2 theta positions, as well as disappearance of the (110) and (200) reflections (Figure 1A). These effects are possibly related to the partial destruction of the ordered porous structure of MCM-41 under basic conditions of ADP procedure. In the case of diffractogram recorded for MCM-48 (Figure 1B), characteristic reflections of (211) and (220), typical of the regular porous structure of this type of mesoporous material, are observed.³⁰ The deposition of copper caused a shift in the location of these reflections into higher 2 theta values and a slight decrease in their intensity, especially in the case of the (220) reflection. These effects, similarly to MCM-41 series, are possibly attributed to partial destruction of MCM-48 porous structure by basic ammonia used in the ADP procedure. The diffractograms presented in inserts of Figure 1 were recorded in the diffraction range characteristic of copper oxide reflections. No reflections typical of CuO phase were found in this range, indicating deposition of copper in the form of highly dispersed species onto MCM-41 and MCM-48 silicas.

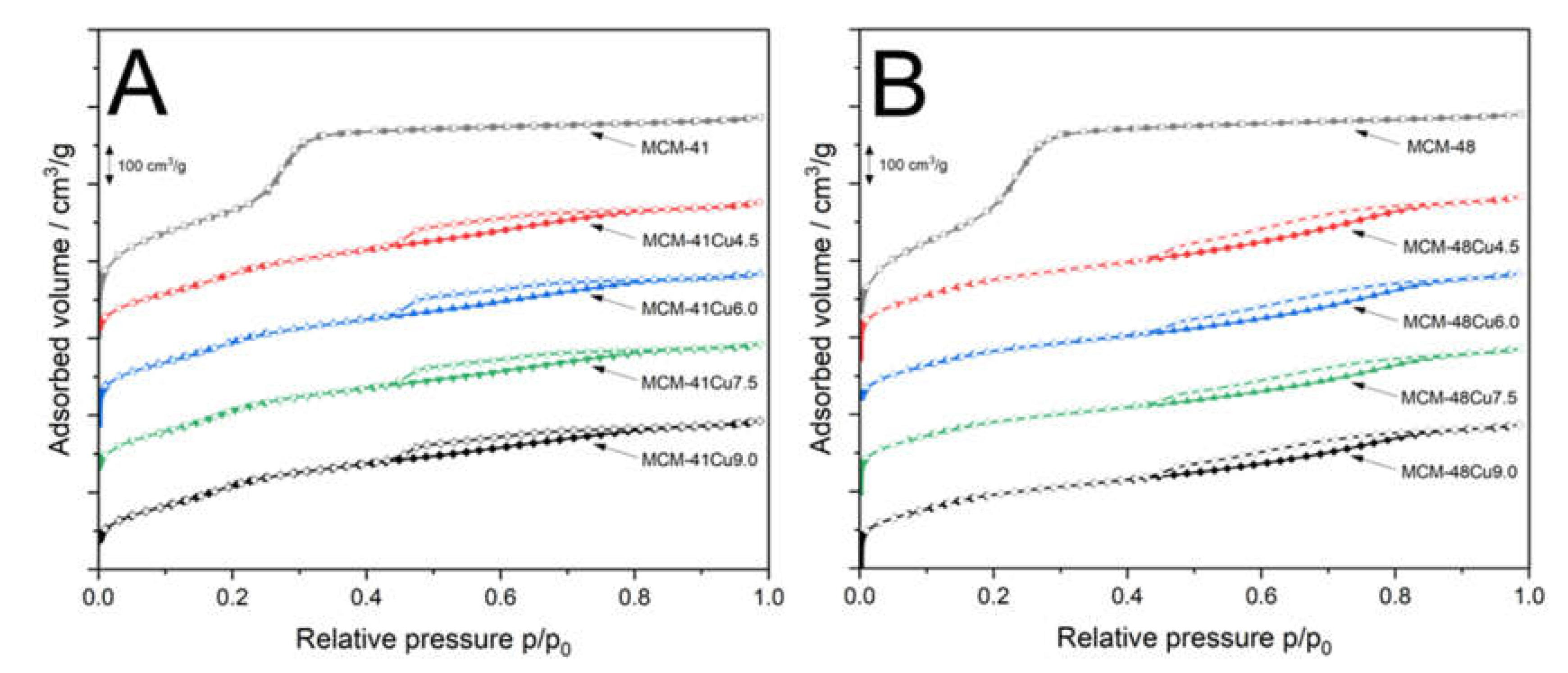

Nitrogen adsorption-desorption isotherms recorded for mesoporous silicas and their modifications with copper are presented in Figure 2. The isotherms recorded for MCM-41 (Figure 2A) and MCM-48 (Figure 2B) belong to type IVb according to the IUPAC classification, characterized by a sharp increase in nitrogen adsorption at relative pressures of about 0.25-0.35, associated with nitrogen capillary condensation inside mesopores [31]. This type of isotherms is characteristic of materials containing smaller mesopores, formed by conical and cylindrical mesopores that are closed at one end [31]. The absence of hysteresis loops indicates that the process of nitrogen adsorption and desorption is fully reversible. Moreover, according to Thommes et al. [31], hysteresis loops start to appear only for pores wider than 4 nm. The deposition of copper into MCM-41 and MCM-48 by ADP method significantly modified the shape of the isotherms. When it comes to the modified MCM-41 silicas (Figure 2A), the increase in nitrogen adsorbed volume, related to the filling of mesopores by adsorbate, is shifted to lower relative pressure and is less intense compared to parent MCM-41. This relates to a decrease in mesopore volume and their average diameter under conditions of ADP procedure. Moreover, a gradual increase in adsorbed volume above relative pressure of 0.4 with the inflection point at about 0.7-0.8 indicates the formation of larger pores, possibly due to reaction of ammonia with silica surface, such as hydrolysis of siloxane bridges (≡Si-O-Si≡) to silanol groups (≡Si-OH). The hysteresis loops in adsorption-desorption isotherms recorded for MCM-41 modified with copper are classified as H3 category according to the IUPAC standard, typically associated with larger pores that are only partially filled with the condensate [31]. The isotherms recorded for MCM-48 modified with copper by ADP method, shown in Figure 2B, differ significantly from the isotherm of parent MCM-48. The increase of adsorbed volume, related to mesopore filling, was significantly reduced and shifted to lower relative pressure. In this case, the inflection point is hardly visible. This type of isotherm is sometimes called pseudo I type, and was reported by Schmidt et al. [32]. for MCM-41 with small pores (2.7 nm). The continuous increase in adsorbed nitrogen volume, especially above p/p₀=0.4, with an inflection point at relative pressure of 0.8-0.9, indicates the formation of larger pores under conditions of the ADP procedure. The hysteresis loops are classified as H3 category according to the IUPAC standard, characteristic of porous materials with larger pores only partially filled with nitrogen [31].

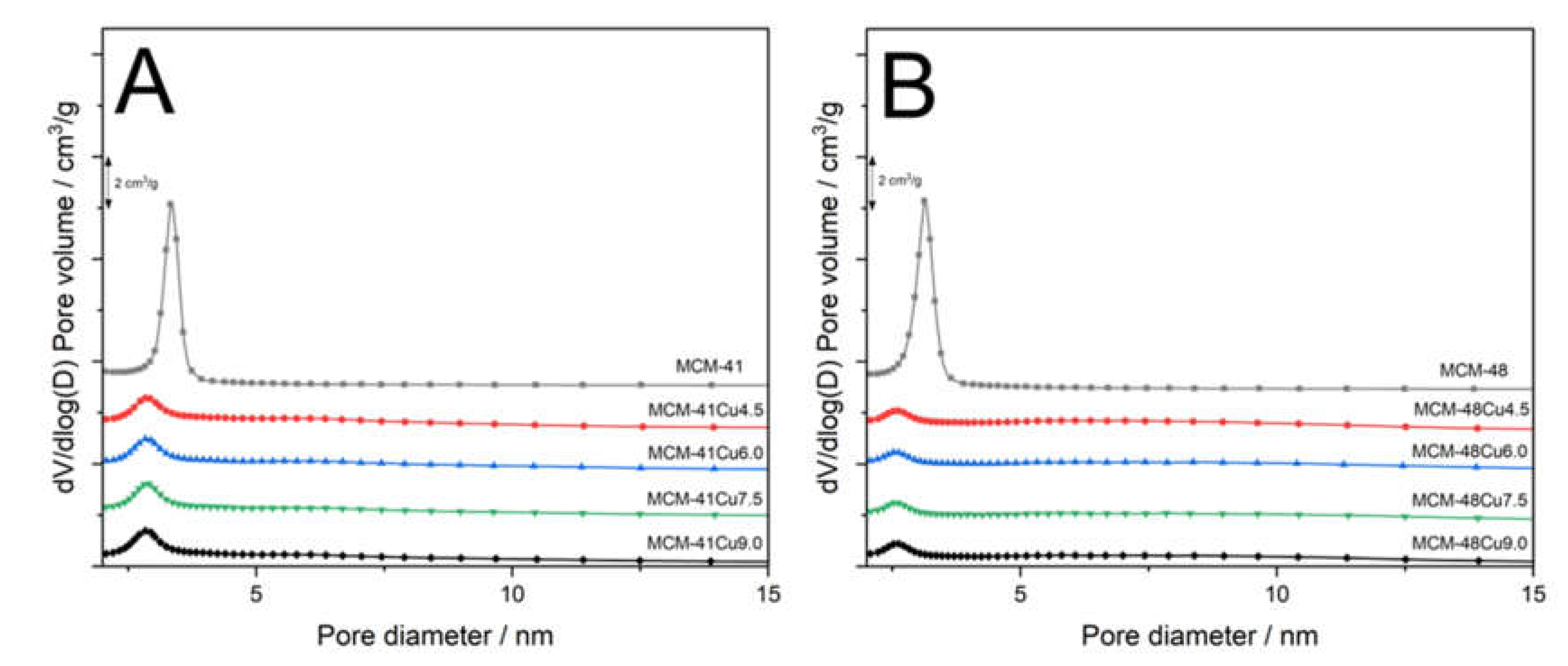

Profiles of pore size distributions (PSD) obtained for parent MCM-41 (Figure 3A) and MCM-48 (Figure 3B) prove their uniform mesoporous structures with the PSD maxima at 3.4 and 3.1 nm, respectively. The deposition of copper by ADP method significantly changed their PSD profiles. In the case of MCM-41 series, the PSD maximum was significantly reduced and shifted to about 2.8-2.9 nm. Moreover, a broad peak with the maximum at about 6.1 nm appeared (Figure 3A). Similarly, in the case of MCM-48 series, the maximum of the PSD significantly decreased and was shifted to about 2.1 nm (Figure 3B). In this case as well, an additional broad peak with maximum at about 6.0 nm can be identified. Thus, modifications of mesoporous silicas by ADP method significantly influenced their porous structure. The effect of the PSD shift could be attributed to deposition of copper inside pores, reducing their size and volume. However, analysis of PSD profiles shows that the changes in position and intensity of the PSD distribution are independent of copper loadings. Therefore, the main role in the observed changes of PSD profile is related to the treatment of the silica samples with ammonia solutions, which, due to basic character, may result in the hydrolysis of siloxane bridges to silanol species or even the extraction of silica species into solution. It should be noted that broad PSD maxima found for the samples modified with copper are close to double diameter of pores in parent mesoporous silicas. Hence, it is possible that part of the silica walls separating pores was dissolved under conditions of ADP procedure. On the other hand, the products of such dissolution, extracted into solution, could then be deposited on the channel walls, resulting in their partial blocking. This hypothesis is very speculative and needs to be evidenced by scientific results.

The textural parameters and copper content in the samples are compared in Table 1. The specific BET surface area and pore volume decreased following copper deposition, but the copper loading in the samples had only a slight impact on these parameters. The copper content in the samples is very close to the intended values.

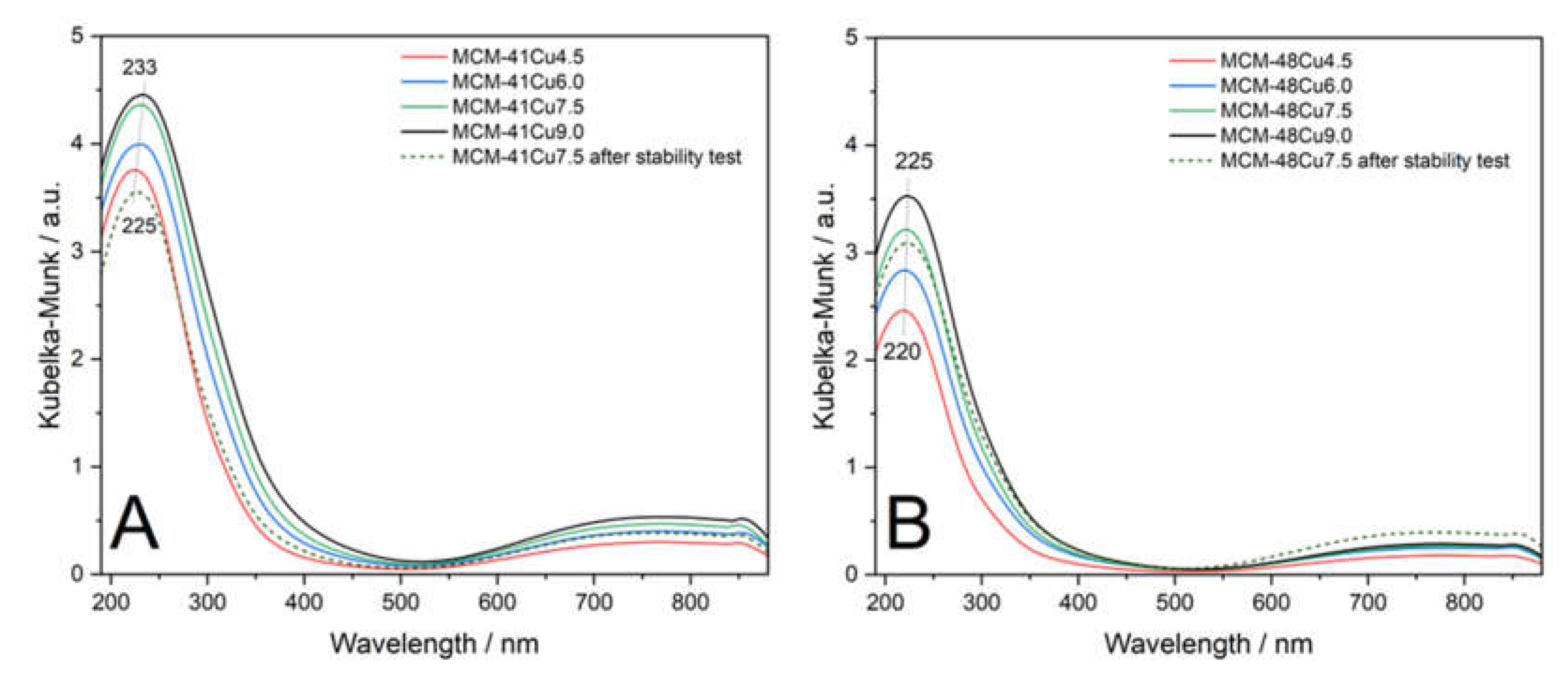

The form and aggregation of deposited copper species were analyzed by UV-vis-DRS and H₂-TPR measurements. The spectra recorded for copper modified silicas are shown in Figure 4. It should be noted that pure silica does not exhibit radiation absorbance in the UV and visible range. Thus, the bands in the presented spectra are attributed only to the presence of copper species. In all the spectra recorded for copper modified MCM-41 and MCM-48 dominate an intensive and symmetric band at about 220-230 nm, related to the presence of monomeric Cu²⁺ ions interacting with oxygens of silica (O^2-→Cu²⁺) [33,34]. It is noteworthy that the maximum of this band is slightly shifting to higher values of wavelength with increasing copper loading, indicating formation of a small amount of more aggregated copper species. The presence of monomeric copper cations in the samples is further evidenced by the wide band above 550 nm, associated with the d-d transition of Cu²⁺ ions in a pseudo-octahedral arrangement, such as Cu(H₂O)₆²⁺ [34,35]. Thus, the results of UV-vis-DRS studies confirm that the ADP method resulted in the predominant deposition of copper in the form of monomeric cations.

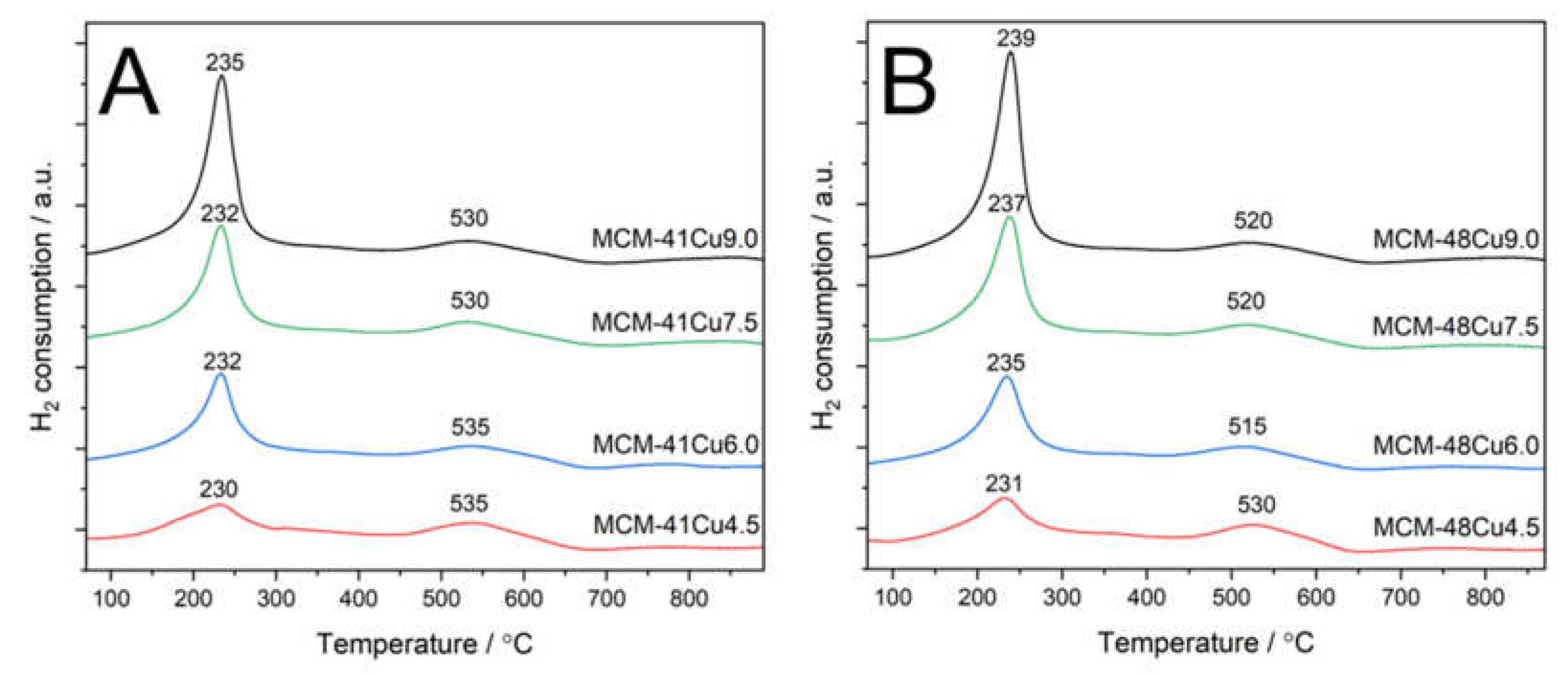

The reducibility of copper species deposited on mesoporous silicas was analyzed by H₂-TPR method (Figure 5). The reduction of copper species occurs in very specific ways. In the case of CuO aggregates, the reduction of Cu²⁺ cations takes place in one step, directly to Cu⁰ (Cu²⁺ → Cu⁰) typically at temperatures below 300-350°C [36], while in the case of monomeric copper cations in two separate steps – first, reduction of Cu²⁺ cations to Cu⁺ (Cu²⁺ → Cu⁺) at temperatures below 300-350°C, and then Cu⁺ ions are further reduced to Cu⁰ (Cu⁺ → Cu⁰) at temperatures above 400°C in the second step [36]. These specific mechanisms of copper species reduction can be used to determine the distribution of copper in the form of monomeric cations and aggregated copper oxide species. The H₂-TPR profiles of the samples contain both a low-temperature reduction peak, associated with the reduction of monomeric Cu²⁺ cations to Cu⁺ as well as reduction of Cu²⁺ cations to Cu⁰ in CuO aggregates, and a high-temperature reduction peak, related to the reduction of monomeric Cu⁺ cations to Cu⁰ (Figure 5). The calculated distribution of monomeric copper cations (Cu_mon) and copper cations in aggregated copper oxide species (Cu_agr) is presented in Table 1. As can be seen, in the case of MCM-41 based samples, about 87-88 mol% of copper is present in the form of monomeric copper cation up to 7.5 wt.% this metal loading. An increase to 9 wt.% of copper loading resulted in a decrease in monomeric Cu²⁺ cations contribution to 83 mol%. In the series of MCM-48 samples, the highest contribution of monomeric copper cations, on the level of 88 mol%, was determined for the sample with the lowest copper loading, while the lowest contribution of such dispersed cations (76 mol%) for silica with the highest copper content. It should be noted that in the calculation, it was assumed that all copper cations in the samples are in the form of Cu²⁺ cations. Of course, the presence of Cu⁺ species in the samples (after outgassing but prior to the H₂-TPR runs) cannot be excluded. Thus, the contributions of different form of copper in the samples, presented in Table 1, are rather estimates than exact values.

Surface acidity of the copper modified silicas was analyzed by NH₃-TPD method. Pure silica MCM-41 and MCM-48 do not exhibit surface acid sites. Such sites are associated with copper species deposited on silicas’ surface, which act as Lewis acid sites [25]. The copper cations interact with ammonia molecules through the formation of donor-acceptor bonding – a transfer of the free electron pair of ammonia into the vacant d-orbitals of copper (NH₃→Cu). Therefore, the NH₃-TPD method can be used to determine the surface-available copper cations that can participate in catalytic surface reactions. The majority of the proposed NH₃-SCR mechanisms include chemisorption and activation of ammonia molecules on the active sites [37,38]. Thus, the results of NH₃-TPD studies not only provide information about surface acidity but also about the number of surface copper cations involved in the catalytic process. Ammonia desorption profiles, presented in Figure 6, consist of one peak centered at about 190-230°C, indicating the presence of the relatively weak acid sites. The intensity of this peak depends on the copper loading, but also their aggregation and surface availability. The surface concentrations of acid sites (C_A) and their density per 1 m² (D_A) are compared in Table 2. It was assumed that one ammonia molecule is bound to one acid site, thus the number of desorbing ammonia molecules is equal to the number of acid sites, as well as the number of active sites able to chemisorb and activate ammonia molecules to NH₃-SCR reaction.

In both the MCM-41 and MCM-48 series, the surface concentration and surface density of acid sites increased up to copper loading 7.5 wt.% and decreased for the samples with copper content above this level. This can be explained by increasing contribution of aggregated copper oxide species in the samples with high copper loading, as shown by H₂-TPR studies (Table 1). The ratio of acid sites concentration to copper loading (C_A/Cu), representing the contribution of copper cations available for catalytic process, is relatively low (Table 2) compared to the contribution of monomeric copper cations in the samples determined by H₂-TPR (Table 1). The surface availability of copper cations depends on the contribution of aggregated and highly dispersed species deposited on the silica surface, as well as the location of copper species – on the surface or included in SiO₂ matrix. It seems possible that under the conditions of APD procedure, ammonia dissolves some silica, which could then be redeposited on the surface, covering some copper species. This hypothesis should be examined in future studies.

The NH₃-SCR process is associated with other reactions, which can either improve or limit its efficiency. One of the important associated reactions is oxidation of NO to NO₂ (2 NO + O₂ → 2 NO₂), which is necessary for the fast-SCR reaction (2 NH₃ + NO₂ + NO → 2 N₂ + 3 H₂O). The conversion of nitrogen oxides according to the fast-SCR reaction is one of the most important low-temperature reaction pathways. Thus, activity of the catalysts in the oxidation of NO to NO₂ could improve their efficiency in the low-temperature NH₃-SCR process. On the other hand, the efficiency of the NH₃-SCR process at higher temperatures can be significantly limited by the side process of direct ammonia oxidation by residual oxygen present in flue gases. Thus, the NH₃-SCR catalysts operating at higher temperatures should be non-active or present only low activity in direct ammonia oxidation. Taking into account the association of the NH₃-SCR reaction with other mentioned reactions, the presented catalytic studies include not only NH₃-SCR tests, but also reactions of NO to NO₂ oxidation as well as direct ammonia oxidation.

The results of the NH₃-SCR catalytic tests are shown in Figure 7. In the case of MCM-41 based catalysts, the NO conversion started at about 100-125°C, gradually increased to 300-325°C and then decreased due to the side reaction of direct ammonia oxidation by oxygen present in the reaction mixture (Figure 7A). At temperatures below 250°C, the efficiency of the NO conversion increased with increasing copper loadings, in the following order: MCM-41Cu4.5 < MCM-41Cu6.0 < MCM-41Cu7.5. An increase in copper content to about 9 wt.% (MCM-41Cu9.0) resulted in a decrease in the NO conversion below the level presented by the MCM-41Cu6.0 catalyst. At higher temperatures, the sample with the highest copper loading was found to be less active than other catalysts of this series and presented the most significant decrease in the NO conversion due to the side reaction of direct ammonia oxidation. This effect could be explained by higher contribution of aggregated copper oxide species compared to other catalysts in this series (Table 2). On the other hand, the number of copper cations exposed on the catalysts surface and able to chemisorb ammonia molecules (C_A, Table 3) is higher than for the MCM-41Cu6.0 catalyst. Thus, it could be postulated that monomeric copper cations are more catalytically active than Cu²⁺ cations in copper oxide aggregates. Similar hypothesis has been postulated by many authors [39,40]. The very high selectivity to nitrogen, which is the desired reaction product, should be noted (Figure 7A). The outcomes of the NH₃-SCR catalytic testing for a series of MCM-48 based catalysts are shown in Figure 7B. Similarly to MCM-41 series, the NO conversion started at about 100-125°C, gradually increased to 300-325°C, and then decreased due to the side reaction of direct ammonia oxidation. At temperatures below 175°C, the efficiency of the NO conversion increases with increasing copper loadings in the catalysts in the following order: MCM-48Cu4.5 < MCM-48Cu6.0 < MCM-48Cu7.5 < MCM-48Cu9.0. The activity order was changed at higher temperatures and the catalysts with the highest copper loading (MCM-48Cu9.0) presented lower activity in NH₃-SCR than other catalysts of this series. Moreover, direct ammonia oxidation proceeded more intensively compared to other catalysts based on MCM-48. Similarly to MCM-41 series, this effect was also attributed to the increased contribution of aggregated copper oxide species compared to the other catalysts of this series. It should be noted that all catalysts of this series presented very high selectivity to nitrogen in the studied temperature range (Figure 7B).

Turn-over-frequency (TOF) values, determined for the reaction conducted at 175°C, are compared in Table 3. It was assumed that copper cations are able to adsorb ammonia molecules (determined by NH₃-TPD) play a role of active sites in the NH₃-SCR process. The TOF values are in the range of 2.31·10^-3 to 3.52·10^-3 s^-1, which is close to the TOF values reported in literature for this type of catalysts.⁴¹ There is no significant trend in TOF changes with increasing copper loading, probably due to the dominant contribution of monomeric copper cations.

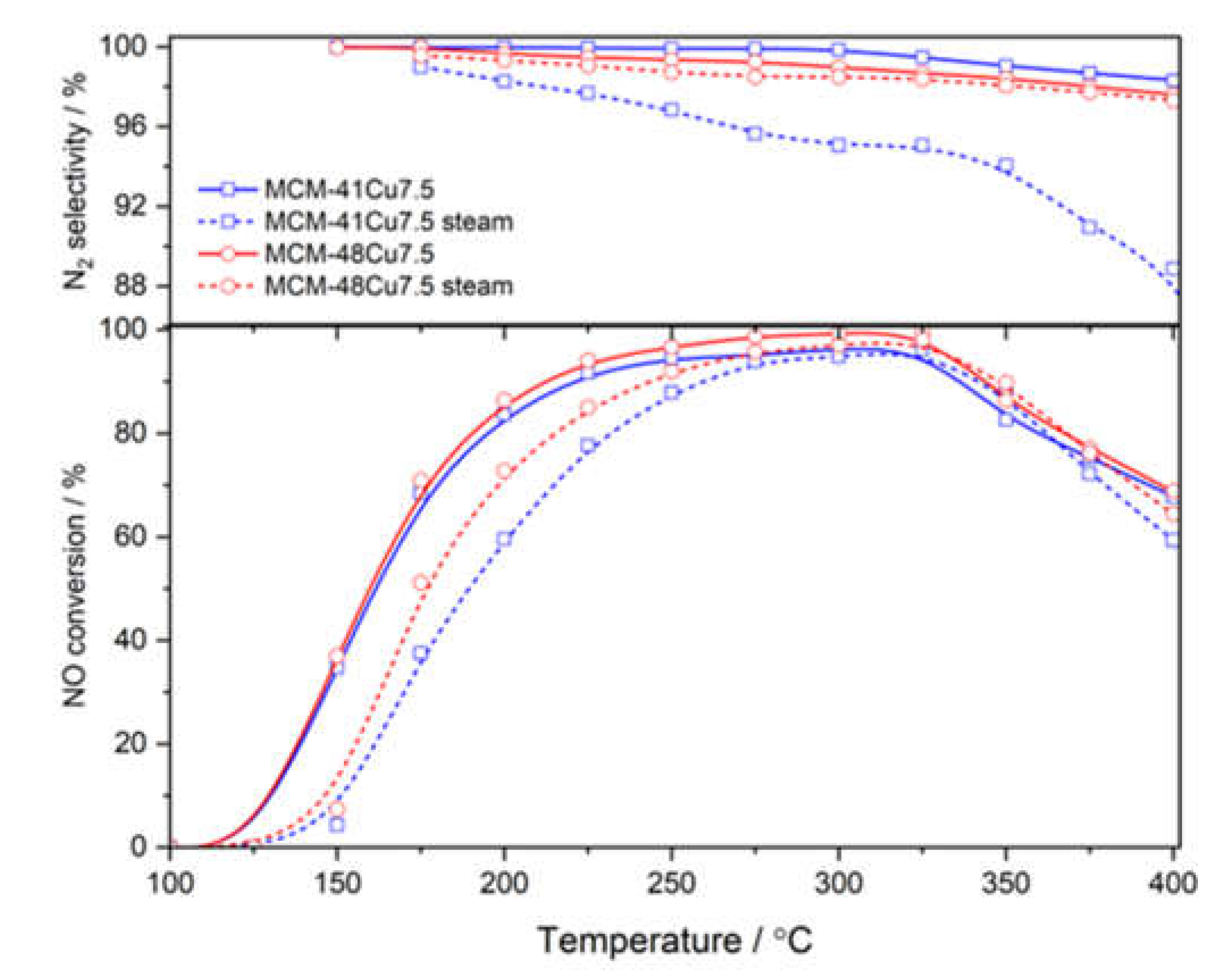

The comparison of NO conversion in wet (with the addition of 5.0 vol.% water vapor) and dry (as in previously presented catalytic tests) reaction mixtures for the selected catalysts of MCM-41 and MCM-48 series is shown in Figure 8. The introduction of water vapor into reaction mixture influenced mainly the low temperature NO conversion and was manifested by a shift in conversion profiles to higher temperatures. In the case of MCM-48Cu7.5, this shift was less significant compared to MCM-41Cu7.5, with shifts of 17 and 26°C for 50% of NO conversion, respectively. The possible explanation for this effect is competitive adsorption of ammonia and water molecules on copper cations, especially at lower temperatures.

The results of the isothermal (275°C) catalytic tests conducted in the flow of wet reaction mixture for MCM-41Cu7.5 and MCM-48Cu7.5 catalysts show only small changes in the NO conversion and N₂ selectivity (Figure 9). The most significant changes were observed at the beginning of the catalytic tests – decrease in the NO conversion by about 2% during first 2 hours in the case of MCM-48Cu7.5 and by about 1.5% during first 4 hours in the case of MCM-41Cu7.5. Afterward, NO conversion remained very stable for both catalysts. The selectivity towards N₂ was stable for 16 hours of the catalytic test for MCM-48Cu7.5, while in the case of MCM-41Cu7.5, it decreased by about 2%. In conclusion, mesoporous silicas modified wit copper by ADP method presented high stability in the NH₃-SCR process. The catalysts after stability tests were analyzed with respect to copper species aggregation that could occur under conditions of the NH₃-SCR reaction. The diffractograms of the recorded for the MCM-41Cu7.5 and MCM-48Cu7.5 catalysts after stability test were compared with diffractograms of fresh catalysts (Figure 1, inserts). No reflections characteristic of CuO were found in diffractograms recorded for the catalysts after stability tests. Additionally, the UV-vis-DR spectra recorded for the samples after stability tests exhibited nearly the same shape as those obtained for the fresh catalysts and indicate the presence of copper in the form of monomeric cations. Thus, no significant changes in the form or aggregation of copper species were observed under conditions of stability catalytic test.

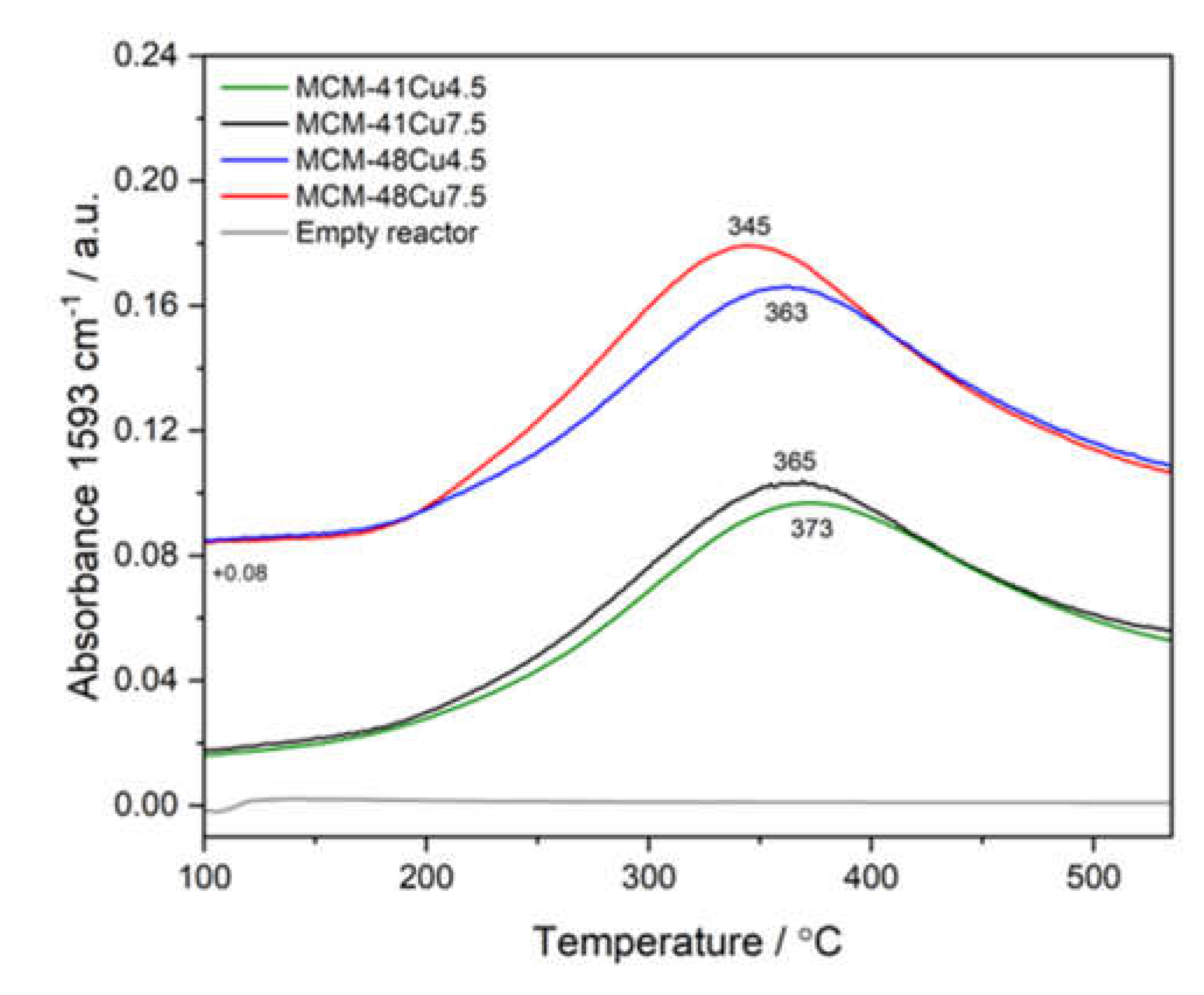

As already mentioned, the overall efficiency of the NH₃-SCR process depends on associated reactions, such as NO to NO₂ oxidation and direct ammonia oxidation. The results of NO oxidation for the selected catalysts, presented in Figure 10, show their activity in this reaction. The maximum of NO₂ formation occurs at about 245-275°C and is slightly increased for the catalysts with higher copper loadings. At higher temperatures, the efficiency of NO to NO₂ oxidation decreases due to thermodynamic limitations [42]. Thus, the conversion of nitrogen oxides according to the fast-SCR pathway (2 NH₃ + NO₂ + NO → 2 N₂ + 3 H₂O) could contribute to the low-temperature NH₃-SCR process.

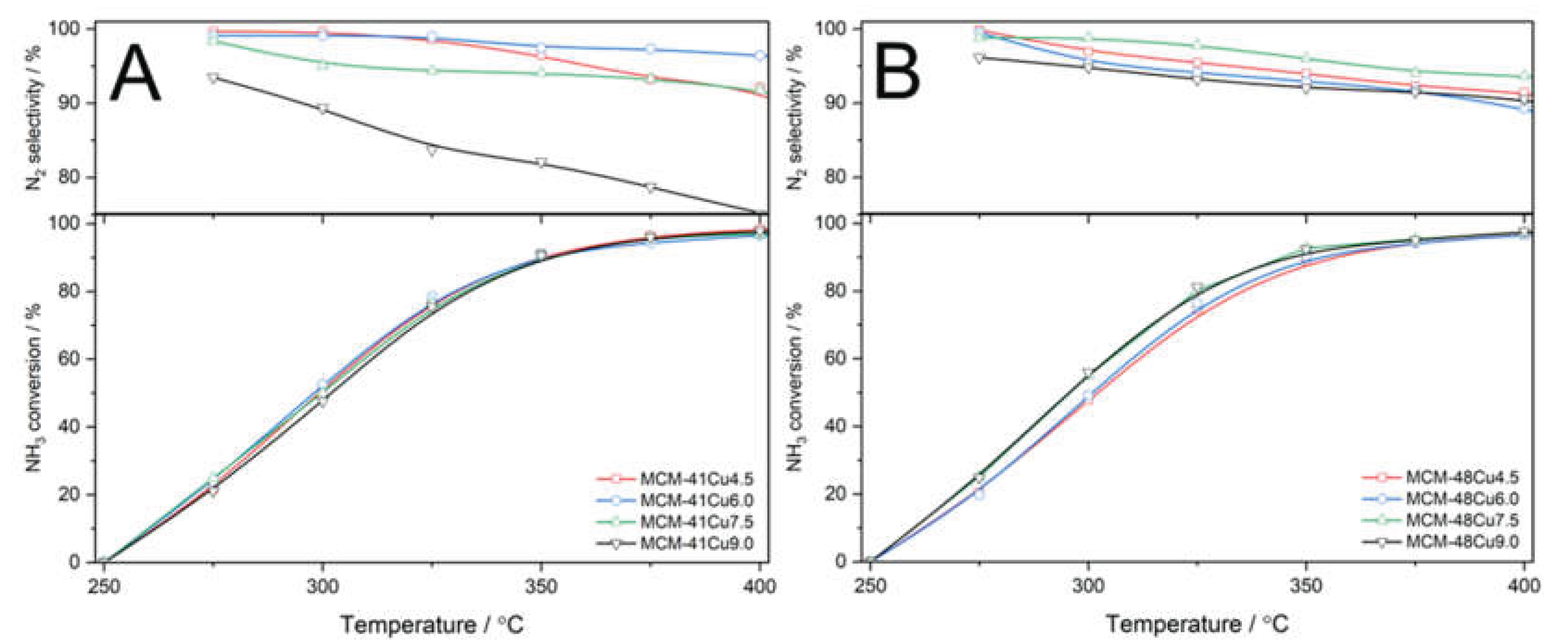

The results of direct ammonia oxidation tests, presented in Figure 11, shows very similar catalytic activity in both series of the catalysts, only slightly dependent on copper loading and form. On the other hand, significant differences in selectivity to nitrogen were identified. In the case of MCM-41 modified with copper, the selectivity to nitrogen was stable at level above 90% (Figure 11A). An exception is the catalyst with the highest copper loading, MCM-41Cu9.0, which presented a continuous decrease in selectivity to nitrogen due to increasing formation of NO as the temperature increased. In the case of MCM-48 modified with copper, the selectivity to nitrogen was stable and above 90% to about 325-350°C and decreased at higher temperature due to increased contribution of NO in the ammonia oxidation products. It should be noted that ammonia oxidation started at about 250°C, and at 325°C the ammonia conversion reached 70-80% (Figure 11B), while the NO conversion in the NH₃-SCR is above 90% at 325°C (Figure 7). The decrease in efficiency of this process, due to the side process of ammonia oxidation, is observed at higher temperatures. Thus, it can be concluded that the NO reduction with ammonia is the preferential reaction over direct ammonia oxidation in the presence of silicas modified with copper by ADP method.

3. Materials and Methods

3.1. Catalysts Preapration

As catalytic supports mesoporous silicas of MCM-41 and MCM-48 types were used. MCM-41 material was prepared in accordance with the description presented in our previous paper [27]. 525 cm³ of distilled water, 44.0 cm³ of ammonia (25% solution of NH₃ in water, Chempur, Karlsruhe, Germany) and 45.3 cm³ hexadecyltrimethylammonium chloride (25% solution in water, Sigma-Aldrich, St. Louis, MO, USA) were blended and thoroughly stirred at room temperature for 30 min. Afterwards, 48.6 cm³ of tetraethyl orthosilicate (98%, Sigma-Aldrich, St. Louis, MO, USA) was added dropwise (2 drops per s). The procured mixture was then aged for 1 h at room temperature. Finally, the solid product was isolated using filtration, washed with distilled water and dried at 60°C for 24 h.

MCM-48 synthesis was performed based on the method described by Machowski et al.²⁸ In brief, 210 cm³ of methanol (Sigma-Aldrich, St. Louis, MO, USA), 134 cm³ of distilled water, 32.0 cm³ of hexadecyltrimethylammonium chloride (25% solution in water, Sigma-Aldrich, St. Louis, MO, USA) and 60.0 cm³ of ammonia (25% solution of NH₃ in water, Chempur, Karlsruhe, Germany) were mixed at ambient temperature for 30 min. Then, 18.0 cm³ of tetraethyl orthosilicate (98%, Sigma-Aldrich, St. Louis, MO, USA) was added dropwise at a rate of 3 drops per s. The received slurry was subsequently aged for 2 h at ambient temperature. The solid product was next filtrated, rinsed with distilled water and dried at 60°C for 24 h. As-synthesized silicas were then calcined at 550°C for 8 hours in air flow (temperature increase of 1°C per min).

Mesoporous silicas were modified with copper by the ADP method, as described by Xin et al [22]. A specified amount of silica carrier was stirred with an active phase precursor solution, 0.03 M Cu(NO₃)₂·3H₂O, to achieve the desired copper content in weight percent. Subsequently, ammonia (28% solution of NH₃ in water, Sigma-Aldrich, St. Louis, MO, USA) was added to achieve a molar ratio of 1:6 for Cu to NH₃. The resulting slurry was vigorously stirred at ambient temperature for 48 h (with the vessel sealed to prevent ammonia from evaporating). Afterward, the mixture was filtered, washed with distilled water and air-dried for 24 h. The procured samples were then calcined at 550°C for 8 hours (air flow, with a temperature increase of 1°C/min). Table 1 presents the sample codes along with the specific concentrations of reagents used in the modification process. Sample codes follow the general format MCM-xxCuY, where xx denotes the mesoporous silica type and Y represents the copper content in weight percent. For example, MCM-41Cu4.5 refers to MCM-41 sample modified with 4.5 wt% Cu.

3.2. Characterization

X-ray diffraction patterns were collected using Bruker D2 Phaser (Bruker, Billerica, MA, USA) diffractometer (Cu-Kα radiation, λ = 1.54056 Å). The measurements were carried out in the 2 theta angle ranges of 1-8 (count time 5 s per step) and 28-42 (count time 1 s per step) with a step of 0.02°.

UV-vis-DR spectroscopy was used to investigate the aggregation and form of copper species deposited on silica carries. The spectra were recorded in the range of 190-900 nm with a resolution of 2 nm using Lambda 650 S (PerkinElmer, Waltham, MA, USA) spectrophotometer.

To determine the textural parameters of MCM-41 and MCM-48 samples, low-temperature nitrogen adsorption-desorption was employed. The measurements were conducted using a 3Flex v.1.00 (Micromeritics, Norcross, GA, USA) automated gas adsorption system at −196°C. Prior to the measurements, the samples were degassed under vacuum at 350°C for 24 h. The specific surface area was calculated using the BET model, while the pore size was determined using the BJH (Barrett-Joyner-Halenda) model. The pore volume was estimated for the total quantity of adsorbed N₂ at p/p₀ pressure of 0.98.

The elemental composition of the samples was examined using inductively coupled plasma optical emission spectroscopy (ICP-OES). The measurements were performed with an iCAP 7000 instrument (Thermo Scientific, Waltham, MA, USA). The samples were dissolved in a mixture containing 2 cm³ of HCl (30%, Honeywell, Charlotte, NC, USA), 6 cm³ of HNO₃ (67–69%, Honeywell, Charlotte, NC, USA), and 2 cm³ of HF (47–51%, Honeywell, Charlotte, NC, USA) at 190°C for 1 hour utilizing a microwave digestion system (Ethos Easy, Milestone, Sorisole, Italy).

The reducibility of copper species was examined by temperature-programmed reduction method with hydrogen as a reductant (H₂-TPR). The analysis was performed in a flow microreactor with a fixed bed, equipped with a thermal conductivity detector (TCD, Valco, Houston, TX, USA). Mass flow controllers (Brooks Instrument, Hatfield, PA, USA) were used to regulate the gas flow to the microreactor. Before the reduction process, the sample (25 mg) was degassed in a pure argon stream at 550°C for 30 minutes. Afterward, the temperature was gradually reduced to 50°C, and H₂-TPR runs were carried out with a constant temperature increase of 10°C per minute from 50°C to 950°C in a gas mixture containing 5.0 vol.% H₂ diluted in argon.

The surface acidity of the modified silicas was evaluated through temperature-programmed desorption of ammonia (NH3-TPD). These experiments were performed using a flow quartz microreactor system directly linked to a quadrupole mass spectrometer PREVAC-200 (PREVAC, Rogów, Poland). Prior to desorption, the catalysts (100 mg) were degassed in a helium flow at 550°C for 30 minutes. Afterwards, the sample was cooled to 70°C and subjected to a gas mixture of 1.0 vol.% NH₃ diluted in helium for 2.5 h to ensure complete saturation with ammonia. The catalyst was then purged with helium to eliminate any physiosorbed ammonia. NH₃-TPD experiments were conducted in a pure helium flow (20 cm³/min) with a heating rate of 10°C/min.

3.3. Catalytic Tests

The catalytic activity of copper-doped silicas was assessed for the selective catalytic reduction of NO with ammonia (NH₃-SCR, DeNO_x). The catalytic experiments were performed in a fixed bed quartz microreactor, operating at temperatures between 100 and 400°C under atmospheric pressure. The composition of the gas mixture downstream of the microreactor was continuously monitored using a quadrupole mass spectrometer (PREVAC, Rogów, Poland) directly connected to the reactor outlet. The catalyst samples (100 mg), with particle sizes ranging from 0.250 to 0.315 mm, were degassed in a helium flow at 550°C for 30 minutes. In the NH₃-SCR tests, a reaction mixture containing 0.25 vol.% NO, 0.25 vol.% NH₃, and 2.5 vol.% O₂ diluted in helium was used. Additionally, the silica-based materials were evaluated in the NH₃-SCR process under humid conditions, using a gas mixture comprising 0.25 vol.% NO, 0.25 vol.% NH₃, 2.5 vol.% O₂, 5.0 vol.% H₂O and 92 vol.% He.

The catalytic performance of modified samples was also evaluated in the selective catalytic oxidation of ammonia (NH₃-SCO). These tests were conducted in a fixed-bed quartz microreactor at temperatures ranging from 225 to 450°C under atmospheric pressure. Similar to previous catalytic experiments, the concentrations of reactants in the gases were continuously monitored by directly connecting a quadrupole mass spectrometer (PREVAC, Rogów, Poland) to the reactor outlet. The catalyst samples (100 mg), with particle sizes between 0.250 and 0.315 mm, were degassed in a pure helium flow at 550°C for 30 minutes. For the NH₃-SCO experiments, a gas mixture containing 0.5 vol.% NH₃ and 2.5 vol.% O₂ diluted in pure helium was utilized.

3.4. Stability Test

For the most active samples, stability tests in the NH₃-SCR process were also conducted. The same setup as in the catalytic tests was used for this purpose. Prior to the measurements, the samples were degassed in a helium flow at 550°C for 30 minutes. The tests were performed at 275°C, with a sample exposure time of 16 hours. The experiments were conducted in an atmosphere containing water vapor, with a gas mixture comprising 0.25 vol.% NO, 0.25 vol.% NH₃, 2.5 vol.% O₂, 5.0 vol.% H₂O and 92 vol.% He (flow rate of 40 cm³/min). The catalyst mass and particle sizes matched those used in the NH₃-SCR and NH₃-SCO tests.

3.5. Oxidation of NO to NO₂

The oxidation reaction of NO to NO₂ was also examined using the same experimental setup as employed for the NH₃-SCR tests. The key difference was the substitution of the quadrupole mass spectrometer with an FTIR spectrometer (Nicolet iS5, Thermo Scientific, Waltham, MA, USA), which featured a 10 cm gas cell. Spectra were captured in the wavenumber range of 625-4000 cm^-1, with a resolution of 4 cm^-1, averaging seven scans per spectrum, recorded every 8 seconds. NO₂ and NO detection relied on the bands at 1593 cm^-1 and 1912 cm^-1, respectively. The gas mixture used contained 0.5 vol.% NO and 2.5 vol.% O₂ and 97 vol.% He. The experiments spanned temperatures from 100°C to 550°C, with a temperature increase of 10°C/min.

4. Conclusions

The ammonia driven deposition precipitation (ADP) method, used for the modification of mesoporous silicas of MCM-41 and MCM-48 types with copper, resulted in the deposition of this metal mainly in the form of monomeric cations. An increase in the contribution of aggregated species contribution was observed for the samples containing about 9 wt.% of copper; however, even in this case, the contribution of monomeric copper cations was above 75 mol.%. The use of ammonia for complexation of copper cations in solution, as well as charging the silica surface, resulted in the partial destruction of the ordered porous structure of MCM-41 and MCM-48.

Mesoporous silicas modified with copper by ADP method were found to be active and selective catalysts for the low-temperature NH₃-SCR process. The catalytic activity increased with increasing copper loadings up to about 7.5 wt.%. An increase in copper content in the catalysts above this level resulted in a decrease in activity, possibly due to the increased contribution of aggregated copper oxide species. The efficiency of the NH₃-SCR process conducted in the presence of water vapor decreased in the low-temperature range, while was practically unaffected at higher temperatures. This effect was possibly attributed to the competitive adsorption of ammonia and water molecules on copper cations, which play a role of catalytically active sites in the NH₃-SCR process.

MCM-41 and MCM-48 silicas modified with copper by ADP method presented catalytic activity in NO to NO₂ oxidation, and therefore nitrogen oxides conversion according to the fast-SCR mechanism is one of the possible low-temperature reaction pathways. On the other hand, direct ammonia oxidation limited the efficiency of the NH₃-SCR process at higher temperatures. The efficiency of the side reaction of direct ammonia oxidation only slightly depends on the copper loadings in the samples, and is more dependent on the copper species aggregation.
