Adapting and Verifying the Liming Index for Enhanced Rock Weathering Minerals as an Alternative Liming Approach

1. Introduction

The pH of the soil affects plant growth and nutrient availability. Plants have specific pH preferences for optimal growth, and the soil pH can influence the availability of various nutrients essential for plants. Soil acidity is a potentially serious land degradation issue. Soil acidification can affect agricultural productivity and sustainable farming [1]. It can penetrate subsoil layers, creating significant challenges for plant root growth and corrective measures. Several factors contribute to soil acidity. These include acidic precipitation, the deposition of acidifying gases or particles from the atmosphere, and the use of ammonium-based fertilizers, urea, and elemental sulfur fertilizers [2]. This study compares the liming efficiency of five silicate-based minerals (basalt, olivine, wollastonite, kimberlite, and montmorillonite) against that of calcite using liming index (LI), dosage, and amendment methods to develop an empirical model to better predict the liming effect on soil.

Liming studies are crucial for sustainable agricultural practices to mitigate soil acidity, enhance nutrient availability, and improve crop productivity [3,4,5]. Grower recommendations for liming agents, based on the liming index (LI), are pivotal. The LI, calculated from the neutralizing value (NV) and fineness rating (FR) of a mineral, predicts its acidity neutralization efficiency compared to pure calcite [6]. Although LI was originally designed for carbonate minerals, studies on silicate-based minerals are scarce. Information on LI or silicate amendments is often lacking, and existing studies on silicate liming have frequently produced inconclusive results regarding its impact on liming and soil carbon [7,8,9,10,11]. Silicate liming may even cause a short-term decline in soil organic carbon, similar to conventional liming practices [12]. These findings underscore the need for careful consideration of amendment approaches to optimize agronomic benefits and soil carbon storage.

Within the five research focuses, a number of liming processes have been investigated and can be classified as follows: (1) the benefits of liming on soil structure and plant growth in no-till cropping systems and acid soils [13]; (2) acid soil tolerance in plants and the long-term impacts of liming [14]; (3) soil and crop response to wood ash and lime application [15]; (4) aggregate stability in low-input acid soils [16]; (5) impacts of lime and phosphogypsum in tropical soils under no-till conditions [17].

This study focused on investigating how the use of silicates as liming agents impacts soil acidity and soil organic carbon content. Similar studies are related to those of Doe et al. [18] reviewed the use of silicates as soil amendments, and Brown et al. [19] evaluated the effectiveness of silicate-based materials in ameliorating acidic soils. Martinez et al. [20] explored how silicates can regulate soil pH and carbon sequestration, and Clark et al. [21] discussed the use of silicates as liming agents using field trials. However, none of these studies have progressed toward examining distortions in the neutralizing value (and LI) when calculating the liming effect of silicate minerals using laboratory and mesocosm data.

Additionally, this research aims to develop an empirical model that incorporates factors such as dissolution kinetics, the impact of pH changes on mineral dissolution rates, and the formation of secondar phases. Other researchers have previously employed this approach with notable success. In the study by Wilkin and Digiulio [22], it was observed that changes in pH and aqueous ion concentrations affect the dissolution rates of silicates, with slow dissolution rates compared to carbonate minerals. This highlights the importance of considering the kinetics of silicate dissolution in predictive models. Furthermore, the study by Bandyopadhyay et al. [23] discussed the effects of incorporating silicate layers on the crystallization kinetics of polymers, indicating the need to understand how mineralogy influences reaction rates. The incorporation of mineralogical data into predictive models is crucial, as shown in the study by Kittridge [24], where the influence of mineralogy on the velocity of carbonate rocks was investigated. Therefore, understanding how mineral composition affects physical properties can provide valuable insights into the behavior of silicates during liming processes. Overall, to develop an empirical model for predicting the liming behavior of silicates, it is essential to consider the kinetics of silicate dissolution, the influence of pH changes on reaction rates, and the role of mineralogy in determining the final mineral phases formed. By integrating these factors into a comprehensive model, it is possible to improve predictions of the liming behavior of silicates.

To address these questions, we undertook a multifaceted approach to examine the properties and behavior of silicate minerals through the following steps:

• The neutralization value (NV) and liming index (LI) of the minerals were calculated using two acid digestion methods to assess their reactivity with acidic components.
• Investigate the mineral behavior during NV reactions using electron microscopy and X-ray diffraction to elucidate the underlying mechanisms
• Conduct a series of liming tests in a controlled greenhouse environment with varying initial soil acidities and mineral dosages over several weeks
• Relationship between liming outcomes from mesocosm experiments and previously determined LI values in the laboratory

Finally, the results of these liming tests and their correlation with the LI are presented in this study, providing valuable data for developing a preliminary empirical model that is more suitable for predicting the liming effectiveness of silicates. By developing a more suitable empirical model for predicting the liming effectiveness of silicates, farmers can achieve more precise soil management, leading to improved crop cost efficiency)], environmental sustainability, and long-term soil health [25,26,27]. This advancement empowers farmers to use better tools to make informed decisions, ultimately enhancing their productivity and sustainability.

2. Materials and Methods

2.1. Liming index, fineness rating, and neutralizing value.

The liming index (LI) refers to the capacity of a mineral to neutralize soil acidity and increase the pH of the soil. This index is a crucial factor in determining the effectiveness of different minerals in correcting soil acidity, which in turn affects nutrient availability and overall plant health [28]. Minerals with alkaline properties, such as calcium carbonate (limestone or dolomite), can be applied to soil to increase its pH and alleviate its acidity. The LI plays a crucial role in deciding which minerals to use as soil amendments, as it helps determine how much of a material is required to achieve the desired soil ph. The neutralizing value (NV) is the amount of acid that a given quantity of limestone neutralizes when it is dissolved. It is expressed as a percentage of the NV of pure calcium carbonate. A limestone that will neutralize 90% is said to have an NV of 90.

Another factor that affects the value of limestone as a neutralizer of acidity is the fineness rating. A limestone's fineness rating is a measure of its particle size distribution and is determined using sieves. Smaller particles with larger surface areas will rapidly change the pH of the surrounding soil. Particles with a diameter of 250 pm or less are said to be 100% effective [28]. However, for some applications, a combination of particle sizes is desirable to provide the soil with both short-term and long-term changes in soil pH [29]. The (LI) combines the (NV) and fineness rating (FR) of limestone, offering a means to contrast various sources of limestone. Limestone with an elevated LI necessitates a reduced application rate compared to limestone with a lower LI. The LI of a limestone is calculated using the following formula:

$$LI={\displaystyle \frac{NV\times FR}{100}}$$

(1)

NV is typically expressed as the percentage of calcium carbonate equivalent (CCE), which represents the fraction of the mineral's weight that is equivalent to that of pure calcium carbonate (CaCO₃). In this research, the neutralizing value was determined by 2 (two) methods, namely, methods “A” and “B”. In method “A”, according to ISO 20978:2020 [11], 0.5 g of sample was treated in a 250 ml beaker with 50 ml of 0.5 N hydrochloric acid by heating for 10 min. Later, the sample was potentiometrically titrated with 0.25 N sodium hydroxide until the pH reached 7.0 and held for 1 min. The neutralizing value was estimated as (2):

$$NV={\displaystyle \frac{(c\times (M_1\times V_1\times f_1\times A-M_2\times V_2\times f_2)\times 100}{m_t\times A}}$$

(2)

where NV is the neutralization value (%), c is 0.050 when NV is expressed as CaCO₃, M₁ is the molarity of HCl (mol/l), V₁ is the volume of HCl (ml), M₂ is the molarity of NaOH (mol/l), V₂ is the volume of NaOH (ml), m_t is the sample weight (g), and A is equal to 1 for method “A” and 0.5 for method “B”. The correction factors f₁ and f₂ may be omitted if the molarity values are actual rather than theoretical.

Method “B” was employed to eliminate iron interference in certain liming minerals by utilizing a hydrogen peroxide solution to oxidize any reduced iron present. Ferrous ions from silicate liming materials can oxidize and consume OH^- from the alkaline solution used during titration. Hydrogen peroxide reacts with iron ions before titration and forms ferric and ferrous ions in a neutral reaction. In method “B”, 0.5 grams of the sample was prepared and placed into a 250 mL Erlenmeyer flask. The inner surfaces of the Erlenmeyer flasks were rinsed with approximately 10 ml of distilled water. Subsequently, 30 ml of 0.5 mol/l HCl solution was added to the flask with continuous stirring. The solution was heated for approximately 10 minutes to dissolve the sample with the assistance of a magnetic stirrer. After sample dissolution, the solution was allowed to return to room temperature, and then 100 ml of water was added, followed by the addition of 5 ml of hydrogen peroxide solution. The solution was quantitatively transferred to a 200 ml graduated flask, and water was added to make up the volume of the graduated flask and homogenize the solution.

The resulting solution was filtered through a dry filter and a beaker to collect the filtered solution. The initial portion was discarded. An aliquot of 100 ml of the filtered solution was pipetted into a 250 ml beaker. Subsequently, titration was performed using a 0.25 mol/l NaCl solution with a pH meter and a stirrer until a pH of 4.8 was attained, and the solution was stabilized for 1 minute.

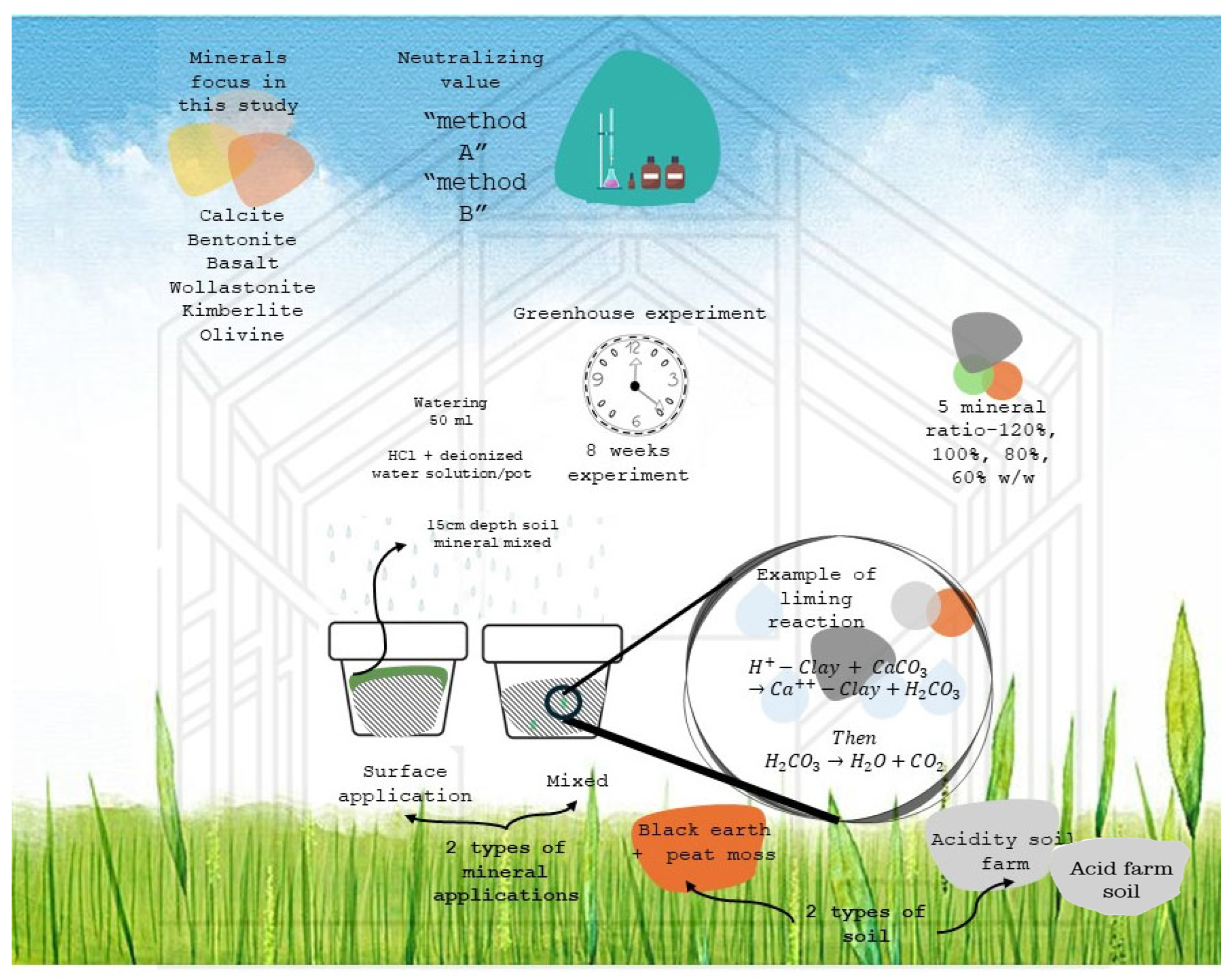

2.2 Pot Experiment Description and Design

Liming material samples were obtained from manufacturers in Canada and the United Kingdom. Wollastonite was obtained from Canadian Wollastonite Inc. (Canada); bentonite from Absorbent Products Ltd. (Canada); basalt from Rock Power Solutions Inc. (Canada); olivine from GreenSand Group (Netherlands); kimberlite from DeBeers Group (Canada); and CaCO₃ (CAC) from Fisher Scientific (USA). All minerals were ground and sieved at 250 microns to obtain the desired fineness. The soil/mineral dosage was considered to have values of 1.2, 1, 0.8, and 0.6 (rate 1, rate 2, rate 3 and rate 4), where the optimal amount of mineral was equal to 1. This value was calculated considering the LI and the commercial application of each mineral [30].

To replicate the conditions that will occur in a crop field, 2 (two) application methods were used: mixing the mineral with the soil (“mixed”) (up to 15 cm to the top of the soil) and applying the mineral entirely on the surface (“surface application”). The experimental pots were set up on a building rooftop at the University of Guelph, Ontario, Canada. The first soil was organic-rich soil labeled commercial garden club black earth topsoil without fertilizer. To ensure its acidity, it was mixed with organic matter (peat moss) at a 7:3 ratio. The final pH of the soil/peat moss mixture ranged from 5.9 to 6.1. Pots of 6.724 m² were filled with 150 g of soil/peat moss. Mineral-rich soil used for agricultural purposes that was naturally acidic (pH<6.0) was collected from a crop field at the intersection of Jones Baseline and Hwy 7, close to the city of Guelph, Ontario (N 43.590609, W -80.195794).

No mineral fertilizers were added. The same amount of mineral was used for both mineral applications. To simulate the conditions that will occur in a crop field, the amount of irrigation (50 mL) was determined considering the annual precipitation of the local region (Guelph, CA), where the experiment was conducted from irrigation volume by province report [31]. The water was acidified with HCl to obtain a pH between 5 and 5.5 (the pH of rainwater).

In the first experiment, 48 pots were used, divided among 6 mineral types (bentonite, basalt, wollastonite, kimberlite, olivine, and calcium carbonate), four soil-to-mineral ratios (ratio 1 to ratio 4) and two methods of mineral application (mixed and surface application). Additionally, 2 soil control pots were included to observe the pH behavior of the soil without any mineral additions, resulting in a total of 50 pots for the experiment. The second experiment followed the same design, using 48 pots divided among the 6 mineral types, the four soil-to-mineral ratios, and the two methods of mineral application. Again, 2 soil control pots were included, resulting in a total of 50 pots for the experiment. Figure 1 represents the design of the experiment.

2.3 pH Measurement

A soil pH meter (Bluelab Soil pH pen) was calibrated with buffered solutions (pH 4.0, 7.0, and 10) prior to each sampling. To measure the pH of each pot, the storage cap was removed. This was done by unscrewing the cap and pulling it to remove the probe. The pen was turned on, and the probe was inserted into the pot. The pen was removed after the pH reading stabilized on the display. The soil was rinsed after use to remove any nutrient or soil deposits before the next measurement. For all the samples, three pH measurements were taken in different parts of each pot. The simple average was recorded. The pH was measured after watering. As indicated by Zarate-Valdez et al. [32], soil pH is directly influenced by changes in moisture content. Then, to minimize variations, the pots were watered, and the pH values were measured immediately afterward. Temperature and humidity ambient readings were also recorded using greenhouse sensors. These activities were consistently performed at the same time each day throughout the experiment.

These measurements were taken two days a week over a period of 7 weeks. At the beginning and end of the experiment, samples from each pot were taken to the laboratory to be measured with a standard bench pH meter (PH 2700 Benchtop pH Meter, Oakton) following the standard ASTM D4972 [33]. Both results obtained were compared for better accuracy.

2.4 Analysis criteria

As soil is a complex and heterogeneous medium, this dynamic system (composed of minerals, organic solids, aqueous, and gaseous components) is subject to short-term changes in moisture content, pH, and redox conditions [34]. Soil pH is a critical factor that influences the chemical behavior of minerals and various processes within the soil. However, this feature is inherently variable. Many recent works attributed these variations to the complex interactions between environmental and anthropogenic factors, such as land use changes, soil management practices, and environmental conditions Hobara at al. [35], as well as soil buffering capacity [36]. To address pH heterogeneity in soils, several statistical techniques have been used with relative success, such as hierarchical cluster analysis (HCA), principal component analysis (PCA) [37,38,39,40], classification [41], and regression [42].

In the present study, statistical techniques were employed to investigate soil pH behavior, considering six types of minerals in their respective experiments (soil type and application method). Initially, the aim was to assess whether the selected minerals exhibited a liming effect by altering the soil pH relative to the soil buffer pH (h1) and a reference mineral (CaCO₃) (h2). For this purpose, the nonparametric Wilcoxon test was used with relative success (eq. 3). Additionally, to evaluate the trend of increasing pH over time—indicating the occurrence of liming—the data were smoothed using the simple moving average (SMA) technique (eq. 4). This smoothing procedure is justified because the natural variability of pH values made it difficult to identify trends in the raw data. By smoothing this variability, the trend became more discernible. Once smoothed, the pH data were subjected to Kendall's correlation test to verify the significance of the observed trend in the SMA and the degree of correlation between pH values and time. This test is recommended for evaluating trends in time-related data, providing a correlation coefficient known as Kendall's Tau (τ) (eq. 5).

$$\begin{gathered} \left(Z=\left[X_1,X_2,\dots ,X_m,Y_1,Y_2,\dots ,Y_n\right]\right); \\ \left(Z_{rank}=\left[\mathrm{1,2},\dots ,m+n\right]\right); \end{gathered}$$

$$U_1=n_1{n}_2+{\displaystyle \frac{n_2(n_2+1)}{2}}-R_2;U_2=n_1{n}_2+{\displaystyle \frac{n_1\left(n_1+1\right)}{2}}-R_1$$

(3)

where X and Y are groups of samples, $Z_{rank}$ is a smaller set of X and Y combined, and U is a U test statistic

$${SMA}_t={\displaystyle \frac{1}{nsma}}\mathrm{*}(x_t+x_{t-1}+x_{t-2}+\dots +x_{t-\left(nsma-1\right)})$$

(4)

where $x_t$ represents the time series in period t, and nsma determines the number of previous periods considered in the simple moving average (SMA)

$$\tau =1-{\displaystyle \frac{2(number of discordant pairs)}{\frac{n(n-1)}{2}}}$$

(5)

Finally, the percentage rate of pH change was calculated throughout the experiment for each pot. Experiments with a low variation rate were considered more consistent regarding the liming effect. Using these values, we filtered the best candidates meeting the following three criteria simultaneously: i) statistically significant pots with a p value < 5% in the Wilcoxon test, ii) statistically significant pots for trend presence with a p value < 5% in the Kendall test and higher Tau values, indicating significant trends and a high correlation between pH and time, and iii) pots with the lowest variation rate.

2.5. Empirical Model

The empirical model is based on the weathering rate of the most reactive mineral in each sample considering its degree of purity, standardized chemical formula, and particle size distribution (PSD). Since the liming response occurs over a short period, it is not the entire rock that reacts but rather its most reactive phase. The modeling focused on these most reactive phases of each mineral to calculate the weathering rates (Wr). For instance, ankerite was selected for kimberlite, fosterite for olivine, and anorthite for basalt.

We utilized the weathering rates for our alkaline minerals based on the data provided by Palandri and Kharaka [43]. First, the logarithm of the Arrhenius preexponential factor at 25 °C (298.15 K) (Log A, mol·m⁻²·s⁻¹) was calculated using equation (6). Then, the weathering rate was determined using equation (7) as a function of pH and temperature (25 °C). We used the equation coefficients k, E, and n for the neutral pH range (~6−9), as reported by Palandri and Kharaka [43], taking into consideration the recommendations of Haque et al. [44] on selecting an appropriate weathering mechanism for slightly acidic conditions that lie in between the acidic and neutral mechanisms. Here, k is the calculated rate constant at 25 °C and pH = 0 (mol·m⁻²·s⁻¹), E is the Arrhenius activation energy (kJ·mol⁻¹), and n_H+ is the reaction order with respect to H⁺.

$$\log A=\log K+{\displaystyle \frac{E\times 1000}{2.3025\times 8.314\times 298.15}}$$

(6)

$$log{W}_r=\log A-{\displaystyle \frac{E\times 1000}{2.3025\times 8.314\times T}}-n_{H+}\times pH$$

(7)

The equation for the empirical model is given for (8):

$$Empiricalmodel=\mathit{log}({\displaystyle \frac{SSA}{M\times \mathrm{\%}purity}}\times W_r)$$

(8)

The model focused on the weathering rate of the most reactive mineral phase, rather than the mineral as a whole. This approach is logical if we consider liming as a rapid event that does not allow the entire rock to react fully. Subsequently, each mineral phase was identified using X-ray diffraction (XRD) and quantified with PROFEX software. This analysis provided insights into the purity of each mineral phase. The empirical model then incorporated these purity measurements into the formula.

The molar mass M (g/mol) of the standard chemical formula was calculated using the elemental composition, expressed as oxides, and determined by wavelength dispersive X-ray fluorescence (WDXRF).

The particle size distribution (PSD) was measured by sieving and sedimentation. The specific surface area (SSA) in m²/g was measured using a physisorption analyzer (BET) and laser diffraction analysis (Malvern Mastersized SM). The SSA of minerals is usually measured via a Brunauer–Emmett–Teller (BET) analysis of volumetric nitrogen adsorption isotherms. However, this technique has accuracy limitations for materials <0.5 m²/g, requires dry samples, must be measured at 77 K and has slow sample preparation times (drying/degassing).

A good alternative method for determining the SSA is laser diffraction or low-angle laser light scattering (LALLS), which can easily determine the SSA by using a laser as a source of light and a photosensitive detector. The particles in suspension can be measured by recirculating the sample in front of the laser beam. This method has become the preferred standard for characterization and quality control in many industries. This method relies on the fact that the diffraction angle is inversely proportional to the particle size. The advantages of this method include the following: (1) no need to calibrate against a standard, (2) it has a wide dynamic range according to ISO 13320:2020 [45] (0.1 to 3000 µm), (3) it can measure dry powers directly in conjunction with suspension analysis, (4) the entire sample, instead of some part of it is measured through the laser beam, (5) the volume distribution is generated directly, which is equal to the weight distribution if the density is constant, and (6) the method is rapid, highly repeatable and has high. In this work, we refer to the specific surface area (SSA) measured by the BET method as the BSSA. Conversely, the SSA measured by laser diffraction will be termed GSSA, where "G" stands for geometrical, reflecting that this measurement is based on the geometry of the particle rather than the pore structure, as in the BET method.

2.6. Ranking

Due to our hypothesis that the NV would not effectively predict the liming of silicate minerals, we formulated an empirical model considering mineralogy and Kinect to explain the material behavior. This model considers weathering rates, specific surface area, mass molar, and the purity of the more reactive phase of the rock (see item 2.6).

To assess the model's reliability, we opted to compare its outcomes with those of NV in a ranked format (9):

$${Rank}_i=\min \left(\alpha \mathrm{*}\mathsf{\Sigma }\right|Rank(S_{p{H}_i)}-Rank\left({EM}_i\right)|,\gamma \mathrm{*}\mathsf{\Sigma }\left|Rank\left(S_{p{H}_i}\right)-Rank\left(N{V}_i\right)\right|)$$

(9)

where:

• ${Rank}_i:$ The final ranking for the $i-th$ experiment.
• $Rank(S_{p{H}_i)}:$ Ranking of the slope of the pH curve for the $i-th$ experiment.
• $Rank\left({EM}_i\right)$: Ranking of the empirical model for the $i-th$ experiment.
• $Rank\left(N{V}_i\right)$: The ranking of the NV indicators for the $i-th$ experiment.
• α: The weight assigned to the difference between the rankings of the slope of the pH curve and the empirical model.
• γ: The weight assigned to the difference between the rankings of the slope of the pH curve and the NV indicator.
• min: The minimum function, which selects the smaller value between two terms.

Equation (9) is a ranking formula used to assess the performance of different experiments based on three factors: the slope of the pH curve, an empirical model, and an indicator NV. The formula consists of two terms:

• The first term ($\mathsf{\alpha }\mathrm{*}\mathsf{\Sigma }\left|Rank\right(S_{p{H}_i)}-Rank\left({EM}_i\right)\left|\right)$ calculates the difference in ranking between the slope of the pH curve and the empirical model, multiplied by a weight factor α. This term assesses how well the empirical model correlates with the experimental data defined here by the slope of the pH curve.
• The second term $(\gamma \mathrm{*}\mathsf{\Sigma }\left|Rank\left(S_{p{H}_i}\right)-Rank\left(N{V}_i\right)\right|$) calculates the difference in ranking between the NV and the slope of the pH curve, multiplied by a weight factor γ. This term assesses how well the NV correlates with the slope of the pH curve.

The overall ranking (${Rank}_i$) for each experiment is then determined by the minimum value between the two terms. This means that the experiment's ranking is based on the factor (slope vs. empirical model or slope vs. NV indicator) that shows the least discrepancy. Lower values of (${Rank}_i$)​ indicate a better correlation between the pH curve slope and either the empirical model or the NV indicator, depending on which factor has a smaller discrepancy.

3. Results

3.1 Neutralizing Value

As mentioned in the previous section, the first step involves calculating the liming index (LI) or agricultural index and, consequently, the neutralizing value of the selected mineral samples using two acid digestion methods. The goal is to determine whether the LI accurately reflects the liming behavior of silicate-based minerals and to provide justifications for the varying values observed.

Table 1 shows the mean neutralization values (NVs) obtained for various minerals in the study. Significantly, calcium carbonate demonstrated the highest NV at 103.16%, which is consistent with its reference status in this analysis [11].

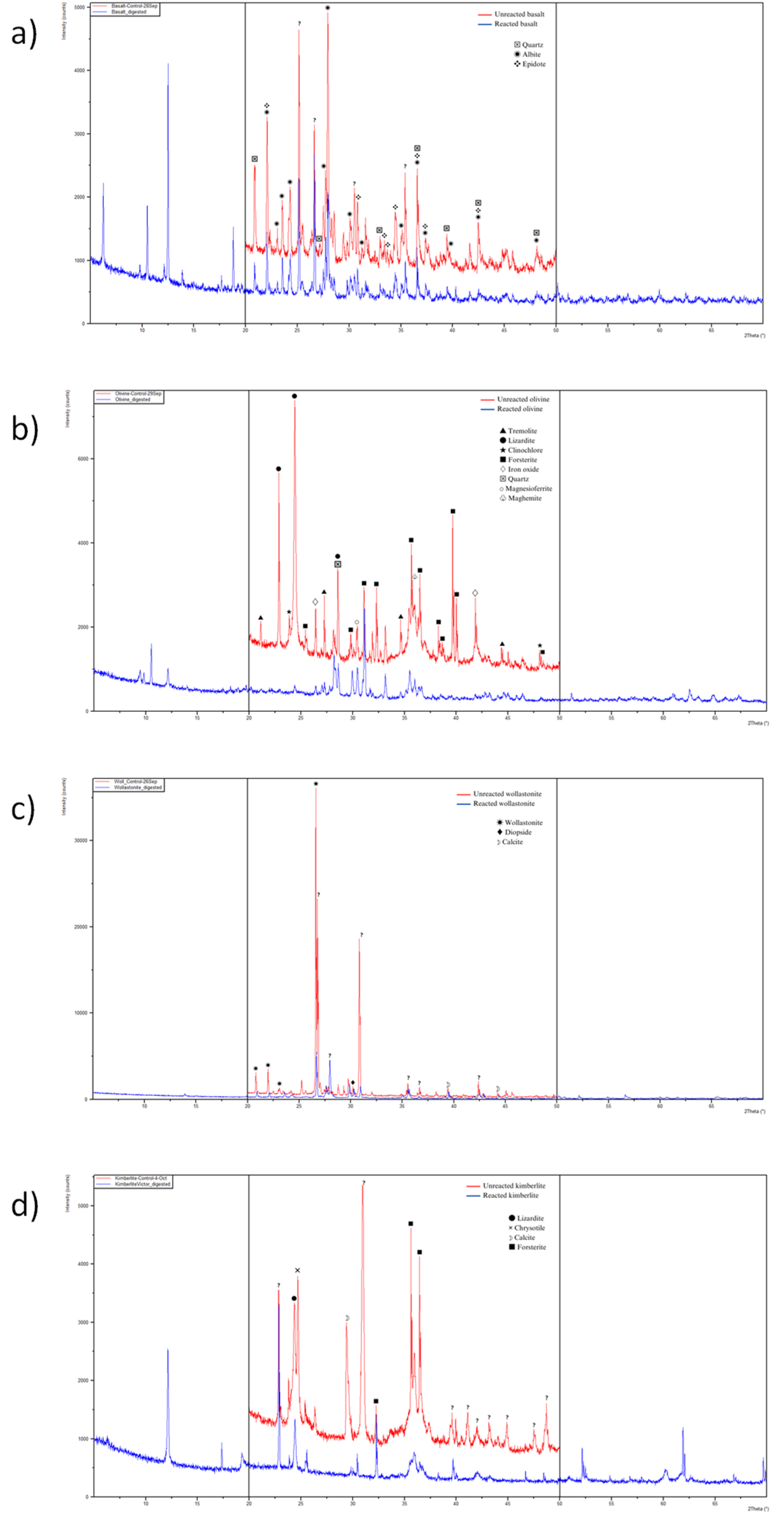

Figure 2 presents a series of X-ray diffraction (XRD) patterns comparing untreated (blue) and digested (red) mineral samples. In the basalt sample, peaks corresponding to quartz and epidote are observed, indicating phase changes following the reaction. For the olivine sample, the reacted material shows the emergence of new mineral phases, such as tremolite, talc, and hematite, alongside unreacted olivine. In the wollastonite sample, peaks for wollastonite, diopside, and calcite suggest the formation of secondary carbonates and silicates in the digested sample. Finally, the diffractogram for the calcium carbonate sample shows the formation of clay minerals and ferrihydrite after the reaction. These phase transitions reflect changes in the mineral structure due to chemical reactions, possibly resulting from carbonation, digestion, or other geochemical processes.

In Figure 3, the top row (basalt) displays highly fractured and irregularly shaped surfaces, characteristic of minerals with high porosity and surface reactivity. The fourth row (wollastonite) reveals elongated, needle-like crystals, a hallmark of its acicular crystal habit. The surface is relatively smooth but may show fractures or minor roughness due to grinding or natural weathering. The bottom row (bentonite) provides an overview of the mineral particle size distribution and aggregate forms, illustrating a range of particle shapes from angular to more rounded structures. These variations in surface and particle morphology can significantly influence the mineral's performance in soil applications, particularly in terms of dissolution rates and neutralizing capacity.

Olivine, a family of nesosilicate minerals primarily composed of magnesium and iron silicates, tends to dissolve more slowly than carbonates. However, certain components detected through XRD in the olivine sample (Figure 2b), such as forsterite, lizardite, and clinochlore, are likely to contribute partially to the neutralization of soil acidity, releasing magnesium ions during weathering [46,47,48,49].

The notable 14.92% variance between the NV analysis results via methods A (59.33% eq CaCO₃) and B (33.23% eq CaCO₃) indicates the presence of substantial iron in the olivine sample, influencing the obtained NV. An important caveat is that high concentrations of nickel ions in olivine may restrict its use for agricultural purposes [50].

The results for the two sources of kimberlite samples are presented in Table 1. Kimberlite sample 2 displayed an NV of 51.25% eq CaCO₃. XRD analysis highlighted calcite as a significant contributor to NV in this mineral due to its CaCO₃ content [51]. Additionally, magnesium silicate minerals such as lizardite, chrysotile, and forsterite (Figure 2d) might make relatively minor yet substantial contributions to soil acidity neutralization.

Method B yielded a 61.69% difference, indicating a notable 10.44% difference between methods and indicating iron interference in the NV analysis. While forsterite is predominantly composed of magnesium and silicon, its iron impurity content may contribute considerably to the overall iron content in the kimberlite sample.

The wollastonite sample had an NV of only 19.85% eq. CaCO₃. XRD analysis indicated that calcite, diopside, and wollastonite, with calcite being the main contributors to the attained NVs [52] (see Figure 2c, Figure 3e, Figure 3f). Comparatively, Chakravarthy et al. [51] assessed the weathering reactivity and CO₂ uptake capacity of kimberlite and wollastonite through carbonation. They employed various accelerated weathering and carbonation methods, evaluating the performance and mineralogy using pH tests, furnace tests, calcimeter tests, and XRD analysis. The study concluded that wollastonite, which is rich in fast-weathering calcium silicate, is more reactive than kimberlite, which contains slow-weathering hydrated magnesium silicate and aluminosilicates. According to this study, the NV value of wollastonite should be greater than that of kimberlite. However, this is not what we observed through the actual NV model. Wollastonite also exhibited a lower NV value than olivine (Table 1). A study by Santos et al. [53] on nickel extraction from olivine, which combined conventional acid leaching with a pretreatment step involving mineral carbonation, demonstrated that although olivine takes relatively longer, it can achieve 100% carbonation without experiencing passivation issues. On the other hand, while wollastonite should theoretically be faster than olivine, it undergoes more passivation during acid digestion, resulting in a higher NV value. This finding conflicts with the current NV model.

Passivating is the effect of coating the surface of the dissolving mineral, slowing the reaction process and reducing the total extent of carbonation [54]. Passivation, as a linkage between silicate dissolution and secondary precipitation affecting carbonation, is one of the questions addressed by recent investigators [49,55,56,57,58,59,60]. It has been proposed that the formation of an amorphous silica layer could act as a passivation coating, which could partly inhibit further dissolution of silicate (e.g., Béarat et al. [61], Huijgen et al. [52], and Kashim et al. [62]).

For olivine, the hypothesis is related to the atomic ratio. For example, wollastonite has 1 calcium atom for every silica atom, whereas olivine has 2 magnesium atoms for every silica atom. This means that olivine has less silica to hinder the reaction, allowing it to dissolve more quickly.

Basalt, a volcanic igneous rock, varies in efficiency as a pH corrector based on its mineralogical composition and displays a lower NV (13.14% eq. CaCO₃). XRD analysis revealed albite, quartz, and epidote in the basalt sample (Figure 2a, Figure 3a, Figure 3b). Quartz, considered close to inert in soil acidity neutralization, does not release ions to increase the pH [63]. Albite, a sodium-rich plagioclase feldspar, and epidote, a complex mineral not typically used as a pH corrector, offer moderate neutralizing properties [64].

Although basalt contains minerals that contribute to soil acidity neutralization, its efficacy as a pH corrector is generally inferior to that of carbonate rocks due to the limited presence of effective carbonate minerals. The slower dissolution rate of basalt compared to carbonate minerals implies a gradual release of essential ions for pH neutralization, impacting its overall effectiveness [65].

Bentonite is a common term for clayey aluminosilicates from basic minerals [66]. Due to its porosity, high surface area, and silicate layer structure, bentonite acts as a liming material by adsorption rather than weathering. Its composition mainly consists of clays and thus does not contain a significant amount of calcium carbonate, magnesium carbonate, or other compounds intended for use in soil acidity correction (Figure 2d, Figure 3g, Figure 3h). Therefore, the bentonite sample presented the lowest NV (2.51%) among the materials studied.

Overall, the NV results do not align with the expected weathering values for these minerals (i.e., wollastonite and olivine), indicating that the NV test may not be appropriate for silicates. Hence, there is an opportunity to develop an empirical model that more accurately represents the behavior of silicates in the liming effect.

3.2 Pot test results

After obtaining incompatible LI values for the studied minerals with their expected reactivity and liming efficiency, we decided to conduct a controlled laboratory experiment. This experiment involved collecting pH data based on variations in dosage and the method of mineral application to the soil in pots. The ultimate objective is to develop an empirical model that more accurately explains the behavior of the minerals under study than the actual LI. As expected, the collected pH data exhibited significant heterogeneity (Figure 4).

In both application methods, calcium carbonate and wollastonite consistently lead to higher pH levels, particularly after SMA, indicating their strong neutralizing capacity. Olivine show moderate increases, while bentonite consistently results in lower pH levels across all treatments. The comparative trends between mixed and surface applications demonstrate the varying effectiveness of minerals in adjusting soil pH depending on the method and rate of application.

The data collected from the experiment were subjected to nonparametric statistical testes (Wilcoxon, SMA, and Kendall) and significance tests to reliably extract and express the underlying signal.

3.2 1 Wilcoxon

A test was conducted to investigate whether there was a statistically significant difference in pH between the pots, indicating the presence or absence of a liming effect. Compared with those in the soil without minerals, the pH in the soil without minerals significantly differed, confirming a positive liming effect in the pots with added minerals. In contrast, the pH did not significantly differ between soil with added CaCO₃ and soil with added minerals, indicating similar pH changes and a consistent liming effect among the minerals studied.

3.2 2 SMA, KC and pH change rate

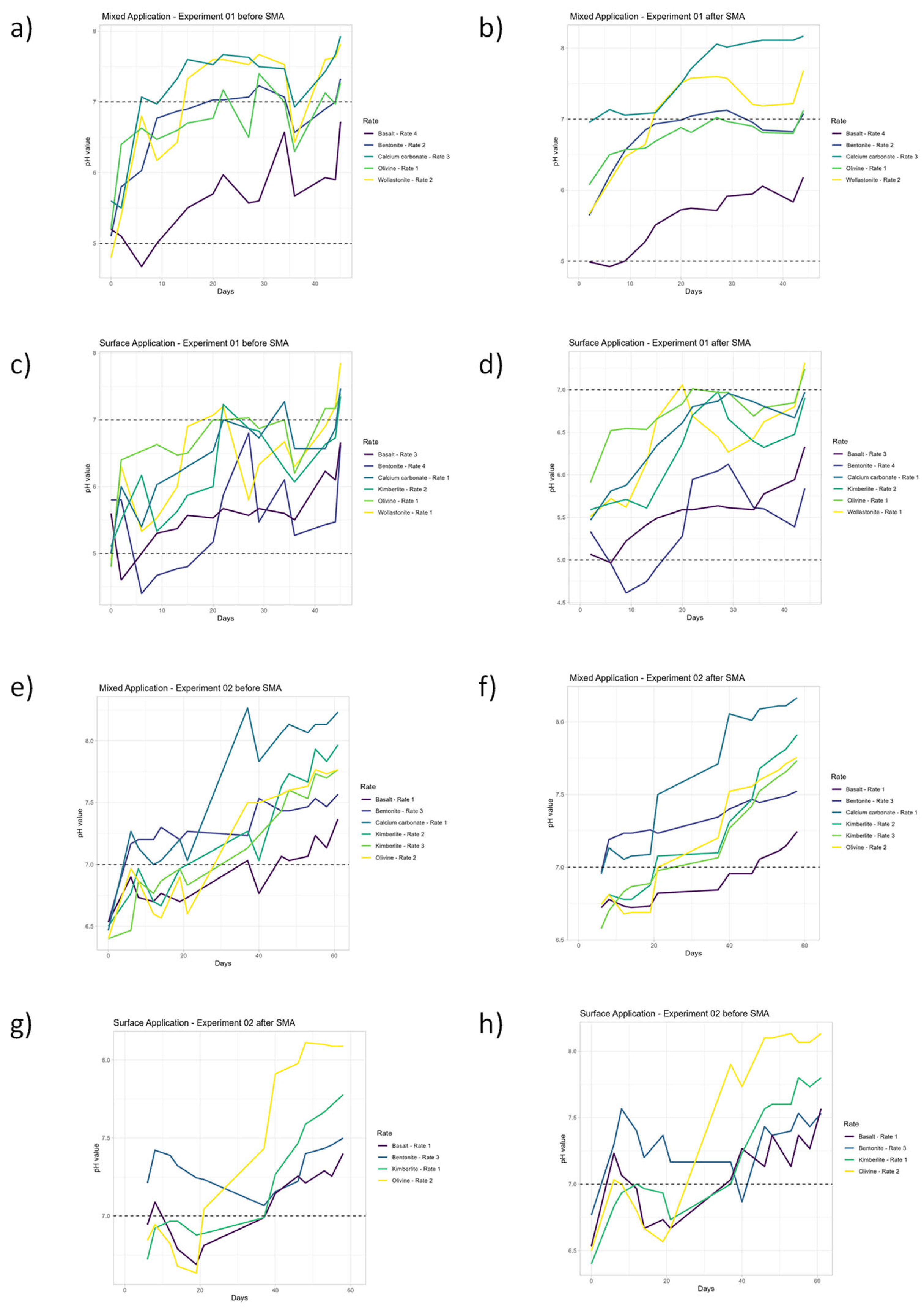

After the Wilcoxon test, we applied a simple moving average (SMA) to smooth the data and better visualize the trend between pot experiments (Figure 4b, Figure 4d, Figure 4f, Figure 4h). The Kendall test was employed for the SMA results to evaluate the hypothesis of correlation and a progressive upward trend in pH during the experiment. Kendallʹs Tau (τ) value quantifies the strength and direction of the association(agreement or disagreement) between two categorized variables, pH and time of the experiment. Additionally, the pH change rate was calculated for all minerals in both experiments. Table 2 details the p values, tau values, and pH changes for all the samples.

3.2 3 Data filtering

To determine the most significant set of pH values for calculating the pH slope, we employed the following selection criteria: only pH values with a statistically significant difference (p value less than 0.05) were considered; preference was given to pH values demonstrating a high Kendall’s tau, indicating a strong monotonic relationship; and values with the lowest rate of change in pH were prioritized. The pH values meeting these criteria are highlighted in bold in Table 2.

3.3. Ranking Performed Using Neutralizing Values

The slopes of the filtered minerals ( $Rank\left(S_{p{H}_i}\right)$ ) were calculated and organized in descending order of values (ranking) considering the method of application (surface and mixed) and all pots. Additionally, the same is true for the NV values ​​( $Rank\left(N{V}_i\right)$ ); see Table 3. Afterwards, the difference between them was calculated ($Rank\left(S_{p{H}_i}\right)-Rank\left(N{V}_i\right)$); see Table 4. Since this term in the equation is different from zero, it indicates a discrepancy between the experimental value and that predicted by NV, confirming our hypothesis that NV is not a reliable predictor. This leads us to the next stage of the work, where we develop a preliminary empirical model that presents a reduced difference.

Table 3 presents a comprehensive comparison of various minerals based on their empirical model data, neutralizing value (NV), and experimental results, specifically focusing on the slope of the pH change. The table provides a detailed analysis of each mineral's performance in surface and mixed applications, ranking them accordingly. The ranking system facilitates the comparison between the liming effectiveness noted by NV, the empirical model data, and the experimental results.

Table 4 provides a detailed ranking analysis for various minerals based on their performance in different experimental setups. The table uses a weighted ranking system to compare the experimental results against the empirical model data and neutralizing value (NV).

3.4. Empirical model

Table 5 provides detailed empirical data for the various samples used in this study. The table includes parameters related to dosage, reactivity rate, BSSA, GSSA, purity and molar mass. The Wr is reported in square meters per mole per second and is based on the neutral mechanism (25 °C, pH =7) [43]. The specific surface area (SSA) is reported in square meters per gram. We adjusted the SSA for the molar mass in each mineral, measured in square meters per mole. The final value [log (SSA×Wr)] represent the logarithm of the product of the specific surface area and weathering rate Wr.

Figure 5 illustrates the relationship between the mineral dosage and the empirical model results for various minerals and two types of specific surface area (SSA) measurements. The x-axis represents the mineral dosage in grams, ranging from 0 to 16 grams, while the y-axis represents the logarithm of (SSA×Wr), ranging from -7 to -17. The plot includes two sets of data points and their corresponding logarithmic trend lines with equations and R² values. The trend lines show a general decreasing trend in [log (SSA x Wr)] values as the mineral dosage increases. This is consistent with the current understanding that minerals with lower reactivity require a higher dosage to achieve a similar liming effect. The dataset based on the BSSA (log (BSSA×Wr)) has a slightly better fit (R²=0.8139) with the logarithmic model than does the GSSA dataset (R²=0.5735). However, the GSSA equation has a greater coefficient for x² and x and a greater negative coefficient for x, which means that the curvature and slope are steeper than those of the BSSA equation. This indicates that the empirical model using GSSA is more sensitive to dosage variations. For this reason, we decided to adopt the GSSA as our reference for the preliminary empirical model. Additionally, the higher reactivity of calcium carbonate at a lower dosage highlights its potential efficiency in such processes, whereas the lower reactivity of bentonite at a higher dosage suggests that it may be less effective under sim. Overall, this empirical model helps in understanding the reactivity of different minerals at varying dosages, which is crucial for applications in fields such as soil amendment, carbon sequestration, and enhanced weathering.

3.5. Ranking Using an Empirical Model

The empirical values (log (GSSA×Wr)) were calculated for each mineral studied. We arranged them in descending order of values (Rank (EMi)) (see Table 4) and calculated the difference between the slope and the empirical model $\left(\right|Rank\left(S_{p{H}_i}\right)-Rank\left({EM}_i\right)\left|\right)$ . The empirical method yielded slightly better results than did the neutralizing value for the selected minerals. Looking at the sum of the rank differences (Σ) for experiments 1 and 2, we can observe the following: for surface application, the empirical model outperforms the NV method in Experiment 1 and performs equally well in Experiment 2. Regarding mixed application, the empirical model ties with NV in Experiment 1 but falls short in Experiment 2. Overall, without considering the type of application, the empirical model demonstrated superior predictive capability compared to NV in Experiment 1 and matched NV's performance in Experiment 2.

4. Discussion

The study reaffirmed calcium carbonate’s status as the benchmark liming material, consistently demonstrating the highest neutralizing value (NV) at 103.16%. This high NV underscores its effectiveness in neutralizing soil acidity, making it a widely used agent in agriculture. Calcium carbonate has been extensively studied for its long-term effects on soil fertility and crop yields. Research indicates that calcium-based liming materials not only neutralize soil acidity but also improve soil structure and enhance the bioavailability of essential nutrients such as calcium, magnesium, phosphorus, and molybdenum [67]. However, the use of calcium carbonate is at times reported to lead to increased leaching of organic matter, which may affect soil organic carbon levels over time, as discussed by Mahmud and Chong [67]. This dual effect underscores the need for balanced application rates and monitoring to optimize soil health and crop productivity.

The exploration of alternative silicate minerals revealed varied neutralizing potentials, highlighting the complexity of their interactions with soil. Olivine, despite its slower dissolution rates compared to carbonates, exhibited significant NV values (59.33% eq CaCO₃ by Method A and 74.25% eq CaCO₃ by Method B). This is likely due to the release of magnesium ions during weathering, which contribute to its neutralizing capacity. However, the presence of nickel ions in olivine may limit its agricultural use due to potential toxicity, necessitating careful consideration of its application. Rietra [68] reported poor liming performance of olivine versus dolomitic limestone, suggesting that the former has a liming efficiency that is 35 smaller than the latter, despite having an NV of 36.4% eq CaCO₃ versus 50% of the reference carbonate. The study attributed the difference in performance to the slower reactivity of olivine as inferred by potentiometric titration. Still, the soil tests conducted showed a pH change of 0.2 to 0.6 units for the use of 2 to 6 wt% olivine in soil, highlighting that the target pH change, and the duration of the pH effect, as additional parameters to consider when comparing long-term liming efficiency and carbon footprint.

Kimberlite samples showed varying NV results, with notable discrepancies between methods indicating iron interference in the NV analysis. The presence of calcite and other magnesium silicate minerals contributed to its NV. While kimberlite has the potential to improve soil quality and provide essential nutrients, careful management and monitoring are necessary to mitigate the risks associated with heavy metal contamination, such as nickel and chromium. Conducting thorough research and pilot projects can help determine its feasibility as a soil amendment in Ontario.

Basalt, a volcanic rock rich in silicate minerals, is widely considered for enhanced rock weathering (ERW) due to its abundance and effectiveness in reacting with CO₂. Studies have shown that basalt can significantly contribute to carbon sequestration by converting atmospheric CO₂ into stable bicarbonates, which are eventually transported to the oceans [69]. This process not only aids in carbon removal but also improves soil health by supplying essential minerals and correcting soil pH levels [70]. However, our results indicate that basalt has a limited liming efficiency with an NV of 13.14% eq CaCO₃. This is attributed to its mineral composition, including albite, quartz, and epidote, which contribute to its slow dissolution rate and minimal effective carbonate minerals. Despite its potential for carbon sequestration, basalt’s effectiveness as a liming agent is limited, suggesting that its primary benefit in agriculture may lie more in its role in ERW rather than soil pH correction [71]. Similarly, bentonite, a clay-rich mineral, had the lowest NV (2.51% eq CaCO₃), relying on adsorption rather than weathering, with a composition lacking significant calcium or magnesium carbonate content.

Unexpectedly, wollastonite samples had lower-than-expected NV (19.85% eq CaCO₃). This can be explained by the phenomenon of passivation during the carbonation process. Passivation occurs when a protective layer, often composed of amorphous silica, forms on the surface of the dissolving mineral, inhibiting further dissolution and reaction. Despite its theoretically high reactivity due to fast-weathering calcium silicate, the actual NV observed is lower because of the passivation effect. This finding highlights the importance of considering passivation effects in predicting the carbonation potential and NV of minerals.

The empirical model developed in this study offers a more comprehensive approach to predicting liming efficiency compared to the traditional liming index (LI) test. While the LI test primarily measures the potential of a mineral to neutralize acidity based on its calcium carbonate equivalent, it does not account for factors such as surface area, weathering rate, and mineralogical properties. Our empirical model integrates these parameters, providing a more nuanced understanding of mineral behavior under specific conditions [72]. By including the product of specific surface area (SSA) and weathering rate (Wr), the model captures the reactivity of a mineral more accurately. Additionally, the model’s ability to adjust for mineral dosage and integrate multiple variables leads to a more robust and versatile prediction of liming efficiency. This approach aligns more closely with experimental results, particularly in terms of pH change slopes observed in surface and mixed applications, demonstrating its effectiveness in real-world scenarios [73].

The empirical model’s better fit can be attributed to several key factors:

Surface Area and Weathering Rate: The empirical model includes the product of the specific surface area (SSA) and weathering rate (Wr), which is crucial because the reactivity of a mineral depends significantly on its surface area available for reaction. By adjusting SSA for molar mass and calculating the logarithm of the product (log (SSA×Wr)), the model captures how these factors influence reactivity, which NV alone does not address.

3.

Mineral Dosage Sensitivity: The empirical model shows that reactivity changes with mineral dosage. It highlights that as dosage increases, the reactivity decreases, especially for less reactive minerals, which aligns with the trend observed in the data.

4.

Multi-Parameter Integration: The empirical model synthesizes multiple variables, including reactivity rate, surface area, and mineralogical properties, leading to a more robust and versatile prediction. In contrast, NV focuses solely on the acid-neutralizing capacity, overlooking the complexities of mineral reactivity under different conditions.

5.

Experimental Validation: The empirical model’s predictive capability aligns more closely with experimental results, particularly in terms of pH change slopes observed in surface and mixed applications. The model’s ability to reflect actual performance better than NV demonstrates its effectiveness in real-world scenarios.

5. Conclusions

The pH of the soil is critical for plant growth and nutrient availability. Soil acidity can lead to land degradation and impact agricultural productivity. Several factors, such as acidic precipitation and the use of ammonium-based fertilizers, contribute to soil acidity. Soil amendments, particularly liming agents such as limestone (CaCO₃), are used to neutralize soil acidity and enhance nutrient availability [74]. Despite their effectiveness, the use of liming agents can lead to CO₂ emissions due to reactions with strong acids in the soil. In this work, silicate minerals were investigated as alternative liming agents. The use of silicate minerals can contribute to long-term soil health by enhancing soil structure and fertility while reducing CO₂ emissions associated with traditional liming agents [75]. This study investigated silicate minerals as alternative liming agents, which can enhance soil structure and fertility while reducing CO₂ emissions.

The empirical model developed in this study showed superior predictive capability compared to the NV method, particularly in surface applications. It integrates parameters such as weathering rate, specific surface area, and molar mass, providing a more nuanced understanding of mineral behavior. This model better fits experimental results, reflecting actual performance more accurately than the NV method.

In summary, the empirical model offers a more detailed and accurate prediction of mineral behavior by incorporating critical factors like surface area, reactivity rates, and dosage effects. This study provides valuable data for developing guidelines on the appropriate use of silicate minerals in agriculture. Farmers can use the empirical model to optimize soil pH and nutrient availability.

Further research is needed to refine the empirical model and explore the long-term effects of silicate mineral amendments on soil health and crop productivity. Future studies should also investigate the environmental impact of large-scale silicate mineral application in different agricultural settings.

In conclusion, this study highlights the potential of silicate minerals as effective liming agents, offering a sustainable alternative to traditional carbonates. By incorporating these findings into agricultural practices, farmers can achieve better soil management, enhance crop yields, and contribute to environmental sustainability.
