Modelling, Optimising and Improving Metal Foam and Porosity of PEMFCs

1. Introduction

In the beginning, it is important to define a Fuel Cell (FC) in this paper. Gao et al. (2017) defined FC as it is an electrochemical device that converts chemical energy into Direct Current (DC) electricity. It looks like a photovoltaic (PV) system. Unlike batteries, FCs operate continuously as long as the gas reactants are supplied (Awin and Dukhan, 2019). FCs are becoming remarkable energy in the future due to zero-carbon dioxide (CO₂) or low pollutant emissions at the point of use. Conventional fuels based on fossil fuel could be depleted while the FCs have an unlimited electricity generator as long as the hydrogen and oxygen are supplied. There are many types of FCs that can be classified or distinguished by the electrolyte which is commonly six used. These types of FCs are Proton Exchange Membrane Fuel Cells (PEMFCs), Solid Oxide Fuel Cells (SOFCs), Alkaline Fuel Cells (AFCs), Molten Carbonate Fuel Cells (MCFCs), Direct Methanol Fuel Cells (DMFCs), Phosphoric Acid Fuel Cells (PAFCs) and so further on (Raj et al., 2017). Also, more details of the listed six important FCs can be found in ref. (Fox and Roberts, 1962, Larminie et al., 2003, O'hayre et al., 2016). The core of FCs is that a single fuel cell consists of three basic elements that are the electrodes, the electrolyte and the BPP. We focus on the PEMFC as it is a new energy technology that plays a critical role in achieving market viability. The PEMFC has high power density, zero CO₂ emissions, high conversion efficiency from chemical energy to electrical energy and compatibility to fit inside vehicles. However, the degradation, high cost and efficiency make the PEMFC challenging. But with uniform distribution of fuel in PEMFC, we can improve the performance and reduce the cost. The PEMFCs are donated by PEM. The PEMFCs are one of the most popular FCs. Because it has used a range of fuels from hydrogen to ethanol to biomass-derived materials. These all are used as fuel options that are either fed into the FCs directly or reformed to extract pure hydrogen. The PEMFC system is one of the most promising power sources for automotive and stationary applications (Kakati and Deka, 2007). Due to the advantages of PEMFCs that PEMFCs have high power density, modular shape, convenient fuel, long life span, and lower operating temperature and also attempts to allow PEMFCs to operate at an intermediate temperature between 100-140 ℃ to improve the performance by vaporising water and preventing bulking of channels. Not only these but as we stated the PEMFCs have several options of fuels that are varied from hydrogen to ethanol to biomass-derived materials (Spiegel, 2011), hence the PEMFCs could be the best option for compatibility to fit inside vehicles and eventually contribute to advancing and commercial the PEMFC to vehicles. PEMFCs are constructed of the anode and cathode that contain a catalyst layer (Membrane Electrode Assemblies (MEA)) between them that helps to speed the electrochemical procedures in a single PEM fuel cell. On the other hand, the multiple FCs are connected together to create a fuel cell stack that consists of a number of single PEM fuel cells where every single PEM fuel cell has a number of components that are (Spiegel, 2011, O'hayre et al., 2016):

• Proton Exchange Membranes (PEM),
• catalyst and Gas Diffusion Layer (GDL),
• Flow Field Plates (FFP)/ Bipolar Plates (BPP),
• gaskets and
• End plates.

There are several designs of flow plates such as serpentine, parallel, parallel serpentine, interdigitated, mesh (grid, super parallel) spiral-serpentine and so on. Besides these, there are types of design BPPs such as leaf designer or lung designer. Meanwhile, the membrane plate should remain hydrated to maintain proton conductivity. Also, the BPPs help to transport electrons which can be achieved by maximizing the contact region between the BPPs and GDL. The BPP material should have lower resistance than the materials of GDL. The better designing of BPPs is accomplished by minimising the pressure drop from the inlet to the outlet [31,32]. We need to drop the pressure to be lower. There are many designs of the BPPs and there are different configurations for BPPs. Every configuration has its advantages and disadvantages. The BPPs are designed to give an adequate amount of hydrogen and oxygen to GDL and catalyst surfaces while reducing the pressure drop. In some small-scale PEMFCs, the diffusion process is used instead of using the flow field plate to distribute hydrogen. However, the water blockage in the humidified anode and the hydrogen is not rate limiting, which reduces the effectiveness of PEM fuel cells. Therefore, any kind of channel such as serpentine, interdigital, paralleled and other types are used to overcome the above limitations. In a single serpentine flow field design, there may be some issues such as pressure losses due to the long flow path and the water could be accumulated during an extended period. Hence, high pressure is required to remove this accumulated water. Furthermore, the operation of PEM FCs at intermediate temperatures could prevent the blockage of water. However, in multiple serpentines of BPPs design, the pressure drop is limited, and this technique prevents stagnant area formations at the surface of the cathode. The rest advantages and disadvantages of parallel and interdigital can be found in ref. (Spiegel, 2007, Spiegel, 2011, Fuel Cell Store, 2017). Furthermore, according to Arvay et al. (2013), the single-channel design minimises the flooding in channels but it creates friction which requires more pressure to drive the gas from the intel to the outlet. While parallel, serpentine, and hybrids do not have this issue which requires pressure. However, the key problem with the explanation is that hot spots and cold spots may have occurred in the parallel design of the BPPs which makes the parallel the lowest overall performance for PEMFCs. The other type of design is the mesh flow field plate, which is a special case of paralleled design where parts are open between the parallel paths creating a grid (Catlin, 2010, Yu, 2016, Fuel Cell Store, 2017). The metal meshy or foaming has been presented as in ref. (Kumar and Reddy, 2003, Tang et al., 2010, Arvay et al., 2013). This option was selected for this paper. The last design is an interdigitated design that does not have a continuous pass. Recent studies by Kahraman and Coban (2020) used tree leaves that obey Murray’s law to achieve homogeneous gas distribution. S++ Simulation Services with a current scan of the board were used to determine the homogeneity of the current distribution. It scans the current at 10×10 = 100 small segments for 50 cm2 MEAs. Sauermoser et al. (2020) showed that lung-shaped designs for BPPs and other design procedures could be a possible solution. The companies do not reveal the techniques for designing BPPs. Most companies are in competition and the cost is behind this issue. We found evidence that there is a structure for the leaf and lung that provided a good performance of PEMFCs (Kloess et al., 2009, Kahraman and Coban, 2020). However, it is still difficult to design or describe the procedure and dimension of the framework.We have tested the effect of 100, 75, 50 and 25 RH of PEMFCs in experimental work. We focus on metal foam as an alternative approach for channels or BBPs. The porosity of metal foam is a very important element. The porosity can be defined as the ratio of the pore volume to the total volume of materials (Zhang et al., 2023). Several studies focus on the porosity of GDL (Zhang et al., 2023, Rahimian et al., 2018, Huang et al., 2021). They show that GDL porosity can improve the performance of PEMFCs. One study by Liu et al found that gas diffusion becomes more uniform when the gradient of porosity distribution along the thickness direction is small (Liu et al., 2022). It was also reported by Zhang et al. (2023). The model of PEMFCs was developed in one dimension (1D) by several authors in ref. (Yang et al., 2021, Lim et al., 2020, Chu et al., 2003). The same results were reported by Chen et al. (2008). However, the three-dimensional (3D) model of PEMFCs was investigated by authors in ref. (Zhang et al., 2023, Zhang et al., 2016, Huang et al., 2021, Turkmen and Celik, 2018). However, all these studies focus on GDL. As far as I know and to the best of my knowledge there is no published paper so far on the metal foam of PEMFCs as alternative techniques for channels.

This paper considers the metal foam and porosity of metal foam of PEMFCs. The model of PEMFCs was first developed then the four cases to study the impact of the distribution of fuel or the reactant were investigated. Lastly, the porosity of metal foam was investigated. The optimisation of the porosity of metal foam was achieved in this research. At 0.6 value of porosity, the model of PEMFCs gave better performance which is considered the optimal value of porosity of metal foam. It is the most suitable porosity value for distribution for the metal foam. It can mitigate the challenge in PEMFCs.

2. Related Works

• Description of Fundemntal of PEMFCs

The basic principle of PEMFCs is described in this paper. This is a simple way to describe the operation of PEMFCs.

The fundamental of the PEM fuel cell is that in every single cell, the hydrogen gas passes over the hydrogen electrode. Every hydrogen molecule is converted into a hydrogen particle in a catalytic reaction. While the electron passes through an external electrical circuit to produce electricity (Hamilton, 2014). The hydrogen is oxidised on the anode while the oxygen is reduced on the cathode. Therefore, we have two operations which are oxidization and reduction in PEMFCs. We obtained water and heat based on Eqs. (1)-(3) of PEMFCs. The hydrogen is yielded into two electrons and two protons of hydrogen at the anode side which is given by the balancing Eq. (1):

$$H_2\left(g\right)\to 2H^{+}\left(aq\right)+2e^{-}$$

(1)

While on the cathode side, the oxygen responds with protons of hydrogen which are yielded by:

$$\frac{1}{2}{O}_2\left(g\right)+2H^{+}\left(aq\right)+2e^{-}\to H_{2}O$$

(2)

The final equation is given below if we add the above equations (Eq. (1) and Eq. (2)) together to obtain:

$$H_2\left(g\right)+\frac{1}{2}{O}_2\left(g\right)\to H_{2}O+electrical energy+waste heat$$

(3)

The waste heat can be used for heating a domestic house whereas electricity is the main purpose for the whole reaction. The above chemical reaction has occurred in a single PEM fuel cell and the procedure continues in every cell inside the stack PEMFCs.

2.

Phase changes and Justifications to select Fluid in Modelling PEMFCs

When we discussed the gas diffusion layer, we found that it would be important to go back to the basic changes of states, atoms and diffusion processes which occur only in liquids and gases. Basically, there are three states of matter that are solid, liquid and gas. These states of matter can be changed into one another which is changing the amount of energy by either gain or loss of kinetic energy. From solid to liquid state, for example, the melting process is used, while vice versa is the freezing process. Also, from liquid to gas state, the boiling process is used while the vice versa is the condensing process. Furthermore, we can change from a solid state to a gas state (Curtis and Yankovsky, 2011), but it needs a lot of energy to achieve this process. The particles in these three states of matter are arranged in different ways. In the solid state, for instance, particles are regular have a repeat pattern and are stronger than in the liquid state. However, there is no diffusion in the solid state, but the components assigned as fluid will have diffusion (Curtis and Yankovsky, 2011, Horovitz and Johnson, 1959). This is why most components are considered fluids in PEMFC modelling to allow them to diffuse. Hence there is no diffusion in solids in PEM fuel cell modelling. We must consider most components in fuel cells or PEM fuel cells as fluids. To continue the discussion of properties of particles in liquid and gas states, the particles are irregular. However, in the liquid state, the particles move around, and they can slide past one another. But in the gas state, the particles move freely and constantly collide with each other. In general, in diffusion, the particles move to fill the space available in gases or in liquids. In the gas state, the particles are moving randomly because there are large gaps between the particles. The particles can, therefore, easily mix together in gases that take only five minutes to mix (Curtis and Yankovsky, 2011). While in the liquid state, the particles are moving slowly and the particles can take a longer time up to six hours (Curtis and Yankovsky, 2011). The particles in liquid states move more slowly than in gas states in PEMFCs, there are two cases that are liquid and gas states. Therefore, most of the components in modelling are considered fluids and it has been changed from solid to fluid in the geometry design because, by default, it is assigned as solid. Therefore, we have to assign it as fluid. Also, we need to be familiar with terminology such as atoms, particles, and molecules. The molecules are made up of two or more atoms covalently bonded together while atoms are made up of smaller, sub atoms particles called protons neutrons and electrons.

3.

Discussing the Previous Works in Porosity

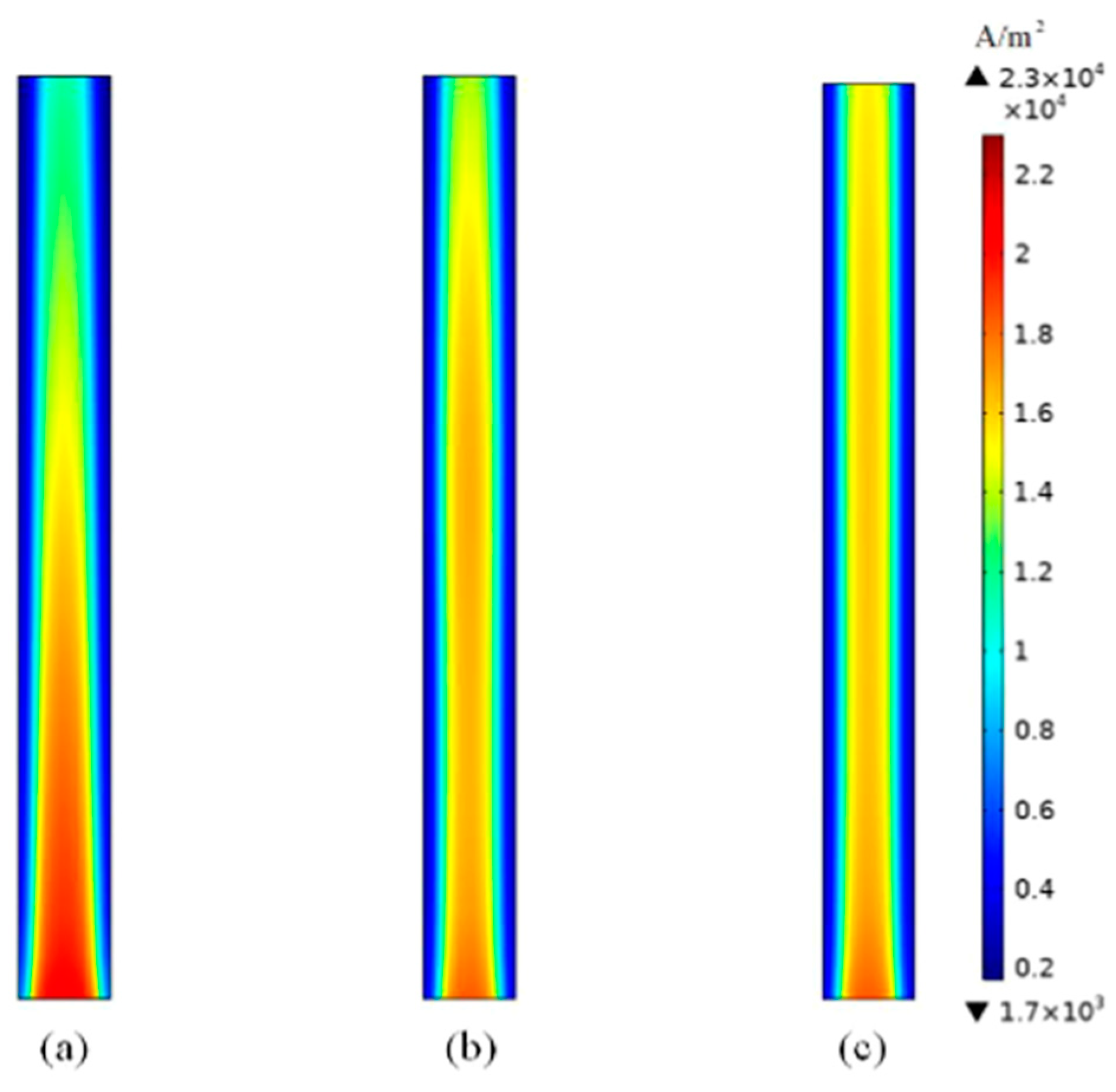

After we discussed the structure of FC and defined it, then we presented the principle of operation of PEMFCs. Now, we will discuss the current published works in the field of porosity and metal foam of PEMFCs. The recently published paper that focused on the optimization and effectiveness of GDL porosity distribution was presented by Zhang et al. (2023). It mainly highlighted two challenges which are the ununiform distribution of reactants and the condensation of water vapor. The 3D model of PEMFCs was developed then unform, curve and parabolic distribution of GDL pore density were investigated. It was found that the parabolic distribution provided certain advantages in promoting the uniform distribution of PEMFCs in terms of the flow of liquid water flux to the outlet and current density. However, the liquid water flux was only calculated at 0.4 voltage. It would be very useful if the different values of voltages would be investigated. Another study was investigated at 0.7 V (Jha et al., 2020). However, the study by Zhang et al. (2023) showed that there is no obvious improvement in the polarisation curve under the different GDL porosity distributions of the three cases, which are the uniform distribution, curve distribution and parabolic distribution of GDL. However, the current density parabolic distribution showed a more uniform distribution as shown in Figure 1.

We have the same results at high voltage operation of PEMFCs that have little effect on the polarization curve PEMFC because the power is very low. However, when we draw more current from PEMFCs, the effect of the performance of PEMFCs deteriorates and degrades. These will appear on both the I-V and I-P curves of polarizations.

3. System Configuration

The numerical model of PEMFCs using ANSYS Fluent with an active small area was developed to study the impact of uniform distribution of fuel. Also, the effect of the porosity of metal foam on the performance of PEMFCs is an important parameter within the PEMFC structure. Because this will be responsible for the distribution of fuel or reactant inside the PEMFCs. The FC is an important technology, particularly the PEMFCs that can be used in versatile applications such as portable and stationary applications, space exploration missions, backup power units and power sources for automobiles (Giacoppo et al., 2019). The PEMFCs are the most popular type of FCs in current decay due to the advantages of the PEMFCs that work at low temperatures and high-power density. Also, the PEMFCs have a low startup time compared to SOFCs. Not only this but there is some evidence to integrate the SOFCs and PEMFCs to combine the advantages of both SOFCs and PEMFCs. The SOFCs accept diverse fuels (natural gas) while PEMFCs only accept hydrogen (Wu et al., 2019). We proposed a system for PEMFCs based on the analysis and discussed several articles. This idea is very easy to implement, and we can use ANSYS Fluent easily, where we can select inlet channels and outlets.

3.1. Configuration of the Model of PEMFCs and Scope

The problem is that the distribution of fuel is not even (uniform distribution), some areas that do not have H₂ or O₂ will be considered dead areas. Therefore, we proposed, a new strategy to test metal foam in ANSYS Fluent as shown in Figure 2. A new strategy to test metal foam in Ansys Simulation Software was developed. Then we created four cases to investigate the performance of modelling PEMFCs as demonstrated in Figure 3.

We have to investigate the effect of different distributions of reactant flow. We came up with the idea to model PEMFCs. This model has five inlets and five outlets for the anode side and then five inlets and five outlets for the cathode sides as shown in Figure 4 (D), Case IV. The inlets were set up to a thermal temperature of 80 $℃\approx$ 353K for both of anode and cathode sides. However, the mass flow rate and species for anode inlets are different from cathode inlets. For the anode, inlets were selected at 0.6 [µ kg/s] but for the cathode, inlets were set up to 5.0 [µ kg/s]. The mass fractions for species for the anode side were set up as 0.8, 0.0, and 0.2 for hydrogen, oxygen and water respectively. Therefore, we expect the mass fraction of H₂ at the inlet in the contour will reach 0.8. While species for the cathode side were set up as 0.0, 0.2, and 0.1 for hydrogen, oxygen and water respectively. But for outlets on either the anode or cathode sides, for simplicity, the pressure outlets were selected to zero and the temperature was set to 80 $℃\approx$ 353K for both the Anode and Cathode sides. Later for intemperate temperature investigations of PEMFCs, we can vary the temperature. There is another setting on the model, which is not mentioned in this paper, but it can be found in the model, which is under the request once this paper is published. To conclude, we create four cases to investigate the performance of modelling PEMFCs and the effect of different distributions of reactant flow as demonstrated in Figure 3.

3.2. Investigation of the Different Configuration Models of PEMFCs in ANSYS Fluent

It is important to discuss the flow in fluid/liquid as the fluid is a substance that does not permanently resist distortion. So, any attempt to change the shape of a fluid mass will lead to sliding the layers of fluid over another layer until a new shape is attained. This will depend on the viscosity of the fluid and the rate of sliding (McCabe et al., 1993). Another property of the fluid is essential for fluid either incompressible or compressible. The density of the fluid can be incompressible when moderate changes in temperature and pressure have slightly occurred. But when the change in density is significant occurred, it is called compressible. Based on McCabe et al. (1993), liquids are generally considered to be incompressible while gases are considered compressible. The rate of mass ($\dot{m}$) in steady flow entering the flow system equals leaving the system. The rate of mass is given by (McCabe et al., 1993):

$$\dot{m}={\rho }_a{\mu }_a{S}_a={\rho }_b{\mu }_b{S}_b$$

Where ${\rho }_{a}and{\rho }_b$ are the densities and ${\mu }_{a}and{\mu }_b$ are donated to velocities and also $S_{a}and{S}_b$ are the cross-section area. To find the rate, we need to know how much flow of liquid per second or minute. The rate is terminology that is used in most research such as in computer science to know the data rates for example.

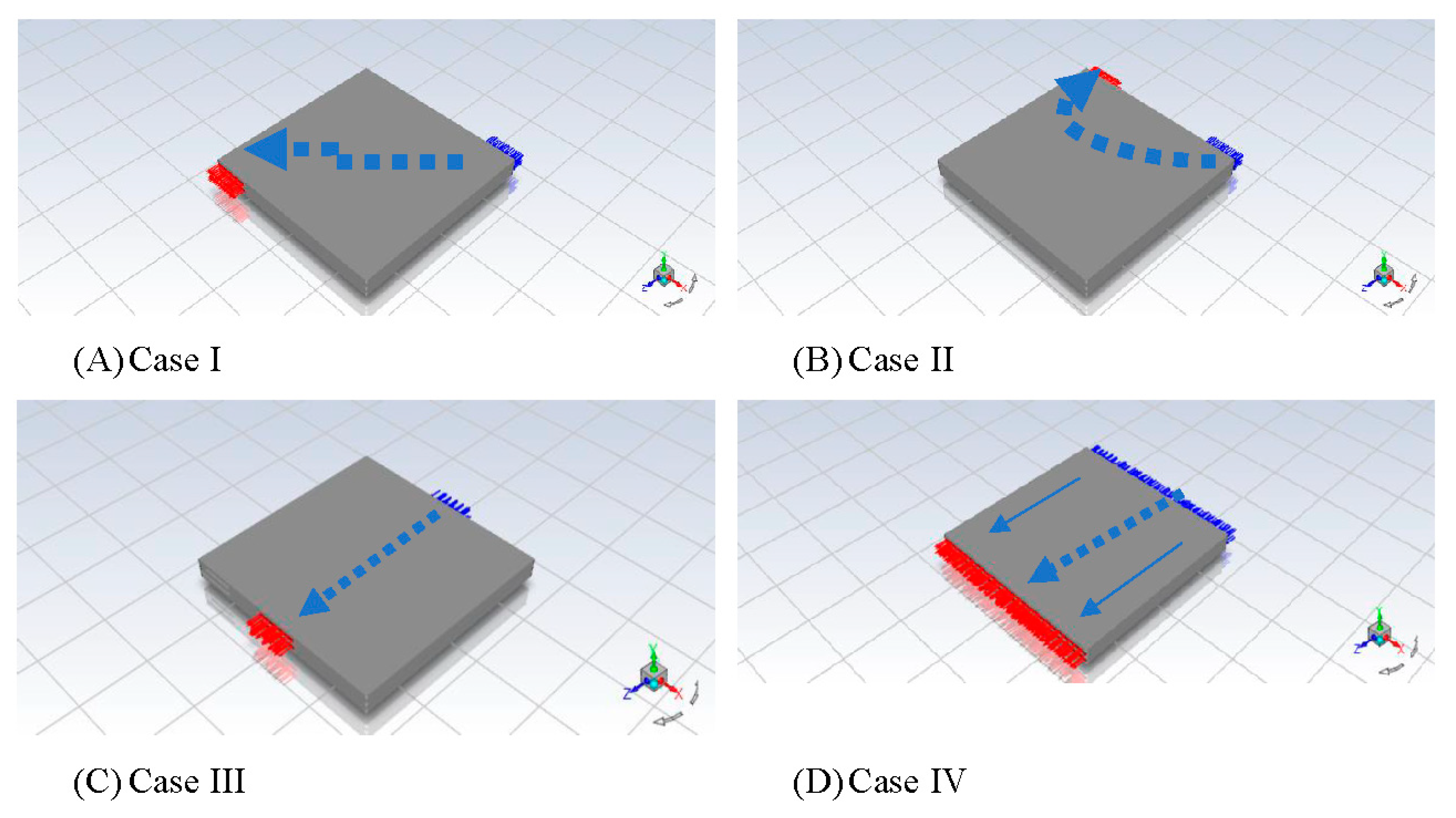

Our aim is to investigate the four cases of the configuration of PEMFCs and find the effective performance of four cases in terms of I-V &I-P curves. In the scope of this paper and based on acquired results, we will look at a mass fraction of different configurations. We will find out the mass fraction of metal foam (MF) of the middle plane and catalyst layer (CL) for the anode and cathode sides and compare them. To conclude up, the species of PEMFCs such as hydrogen, oxygen and water are investigated and presented in contour (3D) in this research Programme. This was achieved after we investigated the effect of different configurations of PEMFCs, and several tests were conducted. We found at 0.3 V there are huge and massive changes in the I-V &I-P polarization curves.

Case I of Metal Foam

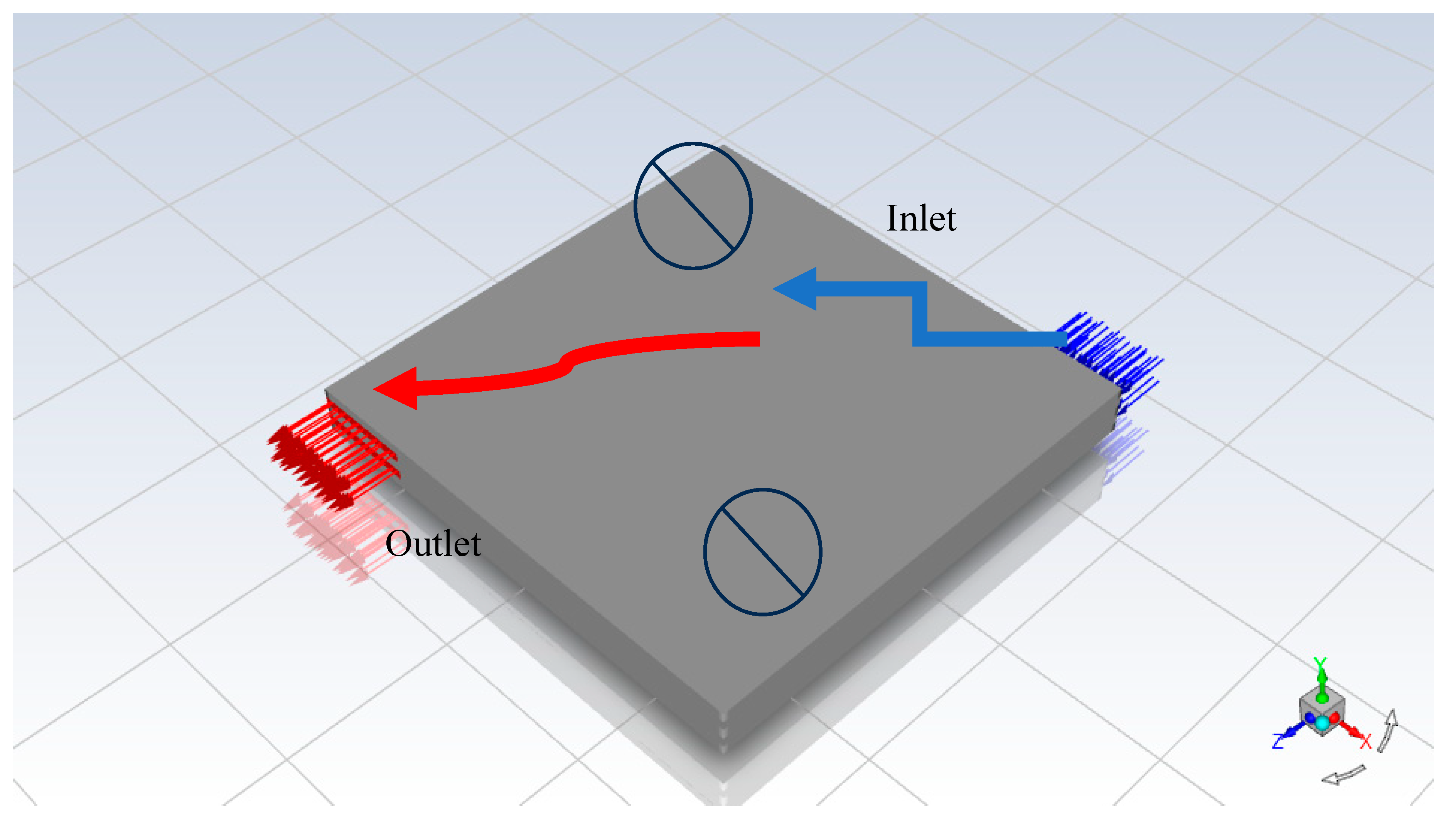

We start with Case I where the voltage of the terminal of the cathode was set up to 0.7 V. Then, we have an open voltage is 1.0 V. But 0.9 was selected as a starting point to determine the I-V curves. If we set it to 1.0 V, the Ansys Simulation Software will give an error as the current density should be zero. For the default case, we set up the temperature to 80 $℃$ (353 kelvin) and it was set up to 1600 iterations. This was selected after the optimising process, where the 100, 200, 1000 and 2000 iterations were tried. The outcomes can be described in the table below from 0.9 V to 0.2 V as the first test. We have reduced the number of iterations for I-V Curves from 12,000 iterations to 9,600 iterations. Every cycle of running took four hours and 25 minutes for 1600 iterations to generate one I-V curve. It took 26 hours and 30 minutes. This is an optimal time which is reduced from 33 hours and 20 minutes. The percentage of reduction in operations time is 20.1% of the total time of operations to generate I-V curves. Then the voltage was selected to vary from 0.9 V as the open voltage is 1.0 Voltage.

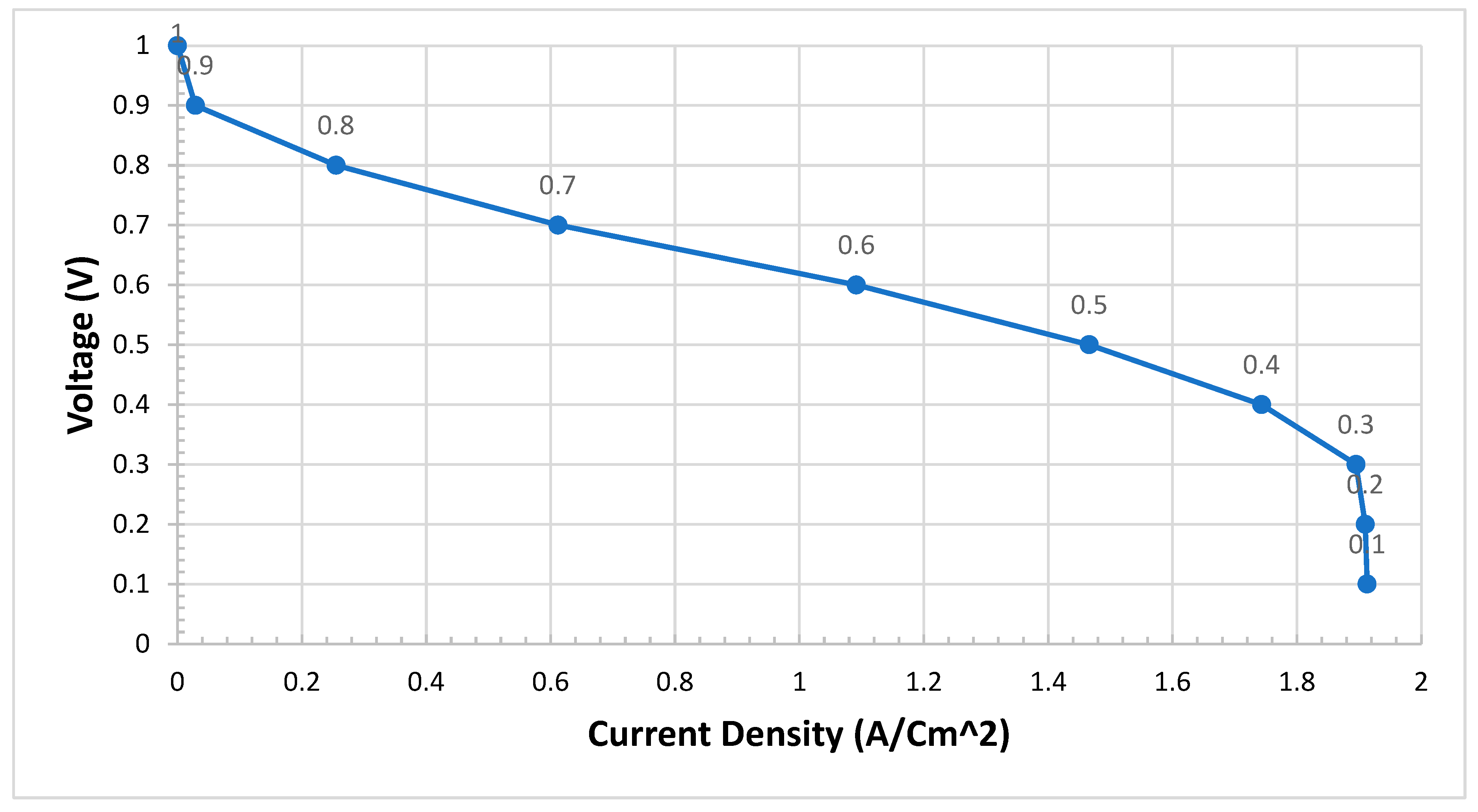

From this figure (Figure 4), we notice that there is a sharp drop between 0.3 V and 0.2 V and also at 0.1 V. The procedure is that we run the model of PEMFCs again after we complete all four configurations. This model was exported as case data. Then once we need to run back, we just import the model of PEMFCs with its setting. The outcomes are the same results with small errors that we can ignore. To find out the I-P curve, we multiply the voltage by the current density to obtain the power density. The I-P polarization curve for Case I can be demonstrated as shown in Figure 5.

Case II of Metal Foam

We set up the model of PEMFCs in ANSYS Fluent as in Case II. The voltage at the cathode side was set up to 0.9 and the model is running for 250 iterations. In every step, we changed the voltage at the end of the running model then the current density was listed against the voltage value. The polarization curve of I-V was obtained. In this experimental work, the I-V curves do not go below 0.2 V. We try to be more accurate and precise and run the model to give smooth curves. 0.2 V is enough and also, we notice there is no change at 0.9 V and 0.8 V. It would be nice if we could develop the idea to find the sweep parameter in ANSYS fluent to draw the I-V curve and I-P curve directly as we have in experimental works or in the laboratory in Scribner fuel cell at Chemical engineering. This will save time and will be more accurate as the computer will produce good results. Once I-V was obtained, the current density was multiplied by the voltage to obtain the I-P curve. We draw the current against the power that demonstrates the curve of power and the high power can be obtained at this configuration when the current density is drawn between 0.9-0.1 [A/Cm²] is 0.47 [W/CM²].

Case III of Metal Foam

In the same procedure, we set up the model of PEMFCs in ANSYS Fluent as in Case III. The voltage at the cathode side was set up to 0.9 and the model is running for 250 iterations. In every step, we change the voltage at the end of the running model, where the current density response is listed against the voltage value. The polarization curves of I-V and I-P were obtained respectively.

Case IV of Metal Foam

With the final case, which is Case IV, in the same procedure, we set up the model of PEMFCs in ANSYS Fluent as in Case IV. The voltage at the cathode side was set up to 0.9 and the model is running for 250 iterations. In every step, we change the voltage at the end of the running model and the current density is listed against the voltage value at the end of the cycle. The polarization curves of I-V and I-P were obtained respectively.

4. Results and Discussion

4.1. Effect of Different Configurations and Comparison between Four Cases

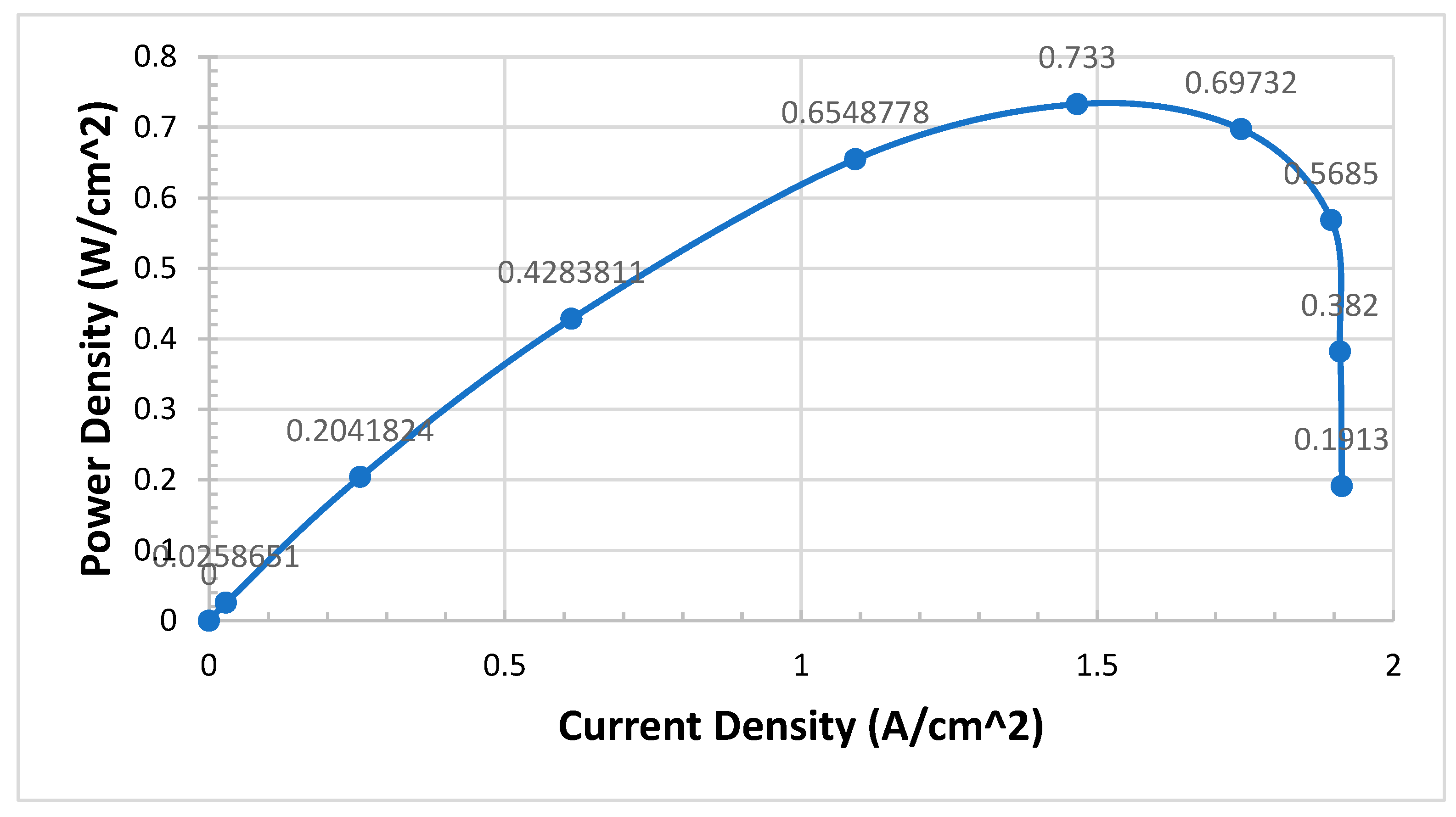

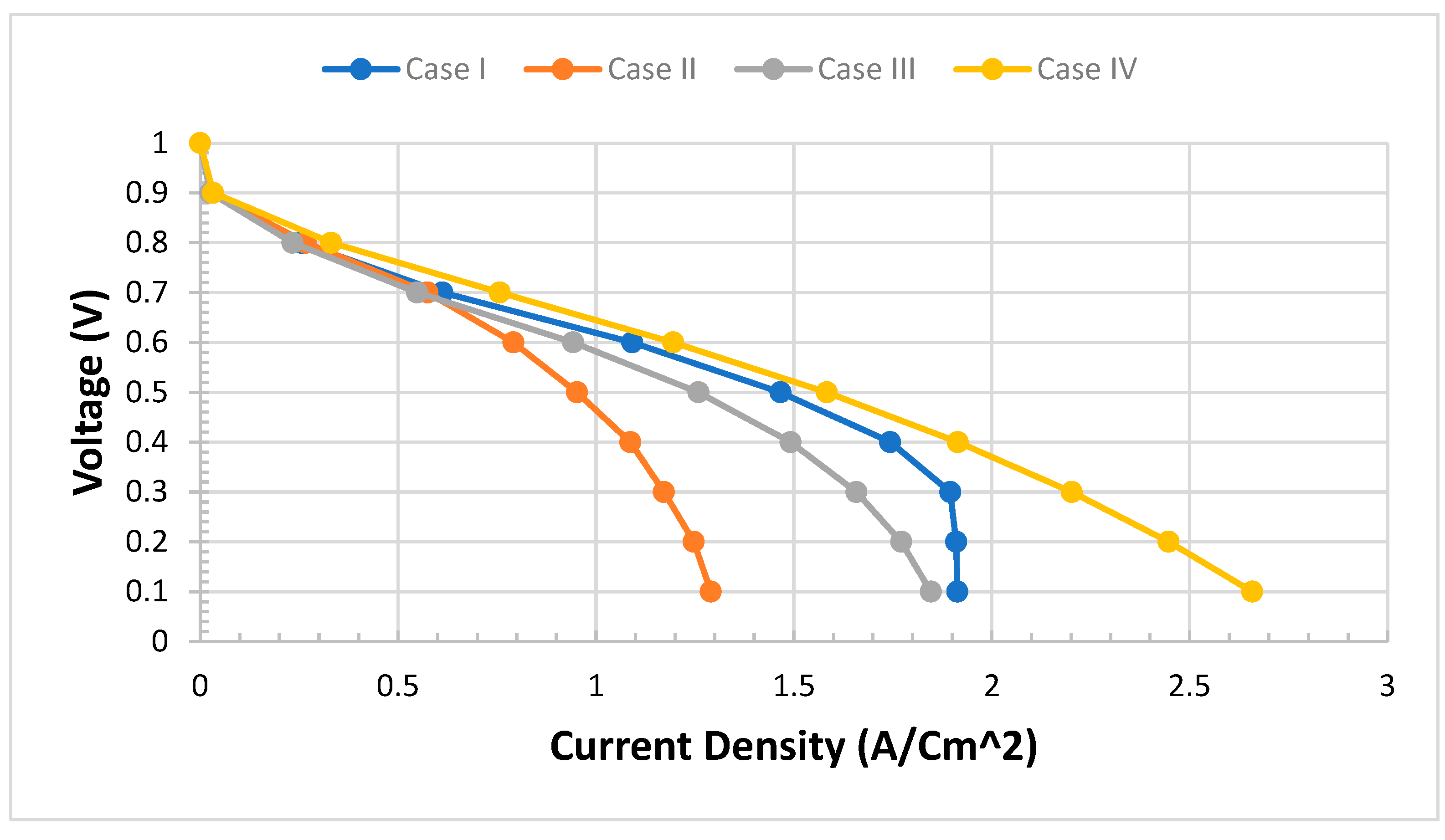

We need to validate the model and study the difference between four cases of configurations. The model of PEMFCs was validated by I-V and I-P curves as in the previous test four cases. We expect Case IV to be the best case of configuration. We can see from Figure 6 that Case IV provides the best performance, particularly in the transport area of the I-V curve if we compare it with the worst case which is Case II.

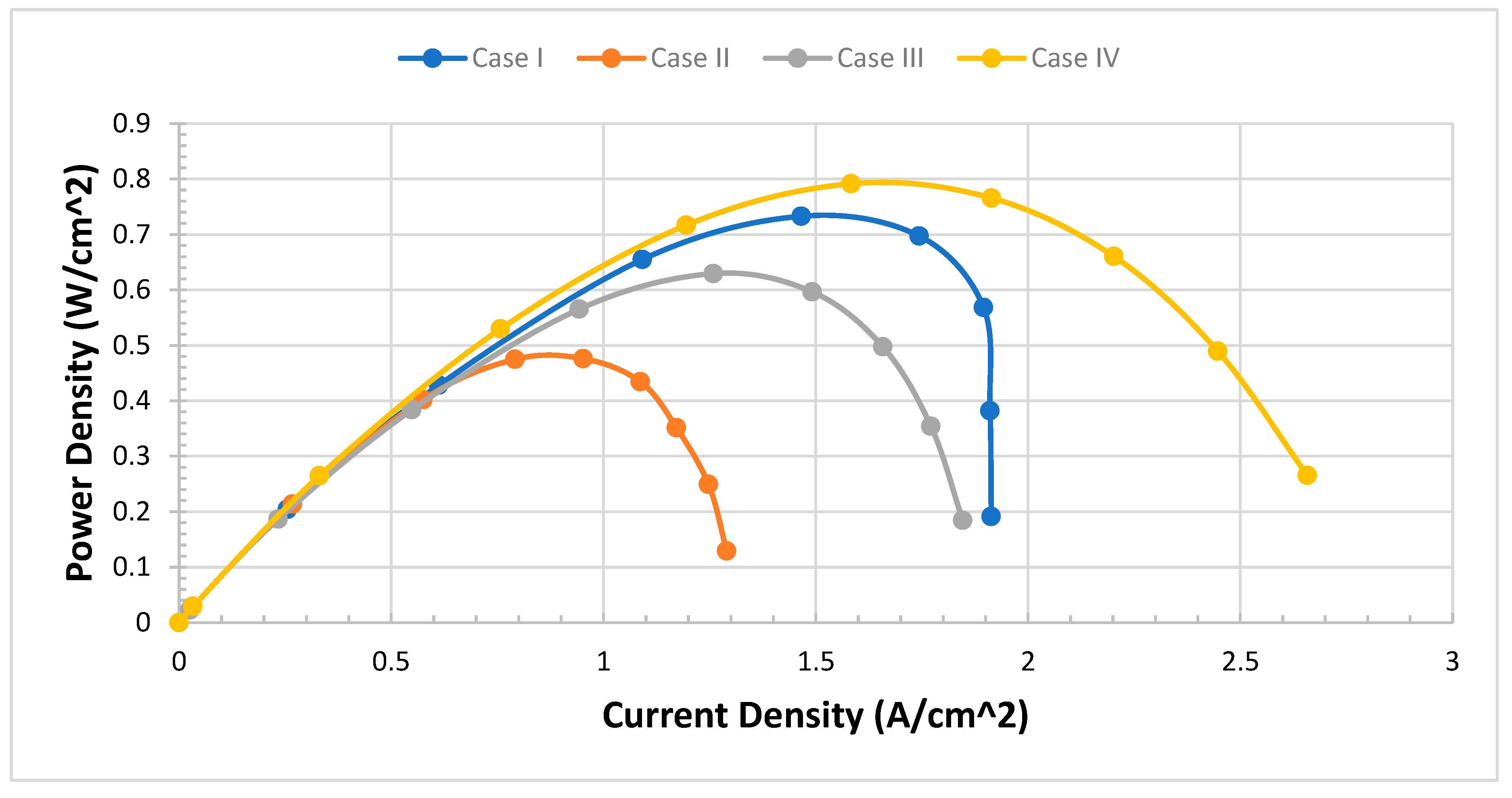

Case IV can provide twice as much as Case II in terms of power density. This not only improves the performance in terms of I-V curves but also the curve of the I-P Curve is very smooth and realistic Figure 7.

4.2. Comparison of Four Cases in Contour Diagram Using ANSYS Fluent

We focus on contour plots or diagrams in this section. The contour gives us to see inside the model of PEMFCs which is not easy to obtain in experimental works. A contour plot is defined as a graphical approach for depicting a three-dimensional (3D) surface by tracing constant z slices, known as contours, on a two-dimensional plane. A contour plot is an alternative to a three-dimensional surface plot. The contour plot can illustrate if the surface is symmetric or not (Courant et al., 1996, Groshong and Groshong, 2006, Gurikar, 2015, SENATECH, 2023). The contours provide an effective approach for representing graphs in different locations of the system by shaded areas, contour lines, or both. To create contours, we chose contours under the setting results after the model of PEMFCs completed the running cycle at a specific voltage (0.3 V). The name is given to Contour Case I, Case II, Case III, or Case IV to recognize between the cases of configurations. Then from the new surface, we select a plane surface name. Basically, we can select different views for contours such as point, line, plane, quadratic, ISO-surface, and ISO-clip. We only select plane surfaces for simplicity. In the method section, the ZX plane is selected, and a new surface name is given. Lastly, one important point is to select Y [mm], which determines the part we look for. In our model, we are looking for the middle MF of the cathode side, CL of the cathode side and also MF and CL for the anode side for all four configurations and we study the effect of fuel distribution.

-

For the middle MF layer of the cathode side, the Y-Axis is selected at 0.75 mm.

-

For the middle CL layer of the cathode side, the Y-Axis is selected at 1.2575 mm.

-

For the middle CL layer of the anode side, the Y-Axis is selected at 1.3225 mm.

-

For the middle MF layer of the anode side, the Y-Axis is selected at 1.83 mm.

Then Contours of species for mass fraction, molar fraction, molar concentration or enthalpy can be drawn for N₂, O₂, H_2, and H₂O. Only in this research, we selected mass fractions of O₂, H₂ and H₂O. We can also study pressure, density, velocity, temperature, wall fluxes and other properties.

Anode Side along with MF

A mole fraction is defined as a concentration unit that relates the moles of a particular solute to the total moles of the solution. We have three essential elements that are solute, solvent and solution. The latter is a homogeneous mixture of both solute and solvent. We conduct the mass fraction of hydrogen and water in the designing model of PEMFCs.We changed the range of the best distribution case which is case IV. It was managed to see the mass fraction of hydrogen in the range between 0.65 to 0.80. This indicates that the distribution of hydrogen is brilliant and in a perfect way. It is impossible to see the mass fraction of hydrogen in this range with the other three cases. The other case ranges are varied from 0 to the maximum value of the mass fraction of hydrogen which is 0.8.

The problem is that we do not know the side of PEMFCs whether is from the side of the anode or cathode of metal foam while we carry out the diagram and analysis. However, we can confirm that this cathode side and hydrogen are very low in case IV. We should measure the oxygen or plot the contour of oxygen at the cathode side, not hydrogen. This is almost close to zero. The other problem is that when we run the model, we do not know the best range to represent the model. For example, the deformative contour can be clearly seen when it is out of the setting range and becomes an invisible region.

Cathode Side along with MF

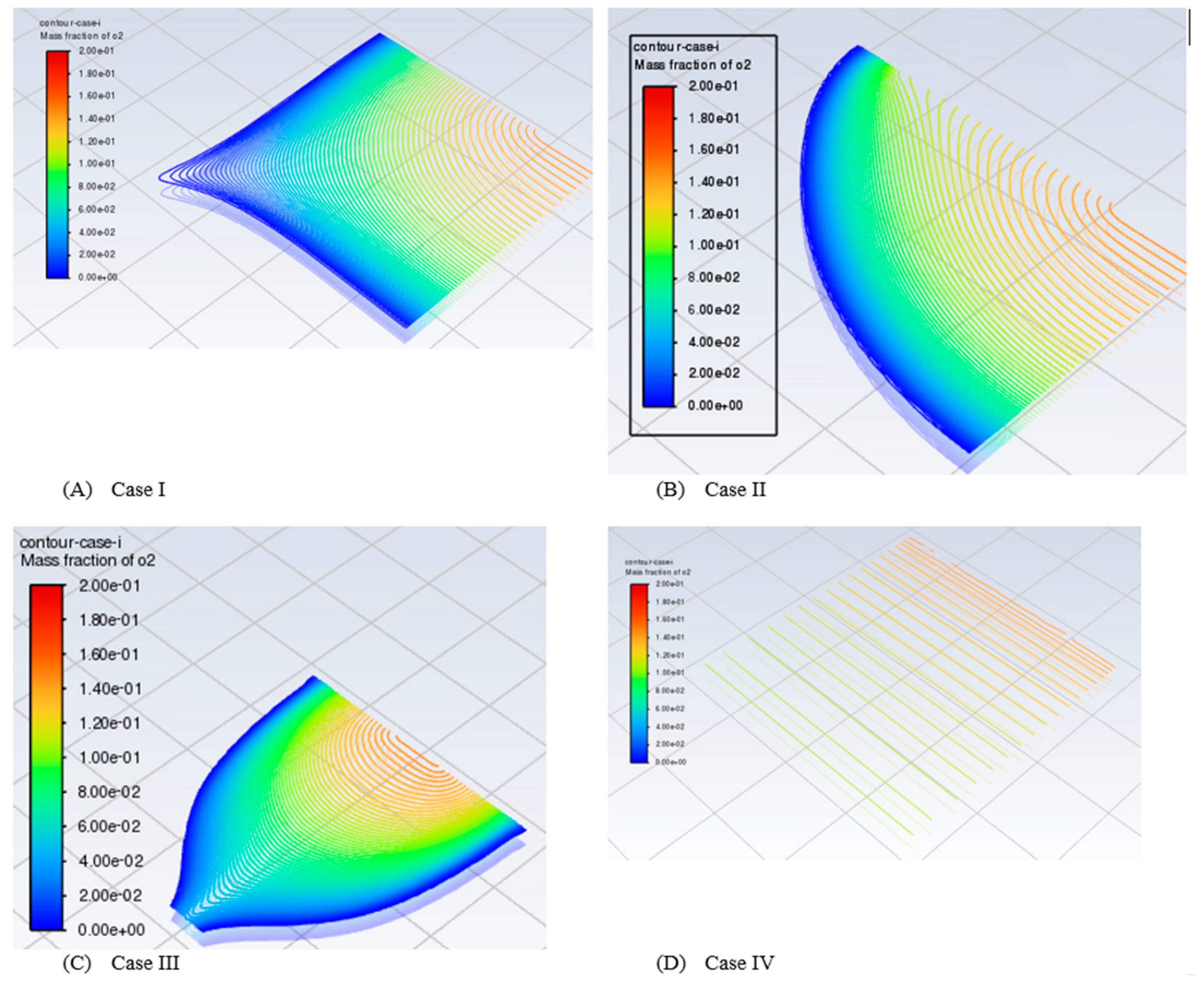

We focus on the side of the cathode of PEMFCs. We look at the mass fraction of oxygen and water of metal foam at the cathode side. We have looked at N₂ at the cathode side as well. O₂ and N₂ are considered air gases, we set up the mass fraction of O₂ to O₂, so we expected the N₂ to be around 0.8. We found the mass fraction of N₂ as we expected.

Cathode Side along with CL

Then we focus on the CL of the cathode side. We find the oxygen and water at the CL of the cathode side of PEMFCs. This presents the realistic results we expect. We found that Case IV is the best case for the distribution of O₂ at the cathode side.

Anode Side along with CL

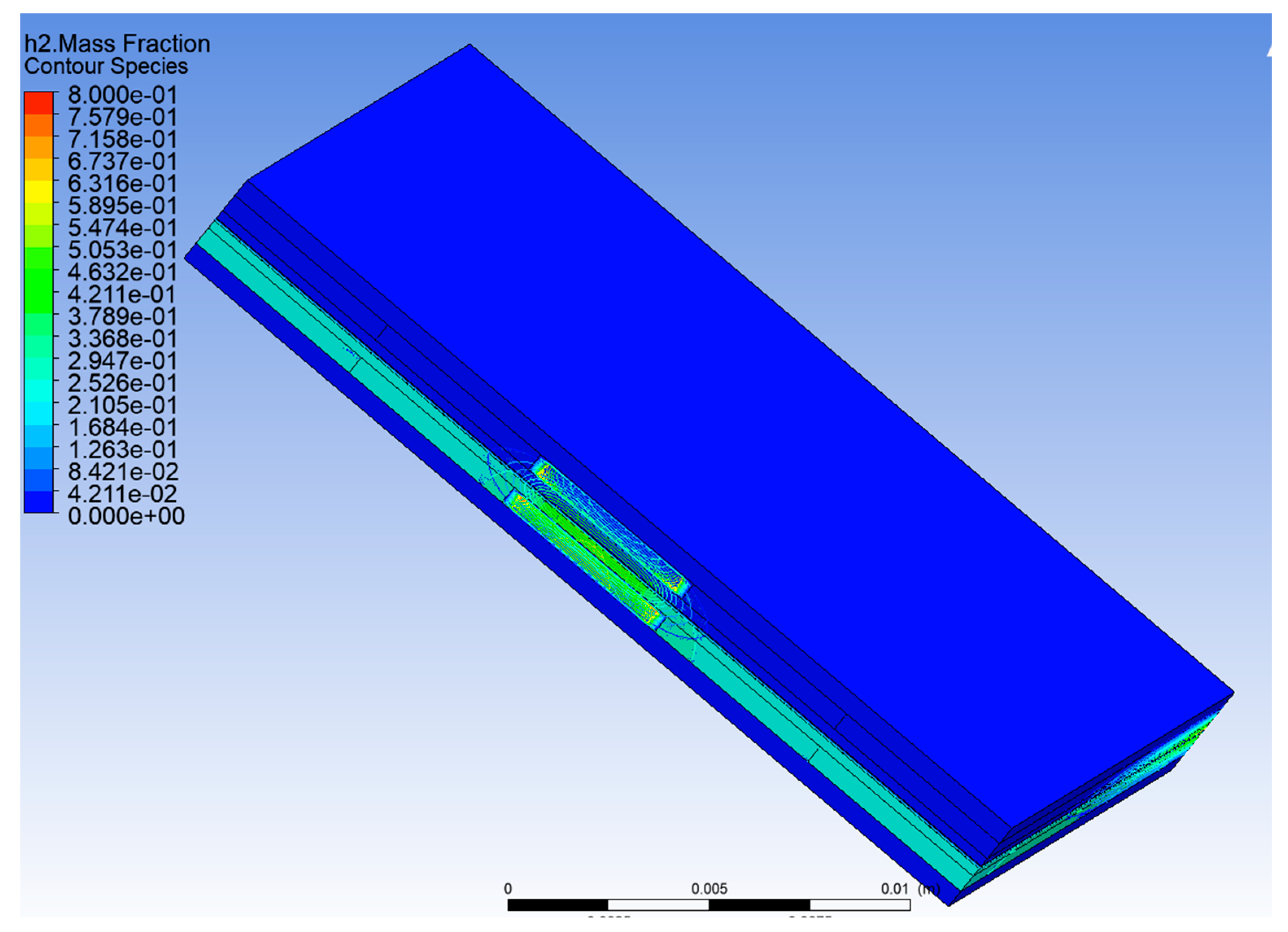

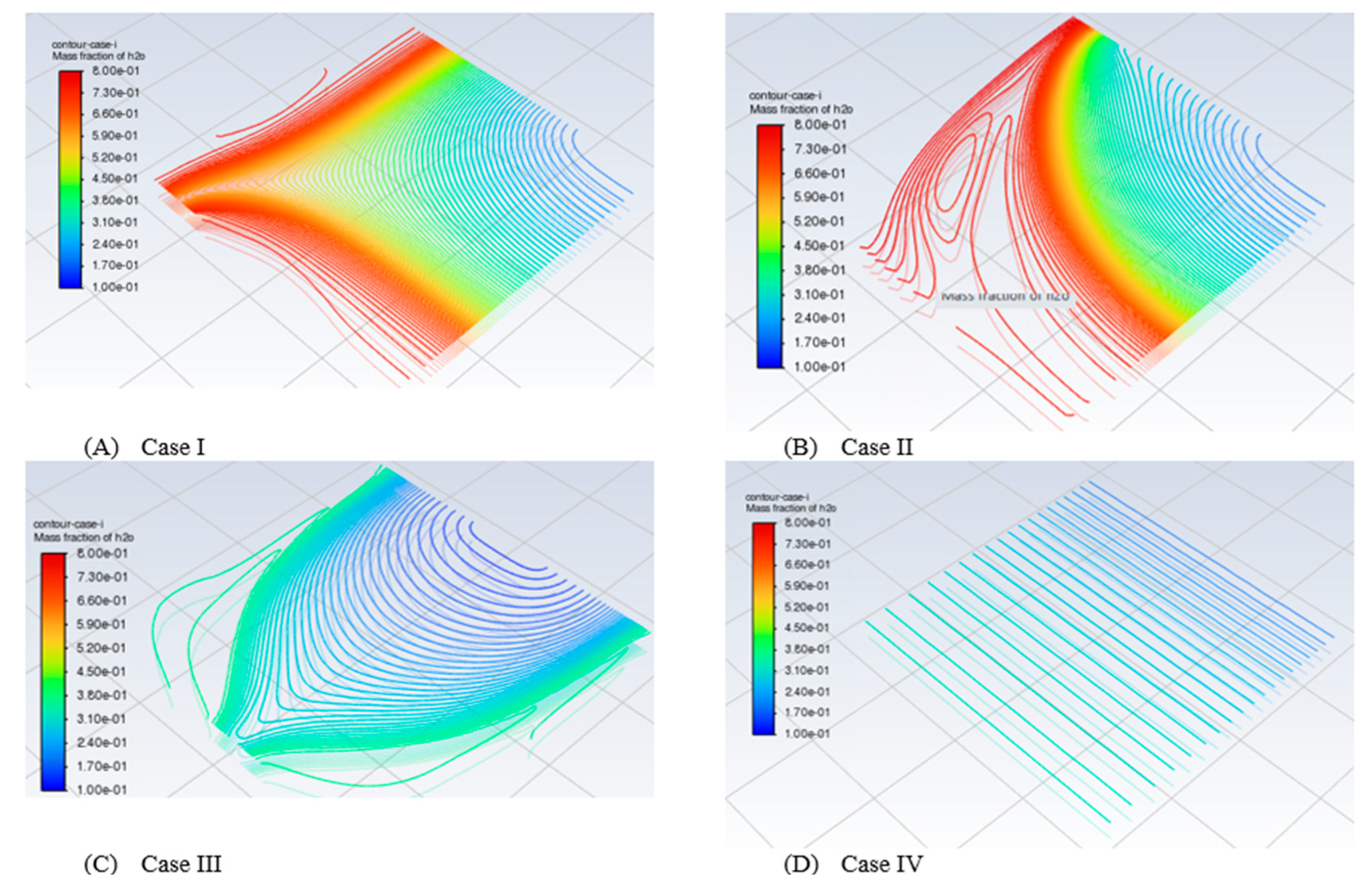

We focus on the CL of the anode side. We find the hydrogen and water at CL of the anode side. The mass fraction of H₂ at case IV can be demonstrated in a small range between 0.6 and 0.789 to show the best distribution case of fuel.

Improvement of Results

In order to improve overall results, we conduct general reviews and investigations many times. The molar fraction formula is given by (Nic et al., 2005, Zumdahl and Zumdahl, 2008, Zaborowska, 2023):

$$Molefruction\left(X_{Solute}\right)=\frac{Molesofsolute}{Totalmolesofsolution}=\frac{Molesofsolute}{Molesofsolute+molesofsolvenet}$$

The mole fraction of oxygen in the air can be determined by dividing 160 mmHg by the pressure of the air which is 760 mmHg (Zaborowska, 2023):

$$X_a=\frac{160 \mathrm{m}\mathrm{m}\mathrm{H}\mathrm{g}}{760 \mathrm{m}\mathrm{m}\mathrm{H}\mathrm{g}}=0.21053$$

The mole fraction is also called molar fraction or amount fraction and it is a dimensionless quantity (Maitra and Bagchi, 2008). We expect the mole fraction to be less than 1. We realise that there are some inconsistencies in results due to the voltage being selected at 0.3 V. It is difficult to compare and expect the results in advance. We ran the model on different laptops and obtained different results which could be more sensible and realistic than the previous results. It matches the configuration of PEMFCs, the oxygen water and hydrogen can be described easily as we expected and we had set up. We only demonstrated two cases as in Figure 8 and Figure 9 in this paper.

4.3. Post Results Analysis in ANSYS Simulation Software

We noticed that there were some problems when the contour of the mass fraction of O₂, H₂ and H₂O was not easy to understand. Therefore we developed the post results to the model of PEMFCs. The contour of the mass fraction of H₂ in total PEMFCs is shown in Figure 10. This figure as we expect, the mass fraction of H₂ was set up to 0.8. We can confirm it in this paper, but fuel is varied after inlet in metal foam to reduce to up 0.42. Also, the porosity of metal foam and GDL and CL does not change. The GDL was set up to 0.9 while the CL was set up to 0.5. The porosity of metal foam was fixed at 0.9, in all the above tests. However, we purchase metal foam material and we use a mercury porosimetry machine to measure the porosity of metal foam. One sample was found 0.5 in the laboratory at the University of Birmingham. Therefore, the next test will be conducted to measure and investigate the impact of metal foam porosity and how to optimize it to give better performance in the modelling of PEMFCs.

There is fluctuation at the inlet of the anode side. But at the cathode side, there is no effect of hydrogen, and we can assume only the O₂ at the cathode side. We have 21% of O₂ in the atmosphere and the air is 78% and other gases are 1%.

4.4. Behavior of PEMFCs with Varying of Porosity of Metal Foam

Impact of Variation of Porosity

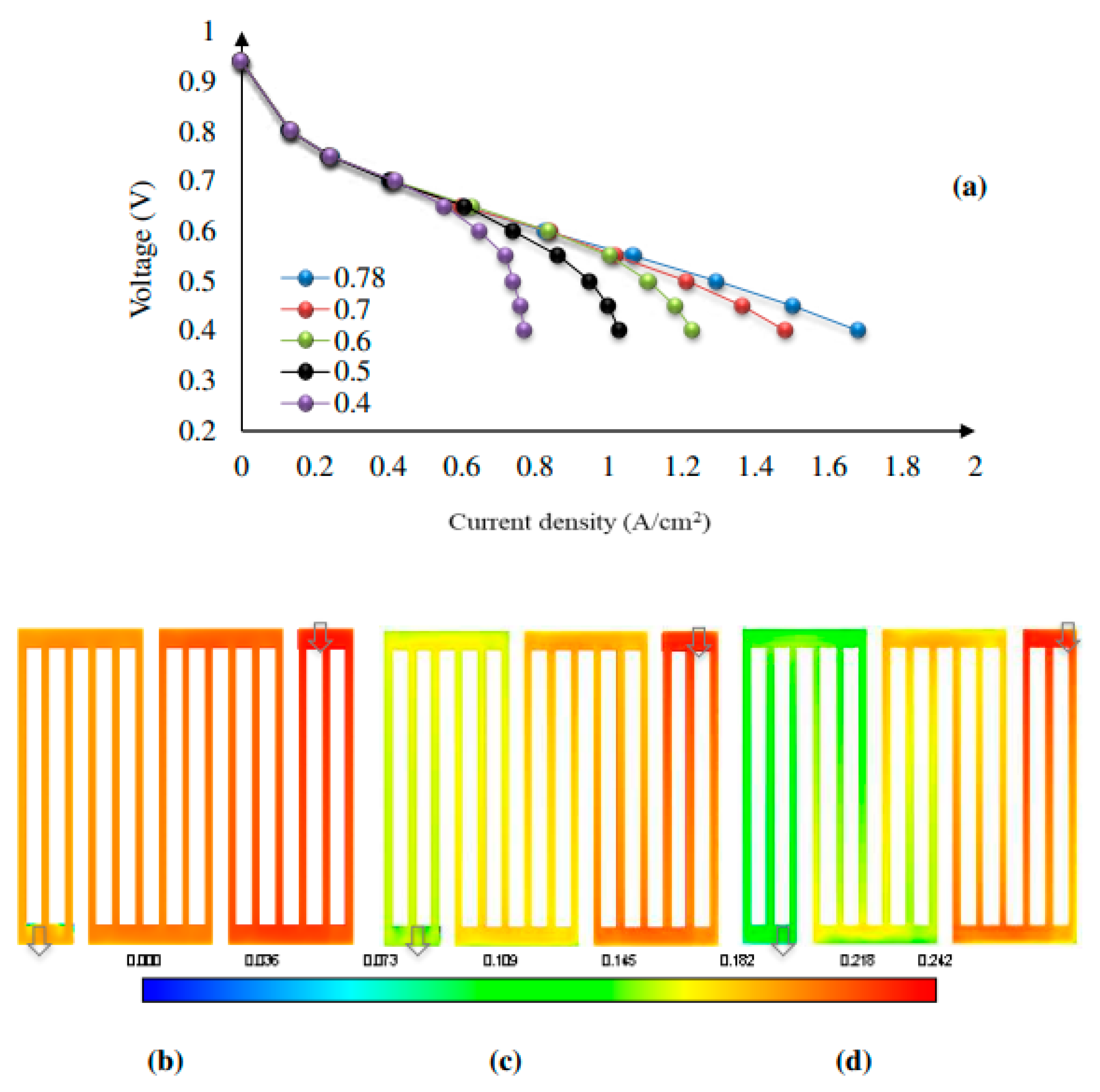

We have to investigate the impact of porosity in metal foam. As far as I know, no one has investigated the impact of the porosity of metal foam in PEMFCs. There is a little investigation about the porous layer and porosity of GDL as presented in ref (Carcadea et al., 2019). It is worth presenting these results here as shown in Figure 11 to validate our works, but the design is completely different and the investigation that we carry out in different layers which is metal foam in the channel. We fixed the value of the porosity of GDL and CL to 0.9 and 0.5 respectively and did not change them.

In a previous investigation, we set up the porosity of metal foam at 0.9. Therefore, case I was selected to carry out the impact of the variation of porosity of MF. We measured the metal foam using a Mercury Porosimetry device. Mercury intrusion or Mercury Porosimetry is a powerful technique that allows us to determine the detail of the porosity of materials such as metal foam, battery plates, fuel cell catalysts or electrodes. One of the biggest benefits of this Mercury Porosimetry is that it can measure pore sizes in a wide range from a few nanometers to several hundreds of microns. This Mercury Porosimetry can determine several properties of material such as size distribution volume and surface area of the pores of the materials. We use Mercury Porosimetry to measure one sample of metal foam. It was found 0.5. Therefore, the porosity of metal foam varied to 0.9, then 0.8, 0.7, and 0.6 until 0.5. The results of modelling PEMFCs with variation in the porosity of metal foam can be listed in Table 1.

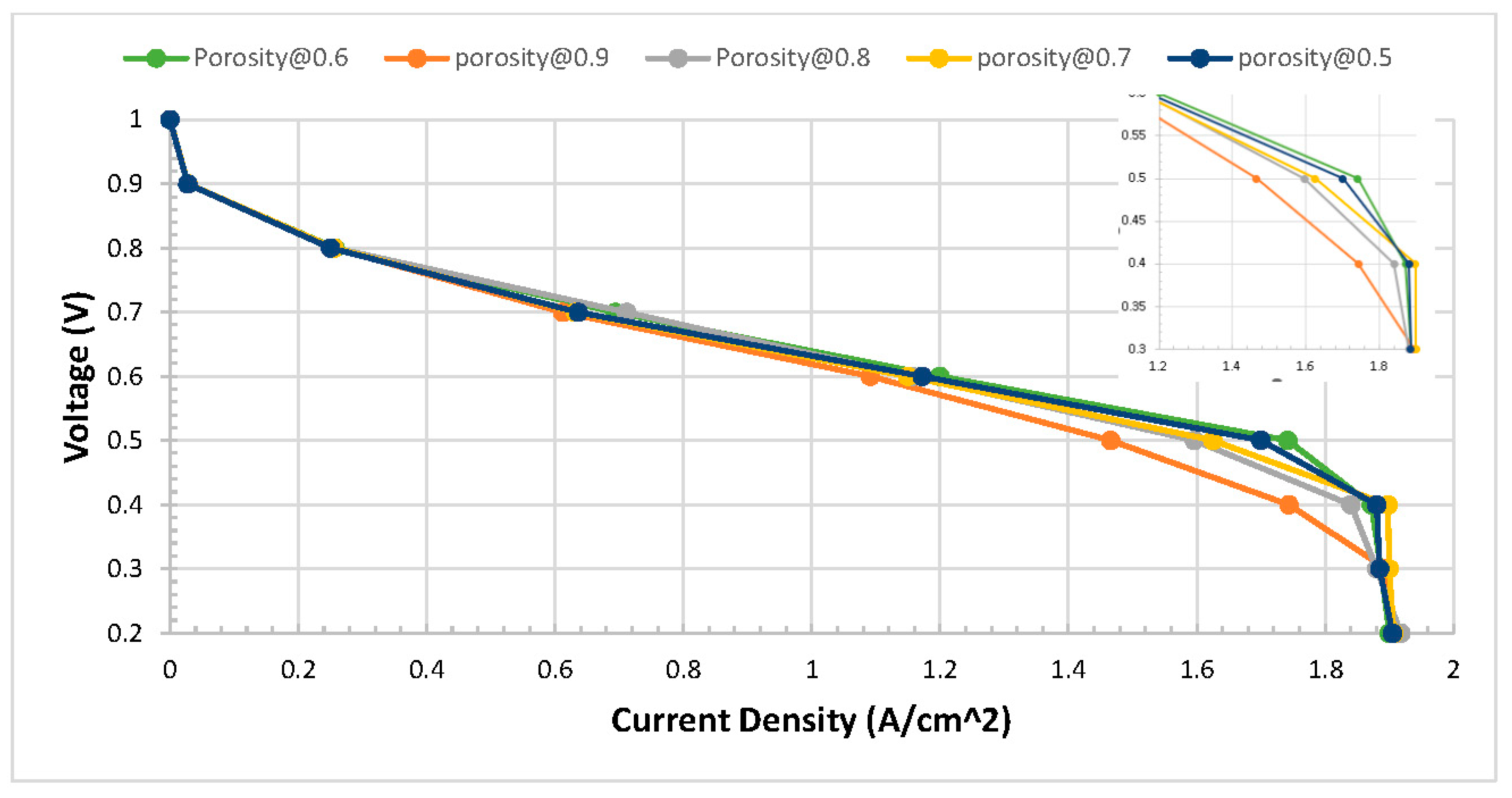

While the I-V curves for comparison can be demonstrated as shown in Figure 12. We notice that at initial up to 0.6 V, there is no significant change. Also, below 0.2 V, the PEM fuel cell does not operate at the experimental works. Therefore, below 0.2 V, can be ignored. Also, at 1.0 V is open voltage, where the current is considered zero. To zoom out and see the difference between these tests, Figure 12 shows the impact of the variety of porosity of metal foam. The variation occurs between 0.3 V to 0.6 V of the area of the I-V polarization curve. At 0.6 porosity, which is a high performance that can be observed.

Comparison between Two Scenarios at Porosity 0.6 of Metal Foam (Anode, Cathode or Both)

As in the previous test, we noticed that at 0.6 the porosity of metal foam gave high performance, which was not expected. However, both the Anode and Cathode sides were varied in previous tests. However, in this test, we will look at the impact of the porosity of metal foam if we vary between the anode and cathode sides. Firstly, at 0.6 porosity was set up for both the anode and cathode sides. Then it was compared with 0.9 porosity of the cathode and anode side. There is some improvement, especially at 0.5 V where the difference reaches 0.174 A/cm². This is a highlighted value of improvement. The percentage of improvement is 7%, which is significantly very high. This is considered a novel contribution if it is validated with experimental works. The analysis and investigation are presented. However, at the cathode side, only 0.6 of porosity was compared with the other two cases. The first case is the original case (Case I) as the initial test where both porosities of the anode and cathode of metal foam were set up to 0.9. In the second case both the porosity of the anode and cathode were set up to 0.6.

We found that both at 0.6 porosity of the anode and cathode gave better performance. Also, the porosity at 0.6 at the cathode only improved more than 0.9 of porosity. But the best performance of PEMFCs, here is at both the propensity anode and cathode set up 0.6. Therefore, the study effect of porosity on both sides of the anode and cathode can be easily demonstrated in this section. Some previous studies indicated that there is no effect of porosity on the anode side and they only focus on the cathode side. However, we can illustrate that there is clearly improvement if both anode and cathode of metal foam were changed to 0.6 in terms of porosity.

Improvement of Power Density

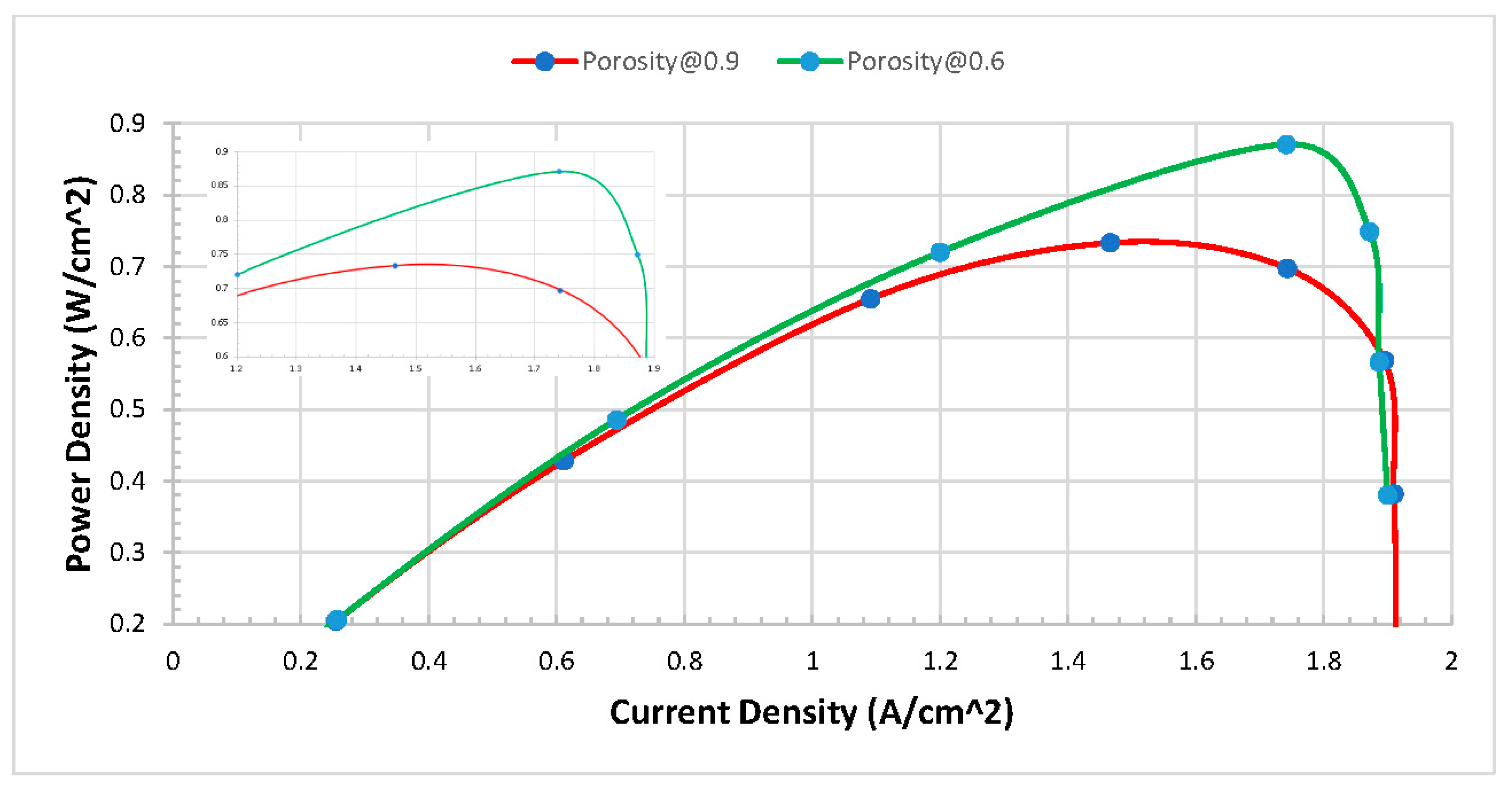

Further analysis and investigation were carried out to find the power density between 0.9 and 0.6 of porosity of metal foam. After we notice clear results, we plot the I-P curves to find out the improvement in power density. The I-P curves of 0.6 and 0.9 of porosity of metal foam of modelling of PEMFCs. Both the P-I curve and V-I polarization curves show that there is a clear improvement are shown in Figure 13. Further analysis was conducted to show a clear area of improvement in power density.

5. Conclusion

This paper presents a novel strategy to model PEMFCs in ANSYS Fluent and discusses the outcomes. In this research, we create a well-validated comprehensive 3D model for PEMFCs in ANSYS Fluent. Also, the effect of the porosity of metal foam was investigated. The performance of PEMFcs under the variation of porosity of metal foam was carried out in different tests. The porosity of the metal foam of PEMFCs at 0.6 was found to give better performance. It improved the power density of PEMFCs, which ultimately can contribute to the advancement and commercialise of PEMFC technology.

We have conducted several tests of the PEMFCs that we have. We focus on continuing to see what happens inside the PEMFCs. This facility is only available in simulations, and we cannot test in real time. In the lab, we can measure the I-V curve or I-P curves and other measurements such as Z impedance. But here in the model, we can see what happens inside the model of PEMFCs by using a contour graph. This model allows us to select the inlets and outlets. We have set up the H₂ at anode 0.8 and in contour, we notice this. Also, O₂ was set up to 0.2 at the cathode. The species are H₂, O₂, N₂ and H₂O. We work out the mass fraction in different locations of PEMFCs. The improvement of power density reached 50% compared to the worst case of configuration which is between Case IV and Case II. However, in future, we can test the porosity of GDL and CL.
