The Effect of Temperature on the London Dispersive and Lewis Acid-base Surface Energies of Poly Methyl Methacrylate Adsorbed on Silica by Inverse Gas Chromatography

1. Introduction

The estimation of the London dispersive and acid-base surface energies of solids, oxides and polymers [1,2,3,4,5,6,7,8,9,10,11,12,13,14] is of crucial importance in many industrial processes such as, adhesion, paints, coatings, corrosion, chemical reactions, adsorption, and catalysis. The most used technique to determine these surface parameters was the inverse gas chromatography (IGC) at infinite dilution. The net retention time and volume of organic solvents adsorbed on solid surfaces, experimentally obtained by IGC, are directly correlated to the surface thermodynamic properties of solid materials, such as the London dispersive ${\gamma }_s^d\left(T\right)$ and polar ${\gamma }_s^p\left(T\right)$ components of the surface energy of solid particles as a function of the temperature. The interesting IGC technique used to characterize the surface and polar characteristics of materials was applied more particularly for determining the London dispersive energy of ligno-cellulosic fibers [15] based on works of Jacob et al. [16], Carvalho et al. [17], Chtourou et al. [18], Dorris and Gray [19], Donnet et al. [20] and Gutmann [21].

Gamble et al. [22] determined the surface energy characteristics of drug substance coated with two grades of silicon dioxide was studied by IGC using the Dorris and Gray approach. IGC technique was used by Balard et al. [23] to determine the surface properties of milled graphites, by Bogillo et al. [24] to evaluate the surface free energy components for heterogeneous solids, and by Das et al. [25,26] to study the surface energy distributions of lactose and pharmaceutical powders. The Adsorption of n-alkanes at zero surface coverage on cellulose paper and wood fibres [27] and solid surface polarity [27] using IGC at infinite dilution. Feeley et al. [29] studied the surface properties and flow characteristics of salbutamol sulphate; and the surface energy characteristics of micronized materials were determined [30]. The same technique was also used to measure the surface energy and high energy sites for mixtures of crystalline and amorphous lactose [31,32]. Kołodziejek et al. [33] studied the relationship between surface properties determined by inverse gas chromatography and ibuprofen release from hybrid materials based on fumed silica. Whereas, Ho et al. [34,35,36] studied by IGC the surface energy heterogeneity of crystals. Many authors studied the surface energies of some polymers as tosylate functionalized poly(ethylene glycol) [37], polybutadiene/fillers [38], poly(2,2,3,3,3-pentafluoropropyl methacrylate) [39], hyperbranched poly(ester amide) [40].

In this paper, we used The IGC technique [35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67] at infinite dilution to determine the dispersive ${\gamma }_s^d\left(T\right)$ and polar ${\gamma }_s^p\left(T\right)$ components of the surface energy of poly (methyl methacrylate) (PMMA) adsorbed on silica at different recovery fractions as a function of the temperature by using our new approach based on the Hamieh thermal model [41,42,43] that gave the variations of the surface area of adsorbed organic molecules as a function of the temperature.

2. IGC Methods and Materials

The experimental values of the net retention time $t_n$ and volume $V_n$ of the adsorbed organic solvents on PMMA and silica were obtained from the direct measurements by using inverse gas chromatography (IGC) at infinite dilution [41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67]. The London dispersive energy was determined by using the concept of Fowkes based on the geometric mean of the respective values of the London dispersive components of the surface energy of the non-polar molecule ${\gamma }_l^d$ and the solid substrate ${\gamma }_s^d$. The non-polar solvents generally used in IGC technique were the n-alkanes (from n-pentane C5 to n-decane C10). The determination of $RTln{V}_n$ of n-alkanes adsorbed on PMMA/silica at different temperatures will lead to the values of ${\gamma }_s^d\left(T\right)$ by using the following relation:

$$RTln{V}_n=2\mathcal{N}a{\left({\gamma }_l^d{\gamma }_s^d\right)}^{1/2}+\alpha \left(T\right)$$

(1)

where T is the absolute temperature of the chromatographic column containing the solid material, R the perfect gas constant, $a$ the surface area of an adsorbed molecule, $\mathcal{N}$ is the Avogadro number, and $\alpha \left(T\right)$ is a constant depending only on the temperature and the solid material.

Relation 1 was used to deduce the value of ${\gamma }_s^d$ by supposing both ${\gamma }_l^d$ and $a$ parameters as constant. Hamieh criticized the above approximation in several studies [41,42,43,62,63,64,65,66,67] by proving an important thermal effect on the surface area of organic molecules adsorbed on the solid surfaces. We previously proposed different molecular models allowing the determination of the surface areas of molecules [55], by using Kiselev results, the two-dimensional Van der Waals (VDW) and Redlich–Kwong (R-K) equations, the geometric, cylindrical, and spherical model. However, the most accurate model was that based on the thermal model [41,42,43] that gave the expressions of the surface area $a\left(T\right)$ of organic molecules as a function of the temperature, and those of ${\gamma }_l^d\left(T\right)$ relative to the different molecules.

A commercial Focus GC gas chromatograph apparatus equipped with a flame ionization detector (FID) was used in this study to obtain the net retention time and volume of different n-alkanes that were injected into a stainless-steel column (with a 2 mm inner diameter and a length of 20 cm) containing the solid particles. The temperature range varied from 30 °C to 200 °C. The same experimental procedure as that used in other studies [64,65,66,67,68] was applied on PMMA/silica. The used n-alkanes (pentane, hexane, heptane, octane, nonane) of highly pure grade (99%) were purchased from local chemical society.

The flow rate of the carrier gas (helium) was 20 mL/min, whereas, the temperatures of the injector and detector were fixed at 200 °C. The infinite dilution of the probes was realized with the help of 1 µL-Hamilton syringes, by injecting very small quantities of the vapor solvent, satisfying the limit of detection of the FID of high sensitivity, to practically realize the zero-surface coverage [67]. All columns containing PMMA and silica particles were preconditioned at 130 °C overnight to remove any adsorbed water molecules or other residual impurities.

PMMA and silica solid particles with different recovery fractions of PMMA (varying from 0 to 1.0) used in this work were the same solid materials previously characterized in other studies using other chromatographic methods [55,68].

3. Experimental Results

3.1. London Dispersive Surface Energy of Silica Particles

The values of $RTln{V}_n$ and $2\mathcal{N}a{\left({\gamma }_l^d\right)}^{1/2}$ of silica particles at different temperatures were given in Tables S1 and S2 by taking into account the thermal effect of the temperature on the surface area of organic solvents. Figure 1 gave the variations of ${\gamma }_s^d\left(T\right)$ of silica as a function of the temperature using Hamieh thermal model.

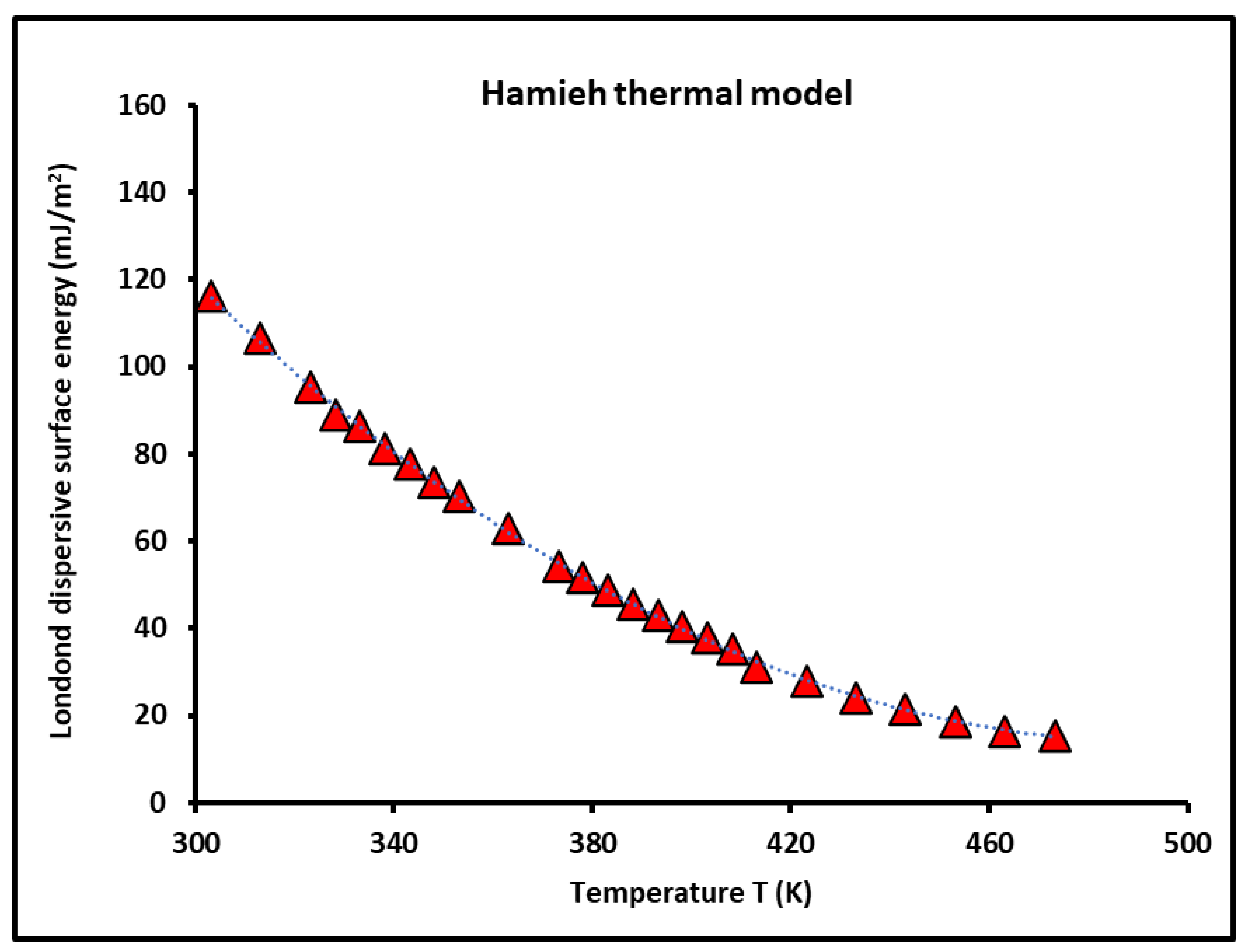

Figure 1 showed that the monotonous decrease of the London dispersive surface energy of silica is not perfectly linear. The non-linear variation of ${\gamma }_s^d\left(T\right)$ can be approached by parabolic interpolation in this case. Equation (2) was obtained with an excellent regression coefficient (R² = 0.9994) in the studied domain of temperature:

$${\gamma }_s^d\left(T\right)=2.8\times {10}^{-3}{T}^2-2.76T+691.29$$

(2)

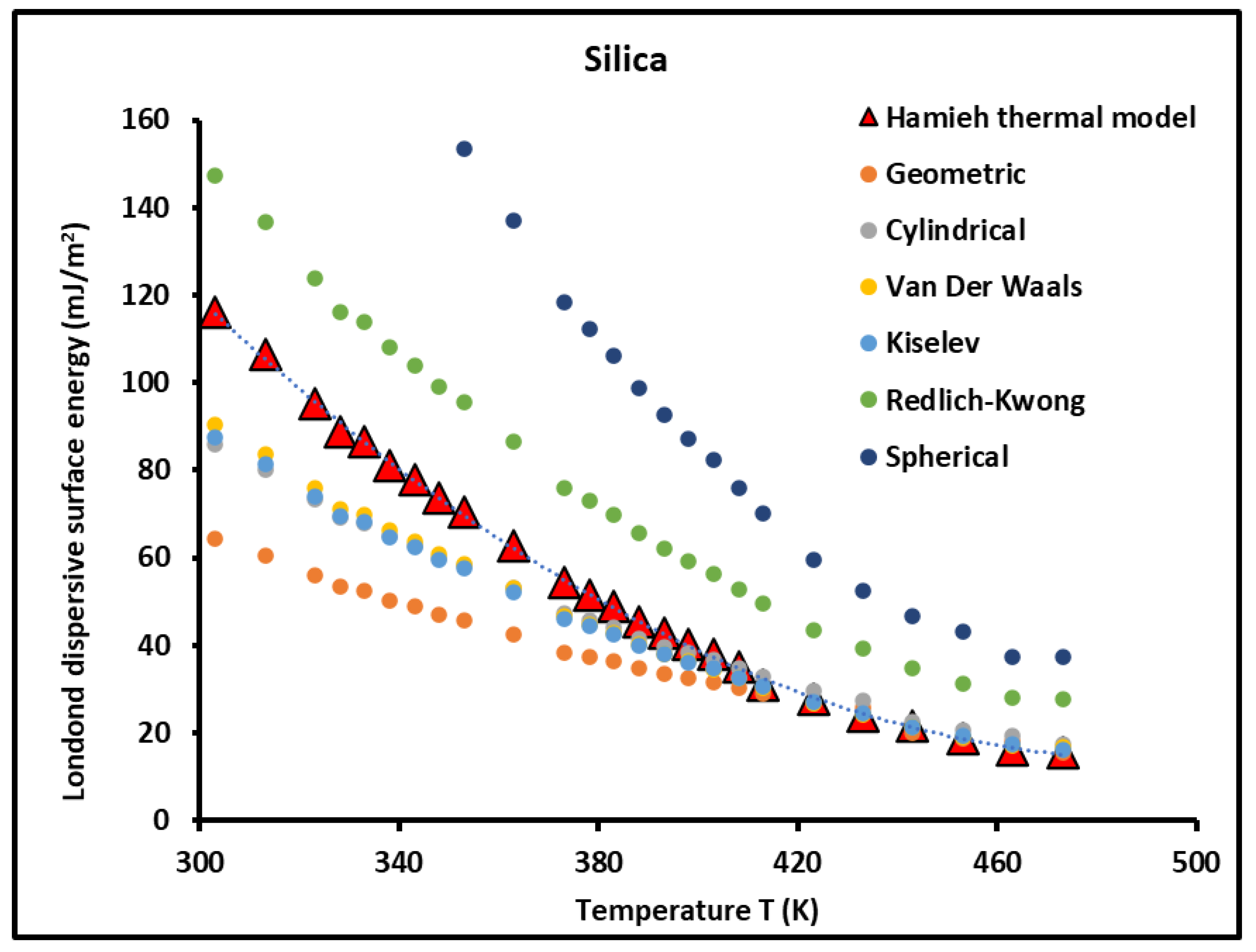

The comparison of this result with that obtained by using other molecular models can be shown in Figure 2.

The results presented in Figure 2 and Table 1 showed the monotonous variations of ${\gamma }_s^d\left(T\right)$ of silica particles for all used molecular models with parabolic curves. However, an important deviation of all models was observed with the respect of Hamieh thermal model. Indeed, the spherical model overestimated the values of the London dispersive surface energy of solid materials, whereas, the geometric model underestimated the values of ${\gamma }_s^d\left(T\right)$, while the cylindrical, Kiselev and Van der Waals models are the closest to that of the thermal model.

This large deviation (Table 1) resulted from the fact that the effect of the temperature on the surface area of molecules was neglected in the above models. Only the results of the thermal model can be considered as accurate. The closest results to those of the thermal model was obtained by Van der Waals model.

3.2. Study of ${\gamma }_s^d\left(T\right)$ of PMMA and PMMA/Silica Composites

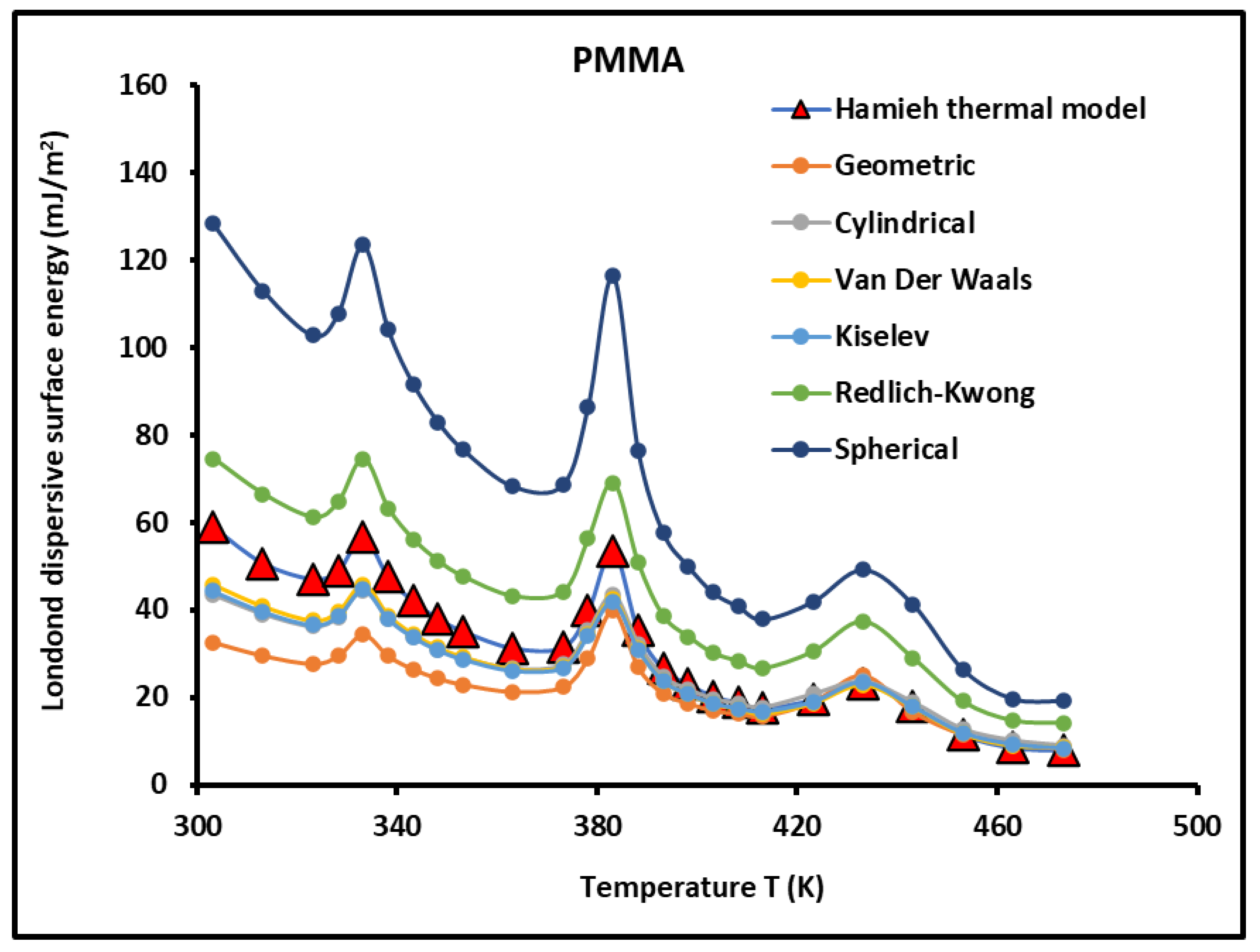

Figure 3 brings together the results of the London dispersive surface energy of PMMA particles obtained by the various applied molecular models compared to those of the thermal model. It can be observed that the results of the molecular models extremely deviate from those of Hamieh thermal model. However, the general tendency of all drawn curves in Figure 3 and shown in Table 2 highlighted the same values of the three maxima of temperatures. These three maxima showed the presence of three transition temperatures that were proved in other studies [55,68]. The beta-relaxation temperature, the glass transition and the liquid-liquid temperatures were respectively obtained at 60°C, 110°C, and 160°C, located on the different maxima of ${\gamma }_s^d\left(T\right)$ as shown in Figure 3 and in Table 2 (in bold dark red). The curves obtained by the thermal model and those of cylindrical, Kiselev, geometric, and Van de Waals models are mixed up after a temperature of 400K.

The highest non-linearity of the curves ${\gamma }_s^d\left(T\right)$ of PMMA was observed in all molecular models in the temperature interval [300K; 500K]. This non-linearity is certainly due to the presence of transition phenomena in PMMA submitted to the surface group changes when the temperature increases. All molecular models are largely deviated from the thermal model. The deviation reached 300% in many cases. However, the results obtained by those models can be considered as qualitative, whereas, the thermal model gave the most accurate results.

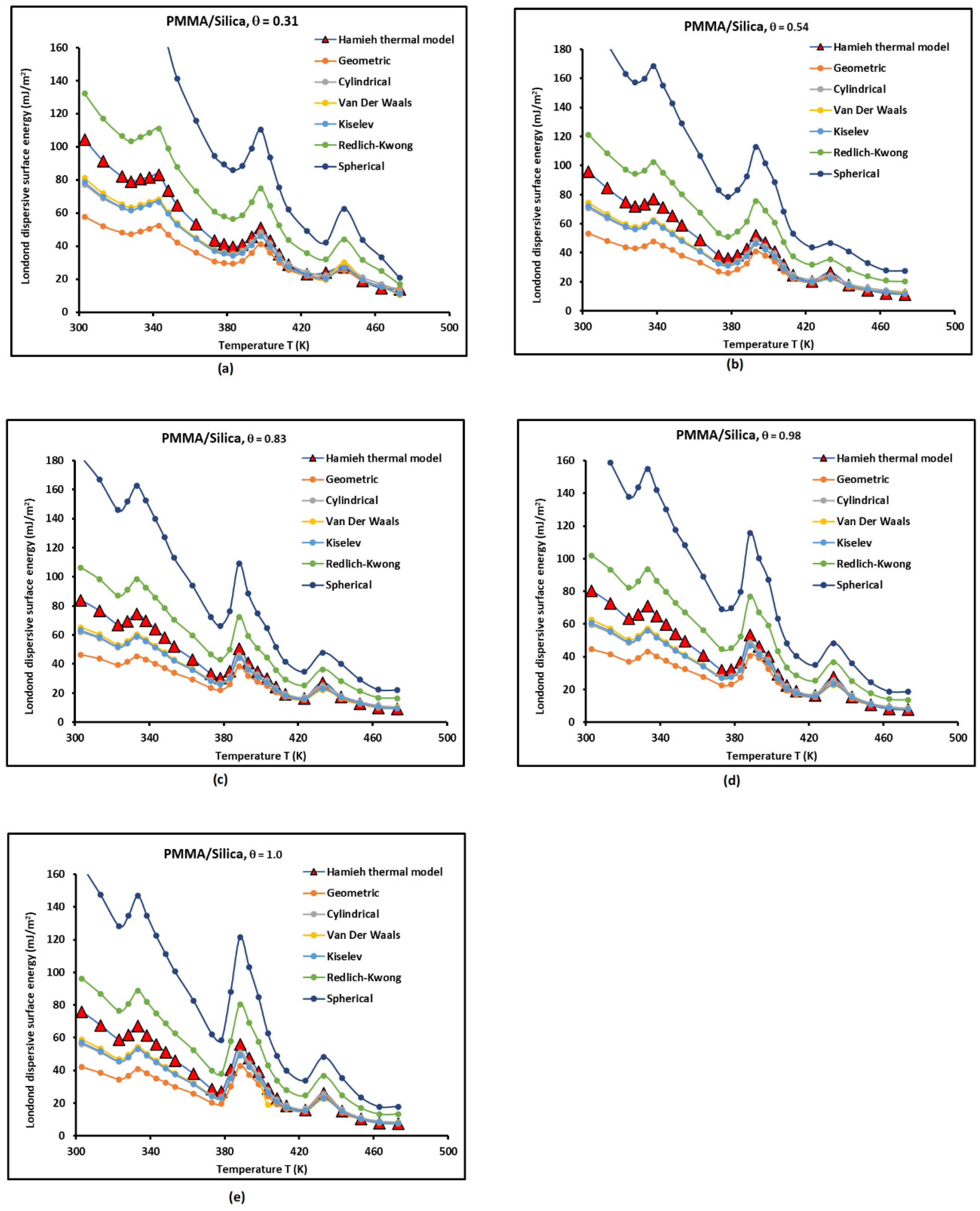

The results relative to the adsorption of PMMA on silica particles were presented in Figure 4 and Table 3 at different recovery fractions varying from $\theta =0$ (case of pure silica particles) to $\theta =1.0$ (representing a monolayer of PMMA on silica). The results in Figure 4 and Table 3 clearly showed the large difference in the values the London dispersive surface energy of the composites PMMA/silica when the temperature and the recovery fraction changed. Three interesting results were detected:

-

The London dispersive surface energy decreases when the recovery fraction fractions of PMMA adsorbed on silica increases whatever the used molecular model

-

The adsorption of PMMA on silica strongly affects the physicochemical properties of PMMA relatively to its bulk phase. The transitions temperatures observed in PMMA alone change with the recovery fraction.

-

When approaching the monolayer of adsorption of PMMA on silica particles, there is a spontaneous decreasing evolution of the London dispersive surface energy from silica particles (Table 1) to PMMA in bulk phase (Table 2) and passing through the different recovery fractions from $\theta =0.31$ to $\theta =1.0$ (Table 3 and Figure 4) the behavior of PMMA monolayer becomes closer to PMMA in its bulk phase.

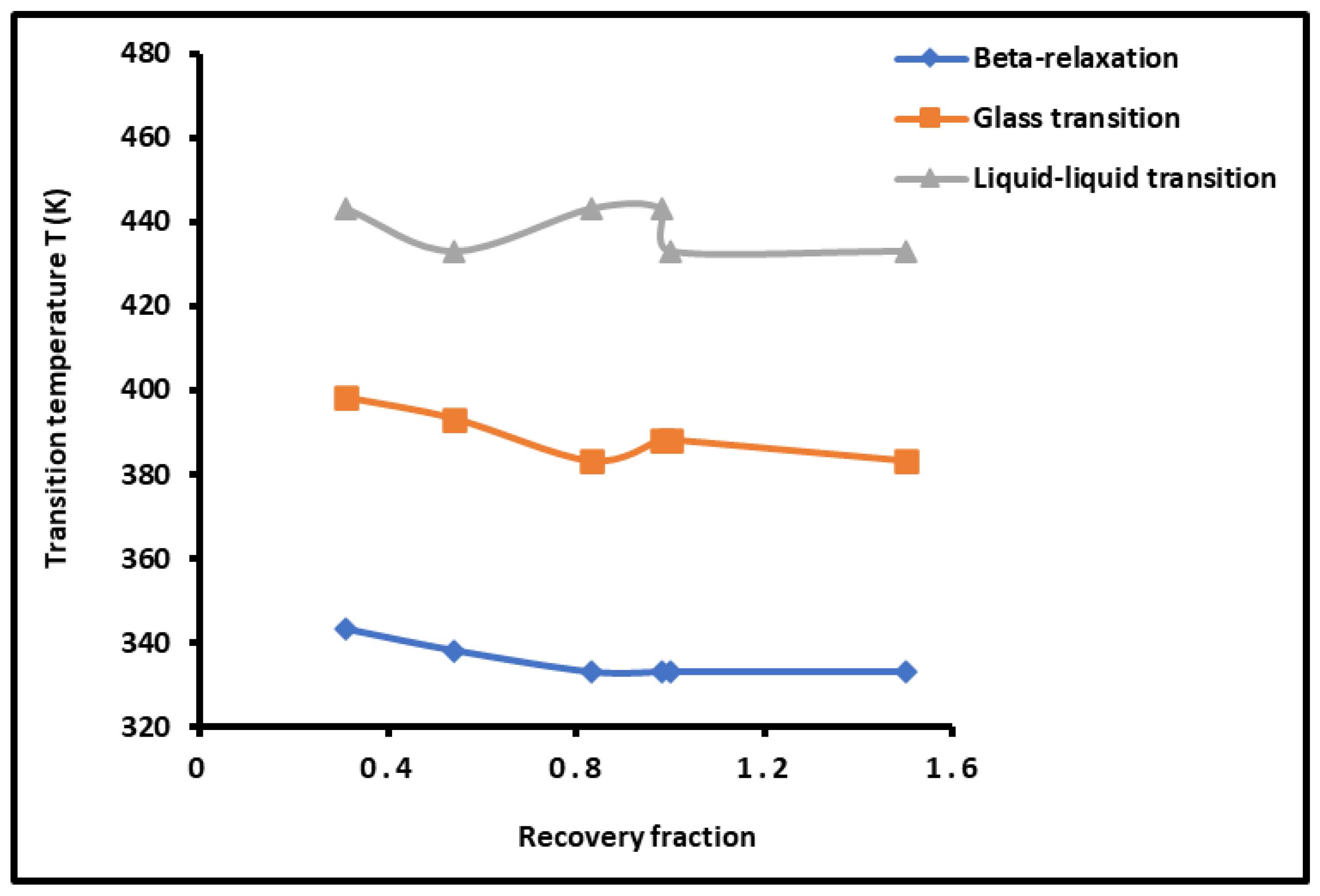

The results given in Figure 4 and Table 3 gave the various transition temperatures of PMMA adsorbed on silica particles at different recovery fractions. The obtained values were presented in Table 4 and Figure 5. It was observed that the beta-relaxation temperature linearly decreased from $T_{\beta }=343.15K$ to stabilize at $T_{\beta }=333.15K$ for $\theta =0.83$, and the same value was observed for PMMA alone. Whereas, the glass transition decreased from $T_g=398.15K$ to $T_g=383.15K$ for $\theta =0.83$, and then it increased to $T_g=388.15K$ to reach the value $T_g=383.15K$ for PMMA. However, the liquid-liquid transition temperature oscillated between $T_{l-l}=443.15K$ and $T_{l-l}=433.15K$. therefore, there is an important effect of the adsorption of PMMA on the London dispersive energy of the systems PMMA/silica, and on the transition temperatures. Those results were confirmed for all molecular models.

Furthermore, The London dispersive surface energy of the composites PMMA/silica at the different transition temperatures strongly varied as a function of the recovery fraction. These variations of ${\gamma }_s^d$ are clearly shown in Table 5. A decrease of the London dispersive energy was observed before reaching the monolayer in the cases of beta-relaxation and liquid-liquid transitions, whereas, a small change was found in the case of the glass transition. Table 5 also showed after the monolayer, the different values of ${\gamma }_s^d$ approached those of PMMA.

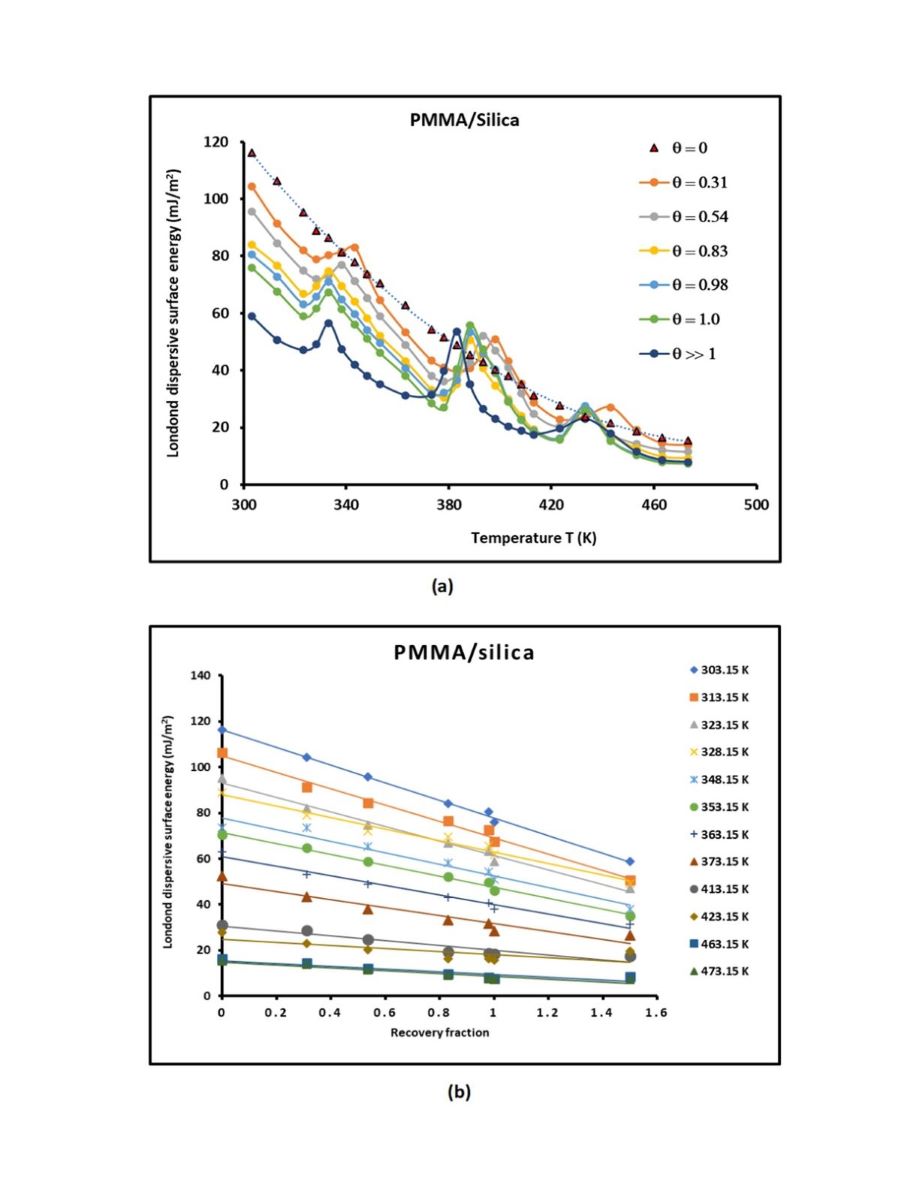

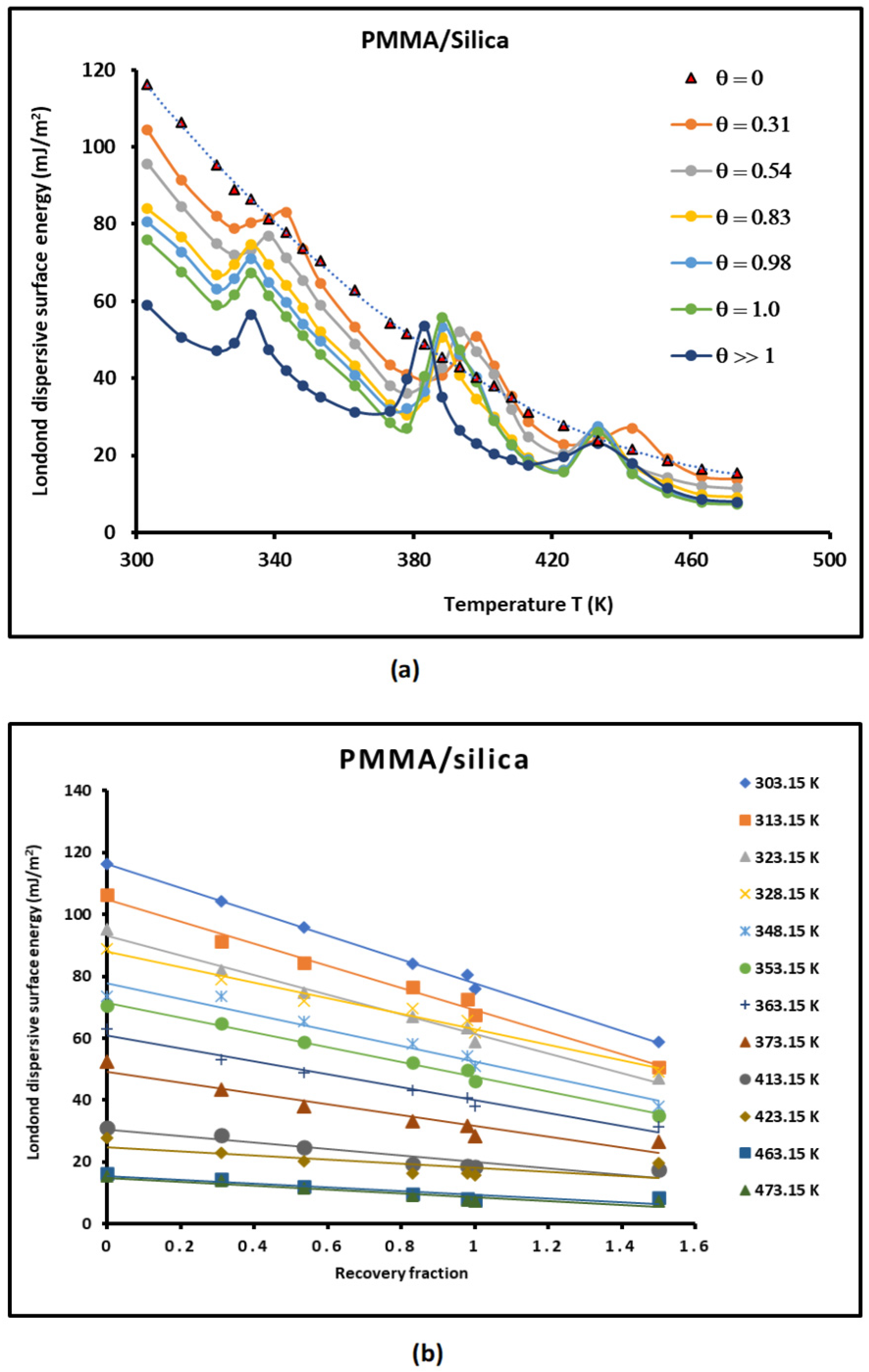

In fact, the above observations can be generalized for all temperatures and recovery fractions as shown in Figure 6. The curves plotted on Figure 6a showed the shift of the maxima of the various transition temperatures when the recovery fraction of PMMA/silica varied. Furthermore, the variations of ${\gamma }_s^d\left(\theta \right)$ were perfectly linear for all temperatures far from the transition temperatures as shown in Figure 6b. the results showed the decrease of the London dispersive surface energy of PMMA/silica when the temperature and/or the recovery increased. The different equations of ${\gamma }_s^d\left(\theta \right)$ were given in Table 6. The linearity was shown by the good linear regression coefficients shown in Table 6.

Table 6 led to the following thermodynamic relations of (- $\frac{d{\gamma }_s^d}{d\theta }\left(T\right)$) and ${\gamma }_s^d(T,0)$ as a function of the temperature:

$$\left\{\begin{array}{c}-\frac{d{\gamma }_s^d}{d\theta }\left(T\right)=8\times {10}^{-4}{T}^2-0.759T+197.04;R^2=0.9453\\ {\gamma }_s^d\left(T,0\right)=2.8\times {10}^{-3}{T}^2-2.77T+696.64;R^2=0.9972\end{array}\right.$$

(3)

Relations 3 then gave a universal equation of the following form:

$${\gamma }_s^d\left(T,\theta \right)=\frac{d{\gamma }_s^d}{d\theta }\left(T\right)\theta +{\gamma }_s^d\left(T,0\right)$$

(4)

Equation (4) is the general form of the dependence of the London dispersive surface energy of the composites PMMA/silica on the temperature and the recovery fraction $\theta$. The expression of ${\gamma }_s^d\left(T,0\right)$ given in relation 3 gave the same equation as that obtained with the silica particles (for $\theta =0$). The obtained linearity of ${\gamma }_s^d$ as a function of $\theta$ is not realized with the temperature. Indeed, the second-degree equation of (- $\frac{d{\gamma }_s^d}{d\theta }(T)$) and ${\gamma }_s^d(T,0)$ versus the temperature gave a non-linearity dependence of ${\gamma }_s^d\left(T\right)$.

3.3. Lewis’s Acid-Base Polar Surface Energies of PMMA/Silica

Van Oss et al. method [69] was used to determine the Lewis acid ${\gamma }_s^{+}$ and base ${\gamma }_s^{-}$ surface energies of PMMA/silica knowing the Lewis acid ${\gamma }_l^{+}$ and base ${\gamma }_l^{-}$ surface energies of the used solvents. Van Oss et al. used two monopolar solvents, namely, ethyl acetate (EA) and dichloromethane (DCM), usually characterized by:

$$\left\{\begin{array}{c}{\gamma }_{DCM}^{+}=5.2mJ/m^2,{\gamma }_{DCM}^{-}=0\\ {\gamma }_{EA}^{+}=0,{\gamma }_{EA}^{-}=19.2mJ/m^2\end{array}\right.$$

(5)

In previous studies [55,68], the polar free energy $∆G_a^{sp}\left(T\right)$ of the different composites PMMA/silica was determined as a function of the temperature with various recovery fractions. Knowing that $∆G_a^{sp}\left(T\right)$ can be expressed as follows:

$$∆G_a^{sp}\left(T\right)=2\mathcal{N}a\left(\sqrt{{\gamma }_l^{-}{\gamma }_s^{+}}+\sqrt{{\gamma }_l^{+}{\gamma }_s^{-}}\right)$$

(6)

The Lewis acid and base surface energies of the various composites PMMA/silica were determined with the help of the following equations:

$$\left\{\begin{array}{c}\begin{array}{c}{\gamma }_s^{+}=\frac{{\left[∆G_a^{sp}\left(T\right)\left(EA\right)\right]}^2}{{4\mathcal{N}}^2{\left[a\left(EA\right)\right]}^2{\gamma }_{EA}^{-}}\end{array}\\ {\gamma }_s^{-}=\frac{{\left[∆G_a^{sp}\left(T\right)\left(DCM\right)\right]}^2}{{4\mathcal{N}}^2{\left[a\left(DCM\right)\right]}^2{\gamma }_{DCM}^{+}}\end{array}\right.$$

(7)

and by using the values of the surface area of polar molecules obtained from the Hamieh thermal model. The obtained values of $∆G_a^{sp}\left(T\right)$ of EA and DCM adsorbed on the different solid surfaces were given in Tables S3 and S4. The polar (or acid-base) surface energy ${\gamma }_s^{AB}$ and the total surface energy of different PMMA/silica composites were obtained from Equation (8).

$$\left\{\begin{array}{c}{\gamma }_s^{AB}=2\sqrt{{\gamma }_s^{+}{\gamma }_s^{-}}\\ {\gamma }_s^{tot.}={{\gamma }_s^d+\gamma }_s^{AB}\end{array}\right.$$

(8)

The results were presented in Table S5 and Figure 7. All surface energy parameters of the various PMMA/silica varied as a function of the temperature as shown in Figure 7.

Several conclusions can be deduced:

-

All curves of the acid-base polar surface energies decreased against the temperature, except at the transition temperature where higher values of these parameters were observed for the different recovery fractions.

-

The acid polar surface energy of silica did not present any appreciated variation when the recovery fraction of PMMA increased. Globally, the acidity of silica particles is not very affected by the adsorbed amount of PMMA.

-

An important change in the value of the base polar surface energy ${\gamma }_s^{-}\left(T\right)$ was observed when the recovery fraction of PMMA varied. It seems that a maximum of ${\gamma }_s^{-}\left(T\right)$ was obtained in the case of a monolayer ($\theta =1.0)$ of PMMA adsorbed on silica particles and the acid-base polar surface energy ${\gamma }_s^{AB}$ was the highest in this later case. For this value of $\theta =1.0$, a maximum of ${\gamma }_s^{tot.}\left(T\right)$ was also observed. In the case of monolayer of adsorption of PMMA on silica, it can be deduced that the polar surface energy was higher than those of silica and PMMA taken separately, and it approximately approached the summation of these two extreme cases of $\theta =0\left(Silica\right)$ and PMMA in bulk phase.

4. Conclusions

The adsorption of PMMA on silica particles at different recovery fractions was studied as a function of the temperature by using the inverse gas chromatography (IGC) at infinite dilution. The IGC technique gave the experimental values of $RTln{V}_n$of n-alkanes adsorbed on the different PMMA/silica composites. Several molecular models were used and compared to the recent Hamieh thermal model to determine the variations of the London dispersive surface energy of solid particles as a function of the temperature and the recovery fraction of PMMA adsorbed on silica. The determination of ${\gamma }_s^d\left(T\right)$ of silica particles by using the thermal model showed parabolic variations with an excellent regression coefficient approaching 1.000. The other molecular models gave the same type of variations of ${\gamma }_s^d\left(T\right)$, but with important deviation from the accurate thermal model taking into account the effect of the temperature on the surface area of organic molecules. The curves of ${\gamma }_s^d\left(T\right)$ of the PMMA/silica systems confirmed the presence of three maxima characterizing the three transition temperatures of the beta-relaxation, the glass transition and the liquid-liquid transition. An important effect of the recovery fraction of PMMA on the values of the transition temperatures was highlighted in this study.

A universal equation of ${\gamma }_s^d\left(T,\theta \right)$ of the various PMMA/silica composites was given as a function of the two variables, the temperature $T$, and the recovery fraction $\theta$. The determination of the couple $\left(T,\theta \right)$ led to obtain the value of ${\gamma }_s^d$ and the full thermodynamic determination of the system PMMA/silica

The Lewis acid ${\gamma }_s^{+}$ and base ${\gamma }_s^{-}$ polar surface energies of PMMA/silica composites were determined by using the thermal model as a function of the temperature and the recovery fraction. the polar acid–base surface energy ${\gamma }_s^{AB}$ and the total surface energy of the different composites were then deduced. It was showed that ${\gamma }_s^{+}$ of silica was not so much affected by the adsorption of PMMA on silica, whereas, ${\gamma }_s^{-}$ presented large variations when the recovery fraction varied. A maximum of basic and total polar surface energies was reached in the case of monolayer of PMMA. The total polar surface energy of PMMA/silica for a monolayer ($\theta =1.0$) was proved to be approximately equivalent, out of the transition temperatures, to the summation of those obtained with silica and PMMA solid surfaces.
