Impact of immunopathy and coagulopathy on multi-organ failure and mortality in a lethal porcine model of uncontrolled hemorrhagic shock

1. Introduction

Most battlefield casualties still die in the pre-hospital phase before reaching a medical treatment facility [1]. Uncontrolled hemorrhage is the leading cause of preventable deaths on the battlefield and in civilian patients [1,2]. Management priorities are stopping bleeding and reversing shock by restoring circulating blood volume to prevent or reduce the risk of worsening trauma-induced coagulopathy (TIC) and multi-organ failure (MOF) [3]. However, managing trauma patients with hemorrhagic shock (HS) is complex and challenging, despite recent advances in treatment protocols, including tourniquets, permissive hypotension, point of care ultrasonography, tranexamic acid, massive transfusions, and all performed within the “golden hour.” Prehospital goal-directed HS resuscitation with low-volume crystalloid or colloid fluid seems a better option in resource-limited settings [4].

The optimal resuscitation fluid for the early treatment of severe bleeding patients remains highly debated. Roger et al. compared the rapidity of shock reversal with lactated Ringer (LR) or hydroxyethyl starch (HES) 130/0.4 at the early phase of controlled HS and found that HES restored MAP four times faster than LR [5]. A total of 35 randomized controlled trials (RCT) evaluating the management of traumatic HS within the first 24 hours of injury did not show a correlation between transfusion requirements and mortality [6]. Recently, damage control resuscitation (DCR) combines multiple methods to prevent or reverse HS-associated events such as acidosis, hypothermia, coagulopathy, and hypoperfusion [7]. Unlike observational studies, RCTs to support the DCR approach are currently lacking [6,8]. The lack and/or inconclusiveness of clinical trials evaluating traumatic HS urges animal studies. Despite the multifactorial pathogenesis of traumatic HS, coagulopathy is the focus of scientific discourse on animal models [2,9]. One-quarter to one-third of patients at major trauma centers have coagulopathy on admission [8,10]. A similar proportion of coagulopathy upon admission is seen in combat patients [9]. Early TIC is portrayed as hypocoagulability that results in bleeding. In contrast, later TIC is characterized by a hypercoagulable state associated with microvascular thrombosis and MOF [3]. TIC and the effectiveness of patients’ treatment are the subjects of ongoing multifaceted debate, including reverse causality [1,8,11]. Successful resuscitation of traumatic HS is unlikely without efficient hemostasis. Intracavitary, often incompressible, and overlooked bleeding is life-threatening [12,13].

Traumatic HS followed by fluid resuscitation results in global ischemia and reperfusion injury that can provoke a severe inflammatory response and worsen clinical outcomes. Systemic immune system activation is fundamental to developing MOF in this context and shares many features in common with systemic inflammatory response syndrome (SIRS). MOF remains a significant cause of morbidity and mortality in trauma patients, and current therapy is based on standard supportive care. Understanding the pathophysiology of HS and resuscitation will allow for developing targeted therapeutic strategies to minimize MOF and improve patient outcomes following traumatic HS.

An emerging body of evidence indicates that crosstalk between the complement, coagulation, and fibrinolytic cascades following traumatic hemorrhage leads to microthrombosis and thromboinflammation, thereby contributing to MOF and mortality [3,14]. Central to thromboinflammation is the loss of endothelial cells’ normal antithrombotic and anti-inflammatory functions, leading to coagulopathy, complementopathy, and immunopathy. Huber-Lang et al. discovered that thrombin in a proteolytic pattern activates C5 to generate C5a without C3 involvement [15]. Amara et al. found that coagulation/fibrinolysis factors activate complement components C3 and C5, which subsequently activate and trigger the complement pathway [16]. Similarly, Gulla et al. reported that the complement is a pro-coagulant factor leading to thrombin activation, which generates fibrin mesh [17]. We have noted the activation of complement and coagulation cascades and their interaction, impacting outcomes in preclinical animal models of traumatic hemorrhage [18,19] and clinical trauma patients [20]. Furthermore, our recent findings have shown that the synergistic effects of the traumatic triad (complementopathy, endotheliopathy, and coagulopathy) occurred early after trauma, contributed to poor clinical outcomes (MOF/death), and led to infectious complications; therefore, the triadic intercommunication model is proposed [21]. Additionally, biomarkers such as Bb, syndecan-1, and D-dimer are reliable early predictive biomarkers of clinical outcomes [21]. TIC involves many factors, including inflammatory response [9,22]. Inflammation and coagulation are reciprocally causally related processes [23]. Hemostatic resuscitation [11] may include pharmacological agents as potential adjuncts to fluid therapy to treat severe HS at or near the point of injury [24,25,26,27,28,29,30,31,32,33,34].

The purpose of this study is to characterize immune inflammatory responses, coagulation alterations, and their correlation with MOF and mortality in a lethal porcine model of controlled and uncontrolled HS with LR or HES permissive hypotensive resuscitation.

2. Results

2.1. Baseline Characterization and Mortality

Animals were subjected to controlled bleeding (22 ml/kg b.w.) and uncontrolled splenic hemorrhage followed with or without two fluid resuscitation arms ([LR (45 ml/kg) and Voluven^® (15 ml/kg) at a rate of 1ml/kg/min]. No significant differences in the hemodynamic (Table 1) and metabolic (Table 2) parameters were observed during the pre-hemorrhagic phase (baseline) among the sham, H, H+LR, and H+Voluven^®.

2.2. Physiological Responses to Hemorrhage

As shown in Table 1 and Table 2, the animals with HS experienced hemodynamic changes [decreased levels of pulse pressure (PP) and mean arterial pressure (MAP), and increased levels of shock index (SI)] and metabolic alterations [decreased base excess (BE) and venous oxygen saturation (SvO₂), and increased lactate and potassium] starting at 30min and remaining up to 120min.

2.3. Fluid Resuscitation on Hemodynamic and Metabolic Parameters

As demonstrated in Table 1 and Table 2, uncontrolled shed blood volume (SBV) in swine resuscitated with LR was not significantly different from the H group. Resuscitation with Voluven^® significantly increased uncontrolled SBV at 90, 120, and 360 minutes compared to LR (p<0.05), though equal uncontrolled blood loss at the pre-fluid resuscitation phase. There were no statistically significant differences between final resuscitation fluid consumption time and final urine output volume among the three groups (data not shown). PP, MAP, and BE increased, whereas shock index (SI), blood lactate, and potassium decreased in the resuscitated animals compared to those without fluid. There was no significant difference in the hemodynamic and metabolic parameters in the LR and Voluven^® animals.

2.4. Fluid Resuscitation on Hemodilution and Coagulation Parameters

As shown in Table 2, hemoglobin (Hb) values remained constant in the sham group, decreased slightly in the H group at 90 and 120 minutes, and dropped significantly in other groups resuscitated with LR and Voluven^® at 60, 90, and 120 min. Voluven^® resuscitation further decreased Hb at 60, 90, and 120 min compared with the LR group. Hematocrit (Hct) values paralleled changes in Hb values (Table 2).

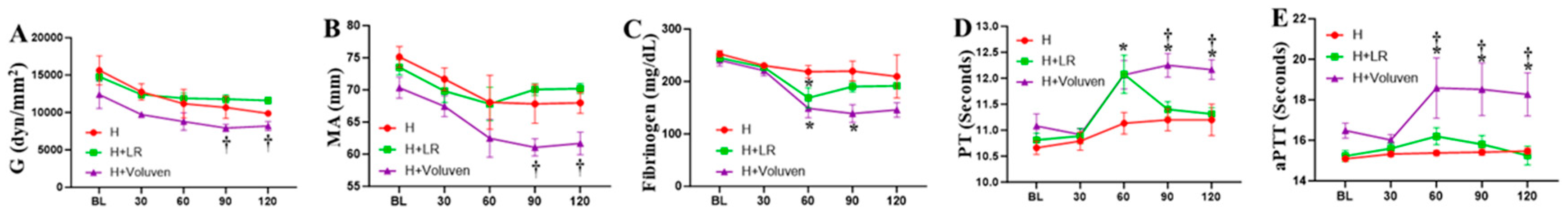

Thromboelastographic analysis determined whole blood coagulation function. The H+ Voluven^® group drew out a reduction in the actual strength of the clot (G, Figure 1A) and the maximum amplitude (MA, Figure 1B), reaching significance in comparison with the H+LR group, indicating a relatively hypocoagulable state (p <0.05). Hemorrhaged animals resuscitated with fluids showed significantly lower fibrinogen concentrations in blood plasma (Figure 1C) and prolonged PT (Figure 1D) and aPTT compared with the H group (Figure 1E). Voluven^® resuscitation resulted in a further increase in PT (Figure 1D) and aPTT (Figure 1E) and a further decrease in fibrinogen compared with the H+LR group (Figure 1C). Reaction time expressed as the ratio to the baseline value was not different when the H group was compared with fluid-resuscitated animals (p < 0.05 and p < 0.001 for H vs. H+LR, and H vs. H+Voluven^®, respectively; Kruskal-Wallis test; data not shown). The same was valid for K-time. There was no apparent change in the angle of the respective groups.

2.5. Circulating Complement Activation and Cytokine Release

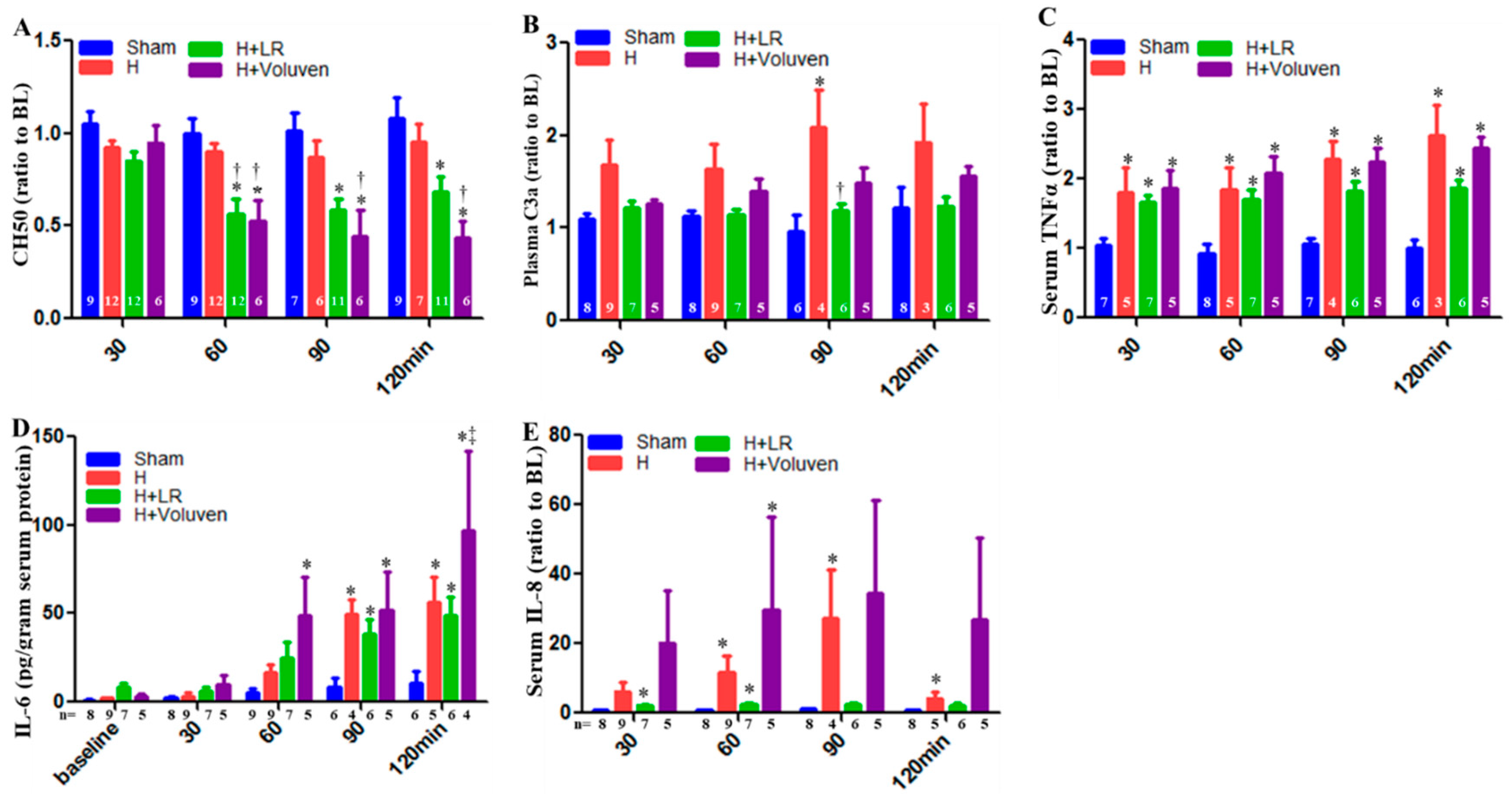

Total hemolytic complement (CH50) in Voluven^®-treated hemorrhaged swine had a significantly increased level of complement function at 60, 90, and 120 minutes compared to hemorrhaged non-treated animals (Figure 2A). C3a desArg, a cleavage product of systemic C3 complement component activation, was significantly increased in LR-resuscitated animals at 90 minutes compared to those hemorrhaged swine (Figure 2B).

Some pro-inflammatory and anti-inflammatory cytokines were measured in the circulation. Normalization of tumor necrosis factor-α (TNF-α) values did not result in a significant difference between the hemorrhaged only and the H+LR group. There was no apparent difference in the TNF-α blood concentration between the H+Fluid groups nor between the H+LR and H+Voluven^® groups (Figure 2C). Systemic IL-6 levels were also increased in Voluven^®-treated animals at 120 minutes compared to LR-treated swine (Figure 2D). As a result of the significant differences among the individual IL-8 at the baseline, plasma levels of IL-8 are shown as a percent of the baseline to permit a direct comparison of relative changes after HS. When IL-8 concentration was normalized to the baseline values, a significant difference in its levels between respective groups could not be observed (Figure 2E). Anti-inflammatory cytokines such as IL-10 were undetected in the blood (data not shown).

2.6. End Organ Function

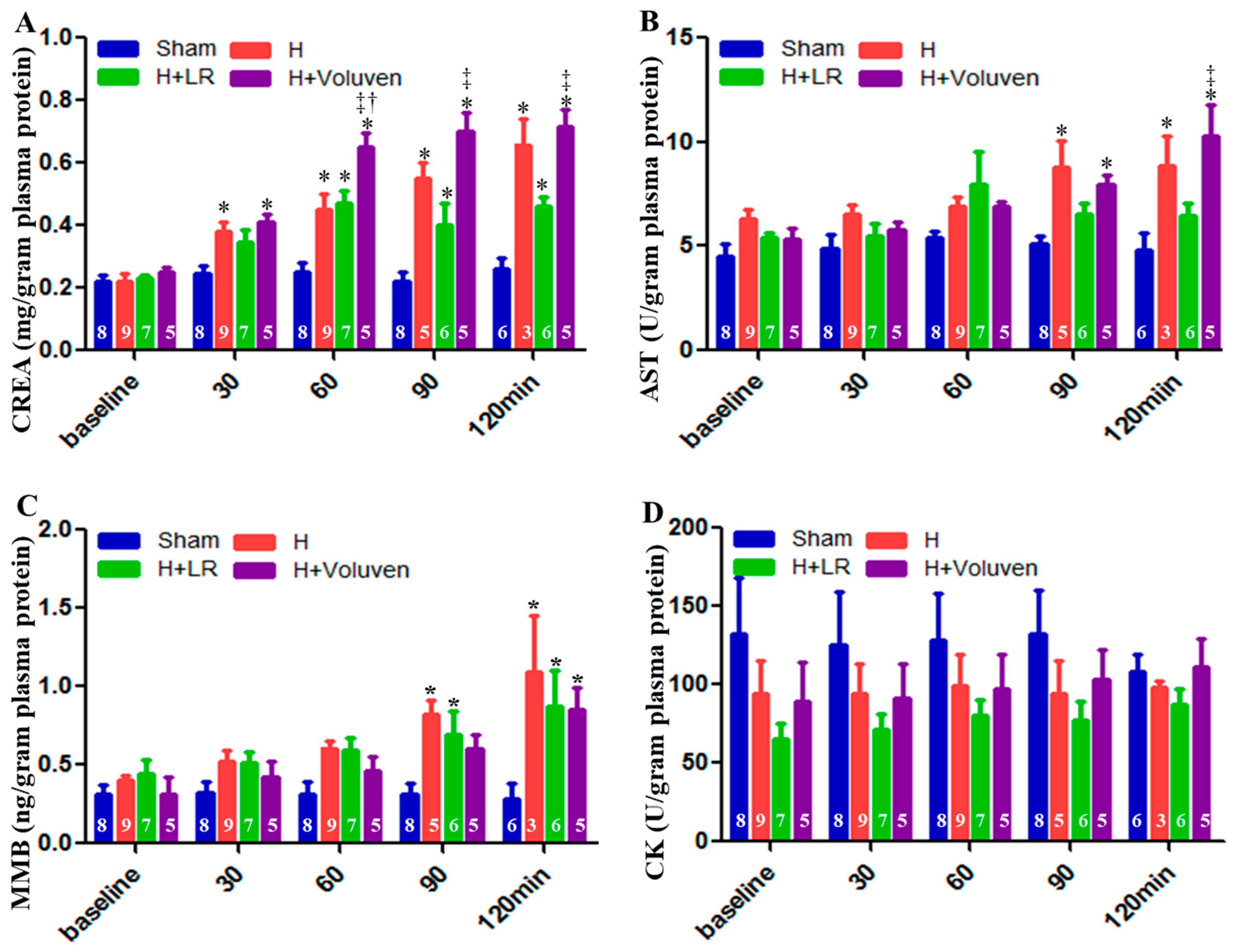

Creatinine (a biomarker of kidney function) blood levels were significantly elevated in Voluven^®-treated hemorrhage swine at 60, 90, and 120 minutes after the onset of injury compared with the H+LR group (Figure 3A). Aspartate aminotransferase, a marker of hepatocellular damage, was significantly higher in injured and Voluven^®-treated swine than in the H+LR group (Figure 3B) at 120 minutes. There was no statistically significant difference in muscle myocardium isoenzyme B (MMB) levels between hemorrhaged animals and those injured and fluid resuscitated (Figure 3C). Independently of experimental condition, creatine kinase (CK) levels did not show significant changes (Figure 3D).

2.7. Myocardial Inflammatory Responses to Hemorrhagic Shock and Fluid Resuscitation

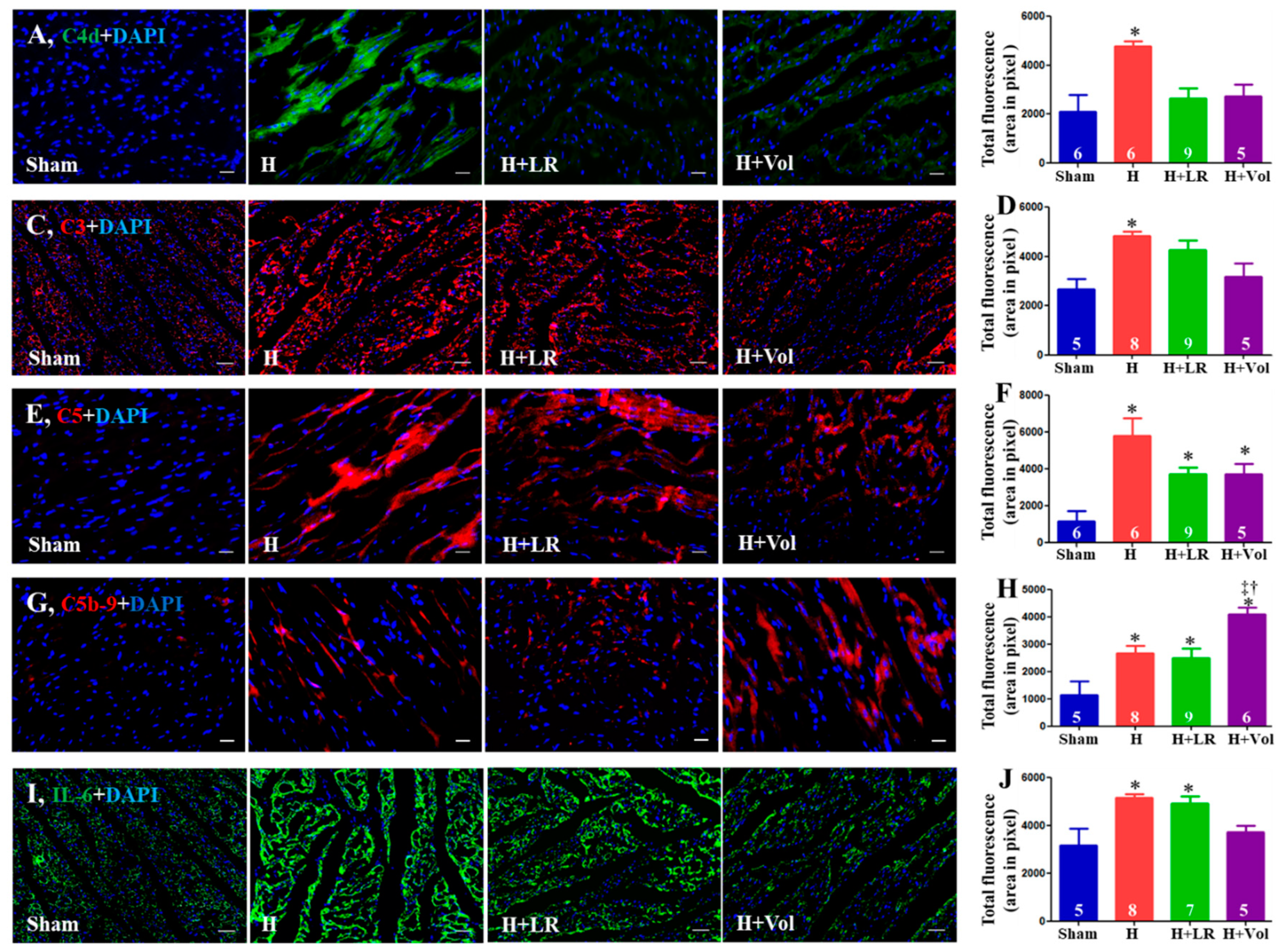

As illustrated in Figure 4, increased deposition of C4d, C3, C5, C5b-9, and IL-6 at porcine hearts after exposure to hemorrhagic shock. Hemorrhaged animals with LR resuscitation did not affect these protein depositions compared to the H group. Voluven^® resuscitated animals had significantly higher levels of C5b-9 in hearts than the groups of H and H+LR (p<0.05).

2.8. Pulmonary and Intestinal Inflammatory Responses to Hemorrhagic Shock and Fluid Resuscitation

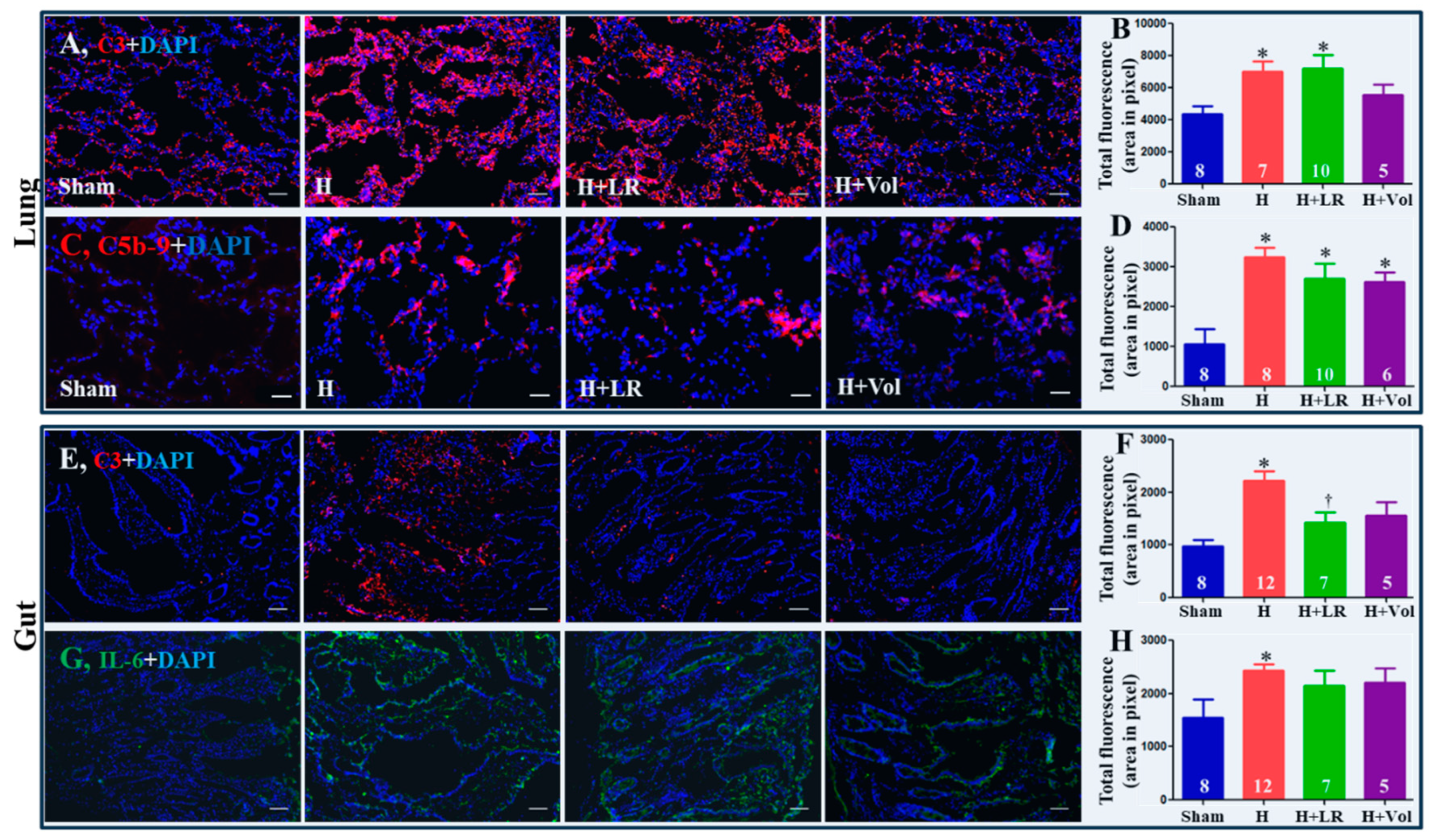

As demonstrated in Figure 5, enhanced expression of C3 and C5b-9 in the jejunum tissue was observed in hemorrhaged animals with or without fluid resuscitation. There was no statistically significant difference among the three groups (H, H+LR, and H+Voluven^®). Hemorrhage significantly increased intestinal deposition of C3 and IL-6. Fluid resuscitation had little impact on the intestinal tissue level of C3 and IL-6 except for LR resuscitation on C3 expression.

2.9. Effect of H and Fluid Resuscitation on Organ Histopathological Alterations

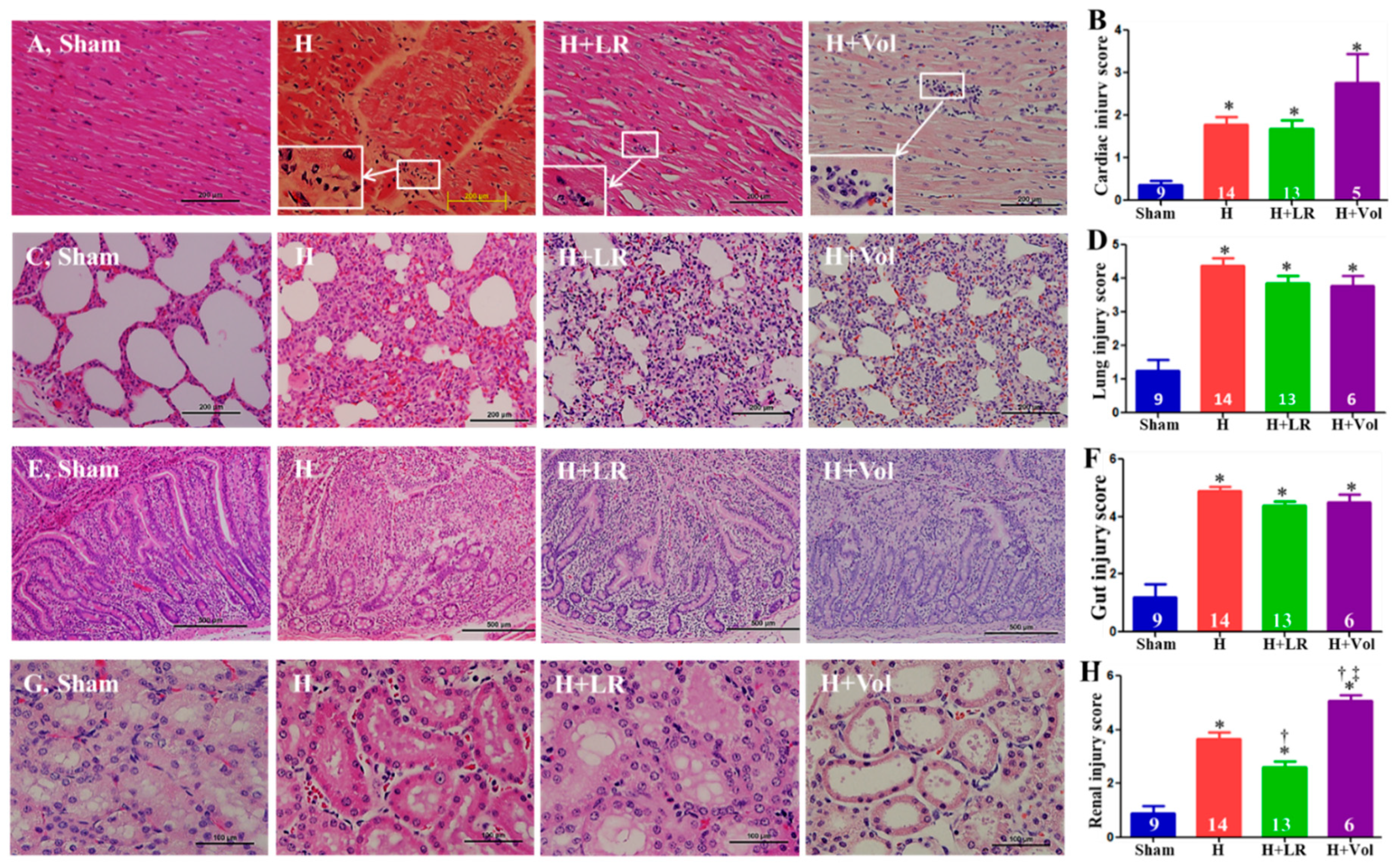

The exposure to the hemorrhagic shock w or w/o LR resuscitation resulted in pathological changes typical of mild myocarditis characterized by monocyte and neutrophil infiltration (white rectangle), whereas Voluven^® resuscitation tends to be more inflammatory cell infiltration but not reach a statistically significant difference (Figure 6A&B). H, H+LR, and H+Voluven^® induced moderate ~ severe pulmonary (septal thickening, inflammatory cell infiltration, alveolar hemorrhage, and edema) and intestinal (denuded villi with lamina propria exudate) damages. Still, there were no statistically significant differences among the three groups (Figure 6C~F). H and H+LR led to renal damage (proximal tubular epithelial cell hydropic degeneration, border brush loss, and interstitial inflammatory cell infiltration) (Figure 6G&H). Animals resuscitated with LR and Voluven^® improved and worsened renal damage, respectively (Figure 6G&H).

2.10. Effect of Hemorrhage and Fluid Resuscitation on Survival

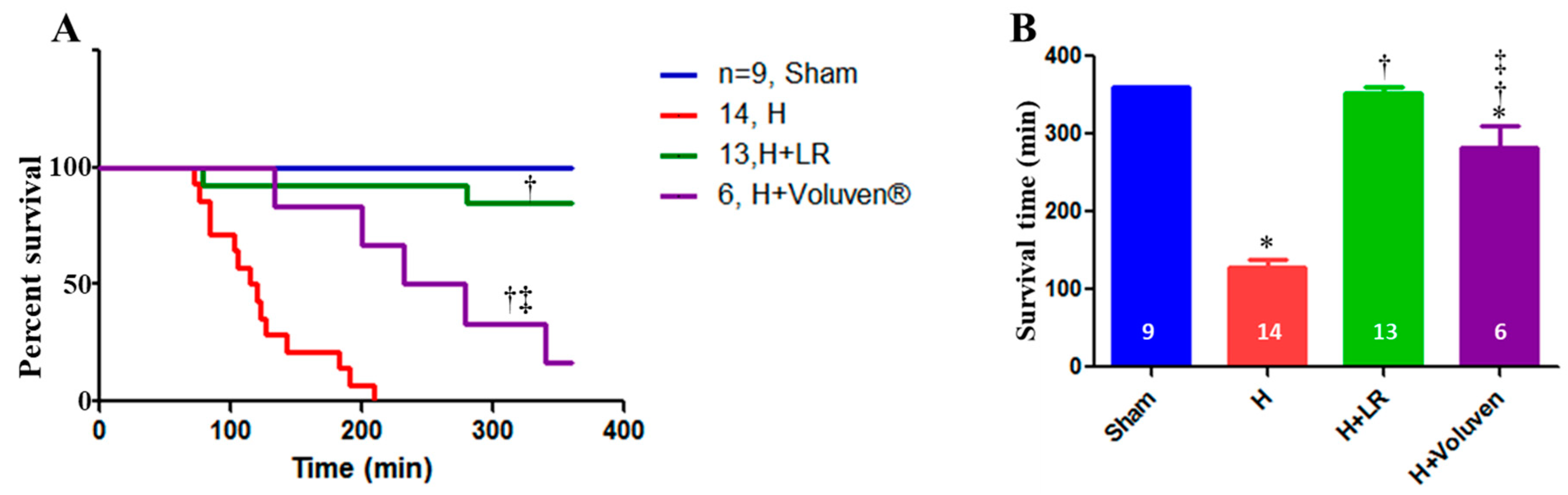

As you can see in Figure 7, six-hour survival for the Sham, H, H+LR, and H+Voluven^® was 9/9 (360±0.0min), 0/14 (127.6±11.3min), 11/13 (353.3±6.4min), and 1/6 (282.2±27.9min), respectively. Better survival of hemorrhaged animals treated with LR than those treated with Voluven^® was observed (p <0.05). A clear difference in the length of survival between hemorrhaged animals and those resuscitated with fluid was observed (p <0.001 and p <0.01, for the H vs. H+LR and H vs. H+Voluven^®, respectively; the log-rank test). There was no correlation between the length of survival and SBV at 30 min or final blood loss.

3. Discussion

Hemorrhage after severe trauma remains the leading cause of potentially preventable death in young individuals (≤45 years) in traumatically injured civilians (~40%) and military populations (~50%) [35,36,37]. In combat, 87% of battlefield deaths after HS occur before reaching a medical facility. Outcomes of patients with HS and extremity bleeding have improved with the widespread use of tourniquets and early balanced transfusion therapy. However, point-of-injury and prehospital care of injured patients with uncontrolled truncal hemorrhage is a challenge and has had the same mortality over the last two decades despite recent advances in treatment protocols, including tourniquets, permissive hypotension, point-of-care ultrasonography, tranexamic acid, massive transfusions, and all performed within the “golden hour.” [38].

Hemorrhaged patients after severe trauma are particularly susceptible to the early development of coagulopathy, immunopathy [complementopathy, systemic inflammatory response syndrome (SIRS), immunoparesis], endotheliopathy, and metabopathy (tissue hypoperfusion-induced energy metabolic dysfunction and iron metabolic alterations) on admission to the hospital [14,20,30,33,34,39,40,41,42,43,44,45]. Moreover, trauma-induced exposure of tissue factor to flowing blood induces the activation of coagulation, which may trigger consumptive coagulopathy [3]. Uncontrolled bleeding after trauma initiates coagulopathy via loss of coagulation factors, red blood cells, and platelets, coagulation cascade activation, immunopathy, endotheliopathy, and metabopathy through global ischemia. Moreover, therapeutic approaches (e.g., fluid resuscitation, blood transfusion, surgical procedures, extracorporeal life support devices) can further worsen these multi-opathies and perpetuate bleeding [46].

Severe HS is a system failure, including coagulation, immunity, vital organs, vasculature, endothelium, mitochondria, and physiological barriers [47]. Post-HS systemic uncoupling of coagulation, immunity, vital organs vasculature, endothelium, mitochondria, and physiological barriers is critical in morbidity and mortality. Maintaining oxygen delivery to limit tissue hypoxia, inflammation, and organ function is essential for uncontrolled HS. Damage control resuscitation (DCR) recommends using more blood products and less clear fluids (crystalloid and colloid solution) as initial resuscitation in treating HS. However, prehospital resuscitation in austere environments largely relies on crystalloid and colloid intravascular expansion, as blood products are logistically arduous. Ordinary fluid resuscitation in such resource-limited conditions is the first therapeutic intervention to replace blood loss and preserve tissue perfusion until definite surgical control of bleeding can be achieved. Clear fluid resuscitation can worsen clinical outcomes by increasing blood loss by elevating blood pressure, dislodging blood clots, diluting coagulation factors and platelets, and causing inflammation and coagulopathy [48].

Our previous studies have shown controlled hemorrhagic shock in rats [33,34] and pigs [27], with typical fluid resuscitation, triggers tissue hypoperfusion, metabolic acidosis, systemic and local inflammation, and physiological barrier dysfunction, leading to multiple organ damage and death. Even though DCR with LR or Voluven^® following HS improves some measures of hemodynamics, metabolism, hyperkalemia, and survival in this current study, these restricting fluid therapies result in further complement activation and worse coagulopathy. The most important advantages of using colloids are the rapid achievement of hemodynamic goals because of their slow diffusion into the extravascular space and logistical due to reducing the weight and volume of resuscitation. Some colloids have been attributed to additional harmful effects on hemostasis, with altered fibrin polymerization and decreased platelet adhesive and aggregating properties [5]. Clinical data from a series of large and randomized controlled trials in critically ill patients failed to show an outcomes advantage associated with colloidal fluid resuscitation and indicate that hydroxyethyl starch solutions may be related to significant adverse effects (e.g., acute kidney injury, need for renal replacement therapy, coagulopathies, and pathological tissue uptake) [49].

We previously demonstrated that Hextend^® colloid infusion significantly contributes to dilutional anemia, tissue inflammation, complement activation, multiple-organ damage, and mortality, although it boosts hemodynamics after controlled HS in swine [27]. In this current study, Voluven^® resuscitation led to more uncontrolled bleeding, worse dilutional anemia, systemic inflammation, coagulopathy, renal and hepatic dysfunction, increased myocardial complement activation, and renal damage. It decreased the survival rate compared to balanced LR crystalloid infusion. As such, developing optimal DCR by targeting immunopathy and/or coagulopathy may be a promising adjunctive strategy for prehospital settings.

In recent years, immunological damage control resuscitation has shown promise as a pharmacological agent for use in trauma [30,50,51,52,53,54], traumatic HS [55,56,57], and sepsis [58,59]. Our recent works have shown 1) the beneficial effects of complement inhibition as both a stand-alone and adjunctive treatment with HS [27,31,60,61]; and 2) the evident effectiveness of immunological damage control resuscitation even in complex animal models of combined HS and polytrauma [33,34,42]. Prehospital treatment of tranexamic acid (TXA) has been shown to reduce mortality in a large international trauma study [62], recommended in some pre-hospital systems, and included in the WHO list of essential medicines for treating trauma [World Health Organization. Summary of the Report of the 18th Meeting of the WHO Expert Committee on the Selection and Use of Essential Medicines. https://www.who.int/selection_medicines/committees/TRS_web_summary.pdf (2021)]. The prehospital use of TXA is still controversial because there was no significant difference in the mortality of TXA versus placebo in multicenter RCT [63,64]. However, patients with severe shock who received early prehospital administration of TXA had a significant reduction in 30-day mortality [65], suggesting the severe traumatic HS patient group would benefit the most from TXA. Altogether, a future hemostatic resuscitative crystalloid and colloid fluids in combination with pharmacological agents to deter coagulopathy and immunopathy may resolve some of these problems and show more outcome benefits.

Histological splenic examination indicated successful autotransfusion, at least in the early dead pig. The spleens from the pigs that survived the observation period (24 hours) had erythrocytes in the red pulp, but this fact cannot reflect the organ dynamics at the time close to injury. Unlike a human, a pig’s spleen sequesters up to 20-25% of an animal’s blood volume and can auto-transfuse blood at a high rate under severe hemorrhagic conditions [66]. Whether splenectomy is an essential procedure in porcine hemorrhage studies is an enduring issue [67,68], and caution needs to be exercised when bleeding is higher than 30% [69]. Vnuk et al. [70], using a volume-controlled hemorrhagic porcine model and specified anesthetics (azaperone, thiopental, and isoflurane), showed that sham-operated animals were hemodynamically more stable than splenectomized and those with an auto transplanted spleen. Fixed-volume models of hemorrhagic shock more closely simulate hemorrhage seen in accident victims or combat casualties [71]. We recognize potential differences among pigs with intact spleen that can transfuse irregular volumes of blood into circulation. The variation in the capacity of the spleen to permeate different volumes of blood is a categorical property of the animal’s body, independent of its environment. Therefore, this variability should be counted on despite the possible requirement of a relatively larger number of animals for testing. Pottecher et al. [72] underlined that the pre-hemorrhagic porcine splenectomy model only reproduces the situation when hemorrhagic shock follows elective surgical splenectomy.

4. Conclusions

Controlled and uncontrolled hemorrhage-triggered immunopathy and coagulopathy were associated with increased MOF and mortality. This study suggests that 1) LR crystalloid solution is a better agent than Voluven^®, a colloid solution, and 2) the development of adjunctive strategies by targeting early immunopathy and/or coagulopathy may be a promising therapy for traumatic HS patients at the point-of-injury care and on-scene care.

5. Materials and Methods

5.1. Animal Study

The research complied with the Animal Welfare Act and the implementing Animal Welfare regulations, and the study was conducted in compliance with the Animal Welfare Act, the implementing Animal Welfare regulations, and the principles of the Guide for the Care and Use of Laboratory Animals, National Research Council. The facility’s Institutional Animal Care and Use Committee approved all research conducted in this study (approved code: A-10-017; approved date: 9/23/2012). The facility where this research was conducted is fully accredited by AAALAC International.

5.1.1. General Procedures

Yorkshire-cross female pigs weighing 38.9±2.9 kg (mean±SD) were obtained from Midwest Swine Research (Gibbon, MN), held in an AAALAC International-accredited facility, and their acclimatization lasted a minimum of 5 days. After this period, baseline hematologic and biochemical screening was performed.

5.1.2. Surgical Preparation

The pigs were fasted for 12 to 18 hours with free access to water before surgery. Pre-surgical procedures and instrumentation were applied as in our previous report [73]. In brief, pre-terminal anesthesia medication for secretion control (glycopyrrolate, Robinul, 0.01 mg/kg, Baxter Healthcare, Deerfield, IL) and sedation (tiletamine-zolazepam, Telazol^®, 8 mg/kg, Wyeth, Fort Dodge, IA) were administered intramuscularly. After intubation and anesthesia, the animals were supine on a standard operating table. Surgical instrumentation was conducted under anesthesia with 1.5-2.5% isoflurane in 30% oxygen in the air using an automatic ventilator and monitor (Fabius GS gas anesthesia system and Infinity Delta XL monitoring system, Draeger Medical, Telford, PA). An end-tidal pCO₂ of approximately 40 mm Hg was maintained. Core temperature was supported throughout by a homeothermic blanket and forced-air warming system. Urine was collected transurethrally using all silicone Foley catheters (10Fr., 3-mL balloon, Sherwood Medical, St. Louis, MO).

Vascular catheters were inserted via cut-downs. A micromanometer (SPC 330A; Millar Instruments, Inc., Houston, TX) was inserted non-occlusive into the left internal carotid artery for blood pressure and heart rate monitoring. A Swan-Ganz catheter was passed via the left jugular vein and positioned with its tip in the pulmonary artery, as confirmed by insertion tracings for continuous measurement of cardiac output and mixed venous oxygen saturation (Vigilance II Monitor, Edwards Lifesciences LLC, Irvine, CA). Occlusive catheters (8Fr. Sideport/percutaneous catheter introducer, Argon Medical Devices, Athens, TX) were inserted into the left femoral artery and left femoral vein for hemorrhage and fluid infusion, respectively. The arterial and venous blood samples were collected via these catheters. Another non-occlusive micromanometer was also put into the left femoral artery through the catheter introducer. These occlusive catheters were maintained patent by a slow continuous infusion of saline through an intra-flow adapter (3mL/hr, Intraflow continuous flush devices, Abbott Laboratories, Abbott Park, IL), which were connected to bags of normal saline pressurized to 300 mmHg. Access to the spleen was provided via a laparotomy, and a plastic sheet was placed between the spleen and the intestines.

5.1.3. Experimental Design

Once the instrumentation was completed and the vital parameters stabilized, the animals were subjected to somewhat modified procedures earlier reported [74]. A 10-minute baseline period began, and conducted hemodynamic measurements were collected from the analog and RS-232 signals on a data acquisition instrumentation rack (Dynamic Research Evaluation Workstation –DREW, US Army Institute of Surgical Research, San Antonio, TX).

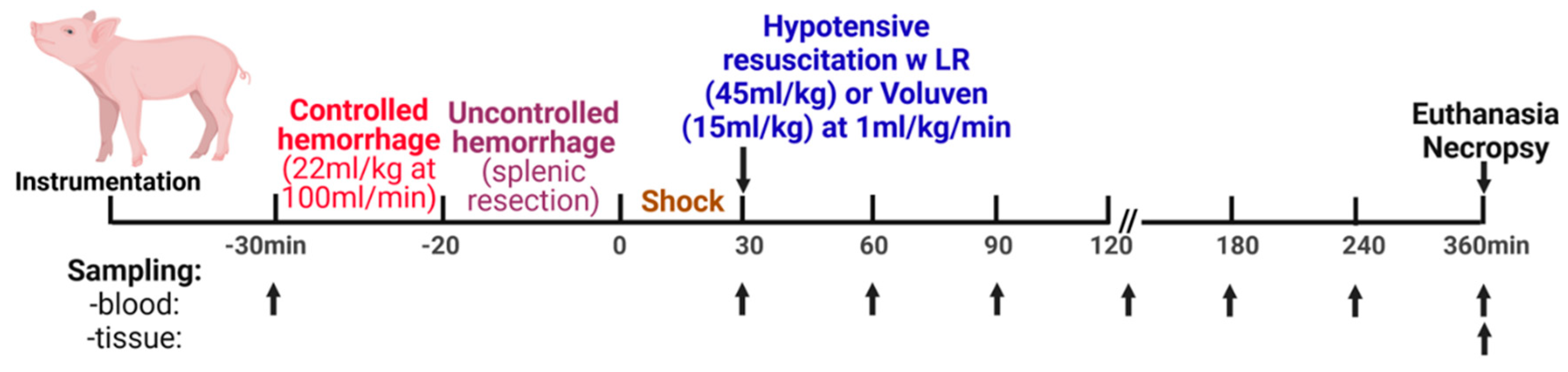

Figure 8 shows the conduct of the experiments. The animals were enrolled in one of six experimental groups: 1) Control, sham-operated (cannulated but not hemorrhaged/injured), n =9; 2) H, hemorrhage + splenic injury, n=14; 3) H + LR, hemorrhage + splenic injury + lactated Ringer’s solution (LR), n= 13; and 4) H + Voluven^®, hemorrhage + splenic injury + Voluven^®, n= 6.

As previously described, a controlled hemorrhage (22 mL of blood/kg b.w. 100 mL/min) was performed using our custom error-sensing negative feedback computerized pump program [73]. After controlled hemorrhage, the animals were subjected to 1) partial splenic resection [74] or 2) soft tissue trauma induced on both sides of the right thigh and right femur fracture [75] immediately preceding splenic injury. The uncontrolled hemorrhage volume from the injured spleen was measured continuously by suctioning shed blood into canisters (Vac-Rite disposable suction system, Baxter Healthcare, Deerfield, IL) that had been placed on a balance (SR16000 Mettler Balance, Mettler-Toledo, Columbus, OH). The time the splenic injury was completed was marked as the zero-time point.

Resuscitation started with intravenous infusion crystalloid (lactated Ringer’s solution; LR) at 45 ml/kg body weight or colloid solution (Voluven^®, 6% hydroxyethyl starch 130/0.4 in 0.9% sodium chloride injection; Fresenius Kabi Norge AS, Halden, Norway) at 15 ml/kg body weight at a rate of 1ml/kg/min using our servo-controlled computerized pump. Animals were observed for 6 hours after the injury or until death.

5.1.4. Biosampling

As seen in Figure 8, an arterial (30 mL) blood sample was obtained before controlled hemorrhage (-30 min), after shock, and immediately before resuscitation (30 min), continued at 30-min intervals within the first 120 min and followed by hourly sampling. The acid-base balance in the blood was assayed using i-STAT cartridges (Abbott Laboratories, Abbott Park, IL). At the end of the observation or death (when end-tidal pCO₂ ≤ 10 mmHg or flat-line ECG), each animal was euthanized with sodium pentobarbital (90 mg/kg IV, 10 mL Fatal Plus, Vortech Pharmaceuticals, LTD, Dearborn, MI) under surgical anesthesia.

Tissue harvest. The animals were euthanatized with pentobarbital sodium (90 mg/kg i.v.) at the end point following the procedures above. Tissue samples, including lung, small intestine, heart, and kidney, were removed and fixed with 10% formalin or 4% paraformaldehyde for histological and immunohistochemical analysis.

5.2. Assays

5.2.1. Reagents and Antibodies

CG4+ and CG8+ cartridges were purchased from Abbott (Princeton, NJ). Chicken anti-C3/C3a, mouse anti-C4d, mouse anti-C5b-9, and mouse anti-endothelial cell antibodies were obtained from Abcam Inc. (Cambridge, MA). Rabbit anti-C5 antibody was from Abbiotec, LLC (San Diego, CA). Mouse anti-IL-6 was purchased from R&D Systems (Minneapolis, MN). Mouse anti-porcine C3a, biotinylated anti-C3a, and porcine C3a standard were from Georg-August-Universität Göttingen Stiftung Öffentlichen Rechts (Göttingen, Germany). Goat anti-chicken Alexa Fluor 594, goat anti-mouse Alexa Fluor 488, goat anti-mouse Alexa Fluor 594 IgG (H+L) conjugated secondary antibodies, and ProLong Gold antifade reagent were from Invitrogen (Carlsbad, CA).

5.2.2. Histological Examination

Formalin-fixed tissues were embedded in paraffin, sectioned, and stained with hematoxylin-eosin as we described previously [18,27,42,60,61]; histological images were recorded under a light microscope (AX80; Olympus, Center Valley, Pa) by a pathologist blinded to the treatment group. Histological injury scores were graded according to the following: For lung injury, four parameters (alveolar fibrin edema, alveolar hemorrhage, septal thickening, and intra-alveolar inflammatory cells) were scored on each H&E-stained slide for 1) the severity (0: absent; 1, 2, and 3 for more severe changes) and 2) the extent of injury (0: absent; 1: <25%; 2: 25-50%; 3: >50%) for the lung tissue. Each slide’s mucosal damage of the small intestine was graded on a six-tiered scale. A score of 0 was assigned to a normal villus; villi with tip distortion were scored as 1; villi lacking goblet cells and containing Guggenheims’ spaces were scored as 2; villi with patch disruption of the epithelial cells were scored as 3; villi with exposed but intact lamina propria and epithelial cell sloughing were assigned a score of 4; villi in which the lamina propria was exuding were scored as 5; villi displaying hemorrhage or denuded were scored as 6.

Myocardial injury was assessed by using four parameters (edema, degeneration, inflammatory cell infiltration, congestion) were scored on each H&E-stained slide for 1) the severity (0: absent; 1, 2, and 3 for more severe changes) and 2) the extent of injury (0: absent; 1: <25%; 2: 25-50%; 3: >50%).

For the evaluation of the liver injury, four parameters were used. Vascular congestion/ thrombosis is defined as engorgement of portal venules, sinusoids, or terminal hepatic venules with erythrocytes, platelets, and/or fibrin material (score 0 for no change, score 1, 2, 3 for more extended and severe changes). Hepatocyte death is assessed by loss of nuclear detail and well-defined cellular borders (score 0 for no change, score 1, 2, 3 for more extended and severe changes). Degeneration is determined by cytoplasmic hydropic change, cytoplasmic vacuolization, and sinusoid derangement (score 0 for no change, score 1, 2, 3 for more extended and severe changes). Inflammation is evaluated by inflammatory cell infiltration such as macrophage, histocytes, and polymorphonuclear leukocyte (PMN) (score 0 for no change, score 1, 2, 3 for more extended and severe changes). The extent of liver damage (0: absent; 1: <25%; 2: 25-50%; 3: >50%) was also evaluated.

Kidney injury was evaluated by using the following scores: 0=normal histology; 1=slight alteration (loss of brush border, mild hydropic degeneration, mild congestion); 2=mild (intensive hydropic degeneration, mild vacuolization, and interstitial edema); 3=moderate (nuclear condensation, intensive vacuolization, modulate interstitial edema); 4=severe (necrotic/apoptotic cells, denudation/rupture of basement membrane); 5=necrosis (total necrosis of the tubule) are scored on each H&E stained slide for 1) the severity (0: absent; 1, 2, and 3 for more severe changes) and 2) the extent of injury (0: absent; 1: <25%; 2: 25-50%; 3: >50%).

5.2.3. Immunohistochemical Staining

As we described previously [27,42,60,61]. Paraformaldehyde-fixed lung and small intestine biopsies were snap-frozen at -70ºC; sections were cut at a 5µm-thickness with a cryostat and fixed in cold methanol for 20 minutes. The fixed sections were permeabilized with 0.2% Triton X-100 in PBS for 10 minutes and then blocked with 2% BSA in PBS for 30 minutes at room temperature. The sections were incubated with the primary antibodies (anti-C5b-9, C3a, and C5a) overnight at 4ºC, washed, and then incubated with the appropriate secondary antibodies labeled with Alexa Fluor 488 and 594 for 1 hour at room temperature. After washing, the sections were mounted with ProLong Gold antifade solution containing 4′, 6′-diamidino-2-phenylindole (DAPI) and visualized under a confocal laser scanning microscope (Radiance 2100; Bio-Rad, Hercules, NJ) at ×400 magnification. Negative controls were conducted by substituting the primary antibodies with corresponding immunoglobulin isotypes. Captured digital images were processed by Image J software (NIH, Bethesda, MD). As previously described, immunofluorescent intensity was quantified with a modified method [76]. Briefly, four to six images from each animal were opened using Adobe Photoshop software and adjusted until only the fluorescent deposits and no background tissue were visible. The image was changed to black and white pixels using Image J software, with black representing the target proteins’ deposits and white representing non-stained areas of the image. The image was then changed to red and white using the Adjust Threshold command, with fluorescent deposits being red. The image was analyzed to show the total red area in pixels squared. Values for the entire area for all animals in each group were averaged to give the average area of the fluorescent deposit.

5.2.4. Cytokine Assays

Serum TNF-α, IL (Interleukin) -6, and IL-8 levels were assessed by quantitative sandwich Enzyme-Linked Immunosorbent Assay (ELISA; R&D Systems, Minneapolis, MN) according to the manufacturer’s instructions.

5.2.5. Quantitative Assessment of End Tissue Function

Creatinine, aspartate aminotransferase (AST), muscle myocardium isoenzyme B (MMB), and creatinine kinase (CK) were measured from blood samples using Dimension Xpand Plus Integrated Chemistry System (Siemens, Holliston, MA).

5.2.6. Measurement of Coagulation Parameters

Samples for coagulation assays were collected in citrated tubes. Prothrombin time (PT), Activated Partial Thromboplastin Time (aPTT), and fibrinogen concentrations were measured in platelet-poor plasma using the BCSTM XP system (Siemens, Deerfield, Illinois, USA). Whole-blood coagulation function was determined by Thrombelastography™ (TEG) (Haemoscope Corporation, Niles, IL).

5.2.7. Analysis of Complement Functional Activity

Serum complement activity was determined based on hemolytic activity [18,42]. Briefly, antibody-sensitized Gallus gallus domesticus red blood cells (Colorado Serum Company, Denver, CO) were incubated for one hour at 37°C with serial dilutions of serum samples in gelatin-Veronal buffer (pH 7.3). After centrifugation, the absorbance of the supernatant was determined at 405 nm, and the serum concentration inducing 50% of complement hemolytic activity was defined as a CH50 value.

5.2.8. Analysis of Plasma C3a

As we described previously [18,42], 96-well microplates (R&D Systems) were coated with anti-porcine C3a mAb (Georg-August-Universität Göttingen Stiftung Öffentlichen Rechts, Germany) in coating buffer (Na₂CO₃/NaHCO₃ coating buffer, pH >10) overnight at 4°C. After blocking with 1% gelatin in coating buffer and washing three times with wash buffer (1× PBS containing 0.05% Tween 20), 100 µl of standards (porcine C3a) or porcine plasma samples were added into each well and incubated for 2 hours at room temperature. After incubation, the wells were washed three times with wash buffer. Then 100 µl of biotinylated anti-porcine-C3a IgG (K5/4, Georg-August-Universität Göttingen Stiftung Öffentlichen Rechts, Germany) was added and incubated for one hour at room temperature. Wells were washed and incubated with streptavidin-HRP for one hour at room temperature, followed by incubation with 100 μl of substrate (R&D Systems) for 20 minutes at room temperature. After incubation, 50 μl of stop solution (R&D Systems) was added to each well and read at 450nm with a plate reader.

5.3. Statistical Analysis

Data were analyzed using GraphPad Prism version 10 (GraphPad Software, La Jolla, CA) and are expressed as mean ± SEM. The log-rank (Mantel-Cox) test analyzed survival. Hemodynamic and metabolic parameters were analyzed using two-way ANOVA with Bonferroni posttests, while thromboelastographic data were reviewed with the Kruskal-Wallis test; P < 0.05 was considered significant.
