Genome-Wide Analysis of the Xyloglucan Endotransglucosylase/ Hydrolase (XTH) Gene Family: Expression Pattern During Magnesium Stress Treatment in the Mulberry Plant (Morus alba L)

1. Introduction

Mulberry (Morus spp.) is an essential plant in many Chinese provinces, primarily cultivated for its leaves and fruits. It holds particular significance in sericulture, as mulberry leaves serve as the exclusive food source for domestic silkworms (Bombyx mori L.) [1,2]. Besides its historical role in silkworm rearing, mulberry, especially Morus alba (M. alba), demonstrates potential as a pioneer tree species in marginal environments [3]. Moreover, the leaves of M. alba are of high medicinal value [4] and are believed to possess antioxidant, anti-inflammatory, and anti-allergic properties attributed to various bioactive phytochemicals, including polyphenolic compounds, triterpenoids, and anthocyanins. Although M. alba is of significant economic importance, its growth and development are subject to the influence of nutrient concentrations. High magnesium (Mg) levels or Mg deficiency are among the key factors affecting the growth and development of the plant [5]. Nevertheless, M. alba’s stress response to different Mg concentrations is unclear, especially at the genomic level.

Mg deficiency frequently hinders crop yield in sandy or highly acidic soils, primarily attributable to the high leaching susceptibility of Mg. This occurrence is widely observed and has notable implications for agricultural productivity in such soil conditions [6]. Extensive investigations have scrutinized and unveiled the consequences of Mg-deficiency on plant physiological aspects, including biomass distribution, carbon dioxide (CO₂) uptake, protection against photooxidative stress, net CO₂ uptake, and biomass distribution [7] resulting in yield reduction and poor fruit quality [8,9]. In response to these challenges, plants have developed intricate regulatory mechanisms, including the involvement of distinct gene families, such as Xyloglucan endotransglucosylase/hydrolases (XTHs) [10]. XTHs genes are classified within the glycoside hydrolase family 16 and are an essential group of enzymes primarily responsible for cleaving and rearranging the xyloglucan backbones within plant cell walls [11,12,13]. Specifically, family members of this gene carry out two distinct biochemical processes that are catalyzed by two specific enzymes: xyloglucan endotransglycosylase (XET) and xyloglucan endohydrolase (XEH) [14]. XET catalyzes the transfer of one xyloglucan molecule to another, resulting in the elongation of xyloglucan, whereas XEH is characterized by hydrolyzing an individual xyloglucan molecule, causing an irreversible reduction in the length of the xyloglucan chain [13].

Several XTHs exhibit both catalytic properties and play an essential role in regulating the extensibility of plant cell walls, root elongation, and plant growth [11,15]. Due to the advancement of sequencing technology and data availability, an expanding repertoire of XTH genes has been discovered and characterized in a broader range of species including Ananas comosus (48) [16], Arachis hypogaea L (58) [17], Glycine max (61) [18] Arabidopsis thaliana [19], lpomoea batatas (36) [20], Oryza sativa (29) [21], Solanum lycopersicum L (37) [11], Nicotiana tabacum (56) [22] Brassica rapa (53) and Brassica oleracea (35) [23]. Nonetheless, the XTH family constituents in mulberry remain undisclosed. Earlier investigations have demonstrated the involvement of XTH genes in numerous crucial processes, particularly the development and growth of plants via the remodeling of plant cell walls. For instance, in Arabidopsis, genes such as AtXTH17, AtXTH18, AtXTH19, and AtXTH20 exhibited specific expression patterns in the root tissues and were significantly involved in the processes of root elongation and the initiation of root hair formation [19,24]. GhXTH1 gene overexpressed in cotton, elongated cotton fibers by 15-20% [25]. In addition, some XTH genes have been reported to play active roles in fruit softening and ripening. PavXTH14 and PavXTH15 expression in cherry fruits resulted in a significant decrease in fruit firmness and altered the constitution of hemicellulose and pectin in the cell wall of the transgenic fruit [26]. Likewise, XTH influenced the softening and ripening of fruits, including tomatoes [27], strawberries [28], kiwi [29], and pears [29]. Several other XTH genes are involved in flower development [29] and leaves [30].

Numerous investigations have also suggested that plant hormones play a role in regulating the activity of XTH genes. For instance, the application of abscisic acid increased the expression of Arabidopsis AtXTH23 [19]. Similarly, the ethylene application induced the expression of banana MA-XETI, which is involved in the ripening and softening of the peel and pulp [30]. Furthermore, under ethylene induction, three CaXTH genes were significantly upregulated in the leaf tissue of hot pepper [31]. Members of the XTH gene family primarily regulate cell wall responses to biotic and abiotic stressors, which affect plant growth. The overexpression of DkXTHI was found to augment the resistance of transgenic Arabidopsis plants to salt, drought-induced stress, and abscisic acid, consequently impacting the development of roots and leaves [32]. Similarly, XTH genes in Chinese cabbage (Brassica rapa L) exhibited an up-regulated expression in response to elevated temperatures [33]. Furthermore, under low temperatures, the DkXTH6 gene in persimmons decreased in expression, while the DkXTH7 gene showed noticeably high transcription levels [34]. A prior proteomic study in maize revealed that XTHs were differently regulated in response to drought stress [35]. Moreover, xyloglucan content was decreased in the Arabidopsis AtXTH31 mutant, which lowered the amount of absorbed Al³⁺ and increased resistance to aluminum stress [36]. The overexpression of the xyloglucan endotransglucosylase/hydrolase gene in Populus euphratica resulted in increased resistance to cadmium tolerance by limiting cadmium absorption in the root system of transgenic tobacco plants. In addition, the transgenic plants had 56-87% more xyloglucan degrading activity (XDA) than the wild type, which resulted in a 25–27% decrease in the amount of xyloglucan in the root cell walls [37]. Moreover, in Arabidopsis, aluminum tolerance was imparted by the induction of ZmXTH, a gene encoding xyloglucan endotransglucosylase/hydrolase from maize [38]. Similarly, Arabidopsis mutants xth15 and xthI7 exhibited elevated aluminum tolerance in contrast to wild-type plants [36].

These preliminary studies highlight the key role of XTHs in various plants' response to various stresses. However, to the best of our knowledge, there is no functional characterization of Mulberry XTH gene family members. Consequently, there is a necessity for a systemic and comprehensive exploration of the M. alba XTH gene family across the genome. The present investigation conducted an analysis of the XTH gene family within M. alba based on our previous transcriptomic analysis after Mg stress treatment using the available genome data. Subsequently, detailed information, including phylogenetic analysis, gene structure characterization, chromosomal localization, motif analysis, promoter analysis, and syntenic relationships of MaXTH genes, were examined. Furthermore, Real-time quantitative PCR (qRT-PCR) was employed to determine the expression patterns of XTH genes in the leaf tissues of M. alba subjected to various levels of Mg stress. The findings of this study are poised to offer significant insights into the XTH genes in M. alba, contributing to a deeper comprehension and setting the groundwork for the functional analysis of plant XTH genes in mulberry plants.

2. Materials and Methods

2.1. Growth Conditions and Magnesium Treatment for the Mulberry Plant (Morus alba).

Mulberry (), a member of the M. alba (Yu-711) species, was obtained from the National Mulberry GenBank at Jiangsu University of Science and Technology in Zhenjiang, Jiangsu, China. Growth of the mulberry plant materials and Mg treatments followed the methods of our previous the [5,39]. On the 20th day, leaves from all experimental groups were collected from the 3-5 leaf position due to noticeable deficiency symptoms. These sampled leaves were temporarily preserved at a temperature of -80 ℃ for subsequent studies including transcriptome analysis.

2.2. Data Collection and Identification of XTH Gene Family Members in Morus alba

Genetic data in the form of genome sequences (fasta) and annotation files (gff) for three plant species, Arabidopsis thaliana, Populus trichocarpa, and Zea mays, were obtained from the official NCBI website (https://www.ncbi.nlm.nih.gov). We obtained the genome sequence and annotation file for M. alba with the help of Professor Weiguo Zhao of Jiangsu University of Science and Technology provided. To determine the XTH gene in the mulberry plant genome, a HMMER search was executed utilizing a hidden Markov model (HMM) profile comprising binding domains, PF00722 and PF06955, sourced from the Pfam database (http:// pfam. xfam. org/). Sequences with E values <1 was scrutinized, and any short open reading frames (less than 100 in length) were manually sorted out. The filtered sequences with putative PF00722 and PF06955 domains were screened as primary candidate for M. alba XTH genes (MaXTH).

2.3. Gene Structure, Motif Analysis and Sequence Alignment

Each MaXTH gene structure was visualized in TBtools software v1.098769 [40] by utilizing the genome sequence in conjunction with its corresponding annotation file. Employing the online MEME suite (available at https://meme-suite.org/meme/), the conserved motifs within MaXTHs were identified using specific parameters: a search for 10 motifs, with a minimum width of 6 and a maximum width of 55. Subsequently, an analysis of the consensus sequence was conducted, and a web logo was generated through the utilization of the MEME tool. The alignment of multiple MaXTH protein sequences was conducted utilizing the DNAMAN software.

2.4. Physicochemical Properties of the MaXTH Gene Family

The ExPASy online platform (https://web.expasy.org/protparam/) was used to obtain the molecular weight (Mw), isoelectric point (pI), and grand average of hydropathy (GRAVY) data for individual XTH proteins. Additionally, the subcellular localization of MaXTH proteins was predicted using the CELLO online resource (http://cello.life.nctu.edu.tw/) [41].

2.5. Phylogenetic Analysis

The evolutionary relationship of the XTH gene family among different species was assessed following the alignment of XTH protein sequences from M. alba, P. trichocarpa, and A. thaliana in MEGA 7 software using Clustal W [42]. A phylogenetic tree, based on the maximum likelihood method, with 1000 bootstrap replications was generated employing the MEGA 7.0 software. All other phylogeny trees were performed using MEGA 7 software following the same specifications indicated above.

2.6. Analysis of Cis-Regulatory Elements of MaXTH Genes and GO Analysis

The promoter regions located 2000 base pairs prior to the initiation codon (ATG) of MaXTH genes were extracted from the genome of M. alba. Utilizing the PlantCARE online tool (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/) [43], the inherent regulatory elements in these promoter regions were predicted. Subsequently, the outcomes of this predictive analysis were rendered visible through the TBtool software. Gene Ontology (GO) analysis was performed using the web tool Shiny GO (http://bioinformatics.sdstate.edu/go74/).

2.7. Chromosomal Localization, Circos, and Synteny Analyses

The length of each chromosome and the chromosomal position of all XTH genes were obtained from the annotated dataset of the M. alba genome. The positional mapping of genes on the chromosomes was visualized through the utilization of TBtools software v1.098769 [40]. Based on the alignment and further examination of the phylogenetic relationship of the MaXTH genes, paralogous genes were discovered [20], and the interconnections of the paralogous genes according to their locations on the chromosomes were exhibited on the circos map constructed in the TBtools. The Multiple Collinearity Scan toolkit (MCScanX), integrated into the TBtool, was applied for the identification of syntenic blocks and specific gene pairs, adhering to its default configurations [44]. Additionally, the Multiple Synteny Plotter program within the TBtool (accessible at https://github.com/CJ-Chen/TBtools) was employed to visually represent the synteny associations among orthologous XTH genes across M. alba, A. thaliana, Zea mays, and Populus trichocarp [45].

2.8. Gene Expression Analysis and qRT-PCR Gene Validation

By using the RNA-seq data obtained from our transcriptome analysis after Mg application (https://ncbi.nlm.nih.gov/subs/sra; accession number: PRJNA951543), this study examined the expression of the XTH genes in M. alba treated with different levels of Mg after 20 days (about 3 weeks) and compared it to the expression of the gene in optimum Mg supply (the control) according to our previous study [5]. To validate the XTH genes identified through high-throughput sequencing, six differentially expressed genes (DEGs) were chosen for real-time quantitative polymerase chain reaction (qRT-PCR) validation, following the established protocol detailed in a prior study [46]. Mulberry leaf samples used for the RNA-seq analysis were also used for total RNA and cDNA synthesis for qRT-PCR validation. Furthermore, the 2^−ΔΔCt method [47] was applied to estimate the fold changes in gene expression. The primer sequences and gene names for qRT-PCR validation are enlisted in the supplementary file S1.

3. Results

3.1. Identification and Physiological Features XTH Genes in M. alba

To identify potential candidate genes in response to high levels of magnesium (Mg) or magnesium nutrient starvation in M. alba, RNA-Seq transcriptome analysis for M. alba using the leaves after level of magnesium (Mg) treatments in a previous study (Data under journal consideration). A comprehensive examination of the transcriptome data resulted in the identification of 12 XTH genes. Among them, the candidate MaXTH-1 with the gene ID LOC21405692 had a higher expression level and, therefore, was selected and used as a query gene for the search against the Morus genome using BLASTP and HMMER search. 24 putative XTH proteins were obtained after the search and confirmed in the M. alba genome using their transcript ID. After which, the short and redundant sequences underwent manual scrutiny. Subsequently, the identification of conserved domains was carried out utilizing the Pfam and CDD databases. Finally, the 22 XTH proteins obtained were named MaXTH-1 to MaXTH-22 (Table 1 & Supplementary file S2). Coding sequences (CDS) of the 22 MaXTH proteins ranged from 645 bp (LOC21407360; MaXTH-21) to 1,509 bp (LOC21403517; MaXTH-18), with an average length of 915 bp. The amino acid sequence length of the MaXTH proteins spanned from 214-502, where MaXTH-18 was the longest sequence (501 aa) and MaXTH-21 (214 aa) had the shortest sequence. The molecular weights of MaXTH proteins varied between 24.071 kDa (MaXTH-21) and 56.843 kDa (MaXTH-18), averaging 34.40 kDa. The GRAVYs for all MaXTH genes were negative, ranging from -1003 to -0.099 (Supplementary file S2), suggesting that MaXTHs are likely hydrophilic. The predicted putative localization of the M. alba XTH was prevalent in the extracellular region, while a small number were located in the plasma membrane, mitochondrion, cytoplasmic, vacuole, and nuclear region (Table 1).

3.2. Gene Structure, Conserved Domain, and Motif Analysis

The structural diversity of the 22 MaXTH genes was investigated by determining their exon and intron structures through the alignment of their genomic and CDS sequences using the TBtool software. In addition, a phylogenetic tree was constructed using the complete MaXTH protein sequences, depicted with the distribution of introns and exons (Figure 1). The resulting phylogenetic analysis revealed the categorization of MaXTH genes into five distinct groups: I, II, III, IV and V constituting of 8, 9, 12, 6, and 7 MaXTH genes respectively (Figure 1a). In general, genes that are grouped together share similar structures. For instance, all members of group 1 (MaXTH-1, MaXTH-2, MaXTH-3, MaXTH-4, MaXTH-5, MaXTH-6, and MaXTH-9) contained three exons in their coding region, and two introns (Figure 1b). Members of group II also possessed four exons and three introns except for MaXTH-7 which had three exons. MaXTH group III members constituted four exons, excluding MaXTH-21 and MaXTH-22. Moreover, MaXTH-21 contained no intron. Interestingly, MaXTH-15 had no 5’ or 3’ UTRs.

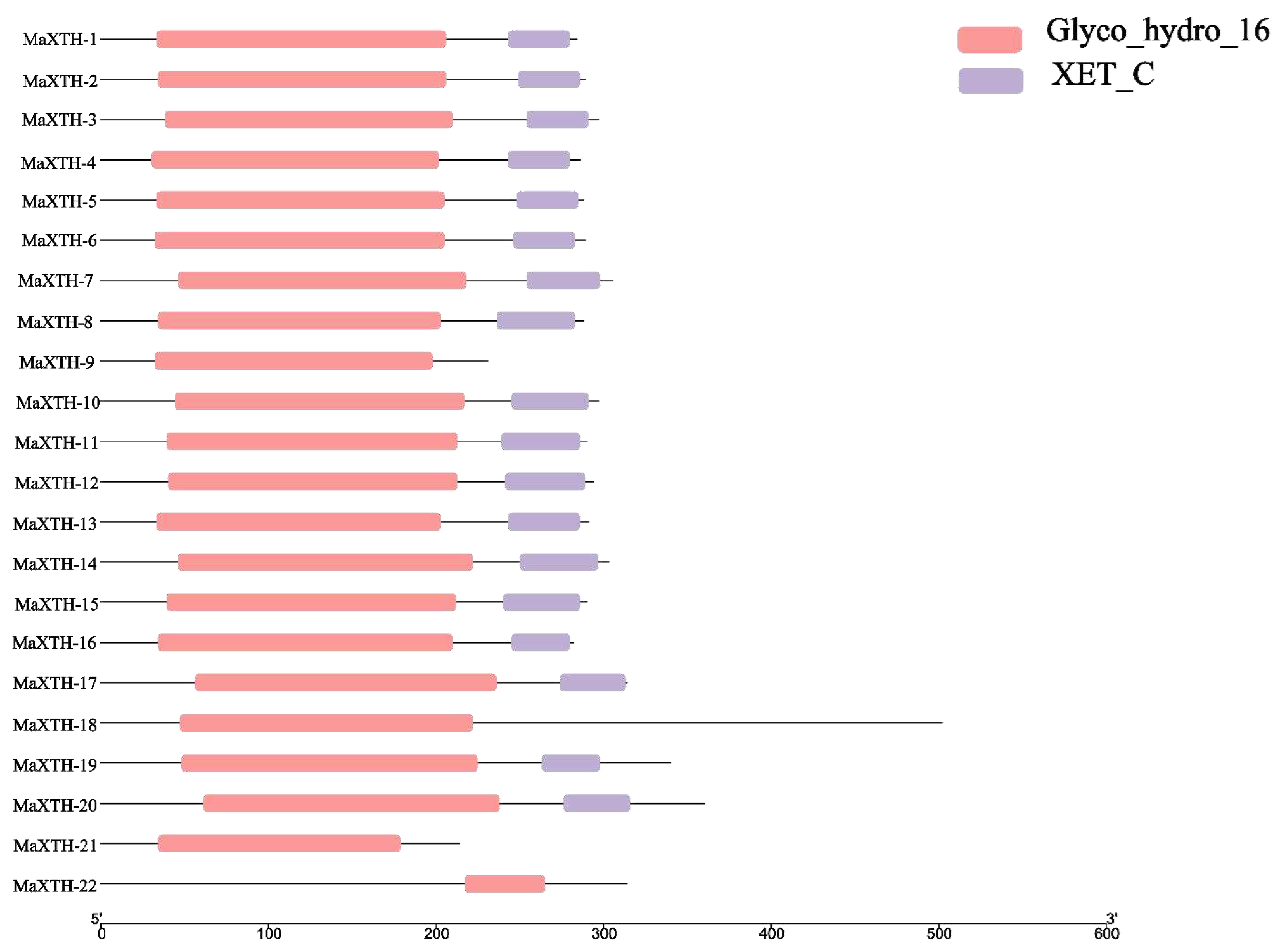

To investigate the conserved domains of the 22 MaXTH genes, the Pfam and CDD databases were employed. From the results obtained, only four genes, MaXTH-9, MaXTH-18, MaXTH-21, and MaXTH-22, contained a single conserved domain (Glyco_hydro_16). In contrast, the remaining 16 MaXTH genes exhibited the presence of both Glyco_hydro_16 and XET_C conserved domains, as illustrated in Figure 2. MaXTH proteins were further characterized by predicting their potentially conserved motifs employing the MEME online software. A total of ten conserved motifs were identified, each exhibiting different lengths (Figure 3).

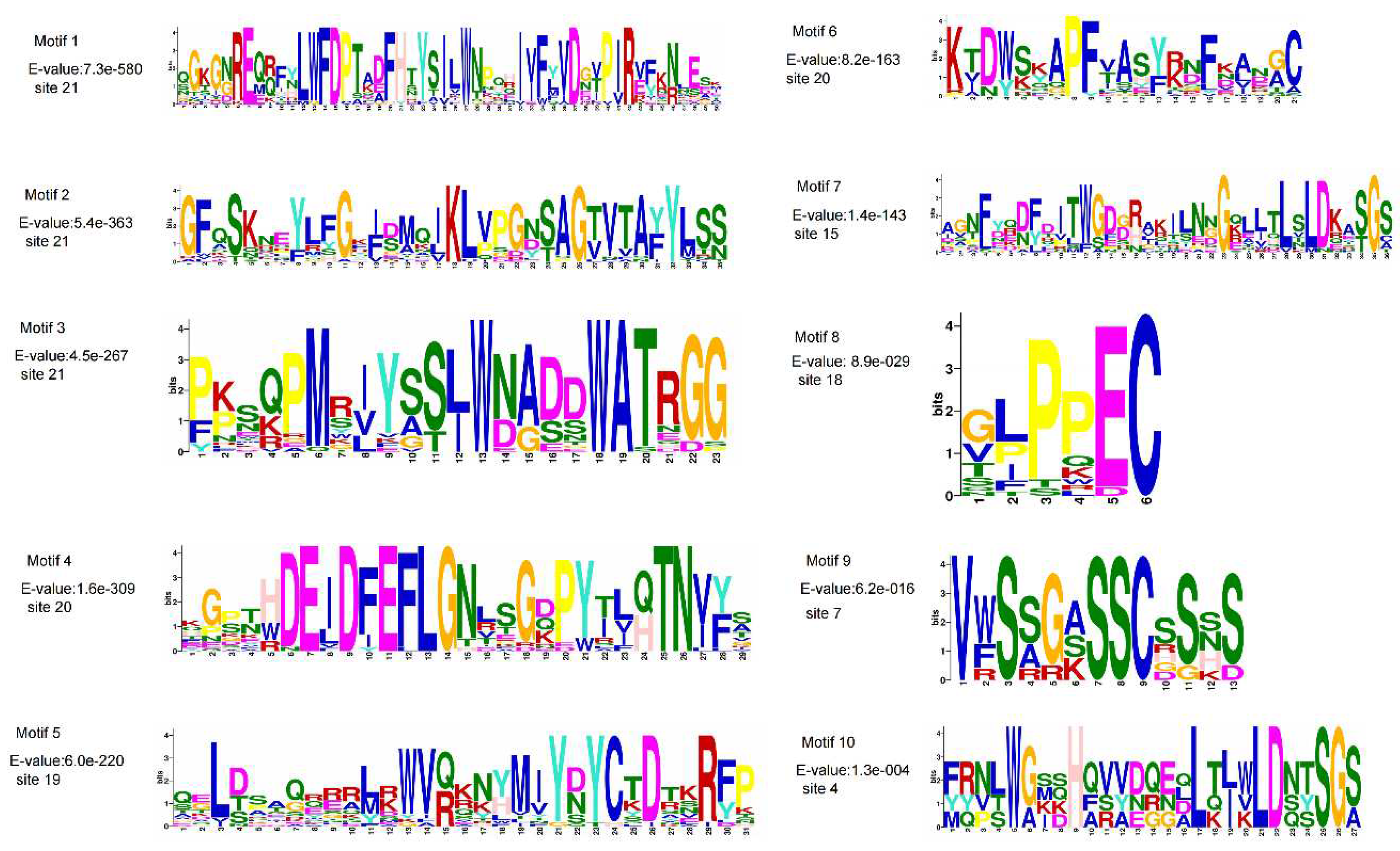

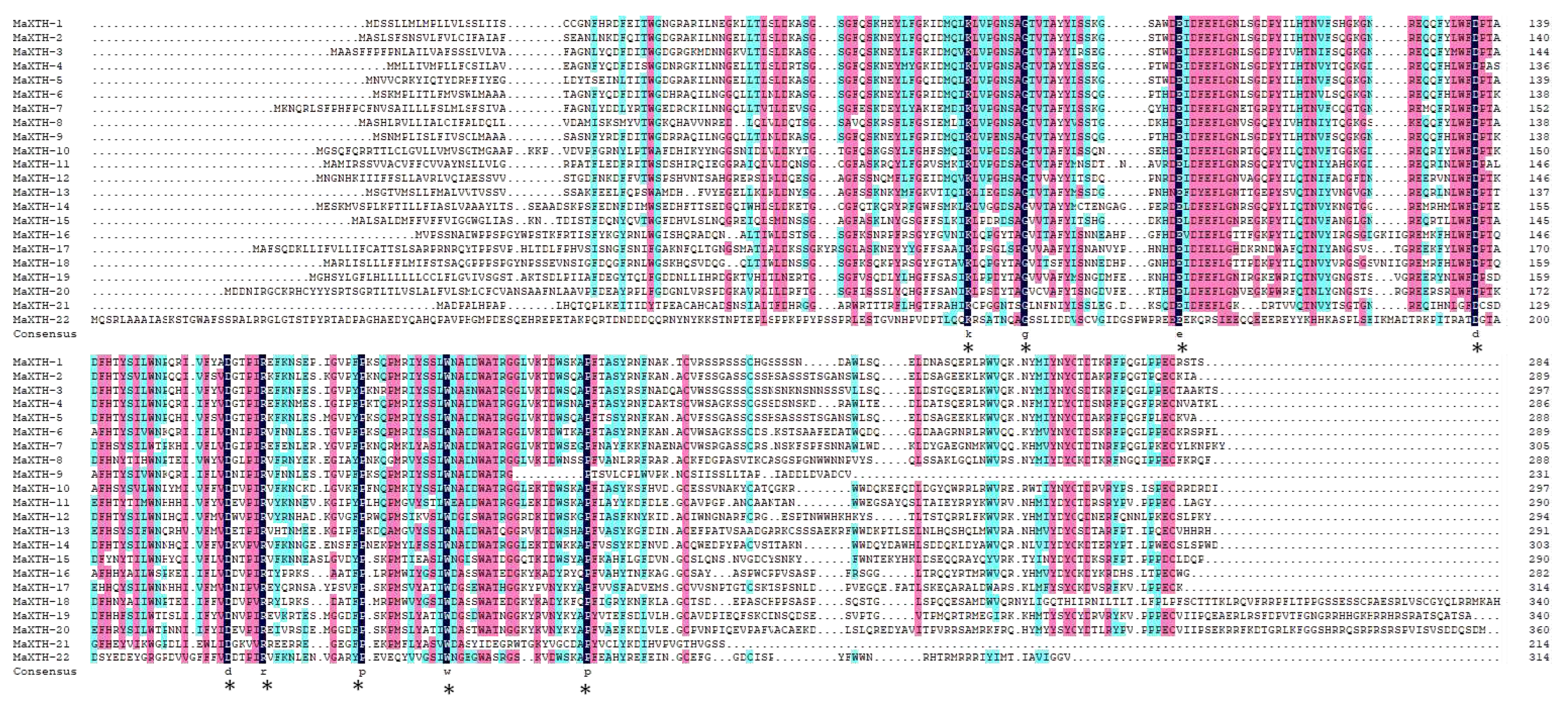

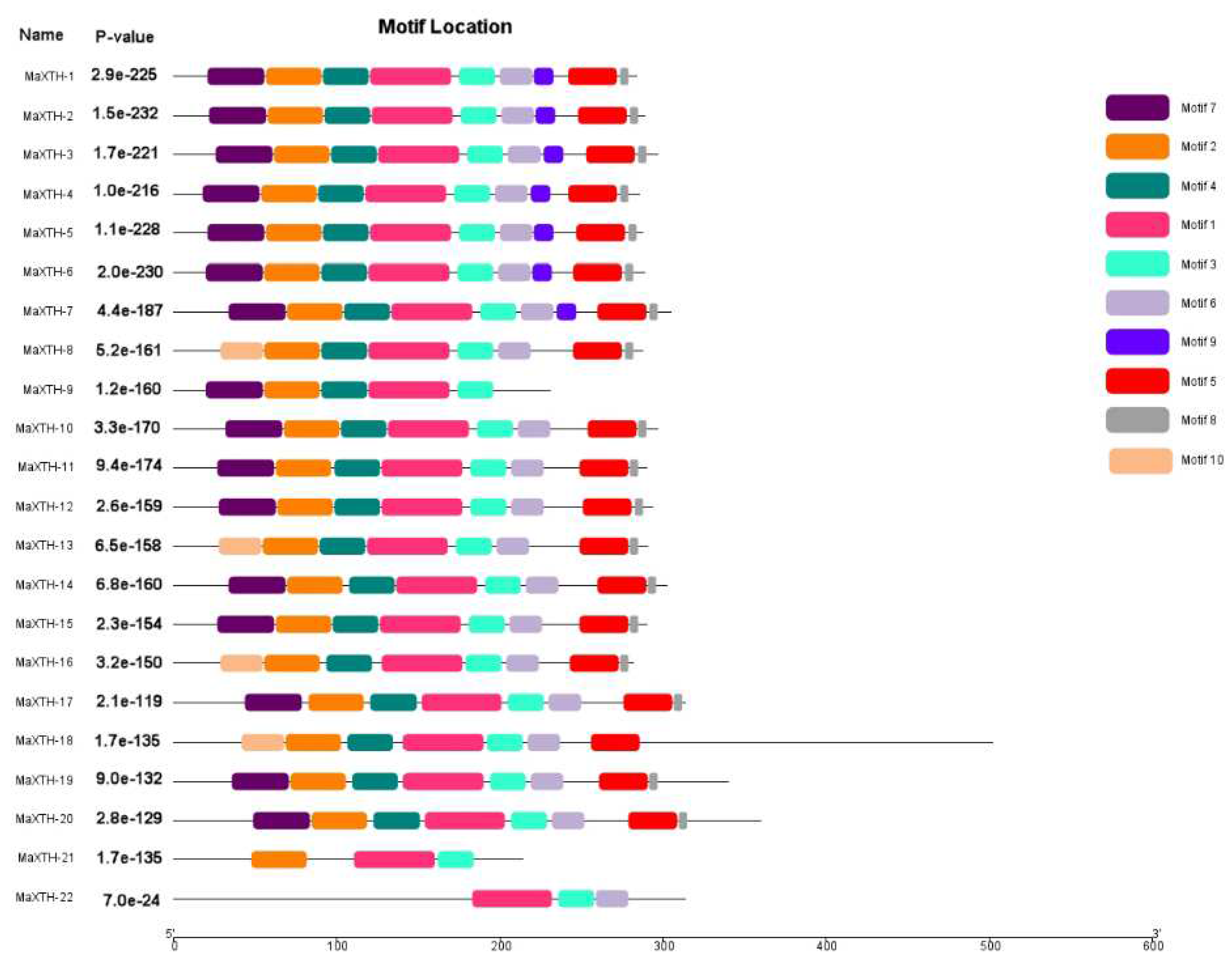

The longest motif (motif 1) had 50 amino acids, while the shortest (motif 8) constituted 6 amino acids (Figure 3). The motifs 1, 2, 3, 4, 5, 7 and 10 were present in glycohydro_16, (Figure 4) however not all proteins possessed motif 8. For instance, motifs 8 and 9 were present in the XET C domain. Multiple sequence alignments by DNAMAN software showed that all the MaXTH genes were highly conserved near potential N-linked glycosylation sites (Figure 5) between the amino acid sequences 126-272.

3.3. Evolutionary Relationship of the MaXTH Proteins

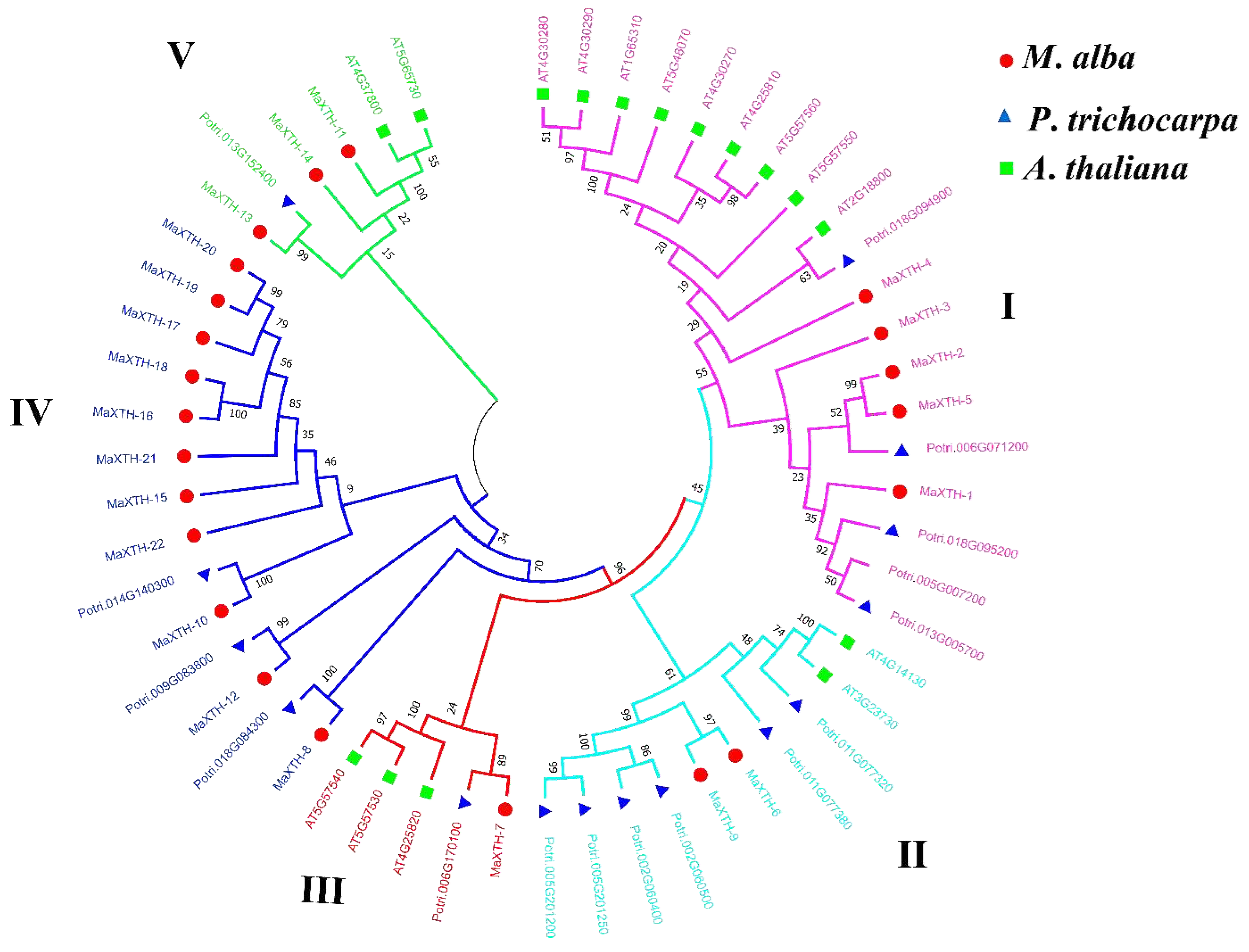

To comprehend the evolution and classification of MaXTH proteins, a phylogenetic tree based on the maximum likelihood method was constructed using the 22 MaXTH protein sequences with other XTH sequences from Arabidopsis thaliana (16) and Populus trichocarpa (15). From the results obtained, MaXTH proteins formed 5 different groups with XTH proteins from A. thaliana and P. trichocarpa (Figure 6). Groups I, II, III, IV and V contained 7, 8, 9, 5, and 6 members, respectively. Generally, the phylogenetic analysis depicts that MaXTH genes clustered well with XTH orthologs from P. trichocarpa and A. thaliana. However, the association between MaXTH and P. trichocarpa XTH proteins within group II exhibited a limited correlation, suggesting that the MaXTH proteins present in the branch might be less evolutionarily conserved or more primitive.

3.4. Cis-Acting Regulatory Elements of XTH Genes from Morus alba

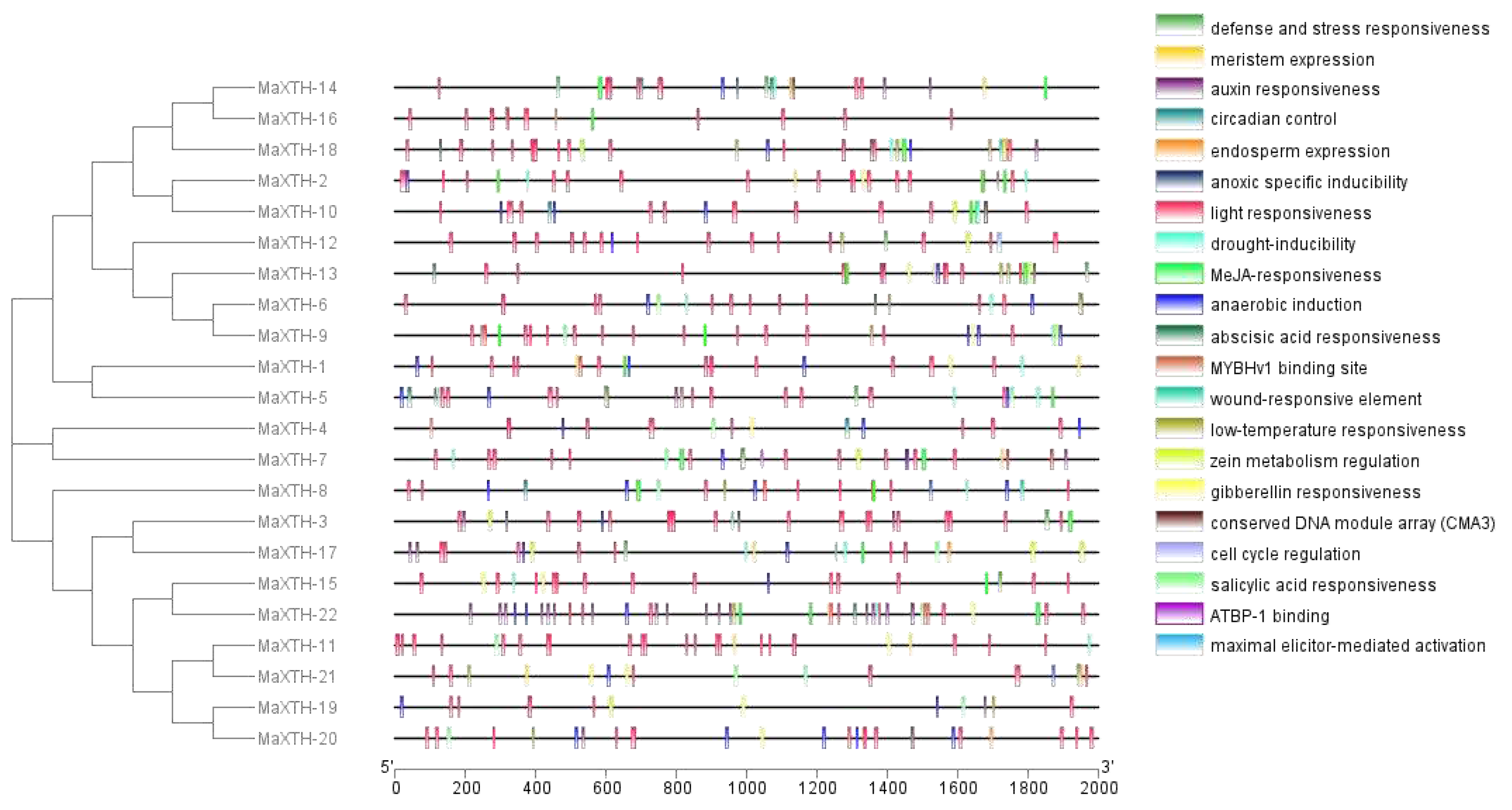

To comprehend the transcriptional regulation of MaXTH genes, the 2000 bp promoter sequence of all the MaXTH genes was retrieved from the M. alba genome and analyzed using the PlantCare online database. The data obtained infer that MaXTH promoters possessed several cis-regulatory elements involved in processes such as stress response, hormone regulation, and cell development (Figure 7). Defense and stress-responsive cis-elements were identified for 10 MaXTH genes, including MaXTH-3, MaXTH-5, MaXTH-6, MaXTH-7, MaXTH-12, MaXTH-13, MaXTH-14, MaXTH-15, MaXTH-16 and MaXTH-21. In terms of hormone-responsive elements, 11, 14, 10, and 13 MaXTH genes contained salicylic acid-responsive elements, auxin-responsive elements, Methyl jasmonate (MeJa)-responsive regulatory elements, and gibberellin-responsive elements.

Drought-inducible response elements were detected in 13 MaXTH genes. The promoter sequences of two MaXTH genes constituting MaXTH-8 and MaXTH-18 exhibited cis-regulatory elements associated with wound responsiveness. Light-responsive elements were abundantly detected across all 22 MaXTH genes. Other MaXTH genes were identified to contain cell cycle response elements, endosperm response elements, and meristem expression regulatory elements associated with cell development. These results inferred that MaXTH genes participate in diverse biological processes and exhibit responsiveness to different biotic and abiotic stress factors.

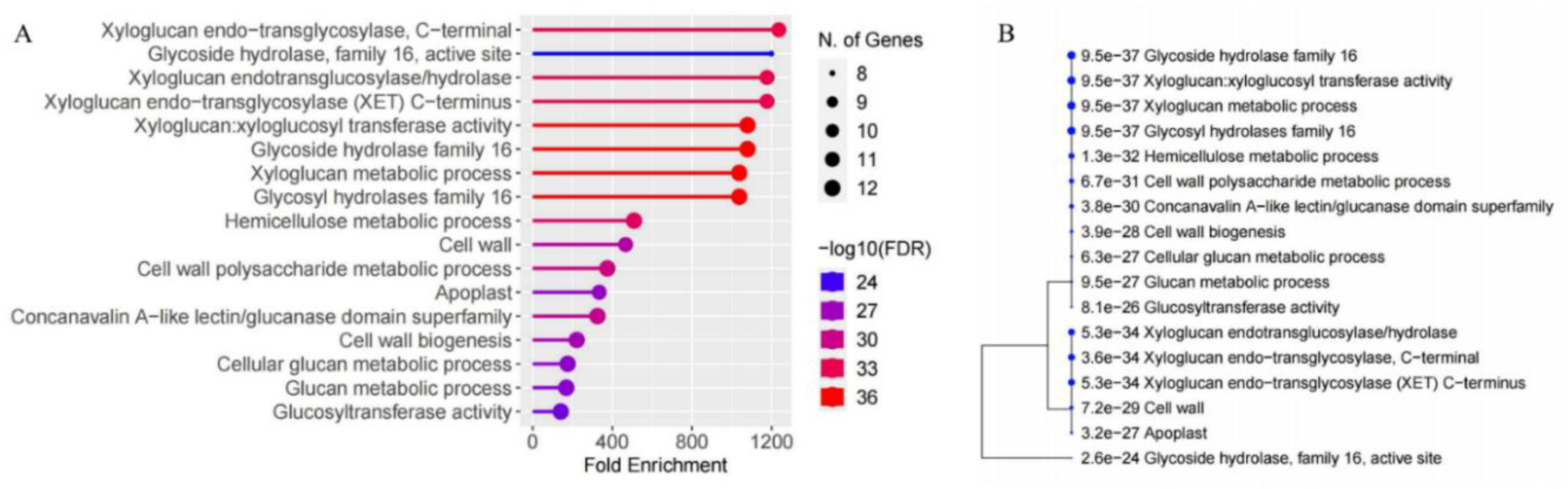

Gene ontology (GO) analysis was conducted to elucidate the roles of MaXTH genes. The proteins encoded by MaXTH gene members exhibited both xyloglucan xyloglucosyl transferase and hydrolase activities (Figure 8A & supplementary file S3). In addition, MaXTH genes were observed to play crucial roles in various biological activities, including the organization of the cell wall, the biogenesis of the cell wall, and processes related to xyloglucan metabolism.

Further, GO analysis revealed that certain members of MaXTH genes were localized in the apoplast and cell wall regions. This observed localization aligns with the predictions made through subcellular localization analysis (Table 1). Notably, MaXTH genes are implicated in cellular glucan metabolic processes and carbohydrate metabolic processes. Additionally, the hierarchical clustering of the functional enrichment pathways depicted in Figure 8B reveals that MaXTH genes collaborate to perform various functions.

3.5. Chromosomal Localization, Circos, and Synteny Analyses

The chromosomal positions of XTH genes in M. alba were located through genome annotation in the TBtools. As depicted in Figure 9, the 22 MaXTH genes were unevenly distributed among the chromosomes across the genome of M. alba (Figure 9). The most significant MaXTH genes were positioned on chromosome one with 6 members. Three MaXTH genes were allotted on chromosomes 7, 9, and 10, and two on chromosome 14. Chromosomes 3, 4, 6, 12, and 13 contained one MaXTH each. Interestingly, no MaXTH genes were found in chromosomes 2, 5, 8 and 11 (Figure 9a). Based on the phylogenetic relationships of the MaXTH protein sequences (Figure 1 a), a total of five MaXTH gene pairs were identified as shown in the circos map (Figure 9b). It was discovered that three (MaXTH-10* and MaXTH-11*, MaXTH-16* and MaXTH-18*, MaXTH-19* and MaXTH-20*) and two pairs (MaXTH-9* and MaXTH-6*, MaXTH-2* and MaXTH-5*) of the MaXTHs gene pairs belonged to inter-chromosomal and intra chromosomal segments (Figure 9b). Furthermore, the gene pairs were associated to the same phylogenetic group. MaXTH-16* and MaXTH-18*, MaXTH-19* and MaXTH-20* belonged to group III, MaXTH-10* and MaXTH-11* were in group IV whereas MaXTH-9* and MaXTH-6*, MaXTH-2* and MaXTH-5* were affiliated to group I.

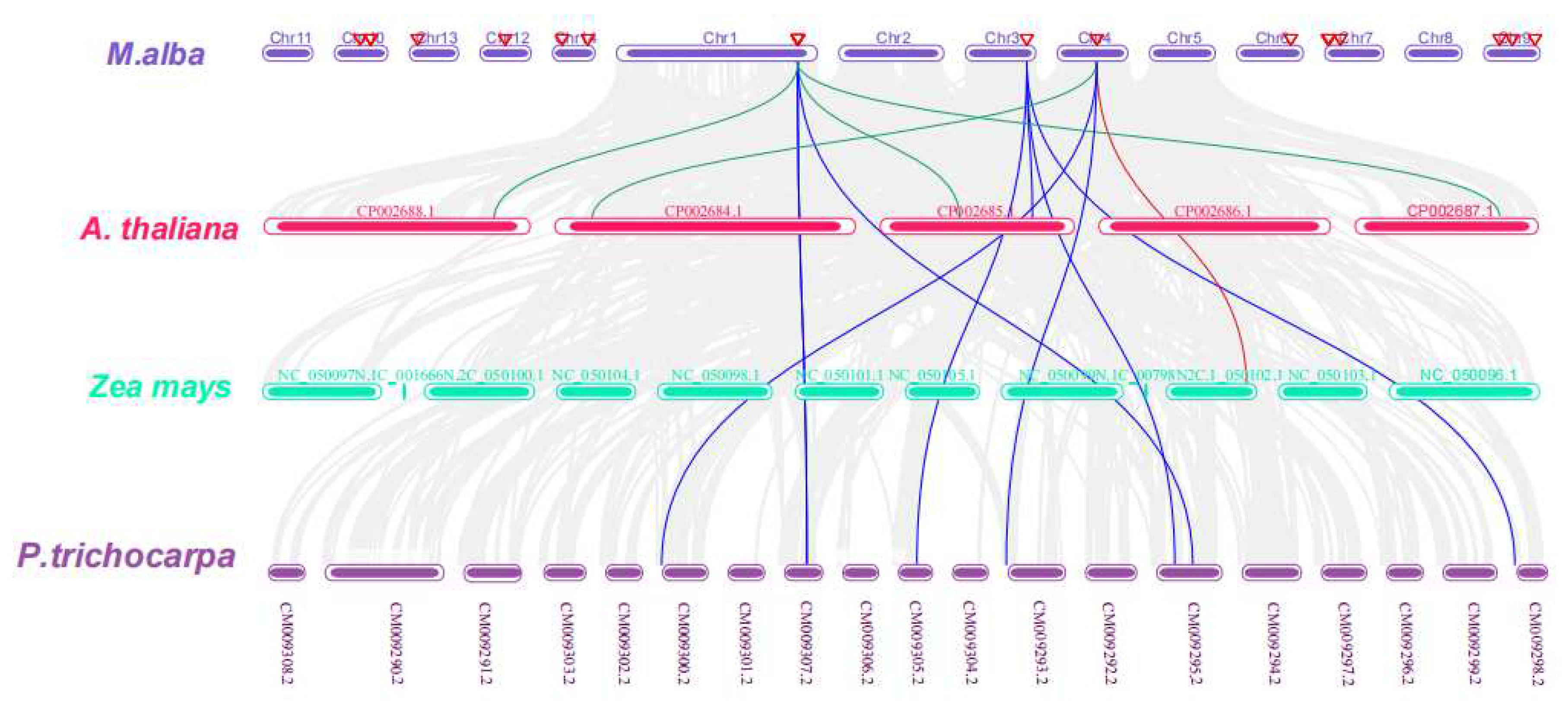

To delve deeper into the evolutionary correlations and genetic linkage occurrences within the XTH gene family, a systemic map of XTH genes across M. alba and three additional species, encompassing one monocotyledonous (Zea mays) and two dicotyledonous (Populus trichocarpa and Arabidopsis thaliana) plants were constructed using TBtools software (Figure 10).

According to the results of the collinearity analysis, 12 covariate pairs were generally discovered. Among them, 7 pairs were identified in Populus trichocarpa (represented in blue lines), 4 pairs in A. thaliana (represented in green lines), and only one pair was observed in Zea mays (represented in red lines). Furthermore, MaXTH-14 displayed a significant degree of collinearity with three comparable species (two in P. trichocarpa and one each in A. thaliana and Zea mays), inferring that MaXTH genes displayed greater evolutionary differences in P. trichocarpa in contrast to A. thaliana, and Zea mays.

3.6. Expression Profiling of MaXTH Genes under Different Magnesium Treatment and qRT-PCR Validation

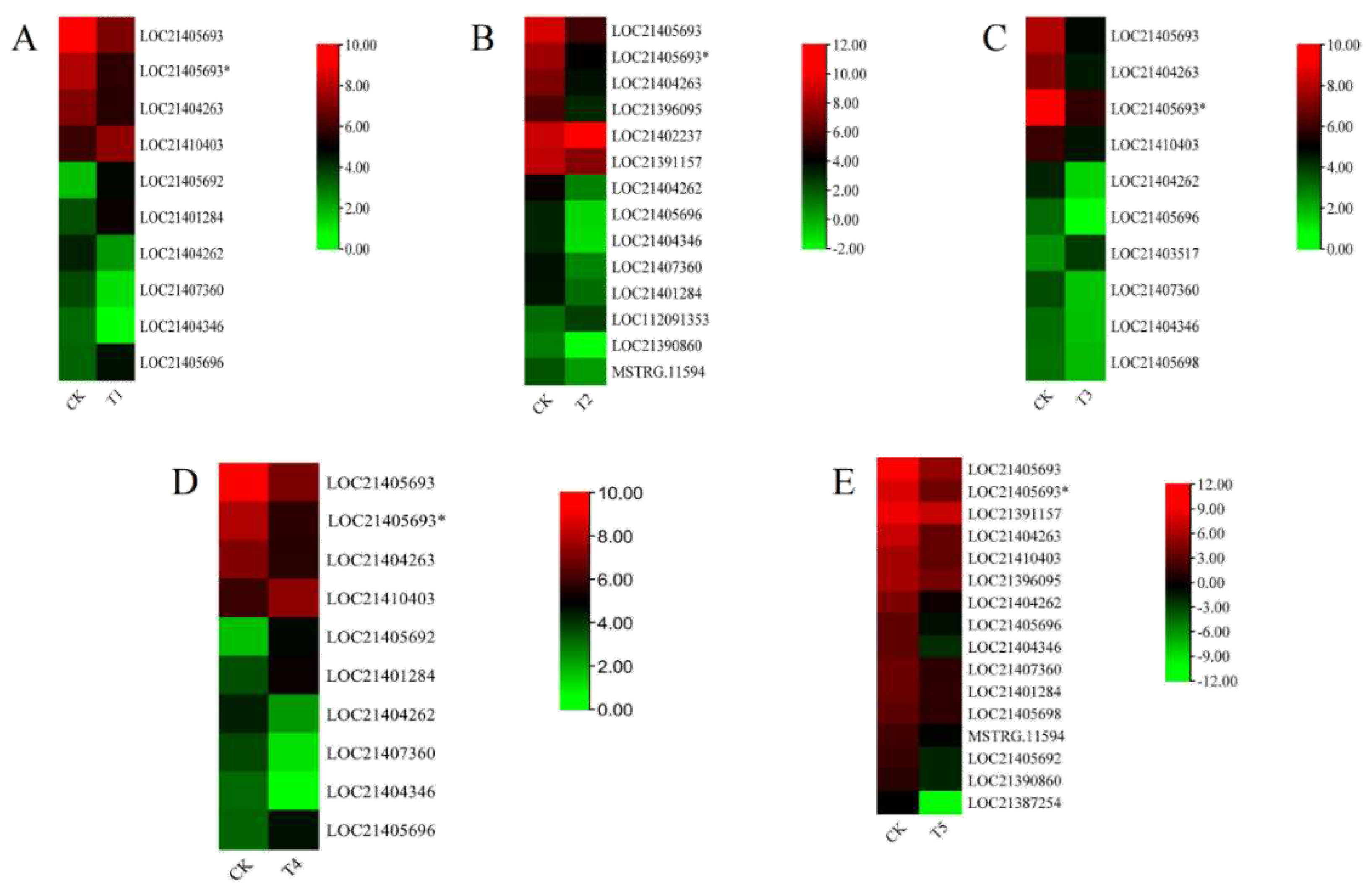

Several studies have reported that the XTH gene family play an important role in plant response to abiotic stresses. To validate these accessions, the expression patterns of M. alba XTH genes responding to different treatments of magnesium concentrations were investigated by RNA-seq. RNA from M. alba leaf tissues was sampled on day 20. The XTH genes with expression changes according to the significant differential expression standard (|log2 (Fold change) |≥1 and false discovery rate (FDR) < 0.05) were analysed. The results from our investigation exhibited different expression levels of XTH genes at various concentrations (Figure 11 A-F). At the least concentration of 0 mM/L (T1), 10 MaXTHs were identified, among which six were significantly downregulated. Four XTHs genes including LOC21410403, LOC21405693, and LOC21401284 showed higher expression concentrations (Figure 11A).

In the 1 mM/L (T2), we detected 14 MaXTHs of which LOC21462237 was upregulated and had the highest expression level (Figure 11B). In contrast, the remaining 3 XTH genes showed were downregulated expression (LOC21390860, LOC21404346 and LOC21405696). M. alba treatment with 2 mM/L (T3) revealed 10 MaXTHs (Figure 11C). For 6 mM/L treatments (T4), it was observed that 3 XTHs (LOC21404346, LOC21404262 and LOC21407360) were low in expression (Figure 11D). In contrast, four XTHs (LOC21410403, LOC21405693, LOC210401284 and LOC21405696) were upregulated (Figure 11D). At the excess Mg of 9 mM/l (T5), all 10 MaXTH genes identified were significantly up-regulated (Figure 11E) with LOC21387254 and LOC21404346 being down-regulated.

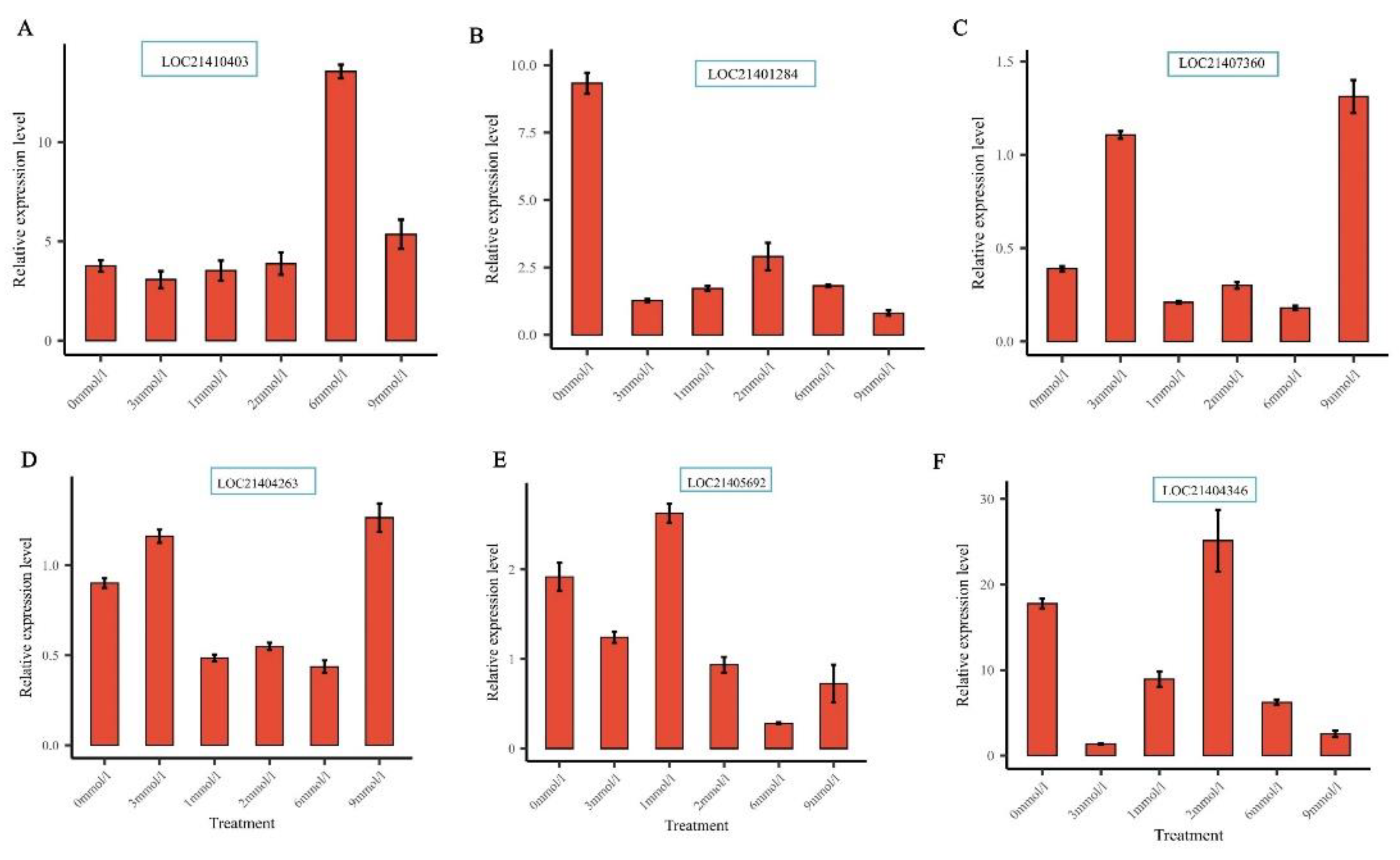

Furthermore, six MaXTH genes including MaXTH-17 (LOC21410403), MaXTH-13 (LOC21401284), MaXTH-21 (LOC21407360), MaXTH-1 (LOC21405692), MaXTH-6 (LOC21404263) and MaXTH-10 (LOC21404346) in response to Mg stresses were selected to verify their relative expression level in mulberry leaves through qRT-PCR analysis. The results reveal that the selected genes could be expressed in the mulberry leaves, proving the reliability of the XTH genes identified by the transcriptome data (Figure 12A-E). LOC21410403 (MaXTH-17) exhibited a low expression level at 3 mM/L (CK; optimum concentration for M. alba growth); however, was highly expressed at an elevated concentration of 6 mM/L (Figure 12A). For LOC21401284 (MaXTH 13), the highest expression level was observed at Mg deficiency (0 mM/L) (Figure 12B). LOC21407360 (MaXTH-21) was moderately expressed at 0 mM/L, but was highly expressed in, 3 and 9 mM/L (Figure 12C). The expression of LOC21404263 (MaXTH-6) was highly expressed in 0. 3 and 9 mM/L Mg treatments (Figure 12D). For the LOC21405692 (MaXTH-10), the highest expression level was observed at 3mmol/l and the expression level was reduced at 6 mM/L concentration (Figure 12E). Finally, the expression of LOC21404346 (MaXTH-1) was higher in 0 and 2 mM/L concentrations (Figure 12E). Altogether, our findings confirm that XTH genes family are highly present in M. alba genome and expresses in M. alba leaf tissues in response to Mg imbalances. This outcome strongly suggests that XTH genes family are important in M. alba development and nutritional regulation.

4. Discussion

Mulberry (M. alba) is a plant of considerable economic importance, yet its growth and development are influenced by various abiotic factors such as Mg deficits [5]. Mg serves diverse functions in biological systems [48]. Consequently, gaining insights into how plants respond to both Mg deficiency and excess at the genomic level is essential for effective plant nutrient management. Past research indicates that plants have evolved sophisticated regulatory mechanisms, engaging specific gene families like xyloglucan endotransglucosylase/hydrolases (XTHs) [10] to facilitate their adaptation to Mg stress.

XTHs represent a category of plant enzymes responsible for regulating xyloglucan crosslinking within cell walls, playing a pivotal role in the control of plant growth and development [49,50]. The role of XTH genes is not only limited to cell wall elongation but also plays a part in plant responses to various environmental stresses. The XTH gene family has been identified across diverse plant species, such as A. thaliana [51], wheat [52], grapevine [53], rice [21], peanut [17], barley [54], sweet potato [20] and poplar [55]. Within the scope of this investigation, we present the discovery and characterization of the XTH gene family within the M. alba genome. This includes exploring their phylogenetic relationships, conserved motifs, gene structures, cis-acting regulatory elements, and gene expression patterns in response to Mg starvation, low or high treatments.

Based on the M. alba genome, 22 XTH genes were identified based on our strictest identification workflow and labelled as MaXTH-1 to MaXTH-22. The number of identified XTH genes was notably less compared to various other species, including tobacco (56), wheat (71), Solanum lycopersicum (37), and Glycine max (61) [11,18,22,52]. It is widely acknowledged that the functional attributes of genes are intricately linked to their structural and physicochemical characteristics [20,56]. In this study, the 22 MaXTH protein members displayed significant disparities with respect to protein sequence length, molecular weight, isoelectric point (pI), intron and exon distributions (Table 1). This variation implicates a high diversity among XTH family members in M. alba. Additionally, most MaXTH genes were predicted to be in the extracellular space, while a few were in the plasma membrane, vacuole, mitochondrion, and nuclear region. This is contrary to previous reports for other XTH protein members in other plant species, where the majority of the XTH proteins were in the plasma membrane rather than the extracellular space and other locations [22,53,55]. Further, phylogenetic analysis indicated that MaXTH protein families were clustered into five groups (Figure 1), similarly observed for XTH proteins from sweet cherry [26]. Interestingly, the MaXTH proteins belonging to the same group demonstrated similar gene structures (Figure 1) and conserved sequence expression which is consistent with previously documented literature [11,20], suggesting that XTH members within the same group may exhibit analogous functionalities. Moreover, most of the MaXTH genes demonstrate the presence of two main conserved domains (Glyco_hydro_16 and XET_C domain) (Figure 2). Nevertheless, MaXTH-9, MaXTH-18, MaXTH-21, and MaXTH-22 lacked the XET_C domain. This absence suggests a potential evolutionary divergence, indicating a loss of the XET_C domain during the evolutionary trajectory of XTH proteins in M. alba.

Phylogenetic distribution of XTH proteins from M. alba, A. thaliana, and P. trichocarpa revealed that MaXTH genes could be categorized into five groups (group I-V) (Figure 5). Earlier studies have documented the categorization of XTH gene families into distinct groups in various plant species. In tobacco, for instance, eight family groups were identified [22], while three groups were observed in peanut [17], barley [54], and sweet potato [20]. Poplar, on the other hand, exhibited four distinct groups [55]. The MaXTH genes were observed to cluster better with XTH proteins from P. trichocarpa than A. thaliana, implying a closer evolutionary relationship between XTH proteins in M. alba and those of P. trichocarpa rather than A. thaliana. According to chromosomal localization analysis, it was observed that MaXTHs were heterogeneously distributed on 10 out of the 14 chromosomes of M. alba (Figure 9). Further investigation revealed five gene pairs among the XTH gene families in the M. alba genome. Previous research has indicated that a set of gene functions exhibit high conservation across various plant species [57,58]. Consequently, it is imperative to identify true orthologs in different plant species through the application of synteny analysis. The results obtained from the synteny analysis depicted a significant degree of synteny between the M. alba genome and those of P. trichocarpa and A. thaliana, exhibiting 7 and 4 synthetic blocks of MaXTH between P. trichocarpa and A. thaliana, respectively. In contrast, one synthetic block was identified between Zea mays (Figure 10).

Cis-regulatory elements are essential for regulating gene expression. The comprehension of cis-regulatory elements within the promoter region of genes has the potential to clarify the roles and regulatory mechanisms of specific genes that engage in collaborative interactions with other genes [59,60]. Investigating the cis-regulatory elements of the 22 MaXTH exhibited a quantity of core promoters involved in light responsiveness, hormone responsiveness (Abscisic acid, Salicylic acid, MeJA, Gibberellin), stress responsiveness (temperature, drought, low-defense, anoxic, and stress), growth and development elements (Figure 7). MaXTH promoters contain a variety of elements that respond to environmental and plant hormone stimuli, which might indicate various regulatory or functional mechanisms in response to biotic and abiotic stress factors [20,61]. Besides, there were significant variations in terms of type and quantity and certain elements related to metabolism, and gene expression were unique to specific MaXTH genes. The structural variations of MaXTH proteins could result in modifying protein functions. Several studies have demonstrated that plant XTH proteins have essential roles in plant growth, development, and stress resistance. The presence of numerous cis-elements identified in the promoter region of the M. alba XTH genes suggests that the XTH genes within M. alba possess the capability to adapt to diverse modifications in the plant, particularly responsiveness to light, several hormones, and numerous stress response elements (anaerobic and anoxic specific inducibility).

Analyzing gene expression profiles can advance our understanding of XTHs functions in M. alba growth and development. Analysis of transcriptome data at day 20 after the various magnesium treatments indicated that several XTHs were expressed in response to the treatments (Figure 11A-F). XTH genes, including MaXTH-17(LOC21410403), MaXTH-13(LOC21401284), MaXTH-21(LOC21407360), MaXTH-6 (LOC21404263) and MaXTH-10 (LOC21404346) highly expressed at 0, 1, 2, 6, and 9 mM/L of Mg concentration, respectively (Figure 10A-F) compared to control (3 mM/L, optimum Mg for M. alba growth). Meanwhile, MaXTH-6 (LOC21404263) was downregulated at 2 and 6 mM/L while MaXTH-1 (LOC21405692) exhibited low expression at 6 mM/L. Prior findings indicate that abiotic stressors can induce transcript-level changes in XTH genes. For example, in response to cadmium (Cd) stress, the expression of BnXTH1, BnXTH3, BnXTH6, and BnXTH15 was observed to be upregulated in Boehmeria nivea. Conversely, BnXTH18, BnXTH16, BnXTH17, and BnXTH5 exhibited notable down-regulation under the same Cd stress conditions [62].

Similar contrasting expression patterns of the XTH gene family were identified in Camellia sinensis under fluorine stress where CsXTH7, CsXTH1, CsXTH6, and CsXTH1 were up-regulated, while that of CsXTH3 was down-regulated [63]. Additionally, the expression of PeXTH experienced a notable up-regulation in the roots and leaves of P. euphratica when exposed to Cd stress [37]. Likewise, under Al stress, AtXTH15 and AtXTH14 demonstrated a significant decrease, leading to a reduction in xyloglucan endo transferase (XET) activity and consequently enhancing the aluminum tolerance of A. thaliana [64]. In this study, we observed different expression patterns of MaXTH genes. Changes in the expression of MaXTH genes can affect cell wall flexibility and strength, which are important factors in stress adaptation. The increased expression of certain MaXTH genes might contribute to cell wall remodeling, allowing for better flexibility and adaptation to magnesium stress. Conversely, decreased expression could be associated with a more rigid cell wall structure. These findings indicate the capacity of MaXTH genes to provide defense to the M. alba plant during magnesium starvation, undersupply and excess application. Future works in M. alba should investigate the functional genomic validation of these identified XTH genes and how they regulate Mg nutrition.

Taken together, the results of this research offer novel insights into MaXTH genes under abiotic stress, particularly when subjected to different Mg concentrations. It could be inferred that the MaXTHs might exhibit heightened functionalities related to the cell wall in stressful conditions through interaction with xyloglucan. However, additional molecular and genetic research are required to confirm their roles.

5. Conclusions

In this current investigation, an extensive examination of the M. alba XTH gene family was conducted. The results from the investigation successfully identified and further characterized a total of 22 MaXTH genes. These genes were subsequently categorized into five groups (I to IV) based on their phylogenetic relationships. Gene structure and motif composition were observed to be consistent within each group. A thorough analysis of gene synteny uncovered evidence of evolutionary relationships among XTH genes in M. alba and three other species, A. thaliana, P. trichocarpa, and Zea mays. Gene ontology analysis revealed that MaXTHs are responsible for encoding proteins demonstrating both xyloglucan xyloglucosyl transferase and hydrolase activities. Moreover, MaXTHs actively contribute to the processes of cell wall biogenesis, as well as the metabolic pathways associated with xyloglucan and carbohydrates. Furthermore, specific Cis-acting regulatory elements detected in the promoter region of MaXTH genes suggest their potential involvement in various biological processes such as development, light responsiveness, phytohormone responses, and stress adaptation. Moreover, investigating the expression profiles of MaXTH genes within leaf tissues exposed to different magnesium concentrations revealed diverse patterns of gene expression. Collectively, the findings from this research provide valuable insights into the functions of XTH genes within M. alba and present a better understanding of how mulberry plants respond to various magnesium treatments.
