Ni-Cu and Ni-Co-Modified Fly Ash Zeolite Catalysts for Selective Hydrodeoxygenation of Levulinic Acid to γ-Valerolactone

A peer-reviewed article of this preprint also exists.

Submitted:

22 November 2023

Posted:

01 December 2023

You are already at the latest version

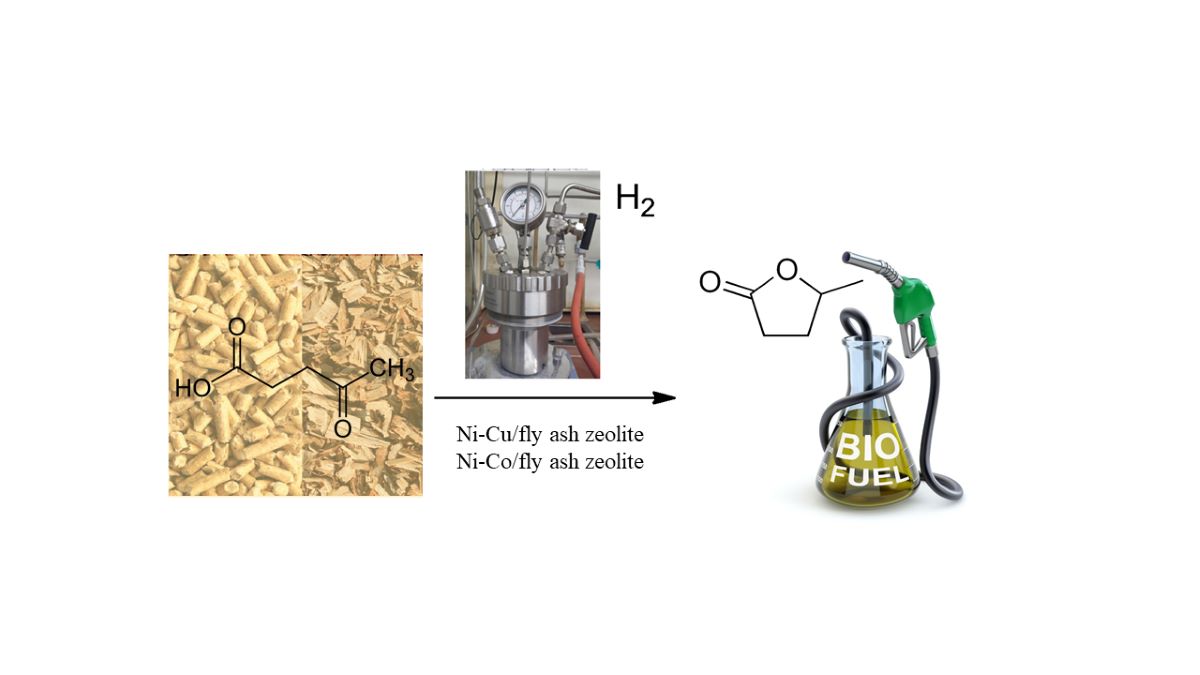

Abstract
Monometallic (Ni, Co, Cu) and bimetallic (Ni-Co, Ni-Cu) 10-20 wt. % metal containing catalysts supported on fly ash zeolite were prepared by post-synthesis impregnation method. The catalysts were characterized by X-ray powder diffraction, N2 physisorption, XPS and H2-TPR methods. Finely dispersed metal oxides and mixed oxides were detected after the decomposition of impregnating salt on the relevant zeolite support. By reduction intermetallic, NiCo and NiCu phases were identified in the bimetallic catalysts. Hydrogeoxygenation of lignocellulosic biomass-derived levulinic acid to γ-valerolactone (GVL) was studied. Bimetallic, 10 wt. % Ni, 10 wt. % Cu or Co containing fly ash zeolite catalyst showed higher catalytic activity than monometallic ones. Their selectivity to GVL reached 70-85 % at 100 % conversion. The reaction proceeds through formation of 4-hydroxy pentanoic acid, as the only intermediate compound.
Keywords:
lignocellulosic biomass
;
levulinic acid
;
fly ash zeolite
;
γ-valerolactone
;
Co-Ni alloy
Subject:
Chemistry and Materials Science  -   Materials Science and Technology

1. Introduction

Lignocellulosic biomass is a promising alternative to fossil fuel sources because of the increased demand of energy and declining supplies [1,2,3]. Another essential aspect in energy production is the prevention of greenhouse gas emissions, as the biomass and biomass-derived fuels are considered carbon neutral. Direct combustion of biomass, however, is not energy efficient, due to its high moisture content and low volumetric energy density, therefore the possibility of its conversion into liquid or gaseous fuels, so called biofuels, are being intensively investigated [4,5]. Catalysis plays a crucial role in processing biomass into fuels, their precursors or platform molecules [6,7]. An important step of biomass valorization is the hydrolysis of lignocellulose into a mixture of cellulose, hemicellulose and lignin, and further transformations to C5 and C6 monosaccharides [8]. Among platform molecules, which are produced from biomass, levulinic acid (LVA) is one of the most important for production of valuable products, such as biofuels, solvents, intermediate for pharmacy etc. [9,10,11,12]. LVA is considered as a chemical building block because it contains keto and carboxyl groups in its structure, which enables its conversion into a wide range of derivatives. Moreover, it is one of the top value-added sustainable chemical compounds that is produced from abundant renewable resources [13]. Hydrodeoxygenation of LVA to γ-valerolactone (GVL) is an important process because it can be used as a solvent, fuel additive, or intermediate in the production of diverse value-added chemicals. The hydrodeoxygenation of LVA to GVL has been performed in gaseous or in liquid media by applying homogeneous or heterogeneous catalysts [14]. Another issue is the energy efficiency of hydrogen supply for the hydrodeoxygenation process through alcohols, formic acid or molecular hydrogen [15,16,17]. Hydrogen can also be produced by catalytic steam reforming of biomass derived LVA, which allows the integration of the hydrogen production with the hydrogenation processes [18].
The synthesis of heterogeneous catalysts is prioritized as alternative to the more expensive and unrecoverable homogeneous ones used in continuous flow organic transformations. Heterogeneous catalytic processes offer advantages such as easy recovery and recycling. Among them the supported noble metal (Ru, Ir, and Pd), or transition metal ones such as Co, Cu, and Ni show the best catalytic results [12,19,20,21]. Although noble metals show excellent activity and selectivity in the hydrodeoxygenation of LVA to GVL, the industrial use of these catalysts is expensive, and to improve the economic efficiency of the process, it is more expedient to replace them with more cost-effective ones [22]. Another drawback is the metal leaching in severe reaction conditions, which together with their high price limit the applications of noble metals in industrial scales. The development of active and cheap catalyst for the preparation of GVL by hydrodeoxygenation of LVA requires the optimization of reaction parameters, and the type of metals and catalyst carrier [23]. Several studies evidence the efficiency of transition metals and their oxides in the catalytic hydrodeoxygenation of LVA to GVL. Almost complete LVA selective conversion has been reported for Ni catalysts supported on various carriers and heterostructured Ni/NiO composites [24,25]. Superior performance of bimetallic transition metal catalysts has been also observed compared to monometallic ones, for example iron-based bimetallic species supported on ceramics reaching over 95% conversion of LVA to GVL at 180 °C and 40 bar H2 pressure, because of the strong synergy of iron oxides with other metal catalysts [26]. Bimetallic Ni-Cu/Al2O3 and Ni-Co/Al2O3 have shown 100% conversion rate at very high selectivity for GVL formation [27]. Vapor-phase hydrodeoxygenation of LVA to GVL has been performed over bimetallic Cu-Co/Al2O3, with selectivity higher than 99% at 250 °C [28]. The surface morphology, ratio, and electronic structure of Brønsted/Lewis acid pairs and Lewis acid/base pairs has been observed as a crucible for the total LVA to GVL conversion process, including hydrogen generation, transfer, and the hydrogenation with transition metal catalysts [29]. The modification of zeolites with noble or transition metals is a promising way for preparation of catalyst requiring metallic and acidic functionalities [30]. Faujasite-type zeolites (X or Y) are one of the most studied catalytic supports, due to the possibilities of controlling their catalytic efficiency and selectivity by modification with metal oxides, due to their supercell structure that can host large diameter molecules and particles, by ion exchange with metal cations or by controlling the Si/Al ratio in the synthesis to achieve appropriate acidity [31]. Metal ions and metal particles in extra-framework positions also have favorable effect on the catalytic behavior [32]. Finally, environmental safety of zeolites is important factor, even if they are obtained from waste aluminosilicates [33]. The ecological impact of biofuels will be even more significant if we use catalysts that are based on economically profitable and abundantly available waste sources. The approach to obtain efficient and cost-effective catalysts for LVA hydrodeoxygenation to GVL by utilizing solid-phase wastes such as waste incineration fly ash, sewage sludge, and contaminated soil has been reported [34]. The published results reveal 94% conversion efficiency for zeolite-like frameworks with insufficient surface characteristics modified with NiO [34]. Sulfonic acid functionalized polystyrene coated coal fly ash catalyst have been developed for esterification of LVA with n-butanol to alkyl levulinates fuel with 99.6% conversion rate at mild conditions [35]. Solid acid composite catalyst developed on the basis of coal fly ash have shown promising results as catalysts in biomass conversion processes [36]. Unprocessed coal fly ash, however, is characterized by large non-uniformity in its morphology, structure and composition, and reproducibility can hardly be achieved [37]. In our previous studies, high catalytic activity was found on zeolites obtained from coal fly ash in the oxidation of volatile organic compounds [38]. Coal fly ash zeolites (CFAZ) are self-organized catalytic systems that contain a zeolite phase as a catalytic support with active centers of finely dispersed iron oxide species and framework/extra-framework iron ions incorporated in the zeolite lattice [39]. CFAZ can be easily modified to bimetallic catalysts by post-synthesis impregnation with metal salts and their subsequent reduction to metal oxides, thus increasing their catalytic activity [32]. The processing of coal fly ash into zeolites by double stage alkaline synthesis with ultrasonic homogenization of the reaction mixtures provides several product advantages compared to the raw coal ash, such as: tens of times higher specific surface area, mixed micro-mesoporous structure, homogeneous distribution of iron oxide phases, high thermal stability and chemical inertness, reduced leaching of metal particles, etc. [40,41,42]. The favorable surface characteristics of zeolite-like materials in combination with the uniformly incorporated catalytic sites of iron ions and oxide nanoparticles can be useful tools to develop cheap and efficient catalysts. The self-organized catalytic system can be easily modified in order to get bimetallic, highly active catalytic centers for the improvement of catalytic performance.
In the present study, monometallic and bimetallic Ni, Cu and Co functionalized fly ash zeolites were prepared by post synthesis impregnation and were studied in hydrodeoxygenation of levulinic acid to γ-valerolactone.

2. Experimental Part

2.1. Materials

The raw material for the preparation of the catalysts is coal fly ash collected from the electrostatic precipitators of one of the large combustion plants in Bulgaria TPP ”AES Galabovo”, burning lignite coal. CFA has been studied in depth in our previous publications with respect to chemical and phase composition and morphology [43,44]. It is a high silica CFA grade F, according to ASTM C618 standard, containing about 74 wt. % SiO2+Al2O3, of which 50 wt. % is SiO2. CFA has a low CaO content of up to 4.5 wt. % and includes a larger amount of iron oxide phases, expressed as Fe2O3, approx. 13 wt. %. As a result of the specifics of the steam generator, CFA is highly amorphized, but can contain some crystalline phases such as quartz, mullite, magnetite and portlandite [44,45].

2.2. Synthesis of Coal Fly Ash Zeolite

The initial zeolite from coal ash, denoted Z, was synthesized by ultrasound-assisted two-step synthesis comprising of hydrothermal activation with pre-alkaline fusion. Coal fly ash and sodium hydroxide used as an alkaline activator were mixed in an appropriate ratio and calcined at 550 °C for 1 h. The cooled batch is crushed, mixed with distilled water to a medium alkalinity of 2.3 mol/l and homogenized by ultrasonic treatment for 15 min. The resulting suspension is aged for 8 h and subjected to hydrothermal activation at 90 °C for 4 h. The obtained powdery product is removed by filtration, washed with distilled water until neutral, dried at 105 °C and proceeded for further studies. This well-established and optimized laboratory procedure for coal fly ash alkaline conversion yields high-quality zeolite X as a single crystalline phase with surface characteristics favorable for catalytic applications [40,43].

2.3. Impregnation of Coal Fly Ash Zeolite with Ni, Co and Cu

An impregnation technique with nickel, cobalt and copper salts was applied for loading of 10 wt. % metals, respectively. The zeolite support was dehydrated at 160 °C for 2 h before the impregnation procedure.

2.3.1. Preparation of Monometallic Fly Ash Zeolite Catalysts

A 10 wt. % Ni containing fly ash zeolite was prepared by the following procedure: 550 mg Ni(NO3)2·6 H2O was dissolved in 5 mL ethanol and was added to 1 g zeolite support by stirring until evaporation of the solvent. Then the sample was dried at 80 °C for 18 h and calcined at 450 °C for 3 h with a rate of 1 °C/min. The sample was denoted as 10Ni/Z.
A 10 wt.% Co-modified fly ash zeolite was prepared by the following procedure: 548.2 mg Co(NO3)2·6 H2O was dissolved in 5 mL ethanol and was added to 1 g AES0 support by stirring until evaporation of the solvent. Then the sample was dried at 80 °C for 18 h and calcined at 450 °C for 3 h with a rate of 1 °C/min. The sample was denoted as 10Co/Z.
A 10 wt. % Cu-modified fly ash zeolite was prepared by the following procedure: 516.4 mg Cu(NO3)2·6 H2O was dissolved in 5 mL ethanol and was added to 1 g zeolite support by stirring until evaporation of the solvent. Then the sample was dried at 80 °C for 18 h and calcined at 450 °C for 3 h with a rate of 1 °C/min. The sample was denoted as 10Cu/Z.

2.3.2. Preparation of Bimetallic Fly Ash Zeolite Catalysts

Bimetallic, 5 or 10 wt. % Ni- and Co-modified fly ash zeolite was prepared by the following procedure: 275/550 mg Ni(NO3)2·6 H2O and 274.1/548.2 mg Co(NO3)2·6 H2O dissolved in 5 mL ethanol was added to 1 g fly ash zeolite sample and then was dried at 80 °C for 18 h. The precursor salts were decomposed in air at 450 °C with a rate of 1 °C/min for 3h. The samples were denoted as 5Ni5Co/Z and 10Ni10Co/Z, respectively.
Bimetallic, 5 or 10 wt. % Ni- and Cu-modified fly ash zeolite was prepared by the following procedure: 275/550 mg Ni(NO3)2·6 H2O and 258.2/516 mg Cu(NO3)2·6 H2O dissolved in 5 mL ethanol was added to 1 g zeolite and then was dried at 80 °C for 18 h. The precursor salts were decomposed in air at 450 °C with a rate of 1 °C/min for 3h. The samples were denoted as 5Ni5Cu/Z and 10Ni10Cu/Z, respectively.

2.4. Characterization

X-ray powder diffraction patterns were recorded by Philips X’Pert type (Bruker AXS Advanced X-ray Solutions GmbH, Karlsruhe, Germany) diffractometer applying monochromatized CuKα radiation (40 kV, 35 mA). Patterns were collected between 3 and 75 °2θ with 0.02° step size for 4 s. Crystallite size of the metal oxides were determined by the Sherrer equation evaluating the FWMH values of the oxide phases with full profile fitting method. The list of ICDD cards used for identification of metal oxide and metal phases are the following: CuO: 00-048-1548; NiO: 00-044-1159; Co3O4: 00-009-0418; Co1.29Ni1.71O4: 00-040-1191; Ni0.8Cu0.2O: 00-078-0647; Ni0: 00-045-1027; Cu0: 00-004-0836; Co0: 00-015-0806; Cu0.81Ni0.19: 00-047-1406; NixCu1-x: 01-066-0202.
Specific surface area and pore volume of the samples was determined from N2 physisorption isotherms collected at −196 °C using AUTOSORB iQ-C-MP-AG-AG (Quantachrome Instruments, Anton Paar brand, Boynton Beach, FL, USA). Samples were pretreated at 350 °C in vacuum before nitrogen adsorption. Total pore volume was determined according to the Gurvich rule at relative pressure of 0.9.
The temperature-programmed reduction-thermogravimetric analysis (TPR-TGA) investigations were performed by a STA449F5 Jupiter type instrument of NETZSCH Gerätebau GmbH (Netzsch, Germany). In a typical measurement 20 mg of sample was placed in a microbalance crucible and heated in a flow of 5 vol. % H2 in Ar (100 cm3/min) up to 500 °C at a rate of 5 °C/min and a final hold-up of 1 h. Prior to the TPR experiments the samples were treated in situ in at 500 °C in air flow (10 °C/min) for 1 h.
The XPS measurements were carried out on AXIS Supra electron spectrometer (Kratos Analitycal Ltd. Manchester, UK) using AlKα radiation with photon energy of 1486.6 eV. The energy calibration was performed by normalizing the C1s line of adsorbed adventitious hydrocarbons to 284.8 eV. The binding energies (BE) were determined with accuracy of ±0.1 eV using the commercial data-processing software ESCApeTM of Kratos Analytical Ltd. The concentrations of the different chemical elements (in atomic %) were calculated by normalizing the areas of the photoelectron peaks to their relative sensitivity factors. The deconvolution of the peaks has been performed by using the commercial data-processing software ESCApeTM of Kratos Analytical Ltd.

2.5. Catalytic Experiments

Prior to the catalytic tests, samples were pretreated for 1 h in Ar/ H2 flow at 500 °C, for 1 h, 1 °C/min. In a typical experiment, the reactor was charged with 1 g LA (Sigma-Aldrich, 98%), 20 mL H2O and 0.2 g powder catalyst (mono and bimetallic, 200 mg catalyst/1 g LA) while the LA/H2O weight ratio was maintained 1:10.
Levulinic acid hydrodeoxygenation was studied at atmospheric pressure using a reactor with hydrogen as carrier gas (30 mL/min). The reactor, heated under stirring with 700 rpm at the reaction temperature of 150 °C for 4 h. The thermocouple was positioned in the reaction mixture for accurate measurement of the reaction temperature. Samples were taken every hour from the reaction mixture starting from 1 h reaction time and analyzed using HP-GC with a Shimadzu column, cat. Nº221-75940-30 Phase: SH-Rxi; -5MS; Size L30m.

3. Results and Discussion

The XRD patterns (Figure 1) and the phase analysis of the initial zeolite support show the formation of the following crystalline phases: zeolite 13X (72 wt. %), zeolite A (LTA 3 wt. %), quartz (10 wt. %), dolomite (10 wt. %) and a spinel type iron-oxide, most probably maghemite (5 wt. %). The wide amorphous halo at about 25 °2θ is characteristic for non-crystallized alumino silica phase. Co3O4, CuO and NiO crystalline phases were registered on the relevant 10 wt.% metal containing, monocomponent catalysts. The crystallite size of the metal-oxide nanoparticles calculated by the Scherrer equation are presented in Table 1. Cobalt and nickel oxide show higher dispersion on zeolite support with 17-26 nm crystallite size, however CuO can be found in more agglomerated form with 35 nm sized nanoparticles. In nickel and copper containing bicomponent formulations both types of metal oxides appear with nickel in higher dispersion [46]. Formation of Ni1-xCuxO solid solution phase with x=0-0.2 approximate value is highly probable, because in NiO/CuO solid solution system incorporation of about 20% of copper was found to be the limit of a separate CuO phase appearance [47,48]. Replacement of Ni2+ ions by Cu2+ results in some increase in cubic, Fm3m type unit cell parameter a0 of NiO, due to the higher ionic radii of copper ion (Cu:0.73 Å, Ni: 0.69 Å). However, due to the small difference between the unit cells the differentiation with powder diffraction method is difficult, especially with widened reflections due to small crystallite size. Nevertheless, profile fitting with ICDD card No. 01-025-1049 (Ni0.8Cu0.2O) gives better result than NiO (01-044-1159). As could be expected higher metal content resulted in somewhat bigger crystallite size of the oxides, more enhanced for copper.
Separate NiO and Co3O4 crystalline phases were registered only in 10Ni10Co/Z sample, together with a nickel cobalt mixed oxide with composition of Co1.3Ni1.7O4 (ICDD card No. 01-040-1191). NiO showed also higher dispersion than cobalt oxide. On 5Ni5Co/Z catalyst only the mixed oxide phase could be observed with somewhat lower dispersity.
N2 adsorption/desorption isotherms of initial zeolite and its mono- and bimetallic modifications are presented in Figure 2. The isotherms of Z and its modified derivatives are a combination of type II and IV isotherms, typical for microporous zeolites with some mesopores [49]. Isotherms show H3 type of hysteresis loops, characteristic for slit like pores. The calculated textural parameters are summarized in Table 2. The modification of the initial fly ash zeolite with Co, Cu and/or Ni leads to significant decrease of the surface area and micropore volume, indicating the pore blocking of zeolite.
Most probably metal ions were incorporated into the zeolite lattice in cationic positions. Mesopore volume also decreased, showing that nanosized metal oxide deposits also occupied the pore system. To support the above ideas the nitrogen physisorption isotherms of some 600 °C reduced samples were also measured. Significant increase in specific surface area and micropore volume was experienced (Table 2), as evidence that upon reduction the metal ions and particles are migrated to the surface and made the pores accessible again to adsorbing gas. The zeolite structure remained also intact by reduction as proved by XRD results (not shown).
The redox properties of the mono- and bimetallic fly ash zeolite materials were studied by TPR experiments (Figure 3). The parent zeolite support contains 7 wt. % of iron. As typical for highly dispersed iron oxides the reduction takes place at about 400-450 °C, but iron can occupy also hardly reducible cationic positions. Accordingly, the TPR curve of fly ash zeolite shows peaks between 350 and 600 °C. The reduction rate is 100%, so most of the iron is reducible. The reduction of cobalt oxide on the fly ash zeolite is characterized by three steps at 325, 370 and 570 °C which points towards that a part of cobalt-oxide is finely dispersed on the support, but a similar part is hardly reducible. The latter one can be identified with cobalt ions in cationic position of zeolite or by formation of cobalt silicate.
Monometallic Ni-material can be reduced at similar temperature interval like cobalt sample, showing three reduction peaks at around 325, 420 and 570 °C, also indicating the formation of finely dispersed nickel oxide particles, and cationic nickel in the zeolite lattice.
In contrast, copper zeolite can be reduced in one intense step at much lower temperature, at 250 °C, and in a higher, but less intensive one over 560 °C. The identification is similar to the preceding ones, finely dispersed copper oxide on the external surface and copper ions in the zeolite lattice, respectively.
The modification with two metals resulted in significant changes in the reduction behavior of copper containing samples. The presence of copper enhanced the reducibility of nickel, most probably by the formation of an intermetallic phase with copper in majority [10].
Ni and cobalt containing catalysts can be reduced in the same temperature range as the individual components, i.e., over 400 °C. The extent of metal oxide reduction is calculated based on the amount of hydrogen consumption during reduction and the results are presented in Table 1. Total reduction was calculated for all the samples except 10Ni10Co/Z catalyst. This can be in connection with the formation of hardly reducible cobalt silicate in connection with the high concentration of metals in the catalyst.
The surface composition of bimetallic samples with 20% metal content were analyzed by X-ray photoelectron spectroscopic (XPS) method. The spectra of 10Ni10Co/Z, 10Ni10Cu/Z are presented in Figure 4. The calculated compositions are summarized in Table 3. The Ni 2p3/2 peak with binding energy of 853.7 eV is characteristic for Ni2+ in NiO [50] and its shift to higher binding energy (854.3 eV) for both samples is indicative for the possible interaction with Si or Cu/Co. The peaks in the Cu 2p3/2 spectrum at 933.4 eV and the presence of the characteristic satellites support the XRD data, indicating the presence of CuO phase [51]. In the Co2p3/2 spectrum, the peaks at 779.2 (Co3+) and 780.8 (Co2+) eV support the formation of spinel Co3O4 (Figure 4). The surface chemical composition mirrors the crystalline phases of the catalysts with the presence of Fe, Ca, and Mg, whereas Na, Si, and Al as the main constituents of zeolite and amorphous silica alumina phase. The amount of catalytically active Ni, Cu and Co elements differs from that of bulk value, the nickel is overrepresented 2-3 times on the surface. This can be explained by the formation of nickel rich mixed oxides and the interaction of copper and cobalt with the silica matrix. The presence of bigger copper and cobalt oxide nanoparticles can be another reason, in accordance with XRD results.
The catalytic activity of the mono-metallic and bimetallic zeolites was studied in hydrodeoxygenation of levulinic acid to γ-valerolactone at 150 °C reaction temperature, and the results are presented in Table 4.
The main detected products in the reaction are γ-valerolactone (GVL) and 4-hydroxy pentanoic acid (HPA). Low catalytic activity was registered for cobalt and copper containing monometallic catalysts. However, 10Ni/Z showed almost 10 times higher activity than the former ones. Significant increase in the catalytic activity was observed for the bimetallic catalysts, especially with increased metal content, with about 100% conversion. The γ-valerolactone yield exceeded than that of 4-hydroxy pentanoic acid in each case. According to Scheme 1, the formation of GVL is reported via two possible pathways. When dehydrogenation reaction step is more decisive, Path I proceeds by the formation of α-angelica lactone, and it is rather characteristic for the hydrodeoxygenation reaction in the vapor phase [10]. In liquid phase reaction, 4-hydroxypentanoic acid is experienced to be the typical intermediate in the consecutive reaction, due to lower reaction temperature, thermodynamically favoring the hydrogenation as a first reaction step. Based on the obtained reaction products we suppose that Path II is dominating the reaction (Scheme 1) without a further hydrogenation step to pentanoic acid. The synergistic effect of bimetallic catalysts is well-marked compared to monometallic ones. One explanation can be the formation of mixed oxide phases in connection with improved reducibility of the active components. However, the amount of metals plays also crucial role. With higher metal content the formation active metallic phase by reduction is more pronounced, due to lower interaction with support, and formation of highly dispersed metallic phases.
Investigation of spent catalysts revealed some other important characteristics of catalytic system. The XRD patterns of the four most active catalysts are shown in Figure 5. The absence of crystalline zeolite phase is evident, and formation of only metallic phases is experienced. Nitrogen physisorption data (Table 5) support the lack of zeolite phase, because micropores cannot be detected in the samples. However, the surface area of the amorphous silica alumina is high enough to serve as a catalyst support, and the increased pore volume values indicate the reconstruction of the pore system. The phenomena of amorphization can be explained by using water as a solvent, promoting hydrothermal decomposition of the zeolite. Investigating the phase composition of metallic nanoparticles formed by reduction, formation of intermetallic phases is highly probable, especially in Ni/Co composition, because of the similarities of the ion size and cubic unit cell of the two metals, however by XRD method the substitution of ions cannot be proved. Formation of NiCu alloys was identified on both Ni/Cu catalysts, but with different compositions. In 5Ni5Cu/Z sample the ratio of the metals was equal, based on the calculation of unit cell size of the cubic system (a0=3.56 Å), according to Vegard’s law, presented by the works of Smirnov et. al. [52,53]. In 10Ni10Cu/Z sample the presence of copper rich phases was detected. The dispersion of metals was higher than that of metal oxides in the parent catalysts.

4. Conclusions

Monometallic (Ni, Cu, Co) and bimetallic (Ni-Co, Ni-Cu) catalysts supported on fly ash zeolite were prepared by post synthesis impregnation method. Formation of metal oxides and mixed metal oxides was detected on the support. Blocking of micropore and mesopore system by metal ions and highly dispersed metal oxides was also an accompanying phenomenon. By reducing the catalysts, the pore system became permeable again. TPR experiments proved the favorable effect of bimetallic systems on improved reducibility with Ni/Cu compositions. XPS study revealed the enrichment of nickel on the surface on bimetallic compositions with high metal content. In accordance with physico-chemical characterization results, high catalytic activity was detected for levulinic acid hydrodeoxygenation to γ-valerolactone on bimetallic catalysts with 20 wt. % metal content. Besides the total conversion, the yield to GVL was also high, over 80%. Investigation of spent catalysts showed the collapse of zeolite structure and reorganization of pore system, creating a high surface area amorphous silica-alumina supported Ni/Co, Ni/Cu catalytic system.

Funding

This work was supported by Bulgarian National Science Fund, Grant КП-06-Н69/3 is acknowledged. Support of this work in the framework of the bilateral grant agreement between the Bulgarian Academy of Sciences and the Hungarian Academy of Sciences (IC-HU/02/2022-2023) is also gratefully acknowledged.

References

  1. Climent, M.J.; Corma, A.; Iborra, S. Conversion of biomass platform molecules into fuel additives and liquid hydrocarbon fuels. Green Chem. 2014, 16, 516–547. [Google Scholar] [CrossRef]
  2. Mika, L.T.; Cséfalvay, E.; Németh, Á. Catalytic conversion of carbohydrates to initial platform chemicals: chemistry and sustainability. Chem. Rev. 2018, 118, 505–613. [Google Scholar] [CrossRef]
  3. Li, H.; Fang, Z.; Smith, R.L., Jr.; Yang, S. Efficient valorization of biomass to biofuels with bifunctional solid catalytic materials. Prog. Energy Combust. Sci. 2016, 55, 98–194. [Google Scholar] [CrossRef]
  4. Catalán-Martínez, D.; Domine, M.E.; Serra, J.M. Liquid fuels from biomass: An energy self-sustained process integrating H2 recovery and liquid refining. Fuel 2018, 212, 353–363. [Google Scholar] [CrossRef]
  5. Alper, K.; Tekin, K.; Karagöz, S.; and Ragauskas, A.J. Sustainable energy and fuels from biomass: a review focusing on hydrothermal biomass processing. Sustain. Energy Fuels 2020, 4, 4390–4414. [Google Scholar] [CrossRef]
  6. Xuan, J.; Leung, M.K.H.; Leung, D.Y.C.; Ni, M. A review of biomass-derived fuel processors for fuel cell systems. Renew. Sustain. Energy Rev. 2009, 13, 1301–1313. [Google Scholar] [CrossRef]
  7. Serrano-Ruiz, J.C.; Luque, R.; Sepúlveda-Escribano, A. Transformations of biomass-derived platform molecules: from high added-value chemicals to fuels via aqueous-phase processing. Chem. Soc. Rev. 2011, 40, 5266–5281. [Google Scholar] [CrossRef]
  8. Devi, A.; Bajar, S.; Kour, H.; Kothari, R.; Pant, D.; Singh, A. Lignocellulosic biomass valorization for bioethanol production: a circular bioeconomy approach. BioEnergy Res. 2022, 15, 1820–1841. [Google Scholar] [CrossRef]
  9. Horváth, I.T.; Mehdi, H.; Fábos, V.; Boda, L.; Mika, L.T. γ-Valerolactone–a sustainable liquid for energy and carbon-based chemicals. Green Chem. 2008, 10, 238–242. [Google Scholar] [CrossRef]
  10. Dutta, S.; Yu, I.K.M.; Tsang, D.C.W.; Ng, Y.H.; Ok, Y.S.; Sherwood, J.; Clark, J.H. Green synthesis of gamma-valerolactone (GVL) through hydrogenation of biomass-derived levulinic acid using non-noble metal catalysts: A critical review. Chem. Eng. J. 2019, 372, 992–1006. [Google Scholar] [CrossRef]
  11. Galletti, A.M.R.; Antonetti, C.; De Luise, V.; Martinelli, M. A sustainable process for the production of γ-valerolactone by hydrogenation of biomass-derived levulinic acid. Green Chem. 2012, 14, 688–694. [Google Scholar] [CrossRef]
  12. Long, X.; Sun, P.; Li, Z.; Lang, R.; Xia, C.; Li, F. Magnetic Co/Al2O3 catalyst derived from hydrotalcite for hydrogenation of levulinic acid to γ-valerolactone. Chin. J. Catal. 2015, 36, 1512–1518. [Google Scholar] [CrossRef]
  13. Adeleye, A.T.; Louis, H.; Akakuru, O.U.; Joseph, I.; Enudi, O.C.; Michae, D.P. A review on the conversion of levulinic acid and its esters to various useful chemicals. AIMS Energy 2019, 7, 165–185. [Google Scholar] [CrossRef]
  14. Sosa, L.F.; da Silva, V.T.; de Souza, P.M. Hydrogenation of levulinic acid to γ-valerolactone using carbon nanotubes supported nickel catalysts. Cat. Tod. 2021, 381, 86–95. [Google Scholar] [CrossRef]
  15. Yanase, D.; Hara, T.; Sato, F.; Yamada, Y.; Sato, S. Vapor-phase hydrogenation of levulinic acid to γ-valerolactone over Cu-Ni alloy catalysts. Appl. Cat. A 2021, 616, 118093. [Google Scholar] [CrossRef]
  16. Yu, Z.; Lu, X.; Xiong, J.; Li, X.; Bai, H.; Ji, N. Heterogeneous catalytic hydrogenation of levulinic acid to γ-valerolactone with formic acid as internal hydrogen source. Chem. Sus. Chem. 2020, 13, 2916–2930. [Google Scholar] [CrossRef]
  17. Liu, Q.; Zhou, H.; Jia, Z. Hydrogen production by ethanol reforming on Supported Ni–Cu catalysts. ACS Omega 2022, 7, 4577–4584. [Google Scholar] [CrossRef]
  18. Li, T.; Su, H.; Zhu, L.; Xu, D.; Ji, N.; Wang, S. Hydrogen production from steam reforming of biomass-derived levulinic acid over highly stable spinel-supported Ni catalysts. Waste Dispos. Sustain. Energy 2023. [Google Scholar] [CrossRef]
  19. Robertson, S.D.; McNicol, B.D.; De Baas, J.H.; Kloet, S.C.; Jenkins, J.W. Determination of reducibility and identification of alloying in copper-nickel-on-silica catalysts by temperature-programmed reduction. J. Cat. 1975, 37, 424–431. [Google Scholar] [CrossRef]
  20. López-Fonseca, R.; Jiménez-González, C.; de Rivas, B.; Gutiérrez-Ortiz, J.I. Partial oxidation of methane to syngas on bulk NiAl2O4 catalyst. Comparison with alumina supported nickel, platinum, and rhodium catalysts. Appl. Catal. A 2012, 437, 53–62. [Google Scholar] [CrossRef]
  21. Popova, M.; Djinović, P.; Ristić, A.; Lazarova, H.; Dražić, G.; Pintar, A.; Balu, A.M.; Tušar, N.N. Vapor-phase hydrogenation of levulinic acid to γ-valerolactone over bi-functional Ni/HZSM-5 catalyst. Front. Chem. 2018, 6, 285. [Google Scholar] [CrossRef]
  22. Upare, P.P.; Lee, J.-M.; Hwang, D.W.; Halligudi, S.B.; Hwang, Y.K.; Chang, J.-S. Selective hydrogenation of levulinic acid to γ-valerolactone over carbon-supported noble metal catalysts. J. Indust. Eng. Chem. 2011, 17, 287–292. [Google Scholar] [CrossRef]
  23. Xue, Z.; Liu, Q.; Wang, J.; Mu, T. Valorization of levulinic acid over non-noble metal catalysts: challenges and opportunities. Green Chem. 2018, 20, 4391–4408. [Google Scholar] [CrossRef]
  24. Hengne, A.M.; Kadu, B.S.; Biradar, N.S.; Chikate, R.C.; Rode, C.V. Transfer hydrogenation of biomass-derived levulinic acid to γ-valerolactone over supported Ni catalysts. RSC Adv. 2016, 6, 59753–59761. [Google Scholar] [CrossRef]
  25. Song, S.; Yao, S.; Cao, J.; Di, L.; Wu, G.; Guan, N.; Li, L. Heterostructured Ni/NiO composite as a robust catalyst for the hydrogenation of levulinic acid to –valerolactone, 2017, 217, 115–124. [CrossRef]
  26. Huang, X.; Liu, K.; Vrijburg, W.L.; Ouyang, X.; Dugulan, A.I.; Liu, Y.; Verhoeven, M.W.G.M.Т.; Kosinov, N.A.; Pidko, E.A.; Hensen, E.J.M. Hydrogenation of levulinic acid to γ-valerolactone over Fe-Re/TiO2 catalysts. Appl. Cat. B: Environmental 2020, 278, 119314. [Google Scholar] [CrossRef]
  27. Gebresillase, M.N.; Raguindin, R.Q.; Kim, H.; Seo, J.G. Supported bimetallic catalysts for the solvent-free hydrogenation of levulinic acid to γ-valerolactone: effect of metal combination (Ni-Cu, Ni-Co, Cu-Co). Catalysts 2020, 10, 1354. [Google Scholar] [CrossRef]
  28. Yanase, D.; Yoshida, R.; Kanazawa, S.; Yamada, Y.; Sato, S. Efficient formation of γ-valerolactone in the vapor-phase hydrogenation of levulinic acid over Cu-Co/alumina catalyst. Cat. Commun. 2020, 139, 105967. [Google Scholar] [CrossRef]
  29. Wang, J.; Liu, J.; Yu, X.; Zhang, W.; Zhang, G.; Liu, M.; Shen, J.; Yang, C.; Jin, X. Non-noble metal catalysts for transfer hydrogenation of levulinic acid: The role of surface morphology and acid-base pairs. Mat. Tod. Energy 2020, 18, 100501. [Google Scholar] [CrossRef]
  30. Derle, S.N.; Parikh, P.A. Hydrogenation of levulinic acid and γ-valerolactone: steps towards biofuels. Biomass Conv. Bioref. 2014, 4, 293–299. [Google Scholar] [CrossRef]
  31. Hattori, H.; Ono, Y. Catalysts and catalysis for acid-base reactions. In Metal Oxides in Heterogeneous Catalysts; Vedrine, J.C., Ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2018; pp. 133–209. [Google Scholar] [CrossRef]
  32. Boycheva, S.; Szegedi, Á.; Lázár, K.; Popov, C.; Popova, M. Advanced high-iron coal fly ash zeolites for low-carbon emission catalytic combustion of VOCs. Cat. Today 2023, 418, 114109. [Google Scholar] [CrossRef]
  33. Michalev, T.; Petrov, I. The removal of heavy metal ions by synthetic zeolites: A review, Proceedings of the University of Ruse 2012, 51, 79–84. ISSN 2012, 2603–4123. [Google Scholar]
  34. Feng, W.; Lu, X.; Xiong, J.; Yu, Z.; Wang, Y.; Cui, J.; Zhang, R.; Weng, R. Solid–waste–derived geopolymer–type zeolite–like high functional catalytic materials catalyze efficient hydrogenation of levulinic acid. Catalysts 2022, 12, 1361. [Google Scholar] [CrossRef]
  35. Tian, Y.; Zhu, X.; Zhou, S.; Zhao, W.; Xu, Q.; Liu, X. Efficient synthesis of alkyl levulinates fuel additives using sulfonic acid functionalized polystyrene coated coal fly ash catalyst. J. Biores. Bioprod. 2023, 8, 198–213. [Google Scholar] [CrossRef]
  36. Gong, L.; Xu, Z.-Y.; Dong, J.-J.; Li, H.; Han, R.-Z.; Xu, G.-C.; Ni, Y. Composite coal fly ash solid acid catalyst in synergy with chloride for biphasic preparation of furfural from corn stover hydrolysate. Biores. Technol. 2019, 293, 122065. [Google Scholar] [CrossRef]
  37. Alterary, S.S.; Marei, N.H. Fly ash properties, characterization, and applications: A review. J. King Saud Uni. – Sci. 2021, 33, 101536. [Google Scholar] [CrossRef]
  38. Popova, M.; Boycheva, S.; Lazarova, H.; Zgureva, D.; Lázár, K.; Szegedi, Á. VOC oxidation and CO2 adsorption on dual adsorption/catalytic system based on fly ash zeolites. Cat. Today 2020, 357, 518–525. [Google Scholar] [CrossRef]
  39. Boycheva, S.; Zgureva, D.; Václavíková, M.; Kalvachev, Y.; Lazarova, H.; Popova, M. Studies on non-modified and copper-modified coal ash zeolites as heterogeneous catalysts for VOCs oxidation. J. Haz. Mat. 2019, 361, 374–382. [Google Scholar] [CrossRef]
  40. Boycheva, S.; Marinov, I.; Miteva, S.; Zgureva, D. Conversion of coal fly ash into nanozeolite Na-X by applying ultrasound assisted hydrothermal and fusion-hydrothermal alkaline activation. Sustain. Chem. Pharm. 2020, 15, 100217. [Google Scholar] [CrossRef]
  41. Boycheva, S.; Zgureva, D.; Lazarova, K.; Babeva, T.; Popov, C.; Lazarova, H.; Popova, M. Progress in the utilization of coal fly ash by conversion to zeolites with green energy applications. Materials 2020, 13, 2014. [Google Scholar] [CrossRef]
  42. Belviso, C.; Cavalcante, F.; Di Gennaro, S.; Palma, A.; Ragone, P.; Fiore, S. Mobility of trace elements in fly ash and in zeolitised coal fly ash. Fuel 2015, 144, 369–379. [Google Scholar] [CrossRef]
  43. Boycheva, S.; Zgureva-Filipova, D.; Popov, C.; Lazarova, H.; Popova, M. Plasma-modified coal fly ash zeolites with enhanced catalytic efficiency toward the total oxidation of volatile organic compounds as low-cost substitutes for platinum group metals catalysts. Phys. Stat. Sol. 2022, 219, 2100632. [Google Scholar] [CrossRef]
  44. Boycheva, S.; Zgureva, D.; Lazarova, H.; Popova, M. Comparative studies of carbon capture onto coal fly ash zeolites Na-X and Na–Ca-X. Chemosphere 2021, 271, 129505. [Google Scholar] [CrossRef]
  45. Boycheva, S.; Miteva, S.; Zgureva, D.; Marinov, I. Characterization of fly ashes from thermal power plants in Bulgaria supplied by lignite coal, In proceedings of XXVIII Scientific symposium with international participation “Situation in Ecologically loaded regions of Slovakia and Central Europe, 2019, 24–25 October 2019, Slovakia, Hrádok, pp. 97–104. ISBN 978-80-89883-10-3.
  46. Tangcharoen, T.; Klysubun, W. Kongmark, Composition Dependence of Structural, Optical, Magnetic and Photodegradation Properties of Nanocrystalline NiO/CuO Heterostructured Powders. Ch. Phys. Status Solidi A 2022, 219, 2200072. [Google Scholar] [CrossRef]
  47. Bularzik, J.; Davies, P.K.; Navrotsky, A. Thermodynamics of Solid-Solution Formation in NiO-CuO. J. Am. Ceram. Soc. 1986, 69, 453–457. [Google Scholar] [CrossRef]
  48. Fedorov, A.V.; Kukushki, R.G.; Yeletsky, P.M.; Bulavchenko, O.A.; Chesаlov, Y.A.; Yakovlev, V.A. Temperature-programmed reduction of model CuO, NiO and mixed CuO–NiO catalysts with hydrogen\. J. Alloys Compd. 2020, 844, 156135. [Google Scholar] [CrossRef]
  49. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of gases, with special reference to the evaluation of surface area and pore size distribution (IUPAC Technical Report). Pure Appl. Chem. 2015. [Google Scholar] [CrossRef]
  50. Biesinger, M.C.; Payne, B.P.; Grosvenor, A.P.; Lau, L.W.M.; Gerson, A.R.; Smart, R. St. C. Resolving surface chemical states in XPS analysis of first row transition metals, oxides and hydroxides: Cr, Mn, Fe, Co and Ni, Applied Surface Science 257 (2011) 2717–2730. [CrossRef]
  51. Biesinger, M.C. Advanced analysis of copper X-ray photoelectron spectra. Surf. Interface Anal. 2017, 49, 1325–1334. [Google Scholar] [CrossRef]
  52. Smirnov, A.A.; Khromova, S.A.; Bulavchenko, O.A.; Kaichev, V.V.; Saraev, A.A. Reshetnikov, S.I. Bykova, M.V. Trusov, L.I. and Yakovlev, V.A. Effect of the Ni/Cu ratio on the composition and catalytic properties of nickel-copper alloy in anisole hydrodeoxygenation. Kinet. Catal. 2014, 55, 69–78. [Google Scholar] [CrossRef]
  53. Smirnov, A.A.; Khromova, S.A.; Bulavchenko, O.A.; Kaichev, V.V.; Saraev, A.A.; Reshetnikov, S.I.; Bykova, M.V.; Trusov, L.I.; Yakovlev, V.A. Effect of the Ni/Cu Ratio on the Composition and Catalytic Properties of Nickel–Copper Alloy in Anisole Hydrodeoxygenation. Kinetika i Kataliz 2014, 55, 72–81. [Google Scholar] [CrossRef]
Preprints 91183 g001
Figure 1. X-ray powder diffraction patterns of the parent, the mono- and bimetallic fly ash zeolites.
Figure 1. X-ray powder diffraction patterns of the parent, the mono- and bimetallic fly ash zeolites.
Preprints 91183 g001
Preprints 91183 g002
Figure 2. Nitrogen physisorption isotherms of the mono- and bimetallic fly ash zeolite materials.
Figure 2. Nitrogen physisorption isotherms of the mono- and bimetallic fly ash zeolite materials.
Preprints 91183 g002
Preprints 91183 g003
Figure 3. TPR-TG profiles of the studied catalysts.
Figure 3. TPR-TG profiles of the studied catalysts.
Preprints 91183 g003
Preprints 91183 g004
Figure 4. XPS spectra of the 10Ni10Co/Z and 10Ni10Cu/Z catalysts.
Figure 4. XPS spectra of the 10Ni10Co/Z and 10Ni10Cu/Z catalysts.
Preprints 91183 g004
Preprints 91183 sch001
Scheme 1. Reaction mechanisms of LA hydrodeoxygenation to GVL.
Scheme 1. Reaction mechanisms of LA hydrodeoxygenation to GVL.
Preprints 91183 sch001
Preprints 91183 g005
Figure 5. XRD patterns of spent bimetallic catalysts.
Figure 5. XRD patterns of spent bimetallic catalysts.
Preprints 91183 g005
Table 1. Crystallite size of metal oxides, and reducibility of the studied catalysts.
Table 1. Crystallite size of metal oxides, and reducibility of the studied catalysts.
Sample Name Crystalline Phase Crystallite Size, (nm) Reducibility, %
10 Ni/Z NiO 17 100
10 Co/Z Co3O4 26 79
10Cu/Z CuO 35 100
10Ni10Co/Z NiO*/-Co1.3Ni1.7O4*/-Co3O4 17*/-26*/-26 82
10Ni10Cu/Z NiO/ Ni0.8Cu0.2O*/-CuO 17*/-35 100
5Ni5Co/Z Co1.3Ni1.7O4 35 100
5Ni5Cu/Z NiO/Ni0.8Cu0.2O*/-CuO 13*/-21 100
Table 2. Textural properties of the studied catalysts.
Table 2. Textural properties of the studied catalysts.
Samples SBET (m2/g) Micropore Volume (cm3/g) Total Pore Volume (cm3/g)
10Ni/Z 115 0.019 0.169
10 Co/Z 152 0.034 0.183
10Cu/Z 86 0.006 0.186
10Ni10Co/Z 82 0.015 0.133
10Ni10Cu/Z 75 0.013 0.128
5Ni5Co/Z 111 0.020 0.159
5Ni5Cu/Z 96 0.015 0.160
Z 380 0.107 0.326
Samples reduced at 600 °C
10Ni10Co/Z 181 0.047 0.130
5Ni5Co/Z 228 0.061 0.152
10Ni/Z 240 0.066 0.154
Table 3. XPS data of 10Ni10Co/Z and 10Ni10Cu/Z catalysts.
Table 3. XPS data of 10Ni10Co/Z and 10Ni10Cu/Z catalysts.
Composition, at. % Cu Ni Co Si Al O Fe Na Ca Mg
10Ni10Cu/Z 3.2 7.3 - 10.4 4.5 61.4 3.9 6.5 1.4 1.4
10Ni10Co/Z - 11.4 3.9 9.1 3.5 60.3 5.0 4.0 1.3 1.5
Table 4. Catalytic data for the hydrodeoxygenation of levulinic acid on the studied catalysts.
Table 4. Catalytic data for the hydrodeoxygenation of levulinic acid on the studied catalysts.
Catalysts Conversion, % HPA yield, % GVL yield, %
10Ni/Z 35.0 8.0 27.0
10Co/Z 2.7 0.8 1.9
10Cu/Z 5.9 1.1 4.8
5Ni5Co/Z 51.0 7.0 44.0
5Ni5Cu/Z 63.0 10.0 53.0
10Ni10Co/Z 99.5 14.8 84.7
10Ni10Cu/Z 100.0 15.0 85.0
Table 5. Textural parameters of spent catalysts and the crystallite size of reduced metals.
Table 5. Textural parameters of spent catalysts and the crystallite size of reduced metals.
Samples SBET (m2/g) Total Pore Volume (cm3/g) Crystalline Phases Crystallite Size, nm
10Ni10Co/Z spent 275 0.462 Ni0/Co0 21
10Ni10Cu/Z spent 271 0.422 Cu0, Cu0.81Ni0.19 13/13
5Ni5Co/Z spent 256 0.379 Ni0/Co0 19
5Ni5Cu/Z spent 279 0.400 NixCu1-x (x~0.5) 13
