Effect of the Light Environment on Image-Based SPAD Value Prediction of Radish Leaves

1. Introduction

In the cultivation of root crops such as radish and carrots, it is difficult to control the production environment while checking the condition of roots. Therefore, production environment control for root crops requires the estimation of subsurface information from aboveground information. It has been proven that chlorophyll content in leaves is related to nitrogen content in crops, and can be used as an indicator to control the production environment during crop cultivation [1,2,3]. Conventional chemical analysis of chlorophyll content is labor-intensive, destructive, and limited to the small measurement area. In contrast, the chlorophyll value (SPAD value) measured by a chlorophyll meter (SPAD-502Plus, Konica Minolta, Inc.) can accurately evaluate chlorophyll content in plant leaves in a non-destructive manner. SPAD values can not only indirectly measure nitrogen content in crops, but are also related to plant growth indices and yield [3,4], and it has been reported that water stress during crop cultivation causes SPAD values to increase [5]. However, the measurement area for SPAD values using existing SPAD meters is still limited, and only one leaf can be measured at a time. Therefore, a method to predict leaf SPAD values on a large scale and in a short time would greatly contribute to the optimization of production environment control and cultivation management.

With the development of color image acquisition technology, color information obtained from digital cameras is now widely used to predict the physiological characteristics of crops, such as vegetation index (VI) [6,9], shape analysis [10], and leaf nitrogen and chlorophyll content estimation [11]. For example, VI based on the RGB color system has been integrated with crop height information and used for yield prediction [9]. HSV and HSL color systems, which are obtained by converting from the RGB color system, are also used for semantic segmentation [12], such as geo-referencing and crop quality monitoring [13]. There are also studies using multispectral cameras [14,15] and hyperspectral cameras [16,17], but these methods require high equipment costs.

Images acquired with a digital camera are easily affected by light sources such as brightness and color temperature [7]. Therefore, it is desirable to acquire images using digital cameras under stable light conditions. However, because the intensity of sunlight, for example, changes from moment to moment, the pixel values of an image may change spatiotemporally even for the same subject. In response to this problem, machine learning was applied to predict SPAD values from pixel values using a photographic device that creates a stable light environment [18]. However, similar to conventional SPAD meters, this device can only measure the SPAD values of individual leaves.

In this study, we constructed a SPAD value prediction model based on Random Forests [19] using RGB values obtained from images of radish leaves, as well as HSV and HSL values obtained by conversion from RGB values, and color temperature and illuminance as input variables. We focus on the effect of the light environment at the time of photography on the pixel values of digital images and model the relationship between leaf color and SPAD values under varying photographic conditions with respect to the color temperature and illuminance of the light source. Furthermore, based on information such as the variable importance calculated by the random forests, we examined the influence of photographic conditions on the prediction of SPAD values.

2. Materials and Methods

2.1. Plant Material

The material tested was leaves cut at 1.5 cm in diameter (leaf patches) from a radish produced by the JA Toyohashi Omura gardening club, purchased at a supermarket in Tsuzuki ward, Yokohama city, Kanagawa prefecture, Japan on April 1, 2023.

2.2. Photographic Environment and Data Acquisition Methods

The images were taken using a box-type device with a height of 900 mm, width of 460 mm, and depth of 460 mm, constructed on a flat room floor. A digital camera (DC-GX7MK3, Panasonic Corp.) was fixed on a tripod so that the camera could capture images of leaves from above, for expected applications to image-based SPAD value prediction in an open field using a UAV or the use of fixed-point camera for a greenhouse. In this photographic environment, the color temperature and light intensity can be controlled by switching the lighting using a dimmer. In this study, halogen bulbs (color temperature: 3000 K) and LED bulbs (color temperature: 5000 K) were used, with nine levels of illuminance for halogen bulbs (3, 50, 100, 300, 500, 800, 1000, 2000, and 2700 lx) and nine levels of illuminance for LED bulbs (120, 300, 500, 800, 1000, 2000, 3000, 4000 and 5440 lx).

In this study, leaf patches of radish were prepared, and the color information was obtained for an image of a leaf patch with a circularity greater than 0.85. The minimum, mean, median, and maximum values of the RGB, HSL, and HSV color systems (see Section 2.3 for detail) were calculated for each leaf patch. The RGB, HSL, and HSV values of the center of gravity of the leaf patches were calculated for each leaf patch and used as input variables in the random forests analysis (described in Section 2.4), together with the color temperature and illuminance of the photographic environment, to predict the SPAD values.

2.3. Color Information Collection Methods

Color information (RGB values as well as HSL and HSV values calculated based on RGB values) was obtained from the images captured from the leaf patches. HSL values are values in the HSL color system, where H, S, and L represent hue, saturation, and lightness, respectively. The values of H and S in the HSL color system are reported to be indices that are theoretically unaffected by the intensity of illuminance because illuminance information is concentrated only in L [13]. Therefore, it is possible to reduce the influence of the light source on the photographic environment.

The HSL color system can be converted from the RGB color system in a cubic space, through the icosahedral Hue, Saturation, Intensity (HSI) color system, which is similar to the HSL color system and the HSV color system. The difference between the HSL and HSV color systems lies in the color when S (saturation) is reduced. The HSL color system ranges from 0 to 360 for H, 0 to 100 for S, and 0 to 100 for L. The HSV color system ranges from 0 to 360 for H, 0 to 100 for S, and 0 to 100 for V. In this study, HSL and HSV values were calculated from each RGB value using a colormap in a Python library, and normalized to the range of 0 to 1 in each value range.

2.4. Modeling with Random Forests

Random Forests [19] is an ensemble learning algorithm that integrates and analyzes multiple classification and regression trees. First, the algorithm extracts a large number of bootstrap samples. Then, it generates a decision tree for each bootstrap sample. These decision trees only use a small number of randomly selected variables as features. The final output is the mean value for regression and the majority vote for classification, as the results are obtained from multiple decision trees. Decision trees have the problem that the deeper the tree, the more complex the structure becomes, and the more prone to over-fitting. Random forests, however, have better generalization ability than decision trees because of bagging, which alleviates the problem of over-fitting. Another important feature of random forests is their ability to evaluate the importance of each input variable [20].

In this study, we constructed 17 different models for predicting SPAD values based on environmental information (color temperature and illuminance) (Table 1). The 17 models consisted of eight models that used data collected under a halogen and LED light sources (HAL+LED), three models that used data collected under a halogen light source only (HAL), three models that used data collected under an LED light source only (LED), and three models that used data collected under an LED light source based on illuminance information (LED_RES). The LED_RES condition is a condition where the indoor lighting environment has low light intensity compared to sunlight, and thus it was set up to verify the applicability of the prediction models for extrapolated conditions.

The input variables to random forests were the color information and the light environment in which the image was captured. The color information is the minimum, mean, median, and maximum values of each color component in the RGB, HSL, and HSV color systems, and the values at the center of gravity of the leaf patch (Table 1). Color information GB is a model that uses the minimum, mean, median, and maximum values of the G and B values in the RGB color system and the values at the center of gravity of the leaf patch. The reason for constructing a model that uses only GB values as input variables for color information is to exclude the R values for red light that can be absorbed by water molecules. The input variables for the lighting environment were the color temperature of the light source (LCT) and illuminance of the light source (ILL) (Table 1).

In this study, we implemented the random forests computation using Scikit-learn [21] in Python. We used the default hyper-parameters of the random forests, except for random_state. In this study, a five-fold cross-validation was conducted by changing the random seed (i.e., random_state) 50 times to evaluate the variability of the model structure originating from the randomization process in the random forests computation. Note that a five-fold cross-validation was not performed for LED_RES because the training and validation data were divided according to the explicit objectives. The model performance was evaluated based on the Pearson's correlation coefficient (COR), Nash-Sutcliffe coefficient (NSE) [22], and root mean squared error (RMSE) between the observed SPAD values and model output values. For interpreting the models, SHapley Additive exPlanations (SHAP) [23], Partial Dependence (PD) and Individual Conditional Expectation (ICE) were employed to visualize the model structures in this study. SHAP decomposes the difference between the predictions for a particular instance and the mean prediction into the contribution of each feature based on the Shapley value concept of cooperative game theory. However, it cannot explain "how the predictions react to changes in feature values," and thus PD and ICE were used together to compensate this part of the interpretability.

3. Results

3.1. Modeling Results

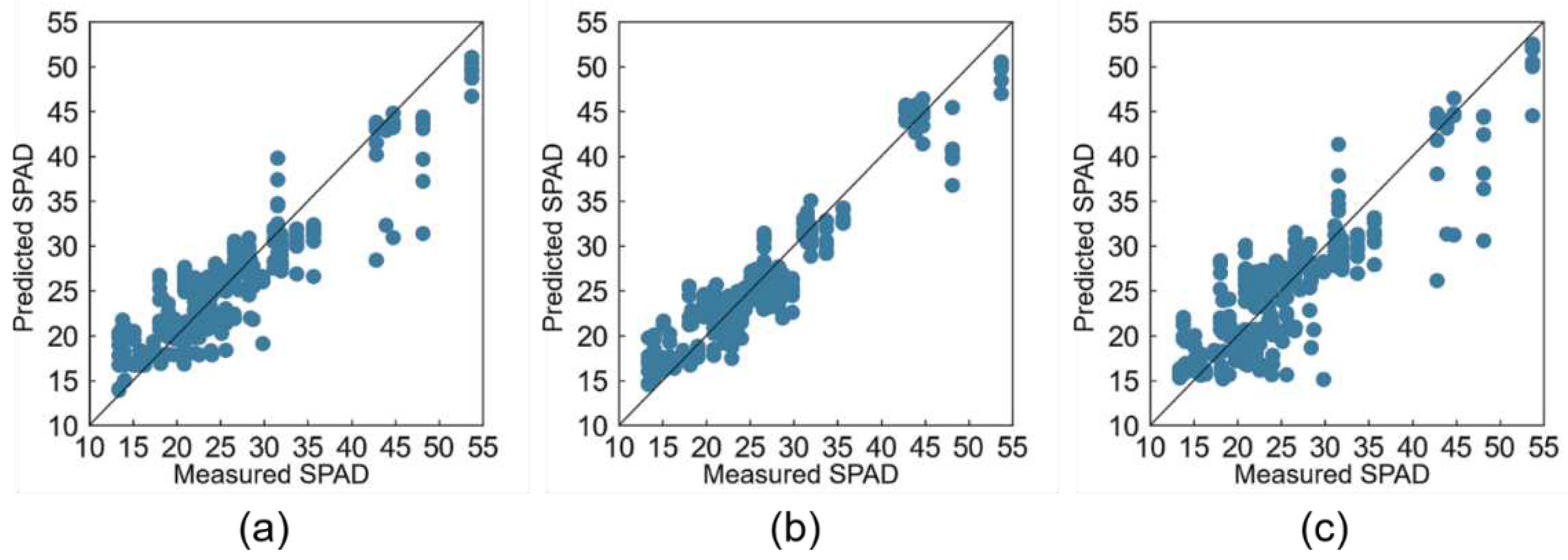

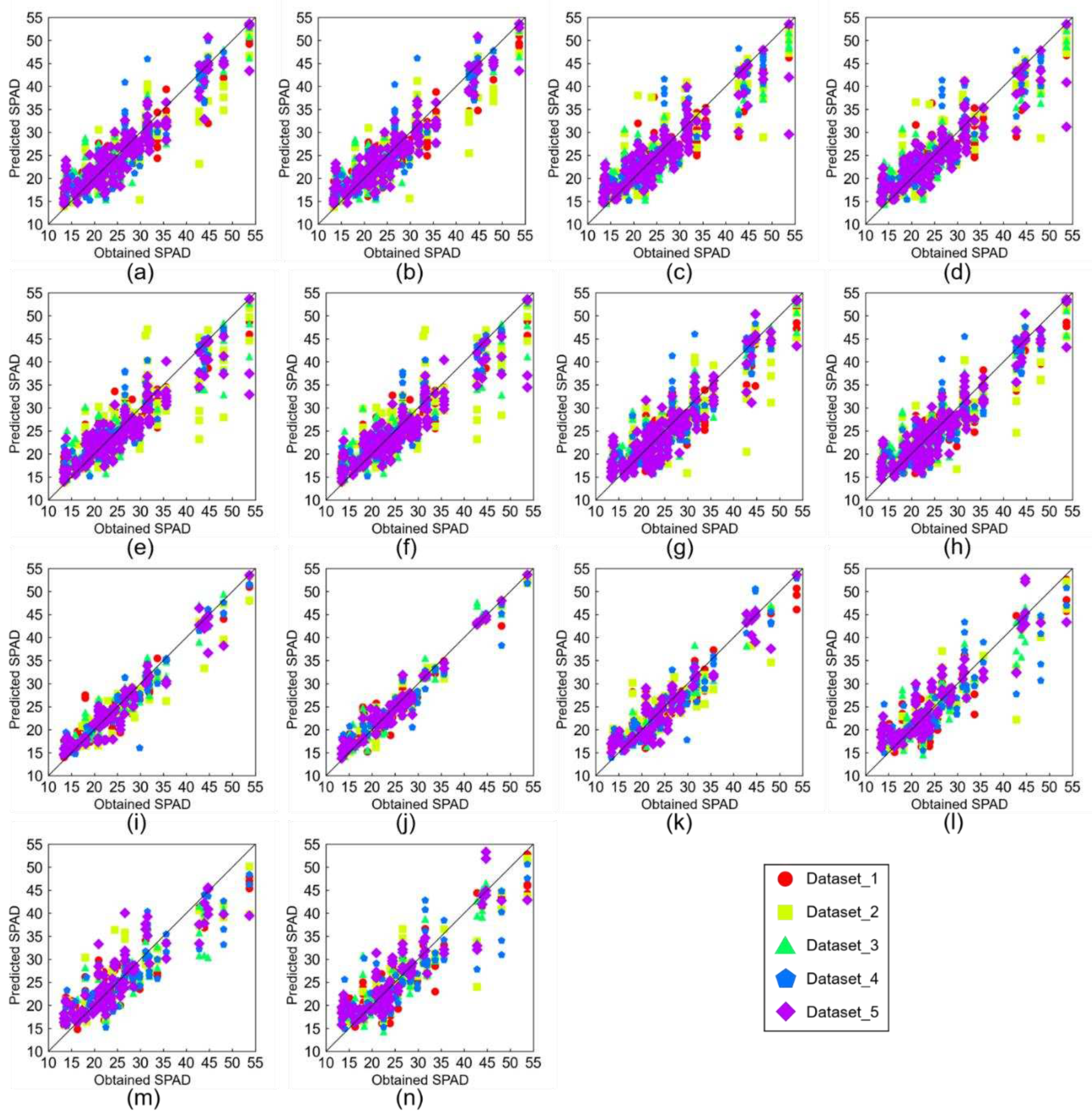

Random forests could predict the SPAD values by capturing the color changes in different light environments (Table 1, Figs. 1-2). Table 1 shows the mean and standard deviations of the best models for each dataset. Figure 1 shows a scatter plot of the mean values of the best model for the five-fold cross-validation, and Figure 2 shows the results of the best model for illuminance-limited training data (LED_RES). The accuracy of both models was high, with a COR of 0.85 or higher.

In the analysis integrating halogen and LED light source data (HAL+LED), the model (HAL+LED_{_RGB+LCT+ILL}) with the minimum, mean, median, and maximum values in the RGB color system and color temperature and illuminance as model input had the highest accuracy in predicting the SPAD values (Figure 1(b)). In the same model, the prediction accuracy was improved by adding color temperature and illuminance information as model input. However, the underestimation of high SPAD values did not improve. In the analysis of halogen light source (HAL) data, the model using RGB values and illuminance as model input (HAL_{_RGB+ILL}) exhibited the highest prediction accuracy (Figure 1(l)). The model using the HSL values and illuminance as model input (LED_{_HSL + ILL}) had the highest accuracy (Figure 1(j)). Among the models constructed in this study, the model with the HSL value and illuminance as model input (LED_{_RGB+ILL}) using data obtained using LED light sources had the highest accuracy when COR was used as the performance measure (Figure 1(j)).

In this study, the prediction accuracy was high with a COR of 0.85 or higher even in the case of limited illuminance, and the applicability was verified under extrapolated conditions (LED_RES). In this case, the highest prediction accuracy was obtained when the HSL value was used as model input, as in the case of data obtained under LED light sources (Figure 2(b)).

3.2. Variable Importance

Figure 3 shows the top 10 mean absolute SHAP values for data collected under halogen and LED light sources (HAL+LED) with RGB values, illuminance, and color temperature as model input (HAL+LED_{_RGB+LCT+ILL}; Figure 3(a)), for data taken under LED light sources (LED) with RGB values and illuminance as input values (LED_{_RGB+ILL}; Figure 3(b)), and for data taken under HSL values and illuminance (LED_{_HSL+ILL}; Figure 3(c)). The figure compares the differences in light source information and color information among the three models from the top five CORs in Table 1, excluding the two models using illuminance-limited data and the model using GB values. In the HAL+LED_{_RGB+LCT+ILL} model, the mean value of G contributed the most (Figure 3(a)). The LED_{_RGB+ILL} model indicated that the median value of B had the highest contribution to the SPAD value prediction, followed by the mean value of B (Figure 3(b)). The LED_{_HSL+ ILL} model exhibited the median value of H had the highest contribution to the model (Figure 3(c)).

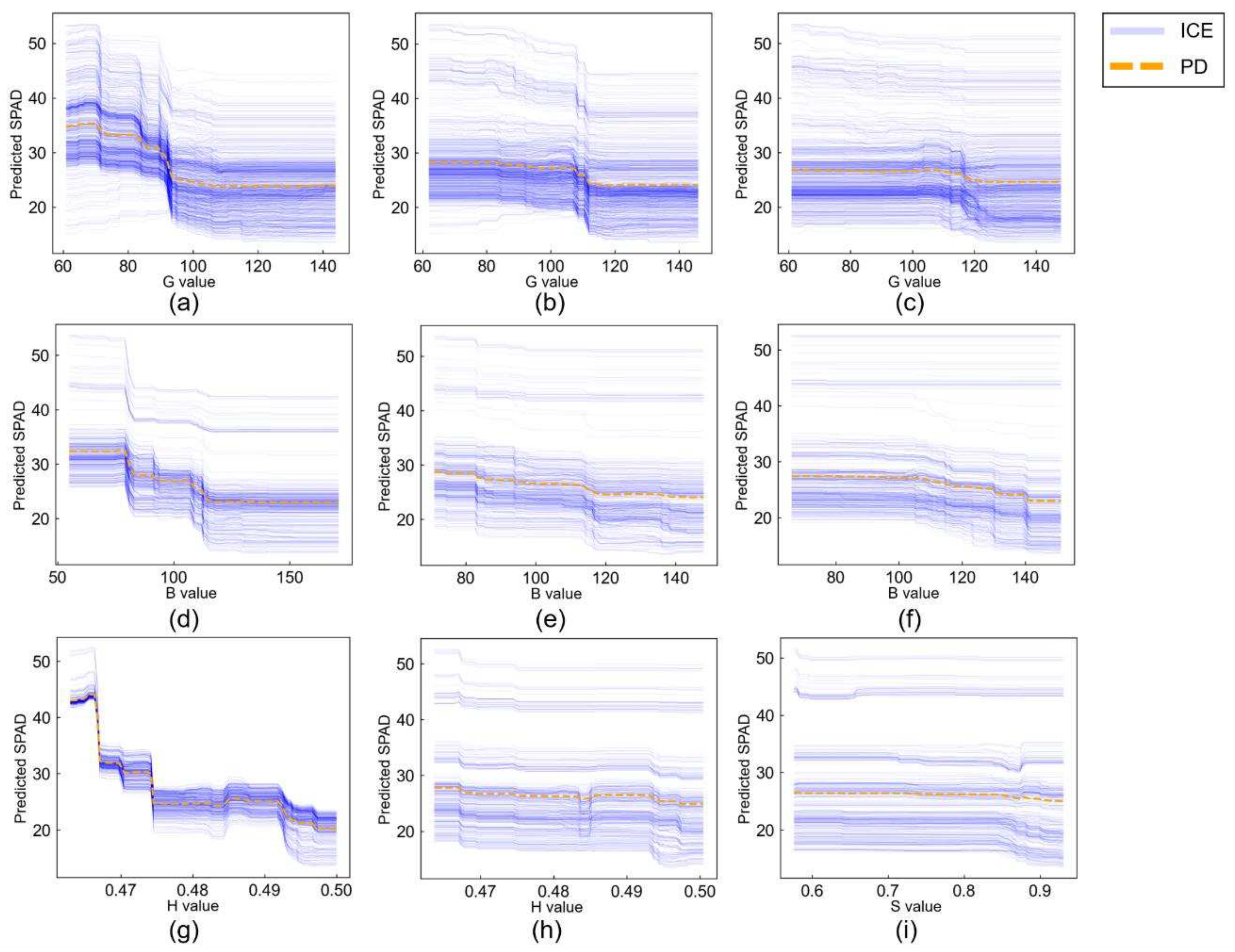

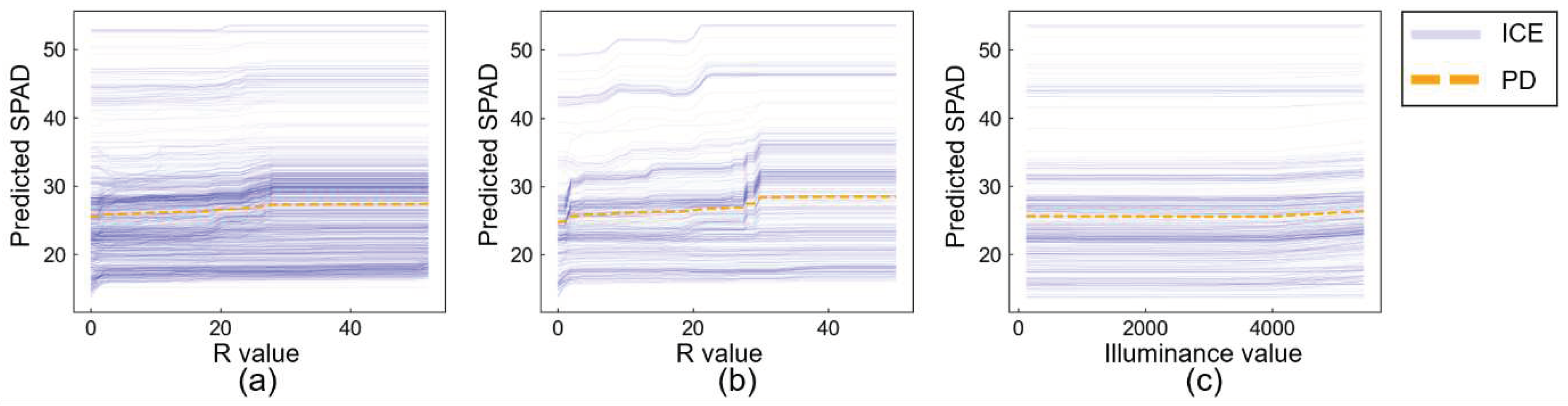

For the HAL+LED_{_RGB+LCT+ILL}, LED_{_RGB+ILL}, and LED_{_HSL+ILL} models, the PD and ICE for the top three variables of the average absolute SHAP values for each model are shown in Figure 4. PD and ICE out of importance not shown in Figure 4 are shown in Figure A1. SPAD values tended to be higher when the median value of B was low (Figure 4(d)). SPAD values were higher when G was low (Figs. 4(a) and 4(b)), and SPAD values were higher when R was high (Figs. A1(a) and A1(b)). For illuminance above 4000 lx, the SPAD values tended to increase slightly, when the illuminance was high (Figure A1(c)). In addition, the SPAD value tended to be high when the H value was low (Figure 4(g)). This change in the H value indicates that the SPAD value decreases as the leaf color changes from green to blue in the hue circle. The S and L values did not change significantly with respect to the SPAD values (Figs. 4(h) and 4(i)).

4. Discussion

In this study, it was found that the accuracy of SPAD value prediction was enhanced by using color information (RGB, HSL, and HSV) obtained from digital images and photographic environment information (color temperature and illuminance) as model input. Previous studies have proposed methods to stabilize the light environment during photographic [18] and color-corrected images using color charts as color standards [24]. However, a method to stabilize the light environment at the time of photography can only predict SPAD values on an individual leaf basis, although it can provide a highly accurate SPAD value prediction. In addition, the color correction of an image is often difficult under certain conditions. In contrast, our method presented the potential of sensor fusion of a color meter or an illuminance sensor for image-based SPAD value prediction that can be applied for a UAV [6,7,25] or fixed camera [26,27] without limiting the photographic conditions.

No significant decrease in prediction accuracy was observed when data obtained under both halogen and LED light sources were combined for training. However, the SPAD value prediction by the HAL model was less accurate than the LED model. This suggests that the color temperature affects the image-based SPAD value prediction using random forests. The result also suggests that SPAD values can be predicted even under non-white conditions, such as dusk, by collecting and learning data under different illuminance conditions in various light source environments. The high accuracy of the SPAD value prediction for the LED model suggests that the LED light source is a more suitable as a light source for image-based SPAD value prediction. However, if the object is in shadow, the SPAD value prediction may be difficult or the error in the SPAD value prediction may be large. Therefore, it is necessary to consider a method that uses the ratio of shadows as a model input or a color correction method for acquired images when shadows exist on an object [27,28].

Following the previous study [7] reported the results of similar analysis excluding the R value which is a wavelength absorbed by water molecules, we conducted the modeling using only GB values, excluding the R values in this study. As a result, the GB-based model also showed high accuracy, with a COR of 0.85 or higher. However, the GB-based model showed a lower model performance than the RGB-based models. This suggests that the GB-based models can exclude the effect of water molecules, but the R values may contain important factors for the SPAD value prediction.

The HSL value obtained under the LED light source, which produced models with the highest model performance in this study, is converted using RGB values. Therefore, the color component may be affected by water molecules in the leaves and may not be an appropriate color space when considering the effect of water molecules in the leaves. However, because the HSL color space can theoretically aggregate illuminance information into L [13], the HSL color system is considered useful in environments with continuously changing lighting conditions.

In the HAL+LED model (Figure 3(a)), which was constructed from data under halogen and LED light sources, the G values were important, whereas the B values were important in the LED model (Figure 3(b)). Previous studies have reported that the blue and green bands contribute significantly to SPAD value prediction [29]. The importance of these variables in this study differed depending on the light source, implying that the important variables for SPAD value prediction vary depending on the light environment. Therefore, it is important to incorporate light environment information, such as the color temperature and illuminance of the light source, for image-based SPAD prediction.

Although this study was conducted in a closed indoor environment, there exists a wide range of fields where image-based SPAD value prediction can be conducted, ranging from fields [24] to greenhouses [26]. The results of this study can be used in environments where leaf color can be obtained under a stable light source, as in previous studies [18]. However, when images are acquired under unstable light environments, such as in the fields or in greenhouses, the accuracy of the SPAD value prediction becomes an issue. In addition, the maximum illuminance in this study was 5000 lx, whereas the outdoor environment was highly illuminant, ranging from 10000 to 100000 lx. Further study is therefore needed to collect observation data for building data-driven models specifically in outdoor environments for the proposed method to be applied to a variety of lighting conditions.

5. Conclusions

This study was conducted to clarify the influence of light environment on SPAD value prediction using random forests under different light source environments. Leaf patches with a diameter of 1.5 cm were prepared using Japanese radish (Raphanus sativus L. var. sativus), photographed under the established stable light environment, and used for extracting variables for image-based SPAD value prediction. The variables obtained by image analysis were the RGB values, which were pixel values, and the HSL and HSV values obtained by color space conversion from the RGB values. In addition, color temperature and illuminance, which were measured separately, were used as input variables. The results showed that, under a stable LED light source, the SPAD values could be predicted with high accuracy (COR 0.929 for RGB, color temperature, and illuminance as input variables; COR 0.922 for HSL, color temperature, and illuminance as input variables). It was also found that image-based SPAD value prediction was possible with relatively high accuracy, even under a halogen light source with a color temperature close to that of dusk (COR 0.895 for RGB and illuminance as model input, and COR 0.876 for HSL and illuminance as model input). Under LED light sources, the use of HSL values resulted in accurate SPAD value prediction by separating the illumination information into L (COR=0.972, NSE=0.944, RMSE=2.07). In addition, focusing on the H value, the H value tended to change from blue to green as the SPAD value increased. In this study, the SPAD value prediction was performed in a stable light environment in a closed indoor environment; therefore, the development of a method for outdoor conditions, where the light environment is spatiotemporally dynamic, is a future challenge.
