Synergistic in vitro Antiviral Effect of Combinations of Ivermectin, Essential Oils and 18-(Phthalimid-2-yl)ferruginol Against Arboviruses and Herpesvirus

1. Introduction

Ivermectin (IVM) is a semisynthetic mixture of two avermectin B derivatives consisting of a large macrocyclic lactone ring originally produced by the soil actinomycete, Streptomyces avermectinius [1]. IVM is a broad-spectrum anti-parasitic drug approved by the FDA that has also demonstrated in vitro antiviral activity against a number of DNA and RNA viruses, including severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) [2]. A systematic review published in The Journal of Antibiotics summarized the antiviral effects of IVM by reviewing available in vivo and in vitro studies over the past 50 years [3]. IVM exhibits antiviral activity in a variety of virus genera such as Alphavirus, Alphainfluenzavirus, Arterivirus, Betacoronavirus, Circovirus, Flavivirus, Lentivirus, Polyomavirus, Varicellovirus, and its main action mechanism is inhibition of host heterodimeric importin (IMP) α/β1 complex, responsible of nuclear accumulation of some viral proteins [3,4,5,6].

Essential oils (EOs) are volatile substances composed of complex mixtures of organic compounds that exhibit a wide range of biological activities, including antifungal, antibacterial, anti-larvicidal, antitumor, and antiviral properties [7]. Of particular interest are some EOs which exhibit antiviral activity against acyclovir-resistant strains of human herpesvirus (HHV), with activity up to 100 times greater than that of acyclovir [8]. While there are numerous publications on the anti-herpetic activity of EOs and their isolated active compounds [9,10], EOs also have potential as broad-spectrum antivirals against both DNA and RNA enveloped viruses [11]. Their mechanism of action primarily involves altering the viral envelope through interactions with viral structural proteins, disrupting early stages of viral replication such as cell entry and adsorption [12,13]. Recent studies have also documented that EOs can target cellular processes, leading to differential expression of interferon response-related genes [14,15].

During our compound screening program to search new antivirals derived from natural products, it was discovered a broad-spectrum antiviral analogue of the bioactive abietane-type diterpene ferruginol (1, Figure 1.) [16,17], which we named later 12-hydroxy-N,N-phthaloyldehydroabietylamine or 18-(phthalimid-2-yl)ferruginol (1a, abbreviated henceforth phthFGL, Figure 1) based on the abietane carbon skeleton numbering (Figure 1) [18,19,20,21]. PhthFGL (1a) has exhibited relevant in vitro antiviral activity against herpes and dengue [18], Brazilian zika strains [19], Colombian zika and chikungunya strains [20], and very recently, against the human coronavirus 229E (HCoV-229E) [21]. With the aim of getting insight on the possible mechanism of action of phthFGL, we carried out a basic computational study using a molecular docking approach [20]. In that work, it was found that phthFGL has a good affinity for key viral targets, including chikungunya nonstructural protein 2 (nsP2), zika and dengue virus NS5 methyltransferase; and herpesvirus thymidine kinase (TK) with a higher binding energy value than that of acyclovir itself [20]. Additionally, likewise IVM, phthFGL showed potential inhibition features towards cellular therapeutic targets, as demonstrated by its high free energy value with G-Actin and tubulin [20,22]. However, experimental evidence to confirm those predictions need to be undertaken, though some are being developed by collaborators pointing out to this molecule as a host-targeted antiviral [22]. PhthFGL is structurally an analogue of ferruginol (1), a well-known bioactive molecule, which possesses a phthalimide moiety attached at C18-position. Semi-synthetic bioactive abietane-type compounds are readily obtained from renewable commercial starting materials such as (–)-abietic acid, transformable into (+)-dehydroabietic acid, and (+)-dehydroabietylamine [23,24]. This makes this family of compounds very attractive for further drug development due to their broad pharmacological and drug-likeness properties and the precedent that there is only, to the best of our knowledge, one an abietane-based commercial drug, ecabet sodium (2, Figure 1), available in Japan to treat acid peptic disorders [25].

The combination of drugs has been historically successful for severe and chronical viral diseases such as those originated by human immunodeficiency virus (HIV), hepatitis C virus (HCV) infections and is a developing strategy for emerging or re-emerging viral diseases, including severe acute respiratory syndrome-coronavirus (SARS-CoV), Middle East respiratory syndrome (MERS)-CoV, Zika, Ebola, influenza [26]. The studies of drug-drug interactions through in vitro drug combination assays is important for several reasons. High doses of certain drugs can cause adverse effects, whereas combining drugs may facilitate the use of lower doses maintaining the desired therapeutic outcome or even enhanced due to synergistic effects. Additionally, combining drugs with different mechanisms of action can help prevent the development of resistance by attacking the infectious agent through multiple pathways [26]. Concurrent agents that target virus entry and virus replication, called directly acting antivirals, and cellular proteins involved in and necessary for viral replication, called host-targeting antivirals, offer opportunities to discover synergistic drug combinations [22,27].

CHIKV and ZIKV are RNA genome re-emerging viruses who are part of the group of arboviruses, which are transmitted by arthropod vectors. These viruses have created a new challenge for public health in the Americas, with CHIKV emerging in late 2013 and ZIKV in 2014; and their infections have spread globally, causing a spectrum of disease that ranges from self-limited febrile illness to permanent severe disability, congenital anomalies, and early death [28]. Diseases caused by arboviruses such as CHIKV, ZIKV, and dengue virus (DENV) can produce very similar clinical symptoms, mainly during the acute phase (the first days of the disease), hindering clinical diagnosis by health workers, creating problems for appropriate and early case management, and sometimes triggering fatal events [28]. According to the World Health Organization, almost 4 billion people live in areas where arboviruses are current public health threats. The HHV stands out for being the main responsible for many infections in the orofacial region, as well as in the genital region. The HHV is the prototype of a large family of double-stranded DNA genome viruses; human herpesvirus (HHV) types 1 and 2 establish latent infections in sensory neurons and undergo reactivation during periods of severe host immunosuppression. Prolonged therapy with acyclovir (ACV) and its analogues can lead to drug- resistant HHV strains in patients infected with human immunodeficiency virus (HIV) [29]. Continued research in virology and pharmacology will predictably lead to the identification of new molecular targets for clinical intervention, with the objective of developing new combined treatments that will produce therapeutic synergies in the future [29,30].

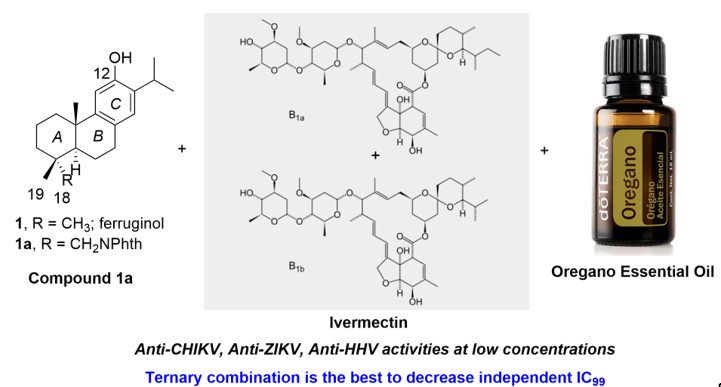

Given the known antiviral properties of IVM, some EOs and phthFGL in certain viruses, we envisioned exploring the resultant antiviral activity of different combinations of IVM, Oregano or Fennel essential oils, and phthFGL. The aim of this study was the evaluation of a possible synergistic effect among them for the in vitro inhibition of the replication of Chikungunya virus (CHIKV), Herpesvirus (HHV), and Zika virus (ZIKV), as well as adverse effects reduction in our cellular model (Vero-E6 cells) determining cytotoxicity in vitro.

2. Materials and Methods

2.1. Biological Assays

2.1.1. Reagents and compounds

Dulbecco's Modified Eagle's Medium (DMEM), L-glutamine, non-essential amino acids and minimum essential medium vitamin solution, NaHCO₃, carboxymethylcellulose sodium salt medium viscosity (CMC) and 3-(4,5- dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide (MTT) were obtained from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). Fetal bovine serum (FBS) and penicillin/streptomycin were purchased from Invitrogen Life Technologies (Carlsbad, CA, USA). Ribavirin and acyclovir were obtained from Calbiochem (La Jolla, CA, USA). 18-(Phthalimide-2-yl)ferruginol (1a, phthFGL) was re-synthesized following details for its practical synthesis conveniently described by us [20]. PhthFGL, acyclovir and ribavirin stock solutions were prepared in dimethyl sulfoxide (DMSO, Sigma, Cream Ridge, NJ, USA) to be evaluated immediately. The essential oils (EOs) extracted from commercial aromatic plants were donated by Carmen Orozco, a distributor in Colombia of the company doTERRA- Essential Oils (Pleasant Grove, UT, USA). The GC-MS chromatographic analysis information was provided and the following EOs were requested: Origanum vulgare (Oregano) and Foeniculum vulgare (Fennel). The EOs have the following ID quality codes: Oregano ID 171778 and Fennel ID 161894, allowing the search of their composition on the company's website (www.sourcetoyou.com). Ivermectin 0.6% MK® (MK Drug Vademecum- 6 mg/mL in oral solution containing excipients q.s.) was obtained from laboratory FARMATODO (Bogotá, Colombia). Both EOs and IVM were prepared in DMEM to be evaluated immediately. Before use, all reagents were kept refrigerated at temperatures no higher than 2 °C.

2.1.2. Cell culture and viruses

Vero-E6 cells (African green monkey kidney-Cercopithecus aethiops, ATCC CRL- 1586), was maintained in DMEM supplemented with 5% of inactivated fetal bovine serum (FBS), 100 units/mL of penicillin, 100 mg/mL of streptomycin, 100 mg/mL of L-glutamine, 0.14% NaHCO₃, and 1% of each non-essential amino acids and minimum essential medium vitamin solution (choline chloride, D-calcium pantothenate, folic acid, nicotinamide, pyridoxal hydrochloride, riboflavin, thiamine hydrochloride and i-inositol). The cells were incubated at 37 °C in humidified 5% CO₂ atmosphere for its maintenance. Zika virus_459148 (clinical isolate, Zika_virus_459148_Meta_Colombia_2016/GenBank- MH544701.2) and CHIKV were donated by the Virology Group “Dirección de Redes en Salud Pública” (Instituto Nacional de Salud, Bogotá, DC, Colombia). Zika virus_459148 characterization was described by Laiton-Donato et al., 2019 [31]. Human Alphaherpesvirus type 2, HHV-2 (VR-734), was purchased from the Center for Disease Control (Atlanta, GA, USA). Virus stocks were produced and titrated in Vero-E6 cells by plaque assay and expressed as plaque forming units (PFU/mL); or TCDI₅₀/0.1mL, which means the dilution of the virus required to obtained 50% lytic effect of the cellular culture in 100 µL of viral suspension. TCDI₅₀/0.1mL titrations were evaluated at 48 h post- infections in 96-well flat-bottomed plates and the viral stops were frozen in liquid nitrogen at concentrations of 1x 10⁴ TCDI₅₀/0.1mL in culture medium without serum (FBS).

2.1.3. End-point titration technique (EPTT) for evaluation of IC₉₉

The technique EPTT (Vlietinck et al., 1995) [32], with few modifications was used. The unit used in the EPTT assay for three viruses (CHIKV, ZIKV, HHV-2) was of 10TCDI₅₀, which means the dilution of the virus required to obtain 100% lytic effect of the cellular culture in well in 100 µL of viral suspension in 48 h of infection. For the evaluation of antiviral activity, initially, confluent monolayer Vero-E6 cells were grown in 96-well flat-bottomed plates (2.0 x 10³ cells/well), at 37 °C in humidified 5% CO₂ atmosphere. After 24 h of incubation (obtaining more or less 80% of cell monolayer formed), the culture medium was removed. Then, viral suspension (10TCDI₅₀/0.1mL) and immediately two-fold dilutions of the compounds were added in maintenance medium, identical to growth medium except the FBS (at 1.0%). After 48 h of incubation at 37 °C in humidified 5% CO₂ atmosphere, the cell monolayers were stained with a solution of 3.5% formaldehyde with 0.2% crystal violet and cytopathic effect (CPE) was observed under inverted microscope. The minimum inhibitory concentration that does not allow to visually detect plaque formation as a cytopathic effect caused by the virus, was called the 99% inhibitory concentration (IC₉₉). Two independent experiments by triplicated for each viral type and each concentration were carried out. Controls were included: untreated cells, cells treated with compounds and cells infected with each viral type. The concentration of DMSO in assays was of 0.05% and cellular controls with DMSO at 0.05% were used. Positive controls included were: Acyclovir (ACV), Ribavirin (RIBA) and Heparin (H). The values were expressed as the Mean Standard Deviation (MSD).

2.2. In silico simulations

2.2.1. Calculation of Molecular Properties (Drug-Likeness)

The structures of compound 1a and ecabet sodium 2 was manually drawn in ChemDraw Professional 22.2.0 software (PerkinElmer Informatics, Inc., Waltham, MA, USA), and the SMILES notation was obtained for each molecule. Then, the SMILES codes were introduced in the webserver SWISSADME [33] from the Swiss Institute of Bioinformatics (www.swissadme.ch) and calculation of physicochemical descriptors and druglike nature was performed.

3. Results

3.1. Antiviral evaluation of IVM, EOs, phthFGL 1a against ZIKV, CHIKV and HHV-2

To evaluate the potential antiviral synergism in vitro that may arise from drug combination, it is necessary initially to determine the effective concentration that inhibits 100% of the infection in cell cultures. Additionally, to calculate a selectivity index (SI), it must be correlated with the cytotoxic concentration, i.e., the one that causes a 100% loss of cell viability. To determine the cytotoxic concentration, the crystal violet technique was used. Briefly, 2.0 x 10³ cells/well of Vero-E6 cells were grown in 96-well flat-bottomed at 37 °C in humidified 5% CO₂ atmosphere. After 24 h of incubation, two-fold dilutions of the compounds and the respective positive controls for each evaluated virus were added. The most pertinent concentration units were used for both positive controls and molecules under study, depending on their starting state. After 48 h of incubation, the cell monolayers were stained, and the concentration that completely detached the cell monolayer, defined as the concentration cytotoxic 100 (CC₁₀₀), was visually identified (Table 1).

The same protocol was used to evaluate the antiviral concentration that inhibits 100% of the cytopathic effect; with an additional step, of infecting the cell monolayer with 10TCDI₅₀ of the respective virus before adding non-cytotoxic two-fold dilutions of the compounds (these two steps were performed almost simultaneously). The minimum inhibitory concentration that did not allow visualizing plaque formation as a cytopathic effect caused by the virus, was called the 99% inhibitory concentration (IC₉₉) (Table 1). Using IC₉₉ has many advantages over the IC₅₀; IC₉₉ reduces the number of experiments, eliminates the need to ensure a dose-dependent effect, and is a fast and inexpensive method that does not require additional statistical analysis. Previously, the antiviral activity of each compound must be known, ensuring 100% inhibition of the cytopathic effect through visual determination (and dose- dependent effect). The methodology standardized here is only an approximation, equivalent to a “synergism screening” where synergism controls should be included in the experimental design. As a positive synergism control, we included the combination of RIBA with ACV in the viral model of HHV-2, a synergism that has been documented by several studies [34,35]. As can be seen in Table 1, the IC₉₉ of RIBA, in the presence of ACV (at the concentration of 1.3 µM), was reduced from 176 to 36.6 µM, a reduction that is equivalent to more than four times its initial concentration. This parameter of “more than four times” was chosen as threshold when analyzing the possible synergism in the binary or ternary combinations tested in this study. As shown in Table 1, the tested compounds IVM, 1a and EOs have lower SI values than the selected positive controls ACV and Heparin. IVM had the lowest selectivity index (of 2 against HHV-2), while phthFGL (1a) showed the highest IC₉₉ value (SI = 16). Broad-spectrum antiviral activity has already been demonstrated for EOs, but in this particular case, by Oregano and Fennel EOs is the first time that their antiviral activity is reported for both HHV-2 and arboviruses. It is the same way, it the first time that IVM showed activity against HHV-2 replication; but IC₉₉ value could not be determined, since it was close to the CC₁₀₀ value. In following experiments, binaries combination or three compounds were realized to demonstrate whether the 100% inhibitory effect is maintained with a reduction of concentration. The increase of SI also was analyzed.

3.2. Antiviral evaluation of binary and ternary combinations of compounds

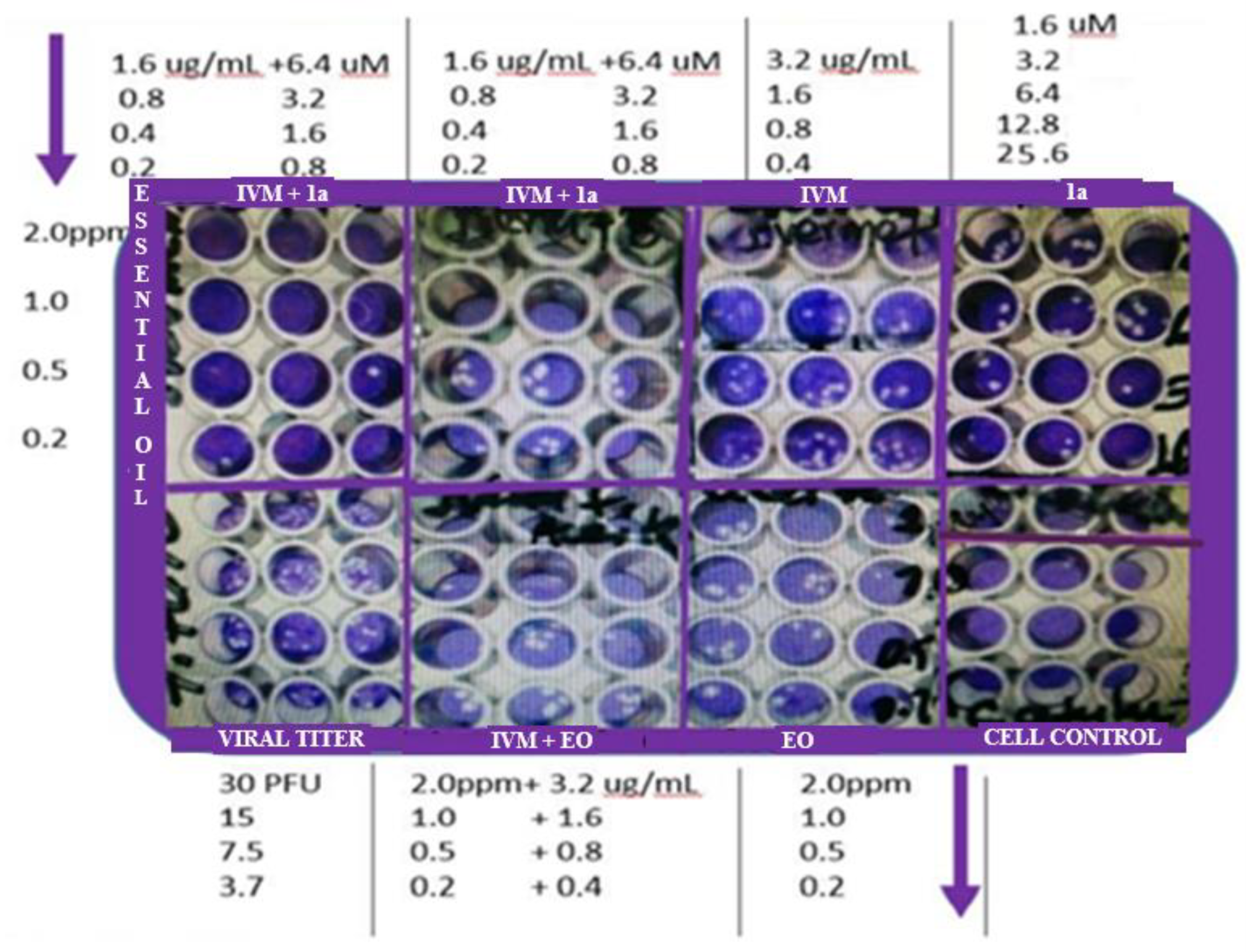

In Figure 2, the experimental design with the HHV-2 viral model is shown. Briefly, viral titer control is found in the lower left panel, which consisted of two-fold dilutions, starting at 1TCDI50 and finalizing in the 1/16 TCDI50 dilution, with an average of 3.7 plaque-forming units per well. Lower right panel was the cell control. The upper left panel shows the cytopathic effect of the double serial combination of three compounds, corresponding to the mixture of IVM, Oregano EO and phthFGL (1a). The IC₉₉ data recorded per three replicates, for each compound, in this quadrant were: Oregano EO, 0.2, 0.2, 0.5 ppm; IVM, 0.2, 0.2, 0.4 µg/mL and phthFGL (1a), 0.8, 0.8, 1.6 µM. The replicates for next quadrant corresponding to binary combinations IVM and phthFGL (1a), were: IVM, 0.8, 0.8, 0.8 µg/mL and phthFGL (1a), 3.2, 3.2, 3.2 µM. The IC₉₉ of binary combinations of IVM and Oregano EO were: IVM, 0.8, 1.6, 1.6 µg/mL and Oregano EO 0.5, 1.0, 2.0 ppm (quadrant that is found below the quadrant of the binary combination of IVM and phthFGL (1a). The other quadrants correspond to the treatments with a single compound (the IC₉₉ average concentrations are already reported in Table 1). Three-component combinations reduced IC₉₉ concentration more than binary combinations. Two experiments by triplicate for each viral type and each concentration (binary and three-component combinations) were tabulated and graphed with their standard deviation as shown in Figures 3, 4, 5.

3.2.1. Antiviral activity of IVM or phthFGL (1a) in the context of combinations against HHV-2, CHIKV and ZIKV.

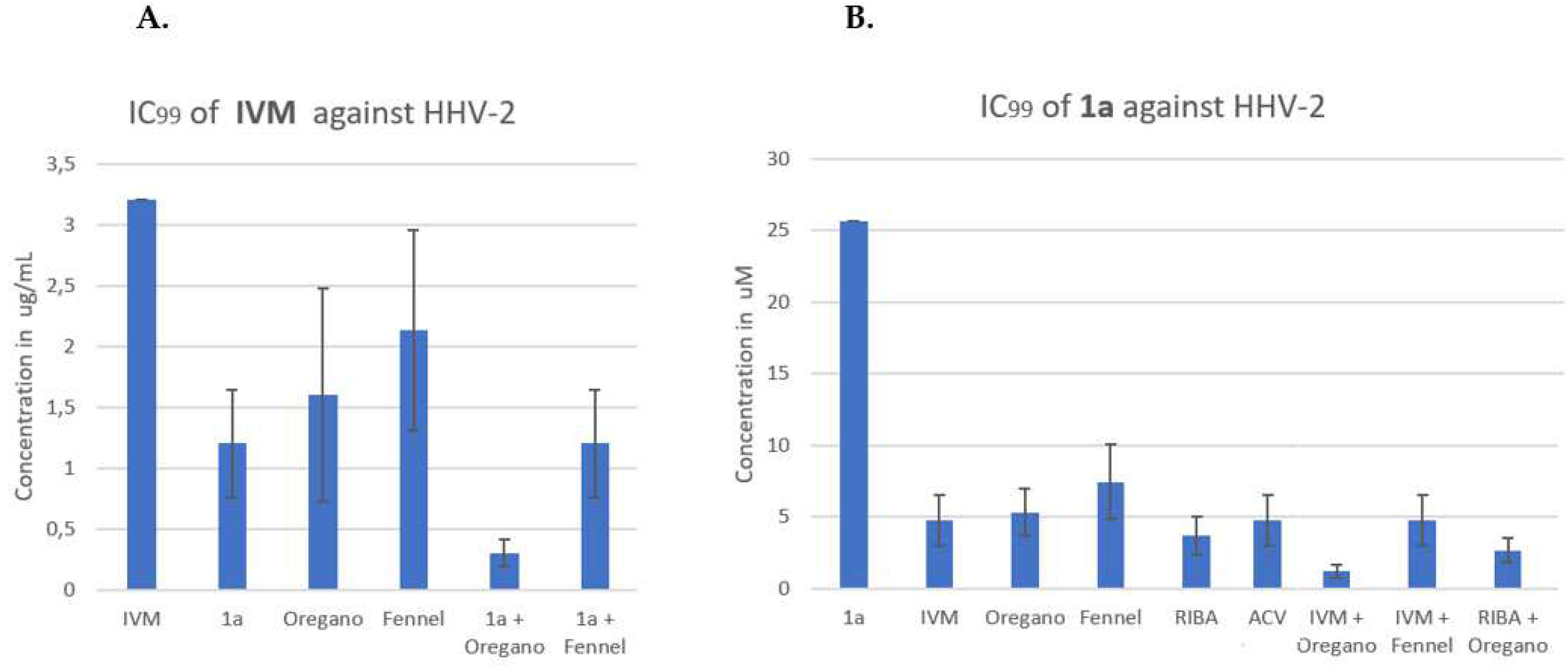

In Figure 3A (see below), the IVM concentration in µg/mL is plotted on the Y-axis, and the order of presentation on the X-axis is as follows: IVM, IVM/1a, IVM/Oregano, IVM/Fennel, IVM/(1a + Oregano) and IVM/(1a + Fennel). The figure 2A shows that binary combinations reduced the IVM inhibitory concentration, being combination IVM/Fennel the one with least effect. In the last two bars, the IVM/(1a + Fennel) combination gave approximately the same effect than binary combination IVM/1a. The effect of the combination of IVM/(1a + Oregano) was greater than any binary combinations. It should be noted that IVM alone was not able to inhibit 100% of lysis plaque formation by HHV-2 infection (the bar represents approximately the 50%); this was only possible on combining with other compounds. On comparing the binary and the ternary combinations of agents, it can be observed that the big difference in the reduction of IC₉₉ is made by the contribution of Oregano EO in the combination of the three components. In figure 3B, compound 1a concentration’s in µM is plotted on the Y-axis, and the order of presentation on the X-axis is as follows: 1a, 1a/ IVM, 1a/Oregano, 1a/Fennel, 1a/RIBA, 1a/ACV, 1a/(IVM + Oregano) and 1a/(IVM + Fennel). The binary combinations of 1a with IVM, Oregano EO, Fennel EO, RIBA and ACV reduced the IC₉₉ of compound 1a generally around five times from 25.6 to c.a. 5 µM. The three component 1a/(IVM + Oregano) and 1a/(IVM + RIBA) mixtures, reduced the concentration much more at values below 5 µM; the oregano-based ternary mixture including IVM makes the big difference in the reduction power of IC₉₉. For combinations of three compounds, the order of higher effect was: 1a/(IVM+ Oregano) > 1a/ (Oregano+ RIBA) > 1a/(IVM+ Fennel). The IC₉₉ reduction by binary and/or three-component combinations was more evident when the analysis was done from 1a (Figure 3B), this could be because 1a has the highest value of IC₉₉ concentration, and the two-fold dilutions used show per se a greater effect (12.8, 6.4, 3.2, 1.6, 0.8, 0.4). Control drugs (RIBA and ACV) were combined with 1a; both compounds reduce the IC₉₉ of 1a from 25 µM to approximately 5 µM. In the following experiments for the CHIKV and Zika viral models, only RIBA was used as control since this drug possess broad-spectrum properties.

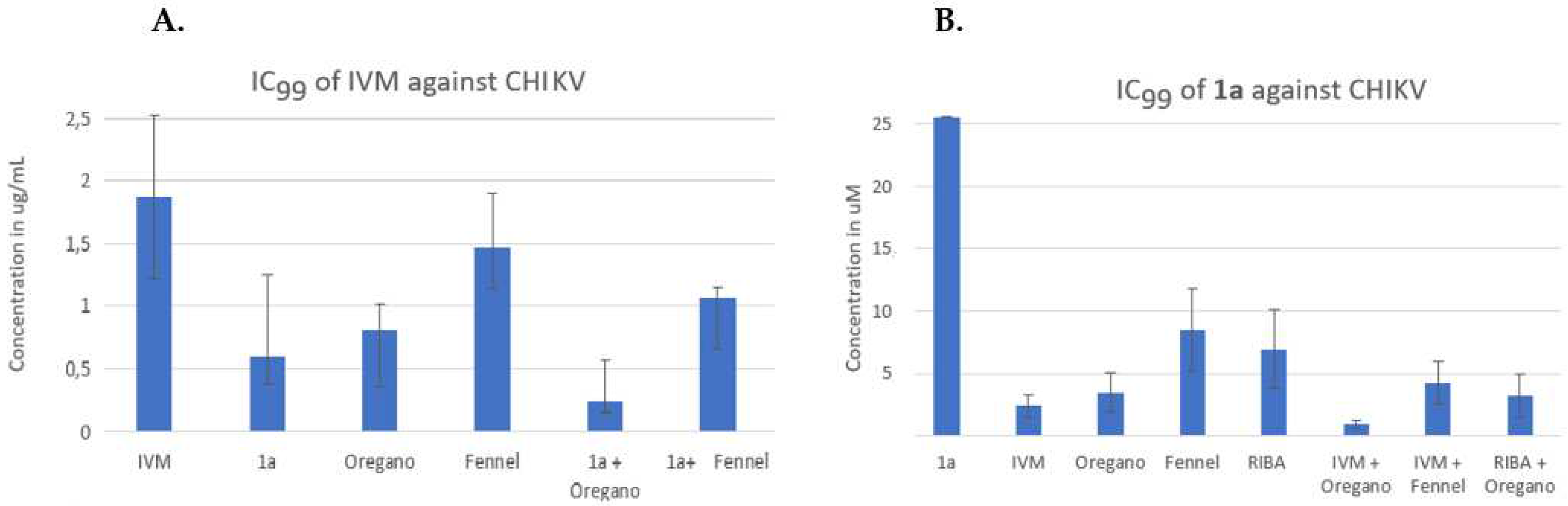

CHIKV (with an RNA genome) was another viral model for the study of binary and three-component combinations (Figure 4), which was much more sensitive to the binary combination of IVM/1a than HHV-2 (Figure 4A/ second column)). IVM had an IC₉₉ of 1.8 µg/mL (Table 1, Figure 4A/first column), and the reduction of this concentration in the binary combination with IVM/1a and IVM/Oregano EO was below 1.0 µg/mL. The combination of IVM/Fennel EO was the least effective, as it was also in the case of the three-component combination of the latter with 1a. Also, the effect of the combination of IVM/Oregano EO + 1a was greater than that of IVM/Fennel + 1a. As stated for Figure 3B, when making the respective analysis with 1a, the figure 4B shows the same tendency for both the binary and three-component combinations. However, in this case, CHIKV is more sensitive to the binary combination 1a/Oregano EO than 1a/Fennel EO.

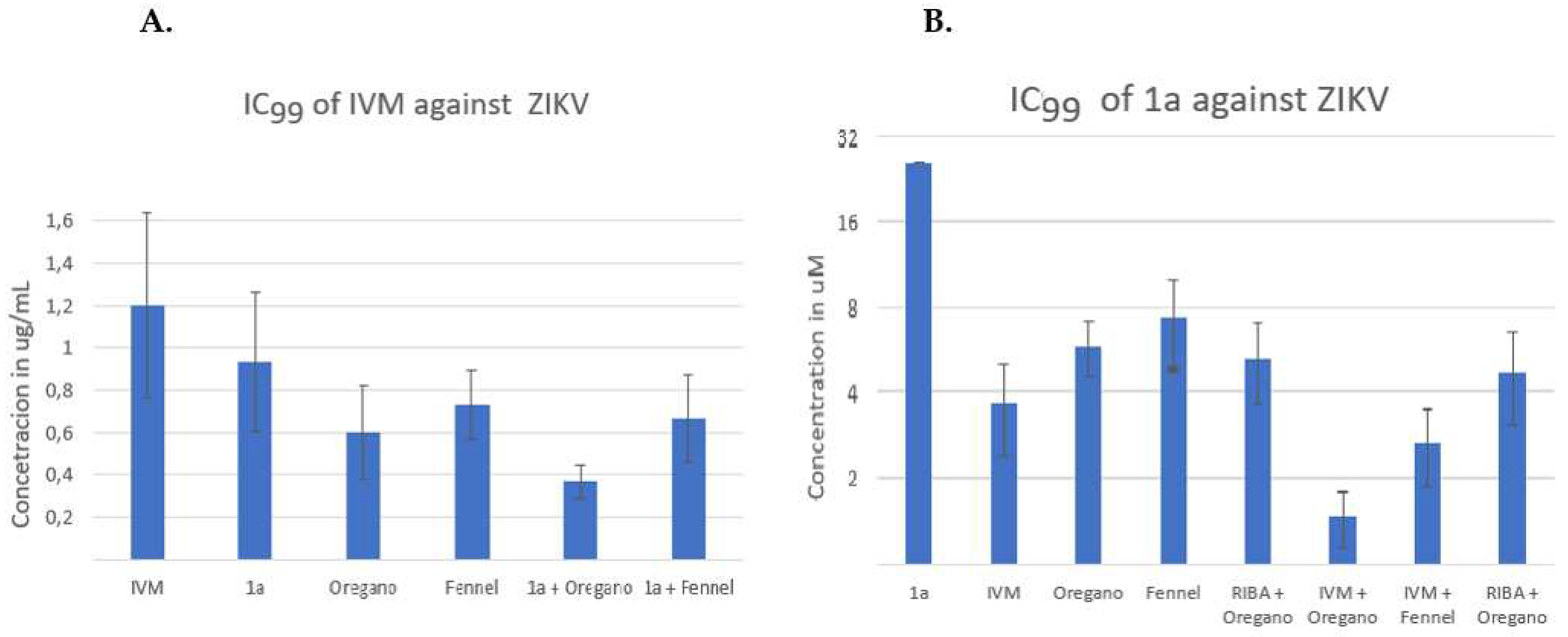

Another RNA genome model, ZIKV, was also studied resulting to be less sensitive than CHIKV, but of all the binary combinations, the one containing Oregano EO was the most effective to reduce IC₉₉ of IVM (Figure 4A). Also, the effect of the combination of IVM/1a + Oregano EO was greater than the other ternary mixture, IVM/1a + Fennel. In figure 4B, the respective analysis with compound 1a, is depicted. In this case, ZIKV was just as sensitive as CHIKV. But the effect of the combination of 1a/ RIBA + Oregano EO was less sensitive than that of 1a/IVM + Fennel. For the combinations of three agents, it was observed the following decreasing order of efficiency: 1a/(IVM+ Oregano) > 1a/(IVM+ Fennel) > 1a/Oregano + RIBA.

3.2.2. Reduction of IC₉₉ values in comparison with ACV/Ribavirin as synergism control.

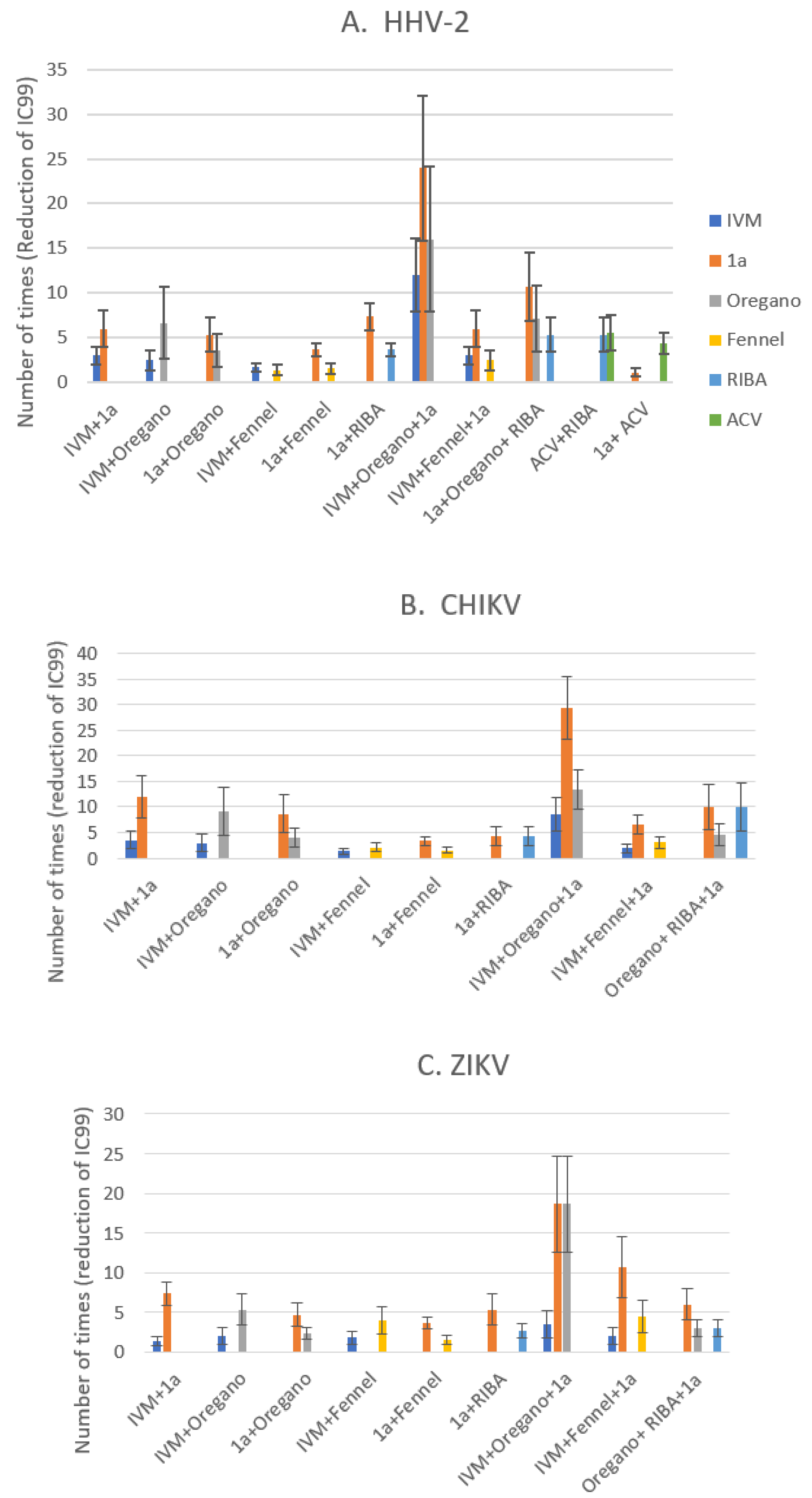

To have the same unit of comparison to evaluate the synergisms, the Y-axis was changed by the number of times that the IC₉₉ value was reduced. The figure 6 shows the effects of possible synergies, comparing the three viral models. The synergism control or minimum threshold was the RIBA/ACV system, which reduced the IC₉₉ value around four times in the HHV-2 model. Thus, any combination that reduces the IC₉₉ value by more than four times will be considered as a mixture with a potential synergism effect. In figure 6A, the IC₉₉ reduction values for antiviral activity against the HHV-2 virus, is shown. The experimental design and the way of graphing the results allowed us to discriminate which of the evaluated combinations had greater evidence of synergism. The control: ACV + RIBA and ACV + 1a, RIBA + 1a were near the 5-fold threshold line, except compound 1a mixed with ACV (Figure 6A). The binary combinations: IVM + Fennel and 1a + Fennel were also below the 5-fold threshold line. The combination of three components that reduced the greatest number of times the IC₉₉ value against HHV-2 was: IVM + 1a + Oregano EO, with reductions of more than ten, twenty and fifteen times, respectively. The combination RIBA+ 1a + Oregano EO was slightly larger than the binary combination RIBA + 1a, but much smaller than IVM + 1a + Oregano, which indicates that the action mechanism of IVM (inhibition of host heterodimeric IMP α/β1 complex) could related to higher contribution to certain cell targets to what RIBA does.

The model of RNA genome, CHIKV, has been the one that showed the greatest sensitivity at synergism, as can be seen in the combination of three components, where 1a IC₉₉ value was reduced more than twenty-five times (Figure 6B). Unfortunately, all binary combinations were below the 5-fold threshold line; except those containing compound 1a where the synergism produces a reduction of the IC₉₉ value from five to ten times, when it was mixed with Oregano EO or IVM, respectively. In the same way as it was shown with the HHV-2 model, the differences between the two EOs are conserved in the CHIKV model, with Oregano EO-containing mixtures displaying the greatest interaction to promote synergism. On the contrary, the ZIKV model was the least sensitive for the reduction of the IC₉₉ value, falling almost all the binary combinations below of the 5-fold threshold (Figure 6C), except with compound 1a that reduced more than five times the IC₉₉ value when was mixed with IVM. In the discussion section, the plausible mechanism of action that has been evaluated so far for compound 1a will be analyzed, considering what is known about its cellular or viral targets with respect to targets of the other compounds tested. If we compare the two RNA genome models, there are differences in the results obtained by the combination of three components, mainly when the difference in the mixture was the EO used. Besides, for viruses of RNA genome, it can be concluded that Oregano EO–containing mixtures presents a greater reduction in IC₉₉ values, which suggests that the chemical composition of Oregano EO possibly influences more synergism in the routes used by the CHIKV and ZIKV for its replication than those of HHV-2.

The composition of the EOs was analyzed and reported by the company “doTERRA” for the batch supplied (Oregano ID 171778 and Fennel ID 161894, company website www.sourcetoyou.com). Briefly, the major components of Oregano EO versus fennel EO are: 74.2% carvacrol vs. 74.5% trans-anethole. The minor components are respectively: for Oregano EO, linalool, thymol, beta-caryophyllene, terpinene-4-ol, alpha and gamma-terpinene; and for Fennel EO, limonene, alpha-pinene, fenchone, methyl-chavicol and beta-caryophyllene.

4. Discussion

Due to the high costs associated with drug development, there is a priority to search new strategies. One of them is drug combination therapies to combat emerging viral infections, among other type of diseases. By using faster and more economical screening methods, candidates with “effective synergies” could be rapidly identified, facilitating or to made faster paths to clinical testing [26,27]. IVM is a specific inhibitor of the importin-α/β-dependent nuclear transport protein complex (IMPα/β1) and has shown potential antiviral activity against several RNA and DNA viruses [2,3,4,5,6]. For example, IVM’s antiviral action on coronavirus is explained as follows: during SARS-CoV-2 replication, the IMPα/β1 complex binds to coronavirus cargo proteins in the cytoplasm translocating them through the nuclear pore complex (NPC) to the nucleus [2,6]. There, the viral proteins reduce the antiviral response of the host cell, leading to enhanced infection [2,3,4,5,6]. IVM dissociates preformed IMPα/β heterodimers, which are required for the nuclear import of coronavirus proteins. This prevents IMPα/β1 from binding to viral proteins and entering inside the nucleus [6,36]. Caly et al., 2020 [2] tested IVM’s antiviral activity against SARS-CoV-2 (Australia/VIC01/2020 isolate) in Vero/hSLAM cells at a multiplicity of infection (MOI) of 0.1 (48 hpi) resulting in an EC₅₀ value of ca. 2.0 μM [2]. High doses of 600 μg/kg/day of IVM in humans have shown to produce a maximum plasma concentration (Cmax) of 120 ng/mL [37], which is much lower than its in vitro antiviral value of ~2 μM [2]. This could be supported with simulation studies obtained in mathematical models which have estimated that IVM achieves lung tissue concentrations up to three times higher than plasma concentrations [37]. However, a 5-day treatment with 12 mg once daily of IVM in adults showed viral clearance in SARS-CoV-2 patients at 9.7 days compared to 12.7 days in the placebo group [38]. Moreover, in a clinical study with dengue patients (DENV4 / 45.2%, DENV3 / 33.9%, DENV2 / 8.7%, and DENV1 / 7.0%), a daily oral dose of 400 µg/kg of IVM also showed a trend towards a reduction in plasma nonstructural protein 1 (NS1) clearance at day 3 compared to placebo, though clinical efficacy was not observed at that dose regimen [39]; even though in vitro, IVM EC₅₀ values for DENV/1-4 ranged from 1.6-2.3 μM in BHK-21 cells (48 h p.i) [40]. To date, it remains a discrepancy regarding the applicability of IVM as a broad-spectrum antiviral treatment due to its low plasma levels achieved with oral treatments. For this reason, drug combination synergism may be a plausible alternative [41,42], as well as innovations in administration routes (such as nasal spray formulations [43]) to enhance its effectiveness.

In this study, we have standardized a rapid method to identify possible synergisms from drug combinations analyzing the possible reduction of effective antiviral concentration of IVM and other candidate molecules already approved by the FDA. EOs were included in the study because they have been reported for more than a couple of decades to have broad-spectrum antiviral activity [10,11,12,13,14,15]. We added in the experiments one of our patented molecules with demonstrated broad-spectrum in vitro antiviral activity [20], the abietane-derived analogue, 18-(phthalimide-2-yl)ferruginol (phthFGL) (1a, Figure 1), as a continuation of our studies on this “wonder” molecule. In the light of the present research, evidence of broad-spectrum antiviral activity (against ZIKV, CHIKV, and HHV-2) of different combinations of three molecules (IVM, RIBA, phthFGL) and two EOs (Oregano and Fennel), is reported. IVM had already shown activity against ZIKV and CHIKV [6,44]. We found an IC₉₉ value of c.a. 1.2 μg/mL (1.37 μM) for ZIKV in a period of 48 hpi (10TCDI₅₀/~ MOI= 1). Also, Varghese et al., (2015) [44] reported an anti-CHIKV IC₅₀ value of 0.6 μM in BHK-21 cells at 16 hpi/MOI= 0.01; while the CHIKV IC₉₉ value obtained by us was of 1.8 μg/mL (2.1 μM). To the best of our knowledge, IVM has not been studied against HHV-2 until now. In this study, IVM was less active against HHV-2 than against ZIKV and CHIKV. Słońska et al., (2013) [45] evaluated the antiviral activity of IVM against two strains of equine herpesvirus type 1 (Jan-E EHV-1 and Rac-H EHV-1) but only antiviral activity against the Jan-E EHV-1 strain was found. Lv et al., (2018) also investigated the role of IVM on virus replication of a subfamily alpha-Herpesviridae such as pseudorabies virus (PRV) [46]. They found that IVM at 2.5 μM disrupted the nuclear localization of PRV UL42 (accessory subunit of PRV DNA polymerase) in a BHK-21 cell line model, by targeting the nuclear localization signal of the proteins and decreased PRV titers by more than 7000-fold after 48 h of viral infection [46]. Döhner et al., 2018 suggest that importin α1 protein is specifically required for the nuclear localization of several important HHV-1 proteins involved in processes such as capsid assembly and capsid egress into cytoplasm [47]. In our study, we found that IVM had antiviral activity against HHV-2 at concentrations below 3.2 μM, reaching approximately up to 50% inhibition. It was not possible to find an EC₉₉ concentration because its value was close to the cytotoxic concentration in our experimental model (commercial-IVM/Vero E6 cells). Our results of antiviral activity of IVM against HHV-2, allow to assume that a subfamily of alpha-Herpesviridae, the HHV-2, use nuclear carriers for their viral proteins as it has been shown by other researchers for related viruses [45,46,47].

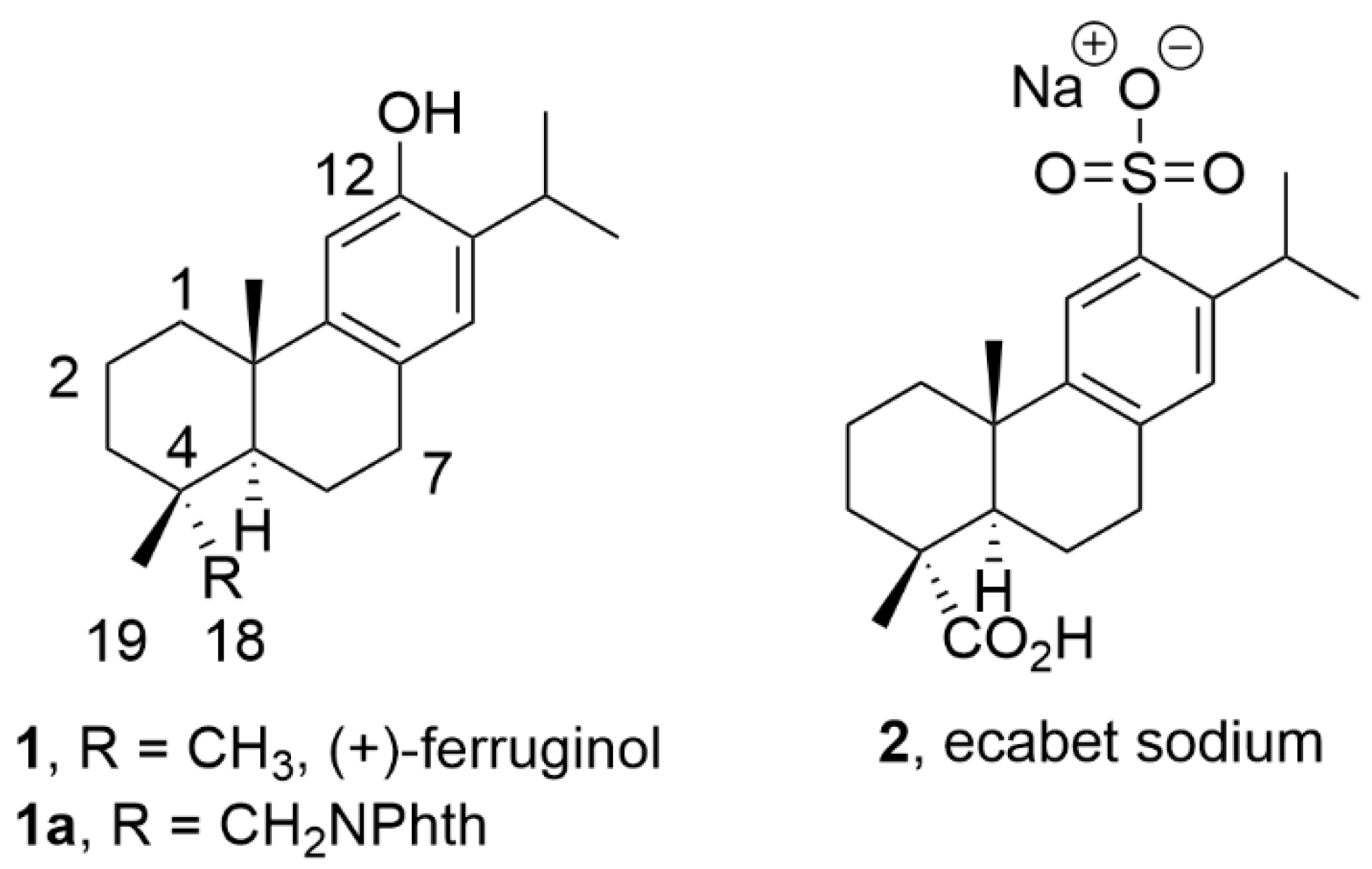

PhthFGL (1a, Figure 1) is an abietane-derived analogue of (+)-ferruginol (1, Figure 1) similar structurally to the commercial drug Ecabet sodium (2, Figure 1) [20,48]. To date, ecabet sodium is the only commercial drug based on abietane-type diterpenoids which it is clinically used in the treatment of gastritis and gastric ulcer in Japan, since possesses high affinity to gastric adherent mucosa, epithelial cells, albumin, and fibrinogen in the ulcer region [48]. Volunteers following a single oral administration of an ecabet disodium tablet (1 g) showed a plasma maximum concentration-time profile of 4926 ± 880 ng/mL at the first hour and a plasma elimination half-life of 6.63 ± 2.24 h [48,49]. Meanwhile, for ferruginol (1, Figure 1), pharmacokinetic studies have been performed in rats obtaining a maximum concentration in plasma of 3140 ng/mL at 40 min after oral administration at a dose of 20 mg/kg (~ 1 g in adults), and a plasma elimination half-life of 41.73 min [50]. In silico modelling of drug-likeness, such as Lipinski’s rules have reported that both ferruginol and phthFGL violate only one rule, which corresponds to the partition coefficient (their values are 6.41 and 7.08 respectively, and it cannot be greater than 5) [21]. In addition, in silico modelling prediction of toxicity, using Gosselin, Smith, and Hodge scale, gave that phthFGL possess a reasonably good safety profile by oral administration in rats [21]. The LD₅₀ value for phthFGL expressed as the weight of the chemical per unit of body weight was in the range of 500 < LD₅₀ ≤ 5000 mg/kg being moderately toxic. According to the organization for economic co-operation and development (OECD) manual was classified as class 4 [21]. During different research studies, we have reported the antiviral activity of phthFGL against DENV-2 and HHV-2 [18], ZIKV [19,20], and CHIKV [20]. This interesting molecule displayed EC₅₀ values in the range 1.0-20.0 µM for those viruses, specifically, of 1.4 µM for DENV-2, and 19.2 µM for HHV-2 [18], of 7.7 µM for a Brazilian Zika strain (clinical isolate, IMT17)[19], of 5.3 µM for COL345Si Zika, 6.3 µM for Zika_459148, and 9.8 µM for CHIKV [20]. Very recently, we demonstrated that was also active against human coronavirus HCoV 229E (PHE/NCPV 0310051v) where a IC₉₉ value of 3.0 µg/mL (6.9 µM) was found [21]. In the experimental design of this study, double serial dilutions were used from 0.4 to 25.6 µM for phthFGL, resulting in IC₉₉ values of 25.6 µM for the three tested viruses ZIKV, CHIKV and HHV-2. Unpublished studies strongly suggest that in the antiviral mechanism of action of phthFGL are implicated the disruption of the viral polyproteins translation, via the alteration of actin remodeling, as well as other related cellular and viral processes involved in the replicative complex formation [18,22].

DeForni et al (2022) [51] evaluated the effect of combining of IVM, remdesivir (RDV) and azithromycin (AZI) on SARS-CoV-2 replication in vitro. In that study, a two-dimensional matrix of 49 different combinations to quantify synergistic interactions was created to validate synergistic concentrations. They mixed two-fold serial dilutions of compounds with Vero E6 cells (~70% confluence), in 96-well assay plates; 1 hour later, the cells were infected with SARS-CoV-2 at a multiplicity of infection MOI= 0.01. These researchers found that combining RDV and IVM led to lower concentrations to achieve a complete inhibition (~IC₉₉), specifically 6- and 13-fold for RDV and IVM, respectively [51]. In a similar manner, we also used two-fold serial dilutions of compounds (IVM and phthFGL or Oregano or Fennel EOs) and mixed with 10TCID50 of each virus (CHIKV, ZIKV and HHV-2). Then, these mixtures were added to 96-well assay plates when Vero E6 cells reached ~80% confluence. The IVM and phthFGL combination led to a much lower IC₉₉s than either single treatment or IVM combined with Oregano or Fennel EOs. The combined IC₉₉ of IVM and phthFGL against HHV-2 was of 1.2 ± 0.4 vs >3.5 µg/mL with only IVM (Figure 3A), while for CHIKV the IC₉₉ was of 0.6 ± 0.2 µg/mL vs 1.8 ± 0.6 µg/mL (Figure 4A), and for ZIKV the IC₉₉ was of 0.93 ± 0.3 vs 1.2 ± 0.4 µg/mL (Figure 5A), in this drug combination regimen. The synergism controls such as RIBA and ACV were used to validate the results obtained with our own experimental design [34,35]. RIBA and ACV were evaluated against HHV-2 as a positive control for the model of “potentiating effect” o synergism since the two drugs exhibits complementary mechanism of action [34,35]. On the one hand, it is known that ACV is selectively phosphorylated by herpes simplex virus (HHV)-encoded thymidine kinase and then, cellular enzymes catalyze the conversion of ACV-monophosphate to its triphosphate form (ACV-TP) [52]. ACV-TP inhibits viral DNA synthesis and also leads to inactivation of the HSV-l-encoded DNA polymerase [52]. On the other hand, RIBA, among other mechanisms, inhibits the synthesis of guanosine monophosphate consequently reducing the intracellular guanine nucleotide pool (GTP and dGTP, natural counterpart of ACV-TP,[52]); action that may explain the antiviral activity against both DNA and RNA viruses [34,35,52]. In the HHV-2 viral model, the IC₉₉ for RIBA was reduced from 176 µM to 36.6 ± 10 µM, when it was combined with ACV, while for ACV the IC₉₉ decreased from 6.6 µM to 1.3 ± 0.4 µM, which is the c.a. 5-fold threshold in the synergism determinations (Figure 6A). Pancheva et al. (1991, 1990) found an IC₅₀ reduction to 40 µM by RIBA combined with ACV (1.1 µM) against HHV-1 [34,35], those results agree with what we obtained in our experimental design for these two controls. Moreover, RIBA combined with phthFGL (1a) reduced its IC₉₉ value from 176 µM to 51.3 ± 39 µM while for ACV the IC₉₉ value decreased from 6.6 µM to 1.87 ± 0.6 µM. Therefore, the most favorable binary combination to reduce the IC₉₉ value was the one presented with 1a, even when it was evaluated together with RIBA (25.6 µM vs 3.73 ± 1.19 µM). Experimental studies carried out by us [10], and other researchers [12,13,53,54] indicate that EOs interfere with virion envelope structures masking viral envelope proteins, which are necessary for adsorption and entry into the host cell. Mediouni et al., (2020) [53] found that the anti-HIV-1 activity of Oregano EO depends both on the composition, logically, and on the virus envelope. The anti-HIV-1 activities of the main Oregano EO components, carvacrol and its isomer thymol and their mixtures, were explained as a virucidal activity, where these components inactivated the virus binding site (glycoprotein binding peptide) of viral gp120 to its host cell [53]. Carvacrol, also changes the proportion of cholesterol present in the viral envelope (or cell membranes) [53,54]. It has been shown that the virus modulates the cholesterol metabolism during viral cycle affecting the intracellular cholesterol homeostasis [53,54,55,56,57]. Therefore, low cholesterol levels emerge as a novel broad-spectrum antiviral strategy, though evidence accumulates that withdrawal of cholesterol hampers innate immunity [56]. Based on this background, it was decided to include EOs in our synergism studies. From a previous study of the antiviral activity of more than thirty EOs from species of the Verbenaceae, Piperaceae, Poaceae, Lamiaceae, Lauraceae and Myrtaceae families against ZIKV, DENV, CHIKV, HHV-2 and HHV-1 viruses of which only results against CHIKV have been published [58], the Oregano and Fennel EOs were selected for the present study. The Origanum vulgare (Oregano) and Foeniculum vulgare (Fennel) EOs from doTERRA company showed virucidal activity with broad-spectrum antiviral properties.

In this study, the combination of IVM, phthFGL and Oregano EO showed the greatest synergism potential with higher values for CHIKV than ZIKV and HHV-2, obtaining a reduction in the EC₉₉ value of up to ~8 and ~27-fold for IVM and phthFGL, respectively, while for Oregano EO the reduction was of ~12-fold. The synergism potential exhibited by Oregano EO can be explained by its high carvacrol content. As it was explained above, the carvacrol displaces cholesterol molecules in the cell membrane [53]. Furthermore, the cholesterol has an important role in viral entry, membrane fusion, and lipid rafts, which are required for entry of the viral particle by endocytosis to its host cell, specifically for CHIKV [56]. It has been recently verified that carvacrol significantly reduced chIFITM3 gene expression that encodes the chicken interferon-inducible transmembrane protein, interleukin 6 (IL-6) and alpha-1 acid glycoprotein (α1-AGP) levels, leucocytic response, in other aspects, when pretreated broilers were experimentally infected by bronchitis virus (IBV) [15]. EOs act directly on the respiratory, circulatory, and central nervous systems through the skin and respiratory tract, and the administration in spray has recently been considered as a new strategy of EOs therapeutic application [59]. Recently, nasal IVM spray administration in a pig model has been showed to attaining high drug concentrations in nasopharyngeal tissue, a primary site of aerosol spread virus entrance/replication [43]. In this study we have demonstrated the synergy among components IVM, phthFGL and Oregano EO which act through different mechanisms of action against CHIKV, ZIKV and HHV-2 in vitro.

A comparison of pharmacokinetics parameters simulated with the webserver SWISSADME for phthFGL (1a, Figure 1) and the commercial drug Ecabet sodium (2, Figure 1) features similar and good druglikeness characteristics (see supplementary information, Figures S1 and S2). This supports phthFGL as a good lead candidate for the development of new broad-spectrum antivirals, which encourages further studies to improve the compound's physicochemical properties (solubility, pH=7.4 < 0.1 μg/mL). In fact, we checked the good pharmacokinetic profile of phthFGL through in vitro ADME studies (Tables S1 and S2, SI) following standard methods as reported previously by us and using various known drugs as controls [60].

5. Conclusions

Arboviruses and respiratory viruses can produce very similar clinical symptoms in the first days of the disease, hindering clinical diagnosis by health workers, creating problems for appropriate and early case management, and sometimes triggering fatal events. Studies of drug combinations with broad-spectrum antiviral activity, as described in this report, provide a step towards more effective drugs against diseases caused by emerging viruses. In the future, further studies of drug-drug interactions with commercially available medications will enable individuals to quickly take some medications at home for a few days to prevent severe illness before being attended to by the governmental healthcare system. Continued research in this area is crucial for improving our ability to respond to emerging virus threats [61].
