First-Principles Investigation of Size Effects on Cohesive Energies of Transition-Metal Nanoparticles

1. Introduction

Nanoparticles have garnered considerable attention as promising tools for technological advancements across diverse disciplines [1,2,3,4,5,6,7,8,9]. Their distinct optical, electronic, magnetic, and reactive properties set them apart from bulk transition-metal structures [1,2]. This unique attribute has opened a wide range of potential applications, including drug delivery, therapeutics, environmental remediation, and energy storage, among others [2,3,4,5,6]. Of particular significance for our research focus, transition-metal nanoparticles have emerged as compelling candidates for catalytic applications in crucial industrial processes, such as methane reformation [10,11]. The catalytic potential of these nanoparticles holds great promise for enhancing efficiency and sustainability in various industries.

One of the most important physical properties of transition-metal nanoparticles is their cohesive energy, due to its interconnectedness with various other thermo-physical properties. These properties include but are not limited to melting temperature, melting enthalpy, creation and diffusion of vacancies of nanomaterials [12]. For instance, in the realm of catalysis, the cohesive energy plays a crucial role in determining the stability and robustness of transition-metal nanoparticles as catalysts [2,13]. Higher cohesive energy values signify greater stability, a crucial characteristic for successful catalysts that need to lower activation energy and accelerate reactions without self-destruction. Moreover, it is essential to acknowledge that the cohesive energy of transition-metal nanoparticles is influenced by their structural configuration and total number of atoms, making it vital to comprehend and predict cohesive energy trends across different nanoparticle sizes and configurations, especially for screening potential catalytic candidates.

Therefore, understanding and predicting the cohesive energy trends of transition-metal nanoparticles across different nanoparticle sizes and configurations is of vital importance in optimizing their performance and designing tailored materials for catalytic advancements. Prior studies have been carried out to understand the size and structural dependency of cohesive energy for a select group of transition-metal nanoparticles such as Ag, Al, W, Co, Mo, and Cu, Au [12,14]. These studies, however, mostly relied on empirical methods for calculating cohesive energy, such as the bond energy model (BEM) [12] and other simple models [14]. As a comparison, first-principles approach was employed to investigate various aspects of nanomaterials in previous studies. Specifically, it was used to study the geometries and stabilities of bimetallic nanoparticles, such as Fe-Ni nanoparticles [15] and doped Au clusters [16]. Additionally, this approach was utilized to explore the catalytic mechanism of specific nanoclusters, such as Ni₄ [17] or three-atom metal clusters [9].

In our study, we conducted first-principles density functional theory (DFT) calculations to determine the size-dependent cohesive energies of all the 3d, 4d, and 5d transition-metal nanoparticles. This comprehensive investigation allowed us to unveil strong and applicable trends across diverse chemical species, nanoparticle sizes, and structures. By gaining these valuable insights, we can better evaluate and predict cohesive energy in transition-metal nanoparticles, especially those with potential significance in industrial catalysis. Our findings hold the potential to guide the selection of optimal transition-metal nanoparticle candidates for catalytic processes, ultimately contributing to advancements in various industrial applications.

2. Computational Details

The first-principles DFT electronic structure calculations were performed using the Vienna ab-initio simulation package [18,19]. The projector augmented wave potentials (PAW) were used for treating electron–ion interactions and the generalized gradient approximation parametrized by Perdew–Burke–Ernzerhof was used for exchange–correlation functional [20,21]. Structures were fully relaxed with a convergence tolerance of 0.01 meV per atom and a single k-point with the wavevector at the Γ point was used in our calculations. Other computational settings such as cut-off energy and appropriate entries for structural relaxations were generated and managed by the high-throughput computational software framework AFLOW code [22].

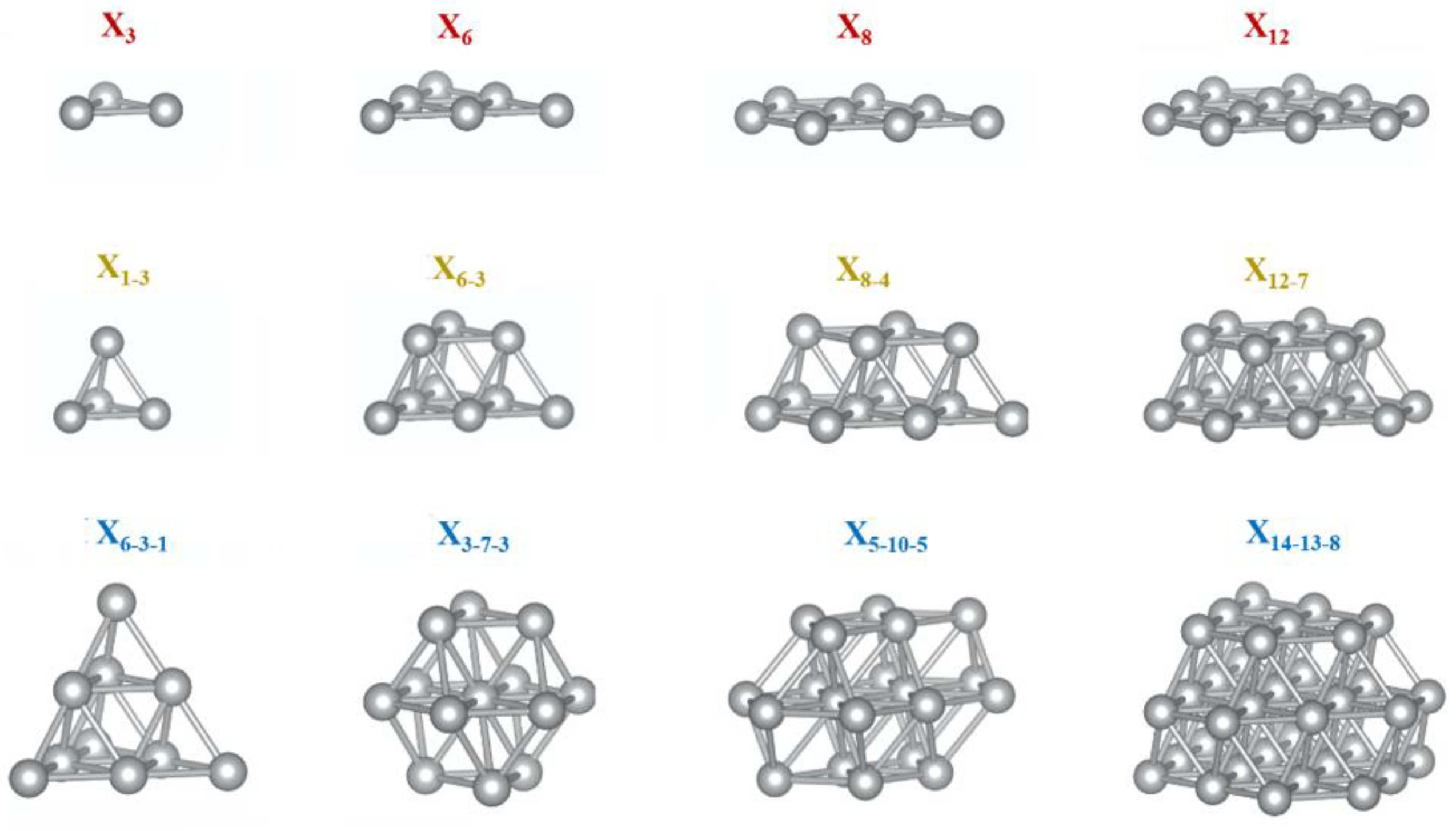

An illustration of geometrical structures of all the studied transition-metal nanoparticles (X_n, X = 3d, 4d, and 5d transition-metal elements) is shown in Figure 1. These structures were built based on a prior computational study of Pt nanoparticles conducted by Brunello et al. [23] These nanoparticle structures include 1-layer, 2-layer, and 3-layer cluster configurations, totaling 12 structures, each showcasing distinct arrangements of X atoms within the nanoparticles. This leads to a total number of 360 configurations for all the studied transition-metal nanoparticles. Through these configurations, insights into the nanoparticles' stability and properties at different sizes can be obtained. These nanoparticle models are placed in a cubic simulation box to mimic the bulk environment. To avoid interactions between periodic images, a vacuum region with a minimum distance of at least 10 Å is introduced between neighboring images of the nanoparticles. This ensures that the nanoparticles do not interact with their periodic replicas in the simulation, preventing artificial effects and providing an accurate representation of the isolated nanoparticles.

3. Results and Discussion

Cohesive energy refers to the energy needed to fully disassemble the constituent atoms of a substance, specifically in the case of a nanoparticle, and separate them from each other [24,25]. Consequently, the cohesive energy of transition-metal nanoparticle structures was determined through a two-step calculation process. First, the total energy of the entire nanoparticle system was obtained. This energy accounts for the interactions and bonding between atoms within the nanoparticle. Next, the energy of an individual metal atom (E_atom) was calculated separately. This energy represents the energy of an isolated metal atom. Finally, the cohesive energy per atom (E_coh) was calculated by subtracting the energy of the individual atom from the total energy per atom of the nanoparticle system: E_coh = E_atom – E_tot/n, where E_tot is the total energy of the nanoparticle structure and n is the number of atoms of the structure.

To succinctly depict the relationship between cohesive energy and nanoparticle size, we employed a natural logarithmic function for their approximation [12,14], as shown below:

$$Y\mathrm{ }=\mathrm{ }a{\log }_e\left(bn\right)\mathrm{ }=\mathrm{ }a\ln \left(bn\right)$$

(1)

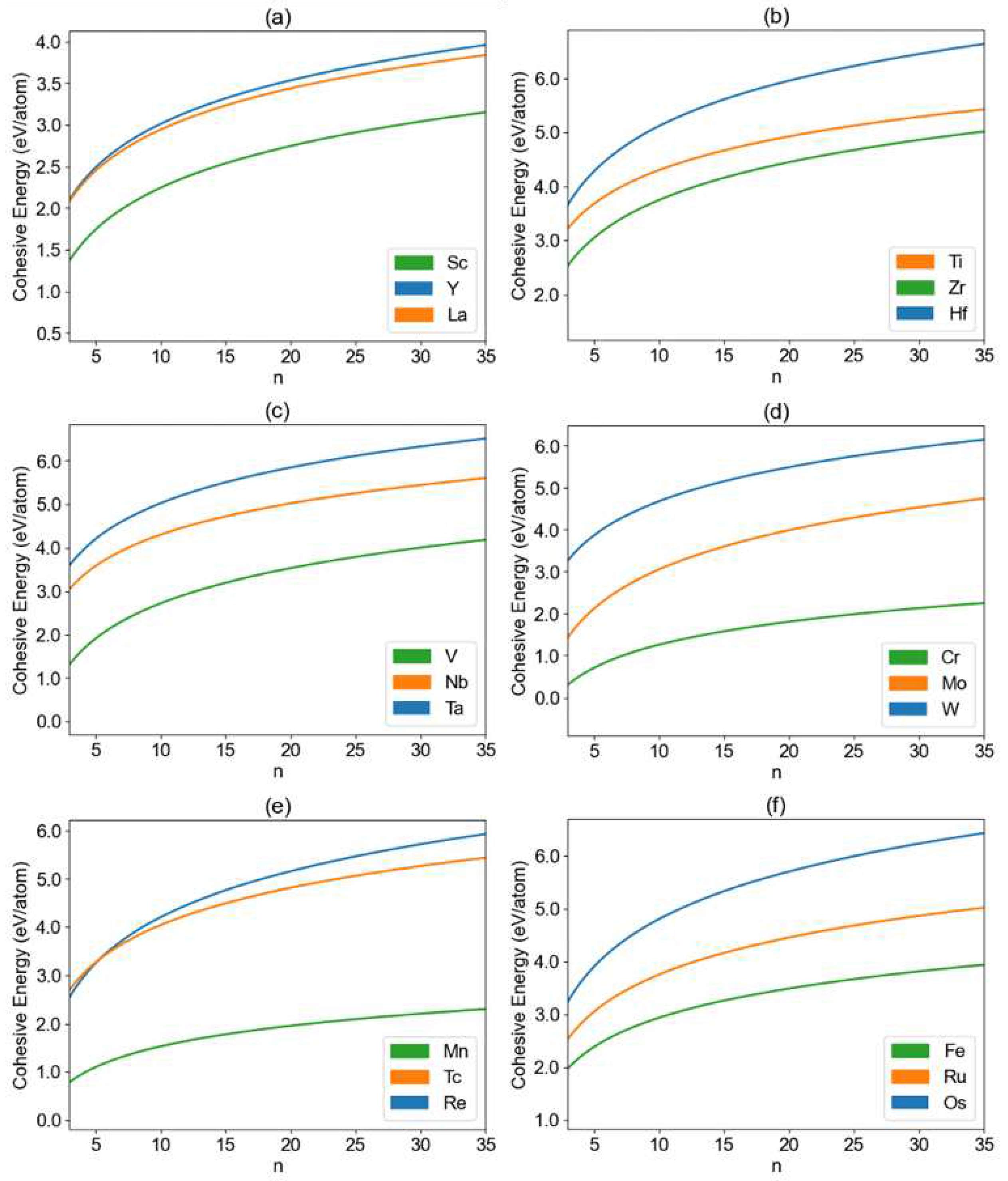

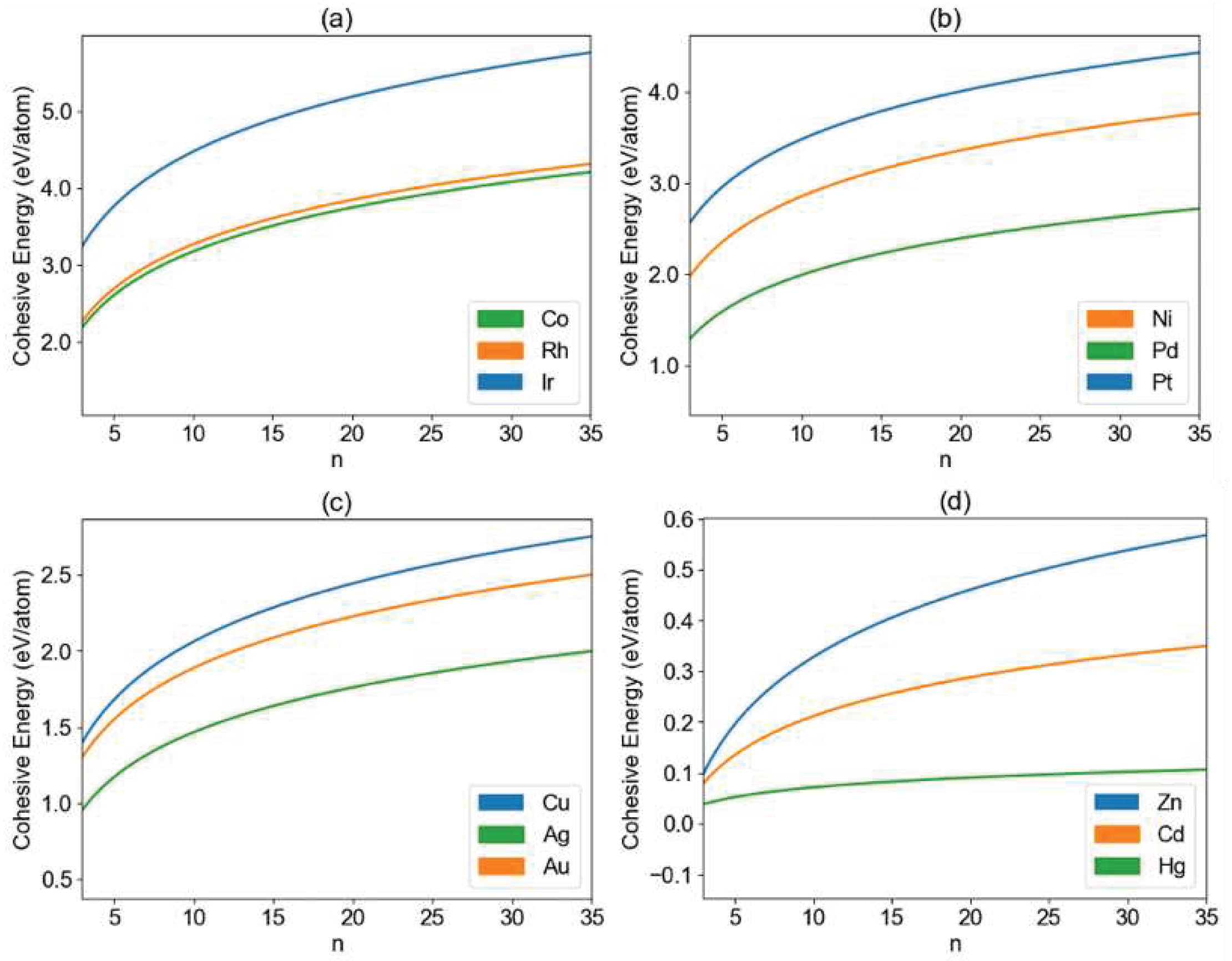

In this logarithmic function, Y represents the cohesive energy per atom, n denotes the nanoparticle size, and a and b are parameters unique to each transition-metal element. A list of specific parameters a and b for all elements studied in this research is summarized in Table S1 of the Supplementary Information. In Figure 2, the plotted curve represents the fitted cohesive energy of transition-metal nanoparticles (X_n) as a function of nanoparticle size (n) for groups 3B to 8B. The curve is obtained through the natural logarithmic fitting, providing a concise representation of the cohesive energy trends within these groups. Here, the nanoparticle size (n) represents the number of atoms in the nanoparticle. Similarly, Figure 3 presents the fitted cohesive energy results for the groups 8B (X=Co, Rh, and Ir; X=Ni, Pd, and Pt), 1B (X=Cu, Ag, and Au), and 2B (X=Zn, Cd, and Hg). The calculated specific cohesive energy of each nanoparticle structure along with the fitted curve for all the studied transition-metal nanoparticles were shown in Figures S1–S6 of the Supplementary Information.

For all the groups, cohesive energy per atom increases with the size (n) of the nanoparticles, eventually approaching the values observed in the bulk material. This trend indicates a convergence towards the cohesive behavior characteristic of the corresponding bulk materials. This size-dependent increment in cohesive energy is attributed to the strengthening of interatomic interactions and enhanced bonding as the nanoparticle size expands. Specifically, as nanoparticles diminish in size, the decrease in cohesive energy can be attributed to the amplified surface-to-volume ratio and the effects of quantum confinement. A similar trend was also observed in a very recent study conducted by Sachin et al. [12], in which cohesive energy analysis was carried out for elements Ag, W, Co, and Mo via the bond energy model. In most of the studied groups, the cohesive energy displays a considerable range, spanning from 0.50 eV per atom to 6.00 eV per atom. This wide variability in cohesive energy values highlights the diverse nature of these transition-metal nanoparticles and their potential for applications in various fields. However, distinctive behaviors emerge in the last two groups, namely groups 1B and 2B, where the cohesive energy ranges are notably smaller. For group 1B, the cohesive energy values exhibit a more constrained range, varying from approximately 1.00 eV per atom to around 2.80 eV per atom. These values are also consistent with previously calculated average atomic binding energies of Pt-group-doped gold clusters in the range of 1.56 - 2.00 eV [16]. In the case of group 2B nanoparticles, the cohesive energy range is even narrower, spanning from about 0.05 eV per atom to approximately 0.58 eV per atom. This remarkable narrowing of cohesive energy values suggests unique characteristics within group 2B nanoparticles. Such nanoparticles may hold promise for specialized applications that require precise control over cohesive energy properties [26].

Analyzing the trends in cohesive energy per atom for individual groups yields the following observations:

i) In group 5B (X=V, Nb, and Ta), there is a consistent increase in cohesive energy per atom with the atomic number. Ta stands out with the highest cohesive energy per atom, while V exhibits the lowest, and Nb falls in between. This upward trend is also evident in other groups, including 6B (X=Cr, Mo, and W), 7B (X=Mn, Tc, and Re), 8B (X=Fe, Ru, Os), and 8B (X=Co, Rh, and Ir), reflecting a common pattern among these transition-metal nanoparticles.

ii) Group 4B (X=Ti, Zr, and Hf) presents a different trend. Surprisingly, the middle element, Zr, displays the lowest cohesive energy per atom, while the element with the highest atomic number, Hf, showcases the highest cohesive energy per atom. Ti, with the lowest atomic number, positions its cohesive energy per atom between that of Zr and Hf. Remarkably, this trend extends to Group 8B (X=Ni, Pd, and Pt) as well, further highlighting the unique behavior observed within this group.

iii) Another intriguing pattern emerges with group 3B (X=Sc, Y, and La). Here, the middle element, Y, exhibits the highest cohesive energy per atom, while the element with the lowest atomic number, Sc, demonstrates the lowest cohesive energy per atom. La, the element with the highest atomic number, displays cohesive energy per atom between that of Sc and Y. This behavior offers insights into the cohesive characteristics of these nanoparticles, reflecting a distinctive trend within this group.

iv) Group 1B (X=Cu, Ag, and Au) exhibits a highly distinctive trend compared to the other groups. The element with the lowest atomic number, Cu, surprisingly demonstrates the highest cohesive energy per atom. Conversely, the middle element, Ag, displays the lowest cohesive energy per atom among the three elements. Lastly, the element with the highest atomic number, Au, showcases cohesive energy per atom between that of Cu and Ag. This exceptional behavior adds to the complexity of cohesive energy trends within transition-metal nanoparticles.

v) The final group, 2B (X=Zn, Cd, and Hg), presents a trend opposite to that observed in point i). In this group, cohesive energy per atom decreases with the atomic number. Zn stands out with the highest cohesive energy per atom, while Hg exhibits the lowest cohesive energy, and Cd falls in between. This contrasting trend indicates the diverse cohesive energy behavior within these nanoparticles.

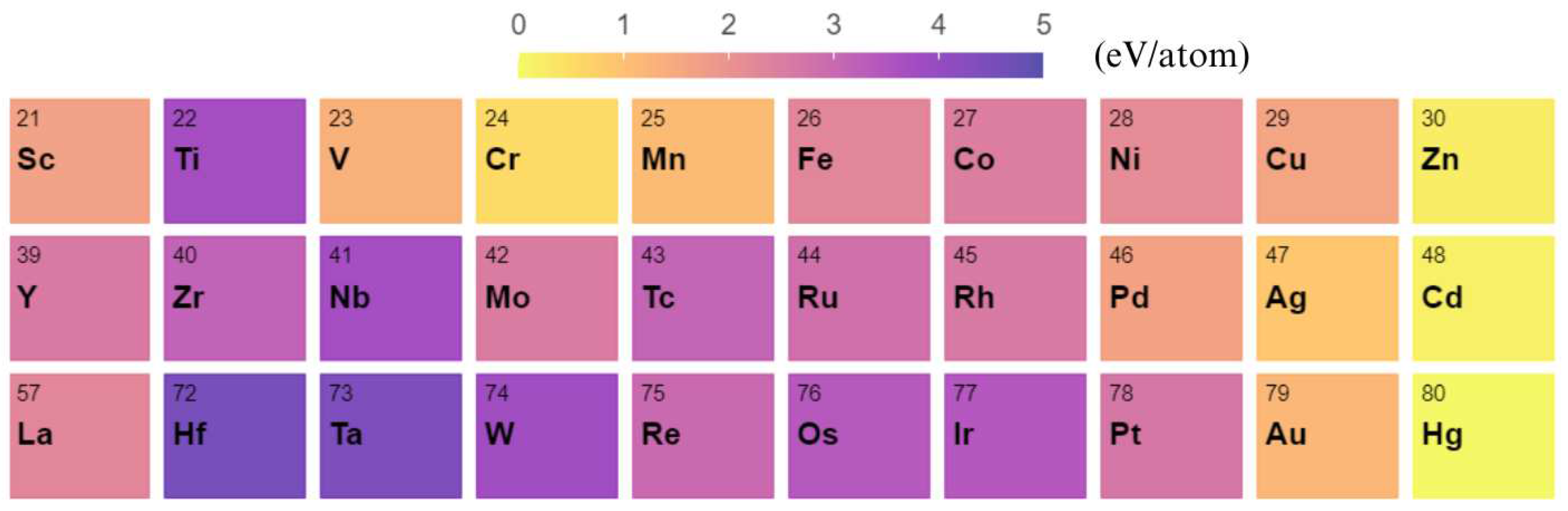

To present a clear and comprehensive comparison of cohesive energies among all the studied transition-metal elements, we plotted heat map illustrating the calculated cohesive energy values for transition-metal nanoparticles with structure X₄, see Figure 4. It provides valuable insights into the cohesive energy trends across the various elements studied. For instance, one can observe that Hf has the highest cohesive energy, closely followed by Ta, while the nanoparticles of group 2B (X=Zn, Cd, and Hg) have low cohesive energy, with Hg exhibiting the lowest one among all the elements studied. The overall trend of the calculated cohesive energy of the X₄ nanoparticles is generally consistent with the experimental values of the bulk transition metals in spite of some difference, as shown in the Figure S7 of the Supplementary Information. For instance, the bulk compound with the highest experimental cohesive energy values is W instead of Hf. Additionally, the cohesive energy values of Cr, Mo, Re, and Os are also higher than that of their nanoparticle counterparts. In short, our calculated results and the comparison with experimental bulk values provide a concise overview of the differences in cohesive energy values for both nanoparticles and bulk structures, shedding light on the unique properties exhibited by nanoparticles compared to their bulk counterparts.

4. Conclusion

In conclusion, we systematically explored the size-dependent cohesive energies of 3d, 4d, and 5d transition-metal nanoparticles using first-principles density functional theory calculations. Our investigation revealed a consistent trend of decreasing cohesive energies with decreasing nanoparticle size, which can be attributed to the increased surface-to-volume ratio and quantum confinement effects. Importantly, we observed variations in the size-dependent cohesive energy trends among different transition metals, with certain metals exhibiting more pronounced size effects than others. These findings offer valuable insights into the fundamental properties of transition-metal nanoparticles and have implications for their applications in fields such as catalysis, electronics, energy storage, and biomedical engineering.
