The results and developments of the radon monitoring network in seismic areas

A peer-reviewed article of this preprint also exists.

Submitted:

23 May 2023

Posted:

23 May 2023

You are already at the latest version

Abstract
The analysis of the radon-seismicity relationship has been carried out so far in the Vrancea (Ro-mania) seismic zone, with monitoring stations positioned on tectonic faults. The article analyzes the evolution of radon under the conditions of the existence of deep and surface seismicity and the presence of mud volcanoes along with live fires caused by gases emitted from the soil. The monitoring area was extended to the Black Sea and the area of the Făgăraș Câmpulung fault, where a special radon detection system was set up, which was proposed for patenting. A case study is the effect of the earthquakes in Turkey (7.8 R and 7.5 R on 2023/02/06) on the seismically active areas in Romania in terms of gas emissions (radon, CO2). The main analysis methods on radon (we also included CO2) are applied to integrated time series and the use of anomaly detection algorithms. Data analysis shows that the effects of global warming introduce deviations in seasonal gas emissions compared to previous years. This makes it difficult to analyze the data and correlate them with seismicity. The main conclusions related to the development of a radon monitoring network and in general the emission of gases in seismic areas refer to the importance of the choice of equipment, the monitoring location and the installation method.
Keywords:
radon and CO2 monitoring
;
anomaly detection
;
multidisciplinary monitoring
;
precursor phe-nomena
;
air ionization monitoring
;
OEF (Operational Earthquake Forecasting).
Subject:
Environmental and Earth Sciences  -   Environmental Science

1. Introduction

This article presents the evolution of implementations and results from the development process of a radon monitoring network as part of a multidisciplinary approach by the National Institute of Earth Physics in Romania ([1,2,3]). The main goal is to create an automated seismic forecasting system (OEF - Operational Earthquake Forecasting) based on real-time data such as radon, CO2, air ionization, telluric currents, magnetic field, ULF - VLF radio waves and seismic information. Realizations of this type exist each following a certain parameter for detection ([4,5,6,7,8,9]) but each solution refers to a certain area that is monitored. In [3] and [5] an application for the Vrancea zone (the curvature area of the Carpathian Mountains) are presented, in [4] the forecasting is for Japan, [6] use a general monitoring of electromagnetic emissions (EM) (we tried something similar but the results are not convincing for Vrancea [10]), and [7] prospects for operational forecasting of earthquakes in Europe using seismic information, but the catalogs are not homogeneous and the seismicity patterns are too different for different areas. The authors of the article [8] specify the difference between forecast and prediction, emphasizing the difficulties of using it in general the ’time-dependent seismic hazards to help communities prepare for potentially destructive earthquakes’. The main problem of using seismic catalogs is that they reflect more the detection capacity of the respective networks. The most recent example for Romania is OLTENIA, GORJ area where more than 2000 surface earthquakes occurred recently and which was reclassified as a seismic risk area after 200 years (Table 7, https://data.mendeley.com/datasets/ds4hwchkp7/1). The large number of earthquakes is due to the increase in detection capacity as a result of monitoring with a larger number of seismic stations installed in that area. Even if the statistical methods are correct, they are applied on insufficient data, especially when they refer to natural phenomena. Radon monitoring also expanded as a result of the development of monitoring equipment, which depended on technological development in general. Our efforts to integrate real-time radon data were described in [3]. At the current stage, all multidisciplinary information is accessible in real time from a database that has an interface for viewing at gebs.infp.ro (API interface - JSON format, sample data at https://data.mendeley.com/datasets/28kv3gsgcz/2). The biggest challenges were the integration of data coming from equipment with different hardware and software interface options, the creation of metadata, the implementation of the database, its management and access to information. Radon concentration as seismic precursor is mention into OEF [9] along the fluctuations of the ’groundwater level, electromagnetic variations near and above the Earth’s surface, thermal anomalies, abnormal animal behavior, seismicity models’ and with the possibility of generating false alarms.
In this paper we analyze the relationship between radon and CO2 emissions with seismicity and meteorological conditions, along with several case studies such as the relationship between the recent seismic events in Turkey (7.8 R, Figure 4, and Table 6) and seismicity in Romania, or exceeding the radon level in a few situations. A description of the network (stations, equipment, their positioning, activity periods, measurement results) and metadata is made in Chapter 2. A special case is represented by the Râmnicu Vâlcea station, which is built to monitor radon (patent application [11]). The analysis methods used are described in [2,3] and are applied to several case studies. The first refers to the use of radon and CO2 in the correlation of seismic events in Turkey (7.8R) and those in the Râmnicu Sărat area (Romania), followed by the analysis of an earthquake sequence from Vrancea with a magnitude of 4.2R through the prism of gas emissions, a case of pollution at Black Sea caught in the attempt to monitor the Shabla area and exceeding the level of 300 Bq/mc (the limit established by Council Directive 2013/59/EURATOM) in several situations. We also performed an analysis of the dependence of radon and CO2 emissions on meteorological factors, seismic energy and the seismicity of Vrancea represented by the parameters a-b from the Gutenberg-Richter law [12,13]. In these cases, we used correlation and averaging functions on sliding time windows applied to radon time series. The results are relative to the function-based methods in the LabVIEW programming environment library. An aspect analyzed is the correlation of the radon emission with the specifics of the Vrancea area, which is characterized by intermediate earthquakes (unlikely to directly generate gas emissions) as well as crustal ones. Finally, the analysis of data starting with 2016 shows that climate changes have the effect of increasing radon emissions along with temperature.

2. The new Radon and CO2 Monitoring Network

The first development of a radon detection equipment for Vrancea was carried out by IFIN HH and was installed in the Plostina station (INFOSOC 2006 project - Complex system for monitoring and processing through modern techniques precursor factors of major seismic events, Figure 1). The high radon values in Figure 1 were not confirmed by the measurements made with a RADON SCOUT type equipment installed in 2017 in the same location and which is still working today (Table 1).
Preprints 74411 g001
Figure 1. The first development of experimental radon detection equipment in a seismic zone was carried out by IFIN HH, 2006.
Figure 1. The first development of experimental radon detection equipment in a seismic zone was carried out by IFIN HH, 2006.
Preprints 74411 g001
Table 1. Radon network, locations, equipment, period of operation.
Table 1. Radon network, locations, equipment, period of operation.
Station Location Equipment North East Description Start End
agigea Agigea RADONSCOUT 44.0838 28.6412 Agigea, radon 14/08/31 14/09/05
chiurus Chiurus RADONSCOUT 45.8233 26.1646 Chiurus, radon 14/09/18 14/09/18
INFPr Magurele RADONSCOUT 44.3479 26.0281 INFP radon 14/09/12 14/09/15
MLRdd Muntele Rosu RADONSCOUT 45.4909 25.9450 MLR, radon 15/11/02 17/03/22
ODBIdd Odobesti RADONSCOUT 45.7633 27.0558 Odbi, radon 14/10/24 15/08/04
PLRdd1 Plostina 4 RADONSCOUT 45.8512 26.6498 PLOR1, radon 17/08/01 17/11/28
PLRdd2 Plostina 4 RADONSCOUT 45.8512 26.6498 PLOR1, radon 17/11/28 _
BISRdd Bisoca RADONSCOUTp 45.5481 26.7099 Bisc, radon 14/10/22 21/05/20
BISRAERd Bisoca AERC 45.5481 26.7099 Biscoca, radon 21/02/25
DLMdd Dalma RADONSCOUTp 45.3629 26.5965 Dalma, radon 22/07/04 _
LOPRdd Lopatari RADONSCOUTp 45.4738 26.5680 Mocearu, radon 15/08/06 _
MNGdd Mangalia RADONSCOUTp 43.8168 28.5876 Mangalia, radon 21/10/20 22/04/14
NEHRdd Nehoiu RADONSCOUTp 45.4272 26.2952 NEHR, radon 15/08/06 _
PANCdd Panciu RADONSCOUTp 45.8723 27.1477 PANC, radon 21/09/29 _
RMGVdd Râmnicu Vâlcea RADONSCOUTp 45.1075 24.3770 Electrovalcea, radon 20/08/22 _
SAHRdd Sahastru RADONSCOUTp 45.7266 26.6854 SAHR, radon 21/05/20 _
SURLdd Surlari RADONSCOUTp 44.6777 26.2526 Surlari, radon 21/11/10 _
VRIdd Vrancioaia RADONSCOUTp 45.8657 26.7277 Vri, radon 14/10/23 20/07/21
Concerns related to the correlation of radon emission and seismicity have expanded and materialized in a multidisciplinary monitoring network that currently also includes gas emission as a precursor parameter ([2,3]). In Figure 2 (the green place marks indicate radon and CO2, yellow mean only radon equipment) and Table 1 presents the development of the radon monitoring network to which CO2 was added as a seismic precursor ([14,15]) but also as a parameter used in the analysis of the effects of greenhouse gases and climate change.
Preprints 74411 g002
Figure 2. Map of radon and CO2 monitoring locations.
Figure 2. Map of radon and CO2 monitoring locations.
Preprints 74411 g002
The monitoring stations are located near the faults (Figure 2), considering that the gas emission is more obvious ([16,17,18,19]).
Table 2 shows the results of radon monitoring including Standard Deviation (SD) reference parameters and air temperature. The equipment that determines the level of radon also includes sensors for temperature, humidity and atmospheric pressure, that is, the parameters on which the emission of gases depends ([20,21]).
Table 2. Synthesized results of radon monitoring, the 2SD reference parameter and its dependence on temperature.
Table 2. Synthesized results of radon monitoring, the 2SD reference parameter and its dependence on temperature.
Station Mean
Bq/mc		 2SD Max
Bq/mc		 Radon - Max
Time (year/month/day)		 Mean
T(C)		 Max/
Min
T(C)		 Time
Interval
(year/month/day)
BISRAERd 70.1835 104.1120 500.0 2020/09/28 17.0133 29.0/-1.5 20/01/01 20/12/31
BISRAERd 55.4286 86.2253 498.0 2021/09/21 15.5043 29.0/+1.5 21/01/01 21/12/31
BISRAERd 74.3684 114.6245 432.0 2022/08/04 16.1838 29.0/ -0.5 22/01/01 22/12/31
DLMdd 50.1785 82.1935 321.0 2022/10/18 15.1580 26.5/ +1.0 22/07/04 23/03/12
LOPRdd 9.5060 14.3086 51.0 2020/10/02 16.9339 39.5/-3.0 20/01/01 20/12/31
LOPRdd 8.6471 12.3745 40.0 2021/06/26 16.2484 43.5/ -1.0 21/01/01 21/12/31
LOPRdd 9.1671 15.1524 71.0 2022/05/17 14.7775 36.5/-1.0 22/01/01 22/12/31
PLRdd2 54.0582 66.8106 607.0 2020/06/18 11.5113 26.5/-1.0 20/01/01 20/12/31
PLRdd2 51.3739 84.3485 1068.0 2021/12/12 10.4853 26.5/-2.5 21/01/01 21/12/31
PLRdd2 57.0862 135.1785 1077.0 2022/09/04, 2022/09/05 11.2713 26.5/-1.0 22/01/01 22/12/31
MLRdd 518.3502 1090.3606 3230.0 2016/07/20 7.0435 8.5/+5.5 16/01/01 16/12/31
NEHRdd 17.1800 22.7589 75.0 2020/12/08 16.7921 37.5/-0.5 20/01/01 20/12/31
NEHRdd 17.9657 24.0877 71.0 2021/10/15 15.5227 36.5/-0.5 21/01/01 21/12/31
NEHRdd 18.0120 23.9987 71.0 2022/09/09 16.1370 38.5/-4.5 22/01/01 22/12/31
PANCdd 73.5889 216.1618 681.0 2022/12/10 13.2224 35.5/-7.0 22/01/01 22/12/31
RMGVdd 25.1879 26.0728 122.0 2021/06/18 12.3352 35.0/-6.5 21/10/20 22/04/14
RMGVdd 28.0030 25.2148 90.0000 2022/08/16, 2022/11/17 12.8718 35.0/-7.0 22/01/01 22/12/31
SAHRdd 87.4349 137.4242 413.0000 2022/07/29, 2022/08/18 20.4269 41.0/+2.5 22/01/01 22/12/31
SURLdd 316.9367 320.4041 1095.0000 2022/12/07 13.8398 28.0/-1.5 22/01/01 22/12/31
VRIdd 148.8226 157.1080 413.0000 2018/01/25 14.7503 26.0/-3.0 18/01/01 18/12/31
VRIdd 165.6702 219.5496 622.0000 2019/12/05 15.7668 29.5/+0.5 19/01/01 19/12/31
VRIdd 202.7971 240.1850 642.0000 2020/01/07 15.3096 28.5/+3.0 20/01/01 20/07/21
agigea 55.3043 51.5058 115.0000 2014/09/01 21.2522 22.5/21.0 14/08/31 14/09/05
MNGdd 313.7032 451.5302 1163.0000 2021/12/02 10.1699 25.0/-3.0 21/10/20 22/04/14
In most cases, the radon anomaly is defined as the positive deviation that exceeds the average radon level by more than two Standard Deviation, 2SD ( [22,23,24]). The temperature T(C) in the Table 2 is measured by the equipment that determines the level of radon. We observe that radon level is over 300 Bq/mc (the limit established by Council Directive 2013/59/EURATOM of December 5, 2013) in MLRdd, SURLdd, and MNGdd. In the first case, the measurements were made in a tunnel in the mountain, which explains the high values. The limit values determined in Surlari (SURLdd) can be explained by the effect of the forest in which the monitoring location is located. In the last case (a case study will follow), Mangalia MNGdd, we recorded very high values and variations of radon, CO2 and CO (Figure 8). There is a proportional relationship between the radon level and the temperature in the case of the stations BISRAERd, PLRdd2, and RMGVdd (Table 2.). In the other stations, this relationship is not preserved, which means that the temperature is not a determining factor in the evolution of the radon level, which depends a lot on the local conditions in which the equipment is installe ([25]). The fluctuations that occur are caused by the fact that radon can be brought by the wind from other areas compared to the case of the BISRAERd, PLRdd2, and RMGVdd stations where the spaces where the measurements are made are more isolated.
Radon variations are not sufficient to implement a seismic forecasting method. Other types of equipment are also installed in all monitoring stations. Table 3 shows some of them (CO2 and weather stations) that contribute, along with radon, to the analysis of seismic precursors. An example of the analysis of the relationship between radon and CO2 is in the article [26].
Table 3. Equipment that is part of the multidisciplinary monitoring of seismic areas.
Table 3. Equipment that is part of the multidisciplinary monitoring of seismic areas.
Station Location Equipment North East Per
(sec)		 Description Start End
MLRttu Muntele Rosu DL100 45.4909 25.945 1 Tunnel MLR temperature and humidity 19/11/05 _
LOPrCO2 Lopatari DL303 45.4738 26.568 1 Lopatari Mocearu CO2/CO 19/06/26 _
VRIco2 Vrancioaia DL303 45.8657 26.7277 1 Vrancioaia CO2/CO 19/07/10 20/07/21
DLMCO2 Dalma DL303 45.3629 26.5965 1 Dalma CO2/CO 22/07/04 _
SurlCO2 Surlari DL303 44.6777 26.2526 1 Surlari CO2/CO 21/11/10 _
CVSrCO2 Covasna DL303 45.7944 26.1239 1 Covasna CO2/CO 22/07/06 _
RVCO2 Râmnicu Vâlcea DL303 45.1075 24.3770 1 Râmnicu Vâlcea borehole CO2/CO 21/08/18 22/04/13
PL7co2 Plostina 7 DL303 45.8603 26.6405 1 PLOR7 CO2/CO 20/07/21 _
MNGCO2 Mangalia DL303 43.8168 28.5876 1 Mangalia CO2/CO 21/10/20 22/03/09
BISRCO2 Bisoca DL303 45.5481 26.7099 1 Bisoca CO2/CO 19/07/09 _
PL7S Plostina 7 PL7S 45.8603 26.6405 1 PLOR7 solar radiation, K2 19/11/14 _
BURmto Bucovina VANTAGE_PRO2p 47.644 25.2002 60 Bucovina Meteo Vantage 18/10/31 _
EFORmt2 Eforie Nord VANTAGE_PRO2p 44.075 28.6323 60 Eforie Meteo Vantage Pro2 18/08/02 _
INFPmt2 Magurele VANTAGE_PRO2p 44.3479 26.0281 60 INFP Magurele Meteo DAVIS Vantage Pro2 18/07/12 _
MetMr2 Marisel VANTAGE_PRO2p 46.676 23.1189 60 Meteo Davis Marisel 18/07/20 _
MLRmt2 Muntele Rosu VANTAGE_PRO2p 45.4909 25.945 60 MLR Meteo DAVIS PRO2+ 19/11/15 _
VRImto Vrancioaia WS2355 45.8657 26.7277 60 VRI Meteo, La Crosse 2.0 14/02/07 _
BISRmto Bisoca WS2355 45.5481 26.7099 60 Bisoca, Meteo La Crosse 2.0 17/07/25 _
NEHRmto Nehoiu WS2355 45.4272 26.2952 60 Nehoiu, Meteo La Crosse 20 14/05/28 _
ODBmto Odobesti WS2355 45.7633 27.0558 60 Odobesti, Meteo 14/07/21 _
PLORmto Plostina 4 WS2355 45.8512 26.6498 60 PLOR4 Meteo 01/12/01 _
The description of the data provided by the equipment that measures the radon level (Table 4 and Table 5) is included in a general database (https://data.mendeley.com/datasets/28kv3gsgcz/2).
Table 4. Radon equipment used in Bisoca station (BISRAERd), produced by ALGADE (discontinued).
Table 4. Radon equipment used in Bisoca station (BISRAERd), produced by ALGADE (discontinued).
Equipment_AERC
ID Field1 Field2 Field3 Field4
1 Radon Temperature (C) Humidity (%) Status
2 Bq/m3 C % _
3 %d %0.1f %d %d
4 radon, Radon, temperature in the equipment - Temperature (C),
relative humidity in the equipment - Humidity (%), Sigfox network connection status - Status.
Table 5. Radon equipment produced by SARAD.
Table 5. Radon equipment produced by SARAD.
Equipment _RADONSCOUTp
ID Field1 Field2 Field3 Field4 Field5 Field6 Field7
1 Radon Error Temp relHum Pres Tilt ROI1
2 Bq/m3 % C % mbar _ cts
3 %d %d %0.1f %d %d %d %d
4 radon, Radon, error - Error, temperature in the equipment - Temp, relative humidity in the equipment - relHum, atmospheric pressure - Press, inclination - Tilt, region of interest 1 - ROI1.
Besides the position of the monitoring station and the type of equipment used, its installation is also important. The only monitoring station built specifically for this purpose is at Râmnicu Vâlcea (location Electrovalcea SRL), Figure 3, RMGVdd in Table 1 and Table 2. The description of Figure 3 according to the patent application ‘OSIM a 2020 00500 10/08/2020’ ([11]) is:
PF - Borehole, 40m deep;
D - Diameter between 300 and 500mm;
SV - Vibration sensor (triaxial accelerometer);
PS - Glass balls for fixing SV;
ST - Temperature sensor;
TPVC - PVC tube;
C - PVC cover;
P - 10 - 30mm gravel that ensures the diffusion of radon from the bottom of the well to the SRn radon sensor;
SRn - Radon sensor mounted in the CV visiting space made of reinforced concrete;
CV - visiting space;
CM - Metal cover;
PPC - Precursor parameters of earthquakes.
Preprints 74411 g003

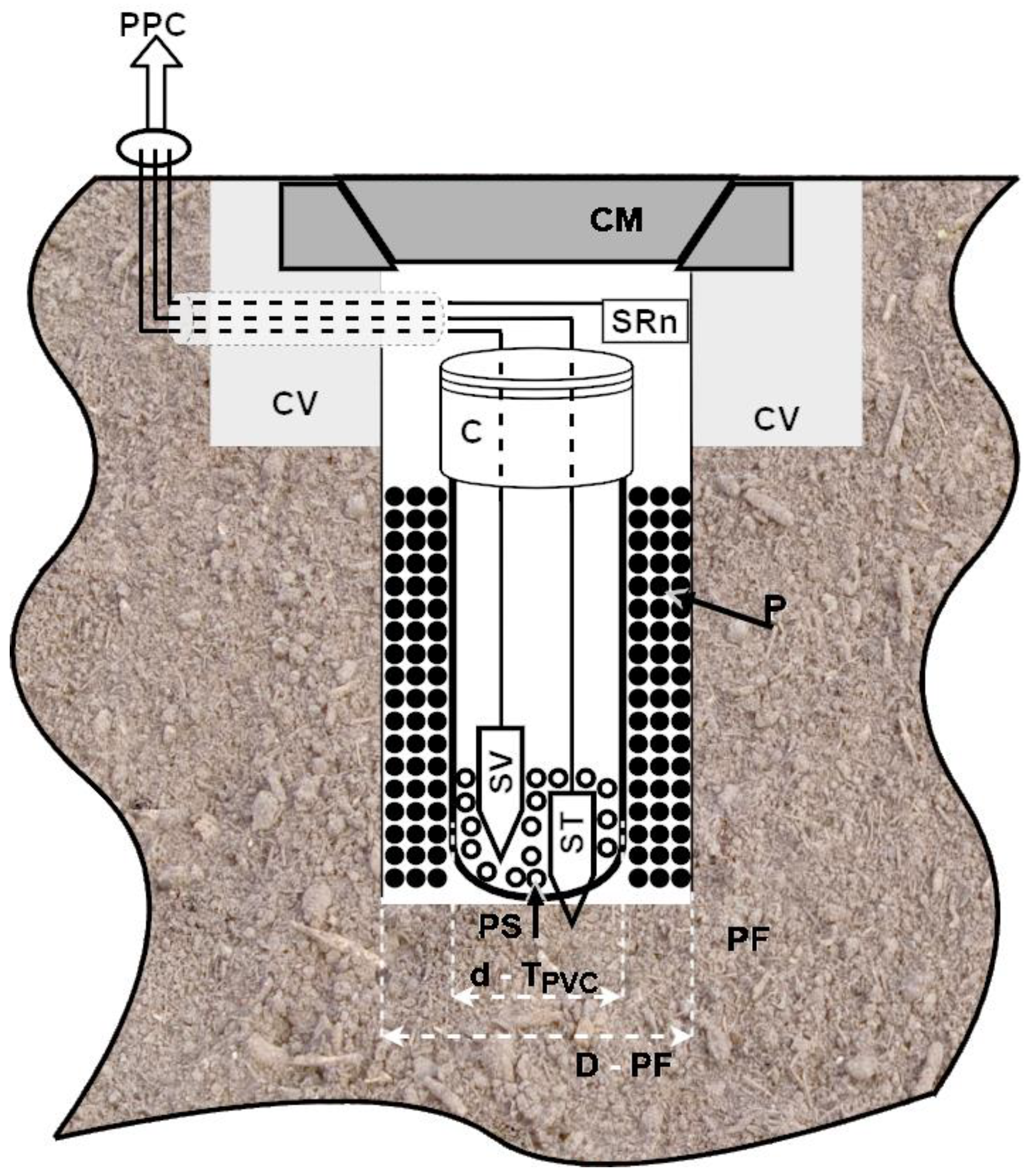

Figure 3. Installation of radon and acceleration sensors in a 40 m deep borehole [11].
Figure 3. Installation of radon and acceleration sensors in a 40 m deep borehole [11].
Preprints 74411 g003
This station was considered a reference because there were no seismic events in the area. Starting with 2023/02/08, over 2000 surface earthquakes occurred at an approximate distance of 80 Km in OLTENIA – GORJ area (example in Table 7), the maximum magnitude being 5.7R. However, no radon level anomalies were recorded in RMGVdd.

3. Analysis methods and case studies

The analysis methods used are described in [2] and [3]. These were verified in relation to Vrancea seismicity and they are currently used for the analysis of the effects of climate change. Mainly the time series representing gas emissions (radon, CO2) are integrated after the average value has been extracted, then an STA/ LTA (Short-Term Averages/ Long-Term Averages) detection algorithm type Allen ([27,28,29]) or 2SD (twice Standard Deviation) is applied [30]. Signal integration is done with a function that performs numerical integration from the LabVIEW library using trapezoidal rule.
An example of a case where these methods are applied is related to the sequence of surface earthquakes in the area of Râmnicu Sărat (city in Romania, Figure 5) that could have been caused by the seismic events in Turkey (2023/02/06, 7.8R and 7.5R, Figure 4) with which overlapped (Table 6).
Preprints 74411 g004

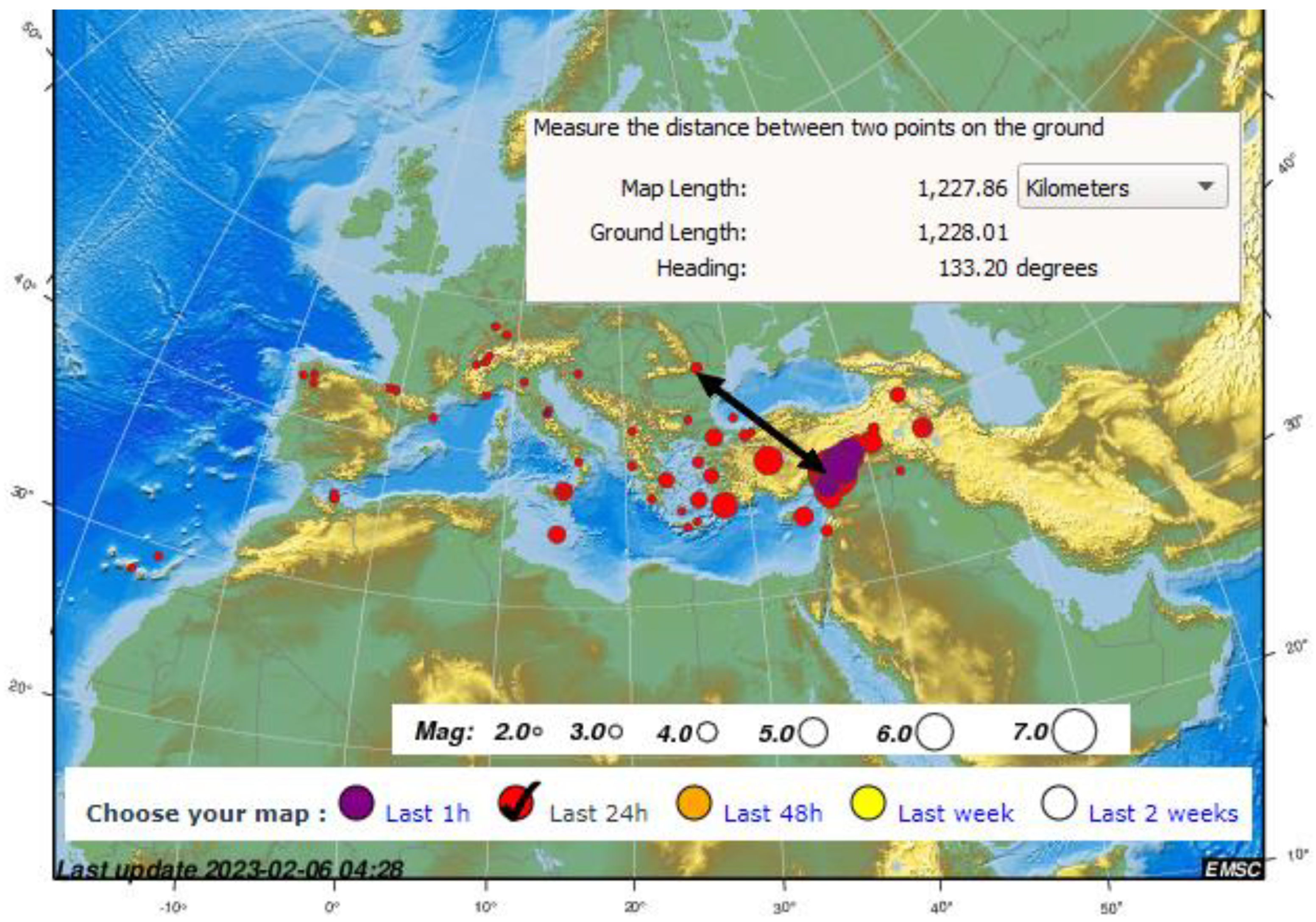

Figure 4. Superposition of the earthquake swarm in Romania with the seismic events in Turkey (2023/02/06, 7.8R and 7.5R), EMSC picture.
Figure 4. Superposition of the earthquake swarm in Romania with the seismic events in Turkey (2023/02/06, 7.8R and 7.5R), EMSC picture.
Preprints 74411 g004
Preprints 74411 g005

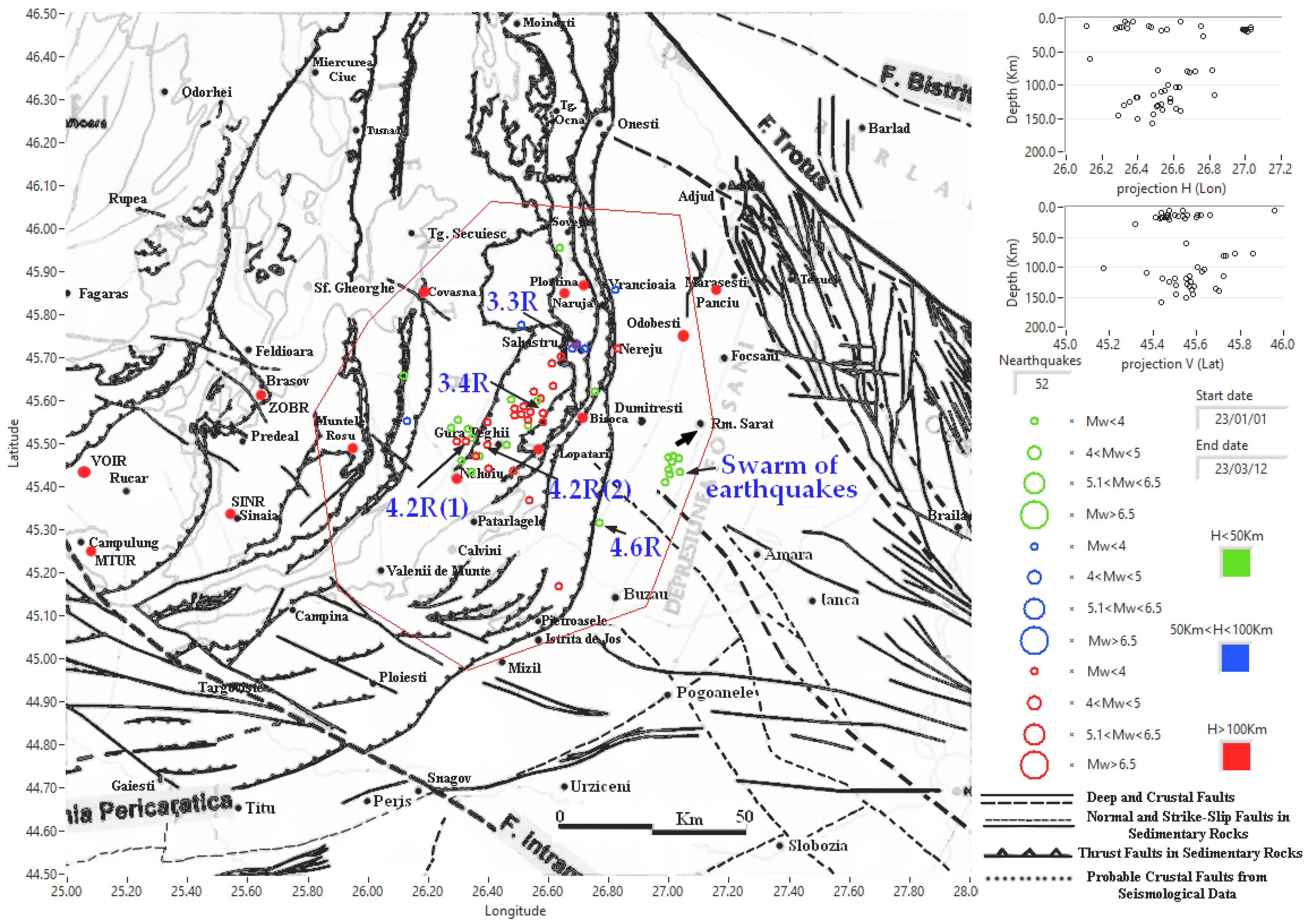

Figure 5. Vrancea seismicity and the correlation of epicenters with geological faults, 2023/01/01 - 2023/03/12, swarm of Râmnicu Sărat earthquakes (green circles) and 4.2R earthquakes sequence.
Figure 5. Vrancea seismicity and the correlation of epicenters with geological faults, 2023/01/01 - 2023/03/12, swarm of Râmnicu Sărat earthquakes (green circles) and 4.2R earthquakes sequence.
Preprints 74411 g005
Table 6. Overlap of earthquakes in Turkey and Romania, http://www.infp.ro/.
Table 6. Overlap of earthquakes in Turkey and Romania, http://www.infp.ro/.
Data (UTC) Mag. Reg. h(Km)
2023/02/06, 10:51:41 5.6 ml CENTRAL TURKEY 10km
2023/02/06, 10:24:53 7.5 ml CENTRAL TURKEY 10km
2023/02/06, 06:55:14 5.0 ml CENTRAL TURKEY 10km
2023/02/06, 03:26:19 2.0 ml ZONA SEISMICA VRANCEA, BUZAU 21km
2023/02/06, 03:01:58 2.7 ml ZONA SEISMICA VRANCEA, BUZAU 17km
2023/02/06, 02:40:31 2.1 ml ZONA SEISMICA VRANCEA, BUZAU 13km
2023/02/06, 02:13:10 2.9 ml ZONA SEISMICA VRANCEA, BUZAU 17km
2023/02/06, 02:09:54 2.6 ml ZONA SEISMICA VRANCEA, BUZAU 17km
2023/02/06, 01:26:20 4.6 ml ZONA SEISMICA VRANCEA, BUZAU 22km
2023/02/06, 01:17:36 7.8 ml CENTRAL TURKEY 10km
Table 6 shows that the first seismic event in Turkey (2023/02/06,, 01:17:36, 7.8R) is shortly followed by the one in Romania (2023/02/06,, 01:26:20, 4.6R) at a distance of 1228 Km.
The closest radon and CO2 monitoring stations are in Dalma (DLMdd), Bisoca (BISRAERd) and Lopatari (LOPRdd). Table 1. Applying the mentioned methods, we obtain the evolution of radon and CO2 as in Figure 6. Only for LOPRdd we used the 2SD detection method [24], while for the others STA/ LTA. It is observed that radon and CO2 have similar variations and those in Bisoca and Dalma are similar, unlike those in Lopatari. Also, the detections (marked with red dots) can be associated with groups of earthquakes and the seismic pause that preceded the sequence of earthquakes was longer (7 days seismic quiescence [11]). In conclusion, the first seismic event in Turkey could only have triggered what is happening anyway, the Râmnicu Sărat area being known for such behavior.
Preprints 74411 g006
Figure 6. The evolution of radon and CO2 preceding the earthquake sequence near Râmnicu Sărat.
Figure 6. The evolution of radon and CO2 preceding the earthquake sequence near Râmnicu Sărat.
Preprints 74411 g006
Another case study is the earthquakes sequence from 2023/03/11 - 2023/03/12 in which we had two earthquakes of 4.2R accompanied by two others of 3.3R and 3.4R. These are presented in Figure 5 and Figure 7 and Table 7.
Preprints 74411 g007

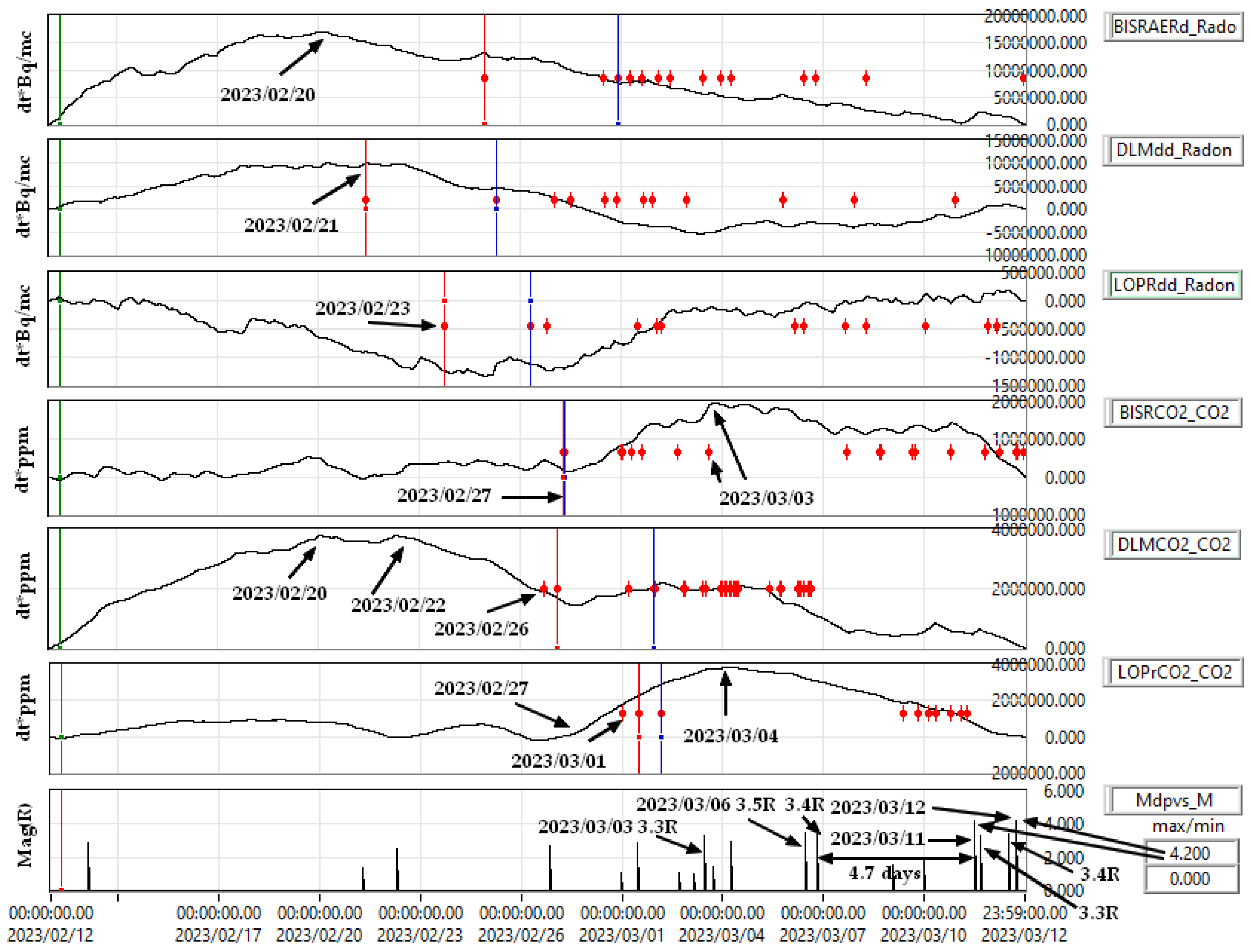

Figure 7. The evolution of radon and CO2 for 4.2R earthquakes sequence.
Figure 7. The evolution of radon and CO2 for 4.2R earthquakes sequence.
Preprints 74411 g007
Table 7. Seismic sequence in the Vrancea area, maximum M 4.2 R, swarm of earthquakes OLTENIA, GORJ.
Table 7. Seismic sequence in the Vrancea area, maximum M 4.2 R, swarm of earthquakes OLTENIA, GORJ.
Data (UTC) Mag. Reg. h(Km)
2023/03/12, 19:12:12 2.5 ml OLTENIA, GORJ 13km
2023/03/12, 17:44:22 4.2 ml SEISMIC AREA VRANCEA, BUZAUL 131km
2023/03/12, 12:15:09 3.6 ml OLTENIA, GORJL 16km
2023/03/12, 11:49:23 3.4 ml SEISMIC AREA VRANCEA, BUZAU 125km
2023/03/11, 20:12:55 2.2 ml OLTENIA, GORJ 15km
2023/03/11, 17:51:56 2.6 ml OLTENIA, GORJ 14km
2023/03/11, 15:53:22 3.3 ml SEISMIC AREA VRANCEA, VRANCEAL 82km
2023/03/11, 14:17:06 3.5 ml OLTENIA, GORJL 17km
2023/03/11, 13:28:57 2.5 ml OLTENIA, GORJ 16km
2023/03/11, 13:25:46 2.4 ml OLTENIA, GORJ 15km
2023/03/11, 12:09:20 4.2 ml SEISMIC AREA VRANCEA, BUZAUL 118km
The 4.2R earthquakes are located in the Gura Teghii seismic zone and all epicenters are on faults (Figure 5). The detections starting with 2023/02/20 in Figure 7 (red points) are of the STA/LTA type and are applied to the integrated time series. There is a similarity in time variations between radon in BISRAERd, DLMdd and carbon dioxide in DLMCO2 (maximum during 2023/02/20 followed by a decrease). Also, the evolution of radon in LOPRdd is similar to CO2 in BISRCO2 and LOPrCO2.
We can say that the method described in [1] and [2] is also verified in this case and what matters is the grouping of earthquakes in a short period of time (1 - 2 days) even if their magnitude is not high.
The next analyzed case refers more to environmental pollution than to a relationship between gas emission and seismicity. In Table 2, the last two stations (named agigea, Agigea locality and MNGdd, locality Mangalia) refer to the results of radon monitoring at the Black Sea (their positioning is in Table 1). A large difference is observed in the level of radon caused by MNGdd, while in Agigea the radon values are normal (Table 2). However, the time periods in which the determinations were made should be noted. Those in Mangalia are recent and may be affected by the development of the city and the port. Not only the high values attract our attention, but also the way in which the gas emission varies in this location. In Figure 8 very large variations of radon that do not repeat at intervals of one day and do not depend on temperature, atmospheric pressure, precipitation or wind (EFORmt2 is a meteorological station, Table 3). Besides these, the presence of CO and the way it varies indicates a pollution that can be caused by the activity of the port, a hospital or the nearby water treatment plant. The radon measurements at the Black Sea were described in [31] where the emission of gases (radon, CO2, methane, hydrogen sulfide) is specified and analyzed, but not in the coastal region of Romania.
Preprints 74411 g008
Figure 8. The case of Mangalia, the evolution of radon, CO2 and atmospheric conditions.
Figure 8. The case of Mangalia, the evolution of radon, CO2 and atmospheric conditions.
Preprints 74411 g008
Another case that draws our attention from Table 2 refers to the fact that the radon exceed the 300 Bq/mc in Surlari station (Figure 9, SURLdd), limit established by Council Directive 2013/59/EURATOM. The building in which the radon detector is located is made of brick and is located in a forest (Figure 9b).
Preprints 74411 g009

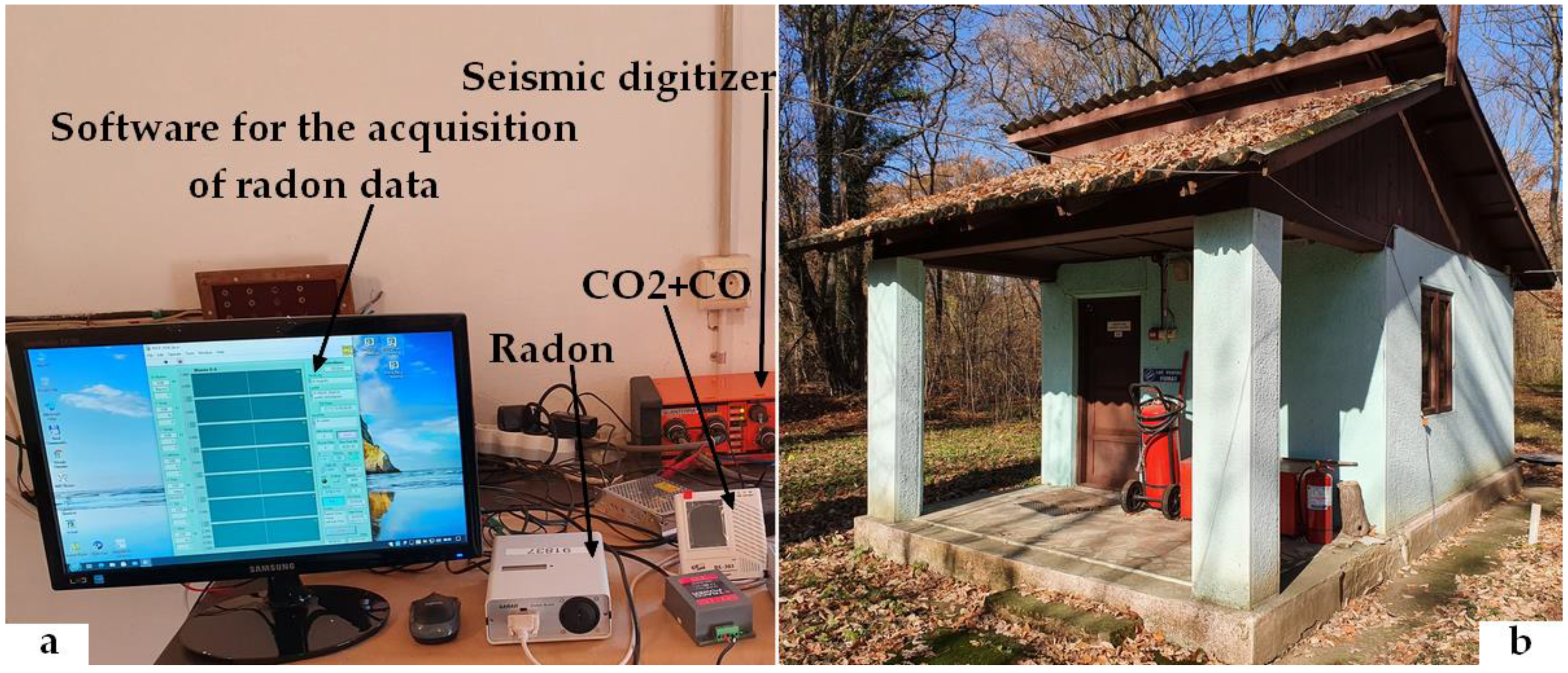

Figure 9. Surlari monitoring station: {a} Radon, CO2 and CO equipment; (b) the location is in a forest.
Figure 9. Surlari monitoring station: {a} Radon, CO2 and CO equipment; (b) the location is in a forest.
Preprints 74411 g009
The evolution of radon and CO2, maximum and minimum values along with temperature and humidity in this location are presented in Figure 10.
Preprints 74411 g010
Figure 10. Radon, CO2, temperature, air pressure in Surlari station (SURLdd).
Figure 10. Radon, CO2, temperature, air pressure in Surlari station (SURLdd).
Preprints 74411 g010
It is observed that there is a relationship between the radon level and temperatures in the sense that during the winter the radon emission increases. The Surlari location is close to the Intramoesica fault and is characterized by surface seismicity. It is observed that there is a relationship between the radon level, temperature, humidity, and atmospheric pressure ([25,32,33]). Seasonal variation indicates an increase in radon emission in winter (lower temperatures) while CO2 increases in summer (higher temperatures). The daily variations of radon indicate a maximum around 10 UTC hour and a minimum approximately at 19 UTC hour. After filtering with a median filter (LabVIEW library) on the time series from Figure 10 for reduce the daily variations and spikes, we applied a cross-correlation function (LabVIEW library) and obtained the average values from Table 8 (example in Figure 11 and Figure 12). Regardless of the chosen method, it is important that it is used under the same conditions in all the analyzed cases. So, Table 8 is relative to this method over the entire time period (one year) and allows comparative data analysis. The possible high values of radon and CO2 levels are the relation between gas emission and vegetation ( [34,35]). The operation of the equipment was checked under normal conditions and the results were satisfactory.
Preprints 74411 g011
Figure 11. Cross correlation between radon and humidity in Lopatari station, 2022, 1 hour intervals.
Figure 11. Cross correlation between radon and humidity in Lopatari station, 2022, 1 hour intervals.
Preprints 74411 g011
Preprints 74411 g012
Figure 12. Gas emissions in Lopatari, 2022.
Figure 12. Gas emissions in Lopatari, 2022.
Preprints 74411 g012
Table 8. Cross correlation coefficients.
Table 8. Cross correlation coefficients.
Radon/ 2022 Station Code
Mean Cross correlation SURLdd LOPRdd NEHRdd PANCdd RMGVdd SAHRdd BISRAERd
CO2 0.3354 0.2758 -0.1701 - - - 0.1789
Humidity 0.4430 0.3696 0.2531 0.5708 0.1814 -0.2932 0.2504
Temperature -0.4181 0.3900 0.1370 -0.2294 0.1467 0.7436 0.4714
Atmospheric pressure 0.0797 0.2313 -0.0152 0.0088 -0.0343 -0.1636 -0.0946
Another theme is the influence of meteorological parameters on gas emissions that is generally presented in many articles ([25,36,37]). For our case study we chose the same time period (year 2022) as in Figure 10 to follow the evolution of radon and CO2 in correlation with temperature, humidity and atmospheric pressure. Table 8 shows the correlation between radon and CO2, humidity, temperature and atmospheric pressure (the parameters measured complementary by the same equipment) for 2022 year.
We notice in Figure 10 that there are correlations over short time intervals. We redo the comparative analysis for the year 2022 but at on a sliding time window of one hour and calculate the average of the obtained coefficients (Table 9). If a positive correlation prevails, then we will have higher positive final values. But we can also have an inverse correlation (the sizes are inversely proportional) which leads to mostly negative results. The way in which the method is applied is represented in Figure 11. So, the values in Table 9 and Table 10 are relative and allow an assessment of the dependence of radon on atmospheric factors.
Table 9. Cross correlation for time windows of 1 hour.
Table 9. Cross correlation for time windows of 1 hour.
Radon/ 2022 1h Station Code
Mean Cross correlation SURLdd LOPRdd NEHRdd PANCdd RMGVdd SAHRdd BISRAERd
CO2 0.5257 0.6222 0.3742 - - - 0.5791
Humidity 0.6385 0.6959 0.6321 0.7216 0.5371 0.3966 0.6902
Temperature 0.3048 0.6529 0.5702 0.3742 0.5663 0.7545 0.6999
Atmospheric pressure 0.5753 0.5892 0.4674 0.5691 0.4569 0.3818 0.4807
Table 10. Vrancea seismicity for earthquakes greater than 4.5 R, 2016 - 2022.
Table 10. Vrancea seismicity for earthquakes greater than 4.5 R, 2016 - 2022.
N Time Ml>4.5 Depth Longitude Latitude Mw PZone
yyyy/mm/dd Richter Km Degrees Degrees Km
1 2016/09/23 23:11:20 5.8 92.0 26.6181 45.7148 5.52 236.8
2 2016/12/27 23:20:56 5.8 96.9 26.5987 45.7139 5.52 236.8
3 2017/02/08 15:08:21 5.0 124 26.2886 45.4791 4.6 95.3
4 2017/05/19 20:02:45 4.7 120.6 26.7581 45.7249 4.32 72.3
5 2017/08/01 10:27:52 4.6 96.6 26.4681 45.5146 4.24 66.3
6 2017/08/02 02:32:13 4.9 132.5 26.4014 45.5267 4.51 86.7
7 2018/03/14 10:24:49 4.6 139.1 26.5850 45.6759 4.24 66.3
8 2018/04/25 17:15:49 4.6 147.3 26.4216 45.6002 4.24 66.3
9 2018/10/28 00:38:11 5.8 151.3 26.3986 45.6049 5.52 236.8
10 2019/09/03 11:52:53 4.5 116.7 26.2896 45.4712 4.15 61.0
11 2020/01/31 01:26:48 5.2 120.6 26.7033 45.7106 4.80 116.4
12 2020/04/24 22:04:19 5.0 21.6 27.4651 45.8951 3.79 42.8
13 2020/06/02 11:12:58 4.5 101.2 26.5548 45.6239 4.15 61.0
14 2021/04/09 18:36:47 4.5 77.1 26.6292 45.7916 4.15 61.0
15 2021/05/25 21:30:37 4.7 130.9 26.5226 45.5321 4.32 72.3
16 2021/09/01 10:32:12 4.5 145.0 26.4474 45.6413 4.15 61.0
17 2022/11/03 04:50:26 5.3 148.8 26.5166 45.4949 4.91 129.4
18 2022/12/17 05:42:59 4.5 140.0 26.4668 45.6359 4.15 61.0
A special case in Lopatari is CO as a result of burning gases produced by live fires (Figure 12). The time series used in Table 8 and Table 9 are presented in Figure 12 and Figure 13. In general, temperature and humidity are inversely proportional (an example in Figure 12 for the Panciu station, PANCdd). This, as well as the dependence of radon on atmospheric factors, depend on the way the equipment is installed. In Table 8 it can be seen that the dependence of radon on temperature is very small in Lopatari (LOPRdd) because the measurements are made by the same equipment (Radon Scout Plus) which is in a partially air-conditioned space. For this reason, the relationship between temperature and humidity differs from normal conditions, Figure 12 (for example in Panciu, Figure 13). A similar situation exists in Bisoca (BISRAERd).
Preprints 74411 g013
Figure 13. Dependence of radon on atmospheric factors, 2022.
Figure 13. Dependence of radon on atmospheric factors, 2022.
Preprints 74411 g013
Laboratory measurements of radon highlighted the same direct positive relationship between radon emission and temperature [38]. This is valid if the radon emission and its measurement are done in the same place. In our locations, the rooms where the equipment are placed are not hermetically sealed and radon can come from nearby areas as a result of air currents. From Figure 10, Figure 12 and Figure 13 a similar evolution of radon can be observed in LOPRdd, RMGVdd, SAHRdd and BISRAERd (higher values in summer) and for SURLdd, NEHRdd and PANCdd higher values in winter. These results are preserved if we analyze the evolution of radon over several years (Figure 14).
Preprints 74411 g014

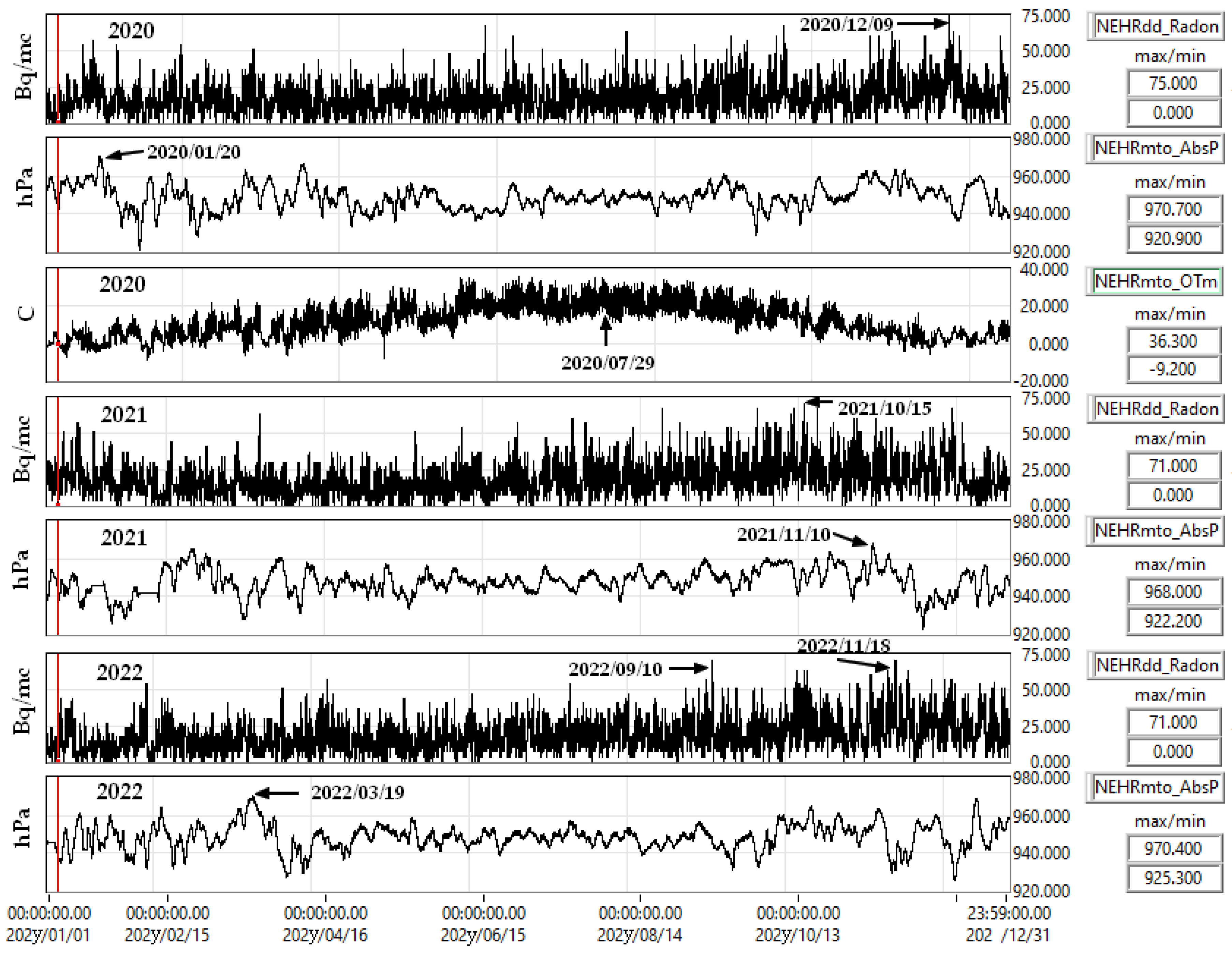

Figure 14. The annual evolution of radon in Nehoiu (NEHRdd) and environmental factors.
Figure 14. The annual evolution of radon in Nehoiu (NEHRdd) and environmental factors.
Preprints 74411 g014
Next case analyzed concerns the relationship between radon emission and seismicity. We have already analyzed the Râmnicu Sărat cases (Table 6, Figure 6) and the sequence of earthquakes from 2023/03/11 - 2023/03/12 (Table 7, Figure 7). We now choose a longer period of time between 2016 and 2022 and earthquakes greater than 4.5R in the Vrancea area, Table 10. The preparation zone PZone is determined by Dobrovolsky’s relation [39] depending on the magnitude. The relationship is checked experimentally using Mw. The monitoring station should be in this area to be able to assess a relationship between radon and earthquakes. Different formulas of relations between earthquake magnitude and preparation distance of different authors were mentioned by Nevinsky in [31]. In general, this condition is met in Table 10 because we chose a threshold of 4.5 R for the magnitude. The relationship between the accumulated seismic energy, the parameters a-b from Gutenberg – Richter law [12,13], seismicity and the number of earthquakes produced in a 7-day interval is presented in Figure 15.
Preprints 74411 g015

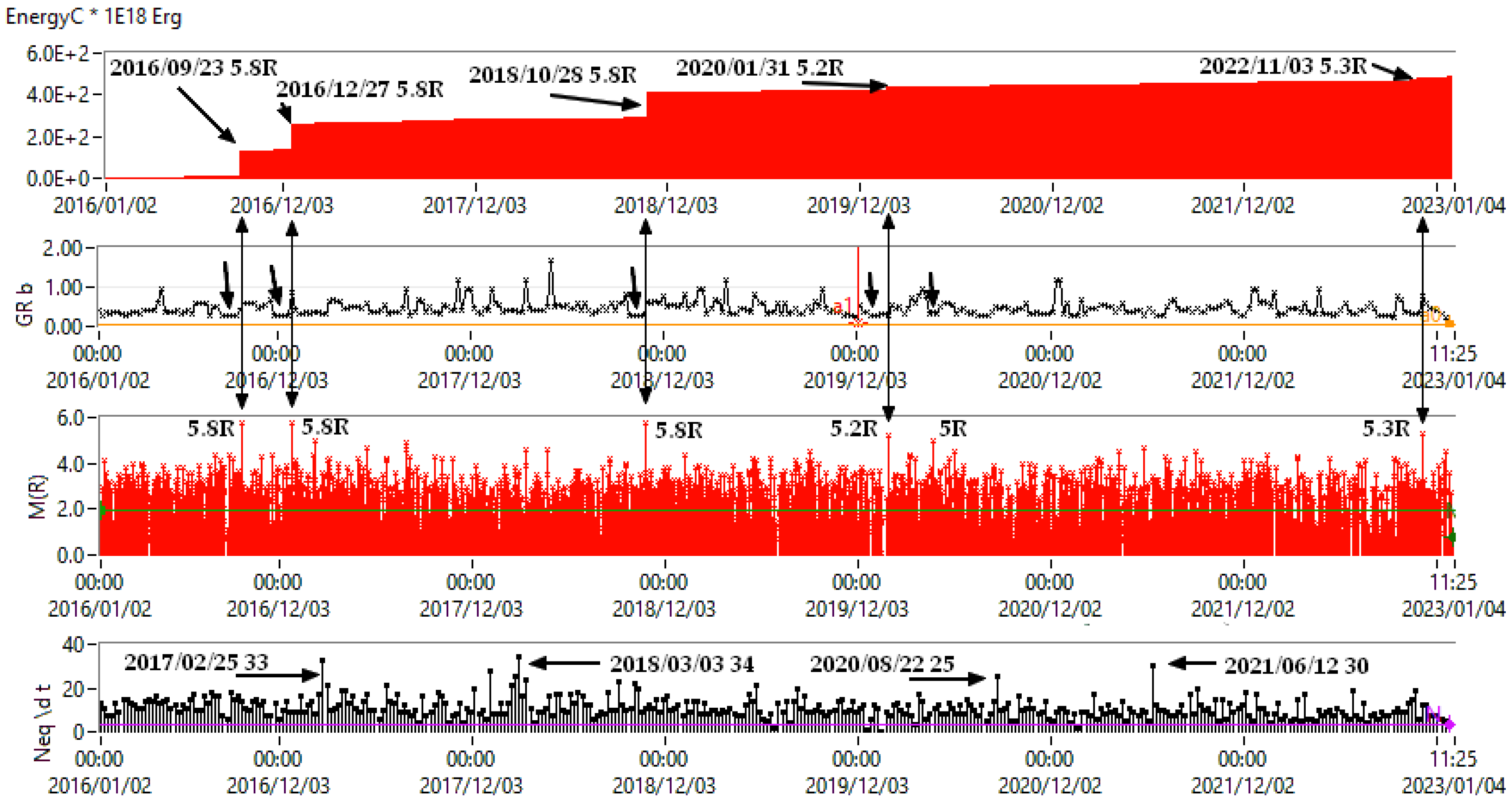

Figure 15. Cumulative seismic energy, the Gutenberg-Richter parameter ‘b’, seismicity and the number of earthquakes produced in a 7 interval.
Figure 15. Cumulative seismic energy, the Gutenberg-Richter parameter ‘b’, seismicity and the number of earthquakes produced in a 7 interval.
Preprints 74411 g015
From Figure 15 and Figure 16 it can be seen that a decrease over a period of more than 18 days of the parameter ‘b’ from the Gutenberg-Richter law (GR_b) is followed by earthquakes with a magnitude greater than 5R (observation valid for the Vrancea area). The radon and temperature time series in Figure 16 were averaged to mitigate daily variations. We note that the maximum values of radon levels are between August and November and do not correlate with the number of earthquakes produced at 7-day intervals (Neq/dt graph). We apply a correlation function between parameter ‘b’ from the Gutenberg-Richter law (GR_b) and radon for the period 2016 – 2022 for the case where the depth of the hypocenter is greater than 20 km or less. Depth is important because the source of radon should be on the surface because its half-life is 3.82 days. The results are in Figure 17 and Table 11.
Preprints 74411 g016
Figure 16. Evolution of radon level, temperature and seismicity in Vrancea, time windows 7 days, 2016 – 2022.
Figure 16. Evolution of radon level, temperature and seismicity in Vrancea, time windows 7 days, 2016 – 2022.
Preprints 74411 g016
Preprints 74411 g017
Figure 17. CORREL between Gr_b (Gutenberg – Richter law) and radon BISRAERs, LOPRdd, NEHERdd.
Figure 17. CORREL between Gr_b (Gutenberg – Richter law) and radon BISRAERs, LOPRdd, NEHERdd.
Preprints 74411 g017
Table 11. Correlation factor between ‘b’ parameter and radon in BISRAERd, LOPRdd, NEHERdd, 2016 – 2022, time windows of 7 days.
Table 11. Correlation factor between ‘b’ parameter and radon in BISRAERd, LOPRdd, NEHERdd, 2016 – 2022, time windows of 7 days.
Station,
2016 - 2022 		Mean Standard
Deviation		 Mean Standard
Deviation
H>20 Km H<20 Km
BISRAERd 0.3541 30.9621 0.3562 30.9617
LOPRdd 0.3707 2.7410 0.3703 2.7410
NEHRdd 0.3766 5.1496 0.3751 5.1495
Correlation of ‘b’ parameters between crustal and deep seismicity for Vrancea using a sliding time window of 7 days is in Figure 18 where Mean = 0.8767 and SD = 0.4508.
Preprints 74411 g018
Figure 18. Correlation between b from Gutenberg – Richter law for Vrancea crustal and deep seismicity.
Figure 18. Correlation between b from Gutenberg – Richter law for Vrancea crustal and deep seismicity.
Preprints 74411 g018
Integrating the time series from Figure 16 we obtain the radon variations from Figure 19. We observe a continuous increase in radon level along with the temperature, which we can interpret as an effect of climate change.
Preprints 74411 g019
Figure 19. Annual variations of radon integrated and Vrancea seismicity, 2016 – 2022.
Figure 19. Annual variations of radon integrated and Vrancea seismicity, 2016 – 2022.
Preprints 74411 g019

4. Conclusions

From the data presented, it is not possible to establish an exact relationship between the anomalies of radon emissions and seismicity, but evaluations can be made that can be completed with forecasts. Radon level recording depends on environmental factors, location and installation area. For this reason, the results presented in different articles for different domains may be different. An example has already been mentioned regarding the evolution of radon in LOPRdd, RMGVdd, SAHRdd and BISRAERd (higher values in summer) and for SURLdd, NEHRdd and PANCdd higher values in winter (Figure 10, 12 and 13). We have chosen monitoring positions near geological faults, but it is not enough because they may not be active for gas emission. The investigation area was Vrancea (the curvature area of the Carpathian Mountains), which is characterized by deep earthquakes (Table 10). Table 11 shows that the mean value of the correlation factors determined in a 7-day sliding window and the corresponding SD are close in value for surface and depth earthquakes (correlation between ‘b’ parameters in Figure 18). These determinations (Table 11) depend a lot on the calculation method and the way the time series were filtered. We apply first a median filter (LabVIEW library) on the time series from Figure 10 for reduce the daily variations and spikes, next we used a cross-correlation function (LabVIEW library) and obtained the average values and SD. For this reason, it is important to use the same method for all determinations and the analysis of the results to be comparative.
The radon level depends on the tectonic stress that induces a deformation of the rocks ([38,40,41,42]), which in turn depends on the environmental factors. For this reason, the use of a trigger threshold per level for anomaly detection is not possible, but a real-time OEF (Operational Earthquake Forecasting) can be implemented like in [2]. There will always be a degree of uncertainty because the emission of radon and gases in general depends on many factors. For this reason, a validation with other parameters is necessary. In presenting the link between the radon level and seismicity, we used the parameters a - b from the Gutenberg-Richter law (Figure 15). We observe that a decrease over a period longer than 18 days of the parameter ‘b’ from the Gutenberg-Richter law (GR_b) is followed by earthquakes with a magnitude greater than 5R (Figure 15 and Figure 16) for the Vrancea area. For this reason, there is no general method and an implementation of an OEF must take into account the particularities of the monitoring area ([4,5,6,7,8]). In our case, the Vrancea area is unique in Europe due to its geological structure and its deep earthquakes.

Author Contributions

Conceptualization, V.-E.T.; methodology, V.-E.T. and I.-A.M.; software, V.-E.T.; validation, A.M, N B-B and C.I.; formal analysis, I.-A.M and I.L.; investigation, V.-E.T. and I.-A.M.; writing—original draft preparation, V.-E.T. and N B-B; correspondent, V.-E.T.; supervision, N B-B. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out within Nucleu Program project no PN23360201.

Data Availability Statement

An example of the data is archived at https://data.mendeley.com/datasets/28kv3gsgcz, Published: 27 September 2022|Version 2|DOI:10.17632/28kv3gsgcz.2.

Acknowledgments

This paper was carried out within Nucleu Program SOL4RISC, supported by MCI, project no PN23360201 and AFROS Project PN-III-P4-ID-PCE-2020-1361, supported by UEFISCDI.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Toader VE, Moldovan IA, Marmureanu A, Dutta PK, Partheniu R, Nastase E. Monitoring of radon and air ionization in a seismic area. Rom Reports Phys. 2017;69(3):842013.
  2. Toader VE, Nicolae V, Moldovan IA, Ionescu C, Marmureanu A. Monitoring of Gas Emissions in Light of an OEF Application. Atmosphere (Basel). 2020;12(1):26. doi:10.3390/atmos12010026. [CrossRef]
  3. Toader VE, Mihai A, Moldovan IA, Ionescu C, Marmureanu A, Lingvay I. Implementation of a radon monitoring network in a seismic area. Atmosphere (Basel). 2021;12(8):1-14. doi:10.3390/atmos12081041. [CrossRef]
  4. Omi T, Ogata Y, Shiomi K, Enescu B, Sawazaki K, Aihara K. Implementation of a Real-Time System for Automatic Aftershock Forecasting in Japan. Seismol Res Lett. 2019;90(1):242-250. doi:10.1785/0220180213. [CrossRef]
  5. Toader, VE.; Moldovan, I.A; Mihai, A. Forecast Earthquake Using Acoustic Emission. In: International Multidisciplinary Scientific GeoConference Surveying Geology and Mining Ecology Management, SGEM. Vol 19. ; 2019:803-811. doi:10.5593/sgem2019/1.1/S05.100. [CrossRef]
  6. Kachakhidze-Murphy N, Kachakhidze M, Biagi PF. Earthquake Forecasting Possible Methodology. GESJ Phys. 2016;1(15):102-111. http://gesj.internet-academy.org.ge/download.php?id=2790.pdf&t=1.
  7. Zechar JD, Marzocchi W, Wiemer S. Operational earthquake forecasting in Europe: progress, despite challenges. Bull Earthq Eng. 2016;14(9):2459-2469. doi:10.1007/s10518-016-9930-7. [CrossRef]
  8. Thomas H., Yun-Tai Chen, Paolo Gasparini, et al. OPERATIONAL EARTHQUAKE FORECASTING. State of Knowledge and Guidelines for Utilization. Ann Geophys. 2011;54(4). doi:10.4401/ag-5350. [CrossRef]
  9. Jordan TH, Marzocchi W, Michael AJ, Gerstenberger MC. Operational earthquake forecasting can enhance earthquake preparedness. Ann Geophys. 2011;54(4):315-391. doi:10.4401/ag-5350. [CrossRef]
  10. Victorin Toader, Iren-Adelina Moldovan, Constantin Ionescu AM. ULF RADIO MONITORING NETWORK IN A SEISMIC AREA. In: EGU General Assembly Conference. Geophysical Research Abstracts; 2017:18037.
  11. Ciogescu Ovidiu, Lingvay Daniel, Șchiopu Mihaela, Lingvay Iosif. Toader Victorin Emilian, Ionescu Constantin, Marmureanu Alexandru MA. Complex system for prediction, warning of seismic movements and fire prevention following damage to gas installations caused by major earthquakes. In: BOPI patent application 02/2021; a 2020 00500/10-08-2020, ed. OSIM. Vol 2. Directorat. ; 2021:35.
  12. Nava FA, Márquez-Ramírez VH, Zúñiga FR, Lomnitz C. Gutenberg–Richter b-value determination and large-magnitudes sampling. Nat Hazards. 2017;87(1). doi:10.1007/s11069-017-2750-5. [CrossRef]
  13. Toader VE, Popescu IM, Moldovan IA, Constantin I. Vrancea seismicity analysis based on cumulative seismic energy. UPB Sci Bull Ser A Appl Math Phys. 2015;77(2):297-308.
  14. D’Incecco S, Petraki E, Priniotakis G, Papoutsidakis M, Yannakopoulos P, Nikolopoulos D. CO2 and Radon Emissions as Precursors of Seismic Activity. Earth Syst Environ. 2021;5(3):655-666. doi:10.1007/s41748-021-00229-2. [CrossRef]
  15. Zafrir H, Barbosa S, Levintal E, Weisbrod N, Ben Horin Y, Zalevsky Z. The Impact of Atmospheric and Tectonic Constraints on Radon-222 and Carbon Dioxide Flow in Geological Porous Media - A Dozen-Year Research Summary. Front Earth Sci. 2020;8(October):1-28. doi:10.3389/feart.2020.559298. [CrossRef]
  16. Chen Z, Li Y, Liu Z, Wang J, Zhou X, Du J. Radon emission from soil gases in the active fault zones in the Capital of China and its environmental effects. Sci Rep. 2018;8(1):16772. doi:10.1038/s41598-018-35262-1. [CrossRef]
  17. Khan MA, Khattak NU, Hanif M. Radon emission along faults: a case study from district Karak, Sub-Himalayas, Pakistan. J Radioanal Nucl Chem. 2022;331(5):1995-2003. doi:10.1007/s10967-022-08283-4. [CrossRef]
  18. Ioannides K, Papachristodoulou C, Stamoulis K, et al. Soil gas radon: a tool for exploring active fault zones. Appl Radiat Isot. 2003;59(2-3):205-213. doi:10.1016/S0969-8043(03)00164-7. [CrossRef]
  19. Xuan PT, Duong NA, Chinh V Van, Dang PT, Qua NX, Pho N Van. Soil Gas Radon Measurement for Identifying Active Faults in Thua Thien Hue (Vietnam). J Geosci Environ Prot. 2020;08(07):44-64. doi:10.4236/gep.2020.87003. [CrossRef]
  20. Haquin G, Zafrir H, Ilzycer D, Weisbrod N. Effect of atmospheric temperature on underground radon: A laboratory experiment. J Environ Radioact. 2022;253-254:106992. doi:10.1016/j.jenvrad.2022.106992. [CrossRef]
  21. Kulali F, Akkurt I, Özgür N. The Effect of Meteorological Parameters on Radon Concentration in Soil Gas. Acta Phys Pol A. 2017;132(3-II):999-1001. doi:10.12693/APhysPolA.132.999. [CrossRef]
  22. Ivanova K, Stojanovska Z, Djunakova D, Djounova J. Analysis of the spatial distribution of the indoor radon concentration in school’s buildings in Plovdiv province, Bulgaria. Build Environ. 2021;204:108122. doi:10.1016/j.buildenv.2021.108122. [CrossRef]
  23. Bem H, Janiak S, Przybył B. Survey of indoor radon (Rn-222) entry and concentrations in different types of building in Kalisz, Poland. J Radioanal Nucl Chem. 2020;326(2):1299-1306. doi:10.1007/s10967-020-07394-0. [CrossRef]
  24. Al-Hilal M, Abdul-Wahed MK. Soil gas radon measurements for investigating the actual status of seismic quiescence along the bounding fault of the Ghab pull-apart basin in western Syria. Geofis Int. 2018;57(3):177-187.
  25. Ptiček Siročić A, Kovač S, Stanko D, Pejak I. Dependence of concentration of radon on environmental parameters. Environ Eng. 2021;8(1-2):17-25. doi:10.37023/ee.8.1-2.3. [CrossRef]
  26. Shahrokhi A, Burghele BD, Fábián F, Kovács T. New study on the correlation between carbon dioxide concentration in the environment and radon monitor devices. J Environ Radioact. 2015;150:57-61. doi:10.1016/j.jenvrad.2015.07.028. [CrossRef]
  27. Allen VREX. AUTOMATIC EARTHQUAKE RECOGNITION AND TIMING FROM Single Traces. Bull Seismol Soc Americ. 1978;68(5):1521-1532.
  28. Allen R. Automatic phase pickers: Their present use and future prospects. Bull Seismol Soc Am | Geosci. 1982;72(6B):225–S242. Accessed April 28, 2020. https://pubs.geoscienceworld.org/ssa/bssa/article-abstract/72/6B/S225/102172/Automatic-phase-pickers-Their-present-use-and?redirectedFrom=fulltext.
  29. Bull Seismol Soc Am, 1606. [CrossRef]
  30. Geofis Int.
  31. J Environ Radioact. [CrossRef]
  32. Radiat Meas. [CrossRef]
  33. Environ Monit Assess. [CrossRef]
  34. New Phytol, 1470. [CrossRef]
  35. Environ Sci Technol, 6350. [CrossRef]
  36. J Environ Pollut Control.
  37. Sci Total Environ. [CrossRef]
  38. Geosci Instrumentation, Methods Data Syst. [CrossRef]
  39. Pure Appl Geophys PAGEOPH, 1025. [CrossRef]
  40. S.J. Bauer, W.P. Gardner HL. Real Time Degassing of Rock during Deformation. In: 50th US Rock Mechanics / Geomechanics Symposium Held in Houston, TX, USA. ; 2016:1-7. file:///C:/Users/C57.DESKTOP-ML0C8QK.000/Downloads/Bauer et al.%252c2016_ARMA.pdf.
  41. Ambrosino F, Thinová L, Briestenský M, Giudicepietro F, Roca V, Sabbarese C. Analysis of geophysical and meteorological parameters influencing 222Rn activity concentration in Mladeč caves (Czech Republic) and in soils of Phlegrean Fields caldera (Italy). Appl Radiat Isot. 2020;160. doi:10.1016/j.apradiso.2020.109140. [CrossRef]
  42. Morales-Simfors N, Wyss RA, Bundschuh J. Recent progress in radon-based monitoring as seismic and volcanic precursor: A critical review. Crit Rev Environ Sci Technol. 2020;50(10):979-1012. doi:10.1080/10643389.2019.1642833. [CrossRef]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.
Copyright: This open access article is published under a Creative Commons CC BY 4.0 license, which permit the free download, distribution, and reuse, provided that the author and preprint are cited in any reuse.
Prerpints.org logo

Preprints.org is a free preprint server supported by MDPI in Basel, Switzerland.

facebook logotwitter logolinkedin logo
bsky
MDPI Initiatives
Important Links
Subscribe

Disclaimer

Terms of Use

Privacy Policy

Privacy Settings

© 2025 MDPI (Basel, Switzerland) unless otherwise stated
