Assessment of Two Materials as Adsorbents for the Effective Removal and Further Pre-concentration of Gallium from Aqueous Solutions: Mesoporous Carbon vs Clinoptilolite

1. Introduction

The industrialization and the use of semiconductors in many electronic devices have made gallium a hi-tech metal, with a wide range of applications: photovoltaic cells, lights emitting diodes (LED), laser diodes, digital integrated circuit chips, etc. [1]. Recently Hong Zhou et al [2] analyzed the main applications of gallium oxide in the electronic industry and Liu et al studied the properties of gallium oxide to be applied in transistors and diodes [3]. Ramanujan et at [4] studied the properties of solar cells based on copper-indium-gallium selenide.

Gallium is a relatively rare element, which is classified as strategic metal due to its relatively scarcity and increasing use. Compared with other metallic elements, it is not so rare because it occupies the 30^th place in terms of abundance [5], with an average concentration of 19 mg/g in the Earth’s Crust [6]. However, the main drawback for its recovery is that it is uniformly distributed and, consequently, its extraction is not economical. For this reason, in many extraction processes, gallium is considered as an impurity so that it needs to be recovered from industrial processes wastes, such as flue dusts from the zinc industry or sludge from the aluminum industry [7]. Nowadays, the main source of gallium is the Bayer liquor (solution from the process to obtain aluminum from bauxite) The amount of gallium in the Bayer liquor can reach concentrations up to 100-200 mg/L of Ga³⁺ [5].

Concerning gallium market, the main world producer is China. In relation to this, it is important to highlight that, in 2019, U.S. gallium metal imports decreased by about 90% from those of 2018, most likely owing to the introduction of higher import tariffs on gallium from China and the 300% increase of gallium imports from China in 2018 before the tariffs were introduced [8].

The recovery of gallium from Bayer liqueur can be performed by different processes depending on the bauxite plant: solvent extraction, ion exchange resins and adsorption or chemical precipitation. These processes are some of the most commonly used but they have some limitations such as environmental problems or high costs [9]. Recently, Jadhav and Hocheng [10] studied the recycling metals from industrial wastes; however, on the contrary to lead, tin or indium, the possibility of recover gallium from industrial waste is quite difficult.

So, to overcome the previously described limitations, adsorption can be considered as a reliable alternative. An adsorption process does not allow a direct recovery of the metal; nevertheless, once the metal is bonded to the solid, the desorption process allows the pre-concentration of the metal which was initially presented in trace amounts in waste waters, so that it is possible to finally recover it more economically by means of other technologies such as extraction [11]. Additionally, adsorption processes can be relatively cheap, depending on the adsorbent price.

Among the most employed adsorbents for metal recovery are natural zeolites and carbons. Natural zeolites are cheap materials due to its high availability. Clinoptilolite, the most common natural zeolite, is an aluminosilicate with the following general chemical formula: (Na,K,Ca)₄Al₆Si₃₀O₇₂·24H₂O. Its crystal structure presents a 3-dimensional framework which develops a pore and channels system occupied by hydrated cations, that make this material suitable for removing metals from wastewater [12]. This material has been widely employed to remove metal ions from aqueous solutions. Zanin et al [13] employed clinoptilolite, which showed high capacity to adsorb Cu²⁺, Cr³⁺ and Fe³⁺, removing 95%, 96% and 85% respectively at pH 6. As well as this, Cu²⁺ and Cd²⁺ adsorption using spherical mesoporous silica has been also studied, obtaining a removal of 80% and 20%, respectively by Liang et al [14]. More recently Pb, Zn, Cd and Cu ions were successfully recovered from aqueous solutions, employing Na exchanged clinoptilolite [15]. It is important to point out that, due to its adequate properties as adsorbent, clinoptilolite has been employed for the removal of not only metal but many different compounds. In fact, it has been recently used for the removal of asphaltenes [16] and antibiotics [17].

In relation to carbonaceous materials, they are typically more expensive than zeolites; nevertheless, they have a higher specific surface area due to their disorganized and porous structure, which enhances their capacity as adsorbents. Among the carbonaceous materials, activated carbons are especially due to their surface chemistry is plenty of oxygenated groups: carboxyl, phenolic, and carbonyl, which promote the adsorption phenomena because it favors the electrostatic interactions mechanism with protons in oxygen functional groups [18]. However the dominance of micropores in activated carbons hinders diffusion so the attention has been recently devoted to new carbonaceous materials, such as carbon nanotubes and ordered mesoporous activated carbons [19]. Ordered mesoporous carbons have relatively uniform pore sizes and large pore volumes; these characteristics make them good adsorbents and suitable for other applications. In literature, several authors have employed these materials to remove metals from aqueous solutions: Kyzas et al were capable of removing [20] the 92% of the cobalt in aqueous solution in 180 minutes, using activated carbon synthesized from waste potato carbonization. Odisu et al [21] employed activated carbon from palm, coconut and groundnut shell to remove Zn, Fe, Pb and Ni from cement wastewater. More recently Yunus et al [22] employed activated carbon from honeydew peels to remove chromium and zinc from acid mining effluents, and Nejadshafiee and Islami [23] employed activated carbon from pistachio shell to retain heavy metals form the cooper industry.

When talking specifically about gallium adsorption, the number of contributions is much lower than for other metals. Suryavanshi and Shukla [5] employed oxidized coir to adsorb Ga³⁺. With this material the percentage of removal at pH 3 was 71%. Chegrouche and Bensmail [11] researched the gallium adsorption on bentonite. The results obtained by these authors were very promising since the percentage of Ga³⁺ adsorbed was 99% at 2.5 pH with 25g/L of bentonite dosage. Roosen et al [24] used a chitosan-silica matrix impregnated with 8-hydroxyquinoline and 8-hydroxyquinaldine, as adsorbent for the selective recovery of Ga³⁺ from a synthetic Bayer liquor solution, reaching equilibria in 8 hours with an adsorption capacity of 26.49 mg/g. Hassanien et al [25] studied the adsorption to pre-concentrate Ga³⁺ for its recovery by solvent extraction. They employed amino silica gel functionalized with 2-hydroxy-5-(2-hydroxybenzylideneamino) benzoic acid, which removes between 95-100 % of Ga³⁺ in aqueous solution. Additionally, Zhao et al [26]) synthesized a CoFe₂O₄−Zeolite material, adsorbing the 90 % of the Ga³⁺ in aqueous solution. Moreover, Zhang et al [27] proposed carboxyl-functionalised materials based on natural corn stalk to use it to remove gallium, obtaining a maximum adsorption capacity of 139.56 mg/g.

The main objective of this study is to compare the adsorption capacity and the adsorption mechanism of two different sort of materials to evaluate which one would be more suitable to pre-concentrate gallium from an aqueous solution so that it could be possible to recover it by other techniques such as solvent extraction. The criteria to select the material for future experiments in continuous mode will be the kind of adsorption, the adsorption mechanism and the process limiting step. The importance of pre-concentrating the metal is to recover and reuse it because of its economic impact due to either its scarcity or the wide range of applications.

2. Materials and Methods

2.1. Materials.

The clinoptilolite employed in this study was obtained from Zeocat Soluciones Ecológicas S.L.U (Barcelona, Spain). Clinoptilolite was described by the supplier as 82-86% pure. The impurities included quartz, illite and cristobalite. Regarding the chemical composition of zeolite sample, the results provided by the supplier were (wt %): SiO₂: 68.15; Al₂O₃: 12.30; K₂O: 2.80; CaO: 3.95; Na₂O: 0.75, MgO: 0.90; Fe₂O₃: 1.30; TiO₂: 0.20. The Si/Al ratio of the sample calculated from this composition is 4.70, which is within the typical range for clinoptilolite [12]. To modify the zeolite hydrochloric acid (HCl, 37%) supplied by Fluka was employed.

The mesoporous carbons were synthesized using silica gel (SiO₂, ≥99 %) of 60 Å and 40-63 μm particle size and 150 Å with 250-75 μm particle size, sucrose (C₁₂H₂₂O₁₁, 99.5%), and hydrofluoric acid (HF, 40 %), all provided by Sigma Aldrich, and sulfuric acid (H₂SO₄, 98%) supplied by Panreac.

Gallium (III) nitrate hydrated (Ga(NO₃)₃, ≥99.9%), employed as gallium source, was provided by Sigma Aldrich. Sodium chloride (NaCl, 99.5%), purchased from Fluka, was employed to study the ionic strength, and nitric acid (HNO₃, 69.5%), supplied by Carlo Erba, was used to adjust the pH. Finally, all the solutions were prepared using ultrapure water (Elga Veolia purification unit).

2.2. Adsorbents.

In this article, two adsorbents of different nature have been tested: two mesoporous carbons and a natural zeolite. The synthesis, conditioning and characterization of the adsorbents are shown in the following paragraphs.

Synthesis of mesoporous carbons

The synthesis of both ordered mesoporous activated carbons was carried out, according to previous works [28], using sucrose as carbon source and commercial silica gel as template. Firstly, the silica gel was impregnated with an aqueous solution of sucrose and sulfuric acid. After this, the sucrose polymerization and the pre-carbonization were carried out heating the solution to 100 ºC for 6 h and 150 ºC for another 6 h. Afterwards, the material was carbonized at higher temperature in N₂ atmosphere. Finally, the silica gel template was removed using a 25 wt. % HF aqueous solution of HF and, after that, the material was washed with ethanol and deionized water. Two different activated carbons (MCSG60A and MCO1) were synthesized with a sucrose/silica gel weight ratio of 1.25 and 1.0 respectively. MCSG60A was carbonized at 800ºC for 240 minutes, while MCO1 was synthesized at milder carbonization conditions, 600ºC for 15 minutes. As for the silica gel template, MCO1 was synthesized with silica gel of 150 Å and MCSG60A was synthesized with silica gel 60 Å. The carbonization step is an important variable as it can affect the nature of the material surface.

The activation of these mesoporous carbons consists of promoting the formation of oxygenated groups on its surface. In this work, the activation was carried out heating the carbons to 450ºC and keeping them for 5h at that temperature in a slightly oxidant atmosphere (100 mL/min of a 5% of oxygen diluted in N₂ stream).

Conditioning of natural zeolite.

Before being used as adsorbent, the clioptilolite was washed with deionized water to remove its turbidity. After that, it was dried at 100 ºC for 24 h and calcined at 350 ºC (the same treatment was performed by the supplier) during 3.5 h. The calcined zeolite was sieved to obtain a 0.8-1mm particle size fraction (CPL).

Additionally, the natural zeolite was treated with HCl (H-CPL) with the purpose of improving the removal of Ga³+ ions, exchanging the cations in the bare zeolite by protons. The exchanged clinoptilolite was prepared by treating 1g of clinoptilolite with 50 mL of HCl 2M. This exchange process was performed by disposing the zeolite on a filter and adding the acid step by step over the zeolite. With this methodology, the acid attack is less aggressive than using a direct contact during 24 h. Thus, the dealumination is avoided. Afterwards, clinoptilolite sample was washed with deionized water until no Cl- was detected in the washing water. Finally, the samples were dried at 100 ºC for 24 h.

Characterization.

First, to characterize the adsorbents, their textural properties were measured by means of nitrogen adsorption–desorption isotherms at –196 ºC, using a Micromeritics ASAP-2020 adsorption apparatus. Their specific surfaces were determined using the BET (Brunauer–Emmett–Teller). The micropore volume (Vmicro) and mesoporous surface (Smeso) were obtained using the t-plot method. With the aim of studying their surface charge, Zeta potential measurements were carried out with a MALVERN Zetasizer Nano Z apparatus. To further analyze the surface chemistry of the adsorbents and know their thermal stability, thermogravimetric analyses were performed with a Setaram Labsys EVO equipment. The analyses were carried out in helium atmosphere (50 mL/min) using an Al₂O₃ crucible. The range of the temperatures employed were from 35 to 1050 ºC for the mesoporous carbon and from 35 to 700 ºC for the clinoptilolite, with a heating rate of 10 ºC/min for both materials. To complete this information, it was carried out an infrared spectrometry which provides information about the superficial chemistry. The equipment used is Thermo Nicolet Avatar 360 FTIR spectrophotometer. The crystal structure of zeolites was examined by X-ray diffraction (XRD) using a PANalytical X'Pert MPD equipment with CuKα radiation in the range of 5-70º with a step size of 0.1º. The chemical composition was analyzed by X-ray fluorescence (XRF), using an Aχios PANalytical. Additionally, the surface charge of Ga(NO₃)₃·xH₂O was also measured in order to compare it with the adsorbents.

2.3. Adsorption experiments.

The studies of metal adsorption were carried out in batch mode, with flasks filled with known concentrations of gallium ion (prepared by dissolving Ga(NO₃)₃·xH₂O in deionized water) and the proper adsorbent dosage. The flasks were stirred at constant rate and temperature until equilibrium was attained. The stirring rate was fast enough to avoid mass-transfer resistance. To know if the equilibrium was attained, two samples were taken at different times until the concentration of cobalt in two consecutive samples were the same o very close. After being taken, each sample was passed through a 0.2 µm filter to separate the adsorbent. In the case of the mesoporous carbon, due to its small particle size, the samples were additionally centrifuged at 10.900 r.p.m. The concentration of metal ion remaining in solution was determined by atomic absorption spectroscopy (Shimadzu AA-7000). The gallium adsorption capacity was estimated using Eq.1.

$$q=\frac{\left(C_0-C_t\right)·V}{m}$$

[1]

Where q (mg/g) is the amount of Ga³⁺ adsorbed per gram of adsorbent; C₀ (mg/L) is the initial gallium concentration, C_t (mg/L) is the gallium concentration after time t, V (L) is the solution volume and m (g) is the mass of the adsorbent.

The detailed procedure was used to describe the adsorption mechanism of gallium ion onto mesoporous carbons and zeolite carrying out the kinetic, isotherm and thermodynamic studies.

The percentage of associated error was expressed as the ratio between the 95% confidence interval and the average value of the repeated sample measurements (5-6 times). This error was estimated in 5%.

3. Results

3.1. Characterization of the adsorbents.

The adsorbents were characterized employing several techniques to compare the properties of the carbonaceous and zeolitic materials, and to further predict their behavior in the gallium adsorption process.

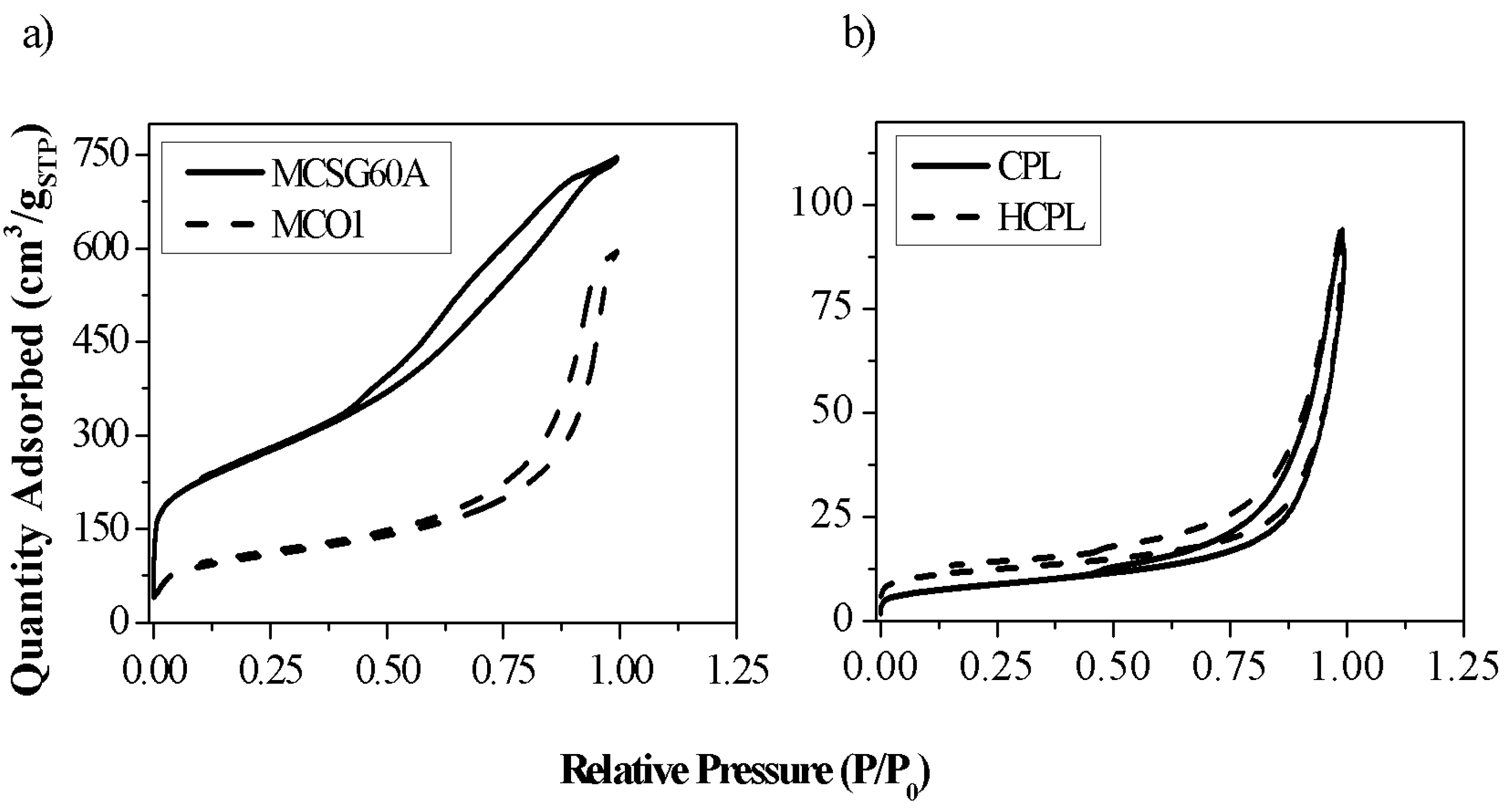

Figure 1 represents the N₂ adsorption-desorption isotherms, and Table 1 shows the values of the main parameters obtained from the analysis of the isotherms: specific surface area (S_BET), mesoporous surface (S_meso), average pore size (D_pore), specific volume (V_Specific) and mesoporous volume (V_meso) calculated as V_specific – V_micro.

The isotherms of both materials are IUPAC type IV (a), which is in agreement with literature [29], with a characteristic hysteresis loop. In the case of the zeolites, this hysteresis loop can be classified as H-3. This sort of loops is associated with materials having solid surface or aggregates of particles with slit-shaped pores. This statement is a confirmation of the nature of the clinoptilolite used in this work (a natural zeolite with different aggregates). In the case of the carbonaceous materials, the loop is an H-3 type for MCSG60A and H-2(b) for MCO1. Considering that H-2 loop is clearly broader than H-3 loop [30], the results seem coherent, taking into account that MC01 carbon was synthetized using as template 150 Å silica gel (it is expected to be more mesoporous), while MCSG60A was synthetized with 60 Å silica gel. These hysteresis loops are characteristic of complex pore structures and are associated with pore blocking and have been observed in mesoporous ordered silica after hydrothermal treatment [29].

Analyzing the results of the two kinds of materials separately, the mesoporous carbons studied, and MCSG60A, present large specific surface areas (>700 m²/g), and large pore volumes (> 1.1 cm³/g); the specific surface area of MC01 is much lower, due to its much larger pore size. It is important to enhance that around 80% of the total surface area of both materials correspond to mesoporous and macroporous surface; this highlights the mesoporous character of both materials.

In the case of the zeolites, their specific surface areas are much lower than the ones of the carbons. This is due to the presence of ions, such as sodium, calcium, or potassium, which are located along the channels of the zeolite, hindering the diffusion of N₂ molecules. H-CPL present a specific surface area larger than bare CP. This is a consequence that the acid treatment has produced loss of the larger cations attained to the zeolite (this affirmation will be verified with XRF analysis), allowing partially the passage of N₂ molecules into the channels. This passage of N₂ permitted calculating the microporous surface of H-CPL.

In order to know whether the surface of the adsorbents is negatively charged or not, Z potential analysis was employed; this technique allows quantifying the electrostatic interactions between adsorbate and adsorbent [31]. Figure 2 displays the results of the potential Z analysis. Related to this analysis, it is important to bear in mind the isoelectric point (IEP) concept. This is the pH value at which the surface charge gets null or the pH at which Z potential is zero. Consequently, the charge of the surface of the solid will be negative when the pH is above the pH_IEP, and positive when the pH is below this value. If the adsorbent is negatively charged, then it will be capable of interacting with the metal cations in solution.

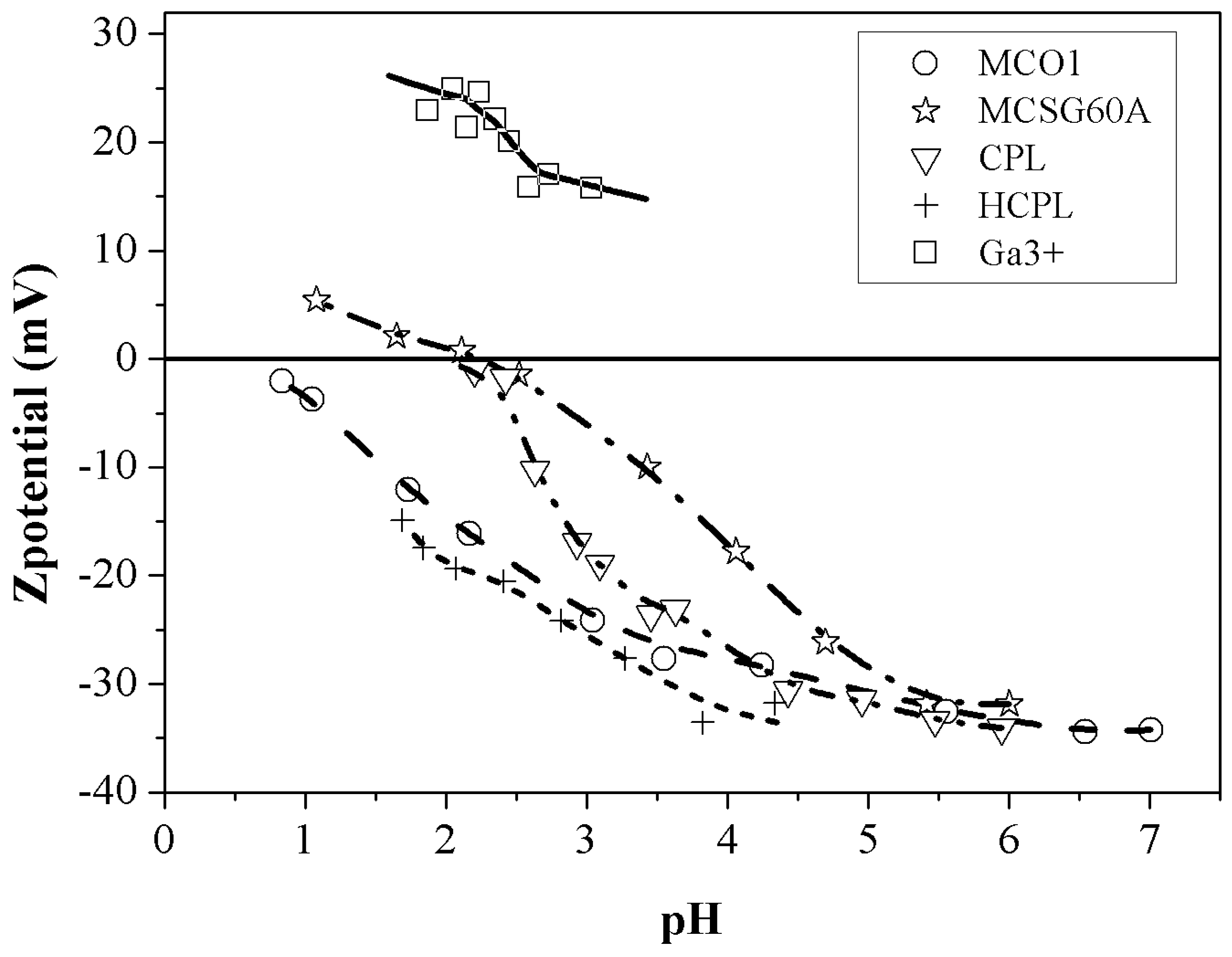

Figure 2 shows that both CPL and MCSG60A have an isoelectric point of 2.3 approximately while H-CPL and MCO1 do not present this isoelectric point. In the case of the carbonaceous materials, the presence of oxygenated groups (phenolic, hydroxylic, carboxylic, etc) contributes to a high negative charged surface on the adsorbent [32]. However, the difference in the Z-potencial value of both materials is noticeable. This behavior can be attributed to the carbonization conditions: MCSG60A was carbonized at more severe conditions than MC01. This, as it will be shown and discuss in the FTIR spectra, will affect to the intensities of the peaks, indicating that carbonization time and temperature do not affect the variety of oxygenated groups generated during carbonization, but to their relative amount. In fact, an increase in the carbonization conditions leads to a partial oxidation to aldehyde, ketone and quinone groups, responsible of the different values of Z-potential. In the case of the clinoptilolite this different behavior is due to the number of substitutions of Al for Si and also to the high positive charge deficiency [33]. Finally, regarding the zeta potential of gallium, if the pH is below 3, the zeta potential values are around 25 mV. So, considering all previously discussed, it can be concluded that Z-potential analysis can be employed as a predictive tool to determine if a certain material would be suitable for the removal of metal ions from aqueous solutions. Specifically in this case, the two materials expected to work better in the gallium adsorption process are HCPL and MCO1 due to their large negative charged surface (around -15 mV at pH values lower than 3).

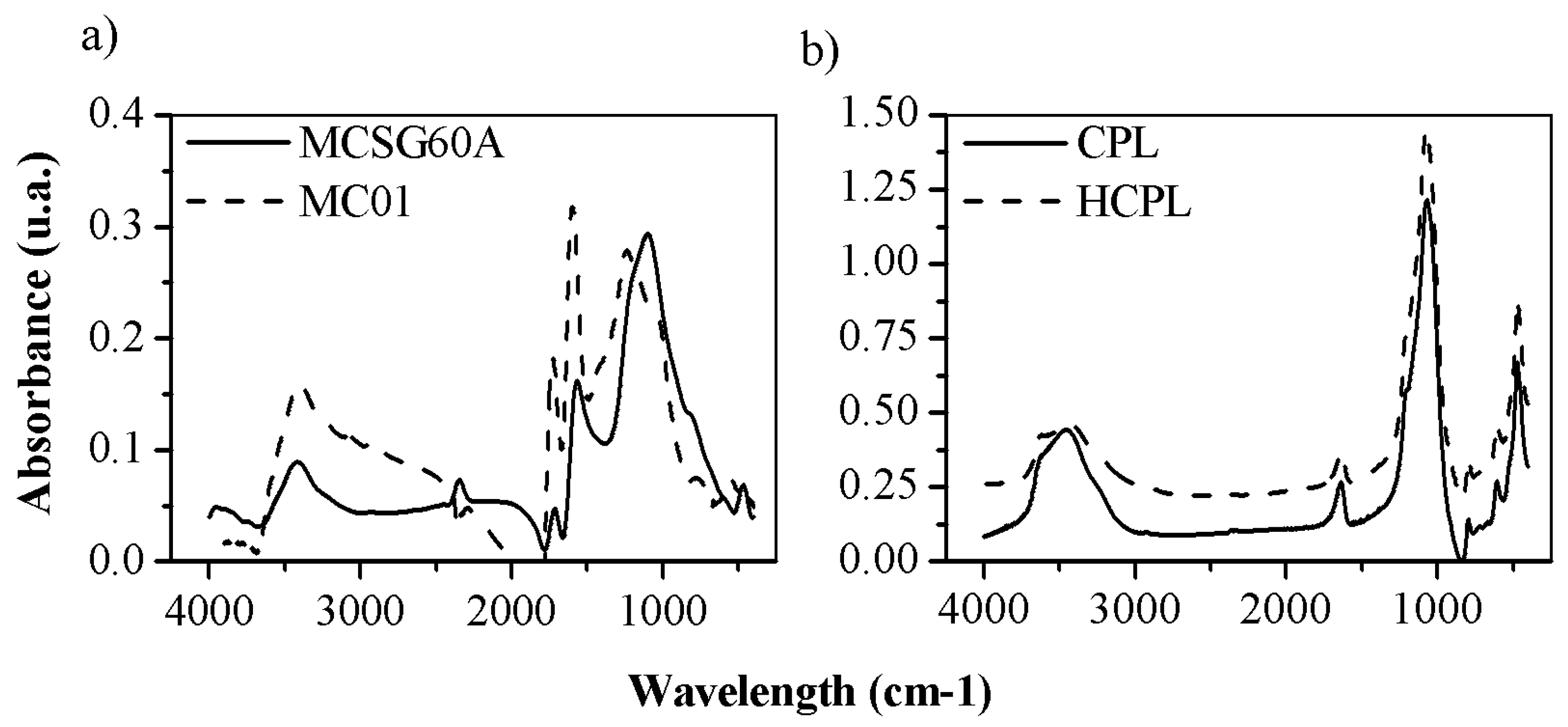

FTIR spectroscopy analysis has been used to characterize the surface chemistry of the adsorbents employed. The results of the analysis are shown in Figure 3. Due to their different surface chemistry, the results will be discussed separately.

Both carbonaceous materials showed a similar FTIR spectrum. Their peaks were numerous and high due to the presence of a wide range of oxygenated groups on their surfaces, promoted by their activation by oxidant atmosphere. The band around 1120 cm^-1 is due to the presence of –CO from carboxyl groups, as well as the -OH group of phenol structures [32]. The band observed around 1560 cm^-1 was attributed to non-aromatic carboxylic acids and lactone structures [34] and the band around 1700-1725 cm^-1 suggested the presence of carboxylic acid, C=O groups, ketones, aldehydes and benzene rings [35]. Additionally, the presence of -COOH groups was associated to the band at 2360 cm^-1 [36]. The band at 2900 cm^-1 was assigned to the C-H vibrations of aromatic and aldehyde groups. At 3400 cm^-1 the band corresponded to the O-H stretching vibrations of OH anions of the phenol hydroxyl groups, linked by hydrogen bonds with the π electrons of the aromatic ring (OH-π) [36]. To sum up, all the detected groups increased the negative charge of the surface (COOH, C=O, O-H, etc.). The main difference between both synthesized activated carbons is the bands intensity, being larger in MCO1, except for the band 1120 cm^-1. Considering what groups are attributed to each band, both materials showed carboxyl and phenolic groups as predominant. However, the peaks at 1560, 1725 and 3400 cm^-1 were larger for MCO1 than MCSG60A: this suggest that MCO1 have more carboxylic and phenolic groups than MCSG60A, and, as previously discussed in the Z-potential analysis, is a consequence that toughen the carbonization conditions leads to a partial oxidation to aldehyde, ketone and quinone groups.

Regarding zeolites results, the FTIR spectra showed in Figure 3 is typical of clinoptilolite. It can be divided in two groups: internal vibrations of T-O (T=Si and Al) and vibration of external bonds between tetrahedrons, whose peaks appear between 1200-400 cm^-1, and the bands due to the presence of structural H₂O in the range of 1600-3700 cm^-1. The spectra for both materials are very similar indicating that their original structure has not been modified by the HCl treatment.

The thermogravimetric analysis was carried out for both carbonaceous and zeolitic materials. However, only the results for carbonaceous materials are shown. The thermogravimetric analysis of the zeolites displayed a common pattern for this kind of materials: about 8% of the zeolite was lost due to dehydration and dehydroxilation.

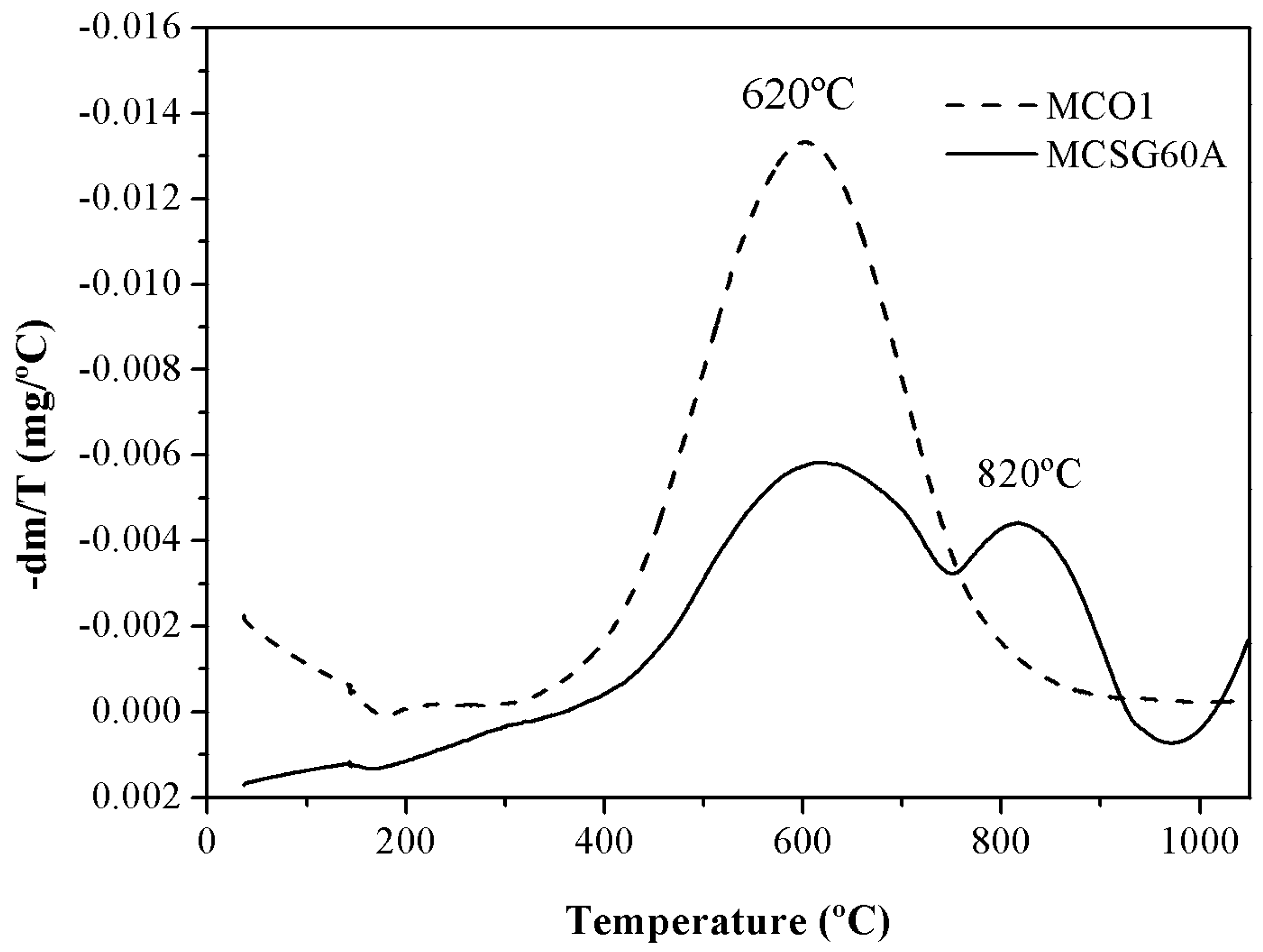

The results of the thermogravimetric analysis of the carbons are displayed in Figure 4 as DTG (Derivative of the TG curve) vs temperature plots. This analysis was carried out under inert helium atmosphere (50 mL/min) heating the samples from 35 ºC to 1050 ºC with a heating rate of 10ºC/min. A priori, a weight loss was expected in both materials, due to the decomposition of the oxygenated groups into CO and CO₂ [37].

The thermogravimetric analysis indicates that MCSG60A and MCO1 lose 15 and 35 % of their weight, respectively. However, the water desorbed is negligible in both cases, since below 400ºC there is no noticeable weight loss. So, the difference in the behavior of MCSG60A and MC01 is due to the different number of oxygenated groups in the solid surface of both carbons, since these groups dissociates with temperature. Another important aspect to consider is that, as show in the DTG curve, the decomposition temperatures vary from one carbon to the other: MCO1 showed marked an important weight loss around 620ºC assigned to decomposition of a high quantity of phenolic groups [37]. MCSG60A exhibited two weight losses: between 500-750ºC, attributed to phenolic groups, and another in the interval 650-950ºC due to the decomposition carbonyl groups. This is agreement with the previously mentioned: more sever carbonization conditions lead to a partial oxidation to aldehyde, ketone and quinone groups.

Finally, in the case of the zeolitic materials, two additional analyses were carried out: X-ray fluorescence (XRF) to analyze the chemical composition and X-ray diffraction (XRD) to study the morphology. The XRD results are shown in Figure 5 while the XRF results are shown in Table 2.

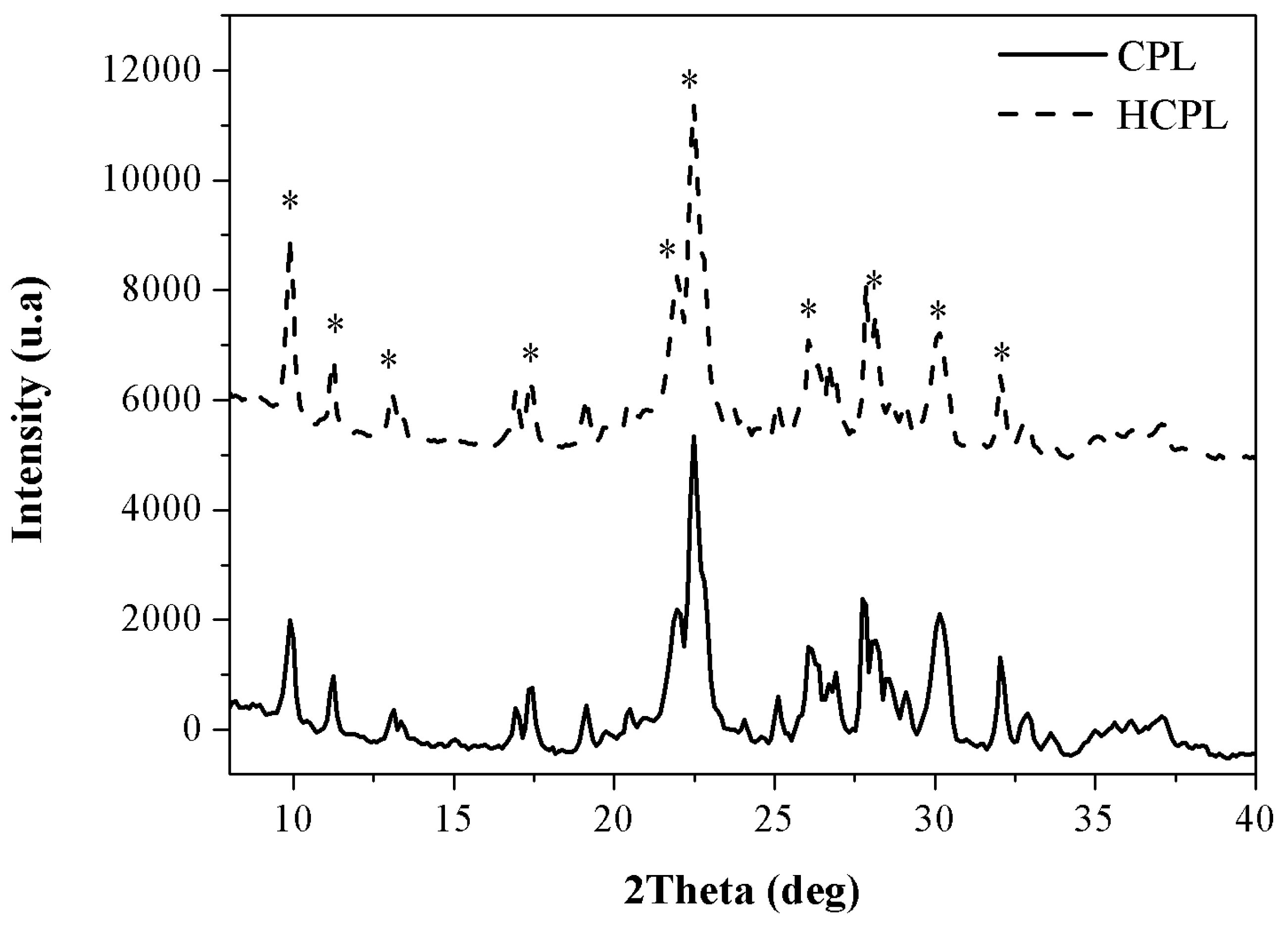

The XRD results reveal that the materials employed present the characteristic peaks of clinoptilolite (*) agreeing with the FTIR results obtained [38]. The intensity of the peaks is very similar for both materials, so it can be concluded that the relation Si/Al is kept constant (an increase in Si/Al implies a reduction in the intensity) and the exchange of initial cations by protons has not been completed (exchanging larger cations like calcium or potassium by protons produces an increase in the intensity). This statement will be confirmed with XRF results.

The elemental composition analysis shows that two clinoptilolite contains exchangeable ions as sodium, potassium, and calcium. The silicon to aluminum ratio ranges from 6.06 to 6.49. The difference between these values can be considered negligible and it can be concluded that the zeolite treated with acid has not suffered dealumination process. Regarding the quantity of hydronium ions exchanged, the miliequivalents ratio between cations and aluminum was calculated. As can be seen, these ratios are very similar for both materials indicating that the protonation has not been very high. These results coincide with XRD and FTIR results.

3.2. Gallium adsorption.

Firstly, before starting the experiments, the speciation diagram of gallium has to be considered. Gallium precipitates as gallium hydroxide at pH beyond 3 (3.2 approximately) [39]. For this reason, all the experiments are carried out in a range of pH between 1.5 and 3. In the case of the carbonaceous materials, this situation is not a problem because they reduce the pH at value lower than 3 due to the phenolic groups in their structure; however, in the case of the natural zeolites is necessary either to add acid to the solution to reduce the pH or to modify the zeolite with an acid treatment, because clinoptilolite in a suspension tends to increase the pH until values between 7-9 [33]. Next sections show the adsorption kinetic and isotherms for each material together with the thermodynamic study for the gallium adsorption.

Adsorption Kinetic.

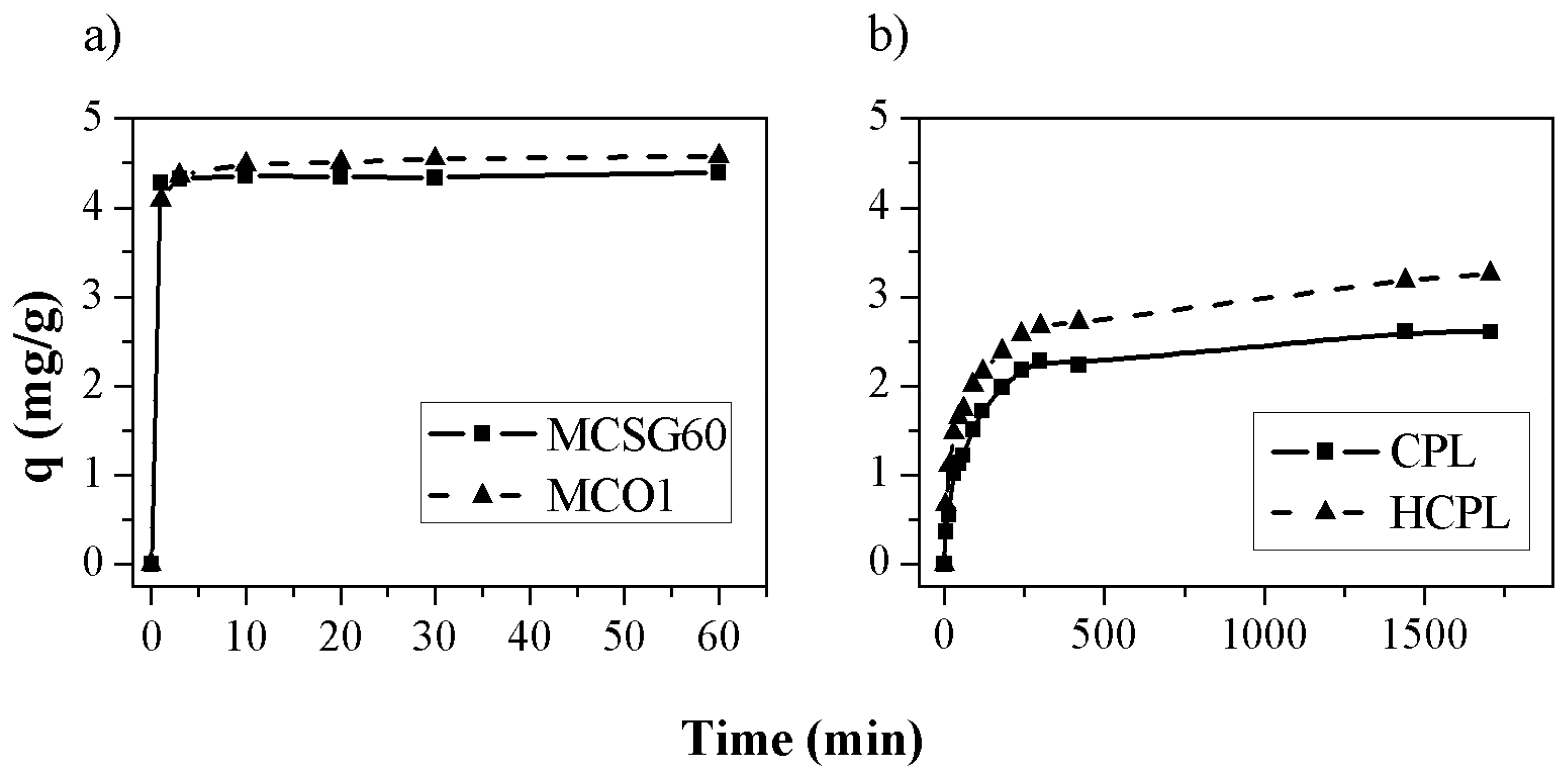

The adsorption kinetics were carried out for the four materials. The results obtained are shown in Figure 6. In the case of mesoporous carbons and HCPL the adsorption kinetic was carried out at free pH (it was not necessary to add acid to keep the pH below 3.2, but for CPL it was necessary to add HNO₃ to reach an initial pH of 2.2 (maximum value of pH at which the zeolite did not increase the pH to higher values than 3.2) in order to assure that all the gallium in water solution is in its ionic form.

As can be observed, the adsorption capacity is larger for the carbonaceous materials. A plausible explication is their high specific surface compared with zeolites (Table 1). If the results are analyzed separately, in the case of the mesoporous carbons, the results are very similar for both materials, reaching an adsorption capacity of 4.58 and 4.40 mg/g for MCSG60 and MCO1, respectively. This slight difference could be associated with the surface chemistry of each material. MCO1 has more oxygenated groups than MCSG60A so its surface is more negatively charged, as can be observed in the Z Potential results (Figure 2). So, despite of its lower specific surface (365 m²/g for MCO1 and 911 m²/g for MCSG60A), this adsorbent can remove more gallium mainly thanks to its negatively charged surface, while MCSG60A reach quite similar values, mainly due to its larger specific surface which is also negatively charged. Thus, in the case of carbonaceous materials the most important aspect is the presence of oxygenated group which promotes a negative surface charge.

For the zeolites, HCPL has the largest adsorption capacity, which is a 33 % higher than natural clinoptilolite. The main reason for this is that HCPL has been treated with HCl so it is not necessary to add acid to keep a pH below 3.2 while in the case of CPL is necessary to add acid until a pH of 2.2, consequently, there is a competition between protons and gallium. This is caused by the poorer results obtained: the clinoptilolite adsorbs firstly the H⁺ due to its ionic radius and ionic mobility [40].

To investigate the gallium adsorption mechanism on these materials, the adsorption kinetic data were fitted to different kinetic models (Table 3):

Where, q and q_e are the gallium adsorption capacities of the adsorbent at time t and at equilibrium respectively (mg/g) k₁ is the rate constant of first order (min^-1); k₂ is the rate constant of second order (min·g/mg); β and V₀ are the desorption constant and the initial adsorption rate respectively.

The pseudo second order model also allows the estimation of additional parameters, such as the initial adsorption rate (h) and the time when it reaches the 50% of the maximum adsorption capacity (t_1/2):

$$h=k_2·q_e^2$$

[5]

$$t_{1/2}=\frac{1}{k_2·q_e}$$

[6]

To analyze the goodness of the fittings, correlation coefficient (R²) and Root Mean Squared Error (RMSE) were employed. The RMSE is calculated using the next expression:

$$RMSE=\sqrt{\frac{\sum _{i=1}^n{\left(y_{exp,i}-y_{calc,i}\right)}^2}{n}}$$

[7]

Where y_exp,i is the experimental value of the variable “y” (q_e, t/q or ln(qe-q)), y_calc,i is the predicted value and n is the sample size.

The determined kinetic parameters obtained after fitting the experimental data (Figure 6) to the different models are displayed in Table 4. The results indicate that the gallium adsorption follows the pseudo-second order kinetic model due to the higher correlation coefficient (R²) and low value of RMSE (attending to the y-axis scale), compared with the values obtained using both pseudo-first order model and Elovich model. This is also confirmed by the fact that the values of experimental adsorption capacity are very similar to that obtained by the model. The fact of this model fits the gallium adsorption results, implies that the rate-determining step may be the sorption because this model is based on this assumption. This affirmation will be further verified with Weber and Morris model.

Comparing the parameters of the pseudo-second order model (h and t_1/2) calculated for both materials, it can be observed that the adsorption kinetic is much faster for carbonaceous materials: the time to reach the 50% of the maximum adsorption capacity is 0.16 min for the carbons while for the zeolites is 50 min. This fact agrees with the kinetic constant. This difference is accounted in terms of their pore sizes. Furthermore, the synthesized carbonaceous materials are mesoporous, with an average pore size of 60 and 270 Ǻ, while these zeolitic materials are microporous with a pore size of 4-9.5 Ǻ [44]. The hydrated radius of the gallium ion is 4.70Ǻ so it is easier the adsorption in the carbons materials because the pore size is large enough to ensure the entrance of the gallium ion.

Nevertheless, the assayed models do not describe the diffusion mechanism. The intra-particle diffusion model developed by Weber-Morris is used for further analyzing the gallium adsorption process. This model is described by the following rate equation [45]:

$$q=k·t^{0.5}+C$$

[8]

Where k is the diffusion rate constant (mg·g^-1·min^0.5) and C is the intercept at the ordinate (mg/g). If the plot q vs t^0.5 gives a straight line and crosses the origin it can be assumed that the intraparticle diffusion is the rate-controlling step. However, if the data shows multi-linear plots, then two or more steps influence the sorption process. The adjustment to Weber-Morris equation is shown in Figure 7 and the fitting parameters obtained in Table 5:

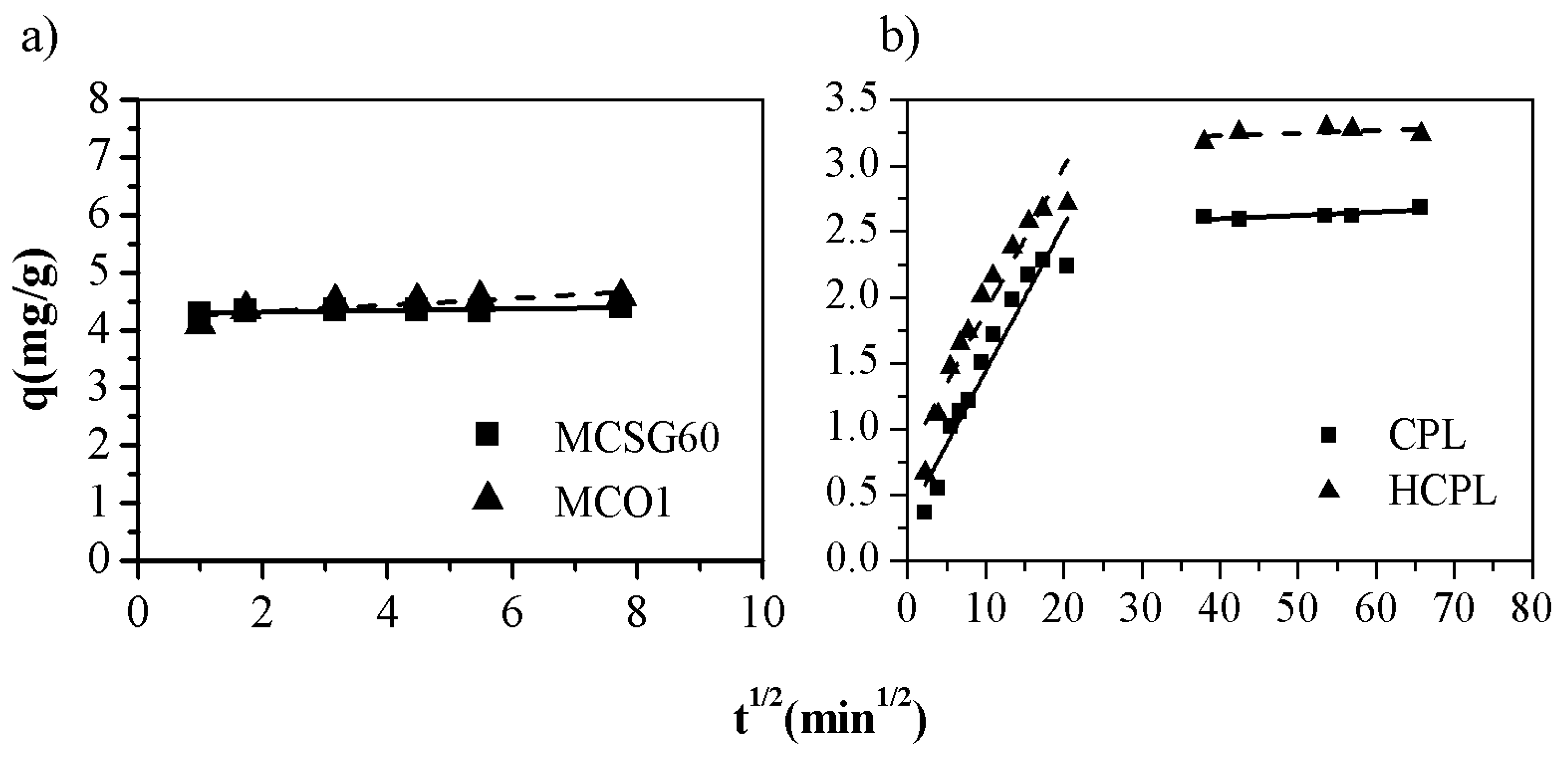

As it can be observed in Figure 7, in the case of clinoptilolite, the plots of q vs t^0.5 they describe two straight segments while in the case of carbonaceous materials, the plots give only one segment. So, it can be concluded that, in the case of the mesoporous carbons, the controlling step is the adsorption reaction as the pseudo-second order model predicted. Regarding the gallium adsorption on zeolitic materials, the results are completely different. In this case, the data can be perfectly fitted to Weber-Morris model. The plot (Figure 7) shows two linear sections: before and after 30 min^0.5. The first section can be assigned to the diffusion of the gallium ions through the solution to the external surface of the adsorbent while the second segment reflects a gradual adsorption step, which is characteristic of the intraparticle diffusion of Ga³⁺ into the clinoptilolite channels. Therefore, two additional steps affect the rate of the gallium removal apart from the adsorption process but only one of them is important in a particular time region. The slope of each linear segment points out the rate of the corresponding process. As K_I and K_II show in Table 5, it could be assumed that the external diffusion occurs faster than the intraparticle diffusion. This fact is observed for both zeolites whose K_I and K_II values are quite similar between them. Additionally, the second segment does not cross through the origin (C>0), meaning that the intraparticle diffusion, although important at longer contact time periods, is not the limiting step in the adsorption process being the adsorption reaction the controlling step.

Adsorption Isotherm.

In this section, the gallium adsorption isotherms, which are one of the most important data to describe the interaction mechanism between adsorbent and adsorbate, will be analyzed. The equilibrium will only be studied for the best gallium adsorbents, which are MCO1 and HCPL. The adsorption equilibrium isotherms of MCO1 and HCPL are shown in Figure 8. The isotherms were carried out at initial gallium concentrations from 10 to 140 mg/L.

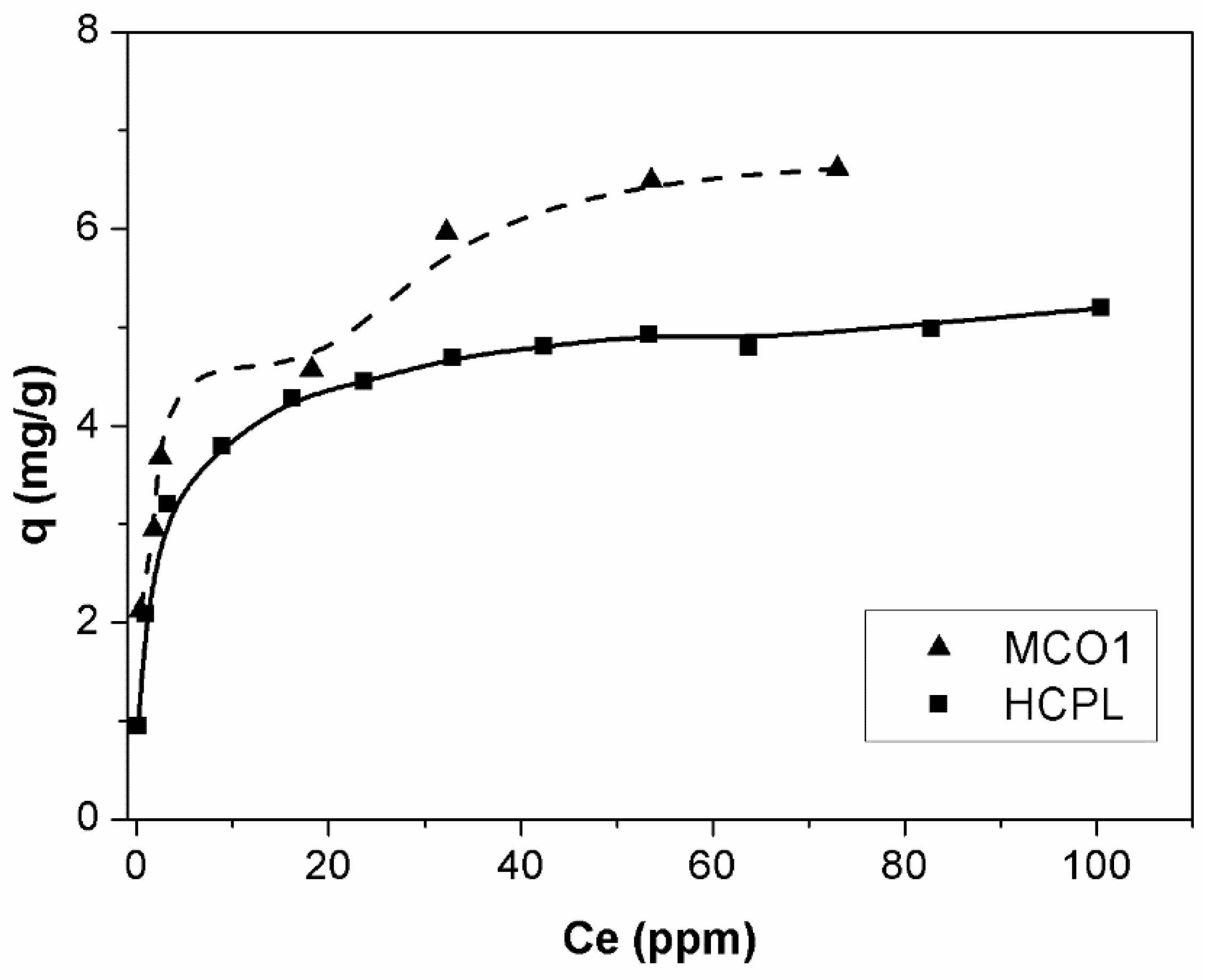

As Figure 8 shows, the isotherms are completely different, depending on the material studied. According Giles classification [46], the isotherm for MCO1 materials is an H-4 type. This shows that the gallium is adsorbed on the adsorbent surface by multilayer disposition, which is related to the high affinity between adsorbate and adsorbent. This kind of isotherm is typical of the adsorption of large molecules, such as enzyme or dyes. Besides, ions which are easily exchanged with other on the adsorbent surface, can promote a second stage of adsorption. In the case of the HCPL material, the isotherm is L-2 type. These isotherms have a convex shape at low concentration with one plateau which indicates the saturation of the material [47]. The main difference of these two kinds of materials could be associated with the fact that MCO1 has on its surface a large number of oxygenated groups, mainly phenolic, which seems to be the key of its high affinity to adsorb Ga³⁺. In the case of the zeolite, this multilayer disposition does not seem to be possible, due to the large charge of the gallium or its large size, preventing the reorientation of the gallium ions.

According with Giles classification, the models that could describe these isotherms are [47]. These models are shown in the Table 6:

C_e (mg/L) is the concentrations of Ga³⁺ in the equilibrium; b_L (L/mg) is a constant which describes the affinity between adsorbent and adsorbate; q_e (mg/g) and q_sat (mg/g) are the equilibrium adsorption capacity and the maximum adsorption capacity on the monolayer, respectively; K_F (L mg^-1) and n_F are constant parameters of the Freundlich model. The value 1/n_F is an empirical constant assigned depending on the strength of the adsorption process and the surface heterogeneity; b_S (L mg^-1) and n_S are empirical constants; q_sat1 and q_sat2 (mg/g) represent the maximum capacity of adsorption for the first and the second layers, respectively; K₁ (L/mg) and K₂ (L/mg) indicate the affinity between adsorbate and adsorbent in the first layer and in the second layer, respectively; A and Β are constants.

The experimental data were fitted with the corresponding model equation bearing in mind their type. For MCO1 material (isotherm H-4 type) the models used were Double Langmuir and Freundlich; while for HCPL the models used were Langmuir, Freundlich and Sips. The fitting parameters are shown in Table 7.

Due to the difference between the isotherms the fitting parameters cannot be compared. So, the results will be analyzed separately. Firstly, MCO1 isotherm was adjusted to Double Langmuir and Freundlich models. The correlation coefficient as well as RMSE values of the adsorption isotherms determine that the adsorption data of Ga³⁺ onto carbon fits properly. However, the Double Langmuir model could be considered like the best fitting because it considers that the adsorbate locates on the surface following a multilayer disposition. This multilayer could be explained by two different causes: the adsorbent could regroup on its surface to adsorb more metal ions, or its high affinity with gallium ions is so strong that these ions form another layer over the previously formed on the adsorbent surface. Regarding HCPL results, the isotherm was adjusted to Langmuir, Freundlich and Sips models. The correlation coefficient and RMSE values show that the best fitting is reached by Sips model. The calculated value of q_s is close to the experimental one, so this is also indicative that Sips model can describe the adsorption of Ga⁺³ onto clinoptilolite. Regarding the parameter n_s, its inverse (1/n_s) can give an idea about the distribution of binding sites. When 1/n_s is close to zero indicate a heterogeneous sorbent while values closer to 1 indicate a relatively homogeneous distribution. If the value is 1, Sips isotherm coincides with Langmuir equation. The 1/n_s value obtained for the gallium sorption is 0.62, so the clinoptilolite has a homogenous distribution of the binding sites.

Finally, if the saturation capacity of both materials is compared, it can be observed that carbonaceous materials can adsorb more Ga³⁺. This is due to their capacity of redistributing the Ga³⁺ ion on its surface, because up to the inflection point the adsorption capacity is almost the same for the materials studied.

Temperature Influence.

The influence of temperature on the gallium adsorption was studied by varying the temperature from 25 to 70ºC. The results of this study are shown in Figure 9:

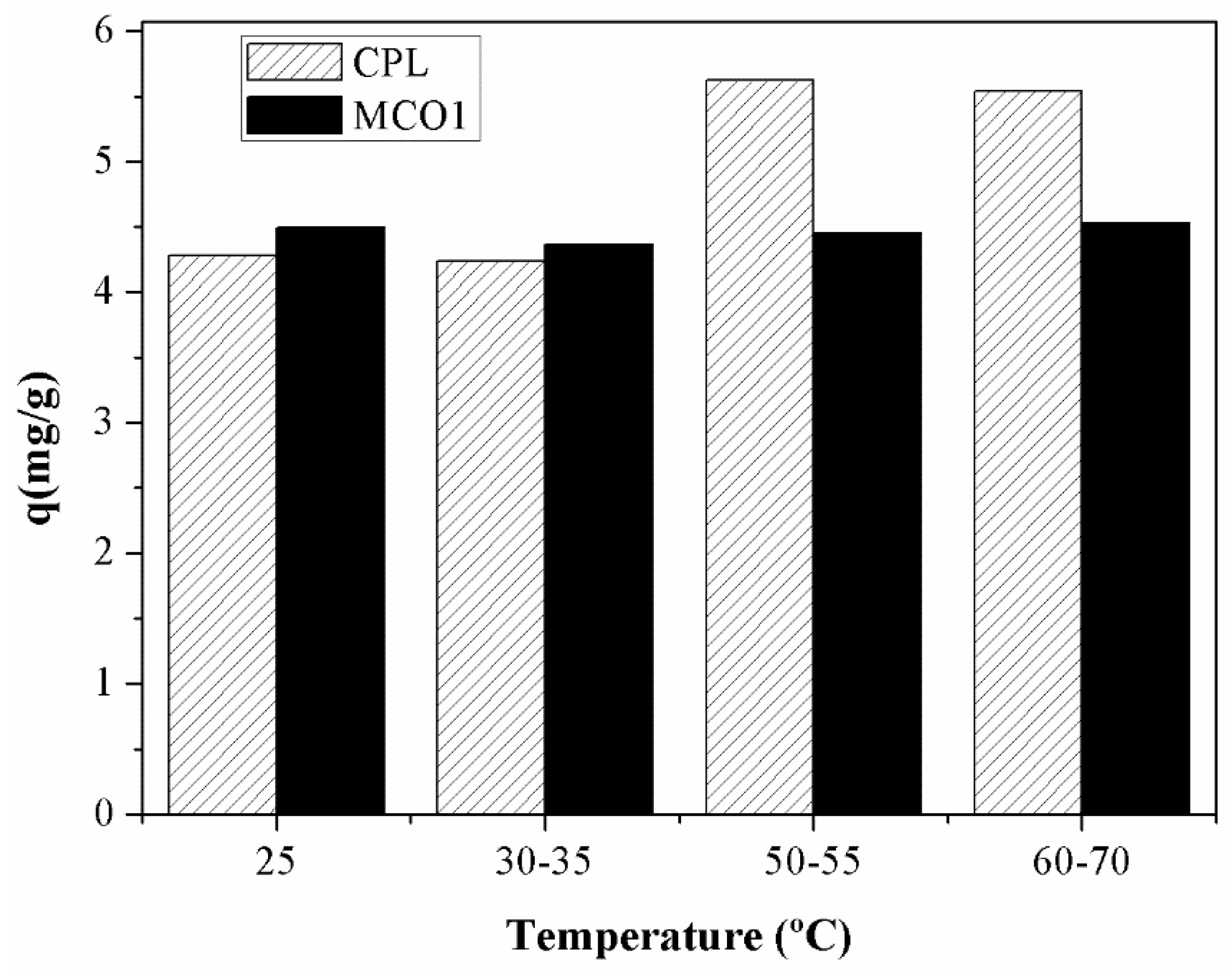

As the previous figure displays, the effect of the temperature is very different depending on the material employed. In the case of MCO1 material, the effect is insignificant, the adsorption capacity varies an 8% in 45 ºC while in the case of HCPL material the effect of the temperature in the adsorption is very important. As it can be observed in Figure 9, at low temperature, the carbonaceous material works better, removing a larger quantity of gallium ions at the same conditions. However, if the temperature is higher, the material which remove more metal ions is HCPL. With the objective of understanding the effect of increasing the temperature of the adsorption of Ga³⁺ on the different materials studied, three thermodynamic parameters were studied: the Gibbs free energy (ΔG⁰), the enthalpy change (ΔH⁰) and the entropy change (ΔS⁰). The equations used to calculate these parameters are the following:

$$K_C=\frac{C_0-C_e}{C_e}$$

[14]

$${∆G}^0=-R·T·\ln K_C$$

[15]

$${∆G}^0={∆H}^0-T·{∆S}^0$$

[16]

$$-\ln \left(K_C\right)=\left(\frac{{∆H}^0}{R}\right)·\frac{1}{T}-\frac{{∆S}^0}{R}$$

[17]

Where Kc is the equilibrium constant; C_o (mg/L) is initial concentration of Ga³⁺; C_e (mg/L) is the concentration at equilibrium; R is the universal gas constant (8.134 J/K$·$mol) and T(K) is the temperature [51].

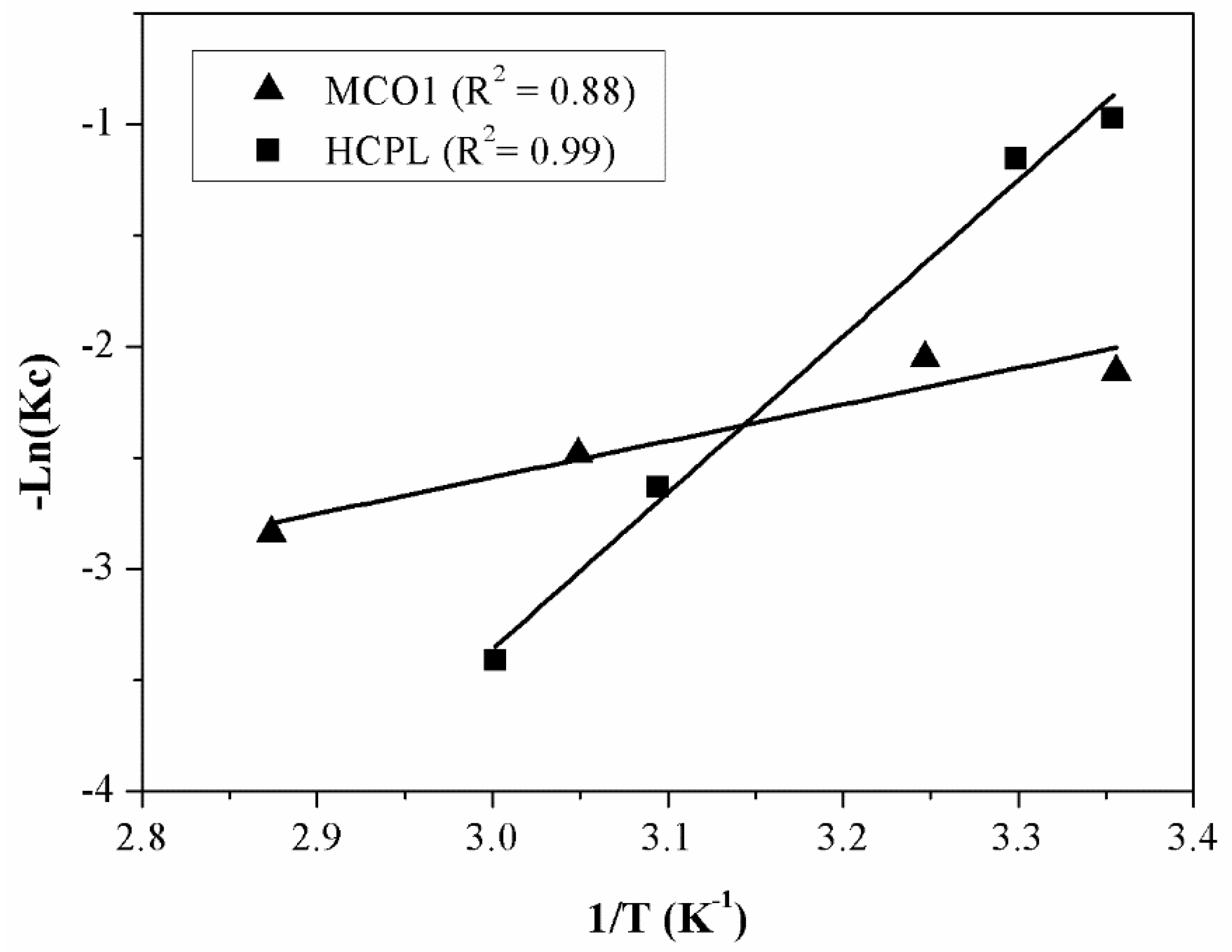

Figure 10 displays the adjustment to equation 17, to obtain the thermodynamic parameters. With the equation obtained from the linear fitting, the thermodynamic parameters are calculated. These parameters are shown in Table 8.

As it can be seen from Table 8, ΔH⁰ values are found to be positive for two materials due to the endothermic nature of the adsorption. The magnitude of ΔH⁰ may also give an idea about the sort of adsorption. The heat evolved during physical adsorption is of the same order to magnitude as the heats of condensation (2.1-20.9 kJ/mol), while the chemisorption heat generally falls into a range of 80-200 kJ/mol [52]. Therefore, observing Table 8, gallium adsorption on MCO1 can be attributed to a pure physical adsorption process while gallium removal by clinoptilolite can be attributed to a physico-chemical adsorption process rather than a pure physical or chemical adsorption process or an ion-exchange process. A positive value of ΔS⁰ can be associated with structural changes in the interface between adsorbent and adsorbate.

Finally, regarding ΔG⁰, negative values indicate the spontaneous nature of the reaction. The adsorption is favoured, and it gets easier at higher temperatures. In the case of zeolites this phenomenon becomes clearer.

Comparative between the materials assayed.

Up to this point, the behaviour of both materials has been studied, evaluating their kind of adsorption, their mechanism, and their adsorption capacity. To decide what material would better to be used in a fixed bed, to pre-concentrate a continuous gallium inlet stream, the results obtained throughout the study have been collected. They are shown in Table 9:

As can be observed, the carbon MCO1, has better gallium adsorption capacity than the zeolite and the type of sorption is physical, so either the regeneration of the material or pre-concentration of gallium will be easier than using zeolite as adsorbent. Nevertheless, the zeolite is the best option to be used in a fixed bed because it is cheaper, and its particle size is more suitable than the carbonaceous material. Additionally, the zeolite is commercially available in a wide variety of sizes, which will allow designing a bed, which could be more easily scalable to the industrial size. In the case of the carbon, to employ it in a fixed bed, it would be necessary to agglomerate it. A possible solution could be to create a hybrid material composed by HCPL and MCO1. In this way, it could be combined the best properties of both materials.

4. Conclusions

In this study, the behaviour of two different adsorbents have been tested regarding the gallium adsorption from synthetic water. The main conclusions obtained from this work could be summarized in the following points:

-

The carbonaceous materials have a larger specific surface area than the zeolitic materials. Their pores are well defined, and their pores are wide enough to guarantee the entrance of gallium ions. In the case of zeolites, their pores are not as well defined, but its strength is the ion exchange.

-

MCO1 material is the best gallium adsorbent between both carbonaceous materials studied, due to its chemistry properties. Meanwhile, for zeolites, the best results were reached for the zeolite treated with acid (HCPL), since the adsorption of gallium could be carried out at free pH, avoiding the competition between protons and metal ion.

-

All the material studied have shown that the adsorption of Ga3+ follows the Pseudo-second order kinetic model. The gallium diffusion process inside the materials is different compared to the gallium adsorption on carbonaceous materials. In all carbonaceous materials assayed, the limiting step is the adsorption process but in the case of the zeolite has also some diffusional limitation depending on the region of time.

-

The adsorption equilibrium is better described by Double Langmuir for the MCO1 and Sips for HCPL. The saturation capacity reached is 6.5 and 4.9 mg/g for MCO1 and HCPL, respectively.

-

The thermodynamic parameters indicate the endothermic and spontaneous behaviour of the gallium adsorption process at 25 – 70 ºC for both materials.

-

The type of adsorption observed for MCO1 material is physisorption while for HCPL it is physico-chemical adsorption or ion-exchange.

-

The MCO1 has shown better results for gallium removal than the zeolite. Its mechanism, properties and type of sorption make it suitable for the pre-concentration of gallium, and consequently it facilitates its recovery. However, the material has disadvantages like its price and particle size. For these reasons, it can be employed the strengths of each material synthesizing a hybrid material.
