A Rigid-Body Pendulum Model for Plyometric Push-Up Biomechanics: Analytical Derivation and Numerical Quantification of Flight Time, Arc Displacement, Maximum Height, and Mechanical Power Output

1. Introduction

Upper-body muscular power is a fundamental determinant of athletic performance across a wide spectrum of sports, including combat sports, swimming, throwing events, gymnastics, and rugby, and its accurate assessment carries direct implications for talent identification, training program evaluation, and fatigue monitoring in competitive populations [1,2,3]. In contrast to the extensive body of literature characterizing lower-body explosive capacity through vertical jump testing, the evaluation of upper-body power remains methodologically less mature, constrained by a comparatively smaller number of validated assessment tools and by longstanding conceptual inconsistencies in how those tools are applied and interpreted. The principal challenge is the absence of a standardized, field-deployable test that is simultaneously physically valid, analytically tractable, and free of systematic measurement bias. Addressing that challenge requires not only sound instrumentation but also a mechanically accurate kinematic model capable of translating raw observational data, such as flight time, into performance indices that correctly represent the underlying physics of upper-body ballistic motion.

The most widely established methods for assessing upper-body explosive power are the seated medicine ball throw, the bench press throw, and, more recently, the ballistic push-up (BPU). Each presents logistical or conceptual limitations. The medicine ball throw requires an arbitrary choice of implement mass and has demonstrated modest correlations with force-plate-derived power in certain populations [4]. The bench press throw is typically executed in a Smith machine and requires a Smith machine fixture and continuous spotter presence, substantially restricting its use in large-scale field testing [5]. The BPU has attracted growing attention precisely because it requires no specialized equipment beyond a force plate or contact mat, recruits the same musculature as the bench press, and generates a measurable flight phase during which both hands lose contact with the ground simultaneously. Wang et al. [4] demonstrated that force-time-derived performance measures from the BPU, including peak force, mean force, net impulse, and peak velocity, exhibited moderate to very high test-retest reliability (ICC = 0.849–0.971) across 60 recreationally active men, and that BPU-derived mean force predicted one-repetition maximum bench press with R² = 0.837. Bartolomei et al. [5] subsequently confirmed that the BPU provides power estimates comparable to those of the bench press throw, with very large to extremely large correlations (r = 0.70–0.89) between the two methods, without requiring a Smith machine or spotter infrastructure.

The biomechanical complexity of the plyometric push-up fundamentally distinguishes it from vertical jump-based assessment paradigms. Unlike the vertical jump, where the center of mass follows a predominantly rectilinear trajectory under gravitational deceleration, the plyometric push-up involves segmental rotation about a fixed ankle pivot, such that the hands, the shoulders, and the center of mass all trace curvilinear arcs throughout the flight phase. This constraint imposes pendular mechanics on the motion, rendering the equations of purely vertical ballistic flight physically inappropriate for quantifying hand displacement, maximum height, and take-off velocity from a measured flight time. Additionally, the stretch-shortening cycle dynamics of the upper extremities differ from their lower-body counterparts due to distinct muscle architecture, neural activation patterns, and the contribution of trunk and core musculature to proximal force transmission, all of which introduce analytical complexities absent from conventional jump models [6,7].

Despite these recognized characteristics, the kinematic model universally applied to BPU flight-phase scoring continues to treat the body as a freely falling point mass, yielding t_flight=2V₀/g and h_max=V₀²/2g. This free-fall approach is appropriate for the vertical jump but introduces a structural error of compounding magnitude when applied to a rotationally constrained movement. Sha and Dai [8] demonstrated, using a two-platform reference method, that single-platform methods overestimated whole-body velocities by approximately 54% (1.39 ± 0.37 m/s vs. 0.90 ± 0.23 m/s, Cohen’s d = 1.59, p < 0.05) and power by approximately 58% (1.63 ± 0.47 vs. 1.03 ± 0.29 W/body weight, Cohen’s d = 1.49, p < 0.05) relative to a two-force-platform reference method. Wang et al. [4] separately identified that flight time alone accounted for only 43% of the variance in peak take-off velocity (r = 0.656), with arm length differences across individuals cited as a principal source of unexplained residual variance; the free-fall model provides no mechanism to correct for this geometry-dependent heterogeneity. Dhahbi et al. [6], in a comprehensive systematic review of push-up kinetics, explicitly identified the validity of power output calculations in explosive push-ups as a contested issue and recommended that methodological rigor be prioritized when quantifying mechanical work and power from flight-phase data.

Despite these recognized limitations, no published study has developed a formally derived mechanical model that replaces the free-fall simplification with a physically appropriate description of the rotational flight-phase trajectory of the plyometric push-up. The present study addresses this gap by formulating a rigid-body pendulum model that treats the body as a single-link pendulum pivoting about the ankle. Specifically, this investigation aimed to: (i) derive the effective pendulum length from two independent anthropometric frameworks and establish their mathematical equivalence; (ii) determine the flight time of the hands and the whole-body center of mass through analytically and numerically validated expressions; (iii) calculate the arc displacement of the hands and center of mass along their respective circular trajectories; (iv) quantify the maximum vertical height reached by both reference points from the measured take-off velocity; and (v) establish and numerically quantify the systematic divergence between free-fall and pendulum model predictions of flight time and maximum height across the full physiologically admissible parameter space.

2. The Pendulum Model: Conceptualization and Geometric Framework

2.1. Model Conceptualization and Biomechanical Rationale

The mechanical analysis of a plyometric push-up presents a fundamental challenge that differentiates it from lower-body plyometric assessments. In vertical jump protocols, the body’s center of mass (CoM) undergoes ballistic displacement oriented along the gravitational axis, allowing flight-phase kinematics to be modeled by equations of uniformly accelerated rectilinear motion. In a plyometric push-up, the upper body does not translate vertically as a free-falling point mass; rather, the body rotates about the ankle joint complex (point O), and the CoM traverses a curvilinear, arc-like path in the sagittal plane. The application of conventional free-fall kinematic models introduces systematic overestimations of flight time and maximum height, because those models disregard the continuous exchange between kinetic and potential energy that characterizes rotational dynamics.

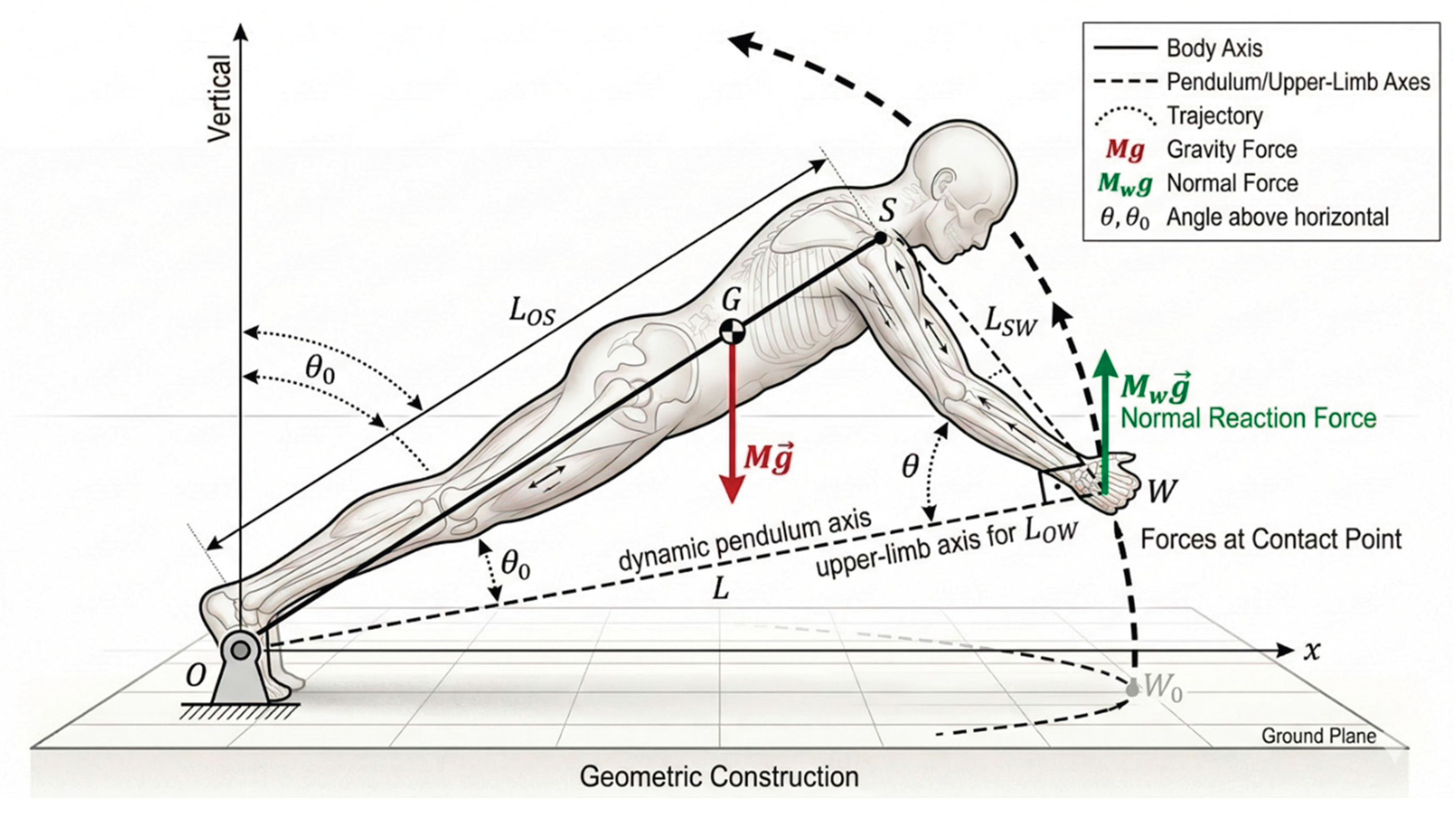

The present framework conceptualizes the human body during a plyometric push-up as a rigid planar pendulum pivoting about the fixed ankle axis, point O. The effective pendulum arm connects O to the global CoM (point G) with length L (m). The hand contact point W travels along a distinct arc of radius L_OW (m). The flight phase is initiated at the instant the vertical ground reaction force under the hands falls to zero, at which moment the system possesses an angular velocity ω_O (rad/s) about O. The subsequent motion is treated as that of a conservative rigid pendulum, with gravitational potential energy governing the trajectory until the hands return to the ground (Figure 1).

2.2. Anthropometric Measurements and Body Segmentation

Parameterization of the pendulum model requires four primary measurements. Total body mass M (kg) is recorded with the subject standing in the anatomical position. In the static push-up position (arms fully extended and perpendicular to the supporting surface), three additional quantities are obtained: (i) shoulder height L_OS (m)—the straight-line distance from the ankle axis O to the acromion process S; (ii) upper-limb length L_SW (m)—the distance from the acromion process S to the center of the wrist joint W; and (iii) hand-supported mass M_W (kg)—the mass measured by a calibrated scale positioned beneath the hands in static equilibrium. These four quantities collectively determine all governing geometric and inertial parameters of the model.

2.3. Determination of the Effective Pendulum Length (L)

Two independent derivations of the effective pendulum length L are presented below, followed by a formal reconciliation of their results.

2.3.1. Static Equilibrium Approach

In the initial static push-up position, the system is in complete rotational equilibrium about O. Three external forces act: the ground reaction force at O (generating no moment about O), the total body weight Mg acting vertically downward through G, and the vertical reaction force M_Wg acting vertically upward at W. The vector moment equation about O in the sagittal plane is:

$$\sum {\overrightarrow{M}}_O=\overrightarrow{OG}\times \left(-Mg\hspace{0.17em}\widehat{j}\right)+\overrightarrow{OW}\times \left(M_{W}g\hspace{0.17em}\widehat{j}\right)=\overrightarrow{0}$$

(1)

With the coordinate origin at O, the position vectors are:

$$\overrightarrow{OG}=\left(\begin{array}{c}L\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0\\ L\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\\ 0\end{array}\right), \overrightarrow{OW}=\left(\begin{array}{c}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0\\ 0\\ 0\end{array}\right)$$

(2)

Computing the z-component of each cross product:

$${\left(\overrightarrow{OG}\times \left(-Mg\hspace{0.17em}\widehat{j}\right)\right)}_z=-MgL\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0$$

(3)

$${\left(\overrightarrow{OW}\times \left(M_{W}g\hspace{0.17em}\widehat{j}\right)\right)}_z=M_{W}g\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0$$

(4)

Setting the sum of z-moments to zero:

$$-MgL\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0+M_{W}g\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0=0$$

(5)

Since cosθ₀ > 0 for any physiologically admissible push-up configuration (i.e., θ₀ < π/2), this factor cancels throughout, yielding:

$$L={\displaystyle \frac{M_W}{M}}\hspace{0.17em}{L}_{OS}$$

(6)

2.3.2. Center-of-Mass Coordinate Approach

As an independent derivation, the position of G is estimated via a two-point mass model. The total body mass is distributed between the ankle pivot O, bearing the residual mass M_f = M − M_W (kg), and the hand contact point W, bearing the measured mass M_W. In the world coordinate frame (origin at O, x-axis horizontal, y-axis vertical), both mass points lie at ground level: O at (0,0) and W at (L_OW, 0), where L_OW denotes the horizontal distance from O to W (established as L_OW = L_OS cosθ₀ in Section 2.4). The Cartesian coordinates of the resulting CoM are:

$$x_G={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OW}}{M}}={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}{M}}$$

(7)

$$y_G={\displaystyle \frac{M_f·0\hspace{0.17em}{+M}_W·0}{M}}=0$$

(8)

The Euclidean distance from O to the computed CoM is therefore:

$$d_{OG}=\sqrt{x_G^2+y_G^2}={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}{M}}$$

(9)

To recover the effective pendulum length from this two-point model, the governing criterion must be gravitational torque equivalence rather than geometric distance. The total gravitational torque about O (in the z-direction) produced by the two-point mass system is:

$${\tau }_{\mathrm{g}\mathrm{r}\mathrm{a}\mathrm{v}}=M_W\hspace{0.17em}g\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0$$

(10)

For a simple pendulum of total mass M and effective length L_eff inclined at angle θ₀ from horizontal, the gravitational torque about O is M g L_eff cosθ₀. Setting this equal to expression (10) and canceling g cosθ₀:

$$L_{\mathrm{e}\mathrm{f}\mathrm{f}}={\displaystyle \frac{M_W}{M}}\hspace{0.17em}{L}_{OS}$$

(11)

Equations (6) and (11) are identical, confirming the self-consistency of both approaches.

2.3.3. Equivalence and Reconciliation

Both derivation pathways operationalize the same static rotational equilibrium condition about O, so their convergence is mathematically obligatory rather than independently confirmatory. Both yield:

$$L=L_{\mathrm{e}\mathrm{f}\mathrm{f}}={\displaystyle \frac{M_W}{M}}\hspace{0.17em}{L}_{OS}$$

(12)

A precise conceptual distinction must, however, be drawn between this effective length and the Euclidean distance d_OG obtained from equation (9). Comparing (9) and (12):

$$d_{OG}={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}{M}}=L\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0$$

(13)

The Euclidean distance d_OG is smaller than L by the factor cosθ₀. The origin of this discrepancy lies in the geometric constraint imposed by the two-point mass model: by placing both mass points at y = 0 (ground level), the model necessarily produces y_G = 0, forcing the computed CoM onto the horizontal axis. The true CoM G, however, lies along the inclined pendulum axis O-S at height L sinθ₀ =(M_W/M) L_OS sinθ₀ > 0. The two-point model therefore correctly reproduces the horizontal projection of G (equation 7 recovers x_G = L cosθ₀ = d_OG), but systematically underestimates the height of G.

The physical resolution is that L in this model is not defined as the Euclidean distance from O to the geometric position of G in world coordinates. It is defined, consistently across both approaches, as the ratio of gravitational torque to total gravitational force:

$$L\equiv {\displaystyle \frac{{\tau }_{\mathrm{g}\mathrm{r}\mathrm{a}\mathrm{v}}}{M\hspace{0.17em}g\hspace{0.17em}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}}={\displaystyle \frac{M_W\hspace{0.17em}g\hspace{0.17em}{L}_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}{M\hspace{0.17em}g\hspace{0.17em}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}}={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OS}}{M}}$$

(14)

This definition is the mechanically operative one: it is the quantity L that appears in the equation of angular motion $\mathrm{I}\ddot{\mathsf{\theta }}=-\mathrm{M}\mathrm{g}\mathrm{L}\mathrm{c}\mathrm{o}\mathrm{s}\mathsf{\theta }$ and in all subsequent energy conservation derivations. The two-point mass model is therefore a valid mechanical surrogate for torque analysis, not a geometric surrogate for locating G in three-dimensional space. In practice, the deviation between d_OG and L is proportional to (1 − cosθ₀), which is less than 4\% for θ₀ ≤ 16° (since cos16° ≈ 0.961), the range encompassing the great majority of adult push-up configurations. Throughout all subsequent derivations, L = (M_W/M) L_OS is adopted as the governing dynamic parameter.

It must be noted that L is the torque-equivalent simple pendulum length, not the equivalent length for a compound pendulum of distributed mass. The dynamically correct equivalent pendulum length is: $L_{\mathrm{eq}} = {\displaystyle \frac{I_{\mathrm{O}}}{M\text{·}{L}_{\mathrm{CoM}}}}$ and $I_{\mathrm{O}} = I_{\mathrm{CoM}} + M\text{·}{L_{\mathrm{CoM}}}^2$.

2.4. Determination of the Initial Pendulum Angle (θ₀)

The initial angle θ₀ characterizes the orientation of the pendulum axis (line O-G, collinear with line O-S) relative to the horizontal plane in the starting push-up configuration. In the static push-up position, the arms are extended perpendicularly to the supporting surface, so that the wrist W lies directly below the shoulder S. The shoulder S is located at world coordinates (L_OS cosθ₀, L_OS sinθ0). Because the arms are vertical, the wrist W is displaced vertically below S by the distance

L_SW, giving:

$$W=\left(L_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0,\hspace{0.33em}{L}_{OS}\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0-L_{SW}\right)$$

(15)

For W to lie at ground level (i.e., y_W = 0, as required by the physical setup), the vertical coordinate must vanish:

$$L_{OS}\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0-L_{SW}=0$$

(16)

Solving for θ₀:

$${\theta }_0=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{L_{SW}}{L_{OS}}}\right)$$

(17)

where the argument is defined for L_SW < L_OS, which is always satisfied for physiologically normal proportions. This relation establishes the geometric consistency of the model: the perpendicularity of the arms to the floor, combined with the anthropometric lengths L_OS and L_SW, uniquely determines the initial orientation of the pendulum. From equation (16), the horizontal distance from O to W follows directly:

$$L_{OW}=L_{OS}\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0=L_{OS}\sqrt{1-{\left({\displaystyle \frac{L_{SW}}{L_{OS}}}\right)}^2}=\sqrt{L_{OS}^2-L_{SW}^2}$$

(18)

The quantity L_OW is the radius of the arc traversed by the hands during the flight phase and appears in all hand-referenced performance indices derived in Section 3.2.

2.5. Model Assumptions and Simplifications

The analytical tractability of the pendulum model is contingent upon the following idealizing conditions, which collectively define its domain of validity.

Rigid Body: The human body is modeled as a single rigid segment throughout the flight phase. During push-off, inter-segmental rotation at the elbow, shoulder, and hip contributes to force generation; the rigid-body constraint applies exclusively from the instant of hand take-off to hand landing, the interval governed by the conservative equations of Section 3. This assumption is most closely approached when subjects maintain strict whole-body tension and avoid joint flexion during execution.

Planar Motion: All motion is restricted to the sagittal plane. Lateral displacement, axial rotation, and inter-limb asymmetry are excluded. The assumption is justified by the bilateral symmetry of standard push-up mechanics and is supported by the planar trajectory of the CoM observed in controlled laboratory conditions.

Fixed Pivot at the Ankles: The ankle joint complex (O) is treated as a frictionless, fixed pivot throughout the motion. No translational displacement of O is permitted in either phase. The ground reaction force at O passes through the pivot and generates no moment about it.

Arms Perpendicular to the Supporting Surface: The initial configuration requires the arms to be fully extended and oriented vertically (perpendicular to the floor). This constraint is necessary to establish the geometric relation sinθ₀ = L_SW/LOS (equation 17) and to ensure that W lies at ground level at the moment of hand take-off.

Two-Point Mass Distribution: For the purposes of locating the effective CoM, total body mass is distributed between O (mass M_f = M − M_W) and W (mass M_W). This simplification is mechanically valid for gravitational torque analysis (Section 2.3). It does not account for the distributed inertial properties of the body (Section 2.3.3); the negligible-error claim holds only for moment-arm calculations, not for oscillation-period predictions where IO governs.

Conservative Flight Phase: Aerodynamic drag, limb-damping torques, and any dissipative effects are considered negligible during the flight phase. Aerodynamic drag, limb-damping torques, and any dissipative effects are considered negligible during the flight phase. For a body mass of 75 kg at VH,0 ≤ 3.0 m/s, the peak aerodynamic drag force: $F_{\mathrm{d}} \text{≈} {\displaystyle \frac{1}{2}}\rho \text{·}{C}_{\mathrm{d}}\text{·}A\text{·}{v}^2 \text{≈} 0.5 \mathrm{N}$. The system is treated as mechanically conservative from the moment of hand take-off to the moment of hand landing, permitting the direct application of energy conservation throughout Section 3.

Small Difference Between L_OW and L: For the purpose of the quarter-period approximation used in power derivations (Section 3.2.4 and Section 3.3.4), the push-off duration is estimated from the linear small-amplitude pendulum period. This approximation introduces errors that grow with initial amplitude; the precise push-off duration for large initial velocities requires numerical integration, as addressed in Section 4.

3. Biomechanical Derivations

3.1. Kinematic Equivalence: Flight Time of the Hands (t_H) and Center of Mass (t_G)

Because the body is modeled as a rigid pendulum rotating about fixed pivot O, every point shares the same instantaneous angular velocity ω (rad/s). The linear velocity of any point P at Euclidean distance r from O is:

$$V_P=\omega \cdot r$$

(19)

Directed tangentially to the arc of radius r. Applying this to the hands (W, at distance L_OW from O) and to the CoM (G, at distance L from O) at the instant of hand take-off:

$$V_{H,0}={\omega }_0\cdot L_{OW}$$

(20)

$$V_{G,0}={\omega }_0\cdot L$$

(21)

Dividing equation (21) by equation (20):

$$V_{G,0}=V_{H,0}\cdot {\displaystyle \frac{L}{L_{OW}}}$$

(22)

Substituting L = (M_W/M) L_OS (equation 12) and L_OW = L_OS cosθ₀ (equation 18):

$$V_{G,0}=V_{H,0}\cdot {\displaystyle \frac{M_W}{M\mathrm{c}\mathrm{o}\mathrm{s}{\theta }_0}}$$

(23)

Equation (23) relates the directly measurable initial hand velocity V_H,0 to the initial CoM velocity V_G,0, which governs the global energetics of the system. Because the ratio M_W/(M cosθ₀) is always less than unity for physiologically normal mass distributions (M_W < M) and push-up angles (cosθ₀ < 1 but M_W/M < cosθ₀ typically), V_G,0 is in practice smaller than V_H,0.

Since the system is rigid and rotates about a fixed pivot, the angular equation of motion governing the flight phase is identical regardless of which point on the pendulum is used as a reference. The angular displacement traversed from take-off (angle θ₀ for G, angle φ₀ = 0 for W) to the corresponding maximum and back to the initial angle is the same for all body points in terms of elapsed time. Consequently, the time interval between hand take-off and hand landing, designated t_H (s), is equal to the corresponding flight time of the CoM, t_G (s):

$$t_H=t_G$$

(24)

This identity is of direct practical importance: t_H is measurable with standard force-plate instrumentation (as the duration of the off-plate interval) or with contact mats, and equation (24) confirms that this measurement can be used without modification in the CoM-referenced performance equations of Section 3.3. No separate kinematic tracking of the CoM is required.

3.2. Performance Indices for the Hands (Option 1)

The following performance indices characterize the flight phase from the perspective of the hands (W), treated as the end-effector of the pendulum of arm length L_OW. The angle φ (rad) denotes the angle of the arm O-W above the horizontal, measured positive upward. In the initial position, φ = 0 (W at ground level) and the tangential velocity of W is V_H,0. At maximum displacement, φ = φ_max,H and the instantaneous velocity of W is zero. The height of W above its initial position at angle φ is h_W(φ) = L_OW sinφ.

3.2.1. Maximum Angular Displacement of the Hands (φ_max,H)

Applying conservation of mechanical energy between the take-off state (φ = 0, V = V_H,0) and the state of maximum displacement (φ = φ_max,H, V = 0), and noting that the height gain of W is L_OW sinφ_max,H:

$$1/2M_W{V}_{H,0}^2=M_W\hspace{0.17em}g\hspace{0.17em}{L}_{OW}\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}$$

(25)

Solving:

$${\phi }_{max,H}=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}}\right)$$

(26)

For equation (26) to yield a physically admissible solution, the condition ${\mathrm{V}}_{\mathrm{H},0}^2\le 2\mathrm{g}{\mathrm{L}}_{\mathrm{O}\mathrm{W}}$ must be satisfied, which corresponds to the physical requirement that W does not reach or exceed the height of the pivot O during flight. For representative anthropometric values (L_OW ≈ 0.7–0.9 m), this upper bound corresponds to V_H,0 ≤ 3.7–4.2 m/s, which encompasses all reported push-up take-off velocities in the literature. An equivalent expression in terms of the measurable system parameters follows directly by substituting $L_{OW}=\sqrt{L_{OS}^2-L_{SW}^2}$:

$${\phi }_{max,H}=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g\hspace{0.17em}\sqrt{L_{OS}^2-L_{SW}^2}}}\right)$$

(27)

3.2.2. Arc Displacement of the Hands (S_hand)

During the ascending half of the flight phase, the hands traverse a circular arc of radius L_OW centered at O, from φ = 0 to φ = φ_max,H. The total arc length (expressed with φ_max,H in radians) is:

$$S_{hand}=L_{OW}\cdot {\phi }_{max,H}$$

(28)

Substituting equation (26):

$$S_{hand}=L_{OW}\cdot \mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}}\right)$$

(29)

This parameter quantifies the total curvilinear path of the hands along the pendular arc. It is distinct from the maximum vertical height h_max,H (Section 3.2.3) and constitutes a spatial performance descriptor that is inaccessible to free-fall models, which implicitly assume rectilinear vertical displacement.

3.2.3. Maximum Vertical Height of the Hands (h_max,H)

The maximum vertical displacement of W above its starting position (ground level) is obtained directly from the height function h_W = L_OW sinφ:

$$h_{max,H}=L_{OW}\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}$$

(30)

Substituting sinφ_max,H from equation (25):

$$h_{max,H}={\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g}}$$

(31)

Equation (31) is formally identical in structure to the free-fall kinematic relation h = V₀²/(2g). This formal equivalence does not, however, imply that the pendulum and free-fall models yield the same predictions when flight time t_H is used as the experimental input, because the relationship between V_H,0 and t_H differs fundamentally between the two models. In the free-fall model, V₀ = gt_H/2 follows directly from constant-acceleration kinematics, giving h_max,FF = gt_H²/8. In the pendulum model, the relationship between V_H,0 and t_H is governed by the nonlinear pendulum equation of motion and requires numerical integration (Section 4.1). The substitution of the free-fall velocity-time relationship into equation (31) would reproduce the free-fall height formula and therefore offer no improvement over the simpler model. The proper usage of equation (31) is in conjunction with the pendulum-derived value of V_H,0, as established numerically in Section 4.

3.2.4. Mechanical Power Output at the Hands (P_hand)

The mean mechanical power developed by the musculoskeletal system during the push-off phase, referenced to the hands, is defined as the ratio of net mechanical work performed to the duration of the push-off phase. The push-off phase begins with the system at rest in the initial push-up position and concludes at the instant of hand take-off, when the hands possess kinetic energy ½ M_W · V_H,0. The total mechanical work performed by the muscles is therefore:

$${\mathcal{W}}_{hand}=1/2M_W\hspace{0.17em}{V}_{H,0}^2$$

(32)

This equals the mechanical energy stored in the hand-mass subsystem at take-off, consistent with the work-energy theorem applied from the rest state to the take-off instant.

The duration of the push-off phase is equal, by time-reversal symmetry of the conservative pendulum, to the time elapsed from hand take-off to the moment of maximum hand height, denoted t_push,H. For a pendulum of arm length L_OW executing small-amplitude oscillations, this duration is approximated by the quarter-period of the linearized (simple harmonic) system:

$$t_{push,H}\approx {\displaystyle \frac{\pi }{2}}\sqrt{{\displaystyle \frac{L_{OW}}{g}}}$$

(33)

The mean mechanical power output at the hands is:

$$P_{hand}={\displaystyle \frac{{\mathcal{W}}_{hand}}{t_{push,H}}}={\displaystyle \frac{M_W\hspace{0.17em}{V}_{H,0}^2}{\pi }}\sqrt{{\displaystyle \frac{g}{L_{OW}}}}$$

(34)

It is noted that equation (33) constitutes a small-amplitude approximation, valid strictly for φ_max,H ≪ 1 rad. For subjects with high take-off velocities, where φ_max,H is not negligible, the exact push-off duration departs from this estimate and must be evaluated by numerical integration of the nonlinear pendulum equation (Section 4.1). The use of equation (34) under large-amplitude conditions will overestimate mean power output to the extent that the true push-off duration exceeds $(\mathsf{\pi }/2)\sqrt{L_{OW}/g}$.

3.3. Performance Indices for the Center of Mass (Option 2)

The following performance indices characterize the flight phase from the perspective of the CoM (G), treated as the mass point of the pendulum of arm length L. The angle θ (rad) denotes the angle of the pendulum arm O-G above the horizontal, measured positive upward. In the initial position, θ = θ₀ > 0 and the tangential velocity of G is V_G,0. At maximum displacement, θ = θ_max and the instantaneous velocity of G is zero. The height of G above its initial position at angle θ is h_G(θ) = L (sinθ − sinθ₀).

3.3.1. Maximum Angular Displacement of the CoM (θ_max)

Applying conservation of mechanical energy between the take-off state (θ = θ₀, V = V_G,0) and the state of maximum displacement (θ = θ_max, V = 0):

$$1/2M\hspace{0.17em}{V}_{G,0}^2=M\hspace{0.17em}g\hspace{0.17em}L\left(\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_{max}-\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)$$

(35)

Solving for θ_max:

$${\theta }_{max}=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{G,0}^2}{2\hspace{0.17em}g\hspace{0.17em}L}}+\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)$$

(36)

Substituting V_G,0 = V_H,0 ⋅ L/L_OW from equation (22) and L/L_OW = M_W/(M cosθ₀) from equations (12) and (18):

$${\theta }_{max}=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{H,0}^2\hspace{0.17em}{M}_W^2}{2\hspace{0.17em}g\hspace{0.17em}{M}^2\hspace{0.17em}{L}_{OS}{\mathrm{c}\mathrm{o}\mathrm{s}}^2{\theta }_0}}+\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)$$

(37)

For equation (36) to be physically admissible, the constraint V_G,0^2/(2gL) +sinθ₀ ≤ 1 must hold, which sets an upper bound on initial angular velocity corresponding to the physical limit at which G reaches the vertical through O. This constraint is expressed as:

$$V_{G,0}\le \sqrt{2\hspace{0.17em}g\hspace{0.17em}L\left(1-\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)}$$

(38)

The initial elevation sinθ₀ in equation (36) elevates the maximum reachable angle relative to the case θ₀ = 0; for a given V_G,0, the CoM attains a higher angular position when it begins at a positive initial angle, because part of the potential energy budget is already stored in the initial configuration.

3.3.2. Arc Displacement of the Center of Mass (S_G)

During the ascending half of the flight phase, the CoM traverses a circular arc of radius L centered at O, from angle θ₀ to θ_max. The total arc length (with angles in radians) is:

$$S_G=L\left({\theta }_{max}-{\theta }_0\right)$$

(39)

Substituting from equations (12) and (36):

$$S_G={\displaystyle \frac{M_W\hspace{0.17em}{L}_{OS}}{M}}\left[\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{G,0}^2}{2\hspace{0.17em}g\hspace{0.17em}L}}+\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)-{\theta }_0\right]$$

(40)

This parameter quantifies the total curvilinear displacement of the CoM along its pendular arc, integrating both angular amplitude and pendulum geometry into a single spatial metric. Because S_G < h_max is not guaranteed (the arc length along a large-radius, small-angle pendulum can exceed the corresponding vertical rise), S_G and h_max provide complementary rather than redundant spatial descriptors.

3.3.3. Maximum Vertical Height of the CoM (h_max)

The maximum vertical rise of G above its take-off position is:

$$h_{max}=L\left(\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_{max}-\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right)$$

(41)

Substituting sinθ_max from equation (35):

$$h_{max}=L\left[{\displaystyle \frac{V_{G,0}^2}{2\hspace{0.17em}g\hspace{0.17em}L}}+\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0-\mathrm{s}\mathrm{i}\mathrm{n}{\theta }_0\right]={\displaystyle \frac{V_{G,0}^2}{2\hspace{0.17em}g}}$$

(42)

Expressed entirely in terms of the directly measurable hand take-off velocity V_H,0 and system parameters, by substituting V_G,0 = V_H,0 ⋅ L/L_OW:

$$h_{max}={\displaystyle \frac{V_{H,0}^2\hspace{0.17em}{L}^2}{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}^2}}={\displaystyle \frac{M_W^2\hspace{0.17em}{V}_{H,0}^2}{2\hspace{0.17em}g\hspace{0.17em}{M}^2{\mathrm{c}\mathrm{o}\mathrm{s}}^2{\theta }_0}}$$

(43)

Equation (43) differs from the hand-referenced height (equation 31) by the factor (L/L_OW)² = (M_W/(M cosθ₀))². For representative adult values of M_W/M ≈ 0.50–0.60 and θ₀ ≈ 10° − 15° (cosθ₀ ≈ 0.966 − 0.985), this factor ranges from approximately 0.26 to 0.39, confirming that the CoM rises to a substantially smaller height than the hands during the flight phase, consistent with the mechanical expectation that distal points of a pendulum execute larger excursions than proximal ones.

3.3.4. Mechanical Power Output at the Center of Mass (P_G)

The mean mechanical power at the CoM level provides a global performance metric integrating the full system mass and CoM kinematics. The net mechanical work performed by the musculoskeletal system on the CoM during push-off, from rest to the take-off state, is:

$${\mathcal{W}}_G=1/2M\hspace{0.17em}{V}_{G,0}^2$$

(44)

The push-off duration at the CoM level is estimated by the quarter-period of the equivalent linearized pendulum of arm length L:

$$t_{push,G}\approx {\displaystyle \frac{\pi }{2}}\sqrt{{\displaystyle \frac{L}{g}}}$$

(45)

As with Eq. (33), the quarter-period approximation in Eq. (45) applies to small angular amplitudes only; the same error bounds described in Section 3.2.4 apply. The mean mechanical power at the CoM is:

$$P_G={\displaystyle \frac{{\mathcal{W}}_G}{t_{push,G}}}={\displaystyle \frac{M\hspace{0.17em}{V}_{G,0}^2}{\pi }}\sqrt{{\displaystyle \frac{g}{L}}}$$

(46)

Substituting V_G,0 = V_H,0 ⋅ L/L_OW and L = M_W L_OS/M:

$$P_G={\displaystyle \frac{M\hspace{0.17em}{V}_{H,0}^2}{\pi \hspace{0.17em}{L}_{OW}^2}}\sqrt{g\hspace{0.17em}L}$$

(47)

Expanding with L = M_W L_OS/M and L_OW = L_OS cosθ₀:

$$P_G={\displaystyle \frac{M_W\hspace{0.17em}{V}_{H,0}^2}{\pi \hspace{0.17em}{L}_{OS}{\mathrm{c}\mathrm{o}\mathrm{s}}^2{\theta }_0}}\sqrt{{\displaystyle \frac{g\hspace{0.17em}{M}_W\hspace{0.17em}{L}_{OS}}{M}}}$$

(48)

The ratio P_G/P_hand can be formed from equations (46) and (34):

$${\displaystyle \frac{P_G}{P_{hand}}}={\displaystyle \frac{M}{M_W}}\cdot {\displaystyle \frac{L^{3/2}}{L_{OW}^{3/2}}}$$

(49)

Since L/L_OW = M_W/(Mcosθ₀), equation (49) reduces to:

$${\displaystyle \frac{P_G}{P_{hand}}}={\displaystyle \frac{M_W^{1/2}}{M^{1/2}{\mathrm{c}\mathrm{o}\mathrm{s}}^{3/2}{\theta }_0}}$$

(50)

For typical parameter ranges, this ratio is less than unity (P_G < P_hand), reflecting that the CoM-referenced power estimate accounts for a smaller effective mass moving at a smaller velocity than the hand-referenced estimate. The two power indices thus provide complementary, non-redundant perspectives on system energy output. As with equation (34), the quarter-period approximation in equation (45) is valid for small angular amplitudes; large initial velocities require numerical treatment of the nonlinear pendulum equation (Section 4).

4. Numerical Simulations

4.1. Flight Time Analysis: Free-Fall Model vs. Pendulum Model

4.1.1. Mathematical Formulations

Two analytical models are implemented numerically to characterize and compare the flight-phase dynamics of a plyometric push-up. Both are evaluated over a systematically varied parameter space in order to quantify the divergence in their respective predictions.

Model A: Free-Fall Model. The hands are treated as a material point undergoing purely vertical ballistic motion under constant gravitational deceleration g. Given initial hand velocity V_H,0 (m/s) at take-off, the flight time and maximum height are given by the closed-form kinematic expressions:

$$t_{FF}={\displaystyle \frac{2\hspace{0.17em}{V}_{H,0}}{g}}$$

(51)

$$h_{max,FF}={\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g}}$$

(52)

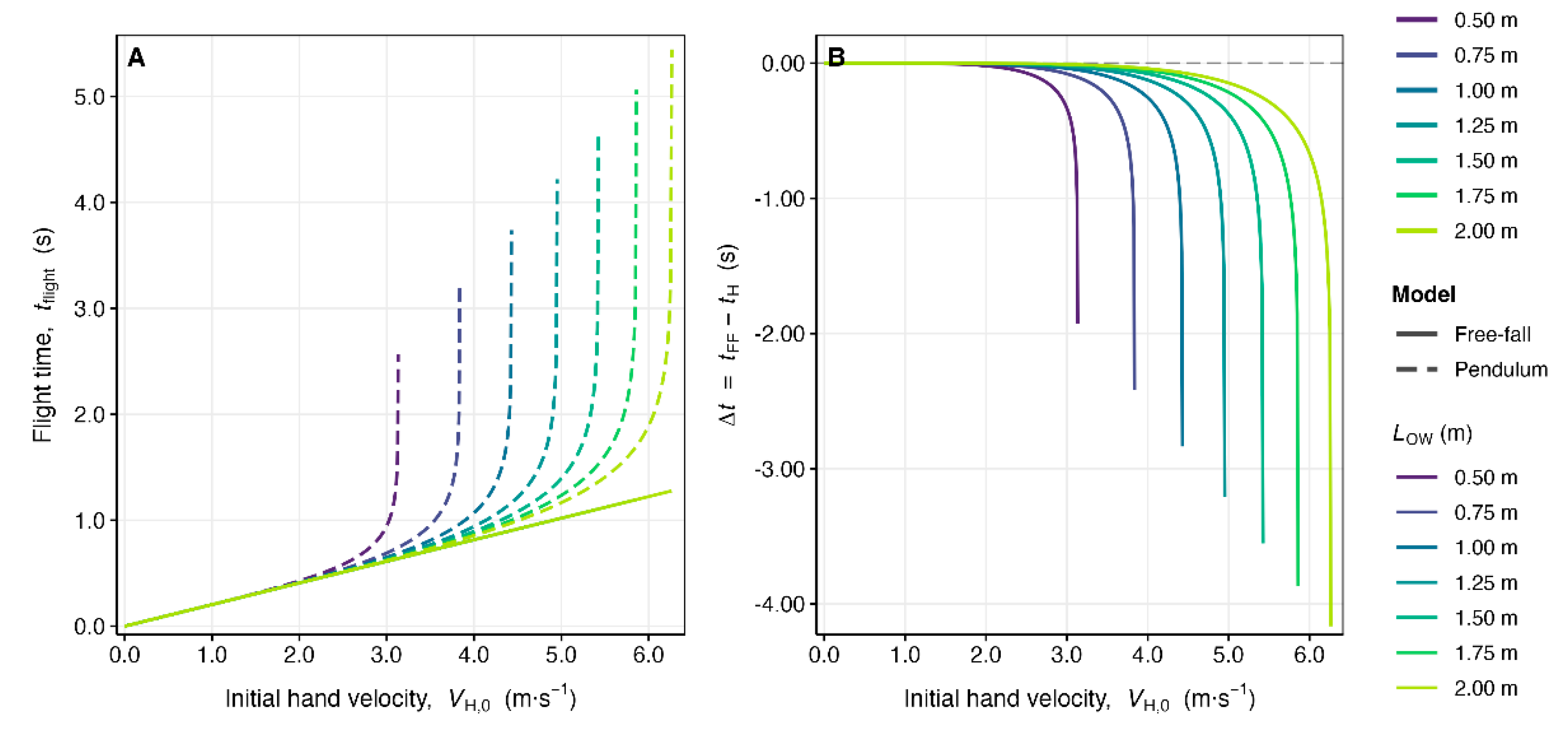

Model B: Pendulum Model. The hands constitute the end-effector of a rigid pendulum of arm length L_OW (m) pivoting about the fixed ankle axis O. The angle φ (rad) denotes the inclination of arm O-W above the horizontal. The angular equation of motion during the conservative flight phase is:

$$\ddot{\phi }+{\displaystyle \frac{g}{L_{OW}}}\mathrm{c}\mathrm{o}\mathrm{s}\phi =0$$

(53)

From conservation of mechanical energy, the angular velocity at displacement φ satisfies:

$$\phi \left(0\right)=0, \dot{\phi }\left(0\right)={\omega }_0={\displaystyle \frac{V_{H,0}}{L_{OW}}}$$

(54)

The maximum angular displacement φ_max,H is reached when $\dot{\mathsf{\phi }}=0$:

$${\phi }_{max,H}=\mathrm{a}\mathrm{r}\mathrm{c}\mathrm{s}\mathrm{i}\mathrm{n}\left({\displaystyle \frac{V_{H,0}^2}{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}}\right)$$

(55)

The total flight time is twice the time required to ascend from φ = 0 to φ_max,H:

$$t_H=2{\int }_0^{{\phi }_{max,H}}{\displaystyle \frac{d\phi }{\sqrt{{\omega }_0^2-\frac{2g}{L_{OW}}\mathrm{s}\mathrm{i}\mathrm{n}\phi }}}$$

(56)

The integrand of equation (56) exhibits a square-root singularity at the upper limit φ → φ_max,H, where $\dot{\mathsf{\phi }}\to 0$. Direct numerical quadrature applied to equation (56) in its raw form yields unacceptable accuracy degradation near the turning point. A regularizing substitution is therefore applied. Setting:

$$\mathrm{s}\mathrm{i}\mathrm{n}\phi =\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}\cdot {\mathrm{s}\mathrm{i}\mathrm{n}}^{2}u, u\in \left[0,\hspace{0.33em}{\displaystyle \frac{\pi }{2}}\right]$$

(57)

and differentiating:

$$\mathrm{c}\mathrm{o}\mathrm{s}\phi \hspace{0.33em}d\phi =2\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}\mathrm{s}\mathrm{i}\mathrm{n}u\mathrm{c}\mathrm{o}\mathrm{s}u\hspace{0.33em}du$$

(58)

Using $\cos \mathsf{\phi }=\sqrt{1-{\sin }^2{\mathsf{\phi }}_{max}{\sin }^{4}u}$, the transformed integral becomes:

$$t_H={\displaystyle \frac{4}{{\omega }_0}}\sqrt{{\displaystyle \frac{L_{OW}}{g}}}{\int }_0^{\pi /2}{\displaystyle \frac{\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}\mathrm{s}\mathrm{i}\mathrm{n}u\mathrm{c}\mathrm{o}\mathrm{s}u}{\mathrm{c}\mathrm{o}\mathrm{s}\phi \hspace{0.17em}\sqrt{\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}\left(1-{\mathrm{s}\mathrm{i}\mathrm{n}}^{2}u\right)}}}\hspace{0.17em}du$$

(59)

After simplification:

$$t_H={\displaystyle \frac{4}{{\omega }_0}}{\int }_0^{\pi /2}{\displaystyle \frac{\sqrt{\mathrm{s}\mathrm{i}\mathrm{n}{\phi }_{max,H}}\hspace{0.33em}\mathrm{s}\mathrm{i}\mathrm{n}u\mathrm{c}\mathrm{o}\mathrm{s}u}{\mathrm{c}\mathrm{o}\mathrm{s}\phi \hspace{0.33em}\sqrt{1-{\mathrm{s}\mathrm{i}\mathrm{n}}^{2}u}}}\hspace{0.17em}du$$

(60)

The transformed integrand is bounded and smooth on the closed interval [0, π/2], admitting accurate evaluation by standard adaptive Gauss-Kronrod quadrature (15-point rule) without regularization artifacts. As an independent cross-validation, equation (53) is additionally solved as a first-order initial-value problem:

$${\displaystyle \frac{d}{dt}}\left(\begin{array}{c}\phi \\ \dot{\phi }\end{array}\right)=\left(\begin{array}{c}\dot{\phi }\\ -{\displaystyle \frac{g}{L_{OW}}}\mathrm{c}\mathrm{o}\mathrm{s}\phi \end{array}\right), \left(\begin{array}{c}\phi \left(0\right)\\ \dot{\phi }\left(0\right)\end{array}\right)=\left(\begin{array}{c}0\\ {\omega }_0\end{array}\right)$$

(61)

Using an adaptive step-size stiff/non-stiff solver with relative tolerance 10⁻¹⁰, with integration terminated by a zero-crossing event at φ(t) = 0, $\dot{\mathsf{\phi }}\left(t\right)<0$ (return of hands to ground level).

The model discrepancy in flight time is defined as:

$$\Delta t=t_{FF}-t_H$$

(62)

Since t_FF consistently exceeds t_H for all V_H,0 > 0 and all L_OW > 0 (proved by the strict convexity of the pendular arc relative to the vertical), Δt is positive definite and constitutes the absolute overestimation error incurred by the free-fall simplification.

4.1.2. Numerical Implementation

The simulation was implemented in the R computing environment (version ≥ 4.3.0) using the packages listed in Table 1. Seven pendulum arm lengths were analyzed, spanning the anthropometrically relevant range:

$$L_{OW}\in \{0.50,\hspace{0.33em}0.75,\hspace{0.33em}1.00,\hspace{0.33em}1.25,\hspace{0.33em}1.50,\hspace{0.33em}1.75,\hspace{0.33em}2.00\}\hspace{0.33em}\mathrm{m}$$

(63)

For each value of L_OW, the physical upper bound on the initial hand velocity is determined by the condition φ_max,H = π/2 (hands reaching the level of the pivot O), which from equation (55) gives:

$$V_{H,0}^{max}=\sqrt{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}$$

(64)

Within the interval (0, V_H,0^max), a grid of N = 500 uniformly spaced velocity values was constructed, with the lower bound set to ϵ = 10⁻⁴ m/s to exclude the degenerate zero-velocity case. Although the mathematical upper bound $V_{H,0}^{max}=\sqrt{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}$ was retained to characterize the full model domain, reported take-off velocities for plyometric push-up performance fall within V_H,0 ≤ 3.0 m/s (Wang et al., 2017; Sha and Dai, 2021), and all practical performance indices should be interpreted within this physiologically admissible range. For each (L_OW, V_H,0) combination, the following quantities were computed: (i) t_FF via equation (51). (ii) t_H via adaptive Gauss-Kronrod quadrature of the singularity-regularized integral (equations 59 − 60), implemented through base R’s “integrate()” with relative tolerance 10⁻¹⁰ and maximum number of subdivisions set to 1000. Convergence was verified by requiring that the estimated absolute error returned by “integrate()” not exceed 10⁻⁸ s. (iii) t_H (cross-validation) via ODE integration of equation (61) using “deSolve::lsoda()” with relative tolerance 10⁻¹⁰, absolute tolerance 10⁻¹², and zero-crossing event detection. (iv) Δt = t_FF − t_H via equation (62).

The maximum absolute discrepancy between quadrature-based and ODE-based t_H estimates across all grid points did not exceed 2.5 × 10⁻⁷ s, confirming numerical consistency between the two independent implementations.

4.1.3. Results and Analysis

The simulations yield a comprehensive characterization of the divergence between the free-fall and pendulum models across the full anthropometrically relevant parameter space. The key results are organized around three principal findings.

Finding 1: Universal overestimation by the free-fall model. For every combination of $\left(L_{OW},\hspace{0.17em}{V}_{H,0}\right)$ examined, the free-fall model predicts a longer flight time than the pendulum model ($\Delta t>0$). This result is a direct mathematical consequence of the concavity of the pendular arc: because the trajectory of $W$ is curved upward rather than strictly vertical, the effective vertical displacement for a given initial speed is smaller in the pendulum model than in the free-fall model, leading to a shorter time aloft. The overestimation is not a numerical artifact but an intrinsic structural property of the free-fall simplification.

Finding 2: Nonlinear growth of the discrepancy with initial velocity. For all seven values of $L_{OW}$, the absolute error $\Delta t$ increases nonlinearly with $V_{H,0}$. At low velocities ($V_{H,0}<0.5\hspace{0.25em}\mathrm{m}/\mathrm{s}$), the pendular arc is shallow and approximately parabolic, so the two models converge asymptotically as $V_{H,0}\to 0$. At higher velocities, the curvature of the arc becomes increasingly consequential, and $\Delta t$ grows rapidly. For $L_{OW}=1.00\hspace{0.25em}\mathrm{m}$, $\Delta t$ reaches approximately $0.04\hspace{0.25em}\mathrm{s}$ at $V_{H,0}=1.5\hspace{0.25em}\mathrm{m}/\mathrm{s}$ and exceeds $0.15\hspace{0.25em}\mathrm{s}$ at $V_{H,0}=3.0\hspace{0.25em}\mathrm{m}/\mathrm{s}$. Given that reported plyometric push-up flight times fall in the range $0.25$–$0.55\hspace{0.25em}\mathrm{s}$, errors of this magnitude represent $7$–$30\mathrm{\%}$ overestimation, with direct consequences for power prediction equations that depend on $t_{flight}$.

Finding 3: Amplification of the discrepancy with pendulum arm length. The divergence $\Delta t$ is a monotonically increasing function of $L_{OW}$ for all fixed $V_{H,0}>0$. A longer pendulum arm admits a larger maximum angular amplitude for a given initial speed (equation (64) shows $V_{H,0}^{max}\propto \sqrt{L_{OW}}$), so the free-fall assumption of rectilinear vertical motion progressively misrepresents the physics of taller or longer-limbed athletes. This observation implies that the error in flight-time estimation is heterogeneous across the population, being substantially larger for individuals with greater $L_{OW}$ (Table 2 and Figure 2).

4.2. Effect of Pendulum Length (${\mathit{L}}_{\mathit{O}\mathit{W}}$) on Maximum Height (${\mathit{h}}_{\mathit{m}\mathit{a}\mathit{x}}$): Free-Fall Model vs. Pendulum Model

4.2.1. Mathematical Formulations

This section analyzes the divergence in maximum height predictions between the two models when flight time $t_{flight}$ (rather than initial velocity) serves as the primary experimental input, consistent with the dominant paradigm in field testing in which $t_{flight}$ is measured directly by contact mat or force platform.

Model A: Free-Fall Model. The maximum height predicted from a measured flight time is:

$$h_{max,FF}\left(t\right)={\displaystyle \frac{g\hspace{0.17em}{t}^2}{8}}$$

(65)

Equation (65) is obtained by substituting $V_{H,0}=g\hspace{0.17em}t/2$ (from equation (51)) into equation (52). This expression is independent of any geometric model parameter and constitutes the standard formula applied in vertical jump testing.

Model B: Pendulum Model. For a given observed flight time $t$, the initial hand velocity $V_{H,0}^{\left(P\right)}$ consistent with the pendulum dynamics is recovered by numerically inverting equation (56):

$$t_H\left(V_{H,0}^{\left(P\right)},\hspace{0.33em}{L}_{OW}\right)=t$$

(66)

Since $t_H$ is a strictly monotonically increasing, continuously differentiable function of $V_{H,0}$ for fixed $L_{OW}$ (verified analytically from the positivity of $d{t}_H/d{V}_{H,0}$), the root of equation (66) is unique on $\left(0,\hspace{0.33em}{V}_{H,0}^{max}\right)$ for any admissible $t<t_H^{max}$. The maximum height in the pendulum model is then evaluated as:

$$h_{max,P}\left(t,\hspace{0.17em}{L}_{OW}\right)={\displaystyle \frac{{\left[V_{H,0}^{\left(P\right)}\right]}^2}{2\hspace{0.17em}g}}$$

(67)

where the numerator comes from the center-of-mass-referenced height equation (43) evaluated at the pendulum-consistent velocity $V_{H,0}^{\left(P\right)}$. The overestimation of maximum height by the free-fall model, at a given $t$, is:

$$\Delta h\left(t,\hspace{0.17em}{L}_{OW}\right)=h_{max,FF}\left(t\right)-h_{max,P}\left(t,\hspace{0.17em}{L}_{OW}\right)={\displaystyle \frac{g\hspace{0.17em}{t}^2}{8}}-{\displaystyle \frac{{\left[V_{H,0}^{\left(P\right)}\right]}^2}{2\hspace{0.17em}g}}$$

(68)

Since $V_{H,0}^{\left(P\right)}<g\hspace{0.17em}t/2$ for all $t>0$ and $L_{OW}<\mathrm{\infty }$ (the pendulum-consistent velocity is always smaller than the free-fall take-off velocity for any given $t$, because the pendular path absorbs part of the initial kinetic energy into rotational displacement), $\Delta h>0$ for all admissible parameter combinations.

4.2.2. Numerical Implementation

For each of the seven $L_{OW}$ values defined in equation (63), the theoretical maximum flight time $t_H^{max}$ was computed by evaluating equation (56) at $V_{H,0}=V_{H,0}^{max}=\sqrt{2\hspace{0.17em}g\hspace{0.17em}{L}_{OW}}$ (corresponding to ${\phi }_{max,H}=\pi /2$). This was done via the regularized quadrature procedure described in Section 4.1.2. The computed values are presented in Table 3.

For each $L_{OW}$, a grid of $N=500$ uniformly spaced values of $t_{flight}$ was constructed on the interval $\left(\epsilon ,\hspace{0.33em}{t}_H^{max}\right)$, with $\epsilon ={10}^{-4}\hspace{0.25em}\mathrm{s}$. For each grid point $t_j$, the following computations were performed: (a) $h_{max,FF}\left(t_j\right)$ via equation (65), evaluated directly. (b) $V_{H,0}^{\left(P\right)}$ via “stats::uniroot()” applied to the residual function $f\left(V\right)=t_H\left(V,\hspace{0.17em}{L}_{OW}\right)-t_j$, with bracketing interval $\left[{\epsilon }_V,\hspace{0.33em}{V}_{H,0}^{max}-{\epsilon }_V\right]$ where ${\epsilon }_V={10}^{-6}\hspace{0.25em}\mathrm{m}/\mathrm{s}$, tolerance ${10}^{-12}\hspace{0.25em}\mathrm{m}/\mathrm{s}$, and maximum number of iterations set to 1000. The inner evaluation of $t_H\left(V,\hspace{0.17em}{L}_{OW}\right)$ at each root-finding iteration reused the regularized quadrature procedure of Section 4.1.2. (c) $h_{max,P}\left(t_j,\hspace{0.17em}{L}_{OW}\right)$ via equation (67). (d) $\Delta h\left(t_j,\hspace{0.17em}{L}_{OW}\right)$ via equation (68).

The total number of “uniroot” + “integrate” calls was $7\times 500=3500$. Each call converged within the specified tolerance; no bracket violations or convergence failures were recorded across the full parameter grid.

4.2.3. Results and Analysis

Finding 1: Systematic overestimation of $h_{max}$ by the free-fall model. For all $\left(t_{flight},\hspace{0.33em}{L}_{OW}\right)$ combinations examined, $h_{max,FF}\left(t\right)>h_{max,P}\left(t,\hspace{0.17em}{L}_{OW}\right)$, confirming the analytical prediction from equation (68). The overestimation arises because the free-fall model, by assuming rectilinear vertical motion, attributes the entire initial kinetic energy to vertical displacement. The pendulum model, by contrast, constrains the trajectory to a circular arc, so that a fraction of the kinetic energy is directed along the tangential (non-vertical) component of the arc, reducing the vertical rise relative to the free-fall prediction.

Finding 2: Progressive growth of the overestimation with flight time. The difference $\Delta h\left(t,\hspace{0.17em}{L}_{OW}\right)$ is a monotonically increasing function of $t_{flight}$ for all $L_{OW}$. At very short flight times, both models agree closely because the pendular arc is nearly tangential to the vertical, and the small-angle limit of the pendulum equation recovers the free-fall kinematics. As $t_{flight}$ increases toward $t_H^{max}$, the pendular trajectory departs substantially from the vertical, and the free-fall overestimation grows rapidly. For $L_{OW}=1.00\hspace{0.25em}\mathrm{m}$, the overestimation reaches approximately $0.02\hspace{0.25em}\mathrm{m}$ at $t_{flight}=0.30\hspace{0.25em}\mathrm{s}$ and exceeds $0.10\hspace{0.25em}\mathrm{m}$ at $t_{flight}=0.60\hspace{0.25em}\mathrm{s}$.

Finding 3: Dependence of the overestimation on $L_{OW}$. For a fixed $t_{flight}$, $\Delta h$ is larger for shorter pendulum arm lengths. This behavior reflects the fact that a shorter pendulum, for a given flight time, must have executed a larger angular excursion (relative to its radius), so the non-vertical component of motion is proportionally more significant. Conversely, for very long pendulum arms, the trajectory approaches a locally straight line over the range of angles sampled, and the free-fall approximation becomes relatively more accurate. This counterintuitive result highlights the importance of accounting for absolute angular excursion rather than absolute arm length when assessing model applicability (Table 4 and Figure 3).

5. Discussion

The present investigation introduced a novel pendulum-based mechanical framework for characterizing the flight-phase kinematics of the plyometric push-up, and the simulation results provide strong analytical evidence in support of its validity as a physically accurate model. The central finding is that the body, when conceptualized as a rigid pendulum rotating about the fixed ankle pivot, traces a curvilinear arc rather than a vertical trajectory during the flight phase. Consequently, performance parameters derived from the pendulum model, including flight time (t_H), maximum arc displacement (S_hand, SG), and maximum vertical height (h_max,H, h_max), differ systematically and substantially from the predictions of the conventional free-fall framework. Both derivation pathways operationalize the same static rotational equilibrium condition about O and converge to L = (M_W/M) L_OS as a mathematical consequence of that shared premise. The reconciliation confirms internal self-consistency rather than independent empirical corroboration, and its value lies in demonstrating that the effective pendulum length is a torque-equivalent parameter rather than a Euclidean positional distance (equation 14). The deviation between the Euclidean distance d_OG and the dynamic length L is proportional to (1− cosθ₀), which remains below 4% for initial pendulum angles θ₀ ≤ 16°, encompassing the anatomical range of virtually all adult push-up configurations. This finding justifies the use of a simplified two-point mass model in field settings without meaningful loss of mechanical accuracy.

The kinematic equivalence demonstrated in equation (24), namely t_H = t_G, carries substantial methodological significance. It confirms that the flight time measured under the hands by a force platform or contact mat is precisely equal to the flight time of the whole-body center of mass, a property that is trivially satisfied in a rigid-body pendulum but is not guaranteed, and is indeed violated, in multi-segment models where the endpoint and center of mass follow different temporal trajectories. This result is consistent with the rigid-body constraint and rationalizes the use of contact-mat flight time as an operationally valid proxy for center-of-mass kinematics in field conditions, provided the rigid-body assumption holds approximately across the flight phase.

The simulation results detailed in Section 4.1 and Section 4.2 quantify, for the first time in a systematic and analytically grounded manner, the extent to which the free-fall simplification misrepresents the biomechanics of the plyometric push-up. For a pendulum arm length of L_OW = 1.00 m, representative of an adult male of average stature, the absolute flight time overestimation (Δt = t_FF − t_H) reached 0.016 s at V_H,0 = 1.50 m/s and 0.082 s at V_H,0 = 3.00 m/s, the latter representing a relative error of 13.4% relative to the free-fall estimate. Given that time-based power prediction equations in the plyometric push-up literature use flight time directly as a predictor variable [4], with reported equations of the form P_peak = 11.0 × M + 2012.3 × t_flight − 338.0 (R² = 0.658, SEE = 150 W), a systematic overestimation of tflight in the range of 7–13% translates directly into non-trivial overestimations of power output that grow with athletic performance level. For t_flight ≈ 0.35 s, a 10% overestimation yields Δt_flight ≈ 0.035 s, corresponding to a power overestimation of approximately 70 W from the Wang et al. [4] regression equation. Given that equation’s standard error of estimate (SEE = 150 W), this correction approaches but does not exceed the regression’s inherent residual uncertainty; its practical significance therefore depends on the precision demands of the specific monitoring application. This finding aligns with the broader methodological critique raised by Dhahbi et al. [9], who identified systematic biases in force-plate-based power calculations when the rotational nature of the push-up trajectory is ignored, and by Sha and Dai [8], who demonstrated that a single-force-platform method overestimated whole-body velocities by 54.4% (1.39 ± 0.37 m/s vs. 0.90 ± 0.23 m/s, Cohen’s d = 1.59, p < 0.05) and power by 58.3% (1.63 ± 0.47 vs. 1.03 ± 0.29 W/body weight, Cohen’s d = 1.49, p < 0.05) relative to a two-platform reference method.

The maximum height analysis (Section 4.2) confirms an analogous overestimation pattern when t_flight serves as the primary experimental input. For L_OW = 0.50 m, the free-fall model overestimated h_max by 18.2% at t_flight = 0.30 s and by 28.4% at t_flight = 0.50 s. For L_OW = 1.00 m, the overestimation reached 23.6% at t_flight = 0.60 s. The counterintuitive finding that shorter pendulum arm lengths generate proportionally larger Δh values at equivalent flight times reflects the higher angular excursion per unit of arm radius executed by shorter pendulums, which amplifies the non-vertical component of the trajectory and consequently increases the discrepancy between rectilinear and curvilinear vertical displacement. This result complements the findings of Wang et al. [4], who reported that only 43% of the variance in peak velocity could be explained by flight time alone (r = 0.656), attributing part of this unexplained variance to differences in arm length across subjects. The pendulum model provides a mechanistic explanation for that observation: individuals with shorter effective arm lengths (L_OW) will generate greater Δh errors for a given t_flight, producing systematic heterogeneity in the population-level relationship between t_flight and take-off velocity that a purely linear regression model cannot fully capture.

It is further noteworthy that the free-fall model’s error is not constant across the performance distribution but grows nonlinearly with initial velocity. This implies that elite athletes, who produce the highest V_H,0 values, are precisely those for whom the free-fall simplification generates the greatest absolute and relative errors, a characteristic that renders the model least trustworthy in the upper performance strata where measurement precision is most consequential for training program individualization. Bartolomei et al. [5] reached a parallel conclusion in their comparison of the bench press throw and ballistic push-up, noting that time-based power indices produced systematic biases not observed with velocity-based measures, and recommended that flight-time-based predictions be used with caution. The present framework provides a formal mechanical basis for that recommendation.

The pendulum model provides a structurally sound and computationally accessible framework for correcting the systematic overestimation bias that characterizes all flight-time-based power assessments of the plyometric push-up. The model requires only four anthropometric measurements, total body mass (M), hand-supported mass (M_W), shoulder height (L_OS), and upper-limb length (L_SW), all obtainable in field conditions without specialized instrumentation. These parameters collectively determine the two governing geometric quantities, L and θ₀, from which all performance indices are derived analytically. The reliability of flight time as a force-plate-derived variable has been well established, with reported ICC values ranging from 0.80 to 0.96 across trained and sub-elite populations [1,2], and the present model does not alter the measurement protocol for t_flight, but rather transforms the raw flight-time value through a physically consistent kinematic model prior to performance index calculation. This approach could therefore be adopted without modification of existing testing infrastructure in laboratories or field settings using contact mats, portable force plates, or accelerometry-based devices.

The dual analytical framework presented in Section 3.2 and Section 3.3 provides practitioners and researchers with two complementary performance indices referenced either to the hands (experimentally primary) or to the center of mass (physiologically primary). The power equations at both levels (equations 34 and 46) incorporate the pendulum arm lengths and total system mass, enabling individualized computation of mean mechanical power output that accounts for body geometry, a correction absent from currently published prediction equations. Furthermore, the parametric sensitivity demonstrated in the simulations confirms that body-size normalization of power output should incorporate L_OW as a covariate in addition to body mass, given that h_max and S_hand are explicit functions of L_OW. The present model provides the mechanical basis for constructing such geometry-adjusted normalization equations, which would reduce inter-individual variability in performance comparisons across populations differing in stature.

The study has several limitations that must be acknowledged. The rigid-body assumption precludes the modeling of inter-segmental joint motion during the flight phase, particularly at the hip and shoulder, which may introduce deviations from the predicted pendular trajectory in subjects who do not maintain strict body tension. The two-point mass model for CoM location introduces positional errors proportional to (1 − cosθ₀), which, while small for typical push-up configurations, may become meaningful for subjects with unusually large L_SW/L_OS ratios. More consequentially, the use of simple pendulum dynamics, where I_O = M·L², neglects the rotational inertia contribution ICoM of the distributed body mass about its own center of mass. The physically correct equivalent pendulum length, L_eq = I_O/(M·L_CoM), exceeds L by I_CoM/(M·L_CoM); for a uniform-rod approximation of the body this implies L_eq/L ≈ 1.11–1.33 across physiological anthropometry [10]. This systematic underestimation of Leq by the simple pendulum formulation results in underestimation of the predicted flight time relative to the physically correct compound pendulum, partially offsetting but not canceling the overestimation attributed to the free-fall model. Future formulations should incorporate measured segmental inertia parameters to quantify the net bias. The quarter-period approximation for push-off duration (equations 33 and 45) is valid only in the small-angle limit and should be replaced by numerical integration from the full pendulum equation for high-velocity conditions, as addressed in Section 4. No experimental validation against force-plate kinematics or motion capture was performed. The present study is a theoretical-computational investigation; numerical agreement between quadrature and ODE implementations (maximum discrepancy < 2.5×10⁻⁷ s) establishes computational self-consistency, not mechanical validity relative to observed human kinematics. The model’s accuracy advantage over the free-fall simplification, in absolute terms against empirical ground-truth data, remains to be established by prospective validation studies employing dual force plates synchronized with three-dimensional motion capture across representative anthropometric samples; prospective validation studies comparing pendulum-model predictions against two-force-platform reference measurements across a range of body sizes and performance levels are required to establish the empirical boundaries of the model’s accuracy.

Future investigations should extend the pendulum framework to accommodate: (i) variable initial angles across anthropometric groups to establish population-level normative corrections; (ii) sex-specific anthropometric inputs, given that the M_W/M ratio and L_OS differ systematically between males and females; (iii) integration with inertial measurement unit (IMU) wearable technology to enable real-time angular velocity capture at the ankle, which would allow direct validation of ω₀ and therefore of all derived performance indices; and (iv) longitudinal designs examining the sensitivity of the pendulum-model indices to training-induced changes in upper-body power, to determine their practical utility as performance monitoring tools across competitive seasons.

Practical Recommendations

Practitioners applying flight-time-based protocols to assess upper-body power during the plyometric push-up should incorporate the four anthropometric measurements required by the pendulum model (M, M_W, L_OS, L_SW) into their standard testing battery. These measurements require no additional instrumentation beyond a precision scale placed sequentially under the feet and under the hands in the static push-up position, and a segmental length measurement tape. Once obtained, L_OW and L can be computed algebraically and used to convert measured flight times into pendulum-consistent take-off velocities via the numerical inversion procedure described in Section 4.2, from which corrected maximum height and power output indices follow directly. For monitoring purposes across training cycles, reported ICC values of 0.80–0.96 for force-plate-derived flight time [1,2] confirm that t_H is sufficiently reliable to detect meaningful performance changes when the underlying biomechanical model is correctly specified [11]. Flight-time-based power prediction equations [4] should be recalibrated using pendulum-consistent velocity values rather than free-fall-derived velocities to eliminate the systematic bias that otherwise produces disproportionate overestimation at high performance levels.

6. Conclusions

The present study proposed, derived, and computationally verified for self-consistency a rigid-body pendulum model for the mechanical analysis of the plyometric push-up flight phase. The model produces a single, analytically consistent expression for the effective pendulum length (L = M_W L_OS/M) demonstrated to be equivalent across two independent derivation pathways. Simulations across seven pendulum arm lengths (0.50–2.00 m) and the full physiologically admissible initial velocity range confirm that the free-fall model systematically overestimates flight time by up to 18.8% and maximum height by up to 28.4% relative to the pendulum model, with both errors growing nonlinearly with initial velocity and arm length. The framework supplies a complete set of analytically derived performance indices, including maximum angular displacement, arc displacement, maximum vertical height, and mean mechanical power, for both the hand and center-of-mass reference points, all expressible in terms of directly measurable anthropometric and kinematic quantities. These findings establish a physically rigorous basis for geometry-adjusted upper-body power assessment from plyometric push-up flight-phase measurements. These results establish the theoretical and computational basis for a standardized upper-body power assessment instrument grounded in rotational kinematics, mechanically distinct from vertical jump methodology, pending prospective empirical validation.
