Universal Suitability and Sustainability Index (USSI): A Comprehensive Framework for Greener HPLC-UV/Vis Methods

1. Introduction

Nowadays, liquid chromatography is considered as principal technique in analytical chemistry for pharmaceutical, environmental, forensic, and food analysis. Classical liquid chromatographic analysis is mainly based on the consumption of toxic organic solvents in the mobile phase, such as acetonitrile, hexane, DCM and methanol. Therefore, chromatography has always lived with a paradox: tons of these toxic organic solvents are consumed every year in industrial and research laboratories using LC instruments. Thus, solvents that deliver exquisite separations often carry the steepest environmental and safety cost [1,2]. Even worse, additives such as trifluroacetic acid (TFA) may be considered as “forever chemicals” (PFAS).

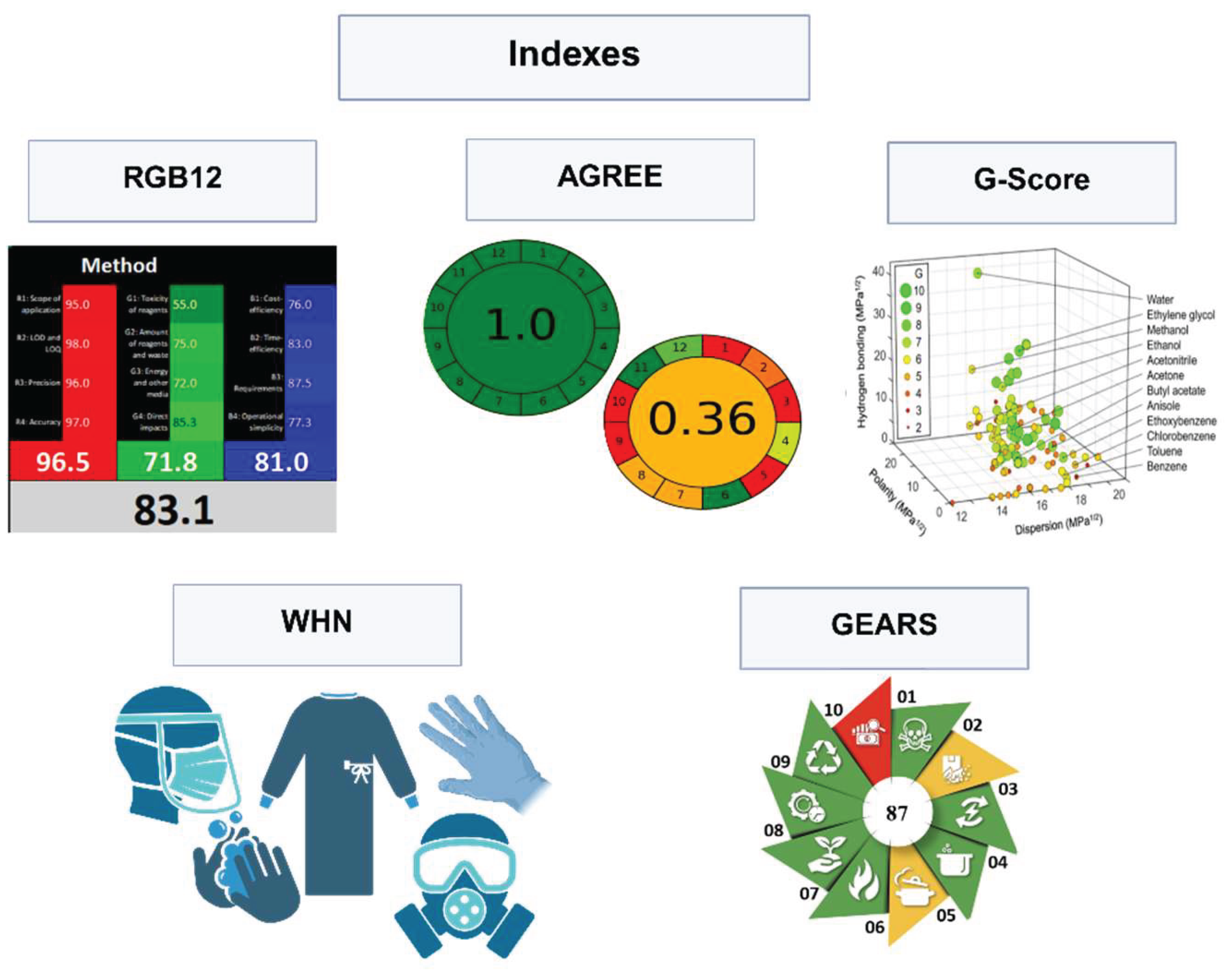

Thus, there is a significant demand for replacing toxic and/or persistent substances with greener alternatives to protect the environment and living creatures from the negative impact of the widespread use of these harmful organic solvents. A few assessment tools have been developed to evaluate the greenness of methods and to compare the greenness of new eco-friendly solvent-based methods to that of a reported classical method that utilizes toxic organic solvents in the mobile phase [1,2].

In the late 20th century, Anastas and Wagner first introduced the 12 principles of green chemistry, providing a universal framework for minimizing the environmental and health impact of chemical processes. These principles were adapted for analytical sciences as the 12 principles of green analytical chemistry by Galuszka et al. in 2013 [3]. Building on this foundation, practical assessment tools have emerged to translate abstract principles into measurable scores. Green environmental assessment and rating for solvents (GEARS), is a tool used to evaluate organic solvents in research and industry from environmental, functional, and economical perspectives via 10 parameters which are toxicity, biodegradability, renewability, volatility, thermal stability, recyclability, flammability, efficiency, environmental impact, and affordability of solvents. It is worth mentioning the tools that are commonly used to evaluate the organic solvents [4] (Figure 1) including analytical GREEnness (AGREE) [5], red-green-blue 12 (RGB12) [6], G-score [7], weighted hazards number (WHN) [8], carbon footprint [8] and (GEARS) [4].

In 2026 a recent study has been published by Bocian, evaluating a selective eco-friendly solvent and their implementation in pharmaceutical analysis, outlining progress towards sustainable practices and future steps for broader adoption of green chromatography. The evaluation is based on a comparison of physical and chemical properties of the selected solvents as well as using the GEARS score [4].

While AGREE centers on analytical method greenness, the RGB12 tool integrates three factors: analytical quality, represented by red color, environmental impact, represented by green color, practicality and cost, represented by blue color. The three factors (colors) fuse into a single whiteness outcome, enabling solvent choices that preserve operability and performance while reducing hazard. This tool can be used for method ranking during solvent substitution, particularly in LC workflows [5].

The G-score is a metric intended to give a quick but informative measure for the sustainability of a solvent by combining several sub-criteria such as health, safety, environmental impact, and functional properties. It assigns a 0-10 sustainability score to individual solvents. A high value of the G-score is an indication of a greener solvent and thus a preferable replacement [7,8,9].

Similarly, the WHN is a numerical tool of intrinsic hazard [7]. It was developed to translate the multiple hazard statements derived from the globally harmonized system of classification and labelling of chemicals (GHS) [10] or solvent’s safety data sheet (SDS) into a single, comparable value [11]. Furthermore, impacts of carbon dioxide emission related to the instrument used for analysis and the solvent production and incineration have been considered as well. Nowak et al. published an interesting article highlighting the significant effect of carbon dioxide emission related to analytical devices compared to household devices, electric cars, petroleum cars, and humans. Methods to calculate the carbon footprint related to the energy consumption of the analytical instrument have been used to give an overview of the carbon footprint of the analytical method[12].

There are many web-tools that can be used to evaluate different aspects of analytical work including solvent selection and different parameters in chromatographic methods. Such as GreenSOL [13] and high-performance liquid chromatography environmental assessment tool (HPLC-EAT) [14]. These tools are developed to support the evaluation of the environmental impact of chromatographic methods. The GreenSOL focuses on the greenness of solvents used in analytical experiments by assigning scores based on environmental safety. In contrast, the HPLC-EAT can be used to estimate the environmental impact of HPLC methods by considering the solvent consumption and waste generation. Although both tools provide insight into the environmental aspects of the chromatographic analysis, their evaluation frameworks remain limited. Therefore, a more comprehensive tool is required to overcome these limitations. (From here the idea of USSI evolved to fulfill the gaps.)

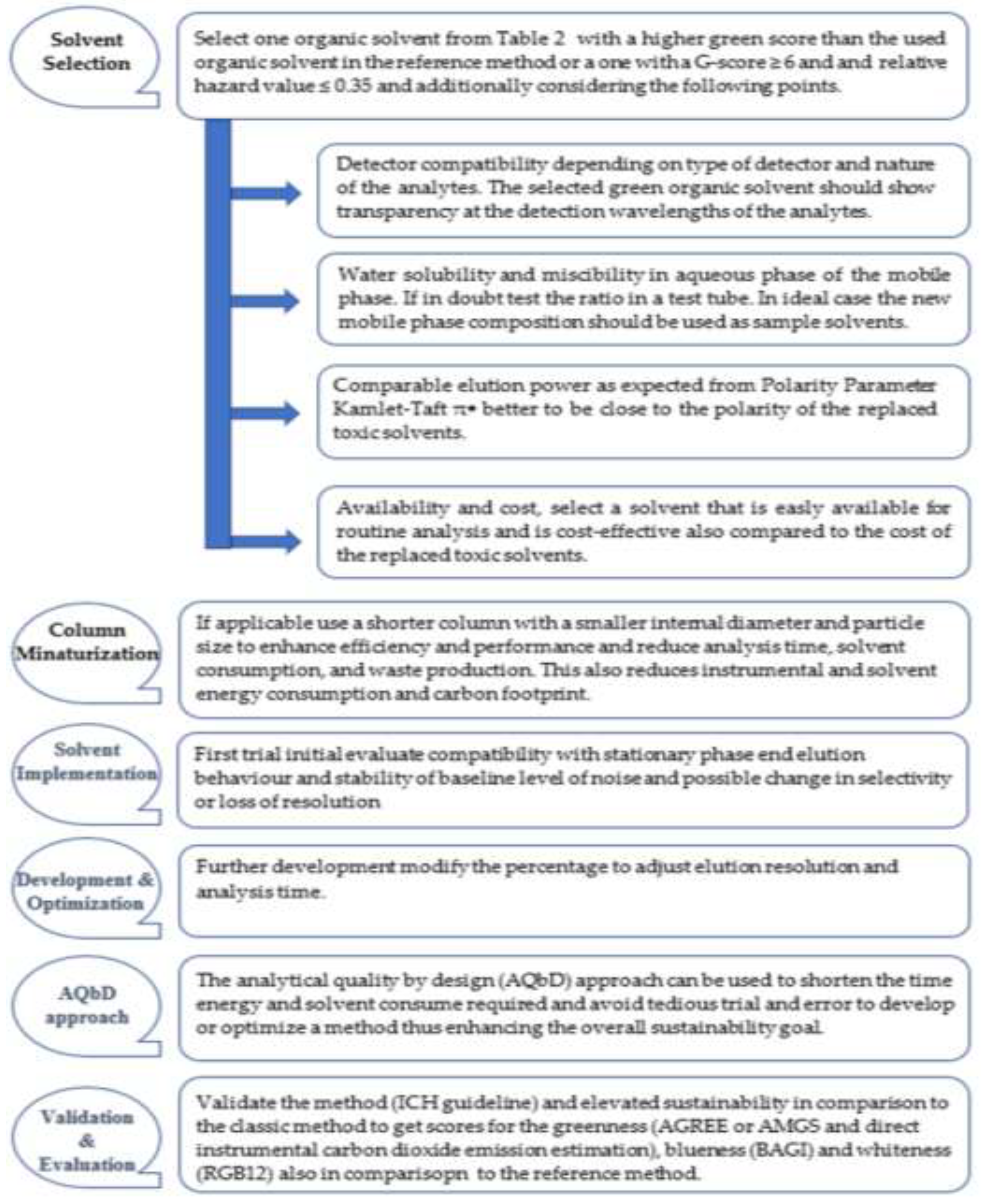

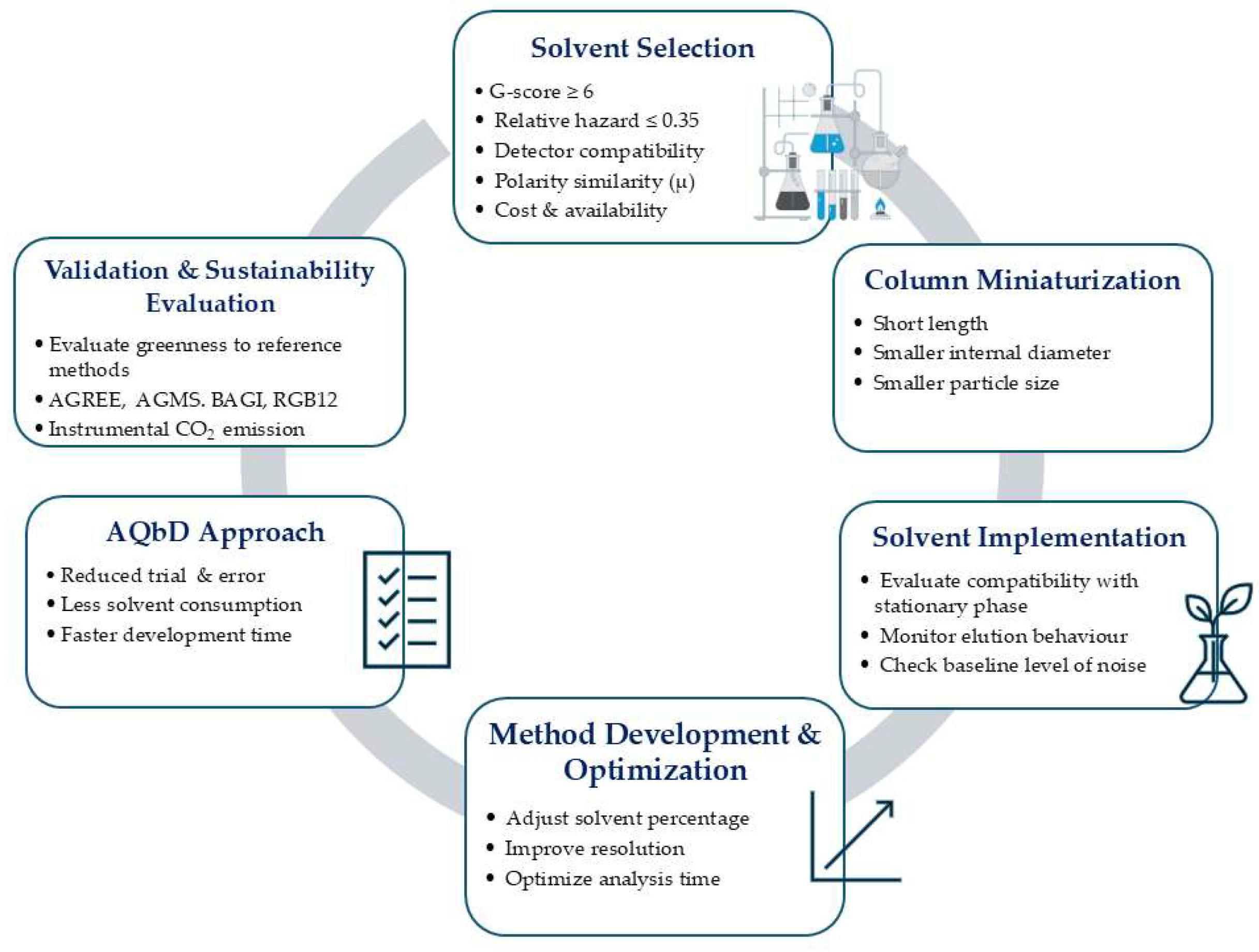

In 2024, a simple strategy to convert classical liquid chromatographic-based HPLC methods into more sustainable, greener, bluer, and whiter one was proposed by El Deeb [8]. This review emphasized the importance of developing structured strategies for implementing sustainability in analytical chemistry workflows. According to El Deeb, sustainable chromatographic method development can be approached through a stepwise process that includes solvent selection, column miniaturization, solvent implementation, method optimization, and validation (Figure 2) [8]. This systematic framework highlights the necessity of integrating environmental, operational, and analytical factors during method development rather than treating solvent substitution as an isolated decision.

Additionally, there are many international frameworks and guidelines that play a critical role in shaping sustainability practices within analytical chemistry. The International Organization for Standardization (ISO 14040 and ISO 14044) standards form the essential basis of Life Cycle Assessment (LCA), which in turn provides a structured methodology for evaluating the environmental impacts of different processes and products, including those used in analytical fields. Therefore, by evaluating these impacts across the entire life cycle, starting from the raw material to the finished product and ending with end-of-life disposal, these standards support the core objectives of green analytical and sustainable chemistry [15,16]. The adaptation of this concept to analytical methods was suggested by Parr and Schmidt [17] and is now integrated into reference works e.g. United States Pharmacopoeia (USP). Complementary, the United Nations Environment Program (UNEP) has issued a green and sustainable chemistry manual. This manual is not an ISO standard. Instead, it provides a comprehensive overview and guidance for embedding sustainability principles into chemical practice, thus offering broader perspectives that align well with LCA-based approaches. Together, these international initiatives emphasize the need for technical rigor in standardized assessments and provide the strategic direction necessary to advance sustainable analytical science [18,19].

This highlighted the urge to develop an index that integrates sustainability metrics-tools that simultaneously score environmental burden, health impact, analytical performance, and practical feasibility rather than ad hoc heuristics. Solvent replacement decisions are made with an index that integrates different measures together to provide a comprehensive evaluation of the analytical method and solvent used. Each evaluation tool gives helpful information about the environmental burden, health and safety hazards, or analytical performance, but none alone offers a comprehensive evaluation that considers different aspects to truly lead to a universal lens for decision-making. However, this is essential to ensure that innovation in sustainable and green chemistry translates into practical, high-performing laboratory and industrial applications by considering various parameters. On the other hand, some tools, including AGREE, RGB12, G-score, and WHN, evaluate the greenness of analytical methods from different perspectives, but none of them provides a comprehensive evaluation. Therefore, they often overlook the integration of analytical performance and method readiness into a single quantitative framework. To address this gap, an index called the Universal Suitability and Sustainability Index (USSI) was developed to provide a comprehensive, unified evaluation model that balances analytical efficiency, environmental impact, cost-effectiveness, and operational feasibility. To bridge the gap between different tools, we introduce the Universal Suitability and Sustainability Index (USSI). The USSI is a novel metric designed to unify safety, performance, suitability, and sustainability into one standardized score. Thereby, the USSI harmonizes analytical efficiency with health and environmental responsibilities. This work aims at pushing analytical chemistry to more sustainable applications that aid in supporting the United Nations’ vision of sustainability development goals for 2030. USSI allows for a quantitative complement to the above-mentioned by introducing a unified numerical approach that integrates chromatographic suitability, environmental greenness, cost-effectiveness and method readiness. The USSI not only aligns with the principles considered in sustainable method development workflows but also extends them by offering a standardized, data-driven evaluation system that supports informed decision-making across different analytical platforms.

2. Results and Discussion

2.1. Evaluation Dimensions and Parameters for USSI Metrics

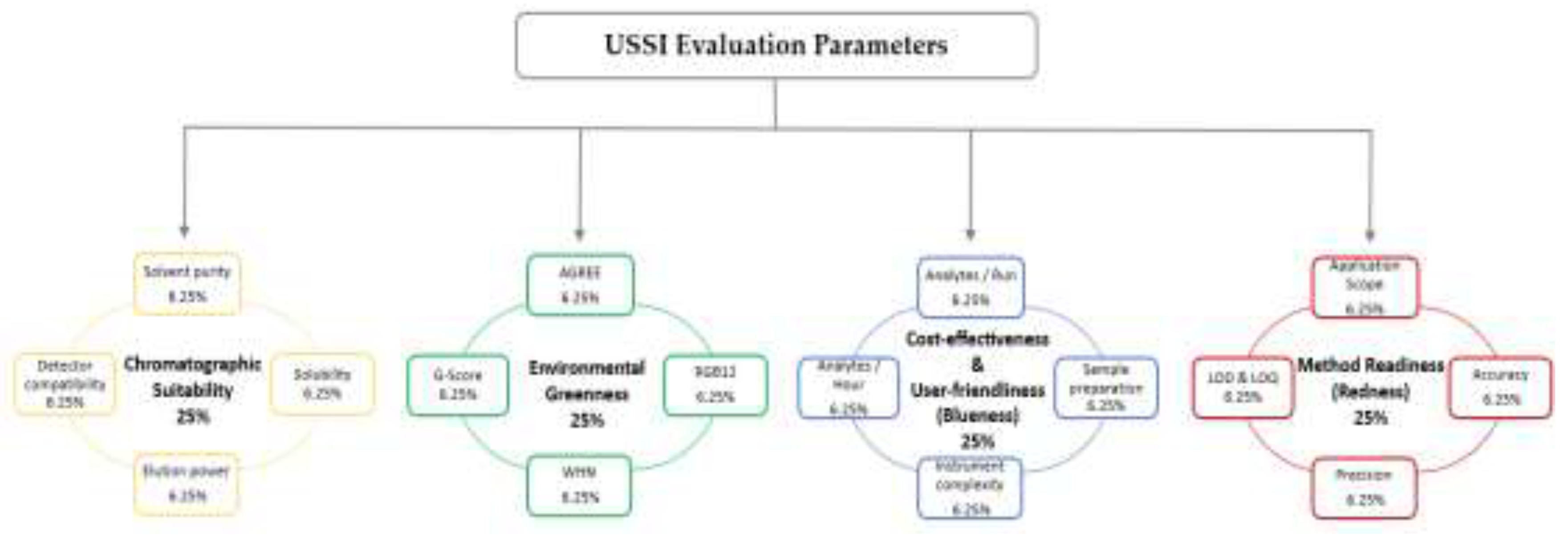

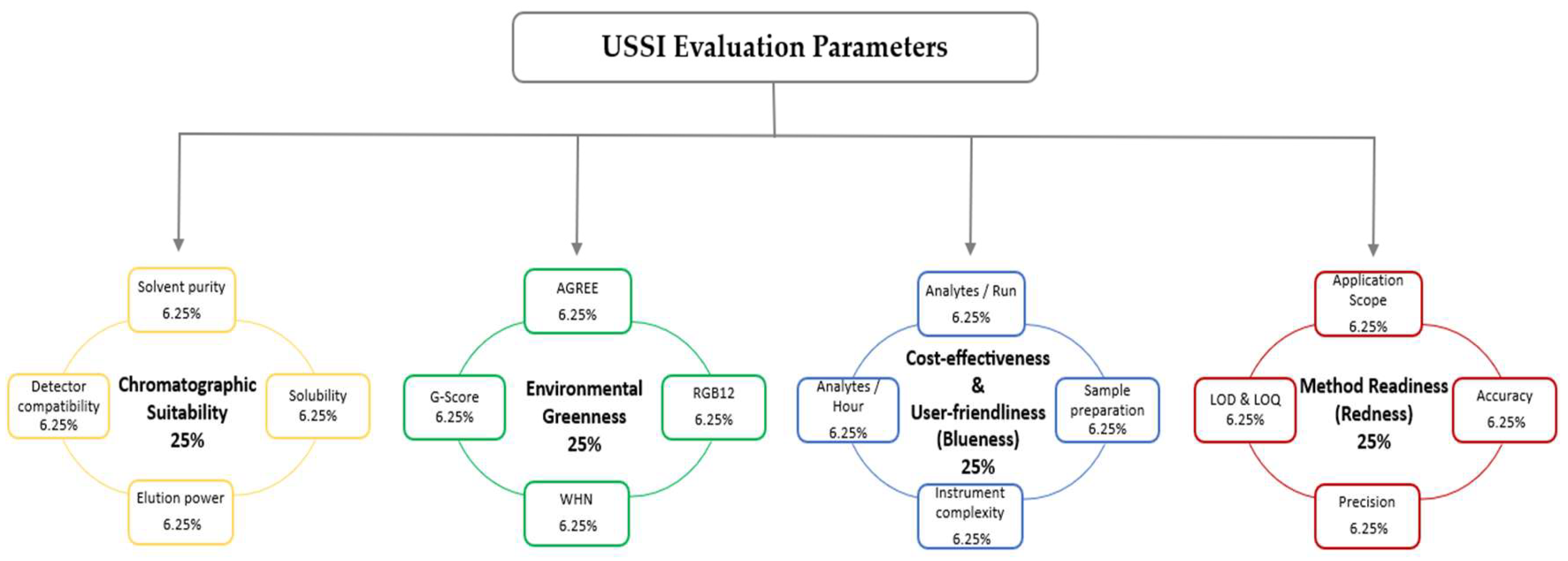

The USSI was developed to provide a multidimensional assessment of solvents and chromatographic methods. The index integrates four equally weighted factors, each contributing 25% to the overall score (Figure 3).

The first factor, chromatographic suitability, evaluates solvent purity, detector compatibility, solubility in the aqueous phase, and elution power. The second factor, environmental greenness, incorporates widely accepted green chemistry indicators, including AGREE, G-Score, Workplace Hazard Number (WHN), and instrument carbon footprint. The carbon footprint was calculated according to equation (1):

kg CO₂ eq=∑Instrument Power (kW)×Analysis Time (h)×Emission Factor (kg CO₂/kWh)

(1)

Instrument power values were obtained from manufacturer specifications, while the electricity emission factor was taken as 0.247 kg CO₂/kWh [15].

The third factor, cost-effectiveness, and user-friendliness (blueness), considers analytes per run, throughput (runs per hour), sample preparation complexity, and instrument complexity. The fourth factor, method readiness (redness), addresses application scope, limit of detection (LOD) and limit of quantitation (LOQ), precision, and accuracy.

Each factor was standardized to a 0–100 scale through built-in equations in a spreadsheet-based calculator, which also automatically generates graphical summaries to support interpretation.

2.2. Application of USSI Metrics for Solvent Selection

2.2.1. USSI Evaluation of Selected Methods

To demonstrate the applicability and versatility of the USSI, selected analytical methods were assessed. Each method was evaluated across the four factors, including chromatographic suitability, environmental greenness, cost-effectiveness and user-friendliness (blueness), and method readiness (redness), along with their corresponding sub-criteria. The resulting USSI scores offer a holistic picture of the greenness, suitability, and sustainability of the analytical methods and solvents. Therefore, the USSI score serves as a decision-support tool that guides researchers and scientists towards developing and selecting analytical methods that are not only greener but also robust, efficient, and adaptable to modern laboratory demands.

The USSI framework was applied to classical and alternative green methods Table 1. The method using cyrene achieved the highest overall USSI score (85.63), driven by favorable AGREE, RGB12, and WHN values. Ethanol and methanol methods also scored highly, though methanol’s toxicity moderated its overall profile. Propylene carbonate demonstrated strong sustainability (high G-Score) but was penalized by a relatively high carbon footprint. Traditional solvents such as hexane and chloroform methods scored poorly, largely due to elevated WHN values.

2.2.2. USSI and Whiteness

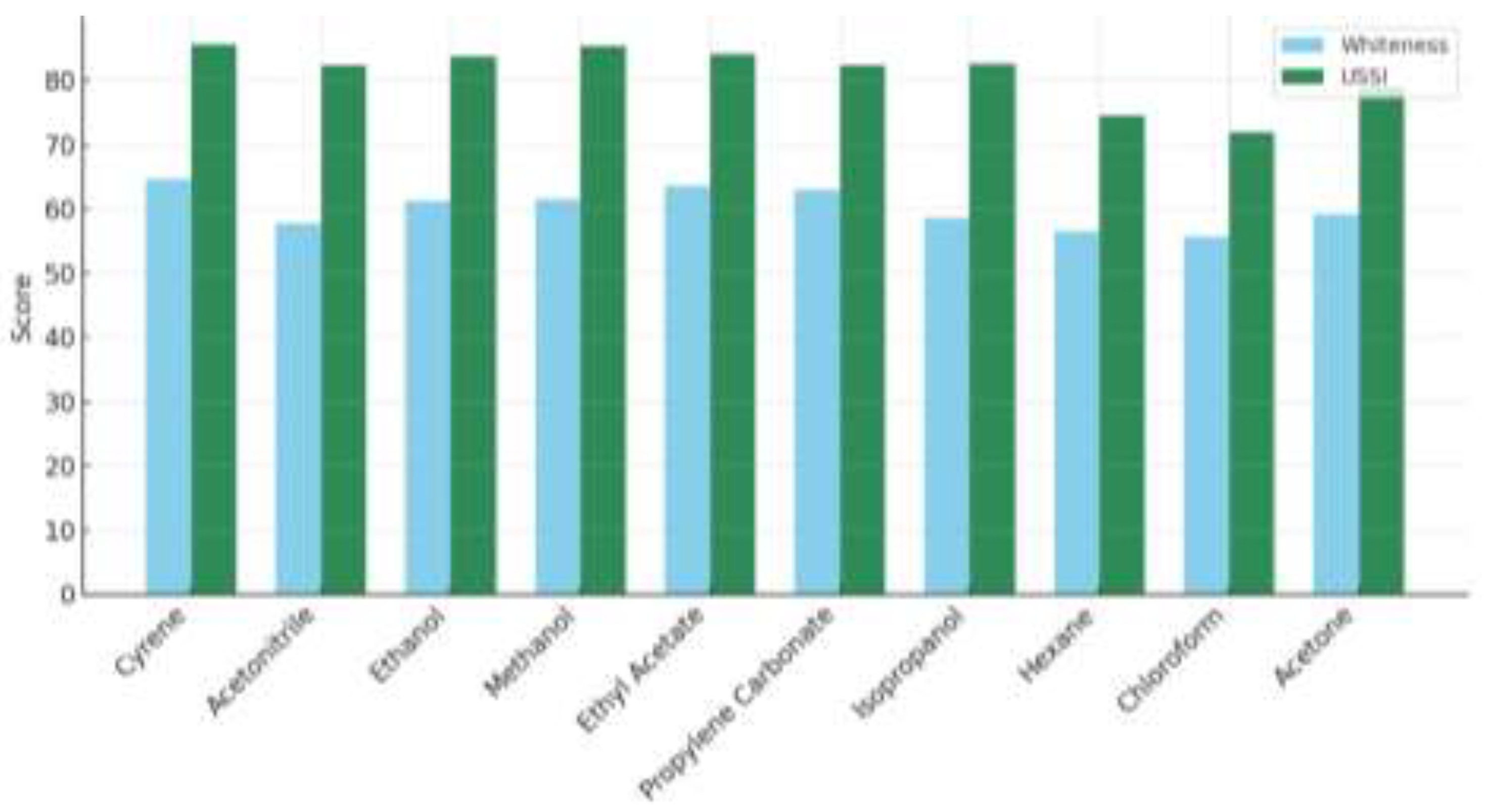

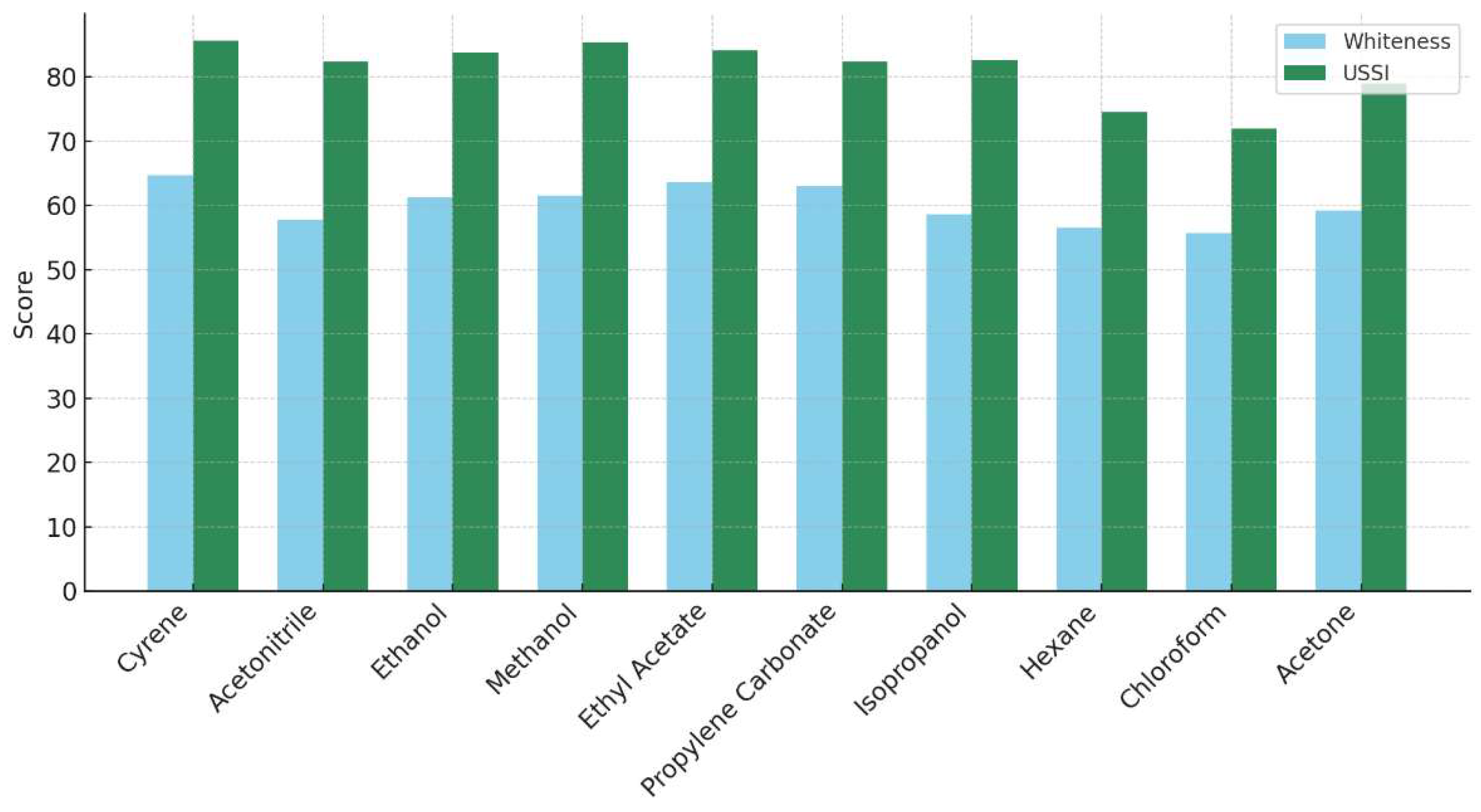

A strong positive correlation was observed between the Whiteness and USSI scores of the tested solvents, indicating that the overall analytical method sustainability tends to improve in parallel with the method’s visual and operational balance (Figure 4). Cyrene, methanol, and ethyl acetate showed the highest correlation between Whiteness and USSI values, reflecting their favorable combination in chromatographic performance and environmental compatibility. In contrast, traditional normal phase solvents such as chloroform and hexane scored the lowest in both indices, confirming their limited suitability under green chemistry criteria. This trend supports the concept that the Universal Suitability and Sustainability Index (USSI) can effectively complement existing whiteness-based assessments by providing a multidimensional, data-driven representation of solvent sustainability and analytical fitness.

2.2.3. Comparison of USSI and AGREE

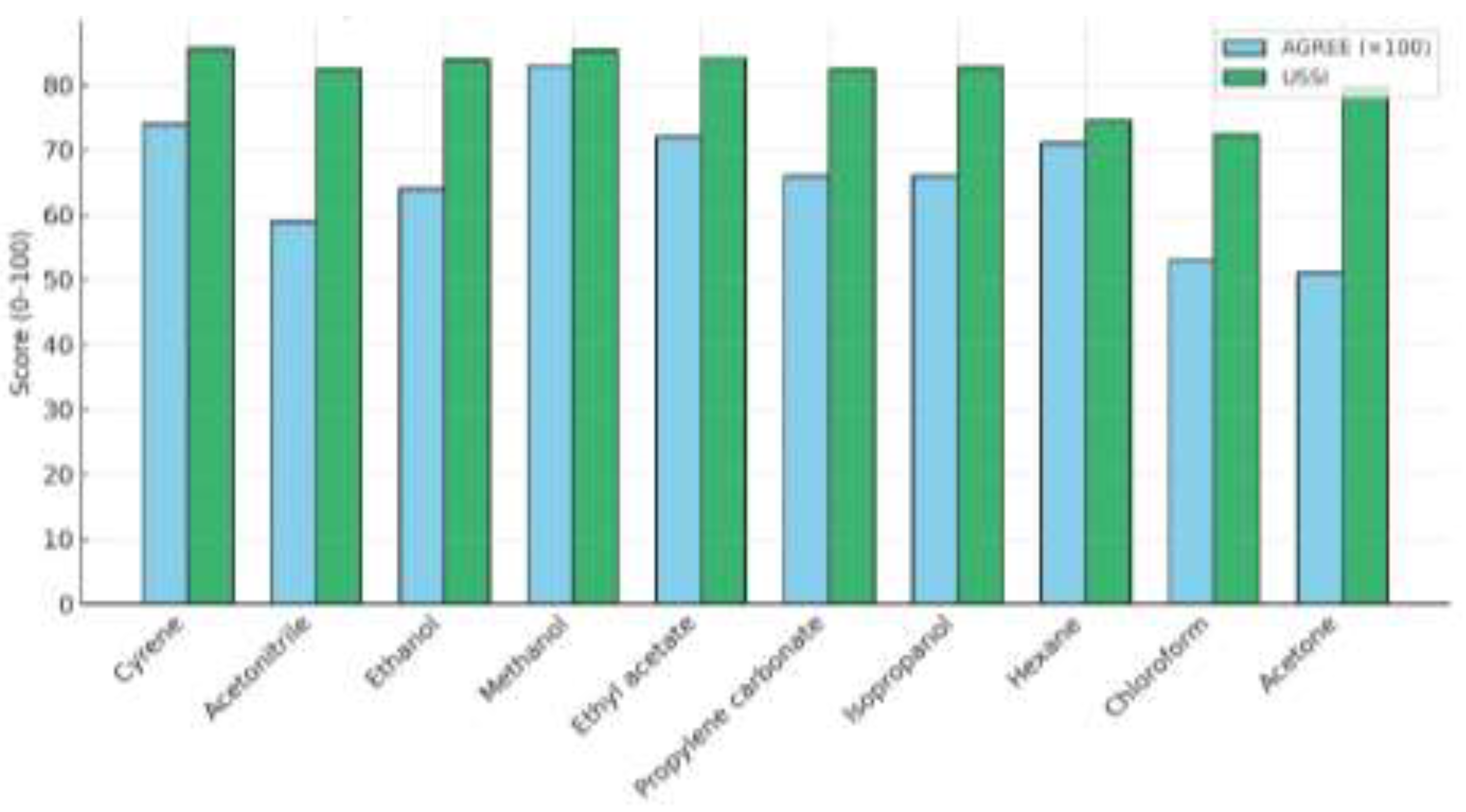

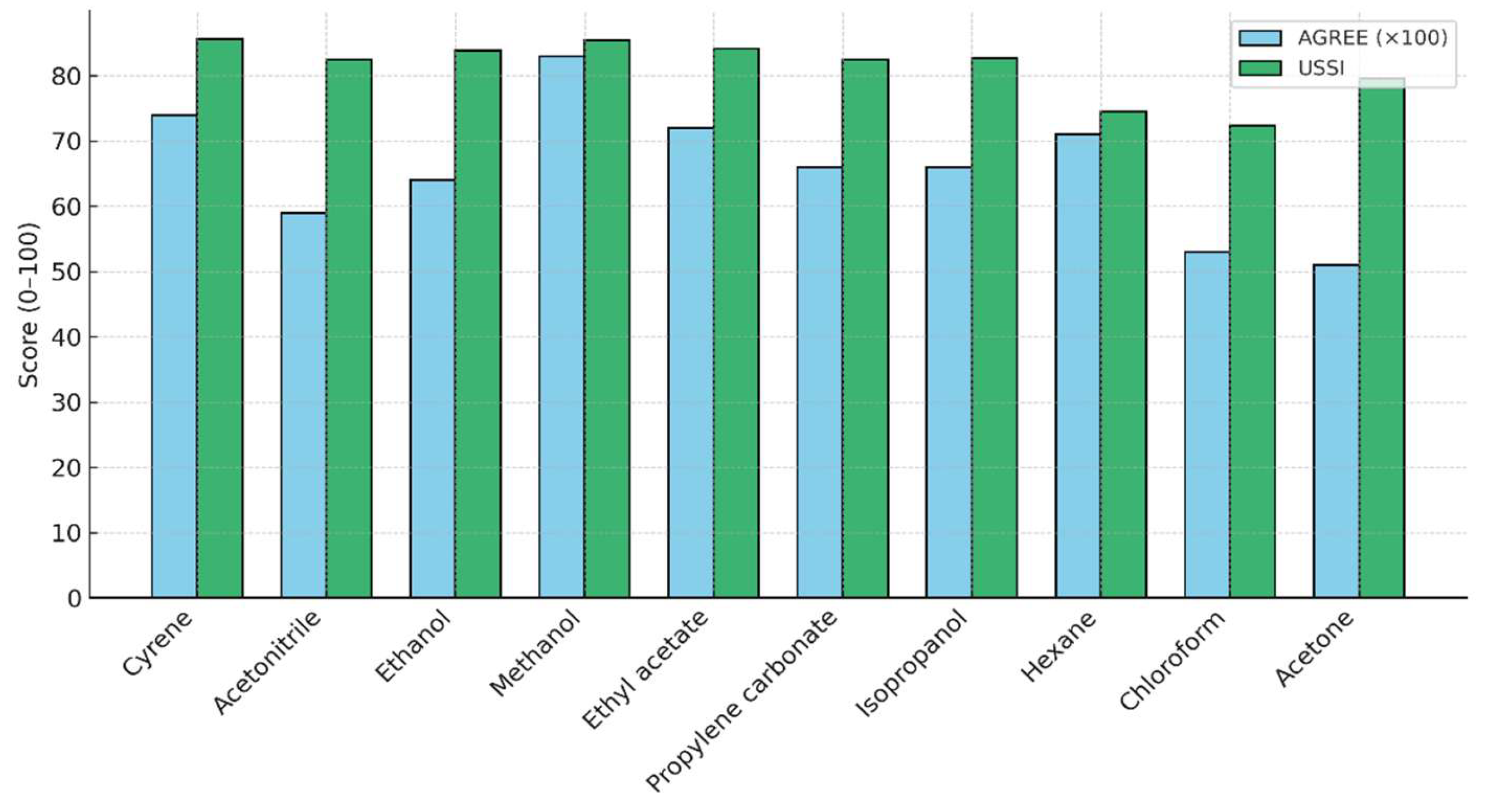

A moderately positive correlation was observed between the AGREE and USSI scores (Figure 5), indicating that methods with higher greenness, as quantified by AGREE, generally also achieved higher overall sustainability in the USSI framework. However, the relationship was not statistically significant, suggesting that AGREE alone cannot fully predict USSI outcomes. This reflects the broader, multidimensional nature of USSI, which integrates additional factors such as workplace hazard (WHN), carbon footprint, cost-effectiveness, and chromatographic suitability. For instance, methanol achieved a high AGREE score (0.83) and correspondingly strong USSI performance (85.38), while propylene carbonate, despite a moderate AGREE score (0.66), scored similar in USSI (82.44) due to the favorable G-Score and WHN values. These findings highlight that while AGREE contributes meaningfully to an overall sustainability assessment, comprehensive indices such as USSI provide a more balanced and discriminating evaluation across environmental, economic, and analytical dimensions.

3. Materials and Methods

3.1. Developmentment of USSI

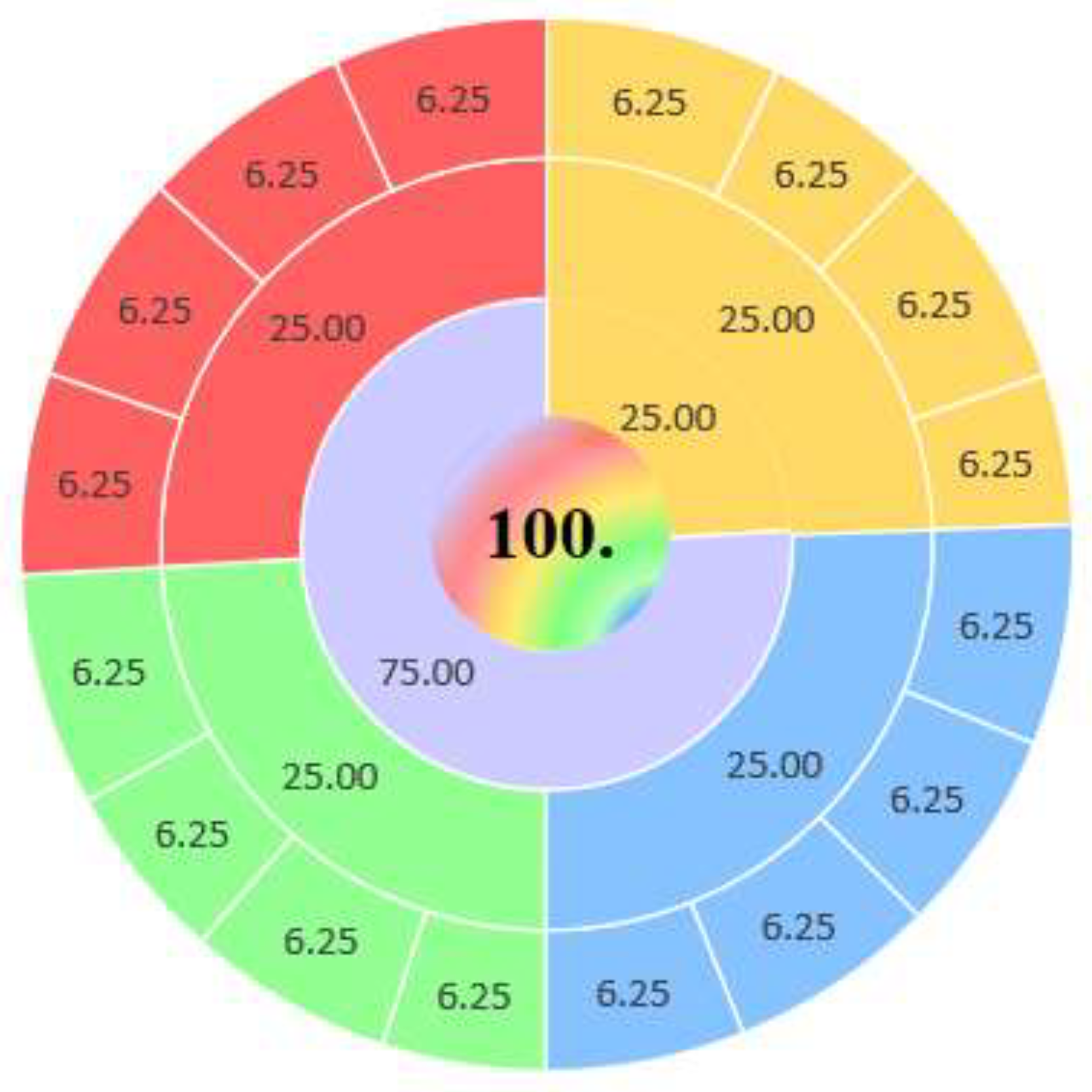

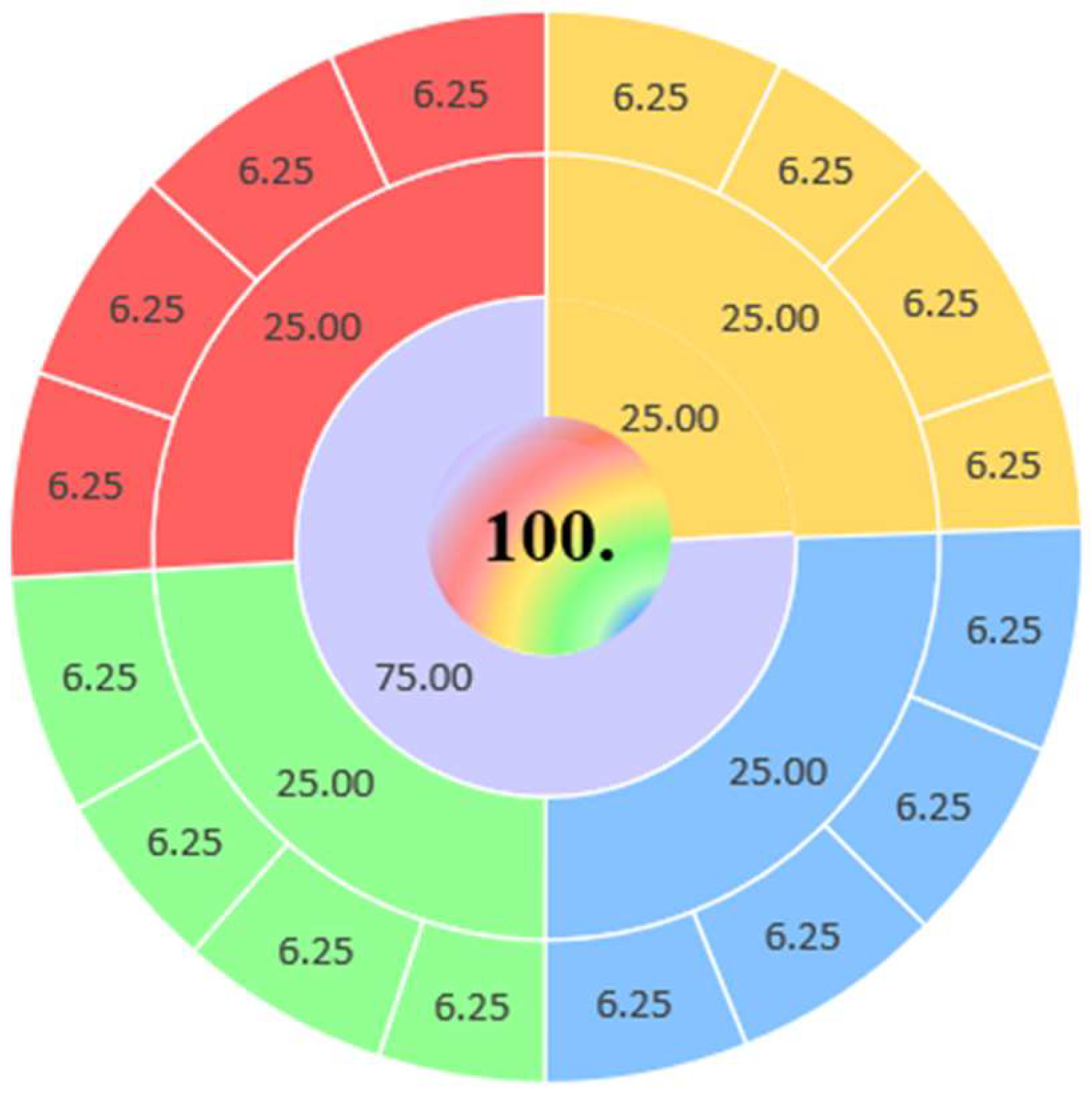

The Sunburst structure of the USSI is visualized in a sunburst diagram (Figure 6), which also displays the proportional contribution of each principal factor and its corresponding sub-factors. The outer segments represent the specific measurable variables such as solvent purity, elution power, AGREE score, G-score, and others, while the inner layers illustrate their integration into the four core factors. Each factor contributes equally (25%) to the overall USSI, ensuring a balanced weighting between chromatographic performance, environmental sustainability, cost-efficiency, and analytical readiness. This visual representation facilitates understanding of how diverse quantitative and qualitative factors collectively define the overall suitability and sustainability of analytical methods.

3.2. Spreadsheet Implementation (Calculator)

The USSI spreadsheet (provided as Supplementary File) is designed as a comprehensive, user-friendly tool to evaluate chromatographic methods based on four key factors: chromatographic suitability, cost-effectiveness, environmental greenness, and method readiness. Each factor includes carefully selected sub-criteria that are either directly measured, estimated, or input by the researcher. The accompanying spreadsheet folder provides all details of USSI index calculations. Along with illustrative examples of its application to selected analytical methods it is available in the supplementary section of this paper. Additionally, there is an interactive calculator also provided in the spreadsheet, which researchers and practitioners can directly use to evaluate their own analytical methods against the USSI index. Using built-in scoring scales and conversion equations, all inputs are standardized into a unified USSI score, enabling an objective comparison and selection of analytical methods. This approach not only minimizes uncertainty but also promotes informed decision-making and sustainable development in analytical chromatography. By streamlining complex evaluation criteria into a numerical format, the USSI tool empowers researchers to optimize their methods for performance, cost, environmental impact, and practical applicability.

3.2.1. Chromatographic Suitability

The first factor of the USSI spreadsheet focuses on evaluating the chromatographic suitability of the analytical method. Four values are included in this factor. Solvent purity is entered by the researcher as a percentage (0-100%- in the giving value field in the spread sheet-) directly reflecting the solvent grade and used without modification in the calculator. UV/Vis detector compatibility is represented by the solvent’s cut-off wavelength in nanometer (nm). Values are added by the user and automatically converted into a standardized USSI score using a predefined interval scale. Solubility in the aqueous phase is particularly important when conducting reverse phase chromatography [26]. It is characterized by the Kamlet–Taft π* parameter, which is entered as reported in the literature and likewise transformed into a USSI score via the spreadsheet algorithm. Finally, elution power is estimated by the researcher on a 0–100 scale, based on the chromatographic system, stationary phase, and mobile phase employed. This factor provides a quantitative measure of the solvent’s ability to elute analytes effectively.

3.2.2. Cost-Effectiveness and User-Friendliness

The second factor of the USSI framework evaluates cost-effectiveness and user-friendliness (blueness) through four sub-criteria. The number of analytes per run is entered as an integer in the giving value field in the spread sheet reflecting analytical efficiency and automatically converted according to the interval scale as specified in the Supplementary File. Throughput is assessed as the number of runs per hour, also entered as an integer and transformed into a standardized score. Sample preparation complexity is quantified as the number of preparation steps required prior to analysis, with higher values reducing the USSI contribution. Finally, instrument complexity is estimated from the approximate cost of the chromatographic instrument; higher costs are considered to correspond to higher operational complexity, yielding a lower score. All inputs are converted into a 0–100 scale by the spreadsheet calculator.

3.2.3. Environmental Greenness

The third factor focuses on environmental greenness, incorporating multiple green chemistry indicators. The G-Score is entered directly from published solvent databases, while the (WHN) reflects laboratory safety concerns. The AGREE score, based on the twelve principles of green analytical chemistry, is also entered as reported in the respective value field in the spread sheet. In addition, the carbon footprint is calculated within the spreadsheet using equation (1), which accounts for instrument power, analysis time, and the electricity emission factor (0.247 kg CO₂/kWh) [8]. These values are automatically converted into USSI scores, ensuring comparability across solvents and methods.

3.2.4. Readiness

The final factor addresses the redness, which reflects the robustness and practical applicability of a chromatographic method. Four sub-criteria are considered. Application scope is scored by the researcher on a scale of 0–100 and entered in the respective value field in the spread sheet depending on whether the method was narrow (single analyte or matrix) or broad (multiple analytes and matrices). Sensitivity is assessed through LOD and LOQ, expressed as scores out of 100. Precision is integrated as a repeatability/reproducibility score (0–100), and accuracy as the closeness of results to true values (0–100). All four inputs were processed through built-in equations to yield standardized USSI scores.

4. Conclusion

This study introduced the USSI as a comprehensive framework for the multi-criteria assessment of HPLC methods. USSI offers a balanced and practical tool, through the integration of chromatographic suitability with environmental, economic, and analytical performance. The index score supports that the method using cyrene emerged as the most promising green method, while the selected methods using traditional solvents such as chloroform and hexane performed poorly. These findings underscore the necessity of adopting multidimensional indices to guide method development toward balanced analytical performance and environmental responsibility.

The USSI provides a robust foundation for a generalized sustainability assessment tool, beyond its immediate application in liquid chromatography which provides a solid foundation for further development into a generalized sustainability assessment framework and even broader scientific and industrial applications.

Overall, this index provides a comprehensive and multivariate assessment of chromatographic methods, extending beyond solvent evaluation to encompass the entire analytical workflow. It integrates critical parameters such as the type and efficiency of the instrument employed, the physicochemical characteristics of the solvent, the time and energy consumption, the number and complexity of procedural steps as well as the health and environmental evaluation. By combining these factors, the index enables a holistic evaluation of both the methodological suitability and the overall sustainability performance of chromatographic methods.
