Whiter and Greener RP-HPLC Method for Simultaneous Determination of Dorzolamide, Brinzolamide, and Timolol Using Isopropanol as a Sustainable Organic Solvent in the Mobile Phase

1. Introduction

Paul Anastas and John Warner introduced green analytical chemistry as a means to reduce the adverse effects on the environment and individuals. The objective is to minimize the use of hazardous chemicals, solvents, and reagents or substitute them with more sustainable, greener, biodegradable, and environmentally friendlier solvents and utilize energy-efficient resources with minimal waste generation [1].

Gluszka et al. developed the 12 Principles of Green Chemistry to consider many factors that can contribute to a more environmentally friendly process [2]. The greenness of the analytical method is assessed by using five published assessment tools: Eco-Scale [3], National Environmental Method (NEMI) [4,5] Green Analytical Procedure Index (GAPI) [6], the Analytical Method Greenness Score (AMGS) [7], and Analytical GREEnness Metric Approach and Software (AGREE) [8].

AGREE assesses the greenness of the analytical method according to the principles of green analytical chemistry; each of the 12 Green Analytical Chemistry Principles (GAC) is converted into a standardized scale ranging from 0 to 1. The cumulative assessment results for each principle determine the final evaluation. The outcome is depicted as a clock-like graph, with the overall score and color representation situated at the center. The central pictogram displays the overall score, where values nearing one and a dark green color indicate a higher level of environmental friendliness in the reviewed analytical method. The color assigned to each section, corresponding to the number of each principle, illustrates the process involved in each assessment criterion. Among the five published assessment tools, AGREE stands out as a quantitative and more representative measure of how green analytical processes are, making it the most advantageous option. Furthermore, the software is free and takes into account the 12 GAC principles [8].

White analytical chemistry (WAC) emerged as a holistic approach to avoid prioritizing environmental friendliness at the expense of method performance. Consequently, it offers a more thorough assessment that takes into account various factors. Achieving a balance between the greenness and practical utility of an analytical method necessitates considerations of analytical efficiency, as well as practical and financial aspects. The adoption of white analytical chemistry serves as an illustration of this balance. Despite the ongoing challenges in many circumstances, striking this equilibrium remains challenging [9]. Analysts are tasked with preserving the utility of analytical methodologies for their intended purposes, ensuring a green approach without compromising quality.

An effective tool for assessing the analytical method's whiteness is the RGB12 tool.

This tool relies on three components: analytical efficiency (R), ecological efficiency (G), and practical economic efficiency (B). Notably, the assessment of analytical efficiency (R) and economic efficiency (B) is not covered by existing green assessment tools. Key validation parameters, such as the limit of detection (LOD), accuracy, and precision, serve as benchmarks for analytical efficiency; meanwhile, practical/economic efficiency (B) provides insights into productivity from both practical and economic standpoints. By combining the colors red, green, and blue, the tool generates a white score based on the saturation level of each color. A downloadable Excel file for calculating RGB12 is freely accessible [10].

The RGB model incorporates the 12 White Analytical Chemistry (WAC) principles, each comprising four concepts. In practice, prioritizing R and B over G is essential to develop a technique suitable for its intended purpose. The actual application of the 12 principles may involve varying weights and impacts. White analytical chemistry emerges from the harmonious integration of ecological and practical elements with analytical performance. Therefore, striving for sustainable advancements in analytical chemistry essentially means pursuing the white method.

Recent trends in enhancing method sustainability, influenced by the principles of both Green Analytical Chemistry (GAC) and White Analytical Chemistry (WAC), include practices like miniaturization, solvent-less sample preparation, and avoiding derivatization. Nonetheless, the substitution of hazardous organic solvents with greener and environmentally benign alternatives remains a crucial factor in promoting the sustainability of analytical methods.

Glaucoma represents a set of chronic degenerative eye disorders characterized by damage to the optic nerve, which can result in irreversible vision loss. Elevated intraocular pressure (IOP) is frequently linked to glaucoma [11,12]. It ranks among the primary causes of blindness globally [13,14]. Effective management strategies include intraocular pressure reduction through medications, laser therapy, or surgical intervention. The primary and effective treatment method is medication, which reduces intraocular pressure (IOP) to slow down further optic nerve damage. Several classes of medications, including beta-blockers, prostanoid analogs, alpha-agonists, carbonic anhydrase inhibitors, and cholinergic agents, are frequently prescribed for the treatment of glaucoma [15].

Topical prostaglandin analogs or selective or nonselective beta-blockers are typically used as the initial line of treatment for glaucoma. The preferred second-line medications are topical carbonic anhydrase inhibitors and alpha-agonists. Pseudocarpine and other parasympathomimetic drugs are regarded as third-line therapeutic alternatives [16].

Topical carbonic-anhydrase inhibitors work by directly blocking carbonic anhydrase in ciliary processes, which lowers the generation of aqueous humor. Combination with the β blocker timolol causes an extra 17% drop in dorzolamide and brinzolamide [17].

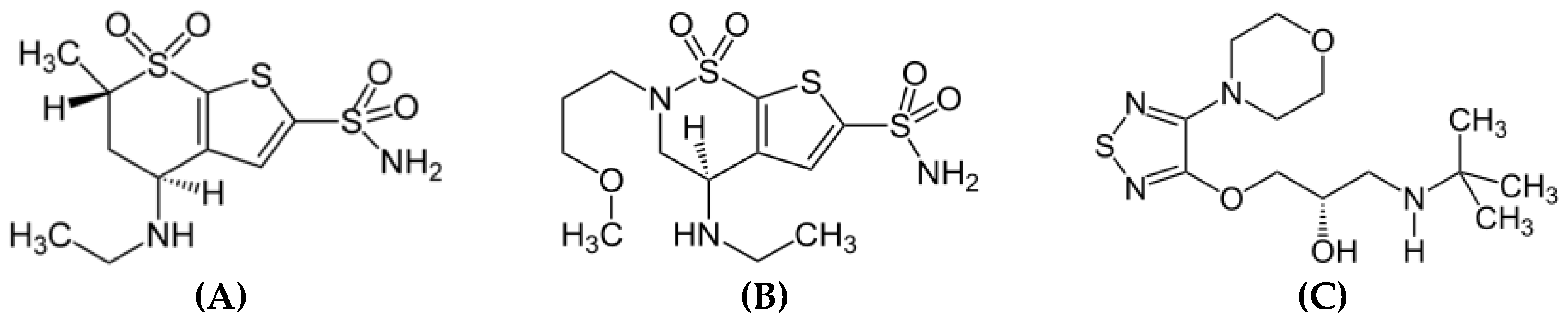

Three drugs that are currently used in the treatment of glaucoma are targeted in this study. Dorzolamide ((4S,6S)-4-(ethylamino)-6-methyl-7,7-dioxo-5,6-dihydro-4H-thieno[2,3-b] thiopyran-2-sulfonamide) has the structure shown in Figure 1A is the first topical carbonic anhydrase inhibitor approved for glaucoma therapy. Currently, it is extensively used as an adjunctive treatment for glaucoma in combination with other drug classes, including beta-adrenergic antagonists, alpha-adrenergic agonists, cholinergic, and synthetic prostaglandins [18,19,20,21].

Brinzolamide((4R)-4-(ethylamino)-2-(3-methoxypropyl)-1,1-dioxo-3,4-dihydrothieno[3,2-e] thiazine-6-sulfonamide) has the structure shown in Figure 1B is the second topical carbonic anhydrase inhibitor to receive approval from the Food and Drug Administration (FDA) for the treatment of glaucoma [22,23,24,25].

Timolol ((Z)-but-2-enedioicaid;(2S)-1-(tert-butylamino)-3-[(4-morpholin-4-yl-1,2,5-thiadiazol-3-yl) oxy] propan-2-ol) has the structure shown in Figure 1C is non-selective β-adrenergic antagonist. For over 30 years, it has been applied topically to treat glaucoma and increased intraocular pressure (IOP) [26,27,28].

The literature reports a number of RP-HPLC methods for the individual determination of dorzolamide [29,30], brinzolamide [31], and timolol [32].

Furthermore, the simultaneous determination of either dorzolamide with timolol [33,34,35], brinzolamide with timolol [36,37], or the determination of either of the three drugs with other related drugs [38,39,40] have also been reported in the literature.

The above-reported methods used either acetonitrile or methanol or both together as organic constituents in the mobile phase. To our knowledge, only two HPLC methods have been published reporting the simultaneous separation and determination of the three targeted drugs; in both of them, acetonitrile [41,42], the nongreen solvent, was used in the mobile phase. Using either acetonitrile, methanol, or both as organic constituents in the mobile phase, none of the reported methods used isopropanol as a mobile phase constituent.

Ibrahim et al. [41] developed the only reported RP-HPLC method coupled with a UV detector for the simultaneous separation and quantification of the three targeted drugs using acetonitrile as an organic constituent in the mobile phase. This method was regarded as the reference method for subsequent comparisons.

This study aims to develop a greener and whiter RP-HPLC method for simultaneously determining dorzolamide, brinzolamide, and timolol. Additionally, the assessment of the developed method greenness using the AGREE metric and the whiteness using the RGB12 tool is also performed.

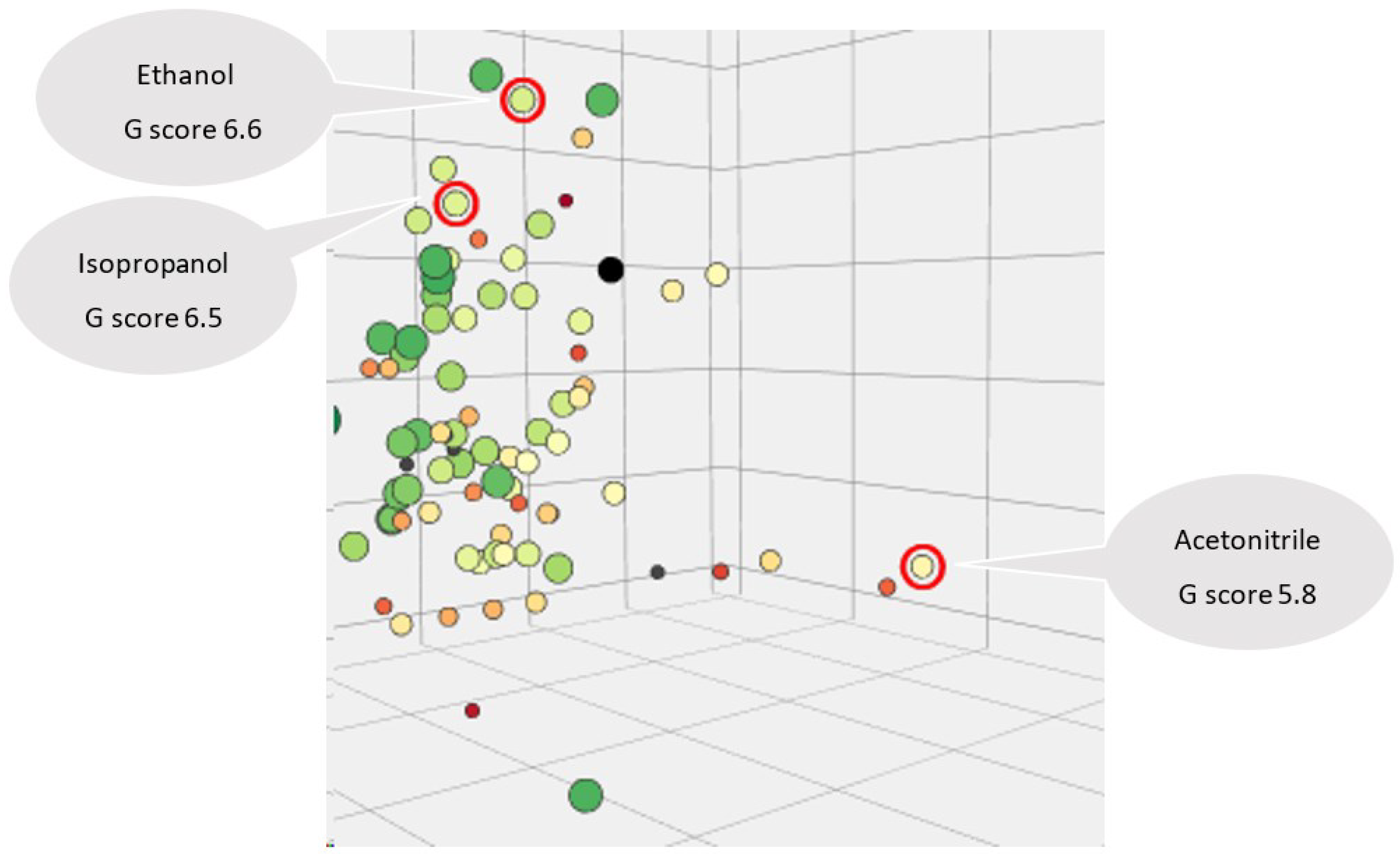

In order to accomplish sustainability, suitable green solvents must be chosen when developing analytical methods. Several organizations and pharmaceutical companies, including Sanofi, Pfizer, and GlaxoSmithKline (GSK), have developed guidelines for solvent sustainability that enable them to determine favored solvents and evaluate them using Safety Data Sheets (SDS) to compare their advantages and disadvantages. In order to help with the selection of environmentally friendly and sustainable solvents, Larsen, Christian, et al [43] developed a tool that uses the GSK Solvent Sustainability Guidelines to provide a quantitative evaluation. This assessment is based on an extensive array of aspects reflected by the composite score value (G), which is computed as the fourth root of the product of four important sustainability factors: Waste Disposal (W), Environment (E), Health (H), and Safety (S), stated as G = ∜ (H × S × E × W). The composite score value (G) is a numerical value between 1 and 10, where lower values denote nonsustainable properties and higher levels indicate sustainable green solvents.

When studying the greenness of organic solvents, the following facts are to be considered. Any organic compound with a vapor pressure of 10 hPa at 20 °C or more (0,01 kPa at 293.15 K or more) is regarded as a volatile organic compound (VOC) according to the European Union. Compounds with low vapor pressure to reduce the VOC losses into the atmosphere are favorable as green organic compounds. Isopropanol has a vapor pressure of 43 hPa at 20 °C; thus, considering this factor, it is regarded as VOC against its greenness impact. Another greenness factor for organic compound is the autoignition temperature and flash point. For safety considerations, the flash point threshold is more than 60 °C. Isopropanol has a flash point of 12 °C. Thus, this factor does not also support the greenness of isopropanol as an organic solvent. A third important factor for classifying organic solvent as being green is the rat oral LD50 as a health measure. A threshold value is 2000 mg/kg, below which the substance is recognized as harmful according to European Regulation 127272008, CLP. According to the isopropanol safety data sheet [44], LD 50 oral rat value is 5840 mg/Kg, thus indicating low risk to health and good safety of isopropanol and supporting its greenness impact as an organic solvent. A fourth factor considering the greenness of organic solvent is the lipophilicity. In general, a low n-Octanol/Water partition coefficient with a log P value < 4 suggests a low potential for bioaccumulation. According to the safety data sheet, isopropanol has a log P value n-octanol/water of 0.05; therefore, bioaccumulation is not expected, which supports safety and greenness considerations.

2. Materials and Methods

2.1. Chemicals and reagents

The reference materials of dorzolamide hydrochloride, brinzolamide, and timolol maleate were obtained from Sigma–Aldrich Chemie GmbH (Darmstadt, Germany. Glacial acetic acid for HPLC and sodium acetate were obtained from Applichem (Darmstadt, Germany), and hydrochloric acid analytical grade was obtained from Fisher Scientific (Loughborough, UK). Isopropanol HPLC grade was obtained from Sigma–Aldrich Chemie GmbH (Darmstadt).

2.2. Buffer and Sample Preparation

Sodium acetate buffer 0.1 M pH 4.25 was prepared by adding 5.772 g of sodium acetate and 1.778 g of acetic acid to 800 mL Milli Q water. The pH was adjusted to 4.25 by adding 10 N HCl, and the volume was completed to 1 L with Milli Q water. Stock solutions of 2000 µg/mL of dorzolamide, 500 µg/mL of brinzolamide, and 500 µg/mL of timolol were made to prepare calibrants and quality control samples.

2.3. Method Validation

Stock solutions were prepared at concentrations of 2000 µg/mL for dorzolamide, 500 µg/mL for brinzolamide, and 500 µg/mL for timolol to prepare calibrants and quality control samples. These solutions were utilized in the preparation of standards for the validation study. For linearity assessment, calibration curves were generated by plotting analyte peak areas against their respective concentrations, incorporating six different standard concentrations (80, 120, 160, 200, 240, and 280 µg/mL) for dorzolamide, (40, 60, 80, 100, 120, and 140 µg/mL) for brinzolamide, and (20, 30, 40, 50, 60, and 70 µg/mL) for timolol.

For accuracy testing, three quality control (QC) standards at low (LQC), medium (MQC), and high (HQC) concentration levels within the linear range were examined, using 20, 40, and 60 µg/mL for dorzolamide, 40, 80, and 120 µg/mL for brinzolamide, and 20, 40, and 60 µg/mL for timolol. These quality control (QC) standards were then employed to determine the precision of the proposed methodology. The limits of quantification (LOQ) were calculated based on the standard deviation of the response and the slope, using the equation LOQ = 10 σ/S, where σ represents the standard deviation of the response, and S is the slope of the calibration curve. The limits of detection (LOD) were calculated using the standard deviation of the responses and the slope, employing the equation LOD = 3.3 σ/S.

2.4. HPLC Analysis

An Agilent 1260 (Agilent Technologies GmbH, Waldbronn, Germany) equipment with a quaternary pump (G1311B), autosampler (G1329B), and diode array detector (G1315D) was used. The Purospher STAR RP-18 endcapped (5 µm,150 x 4.6 mm) column (Merck, Darmstadt, Germany) was used.

3. Results

3.1. Method development

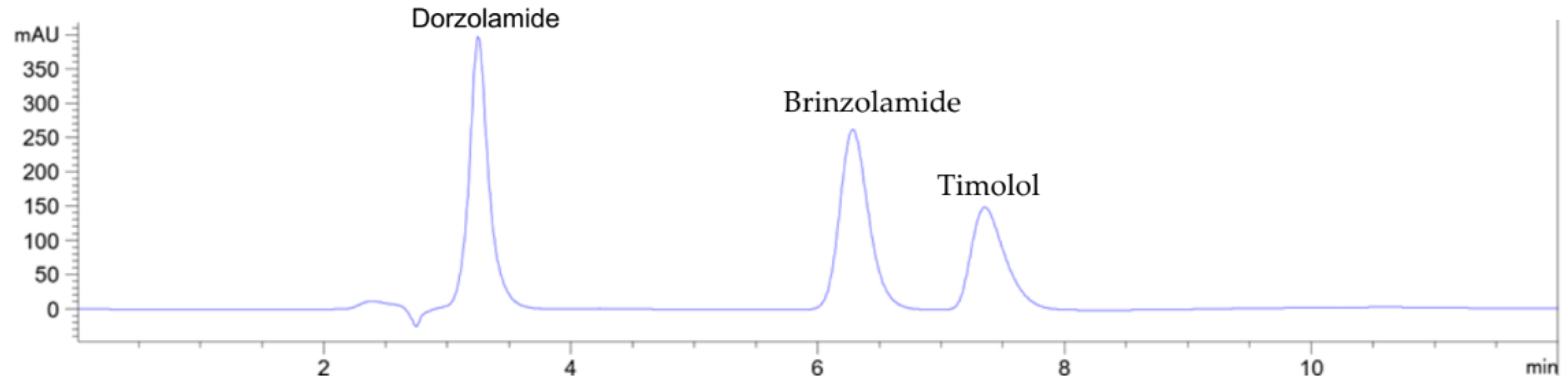

A greener method was developed to simultaneously determine dorzolamide, brinzolamide, and timolol using isopropanol as a mobile phase constituent. Isopropanol was tested as a mobile phase organic solvent constituent for replacement of acetonitrile in the reported reference method, as shown in Figure 2. Based on the Hansen space green solvent selection tool, isopropanol has a G score of 6.5, close to ethanol, which has a G score of 6.6 and much better than acetonitrile, which has a G score of 5.8 [45], as shown in Figure 3.

The UV cut-off value of isopropanol (205 nm) is the same as that of methanol and higher than that of acetonitrile. However, it is still below the maximum absorbance wavelength of most active pharmaceutical ingredients. Isopropanol is miscible with water in any proportion, making it compatible with aqueous buffer systems.

Isopropanol exhibits a lower Kamlet–Taft π* solvent parameter value compared to the other solvents listed in Table 1; This suggests lower polarity and, consequently, enhanced elution power in RP-HPLC. As a result, a smaller proportion of isopropanol in the mobile phase is needed to replace acetonitrile. This reduction contributes to a decrease in the overall quantity of organic solvents in the mobile phase and, consequently, minimizes generated waste. Collectively, these aspects make the analytical method more environmentally friendly and sustainable.

Isopropanol has one main drawback when used in liquid chromatography with analytical columns. This drawback is the high density, which is even higher than methanol. It might generate higher backpressure depending on the percentage used, the flow rate, and the total composition of the mobile phase. However, the developed method generated an acceptable backpressure below 160 bar using the Puroshper RP-18 endcapped column.

3.2. Method Validation

The validation of the method was conducted in accordance with the ICH guidelines [46]. and key validation parameters are outlined in Table 2. Good linearity was found for the three analytes, with correlation coefficients (R²) higher than 0.9979 across the investigated ranges, demonstrating good accuracy and precision. Nonetheless, detection and quantitation limits were higher compared to those reported in the reference method, yet they still fit the intended purpose of the method. A representative chromatogram for dorzolamide, brinzolamide, and timolol elution using isopropanol as an organic mobile phase constituent is shown in Figure 2.

3.3. Greenness and Whiteness Assessments of the Methods

The environmental impact (greenness) of the two methods, employing the elution conditions specified in Table 3, was assessed and compared using the quantitative greenness assessment tool AGREE. The greenness profiles are depicted in Figure 4. The findings indicate that the method based on isopropanol exhibits a higher greenness score in comparison to the acetonitrile (ACN)-based method.

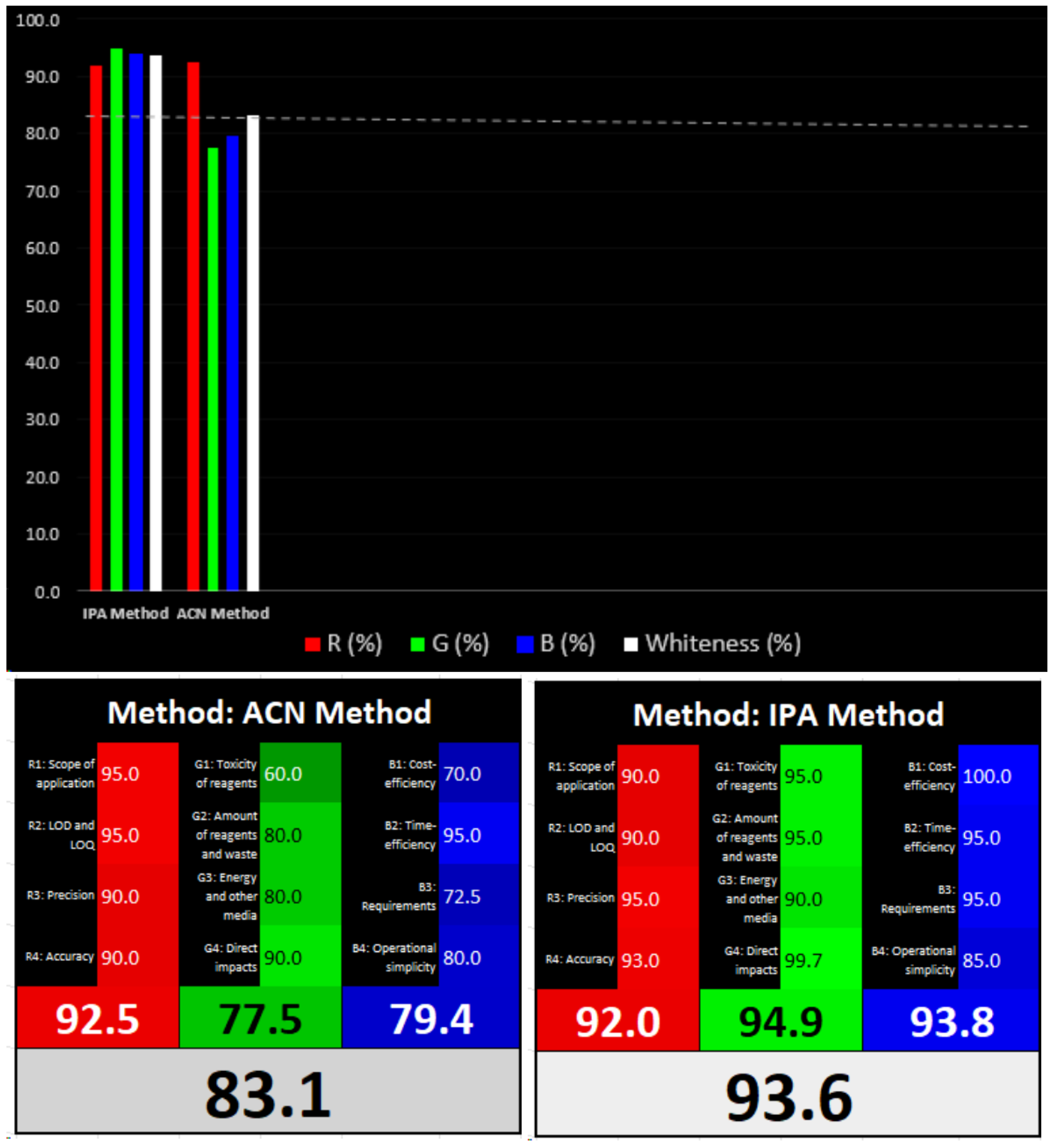

Moreover, an assessment the whiteness of the isopropanol-based method was conducted and compared with the reference acetonitrile method using the RGB12 tool. The results, as depicted in Figure 5, indicate that the isopropanol-based method is a whiter analytical method, primarily due to superior green and blue components, without markedly compromising the red component in the evaluation matrix.

5. Conclusions

The work shows a simple isocratic method for simultaneous separation and determination of dorzolamide, brinzolamide, and timolol within a time of analysis shorter than 8 minutes. Isopropanol is regarded as a green solvent and classified as green as ethanol, constituting an excellent replacement for acetonitrile or methanol in chromatography. The AGREE tool clearly shows a higher value of greenness for the developed isopropanol-based method in comparison to the reference method.

Results demonstrate the potential of isopropanol to replace environmentally hazardous non-green organic solvents such as acetonitrile while maintaining method accuracy, precision, and efficiency. Despite similar levels of redness observed in both acetonitrile and isopropanol-based methods, the isopropanol-based approach significantly enhances aspects of greenness and blueness on the RGB12 tool. Although the limits of detection (LOD) and limits of quantification (LOQ) are slightly elevated, their adequacy for the intended application justifies a commendable score. Accuracy percentages within the ranges of 99.1–101.0% for dorzolamide, 99.3–100.1% for brinzolamide, and 95.3–101.8% for timolol were obtained. The method demonstrates notable precision with relative standard deviation (RSD)% < 0.1 for all three analytes. The paramount consideration remains the method's sufficiency for its intended purpose, attaining a favorable whiteness percentage. In summary, the developed isopropanol-based method is a simple, greener, and whiter method supporting the shift from classical RP-LC solvents to more sustainable ones.
