Performance-Based Seismic Resistance Assessment of Reinforced Slopes Using the Force-Equilibrium Finite Displacement Method

1. Introduction

In conventional engineering practice, the seismic stability of slopes is commonly evaluated using the safety factor (F_s) derived from prescribed seismic coefficients (k_h) through limit equilibrium methods (LEM). To estimate seismic-induced slope displacements, Newmark’s hybrid approach—described in [1]—combines LEM with sliding block dynamics and remains widely adopted. A key requirement for applying Newmark’s method is the determination of a calibrated critical seismic coefficient (k_hc), obtained from the F_s–k_h relationship at the condition F_s = 1.0. Identifying this k_hc typically involves iterative trial-and-error adjustments to determine an “operational” internal friction angle (φ) that produces a satisfactory F_s–k_h curve. Despite the use of double integration of ground acceleration based on dynamic principles, Newmark’s approach remains fundamentally pseudo-static because the essential parameter k_hc is determined through a pseudo-static framework. Over the past decades, numerous studies have sought to enhance the performance and applicability of Newmark’s method. These efforts can be broadly categorized as follows:

(1) improving the accuracy of the yield (critical) seismic coefficient by adopting analytical formulations beyond those used in conventional LEM or by introducing alternative failure mechanisms [2,3,4,5,6,7]

(2) improving the post-yield response of the sliding mass using dynamic analyses with single- or multi-degree-of-freedom systems [8,9,10,11,12,13]

(3) incorporating deformability of the sliding mass through springs, dashpots, or multiple sliding layers [14,15,16,17,18]

(4) extending the method to engineered slopes with different failure mechanisms or reinforcement types [19,20,21,22,23]

(5) introducing multiple sliding blocks to capture interaction effects within the failure mass [24,25,26]

(6) accounting for nonlinear soil behavior, strength degradation, and evolving slip-surface geometry [27,28,29,30,31]

(7) considering changes in failure mechanisms under different shaking intensities [32].

Although these studies have substantially advanced the theoretical framework of Newmark-type analyses, several issues limit their practical applicability in geotechnical design. First, Newmark-based methods are valid only when seismic accelerations exceed the critical (yield) acceleration; displacement is assumed zero in the pre-yield state, contradicting observed behavior [17]. As a result, a unified description of soil–structure response across static, pre-yield, and post-yield states is not feasible. Second, improving the accuracy of yield acceleration or incorporating deformability typically requires additional soil parameters—such as spring stiffness or damping constants—and assumptions regarding lumped masses. These parameters often require specialized laboratory testing, and the mass discretization introduces further empiricism. Third, many modified approaches rely on simplified sliding blocks on single-inclination planes or on lumped masses without internal interaction, which does not adequately represent real failures involving curved slip surfaces and lateral thrusts among soil slices. To overcome the inherent limitations of pseudo-static-based Newmark analyses, several performance-based methods grounded fully in dynamic principles have been developed. These include numerical methods such as the finite element method (FEM) and discrete element method (DEM) [33,34,35], as well as dynamic analyses using single- or multi-degree-of-freedom systems [36]. However, numerical analyses require substantial effort to validate soil models and analytical results, limiting their routine use in engineering practice. Similarly, dynamic lumped-mass models require calibration of spring and damping parameters and mass partitioning, which remain research-oriented and are not widely adopted in design applications. As a practical alternative for engineering applications, the Force Equilibrium–based Finite Displacement Method (FFDM) proposed in [37] offers a time- and effort-efficient means of evaluating seismic displacement. FFDM adheres to the pseudo-static principle while satisfying force (and moment, when required) equilibrium for failure masses of arbitrary geometry. It represents a direct extension of conventional LEM, which relies on cohesion (c) and internal friction angle (φ), but incorporates additional soil parameters to describe deformation-related properties along the slip surface. The method has been successfully applied to groundwater-induced landslides and reinforced slopes subjected to pseudo-static seismic loading, and its capability has been demonstrated through back-calculation of displacement-based soil and weathered rock parameters [38] and through predictions of slope displacements [39]. Building on these developments, the present study aims to derive displacement-based seismic resisting capacity curves for a full-scale geosynthetic-reinforced railway embankment with a rigid concrete facing (the Tanada wall). The analyses are performed using SLOPE ffdm 2.0 [40], a computer program that integrates both conventional LEM-based and displacement-based FFDM analytical tools.

2. Methodology and Materials

2.1. Hyperbolic Soil Stress-Displacement Model in FFDM

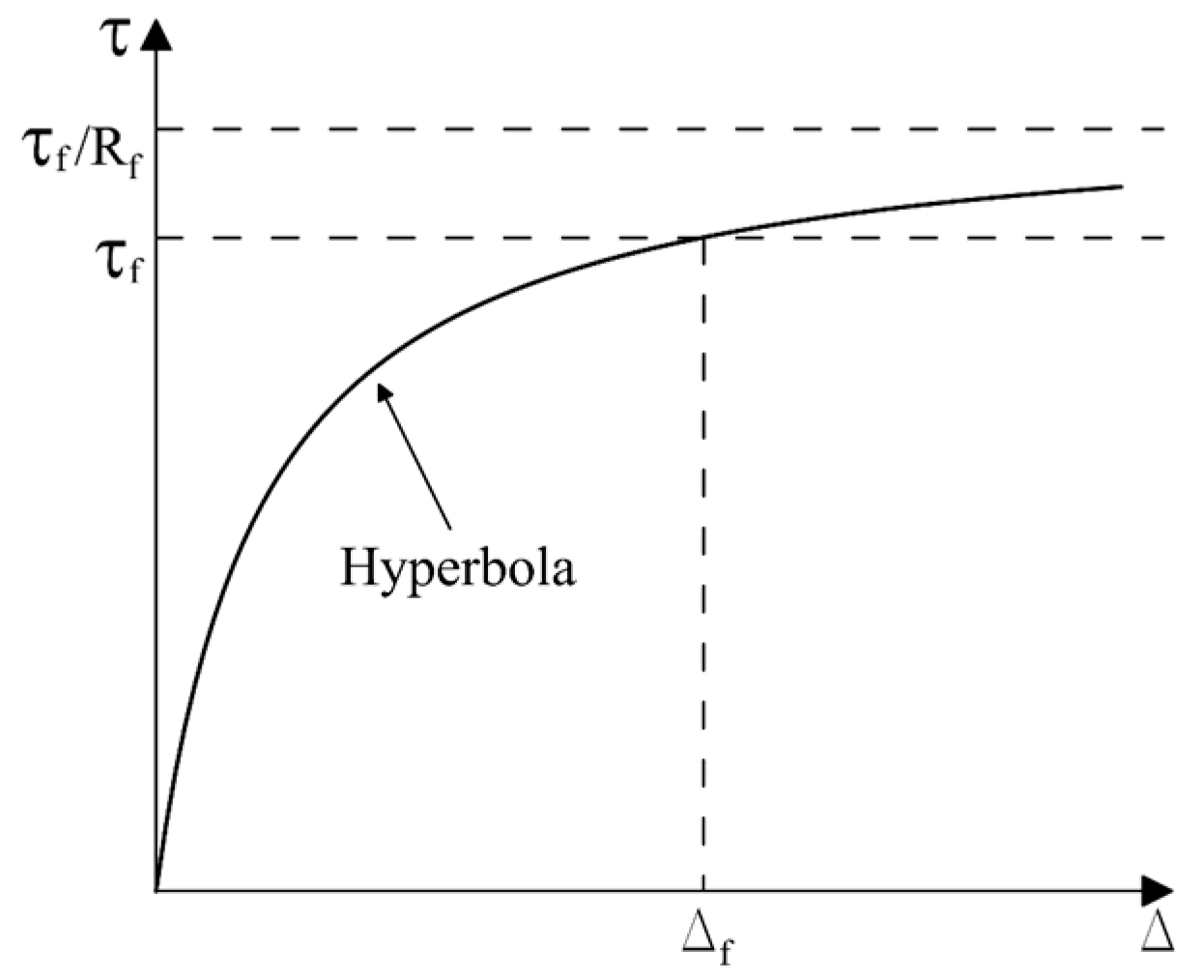

As illustrated in Figure 1, a hyperbolic model describing the normalized shear stress (τ/τ_f)–shear displacement (Δ) response along the potential failure surface is used. This model is an adaptation of the well known hyperbolic relationship for shear stress–strain behavior developed in [41].

τ/τ_f = ∆ / (a+b∙∆)

(1)

where, a = τ_f / k_initial, b = R_f, R_f = τ_f / τ_ult

k_initial: Initial shear stiffness of soils

τ_ult: Asymptote strength at infinite displacement

τ_f: Shear strength of soil according to the Mohr-Coulomb failure criterion

R_f: Asymptote strength ratio (= τ_f / τ_ult)

The shear strength of soils (τ_f) is defined by the Mohr-Coulomb failure criterion:

τ_f = c + σ'_n ∙ tan φ

(2)

σ_n’: Effective normal stress

c : Cohesion intercept

φ: Internal friction angle of soils

Equation (1) can be viewed as a reciprocal formulation of the local safety factor FS_i at the base of the soil block (or slice) i:

FS_i = τ_{f i} / τ_i

(3)

The initial shear stiffness k_initial is given as a power function of effective normal pressure, proposed in [41]:

K_initial = K ∙ G ∙ (σ'_n / Pa)ⁿ

(4)

K: initial shear stiffness number (dimensionless)

P_a: atmospheric pressure (= 101.3 kPa)

G: reference shear stiffness (= 101.3 kPa/m)

n: pressure dependency exponent

2.2. Multi-Wedge Failure Mechanism

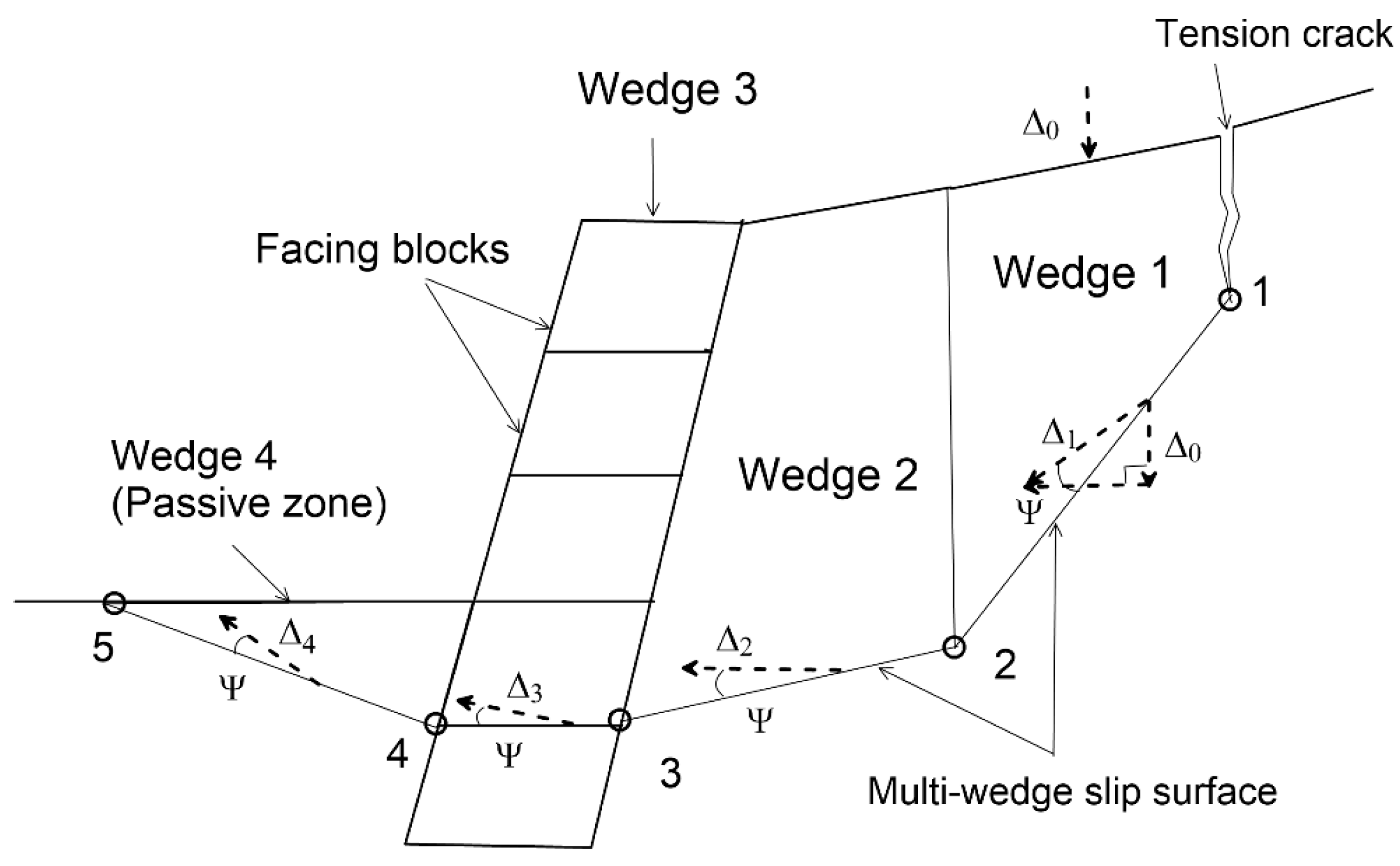

Figure 2 shows the multi-wedge failure mechanism used in this study. It extends the classical two-wedge (bi-linear) model long applied to steep engineered slopes, including MSE walls and geosynthetic-reinforced slopes with rigid or near-vertical facings. The enhanced formulation in [24] consists of two active wedges (Wedges 1 and 2), a facing column, and, when present, a passive wedge beneath the toe. This configuration clarifies the role of the facing system in overall stability, and its benefits are further realized when integrated with the FFDM, which supports displacement-based performance evaluation.

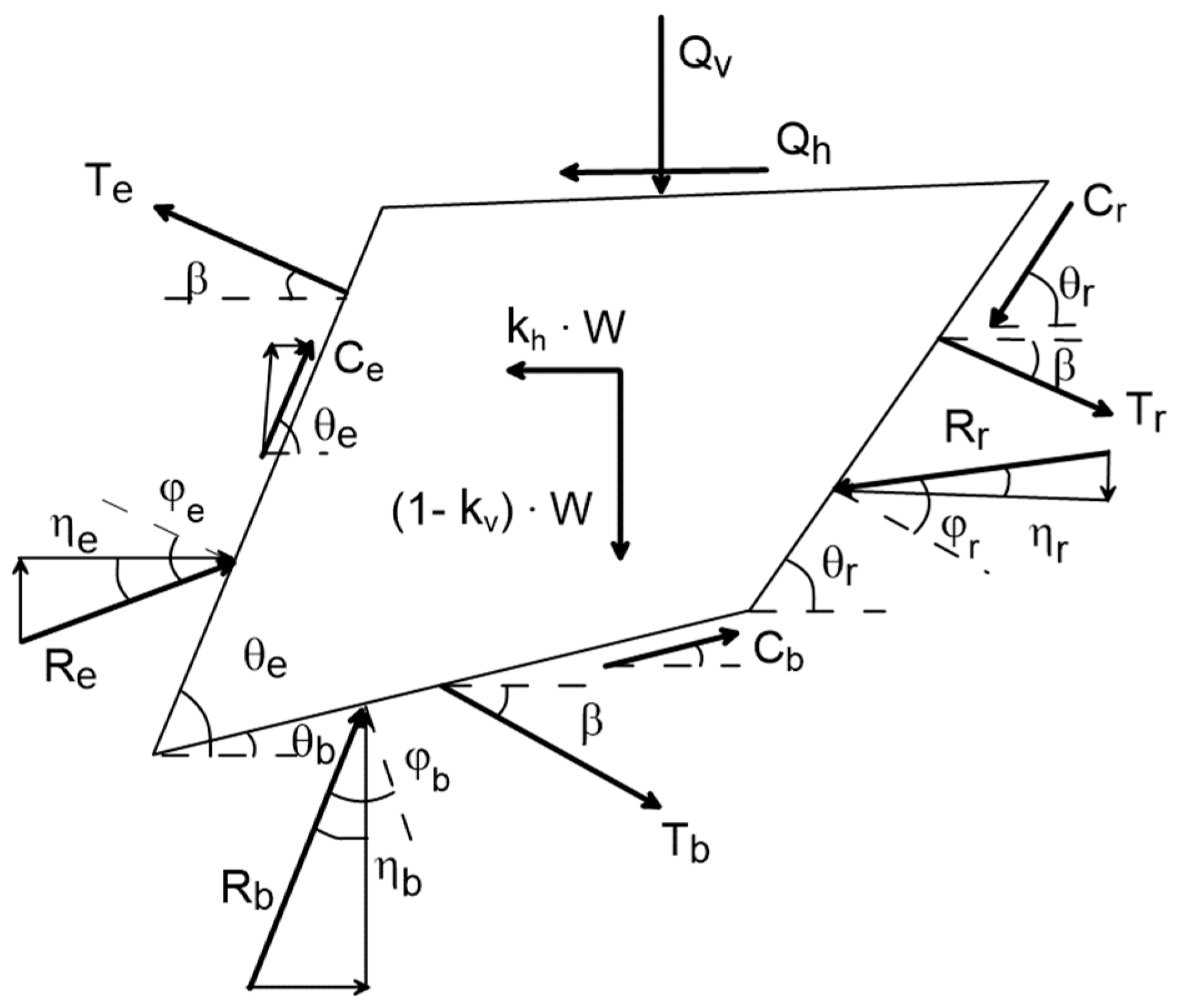

Figure 3 presents the body forces and reaction forces acting on a generalized polygon wedge configuration. Triangular wedges, exemplified by Wedges 1 and 4, constitute special cases where the soil strength and reaction forces along one boundary are assumed to be negligible or zero. By applying force equilibrium in both horizontal (x) and vertical (y) directions, the reaction force on the left side of each wedge can be expressed as:

R_e = f (R_b, R_r, T_r, T_b, T_e, C_e,C_r, C_b, C_e, φ_r, φ_b, φ_e, k_h, k_v, Q_v, Q_h)

(5)

Where, C_r = c ∙ l_r / FS_i , C_b = c ∙ l_b / FS_i , C_e = c ∙ l_e / FS_i

φ_r = tan^-1(tan φ / FS_i), φ_b = tan^-1(tan φ / FS_i) , φ_e = tan^-1(tan φ / FS_i)

C_r, C_b, C_e: cohesive resistance along soil-block interfaces

l_r, l_b, l_e: lengths of soil-block interfaces

φ_r, φ_b, φ_e:mobilized internal friction angles at interfaces

T_r, T_b, T_e: reinforcement force at at interfaces

R_r, R_b: reaction forces at interfaces

To determine the reaction force acting on the left side of each wedge in the LEM analysis, the computation proceeds sequentially from wedge 1 to wedge 3 (or wedge 4, if present). A constant safety factor, F_s, is assumed for all wedges, making every term in the force-equilibrium equation known except the base reaction R_b. Because both horizontal and vertical equilibrium are enforced, the system is statically determinate. The safety factor is updated iteratively, typically starting with F_s = 1.0, and adjusted until the virtual external force R_e on the left side of the final wedge becomes negligible (e.g., R_e < 0.1 kN).

In the FFDM framework, the same equilibrium relationship is solved, but the safety factor for each soil block (FS_i) and the mobilized reinforcement forces (T_r, T_b, T_e) vary with displacement (Δ_i). The system remains statically determinate, yet FS_i is updated continuously based on the displacement field at the block base and along the interfaces. The computation begins by imposing a small vertical displacement at the crest of wedge 1 (Δ₀), such as 0.001 m, and proceeds until all equilibrium conditions are satisfied.

2.3. Post-Peak Stress-Displacement Relationship

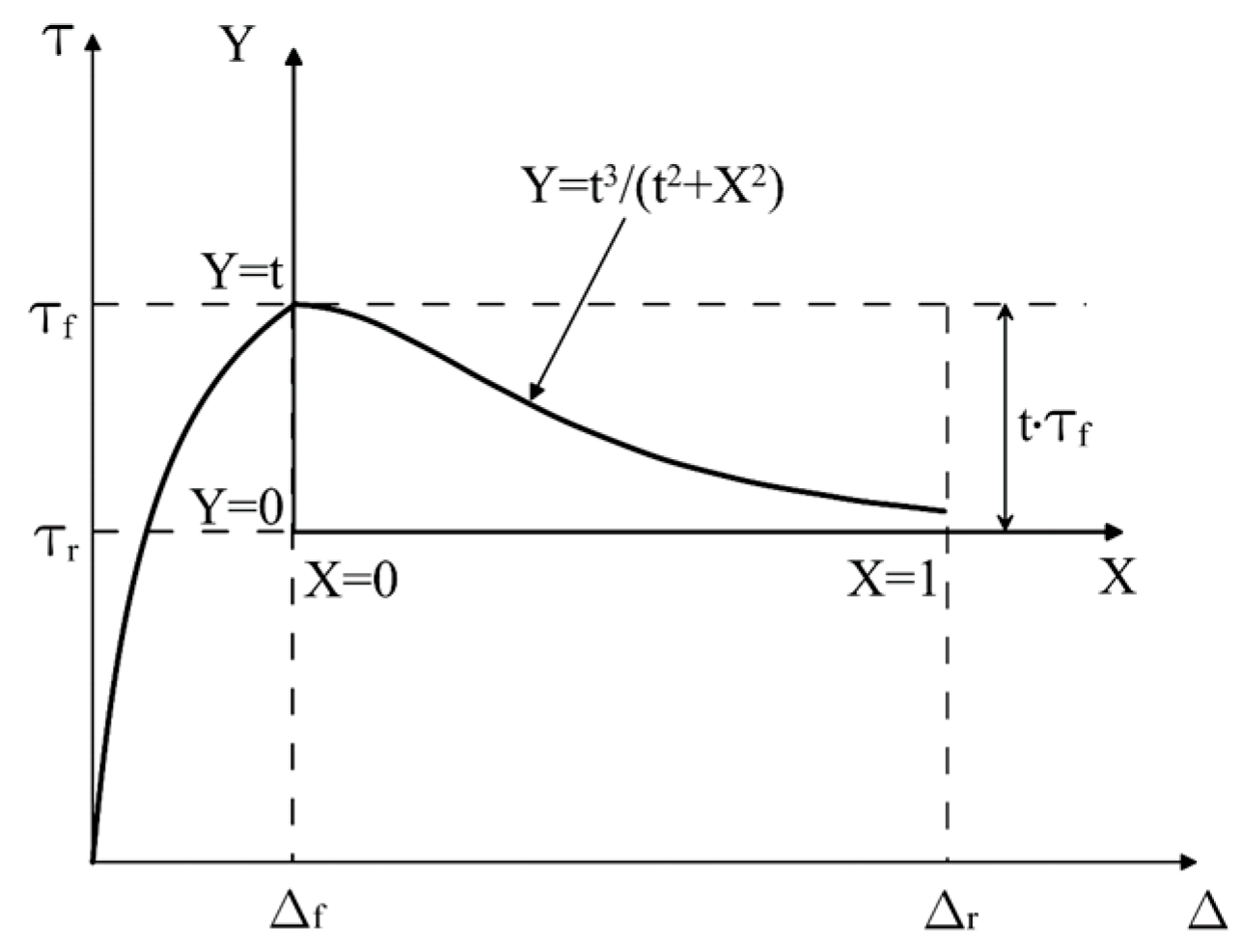

The post-peak segment of the shear stress–displacement (τ–Δ) curve is represented using the Versoria (Witch of Agnesi) function [42,43], as shown schematically in Figure 4. To integrate this model efficiently into the overall stress–displacement framework, a normalized local coordinate system (X–Y) is used. The X-axis origin (X = 0) corresponds to the peak shear stress τ_f, and the Y-axis origin (Y = 0) corresponds to the asymptotic residual stress τ_r. Although the Versoria curve reaches τ_r only at infinite displacement, a finite displacement Δ_r observed experimentally at the onset of the residual state (X = 1) provides an accurate approximation, typically within 1%. The post-peak shear strength τ_post-peak is then expressed as:

τ_post-peak = τ_f - τ_f ∙ (t - Y ) = τ_f ∙ (1- t + Y )

(6)

Y = t³ / ( t² +X² )

(7)

X= (Δ - Δ_f ) / (Δ_r - Δ_f )

(8)

t = (τ_f -τ_r ) ∙ τ_f

(9)

Δ_r = Δ_f ∙ Δ_ratio

(10)

t: normalized strength reduction between peak and residual states

Y: normalized post-peak shear stress

X: normalized post-peak shear displacement

Δ_f: shear displacement at peak stress state

Δ_r: shear displacement at the entrance of residual state

Δ_ratio: residual-to-peak displacement ratio

When the post-peak state is considered in the slope-displacement analysis using SLOPE-ffdm 2.0, Eq. (6) is applied to update the available soil strength along the slip surface whenever the condition Δ > Δ_f is detected during the iterative displacement computations.

2.4. Displacement Compatibility

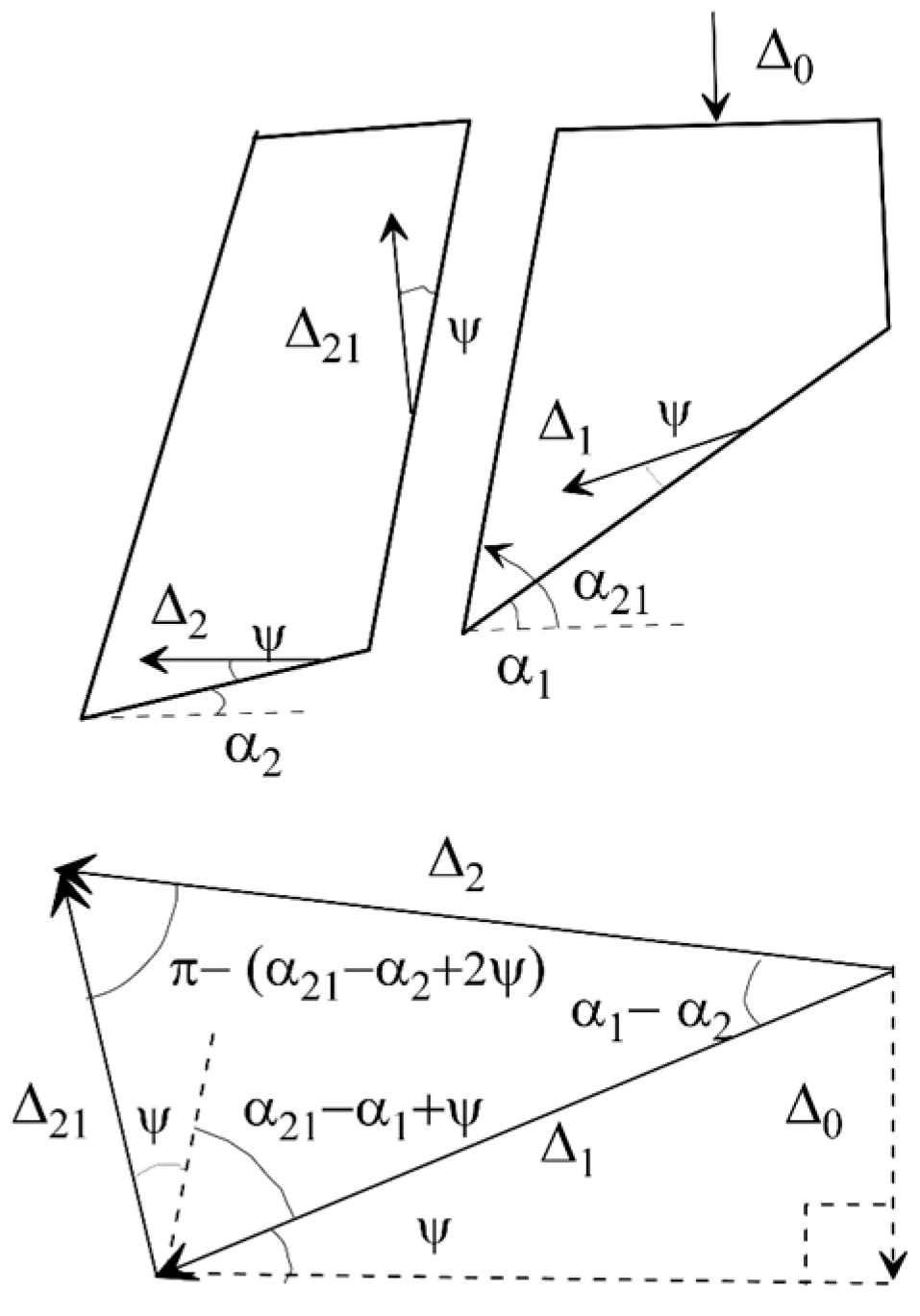

A hodograph (displacement diagram) that satisfies displacement compatibility is illustrated in Figure 5. This formulation maintains displacement compatibility across soil interfaces and forms the basis for kinematic analysis of the sliding block system [44]. The displacement at soil wedge (or slice) i can be expressed as:

Δ_i = Δ₀ ∙ f (α_i)

(9)

f (α_i) = cos (α₁ -2Ψ) /[sin (α₁ -Ψ) ∙ cos ( 2Ψ- α₁)]

(10)

2.5. Displacement Increment

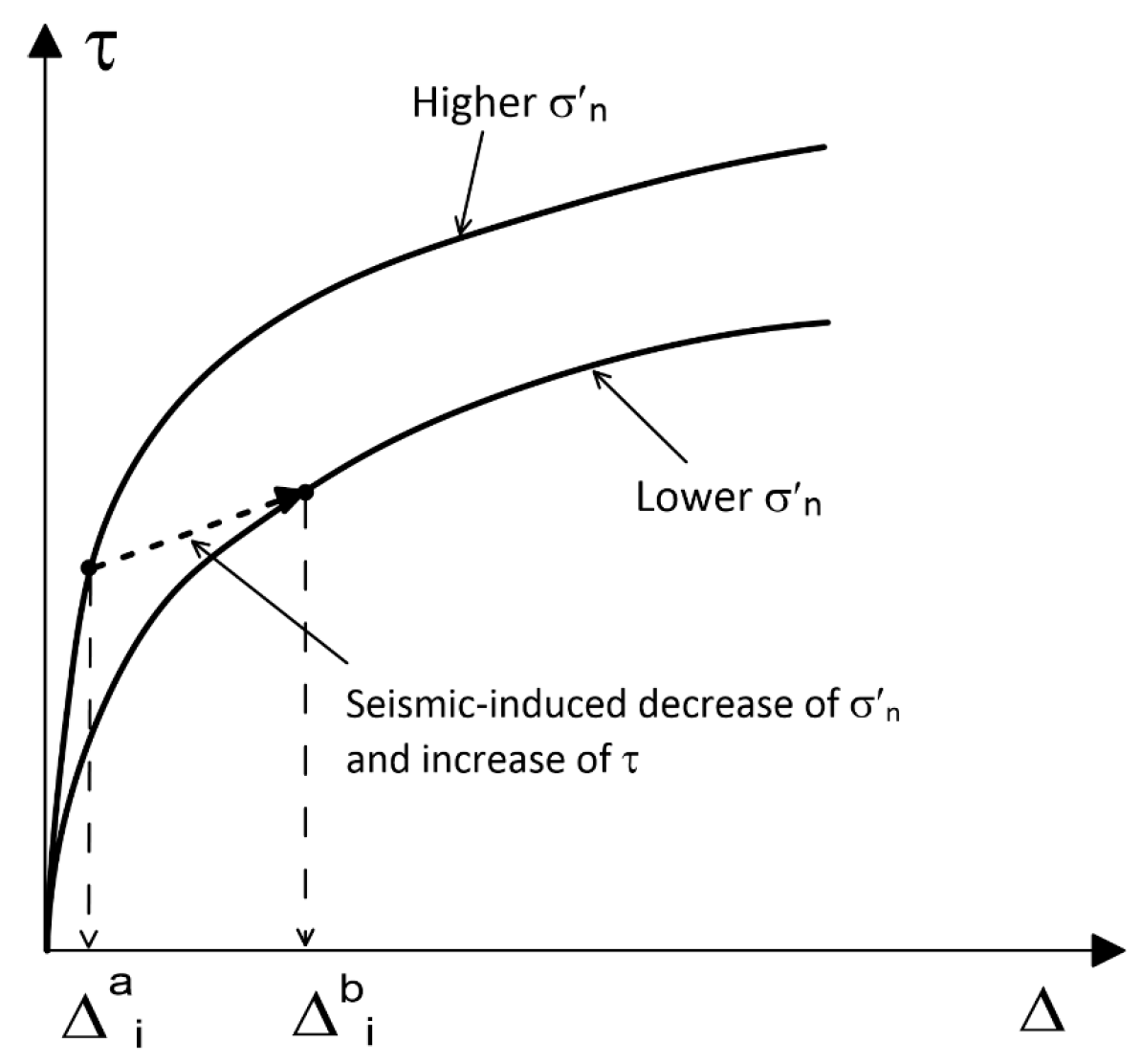

To evaluate slope displacements caused by changes in external or internal conditions—such as seismic loading, water-table fluctuations, or pore-pressure variation—two displacement values are computed for each slice (Δᵢ): one before the event and one after. The displacement increment for slice i, induced by the change in stress conditions, is illustrated schematically in Figure 6 and defined as:

Δ_i = Δ^b_i - Δ^a_i

(11)

2.6. The Tanada Wall

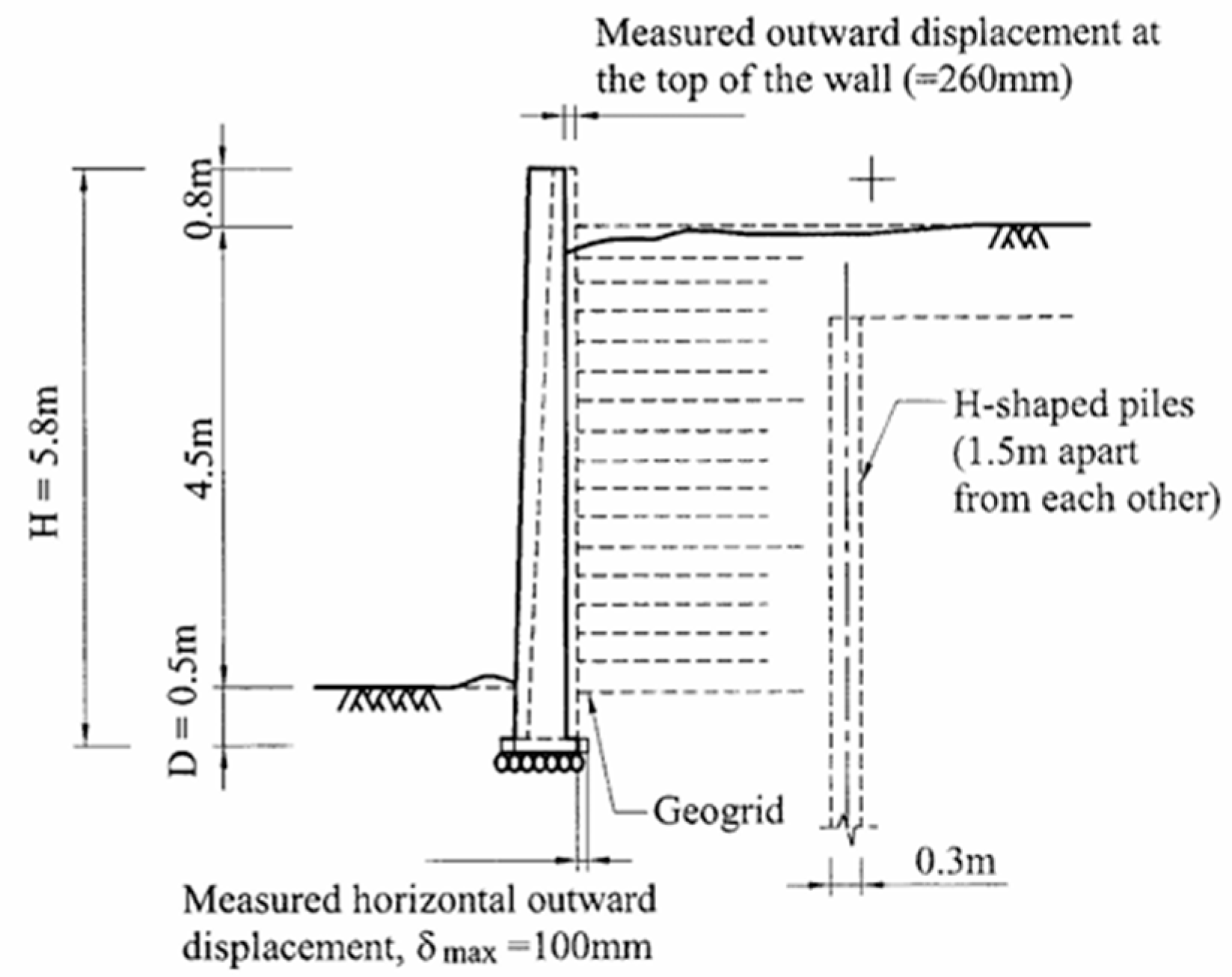

The Tanada wall is a geosynthetic-reinforced soil retaining wall with a full-height rigid panel facing (GRS-FHR), also known as a RRR wall. It formed part of a railway embankment located in a severely shaken area during the 1995 Hyogoken-Nambu earthquake (sometimes referred to as the Kobe earthquake; M_L = 7.2). Despite severe damage to nearby houses and soil-retaining structures, the Tanada wall demonstrated high seismic resistance, with recorded displacements of 0.1 m at the toe and 0.26 m at the top, as illustrated in Figure 7. Comprehensive post-earthquake investigations and analyses were conducted in [45,46]. Based on site observations, the horizontal peak ground acceleration (HPGA) in the vicinity of the Tanada wall was estimated to be approximately 0.8 g in [45] (where g denotes gravitational acceleration).

2.7. Material Properties

The material properties used in the FFDM analyses of the Tanada Wall are summarized in . Key considerations for the primary input parameters influencing seismic displacements are as follows:

• Soil strengths (c, φ): The Tanada Wall was constructed using high-quality, cohesionless backfill (c_peak = 0), with a peak internal friction angle of φ_peak = 42° obtained from triaxial compression tests [47]. Previous studies comparing φpeak measured under triaxial and plane-strain conditions [48] indicate that the plane-strain friction angle is approximately 1.11 to 1.14 times the triaxial value for Toyoura sand in loose and dense states, respectively. Based on these findings, adopting φ_peak = 40° as the design friction angle for the Tanada Wall is slightly conservative and corresponds to the upper bound of recommended design values [49]. In the hyperbolic soil model, φ = 40° is therefore used as an operational value. For post-peak displacement analysis, a higher friction angle of φ_peak = 45° (approximately 1.12 times φ = 40°) is applied to represent the plane-strain condition of the railway embankment. Cohesion remains zero in the post-peak range, and the residual friction angle is taken as φ_res ≈ 0.9 φ_peak.
• Shear stiffness number (K): Stiffness values of K = 200 and K = 400 are selected from a database of large- and medium-scale direct shear tests [50,51], representing lower-bound and median values for φ = 40°.
• Displacement-dependent reinforcement pullout model: Mobilized reinforcement forces at the soil–block interface follow the hyperbolic pullout model in [52]. Peak adhesion is c_s–r = 0, and the interface friction angle is φ_s–r = 40°, consistent with geogrids with woven junctions. Model parameters from a pullout test database [53] include stiffness K_t = 10, stress-dependency exponent n_t = 0.1, and strength ratio R_t = 0.7.
• Tie-break strength of reinforcement: The tie-break strength T_tie-break = 30 kN/m is taken as the unfactored ultimate tensile strength (T_ult) of the geogrid, reflecting high construction quality. This differs from the factored allowable tensile strength (T_allow) commonly used in LEM-based methods.
• Post-peak soil stress–displacement model: Post-peak cohesion is zero (c_res = 0), and the residual friction angle is φ_res ≈ 41°. A residual displacement ratio Δ_r/Δ_f = 5.0 is adopted, consistent with reported values for dense sands (typically 2.5–6.0) [43,50].
• H-piles behind the wall: The H-piles, spaced at 1.5 m, were excluded from the analysis. Owing to their slender geometry, wide spacing, and shallow embedment, they provide only negligible resistance to lateral earth pressures.
• Inter-block strength ratio: The inter-block strength ratio (f_inter-block), defined as the ratio of full shear strength to the shear strength available at block interfaces, is set to 1.0. This reflects the high-quality backfill and the absence of tension cracks observed at the crest after the earthquake.

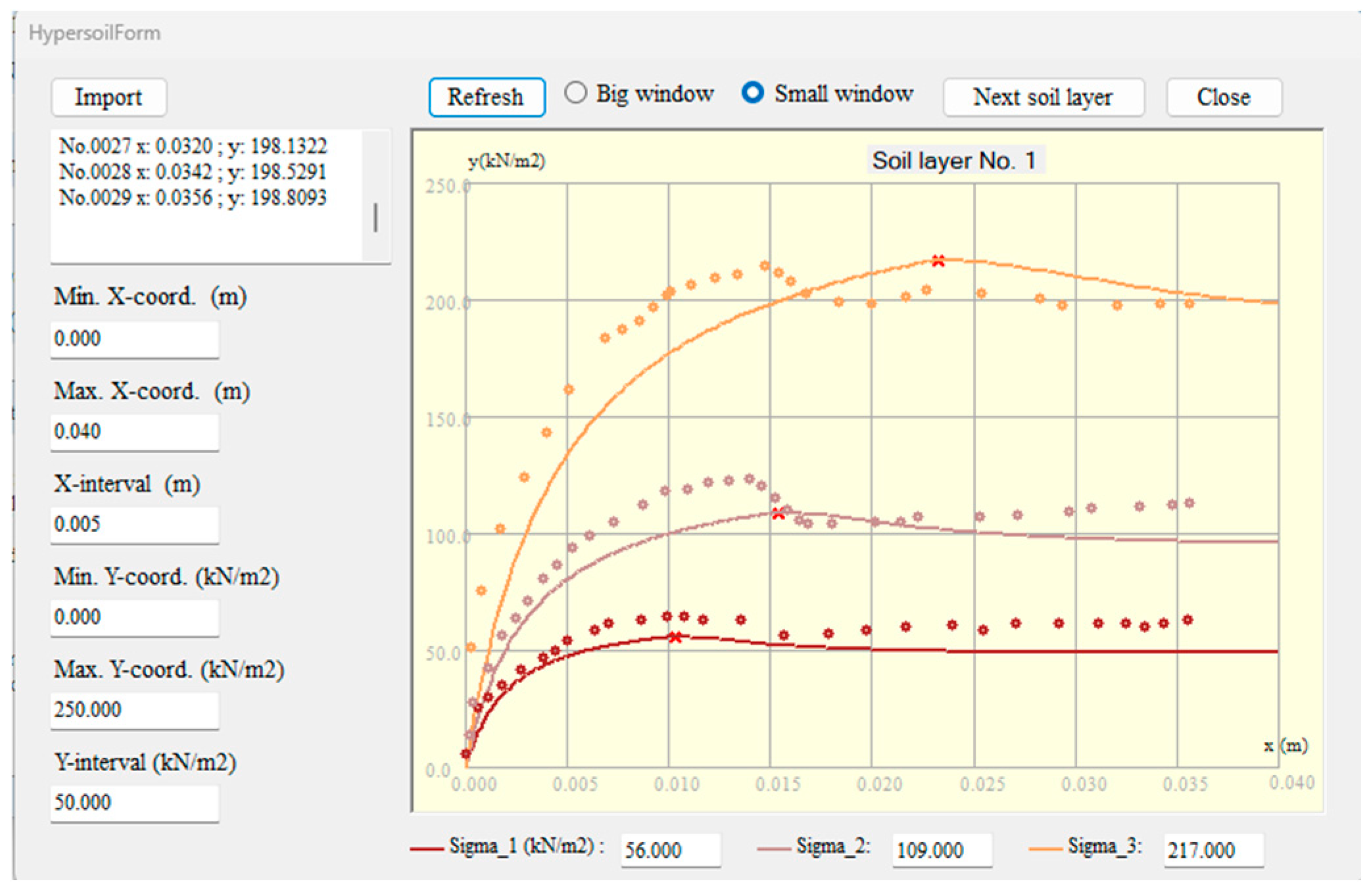

Figure 8 presents an example of the stress–displacement curves visualized with integrated pre-peak and post-peak parameters (φ_peak= 45°, φᵣₑₛ = 41° , Δᵣ/Δ_f = 5.0, K = 400, n= 0.4, R_f= 0.83) as summarized in Table 1. For reference, the experimental data reported in [14] from direct shear tests on dense, remolded Chi-Chi sand—classified as SW-SM under the Unified Soil Classification System (USCS)—are also included.

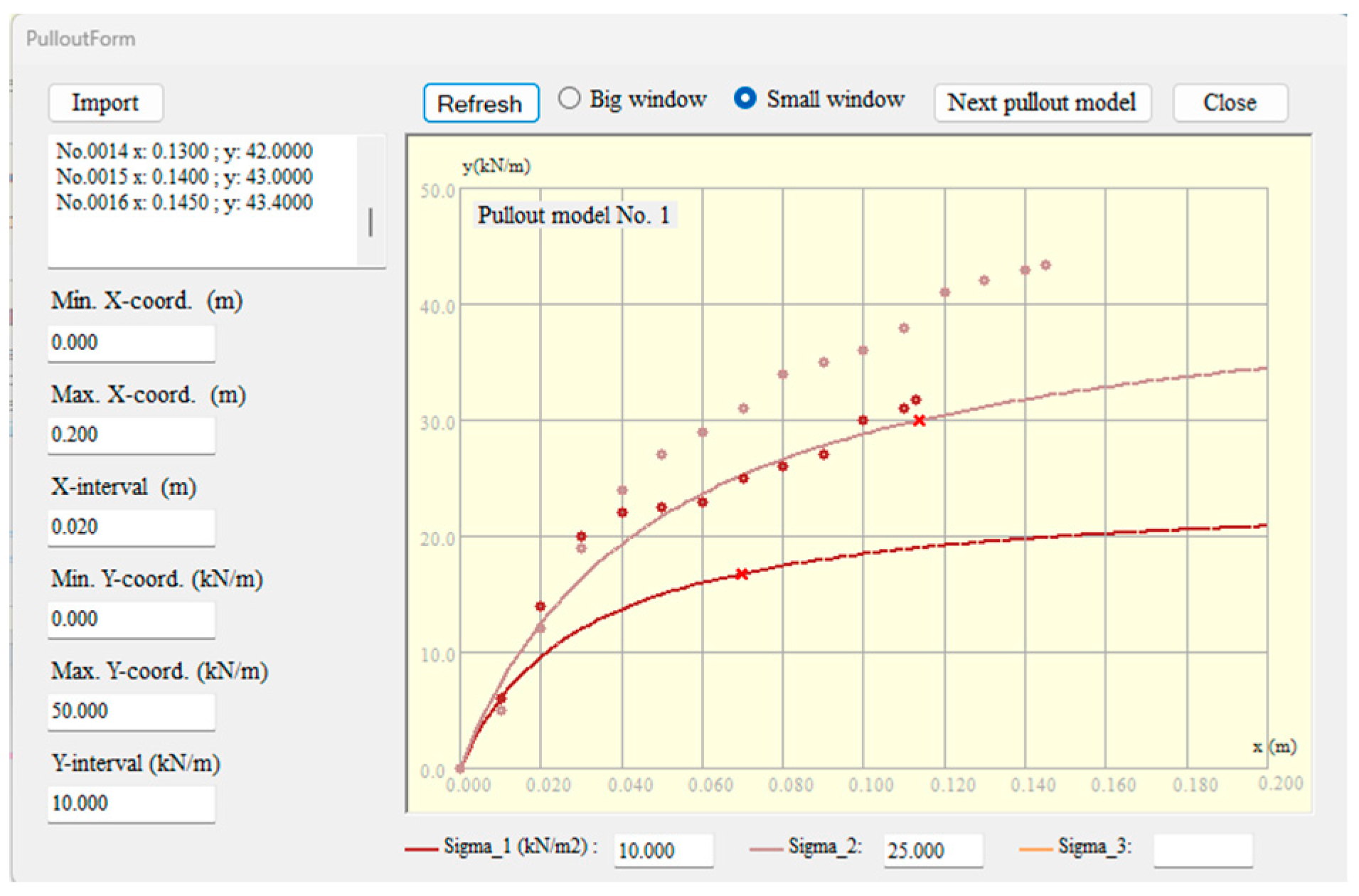

Figure 9 illustrates the visualized hyperbolic pullout curves for reinforcement ( c_s-r= 0, φ_s-r= 40°, T_tie-break= 30 kN/m, Kₜ = 10, nₜ= 0.1, and Rₜ= 0.7). For comparison, experimental pullout data for woven geogrids embedded in recycled construction material classified as SM (USCS), as reported in [54], are also shown. It is observed that the theoretical curves exhibit a stronger dependence on confining pressure than the experimental results, likely because the tests were conducted under relatively low confining pressures (10 and 25 kPa), where material uncertainties and measurement errors tend to have relatively large effects.

2.8. FFDM Displacement Analysis

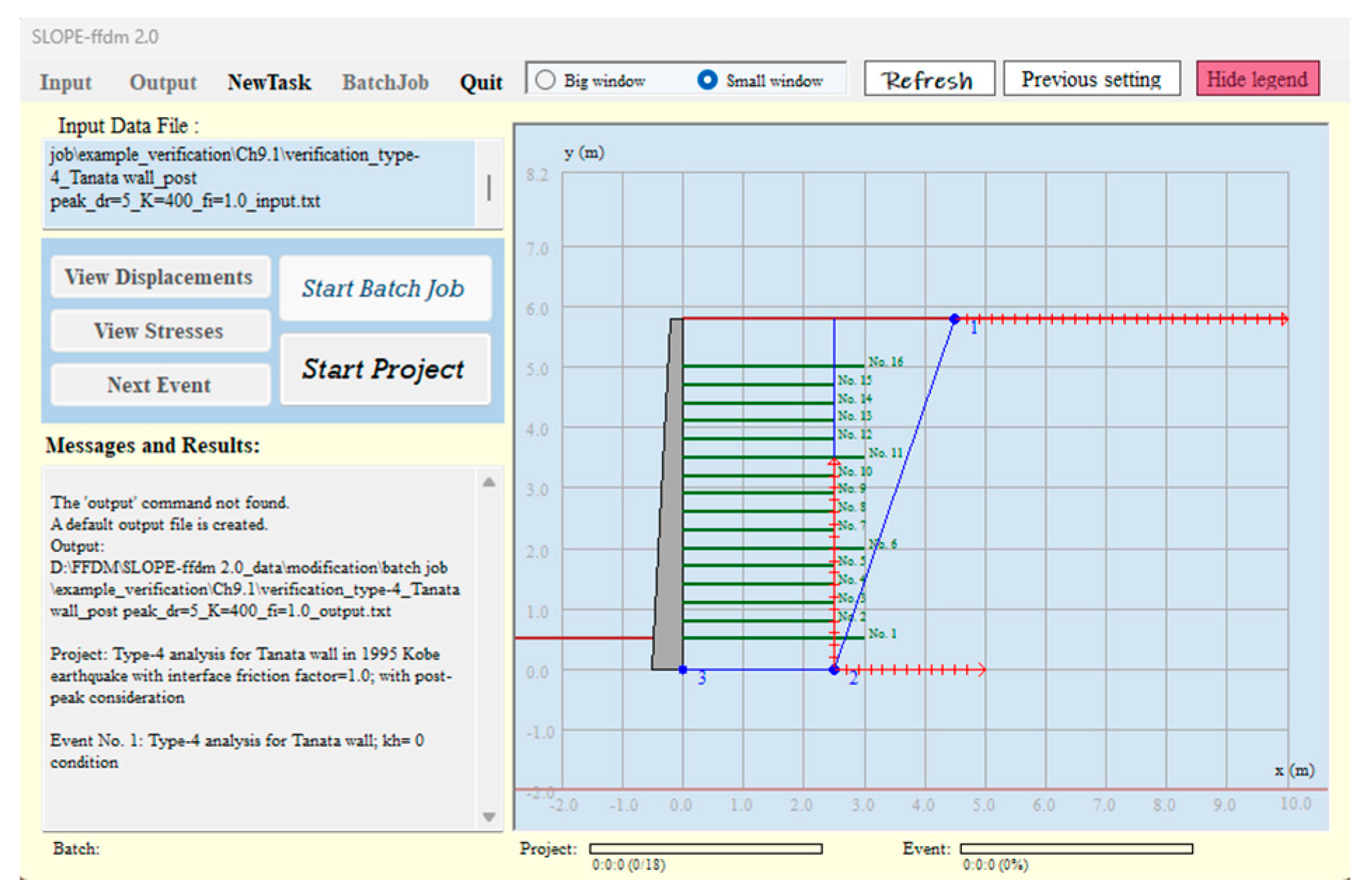

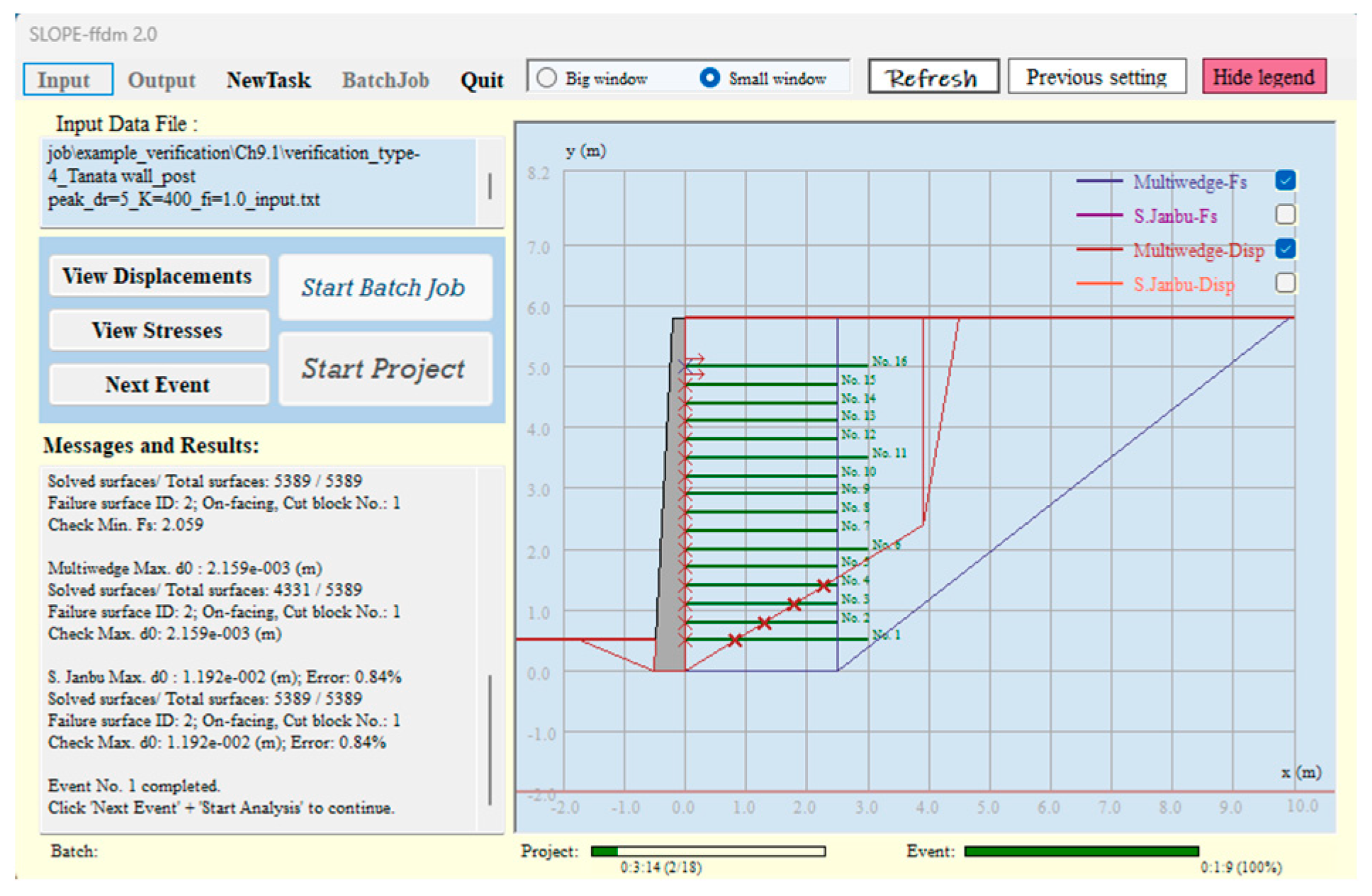

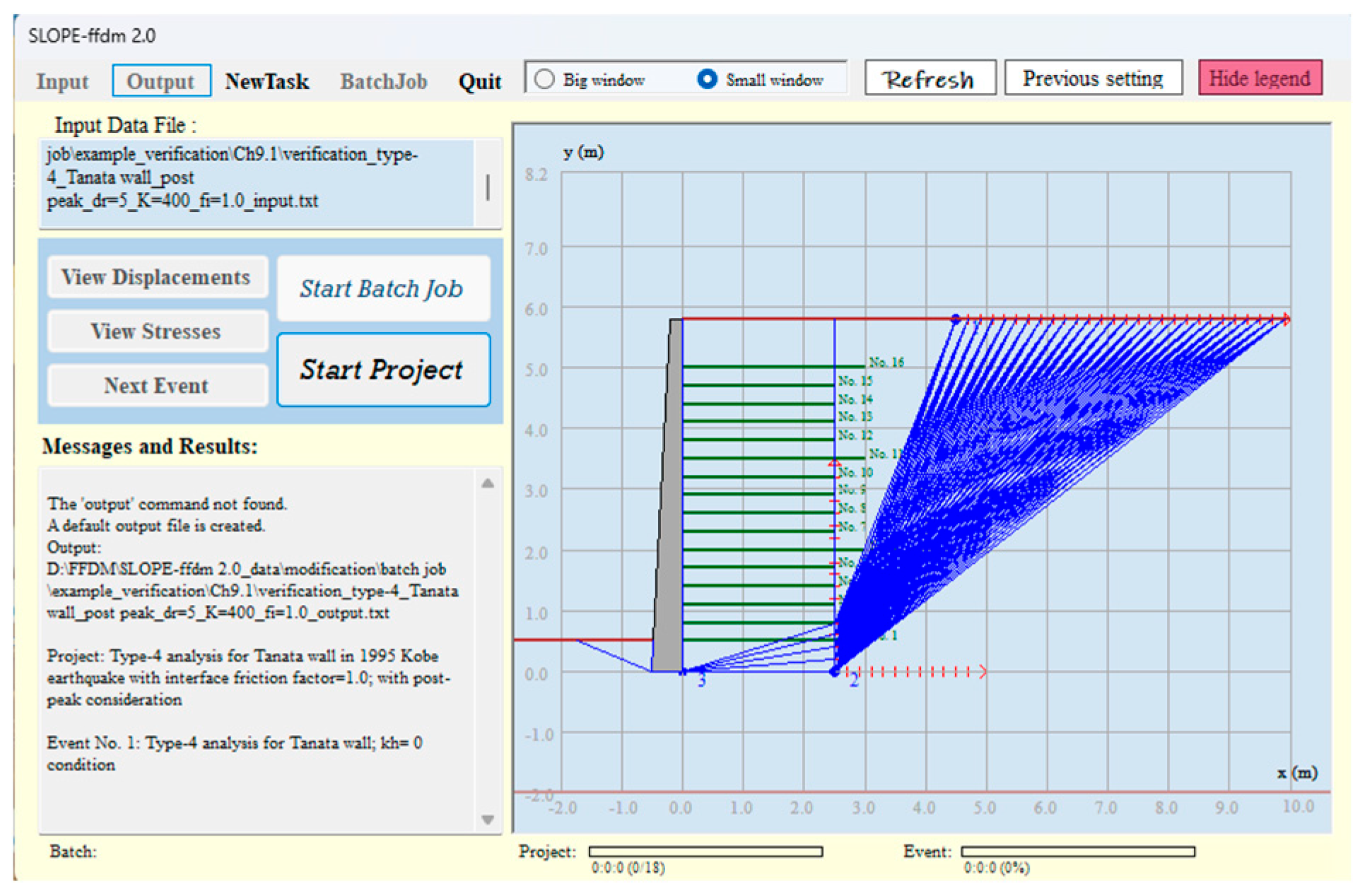

In the Type-4 (multi-wedge) FFDM analysis implemented in SLOPE-ffdm 2.0, a total of 5,389 trial-and-error facing surfaces is employed to identify critical failure mechanisms characterized by the minimum safety factor (F_s) and the maximum vertical displacement at the slope crest (d₀), for a specified pseudo-static seismic coefficient k_h (= HPGA/g; g: gravitational acceleration). Figure 10 presents the initial configuration of the multi-wedge analysis, including the trial-and-error search grids for wedge points 1, 2, and 3. In this example, wedge point 3 is fixed at the heel of the rigid facing panel. Once the analysis begins, trial-and-error facing surfaces are systematically generated by connecting all grid combinations, as illustrated in Figure 11. Upon completion of the search, the resulting critical failure mechanisms are displayed in Figure 12. The corresponding failure modes of the reinforcing layers associated with the critical failure surface are also shown in Figure 12, where the symbol “×” denotes tie-break failure and “→” denotes pullout failure.

3. Results

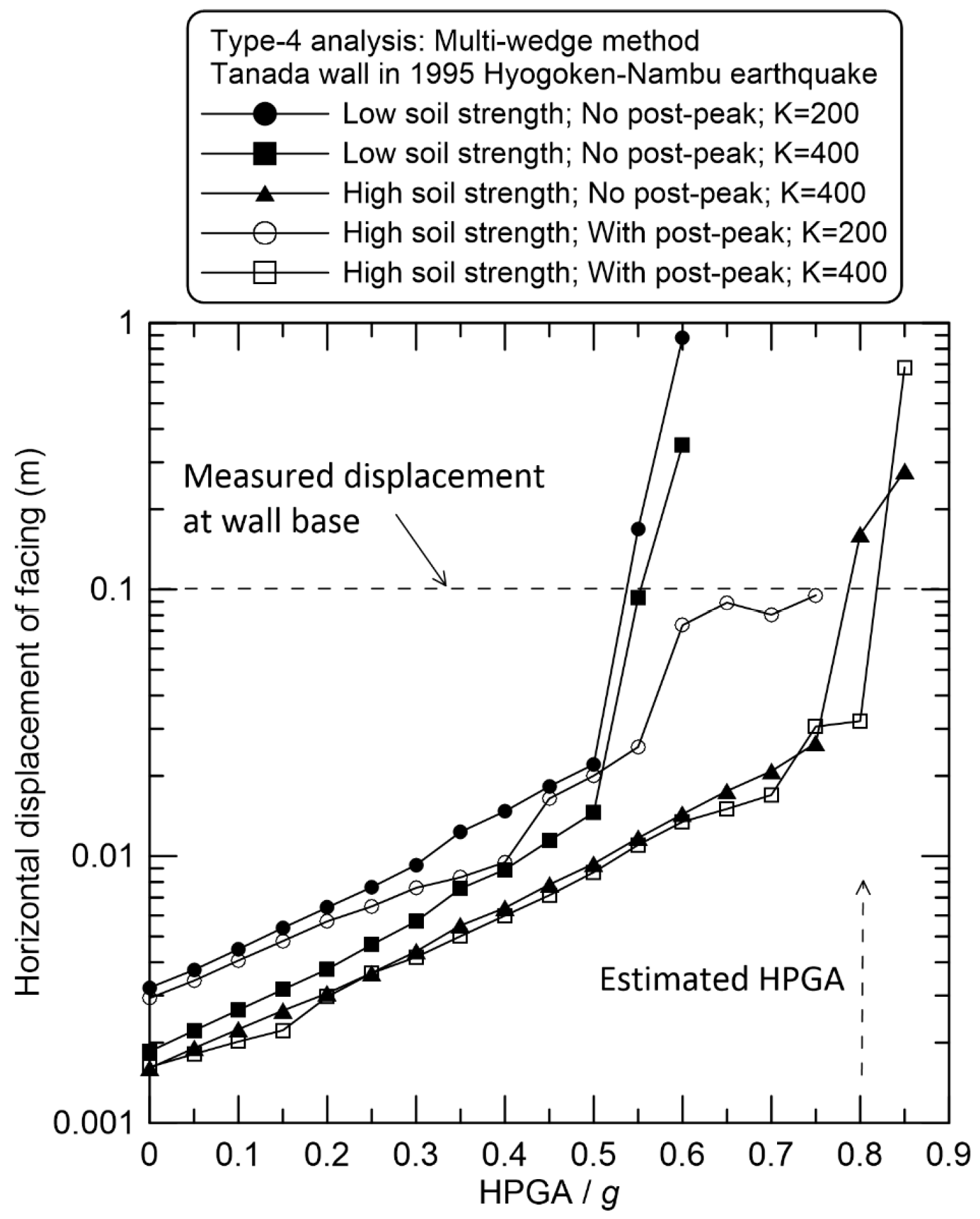

Figure 13 shows the analytical result of FFDM analysis using the multiwedge method (or Type-4 analysis). In this figure, “Low” and “High” soil strength refer to φ= 40˚ and 45˚, respectively, listed in Table 1. Every data point in the figure represents a critical (or maximum) value of facing displacement found in trial-and-error multiwedge searches. All curves exhibit consistent response to the increase of input HPGA/g in the range of 0.0 - 0.85. In the case φ= 40˚ and hyperbolic soil behavior, the response curves exhibit rapid increases in facing displacement at HPGA ≈ 0.5g. When the post-peak model is considered in the analysis, the response curves show a clear tendency toward failure state at HPGA/g ≈ 0.7 - 0.8. In general, the curves with K= 400 and high soil strength effectively simulate the observed seismic displacement of the Tanada wall, regardless of the incorporation of post-peak strength. The analysis with a post-peak model verifies not only the earthquake-resisting capacity of the Tanada wall but also the capability of SLOPE-ffdm 2.0 in calculating seismic displacements of geosynthetic-reinforced soil retaining walls. It is also noted that the calculated slope displacements span a wide range between 10⁻³ to 10⁻¹ m, reflecting their engineering significance and accuracy of the computational scheme of the computer program.

To evaluate the effectiveness of the FFDM relative to hybrid Newmark-type methods, conventional limit-equilibrium slope stability analyses were conducted to develop F_s–k_h curves for φ = 40° and φ = 45°, using soil, reinforcement, and facing parameters consistent with those employed in the displacement analyses. The corresponding critical horizontal seismic coefficients are k_hc = 0.367 for φ = 40° and k_hc = 0.528 for φ = 45°. Figure 13 shows normalized seismic displacement versus k_hc/k_m relationships (k_m = HPGA/g) reported in several studies [1,55,56,57,58]. Among these, the relationships derived in [58] from the 1999 Chi-Chi, 1995 Hyogo-ken Nambu, and 1989 Loma Prieta earthquakes, are adopted to estimate the seismic displacement δh of the Tanada Wall. The results are summarized in Table 2 and Table 3 for φ = 40° (k_hc = 0.367) and φ = 45° (k_hc = 0.528), respectively. For φ = 40°, the estimated displacements range from 0.029 to 0.246 m, which aligns well with the observed values of 0.1 to 0.26 m. This agreement requires the use of operational soil and reinforcement strengths in the LEM-based determination of k_hc. In contrast, for φ = 45° and k_m = 0.528, the estimated displacement of 0.011 to 0.028 m significantly underestimates the actual wall movement.

Figure 12. Seismic resistance curves for Tanada wall using multi-wedge analysis.

Figure 12. Seismic resistance curves for Tanada wall using multi-wedge analysis.

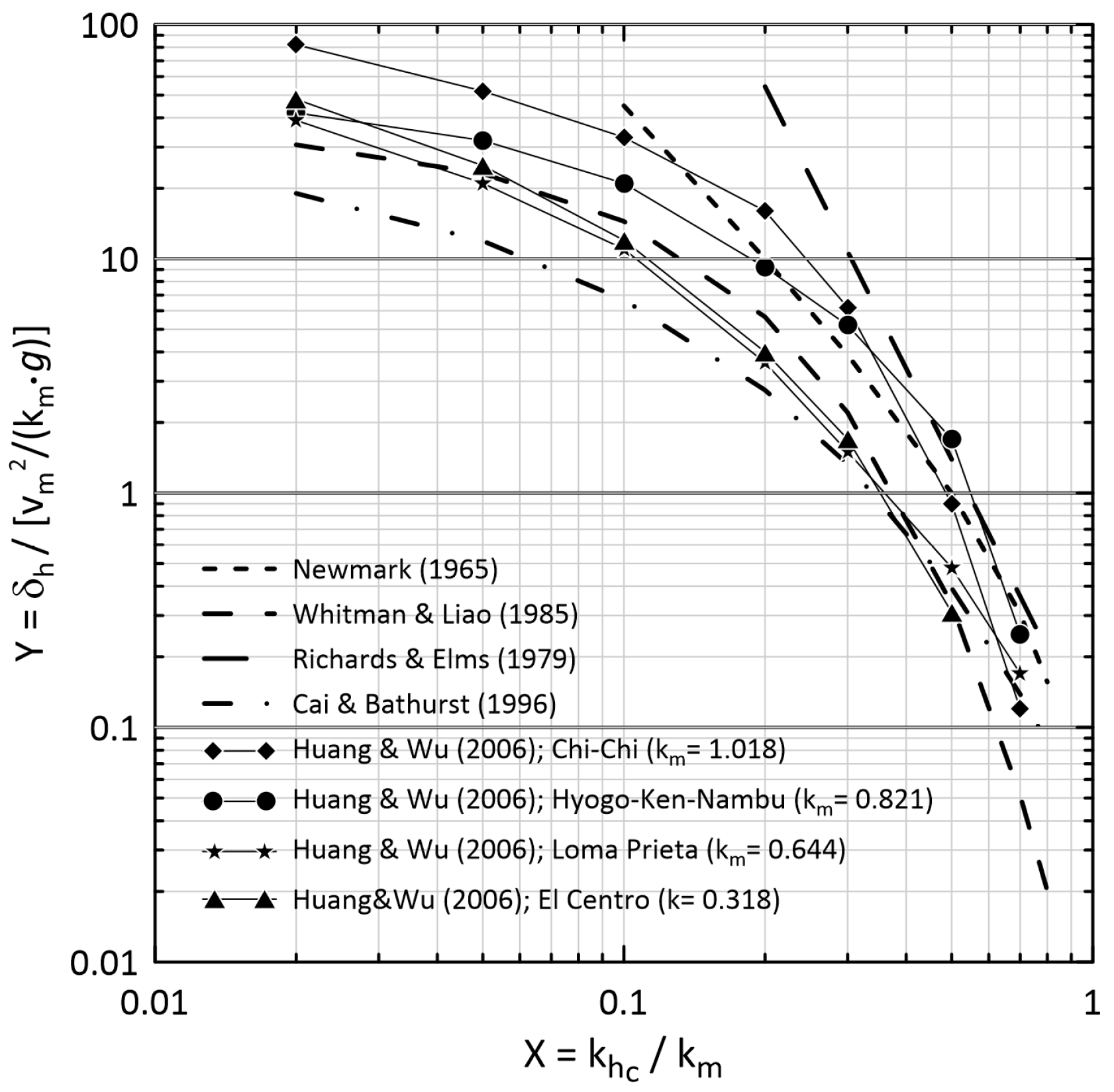

Figure 13. Normalized seismic displacement vs yield acceleration, compiled from [58].

Figure 13. Normalized seismic displacement vs yield acceleration, compiled from [58].

4. Discussion

(1) Incorporation of peak and post-peak soil behavior: The FFDM explicitly accounts for both peak soil strength and its post-peak degradation along the slip surface. This avoids the trial-and-error process traditionally required to estimate “operational” strength parameters in LEM-based displacement analyses and provides a more consistent basis for evaluating seismic deformation in soil and reinforced soil systems.

(2) Direct use of peak ground acceleration: The FFDM directly uses HPGA normalized by gravitational acceleration as input. This captures the dominant inertial force associated with strong shaking and reduces uncertainty in the seismic demand. A limitation is that FFDM reflects only the horizontal peak acceleration and does not explicitly incorporate frequency content, duration, or spectral characteristics. Even so, the pseudo-static FFDM framework is conceptually analogous to monotonic pushover analysis in structural engineering [59,60], where displacement–k_h curves serve a role similar to base-shear–drift relationships used to estimate displacement demand. In this sense, the present study represents an initial attempt to characterize the displacement demand of soil structures using an approach that parallels established practices in seismic performance assessment of reinforced concrete frames [61] .

(3) Limitations of Newmark-type methods in pre-earthquake assessments: When ground motions are recorded near the site, the LEM-based Newmark approach can reasonably estimate seismic displacements, provided soil and reinforcement strengths are well characterized. In pre-earthquake evaluations, however, the wide range of possible ground motions leads to large variability in predicted displacements, reducing the method’s usefulness for engineering judgment.

(4) Contrasting complexity of soil parameters and seismic inputs: The Newmark approach uses simplified soil strength parameters (c and φ) but requires detailed ground-motion inputs such as period characteristics, maximum velocity, and HPGA. In contrast, the FFDM employs a richer set of soil deformation parameters (c, φ, K, n, R_f) while using a simplified seismic input dominated by HPGA. This inversion of complexity reflects the more mechanistic nature of the FFDM.

(5) Displacement compatibility within the sliding mass: Most Newmark-type methods idealize the sliding mass as a rigid block and do not enforce displacement compatibility among internal components. This simplification contradicts fundamental kinematic requirements and limits the realism of predicted deformation patterns. The FFDM explicitly enforces displacement compatibility which is a core requirement in continuum mechanics and forms the basis of upper-bound plasticity solutions [7,44], improving the internal displacement field of the sliding mass and providing a pathway for refining the accuracy of displacement predictions.

(6) Selection and development of input parameters: The need to select input parameters is unavoidable in all analytical approaches, including Newmark-type methods and FFDM. The results in this study demonstrate how appropriate parameter selection can be achieved. Because FFDM is relatively new, parameter ranges for K, n, and R_f are still developing. A preliminary database has been established by the author to support more objective parameter selection, and its refinement will continue as additional case histories become available.

(7) Parametric evaluation and model robustness: Using representative soil parameters for the Tanada Wall backfill, the FFDM produced seismic-resisting curves consistent with observed post-earthquake performance. Extreme parameter combinations, including upper and lower bounds of soil strength and dilatancy angle, were also examined and yielded trends consistent with expected behavior. While a full sensitivity and uncertainty analysis for all parameters (K, n, R_f, Δ_r/Δ_f, etc.) lies beyond the scope of this study, it remains an important direction for future research.

(8) Transition from pre- to post-earthquake displacement evaluation: The FFDM overcomes several limitations of Newmark-type methods by enforcing force and moment equilibrium and by accounting for block–block interaction within the failure mass. This enables a seamless transition from static to pseudo-static displacement computation and avoids the common issue in Newmark analyses where pre-yield displacements are ignored. The computational effort is comparable to that of conventional LEM-based factor-of-safety calculations, making FFDM suitable for routine engineering applications. Its limitations primarily relate to the need for deformation-related parameters, for which broader empirical databases are still being developed.

(9) Capability for back-analysis and parameter calibration: Although only indirectly proved in this study, the FFDM has the potential to perform back-analysis using small to moderate earthquake events that cause only minor wall displacement. As shown in Figure 12, deformation-related parameters (c, φ, K, n, R_f) can be calibrated from displacement–HPGA/g curves and subsequently used to predict performance under stronger shaking. The Newmark-based approach lacks this capability because its inherent uncertainties.

5. Conclusions

This study, implemented through the SLOPE ffdm 2.0 program, establishes a displacement-based framework for evaluating the seismic performance of geosynthetic-reinforced slopes using the Force-Equilibrium Finite Displacement Method (FFDM). A performance-based re-evaluation of the Tanada Wall, which experienced intense shaking during the 1995 Hyogoken-Nambu earthquake (ML 7.2), further validates the effectiveness of the method. The results show that using seismic coefficients derived directly from peak ground acceleration eliminates a major source of uncertainty associated with selecting representative seismographs and captures the governing inertial demand at the moment of horizontal peak ground acceleration (HPGA).

The study demonstrates that the FFDM, as implemented in SLOPE ffdm 2.0, provides a robust and practical framework for performance-based seismic evaluation of geosynthetic-reinforced slopes and walls with rigid facings. The seismic-resisting curves produced by the FFDM exhibit a form and interpretive clarity similar to pushover curves widely used in structural engineering, reinforcing that this approach is conceptually aligned with established performance-based methodologies. Its ability to integrate soil behavior, reinforcement interaction, and seismic demand in a displacement-based manner represents a significant advancement over traditional methods.

The comparison with the conventional LEM-based Newmark sliding-block method highlights the advantages of the FFDM. The Newmark approach relies on simplified soil strength parameters and requires consideration of highly variable ground-motion characteristics, often leading to large variability in predicted displacements. In contrast, the FFDM incorporates a richer set of soil deformation parameters while relying solely on HPGA as the seismic input, resulting in more transparent and physically grounded predictions.

One of the advantages of the FFDM is its capability for back-analysis. For structures that experience only small displacements (on the order of several 10⁻³ m) during small-moderate earthquakes, the FFDM can be used to back-calculate soil strength and deformation parameters. These identified parameters can then be applied to predict structural response under more severe shaking. The conventional Newmark method does not offer this capability, as its inherent uncertainties make reliable back-analysis impractical
