Surface Chemical and Structural Modifications of Barley Seeds Induced by Low-Temperature Oxygen and Nitrogen Plasma Treatments

1. Introduction

The use of non-thermal plasmas (NTPs) for treating seeds has emerged as a promising strategy to enhance the physical and chemical characteristics of seed surfaces, directly impacting germination, initial vigor, and resistance to external agents (see for instance the recent reviews [1,2] and references therein); as well as shelf life [3]. Cold plasmas in air or similar gas mixtures generate a variety of reactive oxygen and nitrogen species (ROS and RNS), UV photons, micro-discharges, and electric effects that can modify both the morphology and surface chemistry of biological materials [4,5]. In the case of malt barley seeds, these changes can have a direct impact on grain quality, germination rate, and the efficiency of malting processes [6]. However, understanding the precise physical and chemical modifications that occur on malt seed surfaces when exposed to oxygen- and nitrogen-enriched plasmas requires detailed characterization and control of the treatment parameters.

At the morphological level, non-thermal plasma treatments can cause etching, partial removal of epicuticular waxes, formation of pores or surface roughness, and alterations in topography. These physical effects, commonly observed by scanning electron microscopy (SEM) or atomic force microscopy (AFM), increase surface wettability and decrease water contact angle, facilitating faster water uptake and promoting germination [7]. Such changes are often correlated with enhanced permeability and reduced microbial contamination, two factors of major industrial relevance.

X-ray photoelectron spectroscopy (XPS) and Fourier-transform infrared spectroscopy (FTIR) have demonstrated that air plasma treatments enrich the outermost layers with oxygen and nitrogen functionalities, increase surface polarity, and remove waxy components [8]. These modifications influence surface energy, water absorption kinetics, and microbial adhesion. Furthermore, plasma exposure can induce redistribution of several ions in the outer seed coat, influencing the electrochemical environment and potentially modulating biochemical signaling pathways related to germination [9].

The differences between oxygen and nitrogen plasmas are notable. Oxygen plasmas predominantly generate oxidative species (atomic oxygen, ozone, etc.), which favor oxidation and functionalization of surface compounds. Nitrogen plasmas, in contrast, promote the incorporation of nitrogen functionalities, leading to amination and formation of nitrated structures. Mixed-gas plasmas can balance these effects, achieving surface activation without excessive damage when properly tuned [10].

These surface-level transformations translate into measurable improvements in seed performance. Numerous studies have reported increased germination rate and vigor, enhanced enzymatic activity, and improved water uptake in barley and other cereals following cold plasma exposure [11]. However, excessive plasma power or prolonged exposure can lead to deleterious effects such as oxidative stress, surface erosion, or DNA damage [12]. Consequently, optimization of plasma parameters—gas composition, exposure time, discharge power, and electrode configuration—is critical to achieve beneficial modifications while maintaining structural integrity.

Despite the growing number of studies on cereal seeds, systematic analyses focusing on malt barley remain scarce. Few works (e.g., [6]) have correlated nanoscale surface composition (via XPS and FTIR) with parameters directly relevant to malting, such as germination uniformity, water absorption kinetics, and enzymatic activation. The characterization of the plasma-induced modifications on malt seed surfaces is therefore essential for establishing cause–effect relationships between plasma chemistry, surface physics, and biological performance.

In this context, this work aims to characterize the morphological and chemical changes occurring on malt barley seed surfaces after exposure to oxygen- and nitrogen-enriched non-thermal plasmas. Through combined use of XPS, scanning electron microscopy with energy-dispersive X-ray spectroscopy (SEM-EDX), Raman spectroscopy analyses, and attenuated total reflectance–Fourier transform infrared spectroscopy (ATR-FTIR), the study seeks to clarify how plasma parameters influence surface functionality, wettability. This knowledge provides a basis for the rational design of plasma-assisted processing technologies for sustainable malting and agricultural applications [12].

2. Materials and Methods

2.1. Plasma Source

The non-thermal plasma was generated using a dielectric-stabilized streamer-corona discharge. A flat-wire electrode geometry was used, consisting of an array of multiple 0.2 mm diameter wires (covering an area of 1000 x 500 mm) over a grounded flat counter electrode. The flat electrode was covered with a 2 mm thick glass sheet. A 12 mm gas gap was used. A quasi-steady sinusoidal voltage signal (50 Hz) with an amplitude of 30 kV was applied. The discharge was generated in ambient air, but the gas composition of the active zone of the discharge (i.e., where the plasma is generated) was locally varied by injecting oxygen and nitrogen (of industrial purity) as carrier gases, with a (measured) gas flow of about 28 Nl/min. The electrical characteristics of the discharge were monitored during the experiments by using a 4–channel oscilloscope (Tektronix TBS2204B with a sampling rate of 2 GS/s and an analogical bandwidth of 200 MHz). The discharge voltage was measured by using a high-impedance voltage probe (Tektronix P6015A, 1000X, 3pf, 100 M). The discharge power density (i.e., the ratio of power to active electrode area) under the experimental conditions was calculated to be 0.13 W/cm².

2.2. Seeds Treatment

Commercial Hordeum vulgare (barley) seeds were used in this study. For each experimental group, a 60 g sample of seeds was subjected to treatment, while non-treated seeds served as the control group. Seeds were exposed to a uniform 10-minute plasma application. The treatments were defined by the gas composition: PNT70 (oxygen plasma) and PNT71 (nitrogen plasma).

2.3. Raman Spectroscopy

Raman microscopy analyses were performed on a LabRAM HR Raman system (Horiba Jobin Yvon), equipped with two monochromator gratings and a charge-coupled device detector (CCD). An 800 g/mm grating and 100 μm aperture resulted in a 1.5cm−1 spectral resolution. A He-Ne laser line at 632.8 nm was used as an excitation source. Laser power was adjusted in order to avoid overheating on the sample (around 3 mW). The spectrograph is coupled to an imaging microscope with 10×, 50×, and 100× magnifications. Typically, the laser spot on the sample was about 10 and 3 μm diameter for a 10× and 50× magnification, respectively. An advantage of the microscopic facility is the possibility of analyzing different regions on the seeds.

2.4. X-Ray Photoemission Spectroscopy (XPS)

XPS measurements were carried out using a PHI 5000 VersaProbe II system equipped with a monochromatic aluminum Kα X-ray source (1486.6 eV) and a spherical capacitor analyzer. The analysis chamber was maintained at a base pressure in the lower range of 10⁻¹⁰ Torr. Experimental parameters for the X-ray source included a spot size of 200 μm, X-ray power set at W, and a bias voltage of 15 kV. Prior to sample analysis, the resolution of the system was verified using an Ar-etched, polished fine-grained silver sample, with the full width at half maximum (FWHM) of the Ag 3d_5/2 peak measured at 0.69 eV. Data analysis was performed using CasaXPS software version 2.3.18.

Due to the insulating nature of the samples, charging effects were observed during the XPS measurements. The widespread practice to overcome the complication associated with the charging effect is using an electron flood gun; however, the traditional method of electron flood gun charge neutralization proved to be ineffective in neutralizing the localized positive charge induced by the X-ray beam, as the static charge of the sample interfered with the low-energy electron beam. Instead, a dual beam charge neutralization method patented by PHI was utilized. This method combines a low-energy Ar⁺ ion beam and a low-energy electron beam to effectively neutralize the localized positive charge caused by the X-ray beam. Additionally, the dominant component of adventitious carbon (AdC), specifically (C-C/C-H) in the C 1s energy region at 285 eV, served as a reference point for energy calibration of the XPS spectra.

2.6. Attenuated Total Reflectance–Fourier Transform Infrared Spectroscopy (ATR-FTIR)

The sample was analyzed by Fourier Transform Infrared Spectroscopy (FTIR) using a Shimadzu IRPrestige-21 spectrometer equipped with a horizontal attenuated total reflectance (ATR-8200H) accessory. Spectra were acquired in ATR mode using a zinc selenide prism. Prior to sample measurement, a background spectrum was recorded. Each spectrum resulted from 40 co-added scans at a resolution of 4 cm⁻¹ over the 4000–700 cm⁻¹ spectral range.

2.5. Scanning Electron Microscopy

SEM-EDS measurements and BS imaging in this study were conducted using an FEI Quanta 200 SEM operated in low vacuum mode. The system is equipped with Everhardt–Thornley and solid-state detectors. The samples were not coated with any conducting thin film; however, the low-vacuum SEM capabilities allowed for charge-free imaging and analysis of the uncoated samples. Spectral data were analyzed using Edax Genesis Apollo X software under standard less approximation, indicating that the chemical composition measurements should be considered as semi-quantitative.

2.6. Seed Water Imbibition

Seeds from each treatment and control group were weighed (p₀) and placed in Petri dishes containing two filter papers moistened with 4 mL of distilled water. Four replicates of ten seeds each were prepared. At 0.5, 1, 2, 4, 5, and 6 hours, the seeds were removed from the Petri dishes and weighed (p_t). The experiment was repeated three times. The percentage of water uptake at each time point was calculated and used to construct imbibition curves, which represent the temporal dependence of average water absorption normalized to the initial seed mass:

$$Weightgain\left(\%\right)={\displaystyle \frac{\left(p_t-p_0\right)}{p_0}}\times 100.$$

(1)

3. Results

3.1. Raman Spectroscopy Results

Raman spectroscopy has emerged as a powerful, non-destructive technique for investigating the chemical and structural properties of plant seeds. It allows the identification of key bio-molecules such as starch, proteins, lipids, carotenoids, and phenolic compounds, providing valuable insights into seed composition. Beyond compositional analysis, Raman spectroscopy has been applied to assess seed viability and aging, monitor structural and chemical changes induced by treatments such as plasma or thermal processes, and detect the presence of contaminants or pathogens. Owing to its rapid acquisition, minimal sample preparation, Raman spectroscopy can represent a versatile tool to study seeds [13,14].

3.1.1. Exterior Part of the Seeds

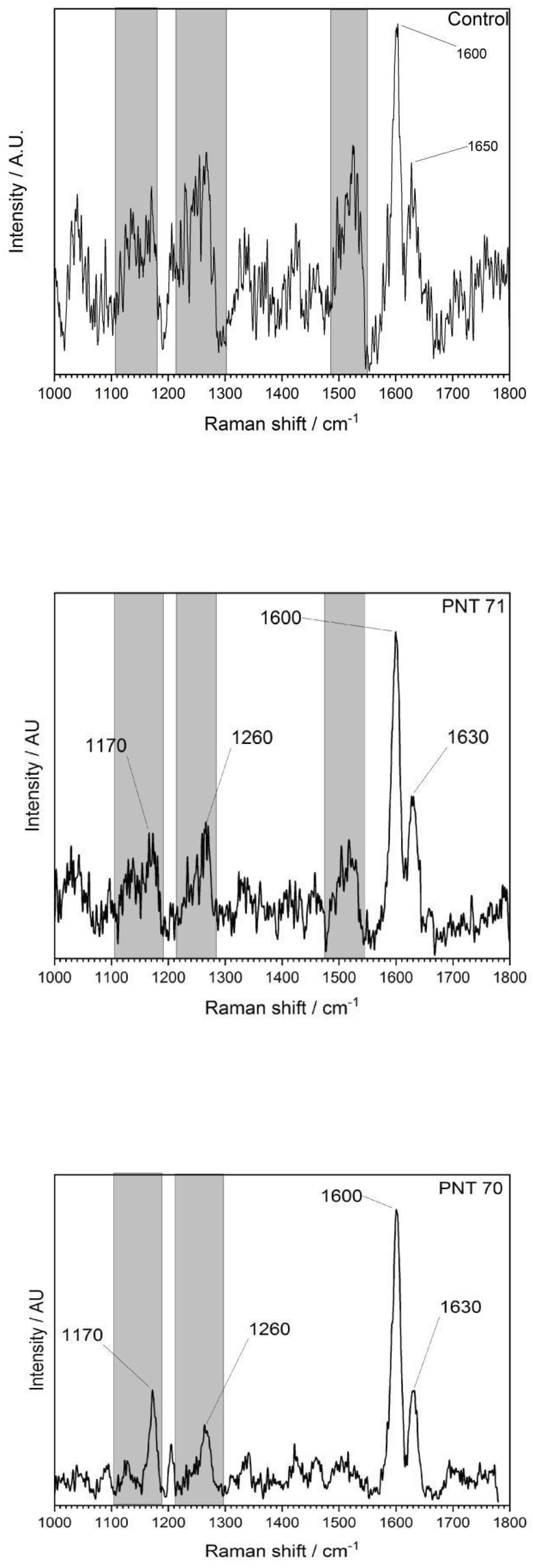

The Raman spectra (Figure 1) of the external part of the barley seed (1000–1800 cm⁻¹) shows several characteristic peaks associated with organic and biopolymeric structures. The spectral profile is dominated by a strong band near 1600 cm⁻¹, with additional features observed at around 1200–1250 cm⁻¹ and ~1350–1400 cm⁻¹.

The Raman spectra revealed distinct differences between the untreated control and the plasma-treated samples (PNT 70, oxygen plasma; PNT 71, nitrogen plasma). In the control spectrum, broad but identifiable bands were observed at 1170–1200 cm⁻¹ (C–O–C stretching of polysaccharides), 1260–1300 cm⁻¹ (amide III vibrations from proteins and lignin-related modes), and a dominant feature at ~1600 cm⁻¹, attributed to aromatic C=C stretching of lignin and phenolic structures, with a weaker shoulder at ~1650 cm⁻¹ corresponding to amide I (C=O stretching) of proteins. Plasma treatment produced sharper and more intense peaks, indicating effective removal of surface contaminants such as hydrocarbons and enhanced exposure of the underlying biopolymers. Oxygen plasma (PNT 70) caused the strongest modifications, with a well-defined carbohydrate band at 1170 cm⁻¹, a clear amide III/lignin contribution at 1260 cm⁻¹, and a sharp, dominant peak at 1600 cm⁻¹ reflecting enhanced aromatic and phenolic structures. Additionally, the amide I shoulder at 1630 cm⁻¹ was more distinct than in the control, suggesting an increased contribution from protein vibrations. Table 1 presents main biomolecules of the coat seed with the corresponding functional group vibrations.

Nitrogen plasma treated seed (PNT 71) also enhanced the signals compared to the control, but the peaks were broader and less intense than those observed with oxygen plasma. While the main vibrational modes at 1170, 1260, 1600, and 1630 cm⁻¹ were present, their lower intensity suggests that N-plasma induces a milder surface modification, potentially introducing subtle nitrogen functionalities, although these are not clearly resolved in the Raman fingerprint region. Overall, oxygen plasma treatment appears to be more effective in enhancing surface oxidation and exposure of lignin- and protein-related structures, while nitrogen plasma leads to less pronounced but detectable modifications.

The differences between the spectra shown in Figure 1 can be attributed not only to the distinct chemical reactivity of the plasmas but also to their effect on surface cleanliness. Oxygen plasma is highly oxidative and known for its strong cleaning ability, effectively removing surface hydrocarbons and exposing the underlying biopolymer structures (cellulose, lignin, proteins). This results in stronger Raman scattering from intrinsic seed components. In contrast, nitrogen plasma is less effective in cleaning but may introduce amine functionalities, leading to weaker enhancement of the Raman active biopolymers [15,16,17,18,19].

Although nitrogen plasma treatment could, in principle, introduce nitrogen-containing functional groups such as amines and amides onto the surface biopolymers of the seed coat, the Raman spectra obtained in the 1000–1800 cm⁻¹ region do not display distinct new bands attributable exclusively to nitrogen-related vibrations. This is partly because N–H and C–N vibrations often overlap with existing polysaccharide and protein modes, and partly due to the relatively low concentration of incorporated nitrogen functionalities. As a result, Raman spectroscopy alone may not clearly reveal nitrogen incorporation. To confirm the presence and chemical nature of nitrogen species we carried out XPS and Attenuated Total Reflectance (ATR) and Fourier Transform Infrared (FTIR) measurements on the control and plasma treated seeds, see below.

3.1.2. Interior Part of the Seeds

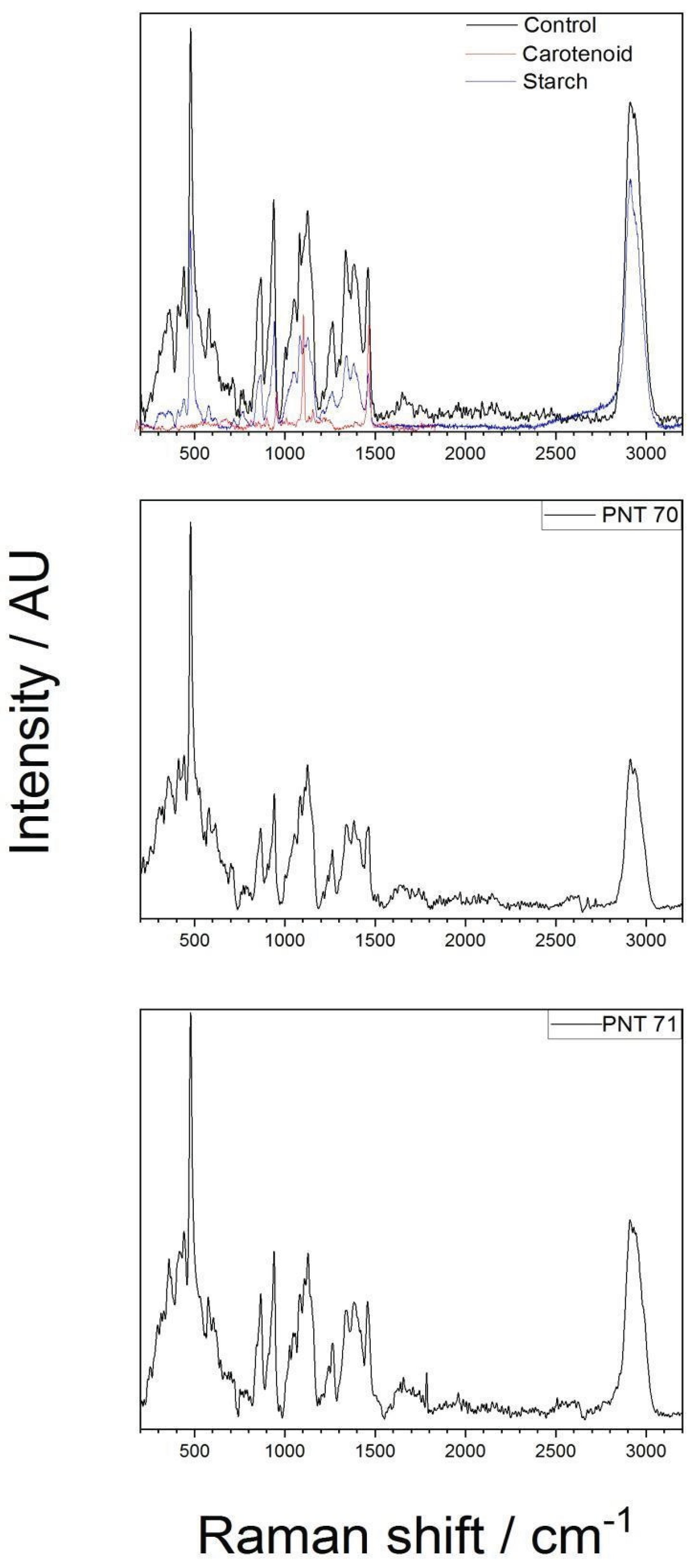

The interior of the seeds was analyzed by Raman spectroscopy to assess whether the plasma treatment produced any alterations in their internal structure or composition. The Raman spectra obtained from the interior part of the barley seeds (control, PNT70, and PNT71) are shown in Figure 2. The spectra exhibit distinct bands corresponding to starch (C₆H₁₀O₅) and carotenoid components, as confirmed by the reference spectra plotted in the top panel (control sample). The most prominent features include strong starch-associated peaks at ~480 cm^-1 (skeletal C–O–C bending), ~940–960 cm⁻¹ (C–O stretching of the glycosidic linkages), a strong band at ~1045–1060 cm⁻¹ (C–O and C–C stretching). The high-wavenumber region (2850–2930 cm⁻¹) exhibits strong CH₂/CH₃ stretching bands, which are characteristic of polysaccharides but also overlap with lipid and protein contributions [21]. Beyond starch-related modes, the barley seed spectrum contains additional features absent in the pure starch reference. A band near 1265–1300 cm⁻¹ corresponds to amide III vibrations, while a broad feature at ~1650 cm⁻¹ is assigned to the amide I band, both arising from protein backbone vibrations [17,22]. A pronounced feature around 1450 cm⁻¹ originates from CH₂/CH₃ deformation modes, typically associated with lipids and proteins [21]. Carotenoid-related signals, such as the bands around 1150 and 1520 cm⁻¹, are also evident in the spectra, which are associated with C–C and C=C stretching vibrations of the conjugated polyene chain, respectively [19]. Main chemical bonds detected from the interior part of the seed with the corresponding functional group vibrations are presented in Table 2.

Even though, the spectra of the plasma-treated seeds PNT71 and PNT 70 show reduced band intensities, (which is related to the experimental conditions), the characteristic starch peaks remain visible, particularly in the low-wavenumber region (400–1200 cm⁻¹) and near 2930. The carotenoid bands become less pronounced but also visible. Considering the experimental conditions, we conclude that no significant shifts in peak positions are observed, suggesting that plasma exposure does not alter the organic composition of the seed interior. This stability implies that the fundamental molecular structures, including polysaccharides and carotenoid frameworks, remain largely intact after treatment.

3.2. XPS Results

XPS provides a powerful means to investigate the surface chemistry of plant seeds, delivering quantitative and chemical-state information from only the outer few nanometers of the seed coat. This high surface sensitivity is especially important since the seed coat governs key processes such as water absorption, germination, and defense against environmental stresses. XPS has been employed to analyze natural surface components, including waxes, lignin, and polysaccharides, and to track chemical alterations induced by plasma or other treatments. When combined with complementary spectroscopic and microscopic approaches, XPS becomes a valuable tool for establishing direct connections between seed surface chemistry, biological function performance [9,26].

3.2.1. O1s-Region

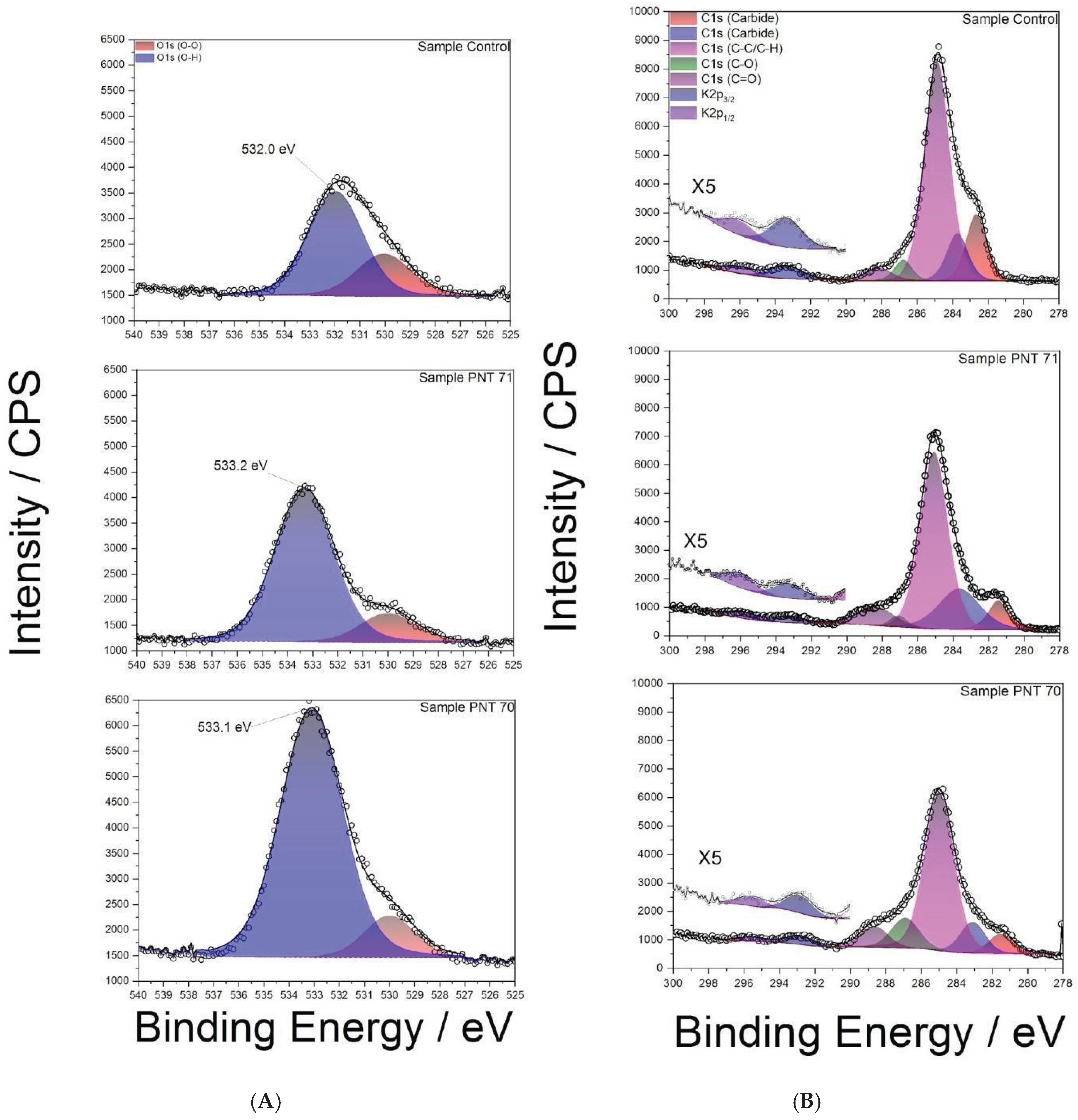

High-resolution XPS spectra of the O 1s region are shown in Figure 3A for the control and plasma-treated seeds. The spectra were deconvoluted into two main components: a peak at ~532–533 eV corresponding to hydroxyl oxygen species (O–H), typically associated with surface hydroxyl groups, adsorbed water, and a smaller contribution at ~530–531 eV attributed to oxidized oxygen species (O–O), such, carbonyl oxygen, or surface contaminations. In the control sample, the (O–H):(O–O) integrated area ratio was approximately ~7:3. After nitrogen plasma treatment (PNT 71), the O–H peak became more prominent, increasing the ratio to almost ~4:1, while in the oxygen plasma treatment (PNT 70) the (O–H) contribution dominated even further, with an estimated ratio of ~9:1. The relative concentration of (O-O) and (O-H) peaks for control and plasma treated seeds are listed in Table 3. These results clearly demonstrate that plasma treatment enhances hydroxylation of the seed surface, thereby increasing surface hydrophilicity, which may facilitate water uptake.

A noticeable shift of approximately 1 eV toward higher binding energy was also observed in the (O-H) peak after plasma treatment compared to the control sample. This shift can be primarily attributed to the increased proportion of hydroxyl-rich species generated by plasma exposure, as hydroxyl oxygen typically appears at higher binding energies (~532.5–533.5 eV) relative carbonyl oxygen (~530–531 eV) [27].

Plasma treatment likely oxidizes surface hydrocarbons and polysaccharides, enriching hydroxyl functionalities and reducing the relative contribution of lower-energy (O–O) species. Overall, the shift reflects the chemical restructuring of the seed coat surface induced by plasma, with hydroxylation emerging as the dominant modification of the on surface.

3.2.2. C1s and K2p Regions

Figure 3B presents high-resolution XPS C 1s spectra of the control barley seed surface (top panel), PNT71, (middle panel), andPNT70, (bottom panel). The main contributions were identified in the control spectrum (top panel) and used for fitting all spectra. The dominant peak at (284.8±0.1) eV corresponds to C–C/C–H bonds, commonly associated with adventitious carbon contamination. Additional components were assigned to C–O (286.2±0.1) eV, C=O (287.8±0.1) eV, and minor contributions at lower binding energy (282–283 eV), which are formally attributed to carbide-like species. However, in biological samples such as seeds, these low-energy signals are more likely to arise from interactions of carbon with inherent mineral constituents (e.g., potassium or calcium), rather than true metal carbides. In addition, K 2p₃/₂ and K 2p₁/₂ signals are observed between 292–296 eV, reflecting the presence of inherent seed mineral constituents.

A clear reduction of the C–C/C–H contribution is observed after plasma treatment, particularly in the oxygen-treated sample (PNT 70), consistent with the removal of adventitious carbon through oxidative cleaning. This process involves the conversion of surface hydrocarbons into volatile CO and CO₂, leading to an overall decrease in the carbon signal and a relative enrichment of oxygen species. In the nitrogen-treated sample (PNT 71), this effect is less pronounced, reflecting the lower oxidative potential of nitrogen plasma compared to oxygen plasma. These findings corroborate the compositional analysis shown in the O/C ratio (Figure 4), where oxygen plasma treatment significantly enhances surface oxygen concentration while depleting carbon. Such changes in surface chemistry are expected to alter the physicochemical properties of the seed coat, including hydrophilicity, permeability, and interaction with water during germination.

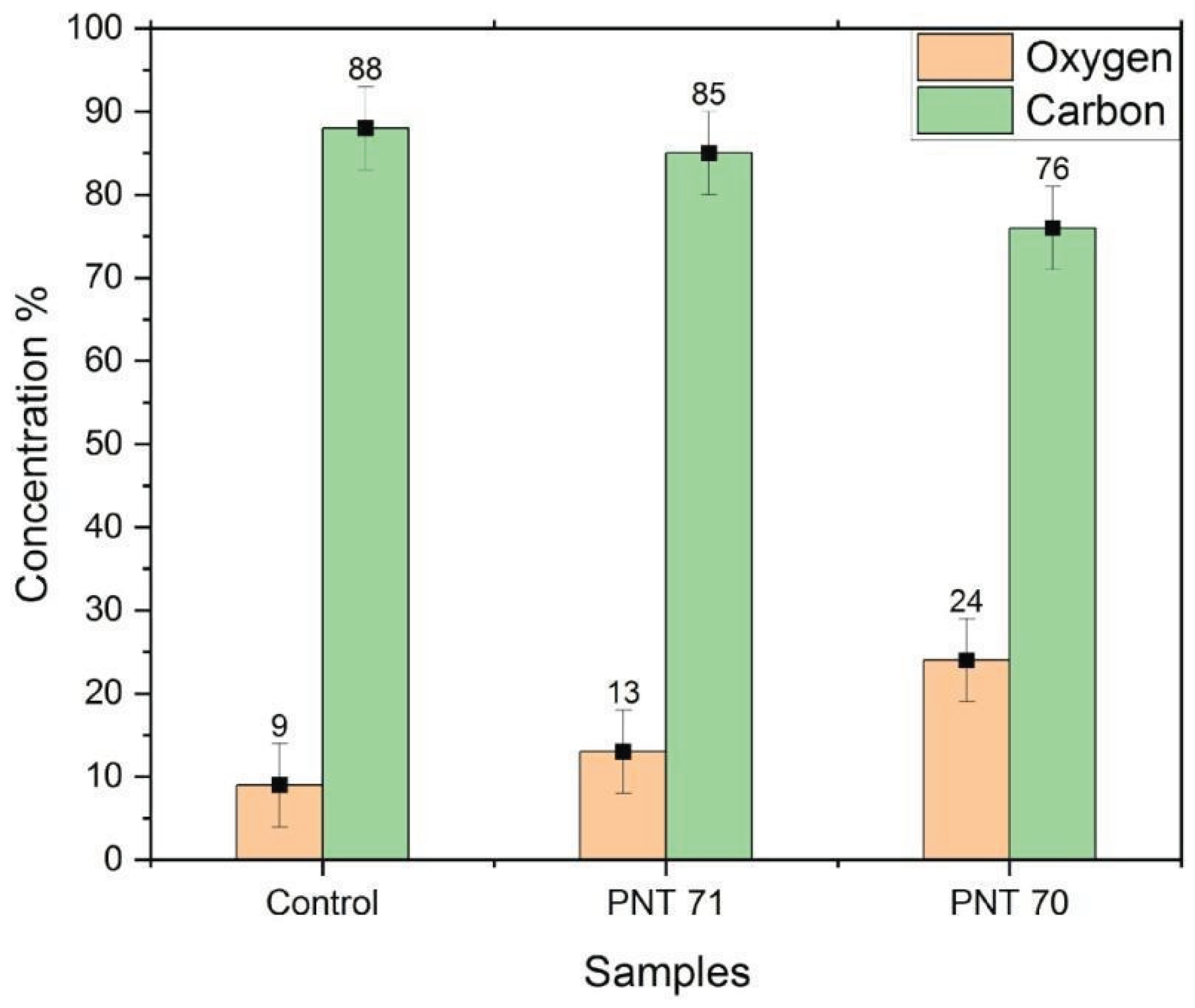

The bar graph (Figure 4) illustrates the relative surface concentrations of oxygen and carbon on barley seeds obtained by X-ray photoelectron spectroscopy (XPS) before and after plasma treatment. In the control sample, the carbon content is dominant 88±5%, while oxygen accounts for only 9± 5%. Upon nitrogen plasma treatment (PNT71), the surface oxygen content increases slightly to 13± 5%, accompanied by a decrease in carbon concentration to 85± 5%. A more pronounced modification is observed in the oxygen plasma-treated seeds (PNT70), where oxygen concentration rises significantly to 24 ± 5%, with a corresponding reduction in carbon content to 76± 5%. These results indicate that plasma treatment effectively alters the surface chemical composition of the seed coat, with oxygen plasma being more efficient in incorporating oxygen species and reducing surface carbon compared to nitrogen plasma. The reduction of carbon after oxygen plasma exposure can be partly attributed to the removal of adventitious carbon contamination, which is oxidized and desorbed as volatile CO and CO₂ during treatment. Therefore, the observed increase in oxygen concentration reflects both the introduction of oxygen-containing functional groups and the cleaning effect of plasma on the seed surface.

3.2.3. N1s Region

The N 1s spectra (Figure 5A) reveal distinct differences between treatments. In the control seed, two components are observed: a dominant peak at ~400.8 eV, attributed to N³⁻ environments such as amine or amide groups, and a smaller contribution at ~397.8 eV, associated with N²⁻ (N-C) functionalities including imines or nitriles. Following N-plasma treatment (PNT71), the N³⁻ (N-H) component becomes strongly dominant, indicating efficient incorporation of nitrogen species from the plasma. In contrast, the spectrum of the O-plasma treated seed (PNT70) exhibits only a weak signal, preventing a reliable distinction of nitrogen oxidation states. This suggests that oxygen plasma preferentially modifies or removes labile nitrogen functionalities, potentially leaving behind more stable, lower oxidation state nitrogen species.

3.2.3. Ca2p Region

The Ca 2p spectra (Figure 4B) of the control and plasma-treated seeds show the characteristic doublet of Ca²⁺, with Ca 2p₃/₂ (347.8±0.1) eV and Ca 2p₁/₂ (351.4±0.1) eV. In the control seed, the Ca 2p doublet is intense and well resolved, indicating the presence of native calcium salts such as oxalates or carbonates in the seed coat. After N-plasma treatment (PNT71), the Ca 2p signal intensity decreases, suggesting either partial sputtering/etching of surface calcium compounds or coverage by newly incorporated nitrogen-rich species. By contrast, after O-plasma treatment (PNT70), the Ca 2p signal remains relatively strong, consistent with oxidative cleaning of adventitious surface contaminants rather than removal of calcium compounds.

3.3. ATR-FTIR Results

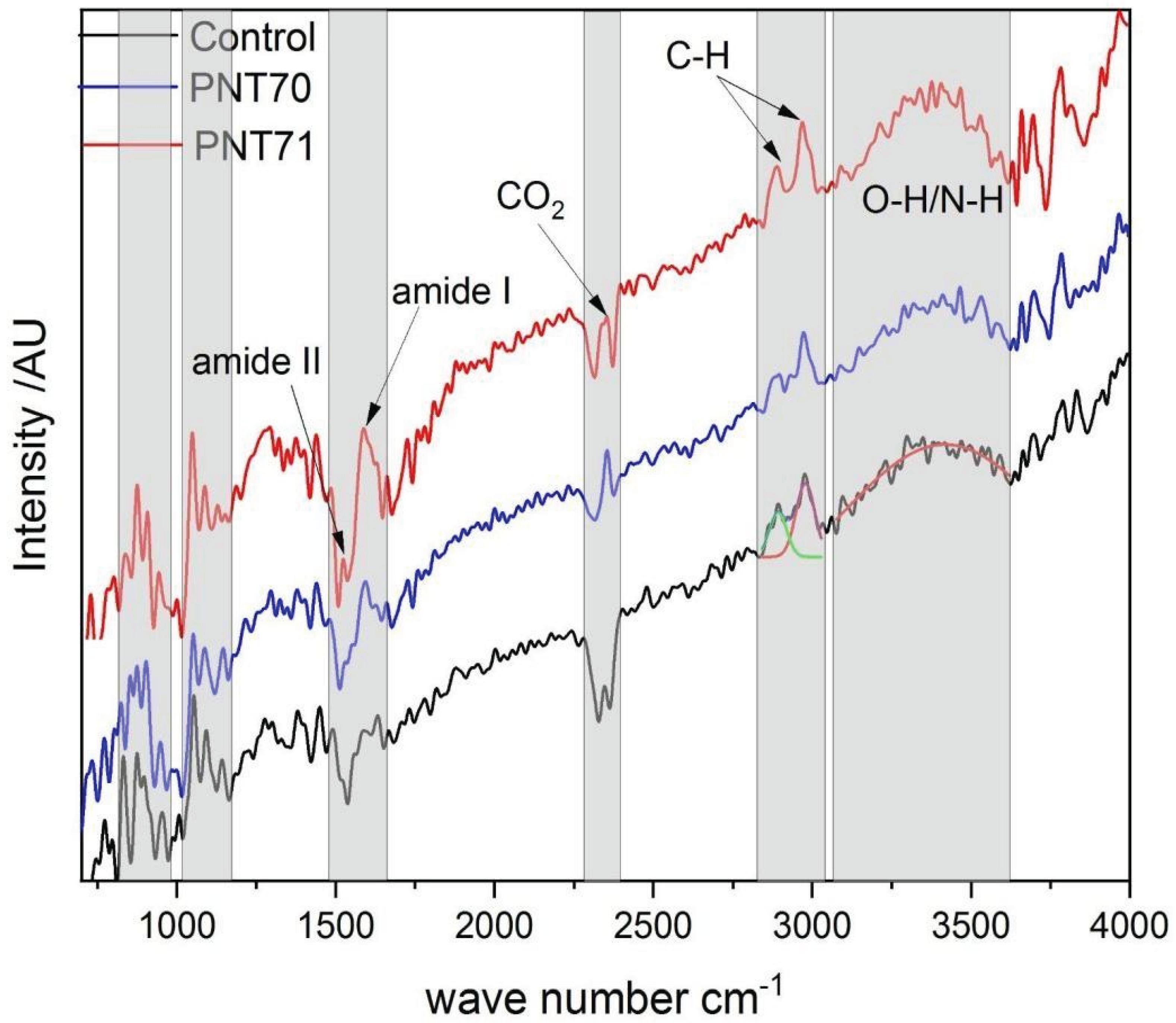

The ATR-FTIR spectra of the barley seed coats from the control sample, oxygen plasma–treated (PNT70), and nitrogen plasma–treated (PNT71) samples are shown in Figure 6. All three spectra display the typical vibrational bands of seed biopolymers, including a broad O–H/N–H stretching band between 3200–3600 cm⁻¹, C–H stretching vibrations near 2920 and 2850 cm⁻¹, amide I (~1650 cm⁻¹) and amide II (~1540 cm⁻¹) bands associated with proteins, and strong carbohydrate-related absorptions in the 1200–1000 cm⁻¹ region [28,29]. These features confirm that the main biochemical constituents of the seeds—starch, proteins, and lipids—remain intact after plasma treatment, confirming the Raman results.

Notably, the oxygen plasma treatment (PNT70) enhances the relative intensity of the O–H/N–H stretching region (3200–3600 cm⁻¹), indicating an increase in surface hydroxylation and hydrophilicity. Whereas, the nitrogen plasma–treated sample (PNT71) exhibits a more pronounced increase across both the O–H/N–H and amide regions (1400–1600 cm⁻¹), suggesting nitrogen incorporation and modification of surface nitrogen functionalities. Subtle intensity differences in the carbohydrate region (1200–1000 cm⁻¹) also suggest surface rearrangements, but no new absorption bands are observed, indicating that plasma primarily modifies surface chemistry without altering the bulk molecular structure.

A distinct doublet feature at ~2350 cm⁻¹, most evident in the oxygen plasma–treated sample, is assigned to the asymmetric stretching vibration of atmospheric CO₂. This band typically appears as two adjacent absorptions due to vibrational–rotational splitting in the gas phase and does not originate from seed constituents. Its prominence after plasma treatment may be attributed to enhanced adsorption of CO₂ on more polar, oxygenated surfaces or to variation in background conditions during spectral acquisition [30,31].

In summary, the spectral comparison reveals that while both plasma treatments alter the surface chemical environment—oxygen plasma enhances hydroxyl groups, and nitrogen plasma introduces nitrogen-containing functionalities—the fundamental molecular composition of the seed coats is preserved, in line with XPS results.

Table 4. Main biomulecules of the coat seeds detected by ATR-FTIR with corresponding functional group vibrations.

Wave number (cm-1)	Assignment	Biomolecules	References
3600-3200	Broad O-H/N-H stretching	Carbohydrates, proteins, adsorbed water	[30,31,32,33]
3000-2800	C-H stretching	Lipids, CH2/CH3 groups	[30]
~2350	Atmospheric CO2	adsorbed CO2, not seed related biopolymers	[30]
1700-1600	Amide I (C=O stretching)	Proteins	[30]
1560-1500	Amide II band (N-H bending /C-N stretching)	Proteins	[22,31]
1200-1000	C-O-C and C-O stretching	Polysaccharides (starch, cellulose)	[31,33]
<900	Skeletal modes	Complex carbohydrate vibrations	[30,33]

Table 4. Main biomulecules of the coat seeds detected by ATR-FTIR with corresponding functional group vibrations.

Wave number (cm-1)	Assignment	Biomolecules	References
3600-3200	Broad O-H/N-H stretching	Carbohydrates, proteins, adsorbed water	[30,31,32,33]
3000-2800	C-H stretching	Lipids, CH2/CH3 groups	[30]
~2350	Atmospheric CO2	adsorbed CO2, not seed related biopolymers	[30]
1700-1600	Amide I (C=O stretching)	Proteins	[30]
1560-1500	Amide II band (N-H bending /C-N stretching)	Proteins	[22,31]
1200-1000	C-O-C and C-O stretching	Polysaccharides (starch, cellulose)	[31,33]
<900	Skeletal modes	Complex carbohydrate vibrations	[30,33]

3.4. SEM Results

In the following, the elemental compositions of the seeds measured by SEM-EDX are presented. It is important to emphasize that SEM-EDX probes a much greater depth (typically 1–5 µm, depending on accelerating voltage and sample density) and is therefore not surface-sensitive in the same way as XPS (5–10 nm) or ATR-FTIR (hundreds of nanometers to a few micrometers, depending on the crystal and contact quality). This has significant implications for data interpretation.

The O- and N-containing functional groups at the outermost surface (such as –OH, –C=O, or –NH₂) introduced by plasma treatment cannot be directly resolved by SEM-EDX, since their signal is masked by the bulk composition of the seed, which is a complex biological matrix. Furthermore, EDX lacks chemical-state sensitivity—it provides elemental information but does not distinguish between different bonding environments.

SEM-EDX can, however, indicate overall elemental enrichment, such as an increase in oxygen content if plasma oxidizes or removes hydrocarbon layers, exposing oxygen-rich carbohydrates or lignin. It may also reveal whether nitrogen incorporation is sufficiently high to alter the near-surface (micrometer-scale) composition, or whether plasma etching exposes inorganic elements (e.g., Ca, K, Si) that were previously covered by organic material.

Nevertheless, SEM-EDX data must be interpreted with caution. Several factors can influence accuracy, including surface contamination (e.g., adsorbed carbon or environmental residues) and charging effects, which are common in non-conductive biological samples. These can lead to signal distortion, local beam drift, or misestimation of light-element content.

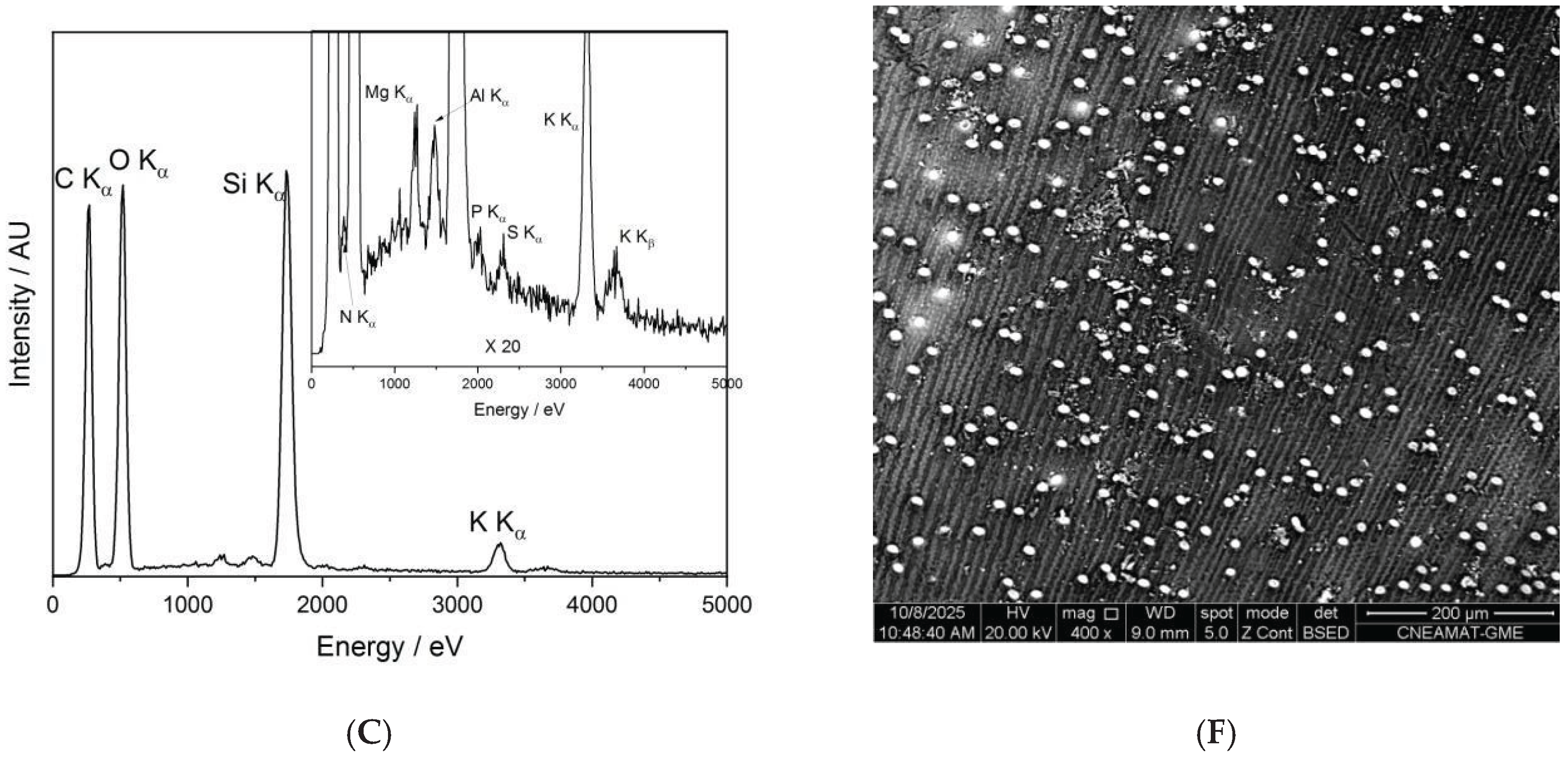

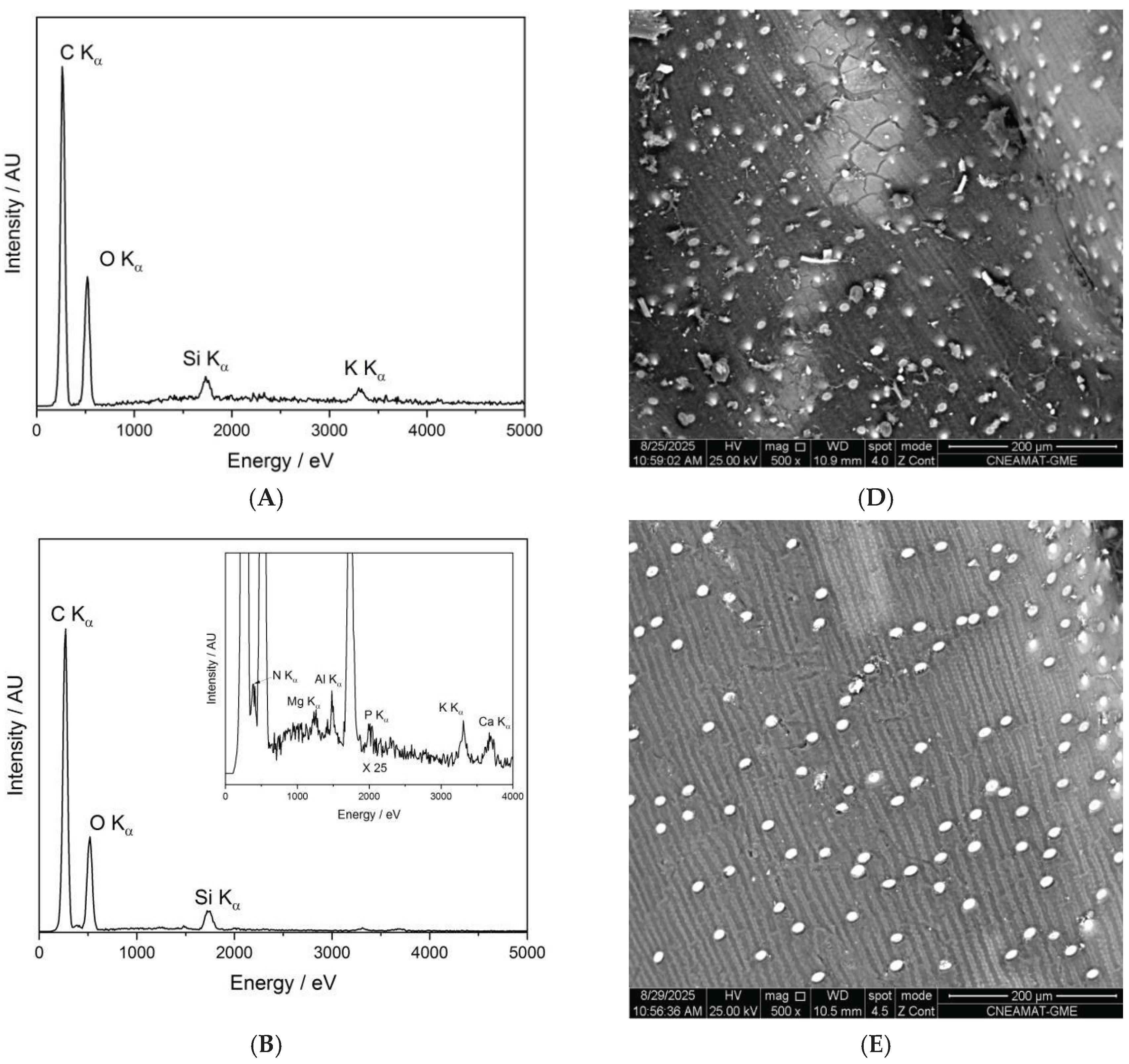

Figure 7 presents the SEM-EDX spectra and corresponding backscattered electron (BSE) images of the control seed (panels A and D), the O-plasma-treated sample PNT70 (panels B and E), and the N-plasma-treated sample PNT71 (panels C and F). The quantitative elemental compositions are summarized in Table 5. The table is based on ten measurements taken from five different seeds in each treatment group and the control sample, and the reported values represent the averages with their corresponding standard deviations.

The table includes the major elements detected (C, O, Si, K, and N), while traces of Mg, Al, P, S, and Ca were also observed at some measurement points, see insets in panel B and C. The control sample is dominated by carbon and oxygen, consistent with the organic nature of the seed surface. After plasma exposure, the O-plasma-treated sample (PNT70) shows a similar C/O ratio, whereas the N-plasma-treated sample (PNT71) exhibits a slight reduction in carbon and an increase in oxygen and nitrogen contents, indicating mild oxidation and possible nitrogen incorporation at the near-surface region. This is in good agreement with the results obtained by XPS. However, it should be borne in mind that nitrogen detection by EDX is inherently difficult because of its weak X-ray emission and spectral overlap with carbon peaks, resulting in substantially lower sensitivity compared to XPS.

The backscattered electron images reveal no apparent morphological changes, or surface roughness variations among the samples, confirming that the plasma treatments primarily influence surface chemistry without significantly affecting the physical structure of the seed coat. The small bright particles visible on the surface correspond to fine sand grains, attributed to environmental contamination during sample handling. The surface of the barley seeds exhibits characteristic longitudinal rows and ridge-like structures, corresponding to the natural morphology of the seed coat (lemma and palea) [34,35]. These features arise from the arrangement of epidermal cells and silica bodies along the grain surface and are typical of barley and other cereal grains. Such patterns are part of the seed’s protective outer layer and facilitate mechanical strength and water regulation. The presence of these natural rows confirms that the plasma treatment did not disrupt the native microstructure of the seed surface.

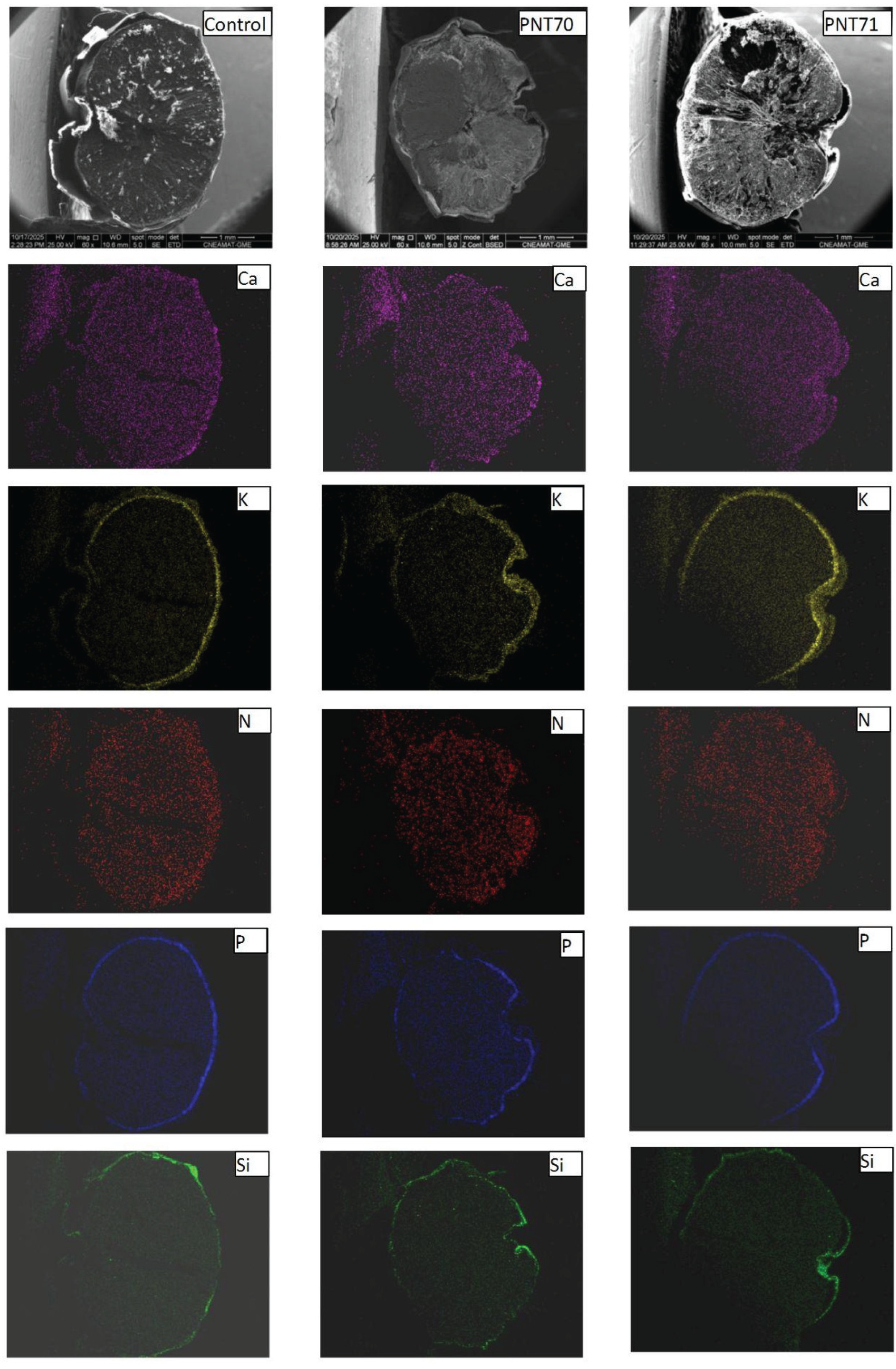

Elemental distribution maps of calcium (Ca), potassium (K), nitrogen (N), phosphorus (P), and silicon (Si) were obtained from the surface of seeds for the control, O₂-plasma-treated (PNT70), and N₂-plasma-treated (PNT71) samples using SEM-EDX chemical mapping (Figure 8). The results provide a spatial overview of the main inorganic elements naturally present at the seed surface and allow qualitative comparison of elemental distributions following plasma treatment. In all samples, Ca, K, and P are the most prominent elements, showing a relatively homogeneous distribution across the seed surface. These elements are typically associated with mineral nutrients, phospholipids, and phosphate-containing biomolecules in the seed coat.

For the O₂-plasma-treated sample (PNT70), the elemental maps do not show visible changes in either the intensity or the distribution of the detected elements compared to the control. This may suggest that oxygen plasma exposure under the applied conditions does not significantly alter the surface elemental composition or cause measurable oxidation detectable by EDX mapping. In the case of the N₂-plasma-treated sample (PNT71), the nitrogen maps also do not exhibit a distinct increase in signal intensity. This observation may reflect the inherent difficulty of detecting nitrogen with EDX, as the low-energy N Kα line is weak and often masked by background noise or overlapping peaks from other light elements. It is therefore possible that minor nitrogen incorporation occurred below the EDX detection threshold or in chemical forms not easily distinguished in mapping mode.

The Si signal, observed sporadically across all samples, likely originates from small surface particles or traces of silicate dust, which can adhere to the seed surface during handling or from environmental contamination. Importantly, no new or unusual elemental features were detected after plasma exposure, indicating that both oxygen and nitrogen plasma treatments modified the seed surface only at a subtle chemical level, without introducing or removing major inorganic elements detectable by EDX mapping.

3.5. Water Absorption Kinetics and Peleg Model Fitting

The hydration (water uptake) behavior of barley seeds was evaluated by monitoring the percentage of weight gain as a function of immersion time for control, PNT70, and PNT71 samples. The experimental data points, shown in Figure 9, were fitted using the Peleg model, which describes the sorption process according to the empirical relationship [36]:

$$Weightgain(\%)={\displaystyle \frac{t}{k_1+k_{2}t}},$$

(2)

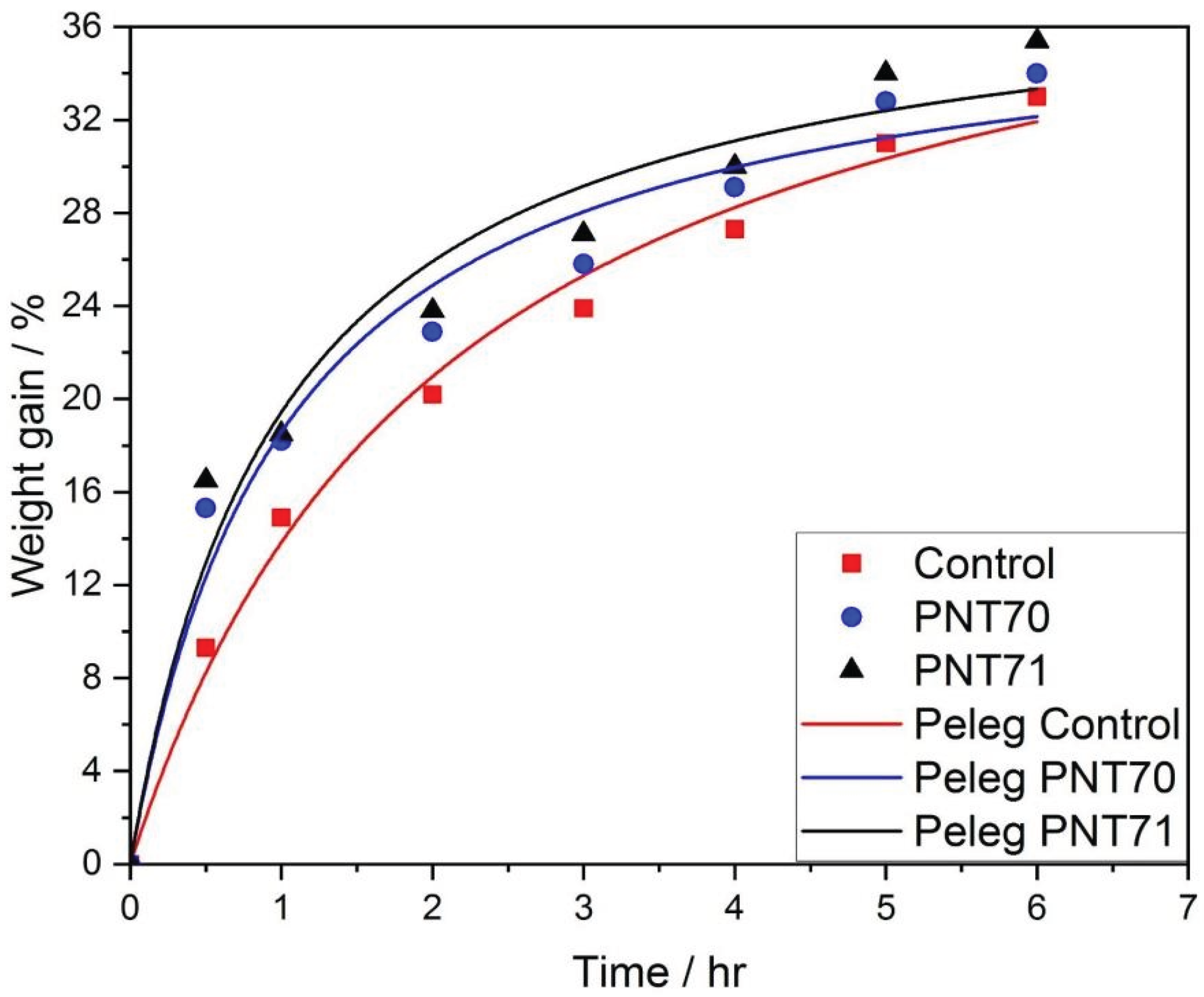

where k₁ and k₂are the Peleg constants. As illustrated in Figure 9, The plasma treated seeds curves exhibit a rapid initial increase in water uptake followed by a gradual approach to equilibrium, typical of diffusion-controlled hydration processes. The Peleg model provided an excellent fit to the experimental data, confirming its suitability for describing the hydration kinetics of barley seeds.

Table 6 presents the Peleg fitting constants k₁and k₂ and the corresponding derived parameters 1/k₁ and 1/k₂, related with the imbibition rate at t = 0, and the maximum attainable moisture content, respectively. The control seeds exhibited the highest k₁value (0.049 ± 0.005 h), indicating the slowest initial water absorption rate. In contrast, both plasma-treated samples showed lower k₁, (0.027 ± 0.005 h) for PNT70 and (0.026 ± 0.005 h) for PNT71, corresponding to higher 1/k₁values (36.70 ± 6.56 h^-1) and (38.87 ± 7.57 h^-1), respectively. These results demonstrate that exposure to oxygen and nitrogen plasma increased the early seed hydration rate.

Thek₂ constant, which reflects the approach to equilibrium moisture content, remained nearly unchanged among treatments (37.62 ± 2.43) for PNT70, and (38.87 ± 2.70) for PNT71), and (43.35 ± 2.45) for control, suggesting that plasma modification mainly influences the initial imbibition kinetics rather than the final hydration capacity. The relatively low fitting errors (R² = 0.97–0.99) for all parameters confirm the robustness of the Peleg model in describing the water uptake process of plasma-treated barley seeds.

4. Discussion

The Raman spectra of the external seed coat revealed that oxygen plasma treatment (PNT70) produced sharper and more intense bands near 1170, 1260, and 1600 cm⁻¹, which correspond to C–O–C stretching of polysaccharides, amide III vibrations, and aromatic C=C stretching of lignin and phenolic compounds, respectively. These spectral enhancements are consistent with the oxidative cleaning action of O₂ plasma, which removes surface hydrocarbons and enhances the Raman visibility of intrinsic biopolymer structures [37,38]. The better-defined peaks also indicate a more homogeneous and oxygen-enriched surface, likely associated with mild oxidation of lignin and protein residues. In contrast, nitrogen plasma (PNT71) induced subtler changes, characterized by broader and less intense Raman features. This behavior agrees with prior reports describing N₂ plasma as a milder activator that primarily introduces low levels of nitrogen functionalities, such as amines or amides, without extensive oxidation [11,36]. Importantly, Raman spectra from the interior of the seeds show strong and unshifted bands associated with starch and carotenoids at ~480, 940–960, 1045–1060, and 1520 cm⁻¹. The absence of new features or band shifts confirms that the plasma does not alter the internal biochemical composition, in agreement with previous seed studies showing that plasma modification is a surface-limited process [39].

The ATR-FTIR spectra support and complement the Raman results by providing molecular-level evidence of surface functional group changes. All samples; the control, O₂-plasma-treated (PNT70), and N₂-plasma-treated (PNT71) exhibit the characteristic bands of seed biopolymers: a broad O–H/N–H stretching envelope between 3200–3600 cm⁻¹, C–H stretching near 2920 and 2850 cm⁻¹, amide I (~1650 cm⁻¹) and amide II (~1540 cm⁻¹) from proteins, and carbohydrate-related absorptions in the 1200–1000 cm⁻¹ region. The preservation of these spectral features confirms that plasma exposure does not degrade or chemically decompose the main seed constituents namely starch, proteins, and lipids, thereby validating the Raman observation of structural stability in the seed interior.

Oxygen plasma caused a clear enhancement in the O–H/N–H stretching region (3200–3600 cm⁻¹), indicating increased hydroxylation and higher surface hydrophilicity, consistent with oxidative functionalization typically observed on plasma-treated biopolymers [37,38]. Nitrogen plasma, on the other hand, led to a relative increase in both the hydroxyl and amide regions (1400–1600 cm⁻¹), suggesting the introduction of nitrogen-containing species, in agreement with surface amination trends reported in N₂-plasma-treated biological materials [11,37]. Subtle variations in the 1200–1000 cm⁻¹ carbohydrate region likely reflect local rearrangements of polysaccharide hydrogen bonding rather than new chemical groups. The combined Raman and ATR-FTIR techniques consistently demonstrate that the effects of oxygen and nitrogen plasma are largely confined to the outer seed coat, while the molecular composition of the seed interior is intact.

The XPS analysis quantitatively confirms the surface oxidation and functionalization inferred from the vibrational spectroscopies. Deconvolution of the O 1s region revealed two components: hydroxyl oxygen (O–H) at ~532–533 eV and oxidized oxygen (O–O, carbonyl-type) at ~530–531 eV. Plasma treatment increased the relative O–H contribution from 70% in the control to 82% (PNT71) and 90% (PNT70), indicating significant hydroxylation and higher surface polarity. The ~1 eV shift toward higher binding energy after treatment further confirms enrichment in hydroxyl species—consistent with the intensified O–H/N–H stretching bands observed by FTIR.

The C 1s spectra showed a pronounced reduction in the C–C/C–H peak (284.8 eV) and a relative increase in C–O and C=O components after oxygen plasma, demonstrating oxidative cleaning and removal of adventitious carbon, in agreement with the sharper Raman peaks of PNT70. Nitrogen plasma produced milder changes, again reflecting its lower oxidative potential. The N 1s spectra provided direct evidence of nitrogen incorporation after N₂ plasma, with a dominant amine/amide component at ~400.8 eV, while the O₂-treated sample exhibited only weak nitrogen signals, suggesting oxidation or removal of nitrogen functionalities. In the Ca 2p region, the signal decreased slightly after N₂ plasma but remained strong after O₂ plasma, indicating that oxygen plasma mainly cleans the surface without removing native minerals.

Quantitative elemental ratios further support these trends: oxygen plasma increased the surface O content from 9% to 24% and reduced carbon from 88% to 76%, whereas nitrogen plasma produced smaller changes (O ≈ 13%, C ≈ 85%). Such compositional shifts confirm that oxygen plasma more efficiently incorporates oxygen species and removes hydrocarbons, while nitrogen plasma introduces a subtler degree of functionalization.

The SEM micrographs revealed that the plasma treatments did not alter the seed coat morphology. The characteristic longitudinal rows and ridged epidermal patterns remained intact in all samples, confirming that plasma exposure preserves the structural integrity of the surface. Small bright particles visible on the micrographs correspond to sand grains or environmental contamination rather than plasma-induced features.

Elemental mapping by SEM-EDX detected C, O, Si, K, and minor elements (Mg, Al, P, S, and Ca). The control sample exhibited ~63 at% C and ~31 at% O, consistent with an organic surface. After plasma exposure, the O₂-treated sample (PNT70) maintained a similar C/O ratio, whereas the N₂-treated sample (PNT71) showed decreased C (55 at%) and increased O (36 at%) and N (2 at%). Although detection of nitrogen by EDX is limited by low sensitivity, this small increase qualitatively supports the XPS findings. The higher Si signal occasionally observed for PNT71 most likely results from exposure of native silica bodies rather than compositional changes.

These micrometer-scale EDX trends mirror the nanometer-scale XPS observations: oxygen plasma promotes oxidation and cleaning, while nitrogen plasma induces mild nitrogen incorporation.

The imbibition kinetics of barley seeds fitted well to the Peleg model, confirming distinct hydration behaviors among treatments. Plasma-treated seeds (PNT70 and PNT71) exhibited lower $k_1$values, indicating faster initial water uptake compared to the control. In contrast, $k_2$values remained similar, showing that plasma exposure mainly enhanced the early hydration phase without affecting equilibrium water content. The nitrogen plasma treatment (PNT71) showed the highest water absorption rate, consistent with increased surface polarity and wettability reported for plasma-treated seeds.

To the best of our knowledge, this study represents one of the first Raman-based comparisons of oxygen- and nitrogen-plasma effects on the barley seeds, providing direct spectroscopic evidence of the differential reactivity of these plasmas toward plant biopolymers.

5. Conclusions

We presented a comprehensive spectroscopic and microscopic characterization of barley seeds subjected to oxygen and nitrogen plasma treatments. The combined use of Raman, ATR-FTIR, XPS, and SEM-EDX techniques allowed for a detailed understanding of the physicochemical modifications occurring at different depths and scales, from surface chemical states to overall morphology.

All analyses consistently demonstrated that plasma exposure is a surface-limited and composition-preserving process, confined to the outer layers of the seed coat. Raman and FTIR spectroscopy revealed that oxygen plasma produces pronounced oxidative cleaning and hydroxylation, enhancing characteristic bands of polysaccharides, lignin, and proteins, while nitrogen plasma induces subtler modifications associated with amine and amide functionalities. XPS confirmed these findings quantitatively, showing increased surface oxygen content and hydroxylation after O₂ plasma and moderate nitrogen incorporation after N₂ plasma, without significant alteration of the underlying organic matrix. SEM-EDX and morphological observations further supported these conclusions, showing intact seed microstructure and only slight changes in near-surface elemental composition.

Collectively, the results indicate that plasma treatment effectively tailors the chemical functionality of the seed surface, enhancing its polarity, reactivity, and potential water affinity, without compromising internal biochemical integrity or morphological stability. This work provides one of the first integrated Raman–FTIR–XPS–SEM investigations comparing oxygen and nitrogen plasma effects on barley seeds, offering direct experimental evidence of their distinct reaction pathways and efficiencies.
