Neural Network Algorithms for Estimating Snow Depth and Scattering Mean-Free-Path from ICESat-2 Measurements of Multiple Scattering Inside Snow

1. Introduction

Snowpack, the accumulation of snow on the ground, is crucial for water resources, ecosystem health, and recreational activities [1,2]. It acts as a natural reservoir, gradually releasing meltwater, which is vital for human consumption, agriculture, and hydropower generation [3]. In addition, snowpack plays a critical role in regulating climate, moderating soil temperature, and influencing wildfire risk [4,5,6].

Measurements of snow depth and snow density are key to estimating the amount of snowpack. NASA Langley team has developed a method to estimate snow depth using lidar measurements from NASA's Ice, Cloud, and land Elevation Satellite-2 (ICESat-2) mission [7,8,9]. This method is based on analyzing the photon multiple scattering pathlength distribution within the snowpack, which is related to how far photons travel within the snow before being scattered back to the lidar. A key finding is that, at a conservative scattering wavelength, the average photon pathlength inside the snow is approximately twice the physical snow depth. The finding is derived from Monte Carlo simulations of light scattering by snow particles under a wide range of physical and optical conditions, including snow depth, snow density, volume-to-surface ratio (also called effective grain size), and single scattering asymmetry factor [7,8]. For space-based lidar (e.g., ICESat-2) measurements with the receiver footprint at least a few meters larger than the laser spot, the Monte Carlo simulation results suggest that:

• The photon multiple scattering pathlength distribution is primarily determined by snow depth and the effective scattering mean-free-path, <p>, which is a function of snow density, effective single scattering asymmetry factor, and snow particle volume-to-surface-area ratio (commonly referred to as “grain size”).
• The averaged pathlength of the photon multiple scattering pathlength distribution, <L>, equals twice the physical snow depth.

Using the theory, snow depths can be derived from the satellite lidar measurements of the pathlength distributions of green laser photons scattering inside the snow (Figure 1 and Figure 2) [7,8,9]. While the snow depths derived from ICESat-2 generally compare well against other measurements [9], there remains room for improvement because ICESat-2 was not specifically designed for optimized scattering pathlength measurements. This study therefore aims to: (1) develop a data analysis algorithm that can quickly produce accurate snow depths from imperfect measurements, and (2) explore approaches to make affordable and accurate snow depth measurements.

2. Neural Network Algorithm

First, this study introduces a machine learning algorithm designed to mitigate errors arising from two key measurement limitations.

• Transient response of ATLAS: ICESat-2's Advanced Topographic Laser Altimeter System (ATLAS) has a transient response that affects its signals. After receiving the primary signal, the lidar system can produce secondary signals (so-called "after-pulses") that appear as additional photons, potentially misrepresenting the surface return. Traditionally, a deconvolution process [10,11,12] is required to remove this effect and recover the true scattering pathlength distribution. However, this process can introduce errors, especially for noisy lidar profiles.
• Limited photon return data: ICESat-2 was primarily designed to measure the elevation of Earth’s surface [13]. Due to limited downlink bandwidth, the satellite only sends back the time-tags of the photons that are close to the surface and ignores the long tails of the multiple scattering pathlength distribution. Although those ignored tails can be approximated from near-surface signals, the extrapolation may introduce errors in the averaged photon pathlength estimates.

This study addresses both issues using neural networks trained on dataset generated by Monte Carlo simulations of laser light propagation inside snow with varying snow properties (e.g., snow depths, snow grain size, snow density, and scattering phase functions). To replicate ICESat-2 observations, the ATLAS detector’s transient response, estimated from ICESat-2 hard surface measurements [11], is applied to the simulated backscatter profiles. The algorithm retrieves snow depth and the effective scattering mean-free-path, p, directly from the near surface lidar measurements. Here, p is proportional to $\mathrm{D}/\left[3\mathsf{\rho }\right(1-\mathrm{g}\left)\right]$ [14,15]. D is snow grain size (effective diameter, which is proportional to the ratio of the total volume and the total surface area of all snow particles). $\mathsf{\rho }$ is the normalized snow density (snow density divided by the density of ice, 0.917 g/cm3). g is the effective asymmetry factor of snow particle single scattering phase function (typically 0.75 - 0.9). In the microwave snow measurement community, the mean-free-path is also called “correlation length”.

The procedures of algorithm development include:

• Monte Carlo simulations: Simulate ICESat-2 laser light propagation inside snow for various snow depths and scattering mean-free-paths.
• Signal generation: Model ICESat-2 lidar snow multiple scatter profiles using ICESat-2 lidar aperture size, receiver optical transmittance, detector quantum efficiency, instrument transient response, and various noises.
• Neural network training: Train the neural network using randomly selected samples of the snow depths and mean-free-paths (output of the neural network), and the corresponding lidar backscattering profiles from Monte Carlo simulation (input of the neural network).
• Validation: Apply the trained network to the remaining Monte Carlo simulated lidar profiles and compare the retrieved snow depths and mean free paths with the true values used in the simulations.

3. Evaluation of the Algorithm

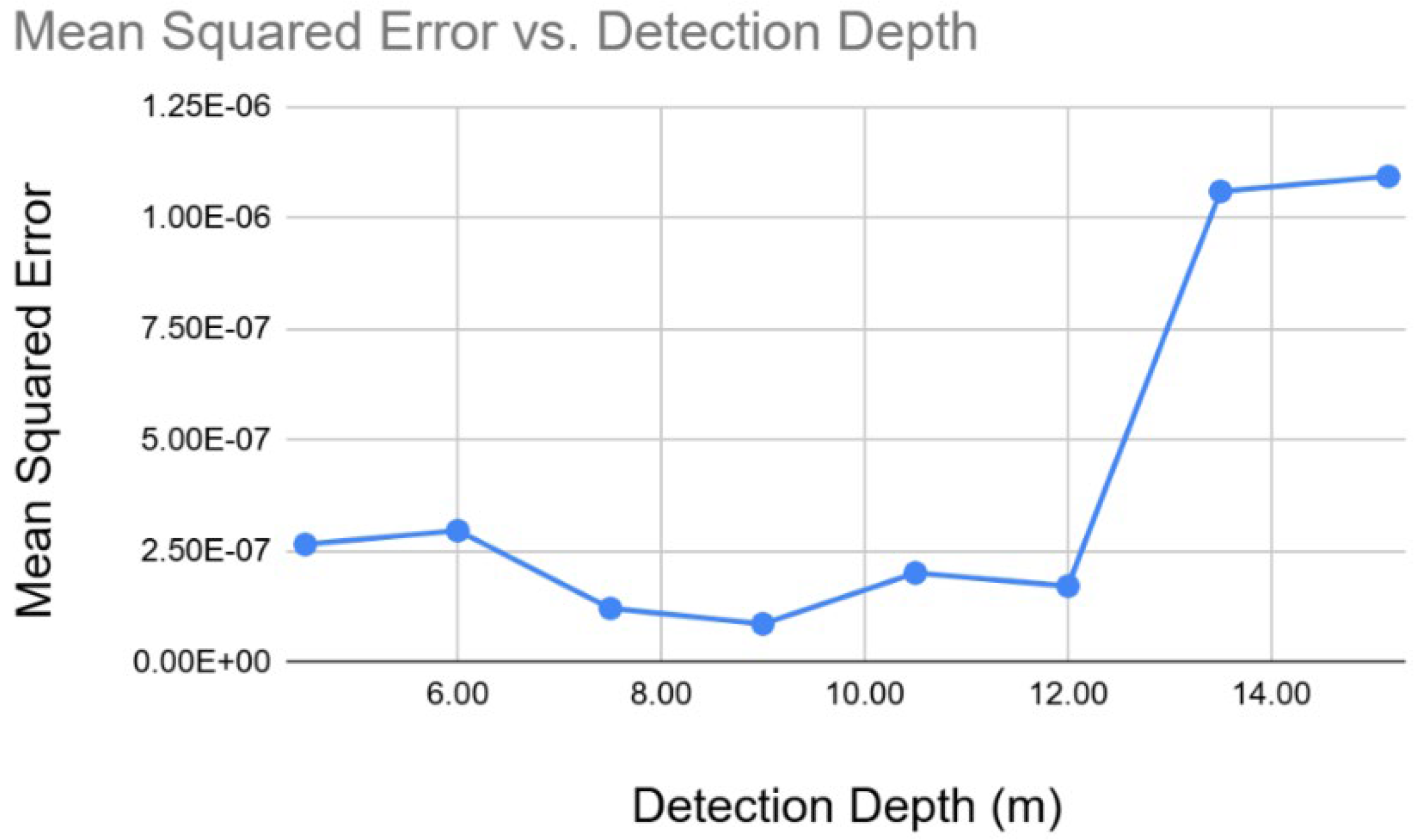

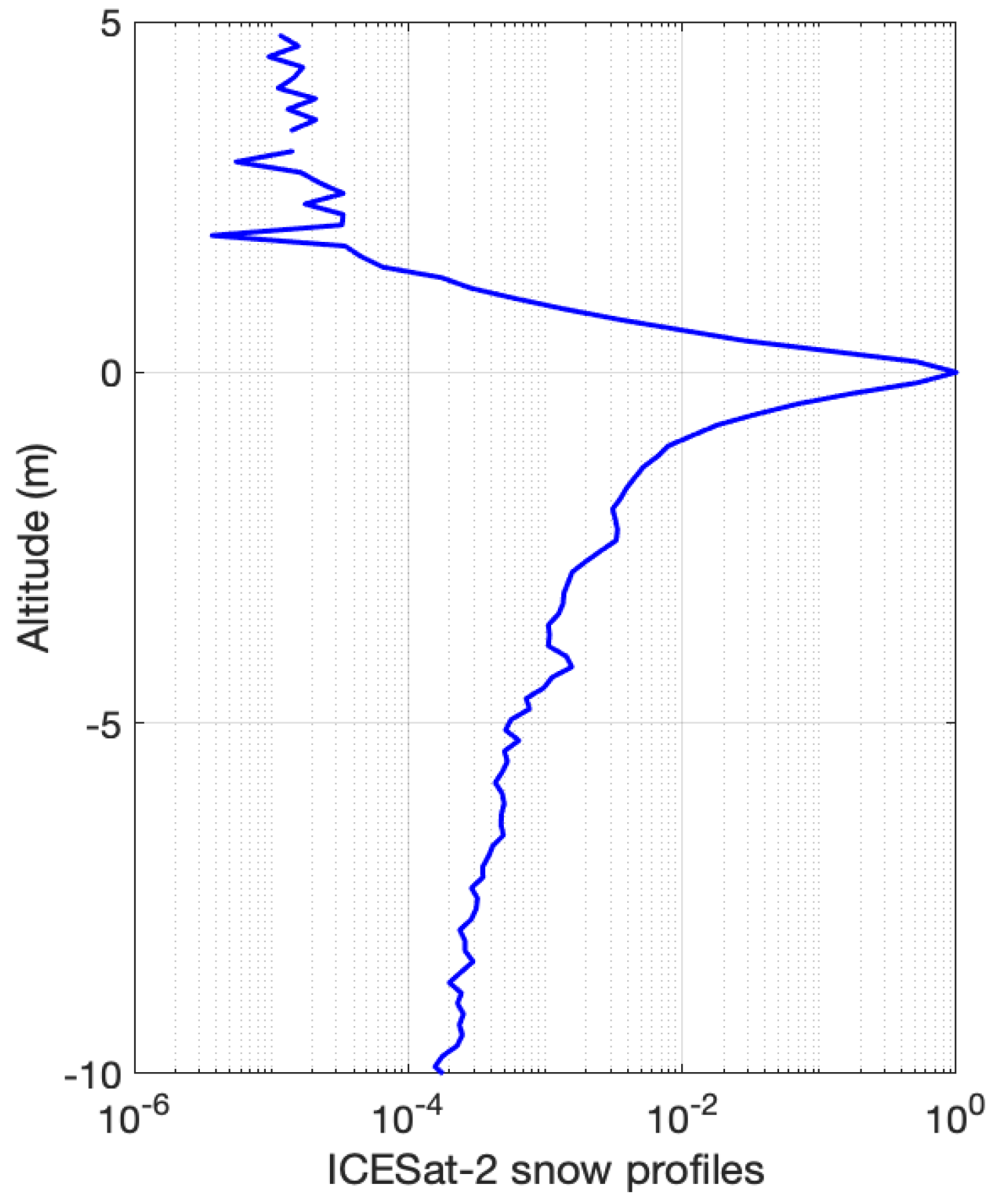

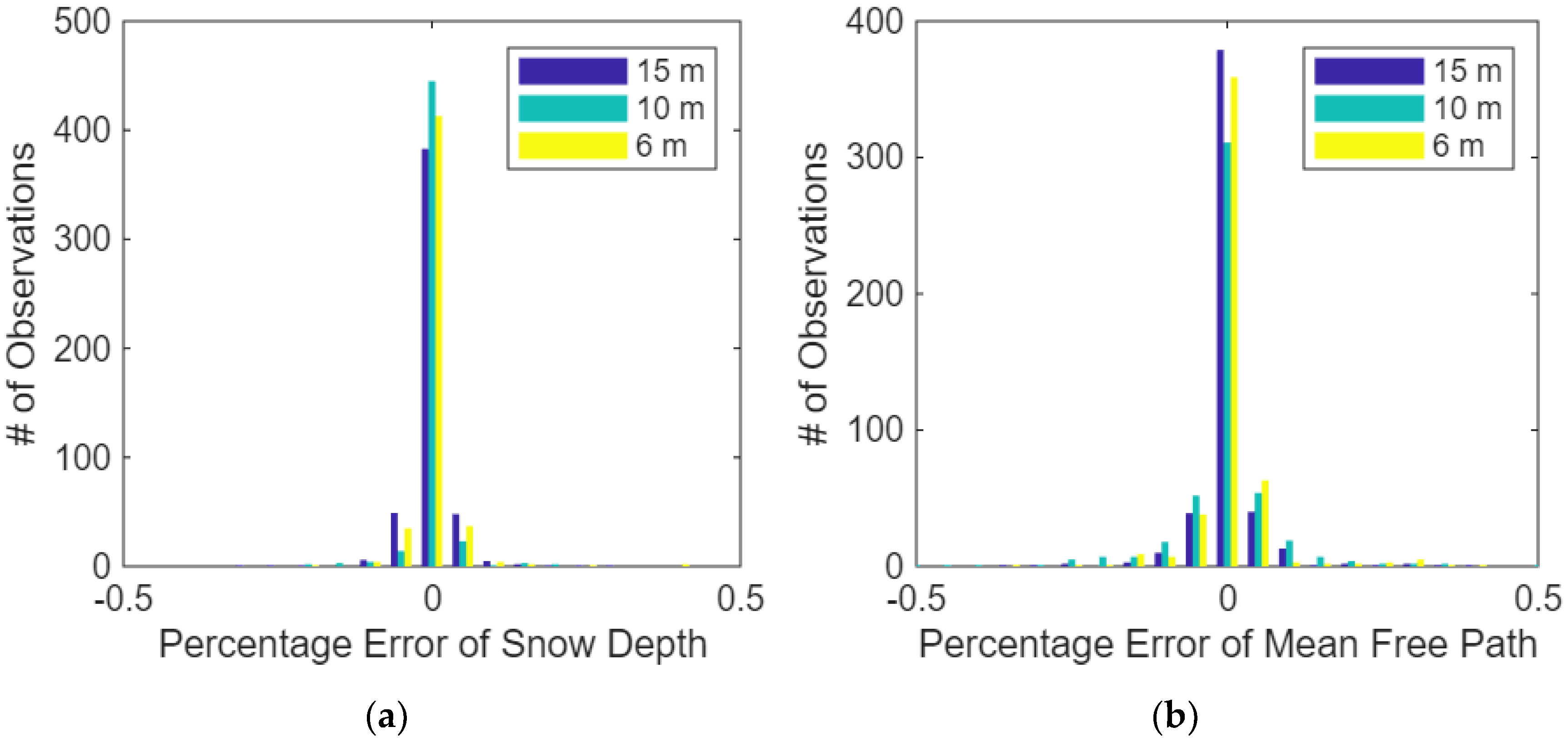

Light scattered within snow attenuates exponentially with distance, resulting in higher signal-to-noise ratios (SNRs) near the snow surface (Figure 2). If snow properties can be derived from the intensity of the light that traveled a short distance below the surface (of which SNRs are high), the laser power, aperture size, and overall cost of a space-based snow lidar can be reduced. Our results indicate that snow depth and mean free path can be accurately estimated from lidar pathlength distributions corresponding to round trip distances of 12 m, 20 m and 30 m (equivalent to one-way distance of 6 m, 10 m, and 15 m) within the snowpack (Figure 3 and Figure 4).

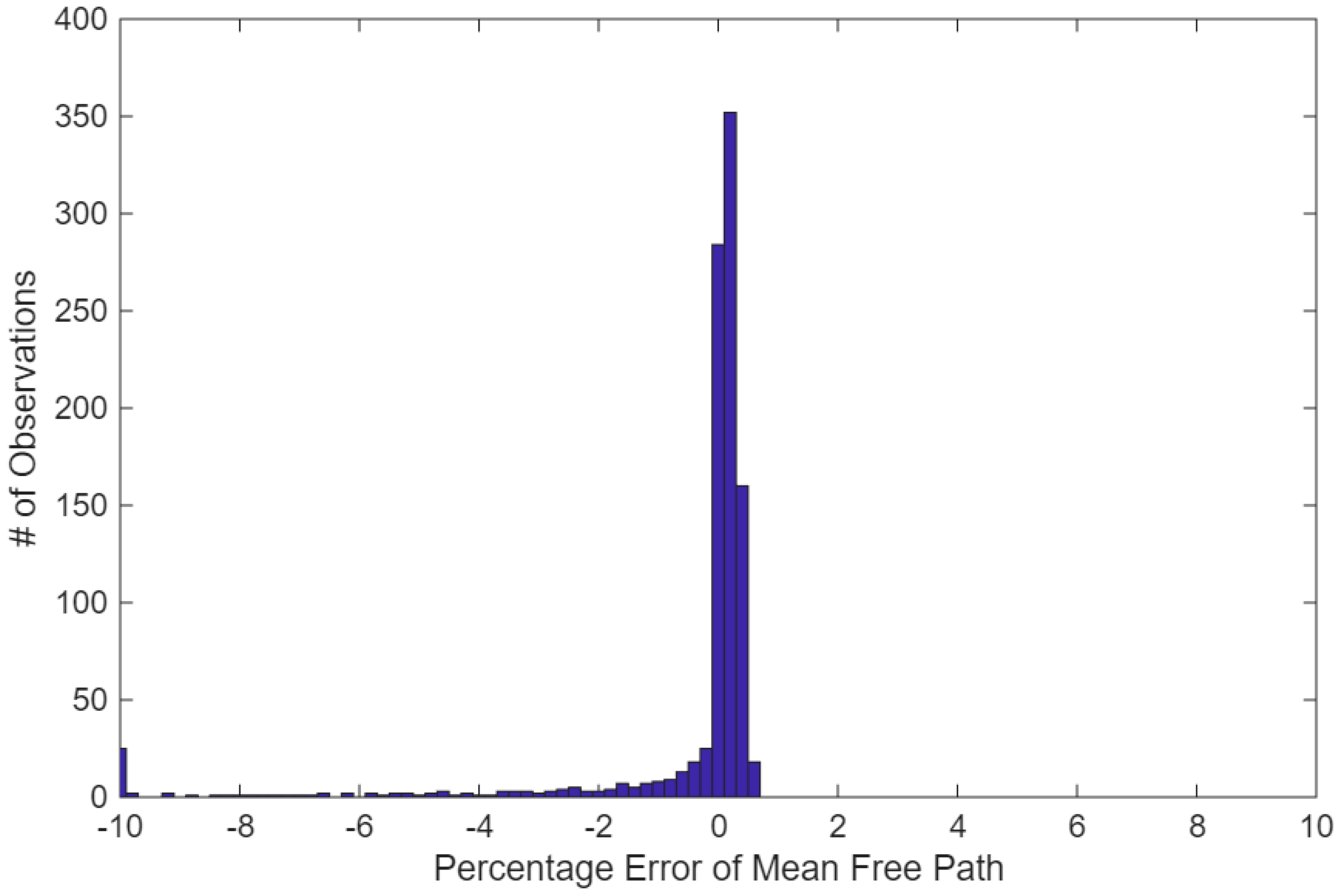

Experimentation also demonstrate that data from shallower snow can be extrapolated to data of deeper snow with some accuracy (consistently >90% of mean-free path data <2% error) (Figure 5). This finding is valuable because it indicates that the lidar does not need to collect extensive data to retrieve snow depth accurately. However, the reverse is not true: data from deeper snow cannot train the model to test shallow snow accurately.

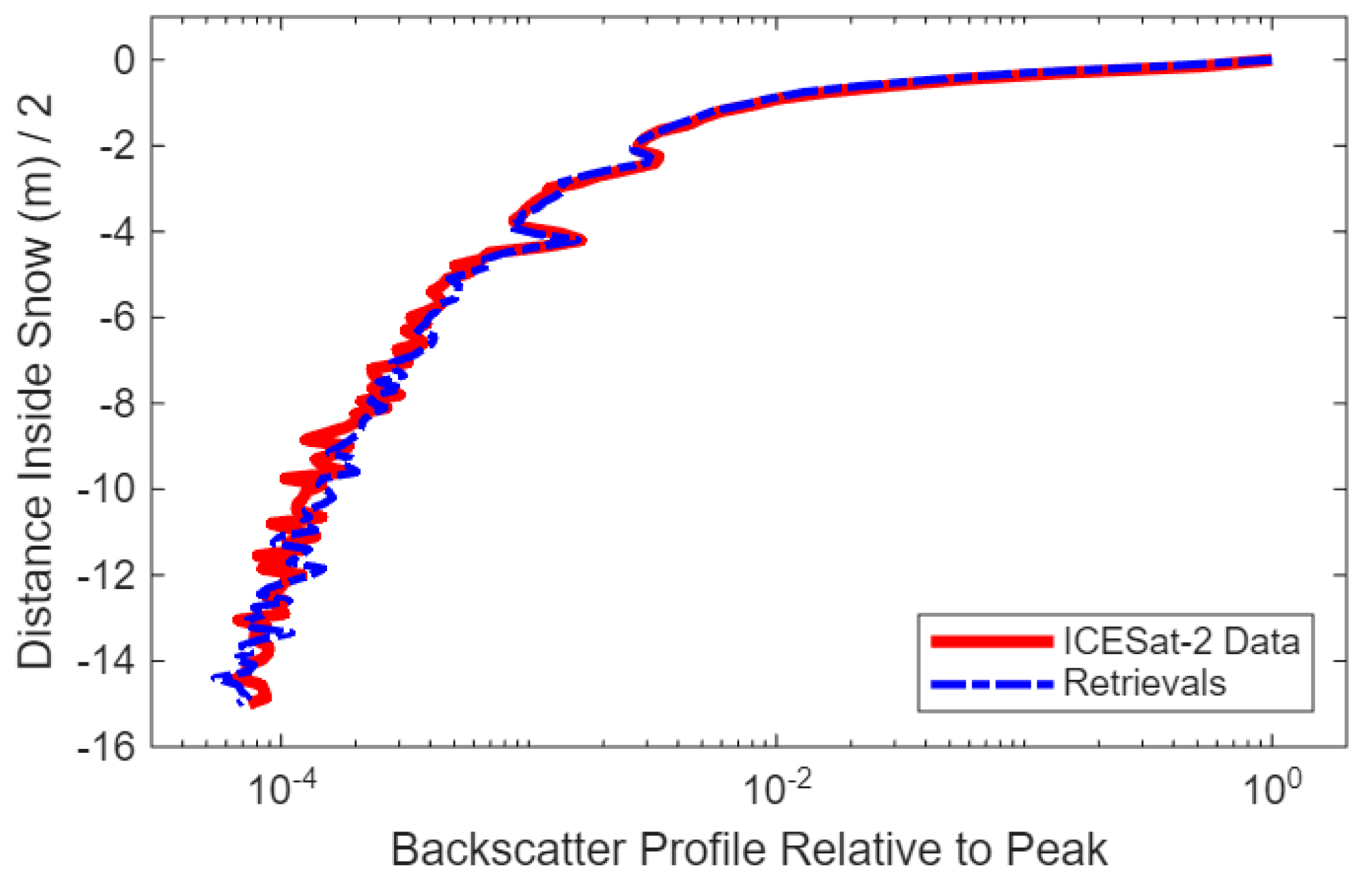

We applied the neural network algorithms (using 6 m, 10 m, 15 m lidar backscatter profiles as inputs) to the ICESat-2 measurements. In most cases, the snow depths and mean-free-paths derived from the three algorithms (using 6 m, 10 m, 15 m lidar backscatter profiles as inputs) are nearly identical (Figure 3, Figure 4 and Figure 5). Figure 6 shows the ICESat-2 lidar measurements of snow backscatter profile (red line), and the Monte Carlo simulated lidar signals using a snow depth of 0.33 m and a mean-free-path of 0.28 cm.

4. Summary

In this study, a machine learning algorithm is developed for deriving snow properties from ICESat-2 lidar measurements of multiple-scattered photon pathlength distributions within snow. The neural network was trained using Monte Carlo simulations of the lidar measurements of snow backscatter profiles for various snow depths and effective scattering mean-free-paths. When applied to ICESat-2 measurements using different vertical range bins (first 6 m, 10 m and 15 m), the snow depths and mean-free-paths derived from these neural network algorithms were consistent. Our results demonstrate that snow properties can be accurately estimated from satellite lidar data using backscatter from only the near-surface layers of the snowpack.
