Enhancing Reliability Indices in Power Distribution Grids through the Optimal Placement of Redundant Lines Using a Teaching-Learning-Based Optimization Approach

1. Introduction

Increased downtime due to failures or unexpected events in distribution lines negatively impacts the reliability of the electrical system, resulting in financial losses and inconvenience to users. Therefore, a comprehensive strategy is required to ensure the reliability and continuity of the electrical supply, including the identification of alternative energy flow routes in the event of a failure [1,2].

The purpose of an electrical power system is to carry the generated and transformed load from the dispatch points to the end user, taking reliability into account and minimizing costs and losses in the electrical distribution system. The distribution system operates under conditions that affect both the end user and the system’s reliability. Generally, the topology of distribution networks is radial, extending from the substation to the end-user [3,4].

One of the most important activities in electrical power system planning is in the distribution stage, as it is expected to improve reliability and reduce losses as the system’s consumer base continues to grow [6]. The idea is to reduce costs to meet each of the investment and operational requirements. The optimal operating topology must be identified to enhance the system’s efficiency [6]. Improvements to the distribution network are associated with increased reliability, as measured by reduced outage times and fewer hours of outage experienced by the end user in a given year [5].

Its main objective is to provide continuity to electrical elements without affecting their performance and to select the most cost-effective technologies to meet the performance requirements of distribution systems, thereby satisfying end-user demands. In terms of efficiency and reliability, not only the system but also its components have been affected by distribution network topologies and the constant increase in demand [6]. There are numerous other benefits to improving the network, including maintaining its customer base, attracting new users, and avoiding penalties for poor reliability. For these reasons, companies responsible for distributing electrical energy strive to enhance the quality and reliability of their distribution feeders [7].

Reliability is primarily related to component failures, end-user interruptions, and repair times. These depend on the system’s response and component failures to predict the reliability of the electrical system. To achieve this, reliability indices are utilized to help us respond optimally in the shortest possible time when restoring the power supply [8]. A residential user experiences between 70 and 80 minutes of power outages per year, caused by failures in the distribution system to which they are connected. This is because most distribution systems are radial and the proximity of the system to the end user [9,10].

This document will analyze two indices based on repair times: MTBF and MTTR. MTBF quantifies the reliability of repairable equipment by dividing the total operating hours by the number of failures. This metric is used in this analysis because components are restored after each failure; in contrast, MTTF corresponds to irreparable units and is therefore inapplicable. Decreasing MTBF reduces the frequency of interruptions and improves the overall reliability of the system [11].

The mean time to repair is the time it takes to repair a system. It includes repair time and testing time. It is an indicator of the ease of maintenance or repair of the component, so the objective is to minimize this index so that the downtime for repairs is as low as possible [12,13]. In power systems, the network must be both reliable and efficient. To operate a network effectively, it is essential to manage it in a centralized manner to achieve optimal power flow [14].

In distribution, optimization methods are efficient in terms of computation. A very high-speed communication infrastructure is required to make this type of optimization converge to the solution with fewer interactions [15]. This research will utilize the TLBO (Teaching-Learning-Based Optimization) algorithm, which is employed to solve optimization problems. This algorithm can find the optimal point and is ideal for solving problems with a large and complicated computational load, as well as reduced reaction times [16].

The TLBO algorithm employs a mathematical model for teaching and learning [16], but it does not account for the system’s reliability, as it requires a power supply to function. When a failure occurs, the redundant system replaces the non-operating or faulty component. With this redundancy system, power supply interruptions can be avoided. In any electrical system, the continuity of the system must be ensured, and the extension of the redundant system would reduce failure and repair times [17].

The repair of a defective component is subject to certain restrictions associated with failures, which reveal variables such as the mean time to repair (MTTR). If the element does not meet the MTTR threshold, it is taken out of operation [17]. In parallel redundancy, all components operate simultaneously. This is implemented when the system needs to remain functional without interruption [18,19].

An initial analysis of the electrical system will be performed, including the identification of critical distribution lines and their reliability behavior. This will involve the simultaneous collection and evaluation of data from two IEEE systems, excluding other electrical power distribution systems, on single-phase faults and interruption times. Additionally, it will utilize reliability metrics to understand the nature and frequency of interruptions.

Models will be developed in PowerFactory to simulate the operation of the SEP. This will include configuring system components in redundant distribution lines, taking into account previously collected reliability data. Functional tests and simulations will be conducted to assess the impact of various fault scenarios on downtime and system reliability.

The analysis will be carried out by applying downtime reduction and appropriate reliability analysis techniques, such as mean time between failures and mean time to repair. This will allow the system’s ability to cope with problems in the distribution lines to be evaluated and its reliability to be quantified, limited to two IEEE systems, without considering other electrical power distribution systems. The study will be based on specific data and characteristics of this system to perform the reliability analysis.

2. Related Works

Reconfiguring the distribution network is one of the most economical and effective ways to improve reliability, as it uses existing resources. The reconfiguration of the system depends on its operating states, such as loads at the nodes. However, it is essential to repeat the analysis and calculations to find the optimal configuration [20,21].

The predictive reliability study is based on the failure rate cycle, represented by a bathtub curve. It utilizes the standard Weibull distribution to determine the slope of the failure rate in each period, employing median range regression for parameter estimation. The bathtub curve leads to the insertion of parameters, such as the total factor deterioration index (TFDI), through linear trend regression of the parameters on a logarithmic scale of their useful life [22].

One of the strategies to improve reliability is to install reclosers in an optimal manner, which isolate faults in a few seconds and thus mitigate interruptions to the end user. The aim is to study the effect on SAIFI and SAIDI reliability indices in the ETAP software [23].

The implementation of smart grids guarantees continuous power while maintaining system reliability. The Monte Carlo method is applied in a stochastic study, which involves a sequential time system that identifies events in temporal order, generating a sequence of repair cycles that focus on both repair time and failure time [24].

2.1. Distribution Reliability Indices

When a power failure occurs in the distribution system, the goal is to restore power to the end user as quickly as possible, ensuring normal and stable operation. The procedure for managing faults is divided into three levels: first, the location of the fault must be found; second, the fault must be isolated from the distribution network; and third, power must be restored. Reliability indices help to identify the location of faults by providing information to restore the power supply as quickly as possible. The main reliability characteristics have been defined in the following ways: user-based and demand-based [8].

Mean time between failures (MTBF) quantifies the average time between consecutive network outages; Its estimate is presented in (1), where the product of the total number of users and the 8,760 hours per year is divided by the sum of impacted customers; the result, expressed in hours, summarizes the frequency of failures according to the fraction of compromised demand [12,25].

$$MTBF={\displaystyle \frac{N_T·8760}{{\sum }_{i=1}^n{N}_i}}$$

(1)

The mean time to repair (MTTR) indicates the average time required for the system to restore service after each interruption. Equation (2) establishes its calculation. The numerator adds the products, while the denominator accumulates the interrupted users. The result, expressed in hours, evaluates the effectiveness of service restoration efforts [12,25].

$$MTTR={\displaystyle \frac{\sum U_i·N_i}{\sum N_i}}$$

(2)

2.2. Reliability in Redundant Systems

In any electrical or electronic system, system continuity must be ensured, and the extension of the redundant system would reduce failure and repair times. In the event of a failure, the N+1 redundant system will replace the failing hot component, thus avoiding process interruptions [17].

The repair of a defective component is subject to certain restrictions associated with failures, which reveal variables such as the mean time to repair (MTTR). If the component does not meet the MTTR threshold, it is taken out of operation. When performing a reliability analysis on redundant systems, the components are assumed to be independent and to fail simultaneously. Still, in practice, most systems are connected in parallel with another element [26].

In parallel redundancy, all components operate simultaneously. This is implemented when the system needs to remain functional without interruption [18]. Redundancy leads us stochastically to consider some random variables, such as the useful life of the components in a redundant parallel system, resulting in a marginal exponential distribution. Then, Tmax (X, Y) has the following reliability function:

$$R\left(t\right)=P\left(min(X,Y)>t\right)={\overline{F}}_{X,Y}(t,t)=e^{-2\lambda t}\left(1+\alpha -2\alpha e^{-\lambda t}+\alpha e^{-2\lambda t}\right)$$

(3)

Redundant components that are on standby function when the system has a failure. This method is used when component replacement does not require a lengthy process and does not cause further system failure [19]. The convolution of the variables is estimated stochastically, giving us T=X+Y, which is the useful life of the system, giving us the following distribution function when they are independent:

3. Methodology and Problem Statement

Reliability in electrical power distribution systems is essential, as it directly impacts service continuity and causes economic losses during outages, particularly due to distribution line failures that result in extended downtime. This study presents a methodology that optimally integrates redundant distribution lines, utilizing reliability analysis in conjunction with an optimization process based on the TLBO algorithm.

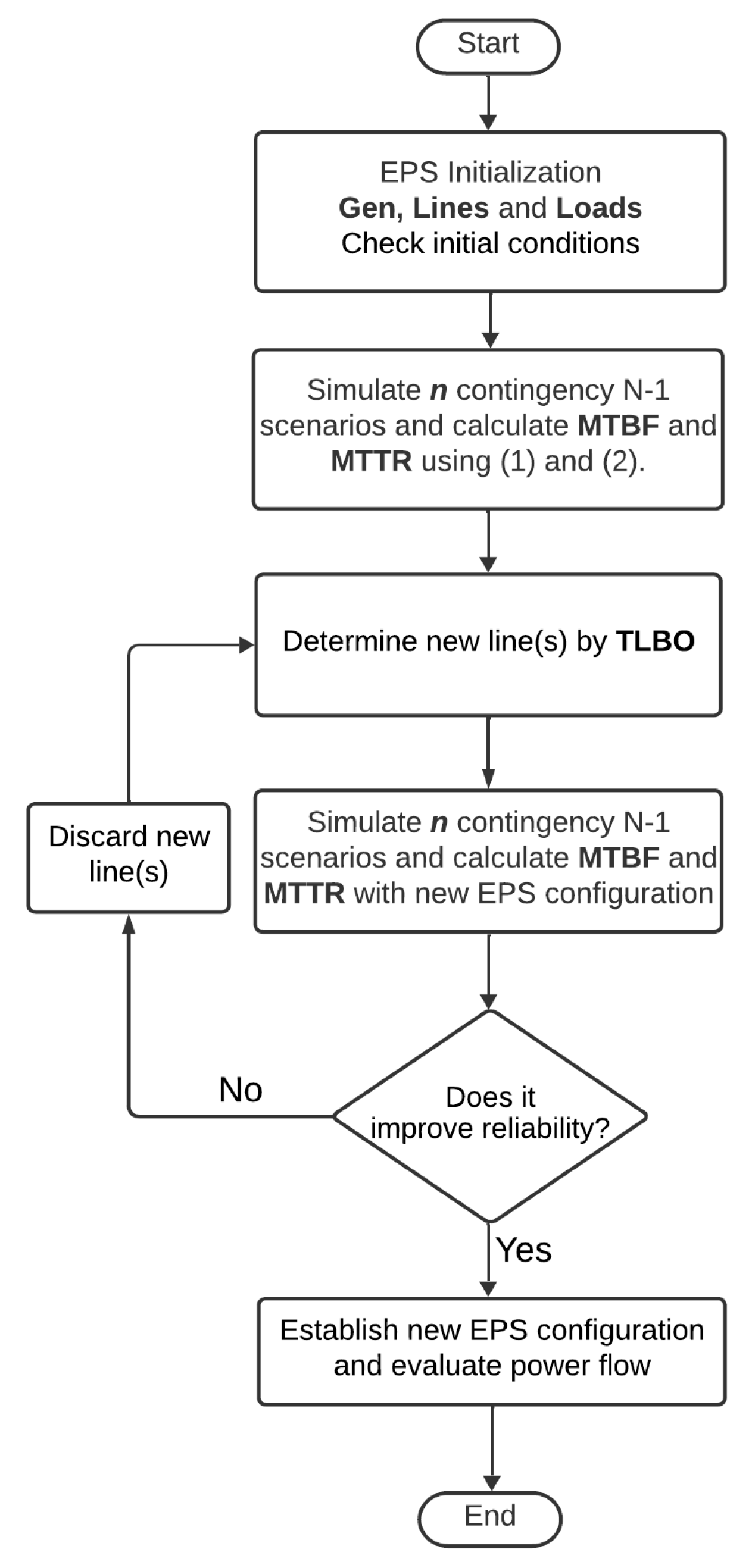

The methodology comprises six stages designed to improve reliability in distribution systems, as shown in Figure 1. Initially, a reliability study is conducted on a test system using DIgSILENT PowerFactory, quantifying basic indicators such as Mean Time Between Failures (MTBF) and Mean Time To Repair (MTTR), which reflect the system’s initial performance without modifications. Next, the MTBF and MTTR values are exported, organizing the data needed to integrate them into the mathematical optimization model. Subsequently, the TLBO algorithm is used to identify the optimal location and minimum number of redundant distribution lines to increase reliability, evaluating various configurations and selecting those that reduce MTTR without compromising electrical performance.

In the next phase, the redundant lines are incorporated into the DIgSILENT model, connecting the critical nodes defined during optimization. Next, a new reliability analysis is performed on the modified system, yielding updated MTBF and MTTR values to verify the improvement in the indicators. Parameters are adjusted, and the optimization is repeated if the results are not satisfactory.

Finally, the original configuration is compared with the optimized one, analyzing reliability indicators alongside key electrical variables, including the nodal voltage profile, active power, reactive power, phase angle, and technical losses, to validate the impact of the solution on the system’s reliability and electrical performance.

3.1. Reliability Analysis

Six reliability scenarios are analyzed: the base network without reinforcements (S0) and five configurations with between one and five optimal redundant lines (S1–S5). The lines are determined using the robust TLBO algorithm, applied 500 times to a 278-bus network with five iterations of increasing complexity. Each scenario maintains the historical loads and original topology, allowing direct comparison of the combined reduction in MTBF and MTTR achieved with the reinforcements.

Algorithm 1 summarizes the procedure executed to analyze the reliability of the electrical distribution system in each scenario, organizing the stages developed in the DigSilent PowerFactory simulation environment. This ranges from initial parameterization to the obtaining of final indicators, beginning with the loading of historical operation and maintenance data for each component of the system, Table 1 describes all variables used in Algorithm 1.

In lines 2 to 5, for each component i, the failure rate $\lambda$ is calculated by dividing the number of failures $N_{f,i}$ by the total operating time $T_{operation,i}$, similarly determining the repair rate ${\mu }_i$ by dividing the number of repairs $N_{r,i}$ by the total repair time $T_{repair,i}$. Likewise, in lines 6 and 7, the network model is configured in PowerFactory, defining the time horizon of analysis and the number of simulation iterations necessary to evaluate the probabilistic behavior of the system in the face of failures.

In lines 8 to 14, execute the simulation cycle, generating failure and repair events for each component i using exponential distributions with their respective parameters . This allows the system status to be recorded over time and the cumulative duration of unavailability events to be calculated. Once the simulation is complete in lines 15 to 18, determine the Mean Time Between Failures $MTB{F}_i$, the Mean Time To Repair $MTT{R}_i$, and the availability $A_i$ for each component, using the appropriate mathematical expressions. This reveals the individual performance of each element and facilitates the evaluation of its contribution to the overall system reliability.

Algorithm 1 Reliability Evaluation in DigSilent PowerFactory

1: Input: Historical operation and maintenance data 2: for each component i do 3:    Calculate ${\lambda }_i\leftarrow {\displaystyle \frac{N_{f,i}}{T_{\mathrm{operation},i}}}$ 4:    Calculate ${\mu }_i\leftarrow {\displaystyle \frac{N_{r,i}}{T_{\mathrm{repair},i}}}$ 5: end for 6: Configure the network model and parameters in PowerFactory 7: Define simulation horizon and number of scenarios 8: for each simulation iteration do 9:    for each component i do 10:      Simulate failure with $T_{f,i}\sim \mathrm{Exp}\left({\lambda }_i\right)$ 11:      Simulate repair with $T_{r,i}\sim \mathrm{Exp}\left({\mu }_i\right)$ 12:      Record failure duration and event occurrence 13:    end for 14: end for 15: for each component i do 16:    Calculate $MTB{F}_i\leftarrow {\displaystyle \frac{1}{{\lambda }_i}}$ 17:    Calculate $MTT{R}_i\leftarrow {\displaystyle \frac{1}{{\mu }_i}}$ 18:    Calculate $A_i\leftarrow {\displaystyle \frac{{\mu }_i}{{\lambda }_i+{\mu }_i}}$ 19: end for 20: Output: Indicators $MTBF$, $MTTR$, and system availability

3.2. Data Processing

The export of electrical and reliability data from DigSilent PowerFactory is carried out using a routine in DPL language, as detailed in Algorithm 2, which automates this procedure and transfers results from the simulation environment to Excel spreadsheets. This facilitates the organization of technical information for subsequent analysis and use as input in the optimization algorithm, Table 2 describes all variables used in Algorithm 2.

Algorithm 2 Export of Electrical and Reliability Data from DIgSILENT to Excel

1: Input: Network case with executed load flow and reliability study 2: Start Excel connection 3: if Excel does not start then 4:    Show error message and terminate process 5: end if 6: Set Excel visibility and open file at defined path 7: Export of nodal variables (voltage and angle) 8: Create and activate sheet “Nodes” 9: Write headers: Node, $V(p.u.)$, $\varphi {(}^{\circ })$ 10: Execute load flow (ComLdfExecute()) 11: for each node $O_{bus}$ in ElmTerm do 12:    Read voltage $V_{p.u.}:u$ 13:    Read angle ${\theta }_u-{\theta }_{bus}:{\varphi }_{iu}$ 14:    Write node name, $V_{p.u.}$ and ${\theta }_u$ in sheet “Nodes” 15: end for 16: Export of line variables 17: Create and activate sheet “Lines” 18: Write headers: Line, $L_{ab}$, Long(km), Bus1, Bus2 19: $I_{b1},I_{b2},S_{b1},S_{b2},P_{b1},P_{b2},Q_{b1},Q_{b2},Load(\%)$ 20: Execute load flow (ComLdfExecute()) 21: for each line $O_{line}$ in ElmLine do 22:    Read attributes: name, type, length, buses 23:    Read electrical variables: $I_{b1},I_{b2},S_{b1},S_{b2},P_{b1},P_{b2},Q_{b1},Q_{b2},Load$ 24:    Write line data with all values in sheet “Lines” 25: end for 26: Export of reliability results 27: Create additional sheet for reliability 28: Extract results of MTBF, MTTR and availability from RA module 29: Write results in structured table by component 30: Output: Excel file with sheets: “Nodes”, “Lines” and “Reliability”

Lines 1 to 3 specify the input to the process, represented by a network case with previously performed load flow and reliability studies. Additionally, the connection between PowerFactory and Excel is established, generating an error message and halting the procedure if the connection is unsuccessful. Once the connection is complete, line 6 adjusts the visibility of Excel and opens the file located in the specified path, enabling interaction with specific sheets in the workbook to store the data obtained.

Lines 7 to 14 export nodal variables, creating and activating a sheet called “Nodes” where the headers are entered: node name, voltage per unit, and phase angle. Then, the load flow is executed, and each ElmTerm type element is scanned, reading the voltage and angle values for each node to record them in the sheet next to the corresponding identifier.

Lines 16 to 19 export line data, creating a sheet called “Lines” where the headers of the variables to be captured are entered: line name, type, length, connected nodes, current at both ends, apparent power, active power, reactive power, and load capacity. The load flow is then executed, and each active line in the system (ElmLne) is traversed to record its general attributes and electrical variables in a new row within the respective sheet.

3.3. Optimization with TLBO

The TLBO algorithm identifies the optimal location of redundant distribution lines to increase system reliability, as shown in Algorithm 3. To do this, it uses the MTBF and MTTR vectors, the contingency table T, and the total number of bars n as input. In addition, execution parameters are defined, such as the maximum number of redundant lines to be inserted $M_{max}$, the number of independent repetitions $N_{repetitions}$, the iterations per run $N_{iter}$, and the population size P, generating a population m of solutions for each number of redundant lines $P_{ij}$, where each $L_i$ represents a set of candidate bars for insertion, Table 3 describes all variables used in Algorithm 3.

The population evolves during execution through the teaching and learning phases, with individuals in the first phase adjusting according to the best current solution, M. In the second phase, new solutions are generated by comparing pairs. The proposed solutions $Ne{w}_i$ are validated and replaced only if they improve the objective value. Finally, once all the runs have been completed, the best $L_m^{*}$ solution is selected for each m, representing the most robust locations for installing redundant lines.

Algorithm 3 Robust Optimization of Redundant Line Placement using TLBO

1: Input: MTBF and MTTR vectors, contingency table T, total number of buses n 2: Define parameters: $M_{max}$, $N_{\mathrm{repetitions}}$, $N_{\mathrm{iter}}$, population size P 3: Initialize storage: $results\_repetitions$, $solutions\_repetitions$ 4: for $k=1$ to $N_{\mathrm{repetitions}}$ do 5:    Set random seed $rng\left(k\right)$ 6:    for $m=1$ to $M_{max}$ do 7:      Initialize random population $\mathcal{P}\in {\mathbb{Z}}^{P\times m}$ such that 8:           $1\le P_{i,j}\le n$, $P_{i,j}\in \mathbb{Z}$, $\forall i,j$, without repetition 9:      Define the objective function for each solution L: $$maxVO\left(L\right)={\displaystyle \frac{{\sum }_{i\in L}MTB{F}_i}{{\sum }_{i\in L}MTB{F}_i+{\sum }_{i\in L}MTT{R}_i}}$$ 10:      Set $V{O}_{min}\leftarrow \infty$ 11:      for $t=1$ to $N_{\mathrm{iter}}$ do 12:         Evaluate each individual $L_i$ using $VO\left(L_i\right)$ 13:         Identify teacher M with minimum $VO$ 14:         // Teaching Phase 15:         for $i=1$ to P do 16:           $Ne{w}_i\leftarrow P_i+rand\left(\right)·(M-P_i)$ 17:           Round and project: $Ne{w}_i\in [1,n]$ 18:           if $VO\left(Ne{w}_i\right)<VO\left(P_i\right)$ then 19:              $P_i\leftarrow Ne{w}_i$ 20:           end if 21:         end for 22:         // Learning Phase 23:         for $i=1$ to P do 24:           Choose $j\ne i$ 25:           $diff\leftarrow$ better between $P_i$ and $P_j$ 26:           $Ne{w}_i\leftarrow P_i+rand\left(\right)·diff$ 27:           Round and project: $Ne{w}_i\in [1,n]$ 28:           if $VO\left(Ne{w}_i\right)<VO\left(P_i\right)$ then 29:              $P_i\leftarrow Ne{w}_i$ 30:           end if 31:         end for 32:         Update global best solution if it improves 33:      end for 34:      Store best solution and value for m 35:    end for 36: end for 37: Selection per m: For each $m\in [1,M_{max}]$, select $$L_m^{*}=arg\underset{k\in [1,N_{\mathrm{repetitions}}]}{min}VO\left(L_{k,m}\right),$$ 38: where $L_{k,m}$ is the best solution in run k for m redundant lines. 39: Output: Robust optimal placement set for each m

3.4. Case Study

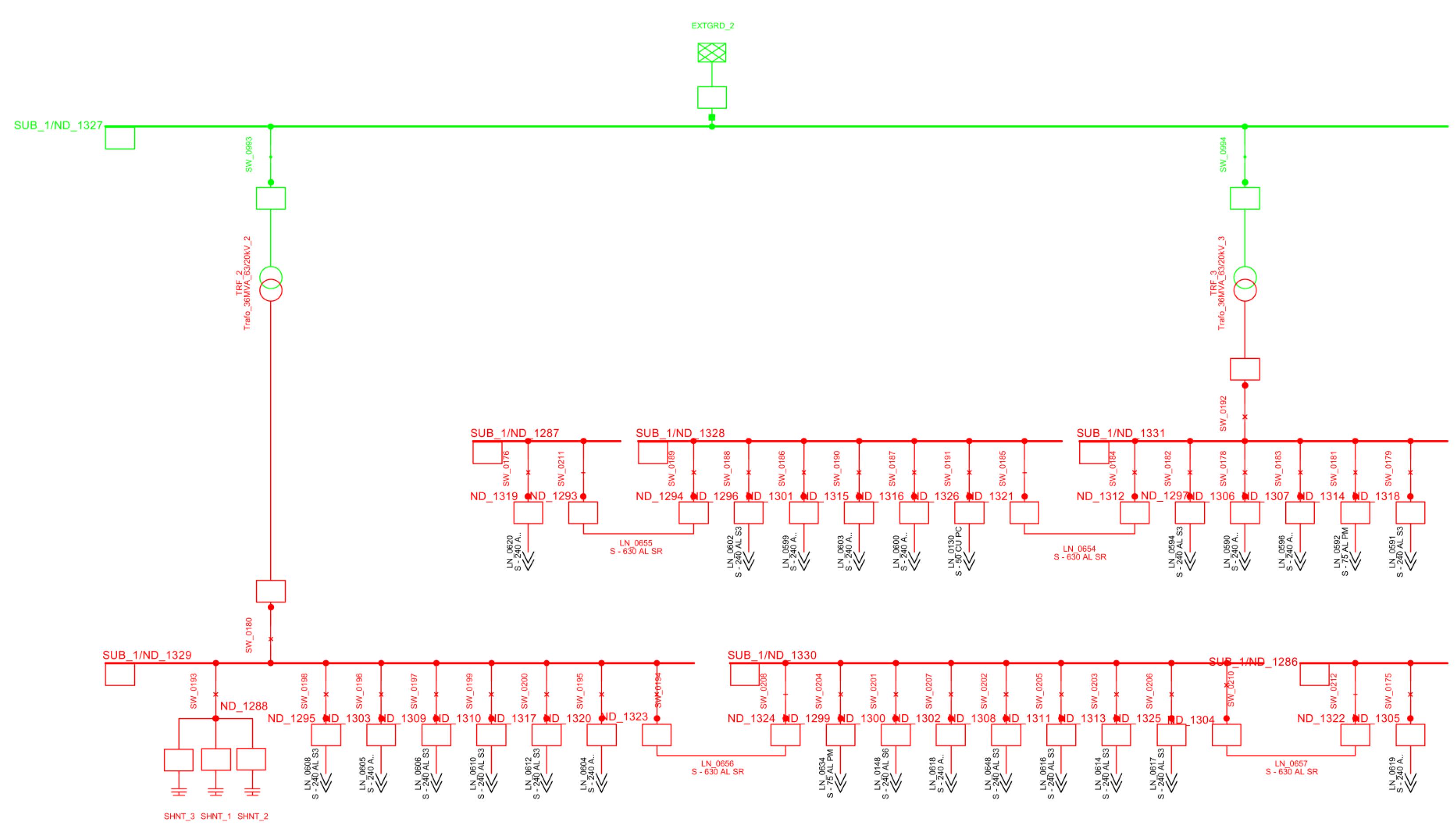

The proposed methodology is validated using the “MV Distribution Network – Base Model” integrated into the DigSilernt PowerFactory. This test system represents a medium-voltage distribution network with realistic characteristics, commonly used in reliability studies, load flow analysis, and contingency assessment in electrical systems. The model structure comprises four primary substations, designated as SUB_01 to SUB_04, which cover over 270 connection nodes and approximately 300 distribution lines. Figure 2 shows the single-line diagram of the test system in question.

4. Results Analysis

This section presents the results obtained from the optimization process executed using the TLBO algorithm, focused on determining optimal locations for redundant distribution lines in the electrical system. The analysis details the most efficient solutions identified for different numbers of additional lines, examining their specific impact on reducing the value of the objective function established for the optimization problem.

The evaluation continues with an analysis of the effects that these selected locations have on the system’s reliability indicators, fundamental parameters that characterize the operational performance of the distribution network. Subsequently, the changes in the electrical behavior of the system are evaluated, considering critical operational variables such as voltage profiles at different nodes, power flows through transmission lines, and total energy losses in the system.

Table 4 shows the results obtained from optimization using TLBO. Here, the algorithm demonstrated a progressive reduction in the value of the objective function (Mean, $\mu$) as the number of redundant lines increased, reaching its minimum with $m=4$ (m: number of redundant lines); however, the selected solution corresponds to $m=3$ (lowest CV) because it has the lowest relative dispersion value (CV: coefficient of variation) and greater statistical stability ($\sigma$: standard deviation) during the 500 independent iter performed, showing that lines LN_1011 and LN_0871 (selected lines) appear with high frequency in multiple configurations, which indicates that these locations represent optimal strategic points for the installation of redundant lines in the electrical distribution system.

4.1. Evaluation of Reliability Indicators.

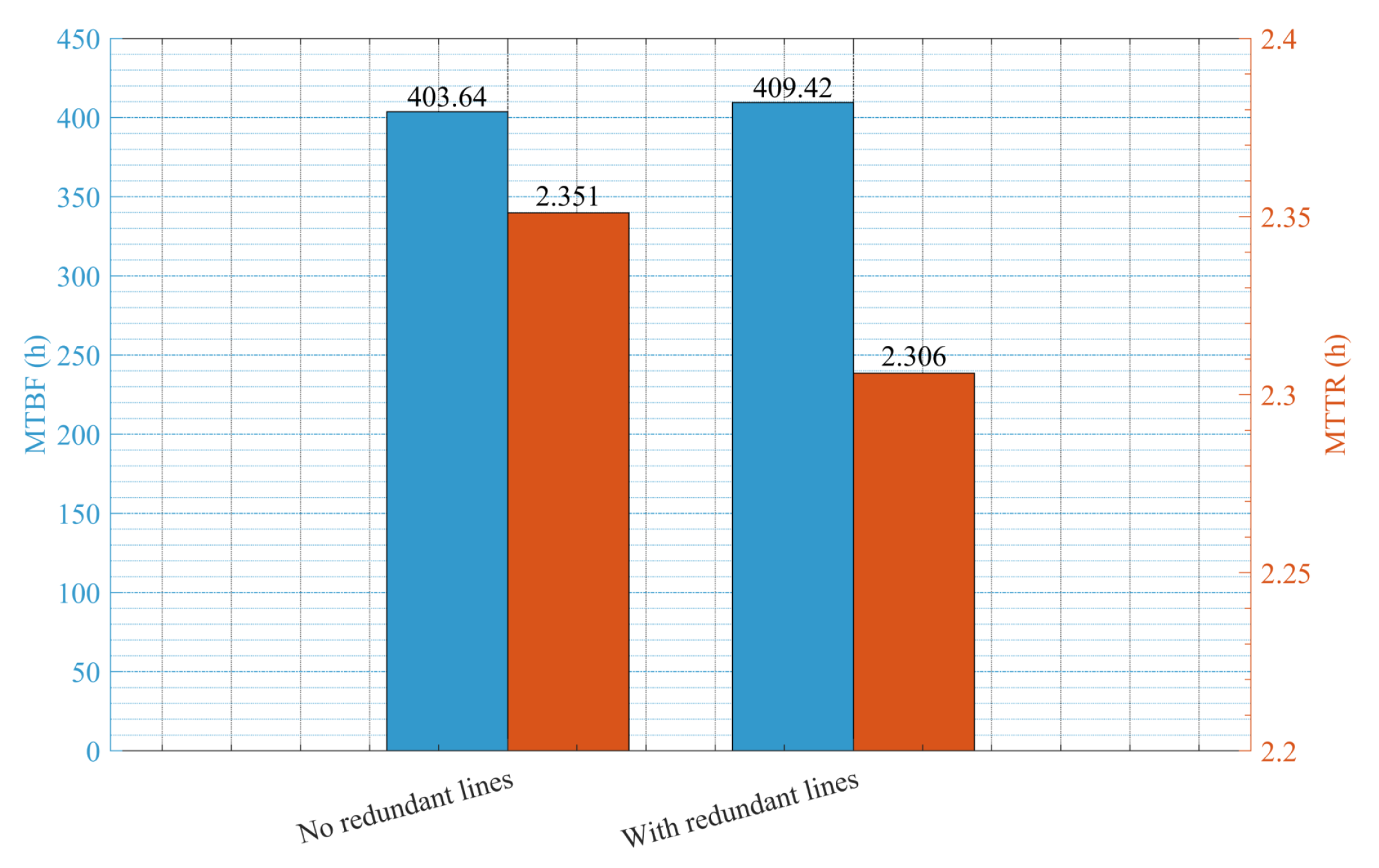

The implementation of the valid solution with three redundant lines resulted in quantifiable improvements in reliability indicators, as evidenced by an increase in the average MTBF from 403.64 hours to 409.42 hours and a reduction in MTTR from 2,351 hours to 2,306 hours, as shown in Figure 3. These variations reflect a lower frequency of component failures and faster recovery after each event, confirming that the optimized location of redundant lines using the TLBO algorithm has a positive influence on the reliable performance of the electrical distribution system under analysis.

4.2. Electrical Impact of Redundant Lines.

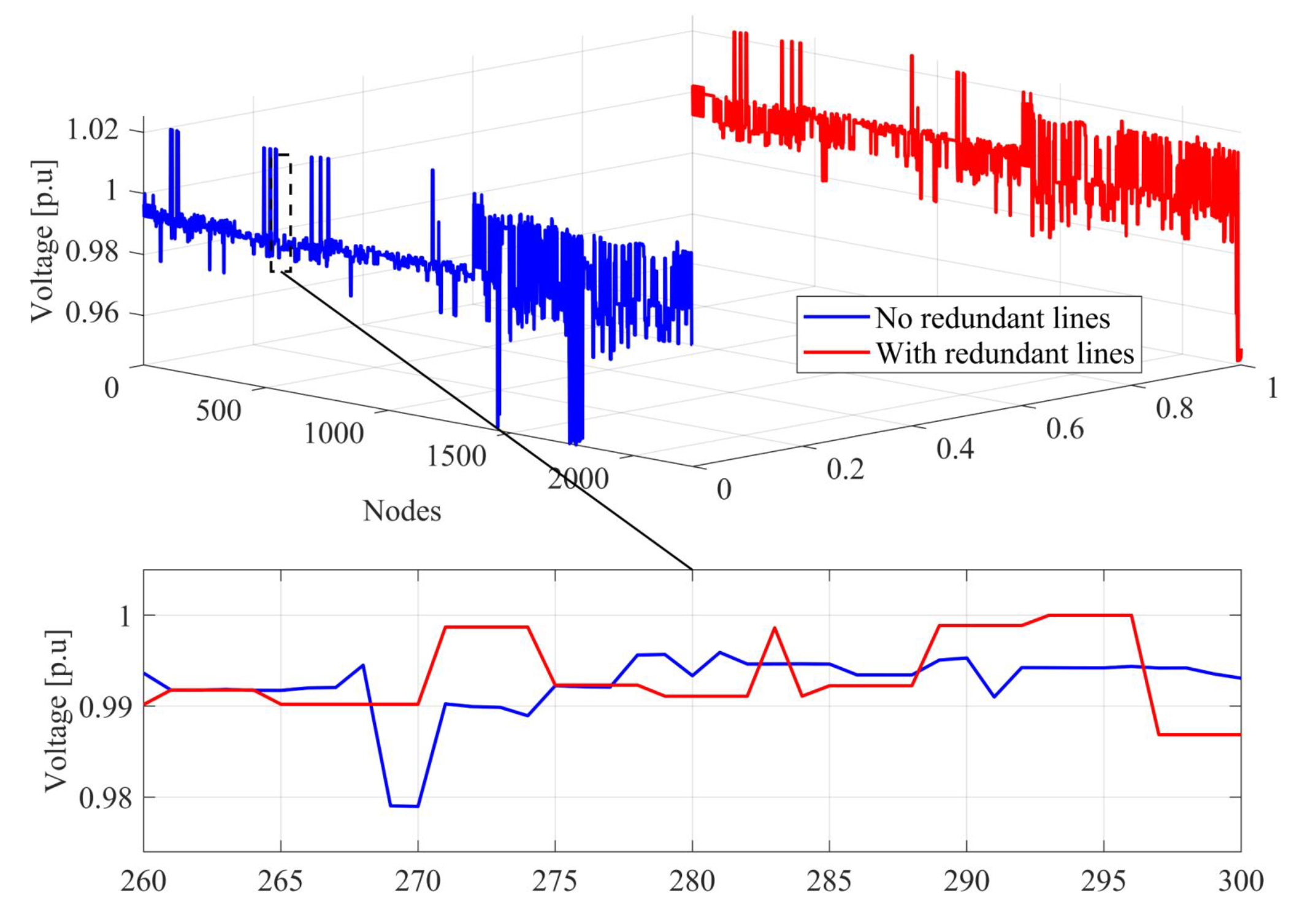

Analysis of the voltage profile (Figure 4) reveals that, without redundant lines (red line), the most significant drops are concentrated near nodes 1500 and 2000, with minimum values of approximately 0.94 p.u. In contrast, with redundant lines (blue line), the minimum values are located around node 2000, remaining around 0.95 p.u. and with less dispersion. However, the rest of the nodes maintain a magnitude of around 0.98 p.u. These results show that the inclusion of redundant lines substantially improves the voltage profile.

Analysis of the stress angle (Figure 5) reveals that, without redundant lines (blue line), angular variations are significant, reaching a value of approximately -10° in the nodes after 2000. With redundant lines (red line), although variations persist, they are less intense and remain between -4° and -8°.

These results indicate that redundant lines reduce angular dispersion, moderately improving synchronization between nodes. The distribution of active power per line, as shown in Figure 6, undergoes significant changes after the implementation of redundant lines. This transformation converts a system that initially exhibits high variability, with flows exceeding ±5000 MW in several sections of the network, into a configuration where values are concentrated in a more contained range with less overall dispersion. In detail, although some points experience a reduction in power magnitude, a more uniform distribution between lines is achieved, reducing local overloads by providing alternative routes for energy flow. This allows power to be distributed across multiple paths rather than concentrated on a few specific lines, favoring a more balanced operation of the distribution system.

For its part, the comparison of reactive power per line reveals a more concentrated distribution with less dispersion in the system with redundant lines, as shown in Figure 7. In the original configuration, reactive flows vary widely, with values exceeding ±3000 Mvar. After the topology modification, the values are grouped in a narrower range, with fewer extreme fluctuations. There is evidence of an attenuation in power peaks, reflecting more uniform behavior between consecutive sections. This redistribution helps to stabilize the reactive power exchange in the network.

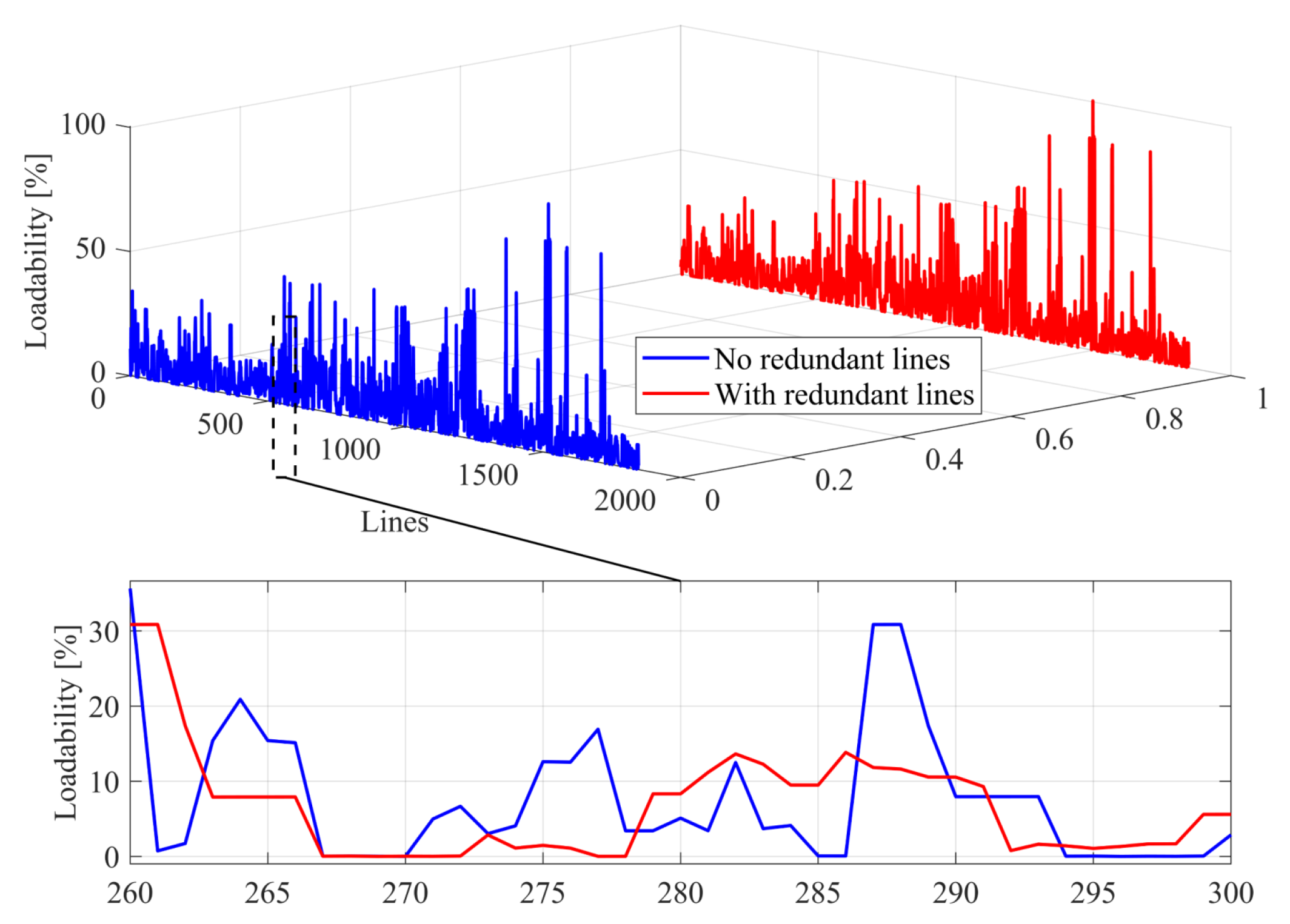

The comparison of load capacity, as shown in Figure 8, reveals that incorporating redundant lines increases the utilization percentage of existing lines. This transforms a system where the original topology has load levels below 40% across virtually the entire network into a configuration where the values increase and are distributed evenly, with multiple lines operating between 40% and 80% of their nominal capacity. This behavior is explained by the phenomenon of flow redistribution, which allows previously underutilized lines to participate more actively in energy transport.

The comparison of active power losses, shown in Figure 9, demonstrates an overall reduction following the implementation of redundant lines. This is evidenced by a transformation of the system where the original configuration shows losses reaching peaks of up to 60 MW in specific sections. However, in a modified configuration, the values are distributed more evenly with considerably lower magnitudes.

The reactive power losses per line, shown in Figure 10, experience a general reduction after the incorporation of redundant lines. Since the initial configuration presents pronounced negative values exceeding -40 Mvar in multiple sections, the modified configuration, however, stabilizes the values in a narrower range with less depth at the extremes.

5. Conclusions

The application of the TLBO algorithm successfully achieved the specific objectives set out in the research. First, the challenges related to reliability and downtime were clearly identified, highlighting the need for redundant lines to improve the operational performance of the system. Second, through the analysis and evaluation of mean time between failures (MTBF) and mean time to repair (MTTR), it was determined that the best solution obtained corresponds to the incorporation of three redundant lines (LN-1011, LN-1058, and LN-0871), due to their greater statistical stability and lower variability in results.

Simulation of the distribution system under defined scenarios quantitatively confirmed the improvement in reliability, increasing the MTBF from 403.64 h to 409.42 h and reducing the MTTR from 2.351 h to 2.306 h. In addition, the findings demonstrated specific electrical benefits: the voltage profile showed lower drops and greater stability above 0.98 p.u., angular dispersion decreased significantly, and the distribution of active and reactive power became more uniform, with a considerable reduction in energy losses. Finally, the average load capacity of the lines increased, confirming a more efficient use of the existing electrical infrastructure.

These results clearly validate that the proposed optimal location of redundant lines meets the overall objective of strengthening reliability indicators and improving the electrical performance of the distribution system.
