Original Forest, Wildlife Sightings and Scats: Community and Scientists Working Together to Protect Koalas Living in Intensely Managed Parcels of Forest Within the Proposed Great Koala National Park in New South Wales, Australia

1. Introduction

This article reports on the results of investigations led by the 4th author, with the support of local community-based citizen scientists, as part of the research project Ensuring the sustainability of plantation management – a citizen science approach (protocol 2022/466).

Tuckers Nob State Forest (SF) comprises 4,375ha, of which 1,678ha are zoned plantation, and as of April 2024 (i.e., prior to this report) had 75 koala records. It is managed by the Forestry Corporation of NSW (FCNSW). All areas under investigation are currently on the schedule for extractive timber operations (logging) in 2025. They are all within the footprint of the proposed Great Koala National Park (GKNP) but excluded from assessment for reservation.

There is a common misconception that koalas do not live in plantations and that plantations do not make suitable koala habitat [1]. In NSW many plantations contain significant numbers of original trees and constitute high diversity nutrient-rich sites that are attractive to koalas. There is also a belief that the forest industry requires plantation, and these plantations must be part of the industry going forward [2]. Regrettably, the NSW Government has to date not publicly acknowledged the high conservation value of the plantation for koalas.

Our research indicates that from an ecological standpoint, high value habitat should not be discounted from conservation measures. It follows that such areas need to be included within the proposed park. There is significant risk that ongoing forestry operations within the park’s boundary will undermine the integrity of the park and provide a continual source of habitat disturbance, placing additional pressure on koala populations.

1.1. Citizen Science and the Koala

The koala (Phascolarctos cinereus) is as an Australian marsupial listed as endangered in NSW, Queensland (Qld) and the Australian Capital Territory [3]. The word for it in the Gumbaynggirr language (the traditional owners of area that includes the GKNP) is purported to be dunggirr [4]. Populations across most of the species’ range are in ongoing decline, primarily because of loss and fragmentation of habitat which is due to human activities that include timber harvesting in forests as it applies to the case study that forms the basis of this paper. Despite the koala being a conservation flagship species [5,6] and expansive public attention, consideration of the role of citizen science Citizen Science (CS) in scientific or koala conservation projects is still relatively uncommon.

One of the first CS surveys was the “Great Koala Count” in South Australia (SA) in 2012 [7] and its iteration ‘The Great Koala Count 2’ [8] which is purported to having had an influence on policy making in that state [9]. In Qld, [10] tested the effectiveness of CS in monitoring a declining koala population by developing guidelines and using these to improve the success of CS science projects. However, data quality of such endeavours is varied [11]. For example, [12], in a study in South East Qld point to the need to apply appropriate bias correction techniques to CS obtained data. Nevertheless, a modified CS approach to monitor individual koalas in Central Qld was successful [13]. A similar count to the one conducted in SA is conducted irregularly by the NSW National Parks Association, the ‘Great Koala Count’ is focused on the north coast of that state [14] and CS is used in attempts to monitor population trends in the north-west as well [15].

2. Materials and Methods

2.1. Description of the Study Area

Tuckers Nob SF is located to the north of the Bellinger River, which flows through the township of Bellingen, in the Bellingen Shire, NSW. It contains ~2,457ha of forest zoned plantation, and is part of a complex of forests surrounding the township at the centre of the proposed GKNP. Pine Creek SF lies to the east, Tarkeeth SF and Newry SF to the south. Bindarri NP is situated to the north and east, Dorrigo NP to the north and west. Bellingen town is surrounded by areas zoned plantation (Figure 2)

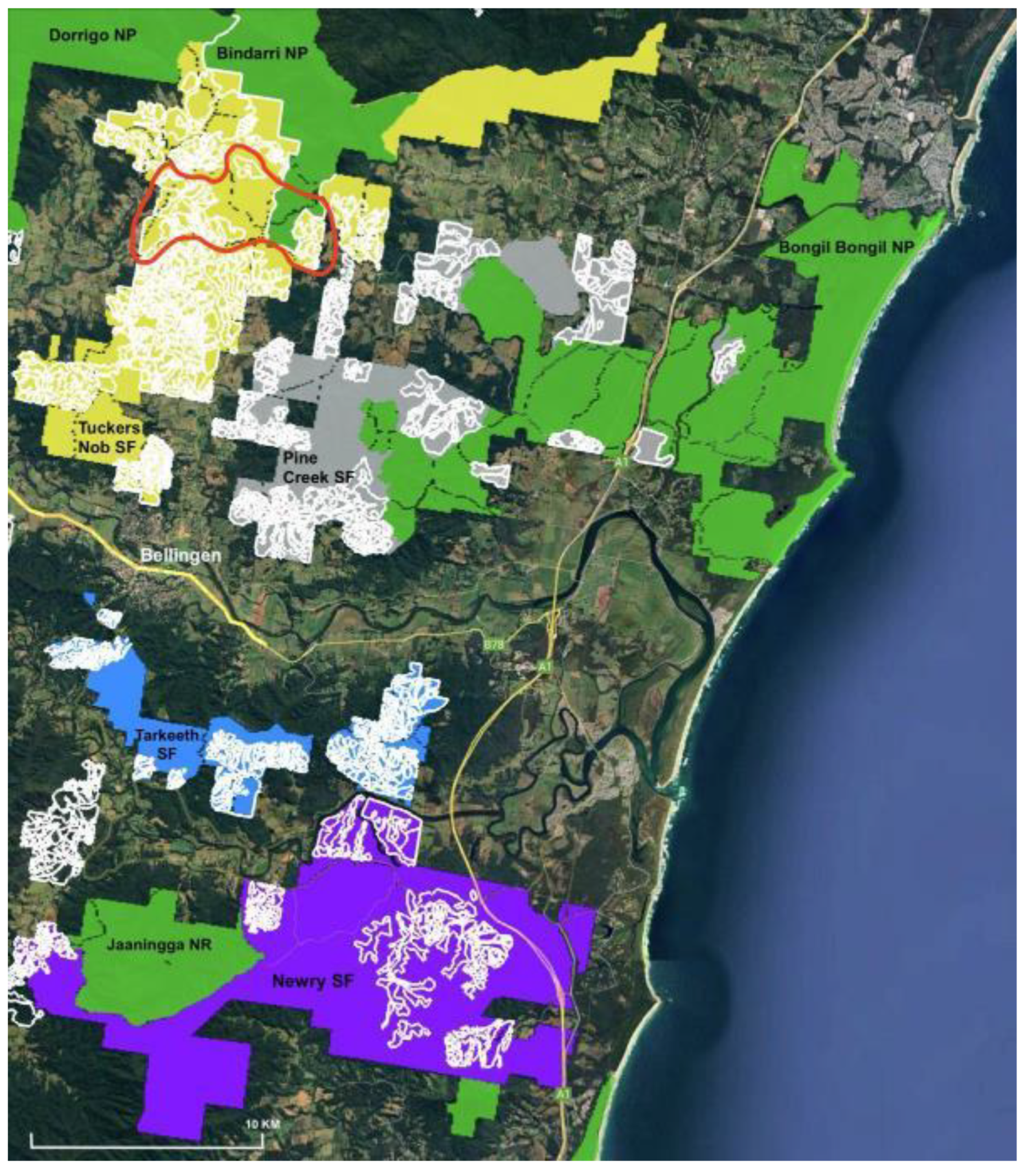

Figure 1. Location map. Areas zoned plantation outlined in white. The study area is outlined in red.

Figure 1. Location map. Areas zoned plantation outlined in white. The study area is outlined in red.

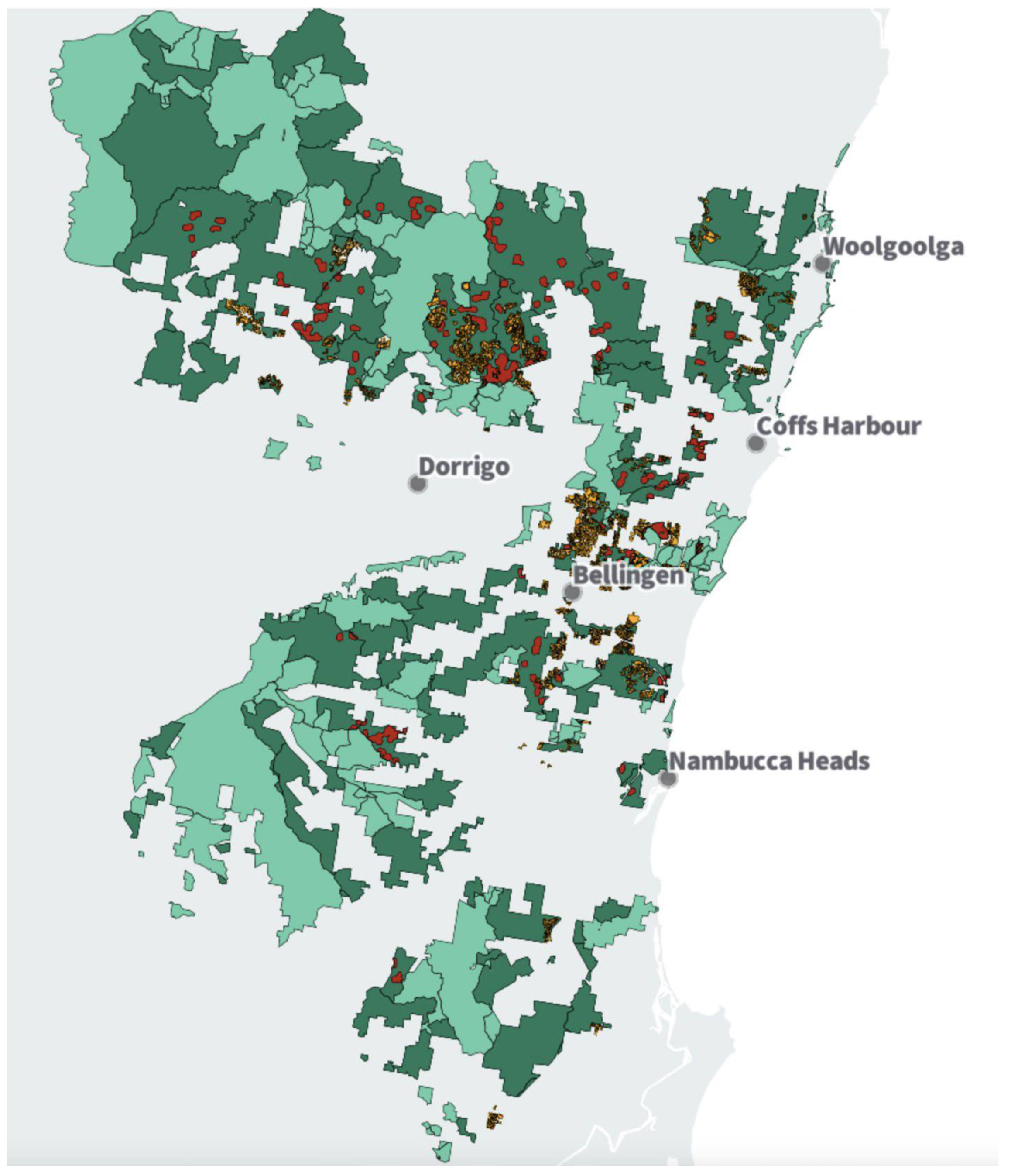

Figure 2. Proposed Great Koala National Park – mid north coast of NSW. OpenMapTiles, Open Street Map and contributors, Commons, public domain [1]. Light green indicates existing national parks; dark green, state forests; red, koala hubs; yellow, plantations.

Figure 2. Proposed Great Koala National Park – mid north coast of NSW. OpenMapTiles, Open Street Map and contributors, Commons, public domain [1]. Light green indicates existing national parks; dark green, state forests; red, koala hubs; yellow, plantations.

The research is focused on the Tuckers Nob State Forest (SF) (~4,375ha) which is part of the proposed Great Koala National Park to be situated on the mid north coast of the Australian state of NSW. Approximately ~176,000ha of publicly owned state forests, koala hubs and plantations are to be joined with existing National Parks to establish a ~315,000ha nature reserve in the Coffs Coast Region (Figure 2).

2.1. Data Collection

Broadly, the methodologies and general critique used here are derived from [16].

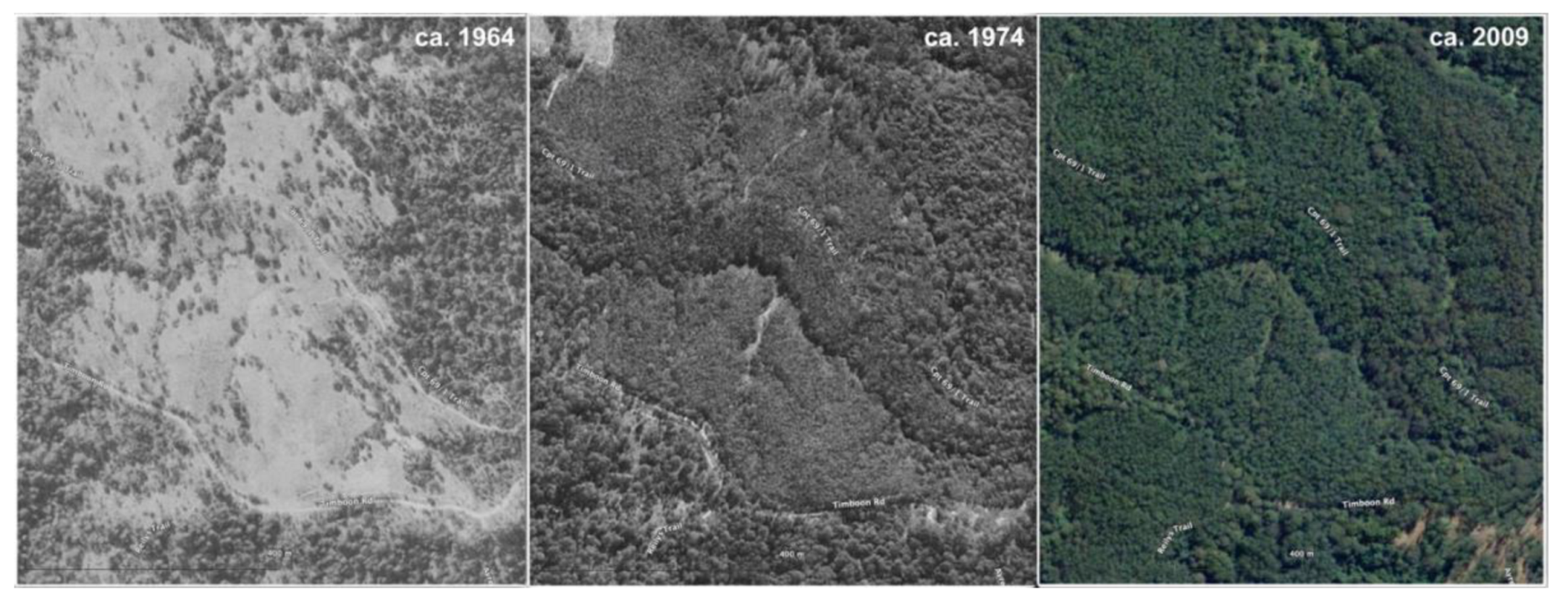

Generally, original trees (an individual specimen in existence before plantation establishment, either as an isolated example, or within a larger cohort of trees) and remnants (a patch of trees, which existed before plantation establishment) were identified using historical aerial photography, orthorectified (geo-referenced) and matched against current NSW Government imagery (SIX Maps). Composite mosaics of photographic sheets and closeups (QGIS) were imported into Google Earth Pro. Data from koala drone surveys, habitat ground-truthing and on-ground scat and koala surveys of 120 ha were obtained from various community stakeholder and volunteer groups who, after appropriate training, conducted surveys between March and December 2024.

In particular, the closeups generated in QGIS (largely using 3.36.3 - Maidenhead) and imported into Google Earth Pro (GEP), used a consistent projection (Figure 3).

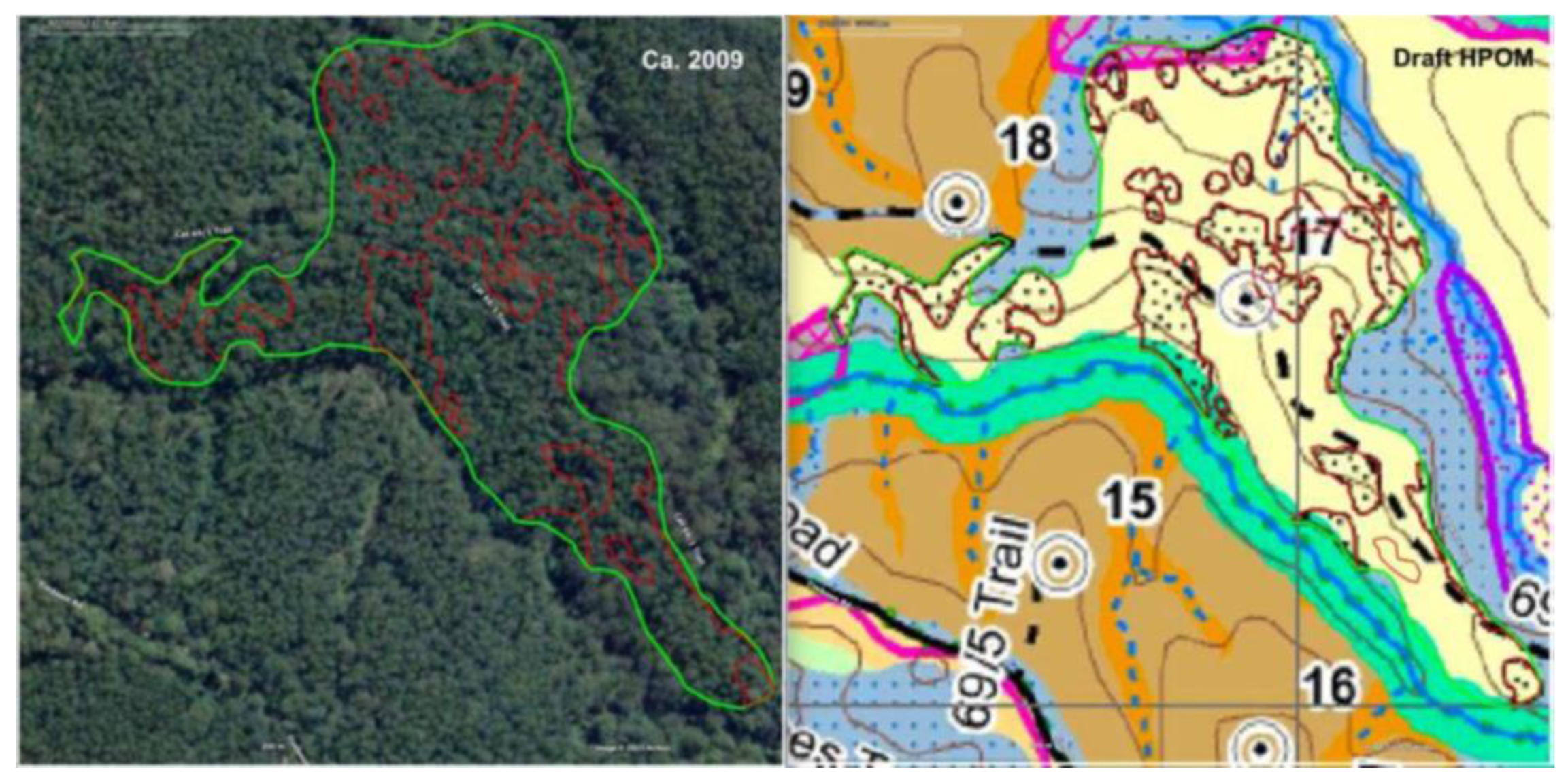

Shape files of the areas zoned plantation from FCNSW were imported into Google Earth Pro and compared to the relevant time sequence imagery before and after plantation establishment, to identify surviving original forest. The original photography and SIX Maps are low resolution. Additionally, more recent, imagery in higher resolution from commercial spatial service provider, Nearmap [17] was also used for comparison. Areas of interest (polygons) of original forest were created in .kmz file format and added as a further layer, based on canopy differentiation from the more uniform plantation. These were delineated by following the plantation boundary, or the authorised/operational area boundary, and excluding areas set aside within the draft harvest plan operational map (HPOM); delineation was to the outermost edge of any boundary line, unless marked by FCNSW (Figure 4 and Figure 5).

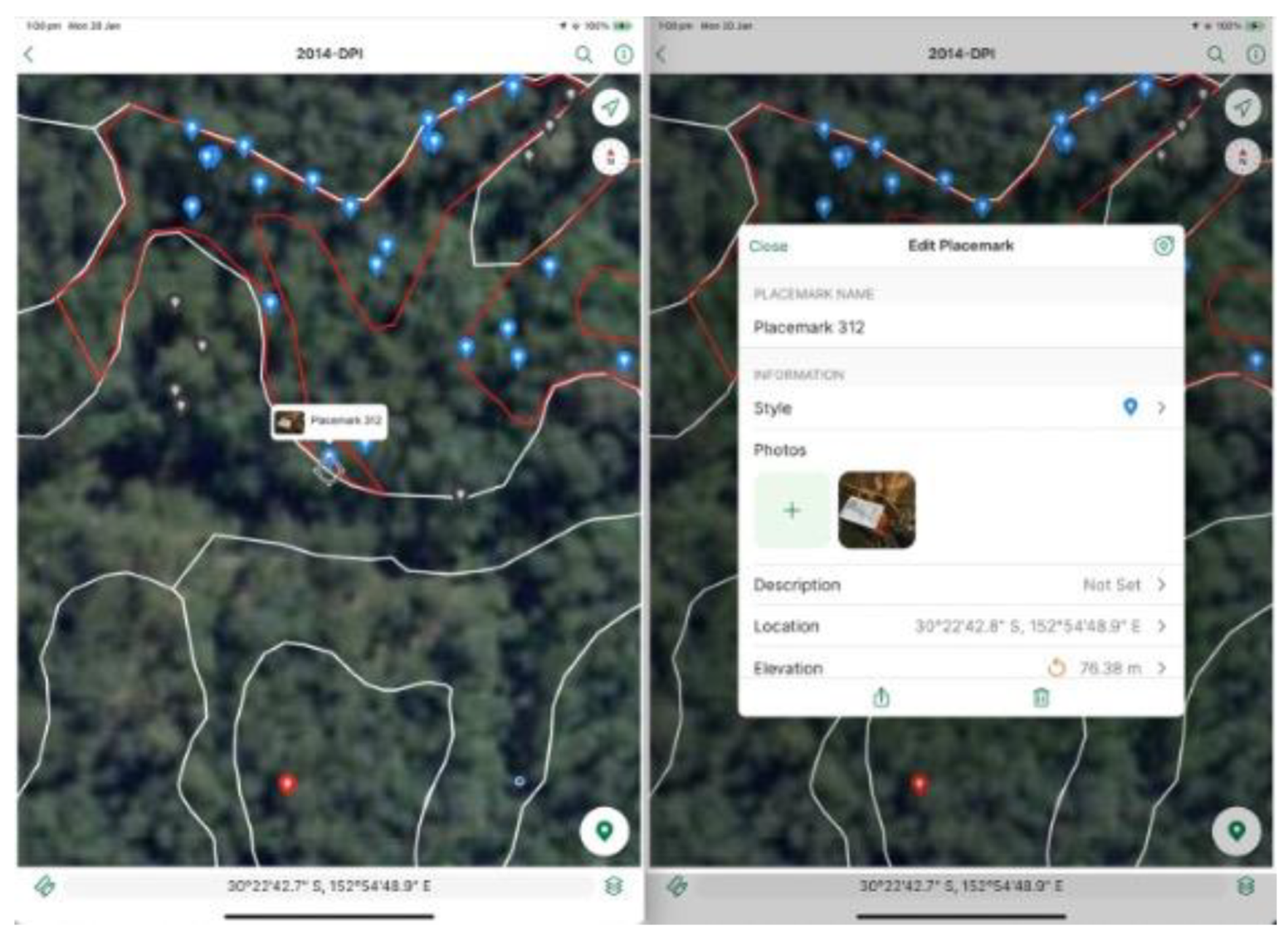

Georeferenced images suitable for field use were generated in QGIS and imported into a tablet with GNSS (global navigation satellite system) compatibility (iPad) as base layers (maps) using the app Avenza Maps Plus Legacy [18]. The polygons of the remnant areas delineated in GEP were added as a layer onto the base image in .kmz format. Location accuracy of the tablet was enhanced using a bluetooth receiver (Garmin GLO 2 – GPS and GLONASS (navigation system from Russia) compatible). Individual trees and remnant forest were then identified on the ground and photographic records were collected using the camera function on the iPad, also using the enhanced accuracy of the receiver, and imported into the app (Figure 6).

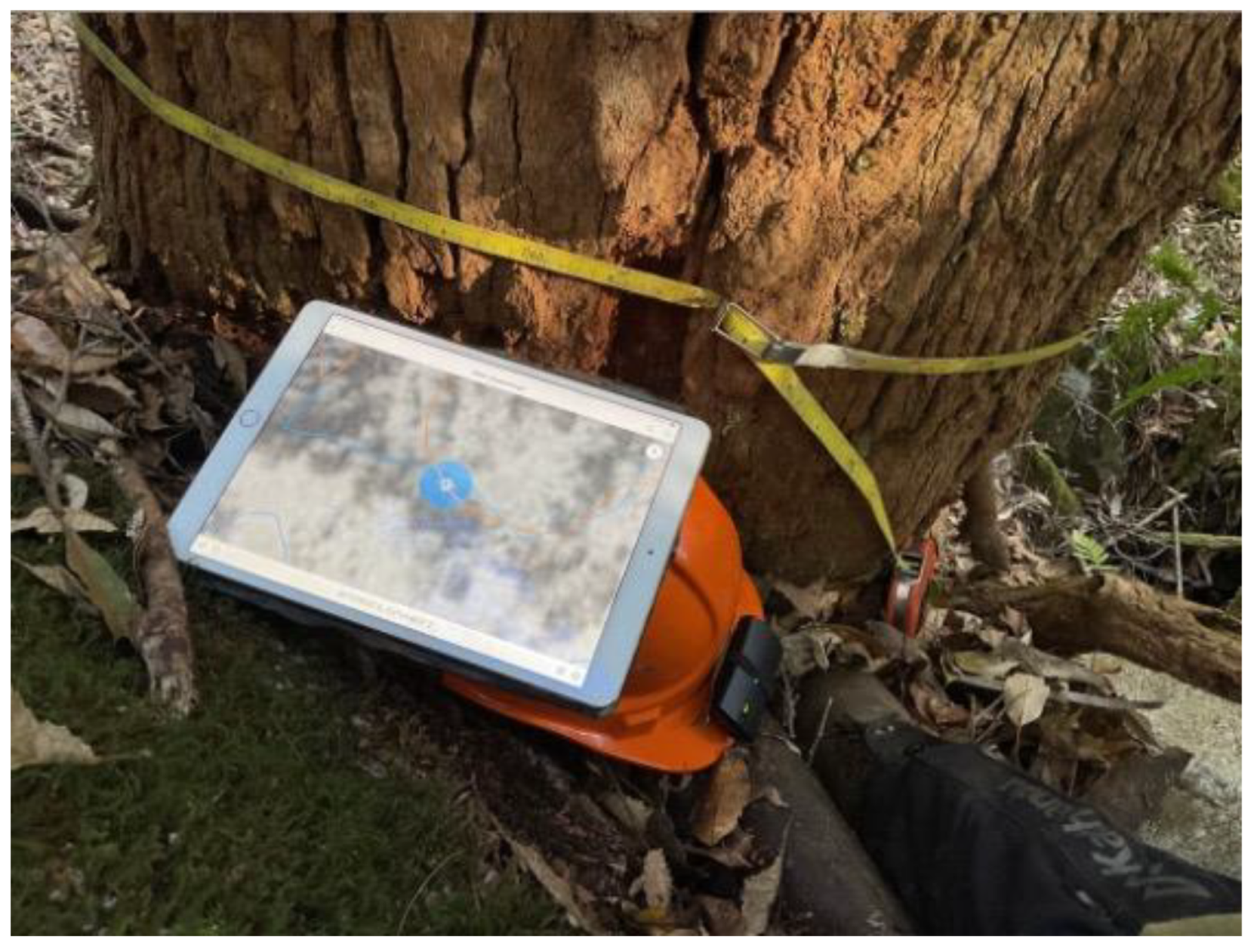

Photographs were captured using two tablets, one to record the image of the tree, the other to locate the tree on the historical photography (Figure 7), the other placed next to the receiver, at the base of the tree, with the relevant image and coordinates displayed, and a tape measure showing circumference at stump height over bark (CSHOB).

Coordinates from both devices were cross-checked. Rainforest trees under 1500mm CSHOB were generally not recorded, unless uncommon (e.g. Ringwood/Aniseed myrtle Syzygium anisatum), or an important exemplar of native vegetation in a given location. This rule of thumb was applied also to Forest oak (Allocasuarina torulosa) and Pink bloodwood (Corymbia intermedia), both non-plantation species. Measurements for Eucalyptus were generally over 2500 mm CSHOB (Figure 8), unless they were part of a larger remnant, or a divergent individual specimen within a plantation. If identified, plantation tree species were avoided (see caveats below). Citizen scientists assisted with data collection, under the supervision of the chief investigator, using this methodology.

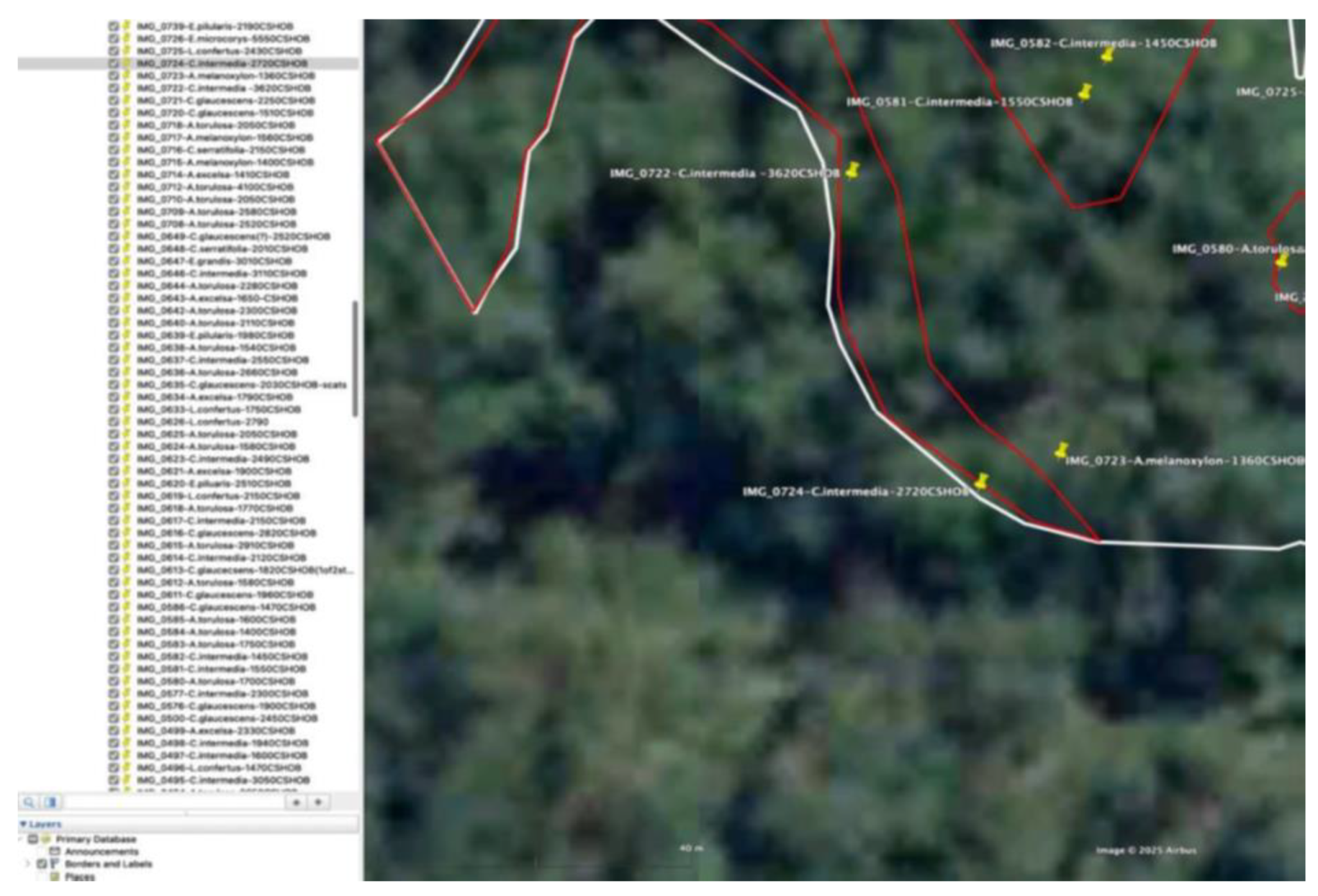

These images were subsequently exported into GEP, with image number, species (where identifiable), and CSHOB adding to a central database, or record of trees (Figure 9). These were checked against the historical image layers, and the polygons were amended, if necessary, to create a more accurate delineation of the forest remnant. Individual original trees were also plotted.

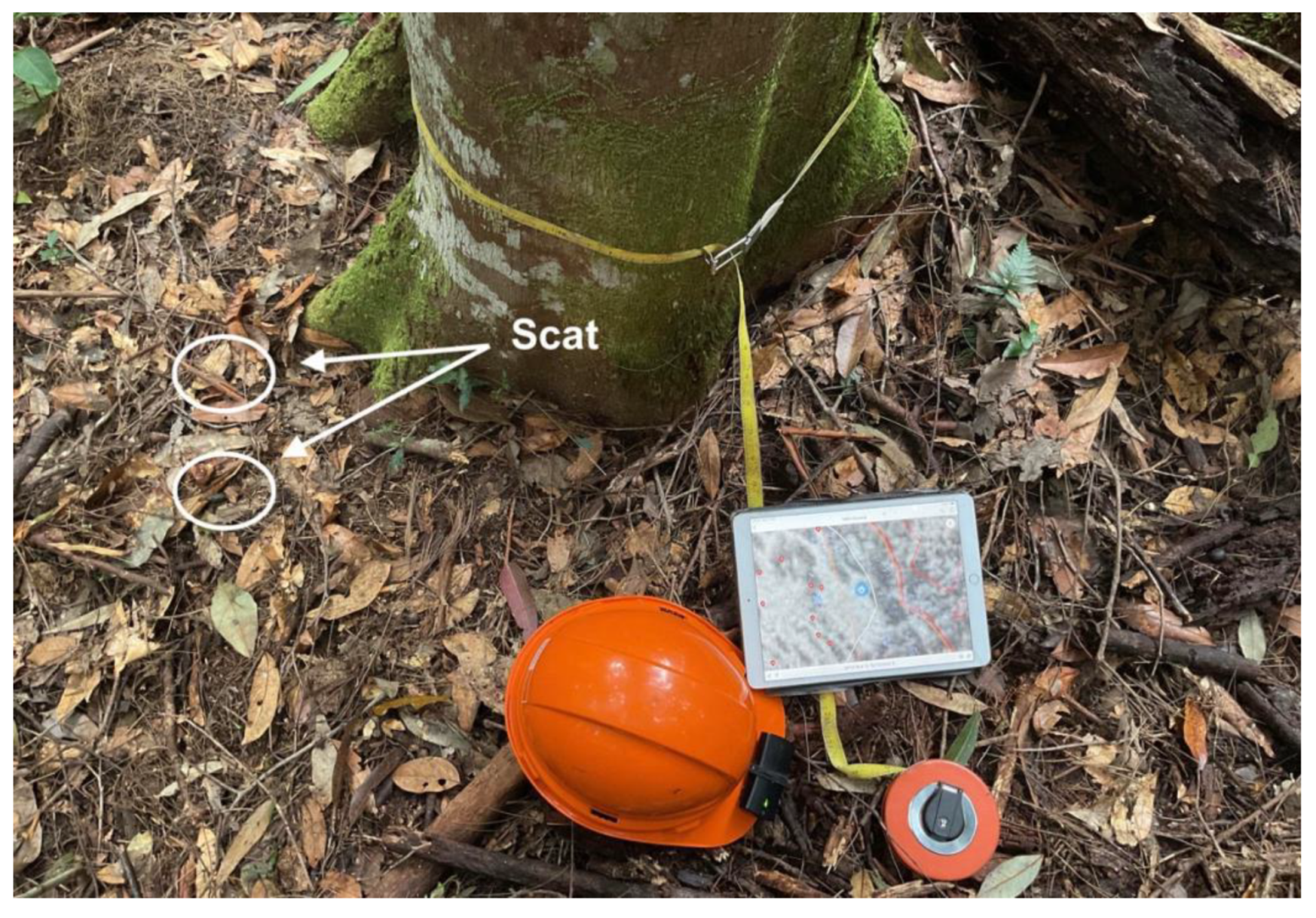

Koala scats located under trees were similarly recorded and collected (Figure 10) and verified by a local professional company [19].

2.2. Drone Surveys

Two nights of drone surveillance were conducted, 11-12 and 12-13 December 2024 (10 pm – 5 am), using a drone (DJI Matrice 350) with a thermal camera (H30T sensor).

Selected polygons were surveyed at 30m above canopy (following canopy topography) in straight transects with a 40% side-overlap in accordance with the NSW Dept of Planning and Environment Koala Biodiversity Assessment Method Survey Guide [20]. A laser range finder logged the koala location in three-dimensional space to an accuracy of 0.5-4m.

Four survey locations were identified within the areas zoned plantation in Tuckers Nob:

• Compartment 8 (partially surveyed for original forest and trees), 20 ha;
• Compartments 10 and 18 (partially surveyed for original forest and trees), 130 ha;
• Compartments 11 and 17 (partially surveyed for original forest and trees), 50 ha;
• Compartment 12 (fully surveyed for original forest and trees), 30 ha.

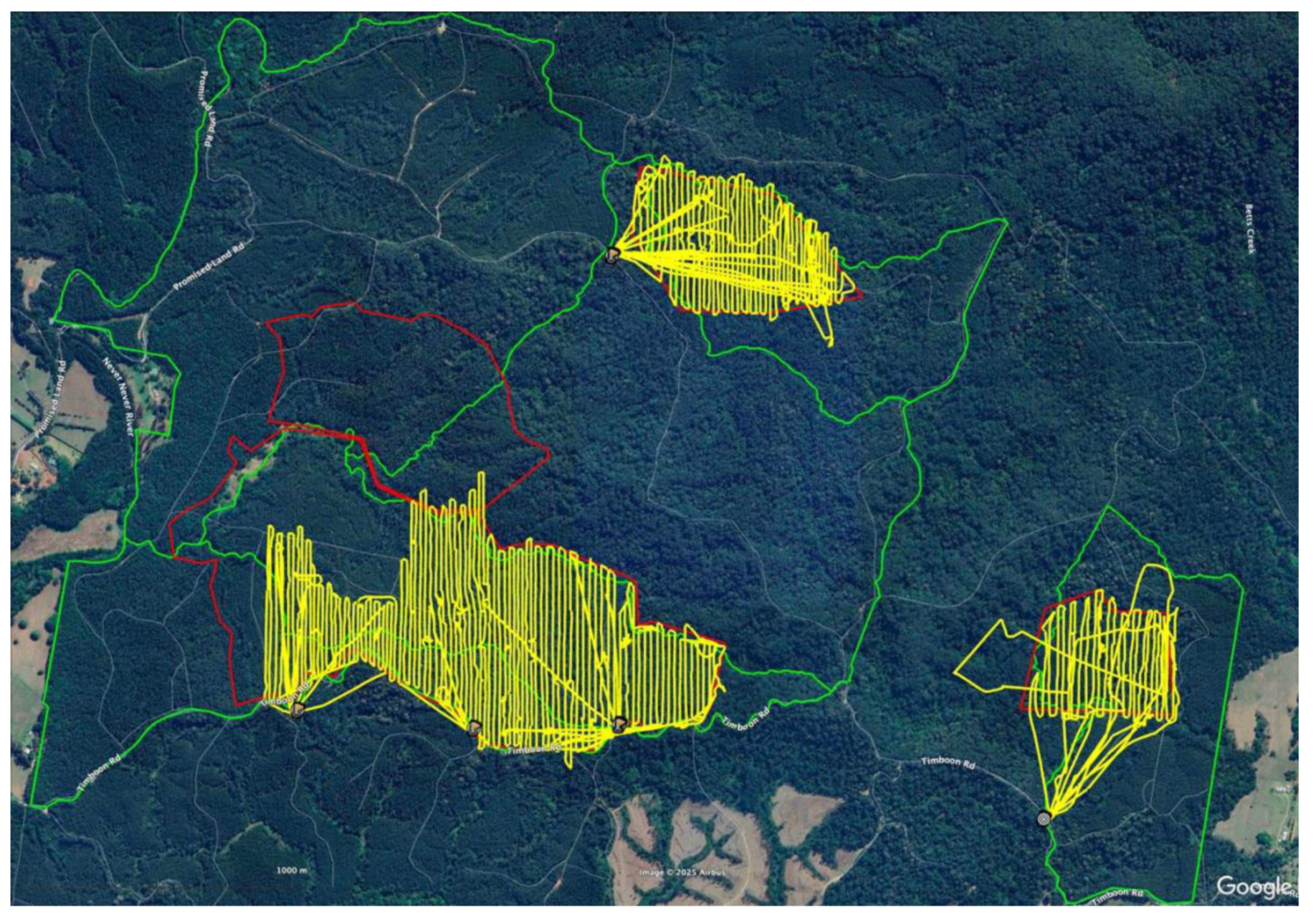

The sites were selected to achieve the maximum coverage of the most unlogged areas of zoned plantation (Figure 11), at the best time-cost efficiency ratio.

2.4. Caveats

NSW government data are generally in Lambert projection. This is spatially very accurate, but does not translate well across platforms, particularly for field-based systems that rely on GPS. Data and imagery were therefore generated or reprojected in GDA 94 [21] (Geocentric Datum of Australia 1994: a reference system for defining location via coordinates).

Locating individual trees under canopy is notoriously difficult. While a GPS receiver can enhance accuracy, it needs to be continually refreshed by returning to open sky and is further impacted by cloudy weather and steep terrain. Consequently, the accuracy of records can vary from between 5 and 15, and at worst, 20 metres. This is ameliorated somewhat by the delineation of polygons where patches of remnant forest exist, and post-logging verification of removals, which occur after the loss of canopy through clearing. This is the main reason for mapping, measuring and photographing trees before logging commences. Trees, with a CSHOB of less than 1500mm (unless significant, such as an uncommon species) and non-original (i.e. in-planted) trees, were not recorded. It is accepted that there may be misidentification of trees species, especially rainforest species. The point to be made here is that no original rainforest should be removed. Some plantation species may be included in records. Generally, such species were avoided, unless they were larger trees than those surrounding them, and therefore potentially of an older, original cohort. A 10% margin of error of target plantation species (i.e. species listed on plantation records as tree species used during establishment, and possibly actual plantation trees) is accepted. However, it should be noted that native trees of the same species (i.e. not planted) are also present.

Some scats were collected prior to taking of tree record. All scats, and/or scat collections were filmed. Where there was a discrepancy between the co-ordinates of the film, and those of the tree record, the tree record was used.

Absolute drone coordinates have been turned into derived point data (clamped to ground) for visual representation in the imagery provided below. A margin of error of approximately 10m is accepted. Unclear sightings were confirmed via thermal signature and night-vision imagery.

The term ‘area zoned plantation’ is used throughout as the concept of plantation in NSW is moot, both in terms of boundaries (plantable, authorised, general, and operational), zonings – Forest Management Zones (FMZ5 management, other management, FMZ6 for softwoods) as well as definitions (which include native forest, silvicultural regrowth, seeded, planted, and unplanted natural regeneration). The term area zoned plantation is used here to generally refer to areas likely to be logged during forestry operations.

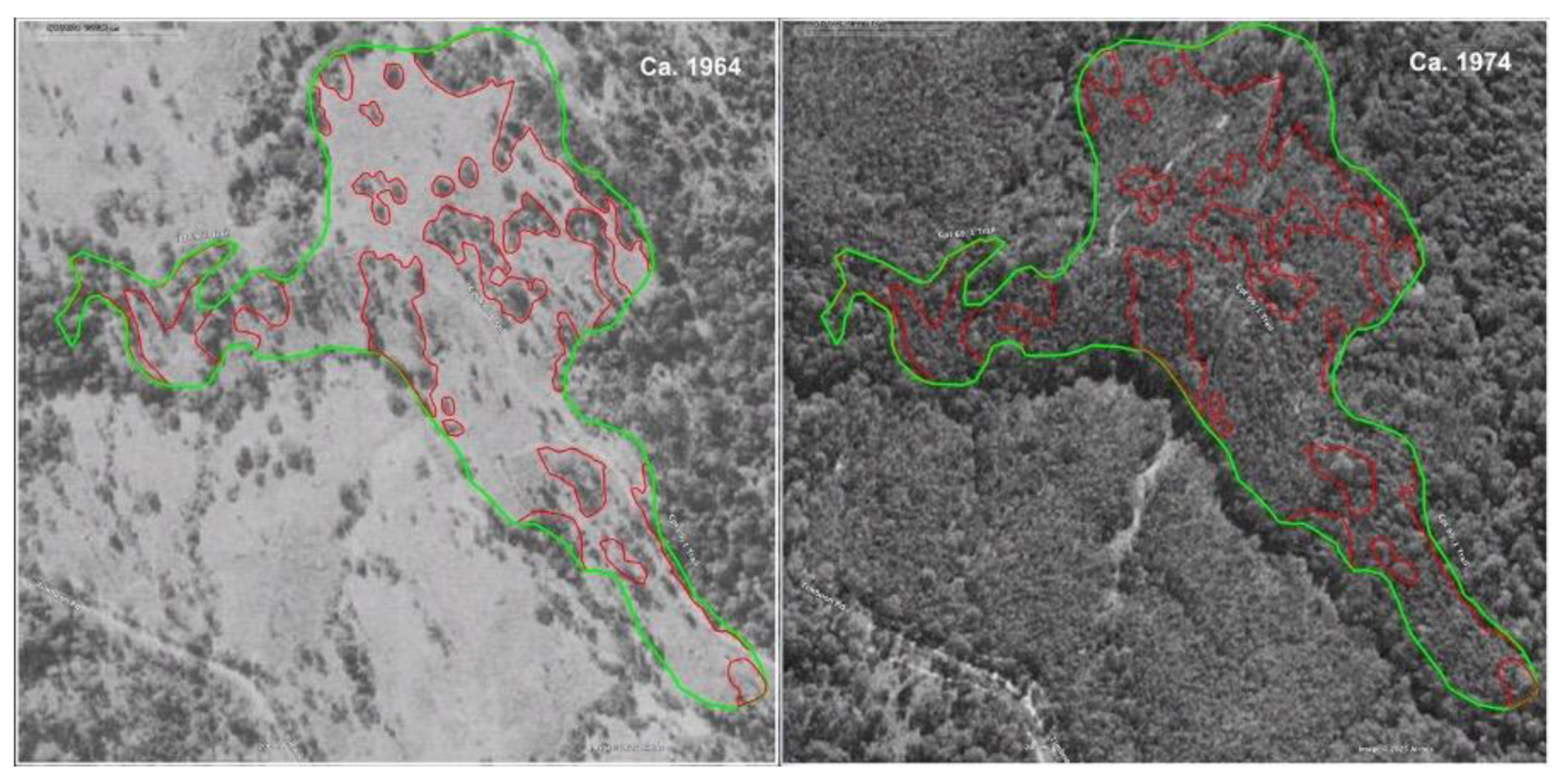

Imagery of the year of, or close to, the establishment of plantations in compartment 12 was not available at the time of writing. Remnants were generated from earlier and later images, or via rubber-sheeting (in the case of 1992).

3. Results

3.1. Remnant Forest and Original Trees

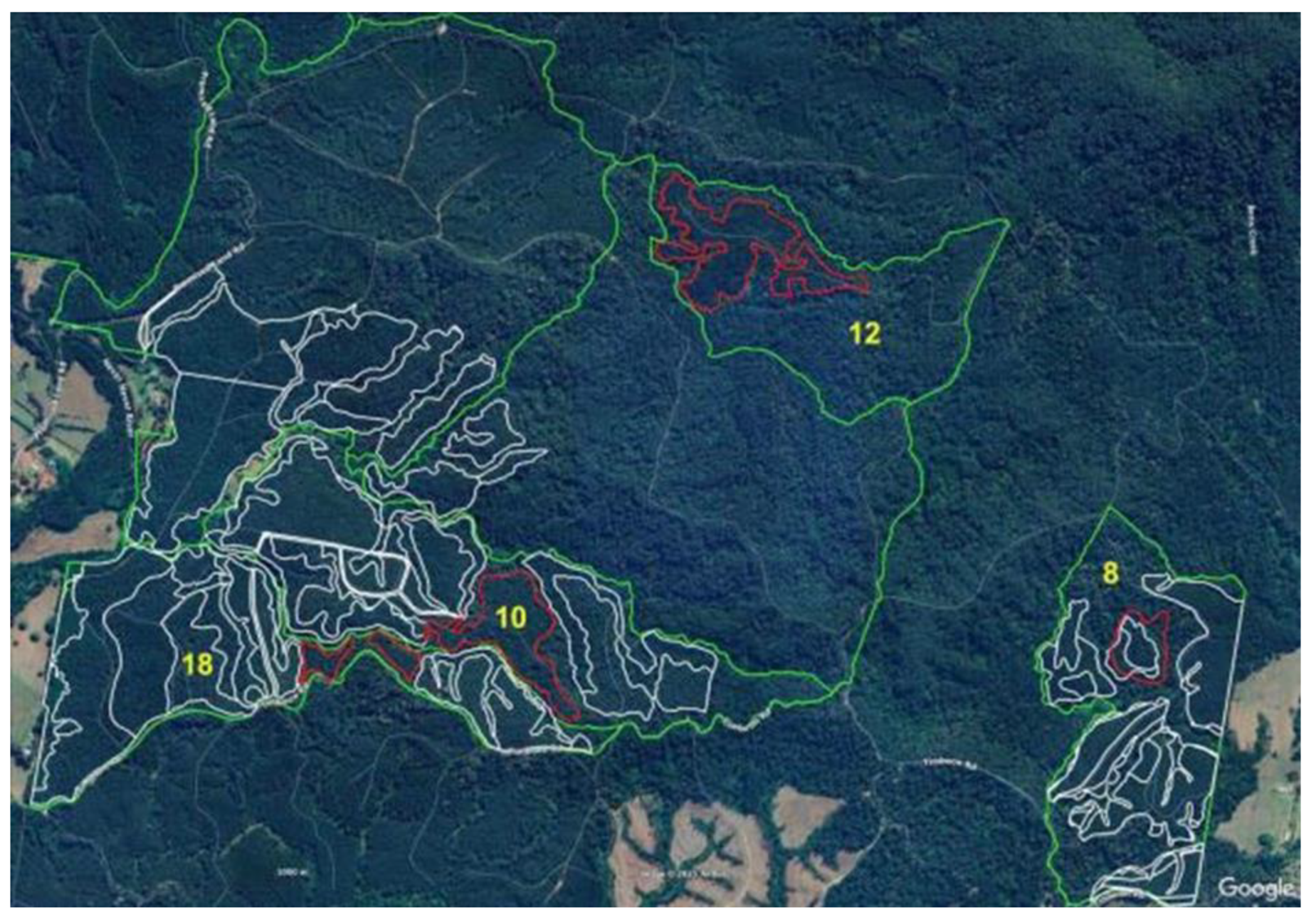

Six plantation subunits within the aerial drone surveillance area were comprehensively surveyed (Figure 12).

Compartment 8

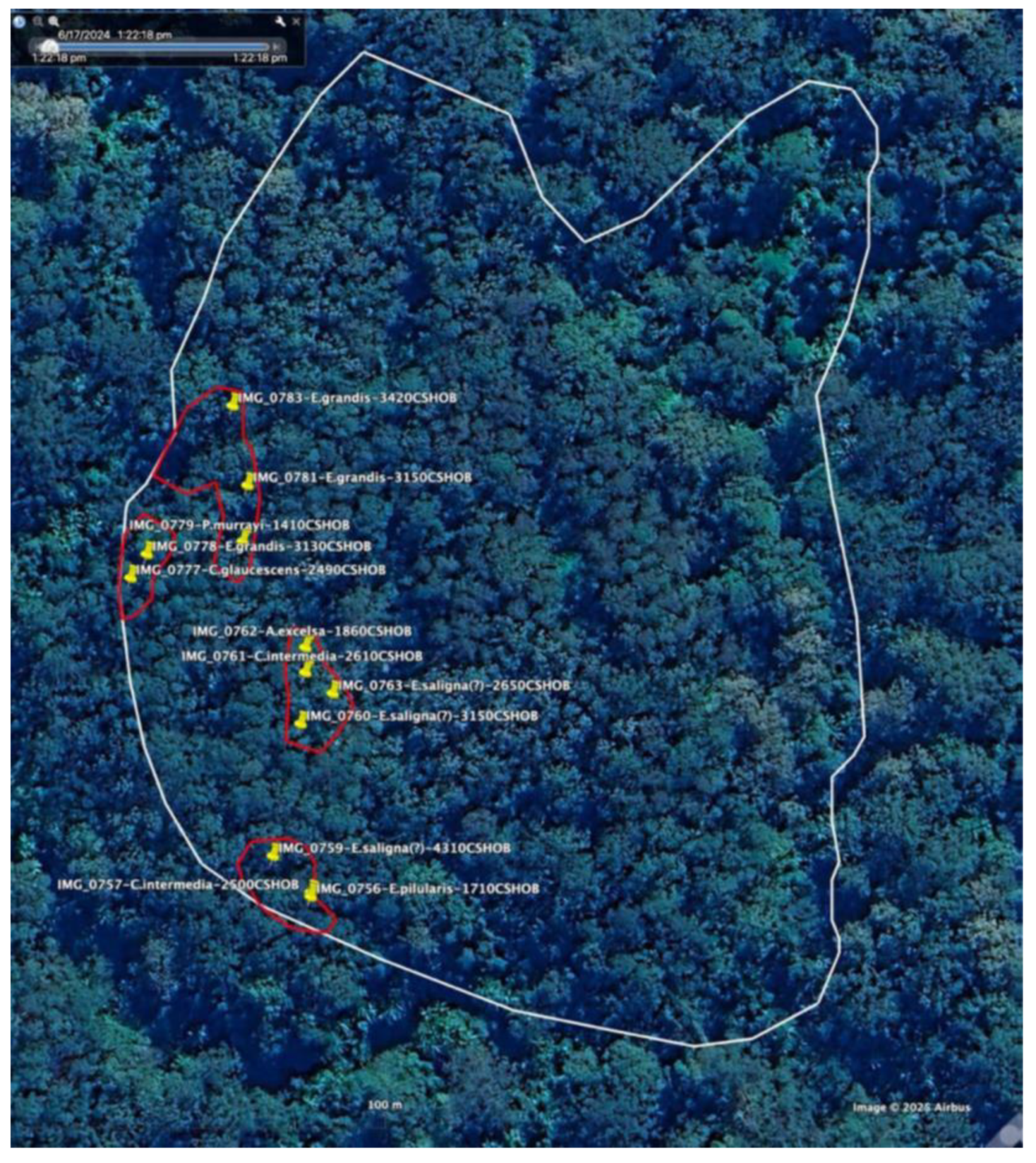

Most of the areas zoned plantation were cleared in 2010, except for two units, to the north (established 1992) (Figure 13). The area investigated (ca. 4.3ha) contained some original trees (ca. 11) and four small remnant forest fragments (0.19ha in total) (Figure 13). The significance of this area lies in the fact it is surrounded on three sides by Bindarri NP, and contains original forest (ca. 1.5ha, some recently re-classified as FM4 and available for future native forest logging, and FMZ5 currently not available for logging). The area is zoned delayed thinning (in the area surveyed) and thinning stage 1.

Compartment 10

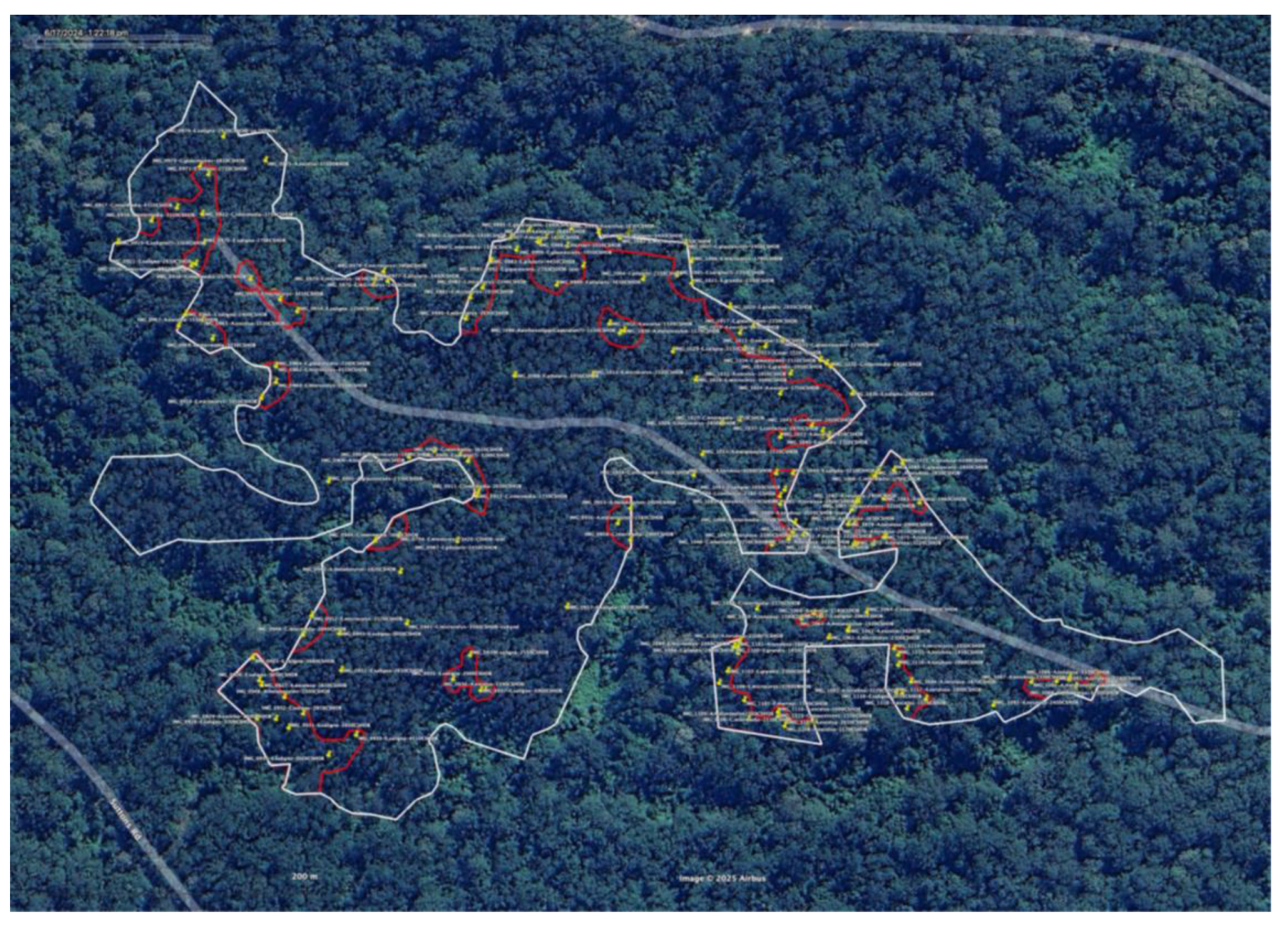

The area to the north of the compartment was cleared in 2015, but the sub-unit of 10ha investigated (Figure 14) is in excellent ecological condition, having been established in 1964, and has had only 1 partial thinning. Almost two hundred original, non-planted trees were identified, including old growth trees, and rainforest species. Well over half (ca. 6ha) is original forest. Rainforest species, Pink bloodwoods and Forest oaks are well-represented. Several large trees are within the area, including one Coastal blackbutt (E. pilularis) over 7m in circumference, around which a thriving mixed-species remnant survives. The area is zoned clearfall stage 1, thinning stage 2 and delayed thinning.

Compartment 12

The areas zoned Plantation in this compartment are a little over 14.5ha and were established in 1989 (Figure 15). There has been only one, partial thinning. Over 2ha of original forest exists inside the area zoned for wood production, and there are more than 180 trees designated for removal. The single largest remnant of 0.67ha is rainforest, with Jackwood, Pencil cedar (Polyscias murrayi) and a singular small Giant stinging tree (Dendrocnide excelsa). There are many large Forest oaks. Only compartment 12 has been comprehensively surveyed so far. The road was cleared in preparation for logging. The area is zoned Delayed thinning.

Compartment 18

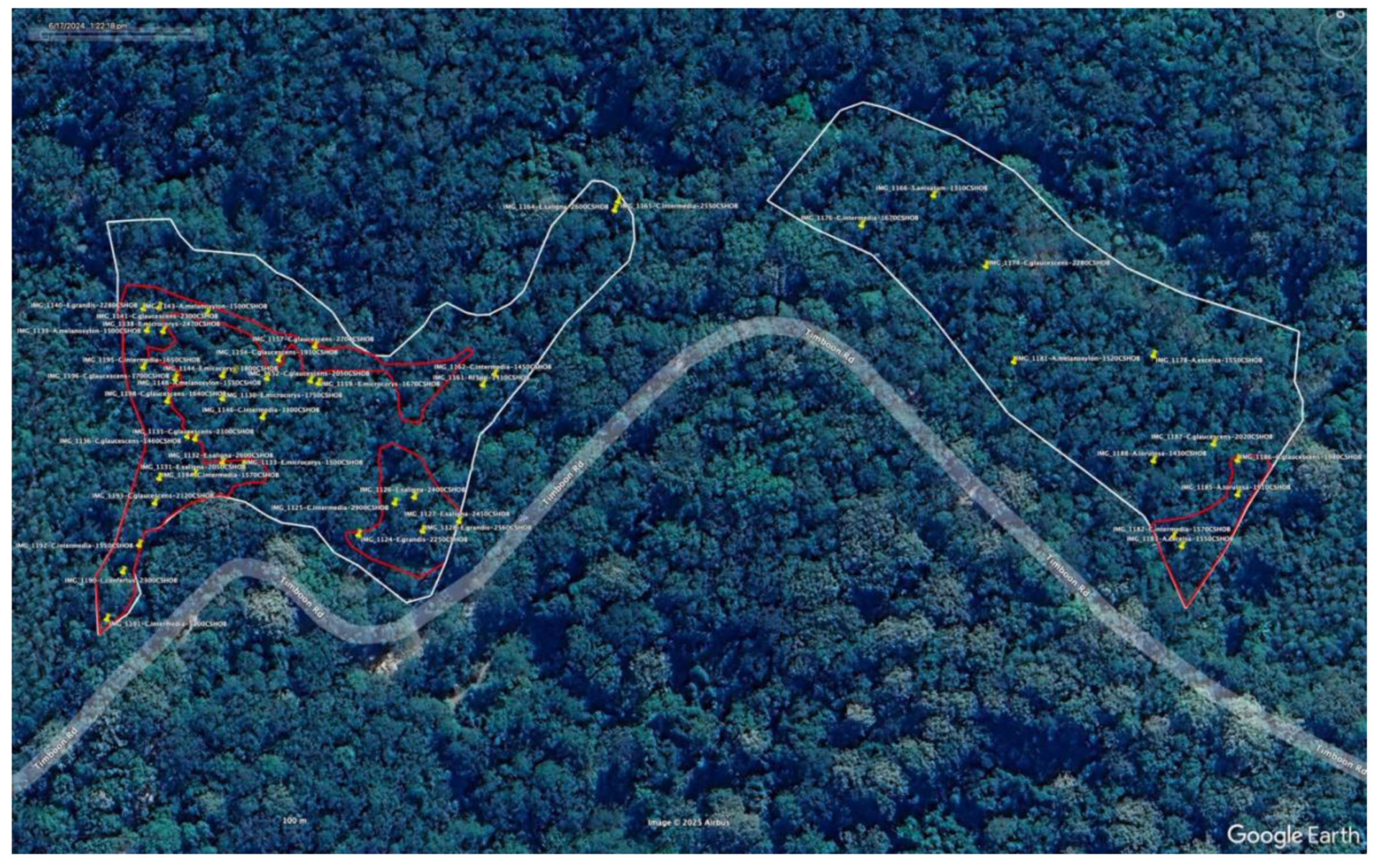

Two small subunits were investigated, comprising 1.44 and 1.37ha respectively (Figure 16). Both areas were part of a larger unit, recently re-configured, which dates to 1980. These have not been thinned.

The western area is particularly diverse, with several Jackwood (C. glaucescens) over 2m in circumference, as well as Brushbox (Lophostemon confertus) and Pink bloodwood. This area is not classifiable as plantation, even if plantation trees are in-planted; it is rainforest. Both areas are zoned delayed thinning.

3.2. Koala Scats and Sightings

Prior to recommencement of logging operations in Tuckers Nob SF, there were approximately 75 records for koalas in the NSW Government SEED database for this area. The sightings of koalas leaving compartments 26-27 during logging last year, and the annexation of adjacent forest in compartments 8-18, where fresh scats were found shaped a view by local residents, supported by their own experience, that the areas zoned plantation contained more koalas than the records suggested. Further ground investigations have now resulted in six new scat records, and 19 sightings – in only 120ha (Figure 17). Two additional sightings were in nearby areas zoned native forest.

Compartment 8

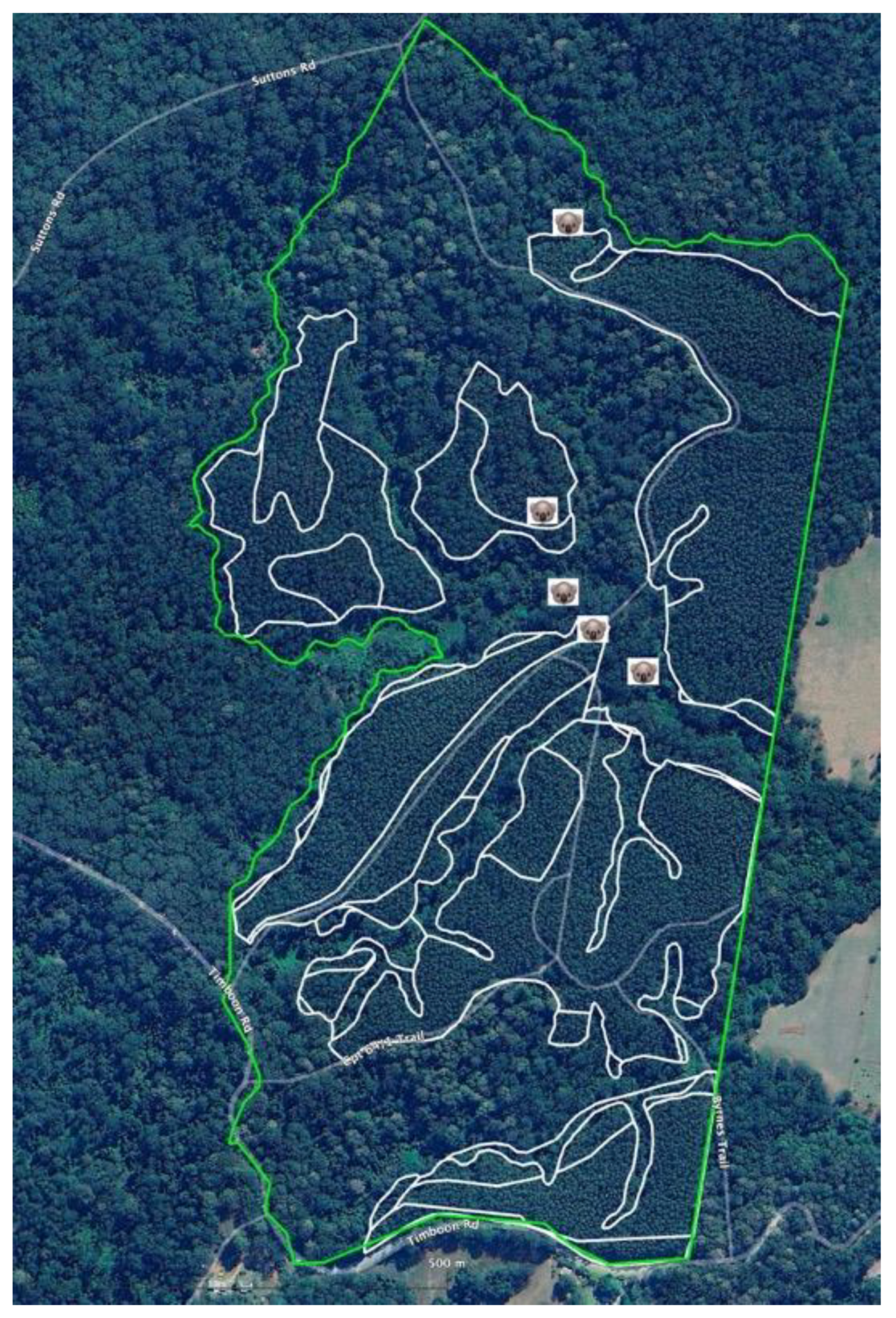

There are five SEED records for Compartment 8 (Figure 18), three in the survey area (of which one was in the area zoned plantation), all collected before clearfall operations in 2008. The area selected was comprehensively surveyed. No koalas were located during aerial drone surveillance. Two glider species, Squirrel glider (Petaurus norfolcensis) listed as vulnerable in NSW [22], and Feathertail glider (Acrobates pygmaeus) were sighted.

A flyover of the adjacent forest in Bindarri NP was also conducted for serendipitous sightings; there were none. The loss of suitable habitat may have impacted the population as a whole, including in the survey area (established 1992, not yet logged).

Compartment 10

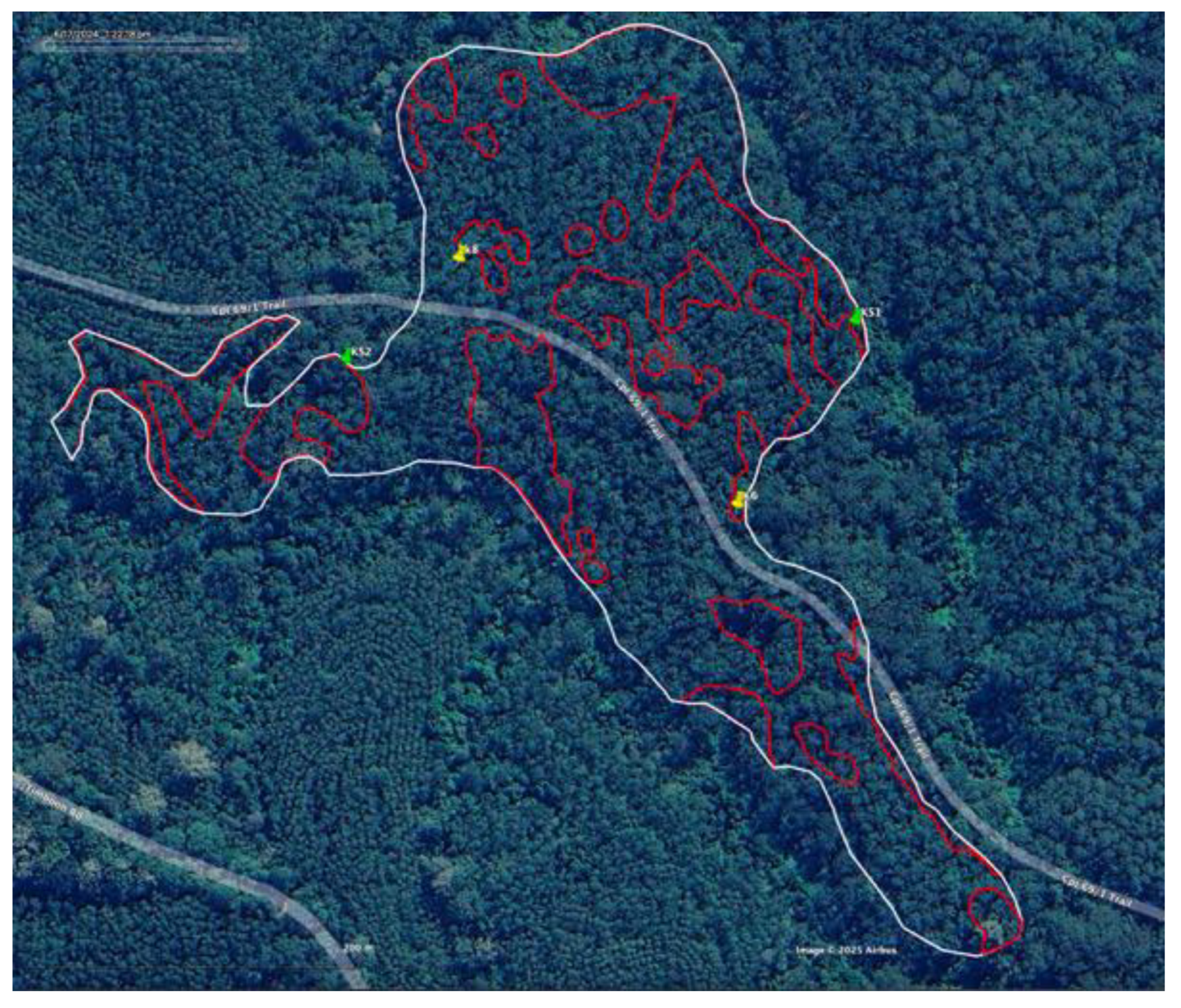

There is one SEED record for Compartment 10 (Figure 19). The selected area has not yet been comprehensively surveyed. Two scat records were found prior to the aerial drone survey work, both in areas annexed by FCNSW into the new plantation logging boundaries. Drone surveillance identified 10 koalas. With the exception of K11, all koalas, and scats, were located within the areas zoned for logging. This takes the number of koala records in compartment 10 (97.7 ha) from 1 to 13, i.e. from a ratio of 1 koala record per 98 ha to 1 per 7.5 ha.

It is to be noted that three of the four records collected for the comprehensively evaluated sub-unit in compartment 10 are in remnant forest; the fourth is close by (Figure 20).

Compartment 12

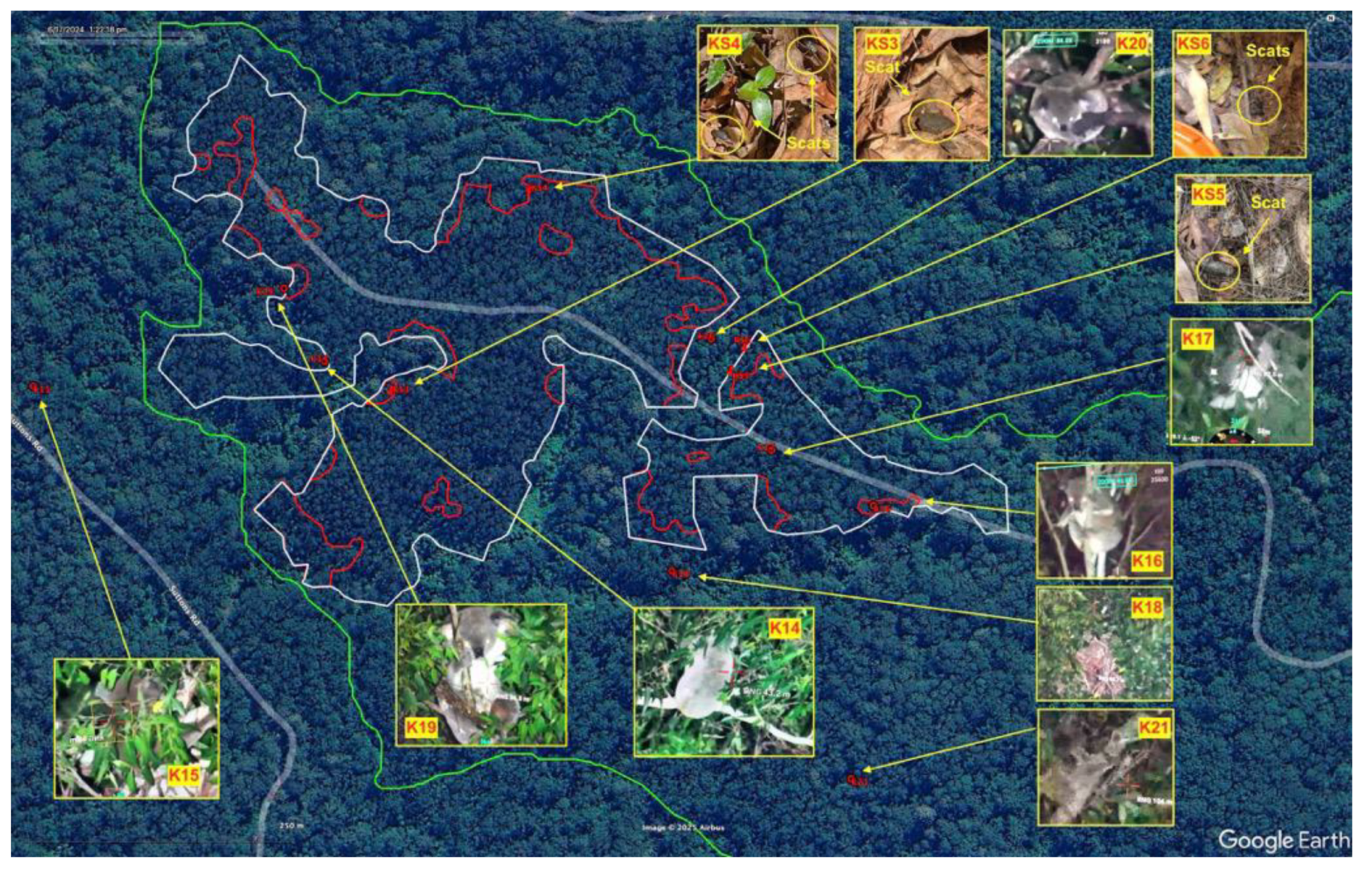

There are no SEED records for Compartment 12. The area selected was comprehensively surveyed (Figure 21). A small area to the south-east outside the authorised plantation was excluded.

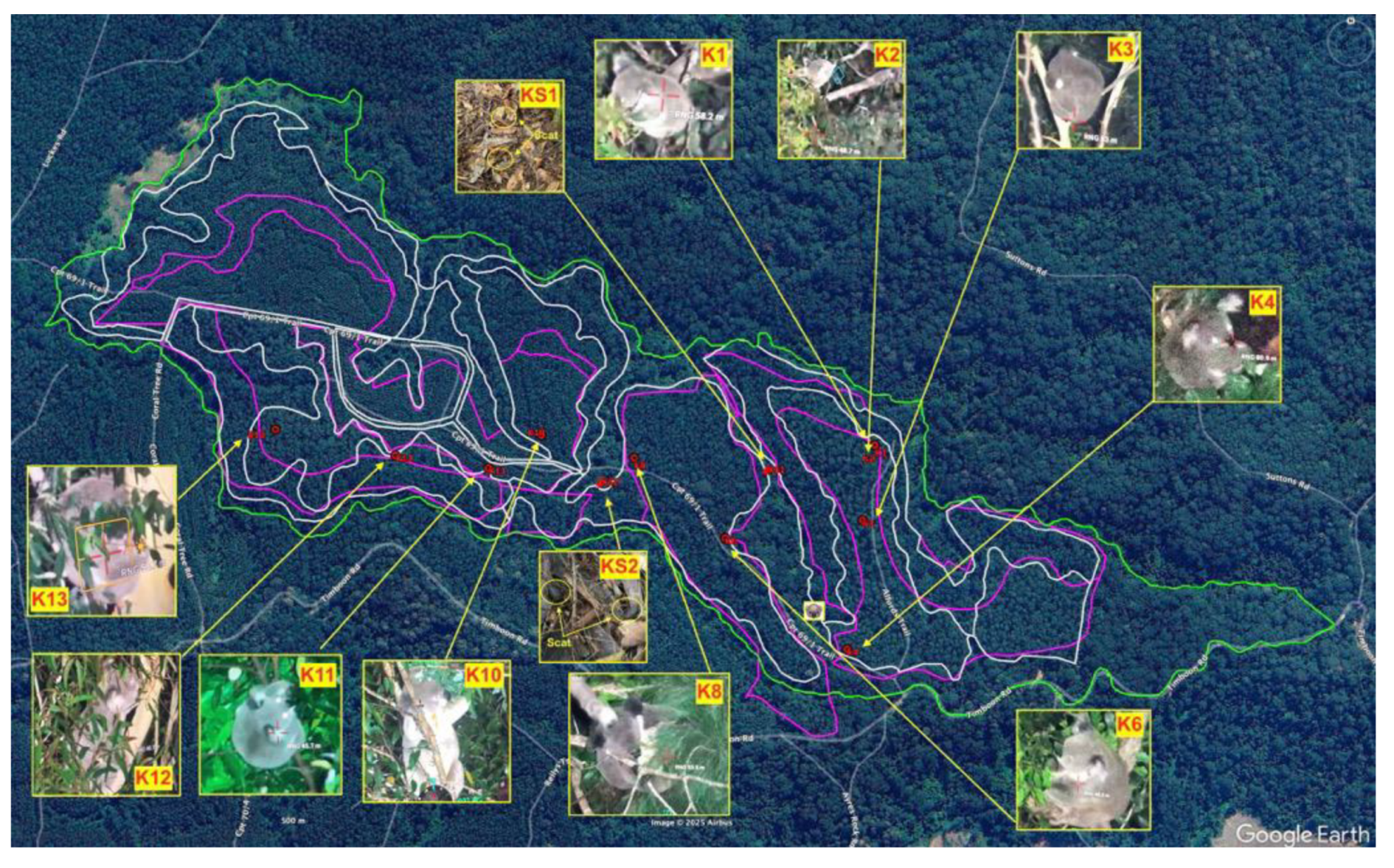

Drone surveillance identified nine koalas. Two were serendipitous sightings, one in the area zoned native forest within the compartment (K), and one in an adjacent compartment (11; K15), not yet fully surveyed. Two sightings were in the area zoned for logging (K16, K17), and four within the authorised plantation boundary (K14, K18, K19, K20).

One scat record was found prior to the aerial drone survey work (KS3), three subsequently (KS3, KS4, KS5, KS6) all within the proposed logging area.

This increases the number of koala records in compartment 12 (65.8 ha) from 0 to 11, i.e. a ratio of 1 koala record per 6ha; much higher if the area zoned plantation is taken as the baseline ratio (ca. 21 ha; i.e. one koala record per 2 ha).

Of note is the close, but not complete, association of koala records with remnant forest within the area zoned plantation. The scats were located under Tallowwood (KS4), Jackwood (KS4), and Forest oak (KS5, KS6), once again highlighting the importance of these species.

Compartment 18

There are no SEED records for Compartment 18 (79.9 ha; ca. 39 ha included in the survey area). The selected area had not yet been comprehensively surveyed at time of writing. No scats have been found to date (Figure 22).

Drone surveillance identified three koalas, one in the streamside buffer (K9), two on the edge of the previously retained vegetation (K5, K7) within the newly established plantation (2015), which is to be thinned.

This increases the number of koala records in compartment 18 (79.9 ha) from 0 to 3, i.e. a ratio of 1 koala per 27 ha.

4. Discussion

Our research has revealed hundreds of original trees, and numerous remnant forest areas located within compartments 8-18 in Tuckers Nob SF. A draft harvest plan operational map (HPOM) has been released. Only those patches of original forest and individual trees within the logging footprint have been included in the calculations. It is accepted that some original forest and individual trees have been set aside from logging, however, it is extremely concerning that some areas of FMZ5 featured in previous boundary data as being out of productive management (e.g. watercourses) have now been re-designated delayed thinning. There are many such areas rezoned in this manner on the HPOM. It is also a matter of concern that areas of original forest and individual trees ‘swapped out’ of production have also been ‘swapped in’ by replacement trees and areas because of boundary adjustments. Several of these locations were identified as koala habitat during investigations.

The areas zoned plantation in Tuckers Nob contain koala numbers which are at least on a par with, and in some instances (e.g. compartment 12), exceed the native forest currently under assessment for inclusion in the proposed park.

There is a correlation between koalas, original trees and remnant forest. However, it should also be noted that the presence of koalas on the edge of plantations indicates a preference for a diverse mosaic of forest ages, and, given the evidence of the number of scats, an interest in rainforest species. The regular sighting of koalas near the intersection between remnant and plantation or re-growth has been observed also in Victorian Blue gum plantations [23]. The sighting of a koala eating Forest oak is rare and highlights the importance of this tree (which is often classed as ‘ingrowth’ by FCNSW and cleared), for local koala populations. The disappearance of koalas in the area surveyed in compartment 8, is possibly associated with recent clearing, and the low numbers in compartment 18, by comparison to compartments 10 and 12, should be a source of concern; indeed, [24] argue that in such sensitive areas, cessation of timber harvesting is a priority. Instead, such areas should be excluded from forestry and instead be considered as essential koala habitat.

Further survey work needs to be completed, and if possible expanded, to confirm these initial findings.

5. Conclusions

We investigated the assertion that hardwood plantations may increase the value of koala habitat in metapopulations of the GKNP and found that the value of plantations as koala habitat rests on the extent of the koala habitat within it and the degree of disturbance it has experienced. Our results indicate that koala populations within a plantation are likely to function at a landscape level by using a mosaic of vegetation plots of different ages. As the example of our investigation into the koala habitat in the Tuckers Nob shows, it is of concern that many areas zoned hardwood plantations in NSW are likely plantations in name only, and even if planted, contain very high numbers of original trees, and multiple patches of surviving remnant forest which existed before establishment of the plantations. The older the plantations, the more diverse the species (both planted and surviving) and the higher the number of koalas; the younger, the less diverse and more disturbed, and the lower their numbers.

It is rational that an animal that spends much of its time in trees, obtains most of its water from leaves, and prefers forest areas on fertile soils, would find the older plantations of Tuckers Nob, established on previously cleared moist lowland coastal forests and rainforests, attractive. It is essential to take this into consideration during any assessment process and exclude such areas from harvesting while assessments are not completed. In the absence of properly funded and executed government surveys, support from citizen scientists and community groups in such assessments is of vital importance.

We urge stakeholders to prioritise defining the term sustainable plantations otherwise we risk that the extinction of koalas is exacerbated. We need to rethink how plantations are managed and where these are located in relation to existing koala habitat.

6. Recommendations

We encourage undertaking further survey work across the plantations within the proposed GKNP as a matter of urgency to determine the extent to which our findings are borne out in other areas zoned plantation and for the inclusion of all areas with high koala habitat value into the proposed park. A moratorium on logging pending the outcome of additional surveys and a review of current management of these areas which include the annexation, clearing and conversion of koala habitat in the plantation estate by the Forestry Corporation of NSW.

Involvement of citizen scientists in koala and koala habitat monitoring is to be encouraged, especially in the absence of properly funded and executed government surveys.

A meaningful definition of the term sustainable plantation management developed in consultation with all stakeholders is needed, otherwise there is a risk that the extinction of koalas will be exacerbated.
