Accuracy of 3D Ground Radio Station Location by a Single Unmanned Aerial Vehicle (UAV) as a Function of an Increasing Number of Received Signal Strength Indicator (RSSI) Measurements

1. Introduction

Recently, we can observe a significant increase in the usefulness and effectiveness of using small and, at the same time, relatively inexpensive UAVs and small drone systems (sUAVs) in the implementation of civil and military tasks (e.g. science, ecology, agriculture, transport, communication, reconnaissance, defense and attack [1,2,3,4,5,6,7]. At the same time, note that the development of countermeasure systems (and the increasing range of effective operation of these devices and systems) forces the verification of the method of carrying out missions by small UAVs, including reconnaissance missions. Not all previously used methods to increase the accuracy of localizing the position of the radio signal source are applicable in the special conditions (e.g. locating the position of a radio signal source in an inaccessible, new or even hostile area). In this context, the possibility of collecting a large number of bearings at a considerable distance from its source takes on a new meaning and may be the basis for changing the method of carrying out the task of localizing the source of the radio signal.

Cheap, commercially produced UAVs that are easily available and easy to operate also enjoy growing popularity. Here, it is worth mentioning the following applications as an example:

• Support of radio network coverage (retransmission points);
• Temporary communication in crisis areas (voice communication, access to databases);
• Infrastructure, border inspection tasks, and intelligence gathering;
• Crop Management;
• Terrain Monitoring, Mapping, and Cartography.

The rapid development of artificial intelligence [8,9,10] and tools (HDR and SDR) that allow the autonomous operation of these UAVs [11,12] is also significant in the area discussed.

The control of space at low altitudes above ground is becoming particularly popular and usefull due to the rapidly growing number of UAVs performing tasks in these spaces. This also results in the need for 3D localization and is the starting point for the construction of e.g. automated defense systems, especially in the conditions of the expected significant number of small UAVs and the expected quick reaction of the defense system.

This article attempts to assess the potential degree of increasing the accuracy of localizing the position of the radio signal source in 3D space as a function of the growing number of Reference Points (RP, number of RSSI measurement points performed by the UAV during the flight (up to hundreds)), assuming that the executive device is a COTS UAV using Range-Based methods. The contribution of this article to the field of technical knowledge is as follows:

• The concept of using cheap COTS UAVs with a simple antenna system and low computing power to implement the function of locating radio signal sources (own and/or foreign);
• Proposal for implementing the locating function while simultaneously implementing other tasks, such as those related to ensuring e.g. the connectivity of one’s own radio network;
• Assessment of the scope of application effectiveness of using Kalman filtering to smooth RSSI sample level fading;
• Comparative assessment of the potential for increasing locating accuracy as a function of the increase in the number of RSSI measurement points performed during the UAV flight;
• Opening a discussion on the prospect of using traditional, expensive (usually stationary) radio direction finders.

The next chapter reviews the literature on the subject, after which the assumed network structure is presented. In Chapter 4, the assumptions for the radio channel model are briefly presented, and in Chapter 5, the tested localization methods are characterized. The results of the simulation evaluation are collected in Chapter 6.

2. Related Works

The issue of locating the position of a radio signal source is generally a major technical task. The most popular application area on the civilian market is, of course, mobile telephony, where organizational and technical conditions have influenced the use of popular subscriber location methods such as Time of Arrival (TOA), Time Difference of Arrival (TDOA), Angle of Arrival (AoA) and Phase of Arrival (POA, [10,13,14]).

In [15], a methodology for locating mobile phones based on crowd-sensing and RSS measurement was proposed. The authors of [16], as a result of the conducted experiment assessing the accuracy of locating the source using the TDoA, AoA and RSS methods used simultaneously, prove the advisability of increasing the number of sensors. However, it should be noted that in the discussed experiment, due to the nature of the system, the number of these sensors was relatively small (up to 9). An interesting approach to increase the accuracy and speed of source localization may be the cooperative approach, based on a group of UAVs (e.g. [17]). However, this issue is beyond the scope of this article. In [18], the authors investigated the effectiveness of source localization based on RSS in multipath conditions, using an HMM model within a Bayesian learning framework for signal processing. However, the solution requires relatively high computing power. In the conditions of dynamic operations, we cannot assume the availability (validity) of spectral maps, the creation of which was assumed in [19,20]

From the above it can be concluded that simple Range Based localization methods, based on the analysis of the received signal strength indicator (RSSI, e.g. [21,22,23]) are still in the spectrum of interest.

Despite the obvious lower accuracy of such a method, the advantage is the possibility of using simple antenna systems and the low computing power of the analysis systems. This is the situation we encounter in practice in the dynamically developing applications of relatively cheap, commercial sUAVs performing tasks at low altitudes (approx. 100 m above ground level (AGL)). An increase in source location can be obtained by filtering the recorded RSS and/or increasing the number of measurement points, which in the case of UAVs is a relatively easy task ( [24,25]).

In the author’s earlier studies, an attempt was made to assess the degree of increasing the accuracy of the radio signal source position assessment in the channel in 2D space by assessing the potential for increasing the accuracy of selected RSSI-based methods, depending on the selected method, at a level of up to 10 times.

3. The Network Structure

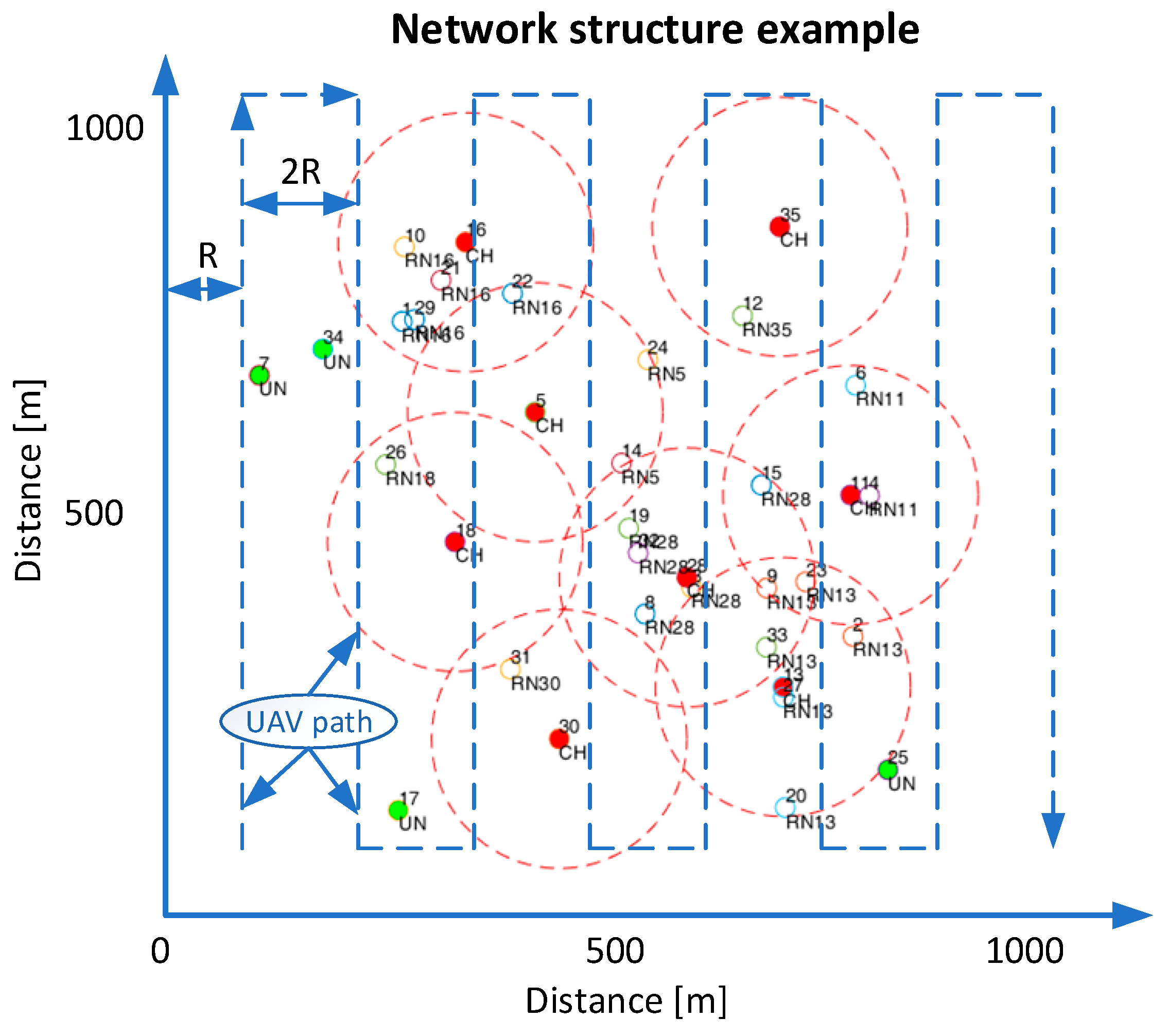

The effectiveness of increasing the number of RPs in the 3D space Rice channel, which was parameterized according to the literature recommendations, e.g. [26,27]. The network structure is shown in Figure 1.

The UAV route, which supports the radio network, has been planned to ensure full connectivity of the structure of ground nodes (connectivity=1, [28]). It is worth noting that the UAV does not directly and exclusively perform the task of tracking the position of the radio signal source. This task is performed “by the way” to the implementation of another goal, and therefore the UAV route is not optimized to minimize the value of the location error. The drone is moving around the area of a square with a side of L=1000m.

4. The Radio Channel Model

When analyzing channel models suitable for low-flying UAVs, with typical suburban and rural development, the most appropriate may seem to be the Rice dispersive channel model [27], in which, in addition to the reflected paths, there is a dominant direct path (LOS, e.g. [29]). In such conditions, the signal fading depth is moderate.

The Rice channel is defined by 2 parameters:

• The factor K reflecting the ratio of the direct path power to the sum of the reflected path powers (the higher the value, the smaller the depth of the fading): $K={\displaystyle \frac{{\vartheta }^2}{2{\partial }^2}}$.
• The total value of the received power as $\mathsf{\Omega }={\vartheta }^2+2{\partial }^2$.
  Hence, the power of the received and reflected signal will be written as follows:

  $${\vartheta }^2={\displaystyle \frac{K}{1+K}}$$

  (1)

  $${\partial }^2={\displaystyle \frac{\mathsf{\Omega }}{2\left(1+K\right)}}$$

  (2)

  and the probability density function as:

  $$f\left(x\right)={\displaystyle \frac{2\left(K+1\right)x}{\mathsf{\Omega }}}\exp \left(-K-{\displaystyle \frac{\left(K+1\right)x^2}{\mathsf{\Omega }}}\right)I_0\left(2\sqrt{{\displaystyle \frac{K\left(K+1\right)}{\mathsf{\Omega }}}x}\right).$$

  (3)

Based on the analysis conducted by [30], the suburban and rural terrain and the $\mathit{K}=\mathbf{14}$ coefficient were assumed.

The Doppler shift was neglected in the channel model, assuming that the UAV movement speed is low. The antenna pattern was also not analyzed, assuming its omnidirectional pattern.

5. Location Methods

A brief description of the following Range-Based localization methods will be presented below: Min-Max, Least-Squares and Nonlinear Regression.

5.1. Min-Max

The Min-Max method has been described e.g. in [31,32]. It involves collecting RSSI levels from RPs located at positions $\left({\mathit{x}}_{\mathit{i}}, {\mathit{y}}_{\mathit{i}}\right)$ where $\mathit{i}$ refers to the position number. Each RSSI value is then converted into a distance from the signal source, ${\mathit{d}}_{\mathit{i}}$, using a specific path attenuation equation. Subsequently, for each ${\mathit{d}}_{\mathit{i}}$, squares (in 2D scenario) within the circles of the estimated ranges are defined. The source’s position is assumed to be at the center of the common area bounded by ${\mathit{x}}_{\mathit{m}\mathit{i}\mathit{n}}, {\mathit{x}}_{\mathit{m}\mathit{a}\mathit{x}}, {\mathit{y}}_{\mathit{m}\mathit{i}\mathit{n}}, {\mathit{y}}_{\mathit{m}\mathit{a}\mathit{x}}$.

5.1.1. Min-Max Localization Method for 3D Space and 3 RP

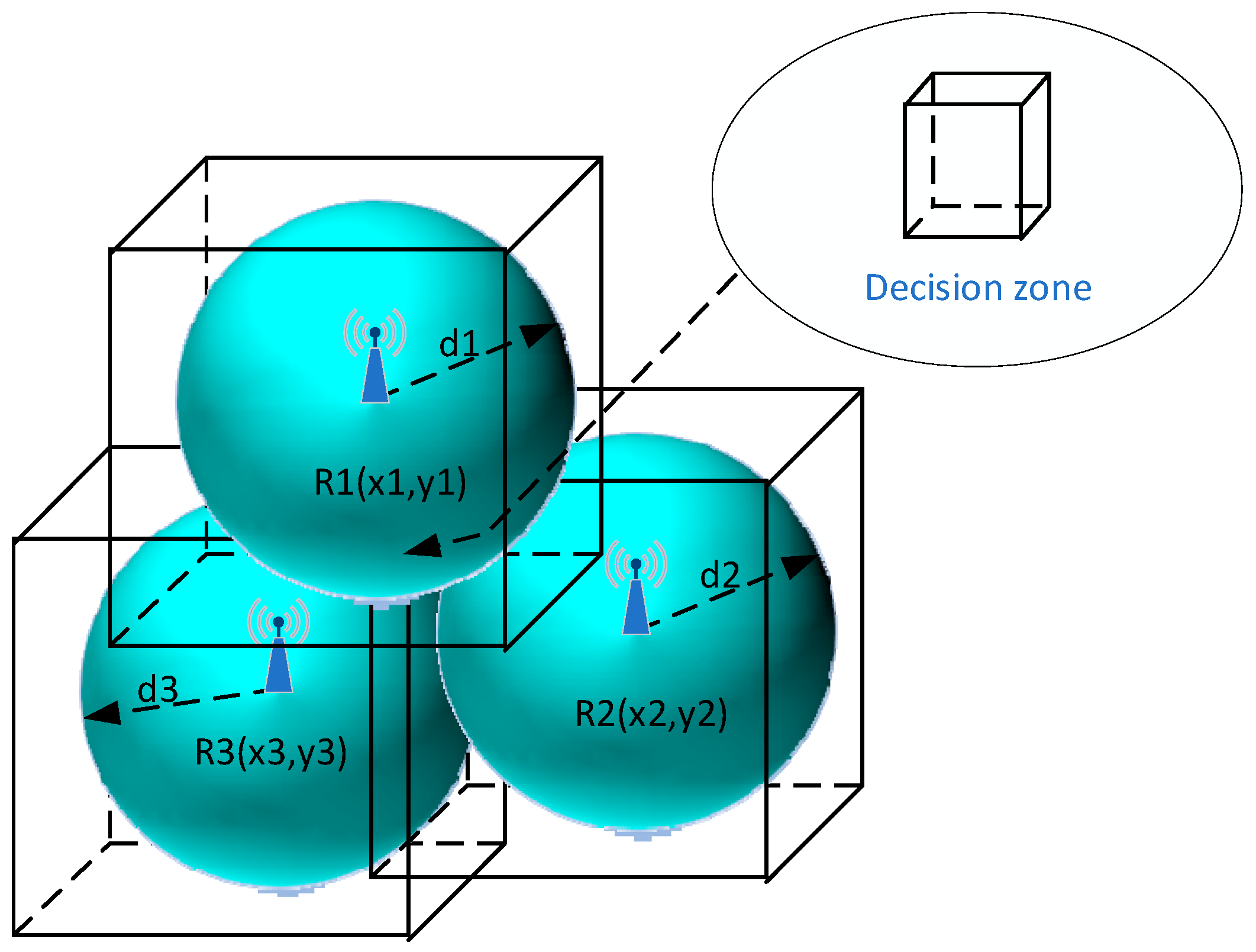

For 3D and 3 reference points, it can be expressed in equations 4-9. The center of this common area $\left({\mathit{x}}_{\mathit{t}},{\mathit{y}}_{\mathit{t}}, {\mathit{z}}_{\mathit{t}}\right)$is determined by equations 10 – 12 (Figure 2).

$$x_{min}=\max \left(x_1-d_1, x_2-d_2, x_3-d_3\right)$$

(4)

$$x_{max}=\min \left(x_1+d_1, x_2+d_2, x_3+d_3\right)$$

(5)

$$y_{min}=\max \left(y_1-d_1, y_2-d_2, y_3-d_3\right)$$

(6)

$$y_{max}=\min \left(y_1+d_1, y_2+d_2, y_3+d_3\right)$$

(7)

$$z_{min}=\max \left(z_1-d_1, z_2-d_2, z_3-d_3\right)$$

(8)

$$z_{max}=\min \left(z_1+d_1, z_2+d_2, z_3+d_3\right)$$

(9)

$$x_t={\displaystyle \frac{\left(x_{min}+x_{max}\right)}{2}}$$

(10)

$$y_t={\displaystyle \frac{\left(y_{min}+y_{max}\right)}{2}}$$

(11)

$$z_t={\displaystyle \frac{\left(z_{min}+z_{max}\right)}{2}}$$

(12)

5.1.2. Min-Max Localisation Method for 3D Space and Multiple RP

In the case of multiple RPs, we can rewrite equations 4-9 in the form 13-18 accordingly.

$$x_{min}=\max \left(x_1-d_1, x_2-d_2, x_3-d_3, \dots , x_n-d_n\right)$$

(13)

$$x_{max}=\min \left(x_1+d_1, x_2+d_2, x_3+d_3, \dots , x_n+d_n\right)$$

(14)

$$y_{min}=\max \left(y_1-d_1, y_2-d_2, y_3-d_3, \dots , y_n-d_n\right)$$

(15)

$$y_{max}=\min \left(y_1+d_1, y_2+d_2, y_3+d_3, \dots , y_n+d_n\right)$$

(16)

$$z_{min}=\max \left(z_1-d_1, z_2-d_2, z_3-d_3, \dots , z_n-d_n\right)$$

(17)

$$z_{max}=\min \left(z_1+d_1, z_2+d_2, z_3+d_3, \dots , z_n+d_n\right)$$

(18)

The center of the common region $\left(\widehat{{\mathit{x}}_{\mathit{t}}}, \widehat{{\mathit{y}}_{\mathit{t}}}, \widehat{{\mathit{z}}_{\mathit{t}}}\right)$is defined as above by equations 10, 11 and 12. The location error for a single pass with n RP can be written as:

$$Est.Pos. Error=\sqrt{{\left(x-\widehat{x_t}\right)}^2+{\left(y-\widehat{y_t}\right)}^2+{\left(z-\widehat{z_t}\right)}^2},$$

(19)

where x,y,z – the actual coordinates of the signal source.

For many measurement repetitions $n$ (many passes and channel realizations), the average position location error will be written as:

$$Est.Pos. Error={\displaystyle \frac{{{\displaystyle \sum }}_{l=1}^n\sqrt{{\left(x-\widehat{x_i}\right)}^2+{\left(y-\widehat{y_i}\right)}^2+{\left(z-\widehat{z_l}\right)}^2}}{n}},$$

(20)

5.2. Multilateration

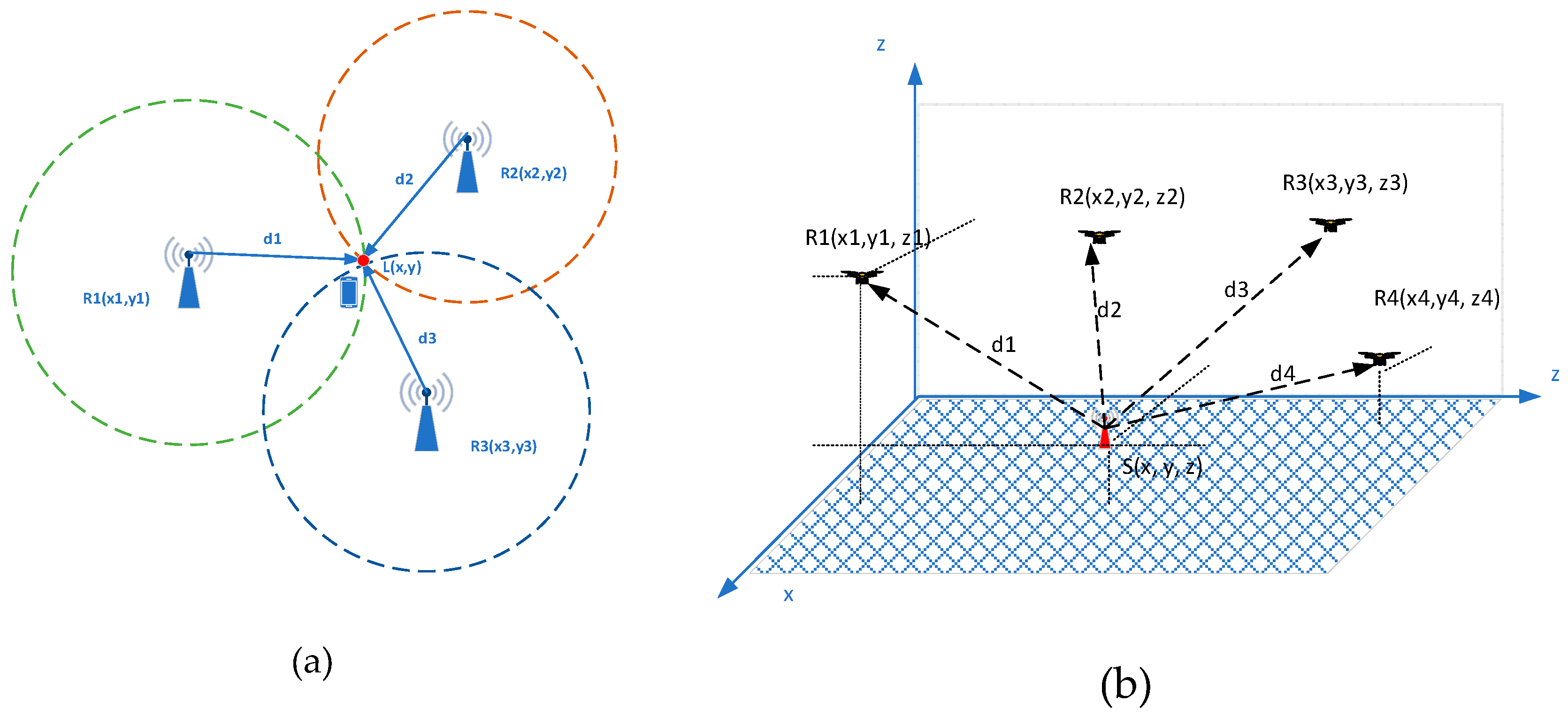

The mathematical foundations of several Range-Based localization methods for the 2D space are described in [32]. At this point, it is worth defining the method of multi-point estimation of the emitting source position in a 3D space. To obtain comparative results, the so-called COmplexity-reduced 3D trilateration Localization Approach ((COLA), [33] adapted to the multipoint case was chosen. In the simulation model, Anchor Points $\left({\mathit{x}}_{\mathit{i}}, {\mathit{y}}_{\mathit{i}}, {\mathit{z}}_{\mathit{i}}\right)$ were assigned to the UAV positions at the RP and the estimated distance from the signal source ${\mathit{d}}_{\mathit{i}}$. was assigned to each of these positions accordingly. In Figure 3, for clarity, the described situation is shown in the example of 3 RP.

5.3. Nonlinear Regression

Nonlinear Regression (NR) is a method used to find a nonlinear model that describes the relationship between a dependent variable and a set of independent variables. Unlike traditional linear regression, which only estimates linear models, Nonlinear Regression can estimate models with complex relationships between the variables. This is done using iterative estimation algorithms. For these algorithms to work correctly, it is crucial to accurately define the function representing the relationship and to choose appropriate initial values.

In essence, Nonlinear Regression fits a curve or line to a dataset by creating a function that matches an equation to the data. The model’s fitness is assessed by calculating the sum of squares, which measures the differences between the mean and each data point. The goal is to minimize the sum of squares using iterative numerical methods. The principle of least squares is applied to achieve the most accurate parameter estimates by quantifying how much each observation deviates from the mean of the data set.

In this context, the MATLAB Nonlinear Regression function was utilized to estimate the location of the radio signal source. The model function modelfun = @ (P, A) (abs (P (1) -A (:, 1)).^ 2 + abs (P (2) - A (:, 2)).^ 2+abs (P (3) - A (:, 3)).^ 2).^ (1/2) , and the starting point for finding the optimal solution (the position of the target station) was established at the center of the monitored 3D area (P0 = [500, 500, 50], A is the UAV position vector). To minimize the model error, the ‘fitnlm’ function was used [34].

6. Simulation Results

6.1. System Parametrization

Figure 4 shows the most important conditions and scope of the simulation, while basic information on the parameterization of the simulation model is presented in Table 1. The Tracking Base (TB) value informs about the distance between subsequent measurements recorded by the UAV. The effect of changing this value was analyzed during previous studies [32]. Here, the studies were conducted by averaging the results for 4 different UAV flight radii R (Figure 1) and for 100 random channel realizations. Two variants of the flight altitude were assumed: the case in which the UAV flies at a constant height of H=100m AGL along the route marked in Figure 1 with a dashed line, and the case when the UAV evenly changes its height in the range from 0 to 100m AGL. RSSI measurements are collected with a discreteness of 10m (Tracking Base). In the case of the Rice channel, the option of filtering the signal measured with the Kalman filter was also used.

6.2. Results

6.2.1. FSPL Channel

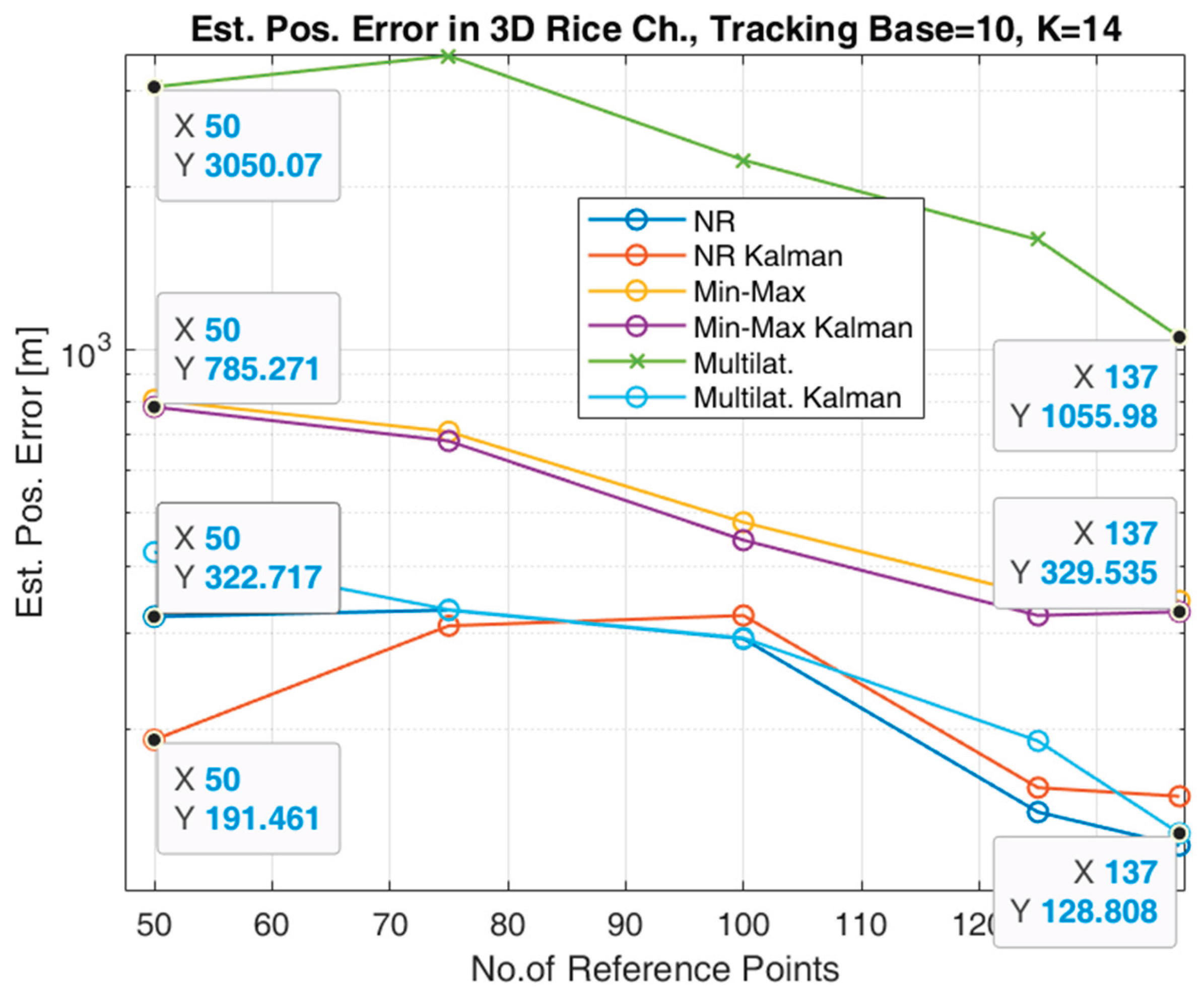

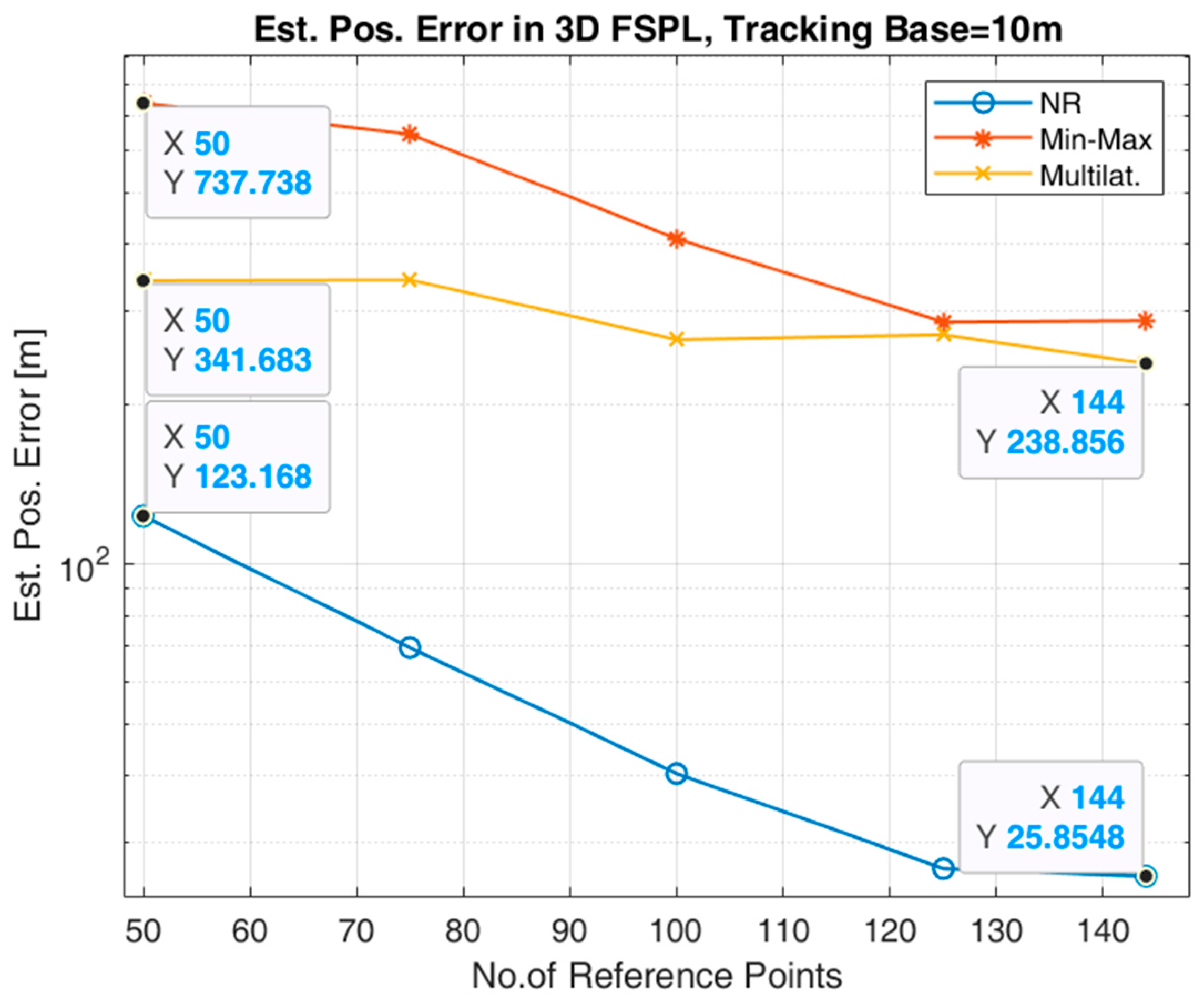

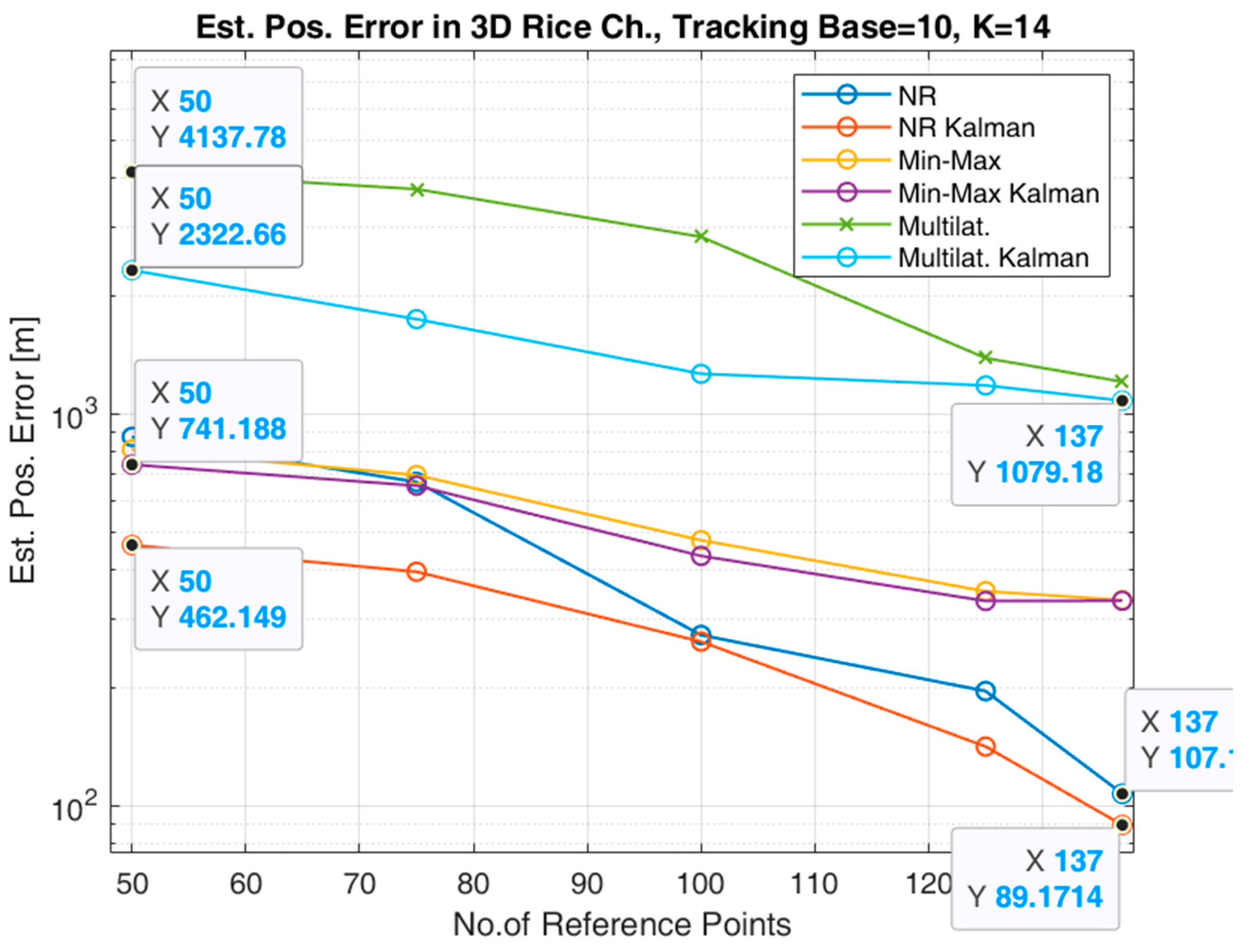

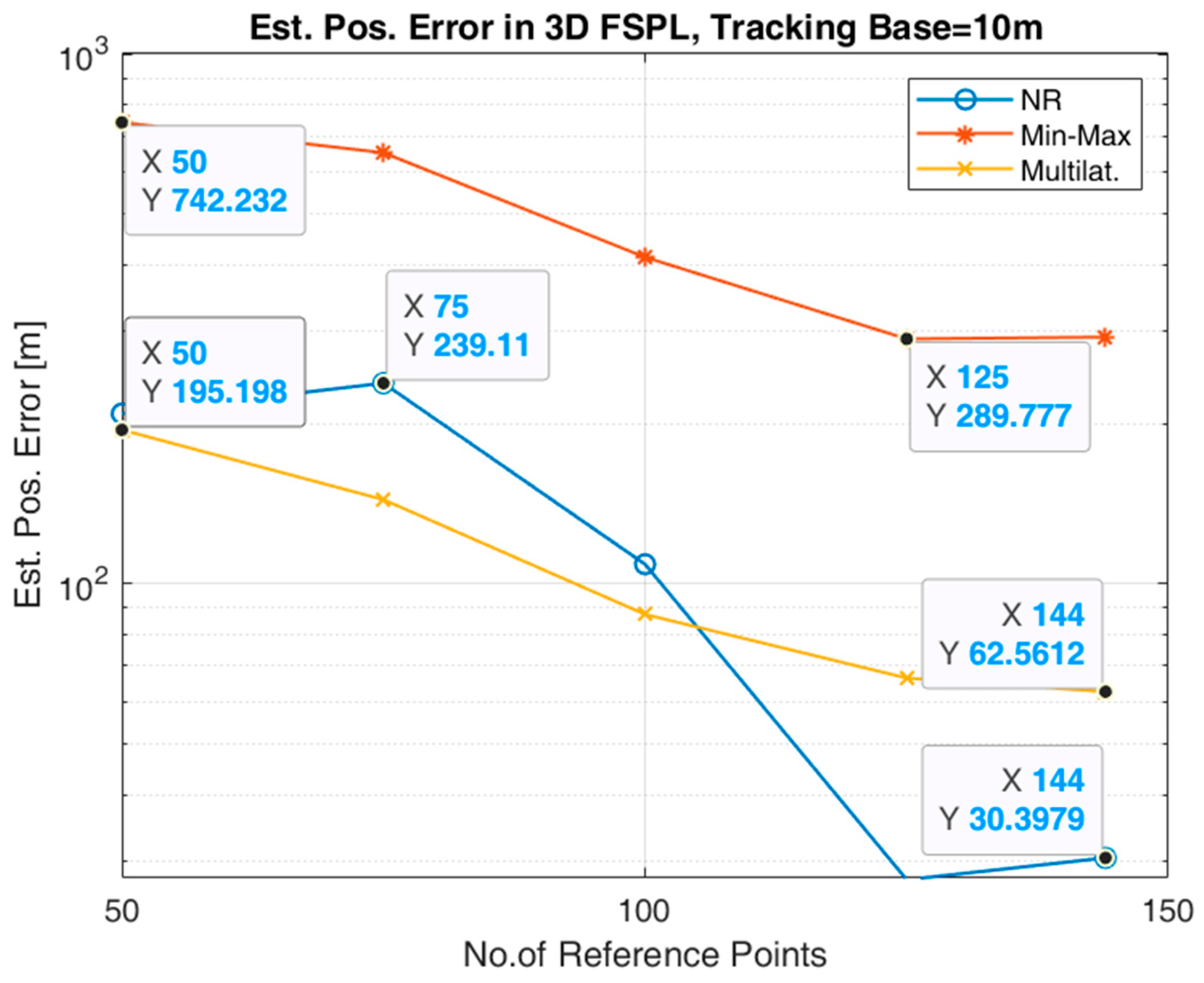

The simulation results for the FSPL channel (comparative plots) and for the Rice channel are presented in Figure 5, Figure 6, Figure 7 and Figure 8.

Analyzing the results for the FSPL channel, it can be seen that depending on the localization method, one can count on improving its accuracy by about 2 to 6 times. For the FSPL channel, no significant dependencies of the results on whether the UAV moved at a constant height or whether this height was variable were observed.

6.2.2. Rice Channel

In the case of the Rice channel, an improvement in localization accuracy can be observed as a function of the increasing number of bearing points, depending on the localization method, in a ratio of 2 to 5, so slightly worse than for the FSPL channel. It can also be stated that the filtering of the received signal is applicable for a small number of RP, i.e. with their increasing number, the result analysis systems can be simplified.

7. Discussion

This study is closely related to the author’s earlier work on determining the route of a simple, multirotor UAV performing the task of ensuring the connectivity of the radio communication network. This type of UAV, while performing measurements of the level of radio signals, can simultaneously perform other functions which are related to, for example, spectrum monitoring and, in this case, locating unidentified signal sources. The results of the locating accuracy presented above should not be assessed directly (as an absolute value) because the study does not consider the features and method of operation of UAVs typical for the implementation of locating tasks. Hence, it is only necessary to pay attention to the percentage (multiple) gain in increasing the locating accuracy under the assumed conditions. The task of maximizing the locating accuracy may use additional technical procedures (e.g. AI-based filtering, model calibration, UAV network and data fusion) and organizational procedures (e.g. UAV network, position patterns, established UAV routes [35,36,37,38]).

8. Conclusions

The conducted assessment of the potential degree of improvement of the accuracy of localizing the radio signal source in 3D space as a function of the increasing number of Reference Points was carried out using the simulation method. It was assumed that the COTS UAV performs a mission at an altitude of up to 100 m AGV, realizing the bearing using the Min-Max, Multilateration, and Nonlinear Regression methods. The assessment was made by assuming the Rice propagation channel with optional Kalman filtering. It is estimated that with the increase in the number of measurement points, one can count on a several-fold increase in localization accuracy, and the use of Kalman filtering is helpful especially with a small number of the Reference Points. Among the studied, the nonlinear regression method is the most promising for use in various scenario conditions. Another promising research area in this field is the evaluation of the effectiveness of artificial intelligence algorithms in the filtration process of channel distortions.
