Submitted:
30 June 2025
Posted:
02 July 2025
You are already at the latest version
Abstract
Keywords:
1. Introduction
Reconstructability Analysis
Study Objectives

2. Methods

2.1. GIS Data Preparation and Multi-Scale Spatial Processing

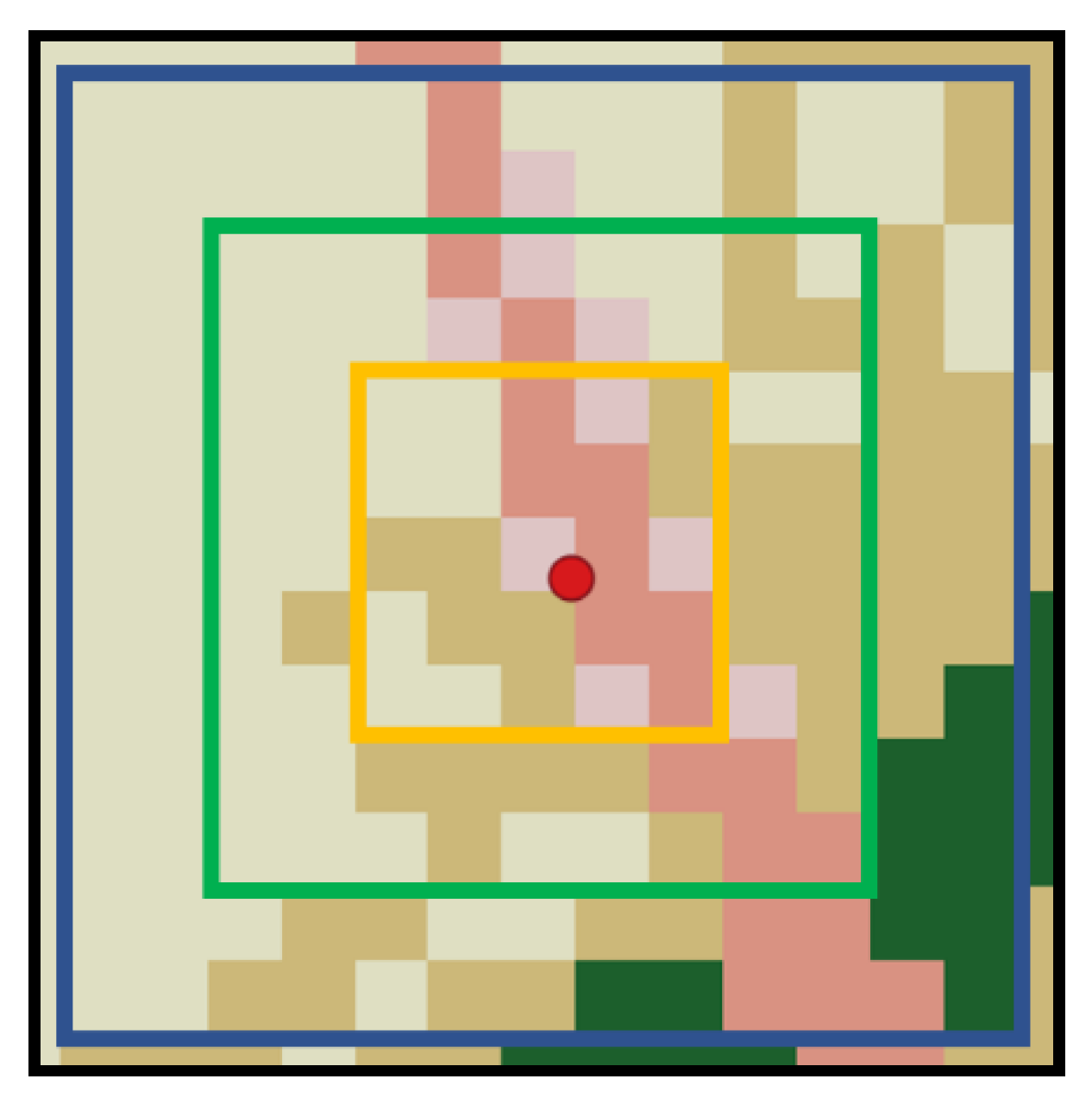

- Inner Ring: 3×3 and 5×5 pixel neighborhoods (30 – 60m), capturing immediate fuel conditions at the ignition site (Finney et al., 2005)
- Middle Ring: 7×7 and 9×9 pixel neighborhoods (90 – 120m), representing the zone where initial fire establishment typically occurs (Balch et al., 2013)
- Outer Ring: 11×11 and 13×13 pixel neighborhoods (150 – 180m), encompassing potential ember spotting distances and broader landscape context (Dillon et al., 2011; Westerling, 2016)

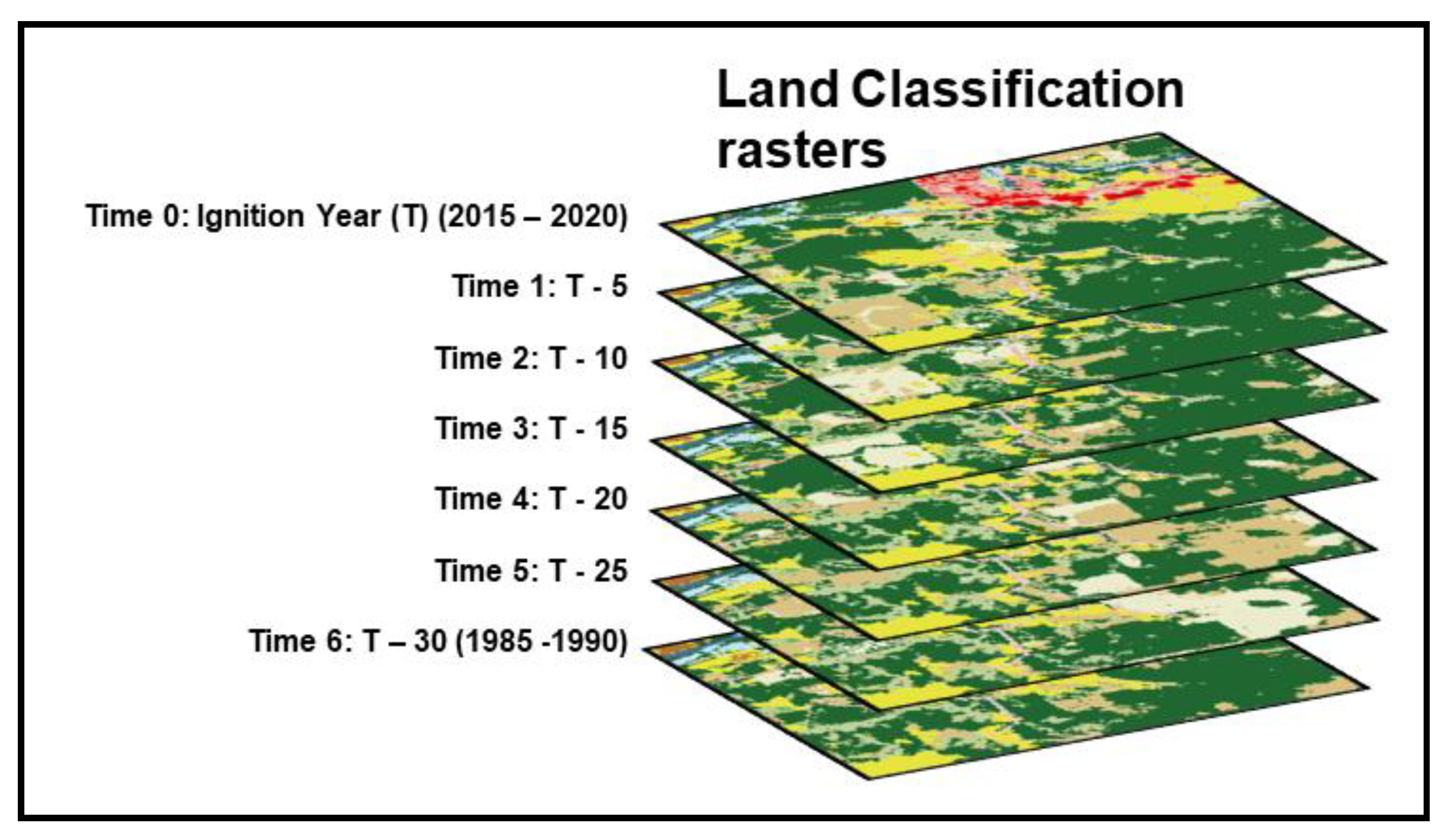

| Time layer | Inner Ring Dominant & SubDominant | Middle Ring Dominant & SubDominant | Outer Ring Dominant & SubDominant |
| T- 0 (time of ignition) | In_0_Dom, In_0_Sub | Mid_0_Dom, Mid_0_Sub | Out_0_Dom, Out_0_Sub |
| T – 1 (5 year lag) | In_1_Dom, In_1_Sub | Mid_1_Dom, Mid_1_Sub | Out_1_Dom, Out_1_Sub |
| T – 2 (10 year lag | In_2_Dom, In_2_Sub | Mid_2_Dom, Mid_2_Sub | Out_2_Dom, Out_2_Sub |
| T – 3 (15 year lag) | In_3_Dom, In_3_Sub | Mid_3_Dom, Mid_3_Sub | Out_3_Dom, Out_3_Sub |
| T – 4 (20 year lag) | In_4_Dom, In_4_Sub | Mid_4_Dom, Mid_4_Sub | Out_4_Dom, Out_4_Sub |
| T – 5 (25 year lag) | In_5_Dom, In_5_Sub | Mid_5_Dom, Mid_5_Sub | Out_5_Dom, Out_5_Sub |
| T – 6 (30 year lag) | In_6_Dom, In_6_Sub | Mid_6_Dom, Mid_6_Sub | Out_6_Dom, Out_6_Sub |
Elevation, Ignition Cause, and Season Variables
2.2. Dependent Variable Construction

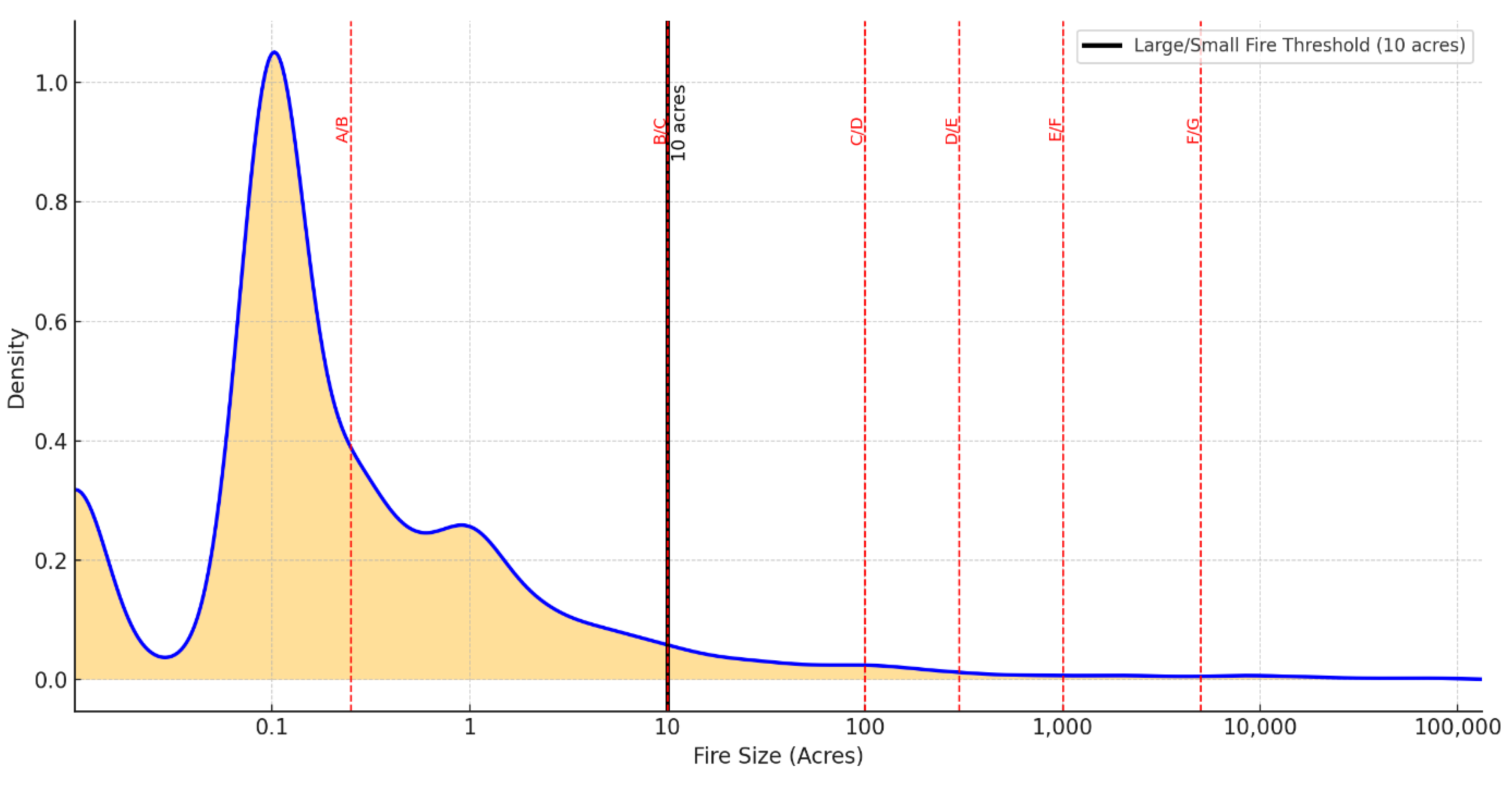

| Fire Class | Size Range (Acres) | Number of Fires |
| A | 0–0.25 | 4,692 |
| B | 0.26–9.9 | 1,825 |
| C | 10–99 | 230 |
| D | 100–299 | 70 |
| E | 300–999 | 32 |
| F | 1,000–4,999 | 0 |
| G | ≥5,000 | 0 |

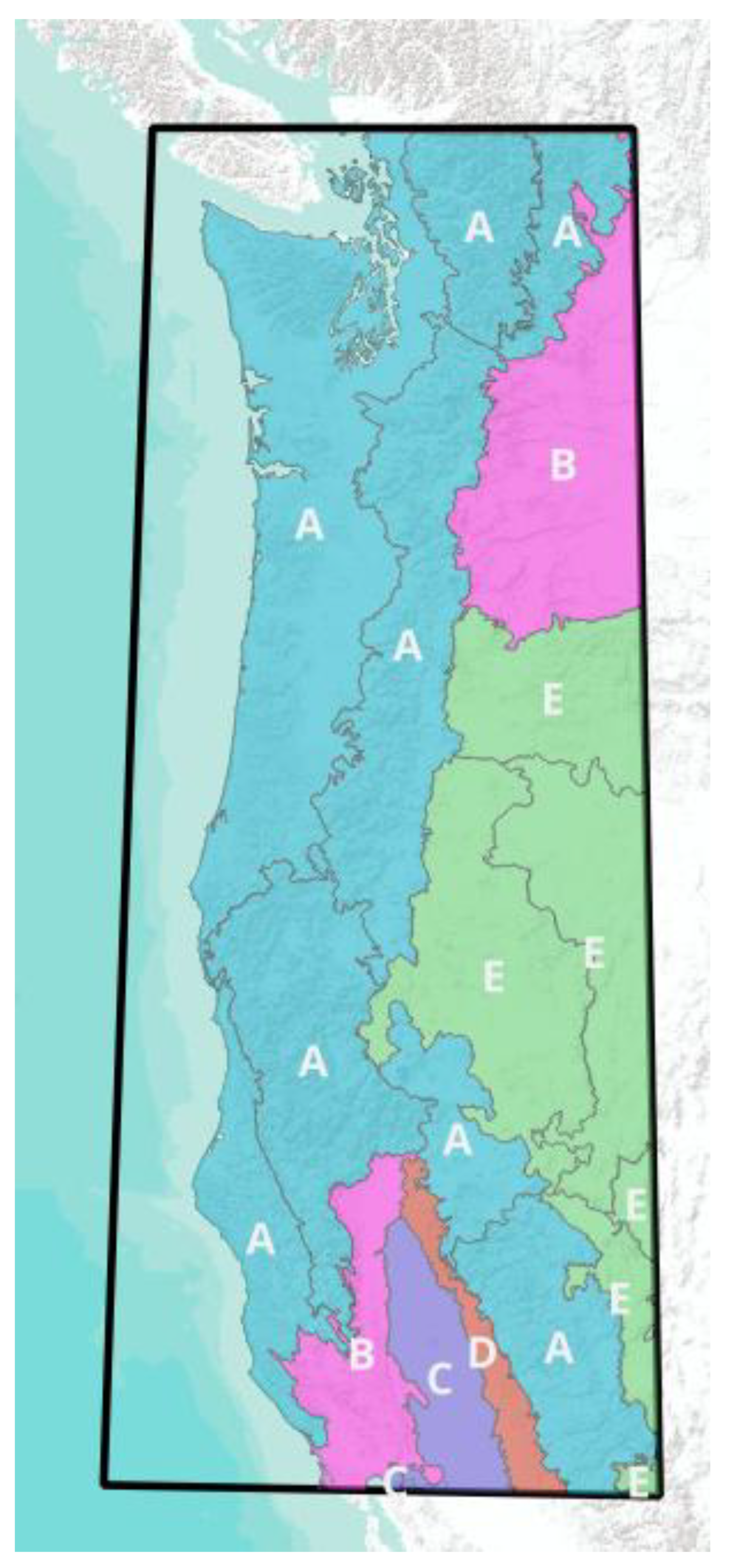

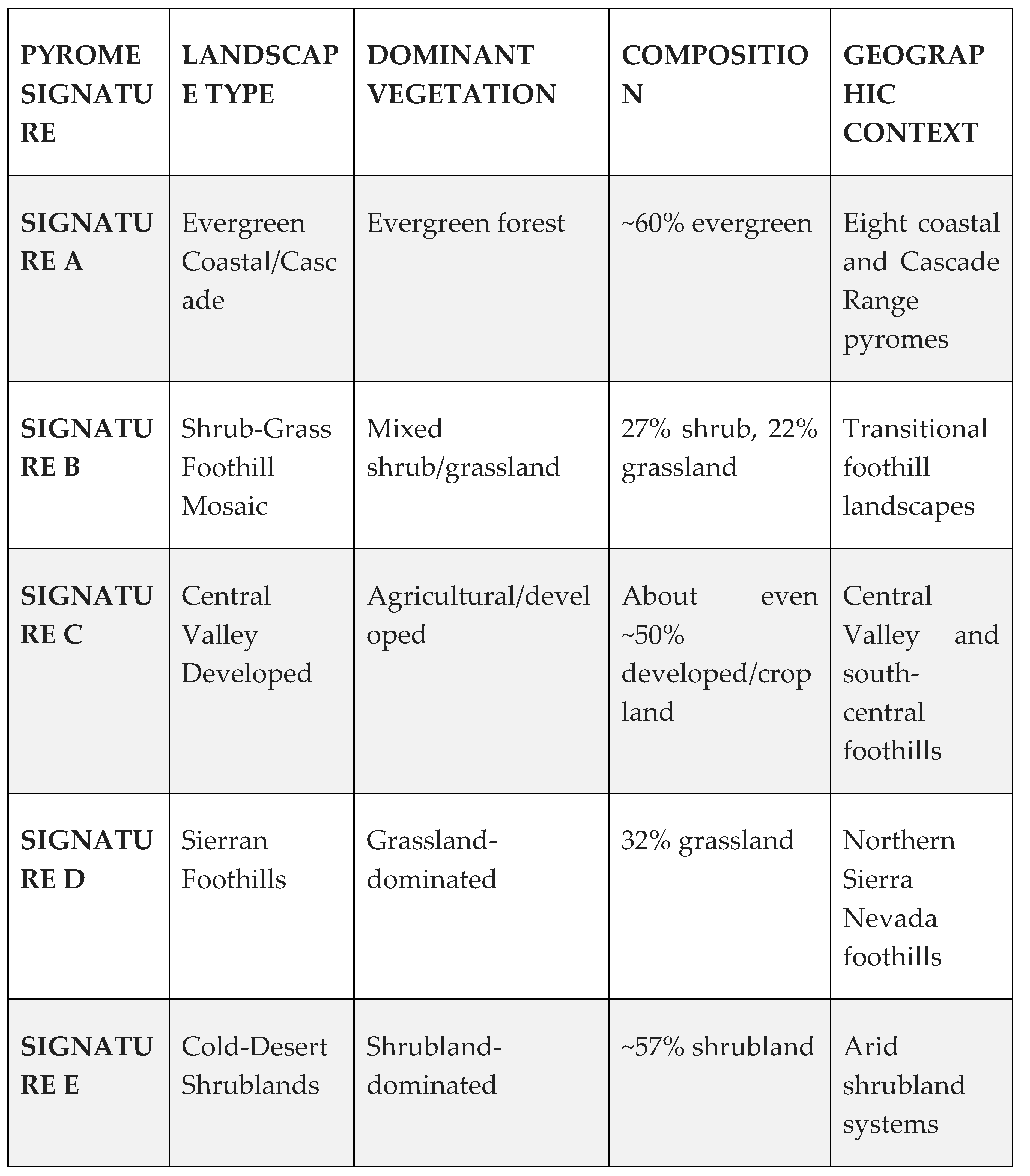

2.3. Pyrome Grouping


![]() |
2.4. Reconstructability Analysis Framework and Implementation
2.4.1. Fundamentals of Reconstructability Analysis
2.4.2. Loop Versus Loopless Models in RA
2.4.3. Model Structure and Representation
2.4.4. Search Strategy and Implementation
- Search direction: Bottom-up
- Search width: 3 (number of models retained at each level)
- Search levels: 7 (maximum number of complexity levels explored)
- Search criteria to retain models at all levels: dBIC (delta Bayesian Information Criterion)
- Alpha threshold: 0.05 (statistical significance threshold)
2.4.5. Model Evaluation Metrics
- Information content, Inf: Proportion of system constraint captured, scaled from 0 (independence model) to 1 (data)
- Percent reduction in uncertainty, %dH(DV): Direct measure of how much the model reduces uncertainty about fire size, often the most useful metric. Because uncertainty has a logarithm in its mathematical expression even seemingly small values such as 8% can represent a large effect size such as a shift from 2:1 odds to 1:2 odds (Zwick, 2004).
- dBIC (ΔBIC): Bayesian Information Criterion difference (from a reference model), a conservative metric balancing accuracy and complexity
- dAIC (ΔAIC): Akaike Information Criterion difference (from a reference model), offering a less conservative alternative complexity-adjusted measure
- Classification accuracy: Percentage of correctly classified instances (small vs. large fires) (This is a general machine learning metric, not an information theoretic metric.)
![]() |
![]() |
2.4.6. Fit Analysis and Interpretation

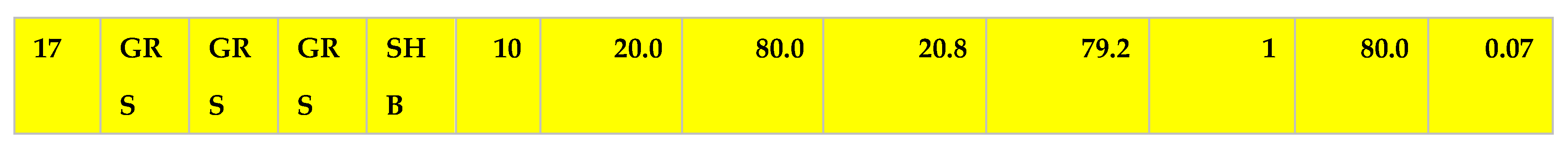

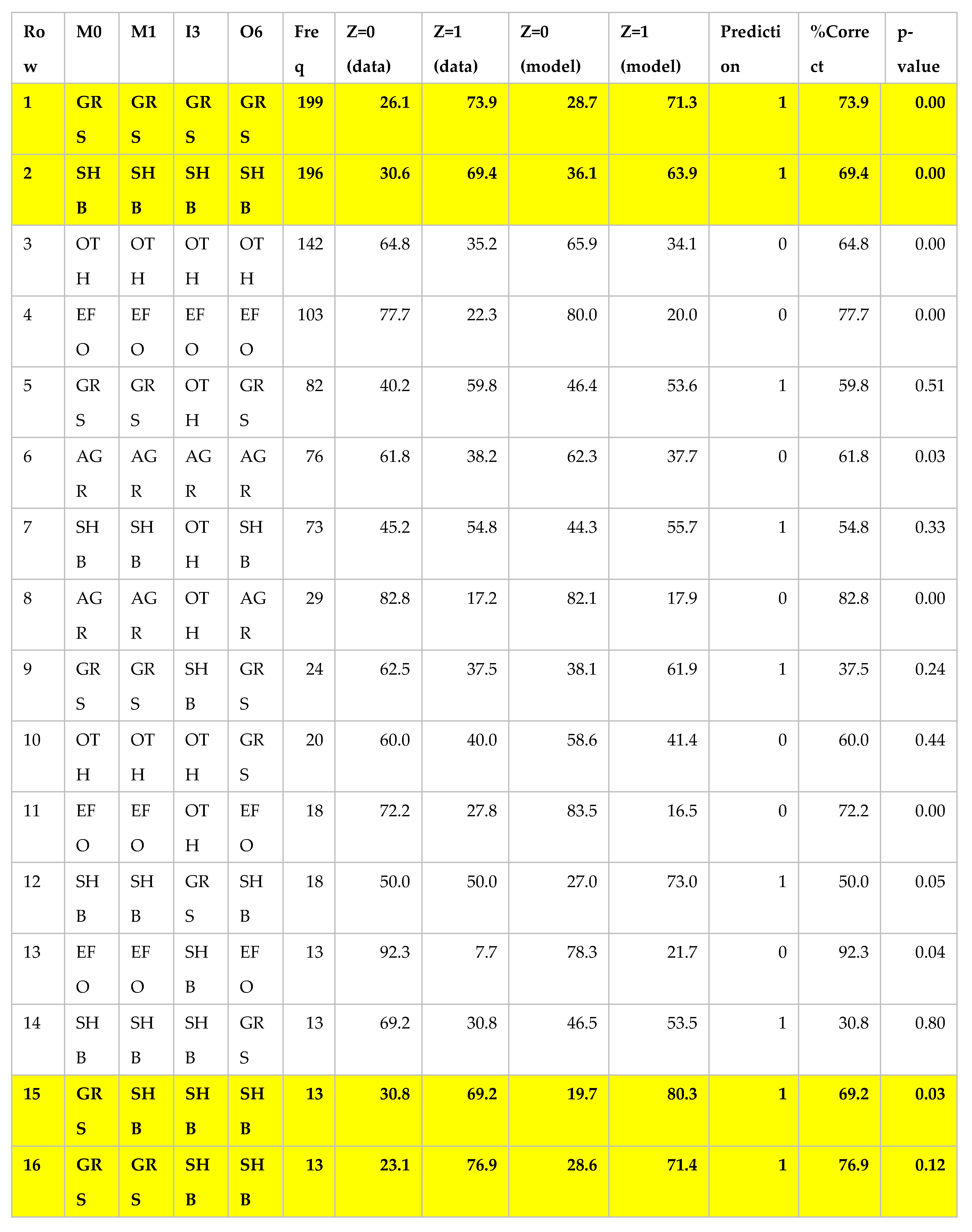

- Tables of conditional probabilities (given in %) of the two DV states given every combination of the states of the predictive IVs, classification rules for fire size prediction, and p-values for the statistical significance of the prediction rules (the probability of a Type 1 error in rejecting the hypothesis that the model conditional probabilities are the same as the DV margins of (50%, 50%).

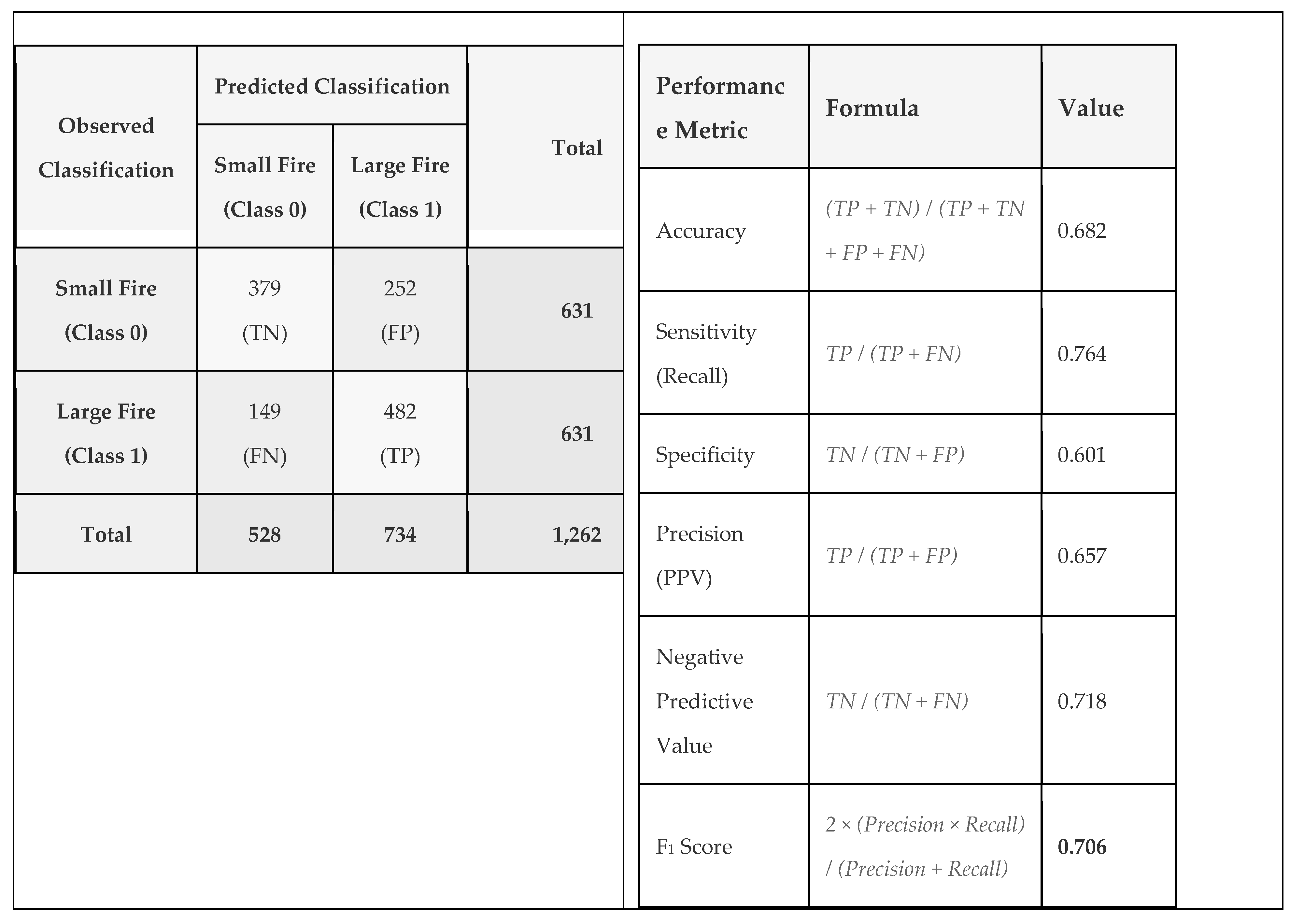

- Performance metrics including sensitivity, specificity, and F1 score
- Tables of conditional DV probabilities, prediction rules, and p-values for each component relation
![]() |
![]() |
![]() |
2.4.7. Validation Approach
3. Results
3.1. Multi-Scale Predictive Patterns Across Temporal Scales

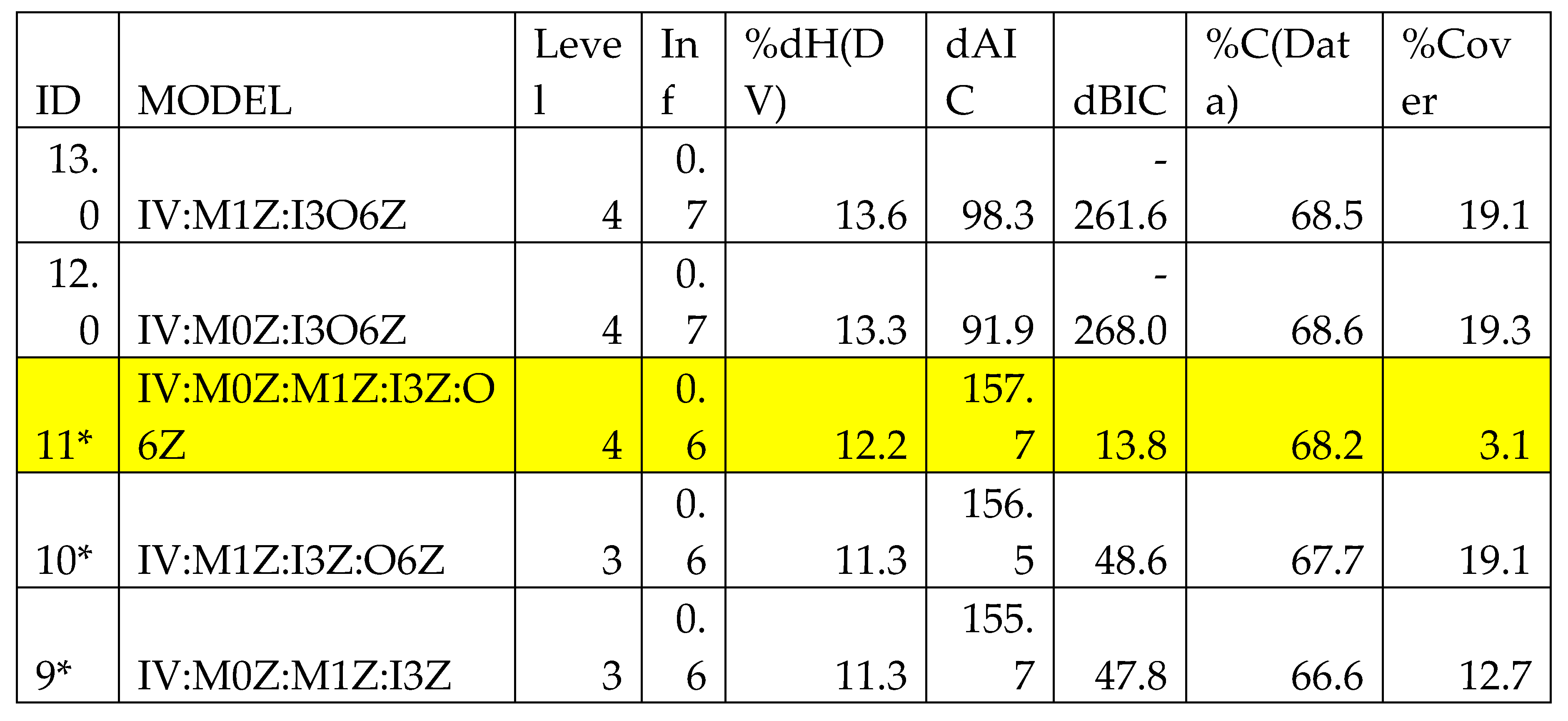

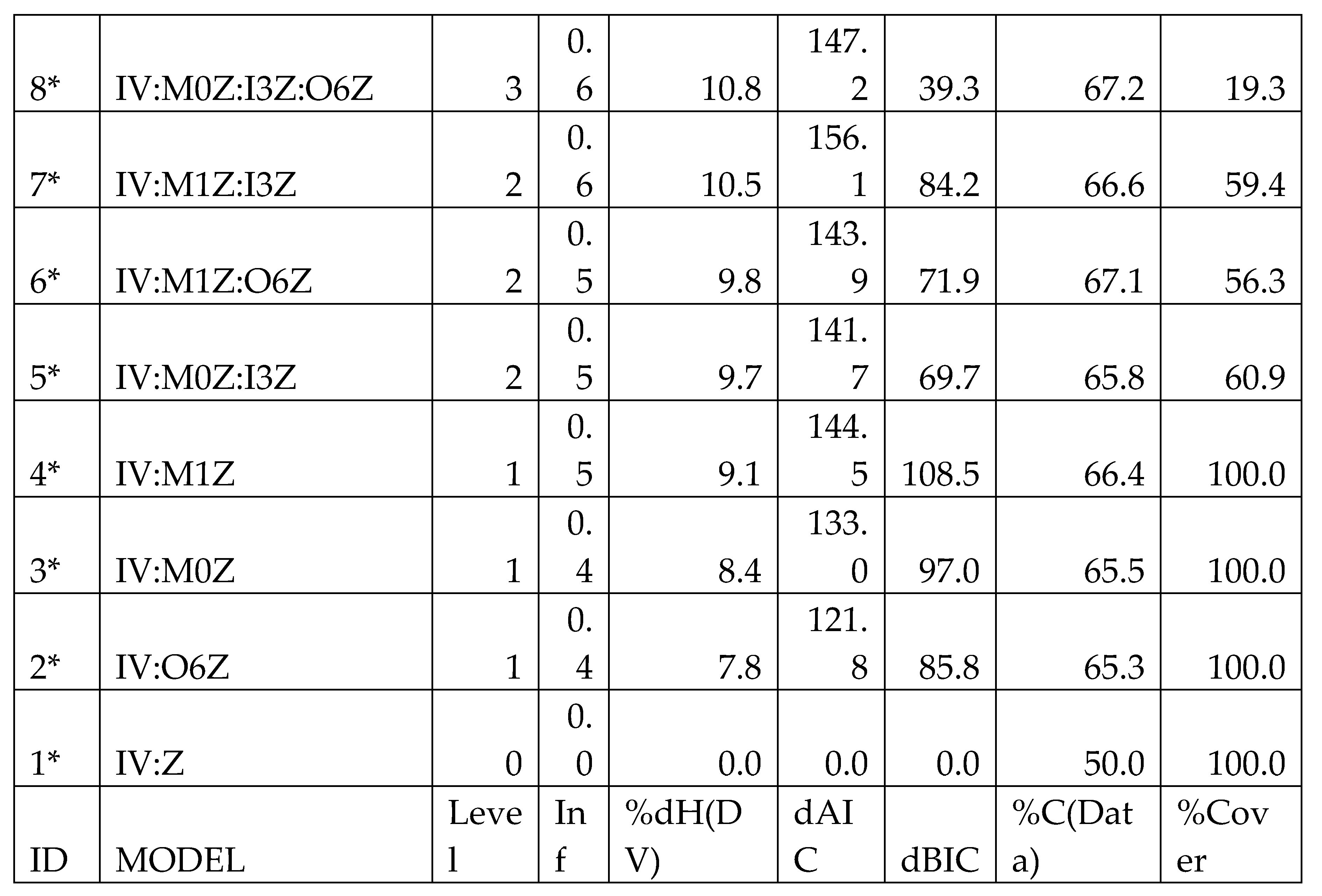

3.2. Analysis of Occam Search and Fit Results by Pyrome
Cross-Pyrome Temporal Patterns
4. Discussion
4.1. Multi-Scale Vegetation Patterns as Predictors of Fire Size
Old Vegetation Plays a Role
Interpretation of Pyrome-Specific Patterns
- Signature A’s (IV:M0Z:I3Z:ElevZ) elevation dependency perhaps reflects the importance of topographic moisture gradients in evergreen-dominated landscapes, while its lower uncertainty reduction reflects that we are likely missing important variables. Pyrome signature A’s results are poor enough that we could easily state that we have nothing useful to say about this signature. Since this pyrome has an extensive footprint in the study area this is unfortunate.
- Signature B’s (IV:M0Z:M1Z:I3Z:O6Z) temporal complexity reflects perhaps the interplay between grasses and shrubs, requiring a multi-temporal model to capture fire behavior patterns. The four-variable model spanning T-0 to T-30 suggests when these landscapes lead to large fires it is often due to older vegetation. In this pyrome, evergreen forests appear to be protective against large fires.
- Signature C’s (IV:I0Z:O1Z:O6Z) exceptional performance reflects the stark contrasts between extreme grassland fire risk (85% large fire probability) and moderate developed areas (23-36% risk), creating clear predictive patterns in this human-modified landscape. The reliance on both immediate and historical conditions is consistent with the other pyromes, in this smallest of the signature groups.
- Signature D’s (IV:I0Z:O1Z:O6Z) structural similarity to Signature C but lower uncertainty reduction suggests more heterogeneous fire behavior patterns in this grassland-dominated landscape. The grasses and shrubs in this ecoregion have high risk in our model with 79%, and 67%, respectively. While this pyrome is the smallest of our groupings, it has a unique fire behavior. This pyrome group contrasts with signature B, evergreen forests here have a moderate risk (52%) of large fires. Grasses and shrubs have high large fire risk, similar to all of the other pyromes.
- Signature E’s (IV:I0Z:O0Z:O1Z:O3Z) unique multi-temporal outer ring model suggests fire behavior depends heavily on a broad spread of shrubs maintained across a shorter period of time (T-15), rather than the T-30 patterns important in some other pyromes. The patterns of shrub and grassland leading to large fires is prevalent, while the damping effect of evergreen forests is similar to signature B.
Cross-Pyrome Temporal Pattern Interpretation

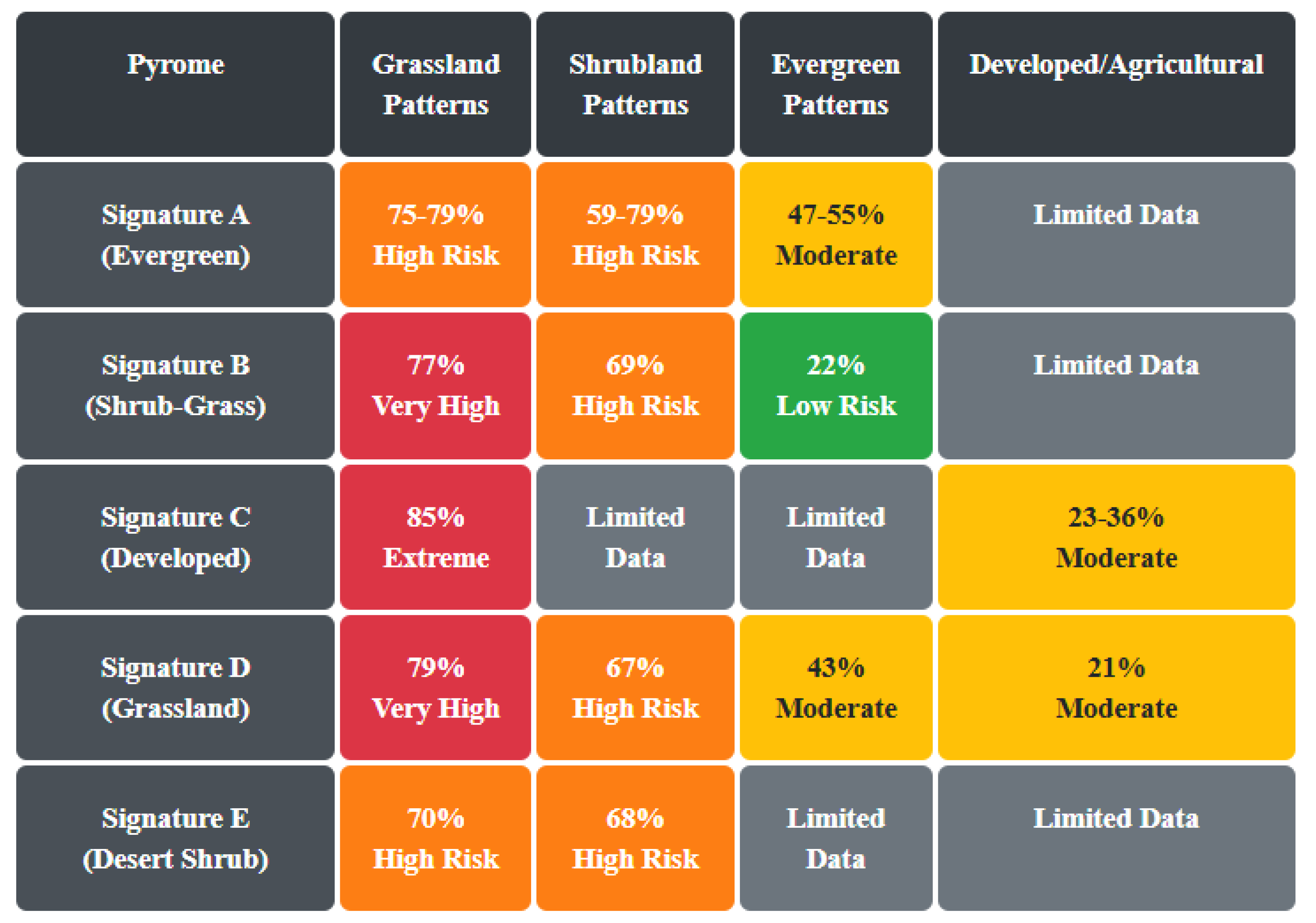

Vegetation Risk Pattern Interpretation
Methodological Contributions
4.5. Methodological Contributions of Geospatial RA
- Structural transparency: The model notation (e.g., M0Z:M1Z:I3Z:O6Z ) directly expresses the detected relationships between variables, making the models immediately interpretable to domain experts (Klir, 1985; Zwick, 2004).
- Optimal model selection: The information-theoretic criteria (dBIC, dAIC) provide rigorous mathematical tools for navigating the trade-off between model complexity and fidelity to the data (Burnham and Anderson, 2002).
- Multi-scale integration: By systematically exploring combinations of predictors from different spatial and temporal scales, RA effectively identifies cross-scale interactions that might be difficult to detect with conventional methods.
- Categorical data efficiency: RA naturally accommodates nominal data without requiring dummy variables or other transformations that can inflate dimensionality and degrade model performance.
5. Methodological Comparison
5.1. Comparison with other Machine Learning approaches
5.2. Comparison with Traditional Statistical Methods
6. Conclusions
References
- Abatzoglou, J.T. and Williams, A.P. (2016) ‘Impact of anthropogenic climate change on wildfire across western US forests’, Proceedings of the National Academy of Sciences, 113(42), pp. 11770–11775.
- Ashby, W.R. (1956) An introduction to cybernetics. Chapman & Hall.
- Balch, J.K. et al. (2013) ‘Introduced annual grass increases regional fire activity across the arid western USA (1980–2009’, Global Change Biology, 19(1), pp. 173–183.
- Bradley, B.A. et al. (2018) ‘Disentangling the abundance–impact relationship for invasive species’, Proceedings of the National Academy of Sciences, 116(20), pp. 9919–9924.
- Burnham, K.P. and Anderson, D.R. (2002) Model selection and multimodel inference: A practical information-theoretic approach. 2nd edn. Springer.
- Coffield, S.R. et al. (2019) ‘Machine learning to predict final fire size at the time of ignition’, International Journal of Wildland Fire, 28(11), pp. 861–873.
- Crist, M.R. (2023) ‘Rethinking the focus on forest fires in federal wildland fire management: Landscape patterns and trends of non-forest and forest burned area’, Journal of Environmental Management, 327, p. 116718. Available at: . [CrossRef]
- Dillon, G.K. et al. (2011) ‘Both topography and climate affected forest and woodland burn severity in two regions of the western US, 1984 to 2006’, Ecosphere, 2(12), pp. 1–33.
- Finney, M.A. et al. (2005) ‘On the need for a theory of wildland fire spread’, International Journal of Wildland Fire, 14(4), pp. 347–356.
- Jain, P. et al. (2020) ‘A review of machine learning applications in wildfire science and management’, Environmental Reviews, 28(4), pp. 478–505.
- Klir, G.J. (1985) Architecture of systems problem solving. Plenum Press.
- Krippendorff, K. (1986) Information theory: Structural models for qualitative data. Sage Publications.
- Molnar, C. (2020) Interpretable machine learning: A guide for making black box models explainable. Lulu Press.
- Nadeem, K. et al. (2020) ‘Mesoscale spatiotemporal predictive models of daily human-and lightning-caused wildland fire occurrence in British Columbia’, International Journal of Wildland Fire, 29(1), pp. 11–27.
- NWCG (2020) Glossary of wildland fire terminology. NWCG.
- Percy, D. and Zwick, M. (2024) ‘Information-Theoretic Modeling of Categorical Spatiotemporal GIS Data’, Entropy, 26(9), p. 784.
- Shannon, C.E. (1948) ‘A mathematical theory of communication’, The Bell System Technical Journal, 27(3), pp. 379–423.
- Stephens, S.L. et al. (2014) ‘Managing forests and fire in changing climates’, Science, 342(6154), pp. 41–42.
- Westerling, A.L. (2016) ‘Increasing western US forest wildfire activity: sensitivity to changes in the timing of spring’, Philosophical Transactions of the Royal Society B: Biological Sciences, 371(1696), p. 20150178.
- Zwick, M. (2004) ‘An overview of reconstructability analysis’, Kybernetes, 33(5/6), pp. 877–905.
