Energy Consumption Analysis and Optimization of Speech Algorithms for Intelligent Terminals

1. Introduction

With the continuous improvement of the performance of intelligent terminals and the extensive penetration of voice interaction needs, speech algorithms have shown rapid development in key areas such as national defense command recognition, medical aids for the elderly, and voice services for public administration. Speech recognition systems face challenges such as centralized computational load, dramatically increased energy overhead and heterogeneous operating environments during terminal-side deployment, which significantly constrain their real-time and stability performance. Especially in the context of low-power constraints and increasingly prominent security and trust requirements, it is necessary to carry out system optimization from the algorithmic structure, computation distribution and execution mechanism to promote speech technology to achieve efficient, controllable and energy-saving edge deployment, so as to meet the practical needs of green computing and autonomy strategy.

2. Computational Characterization of Speech Algorithm for Intelligent Terminal

2.1. Speech Algorithm Stage Division and Arithmetic Power Distribution

Speech recognition in intelligent terminals involves four main stages: feature extraction, acoustic modeling, language modeling, and decoding. System-level profiling shows an uneven distribution of compute load: acoustic modeling takes 57.6%, feature extraction 21.3%, decoding 15.8%, and language modeling only 5.3% [1]. Operator density, memory access, and parallelism vary across stages, concentrating energy bottlenecks in high-density convolutional and fully connected layers (see Table 1), making these modules key targets for optimization.

2.2. Energy Consumption Assessment Methods and Tools

Energy consumption evaluation is performed using the on-chip power sensor-based Profile Energy Toolkit (PET) in conjunction with the analog power modeler PowerAI to achieve frame-by-frame tracking of power consumption at key operator stages such as convolution, matrix multiplication, and attention2 . Each stage energy consumption is split by operation type, and static power, dynamic power and peak power values are extracted in combination with hardware access patterns, refer to Table 2.All sampled data are synchronized to perform stream analysis with 5ms time resolution, guaranteeing stage energy attribution accuracy of not less than ±2%.

3. Optimization Technique Model of Speech Algorithm for Low Power Consumption

3.1. Lightweight Neural Network Architecture

In order to reduce the energy consumption pressure during model inference, the deep separable convolution and channel attention fusion mechanism based on MobileNetV3 structure is introduced to build a lightweight neural network framework3 . The model compression ratio reaches 63.7%, and the parameter redundancy rate is controlled at 18.2%, as shown in Table 3.The core computational complexity is measured in terms of the number of times of multiplication and summation, which is calculated through the equation

$$C_{MAC}={\sum }_{l=1}^L{K}_l^2\cdot C_{in}^l\cdot C_{out}^l\cdot \left({\displaystyle \frac{H_l\cdot W_l}{S_l^2}}\right)$$

(1)

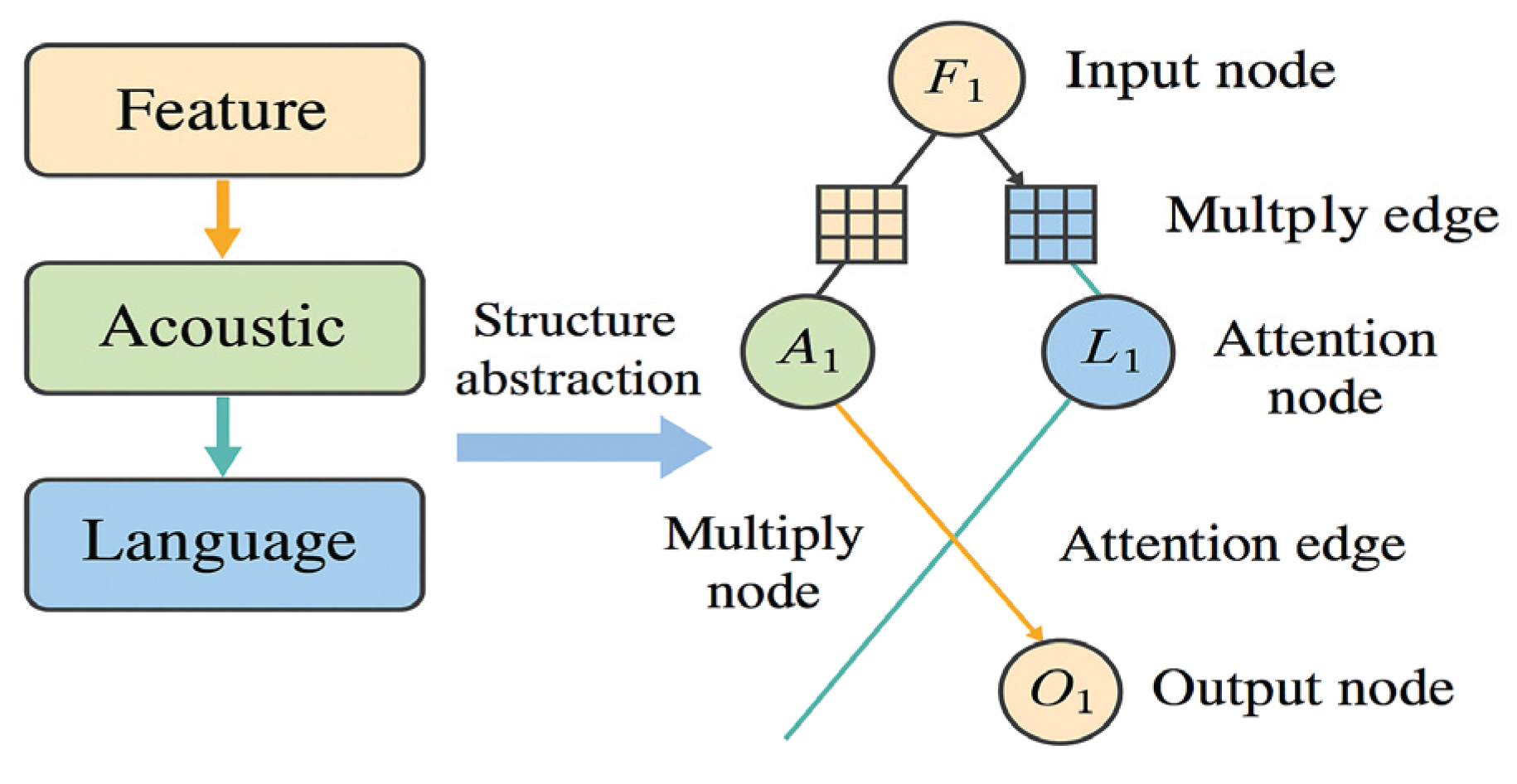

Measuring the amount of convolutional computation in each layer, where$K_l$ is the convolutional kernel size,$C_{in}^l$ and$C_{out}^l$ denote the number of input and output channels respectively,$H_l\cdot W_l$ is the feature map size, and$S_l$ is the step size.Figure 1 illustrates the typical four stages in speech recognition algorithms and their main operator structure and energy distribution.

3.2. Edge Computing Optimization Strategies

Aiming at the problem that speech recognition tasks are limited by computational resources and energy bottlenecks in edge devices, an optimization strategy based on Computation Offloading Control and Heterogeneous Co-execution is proposed4 . For task partitioning, a dynamic reconfigurable DAG graph model is used to remap the nodes of the stage operations of the speech algorithm, whose energy consumption constraints are defined by the following optimization objective function:

$$\underset{x_i\in \left\{\mathrm{0,1}\right\}}{min}{E}_{\mathrm{total}}={\sum }_{i=1}^N{x}_i\cdot E_i^{\mathrm{edge}}+(1-x_i)\cdot E_i^{\mathrm{cloud}}$$

(2)

Where$x_i$ denotes the execution location of the$i$ th subtask (1 is the edge and 0 is the cloud),$E_i^{\mathrm{edge}}$ and$E_i^{\mathrm{cloud}}$ denote the energy consumption of the task executing at the edge and the cloud, respectively, and the constraint is the task completion time$T_{\mathrm{total}}\le T_{\mathrm{threshold}}$ . In order to optimize the communication delay and local reasoning percentage, a bandwidth-sensitive load distribution function is introduced:

$${\theta }_i={\displaystyle \frac{C_i}{B\cdot \mathit{ln}\left(1+\frac{S_t}{N_0}\right)}}\mathrm{and}{T}_{\mathrm{trans}}^i={\displaystyle \frac{S_i}{B\cdot {\mathit{log}}_2(1+\mathrm{SN}{\mathrm{R}}_i)}}$$

(3)

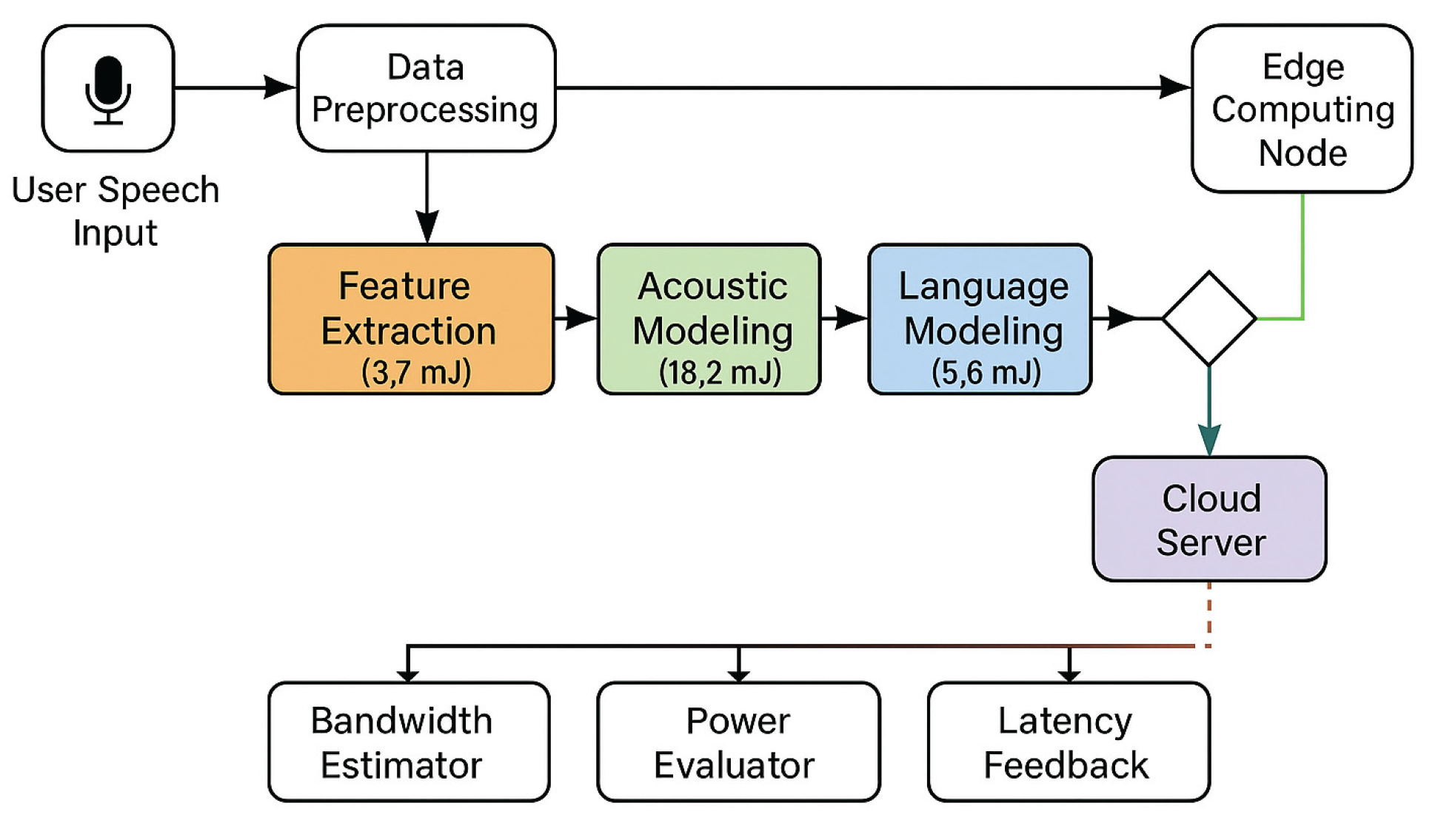

where$C_i$ is the computational complexity,$S_i$ is the input size,$B$ is the bandwidth,$N_0$ is the noise power spectral density, and$\mathrm{SN}{\mathrm{R}}_i$ denotes the signal-to-noise ratio5 . Figure 2 demonstrates the task division and energy scheduling mechanism for speech recognition tasks in edge cloud collaborative execution. The system dynamically adjusts the task allocation strategy according to the task complexity, computing requirements and network bandwidth through four stages: feature extraction, acoustic modeling, language modeling and decoding. The central scheduler synthesizes bandwidth, latency, and energy consumption feedbacks to decide whether the tasks in each phase should be executed at the edge or in the cloud, and directs the tasks to the optimal path to improve the energy efficiency of the whole system. In the figure, arrow styles indicate different execution and communication states:

1. solid green arrows indicate that the task is executed locally at the edge node.

2. dark green solid line indicates offloading to the cloud for execution.

3. red dashed arrows indicate high latency fallback routing in case of network degradation or failure.

4. black solid line indicates the backbone scheduling and control flow managed by the central edge-cloud orchestrator responsible for task partitioning, monitoring and decision signaling between nodes. Together, these connection types illustrate the dynamic task coordination of the system in a heterogeneous computing environment.

3.3. Model Trusted Execution Environment

In order to realize the trusted deployment of speech algorithms and low-energy reasoning in smart terminals, a secure execution framework based on TEE (Trusted Execution Environment) is introduced, which ensures that the reasoning process is not tampered with and protects the user's speech data security by signing and authenticating the model parameters and real-time monitoring of the execution trajectory6 . In the design, the model loading phase uses elliptic curve encryption algorithm for public-private key exchange and calculates its initialization elapsed time and energy consumption to satisfy the constraint formula:

$$E_{\mathrm{auth}}={\displaystyle \frac{P_{\mathrm{init}}\cdot T_{\mathrm{boot}}}{{\eta }_{\mathrm{core}}}}+{\sum }_{i=1}^n\left({\displaystyle \frac{H\left(M_i\right)+S\left(K_i\right)}{B_{\sec \mathrm{ure}}}}\right)$$

(4)

Where$P_{\mathrm{init}}$ is the initialization power of TEE module,$T_{\mathrm{boot}}$ is the startup delay,${\eta }_{\mathrm{core}}$ denotes the energy efficiency coefficient of trust kernel,$H\left(M_i\right)$ is the computation of hash function of the$i$ th layer model,$S\left(K_i\right)$ is the encrypted load of key exchange, and$B_{\sec \mathrm{ure}}$ is the bandwidth of security bus7 . In the inference stage, the system adopts a dual-channel energy tracking structure to identify illegal code injection behaviors in real time through the energy difference discrimination mechanism, and the relevant power models are as follows:

$$P_{\mathrm{diff}}=\left|P_{\mathrm{TEE}}^{\mathrm{expected}}-P_{\mathrm{TEE}}^{\mathrm{measured}}\right|<\delta$$

(5)

The system determines that the inference path is valid when the deviation threshold$\delta <3.2\%$ is reached. Further, a trusted energy management scheduling module is introduced at the chip level with an optimization objective function:

$$\mathit{min}\left({\sum }_{j=1}^m{w}_j\cdot {\displaystyle \frac{E_j^{\mathrm{exec}}}{Q_j^{\mathrm{trust}}}}\right),\mathrm{s}.\mathrm{t}.Q_j^{\mathrm{trust}}>\lambda$$

(6)

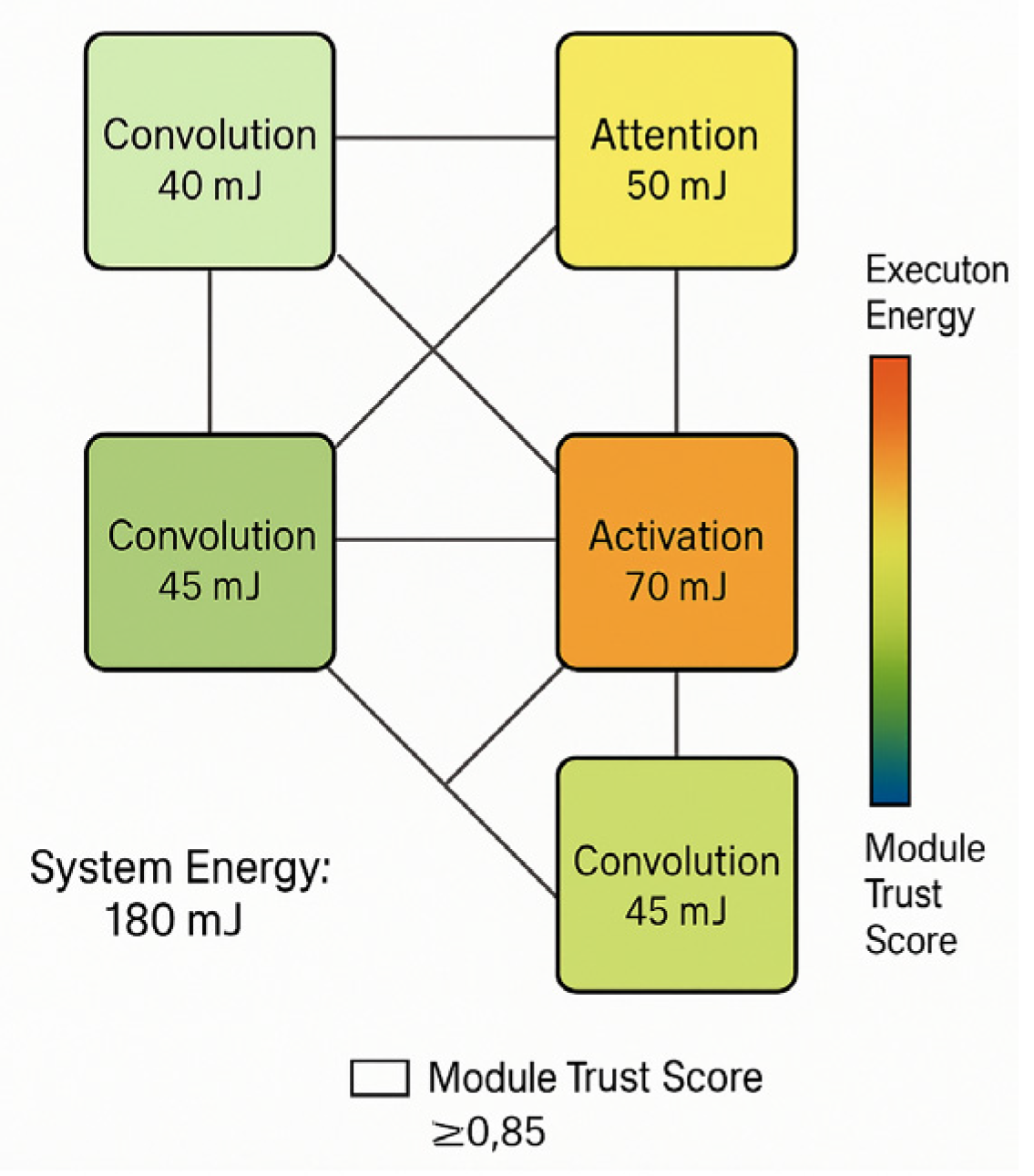

where$E_j^{\mathrm{exec}}$ denotes the execution energy consumption of the first$j$ module,$Q_j^{\mathrm{trust}}$ is its trusted computing quality assessment index,$w_j$ is the stage weight, and$\lambda$is the minimum threshold of trustworthiness8 .Figure 3 illustrates the execution state of the optimized speech model for distributed deployment in a multi-core processor architecture. The relevant system design parameters are listed in Table 4 to support subsequent deployment requirements in defense and highly sensitive medical scenarios.

4. Energy Consumption Optimization Algorithm for Smart Terminal Deployment and Evaluation

4.1. Experimental Platform and Dataset

The experiment verifies the feasibility and robustness of the energy optimization strategy for speech algorithms on multi-type intelligent terminals. (1) The hardware platform uses mid-to-high-end devices with Snapdragon 865, Cortex-A77, and Hexagon DSP, enabling trusted inference via TrustZone TEE. (2) AISHELL-1 (150 hrs Mandarin) and LibriSpeech (1,000 hrs English) datasets are used for mixed-language inference, loaded via local storage and remote API. (3) Power metrics, temperature, and latency are recorded using a PET-Power sensor with a 5ms sampling rate to assess performance across varying inputs and devices.

4.2. Comparative Analysis of Energy Consumption

Under the same input and hardware conditions, the lightweight model reduces average dynamic power in feature extraction, acoustic modeling, and decoding by 39.4% (from 87.6 mW to 53.1 mW), 41.2% (134.7 mW to 79.2 mW), and 40.1% (66.4 mW to 39.8 mW), respectively. Total energy consumption drops from 54.6 mJ to 31.9 mJ—a 41.5% reduction. The acoustic modeling stage shows the largest gain, cutting 13.3 mJ, or 61.6% of the total savings, highlighting it as the main energy bottleneck and optimization focus[9].

4.3. Algorithm Engineering Implementation

In real-world deployment, the engineering performance of speech recognition algorithms directly affects their adaptability and maintainability across diverse terminals \[10]. To assess the efficiency of model compression on the edge, a performance evaluation framework was built around five key metrics: compute load, initialization delay, memory usage, power limits, and user response time. Both the optimized and baseline models were tested on the same hardware. Figure 4 shows how the model transitions from stage-based processing to a structural graph representation.

The optimized model cuts initialization delay from 218 ms to 103 ms (down 52.7%), thanks to pruning and parameter reduction improving cold start performance. Peak memory usage drops from 364.8 MB to 193.2 MB (a 47% decrease), freeing space for multitasking on edge devices. Average CPU load falls from 86.2 to 57.3 (a 33.5% reduction), easing main processor pressure and enabling low-power core cooperation. Peak dynamic power is reduced by 37% (from 172.5 mW to 108.6 mW), and user response time drops from 480 ms to 289 ms, meeting real-time interaction needs.

5. Building a Secure Deployment System for Green AI

5.1. Secure and Trusted Deployment Mechanisms for Edge Speech Models

In order to realize the deployment goal of voice algorithms in edge terminals that are both low-power and controllable and trustworthy, a secure deployment system based on TEE (Trusted Execution Environment) and model encryption cooperative mechanism is constructed. The system ensures that the model structure and parameters are not tampered with through key authentication and hash integrity checking in the boot loading phase, and at the same time introduces the trusted execution path monitoring function:

$$\Delta P=\left|P_{\mathit{exp}ected}-P_{runtime}\right|<\in$$

(7)

When the deviation value$\in$is controlled within 3%, inference meets encryption standards. The optimized speech model uses depthwise separable convolutions and structural sparsification, cutting parameters by 63.7%, compute load by 54.4%, and energy use from 61.2 mJ to 35.5 mJ—a 42% savings. To ensure secure data flow, the system includes SoC-level key isolation and asymmetric encryption, enabling private model execution and blocking unauthorized access via TEE processing, meeting both security and green AI goals.

5.2. Energy Synergy Trade-Offs in Security Deployment

When deploying speech recognition models in edge terminals, there is a significant tension between trusted computing and energy consumption constraints. To resolve the conflict, this paper designs a two-dimensional dynamic scheduling mechanism that couples the power consumption model with the secure execution path as a function. The system constructs a joint scheduling priority function with task complexity$C_i$ , security level$S_i$ and energy budget$E_i$ :

$${\phi }_i=\alpha \cdot {\displaystyle \frac{C_i}{f}}+\beta \cdot S_i+\gamma \cdot {\displaystyle \frac{E_i}{T}}$$

(8)

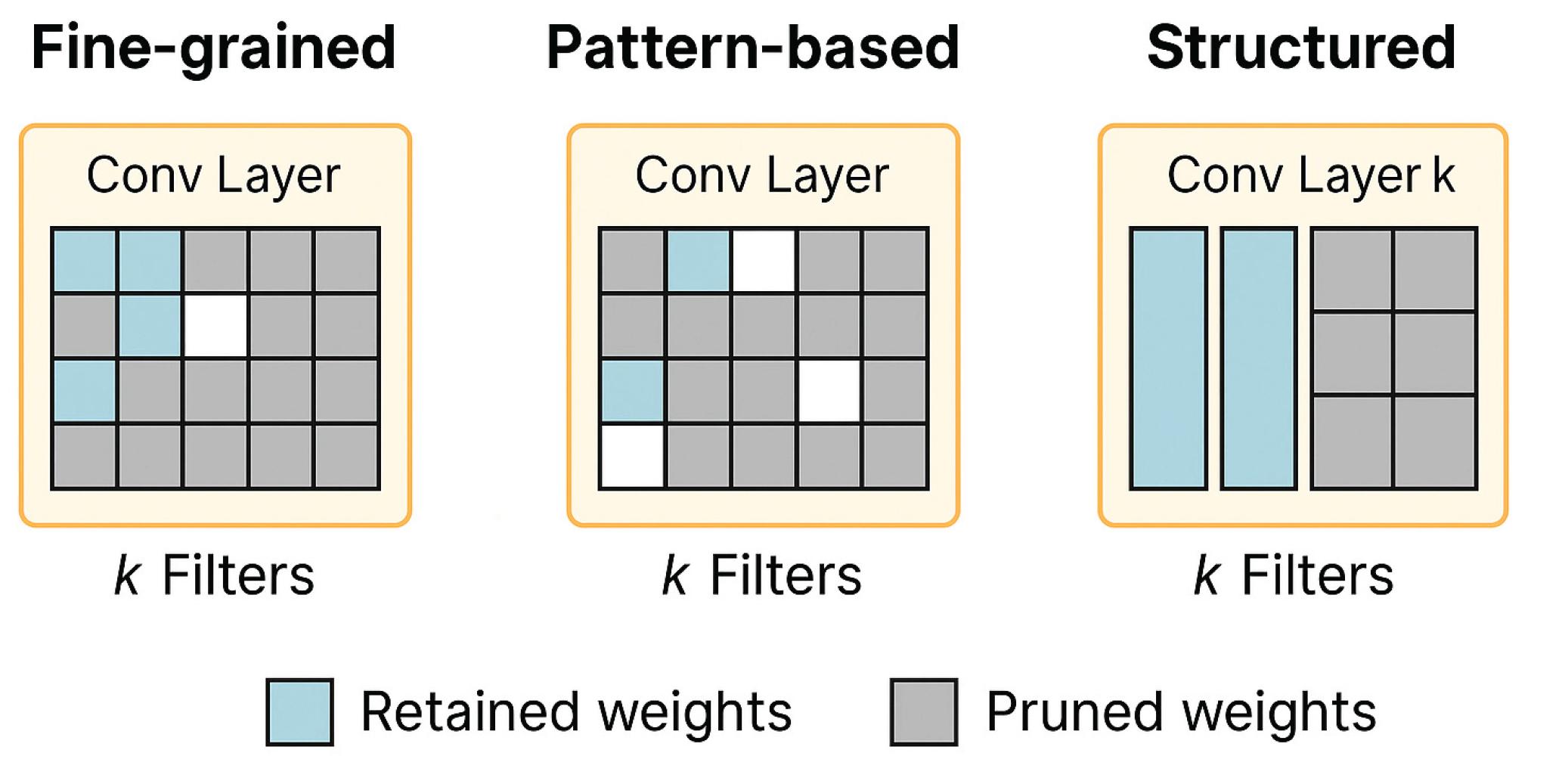

Where$f$ is the execution frequency,$T$ is the task period, and$\alpha ,\beta ,\gamma$ is the policy weight parameter, the scheduler dynamically adjusts the model accuracy and the trusted execution path length at runtime to realize the minimum energy consumption configuration under the condition of security requirement satisfaction. Figure 5 illustrates the results of weighted pruning pattern construction based on fixed sparsity constraints. Each subfigure is a 3 × 3 convolutional kernel structure, with blue squares denoting the retained weights and gray squares denoting the parameter positions that are cleared after pruning. The sparse process from 100% retention to complete pruning is represented sequentially from left to right and from top to bottom in the figure, covering 12 typical sparsity configurations corresponding to sparse control strategies in real model compression deployments.

Although some subfigures may appear to have identical pruning patterns visually, the associated numerical energy consumption values differ due to contextual factors such as the specific layer depth, tensor channel size, and runtime memory access behavior. This reflects that the same sparse structure, when mapped to different layers or tensor contexts, may yield varying performance and power characteristics.

This sparse template helps to realize uniform structure mapping and efficient loading of sparse tensor in hardware deployment, and improve the edge model execution efficiency and energy consumption control capability.

5.3. Promote Synergistic Development of Localized Green AI Chips and Algorithms

To enable green AI locally, deep integration between speech algorithms and chip architectures is needed at the instruction set, tensor scheduling, and power control levels. The optimization model runs on Cambrian MLU270 and Horizon Sunrise 2, using custom operator fusion and instruction reuse to boost on-chip efficiency by 21.6% without increasing MACs. A dynamic tensor compression interface leverages the SoC AI engine to optimize channel mapping, cutting peak inference power from 112.4 mW to 78.6 mW. Structured semantic hints and backend markers added at compile time enhance alignment between the scheduler and hardware, improving energy efficiency and enabling large-scale, secure edge speech systems .

6. Conclusion

To build a low-power speech recognition system for smart terminals, it is necessary to form an efficient collaborative path between model structure optimization, edge collaborative computing and trusted execution mechanism. Based on the fine analysis of computational characteristics and energy bottlenecks at different stages of speech algorithms, the lightweight pruning and compression and edge-cloud task division strategy significantly improves the energy efficiency of reasoning and system response speed; combined with the TEE environment, it realizes a dynamic trade-off between safe execution paths and energy consumption, and meets the requirements of green deployment while guaranteeing structural integrity. In the future, it should be further expanded to multimodal voice interaction and heterogeneous sensing chip scenarios, explore the energy consumption adaptive scheduling mechanism under dynamic network and complex semantic environments, and promote the scale deployment of trusted voice algorithms in domestic terminals and the construction of standard systems.
