Enhanced Design of a Meta‐Surface Embedded Ultra‐Wideband MIMO Antenna with Frequency‐Notched Features

1. Introduction

Since February 2002 there were considerable progress in UWB technology when FCC declared commercial usage of this UWB technology , 3.1 GHz to 10.6 GHz [1] with some power constraint. After that, UWB technology has quickly advanced, becoming a promising option for high-speed wireless communication in many applications.Interference of narrow bands like FBWA- 3.15 GHz, WLAN ( 5.15-8.15) GHz andX-band satellite (7.25-7.75 GHz ) downlink is a big problem. There are various filtering technique introduced to avoid this interference [2,3,4].

Latterly, MIMO has shown immense prospective to intensify the data rate further. This strengthen the channel capacity considerably by using multiple antennas. MIMO builds a more established connection and reduced congestion.

Here a simple and new improved method for designing MIMO antenna with square shaped meta material on the same plane of radiating patch and ${\displaystyle \frac{\mathit{\lambda }}{4}}$spur line on the feeding part .Few MIMO antennas were introduced in [3,4,5,6] and [10,11,13].Here novelty is, i) improvement of the gain by introducing meta surface structure ii) desired reflection coefficient and low mutual coupling and ii) simple filter for WLAN band rejection.

2. Antenna Design

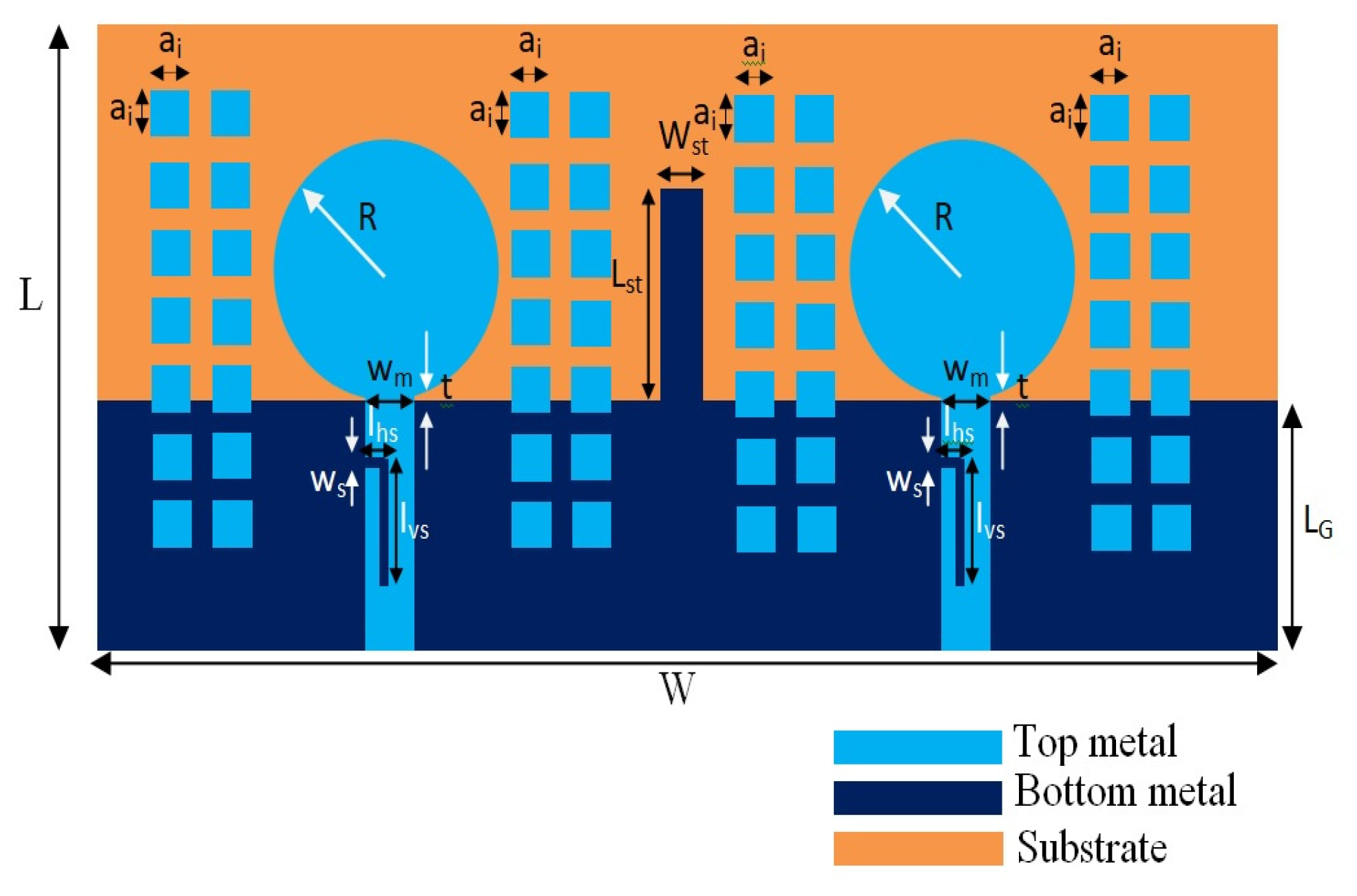

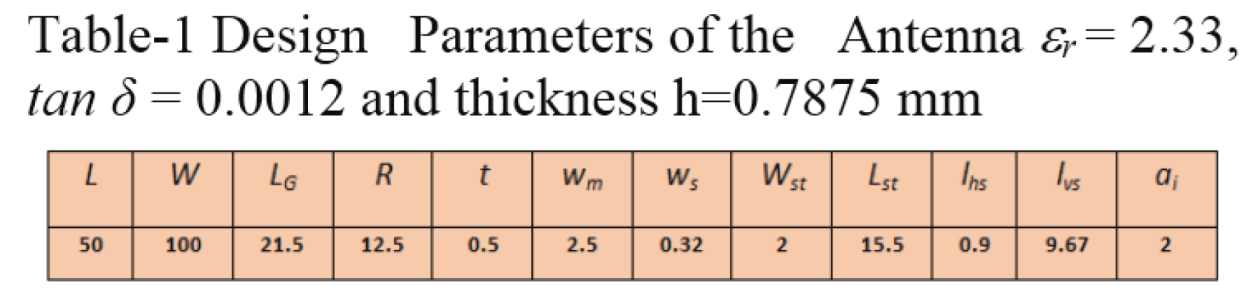

Figure 1 depicts a compact MIMO antenna with meta-surface integrated frequency-notch functionality. A stub with dimension Wst x L_st is used for isolation. Here monopole antenna with circular shape and a fed of 50 Ohm micro strip line with dimension W_m x (L_G+t) [4] is used as the radiator .A spur line of length l_vs and width W_s is entrenched on the feed part of the antenna. The design parameters are given in Table 1.

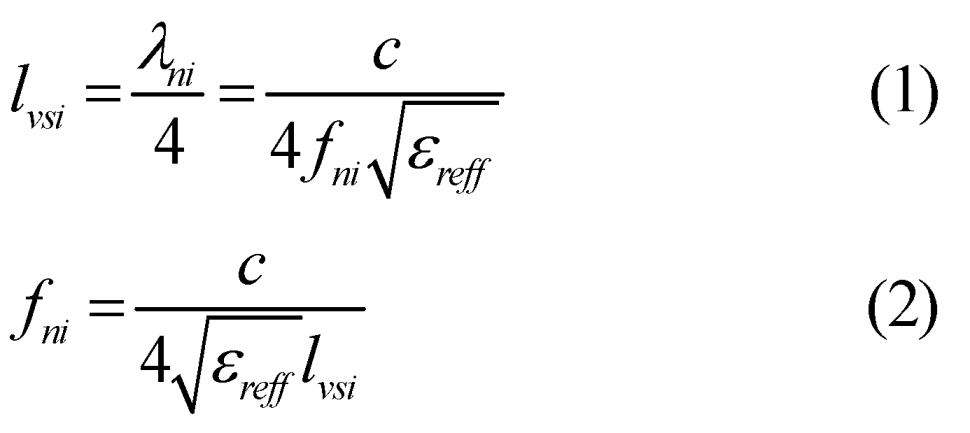

A notch frequency f_n from a spur line with length l_vsi is given by established Equation [9],

Where ε_reff is the effective dielectric constant. The upper and lower view of the fabricated antenna are shown in Figure 2a,b, respectively.

Figure 3 shows equivalent circuit of one antenna where R_a is corresponding radiation resistance of the antenna and L_a and C_a represent inductance and capacitance. Y_a =G_a+jB_a is the admittance of the monopole antenna where, G_a (real) and B_a (imaginary) admittance part .The metamaterial impedanceis Z_ss=R_ss+jw L_ss+1/jwC_ss..

Where L_ssis the inductance corresponding to the length (hi=li ) of the square shaped meta-surface and Css is adjacent unit cell capacitance . Rss is the copper patch resistance.

3. Results and Discussion

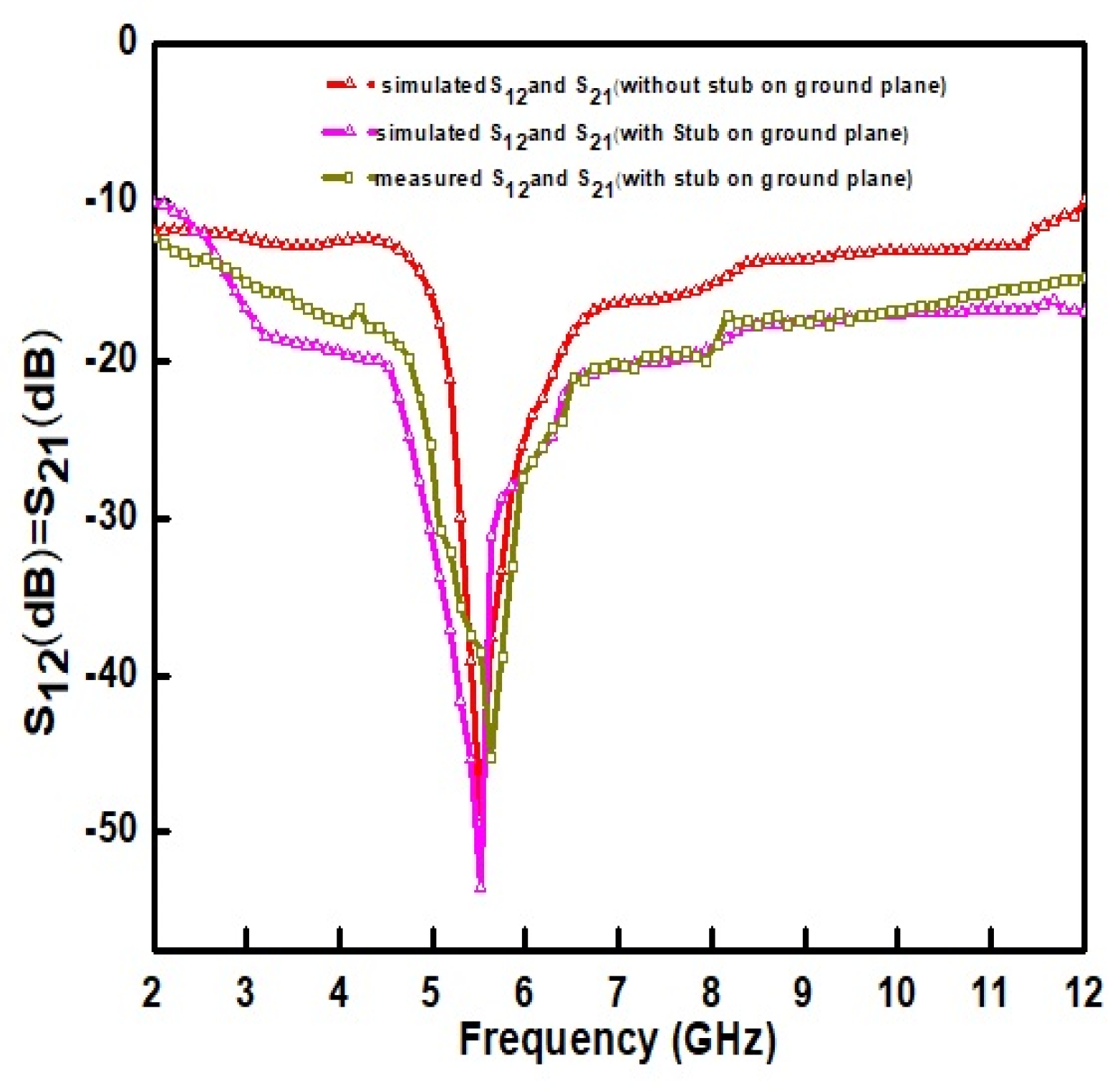

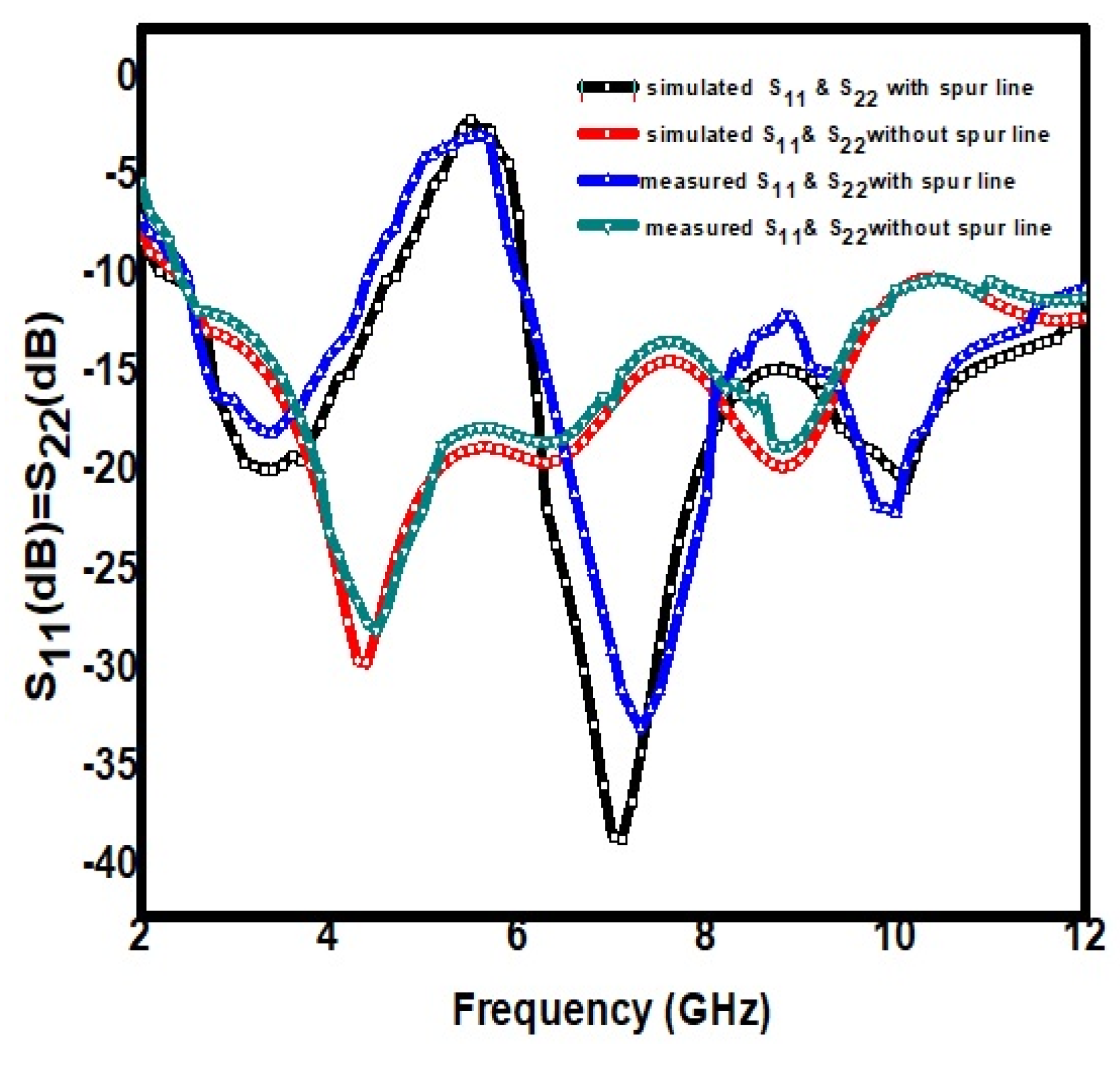

The projected MIMO antenna is planned, simulated using [8] and measured within anechoic chamber. The antenna is meticulously examined for input impedance matching and radiation characteristics. Figure 4 depicts S₁₁ and S₂₂variation of the planned antenna. The projected MIMO encumbered with a spur line a separate frequency notch is observed at 5.63 GHz where simulated is 5.53 GHz. Figure 5 indicates the mutual coupling coefficient S₂₁and S₁₂ vs frequency. Basically ground stub improves the isolation between two antenna as revealed from coupling coefficient graph. Taking into consideration of satisfactory isolation and minimum perturbation of radiation pattern , the stub dimensions are chosen. From Figure 5 it is also clear that without stub very less isolation is achieved.

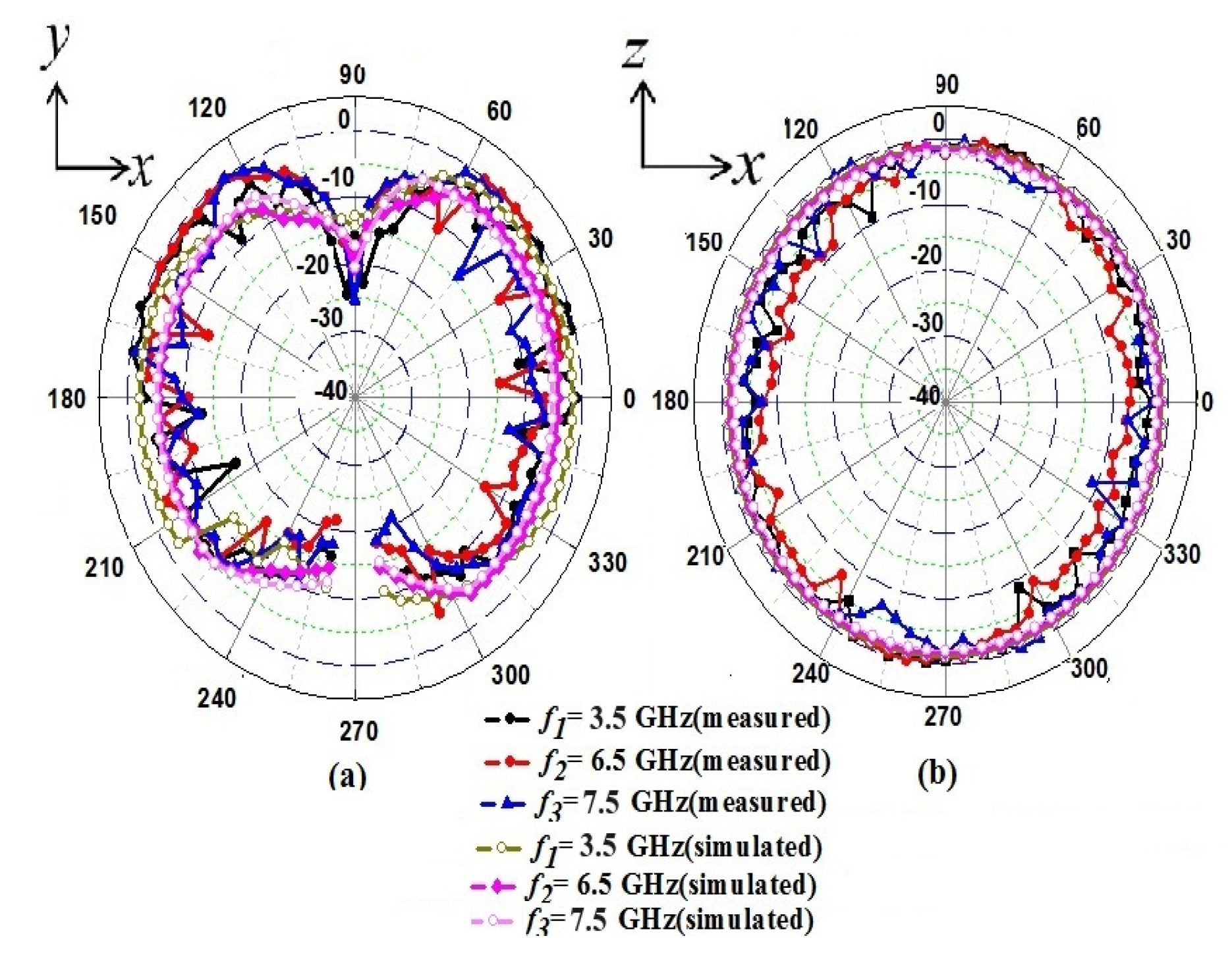

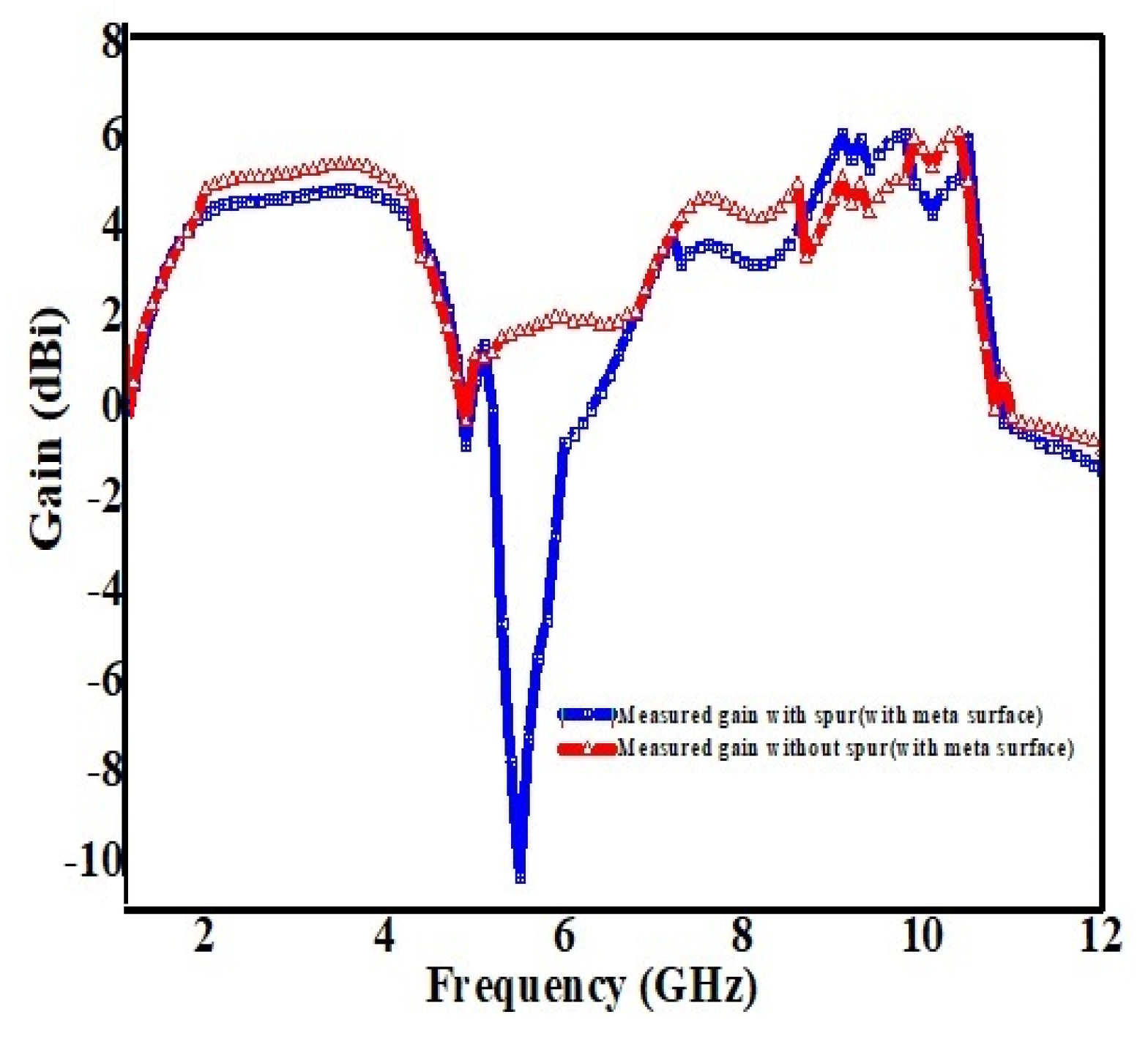

Figure 6 indicates variation of measured maximum realized gain. At notch frequency 5.63 GHz the gain drops to -10 dBi while for other frequency gain ranges from 3 to 6.2 dBi which is little bit higher than normal circular monopole antenna due to periodic placement of square shaped meta material on the radiating plane of the antenna. Radiation pattern at 3.5 GHz, 6.5 GHz and 7.5 GHz are shown in Figure 7. For E-plane, a null along the axis of the monopole (y-axis) is obtained and for H-plane nearly omni-directional pattern is obtained. The frequencies falls on UWB spectrum not including the notch frequency. Also novelty is enhancement of gain due to the periodic arrangement of square-shaped metasurface structures.

4. Diversity Analysis

This section focuses on analyzing various constraints related to dissimilar diversity concepts. In this study, parameters such as ECC, DG, MEG, and CCL are evaluated. The ECC parameter represents the correlation between the radiation patterns of multiple antennas operating simultaneously. Similarly, DG is a significant metric that provides insights into the effectiveness of diversity. The ECC, derived from S-parameters, can be computed using Equation [4], where Sii​ is the reflection coefficient, and Sij​ represents the mutual coupling between the two antenna ports. The relationship between ECC and DG is described by the following equations:

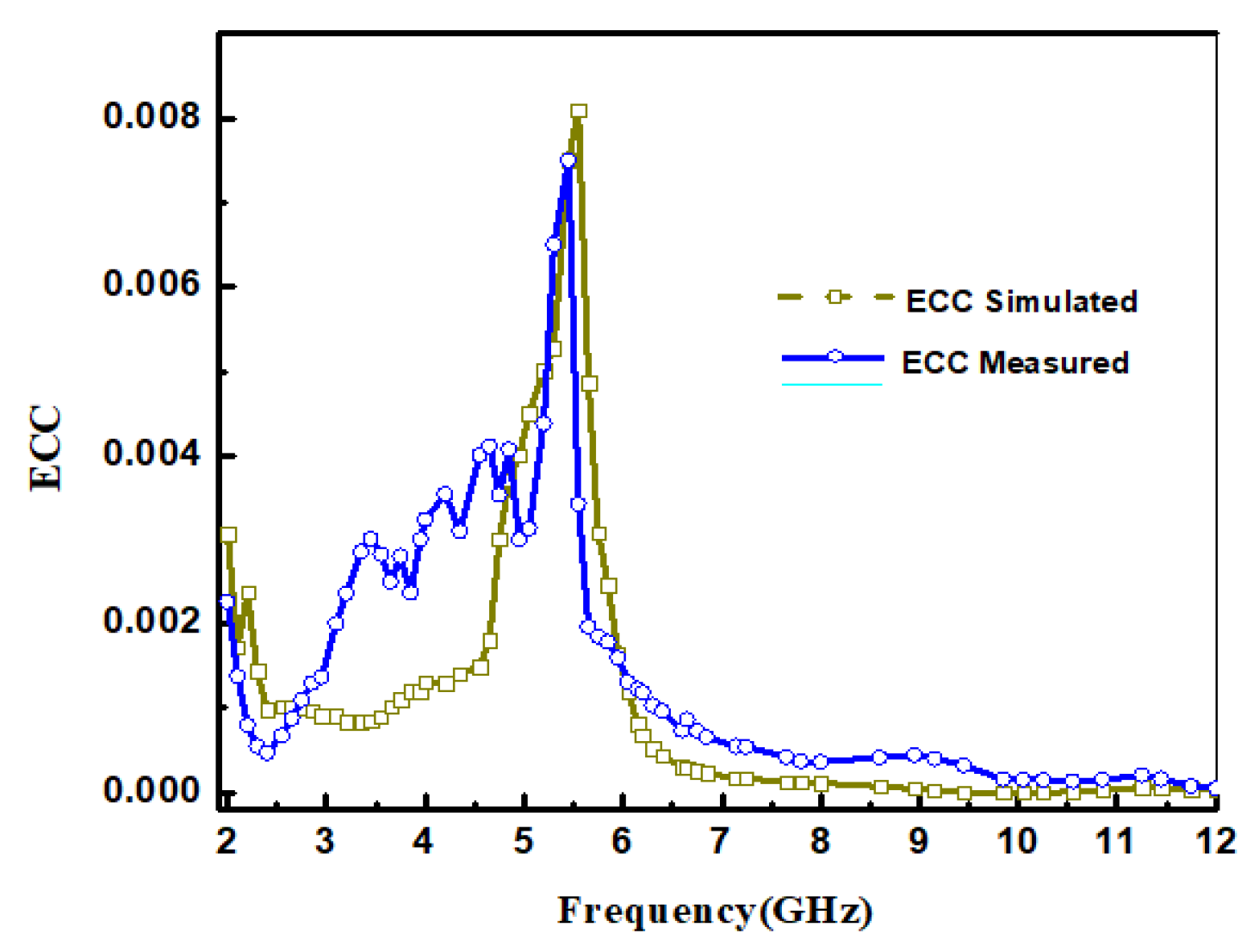

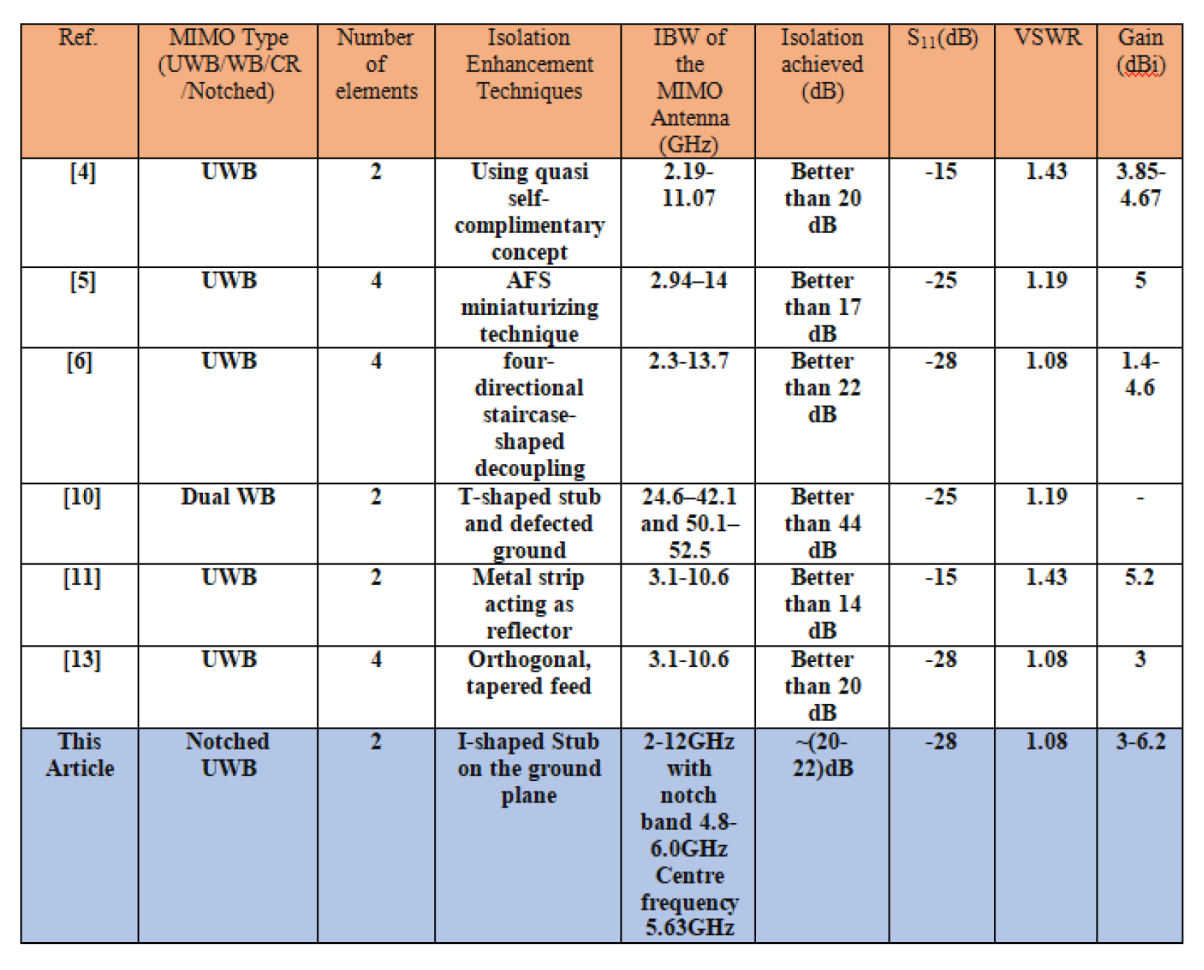

From Equation 3 and 4 ECC and DG are calculated and presented in Figure 8 and Figure 9, respectively. The analysis demonstrates excellent diversity performance, with ECC values remaining below 0.5 and diversity gain (DG) approximately 10 dB across the entire frequency range. Table 2 presents comparison table.

5. Conclusions

A new compact antenna design with two monopole elements and a band rejection feature for WLAN is presented. The unique feature of this design is the use of square-shaped meta-material to improve the antenna's performance. To reduce interference, a stub is placed between the two similar circular monopole antennas, which are powered by microstrip feeds. An L-shaped spur line on the microstrip feed helps block signals around 5.5 GHz. The design concept is carefully tested using advanced 3D simulation methods and accurate measurements.
