The Symbiotic Organ of Xyleborus Ambrosia Beetles: Cell Structure of the Preoral Mycangia Housing Partner Symbiotic Microbes

1. Introduction

The term “ambrosia beetle” describes a convergent lifestyle rather than a phylogenetic designation, where disparate beetle lineages have “domesticated” equally diverse genealogies of partner fungi [1,2,3]. Typically, less than the size of a grain of rice, these small beetles bore into the sapwood of trees where they excavate galleries to rear their brood, with different species showing variations in degree of sociality [1,4]. Invasion of ambrosia beetles into new habitats, facilitated in part by transport of trees and lumber, can have profound effects on indigenous ecosystems, not only in terms of vectoring plant pathogens, but also on wood decay and turnover [5,6,7,8,9,10]. The beetles do not feed directly on tree components but rather cultivate their fungal partners along verdant walls of their galleries, often producing swollen, tender conidiospore-like cells upon which larvae and adults feed [11,12,13,14,15]. For ambrosia beetles, at least one fungal partner has become obligate. Via the process of this co-adaptation and evolution, likely over a span of tens to several hundred million years in some instances, the beetles have evolved specialized structures on or in their bodies, termed mycangia, to house and transport their fungal partner(s) [16,17,18,19]. Due to the polyphyletic nature of this adaptation, varied ambrosia beetle lineages have evolved completely different mycangia. Some mycangia are dorsal/pronotal pits and/or consist of elytral notches, whereas others include prothoratic tubes, mesonotal pouches, setose patches, prothoractic cavities, and preoral pockets/organs, the latter within the head of the beetle, around the mouthparts/mandibles [20].

Pre-oral mycangia are typically found in pairs inside the head, flanking the mouthparts and near the alimentary canal. From current descriptions, most ambrosia beetles that contain pre-oral mycangia belong to the subfamily Scolytinae, and are found in the Ipini, Xyleborini, and Xyloterini tribes, although, as mentioned, different genera within these tribes may have divergent mycangial structures, and examples of pre-oral mycangia can be found beyond these beetles [20]. Overall, structural and functional aspects of most mycangia remain significantly understudied, however, important insights have been gained in several exemplars. The pleural cavities found in adult Trypodendron (Xyloterini) are lined with gland cells that are activated when partner fungi enter, resulting in a milieu that favors selective propagation of the symbiont [21]. When the beetle, carrying its fungal inoculum, reaches a host tree, fungal cells are released during colony excavation and the mycangia (gland cells) begin to deteriorate. As can be expected, structure-function in other types of mycangia can be radically different. Sectioning and histological staining of pre-oral mycangia in Euwallacea, Ambrosiodmus, Premnobius, and Xyleborus beetles [17,22], has helped define ultrastructural aspects of these mycangia revealing their shape, size, anatomical location, and connection to the foregut or pre-oral cavity. Non-invasive, micro-computed tomography (μCT) has also been used to visualize the pronotal (Euplatypus, Scolytoplatypus), mesonotal (Xylosandrus), and oral (Ambrosiophilus, Euwallacea) mycangia of a variety of beetles [17]. The dual pre-oral mycangia of Euwallacea beetles have been visualized by μCT across development and between sexes [23,24]. These latter data have shown the potential presence of numerous pre-oral mycangia in Euwallaceae beetles (superior and inferior mycangia), their development during pupation, and that, as adults, these structures appear fully “inflated” in the absence of colonizing fungal partners, in contrast to the mesonotal mycangia of Xylosandrus beetles, which have been shown to inflate upon exposure to partner fungi and deflate following their expulsion.

Xyleborus beetle species include invasive members whose fungal partners are highly destructive fungal tree pathogens [2,25]. Xyleborus glabratus is one such invasive species in the United States, and its fungal symbiont, since named Harringtonia lauricola, is the causative agent of laurel wilt, a disease that has killed hundreds of millions of redbay, swamp bay, and sassafras trees, and now threatens the avocado industry in the United States [26,27,28]. H. lauricola has now been isolated from environmental samples of indigenous Xyleborus beetles, including X. affinis, and the ability of these latter beetles to maintain H. lauricola as their major symbiont has been confirmed in the laboratory [26,29,30]. These beetles have dual pre-oral mycangia located within the head, just behind and beneath the mandibles [30]. Xyleborus beetles can harbor fungal species now separated into the Raffaelea, Harringtonia, and Dryadomyces genera (all previously characterized as Raffaelea), as well as limited colonization by Neocosmospora (previously Fusarium) [14,31,32]. Mycangial colonization of X. affinis has been probed using fungal strains transformed to express reporter (eGFP and RFP)-marker genes [30]. These data showed stability to starvation as well as dynamic turnover, and transmission electron microscopy (TEM) showed a dimorphic shift in the growth of the fungus in the mycangia. X. affinis has been shown to be a good host for H. lauricola, with the related beetle species, X. ferrugineus colonized to a considerably lower extent, indicating variation in colonization capacity between even closely related beetle species. Here, we focus on structural and cellular aspects of the Xyleborus pre-oral mycangia, defining different morphological features that support the hypothesis of the mycangia being highly evolved organs lined by host cells and diverse structures, with specific structures that may contribute to partner selection, entry/exit, and/or fungal cell retention and maintenance within the mycangia. Our data indicate the potential for specific muscle fibers (termed mandibular fibra) and specialized comb-like spines that may act in concert with mandibular movements to regulate the functioning of the mycangia as symbiotic fungal transport organs.

2. Materials and Methods

2.1. Insect Rearing, Fungal Strains, and Culture Conditions

Xyleborus affinis colonies were maintained under laboratory conditions, and aposymbiotic beetles were reared for colonization experiments as previously described [30]. Briefly, sawdust agar medium was made by mixing 60 g wood flour, 15 g coarse sweetgum sawdust, 20 g agar, 10 g sucrose, 5 g corn starch, 5 g casein, 5 g yeast extract, 1 g Wesson salt mixture, and 2.5 mL wheat germ oil into 500 mL of water. Following autoclaving and cooling, 350 mg streptomycin and 10 mg tetracycline were suspended in 5 mL 95% ethanol and added to the mixture. Roughly 15-20 mL of this mixture was added to 50 mL tubes. Colonies were initiated using 3-15 female beetles and 1-3 male beetles, and tubes were maintained with caps loosely tightened for 25-30 days in the dark at 23-25°C. Colony tubes are carefully dissected to remove adult beetles, pupae, and larvae, with adult beetles used to initiate new colonies. Pupae and larvae were separated, surface sterilized with 70% ethanol and three washes with sterile distilled water, and maintained on sterile, moistened filtered paper until adult beetles emerged to generate aposymbiotic beetles for colonization assays. Fungal strains of Harringtonia lauricola, including those transformed to express green- or red-fluorescent protein (GFP/RFP), have been previously described [33], and unless otherwise noted, were routinely grown on potato dextrose agar (PDA) for use.

2.2. Microscopy

To obtain microscope images of fungal cells within X. affinis mycangia, aposymbiotic beetles were colonized using GFP-expressing H. lauricola as above, embedded in Optimal Cutting Temperature (OCT) mounting medium, and frozen in a bath of isopentane cooled in liquid nitrogen. Frozen blocks were then sectioned using a Leica 3050S cryostat (Leica, Wetzlar, Germany) to a thickness of 5-20μm. Sections were then collected directly onto microscope slides, followed by fixation in 4% PFA for 20 minutes and three washes in sterile distilled water for three minutes each to remove PFA and OCT. Slides were then dried and mounted in Vectashield hardset mounting medium containing DAPI and phalloidin (Vector laboratories, Plain City, OH) for fluorescent staining of nuclei and actin filaments, respectively. Mounted sections were then visualized using a Keyence BZX-800 fluorescence microscope at 40x, 60x, and 100x objective magnification using brightfield, TRITC, GFP, and DAPI fluorescent channels. For fluorescent images, Z stacks were collected over a range encompassing the signal and assembled into a full focus image in the Keyence BZX-800 Analyzer software, while for brightfield photos, single images were taken and overlayed with full-focus fluorescent images. Transmission electron microscopy (TEM) images were obtained as previously described [30]. Measurements of anatomical structures from microscopy images were obtained using ImageJ software (National Institutes of Health, Bethesda, MD, USA).

3. Results

3.1. Mandible, Muscle, and Cross-Section Analyses of the X. affinis Mycangia

X. affinis larvae, pupae, and adults are ~1.5, 2, and 2.1 mm in length (Figure 1A–C). Larvae pass through three instars, with adults emerging from pupae after 6-7 d. On adults, deeply emarginate compound eyes, located on either side of the mandibles, encompassed upper (~140x140 μm) and lower (~170x140 μm) patches of ommatidia containing the cornea, cones, and photoreceptor cells, with the small club-foot antennae characteristic of ambrosia beetles adjacent (Figure 1D,E). Mandibles (~150-200 μm) were located above the submentum and were multidentate and surrounded by dense setae (Figure 1E–G).

Longitudinal cross-sectioning of whole adult female beetles revealed mycangia, gut tract, ganglia, and musculature, with significant mandibular muscles apparent extending from the head to the jaws (Figure 2A,B). A corresponding cross section stained with DAPI and phalloidin and visualized via fluorescence microscopy revealed the major organs of the beetle including the brain, hindgut, posterior-, and anterior-midguts, as well as proventriculus and crop (Figure 2C). Near/at the head region, the labial, pharyngeal, and mandibular muscles were also apparent (Figure 2C,D). In addition, strongly phalloidin-staining mandibular fibra, immediately adjacent (slightly above) the mycangia, were seen. As the beetle was fed a partner symbiotic fungus (H. lauricola) expressing RFP as detailed in the Methods section, fungal cells within the mycangia could be detected via fluorescence microscopy. These cells were seen to localize exclusively to mycangia following colonization, indicating that host beetles can employ efficient mechanisms to guide partner fungal cells into mycangia and store them there without persistence of cells in surrounding insect anatomical structures.

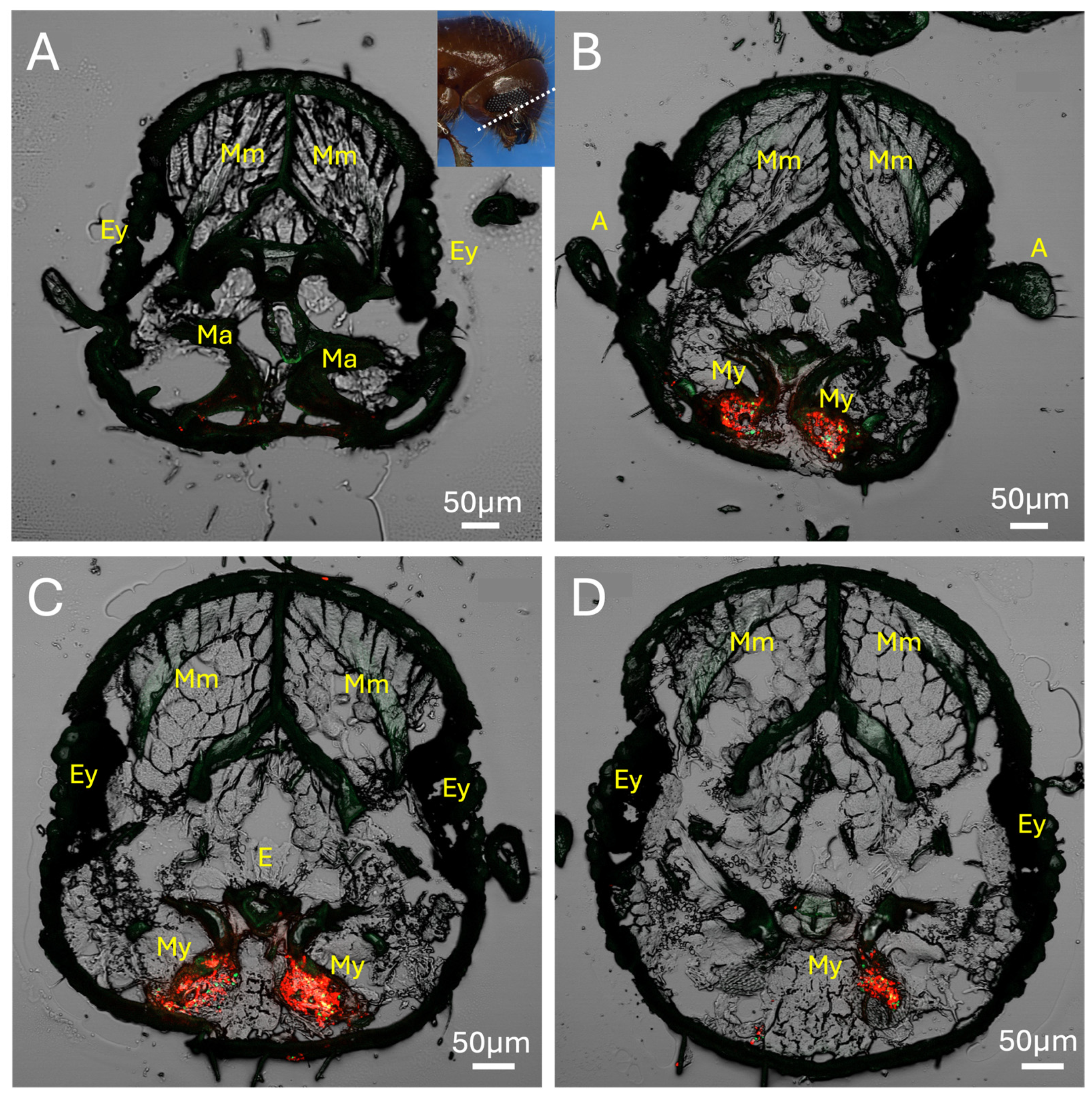

Using RFP- and eGFP-labeled H. lauricola to mark the mycangia, a series of lateral cross-sections (20 μm, see inset in figure) of the mouthpart region revealed colonization of twin pre-oral mycangia (Figure 3A–D). In the foremost section, mandibular articulations and muscles could be discerned, showing that these articulations sit directly in front of, and connect to, the mycangia via the chitinous lining of entry/exit canals (Figure 3A). Both mycangial pouches could be seen emerging in the next two sections with the antennae, eyes, and esophagus also apparent (Figure 3B,C), with the fourth section likely exposing the outer posterior edge of one of the mycangial organs (Figure 3D). This posterior edge appeared as a thin translucent membranous layer textured by rows of small projections ordered neatly across the interior surface of this structure.

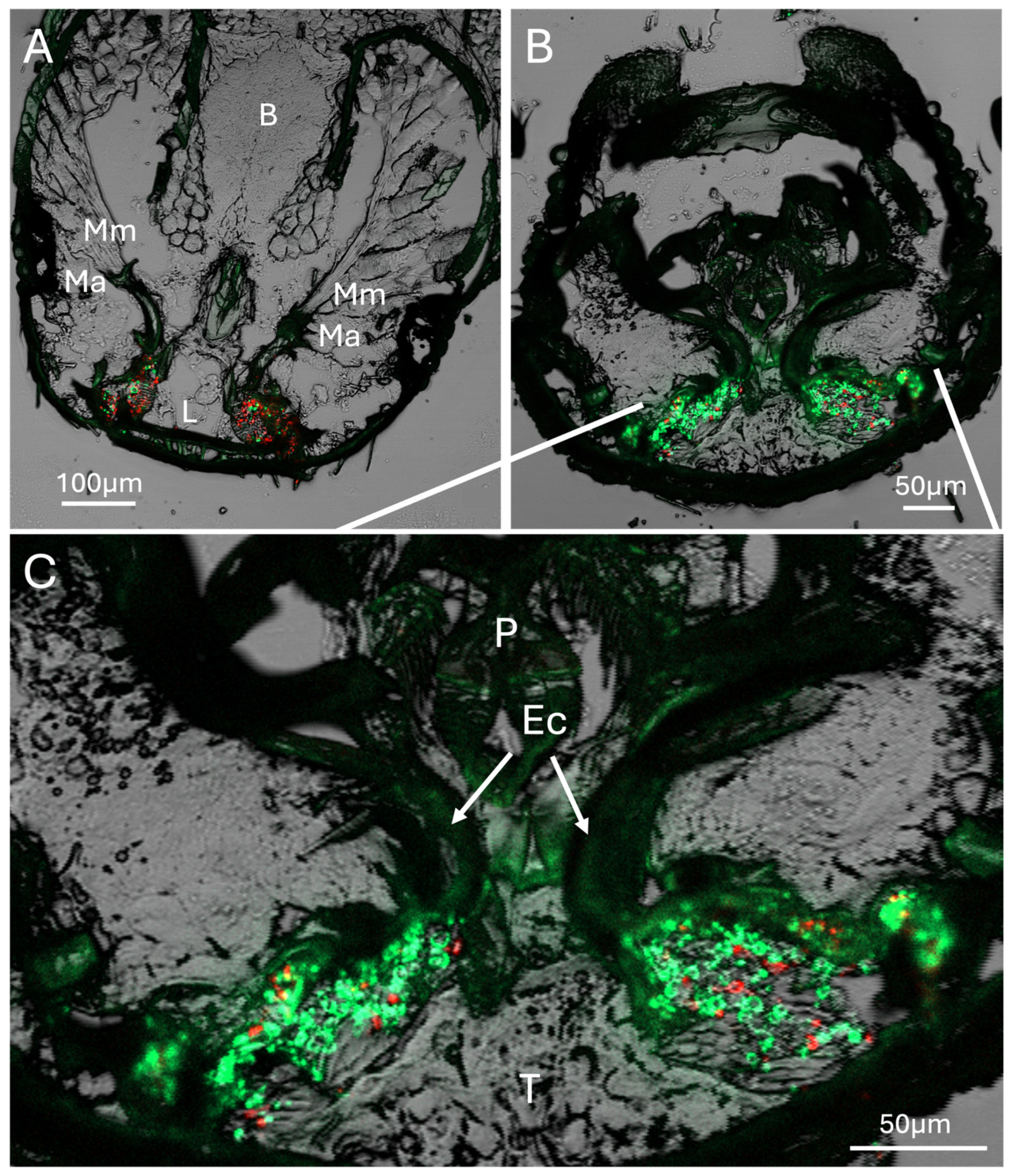

Further representative sections immediately within the mouthparts revealed connection of mandibular muscles to the mandibular/mycangial articulations, as well as outlines of entry/exit channels, which appeared as dense masses of melanized/sclerotized tissue with a furrow leading from the pre-oral cavity to the interior of the mycangia (Figure 4). The mycangial organs themselves were irregular in shape and frequently with a pinched lateral end opposite the entry/exit canal. This furrowed end was more frequently noted in later serial sections and appears to be a feature of the dorsal section of the mycangia, situated in the rear-most portion further from the mandibles (see also Figure 8B) and surrounded by a dense striated layer of tissue which may potentially function to contract and squeeze the mycangium, aiding in expulsion of fungal cells during inoculation of fungal gardens along gallery walls. As these beetles were fed a mixture of RFP- and eGFP-expressing H. lauricola fungal symbiont partner cells, both green and red-fluorescent signals corresponding to the fungus could be discerned, showing robust colonization within the mycangial compartments. Almost all fungal cells noted in these, and subsequent analyses (and images) shown below, appeared to be single-celled blastospore/yeast-like cells apparently freely floating within the mycangia or in close association with spine-like projections along the inner mycangia lumen walls.

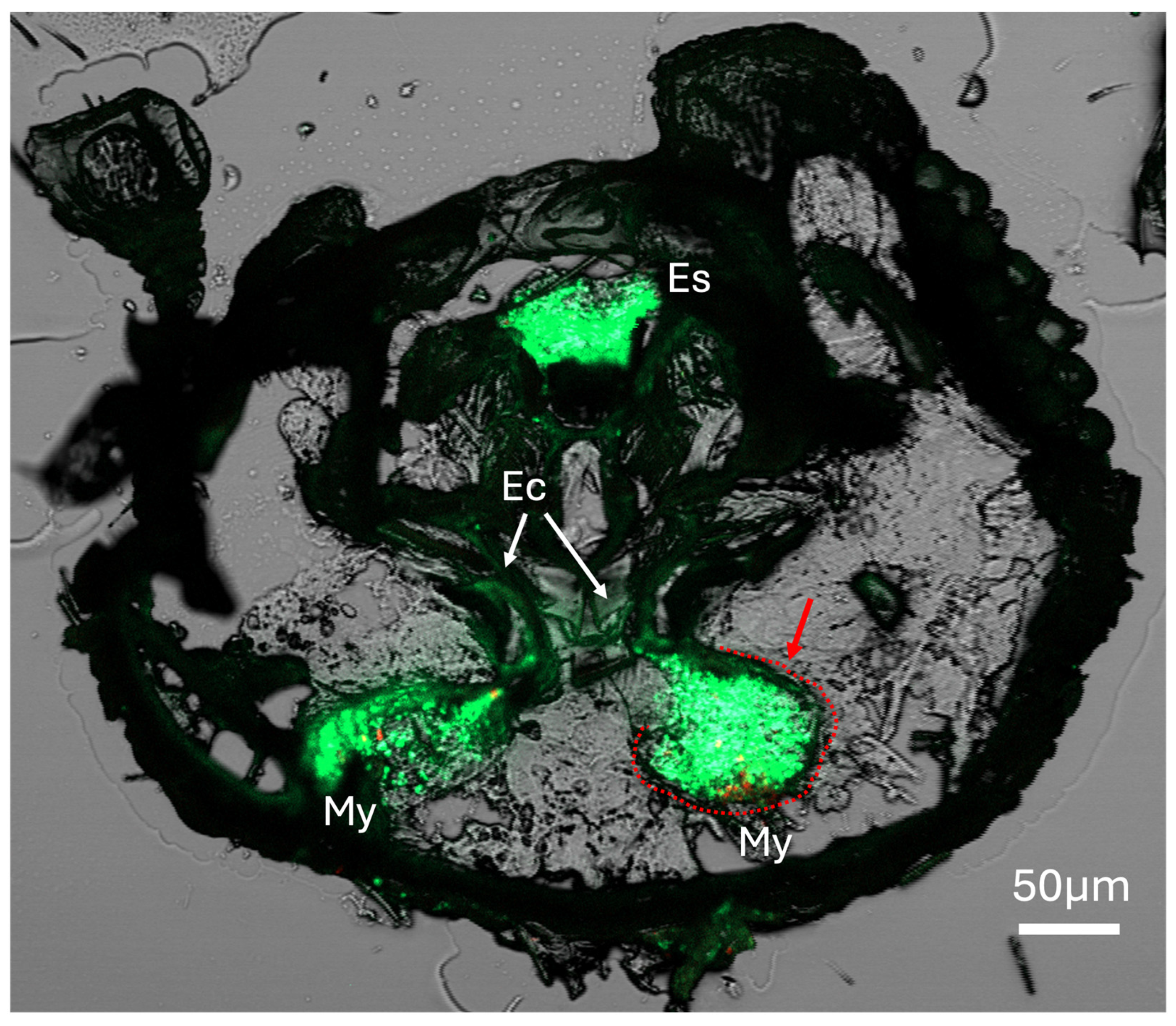

In addition to the mycangia colonized by fungal cells, signals (of eGFP-expressing fungal cells) could be seen within the entry/exit channels, as well as occasionally within the esophagus of the beetle, apparently denoting beetles which were frozen for cryosectioning while in the process of eating fungal cells (Figure 5). In these, and previous sections shown, a clear sclerotized host structure could be discerned surrounding mycangial pouches, particularly in anterior sections closer to the mandibular articulations (Figure 5C, marked with a dashed red line around one of the mycangial pouches).

Finer Details of Surrounding External and Internal Structures of the Mycangia

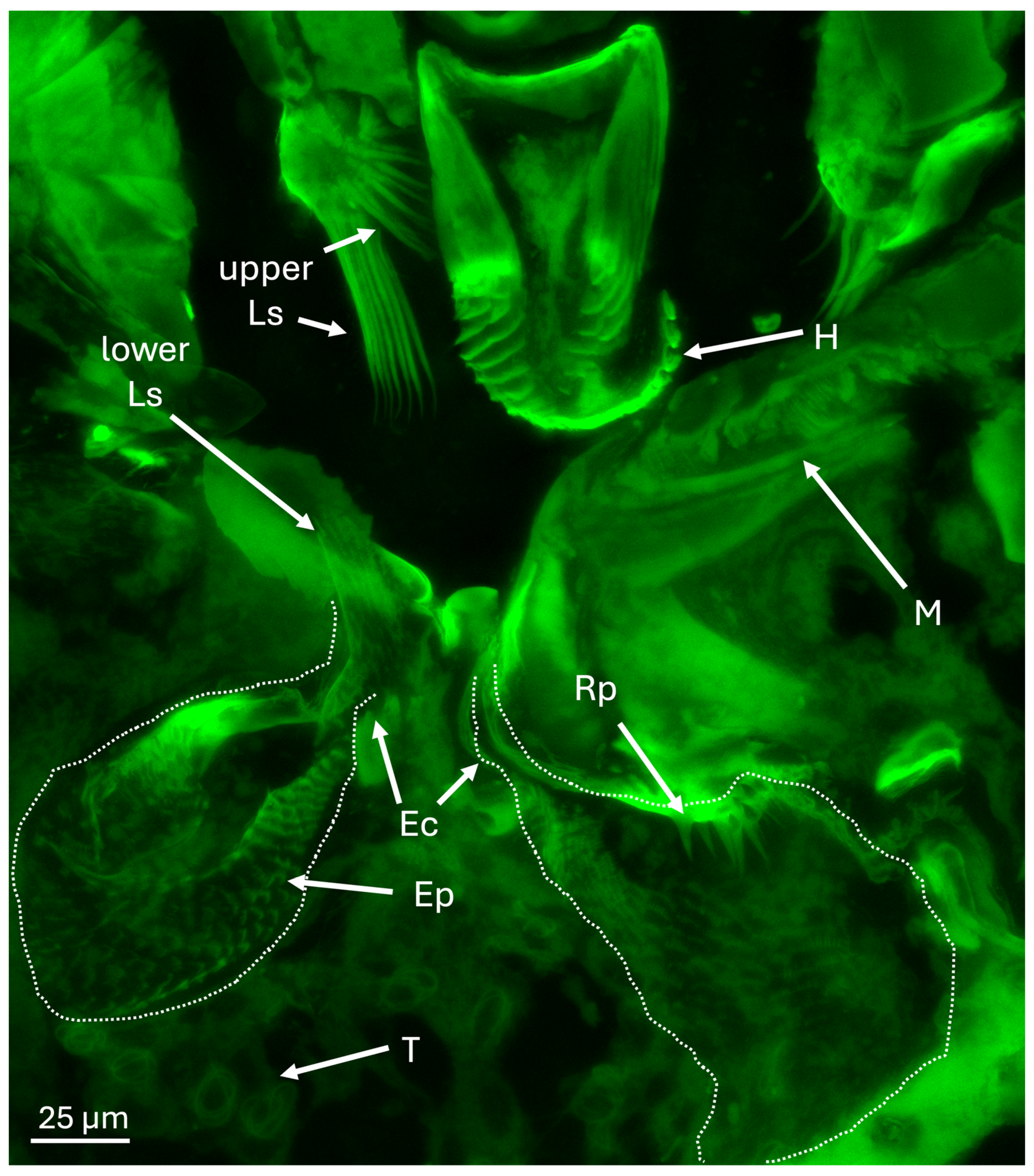

Epifluorescence microscopy of the area immediately surrounding the mycangia revealed the hypopharynx and mandibular articulations above and adjacent to the mycangial pouches (Figure 6). Upper and lower sets of large spines (Ls) at the entry/exit channels (Ec) were noted which may guide fungal cells into mycangia and assist in their retention. Beneath and between mycangia, clusters of tubules were noted. In addition, Ross projections (Rp) along a portion inside the mycangia, as well as rows of “eyelash” projections (Ep) lining the inside, were seen.

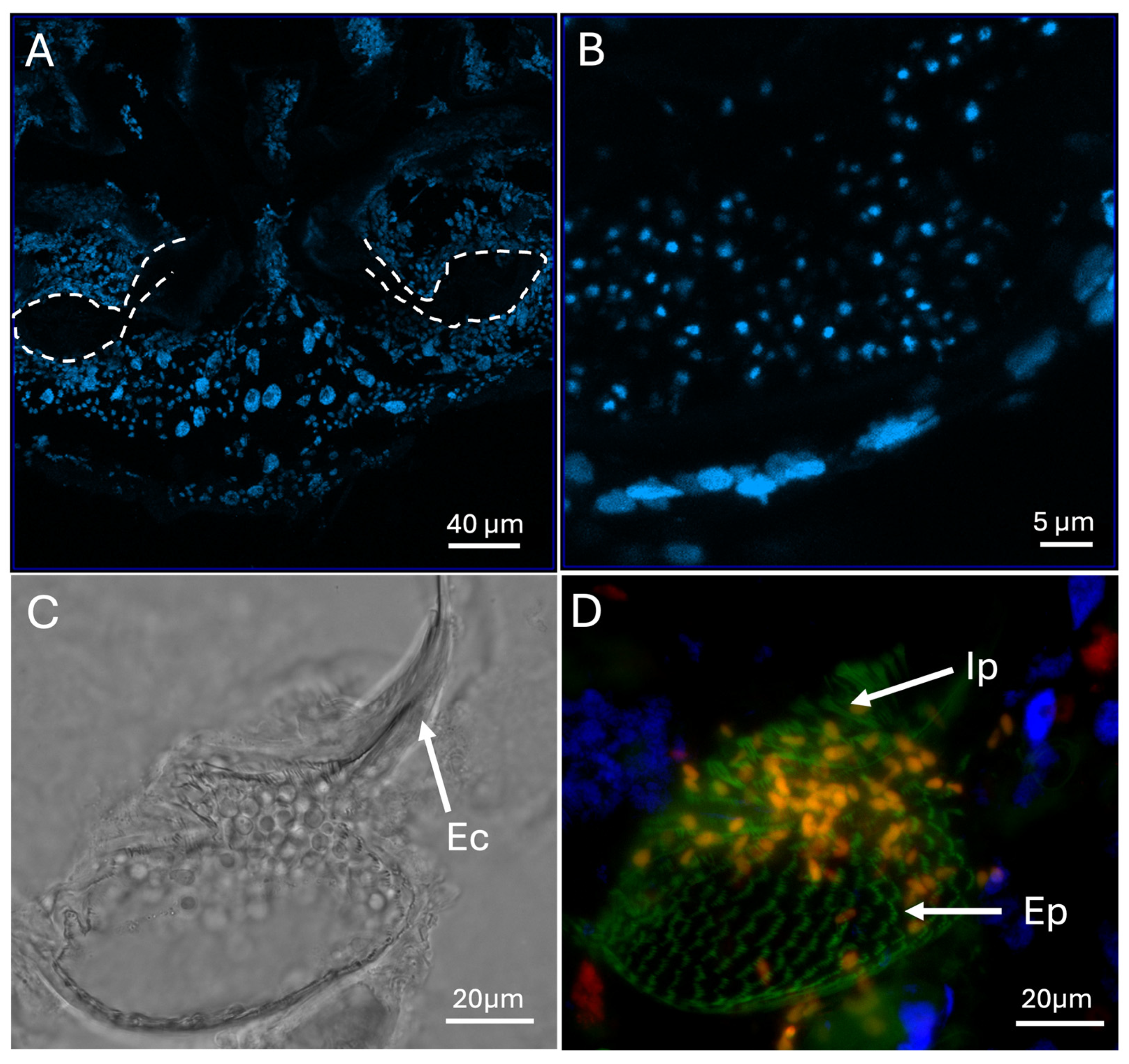

Sections stained with DAPI revealed that the mycangia is surrounded by a dense layer of cells with small nuclei that extend into the surrounding tissues, with insect cells becoming more spaced apart further away from the mycangia and the nuclei becoming larger, with the tubular region between and below mycangia characterized by distinct large and spaced apart nuclei (Figure 7A,B), with higher magnification brightfield and fluorescence images showing the entry/exit channel, fungal cells within the mycangia, and rows of eyelash projections and intermediate projections (Figure 7C,D).

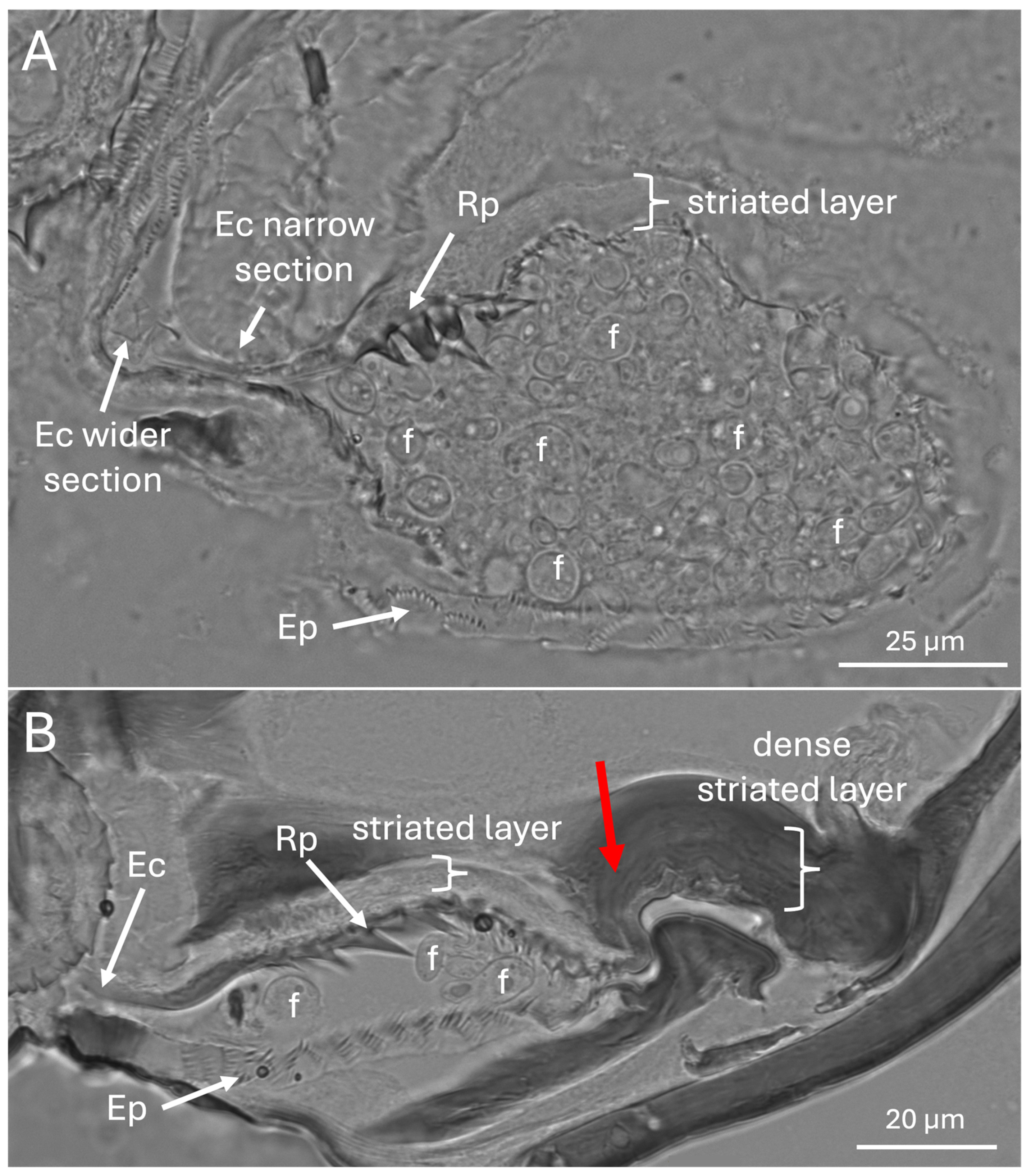

The entry exit channel appeared to have a wider (11-14 μm) initial region that narrowed to 1-5 μm, with Ross projections apparent near the entryway, which gave way to smaller intermediate- and eyelash-projections forming a surrounding layer within the mycangia (Figure 8A,B). Columns of striated tissues potentially corresponding to skeletal-like muscle were also seen near the beginning of the entry channel, and fungal cells were readily apparent within the mycangia.

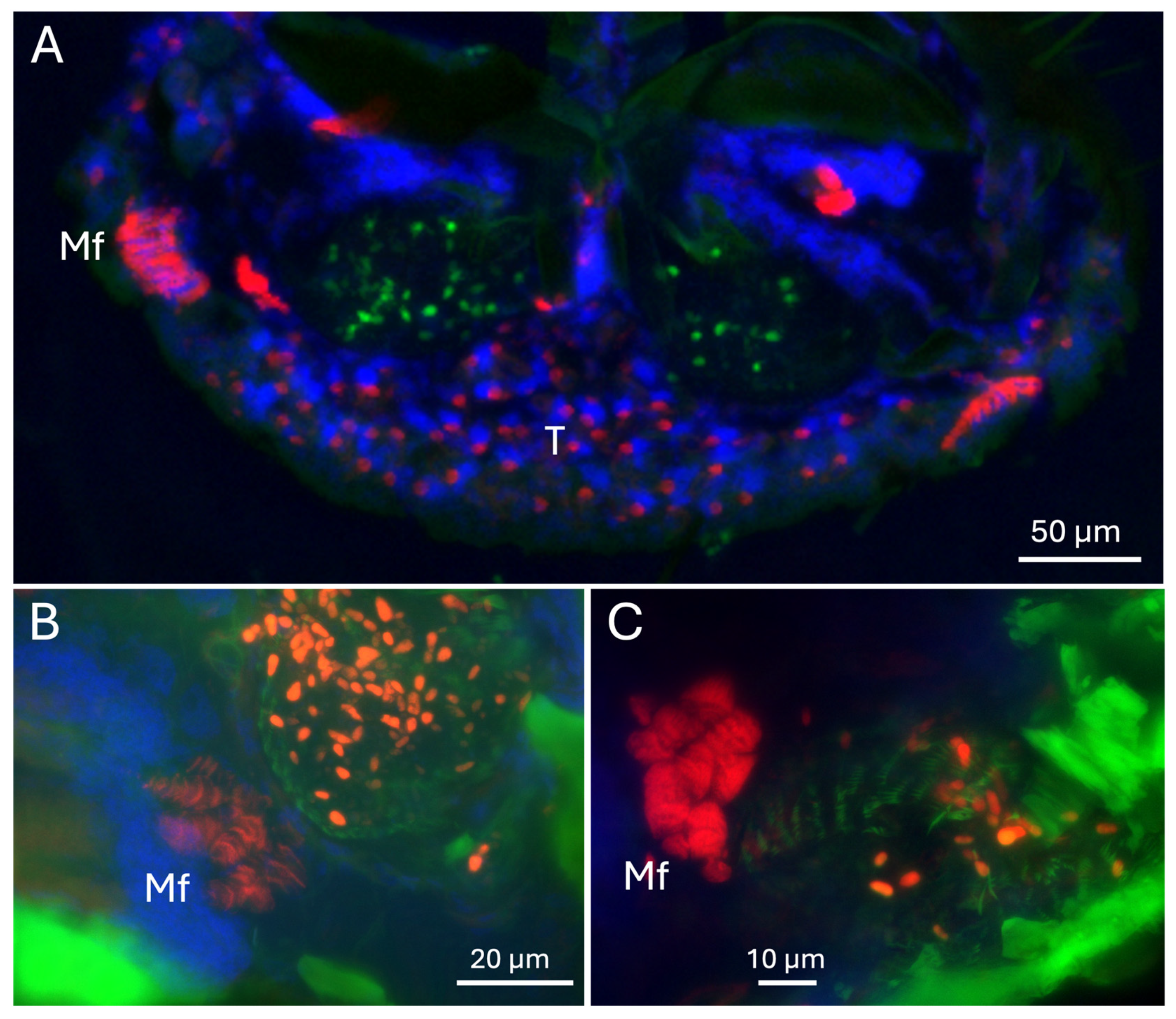

To further explore any muscle structures near the mycangia, sections were stained with phalloidin and counterstained with DAPI. Fluorescent microscopic images showed the clear outlines of the mycangia (containing eGFP-expressing fungal cells), surrounded by host cells with two sets of brightly phalloidin staining striated (muscle) structures on the sides of each mycangium, one set at the peripheral boundary of the mycangia and one just above each mycangium separated by a layer of dense DAPI-staining tissue (Figure 9A). These muscular structures on the peripheral boundaries (furthest from the entry/exit channels and esophagus) consist of 8-10 tightly bundled sets of fibers immediately adjacent to mycangia, while those above mycangia and bordering dense DAPI-staining tissues appear to consist of 2-3 brightly phalloidin-staining bundles. Striations in these muscle tissues ran parallel to or slightly angled from the walls of the mycangia. Higher magnification images, including epifluorescence images, revealed bundles (3-5) of columnar striated staining characteristic of skeletal muscle tissues at the periphery of the mycangia (Figure 9B,C).

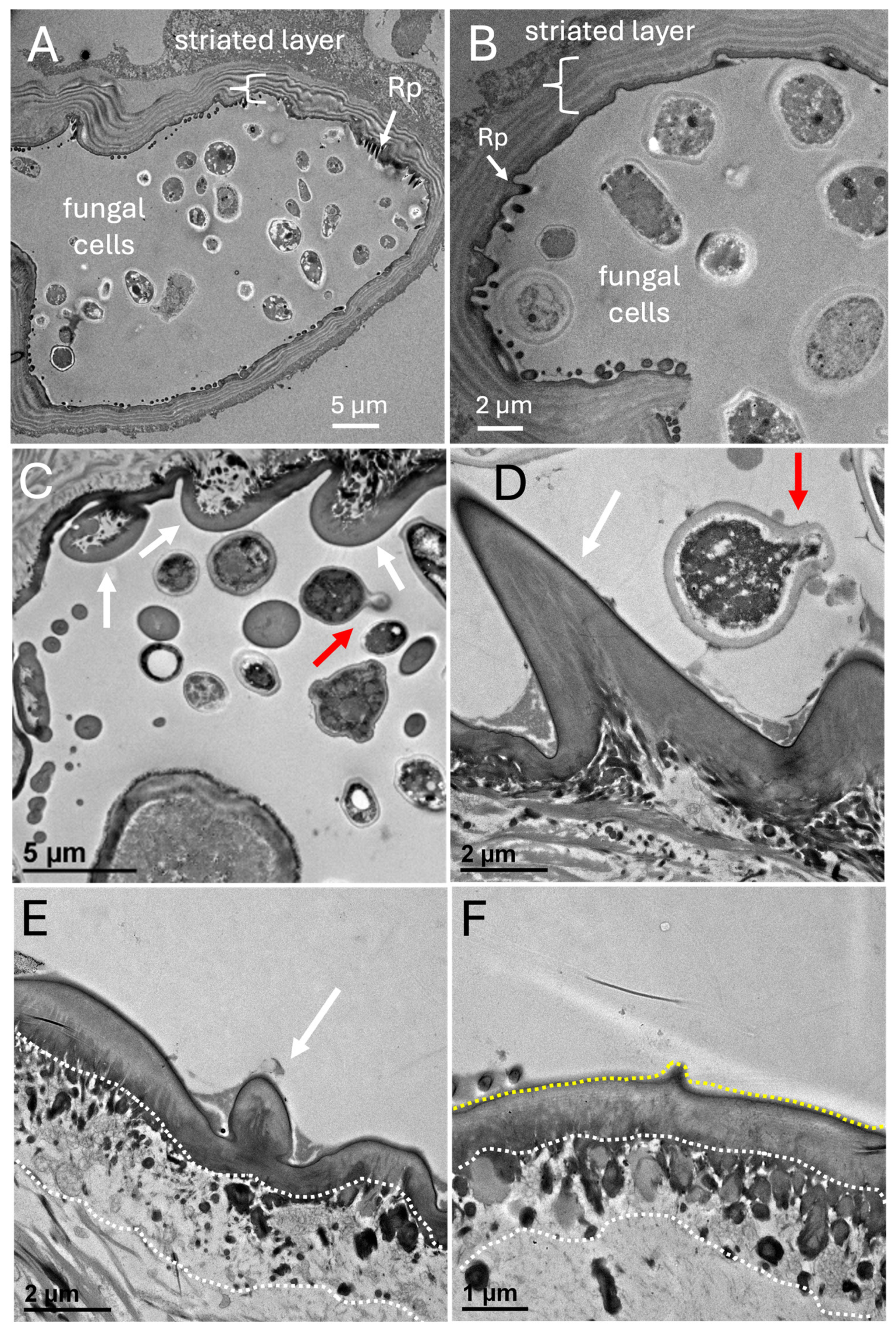

TEM of cross sections of the mycangia revealed a layer of striated material surrounding the mycangium (Figure 10A,B). Ross projections, as well as smaller projections directed into the mycangia containing fungal cells, were also seen. The TEM images confirmed that most fungal cells within the mycangia displayed a free-floating yeast or blastospore-like growth morphology with variations in size and shape observed, as well as evidence of budding growth (red arrows, Figure 10C,D). Both short, and longer Ross projections appeared to have a dense (in relation to the inside of the mycangia) layer, which itself was surrounded by a layer of nucleated host cells, which gave way to the surrounding rings of dense tissue (striations). Thus, the inner lining of the mycangia containing the short and longer Ross projections consisted of a layer (~1-1.5 μm) of dense material (mycangial cuticular layer) surrounded by an outer (in relation to the mycangia) layer or mycangial epithelium comprised of host cells (Figure 10E,F). The longer intermediate and/or Ross projections (e.g., extending ~ 6-10 μm in Figure 10B) appeared to consist of an extension of the mycangial cuticular layer, with nucleated host cells at its base. A summary model of the features of the Xyleborus mycangia is given (Figure 11).

4. Discussion

As the ability to “carry” their fungal partners has evolved multiple times independently, the mycangia of ambrosia beetles represent different organs with varying location, development, structure, and selection due to the different paths taken in the course of their evolution [21,34,35]. The majority of Xyleborini genera, as well as some Xyloterini and Ipini species, have evolved a set of two pre-oral mycangia near the esophagus just behind the mandibles and connected to the alimentary canal via either the pre-oral cavity or the pharynx.

Traditional paraffin sectioning, laser ablation tomography (LATscan), and micro-computed tomography (μCT) have been employed to examine oral, pronotal, and mesonotal mycangia in a range of ambrosia beetles [17,20,21,23,24]. The mycangia of Ambrosiodmus, Xylosandrus, and Scolytoplatypus were characterized as being formed of an outer membrane containing the symbiotic fungus, with no glands or secretory cells visible. The mesonotal mycangia of Xylosandrus compactus and X. discolor have been shown to lie between the pronotum and scutellum, with a single bundle (pronoto-occipitalis) muscle. However, the more recent finer (e.g., via μCT) resolution imaging has shown that in X. amputatus this muscle consists of two bundles, each of which splits into four sub-bundles as they cross, with each sub-bundle crossing each other, connecting from the right to the left sides of the scutellum [17]. Additional muscle bundles were found connected to the pronotum posterior. In conjunction with other muscle fibers, longitudinal contraction might constrict these types of mycangia, with deformation of muscle sets posited to occur during gallery excavation [16,17].

A μCT morphological analysis of female Euwallacea validus oral paired mycangia (partner fungus, Fusarium oligoseptatum) across larval, pupal, and adult stages revealed mycangial organ development during the late pupal stage, with the identification of two sets of mycangia, that could potentially be physically or functionally linked; one termed the superior medial mycangia (consisting of two pouches, located in front of the esophagus and behind the mandible), and the other the inferior, lateral mycangia (also consisting of two pouches, either side of head, behind eyes) [23]. In addition, the resolution of the method allowed for the putative identification of a rudimentary or proto-medial mycangium in males, previously unknown in male Xyleborini.

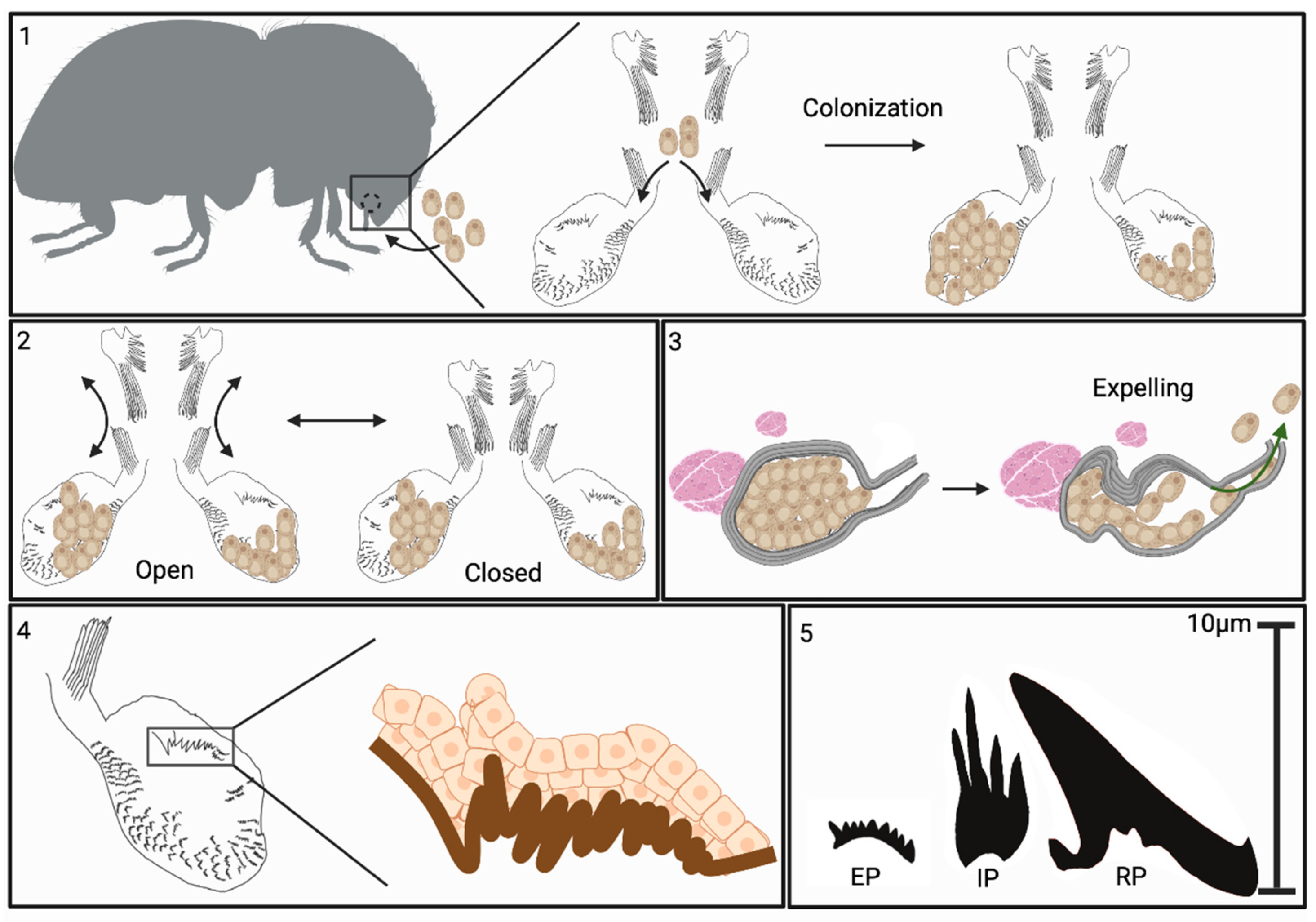

Confirming previous reports, our data show that the overall structure of the X. affinis preoral mycangia consists of two irregular shaped pouch-like organs directly behind and beneath the mandibles and connected to the esophagus via the pre-oral cavity. These pouches appeared to be connected to the mandibular articulations via the entry/exit channel at their frontal end, potentially allowing for their articulation in conjunction with mandibular movements and by mandibular and other sets of muscles. We further elaborate on the entry/exit channels of each mycangium, which appear as furrows with a wider initial segment that narrowed significantly into the mycangium, and were surrounded by dense tissue matter, potentially muscular in nature, but which did not stain with phalloidin. At the mycangial entrance, sets (upper and lower) of long, comb-like spines extending from the labrum or epipharynx “downwards” and from the entrance of the entry/exit channel “upwards” were identified. We hypothesize that these structures, if enervated by muscle tissues and linked to movements of the mandibles, labrum, or epiharynx could act as gates or portcullises to the mycangia, functioning to retain fungal cells during dispersal.

The mycangial envelope itself appeared to have three discernible layers, (from the inside out): (i) a dense staining layer (0.5-2.5 mm) devoid of defined features, but which extended in places into the mycangial lumen forming spines and longer Ross projections. (ii) This was followed by a middle layer of apparent epithelial-like (nucleated) cells (2-5 cells thick), that could also be seen at the base of the spines and projections. (iii) The outermost or peripheral section of the mycangia consisted of a striated layer (1-10 mm, 3-5 bands), which did not appear to be comprised of nucleated cells or actin (i.e., did not stain with DAPI or phalloidin). In posterior sections of mycangia, we consistently noted that this striated layer, and subsequently the mycangial pouch, appeared pinched in appearance, suggesting that this portion of these organs may be flexible, and potentially could be squeezed by surrounding musculature as a mechanism of expelling fungal cells from mycangia during gallery excavation and fungal garden inoculation.

Within or directed into the mycangia from the inner wall, a variety of previously described as well as unreported structures were noted. Larger spines or Ross projections, apparently concentrated in clumps, sometimes, but not always, near or just within the mycangial entrance, have been noted before. The mycangial lumen contained rows of ordered eyelash-like structures lining the inner mycangial wall (here termed eyelash projections). In addition, tubule-like structures consisting of stacked tubes leading to filaments, as well as structures typically with 3-5 filaments of intermediate size projecting from a diffuse base (intermediate projections), were characterized. Duct-like structures, spines, and hair-like protrusions have been noted for a variety of mycangia, most notably in Ambrososiophilus atractus, Premnobius cavipennis, Ambrosiodmus lecontei, and E. validus [22,36,37]. The functions of these enigmatic structures remain to be elucidated, with various hypotheses related to selection and maintenance, coupled with the potential for nutrient and/or signaling exchange, warranting further experimentation. The current work, demonstrating the interior of these structures to contain layers of epithelial cells, indicates dynamic biological functioning beyond inert mechanical retention of fungal cells. Recently, pathways involved in insect tubulogenesis have been implicated in mycangial development [38]. Our observations describe the pre-oral mycangia of a Xyleborus ambrosia beetle in unprecedented ultrastructural detail and we propose hypotheses regarding their function as symbiont housing, transporting, and dispensing organs.
