Assessment of UAV Imageries for Estimating Growth Vitality, Yield and Quality of Hop (Humulus lupulus L.) Crops

1. Introduction

Hop (Humulus lupulus L.) is an indispensable raw material for brewing industry, as hop cones are essential for imparting bitterness, flavour and sensory stability to beer [1,2]. According to data from International Hop Growers’ Convention (2024), in 2023 hops were grown on an area of 60,371 ha worldwide, while in the Czech Republic, hops were grown on an area of 4860 ha hop gardens in production. According to the same source, the total production of hops in 2023 reached 118,457 tons, while 6997 tons were harvested in the Czech Republic. Therefore, the Czech Republic has long been in 3rd place in the world in terms of the acreage of hop gardens and in terms of total annual production.

However, based on these and other data [3,4] in the Czech Republic, the average yield of hop cones from one hectare of hop gardens is lower than the European average and also the average yield per hectare for the two largest growers (e.g., in 2023: CR—1.44 t/ha, USA—2.07 t/ha, Germany—2 t/ha). The lower yield of hops in the Czech Republic is mainly due to the different varietal composition. In CR, most areas (82%) grow aromatic varieties, especially Saaz, which have a lower yield. For example, In Germany, on the other hand, bitter varieties are grown on most areas (56.9%), which are characterized by a higher yield [4].

An important trend in contemporary agriculture, that prioritizes the quality of production over its quantity, is undoubtedly organic farming [5], which is also used in the cultivation of hops [6]. Although the total volume of organic hop cultivation is not yet large, its production and demand for it is constantly increasing [7,8]. A similar situation exists in the Czech Republic, where organic hops have been harvested since 2012. According to data from the Hop Growers Union of the Czech Republic (2024), organic hops are currently grown on an area of 10.52 ha, and another 6.35 ha are in the transition period. Organic hop cultivation has its own specifics, which are connected, for example, to with fertilizing and protecting plants against weeds and diseases, but also with irrigation [6,9].

For these reasons, ways to increase the yield of both aromatic hop varieties and organic hops are being sought in the conditions of the Czech Republic. Monitoring the state of health and growth vitality of hop plants is necessary for ensuring both the quality and quantity of hops, directly impacting the brewing process. Traditional methods of hop plant assessment, reliant on visual inspection and manual data collection, exhibit inherent limitations in terms of efficiency and precision [10].

In recent years, Unmanned Aerial Vehicles (UAVs) have emerged as a promising and innovative tool for assessing crops, including hop fields [11]. The use of UAVs and remote sensing technology offers several advantages over traditional methods [12,13]. It enables data collection on a larger scale, covering extensive fields more efficiently [14]. The high-resolution imaging sensors onboard UAVs allow for detailed and accurate assessments of plant health and vigour, which can be challenging to achieve through manual inspections. Additionally, the non-invasive nature of UAV-based monitoring reduces the disruption to plants, minimizing potential stressors [15].

Equipped with various imaging sensors, such as multispectral and thermal cameras, UAVs offer the potential to provide high-resolution, and timely data for evaluating the health and stress levels of plants [16]. Among the crucial spectral indices utilized in this context is the Normalized Difference Vegetation Index (NDVI), which quantifies vegetation health and vigour by analysing the contrast between near-infrared and red reflectance [17].

Moreover, the inclusion of meteorological data in the analysis provides a comprehensive understanding of the factors influencing hop cultivation. This information can be invaluable for farmers, enabling them to make informed decisions regarding planting, irrigation, and pest control [18]. By linking meteorological data with the health and vitality of hop plants, this study contributes to the development of precision agriculture techniques, enhancing overall crop yield and quality [19].

In addition to NDVI, several other spectral indices, such as the Chlorophyll Red Edge Index (CIR), Green Normalized Difference Vegetation Index (GNDVI), Normalized Difference Red Edge (NDRE), and Soil Adjusted Vegetation Index (SAVI), play significant roles in assessing plant health and stress levels [20]. These indices offer complementary information regarding various physiological and biochemical properties of plants, enhancing the accuracy and depth of analysis in remote sensing applications.

This study’s objective is to investigate hop field dynamics, varietal development (vitality, health, and structure), and agricultural practices over four years spanning from 2020 to 2023. Another objective was to investigate which of the used indices would be most useful for assessing the difference in the dynamics of hop development. The integration of real-world data from remote sensing for the specified timeframe holds the potential to provide valuable insights into the evolution of hop cultivation practices [21]. The utilization of UAVs, combined with NDVI and other spectral indices, allows for efficient and non-invasive monitoring of hop fields, enabling timely interventions to enhance crop health and productivity [22,23].

2. Materials and Methods

2.1. Study Area

The study area encompassed two hop gardens, each subjected to different agrotechnical practices: one following organic practice and the other following conventional methods. These hop gardens were located near Stekník, Czech Republic, production and experimental farm of Hop Research Institute Co., Ltd. (HRI). The conventional hop garden (coordinates: 50°19′37.32”N, 13°37′43.05”E) featured three hop varieties, namely Agnus (covering an area of 1.5 ha), Premiant (2.4 ha), and Sládek (1.7 ha). Conversely, the organic hop garden (coordinates: 50°19′16.43”N, 13°37′50.63”E) comprised the Saaz (1.1 ha) and Premiant (1.1 ha) cultivars. Characteristic interventions in the organic hop garden were the application of selected fertilizers and plant protection products approved for organic farming. In the case of fertilizers, it was primarily manure from organic farms and green manure, plant extracts and bioagents were used in plant protection. The agrotechnical measures in the conventional hop garden were in accordance with the common cultivation technologies of this type. Both hop gardens were equipped with a drip irrigation system located on top of the trellis to provide consistent soil moisture. However, local climatic and weather conditions also played a significant role in the development and vitality of plants. Experimental hop gardens belong to the climatic region, which is described according to Czech Hydrometeorological Institute as “very warm with poor precipitation”, where the average annual temperature is 9–10 °C and the average annual precipitation is 500–600 mm [24,25]. Average precipitation and temperatures for the months of the main growing season of hops (i.e., May to August) are given in Figure 1.

The soil of experimental hop gardens belongs to cambium soils with podzols on terrace deposits [26]. Agrotechnical operations are similar in conventional and organic hop production. In the spring, the key operation is the preparation of the plot for hop cutting. After training young shoots, spring ploughing is carried out at a time when the plants have reached a height of about 200 cm (BBCH 33). The purpose is to cover growing weeds and redundant hop shoots. Inter-row loosening is carried out later in the growing season to suppress weed growth and eliminate soil compaction after tractor passes.

2.2. Hop Varieties

Saaz aroma variety is a traditional Czech variety that has been cultivated for centuries in Bohemia region. As a regional landrace, it was developed by long-term breeding using the method of positive mass selection. The varieties Sládek, Premiant and Agnus belong to the first generation of Czech hybrid cultivars, which were registered in 1994 (Sládek), 1996 (Premiant) and 2001 (Agnus). The Sládek variety was obtained by selection from the hybrid progenies of the Northern Brewer and Saaz cultivars, Agnus from the hybrid progenies of the Sládek, Bor, Northern Brewer and Fuggle cultivars. Premiant was created by crossing the inbred line of Saaz cultivar and other breeding material.

The Saaz is categorized as semi-early variety, with maturation occurring in the second half of August. In contrast, Premiant and Agnus usually ripen at the turn of August and September. Sládek is a late variety typically ripening in the first half of September. In comparison to Saaz, the hybrid varieties exhibit a more robust growth pattern, necessitating increased fertilization and the application of plant protection products. The resulting yield and content of Alpha Acids as measure of quality of cones are given in Table 1.

2.3. UAV data

To monitor experimental plots, we utilized an unmanned fixed-wing aerial system eBeeX (senseFly, SA, Cheseaux-Lausanne, Switzerland), equipped with MicaSense RedEdge MX camera. Spectral properties of MicaSense Red Edge MX spectral bands are given in Table 2. Flight campaigns for each vegetation season started during the early spring hop growth (end of April or beginning of May) and finished during the harvest period (end of August). During May and June, UAV scanning was more frequent (approximately weekly) as the vegetation developed rapidly. After reaching the height of the hop garden construction (8 m) and therefore the later phenological phases, it became possible to scan every 14 days (see Table 3). Growth stages of hop plants during the individual UAV campaigns are given in Figure 2.

Each flight campaign required constant conditions, ideally cloudy days to ensure sufficient image contrast with shadow elimination, especially with very low wind speeds to ensure platform stability during flight and minimize plant movement in the hop gardens. Flight missions were conducted during midday hours, typically between 11:00 AM and 2:00 PM, to maintain optimal lighting.

The flight plan was prepared using the eMotion SW (senseFly, SA, Cheseaux-Lausanne, Switzerland), which also serves as the control and operational software for the individual flights. Flightlines were set perpendicular to the wind direction with a 75% for longitudinal image overlap and lateral overlap in the case of MicaSense Red Edge MX camera according to producer recommendations. The height of each flight ranged from 73 m for conventional hopgarden to 80 m above elevation data for organic hopgarden, depending on the surrounding terrain heterogeneity, to accommodate the functionality of the LiDAR sensor that monitors the platform’s height above the surface. The minimum platform height above the surface was 50 m. Due to terrain irregularities and the presence of significantly tall objects in the hop gardens surroundings, a higher flight altitude was chosen to ensure the safe operation of the unmanned aircraft in compliance with EU legislative standards. This altitude also determined the spatial resolution of images captured by the selected cameras, 5.0 cm. px-1 for conventional hopgarden and 5.5 cm. px⁻¹ for organic hopgarden.

Ground control points (GCPs) were not used during the campaign because the employed system allowed for the configuration of Virtual Reference Stations VRS—RTK correction signals provided by the CZEPOS ČÚZK service (https://czepos.cuzk.cz/), specifically VRS.MAX-CZEPOS RTCM 3.1, which guarantees the accuracy of resulting images to within a few centimeters. The actual accuracy achieved was approximately 4.8 cm relative to the Earth’s surface.

2.4. Image and Statistical Analysis

The image processing workflow encompasses multiple stages to ensure precise and accurate results. Initially, raw image data were subjected to preprocessing and enhancement using the post-flight analysis tool available in the eMotion SW suite. After this refinement phase, the data were imported into Pix4D SW for photogrammetric procedures to derive orthophotos and spectral indices such as CIR, GNDVI, NDRE, NDVI, SAVI (see Table 4).

Once the spectral indices were generated, they were further processed in ArcGIS Pro 3.2 SW. The spectral indices were clipped to display only the green vegetation, identified using the NDVI index. In further analyses, the green parts of the hop stand were used, which corresponded to NDVI values of 0.3 and above. This selective clipping facilitated a more precise delineation of vegetated areas. Following this spatial refinement, zonal statistics were calculated to provide a comprehensive quantitative assessment of the vegetation indices.

The final phase of the workflow involved statistical analysis of the compiled data as Forward Stepwise Linear Regression (FSLR). This was carried out using the R programming language (version 4. 4. 1; R Core Team, 2024) and Statistica SW (Cloud Software Group, Inc., 2023, version 14. http://tibco.com), which facilitated rigorous statistical testing and validation of the results, ensuring the robustness and reliability of the findings.

To analyse spectral indices, generalized linear models (GLMs) were applied using MASS package [32] for R. Separate models were performed for all indices, namely CIR, GNDVI, NDRE, NDVI, and SAVI. The fixed effects in all models included management practices (conventional or organic), hop varieties, and their potential interaction. To analyse effects of GNDVI, a GLM with a gamma distribution of errors were employed. Other indices were analysed using quasi-Poisson distributions. All raw data that served as input for the above-mentioned analyses are provided in the supporting information (Table 2, Table 3 and Table 4). Data visualization was performed using the ggplot2 package in R [33].

3. Results and Discussion

The results were obtained over a four-year period (2020–2023) from the study area. Data were collected from an organic hop garden with the varieties Saaz and Premiant, and from a conventional hop garden with the varieties Agnus, Premiant, and Sládek. A generalized linear model [34,35] was used in R SW, with the response variable being the average of CIR, GNDVI, NDRE, NDVI and SAVI values, and the explanatory variables being year, variety, and management (organic and conventional). The visualized boxplots displayed the average values. The results of this statistical analysis are given in Figure 3, which displays the plots of mean selected spectral indices values in relation to year and management type.

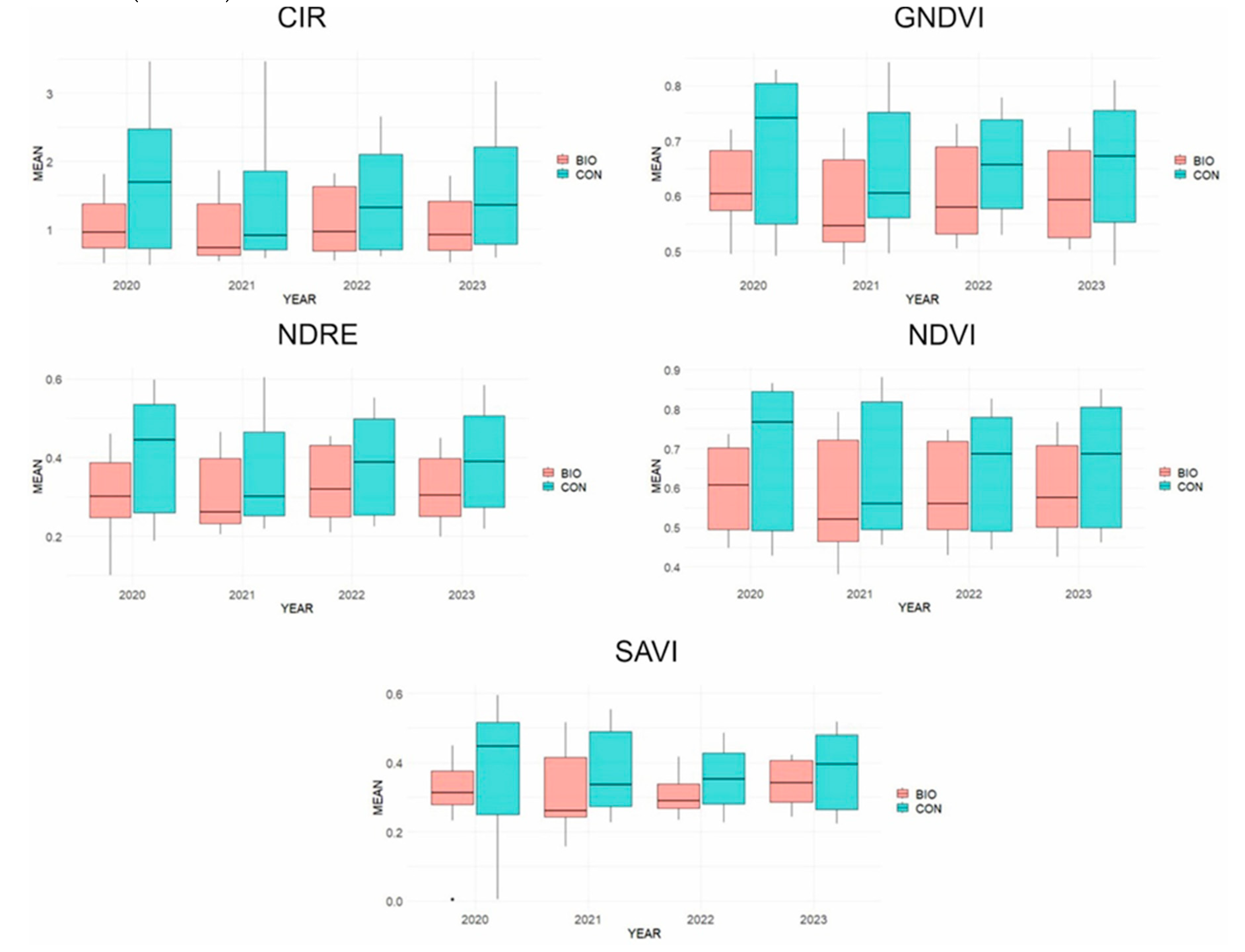

From the boxplots in Figure 3, it is clear at first glance that all used indices visually show better vitality of conventional hops (CON) compared to organic ones (BIO). However, due to the relatively large and overlapping dispersions of the measured values, the question remains as to what extent these differences are statistically significant. The results of the analysis of variance in R SW showed that statistically significant differences can be found mainly when using the CIR and GNDVI indices (in both cases in 2020 at a significance level of 0.001, in 2021 at a significance level of 0.05, and in 2022 and 2023 at significance levels of 0.05 or 0.1). The NDRE index performs a little worse, as it was unable to detect a statistically significant difference in 2022, while the NDVI and SAVI indices appear to be unsuitable in terms of detecting differences between the vitality of conventional and organic hop gardens, because they were unable to statistically demonstrate a difference in the development of hop plants in two or more out of the 4 monitored years and the maximum achieved significance level was 0.05 (in 2020).

This finding confirms the results obtained by Costa et al. [36], who compared the suitability of NDRE and NDVI indices for monitoring grapevine growth and concluded that NDRE is more sensitive than NDVI to detect grapevines vigour variability. Our measurements showed that indices focused on chlorophyll detection (CIR, GNDVI and NDRE) are more suitable for monitoring differences in hop plants vitality.

In 2020, statistically significant differences were found between conventional and organic hops using all indices except SAVI, and all chlorophyll indices showed differences at the highest significance level (0.001). In 2021, statistically significant differences were found at lower significance levels (CIR, GNDVI, SAVI—0.05; NDRE—0.1), with the NDVI index failing, similarly to the following two years 2022 and 2023. The most complicated year to detect differences between conventionally and organically grown hop areas was 2022. At a significance level of 0.05, differences were detected only by the GNDVI index, the CIR and SAVI indices reached a significance level of 0.1, and the NDRE and NDVI indices both failed. The year 2023 was a little more favourable (CIR and NDRE reached a significance level of 0.05, GNDVI then 0.1), but two indices (NDVI and SAVI) failed again.

Forward Stepwise Linear Regression (FSLR) was calculated, where the dependent variables were “Yield” and “content of Alpha Acids”. Independent variables were divided into two groups as “All independent variables”, which meant management (organic, conventional), variety, phenophasis, NDVI, GNDVI, CIR, SAVI, NDRE spectral indices as indirect indicators of stand condition, temperature, relative humidity and sun radiation; and only “Spectral indices” (NDVI, GNDVI, CIR, SAVI, NDRE) as indirect indicators of stand. Spectral indices were supposed to provide indications as to which spectral index is appropriate to use for predicting hop yield or Alpha bitter acid content as a qualitative indicator during individual growth phases (see Table 4 and Table 5).

As is often discussed in the literature (e.g., [37]), the yield or quality of production can be predicted quite reliably in selected growth stages by UAV remote sensing. The main growth stages are most often used for this purpose. For instance, for small cereals, [38] describes a basic division into “tillering, stem elongation, flowering and spikes forming” or [39] describes a more detailed division into “tillering, stem elongation, booting, heading, flowering, fruit development, ripening and senescence”. For hop growth, [1] used eight vegetation periods to express the whole development of hop plants. According to methodology of [27], classification scale of hops growth and development phases are divided into nine main growing stages. Although currently the hop growth stages are commonly divided into nine stages, in our study three basic growth stages for hop plants evaluation were used (elongation growth, flowering and cones development) so that they were sufficiently covered using UAV images for analysis. Vostřel et al. [27] used the division into following growth phases: germination, leaf development, formation of lateral shoots, shoot elongation, inflorescence emergence, flowering, cones development, cones ripening, senescence (onset of dormancy). The first two phases (germination, leaf development) cannot be observed when using remote sensing equipment. The first phase monitored by UAV “elongation growth” thus includes all levels of shoots elongation, the second phase “flowering” includes inflorescence emergence and flowering, and the third phase “cones development” includes cone development and ripening. Senescence is irrelevant from the point of view of our evaluation, because the plant is harvested as soon as possible after the cones reach ripening.

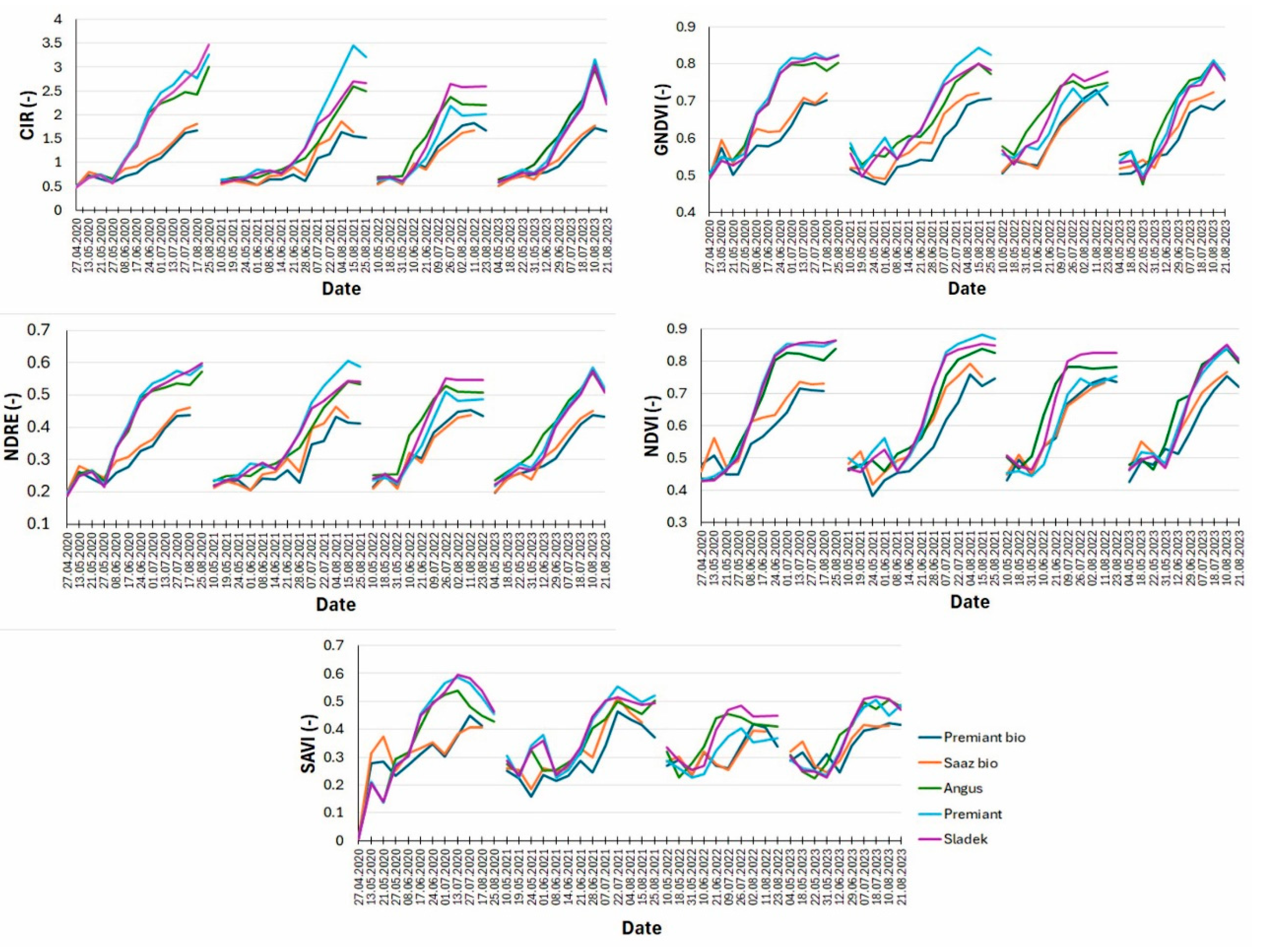

During elongation growth, large differences were found between individual varieties and management, which can be seen in Figure 4, especially during later growth phases (June). The combination of abiotic and biotic conditions of the habitat and their distribution in individual years also played a major role. It is generally known for other crops e.g., [39], that different varieties may have different spectral responses. On the other hand, the same varieties in different abiotic conditions, mostly due to limited water availability, can have different spectral responses in all growth stages. In initial phases, significant development of the hop growth occurred. The plants not only grew quickly in height, but also the individual shoots lengthened laterally. Solar radiation, which enables photosynthesis and thus provides the necessary energy for growth, undoubtedly had a significant influence on the development of these lateral branches. However, as can be seen from Table 4, each of the evaluated varieties was able to thrive differently in given abiotic conditions from the energy provided by solar radiation. The complex of these parameters was able to predict the yield by up to 61%.

In terms of quality, the content of Alpha Acids in the cones is primarily evaluated. As can be seen from Table 5, cultivation management had the greatest influence on the quality of the harvest in the initial stages of growth. In organic hop gardens, it was therefore necessary to suppress the development of fungal diseases as much as possible. Furthermore, the choice of variety and the influence of site conditions each year, such as the combination of relative humidity and air temperature, and the chlorophyll content in the leaves to enable photosynthesis (here indirectly expressed by the spectral indices CIR, GNDVI, NDRE), played a major role. It was also necessary to choose the right phenophase for prediction. All these parameters then predicted the content of Alpha Acids, and therefore the quality of production in the initial stages of growth by up to 87%. The most suitable spectral indices for estimating yield or Alpha Acids in this initial phenological phase were GNDVI, CIR as indicators of chlorophyll and NDVI as indicator of hop stand structure, which were necessary to ensure effective photosynthesis. These indices were able to predict the content of Alpha Acids in the elongation phase by up to 18%.

During the flowering growth phase in July, it was possible to predict yield mainly based on the variety. However, structural parameters of the hop stand expressed by spectral indices SAVI and NDVI (prediction of up to 56%) and site conditions of the studied year also played a major role. The complex of these parameters was able to predict yield by up to 71% in later phenological phases. Alpha Acids could be predicted within the flowering phase by up to 92% using a combination of parameters: cultivation management, variety, relative humidity, chlorophyll content and stand structure expressed by the GNDVI and SAVI indices and site conditions of the given year. The most suitable index for predicting Alpha Acids in the flowering growth phase was NDRE, however only by 11%.

In the cone’s development growth phase, yield was possible to predict by a complex of parameters, where the structural and health parameters of the hop stand expressed by the NDVI index played the most important role (prediction of up to 61%). Other important parameters were air temperature, site conditions of the given year, relative humidity, suitable phenophase for evaluation (usually later), and chlorophyll content expressed by CIR and GNDVI indices. This complex of variables was able to predict yield by up to 80%. In the prediction of Alpha Acids, the most important parameters were cultivation management, variety, relative humidity, solar radiation and structural index SAVI. This complex of variables was able to predict production quality by up to 90%. In terms of using spectral indices for quality prediction, NDRE and CIR appeared to be the most suitable as indicators of chlorophyll content and plant health. However, again only by 13%.

Since there are not many research studies that evaluate hop growth using UAV scanning, similar crops, mainly vineyards, were chosen for comparison. Although vineyards have a different vegetation cycle expressed as BBCH, and the structure of the plants resulting from a different family, they are closest to hops in terms of shape and growth pattern. Therefore, we decided to discuss our results with studies that address either general agronomic knowledge or findings applied to vineyards. Matese et al. [41] used NDVI to estimate vineyard yield and sugar content in berries. In their research, they concluded that in some years NDVI was more related to sugar content, i.e., production quality, than to yield, which is the opposite behaviour at a given location than in other years. Likewise, our results confirmed that it is necessary to assess a complex of variables, including indirect ones. The authors of the study also concluded that the relationship between NDVI and sugar content can be considered an indirect consequence of the dependence of sugar content on yield.

Opposite results, where high NDVI is associated with high yield in vineyards, were found by Carrillo et al. [42] or Urretavizcaya et al. [43]. Ferro et al. [44] used NDVI, GNDVI, NDRE and MSAVI for assessment of vineyard vigour, yield and quality of grapes and scanned the vineyards in three terms BBCH 75 (pea size berries), 81 (beginning of ripening) and 89 (full ripening). They found that grape quality in the sense of measuring total soluble solids correlated best with the GNDVI index, with the highest negative Pearson correlation coefficients at the first scan date and then decreasing (from −0.760 to −0.662). In our study, where we calculated FSLR for the main growth phases and determined the significance of spectral indices for detecting quality and yield, we concluded that for estimating quality (in terms of alpha acid content) in the first phase it is appropriate to use GNDVI. In later growth phases the most important spectral index is NDRE and CIR. These results are partly consistent with those of Ferro et al. [44]. Although the quality of hop and grapevine production was compared, and the FSLR values for hops are relatively low (multiple R from 0.18 for GNDVI to 0.33 for NDRE).

The chemical nature of the quality parameters of grapevines and hops is completely different. In the case of grapevines, the content of water-soluble carbohydrates, phenolic substances, organic acids and their esters is decisive for the taste and sensory profile of the final product. In contrast, the content of alpha acids is mainly evaluated in hops. These accumulate in the granular trichomes of the hop cone during a relatively short period of July-August (September). Alpha acids are very slightly soluble in water. In the beer production process, alpha acids are isomerized to iso-alpha acids, which have a distinctly bitter taste. Iso-alpha acids are much more soluble in water than their precursors [45].

Even though the chemical nature of the qualitative parameters of both types of plants is different, common elements that can be used to support the results of our study can be found. The crucial point is that for both types of vegetation, the canopy was scanned using a UAV. The derived indices consider the overall condition of the vegetation in terms of chlorophyll content, health, vitality and structure. There may therefore be a direct or indirect correlation between the quality and, for example, the chlorophyll content in the leaves. The ability of plants to adequately convert solar energy into chemical energy during photosynthesis is often assessed. The main photosynthetic organ of plants is the leaves, which means that more than 90% of the dry matter yield of plants comes from photosynthesis in the leaves, as Makino [46] and Wang et al. [47] state in their studies.

Another important point for discussion is the interpretation of the indices used. For example, Caruso et al. [48] related LAI (Leaf Area Index) and chlorophyll concentration in leaves to NDVI obtained from the vine canopy. They found that the spatial resolution of the pixels used to assess the canopy is important. While satellite-derived NDVI is more influenced by LAI, where geometric canopy characteristics were considered, NDVI derived from UAV measurements takes into account leaf pigment content. Therefore, it makes sense to use spectral indices directly focused on the chlorophyll content in leaves (e.g., GNDVI, CIR and NDRE) in UAV images, as we addressed in our study.

In the study of Ferro et al. [44], it was also considered which of the selected indices derived from UAV images are the most useful for predicting yield. Each of these indices was significant in a different growth phase, however, the highest Pearson correlation coefficient was achieved by GNDVI in the last measurement date. In terms of measurement in all growth phases, it appeared to be the best predictor of NDVI (correlation values from 0.786 to 0.806). In our study, NDVI also appeared to be the best predictor of yield, being able to best predict yield in all growth phases examined.

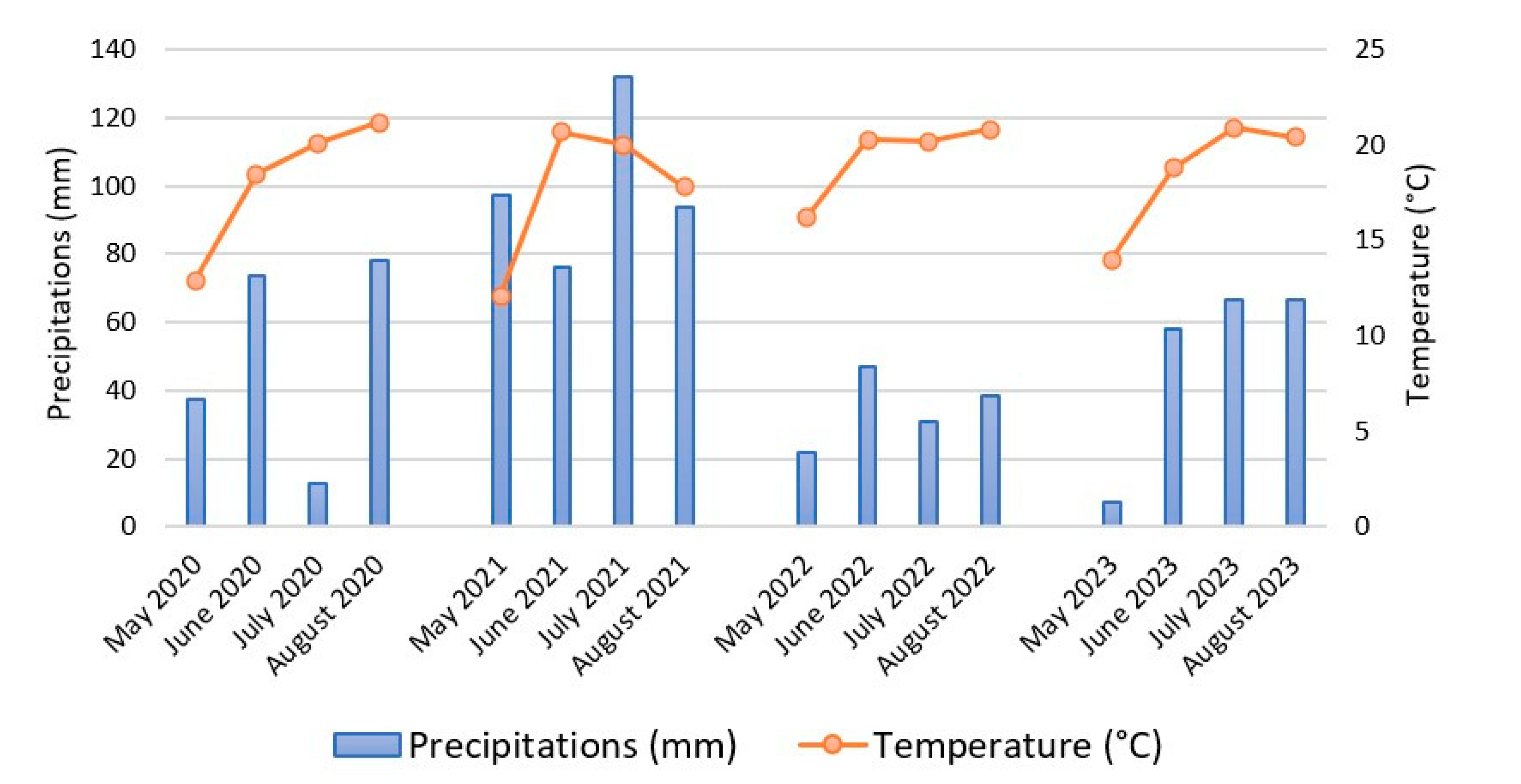

As the FSLR analysis shows, the meteorological and microclimatic conditions of the site undoubtedly played a significant role in the resulting quality or volume of production. Each of the four years evaluated (2020 to 2023) had specific conditions. This statement for hop gardens agrees with Costa et al. [36] in the vineyards research. They concluded that although all management practices were implemented before fruit development, it was found that each cultivar had its own genetic predisposition for vigour level.

The year 2020, with the second highest sum of precipitation and the second coldest year in the monitored period, showed a relatively high oscillation of values at the beginning of growth. In the initial stages of growth, the NDVI index showed a relatively rapid onset of varieties in the organic hop garden. The large development of plants was relatively quickly replaced by a decrease in values at the turn of May and June. Further development was very noticeably influenced by a relatively significant sum of precipitation in June (73.6 mm) at the end of the elongation growth, and conversely by very low natural precipitation (12.6 mm) with relatively low temperatures in July (20.1 °C) during flowering, replaced by relatively high temperatures (21.2 °C) and higher rainfall (78.4 mm) in August during ripening. The development of the weather was significantly reflected in the values of both structural indices (NDVI, SAVI) and indices detecting chlorophyll content (GNDVI, CIR and NDRE). Differences between hop gardens in organic and conventional management were found. While all varieties prospered well in the conventional regime, organic varieties were significantly damaged by the development of fungal diseases from the beginning of June.

As mentioned by Dušek et al. [49], downy mildew (Pseudoperonospora humuli) threatens the health of hops throughout the entire vegetation period, especially during periods of frequent rains. While in a conventional system its infection pressure is eliminated by the application of fungicides, in organic farming the options are limited. Significant year-to-year differences in the yields of hops grown in organic farming are mainly caused by the varying intensity of the pathogen’s infection pressure.

Varieties in conventional management showed different, rather average yields and Alpha bitter acid content this year (Sládek: 2.45 t/ha, 5.8% of weight; Premiant: 2.61 t/ha, 7.0%; Agnus: 1.82 t/ha, 10.7%). The Agnus variety had the highest yield and the highest quality production in comparison with other years. Organic varieties showed a rather below-average yield with average Alpha bitter acid values (Saaz: 0.27 t/ha, 3.3%, Premiant: 0.74 t/ha, 7.0%), which ultimately agrees with the curves in Figure 4.

The year 2021 was the year with the highest rainfall in all main growth phases of all evaluated years. On average, temperatures for the studied period were the lowest (17.65 °C), however, this was no longer the case when individual main growth phases were evaluated. In June, during the late elongation phase, the average air temperature was the highest (20.7 °C) with high rainfall (sum for June 76 mm). Although the experimental hop gardens were irrigated with drip irrigation, natural rainfall created specific conditions, both in terms of reduced radiation due to clouds, and by reducing air temperatures or increasing relative humidity in the vicinity of the hop gardens. In the initial phases of growth (elongation), the values of all indices fluctuated until mid-June. Then, apparently due to the heavy rainfall (76 mm) and high temperatures (20.7 °C) at the end of the elongation phase, there was a significant increase in the index values of all varieties. However, the same trend as the previous year was observed: organic varieties had significantly lower values for all indices compared to varieties in conventional management. In terms of yield, these conditions were most suitable for the Sládek variety (2.88 t/ha). The Premiant and Agnus varieties had average yields (2.51 and 1.43 t/ha). However, in terms of Alpha bitter acid content, the values were significantly above average Premiant: 7.6%, Sládek: 7.4%), with the exception of the Agnus variety (10.4%). Organic varieties achieved the highest yield and also the highest quality in the monitored years (Saaz: 1.09 t/ha, 3.7%; Premiant: 0.93 t/ha,8.7%). The development of values for individual indices and varieties may not directly correlate with the resulting yield and quality of cones, however, according to the FSLR analysis, there was a relatively high probability of a relative estimate according to phenological phases, the property of the variety and the type of index.

The year 2022 was the driest year, generally with the highest air temperatures (138.6 mm sum, 19.4 °C in average). However, the distribution of precipitation was relatively even during the individual growth phases. This led to relatively low values of all monitored indices. This year, the organic variant Saaz had the lowest values of all indices and at the same time achieved the lowest yield and Alpha bitter acid content (0.18 t/ha, 2.2%). There was also a clear trend of values and production results for the conventional variety, Premiant, which also showed the lowest values this dry year, both in spectral indices and in terms of yield and quality (0.99 t/ha, 6.3%).

The year 2023 was average for both precipitation and temperature (66.7 mm, 20.4 °C). However, May, i.e., the initial growth phase, was very poor in precipitation (7.2 mm). The trend of spectral indices also showed the evenness of all curves. The organic variety Premiant (1.81 t/ha) and the conventional Agnus and Premiant (1.94 and 3.83 t/ha) achieved a high yield this year, which corresponded in the later growth phases with the SAVI and NDVI index. However, the Alpha bitter acid content was average to lower (see Table 1).

In terms of the prosperity of individual varieties, Agnus is one of the varieties that tolerate weather fluctuations very well in individual years, which is documented by a balanced content of alpha acids throughout all monitored years. Its yield potential is at the level of 2.0–2.5 t/ha. In terms of average daily temperatures and rainfall distribution, the least favourable year for hops was 2022 (a dry and warm year). This had a negative impact on the Saaz-organic variety with a low yield and low alpha acid content this year. On the other hand, the course of weather conditions in 2021 was exceptionally favourable for hops. The effects of the tropical periods in June were eliminated by sufficient rainfall until harvest. This year, a record 8306 tons of hops were harvested in the Czech Republic with an average yield of 1.67 t/ha [50]. Favourable conditions were reflected in all varieties in terms of a high content of alpha acids, as also documented in our study.

We are convinced that our research has once again confirmed the importance of UAV imaging for assessing the development of agricultural crops, this time in hop stands. This method is also sufficiently accurate, detailed and flexible in this case.

The literature often addresses the relationship between yield, stand quality and spectral indices e.g., [51]. As in our study, the vegetation indices NDVI, GNDVI, modifications of SAVI (OSAVI, MSAVI) and NDRE are often used with good accuracy. Each of these indices has its own role in prediction, which results from the spectral bands used in its calculation equation. For example, NDVI is often used for yield prediction [44,52]. GNDVI is usually used for prediction of sugar content, total soluble solids or general quality parameters e.g., [53].

Due to the lack of remote sensing information from hop cultivation, we compared the results obtained by us with the results obtained from the evaluation of vineyards, which are probably most similar to hop plantations (similar stand architecture, cultivated in rows, mainly only the upper part of a large volume of plants is scanned). Our results regarding the structure (architecture) of hop stands, their vitality, health and chlorophyll content have been shown to be very similar to those of vineyards. This could indicate a certain universality of data obtained from UAV imaging for assessing different types of vegetation. However, further research will be needed to confirm this assumption.

4. Conclusions

Based on four years of monitoring different hop varieties using UAV scanning, the following statements can be concluded. In terms of yield assessment, it was found that the combination of abiotic factors and spectral indices was able to predict yield by 61% at elongation growth, 71% at flowering and 80% at cone development. For the evaluation of elongation growth, the most significant indices were CIR, NDVI and GNDVI, however, these indices explained yield by only 10%. Nevertheless, in the flowering phase, the SAVI and NDVI indices were able to predict yield by up to 56% and during cone development the NDVI index explained yield by up to 61%. The combination of abiotic factors and spectral indices predicted quality (alpha acids content) of around 90% in all growth phases, while the indices used were only able to capture this fact to within 18%.

When UAV scanning hop stands, it is possible to monitor only the canopies at high spatial resolution, similar to vineyards. Indices evaluating chlorophyll content (in our case CIR, GNDVI and NDRE) appeared to be more suitable for affecting differences between hop stands.
