Comprehensive Review of Hyperpolarized Xenon-129 MRI: Clinical Study, Testing, and Implementation in Advancing Pulmonary In Vivo Imaging and Diagnostic Applications

A peer-reviewed article of this preprint also exists.

Submitted:

09 December 2024

Posted:

10 December 2024

You are already at the latest version

Abstract

Hyperpolarized Xenon-129 MRI (129XeMRI) has emerged as a powerful tool in the identification, evaluation, and assessment of disease endotyping and response to interventions for a myriad of pulmonary diseases. Growing investigative efforts ranging from basic science to application in translational research have employed 129XeMRI in the evaluation of pulmonary conditions such as chronic obstructive pulmonary disease (COPD), idiopathic pulmonary fibrosis (IPF), asthma, and cystic fibrosis (CF). The novel feature of 129XeMRI is its ability to generate anatomic and physiologic readouts of the lung with resolution from the whole lung down to the lobar level. Additional advantages include being non-invasive, non-radioactive, and utilizing an inexpensive and ubiquitous noble gas as an inhalation contrast agent: Xenon-129. In this review, we outline the clinical advances provided by 129XeMRI among common pulmonary diseases with high healthcare burdens in recent decades.

Keywords:
hyperpolarized xenon-129 mri
;
hyperpolarized gas mri
;
respiratory disease
;
pulmonary disease
;
diagnostic test
Subject:
Medicine and Pharmacology  -   Pulmonary and Respiratory Medicine

1. Overview of 129XeMRI

Pulmonary Function Testing (PFT) and chest Computed Tomography (CT) have several limitations in detecting EARLY pulmonary physiologic changes with good sensitivity. PFT parameters reflect global lung function and are insensitive to early subtle regional changes. Chest CT visualizes anatomic abnormalities but cannot fully assess early pathologic physiology in the lung. 129XeMRI was developed to address this gap by comprehensively and simultaneously interrogating perturbations occurring in multiple pulmonary microcompartments: airways ("gas," reflecting ventilation-airflow); interstitial tissues ("tissue or membrane," reflecting parenchymal tissue integrity related to gas exchange capacity); and red blood cells (RBC) in pulmonary capillaries (“RBC,” reflecting capillary perfusion) (Figure 1)[1]. With a single breath-hold of hyperpolarized Xenon-129, pixel-based ratio maps can be obtained to quantify xenon movement from airways to tissues and finally to RBCs, allowing assessments of global and regional pulmonary airflow and gas exchange physiology. Areas of the lung with vs. without xenon-129 in the airways can be quantified as Ventilation Defect Percent (VDP), reflecting the severity of obstructive lung diseases[2,3]. The calculated ratios of xenon-129 in pulmonary microcompartments closely reflect biologically important lung physiology: (1). tissue integrity and alveolar surface-to-volume ratio; (2). overall gas exchange efficiency from the airway to the blood; and (3). pulmonary capillary blood flow. Detecting subtle changes in lung function in these pulmonary microcompartments can be highly desirable to determine the natural course, disease endotyping, and therapeutic responses in pulmonary diseases[4].

2. COPD

A growing body of literature has tested 129XeMRI use in evaluating COPD, reporting a robust inter-modality correlation with several conventional diagnostic tools. Previously published work has demonstrated a strong negative correlation between Ventilation Defect Percentage (VDP) and PFT Forced Expiratory Volume in one second (FEV1) percent predicted, membrane-to-gas and RBC-gas indices, as well as a strong positive correlation with percent of the lung tissues with emphysema quantified by chest computed tomography (CT) and % DLCO, respectively[4]. Similar correlations have been reported for the 129XeMRI-derived Apparent Diffusion Coefficient (ADC), a surrogate marker reflecting alveolar size, which Kaushik and colleagues reported negatively tracked with FEV1, Forced Expiratory Volume in one second-to-Forced Vital Capacity (FEV1/FVC) as well as Diffusion Capacity of the Lung for Carbon Monoxide divided by Alveolar Volume (DLCO/VA)[5]. Consistent with these findings, Apparent Diffusion Coefficient (ADC) values were higher in COPD subjects than in healthy volunteers and age-matched controls, indicating more significant lung parenchymal destruction among the diseased group[5].
While these reports anchor 129XeMRI to a familiar framework of thinking about COPD, novel approaches supporting its application in early disease detection and higher-resolution phenotyping have also been studied. In a 2019 study of 19 subjects, Ruppert et al. reported on the ability of XeMR spectroscopy to detect significant changes in septal wall thickness among otherwise healthy current and former smokers when compared to their age-matched non-smoking counterparts, suggesting this metric may be a sensitive marker of early-stage lung disease in smokers[6]. Other groups reported the 29XeMRI’s sensitivity to mild emphysema detectable by CT and age-related changes [7]. Similarly, other researchers have noted how aging, smoking, and COPD collectively lead to progressive changes in the lungs, with 129XeMRI enabling visualization of these alterations, thereby offering a more comprehensive evaluation of the disease compared to traditional methods like CT or PFT[8].
In addition to showing promise in early disease detection, several studies have highlighted 129XeMRI’s ability to (1) distinguish COPD from other forms of heterogeneous lung disease and (2) discriminate different phenotypes of COPD from one another. Guan and colleagues, reporting on a cohort of 45 subjects, published that COPD and cystic fibrosis patients exhibited significantly more ventilation defects than idiopathic pulmonary fibrosis (IPF) and healthy individuals, and these defects were highly correlated with the percent predicted FEV1 (R = -0.74)[9]. COPD and IPF patients showed elevated tissue/RBC ratios, prolonged RBC T2* relaxation times, and increased RBC chemical shifts. This indicates that 3-dimensional single-breath chemical shift imaging 129XeMRI can effectively characterize lung diseases, monitor treatment responses, and predict disease outcomes[9]. In work published by our group in 2021, we reported data suggesting that 129XeMRI may not only discriminate between emphysematous and non-emphysematous COPD but also provide higher-resolution phenotyping beyond the conventional, binary disease categories of emphysema and chronic bronchitis. Specifically, we described a group of COPD subjects demonstrating impairment in gas exchange not attributable to emphysema, and 129XeMRI uniquely enables regional analysis within the lung4. Building on this idea, Mummy and colleagues reported the ability to map regional VDP changes to changes in RBC transfer in response to bronchodilator therapy, detailing how ventilated regions and RBC transfer defects correlated and highlighted microvascular abnormalities not detected by spirometry[10]. These studies have supported the idea that 129XeMRI can provide data comparable to spirometry and chest CT. Its utility and novelty lie in providing multidimensional data on structure and function synchronously and regionally. This offers a significant advance in studying the treatment responses of heterogeneous lung diseases like COPD. Such granular characterization of disease and treatment response holds the promise of personalized and novel therapies for this common lung disease with high healthcare burdens.
Table 1.
Authors Disease Summary
COPD
Myc et al Significant correlations found between 129XeMRI and FEV1, %DLCO, and emphysema in COPD
Kaushik et al 129XeMRI ADC correlates with pulmonary function, detects emphysema, age/posture changes
Qing et al 129XeMRI CSSR spectroscopy and DP imaging reliably assess lung function in COPD, revealing thicker septal walls and low RBC-to-TP ratios, indicating poor gas exchange.
Qing et al 129XeMRI, with a quick single scan, effectively identifies pulmonary issues in COPD patients, matching well with CT and gadolinium-enhanced MRI.
Ruppert et al 129XeMRI septal wall thickness correlates with DLCO, distinguishes healthy from smokers and COPD
Doganay et al 129XeMRI gas distribution COV and functional volumes significantly lower in COPD vs healthy subjects.
Rao et al Significant differences in 129XeMRI VDP, alveolar sleeve depth, total septal wall thickness, ADC, and RBC/TP found among healthy young, age-matched controls, asymptomatic smokers, and COPD groups
Guan et al 129XeMRI 3D-SBCSI detects ventilation defects, correlates FEV1 with RBC/Gas, and distinguishes between pulmonary diseases
Mummy et al 129XeMRI baseline bar%ref (barrier uptake relative to a healthy reference population) and DLCO correlated with post-treatment changes in ventilation defect; RBC%ref (red blood cell transfer relative to a healthy reference population) decreased in 58.8% of subjects post-treatment.
Asthma
Ebner et al 129XeMRI VDS significantly higher in airway obstruction, correlates with disease severity, and no location-specific pattern.
Ebner et al 129XeMRI imaging detects airway obstructions in asthma, correlates with PFTs, and shows age-related VDP increase.
Mussel et al VDP and VHI correlated with lung function (FEV1, FEV1/FVC, FEF 25-75%), but not with ACQ7 or eosinophil count; imaging prompted diagnostic reevaluation in some cases
Qing et al Significant age-related differences in 129XeMRI gas transfer: younger asthmatics had lower tissue uptake and higher blood transfer compared to controls; no differences in older group or post-bronchodilator.
Svenningsen et al Pre-salbutamol, 129XeMRI VDP was higher than 3HeMRI, with greater post-salbutamol improvement with HP-129XeMRI measurement. Both gases showed VDP and ventilation COV reductions post-treatment, with 129XeMRI identifying an airway defect not seen with 3HeMRI
Kooner et al 129XeMRI helps detect ventilation issues, inflammation, and airflow problems in asthma by visualizing gas exchange and airflow directly in the lungs.
Peiffer et al Scintigraphy-Xe MRI correlation was higher than SPECT-XeMRI. VDP correlated with FEV1, FEV1/FVC, and FEF 25-75, separating asthma and COPD from controls
Safavi et al In 129XeMRI, Asthma had more defects pre-BD, reduced post-BD, matching healthy participants
Lin et al Children with asthma had higher 129XeMRI VDP and defects per slice, correlating with increased healthcare use, oral corticosteroids, and reduced lung function (FEV1, FEV1/FVC)
Hall et al One guided bronchoscopy (BT) using 129XeMRI resulted in a greater reduction of nonventilated lung and fewer asthma exacerbations compared to three unguided BTs, with similar quality of life improvements
Cystic Fibrosis
Alam et al Multiple Breath Washout 129XeMRI showed high intra-visit and inter-visit repeatability in both healthy and CF subjects. CoV fractional vantilation correlated with LCI, highlighting ventilation heterogeneity's role in early CF
Guan et al 3D-SBCSI detects ventilation defects, correlates FEV1 with RBC/Gas, and distinguishes between pulmonary diseases
Marshall et al 129XeMRI and 3HeMRI VDP correlated strongly with each other, FEV1, and LCI, showing similar large-scale agreement. However, 129XeMRI VDP was more sensitive to subtle ventilation changes in early lung disease than 1H VDP.
Kirby et al 3HeMRI ADC detected significant short-term lung changes in CF, correlating with FEV1, and showing more sensitivity than standard tests.
Couch et al 129XeMRI VDP measurements showed high agreement between analysts (ICC = 0.99), differentiating healthy and CF groups and correlating with FEV1 and LCI, supporting multi-center trial feasibility
Bannier et al 3HeMRI ventilation defects were present in all patients despite normal spirometry; CPT caused varied defect distribution changes without significantly altering VDI or VF.
Couch et al 129XeMRI VDP measurements showed high agreement between analysts (ICC = 0.99), differentiating healthy and CF groups and correlating with FEV1 and LCI, supporting multi-center trial feasibility
IPF
Wang et al 129XeMRI showed a 188% increase in barrier uptake in IPF, correlating strongly with DLCO and RBC/barrier ratio (r=0.94), but not with CT fibrosis scores.
Hahn et al 129XeMRI detected improvements in regional gas exchange in IPF patients treated with antifibrotics after 1 year, while no improvements were seen with conventional therapies
Eaden et al 129XeMRI ADC increased significantly over 12 months in IPF patients, indicating microstructural disease progression, despite no changes in PFTs. Strong correlations were found between 129XeMRI and DLCO/KCO
Qing et al 129XeMRI revealed significant ventilation and gas exchange abnormalities in UIP, including impaired diffusion and elevated tissue-to-gas ratio, even in patients with normal PFTs
Hahn et al 129XeMRI MRI detected improvements in regional gas exchange in IPF patients treated with antifibrotics after 1 year, while no improvements were seen with conventional therapies
Chan et al SEM accurately estimates acinar dimensions and shows robustness across varying conditions and acinar length scales, validated using He-3 and Xe-129 simulations for healthy and IPF lung
Stiefer et al 129XeMRI may predict progression in idiopathic pulmonary fibrosis (IPF).
COVID-19
Grist et al 129XeMRI revealed alveolar diffusion issues in post-COVID-19 patients, despite normal CT scans
Sanders et al 129XeMRI gas transfer remained impaired up to 1 year post-hospitalization in COVID-19 patients, despite normal lung ventilation and no structural abnormalities
Kooner et al 129XeMRI revealed significantly higher VDP in post-COVID, especially in hospitalized participants, correlating with reduced 6MWD and post-exertional SpO2
Matheson et al 129XeMRI effectively detects lung and vascular abnormalities in PACS, aiding COVID-19 diagnosis and management.
Eddy et al Four distinct long COVID phenotypes were identified using 129XeMRI, showing varying patterns of gas exchange and PFTs, highlighting the tool's ability to differentiate long COVID pathophysiology for personalized care.
Kooner et al Post-COVID patients showed improved lung function, gas exchange, and quality of life by 15 months. Early 129XeMRI VDP predicted exercise gains, and respiratory treatment improved quality of life.
LAM
Walkup et al 129XeMRI detected ventilation deficits in LAM, correlating with FEV1/FVC and DLCO, offering sensitive assessment for screening and management.
BPD
Stewart et al 129XeMRI detected mild ventilation abnormalities and elevated ADC in BPD patients, demonstrating feasibility for assessing neonatal lung disease
Miscellaneous Disease
Rankine et al 129XeMRI identified dose-dependent changes in ventilation, membrane uptake, and RBC transfer post-RT, aiding in assessing radiation-induced lung injury
129XeMRI – hyperpolarized xenon-129 magnetic resonance image
3HeMRI – hyperpolarized helium-3 magnetic resonance image
CSSR – chemical shift saturation recovery
DP – dissolved phase
COV – coefficient of variation
VDP – ventilation defect percent
VDS – ventilation defect score
ADC – apparent diffusion coefficient
RBC/TP – red blood cells and interstitial tissue/plasma
3D-SBCSI – 3D-single breath chemical shift imaging
BD - bronchodilator
VHI – ventilation heterogeneity index
ACQ7 – asthma control questionnaire 7
SPECT-XeMRI – single photo emission computed tomography xenon magnetic resonance imaging
BT – bronchial thermoplasty
CoVFV – coefficient of variation
CPT – chest physical therapy
VDI – ventilation defects per image
VF – ventilated lung fraction
DW-MRI – diffusion weighted magnetic resonance imaging
DLCO/KCO – diffusing capacity for carbon monoxide/transfer coefficient of the lung for carbon monoxide
SEM – stretched exponential
6MWD – six minute walk distance

3. Asthma

As another obstructive lung disease, it is not surprising that results using 129XeMRI in asthma have been as demonstrative as those in COPD, with a good correlation between 129XeMRI and gold-standard assessment tools, PFT spirometry. In a study of 76 participants, Ebner and colleagues reported that Ventilation Defect Scores (VDS) were notably higher in patients with asthma than in healthy individuals, correlating with the disease severity assessed by PFT[11]. In another study by the same group, young asthmatics exhibited higher ventilation defect percentages (VDP) than their healthy counterparts, with VDP increasing with age[12]. Tempering the idea that 129XeMRI is a panacea, Mussell and colleagues demonstrated that while VDP in asthmatics correlated well with FEV1, FEV1/FVC, and Forced Expiratory Flow between 25% and 75% (FEF25-75%), blood eosinophil counts and symptom severity tracked with spirometry but not MRI-derived ventilation metrics[13].
Similar to COPD, several studies have suggested the capability of 129XeMRI as a more sensitive modality in detecting early disease and previously unrecognized pathophysiology in asthma. A recent study by Qing et al. found differences in gas transfer and ventilation between younger asthmatics and healthy controls, with 129XeMRI revealing previously undetected physiological defects at the airspace-interstitial-RBS interface[14]. Additionally, 129XeMRI and 3HeMRI may yield somewhat divergent results in detecting ventilation abnormalities in asthmatics, particularly before bronchodilator treatment[15]. Kooner et al. stress that some problems, including ventilation deficiencies, airway inflammation, smooth muscle dysfunction, remodeling, and luminal occlusions in asthma patients, can be detected reliably by xenon-129 MRI. The ability to view the passage of inhaled gas over the alveolar-capillary barrier to red blood cells makes this imaging approach very useful since it enables researchers to evaluate gas exchange and airflow disturbance directly[16].
The application of 129XeMRI in asthma may also extend to furnishing disease-specific diagnostic criteria, monitoring response to treatment, and guiding therapeutic interventions. For example, Peiffer and colleagues reported that, in comparison with COPD, 129XeMRI revealed deviations in red blood cell to tissue-plasma ratios and demonstrated higher spatial resolution than traditional imaging techniques like SPECT in subjects with asthma[17]. In children with asthma, 129XeMRI effectively identified ventilation abnormalities and detected post-bronchodilator improvement, aligning with results from spirometry and other pulmonary function tests[18]. In a 2021 study by Lin and colleagues, children with asthma were reported to have more significant percentages of ventilation abnormalities than healthy controls, and those with more defects had greater corticosteroid and healthcare utilization. These findings suggest that 129XeMRI may be a helpful diagnostic technique for identifying children more susceptible to asthma exacerbations[19]. Perhaps most illustrative of the technology’s potential impact on therapeutic decision-making was a pilot study of 30 asthmatic subjects randomized to 129XeMRI guided or standard bronchial thermoplasty in which Chase et al. reported similar short-term efficacy of the two strategies, with the patient-centered benefit of fewer treatment sessions and peri-procedural events among subjects randomized to the 129XeMRI-guided treatment group[20]. In 2023, Svenningsen et al. reported one of the most exciting clinical applications of the 129XeMRI ventilation scan in which complex patterns of therapeutic responses in asthmatic lungs were visualized after a 16-week treatment with a new interleukine-4 receptor alpha-blocking biologic, dupilumab [21]. This study revealed asthmatics’ therapeutic responses are significantly more complex than previously appreciated, highlighting the advantage of 129XeMRI.

4. Cystic Fibrosis (CF)

Several investigators have evaluated the effectiveness of 129XeMRI in assessing lung function in patients with CF. Not surprisingly, 129XeMRI is reliable in measuring ventilation defect percent (VDP) in the CF population, with consistent results across different institutions and a strong correlation with PFT such as FEV1 and lung clearance index (LCI)[9,22]. Moreover, Marshall et al. report that 129XeMRI was more sensitive than traditional spirometry in detecting early-stage lung disease, with 129XeMRI having a robust association with LCI[23]. 129XeMRI may likewise be more effective than FEV1 at differentiating CF patients from healthy controls, particularly in pediatric patients, and has been shown to identify ventilation problems in patients with normal FEV1 values[24,25,26]. Additionally, 129XeMRI is effective in determining disease progression and bronchial abnormalities linked to future pulmonary exacerbations, with similar VDPs being reported in a two-center trial, showing promise for multi-center studies, which may subsequently guide clinical decision-making in managing patients with early CF lung disease[25]. These observations have led to an ongoing multi-center clinical trial (BEGIN Novel ImagiNG Biomarkers, ClinicalTrials.gov ID: NCT05517655). In a disease that significantly affects the pediatric population, it is also noteworthy that 129XeMRI is non-radioactive and non-invasive while still providing invaluable experimental and clinically meaningful data.

5. Idiopathic Pulmonary Fibrosis (IPF)

129XeMRI has garnered significant interest in evaluating idiopathic pulmonary fibrosis (IPF). Research has indicated robust associations between the current gold standard PFTs and 129XeMR-derived indices. Wang et al. reported a strong correlation between 129XeMRI gas transfer measures and DLCO in subjects with IPF[27]. Similarly, Hahn and colleagues demonstrated an association between the red blood cell (RBC) to membrane ratio and DLCO[28]. Such results demonstrate that 129XeMRI-derived data may reflect in vivo pathophysiologic disturbances in IPF. Aside from correlation with conventional PFT readouts, 129XeMRI also furnishes important data to explore and hopefully elucidate IPF etiology. Not only can 129XeMRI map lung function in three dimensions and provide a regional assessment of gas exchange deficit in IPF [29], but 129XeMRI spectroscopy can detect interstitial thickening in IPF patients even when their spirometry was normal, indicative of an ability to identify early disease[30]. Such sensitive detection extends to monitoring and predicting long-term therapeutic responses, as after a year of treatment with antifibrotic drugs, patients with IPF showed improvements in 129XeMRI-assessed regional gas exchange[28]. At the same time, conventional PFTs revealed no discernible alterations[28]. Chan et al. observed changes in ADC and mean acinar dimension before appreciable changes in PFTs, suggesting early indicators of disease progression in IPF patients are evaluable by 129Xe diffusion-weighted MRI [31]. The capacity of 129XeMRI to offer comprehensive regional data may provide opportunities for individualized treatment strategies in IPF. The potential of 129XeMRI to detect patterns of IPF disease development was examined by Stiefer et al[32]. In this study, newly diagnosed IPF patients were divided into four groups based on MRI assessments of lung tissue uptake and blood transfer (RBC transfer) after undergoing 129XeMRI before treatment. Only individuals with high tissue uptake or reduced RBC transfer showed significant decreases in lung function during a 1.5-year follow-up period. This suggests that 129XeMRI could be a valuable technique for predicting the course of IPF and individualizing treatment based on the physiologic endotyping enabled by 129XeMRI[32].

6. COVID-19

In the wake of the COVID-19 pandemic, several studies were designed to investigate the effects of COVID-19 on lung function and persistent symptoms using 129XeMRI. Stiefer and colleagues reported that patients with post-acute COVID-19 syndrome (PACS) and long COVID exhibited significant abnormalities in lung function, including impaired gas exchange and ventilation defects, even when structural lung imaging appeared normal[32]. Another study suggested 129XeMRI had sufficient sensitivity to detect persistent lung function impairments and gas transfer defects up to a year after infection[33,34]. Supporting an objective role for longitudinal disease monitoring. Kooner et al. reported that these lung abnormalities were more closely associated with exercise capacity and performance than self-reported symptoms[35]. Matheson et al. evaluated vascular density and lung function in individuals with post-acute COVID-19 syndrome (PACS) using 129Xe MRI. This study offered a unique understanding of lung impairment in PACS patients by assessing the red blood cell (RBC) ratio for gas transfer and CT blood vessel volume in vessels less than 5 mm[2] (BV5) for small blood vessel density and spirometry and symptom surveys[36]. 129XeMRI demonstrated its superiority over conventional imaging techniques at identifying and treating COVID-19-related respiratory problems by revealing severe lung and vascular abnormalities associated with chronic symptoms like dyspnea and decreased exercise capacity[36]. Moreover, 129XeMRI has effectively identified various pulmonary phenotypes in long COVID patients, suggesting diverse pathophysiological profiles[37]. Finally, the early ventilation defect extent assayed by 129XeMRI may be tracked with long-term clinical outcomes, indicating a potential role of 129XeMRI in the prognostication of COVID-related outcomes[38].

7. Miscellaneous Diseases

The use of electronic cigarettes has rapidly increased in the past decade, and 129XeMRI can be an excellent modality to define early potential pathologies. One small pilot study has reported a possible dysregulation of pulmonary vascular flow, which requires additional confirmation[39]. Investigators have explored using 29XeMRI to detect lung abnormalities in lymphangioleiomyomatosis (LAM)[40] and bronchopulmonary dysplasia (BPD)[41]. Rankine et al. assessed the pathophysiologic impacts of radiation therapy on the lung using 129XeMRI and highlighted changes in ventilation and gas transfer[42]. Despite a relative paucity of applied 129XeMRI studies in rare lung diseases, acquiring multi-dimensional, high-resolution, regional (i.e., lobar) data may prove particularly useful in rare lung diseases with varied geographical distribution (i.e., cystic lung disease).

8. Conclusions

There has been an increasing number of biomedical research and translational clinical applications of 129XeMRI in various pulmonary pathologies. This is evidence that hyperpolarized gas MRI is emerging at the forefront of clinically relevant lung imaging. The ability of this modality to simultaneously provide data on structure and function is central to its application and provision of research insights into lung pathophysiology. Since 2022, 129XeMRI ventilation scans have been approved by the US FDA for clinical use. The appetite for clinical applications of 129XeMRI gas exchange has only accelerated since then. In the next few years, the full capacity of the 129XeMRI (ventilation and gas exchange assessments) is anticipated to be available as a clinical test. By exploiting features detailed in this review and this technology's non-radioactive and non-invasive advantages, we expect continued and ongoing application of 129XeMRI to research and clinical care.

Supplementary Materials

N/A.

Author Contributions

Conceptualization, JLM, LM, and YMS; methodology, JLM, LM, and YMS; investigation, JLM, HMK, AKF, LM, and YMS; resources, JLM and YMS; data curation, JLM, HMK, AKF, LM, and YMS; writing—original draft preparation, JLM, HMK, AKF, LM, YMS; writing—review and editing, HMK, JLM, LM, and YMS; visualization, JLM, AKF, and YMS; supervision, JLM, LM, and YMS; funding acquisition, JLM and YMS. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by NCAT CTSA (JLM: UL1TR003015 and KL2TR003016), NIH (YMS: R01DA059660, R01HL173379, R01HL167202, R01HL132177).

Data Availability Statement

No raw scientific data is presented in this manuscript.

Acknowledgments

N/A.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Mugler, J. P.; Altes, T. A.; Ruset, I. C.; Dregely, I. M.; Mata, J. F.; Miller, G. W.; Ketel, S.; Ketel, J.; Hersman, F. W.; Ruppert, K. Simultaneous Magnetic Resonance Imaging of Ventilation Distribution and Gas Uptake in the Human Lung Using Hyperpolarized Xenon-129. Proc. Natl. Acad. Sci. U. S. A. 2010, 107 (50), 21707–21712. [CrossRef]
  2. Tustison, N. J.; Avants, B. B.; Flors, L.; Altes, T. A.; de Lange, E. E.; Mugler, J. P.; Gee, J. C. Ventilation-Based Segmentation of the Lungs Using Hyperpolarized (3)He MRI. J. Magn. Reson. Imaging JMRI 2011, 34 (4), 831–841. [CrossRef]
  3. Tustison, N. J.; Altes, T. A.; Qing, K.; He, M.; Miller, G. W.; Avants, B. B.; Shim, Y. M.; Gee, J. C.; Mugler, J. P.; Mata, J. F. Image- versus Histogram-Based Considerations in Semantic Segmentation of Pulmonary Hyperpolarized Gas Images. Magn. Reson. Med. 2021, 86 (5), 2822–2836. [CrossRef]
  4. Myc, L.; Qing, K.; He, M.; Tustison, N.; Lin, Z.; Manichaikul, A. W.; Patrie, J.; Cassani, J.; Nunoo-Asare, R. N.; Huang, Y.; Obaida, Z.; Tafti, S.; Ropp, A. M.; Miller, G. W.; Mata, J.; Altes, T.; Mugler, J.; Shim, Y. M. Characterisation of Gas Exchange in COPD with Dissolved-Phase Hyperpolarised Xenon-129 MRI. Thorax 2021, 76 (2), 178–181. [CrossRef]
  5. Kaushik, S. S.; Cleveland, Z. I.; Cofer, G. P.; Metz, G.; Beaver, D.; Nouls, J.; Kraft, M.; Auffermann, W.; Wolber, J.; McAdams, H. P.; Driehuys, B. Diffusion-Weighted Hyperpolarized 129Xe MRI in Healthy Volunteers and Subjects with Chronic Obstructive Pulmonary Disease. Magn. Reson. Med. 2011, 65 (4), 1154–1165. [CrossRef]
  6. Ruppert, K.; Qing, K.; Patrie, J. T.; Altes, T. A.; Mugler, J. P. Using Hyperpolarized Xenon-129 MRI to Quantify Early-Stage Lung Disease in Smokers. Acad. Radiol. 2019, 26 (3), 355–366. [CrossRef]
  7. Doganay, O.; Kim, M.; Gleeson, F. V. Gas Exchange and Ventilation Imaging of Healthy and COPD Subjects Using Hyperpolarized Xenon-129 MRI and a 3D Alveolar Gas-Exchange Model. Eur. Radiol. 2023, 33 (5), 3322–3331. [CrossRef]
  8. Rao, Q.; Li, H.; Zhou, Q.; Zhang, M.; Zhao, X.; Shi, L.; Xie, J.; Fan, L.; Han, Y.; Guo, F.; Liu, S.; Zhou, X. Assessment of Pulmonary Physiological Changes Caused by Aging, Cigarette Smoking, and COPD with Hyperpolarized 129Xe Magnetic Resonance. Eur. Radiol. 2024. [CrossRef]
  9. Guan, S.; Tustison, N.; Qing, K.; Shim, Y. M.; Mugler, J.; Altes, T.; Albon, D.; Froh, D.; Mehrad, B.; Patrie, J.; Ropp, A.; Miller, B.; Nehrbas, J.; Mata, J. 3D Single-Breath Chemical Shift Imaging Hyperpolarized Xe-129 MRI of Healthy, CF, IPF, and COPD Subjects. Tomogr. Ann Arbor Mich 2022, 8 (5), 2574–2587. [CrossRef]
  10. Mummy, D. G.; Coleman, E. M.; Wang, Z.; Bier, E. A.; Lu, J.; Driehuys, B.; Huang, Y.-C. Regional Gas Exchange Measured by 129 Xe Magnetic Resonance Imaging Before and After Combination Bronchodilators Treatment in Chronic Obstructive Pulmonary Disease. J. Magn. Reson. Imaging JMRI 2021, 54 (3), 964–974. [CrossRef]
  11. Ebner, L.; Virgincar, R. S.; He, M.; Choudhury, K. R.; Robertson, S. H.; Christe, A.; Mileto, A.; Mammarapallil, J. G.; McAdams, H. P.; Driehuys, B.; Roos, J. E. Multireader Determination of Clinically Significant Obstruction Using Hyperpolarized 129Xe-Ventilation MRI. AJR Am. J. Roentgenol. 2019, 212 (4), 758–765. [CrossRef]
  12. Ebner, L.; He, M.; Virgincar, R. S.; Heacock, T.; Kaushik, S. S.; Freemann, M. S.; McAdams, H. P.; Kraft, M.; Driehuys, B. Hyperpolarized 129Xenon Magnetic Resonance Imaging to Quantify Regional Ventilation Differences in Mild to Moderate Asthma: A Prospective Comparison Between Semiautomated Ventilation Defect Percentage Calculation and Pulmonary Function Tests. Invest. Radiol. 2017, 52 (2), 120–127. [CrossRef]
  13. Mussell, G. T.; Marshall, H.; Smith, L. J.; Biancardi, A. M.; Hughes, P. J. C.; Capener, D. J.; Bray, J.; Swift, A. J.; Rajaram, S.; Condliffe, A. M.; Collier, G. J.; Johns, C. S.; Weatherley, N. D.; Wild, J. M.; Sabroe, I. Xenon Ventilation MRI in Difficult Asthma: Initial Experience in a Clinical Setting. ERJ Open Res. 2021, 7 (3), 00785–02020. [CrossRef]
  14. Qing, K.; Altes, T. A.; Mugler, J. P.; Tustison, N. J.; Mata, null; Ruppert, K.; Komlosi, P.; Feng, X.; Nie, K.; Zhao, L.; Wang, Z.; Hersman, F. W.; Ruset, I. C.; Liu, B.; Shim, Y. M.; Teague, W. G. Pulmonary MRI with Hyperpolarized Xenon-129 Demonstrates Novel Alterations in Gas Transfer across the Air-Blood Barrier in Asthma. Med. Phys. 2024, 51 (4), 2413–2423. [CrossRef]
  15. Svenningsen, S.; Kirby, M.; Starr, D.; Leary, D.; Wheatley, A.; Maksym, G. N.; McCormack, D. G.; Parraga, G. Hyperpolarized (3) He and (129) Xe MRI: Differences in Asthma before Bronchodilation. J. Magn. Reson. Imaging JMRI 2013, 38 (6), 1521–1530. [CrossRef]
  16. Kooner, H. K.; McIntosh, M. J.; Desaigoudar, V.; Rayment, J. H.; Eddy, R. L.; Driehuys, B.; Parraga, G. Pulmonary Functional MRI: Detecting the Structure-Function Pathologies That Drive Asthma Symptoms and Quality of Life. Respirol. Carlton Vic 2022, 27 (2), 114–133. [CrossRef]
  17. Peiffer, J. D.; Altes, T.; Ruset, I. C.; Hersman, F. W.; Mugler, J. P.; Meyer, C. H.; Mata, J.; Qing, K.; Thomen, R. Hyperpolarized 129Xe MRI, 99mTc Scintigraphy, and SPECT in Lung Ventilation Imaging: A Quantitative Comparison. Acad. Radiol. 2024, 31 (4), 1666–1675. [CrossRef]
  18. Safavi, S.; Munidasa, S.; Zanette, B.; Dai, R.; Stirrat, E.; Li, D.; Moraes, T. J.; Subbarao, P.; Santyr, G. Evaluating Post-Bronchodilator Response in Well-Controlled Paediatric Severe Asthma Using Hyperpolarised 129Xe-MRI: A Pilot Study. Respir. Med. 2021, 180, 106368. [CrossRef]
  19. Lin, N. Y.; Roach, D. J.; Willmering, M. M.; Walkup, L. L.; Hossain, M. M.; Desirazu, P.; Cleveland, Z. I.; Guilbert, T. W.; Woods, J. C. 129Xe MRI as a Measure of Clinical Disease Severity for Pediatric Asthma. J. Allergy Clin. Immunol. 2021, 147 (6), 2146-2153.e1. [CrossRef]
  20. Hall, C. S.; Quirk, J. D.; Goss, C. W.; Lew, D.; Kozlowski, J.; Thomen, R. P.; Woods, J. C.; Tustison, N. J.; Mugler, J. P.; Gallagher, L.; Koch, T.; Schechtman, K. B.; Ruset, I. C.; Hersman, F. W.; Castro, M. Single-Session Bronchial Thermoplasty Guided by 129Xe Magnetic Resonance Imaging. A Pilot Randomized Controlled Clinical Trial. Am. J. Respir. Crit. Care Med. 2020, 202 (4), 524–534. [CrossRef]
  21. Svenningsen, S.; Kjarsgaard, M.; Haider, E.; Carmen Venegas, N.; Konyer, N.; Friedlander, Y.; Nasir, N.; Boylan, C.; Kirby, M.; Nair, P. Effects of Dupilumab on Mucus Plugging and Ventilation Defects in Patients with Moderate-to-Severe Asthma: A Randomized, Double-Blind, Placebo-Controlled Trial. Am. J. Respir. Crit. Care Med. 2023. [CrossRef]
  22. Intra- and Inter-visit Repeatability of 129 Xenon Multiple-Breath Washout MRI in Children With Stable Cystic Fibrosis Lung Disease - PubMed. https://pubmed.ncbi.nlm.nih.gov/36786650/ (accessed 2024-07-29).
  23. Marshall, H.; Voskrebenzev, A.; Smith, L. J.; Biancardi, A. M.; Kern, A. L.; Collier, G. J.; Wielopolski, P. A.; Ciet, P.; Tiddens, H. A. W. M.; Vogel-Claussen, J.; Wild, J. M. 129 Xe and Free-Breathing 1 H Ventilation MRI in Patients With Cystic Fibrosis: A Dual-Center Study. J. Magn. Reson. Imaging JMRI 2023, 57 (6), 1908–1921. [CrossRef]
  24. Kirby, M.; Villemaire, L.; Ahmed, H.; Paterson, N. A.; McCormack, D. G.; Lewis, J. F.; Parraga, G. Diffusion-Weighted Hyperpolarized Helium-3 Magnetic Resonance Imaging In Adult Cystic Fibrosis. In A94. THERAPEUTIC AND DIAGNOSTIC ADVANCES IN CYSTIC FIBROSIS; American Thoracic Society International Conference Abstracts; American Thoracic Society, 2013; pp A2072–A2072. [CrossRef]
  25. Couch, M. J.; Thomen, R.; Kanhere, N.; Hu, R.; Ratjen, F.; Woods, J.; Santyr, G. A Two-Center Analysis of Hyperpolarized 129Xe Lung MRI in Stable Pediatric Cystic Fibrosis: Potential as a Biomarker for Multi-Site Trials. J. Cyst. Fibros. Off. J. Eur. Cyst. Fibros. Soc. 2019, 18 (5), 728–733. [CrossRef]
  26. Bannier, E.; Cieslar, K.; Mosbah, K.; Aubert, F.; Duboeuf, F.; Salhi, Z.; Gaillard, S.; Berthezène, Y.; Crémillieux, Y.; Reix, P. Hyperpolarized 3He MR for Sensitive Imaging of Ventilation Function and Treatment Efficiency in Young Cystic Fibrosis Patients with Normal Lung Function. Radiology 2010, 255 (1), 225–232. [CrossRef]
  27. Wang, J. M.; Robertson, S. H.; Wang, Z.; He, M.; Virgincar, R. S.; Schrank, G. M.; Smigla, R. M.; O’Riordan, T. G.; Sundy, J.; Ebner, L.; Rackley, C. R.; McAdams, P.; Driehuys, B. Using Hyperpolarized 129Xe MRI to Quantify Regional Gas Transfer in Idiopathic Pulmonary Fibrosis. Thorax 2018, 73 (1), 21–28. [CrossRef]
  28. Hahn, A. D.; Carey, K. J.; Barton, G. P.; Torres, L. A.; Kammerman, J.; Cadman, R. V.; Lee, K. E.; Schiebler, M. L.; Sandbo, N.; Fain, S. B. Functional Xenon-129 Magnetic Resonance Imaging Response to Antifibrotic Treatment in Idiopathic Pulmonary Fibrosis. ERJ Open Res. 2023, 9 (3), 00080–02023. [CrossRef]
  29. Eaden, J. A.; Weatherley, N. D.; Chan, H.-F.; Collier, G.; Norquay, G.; Swift, A. J.; Rajaram, S.; Smith, L. J.; Bartholmai, B. J.; Bianchi, S. M.; Wild, J. M. Hyperpolarised Xenon-129 Diffusion-Weighted Magnetic Resonance Imaging for Assessing Lung Microstructure in Idiopathic Pulmonary Fibrosis. ERJ Open Res. 2023, 9 (4), 00048–02023. [CrossRef]
  30. Qing, K.; Altes, T. A.; Mugler, J. P.; Mata, J. F.; Tustison, N. J.; Ruppert, K.; Bueno, J.; Flors, L.; Shim, Y. M.; Zhao, L.; Cassani, J.; Teague, W. G.; Kim, J. S.; Wang, Z.; Ruset, I. C.; Hersman, F. W.; Mehrad, B. Hyperpolarized Xenon-129: A New Tool to Assess Pulmonary Physiology in Patients with Pulmonary Fibrosis. Biomedicines 2023, 11 (6), 1533. [CrossRef]
  31. Chan, H.-F.; Collier, G. J.; Parra-Robles, J.; Wild, J. M. Finite Element Simulations of Hyperpolarized Gas DWI in Micro-CT Meshes of Acinar Airways: Validating the Cylinder and Stretched Exponential Models of Lung Microstructural Length Scales. Magn. Reson. Med. 2021, 86 (1), 514–525. [CrossRef]
  32. Stiefer, A.; Zhang, S.; Mummy, D.; Salazar, C.; Tighe, R. m.; Driehuys, B.; Swaminathan, A. c. Using 129Xenon MRI to Evaluate the Trajectories of Idiopathic Pulmonary Fibrosis. In A104. ADVANCES IN THE DIAGNOSIS AND TREATMENT OF ILD; American Thoracic Society International Conference Abstracts; American Thoracic Society, 2024; pp A2859–A2859.
  33. Grist, J. T.; Chen, M.; Collier, G. J.; Raman, B.; Abueid, G.; McIntyre, A.; Matthews, V.; Fraser, E.; Ho, L.-P.; Wild, J. M.; Gleeson, F. Hyperpolarized 129Xe MRI Abnormalities in Dyspneic Patients 3 Months after COVID-19 Pneumonia: Preliminary Results. Radiology 2021, 301 (1), E353–E360. [CrossRef]
  34. Longitudinal Lung Function Assessment of Patients Hospitalized With COVID-19 Using 1H and 129Xe Lung MRI - PubMed. https://pubmed.ncbi.nlm.nih.gov/36965765/ (accessed 2024-07-29).
  35. Kooner, H. K.; McIntosh, M. J.; Matheson, A. M.; Venegas, C.; Radadia, N.; Ho, T.; Haider, E. A.; Konyer, N. B.; Santyr, G. E.; Albert, M. S.; Ouriadov, A.; Abdelrazek, M.; Kirby, M.; Dhaliwal, I.; Nicholson, J. M.; Nair, P.; Svenningsen, S.; Parraga, G. 129Xe MRI Ventilation Defects in Ever-Hospitalised and Never-Hospitalised People with Post-Acute COVID-19 Syndrome. BMJ Open Respir. Res. 2022, 9 (1), e001235. [CrossRef]
  36. Matheson, A. M.; McIntosh, M. J.; Kooner, H. K.; Lee, J.; Desaigoudar, V.; Bier, E.; Driehuys, B.; Svenningsen, S.; Santyr, G. E.; Kirby, M.; Albert, M. S.; Shepelytskyi, Y.; Grynko, V.; Ouriadov, A.; Abdelrazek, M.; Dhaliwal, I.; Nicholson, J. M.; Parraga, G. Persistent 129Xe MRI Pulmonary and CT Vascular Abnormalities in Symptomatic Individuals with Post-Acute COVID-19 Syndrome. Radiology 2022, 305 (2), 466–476. [CrossRef]
  37. Eddy, R. L.; Mummy, D.; Zhang, S.; Dai, H.; Bechtel, A.; Schmidt, A.; Frizzell, B.; Gerayeli, F. V.; Leipsic, J. A.; Leung, J. M.; Driehuys, B.; Que, L. G.; Castro, M.; Sin, D. D.; Niedbalski, P. J. Cluster Analysis to Identify Long COVID Phenotypes Using 129Xe Magnetic Resonance Imaging: A Multi-Centre Evaluation. Eur. Respir. J. 2024, 63 (3), 2302301. [CrossRef]
  38. Kooner, H. K.; McIntosh, M. J.; Matheson, A. M.; Abdelrazek, M.; Albert, M. S.; Dhaliwal, I.; Kirby, M.; Ouriadov, A.; Santyr, G. E.; Venegas, C.; Radadia, N.; Svenningsen, S.; Nicholson, J. M.; Parraga, G. Postacute COVID-19 Syndrome: 129Xe MRI Ventilation Defects and Respiratory Outcomes 1 Year Later. Radiology 2023, 307 (2), e222557. [CrossRef]
  39. He, M.; Qing, K.; Tustison, N.; Beaulac, Z.; King, T.; Huff, T.; Paige, M.; Earasi, K.; Nunoo-Asare, R.; Struchen, S.; Zhang, Z.; Ropp, A.; Miller, G.; Patrie, J.; Mata, J.; Mugler, J. I.; Shim, Y. Characterizing Gas Exchange Physiology in Healthy Young Electronic-Cigarette Users with Hyperpolarized 129Xe MRI: A Pilot Study. Int. J. Chron. Obstruct. Pulmon. Dis. 2021. [CrossRef]
  40. Walkup, L. L.; Roach, D. J.; Hall, C. S.; Gupta, N.; Thomen, R. P.; Cleveland, Z. I.; McCormack, F. X.; Woods, J. C. Cyst Ventilation Heterogeneity and Alveolar Airspace Dilation as Early Disease Markers in Lymphangioleiomyomatosis. Ann. Am. Thorac. Soc. 2019, 16 (8), 1008–1016. [CrossRef]
  41. Initial feasibility and challenges of hyperpolarized 129 Xe MRI in neonates with bronchopulmonary dysplasia - PubMed. https://pubmed.ncbi.nlm.nih.gov/37526031/ (accessed 2024-07-29).
  42. Rankine, L. J.; Lu, J.; Wang, Z.; Kelsey, C. R.; Marks, L. B.; Das, S. K.; Driehuys, B. Quantifying Regional Radiation-Induced Lung Injury in Patients Using Hyperpolarized 129Xe Gas Exchange Magnetic Resonance Imaging. Int. J. Radiat. Oncol. Biol. Phys. 2024, S0360-3016(24)00359-6. [CrossRef]
Preprints 142272 g001

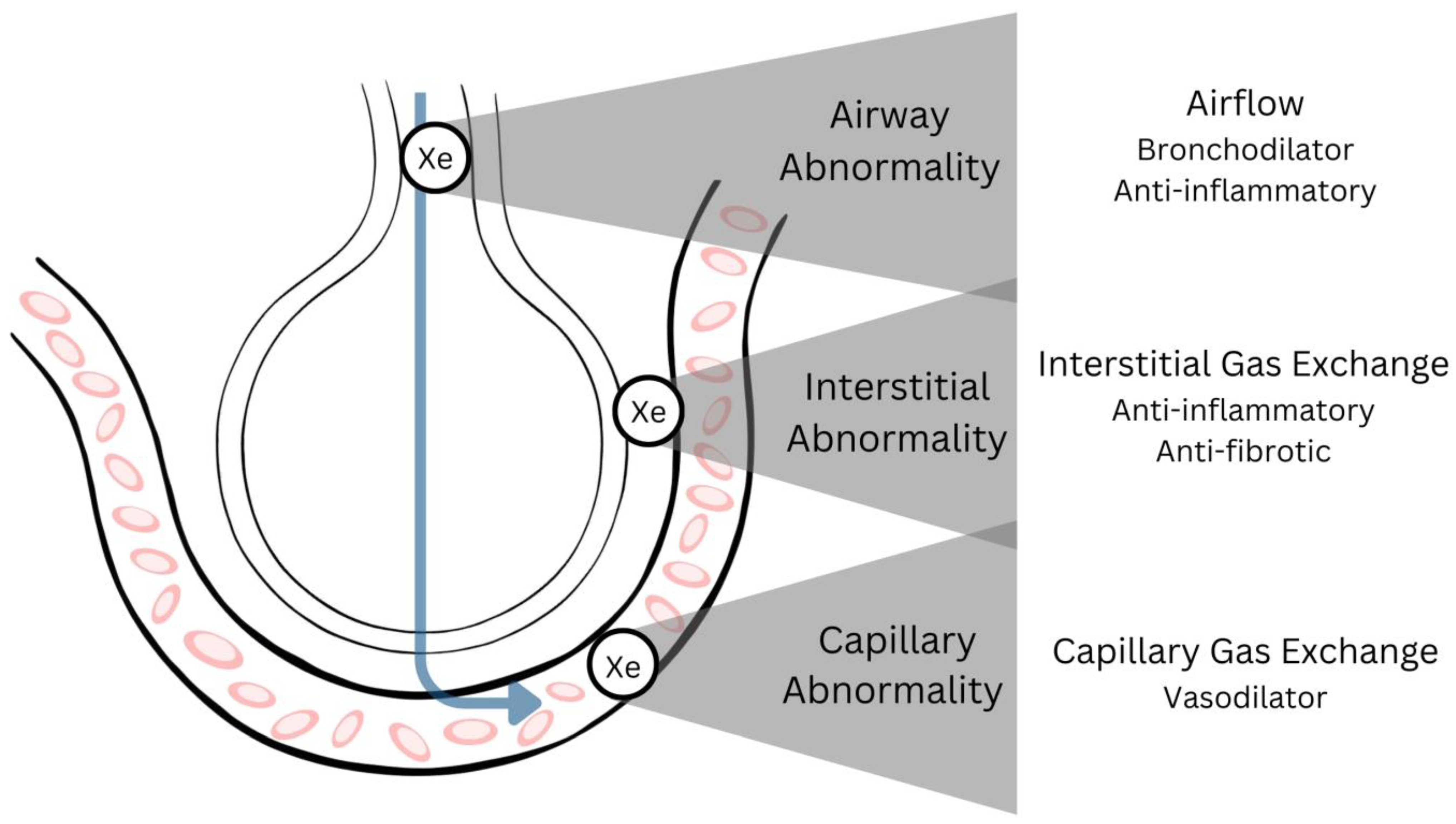

Figure 1. A schematic of the hyperpolarized xenon-129 atom’s movement from airways to alveoli to interstitium to the red blood cells in the pulmonary capillary vasculature. Three pulmonary anatomic microcompartments are highlighted in grey triangles (airway, interstitium, and pulmonary capillaries), with corresponding classes of therapeutics that can be deployed to address pathologies identified in these microcompartments (bronchodilators, anti-inflammatories, anti-fibrotic, and pulmonary vasodilators).
