A Case Study of 3D Scanning Techniques in Civil Engineering

1. Introduction

The development of a design and the subsequent prototype of a product or a full-scale facility is an essential part of the implementation of new technologies [1,2]. Design is a complex and time-consuming process because, in the initial stages of development, various design concepts and optimisation options are considered [3,4]. Modern design methods are supported by numerical techniques at virtually every stage of development. Prototyping most often involves optimising selected product parameters [5]. In the simplest case, these are unidirectional design-and-execute activities. In more advanced models, multithreaded optimisation couplings are implemented, such as those found in the digital shadow or digital twin models, are implemented [6] in which a classification of the digital twin (DT) level of integration was made, an implementation of these methods [7] and the potential for industrial applications [8]. In such models, the accuracy of reproduction of the test object plays an important role. Essential to the prototyping process is the integration of different imaging techniques to achieve the appropriate scan accuracy [9]. 3D scanning technology is rapidly developing in virtually every field of technology and science. These include the identification and main applications of 3D scanning from an industrial perspective [10,11] implementation of these solutions in the construction industry [12] as well as applications beyond civil engineering issues [13,14,15,16]. Most applications are in precision mechanics for prototyping and production control. An example of such an application is the methodology for the precise characterisation of the geometric quality of gears [17]. Another example is the use of three-dimensional laser scanning to assess the wear of the wheel and rail profile in rail transport [18]. 3D scanning systems are also employed in the mass production quality control process during the manufacture of castings and forgings, without the need to prepare the surface in direct contact with the objects [19]. It is very often used to scan large cubic objects and engineering and technical infrastructure. An example of such an application is the quality control process in a residential building [20], and the larger scale building of 3D models used for control during tectonic activity [21], as well as the deformation of structures such as bridges and tunnels, and ground deformation in landslides and unstable rock masses[22]. It is extremely important to use 3D scanning methods in the support of supporting laboratory research. This approach was presented by the authors of the publication [23]. An innovative method was presented for the detection of geometric imerfections in objects made of carbon fibre reinforced polymer (CFRP). This made it possible to predict the geometry of the models and develop a method to reduce deflection. An even more original approach using 3D scanning methods is proposed in the publication [24]. The authors used a scanning technique to inspect corroded bridge components and then developed an original way of numerical modelling such components. In addition to the surface observation techniques mentioned above, more complex ones used for volumetric imaging, such as, for example, computed tomography used in diagnostics of the microstructure of the microstructure of the material microstructure [25,26] and the mechanical behaviour of materials at high temperatures [27]. These techniques are primarily employed for non-invasive observation of material structure and volumetric defects. Due to the complexity of the technology, they are not used for mapping the surface of an object. For rapid surface mapping, simpler devices are employed, namely optical scanners that predominantly utilise structured light or laser beams. Scanning refers to the optical capture of information [28] on the geometry of physical objects, in which artificially generated external light sources are used. The acquired information is digitally stored in the form of a point cloud, which represents data on the spatial location of the test object. After the generation of the point cloud, post-processing occurs, which involves cleaning artefacts (random errors) and the meshing process, that is, combining with a triangular STL mesh [29]. Currently, the most widely used scanning techniques use different types of projection units [30]. There are active units, i.e., laser scanners,, structured light scanners, and passive scanners which use natural light reflected from the object or radiation in the infrared band. Several surface image acquisition techniques are currently used in measurement practice [31], photogrammetry [32], time-of-flight (TOF) [33,34] interferometry, laser triangulation (LT) [35], and structured light scanner (SLS) [36]. Photogrammetry is based on the processing of images [37,38]. The technique is used to measure large objects and surveying observations. The results of this technology are orthoimages, 2D and 3D reconstruction, and classification of objects for mapping and visualisation. The TOF technique is based on measuring the flight of the total time of the laser beam from the source to the object and after the reflection of the beam on the scanner [39]. On the basis of this, the distance between the object and the projector is calculated. This technique is used to measure large objects and is usually point-based. Measurement by laser triangulation involves projecting a laser beam on the object under study (LT) [40]. With the distance between the laser and the camera and the angle between the laser beam and the image plane of the camera known, it is possible to determine the distance of the measurement point from the camera lens. The LT technique is adapted to scan small and medium objects (such as vehicle details and mechanical parts). This type of exposure most often uses red or blue laser lines. In addition to the LT technique itself, the limiting parameters, such as data acquisition accuracy or measurement uncertainty limit [41]. The latest devices (for example, the FreeScan Trio [42]) use sets of dozens of lines, greatly speeds up the scanning process. The SLS technique [43,44] uses a measurement triangulation method in which the stripe patterns displayed on the measurement surface lend themselves to projection. The principle of stripe exposure is known as Mori`e patterns [45,46]. The measurement covers the entire exposure area at the same time, allowing good image stability. The SLS technique is usually used to measure small parts and machine parts. Some combination of scanning techniques is the Terrestrial Laser Scanner (TLS) system [47,48,49]. This system can use TOF and laser range Finder (LRF) techniques [50,51]. A scanner is usually built with two basic modules. The first is a projector that generates a beam of light, and the second is a head equipped with a set of sensitive cameras that track changes in the intensity of light reflected from the object being scanned. For scanning large objects such as buildings and engineering structures [20], passive scanners [21], Terrestrial Laser Scanner (TLS), are used due to their efficiency and relatively good imaging accuracy. Scans are performed in several or dozens of measurement zones so that neighbouring scanning zones share common imaging areas within their range. The scanning time from a single observation point depends on the set imaging accuracy and ranges from several to tens of minutes. Devices using laser lines are used to image small parts and details. The type of laser light is important in terms of measurement accuracy and the quality of the images obtained [52]. In this category, there are two types: red laser and blue laser [53]. Red laser light is used in the early development of scanning. This type of laser operates close to the infrared spectrum at a wavelength of approximately 670 nm. The red laser is commonly used in industrial automation, typically on inspection lines during production. The disadvantage of the red laser is its low accuracy when mapping shiny surfaces; however, its advantages include speed and intensity of illumination, which facilitate the observation of fast-moving objects. Blue lasers are used in modern measuring equipment for laboratory and production applications. This type of laser operates at approximately 405 nm within the visible-light spectrum, close to the ultraviolet spectrum. The blue laser is much better suited to measure transparent or translucent materials, reflective or mirror surfaces, as well as organic surfaces such as wood [54].This technique allows images of three-dimensional objects with complex structures and small dimensions. Reference points in the form of markers affixed to the surface are necessary to perform a pop-up scan. Another advantage is the possibility of using manually controlled scanners, which significantly enhances the mobility of such devices. Structured light scanners utilise a digital projector. The exposure process is more demanding than that of a laser scanner. This type of equipment is used to register individual images, which are then assembled together. When scanning shiny surfaces (for example, steel), it is necessary to use special antireflection sprays [55]. This preparation allows for the application of a thin layer with a thickness on the order of tens of micrometres, thereby protecting the reflective surface. The best results are achieved by using specially stabilised tripods. Structured light scanning has the advantage of providing texture and colour mapping of the test object. In contrast, 3D scanning is used solely to acquire a digital image of the test object, which has no useful function beyond graphical visualisation. In addition to the precision of image acquisition due to the exposure technique and the precision of the devices themselves, disturbance of the measurement environment, such as the intensity of natural light during measurements, may also be important [56]. This type of environmental disturbance is minimised under laboratory conditions but still occurs in in situ measurements. After the point cloud is obtained, another process associated with post-processing follows. In further analysis, point-cloud or STL mesh can be used in various ways. The main task is to obtain CAD-type geometry. Reverse engineering is used for this purpose [57], coupled with scanning [58], inspection [59,60] and control techniques [61]. The concept of reverse engineering is to recreate a model based on an existing pattern without access to detailed technical documentation. In the case of scanning, this pattern is represented by a point cloud. Reconstruction is typically performed using dedicated graphics software and aims to achieve a match as closely as possible to the original pattern [62]. The quality of this matching is assessed using inspection software, which measures the deviation of the reconstructed model in relation to the reference model. The final result of the technique described above is the attainment of a fully scalable model suitable for numerical calculations.

This paper takes a review-based approach and includes a case study focused on the analysis of a civil engineering structure. It presents examples of the application of two distinct scanning techniques within their respective dedicated ranges and explores the potential for the unconventional use of the TLS (Terrestrial Laser Scanning) scanner in conducting high-precision measurements of large surfaces. Both 3D scanning techniques are evaluated with regard to their qualitative and quantitative measurement accuracy.

The primary objective of this paper is to compare these scanning methods through selected examples and investigate the validity of their potential interchangeability. The analysis seeks to provide information on whether different scanning techniques can serve as alternatives to each other, offering a deeper understanding of their respective advantages and limitations in the context of civil engineering applications.

2. Test Objects and Test Methods.

2.1. Industrial Hall

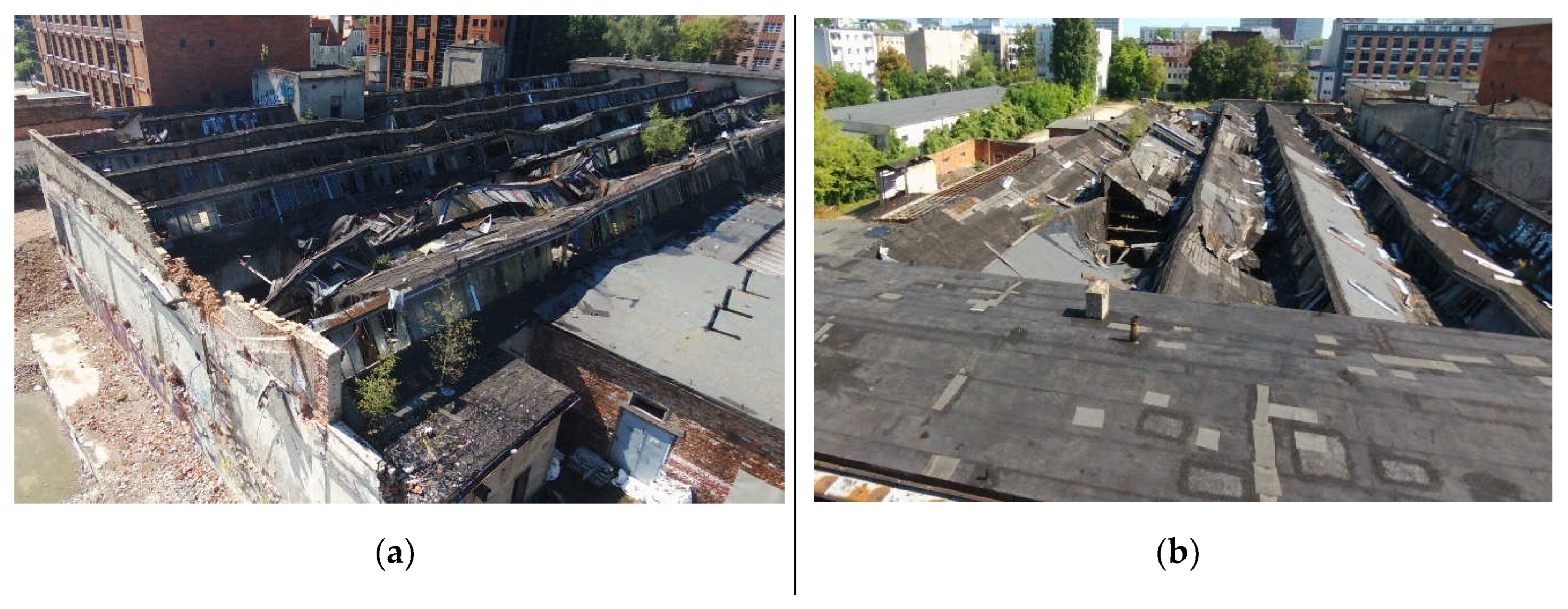

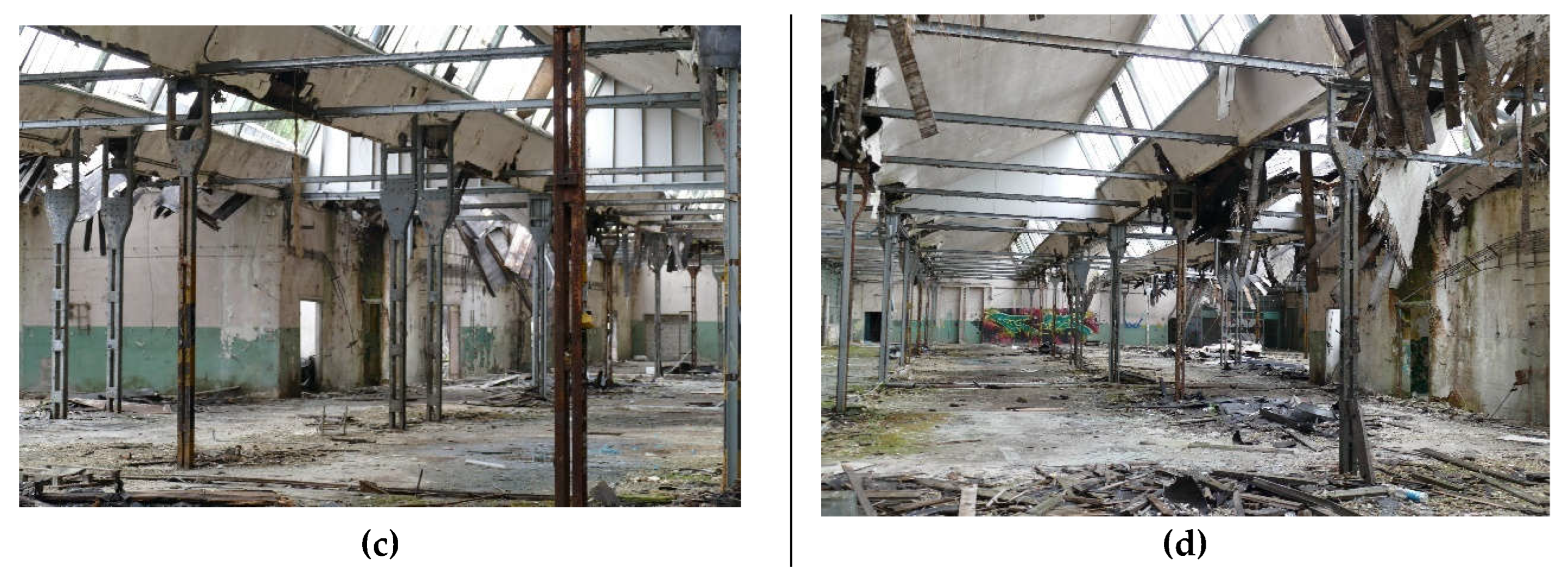

The test facility is an industrial hall from the previous century that is currently out of use. The main part of the facility is a six-aisle, partially basement hall. The roof of the hall is painted and features various spans ranging from 5.4 to approximately 6.4 m. The spacing of the steel columns supporting the roof structure is approximately 6.5 m. The roof was in a state of significant deterioration, with numerous cavities. It is supported by solid brick masonry walls and two branched columns made of steel channels. The columns are constructed from C140 channels spaced approximately 100 mm apart, connected by battens and gusset plates. Photographs of the current state of the facility are shown in Figure 1. Figure 1 (a) and Figure 2 (b) show a photograph of the roof of the building taken from a drone. Photographs illustrate the extent of the damage. Figure 2 (b) and (c) show the interior of the building including the technical condition of the superstructure and the damage to the roof as seen from the inside. The facility does not have technical documentation. The purpose of the analyses is to reconstruct the object's basic technical documentation by reverse engineering and digitising the object's damage. 3D imaging was performed with a FaroFocus volume scanner [63,64]. The scanner has a range of 0.6 to 70 m and a resolution of up to 165 megapixels. The scanner enables image acquisition in the form of a point cloud. In addition, an integrated colour camera allows colour overlay of scanned surfaces [65]. The scanning speed is 2 million points per second. The scanner's field of view is 360^o horizontally and 300o vertically. The basic parameters of the Faro Focus 3D [66], TLC scanner are summarised in Table 1.

The reading accuracy and autocalibration error analysis compared to similar devices of this type are presented in [67]. Finally, it was found that the random noise from reading the coordinates of the point cloud does not contribute significant errors when scanning at short distances. The usefulness of the FaroFocus system was even confirmed in the article [68]. This paper compares individual systems (Terrestrial Laser Scanner (TLS), Mobile Mapping System (MMS) and Unmanned Aerial Vehicle (UAV) and considers the possibility of compiling them. In the realised example, one Faro Focus scanning device was used. The image was exiled from the outside and inside of the object from a total of 55 observation positions. After taking individual scans, individual images were combined into a 3D image using dedicated Faro Scene software [69]. Furthermore, ReCap Pro reverse engineering software [70] and AutoCad software to reproduce the drawing documentation.

2.2. Industrial Hall

The large area object is a wall with insulation from External Thermal Insulation Composite Systems (ETICS) [71,72]. The object, measuring 3.6 m x 2.8 m, was tested under laboratory conditions using a climate chamber. The EITCS insulation is mounted on a masonry wall made of aerated concrete blocks embedded in a rigid steel frame. The thermal insulation layer is made of expanded polystyrene (EPS) with a fire-retardant strip made of mineral wool (MW) [73]. The test model along with the test stand is shown in Figure 2. Figure 2 (a) shows a test object with a visible insulation layer (before applying the finishing coat). The dark band is the mineral wool, and the remaining surface is covered with polystyrene. Figure 2 (b) illustrates a cross section of the test object with a detailed description of the constituent layers. Figure 2 (c) shows a view of the test chamber and Figure 2 (d) shows the complete test object before positioning in the test chamber. Finally, the test object is delivered to the chamber and fixed with special clamps. The whole constitutes a sealed system with the possibility of introducing climatic influences (temperature, rain, freezing). The range of thermal and humidity exposures included exposure cycles according to EN 16383 [74].The set of impacts includes three cycles: heating and wetting (HW), heating and cooling (HC), and wetting, freezing, and thawing (WFT). The purpose of the analysis is to evaluate the extent of the deformation and to measure the displacement of the outer layer of the ETICS wall due to environmental loads after it has undergone all impact cycles. Measurements were carried out in two variants. The first was a measurement taken after the wall was installed, but before the climatic impact (reference scan), and the last measurement was taken after all cycles of climatic impact had passed (operational scan). Reference and operational imaging was performed with the FreeScan UEPro 3D laser scanner [75] in photogrammetry mode. The basic parameters of the scanner are summarised in Table 2.

3. Results

3.1. Industrial Hall

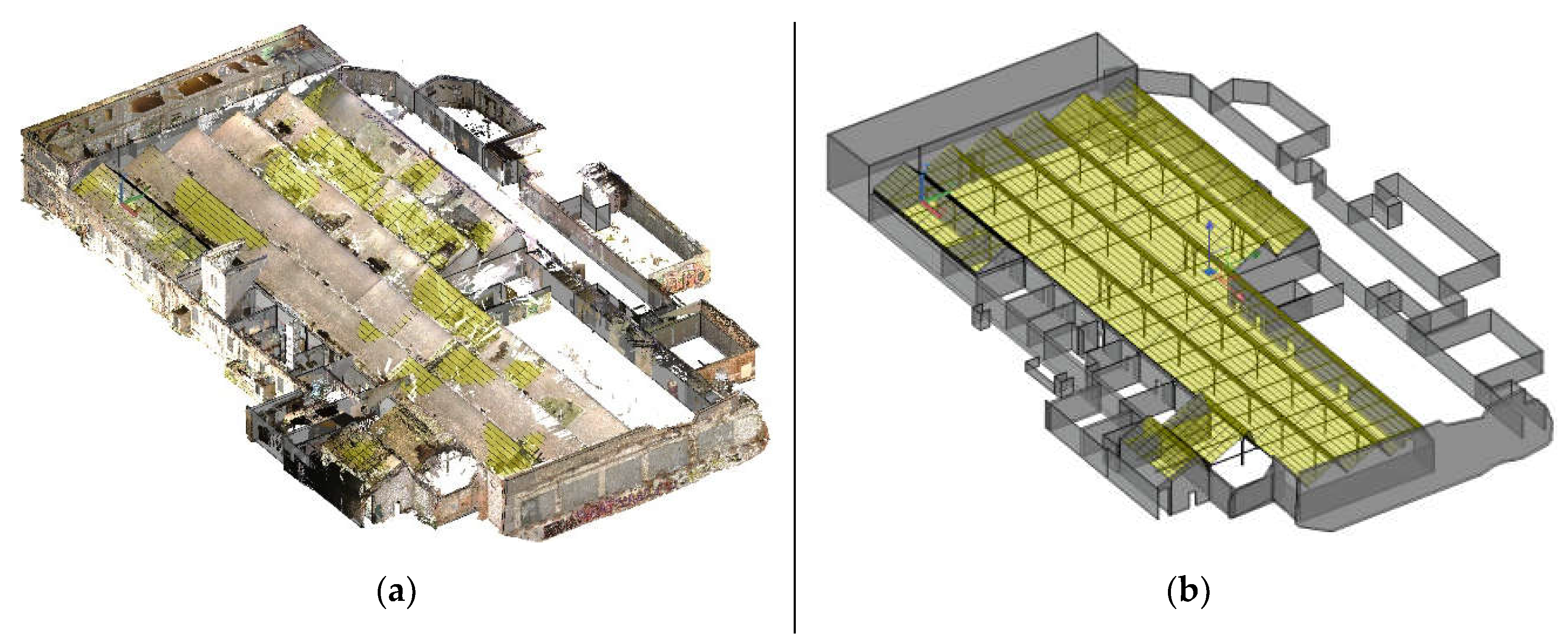

Based on the 3D image of the object, a post-press was performed using the reverse engineering method. This task involves the creation of three-dimensional models based on laser scans. For this task, the Faro Scene was first used [76,77]. In this software, individual images were combined and then the 3D point cloud image was implemented in Autodesk ReCap Pro [78], and Autodesk Revit [79]. Ultimately, a three-dimensional CAD model is obtained [80] inserted into the point cloud. Figure 3a) shows the 3D scan outline along with the solid in CAD format and the 3D model of the object after point cloud removal (Figure 3b). The drawing contains the external outline of the solid with all details and the internal location of the structural elements. This three-dimensional CAD model serves as a foundation for creating various technical drawings, such as projections, sections, and more.

The 3D scan is fully scalable and can be used for damage inventory, providing detailed information about the size, shape, location of structural fragments, and other relevant characteristics. The CAD drawing (Figure 4) generated from the 3D scan can serve as a basis for recreating the technical documentation [81]. This approach to documentation allows for more meticulous building maintenance and, in certain cases, facilitates the restoration of architectural details.

3.2. Faro Focus TLS Scanner for External Wall Insulated

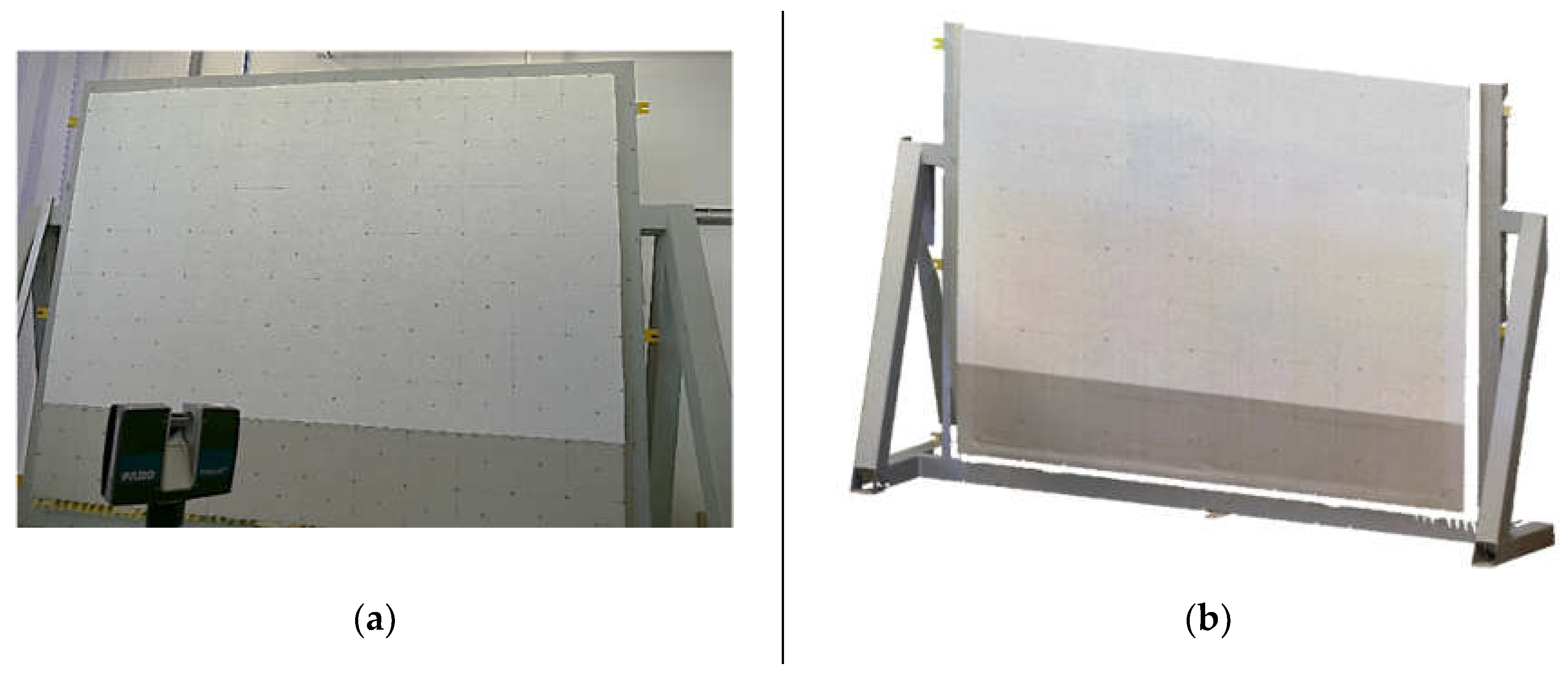

For large objects, terrestrial laser scanning (TLS) is generally sufficient for reconstructing building documentation. However, practical applications may require redundant scanning. In the context of scanning insulated walls, the resolution and quality are crucial. Given that TLS scanning is typically conducted in situ for observing insulated walls on large objects, such as multi-family buildings, the resolution and accuracy of the scan should align with the object's characteristics as described in Section 3.1. For this specific application, the Faro Focus scanner was configured with a resolution of 1/4 and a quality setting of 4x. Figure 5 illustrates the wall scanning process and the resulting point cloud.

Due to laboratory space constraints, scans were captured from three positions at an approximate distance of 3 metres from the test object. Two scanning sessions were conducted: a reference scan before the climate chamber testing (as described in Section 2.2) and a second scan after the climate testing. In total, the combined scans comprised 777,645 nodes. The two scans were superimposed and compared using Geomagic Control X (v.2023.3) inspection software.

3.3. External Insulated Wall FreeScan UEPro Laser Scanner

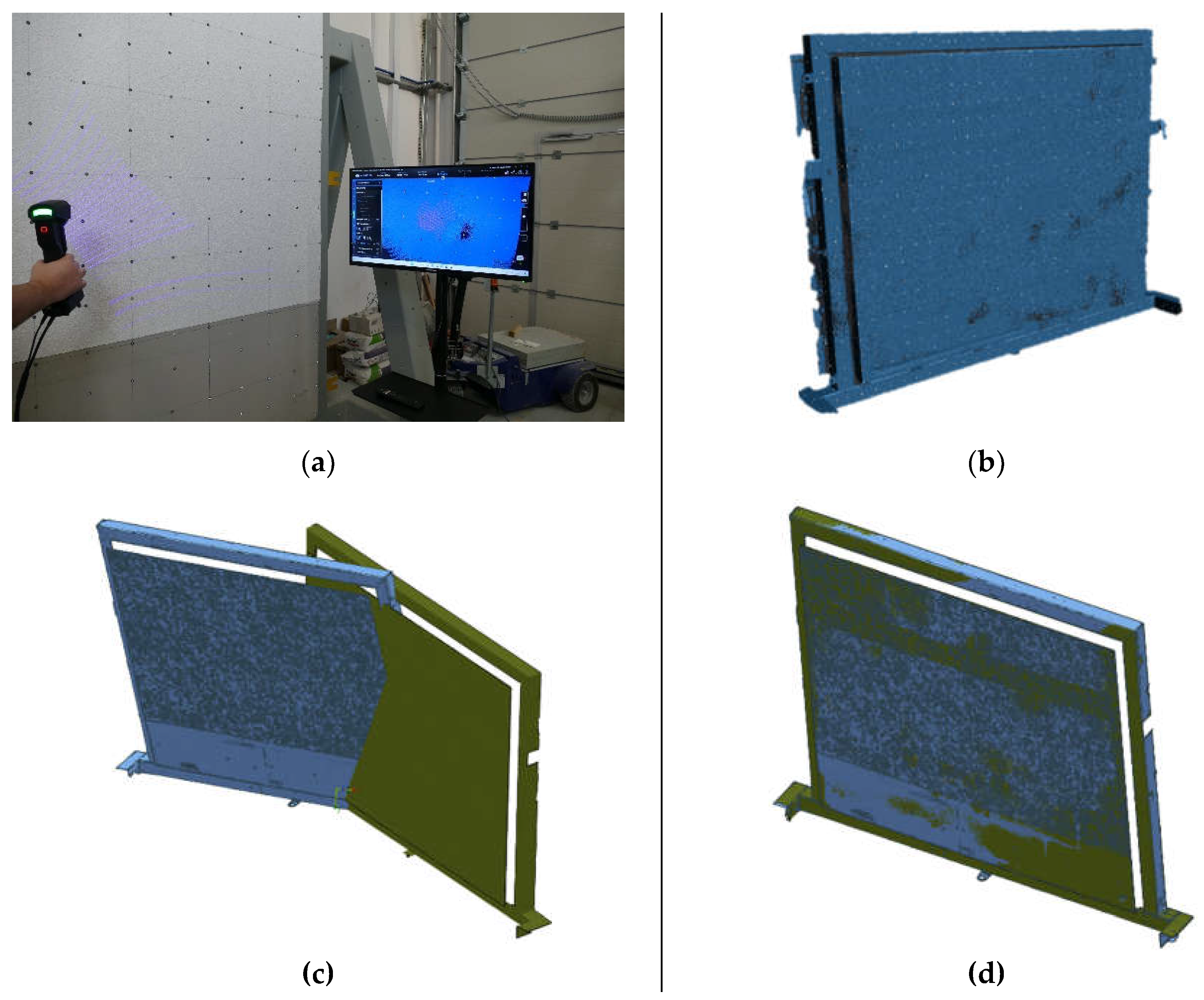

The first set of measurements was performed with a FreeScan UEPro laser scanner. Scanning required several changes in working position. The post-processing was then performed using Geomagic Control X. control software. The process of acquiring and assembling images of a large surface object is shown in Figure 6. Exposure of the test object (Figure 6 a) results in a point cloud (Figure 6b) that represents the scanned surface. After removing artefacts and optimising the points, an STL mesh is created. Identical operations are performed on objects before and after climate impact. Figure 6 (c) shows both models before and Figure 6 (d) after assembly. The common reference surface of both models was a steel perimeter frame. The frame was painted with matte grey paint, which did not prevent the reflection of laser light. In addition, they will stick reference markers on the surface of the frame for accurate positioning of the frame shape. The single model scan contained 4,994,811 nodes.

Exposure of the test object (Figure 6a) resulted in a point cloud (Figure 6b) representing the scanned surface. Following the removal of artefacts and the optimisation of the point cloud, an STL mesh was generated. These identical procedures were applied to the object both before and after exposure to climatic impacts. Figure 6(c) illustrates both models before assembly, while Figure 6(d) shows them after assembly. A steel perimeter frame served as the common reference surface for both models. When the models, an inspection analysis was performed. The results of the analysis are presented in Section 3.4.

3.4. Comparison of FreeScan UEPro and Faro Focus Scans

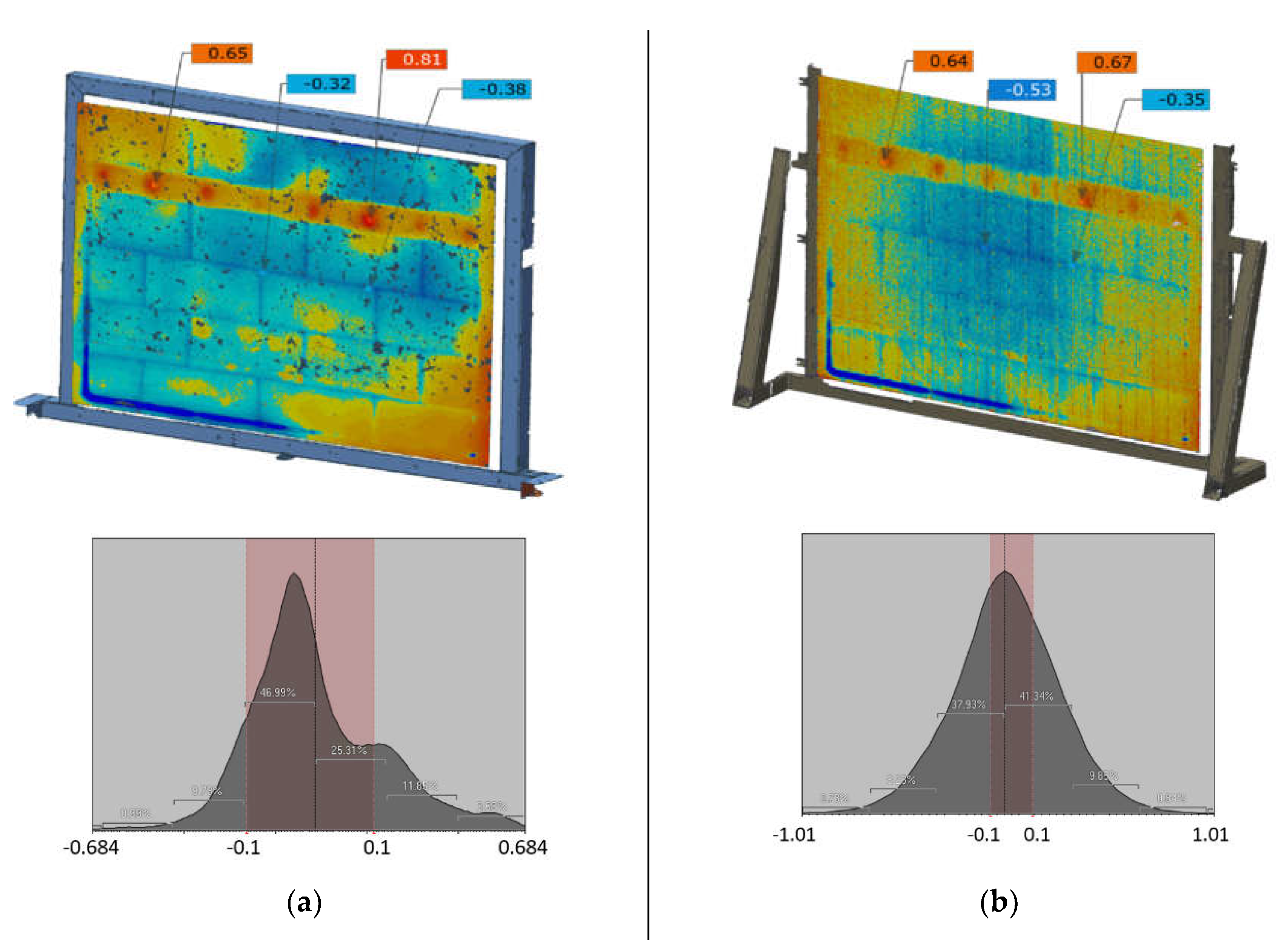

Figure 7 presents the inspection results for two distinct laser scanners: FreeScan UEPro and Faro Focus. The results are displayed both qualitatively, using a colour deformation map, and quantitatively, in the form of deformation values at specific points on the wall surface. These points represent the locations of maximum and minimum deflections within the region of greatest deformation.

Table 3 summarises the statistics of the measurement parameters in relation to the deformation map.

Figure 7(a) shows the measurement results with the FreeScan UEPro. In Figure 7(b) with the FaroFocus scanner, the deformation map obtained with both sets of measurements looks similar.

The deformation maps are the histograms of the measurements, which illustrate the frequency of a random variable within specified intervals. In this instance, the histograms depict the deformation of the operational model relative to the reference model, measured in a direction normal to the reference surface, or in the fitting plane. The red-lined boxes indicate the tolerance interval of ±0.1 mm, which was initially adopted as an analysis criterion. Table 1 and Table 2 summarise the measurement statistics. Table 1 presents the statistics for the entire deformation map, while Table 2 focusses on the selected reference points A, B, C, and D. The number of nodes refers to the number of nodes extracted from the point cloud and used for statistical calculations. For the deformation map, the point cloud encompasses the entire model area. In contrast, for the reference points, only the nodes located within a 3 mm diameter sphere surrounding the respective reference point are considered. Both scanners detected local geometry perturbations at the same location. A horizontal strip of convexity is visible in the upper part of the model (red zone), and a local indentation is visible in the lower left corner (blue zone). The protrusion occurred when a different insulating material was used, while the indentation was caused by the excessive pressure of the sample against the climate chamber. Interestingly, both scanners detected the outlines of the insulation boards that are hidden under the foundation coat. The extreme deformation values shown on the scales of the two sets differ from each other by up to 45%. In addition, four measurement points on the surface of the model were selected for qualitative testing. Two describe the largest convexity and two describe the largest concavity. Comparison of these results indicates agreement on the direction of deformation (concavity, indentation). Discrepancies in the four test points of the FaroFocus model with respect to the FreeScan UEPro model range from 12% to 73%. This is only a sample of test data and is not an evaluation of the performance of the scans tested. The analysis methodology, the test procedure, and the detailed measurement results are presented in [82,83].

4. Discussion

3D scanning is an imaging technique that makes it possible to digitise virtually any object with very high accuracy. The resulting digital copies can be used for a variety of purposes. In civil engineering, 3D scanning is used most frequently to scan large objects. This type of image is used to digitise buildings and engineering structures [22,84]. The example of volumetric scanning concerns an industrial hall in poor condition. When digitising large objects, several problems have already reached the stage of imaging technology and data processing. The most important problem was recognised in the publication [85]and relates to the quality of the data obtained and the way it is processed. From the authors' experience gained during this task, it is clear that maintaining uniform scanning conditions plays an important role in acquiring useful images, especially for in situ work and long-term measurements. Changing environmental conditions, such as temperature and lighting during scanning [56] at different intervals, can cause excessive errors [57] Another troublesome problem is the quality of numerical data acquired during scanning and processed in post-processing. It turns out that scanning surfaces of different textures, dimensions, and transparency (for example, a brick wall and window glass) generates divergent quality point clouds. Thus, it is difficult to apply a uniform noise removal algorithm. In this case, it seems simplest to remove the troublesome quality areas of the point cloud just to preserve the relatively good data quality of the main part of the model. However, the accuracy of the point cloud of the Faro Focus scanner is sufficient to reproduce the drawing documentation of the object to an accuracy of approximately ± 3 mm, as presented in Section 3.1.

Another problem concerns the possibility of using TLS (Faro Focus) techniques to make precise measurements of small deformations of large areas of an object. An example of such a task is the analysis of the influence of the environment on the deformation of the outer insulation layer of multi-story buildings that are undergoing diagnosis or renovation [86]. Precise measurements of this type are problematic for two reasons. The first is the technical accessibility of the surface to be surveyed. Buildings with ETICS external insulation are customaril multistory structures, so access to the surface of the object is limited by the need for precision laser scanners. This type of scanner requires exposure at a short working distance of up to 0.3 m. Maintaining this condition requires the construction of expensive and time-consuming scaffolding. The easiest way is to use a TLC scanner and observe the object from the ground surface. The second reason is the measurement accuracy associated with the device used. To date, testing of large ETICS wall surfaces has only been carried out under laboratory conditions [83]. An abbreviated description of these studies is presented in Section 2.2. The concept of the comparing the quality of scans obtained with different devices is presented in Section 3.4. The results of scanning with FaroFocus and FreeScan UEPro are compared there. These scanners are completely different from each other in terms of image acquisition methods and measurement accuracy. Two assessment methods were adopted: qualitative and quantitative. The qualitative method involved evaluating the deformation of the entire observation area and was usually presented in the form of colour deformation maps. The quantitative method consisted of assessing deformation at selected points, analogous to point sensors. The results of the qualitative method showed agreement in terms of the distribution of the examined model deformation map (Figure 7). The colour-coded deformation images in both scanners were very similar. A horizontal protrusion strip (red) was visible at the mineral wool installation site (description in Section 2.2). The technical defect created when the sample was installed was clearly visible (dark blue L-shaped band in the lower left corner). The surface concavity in the centre of the sample was also recognisable (blue), and even the place where the polystyrene boards were joined (horizontal and vertical lines in dark blue) could be seen. Note that the scan made with a laser (FreeScan UEPro) was much more accurate. The measurement histograms below the deformation maps (Figure 7) were configured differently. This indicated that FreeScan UEPro represented a non-uniform distribution, meaning that the point cloud was precisely aligned with the deformed surface. The Faro Focus histogram was almost symmetric with respect to the mean, indicating that the point cloud spread smoothly regardless of the surface. The predetermined tolerance range of ± 0.1 mm (red area on the histogram) covered a wider area with the FreeScan UEPro scanner. Here were the most valuable data for analysis. Table 3 contains the metrics of both qualitative measurements. The differences in the number of nodes were significant. The FreeScan UEPro scanner generated almost 5 million nodes, while Faro Focus generated more than six times fewer. The RMS and variance parameters were also more precise for FreeScan UEPro. The quantitative comparison for the reference points was divergent (Table 4). The number of nodes adopted for the calculation of statistics at the reference points of the two scanners differed significantly. The FreeScan UEPro scanner had between 10 and 21 nodes available for calculation in the 3mm sphere, while the Faro Focus scanner had a maximum of 2. This was due to the density of point clouds per unit area. The consequence of changing the point cloud density was, of course, a loss of measurement accuracy. If the FreeScan UEPro scan was considered as a reference, the loss of measurement accuracy of the Faro Focus ranged from 12% to 73%. In principle, this was not a disadvantage of the Faro Focus because the device differed significantly in accuracy parameters compared to the FreeScan UEPro. Due to such a large discrepancy in results, quantitative evaluation seemed problematic. In this case, it seemed reasonable to combine two different devices in one test. Such an approach was considered in the publication [68].

5. Conclusions

This paper explores two distinct case studies that involve different scanning techniques, each tailored to specific applications depending on the object under investigation and the scanning devices employed. While the cases are analysed separately, they share a common feature: the unconventional use of the Faro Focus scanner. This approach seeks to assess the suitability of the Faro Focus for both quantitative and qualitative measurements of large surface deformations, a domain traditionally reserved for high-precision, metrological-grade laser scanners. However, the technical challenges posed by the diagnostics of complex objects require innovative approaches to measurement methodologies.

The issue of differentiating measurement accuracy based on the type of equipment used remains a critical topic in the field of measurement science. An example illustrating this approach is found in [9], where the authors discuss various technical solutions for performing measurements under controlled conditions. The current study, independent of prior research, also addresses the importance of solving measurement challenges. The primary objective of this paper is to compare the image acquisition capabilities of different devices, which has practical significance for the advancement of measurement techniques. Specifically, it enables both quantitative and qualitative comparisons of the analysis results when observing a common test object, namely, a large-scale model of an ETICS (External Thermal Insulation Composite System) insulation wall.

At the heart of this research is the examination of the similarities and differences between the scanning techniques used. The findings confirm the hypothesis that different 3D scanning technologies produce consistent qualitative results, particularly in the identification of surface deformations. This information is crucial in determining the effectiveness of each method in the preliminary diagnosis of surface irregularities. However, significant discrepancies were observed in the quantitative data obtained from the different scanning techniques, indicating the need for further investigation.

However, these variations do not disqualify the Faro Focus scanner compared to the more precise FreeScan UE Pro scanner. Instead, the results suggest that, while the Faro Focus scanner may face challenges in achieving the highest level of accuracy for certain applications, it remains a valuable tool for qualitative assessment. Its use of Terrestrial Laser Scanning (TLS) can effectively identify areas with significant deformation, streamlining the process of detecting problematic regions. Nevertheless, for more detailed and accurate quantitative analysis, structured light scanning (SLS) technologies should be preferred.

It is important to note that the results presented in this article were obtained under controlled laboratory conditions and at short distances. The authors acknowledge the limitations associated with these conditions and, as such, the findings should be considered preliminary. This study marks the beginning of a broader research effort, with ongoing work focused on conducting similar measurements under real-world (in situ) conditions. Future publications will expand upon the findings presented here and offer deeper insights into the application of these techniques in field settings.
