Analysis of the Thermal and Catalytic Pyrolysis Process in the Regions of the Municipality of Belém Based on Socio-economic Classification

1. Introduction

The generation of solid waste is directly related to the way of life, population growth and consumption patterns and is, without a doubt, one of the greatest challenges that governments have faced. According to [1], in 2011, cities around the world generated 1.3 billion tons of solid waste annually, a volume that is expected to reach 2.2 billion tons by 2025. It is estimated that municipalities that are part of developing countries currently spend 20 to 50% of their budgets on the management and disposal of solid waste, with little or no value derived from them [2].

The impacts of unmanaged urban solid waste go beyond cities, affecting ecosystems such as the oceans, where millions of tons of plastic were discarded in 2010, according to [3]. In 2022, Brazil generated 77.1 million tons of urban solid waste (MSW), collecting 71.72 million tons. Of these, 43.8 million were sent to landfills, and 27.97 million were inappropriately disposed of. Recycling activities processed 1.12 million tons, and composting 127.5 thousand tons, but these numbers are still insufficient compared to other countries, resulting in significant financial losses for the efficient management of MSW.

In 2021, the Northern Region of Brazil generated around 35.8% (approximately 1,773,927 tons/year) of Municipal Solid Waste (MSW) with adequate disposal, while 64.4% (around 3,209,013 tons/year) year) were allocated inappropriately [4]. A gradual increase in the amount of solid waste leads to several problems in transporting, storing and disposing of this waste and makes efficient solid waste management complicated [5]. According to Sustainable Development Goal 11 (SDG 11) [6], adequate management of urban waste is critically significant for advancing sustainability and ensuring the preservation of natural resources for future generations [7].

MSW has great economic potential [8] and the efficiency of waste management systems affects the potential economic value of MSW. Solid waste is heterogeneous and may be made up of elements that are difficult to degrade/treat and assimilate into the environment, causing risks to environmental protection and consequences for public health [9,10]. However, until adequate disposal and treatment of solid waste is given, other steps are necessary, following applicable guidelines through the development of solid waste management systems [11]. To implement an efficient integrated MSW system, it is necessary to know the per capita generation and its gravimetric composition, which has attracted the attention of researchers in recent years such as [12,13,14], who are focused on the sectorization of waste collection routes, gravimetric characterization and energy valuation of the technological route for MSW treatment [5].

Several research indicate that the generation of urban solid waste (MSW) is influenced by socioeconomic class, as per studies by the authors [15,16,17]. Higher class regions produce more waste, with greater diversity and quantity of recyclable materials, while lower class areas generate less waste, with organic materials predominating. Waste disposal and treatment are more efficient in higher-income regions, while inadequate management in lower-income areas can worsen environmental and public health problems [18,19].

Carneiro [20] stood out as one of the pioneers in exploring the economic potential of MSW generated in the municipalities of Belém, which will host COP 30 in 2025, and Ananindeua in the state of Pará/Brazil. Their research allowed the identification of an average change of 13% in the amount of recycled material between 2000 and 2006, influenced by the social profile of the population Silva et al. [12]. These significant contributions provide valuable insights for the development of comprehensive strategies in integrated MSW management, considering economic, environmental and social aspects [21]. Due to the problems associated with the treatment and final disposal of solid waste, alternatives and proposals have been studied and applied in several countries. Among the alternatives are thermochemical technologies that involve the treatment of MSW before they are disposed of in landfills, and are divided into three technologies, combustion, gasification and pyrolysis. Among them, pyrolysis is a process of thermal conversion of biomass into energy, where in an inert environment, the possibility of producing chemical species and products with greater added value, make this process an attractive option given current initiatives in the search for new sources of renewable energy. It can be defined as the process of thermal decomposition of biomass in the absence of oxygen, in the presence (catalytic) or absence of catalyst (thermal) and has the capacity to convert MSW into three by-products, namely, organic fraction (bio-oil and water), biochar (biochar) and biogas (non-condensable gases) [22,23,24,25,26]. The proportions of by-products depend on the type of pyrolysis used which, in turn, varies according to the operational process variables used such as reaction temperature, heating rate and residence time of vapors inside the reactor. [27].

The main objective of MSW pyrolysis is to recover energy, since the products resulting from a pyrolysis process have, in most cases, properties similar to those of fuels. The pyrolysis process has the potential to convert municipal solid waste (MSW) into a usable source of energy for homes, as pointed out by [28]. Furthermore, the energy products generated during pyrolysis can be used to optimize the operational efficiency of larger-scale plants that use this technology.

The composition and properties of oils and biochars obtained through pyrolysis can make them suitable as raw materials for various industrial sectors. Considering the heterogeneous nature of municipal solid waste (MSW) and the variation in its composition according to location, this section offers a brief overview of the products resulting from MSW pyrolysis. This also allows you to distinguish between the different types of products generated by the process. MSW contains a significant proportion of organic waste, mainly composed of food waste, wood and garden waste. Food waste contains several carbon-rich substances, which makes it a valuable source for fuel production [29].

The pyrolysis of different types of organic waste has been widely studied and documented in the literature by several researchers, including [30,31,32,33,34,35,36]. Furthermore, other studies have specifically focused on the pyrolysis of solid waste, such as paper fraction, as investigated by [37,38,39,40,41,42,43,44,45,46]. Municipal solid waste generated in homes is generally stored in a single location. In many cases, municipal authorities carry out collection without separating the different components present in MSW. Therefore, it is essential to develop a pyrolysis process capable of treating mixed MSW. Wastes whose composition resembles the organic fraction are the most suitable for pyrolysis experiments, contributing to a better understanding of the real composition and yield of the products generated. Due to the complexity of this organic fraction, most pyrolysis studies have focused on individual components. However, MSW components do not act independently during the pyrolysis process, making it crucial to examine the actual behavior of mixed MSW. Several researchers have studied the pyrolysis of MSW, combining several fractions to better understand this behavior, among them [47,48,49,50,51,52,53,54,55].

Some authors have investigated pyrolysis and thermal-catalytic cracking of MSW, such as flash pyrolysis [56,57,58,59], as well as fixed bed reactors [50,60,61,62,63,66,67], and fluidized bed reactors [64], and experiments were carried out on micro [70], laboratory [57,58,59,65,66,67,68,71,72] and pilot [60]. The largest number of research studies on catalysts focuses on zeolites [69], which are acid catalysts, they form products mainly in the gasoline range, as seen in [70]. The basic ones are widely used in reactions to obtain biofuels due to the high levels of conversion achieved in this process, with most molecules remaining in the boiling range of diesel fuel, allowing reaction rates to be obtained higher than those obtained with the same number of catalysts in the acid process [71]. Among the basic catalysts used in the pyrolysis of MSW fractions are CaO studies [58]; calcined calcite (CaO) [59], calcium hydroxide CaOH₂ [80] and calcined dolomite (MgO.CaO) [59,72].

It is important to highlight that catalytic pyrolysis is one of the most important processes in the refining industry, especially when it comes to the process of obtaining better quality gasoline and higher octane (through the optimization of aromatic and olefin contents [22,23,24,25,26]. To date, no research has investigated the effect of temperature and percentage of CaOH2-type catalyst for the MSW fraction (organic matter and paper) and its implications on the morphology of biochar. and in the crystalline structure, as well as in the yield of reaction products, chemical composition and acidity of bio-oils obtained by pyrolysis and catalytic pyrolysis, in different socioeconomic regions in the same municipality.

Considering the great impact caused by waste, it is essential to have a broad discussion on its treatment and destination, addressing technological, economic and environmental aspects, taking into account the various existing technological alternatives and considering, above all, regionalities. of each location, the economic valorization of materials and their energy valorization when feasible. Thus, based on the scenario presented and aiming to contribute to the development of technology to promote the sustainability of the MSW treatment sector, in summary, the work proposes to investigate an alternative use of Urban Solid Waste (MSW), through pyrolysis, with the production of materials of commercial interest, as opposed to conventional forms of disposal.

2. Materials and Methods

For the development of the research, the methodological procedures were structured in stages in order to investigate all relevant points of the proposal, according to the flowchart presented in Figure 1. The beginning of the development of the experimental research was carried out in 2021 .

This research adopted the methodology of collection, transportation, segregation, treatment and disposal of urban solid waste from research by [73,74], in which the study area defined was the 21 neighborhoods of the municipality of Belém/Pará, in which the provision of solid waste collection services is carried out by the company TERRAPLENA LTDA, responsible for Lot 1, as described in the Belém Municipal Basic Sanitation Plan [75], Figure 2. Understanding the specific context of basic sanitation conditions in this region is essential, considering that the area covers a significant part of the city and has 37 itineraries (routes), reflecting the extent of the company’s coverage in providing services related to basic sanitation, such as solid waste collection, water and sewage treatment, earthmoving, among others. This information is valuable for evaluating the efficiency and scope of sanitation services in the region, as well as for identifying challenges or areas that require improvement. Considering the socioeconomic diversity of neighborhoods is fundamental, as it directly impacts the demands and needs of the population in relation to basic sanitation services. By analyzing this distribution, it is possible to direct public policies and investments more effectively, with the aim of improving the living and health conditions of local communities. This strategic approach allows for a more precise allocation of resources, meeting the specific needs of each demographic group and promoting an equitable distribution of the benefits of basic sanitation.

To carry out a comprehensive characterization of urban solid waste (MSW) in the 21 neighborhoods served by the company TERRAPLENA LTDA, a detailed and viable work plan was developed, consisting of several stages that included quantitative and qualitative analyzes of waste. Initially, neighborhood visits were carried out to understand the waste flow and determine the volume to be collected. Then, samples of the newly deposited waste were collected and transported to specific locations, where the gravimetric composition was determined. Subsequently, the samples were prepared for detailed laboratory analysis. This comprehensive plan provided an in-depth understanding of the nature and quantity of waste in each neighborhood, establishing a solid foundation for developing future waste management strategies. During the on-site visits, considering the number of itineraries and the coverage area, as well as the economic similarity between some neighborhoods, the 37 itineraries were grouped into nine sectors (Figure 3). These sectors were defined based on socioeconomic characteristics and geographic proximity, facilitating the execution of gravimetric analysis campaigns throughout the collection and transport area operated by TERRAPLENA in the municipality of Belém.

The neighborhoods were categorized according to family income, using a methodology adapted from the IBGE guidelines [76] (Table 1). This methodology classifies the Brazilian population into five classes (A, B, C, D and E), with the minimum wage as a reference. It is worth noting that, in the municipality of Belém, there are no neighborhoods classified in classes A and B. The majority of neighborhoods, approximately 61%, are classified in class E.

With the organization of sectors, we were able to establish the formation of regions which represent larger areas. These regions were considered as units for sampling solid waste intended for laboratory analysis. Thus, we determined the composition of three regions, as shown in Table 2.

2.1. Gravimetric Composition of Urban Solid Waste

To determine the gravimetric composition of the waste, STATIDISK 13.0 software was used to calculate the required volume of samples. Considering the capacity of the collection truck (15m³ per route), a significance level of 5%, a confidence level of 95% and a margin of error of 10% were adopted. The simulation resulted in a sample mass of approximately 100 kg, ensuring accurate and reliable waste analysis. The choice of parameters reflects the concern with the statistical validity of the results, according to Assunção et al. [73].

The gravimetric analysis of solid waste was divided into fractions such as Paper, Cardboard, Tetrapak, Rigid Plastic, Malleable Plastic, Glass, Metal, Organic Matter, Textiles, Sanitary Waste and Others, being essential to understand in detail the composition of the waste generated. This method provides a more specific analysis than broad characterizations, associating each fraction with different waste sources and implications for waste management. The process begins with measuring the total mass of waste to ensure the representativeness of the sample, following a detailed methodology such as that of Assunção et al. [73].

Solid waste collection took place from November 2021 to May 2022, using the door-to-door method at various points in the city of Belém. The activities were planned to cover an extensive urban area. This method ensures that waste is collected in conditions similar to those in which it was generated, preserving its original composition, including the degree of humidity. The waste was sent to a space at the Federal University of Pará, where gravimetric characterization was carried out immediately after its arrival. In collections carried out at night, characterization took place the following morning. Collections followed the schedule of TERRAPLENA’s internal routes, being carried out on Mondays, Wednesdays and Fridays, in the morning. The sampling process was conducted in accordance with ABNT Solid Waste Sampling guidelines [77].

Samples were collected in plastic bags with a capacity of 200 kg, at random points along the route of the solid waste compactor truck, demonstrating careful planning to obtain representative data on the composition of household waste. Sampling at random points is crucial to avoid collection bias by ensuring that data reflects a variety of conditions along the route. Prioritizing residential locations contributes to capturing a wide range of household waste, essential for understanding disposal practices and guiding waste management in these contexts [78].

Subsequently, the material was transported to the Sludge and Composting experiment area at UFPA, a flat, moisture-free area of 100 m². The waste was weighed and placed on a surface waterproofed by 6 x 6 m tarpaulins. Then, the waste was segregated and manually classified into different fractions: Paper, Cardboard, Tetrapak, Rigid Plastic, Malleable Plastic, Glass, Metal, Organic Matter, Fabrics, Sanitary Waste and Rejects/Others. Each fraction was weighed using a digital scale (Welmy, São Paulo-Brazil, Model: W200/50).

Pré-Tratamento das Amostras e Determinações Laboratoriais

Municipal solid waste (MSW), due to inadequate disposal and exposure to the environment, had a high moisture content, damaging the pyrolysis process. To remedy this, the organic fraction underwent a drying process in a thermal oven with air recirculation and analog temperature control (Model De Leo Ltd.a, 127V), at 105°C, for 24 hours. After drying, the MSW was crushed using a TRAPP TRF 600 model knife mill, using sieves of different diameters (0.8 mm for the organic fraction and 5 mm for the others). The crushed material was measured on a scale model WELMY CLASS 3 W200/S (maximum capacity of 200 kg and minimum precision of 1.0 kg). The separation of the crushed material was carried out using a PRODUTEST Telastem sifting system for analyzes LTDA. Finally, the pretreated organic fraction was stored in a freezer at 0°C to avoid physicochemical and microbiological degradation.

2.2. Experimental Procedure

2.2.1. Pyrolysis Process Experimental Apparatus

The laboratory-scale pyrolysis unit is composed of a cylindrical-shaped borosilicate reactor, with a volumetric capacity of approximately 200 ml. This reactor is inserted into a cylindrical furnace equipped with a collar-type ceramic resistance, with a power of 800 W. The resistance is connected to a digital temperature and heating rate controller (THERMA, model TH90DP202-000), which has a sensor type K temperature sensor (Ecil, model QK.2), as described in detail by Assunção et al. [73] and De Castro et al. [79]. Figures 4 illustrates the description of the pyrolysis laboratory unit.

2.2.2. Experimental procedures

In the laboratory scale investigation, thermal and catalytic pyrolysis experiments were carried out to verify the influence of variations in catalyst percentage on the yields and characteristics of the products obtained, at temperatures of 400°C, 450°C and 475°C, aiming to evaluate the influence of process parameters, yield and characteristics of the products obtained, all carried out at a heating rate of 10° C/min. Table 3 shows the experimental conditions used in the pyrolysis processes of urban solid waste (organic fraction and paper), in the absence and presence of Ca(OH)₂ catalyst.

The experiments were carried out in semi-continuous mode, at temperatures of 450°C and 475°C at 1.0 atm, with 10% Ca(OH)₂ catalyst, in order to evaluate the influence of this final temperature variation on the yield. and the physical-chemical characteristics of the liquid product obtained (bio-oil). The masses of the MSW fractions (organic and paper) were initially weighed on a semi-analytical balance (QUIMIS, Q—500L210C), being approximately 40 g for the thermal experiments and 30 g for the catalytic pyrolysis.

Then, the samples were placed in the 200 mL borosilicate glass reactor, which was inserted into the jacketed cylindrical furnace. Using the temperature control system, the reaction time, heating rate and final process temperature (set-point) were programmed based on Equation 3, resulting in different process times for each pre-defined temperature. A time of 10 minutes was established to keep each final operating temperature constant. The experimental apparatus was assembled by connecting the cooling condenser to the reactor, with the refrigerator fluid maintained at 20°C. From room temperature (25°C), the slow pyrolysis process began with a heating rate of 10°C/min, monitoring and collecting the operational parameters of the process, such as elevation temperature (heating ramp), time and temperature of product formation.

2.5. Physicochemical and Chemical Composition of Bio-Oil

2.5.1. Physicochemical Characterization of Bio-Oil and Aqueous Phase

The bio-oil and the aqueous phase were characterized for acidity according to the AOCS Cd 3d-63 method. As described in Almeida et al.[25], Castro et al.[79].

2.5.2. Chemical Composition of Bio-Oil and Aqueous Phase

The chemical composition of the bio-oil and the aqueous phase were determined by GC-MS and the equipment and procedure described in detail by Almeida et al. [25], Castro et al. [79]. Concentrations were expressed in area, as no internal standard was injected to compare peak areas. Absorption spectra in the infrared (IR) region were obtained with an FTIR spectrometer (Shimadzu, Model: Prestige 21). The liquid samples were added between the KBr plates using pipettes and the plates were mounted with light pressure on the liquid, aiming to guarantee the uniformity of the film formed. The spectrum resolution was 16 cm^-1 and the scanning range was 400 to 4000 cm-1. NMR spectra were obtained on a VARIAN spectrometer (model UNITY 300, 300 MHz), using deuterated chloroform as solvent and TMS as internal reference. To acquire hydrogen data, the following parameters were used: number of transients (nt) 128, pulse width (pw) 7.16 µs and relaxation time (d1) 1.666 s. For carbon data, the parameters used were: number of transients (nt) 3940, pulse width (pw) 8.7 µs and relaxation time (d1) 0 s.

2.6. Characterization of Biochar

2.6.1. SEM and EDS Analysis

The morphological characterization of the biochars, obtained by thermal pyrolysis and catalytic pyrolysis with the addition of 10.0% by mass of the Ca(OH)₂ catalyst to organic matter and paper, was carried out using scanning electron microscopy. A Vega 3 model microscope (Tescan GmbH, Czech Republic), available at the Scanning Electron Microscopy Laboratory of the Military Institute of Engineering (LME-IME), was used. The magnifications used were 500x, 1.0 kx and 5.0 kx. Samples were covered with a thin layer of gold using a Sputter Coater (Leica Biosystems, Nußloch, Germany, Model: Bal-zers SCD 050). Elemental analysis and mapping were performed by energy dispersive X-ray spectroscopy (Oxford instruments, Abingdon, UK, Model: Aztec 4.3).

2.6.2. X-ray Diffraction Analysis (XRD)

The crystallographic characterization of biochars obtained by thermal and catalytic pyrolysis with 10.0% (by mass) of Ca(OH)2) of organic matter and paper was carried out by X-ray diffraction with an X’Pert Pro diffractometer from the manufacturer PANalytical Empyrean, in the laboratory -river of the Military Institute of Engineering. The following analysis conditions were used: scanning range from 10° to 90°, with a pass of 0.05° and time of 150 seconds, using a cobalt tube, power of 40 kv and current of 40 mA.

2.7. Yields from Bench-Scale Thermal and Catalytic Pyrolysis Experiments

The yield of condensable liquid products, including oily, aqueous and other phases, as well as carbonaceous materials formed (cokes), was calculated in percentage terms in relation to the initial mass of the sample inserted into the reactor (MSW or MSW + catalyst) in each experiment carried out on a bench scale. The yield of non-condensable gas phases was determined by difference, considering the total yield of 100%. The yields of the products obtained were determined by Equations 1, 2 and 3. The performance of the process was evaluated by calculating the yields of bio-oil, solid (bio-char) and gas, as defined by Equations (1) and (2), with the yield of gas determined by difference, using Equation (3).

$$Y_{bio-oil}\left[\%\right]={\displaystyle \frac{M_{bio-oil}}{M_{Feed}}}x100$$

(1)

$$Y_{solids}\left[\%\right]={\displaystyle \frac{M_{solids}}{M_{Feed}}}x100$$

(2)

$$Y_{gas}\left[\%\right]=100-(Y_{bio-oil}+Y_{solids})$$

(3)

3. Results

3.2. Characterization of Biochar

3.2.1. Scanning Electron Microscopy Analysis

To carry out the scanning electron microscopy analysis, it was necessary to coat the samples with gold and palladium. Figure 5 presents the magnifications in magnitude of [500 x and 1.0 kx] of the biochars from the experiments carried out by thermal pyrolysis at 450°C for the different socioeconomic regions.

Analysis by scanning electron microscopy (SEM) of biochar obtained from the pyrolysis of urban solid waste (MSW), particularly the organic fraction and paper, processed at a temperature of 450°C, reveals a series of important morphological characteristics. The temperature of 450°C is moderate for pyrolysis, resulting in biochar that presents specific structural properties, influenced by the incomplete thermal decomposition of organic matter. Biochar obtained at 450°C has a porous surface, with the formation of macropores, which are pores smaller than 50 nm, although in smaller quantities compared to biochar produced at higher temperatures. The organic fraction and paper contain vegetable fibers, cellulose and lignin which, when pyrolyzed, generate carbonaceous structures that maintain some porosity. The porous morphology is visible in the SEM images, with pores of varying size, which can improve the biochar’s adsorption capacity for contaminants.

The presence of microcracks in the biochar, as observed in both SEM images, suggests that the material may be more fragile and brittle, which could be a disadvantage for uses that require greater structural strength, such as in the construction of filters or barriers. . However, these cracks increase the specific surface area, which can compensate for the fragility in terms of adsorption efficiency.

Although the organic fraction and paper are predominantly composed of organic material, there may still be inorganic particles, such as traces of metals or minerals, that were not volatilized during pyrolysis. SEM can capture these particles as bright or dense spots embedded in the carbon matrix. These inorganic components can influence the adsorption properties of biochar, depending on its chemical composition. Biochar is mainly composed of CO, and the inorganic portion mainly contains minerals such as Ca, Mg, K, P and inorganic carbonates depending on the raw material [80].

Both images illustrated for the different socioeconomic regions show a charred surface (black color) and granules (white color) of different sizes spread across the surface as reported by [73], being similar to the SEM images of CaCO₃ (calcite) reported by [81,82], and SEM images of bio-char obtained by MSW pyrolysis reported by [83]. MSW biochar particles presented irregular shape and size.

The images obtained from scanning electron microscopy of the catalytic pyrolysis experiments showed similarities between the temperatures of 400°C (Figure 6) and 475°C (Figure 7), regardless of the different socioeconomic regions.

The biochar produced with the addition of Ca(OH)₂ presented a highly porous surface, but with an irregular morphology. The presence of the catalyst favored the formation of macropores, even at relatively low temperatures, such as 400°C and 475°C. SEM images reveal a network of interconnected pores, which can increase the specific surface area, improving the adsorption properties of biochar. Electron microscopy often reveals clusters of inorganic particles, mainly calcium (Ca) compounds, such as CaCO₃, which are formed by the reaction of Ca(OH)₂ during pyrolysis. These particles are visible as bright spots or dense structures in SEM images, usually located on the surface or within the porous structure of the biochar. These agglomerates can change the physical and chemical properties of the material, influencing its interaction with pollutants.

Fissures and cracks, common in biochar, also appear in catalytic pyrolysis with Ca(OH)₂. These microcracks increase the specific surface area, facilitating the adsorption of contaminants, but can also indicate structural fragility, resulting from the contraction of the material during cooling after pyrolysis. The surface morphology of biochar after pyrolysis of municipal solid waste (MSW) is presented in Figure 8, which displays an image obtained by scanning electron microscopy (SEM) using a backscattered electron detector. According to the principles of this detector, the “light” cubic-shaped components correspond to elements with higher atomic numbers in relation to the surrounding area. In turn, the “dark” structures represent the carbonaceous components of the biochar.

3.2.2. Energy Dispersive Spectroscopy Analysis—EDS

The results of the elemental analysis performed by energy dispersive X-ray spectroscopy at one point for biochars obtained by pyrolysis of the fraction (organic matter and paper) of MSW at 450 °C, 1.0 atmosphere are illustrated in Table 4 and by pyrolysis catalyst (organic matter and paper) of MSW at 400°C and 475°C, 1.0 atmosphere, with 10.0% (by mass) Ca(OH)₂ as catalyst, on a laboratory scale, are illustrated in the Table 5 and Table 6, respectively.

The results obtained for the thermal pyrolysis process at 450°C in different socioeconomic regions showed carbon as the predominant element, since the pyrolysis process carbonizes organic matter and paper, concentrating the carbon content in the biochar. Generally, biochars from municipal solid waste are mainly composed of CO, while the inorganic portion mainly contains minerals such as Ca, K, P and inorganic carbonates depending on the raw material [84]. The presence of oxygen was significant, although in smaller quantities than carbon, due to the partial volatilization of oxygenated compounds during pyrolysis. The carbon to oxygen ratio tends to be higher due to the removal of volatile oxygenated compounds during pyrolysis. The high level of carbonization in MSW-derived biochars makes them rich in carbon, which makes them resistant to degradation in the environment [58]. This recalcitrance of MSW-derived biochars can help combat increased carbon emissions from soil when these materials are used for carbon sequestration [84].

The presence of Mg found in some organic fractions or in the paper fraction, magnesium is a common component of minerals or additives present in MSW. Si can come from different sources in MSW, such as particles of earth, glass, sand or mineral impurities found in organic waste. In papers, it may also be present due to the use of silicate-based additives during manufacturing.

The presence of Al may appear in biochar if it is present in organic matter or paper, generally as impurities or as part of packaging or additives used in paper processing. Iron can be found in small quantities as a contaminant in organic matter or paper, especially if the MSW contains metallic particles or iron-containing minerals. Regarding K, it is common in the organic fraction of MSW, as it is an essential nutrient in plants and can be present in food residues or plant remains. It is also important in the formation of ash in biochar. The presence of Na can come from food waste, paper treated with chlorides or salts or even organic waste that contains mineral salts.

In catalytic pyrolysis with 10% Ca(OH)₂, carried out at temperatures of 400°C and 475°C in different socioeconomic regions, the results obtained were similar. The greatest formation was observed for the elements carbon (C) and oxygen (O), with carbon being the most abundant component and representing the fundamental structure of biochar derived from carbonized biomass. The presence of oxygen can be attributed to the deoxygenation reactions promoted by Ca(OH)₂, in addition to the fact that biochars produced at lower temperatures tend to contain oxygen in their composition. Furthermore, calcium hydroxide (Ca(OH)₂), used as a catalyst, also contains oxygen in its structure, which can be detected in EDS analysis. Ca(OH)₂ can be converted into calcium oxide (CaO) and calcium carbonate (CaCO₃), both containing oxygen and contributing to the detection of this element.

3.2.3. X-ray Diffraction Analysis (XRD)

The XRD analysis of biochar obtained by pyrolysis of the fraction (organic matter and paper) of MSW at 450 °C, 1.0 atmosphere are illustrated in Figure 9. The phases identified in different amounts for all samples are described as follow: graphite (main peak at 0.335 nm, 30.9° 2θ CoKα), calcite (main peak at 0.213 nm, 50.5° 2θ CoKα) and aragonite (main peak at 0.253 nm, 42.6° 2θ CoKα).

The XRD analysis of biochar obtained by catalytic pyrolysis of the fraction (organic matter and paper ) of MSW at 400 °C, 1.0 atmosphere, with 10% (by mass) of Ca(OH)₂ are illustrated in Figure 10.The phases identified in different amounts for all samples are described as follow: quartz (main peak at 0.334 nm, 31.0° 2θ CoKα), besides sylvite (main peak at 0.315 nm, 32.9° 2θ CoKα) and calcite (main peak at 0.303 nm, 34.3° 2θ CoKα). The presence of quartz (SiO₂) is probably due to the presence of small sand particles inside the MSW. Organic carbon is mainly in the amorphous phase, which is the majority phase typical of this type of material. The symbol ‘*’ indicates the quartz peak with strong preferential orientation effect, due to micro preparation.

The XRD analysis of biochar obtained by catalytic pyrolysis of the fraction (organic matter and paper ) of MSW at 475 °C, 1.0 atmosphere, with 10% (by mass) of Ca(OH)₂ are illustrated in Figure 11.The phases identified in different amounts for all samples are described as follow: quartz (main peak at 0.335 nm, 30.9° 2θ CoKα), besides sylvite (main peak at 0.315 nm, 32.9° 2θ CoKα), calcite (main peak at 0.303 nm, 34.3° 2θ CoKα) and aragonite (main peak at 0.209 nm, 50.2° 2θ CoKα). The presence of quartz (SiO₂) is probably due to the presence of small sand particles inside the MSW. Organic carbon is mainly in the amorphous phase, which is the majority phase typical of this type of material.

3.4. Pyrolysis of MSW Fraction (Organic Matter and Paper) in Fixed Bed Reactor

3.4.1. Process Conditions, Mass Balances, and Yields of Reaction Products

From the MSW pre-treatment processes, pyrolysis processes were applied on a laboratory scale to evaluate the yields and specifications of the products formed, investigating the influence of Socioeconomic Regions. According to Figure 12, the Pyrolysis reaction products are: generation of bio-oil (a), aqueous phase (liquid phase) (b) and (c) and production of biochar.

Table 7 presents the mass yields of the products obtained (liquids, solids, water and gas) from the fractions of municipal solid waste (MSW)—organic matter and paper—subjected to a final temperature of 450 °C, 1, 0 atmosphere pressure, on a laboratory scale. Thermal experiments were conducted at a heating rate of 10 °C/min, covering different socioeconomic regions. The thermal and catalytic pyrolysis of municipal solid waste (MSW) aimed to obtain mixtures of hydrocarbons and other compounds with potential for use as fuel. In thermal experiments, the bio-oil yield was highest in Region 1, socioeconomically classified as E, reaching 23.57% (wt.). While in Region 3, with socioeconomic classification C, this yield fell to 16.12% (wt.). It was observed that the variation in socioeconomic classification had a significant influence on the results, with an increase in income associated with a lower fraction of organic waste, resulting in a lower production of bio-oil [18,93,94].

Biochar yields showed an inverse relationship to the yields of the condensed product, with the highest biochar yield observed in Region 3, reaching 45.52% (wt.). The aqueous fraction varied from 18.49% (wt.) in Region 2 to 16.46% (wt.) in Region 3, while the gaseous fraction had its highest percentage in Region 1, with 19.95% (wt.). By comparing the three experiments, it was possible to infer that the highest yields were obtained in the formation of biochar. During the pyrolysis process, different temperatures result in different product distributions. Higher temperatures favor the production of bio-oil and synthesis gas, while lower temperatures promote the formation of biochar. The ideal temperatures for producing biochar from municipal solid waste (MSW) generally range between 300 °C and 600 °C.

In the catalytic pyrolysis experiments, final temperatures of 400 °C (Table 8) and 475 °C (Table 9) were used, under constant pressure of 1.0 atmosphere, with the addition of 10% Ca(OH)₂ catalyst in laboratory scale. Figure 13 presents a graph with the yields of byproducts from all pyrolysis carried out in this study. The process was carried out with a heating rate of 10°C/min, covering different socioeconomic regions. The bio-oil yield was highest at a temperature of 450°C for Region 1, reaching 28.28% by mass (wt.), while the lowest yield was observed in Region 2, which has the highest socioeconomic classification, with 18.88% by mass (wt.). The lower generation of bio-oil can be explained by the finding that the higher the income, the lower the fraction of organic waste, suggesting a relationship between purchasing power and disposal patterns. People with higher income tend to adopt different consumption behaviors, such as purchasing processed foods, which generate less organic waste. This result may also be related to the fact that families with greater purchasing power often eat their meals outside the home. In contrast, lower-income families generally prepare their meals at home, which explains the high percentages of organic waste found among their discards [8,18,85,86,87].

Furthermore, it was observed that the addition of the basic catalyst Ca(OH)₂ increased the bio-oil yield only at a temperature of 475°C. According to Lu et al. (2009), the introduction of catalysts in the cellulose pyrolysis process favors both the conversion of polymers into volatile compounds and the secondary pyrolysis of these compounds. The first action results in an increase in the total area of the peaks, while the second reduces it. Thus, it can be inferred that the addition of Ca(OH)₂ significantly intensifies the secondary conversion of volatile compounds generated during the pyrolysis of the components.

In all studies reviewed, an increase in bio-oil yield was observed within the temperature range between 450°C and 600°C. However, this yield tends to decrease after exceeding 600°C. On the other hand, the bio-char yield shows an inverse pattern, decreasing in the range of 400°C to 600°C after reaching a peak, while the gas yield shows a continuous increase over the entire temperature range. -rature mentioned. In a specific study conducted by [87], focused on the pyrolysis of municipal solid waste (MSW), it was reported that the bio-char yield reaches its maximum at 400°C, and then declines after exceeding this point. On the other hand, bio-oil yield increases at higher temperatures, reaching its maximum at 700°C. Once again, the gas yield continues to increase consistently, remaining in line with general reaction product yield standards in relation to temperature, as evidenced in Figure 15 of the study, also reported by [73]. The results for the byproducts obtained through pyrolysis are in line with studies reported in the literature for MSW pyrolysis [42,43,44,45,46].

3.4.2. Physicochemical and Compositional Characterization of Bio-Oil

3.4.2.1. Acidity of Bio-Oil

Table 10 shows the effect of temperature on the acidity of the bio-oil and the aqueous phase obtained by thermal pyrolysis at 450°C and catalytic pyrolysis of the MSW fraction at 400 and 475°C, 1.0 atm, 10.0% (in mass) of Ca(OH)₂ on a laboratory scale.

The acid number of the bio-oil and the aqueous phase obtained from catalytic pyrolysis using Ca(OH)₂ as catalyst was significantly reduced compared to the bio-oil and the aqueous phase obtained by thermal pyrolysis. This occurs due to the neutralizing effect of the catalyst on organic acids, such as carboxylic acids, formed during the thermal decomposition of waste. During thermal pyrolysis of waste containing organic components, such as the organic fraction and paper, a series of thermal degradation reactions occur, such as the breaking of cellulose bonds (present in paper) and hemicellulose, which results in the formation of volatile products rich in oxygen, such as carboxylic acids (mainly acetic and formic acid), aldehydes and phenols.

While lignin (present in the paper), in turn, generates aromatic compounds, such as phenols, which also contribute to the acidity of the bio-oil. These carboxylic acids, due to their high concentration, are responsible for the high acidity level of the bio-oil. This strong indicated acidity of bio-oil constitutes a disadvantage that limits its direct use as fuel in the transport sector. It can cause corrosion problems in the mechanical components of engines. To avoid these problems caused by the high acidity of bio-oils, the use of catalytic cracking is recommended [32].

With the addition of Ca(OH)₂, the neutralization of carboxylic acids occurs quickly, directly reducing the acidity index, in addition to catalytic deoxygenation that facilitates the removal of oxygen in the form of CO₂ and H₂O, reducing the amount of oxygenated compounds. that could form new acids.

3.4.2.2. Fourier Transform in Infrared of Bio-Oil

As the infrared spectra of the different socioeconomic regions were similar, it was decided to present a representative spectrum of the bio-oil from each experiment carried out in Region 1 (Figure 14). The qualitative analysis by FT-IR of the chemical functions present in bio-oils, obtained by thermal pyrolysis of the MSW fraction (organic matter and paper) at 450ºC and by catalytic pyrolysis at 400°C and 475°C, 1.0 atm, with 10% by mass of Ca(OH)₂, on a laboratory scale, is illustrated in Figure 13. It is important to highlight that all spectra of the analyzed samples exhibit vibrations characteristic of unsaturated hydrocarbons.

The bands in the range of 2922-2852 cm⁻¹ in the FTIR spectrum generally correspond to the stretching vibrations of C-H bonds in methyl (CH₃) and methylene (-CH₂-) groups present in aliphatic hydrocarbons. These bands indicate the presence of saturated hydrocarbon chains (alkanes) in the analyzed sample. The band at 1702 cm⁻¹ in the FTIR spectrum is typically attributed to the stretching vibration of the C=O (carbonyl) bond in compounds such as ketones, aldehydes, carboxylic acids and esters. This band indicates the presence of carbonyl groups in the sample, which are common in many organic compounds, such as bio-oils.

The band at 1457 cm⁻¹ in the FTIR spectrum is generally associated with the bending vibrations (or deformation) of C-H bonds in methyl (-CH₃) and methylene (-CH₂-) groups in aliphatic hydrocarbons. This band may also indicate the presence of aromatic groups, related to deformation vibrations in the benzene ring. It is common in organic compounds that contain these structures, such as hydrocarbons and aromatic compounds present in bio-oils. The band at 1408 cm⁻¹ in the spectrum is generally attributed to the symmetric bending vibration of C-H bonds in methyl groups (-CH₃). It may also be associated with the deformation vibration of the O-H bond in carboxylic acids. Furthermore, this band may indicate the presence of salts of carboxylic acids, such as carboxylates, which exhibit absorption in this region.

3.4.2.3. RMN of Bio-Oil

The ¹³C and ¹H NMR spectra of the thermal and catalytic MSW bio-oils sample from Region 1 are illustrated in Figure 15.

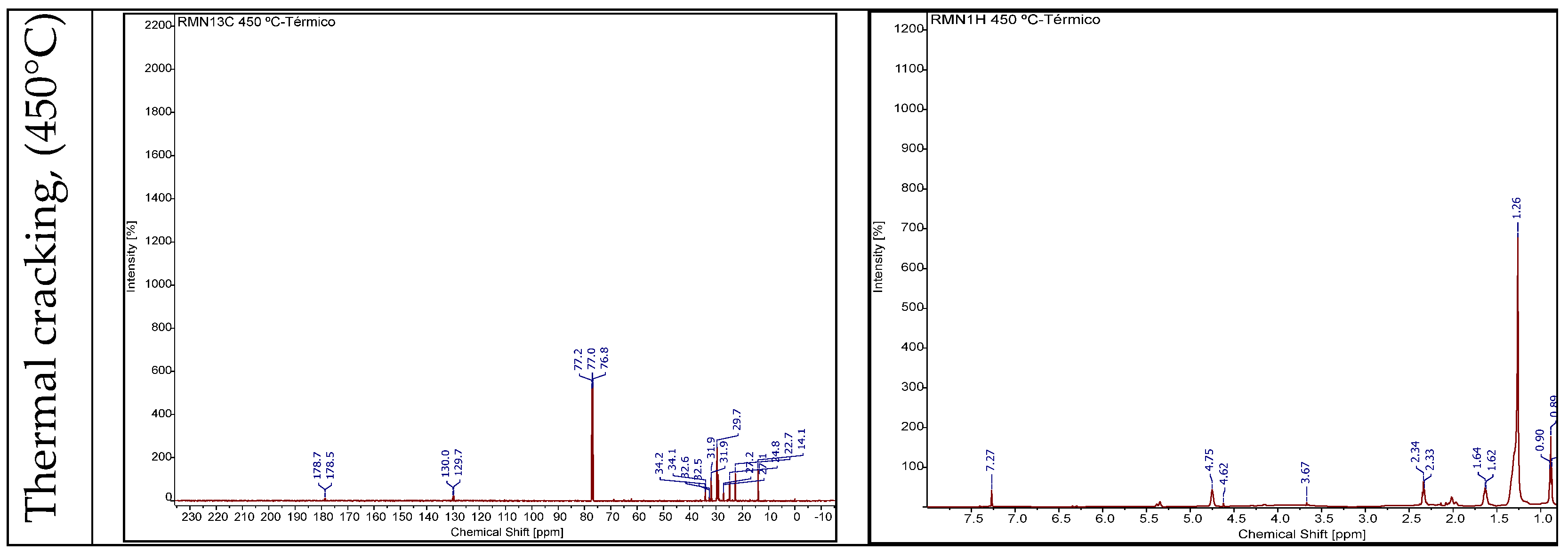

Figure 15. C and ¹H NMR spectrum of bio-oils obtained by the thermal and catalytic Pyrolysis process.

Figure 15. C and ¹H NMR spectrum of bio-oils obtained by the thermal and catalytic Pyrolysis process.

In the ¹³C NMR spectra of the bio-oil from the experiment referring to thermal pyrolysis at 450°C, the presence of chemical shifts relative to carbons in the range of 178.7 to 178.5 ppm was noted, which is generally attributed to carbonyl group carbons (C =O), as in carboxylic acids, esters, amides. The NMR spectra of the sample show sign characteristics of olefinic hydrocarbons with chemical shifts of carbons with double bonds observed at 115.5 and 139.2 ppm in the ¹³C NMR spectrum and linear aliphatic hydrocarbons with chemical shifts typical of long chain carbons CH₂ (methylene) and CH₃ (methyl group) between 14 to 31.9 ppm in the ¹³C NMR spectrum. The same can be observed in the 1H NMR spectrum with peaks (chemical shift) at 0.87 to 1.26 ppm, confirming the presence of aliphatic hydrocarbons, while peaks between 1.62 to 2.16 and close to 4.83 ppm, confirming the presence of hydrocarbons. olefins, corroborated by the infrared spectra presented. The chemical shift of 7.27 ppm is characteristic of protons linked to aromatic rings, as in benzene and its derivatives. This value indicates that the protons are unprotected due to the circulation of electrons in aromatic systems, which increases the chemical shift.

3.4.2.4. Gas Chromatography Analysis of Bio-Oil

Table 11 and Figure 16 illustrate the effect of temperature on the chemical composition, expressed in hydrocarbons, oxygenated and nitrogenous, of bio-oils obtained by thermal pyrolysis at 450°C and catalytic pyrolysis of the MSW fraction at 400 and 475°C , 1.0 atm, 10.0% (by mass) of Ca(OH)2, evaluating socioeconomic regions 1, 2 and 3, on a laboratory scale. The chemical functions (alcohols, carboxylic, oxygenated and nitrogenous acids), sum of peak areas, CAS numbers and retention times of all molecules identified in the bio-oil by GC-MS are illustrated in Supplementary Tables S1–S9 .

From GC-MS analysis of bio-oil obtained by pyrolysis of urban solid waste at 450 °C, the chemical compounds identified were aliphatic hydrocarbons (alkanes, al-kenes, cycloalkanes and cycloalkenes) and aromatic hydrocarbons (benzenes, indenes and naphthalenes). ) with total percentage concentration in area of 44.34, 49.34 and 40.07% for R1, R2 and R3, respectively. The oxygenated compounds (esters, ethers, phenols, carboxylic acids, ketones and aldehydes) presented a percentage in area of 42.09, 39.04 and 42.91% for R1, R2 and R3, respectively, in addition organic compounds containing nitrogen were identified at 9.22% , 7.22% and 12.40% and chlorine 4.34, % for R1, R2 and R3 in percentages of area. The results found are in line with the literature [39,67,88,89,90].

As a result, the difference found between regions R1, R2 and R3 was less than 4.0%, which can be explained due to the gravimetric composition of the solid waste collected and/or the socioeconomic classification of each region.

From GC-MS analysis of bio-oil obtained by pyrolysis of urban solid waste at 400 °C, using catalyst, aliphatic hydrocarbons (alkanes, alkenes, cycloalkanes and cycloalkenes) and aromatic hydrocarbons (benzenes, indenes and naphthalenes) with total concentration percentage in area of 71.32%, 68.16% and 69.70% for R1, R2 and R3, respectively. The oxygenated compounds (esters, carboxylic acids, alcohols, ketones and phenols) presented a percentage in area of 22.85%, 25.48% and 23.83% for R1, R2 and R3, respectively, in addition organic compounds containing nitrogen were identified in percentages in an area of 5.82%, 6.36% and 6.47% for R1, R2 and R3, respectively. The results found are in line with the literature [39,67,88,89,90]. As a result, a difference of less than 3% in the hydrocarbon composition between regions R1, R2 and R3, taking R1 as a reference, stands out, highlighting the difference found between regions R1 and R3, which was less than 1.0%. can be explained due to the addition of the Ca(OH)₂ catalyst.

It is also worth highlighting the increase in the concentration [% area] of hydrocarbons in relation to experiments without catalyst at 450°C, and the decrease in oxygenated, nitrogenated and chlorinated compounds. In view of this, it appears that the Ca(OH)2 catalyst reduces the formation of these compounds in bio-oils produced regardless of the socio-economic classification of the region.

From the GC-MS analysis of bio-oil obtained by pyrolysis of urban solid waste at 475 °C, using a catalyst, the chemical compounds identified were aliphatic hydrocarbons (alkanes, alkenes, cycloalkanes and cycloalkenes) and aromatic hydrocarbons (benzenes, indenes and naphthalenes) with total percentage concentration in area of 65.69%, 67.53% and 66.77% for R1, R2 and R3, respectively. The oxygenated compounds (esters, carboxylic acids, alcohols, ketones and phenols) presented a percentage in area of 28.48%, 26.63% and 26.40% for R1, R2 and R3, respectively, in addition organic compounds were identified. having nitrogen in percentages in area of 5.82%, 5.83% and 6.82% for R1, R2 and R3, respectively. The results found are in line with the literature [39,67,88,89,90]. As a result, a difference of less than 2.0% in the composition of hydrocarbons between the regions R1, R2 and R3, taking R2 as a reference, was observed. In addition, a decrease in the production of oxygenates and nitrogenates was observed in relation to compared to experiments without a catalyst, that is, regardless of the temperature used and the socioeconomic classification of each region, the application of the Ca(OH)2 catalyst favored the formation of hydrocarbons. According to the quantification and identification of the compounds present in the bio-oil samples, the presence of major compounds was found to be: Benzene, (1-methylethyl)—D- Limonene for the R1 and R2 regions, o-xylene for the regions R1, R2 and R3 in experiments at 450°C; Dodecanoic acid, 9-Octadecenoic acid, ethyl ester and o-xylene for region R1, Phenol, Phenol, 4-ethyl-2-methoxy-e Phenol for region R2 and 2-Heptadecanone for region R3 in experiments at 400 °C with Ca(OH)2 catalyst; 2-Methyl-Z,Z-3,13-octadecadienol and 10-Octadecenoic acid, methyl ester, bis(2-ethylhexyl) o-Cymene ester for the R1 region, 9-Octadecene, 1-methoxy-, (E)- and Hexadecanoic acid, methyl ester, 10-Octadecenoic acid, methyl ester for the R2 region, Pentadecane and 2-Heptadecanone for the R3 region. The majority compounds can be applied, by the chemical and petrochemical industries, for the production of inputs, pharmaceuticals and polymers, in addition to combustible liquids, due to the percentage concentration in area below 30%, in all experiments carried out [39,67 ;88,89,90].

In view of this, it appears that the application of Ca(OH)2 catalyst favors the formation of hydrocarbons by reducing the concentration in area of oxygenated, nitrogenated and chlorinated in bio-oils, regardless of the temperature used in the process and the classification. socioeconomic cation of each region.

5. Conclusions

The thermal and catalytic pyrolysis resulted in a biochar with porous morphology and enriched with calcium compounds, as evidenced by SEM analysis. Although carbonization is partial, the porous properties and the presence of calcium particles make biochar promising for applications in environmental remediation, such as the adsorption of heavy metals and the neutralization of acids. However, the structural fragility and heterogeneous distribution of the catalyst can limit its efficiency under certain conditions. To optimize the use of this biochar, it would be important to consider adjustments to the pyrolysis process or a higher temperature to increase complete carbonization and improve the uniformity of the material.

In relation to XRD, catalytic pyrolysis with Ca(OH)₂ resulted in the formation of crystalline inorganic compounds, such as quartz, sylvite and calcite. The carbon in the organic fraction of MSW is predominantly in amorphous form, which is characteristic of biochars produced at moderate temperatures. The presence of quartz confirms the contamination of the MSW by mineral materials (sand), while sil-vita and calcite indicate the interaction of Ca(OH)₂ with the components present in the waste during the process. This suggests that the pyrolysis process was efficient in transforming organic matter and paper into biochar, while the minerals present can influence the properties of the final product.

The socioeconomic profile of the regions has a direct influence on the composition of urban solid waste, impacting the yields of pyrolysis by-products. In regions with lower income, the greater fraction of organic waste favors the production of bio-oil. In regions with higher income, where waste is less organic, there is an increase in biochar production. Temperature is another crucial factor in the distribution of pyrolysis products. The balance between biochar and bio-oil production occurs at around 450 °C. Lower temperatures tend to favor the formation of biochar, while higher temperatures promote greater yields of bio-oil and synthesis gas.

The addition of Ca(OH)₂ as a catalyst was more effective at higher temperatures (475 °C), where it contributed to increasing the bio-oil yield by intensifying the secondary pyrolysis of volatile compounds. The choice of temperature and catalyst is, therefore, crucial to optimize bio-oil production in the pyrolysis process.

The addition of Ca(OH)₂ in catalytic pyrolysis not only reduces the acidity index of the bio-oil and the aqueous phase, but also promotes deoxygenation, improving the quality of the bio-oil. These effects make the catalytic process essential for obtaining bio-oils with properties more favorable for use as fuel, reducing corrosion problems and increasing product stability.

The FT-IR spectrum confirms the presence of saturated and unsaturated hydrocarbons, in addition to carboxylic groups, which indicate the formation of compounds typical of the thermal decomposition of organic waste and paper.

The presence of aromatic groups and carboxylic acid salts also suggests that the bio-oil contains a complex mixture of organic compounds, many of which can be useful as fuels, but whose acidity may need additional treatment to avoid corrosion problems in practical applications.

The use of catalysts, such as Ca(OH)₂, appears to influence the formation of carboxylates and neutralize part of the acids formed, improving the final quality of the bio-oil. The NMR identified the presence of saturated and unsaturated hydrocarbons suggesting that the bio-oil has the potential to be used as a fuel source, with aliphatic and olefinic components suitable for this purpose.

The GC-MS analysis of bio-oils obtained by pyrolysis of urban solid waste (MSW) reveals that the application of the Ca(OH)₂ catalyst favored the formation of hydrocarbons, regardless of the temperature (400°C, 450°C , 475°C) and the socioeconomic classification of the regions studied. An increase in the concentration of hydrocarbons and a significant reduction in oxygenated, nitrogenous and chlorinated compounds was observed, which are less desirable due to their lower energy efficiency and corrosion problems.

Furthermore, the variation between the chemical compositions of different regions was less than 4%, suggesting that the socioeconomic classification has little impact on the quality of the bio-oil when using the catalyst. The major compounds identified, such as benzene, d-limonene, fatty acids and esters, can be applied in the chemical, petrochemical and fuel industries, reinforcing the economic value of bio-oils. In conclusion, the addition of Ca(OH)₂ is beneficial to the pyrolysis process, improving the production of hydrocarbons and minimizing unwanted compounds, regardless of the socioeconomic origin of the MSW.
