Exploration of Key Regulatory Factors in Mesenchymal Stem Cell Continuous Osteogenic Differentiation via Transcriptomic Analysis

1. Introduction

Mesenchymal stem cells (MSCs) possess the ability to differentiate into diverse cell lineages [1,2], rendering them indispensable for maintaining physiological homeostasis, as well as promoting tissue regeneration and repair [3,4]. MSCs are ubiquitously distributed across multiple tissues and constitute a multipotent progenitor cell population with clonogenic potential [5,6]. Consequently, MSCs have garnered significant attention owing to their immense therapeutic potential in regenerative medicine [7,8]. The fate determination of MSCs is tightly regulated by intricate interactions among numerous cell factors derived from the tissue microenvironment [9], which act as molecular switches for lineage differentiation through specific activation or dysfunction mechanisms [10]. Understanding the molecular mechanisms that determine the MSC fate is essential for implementing targeted strategies to correct abnormal lineage distribution, particularly in conditions such as osteoporosis and bone aging [11,12].

Previous studies have identified several cellular factors, such as Runx2 [13,14] and Osterix [15,16], as key regulators of MSC differentiation, particularly in promoting osteogenic lineage differentiation [17,18]. Genomics has furthered research conducted in the field of genome-wide dynamics of transcription factor binding and epigenome programming during preosteoblast differentiation [19,20]. However, further research is required to elucidate the dynamics of chromosome structure and enhancer activity during osteogenesis in MSC lineage studies [21,22]. To date, no studies have systematically explored the cellular factors that continuously regulate MSC differentiation into the osteogenic lineage across different time points, hindering comprehensive evaluation of osteoporosis [23,24]. Therefore, it is crucial to conduct systematic investigations into the cellular factors governing MSC lineage fate to identify key elements that influence MSC differentiation [25,26].

In this study, we performed a systematic analysis of differentially expressed genes (DEGs) by integrating high-throughput sequencing data related to human MSC differentiation into the osteogenic lineage. Subsequently, we identified DEGs with significant differential expression across multiple time points and validated the candidate genes exhibiting high expression in bone marrow tissue under screening conditions by comparing them to 45 human tissues from the HUMAN PROTEIN ATLAS database. Finally, we performed biological experiments to verify the ability of the selected candidates to continuously regulate the osteogenic induction of MSCs. Our study established a foundational framework for identifying candidates with enhanced clinical relevance for the treatment of osteoporosis and bone fracture healing.

2. Materials and Methods

Cell culture

Primary mBMSCs were isolated from the femur bone marrow of 2-month-old wild-type C57BL/6J mice. The isolated cells were stored in BMSC medium (DMEM medium containing 20% heat-inactivated FBS) for 1 day. On the second day, the supernatant (including osteoclasts) was removed, and the adherent hematopoietic cells were removed by intensive washing with phosphate-buffered saline (PBS) for three times. The culture was continued with a fresh BMSC medium. After 2 weeks, the growth colonies were collected by trypsinization for further passage and differentiation.

Cell differentiation

BMSCs were cultured in alpha-modified Eagle’s minimum essential medium supplemented with 10% FBS, 200 mM L-glutamine (25030081, Gibco) and nonessential amino acids (NEAA, 11140050, Gibco).

Osteogenic differentiation: 100 mM ascorbic acid, 2 mM b-glycerophosphate, and 10 nM dexamethasone (D4902; Sigma‒Aldrich, USA).

For adipogenic differentiation, 0.5 mM isobutylmethylxanthine (IBMX, HY-12318, MCE), 0.5 mM hydrocortisone (803146, Sigma‒Aldrich, USA), and 60 mM indomethacin (I7378, Sigma‒Aldrich, USA) were used.

Media were changed every 2 days.

Lentivirus transduction

Lentiviral transduction: Lentiviruses overexpressing genes were purchased from Genomeditech.

BMSCs were infected with the virus. After 48 h transfection, the cells underwent osteogenic-induced differentiation.

Quantitative real-time PCR

Total RNA was extracted and isolated using total RNA extraction reagent (TRIzol, Sangon, B511311-0025). Reverse transcription was performed using HiScript II Q RT SuperMix (Vazyme, R222-01). Real-time quantitative fluorescent PCR (qPCR) was conducted using a real-time PCR system (Thermo Fisher) with Hieff SYBR Green Master Mix (Low RoxPlus) for real-time quantitative fluorescent PCR (Yeasen, 11202ES03). The experiment was repeated three times. The values were normalized to those of GAPDH. The sequences of the primers used are listed in Table S1.

Alizarin red staining (ARS)

The cell-abandoned medium was immersed in alizarin red S staining solution for 30 min. The cells were quickly rinsed with distilled water and then studied under a microscope.

Alcian blue staining

The cells were washed with PBS for three times for 3 min each and then fixed with 4% paraformaldehyde. Next, cells were washed with PBS again and incubated with 1% of alcian blue for 30 min. Then cells were rinsed in water for 2 min and dehydrated with 95% ethanol for 15 sec. Ultimately, the slides were observed under a microscope.

Oil red O staining

The cells were immobilized with phosphate buffer containing 10% formaldehyde for 10 min and then rinsed once with PBS for 1 min. Next, the cells were rinsed with 60% isopropyl alcohol for 15 s to promote neutral fat staining. Then, the cells were stained with filtered oil red O working solution at 37°C for 30 min, treated with 60% isopropyl alcohol for 30 s, and rinsed with PBS for three times for 3 min each. Finally, the cells were observed under a microscope.

ALP staining

After 7 days of osteogenic induction, the cells were washed with PBS for three times and then fixed with 4% paraformaldehyde. Subsequently, the cells were incubated with a solution containing 5-bromo-4-chloro-3-indolyl phosphate/nitro blue tetrazolium. After 15 min of incubation at 37°C, the cell layer was washed with deionized water for three times and observed under a digital camera.

3. Results

3.1. Subsection

1.

Integration analysis of microarray datasets to identify differentially expressed genes in MSC osteogenic differentiation

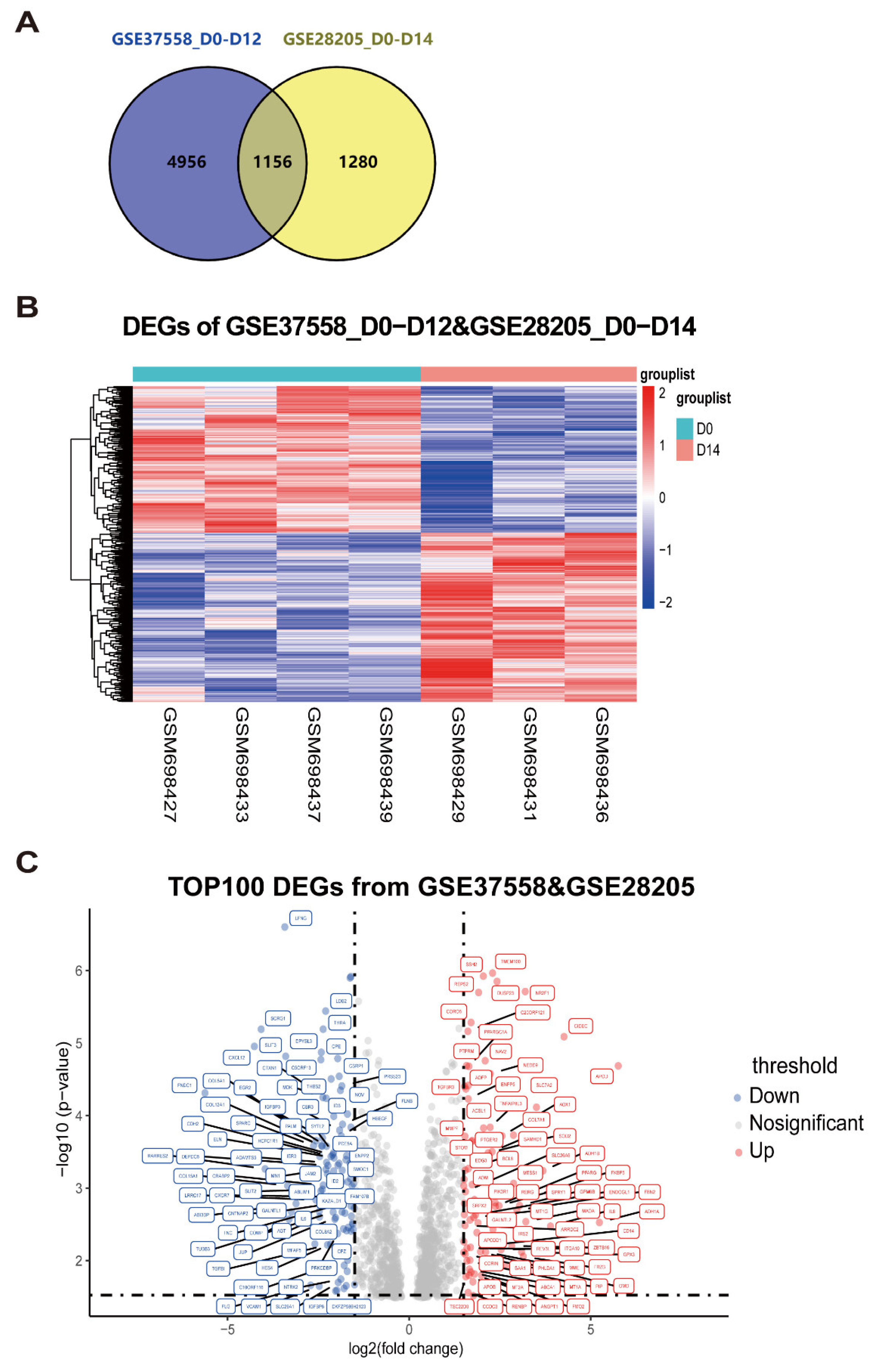

To identify genes associated with MSC osteogenic differentiation, we performed an integration analysis on two microarray datasets with comparable levels of osteogenic induction. Specifically, the datasets utilized for our analysis were GSE37558 for 12-day osteogenic induction and GSE28205 for 14-day induction. Despite the difference in induction duration, both datasets were considered to have comparable levels of osteogenic activity, making them suitable for a combined analysis.

We employed a relaxed screening threshold with a false discovery rate (FDR) ≤ 0.25 and a P value ≤ 0.05 to detect DEGs within each dataset. Moreover, a Venn diagram analysis was used to recognize the common DEGs between the two datasets, revealing a total of 1156 shared genes (Figure 1A and Figure 1B).

To further refine the selection, we applied a cutoff of log2(fold change) ≥ 1.5, which identified 169 DEGs. Among these, 100 were down-regulated, and 69 were up-regulated, as depicted in Figure 1C. The above genes would be subjected to further experimental validation and analysis for deeper understanding of their roles in MSC osteogenic differentiation.

2.

Exploration of continuously differentially expressed genes during MSC osteogenic induction from GSE37558 dataset

To ensure a comprehensive analysis of transcriptome dynamics during osteogenic differentiation, we integrated microarray data from GSE37558 dataset over a time course. The dataset enabled us to examine changes in gene expression across multiple time points during the differentiation process.

For our analysis, we performed time point of osteogenic induction as a reference for subsequent induction time points and analyzed the GSE37558 dataset. Specifically, we compared gene expression changes between Day 0 to 2, Day 2 to 8, and Day 8 to 25. To identify DEGs across these intervals, we applied screening criteria with a false discovery rate (FDR) of ≤ 0.25 and a P value of ≤ 0.05. This approach allowed us to detect 549 DEGs over the course of osteogenic induction, as shown in Figure 2A and Figure 2B.

Delving into our findings, we used a log2(fold change) threshold of ≥ 1.5, identifying 121 DEGs. Of these, 84 were up-regulated, and 27 were down-regulated (Figure 2C). These genes would undergo additional scientific investigation to further explore their roles in MSC osteogenic differentiation.

3.

Integrated time-course analysis of differentially expressed genes during MSC osteogenic induction

We conducted an integrated time-course analysis of DEGs both with a single batch of microarray data and across multiple batches from different research groups. The approach optimized the identification of continuously differentially expressed genes during MSC osteogenic induction.

After correcting for batch effects and improving data accuracy, we combined the results from two microarray batches conducted by different research groups. The integration led to the identification of 124 genes that showed differential expression across both datasets. The relevant data are shown in Figure 3A.

We subsequently applied a log2(fold change) (LOGFC) threshold of ≥ 1.5 to identify 65 genes, of which 49 genes exhibited significantly up-regulation throughout the osteogenic induction process and 16 genes showed significantly down-regulation. The corresponding data are presented in Figure 3B.

The results mentioned above suggest that the 49 up-regulated genes may play a crucial role in regulating the dynamics of MSC osteogenic differentiation. Follow-up investigations are currently underway to validate these candidate genes and explore their biological functions in the osteogenic process.

4.

Identification of key regulators governing MSC osteogenic differentiation through the HUMAN PROTEIN ATLAS database

We focused on identifying key regulators that influence the dynamic progression of MSC osteogenic differentiation. To achieve this, we integrated the expression levels of candidate genes in human tissues using the HUMAN PROTEIN ATLAS database, which provides comprehensive data on RNA and protein expression across 45 human tissue types.

The candidate genes, previously identified as potential regulators of MSC osteogenic differentiation, were analyzed for their expression in human tissues. We leveraged the HUMAN PROTEIN ATLAS database to assess their expression levels in both RNA and protein forms, allowing us to determine the relevance of these genes in various tissues.

Previous studies have highlighted the pivotal role of bone cells, including mesenchymal stem cells and hematopoietic stem cells, in regulating cellular behavior and maintaining tissue homeostasis within the stem cell lineage [27,28]. The skeletal system contains intricate cell lineages derived from these stem cells, which dictate their differentiation into osteogenic lineage, coupled with maintaining the homeostasis of both skeletal and marrow tissues [29].

Given the importance of hematopoietic tissues in blood and immune system regulation, we examined the expression of the candidate genes in these specific tissues using data from the HUMAN PROTEIN ATLAS. A total of 13 potential key regulators were identified, all of which exhibited high expression in some or all of these tissues. Detailed information is provided in Table 1.

Table 1. Potential candidate genes highly expressed in tissues associated with the blood and immune system.

Gene Name	Blood and immune system				Protein expressed in the database of THE HUMAN PROTEIN ALTAS
	Bone marrow	Lymph node	Tonsil	Spleen
CXCL12	High	Low	Low	Low	Bone marrow poietic cells showed strong nuclear positivity.
PTBP1	High	High	High	medium	Most normal tissues displayed strong nuclear positivity.
PKM2	Low	High	High	High	Cytoplasmic expression in most tissues, hepatocytes, neurons and most soft tissues were negative.
H2AFZ	High	High	medium	High	Ubiquitous nuclear expression.
NUDT1	medium	High	High	medium	Most normal tissues showed moderate to strong cytoplasmic staining.
ANGPT1	High	medium	medium	medium	Ubiquitous cytoplasmic expression.
PPAGR	low	not detected	High	low	Squamous epithelia, glandular cells in gastrointestinal tract, gall bladder, urinary bladder, placenta,epididymis showed moderate to strong nuclear positivity
MME	medium	Low	medium	High	B-lymphocytes, myoepithelium, stromal cells and some glandular epithelia displayed strong cytoplasmic positivity.
RPS6KA2	medium	Low	High	medium	Most of the normal tissues displayed moderate nuclear and cytoplasmic positivity.
TTPAL	medium	High	High	High	Most normal tissues displayed moderate to strong cytoplasmic staining with a granular pattern.
BCL6	High	High	High	medium	Nuclear expression, mainly in lymphoid tissues.
CTNNB1	Low	not detected	High	not detected	Membranous expression was observed in most tissues.
STAT5A	medium	High	High	Low	Cytoplasmic and nuclear expression in a few tissues, most abundant in subsets of lymphoid cells.

Table 1. Potential candidate genes highly expressed in tissues associated with the blood and immune system.

Gene Name	Blood and immune system				Protein expressed in the database of THE HUMAN PROTEIN ALTAS
	Bone marrow	Lymph node	Tonsil	Spleen
CXCL12	High	Low	Low	Low	Bone marrow poietic cells showed strong nuclear positivity.
PTBP1	High	High	High	medium	Most normal tissues displayed strong nuclear positivity.
PKM2	Low	High	High	High	Cytoplasmic expression in most tissues, hepatocytes, neurons and most soft tissues were negative.
H2AFZ	High	High	medium	High	Ubiquitous nuclear expression.
NUDT1	medium	High	High	medium	Most normal tissues showed moderate to strong cytoplasmic staining.
ANGPT1	High	medium	medium	medium	Ubiquitous cytoplasmic expression.
PPAGR	low	not detected	High	low	Squamous epithelia, glandular cells in gastrointestinal tract, gall bladder, urinary bladder, placenta,epididymis showed moderate to strong nuclear positivity
MME	medium	Low	medium	High	B-lymphocytes, myoepithelium, stromal cells and some glandular epithelia displayed strong cytoplasmic positivity.
RPS6KA2	medium	Low	High	medium	Most of the normal tissues displayed moderate nuclear and cytoplasmic positivity.
TTPAL	medium	High	High	High	Most normal tissues displayed moderate to strong cytoplasmic staining with a granular pattern.
BCL6	High	High	High	medium	Nuclear expression, mainly in lymphoid tissues.
CTNNB1	Low	not detected	High	not detected	Membranous expression was observed in most tissues.
STAT5A	medium	High	High	Low	Cytoplasmic and nuclear expression in a few tissues, most abundant in subsets of lymphoid cells.

Table 1. The primer sequences.

Primer information	Primer sequence
Gapdh qPCR Forward Primer	TGGCCTTCCGTGTTCCTAC
Gapdh qPCR Reverse Primer	GAGTTGCTGTTGAAGTCGCA
Alpl qPCR Forward Primer	GGCTGGAGATGGACAAATTCC
Alpl qPCR Reverse Primer	CCGAGTGGTAGTCACAATGCC
Bglap qPCR Forward Primer	CTGACCTCACAGATGCCAAGC
Bglap qPCR Reverse Primer	TGGTCTGATAGCTCGTCACAAG
H2afz qPCR Forward Primer	CCAAGACAAAGGCGGTTTCC
H2afz qPCR Reverse Primer	TTTCAGGTGTCGATGAATACGG
Bcl6 qPCR Forward Primer	CCGGCACGCTAGTGATGTT
Bcl6 qPCR Reverse Primer	GCACTGTCTTATGGGCTCTAAAC
Ttpal qPCR Forward Primer	GGCCTCACTCTCCGAAAATGA
Ttpal qPCR Reverse Primer	CAGGTATGGGTACTCCTTCCG
Ptbp1 qPCR Forward Primer	GCAGGCTGTAAACTCCGTCC
Ptbp1 qPCR Reverse Primer	GGGTCACTGGGTAGAAAAGGTT

Table 1. The primer sequences.

Primer information	Primer sequence
Gapdh qPCR Forward Primer	TGGCCTTCCGTGTTCCTAC
Gapdh qPCR Reverse Primer	GAGTTGCTGTTGAAGTCGCA
Alpl qPCR Forward Primer	GGCTGGAGATGGACAAATTCC
Alpl qPCR Reverse Primer	CCGAGTGGTAGTCACAATGCC
Bglap qPCR Forward Primer	CTGACCTCACAGATGCCAAGC
Bglap qPCR Reverse Primer	TGGTCTGATAGCTCGTCACAAG
H2afz qPCR Forward Primer	CCAAGACAAAGGCGGTTTCC
H2afz qPCR Reverse Primer	TTTCAGGTGTCGATGAATACGG
Bcl6 qPCR Forward Primer	CCGGCACGCTAGTGATGTT
Bcl6 qPCR Reverse Primer	GCACTGTCTTATGGGCTCTAAAC
Ttpal qPCR Forward Primer	GGCCTCACTCTCCGAAAATGA
Ttpal qPCR Reverse Primer	CAGGTATGGGTACTCCTTCCG
Ptbp1 qPCR Forward Primer	GCAGGCTGTAAACTCCGTCC
Ptbp1 qPCR Reverse Primer	GGGTCACTGGGTAGAAAAGGTT

Among the 13 candidates, four genes—PTBP1, H2AFZ, BCL6, and TTPAL (C20ORF121)—were found to have particularly high expression levels in most tissues related to the blood and immune system. Three of these genes were highly expressed across all four tissues, while one showed medium expression. These genes also demonstrated significant expression changes in the microarray data (Figure 3B).

The four genes, PTBP1, H2AFZ, TTPAL, and BCL6, serve as critical regulators of MSC osteogenic differentiation. Their potential roles in controlling this dynamic process make them promising targets for further investigation. We are currently conducting biological experiments to validate their molecular functions and further elucidate their involvement in MSC differentiation.

5.

Isolation of bone mesenchymal stem cells and qRT‒PCR identification of candidate genes during osteogenic induction

Bone marrow mesenchymal stem cells (BMSCs) are widely used in cell therapy and tissue engineering due to their self-renewal capacity and ability to differentiate into various mesoblastic cell types, including osteoblasts, chondrocytes, and adipocytes [30,31]. They are a type of multilineage progenitor cell that possesses self-renewal capacity and can differentiate into various types of mesoblastic cells, including osteoblasts, chondrocytes, adipocytes, etc. [32]. Given their significance, we isolated BMSCs to validate potential candidate genes identified through bioinformatics analysis.

We isolated BMSCs from bone marrow stem cells following standard protocols from the literature. To confirm their multilineage differentiation potential, we subjected the isolated cells to osteogenic, chondrogenic, and adipogenic induction, followed by Alizarin Red S (ARS), Alcian Blue, and Oil Red O staining. These results demonstrated that the isolated BMSCs retained their multilineage differentiation capacity (Figure 4A).

For osteogenic differentiation, we treated BMSCs with osteogenic medium and collected RNA at three time points: Day 7, Day 14, and Day 21. To assess osteogenesis, we measured the expression of key osteogenic biomarkers, ALP and BGLAP. The up-regulation of these biomarkers confirmed the success of the osteogenic differentiation experiment (Figure 4B).

Next, we evaluated the RNA expression of these four candidate genes—BCL6, TTPAL, PTBP1, and H2AFZ—which were identified through bioinformatics database mining. Using qRT-PCR, we assessed their RNA expression at various time points during osteogenic induction to validate our bioinformatic predictions. BCL6 and TTPAL showed sustained high expression throughout the induction period in a time-dependent manner (Figure 4C). Conversely, PTBP1 and H2AFZ exhibited continuous decreases in expression over time (Figure 4D).

These experimental results aligned with previous findings obtained from Gene Expression Omnibus (GEO) database analysis, confirming the accuracy of our bioinformatic predictions. This consistency provides a strong foundation for further research into the roles of these genes in MSC osteogenic differentiation.

6.

Identifying the molecular function of osteogenic regulators in MSCs via lentiviral overexpression of candidate genes

To explore the molecular mechanisms that regulate osteogenic induction in MSCs, we performed lentiviral packaging technology to overexpress four potential regulatory genes: PTBP1, H2AFZ, BCL6, and TTPAL.

We first employed lentiviral packaging to overexpress the four candidate genes in 293T cells. The lentivirus produced from these cells was then used to infect bone marrow mesenchymal stem cells (BMSCs) using the 293T supernatant. After a 48-hour transduction period, RNA was extracted from the infected BMSCs to assess infection efficiency via qRT-PCR. The results confirmed successful infection, as shown in Figure 5A.

To assess the impact of gene overexpression on osteogenesis, we performed experiments using lentiviruses containing each of the four genes to infect BMSCs. The osteogenic potential of the infected BMSCs was evaluated using an alkaline phosphatase (ALP) assay at Day 7 post-infection. A control group, infected with a vector virus, was used for comparison. BCL6 and TTPAL were shown to enhance osteogenic potential, as indicated by increased ALP activity (Figure 5B). In contrast, PTBP1 and H2AFZ appeared to inhibit osteogenesis, as demonstrated by reduced ALP activity (Figure 5C).

These findings suggest that BCL6 and TTPAL act as positive regulators of osteogenic differentiation in BMSCs, promoting osteogenic lineage commitment. Inversely, PTBP1 and H2AFZ function as negative regulators, inhibiting the osteogenic process. This dual role of these genes provides new insights into the molecular mechanisms underlying MSC osteogenic differentiation and may inform future therapeutic strategies for bone regeneration.

4. Discussion

With the advancement of omics, research on genome-wide dynamics, including transcription factors and epigenomic programming, during pre-osteoblast differentiation has made significant progress [33,34]. In this research article, we systematically investigated the dynamic regulation of MSC differentiation during osteogenesis by exploring key cellular factors. By integrating transcriptomic sequencing from different induction time points in a single-batch microarray dataset, as well as multiple-batch array sequencing, we identified 69 differentially expressed genes that exhibited continuous and significant changes during MSC osteogenic induction—49 of which were highly expressed, and 16 showed low expression.

To enhance the biological and clinical relevance of these candidate genes, we examined their expression levels in human tissues using the HUMAN PROTEIN ATLAS database [35]. High expression in blood and immune-related organs was used as a key criterion for further refining our selection. Through extensive big data analysis, we identified 13 genes with elevated expression in one or more blood and immune system tissues (Table 1).

Among these, four genes—PTBP1, H2AFZ, BCL6, and TTPAL—were selected for experimental validation due to their high expression in multiple blood and immune tissues. Our experimental results demonstrated dynamic changes in the expression of these genes during osteogenic induction, as shown in Figure 5A, which aligned with transcriptomic sequencing data. Moreover, the functional roles of these genes were confirmed through biological assays, as depicted in Figure 5B. These results validate our approach of combining transcriptome sequencing with big data mining to identify key targets that dynamically regulate biological functions.

This article represents the first to employ high-throughput transcriptomic sequencing to analyze and validate the key molecules that play a dynamic role that regulate MSC osteogenic differentiation in dynamics. This study holds great implications for understanding the molecular factors that influence MSC differentiation fate and could have significant clinical applications [36]. Specifically, the identification of PTBP1, H2AFZ, BCL6, and TTPAL as regulators of osteogenic differentiation presents novel therapeutic targets for conditions such as osteoporosis and bone fracture healing.

While our analysis of high-throughput transcriptomic data from the GEO database provided valuable insights into the biological processes underlying osteogenic differentiation [37], it is important to acknowledge the limitations of this approach. Single analyses, although informative, may not fully capture the complexity of these processes [38]. Future studies should adopt multi-omics approaches, integrating data from mRNAs, regulatory factors, proteins, and metabolites to construct comprehensive gene regulatory networks. This would help elucidate causal relationships between molecules and provide a deeper understanding of the underlying mechanisms [39].

Despite this study focusing on high-throughput sequencing to identify key molecules in MSC osteogenic differentiation, further validation through both in vitro and in vivo experiments is necessary. This will help facilitate the translation of our findings into clinical applications [40].
