Karyotype Analysis of Diploid and Autotetraploid of Eight Tartary Buckwheat Cultivars in China

1. Introduction

Buckwheat belongs to Fagopyrum of Polygonaceous. Sweet buckwheat (F.esculentum Moench) and tartary buckwheat [F.tataricum (L.) Gaertn] are the two main cultivars for grain[1].

With the continuous improvement of material and cultural living standards, people pay more and more attention to healthy food and diet therapy. Tartary buckwheat is a crop that integrates nutrition, health care, and medical treatment. People have partiality for buckwheat food products. This demand has been increasing.

While Stevens reported the numbers of buckwheat chromosomes at first as early as 1912[2], there are a few reports of buckwheat chromosomes at home and abroad. The buckwheat chromosomes are small and belong to small chromosomes, and the cytological observation is difficult, so most research work is still at the level of chromosome numbers [3].

To date, the karyotype analysis of buckwheat has been limited to a few buckwheat species[3-15], namely: F.tartaricum, F.esculentum, F.megaspartanium, F.pilus, F.zuogongense, F.crispatifolium, F.gracilipes, F.densovillosum, F.cymosum, F.qiangcai, F.wenchuanense, F.urophyllum, F. leptopodum var. grossii.

Previous studies have primarily focused on karyotype analysis of diploid buckwheat and wild buckwheat, but the autotetraploid tartary buckwheat has not been reported. This study aims to investigate the number and karyotype of mitotic chromosomes in root tips of eight species of diploid and autotetraploid tartary buckwheat to provide valuable insights into genetic breeding strategies in buckwheat.

2. Materials and Methods

2.1. Experimental Materials

The diploid tartary buckwheat used in this experiment was provided by the Buckwheat Industrial Technology Research Center of Guizhou Normal University. The autotetraploids were obtained in the Lab Center by the author using the method of chromosome doubling of buckwheat. The materials used to study the diploids and autotetraploids have been summarized in Table 1.

2.2. Experimental Design

Seeds of diploid and autotetraploid tartary buckwheat were germinated on moist filter papers in petri dishes at room temperature in the dark. Once the root length of the seeds reached approximately 1.5cm, the root tips were collected at a length of 2mm, pretreated in saturated α-bromonaphthalene for 5h at 25℃, and taken out to fix in Carnoy’s Fixative SolutionⅠ for 12h for synchronization purposes. These were extracted, washed 2X with distilled water, and fixed in 0.075M KCl for 1h. After washing KCl in distilled water for 10min, the samples were incubated in an enzyme solution of 4% enzyme mixture (pectinase and cellulase) at 37℃ for 5h. The macerated tissues were transferred onto alcohol-cleaned glass slides, absorbed the residual enzyme solution, rinsed 3X with distilled water, and immersed in distilled water for 3h. Following enzymatic hydrolysis, the specimen was centred on the prepared slide, and the remaining distilled water was removed by washing with Carnoy’s Fixative SolutionⅠ. It was meticulously crushed with the tip of forceps to eliminate any impurities, followed by adding a fixative around the crushed area for concentration purposes. It was gently heated over an alcohol lamp flame until almost dry to extinguish the flame. Once completely dried, it was carefully placed on a white porcelain plate using toothpicks and slowly immersed in a 3% Giemsa dyeing solution with pH 6.8 for 1h. Thorough rinsing with tap water was performed until no traces of blue liquid were observed beneath the film, followed by rinsing 3X with distilled water and air-drying. The prepared sample was examined under an Olympus BX51-DP70 scientific research microscope.

2.3. Chromosome Index Determination

According to the unified standard[16], the statistics of the number of chromosomes in more than 30 cells and more than 5 cells with clearly visible chromosomes in the middle division were selected for karyotype analysis.

The mitotic phase of dispersed plant chromosomes was placed under a microscope to obtain clear images. The formula for calculating karyotype parameters is as follows[3]:

$$\mathrm{R}\mathrm{e}\mathrm{l}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{v}\mathrm{e} \mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e} \left(\mathrm{\%}\right)=\left({\displaystyle \frac{\mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e}}{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l} \mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e} \mathrm{g}\mathrm{r}\mathrm{o}\mathrm{u}\mathrm{p}}}\right)\times 100$$

(1)

$$\mathrm{C}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e} \mathrm{a}\mathrm{r}\mathrm{m} \mathrm{r}\mathrm{a}\mathrm{t}\mathrm{i}\mathrm{o}=\left({\displaystyle \frac{\mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e} \mathrm{l}\mathrm{o}\mathrm{n}\mathrm{g} \mathrm{a}\mathrm{r}\mathrm{m}}{\mathrm{l}\mathrm{e}\mathrm{n}\mathrm{g}\mathrm{t}\mathrm{h} \mathrm{o}\mathrm{f} \mathrm{c}\mathrm{h}\mathrm{r}\mathrm{o}\mathrm{m}\mathrm{o}\mathrm{s}\mathrm{o}\mathrm{m}\mathrm{e} \mathrm{s}\mathrm{h}\mathrm{o}\mathrm{r}\mathrm{t} \mathrm{a}\mathrm{r}\mathrm{m}}}\right)$$

(2)

Each chromosome was named according to the Four-Point Four-Region System Naming Rule[17]. The buckwheat chromosome karyotypes were classified according to Stebbins's (1971) classification criteria.

2.4. Statistical Analysis

The analysis and measurement of the images were made using Image J software. The morphology, karyograms and idiograms were carried using Excel 2016, Word 2016 and Photoshop CS6.

3. Results

3.1. Karyotype Analysis of Diploid Chromosomes in Root Tip during the Mitotic Stage

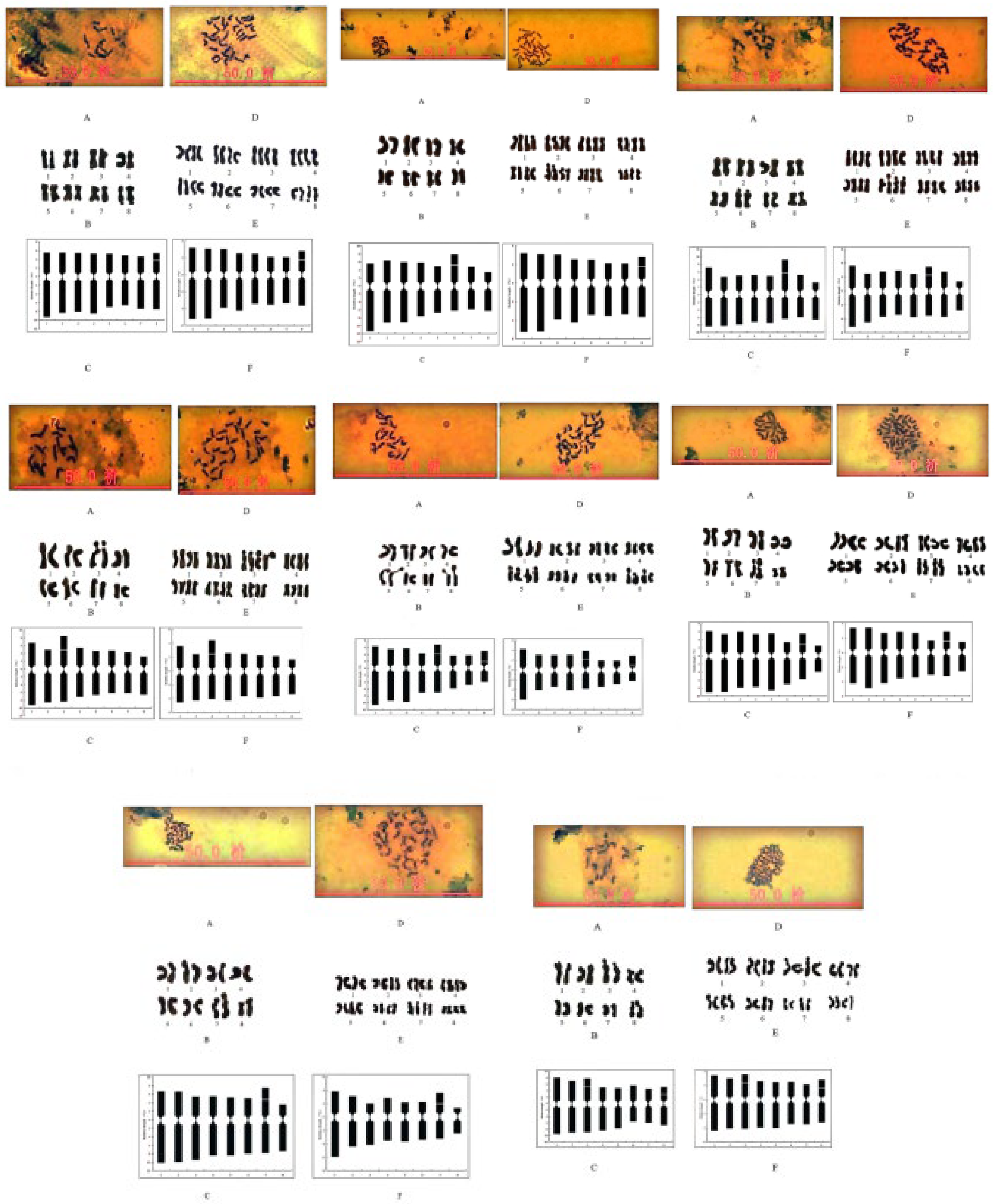

According to Table 2, Table 3 and Figure 1, it can be concluded that the number of the 8 diploid chromosomes were 2n = 2x = 16, and the karyotype formula were 2n = 2x = 16 = 12m + 4sm. The karyotype of this species consists exclusively of metacentric (m) and submetacentric (sm) chromosomes. In addition, there were differences in the number and location of SAT chromosomes in different diploids. The T6, T9, T18, T22, T27 and T36 had one pair of SAT chromosomes while two pairs were found in T25 and T39. In T6, T25, T27, and T39, SAT was located on the sm chromosome, while the other 4 varieties were located on the m chromosome.

The relative length of the 8 diploid chromosomes (T6, T9, T18, T22, T25, T27, T36 and T39) were from 10.63% to 14.29%, from 9.17% to 15.79%, from 9.54% to 15.14%, from 9.65% to 15.73%, from 5.90% to 17.06%, from 6.55% to 15.38%, from 9.49% to 14.59%, from 8.83% to 15.90%, respectively. There were obvious differences in the relative length range.

According to Stebbins’(1971) classification standard, the karyotype analysis of 8 diploid chromosomes showed that they all belonged to the 2A type.

3.2. Karyotype Analysis of Autotetraploid in Root Tip During the Mitotic Stage

According to Table 2 and Table 3 and Figure 1, it can be inferred that the eight autotetraploid chromosomes were 2n = 4x = 32, and their karyotype formula were 2n = 4x = 32 = 24m + 8sm. The types of metacentric (m) and submetacentric(sm) remained unchanged. Furthermore, variations were observed in the quantity and location of SAT among different autotetraploids, resembling those found in diploids. Specifically, the autotetraploids(T6*, T9*, T18*, T22*, T27*, and T36*) possessed two pairs of SAT chromosomes each, while four pairs were present in both T25* and T39*.

The relative length ranges of the 8 autotetraploid chromosomes (T6*, T9*, T18*, T22*, T25*, T27*, T36* and T39*) were from 9.60% to 15.72%, from 9.57% to 14.83%, from 7.93% to 16.68%, from 9.44% to 15.25%, from 6.04% to 19.02%, from 8.05% to 15.25%, from 7.94% to 20.30%, from 9.01% to 14.76%, which showed that there were also significant differences in the relative length ranges.

According to Stebbins’ (1971) classification standard, the karyotype analysis of the eight autotetraploid chromosomes showed that they all belonged to 2A type.

The difference between diploid and autotetraploid in Karyotype analysis

As can be seen from Table 2, after diploid doubling, the number of chromosomes and SATs of eight cultivars doubled, but no changes in the types of chromosomes and karyotype were observed.

Therefore, it can be inferred that these eight autotetraploids were homologous.

4. Discussion

4.1. Karyotype of Tartary Buckwheat

In this study, the number of the eight diploid and autotetraploid chromosomes were 2n = 2x =16 and 2n = 4x = 32, respectively. In addition, this study found that one pair of SAT chromosomes co-existed with two pairs in root tip cells and each of the six diploids (T6, T9, T18, T22, T27, T36) possessed one pair of SAT chromosomes, which was consistent with the results reported by Zhang et al. [13] and Wang et al.[11]. However, two diploids (T25, T39) consistently exhibited the presence of two pairs of SAT chromosomes, aligning with previous findings reported by Zhu et al. [15], He et al.[5], Lei et al. [6], Chen [3], Yang et al. [12], and Sheng [8]. Whereas six autotetraploids (T6*, T9*, T18*, T22*, T27*, T36*) had two pairs of SAT chromosomes, but the T25* and T39* had four pairs of SAT chromosomes. The autotetraploid SAT chromosomes and their number are reported for the first time.

In terms of the karyotype formulas, the T9, T18, T22 and T36 were consistent with those reported by Zhang et al.[13]. The T25 and T39 were consistent with the karyotypes reported by Chen [3]and Sheng [8]. The T6 and T27 were consistent with those reported by Wang et al.[11]. This study has not seen the results reported by Lei et al.[6], namely 2n = 2x = 16 = 10m + 6sm(4SAT) and Yang et al.[12], namely, 2n = 2x = 16 = 14m(4SAT) + 2sm. The karyotype formulas of the eight autotetraploids (T6*, T9*, T18*, T22*, T25*, T27*, T36*) are reported for the first time.

The number of the eight diploid and autotetraploid chromosomes were consistent with previous research result. However, there were differences in the number and location of SAT and karyotype formulas. It indicated genetic diversity at the chromosome level among different germplasm of tartary buckwheat. There were significant differences in the climate and soil environments of different regions, and regional plants have been adapting to environmental conditions for a long time. It may also be due to the accumulation of subtle changes such as gene deletion, inversion, translocation, and insertion during the recombination process of chromosomes, resulting in changes in the development of chromosome morphology and structure.

4.2. Karyotype Changes after Chromosome Doubling

The karyotype characteristics of the same crop with different ploidy are similar, for example, papaya [18], broccoli [19], Solanaceae [20], non-heading Chinese cabbage [21], small fruit watermelons[22], goji berries [23].

This study has further confirmed that the homologous tetraploid obtained by doubling the diploid of tartary buckwheat exhibited symmetrical karyotype characteristics with the corresponding diploid, and there are no changes in chromosomes and karyotype types. It is consistent with previous research results. Namely, the karyotype characteristics of the same crop with different ploidy are consistent.
