Two Natural Product Compositions Improve Lifespan and Healthspan in Caenorhabditis Elegans by Targeting the Hallmarks of Aging

1. Introduction

Aging is a major risk factor for nearly all major chronic diseases, including cardiovascular diseases, cancers, Alzheimer’s, Parkinson’s, and other neurodegenerative diseases. Age-related decline of immune function, also known as immunosenescence, has been increasingly recognized as an important cause of age-related morbidity and mortality, which may extend beyond its role in infectious diseases. Current aging research suggests that preventative strategies may increase both lifespan and healthspan. Potential restorative interventions reversing the many biological clocks back to the young productive healthy state can help prevent loss of function and possibly result in future performance gains. Many agents including natural compounds or natural products have demonstrated promising antiaging benefits and gained popularity in aging research [1,2].

Nicotinamide mononucleotide (NMN) is a precursor to nicotinamide adenine dinucleotide (NAD+), a coenzyme that plays a crucial role in various cellular processes, including energy metabolism and DNA repair. As individuals age, there is a decline in NAD+ levels, which is associated with decreased mitochondrial function, impaired energy production, and compromised cellular repair mechanisms. NAD+ is crucial for mitochondrial function, and maintaining optimal levels of this coenzyme may support the efficiency of cellular energy production. NAD+ is also a cofactor for sirtuins, a class of enzymes that play a role in regulating various cellular processes, including DNA repair, apoptosis, and energy metabolism. Sirtuins play roles in the extension of lifespan and healthspan. The antiaging effects of NMN are primarily attributed to its ability to boost NAD+ levels within cells. Preclinical and clinical studies have demonstrated that administration of NMN can improve blood NAD+ levels and improve biomarkers of aging. NMN administration was also shown to increase Natural Killer (NK) cell cytotoxic activity [3,4,5].

Quercetin (Saphora Japonica) is a flavonoid found in various fruits, vegetables, and plants. Recently it has been studied and considered a senolytic, that selectively clear senescent cells. Quercetin has also been reported to modulate the activity of immune cells, including T cells, B cells, and NK cells. It may enhance the production of certain cytokines and support a more robust immune response, particularly in the context of immunosenescence [6,7]. Preclinical study showed that quercetin improved both healthspan and lifespan in mice [8]. Apigenin (Apium gravolens) is another natural flavonoid that has been studied for its antiaging effect and is considered a senolytic [9]. Apigenin induces apoptosis and regulates mitogen-activated protein kinases (MAPK) signaling pathways in mouse macrophage ANA-1 cells [10]. Apigenin has also been shown to protect against stress factors and promote lifespan of C. elegans [11].

Alpha-ketoglutarate (AKG) is a small molecule that is naturally present in the human body. It is used as a fuel by mitochondria, thereby improving cellular mitochondrial health. AKG levels decline about 10-fold between 40 and 80 years old [12]. It is not readily available in the diet, thus requiring supplementation and has been shown to extend lifespan and improve healthspan in various organisms, including humans [13].

White button mushroom (Agaricus bisporus) has been investigated for its potential immunomodulatory, anti-inflammatory, and antiaging effects. Spermidine, a naturally occurring polyamine in white button mushroom, has been shown to induce autophagy, a cellular process responsible for the degradation and recycling of damaged cellular components. Autophagy is crucial for maintaining cellular homeostasis, and thus longevity and the mitigation of age-related diseases. The induction of autophagy by spermidine may also contribute to the removal of dysfunctional components within immune cells, promoting their overall functionality [14,15]. Spermidine was shown to improve lifespan in mice, via autophagy induction [16]. Another study further suggested that spermidine might also improve lifespan via protecting against telomere attrition [17]. Milk thistle (Silybum marianum) fruit extract has been investigated for its potential antiaging effects, primarily due to its antioxidant, anti-inflammatory, immunomodulatory, and senolytic activities [18]. Further, one study performed in transgenic mice and human breast SKBR3 tumor cells suggest that silybin may act as a senolytic based on a senescent-like growth arrest on the tumor cells [19].

Transfer Factor (TF), a combination of cow colostrum filtrates and chicken egg yolk extract, has been shown to modulate immune responses in a variety of human ex vivo and murine immune cells [20,21,22,23]. Most recently, it has been used for improving immune functions in humans [24].

In the present study, two compositions including NMN, quercetin, AKG, white button mushroom extract (standardized to spermidine), and TF with or without milk thistle fruit extract (standardized to silybin) or apigenin were evaluated for their antiaging effect in C. elegans. The active ingredients included in the two compositions were screened for their senolytic effects on cell viability irradiated human umbilical vein endothelial cells (HUVEC). To further explore their potential molecular mechanisms of action, the two compositions were also tested for their binding activity to human sirtuin enzymes, and TF’s effect on natural killer (NK) cell activities in human peripheral blood mononuclear cells (PBMCs) from both young and old donors.

2. Results

2.1. Screening of Natural Products for Selective Cellular Senescence Activity

Cellular senescence was demonstrated in irradiated HUVEC as compared to non-irradiated controls by Edu staining and β-Galactosidase activity (See Figure 1). Irradiated HUVEC showed lower viability compared to non-irradiated HUVEC as measured by luminescence signals via CellTiter-Glo^®. Navitoclax, as positive control, showed a half maximal effective concentration (EC50) that is 0.0865 µg/mL in non-irradiated HUVEC and an EC50 0.169 µg/mL in irradiated HUVEC (Table 1).

The spermidine and silybin extracts are the only two compounds among all tested compounds that showed similar effect in non-irradiated and irradiated HUVEC to navitoclax, the positive control. NMN, quercetin, and apigenin all showed a dose-response, but no difference in EC50 values between non-irradiated and irradiated HUVEC. Colostrum filtrate, egg yolk extract, and alpha ketoglutarate did not show impact on cell viability, thus no dose response or EC50 value in either non-irradiated nor irradiated HUVEC.

2.2. Lifespan and Healthspan Effects of Two Formulas in C. Elegans

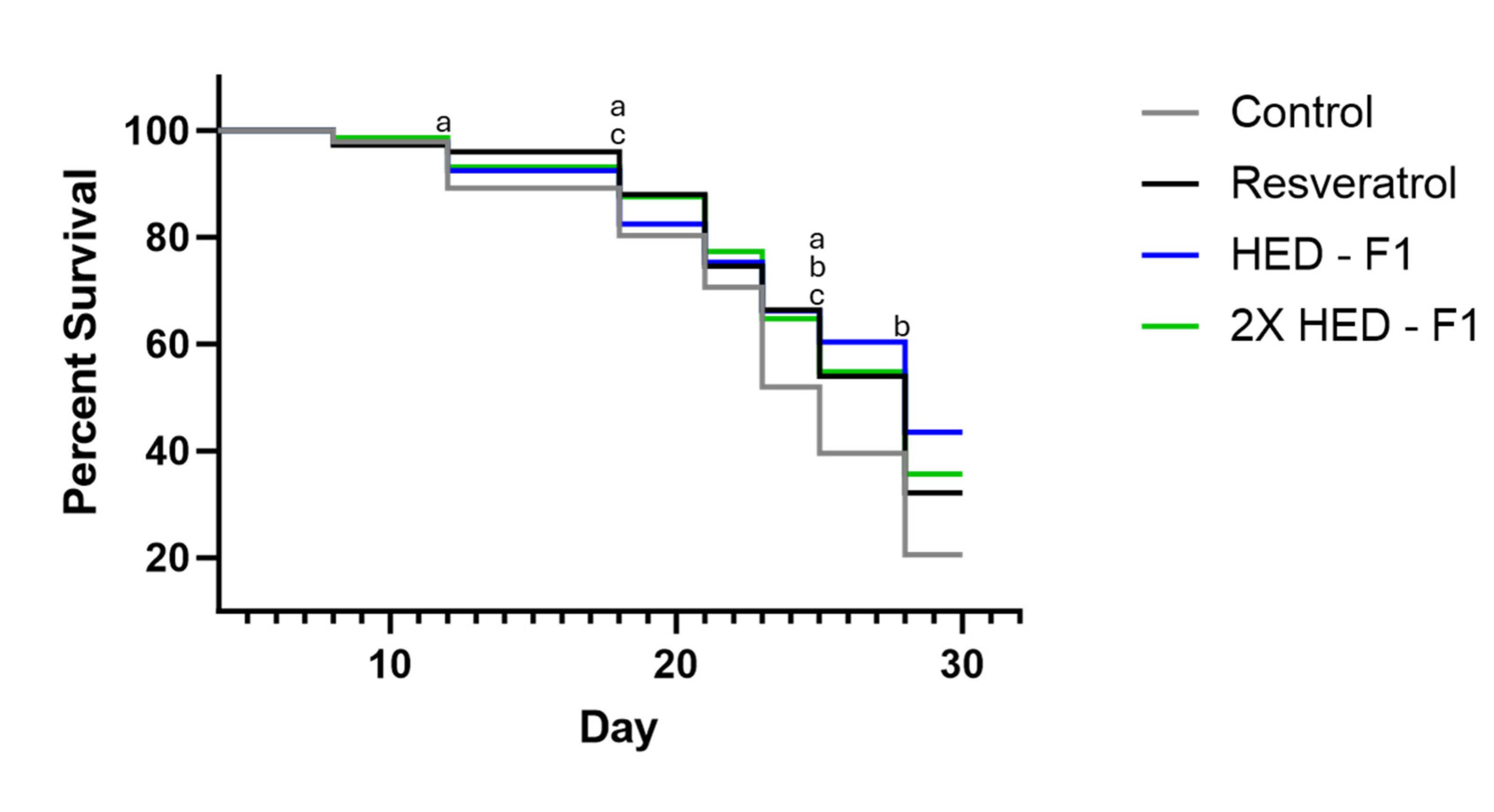

The resveratrol group showed statistically higher survival than the control group on days 12, 18, 21, 23, 25, and 28. Like the resveratrol group, both doses of Formula 1 showed statistically higher survival than the control group. Worthy of note, the low dose of Formula 1 (1x HED) showed the highest survival, higher than the resveratrol group and high dose of Formula 1 group (2x HED). Specifically, the low dose of Formula 1 group showed statistically higher survival than resveratrol group and the high dose of Formula 1 group on days 25 and 28. (Figure 2)

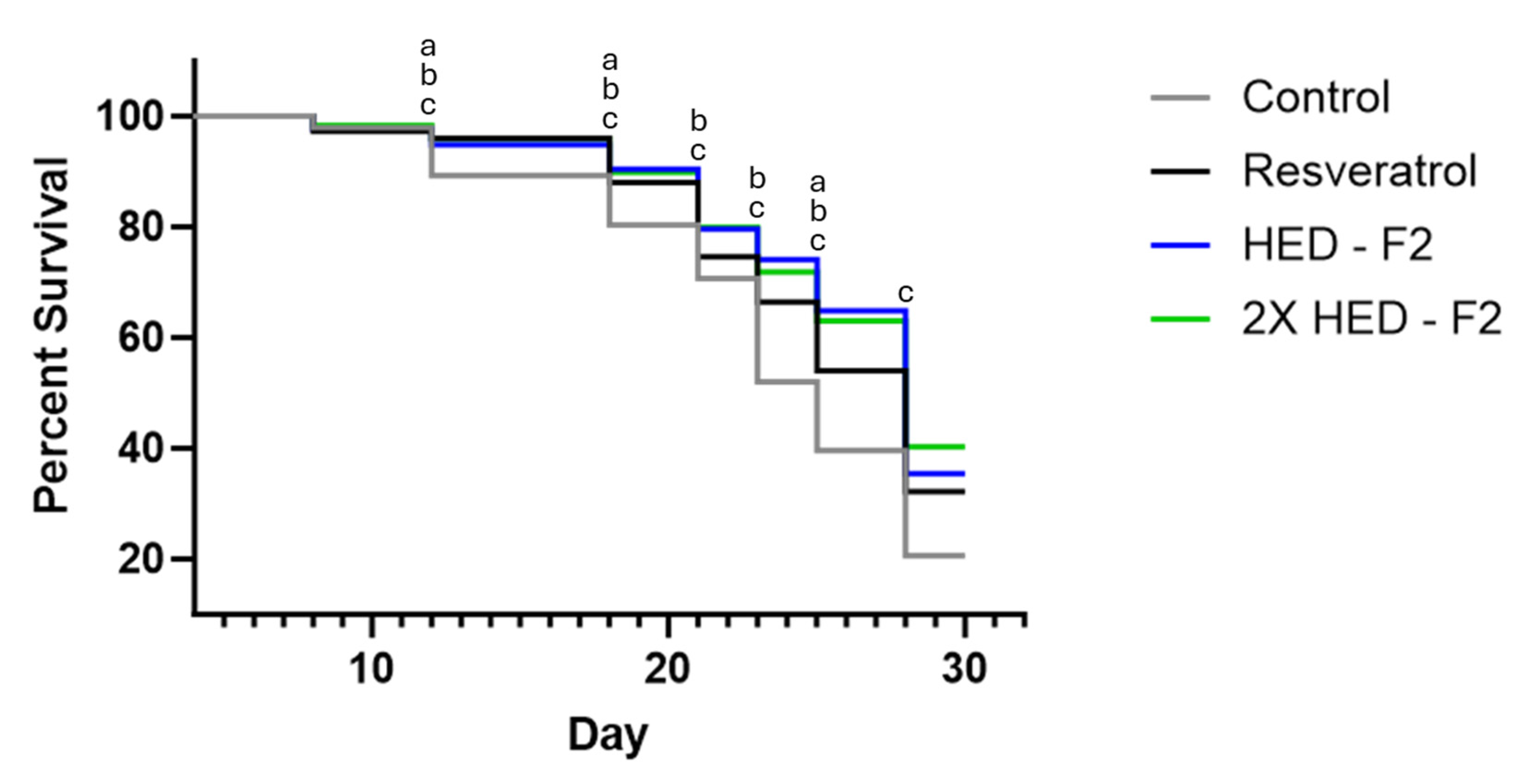

Like the resveratrol group, both doses of Formula 2 showed statistically higher survival than the control group on days 12, 18, 21, 23, 25, and 28. Both doses of Formula 2 further showed statistically higher survival than the resveratrol group on days 21, 23, and 25. No statistical difference was found between the two doses of Formula 2. However, the high dose of Formula 2 showed higher survival than both the low dose of Formula 2 group and the resveratrol group on day 28. (Figure 3)

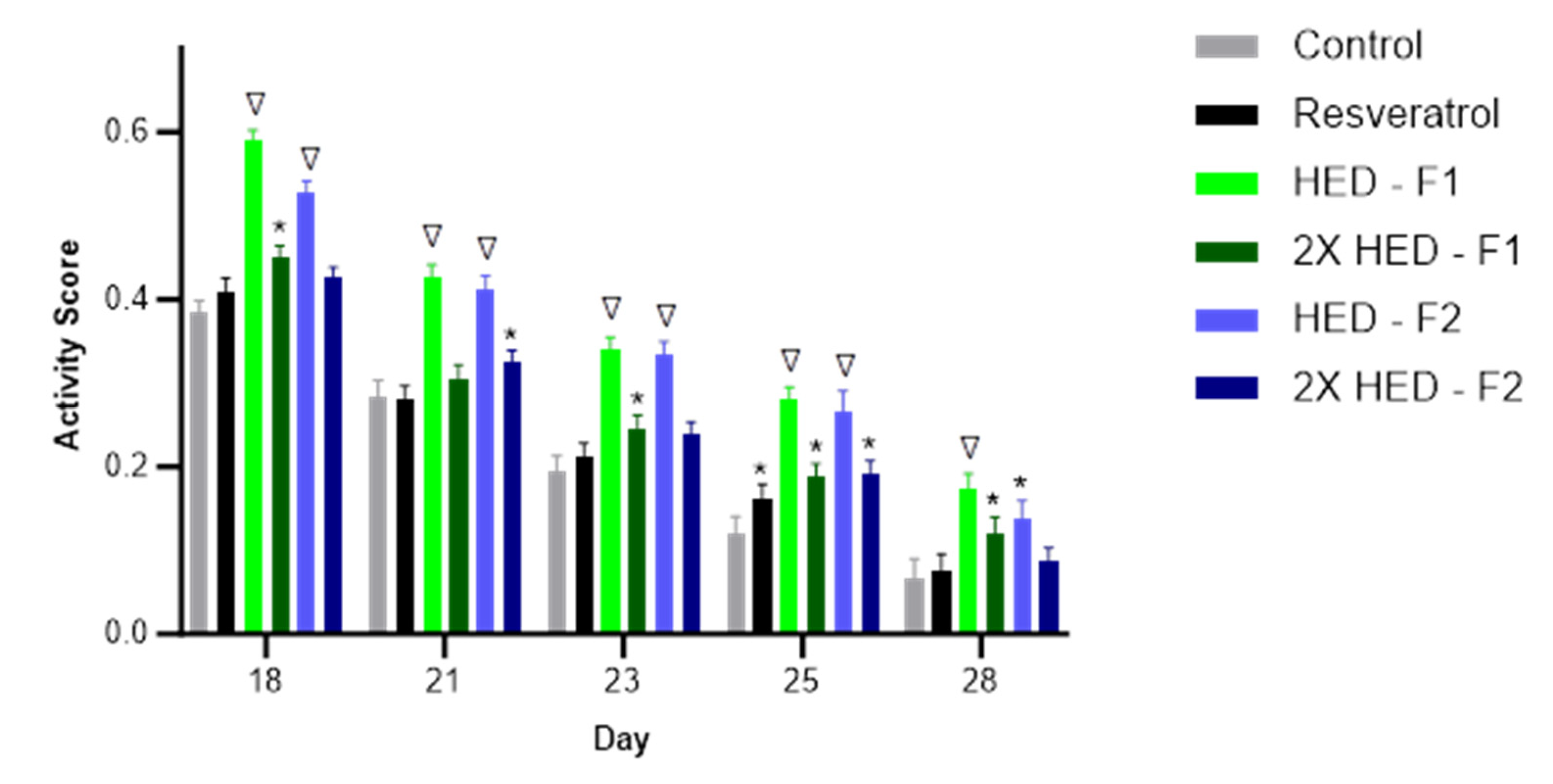

The resveratrol group did not show significant improvement in activity except on day 25, compared to the control group (Figure 4). The low dose of Formula 1 showed statistically higher activity than both the control group and the resveratrol group on days 18, 21, 23, 25, and 28. The high dose of Formula 1 showed statistically higher activity than the control group on days 18, 23, 25, and 28. The low dose of Formula 2 showed statistically higher activity than both the control group and the resveratrol group on days 18, 21, 23, and 25, and statistically higher activity than the control group on day 28. The high dose of Formula 2 showed statistically higher activity than the control group on days 21 and 25.

2.3. Sirtuin Binding Effect of Two Formulas

Formula 1 showed significant dose-dependent inhibitory effect on both enzymes Sirtuin 3 (IC50 = 0.7 mg/ml, nH=2.3) and Sirtuin 6 (IC50 = 0.7 mg/ml, nH=1.9), but not much effect on enzymes Sirtuin 1 and Sirtuin 2. Formula 2 showed significant dose-dependent inhibitory effect on all four tested enzymes: Sirtuin 1 (IC50 = 0.7 mg/ml, nH>3), Sirtuin 2 (IC50 = 0.6 mg/ml, nH>3), Sirtuin 3 (IC50 = 0.8 mg/ml, nH>3), and Sirtuin 6 (IC50 = 0.3 mg/ml, nH>3). (Table 2)

IC50 values of Formula 1 and Formula 2 (range from 0.3 to 0.8 mg/ml) are significantly higher than that of Reference Compounds for the respective enzymes (range from 0.005 to 0.04 mg/ml).

Neither Formula 1 nor Formula 2 showed any activating effect on Sirtuin 1 enzyme. Another tested compound, TF, did not show any inhibitory or activating effect on any of the tested enzymes (data not shown).

2.4. Activation of NK Cell Activity by TF in Human PBMCs

When treated with TF, both younger and older PBMC samples bolstered NK cell activity to a statistically similar level, as demonstrated by percent killing of K562 cancer cells. (Figure 5)

3. Discussion

3.1. Screening of Natural Products for Selective Cellular Senescence Activity

Among all tested active ingredients, silybin and spermidine extracts are two compounds that showed similar effect in non-irradiated and irradiated HUVEC to navitoclax, the positive control, suggesting they possess potential to selectively target senescent cells. Comparable results were observed in a senescent human dermal fibroblast model utilizing a silybum marianum flower extract, including selective targeting of senescent cells [25]. Several studies have also shown spermidine to have senolytic activity [26,27], though most studies utilize wheat-germ extracts [28]. To the best of our knowledge, this is the first standardized extract of spermidine derived from mushroom, which are rich in polyamines [29], to demonstrate selectivity and activity towards cellular senescence.

NMN, and quercetin and apigenin extracts all showed certain dose-response effect in non-irradiated and irradiated HUVEC, but no difference in EC50 values between the two conditions, suggesting a lack of selectivity in targeting senescent cells. These compound results are partly consistent with other studies demonstrating the senolytic activity in this same cell line [30,31] or combinations with other senolytic compounds [32], though these studies did not necessarily evaluate selectivity towards non-irradiated and irradiated cell lines, and they utilized different means of inducing senescence (e. g., peroxide, doxorubicin). Another quercetin study showed similar lack of selectivity in HUVEC cells and suggested that human coronary artery endothelial cells may be more relevant cell line for this type of work [33].

Colostrum filtrates, egg yolk extract, and alpha ketoglutarate did not show any impact on cell viability in non-irradiated HUVEC or irradiated HUVEC. Interestingly, this lack of response could suggest a potential use for protecting HUVEC cells against DNA damage caused by irradiation and has been observed with other natural products [34].

3.2. Lifespan and Healthspan Effects of Two Formulas in C. Elegans

Consistent with previous studies [35], the resveratrol-control group showed statistically improved lifespan over the course of the study when compared to the vehicle-control group. Both Formulas 1 and 2 showed a significantly greater lifespan when compared to either control groups, demonstrating the strong potential for lifespan improvements. Not surprisingly, comparable results have been observed with some of the individual ingredients that make up these formulas [36], or compounds that utilize the same pathway [37] and was, in part, the basis for selection of these formula ingredients.

This C. elegans model also employs a novel AI-driven technology to monitor in real-time the activity (e. g., locomotion, behavior, etc.) of the nematodes over the course of the study [38]. While activity can be measured across multiple days that represent early-, mid-, and late-life phases of the worm’s lifespan, in this study, only late-life activity measurements (i. e., days 18, 21, 23, 25, and 28) were recorded and evaluated. The activity results demonstrate an improved healthspan in the late-life phase for both formulas compared to either control group. These overall improvements in healthspan with both formulas are noteworthy considering that other studies have not necessarily seen a correlation between improved lifespan and improved healthspan, though it should be noted these models compared wild-type and long-lived mutants rather than different treatment strategies of wild-type worms [39,40].

3.3. Sirtuin Binding Effect of Two Formulas

To explore the mechanisms involved in the improved lifespan and healthspan of the C. elegans model, the activity of the two formulas was tested in several sirtuin binding assays. C. elegans have four sirtuins [41], one of which has shared homology with humans [42] and are thought to be intimately involved in lifespan improvements [43]. Formula 2 shows moderate activity for all sirtuins tested, whereas Formula 1 only shows moderate activity for SIRT3 and SIRT6. TF was also tested and showed no sirtuin activity, likely because it has been observed previously to have little direct activity in different binding assays [44].

The lesser activity of Formula 1 is interesting since it contains an NAD precursor (i. e., NMN) that is crucial in sirtuin activity and resulting lifespan improvements [45]. The omission of NMN in Formula 2 was compensated for by additional AKG, which has reportedly been shown to coordinate NAD-SIRT1 signaling and results in improved lifespan and healthspan on C. elegans [46]. Further, Formula 2 includes more potent senolytic ingredients, according to the senescence screening assay, and can play a role in increased sirtuin activity [47]. Together, these differences in sirtuin activity between the two formulas might partially explain their subtle variances in lifespan and healthspan improvements observed in C. elegans model.

3.4. Activation of NK Cell Activity by TF in Human PBMCs

Though TF did not show any sirtuin activity, it has been repeatedly demonstrated for its immunomodulatory properties, including boosting natural killer cell activity [21,48]. The impact of other immunostimulants on natural killer cells in the C. elegans model demonstrates its therapeutic potential [49] and may be particularly relevant given the impact of NK cells on the aging human immune system [50,51].

One of the more striking human studies evaluated NK cytotoxicity of centenarians and showed their immune system was more closely related to younger subjects compared to middle-aged subjects [52]. The fact that TF treatment significantly increased NK cell activity in PBMC samples from both younger and older donors suggests that it has the potential to rejuvenate immunosenescent cells into a more youthful and active state. Further investigations are warranted to determine if TF directly translates into improved lifespan and healthspan of C. elegans.

There are several limitations to these studies that are worth noting. Foremost is the lack of lifespan and healthspan as well as sirtuin activity data on the individual ingredients contained in the two formulas, which could then lend better insights into additive or synergistic benefits when combining the ingredients. The selection of the formula composition was primarily driven by a combination of existing literature for C. elegans and sirtuin activity, as well as the senolytic activity of the screened ingredients. Further, some of the ingredients chosen in the formulas were trending toward selective senolytic activity but did not reach statistically significant differences in the non-irradiated and irradiated HUVEC cells, which may suggest uncertainty in their selectivity as senolytic agents.

4. Materials and Methods

4.1. Test Compounds and Formulations Used in Studies

All ingredients and formulas were supplied by 4Life Research. Colostrum filtrates were prepared by defatting whole bovine colostrum and ultra- or nano-filtering to concentrate the peptides and proteins with molecular sizes smaller than 10,000 or 5000 Daltons, respectively. The colostrum filtrates were spray-dried to a fine powder. Chicken egg yolk extract was prepared by separation of the yolk from the albumen and eggshell, followed by spray-drying to a fine powder. TF is a proprietary combination of these colostrum filtrates with the egg yolk extract. NMN is a food-grade bulk powder, greater than 98% pure.

Quercetin is extracted from Saphora Japonica buds, standardized to greater than 95% purity. Silybin is extracted from Silybum marianum fruiting body, standardized to greater than 30% purity. Apigenin is extracted from Apium gravolens seeds, standardized to greater than 98% purity. Spermidine is extracted from Agaricus bisporus fruiting body, standardized to greater than 1% purity. Alpha ketoglutarate is a food-grade crystalline powder, greater than 99% pure. Other individual ingredients (e. g., green tea extract, fisetin extract) were also examined in the senescence assay but are not described in detail due to their lack of activity.

The formulas were comprised of various combinations of the above ingredients. Formula 1 is a combination of AKG (>45%), NMN (>25%), colostrum filtrates (> 5%), quercetin extract (>2%), spermidine extract (>2%), egg yolk extract (>2%), and apigenin extract (>2%). Formula 2 is a combination of AKG (>75%), colostrum filtrates (> 5%), quercetin extract (>2%), spermidine extract (>2%), egg yolk extract (>2%), and silybin extract (>2%).

4.2. Screening of Natural Products for Selective Cellular Senescence Activity

HUVEC were thawed from cryopreservation and seeded to T-182 cm2 flasks in growth medium: Vascular Cell Basal Medium (PCS-100-030) supplemented with an Endothelial Cell Growth Kit-VEGF (PCS-100-041). Cells were passaged when confluence reached 80% and were detached using accutase following manufactures guidelines. Incubation conditions were 37.0°C with 50% CO2.

Upon initiation of study, HUVEC were seeded to white, clear-bottom 96-well plates at a seeding density of 12,600 cells/well in 100 μL of growth medium for downstream work in dosing with 4Life compounds. Cells were also seeded to black, clear-bottom 96-well plates at a seeding density of 12,600 cells/well in 100 μL of growth medium for downstream quality control of senescent phenotype expression. All plates were then subsequently irradiated with a 10 Gy insult to induce cellular senescence. Plates were incubated for 72-hr post-irradiation with a complete media change to 100 μL fresh growth medium 24-hr post irradiation.

At 48-hr post-irradiation of group 1, HUVEC maintained in culture were seeded to white, clear-bottom 96-well plates at a seeding density of 6,300 cells/well to match the remaining cells that experienced irradiation from group 1 for downstream use in dosing. Cells were also seeded to black, clear-bottom 96-well plates at a seeding density of 6,300 cells/well in 100 μL of growth medium for downstream quality control of senescent phenotype expression.

Study samples were reconstituted in DMSO to 10 mg/mL. White, clear-bottom 96-well plates from Group 1 and Group 2 were removed from incubation and dosed in 11-point serial dilution with study samples in triplicate. Plates were imaged directly post-dose and returned to incubation for 72-hr.

Upon completion of the 72-hr incubation, plates were removed from incubation and imaged for representation of dosing effects. Plates were then subsequently analyzed for viability using CellTiter-Glo Luminescent Cell Viability Assay (Promega G7570) following vendor protocols. Raw luminescent values were plotted against study samples concentrations to look for dose-response and EC50 values plotted as compared to Navitoclax.

Cellular senescence was verified using HUVEC seeded to black, clear-bottom 96-well plates from Group 1 and Group 2 were analyzed the same day as initial dosing for senescent phenotype expression using the following methods: Click-iT EdU Staining (Thermo C10338), SA-β-Gal (Cell Signaling 9860) following vendor recommended procedures [53].

4.3. Lifespan and Healthspan Effects of Two Formulas in C. Elegans

The methods employed are essentially the same as originally published [38]. Wild type (N2) C. elegans were cultured on 60 mm petri dishes (Fisher Scientific; Austin, TX, USA) on a standard food source of E. coli OP50 and incubated for 48 hours at 20°C. For age synchronization, a suspension of gravid adults in 20 mg/mL E. coli OP50 were loaded into microfluidic chips and allowed to lay eggs for 2 hours [54]. These progenies were grown for 3 days and then loaded into microfluidic chips along with 20 mg/mL of E. coli OP50 in liquid Nematode Growth Medium (NGM). Two concentrations of Formula 1 (2.088 and 4.176 mg/ml) and Formula 2 (2.492 and 4.984 mg/ml) were formulated in liquid NGM and mixed with DMSO (Fisher Scientific). The lower concentrations represent the human equivalent dose (1x HED) in C. elegans based on human consumption dosage of these formulas and the higher concentration represents 2x HED [55]. A positive-control group with 100 μM Resveratrol and a vehicle control were also included. In all tested solutions, the final concentration of DMSO was maintained at 0.2 % v/v and the food concentration was maintained at 20 mg/mL of E. coli OP50.

Each microfluidics assay was conducted in triplicate (three biological replicates), and each biological replicate consisted of 2 technical replicates. One technical replicate is a population of ~60 animals in a microfluidic growth chamber. For each lifespan assay, videos were acquired each day to determine live counts, prior to feeding fresh doxazosin solutions. L4 stage was counted as day 0 of adulthood. Videos were analyzed using the Infinity Code software (NemaLife Inc., TX) for animal survival and motility. The number of living animals in the population was determined based on detectable movement.

Mobility was determined based on the displacement of individual animals from the rectangular area (bounding box) that encloses their whole body. The inverse of the pixel correlation was used to indicate how far the worm has moved outside of the box within 30s. If the animal has entirely left the box, there is no pixel correlation between the two frames, an activity score of 1 was given and were labelled “highly active.” If the worm has not moved at all between the two frames, then the pixel correlation is identical, which gives an activity score of 0.

The percentage of highly active animals in the population was then calculated. Statistical comparisons were performed in GraphPad Prism using two-way ANOVA. Kaplan-Meier curves from the lifespan assays were generated using GraphPad Prism.

4.4. Sirtuin Binding Effect of Two Formulas

Experiments followed standard procedures of Eurofins Cerep (Celle l’Evescault, France). Briefly, the test compound, reference compound or water (control) are preincubated for 5 min at 22°C with enzyme in a buffer containing 45 mM Tris-HCl (pH 8.0), 123.3 mM NaCl, 2.43 mM KCl, 0.9 mM MgCl2 and 0.18% BSA. For stimulated control measurements, the mixture also contains 1 μM of activator resveratrol.

Thereafter, the reaction is initiated by adding 200 μM of the fluorogenic HDAC substrate and 500 μM of β-NAD co-substrate (for Sirtuin 2: 150 μM of the fluoro-lysine sirtuin 2 deacetylase substrate and 400 μM of β-NAD co-substrate; for Sirtuin 3: 20 μM of the fluoro-lysine sirtuin 2 deacetylase substrate and 500 μM of β-NAD co-substrate; for Sirtuin 6: 50 μM of the fluorogenic HDAC substrate and 150 μM of β-NAD co-substrate), and the fluorescence intensity is measured at λex=355 nm and λem=460 nm using a microplate reader (Envision, Perkin Elmer). This measurement at t=0 allows the detection of any compound interference with the fluorimetric detection method at these wavelengths. The mixture is then incubated for 20 min at 22°C.

After incubation, the reaction is stopped by adding one assay volume of buffer containing 1 cc HDAC developer (peptidase activity, BPS Bioscience). After 15 min (for Sirtuin 6: 60 min), the fluorescence intensity emitted by the reaction product fluoro-lysine is then measured at the same wavelengths (for Sirtuin 1, t=35; for Sirtuin 2, t=75; for Sirtuin 3, t=60; for Sirtuin 6, t=180). The enzyme activity is determined by subtracting the signal measured at t=0 from that measured at the end. The results are expressed as a percent inhibition of the control activity. The standard inhibitory reference compound is tested in each experiment at several concentrations to obtain an inhibition curve from which its IC50 value (for activator, EC50) is calculated.

Three compounds (TF, Formula 1 and 2) were tested for IC50 or EC50 determination. Compound enzyme inhibition effect was calculated as a % inhibition of control enzyme activity. Results showing an inhibition or stimulation higher than 50% are considered to represent significant effects of the test compounds.

4.5. Activation of NK Cell Activity by TF in Human PBMCs

The methods used are essentially the same as described previously [56]. Briefly, immune activity of tested samples was evaluated based on ability of treated PBMC samples to kill K562 cells, which are identified as health threats. PBMC samples were taken from six younger subjects (3 females, 3 males) with an average age of 27, and five older subjects (2 females, 3 males) with an average age of 62.

The samples were treated for 48 hours prior to analysis. Killing events are quantified by flow cytometry using DAPI (4′,6-diamidino-2-phenylindole) staining. Results were normalized using PBMC+K562 treatment alone. The treatment group was PBMC+K562 +TF. Differences between groups were explored using ANOVA. Statistical significance was determined with the t-test method. Results were considered statistically different if p < 0.05.
