Characterization of Stone Waste Sludge and Preliminary Investigation on Green Materials Based on Traditional Lime Putty

1. Introduction

In recent years there has been a growing interest in lime-based materials used for the preparation of mortars, plasters and paints in water solutions. In the field of the conservation of the built heritage, lime-based products show the requirements of physical, chemical, and mechanical compatibility with vertical closures typically made of stone or brick [1,2,3,4]. Furthermore, lime is a material that can greatly contribute to the fight against climate change by reducing the amount of carbon dioxide released into the atmosphere [5,6,7,8]. The so-called lime cycle involving limestone burning, slaking of quicklime (CaO), and carbonation of calcium hydroxide (Ca(OH)₂) offers the environmental benefit of carbon neutrality that the same amount of carbon dioxide emitted by limestone calcination is captured during the phase of hardening. For this reason, there is a rediscovery of lime-based materials in the new construction sector as well. Their use can contribute significantly to the ecological transition of the construction sector. Moreover, the lime-based surface finishings have a high biocidal power thanks to the high alkalinity and guarantee the conditions of environmental comfort for their high vapor breathability. Numerous studies have shown that the traditional production processes using wood as fuel with a calcination temperature around 800°C-1000°C and the ageing of lime putty give a lime of better quality with a high reactivity of the particles of calcium hydroxide [9,10,11,12,13,14,15,16,17]. Lime putties obtained traditionally and aged for a long period according to the good practices handed down by Vitruvio show the presence of nanosized particles ranging from 50 to 130 nanometers [14,15]. The nanometric dimensions of traditional slaked lime with a high specific surface area and high reactivity justify the excellent technological properties and high durability of Roman concrete made from mixtures of long-ageing slaked lime and pozzolan. Therefore, the use of Traditional Lime Putty (TLP) can lead to the development of high-performance nanotechnological green materials with a wide range of applications both in the conservation of the built heritage and in new buildings [18]. Moreover, the sustainability of traditional lime products can be increased by replacing natural or artificial aggregates with waste or scrap from other production processes.

Fine dust from the quarrying and processing of ornamental stones is potentially suitable for reuse as an inert component of new green materials designed to reduce the amount of waste taken to landfills.

Preceded by China, India, Turkey, Iran, and Brazil, in 2018, Italy ranked sixth as a producer of stone materials worldwide, with volumes totaling 6 million tons, accounting for almost 4% of the market share [19]. The extraction and processing of stone involve two primary mechanical treatments, namely the ashlars-size cutting and the surface grinding-polishing. These mechanical operations generate a considerable amount of various types of wastes having the same chemical composition but different sizes. The stone wastes can be categorized into two types: (i) large scraps and debris, and (ii) sawdust sludge with a solid content of less than 10 percent in mass. This latter one is produced by using water for lubrication, cooling of tools with diamond blades, and for dust abatement in workplaces. Sawdust sludge undergoes an initial sedimentation process, raising the percentage of solid matter to 30-35% with the recovery of the aqueous fraction in the production cycle. The subsequent process of filter pressing increases the content of solid matter up to 70-75% and originates a waste, known as marmettola (SWS), which is taken to a landfill or used to fill decommissioned quarries.

The waste generated from the cutting and processing of stone can range from a minimum of 35% to a maximum of 75% of the stone product. Thus, from 100 kg of stone (block) input, only 25 kg of finished product can be obtained, while the remaining 75 kg is waste. On average, the SWS is equal to 22.5% of the processed raw material. In Italy, the ISTAT data for “Extractions of non-energy mineral resources from quarries and mines by type, region, and geographic distribution” in 2020 [20] reports an annual production of extracted stone materials of 98.587.000 tons, which implies the production of SWS in the same year amounting to 22.182.000 tons. In the same year, Apulia (Puglia) and Basilicata extracted 13.074.000 tons and 3.252.000 tons of product, respectively, with a corresponding production of approximately 2.942.000 tons and 732.000 tons of SWS.

According to Italian regulations, SWS is subject to waste provisions and must be classified under the code "CER 01 04 13 - waste produced from stone processing, different from those referred to in item 01 04 07". There is the possibility of being classified as a by-product when it can be used in other processing cycles and meets all the requirements of Article 184 bis of Legislative Decree 152/2006. In the absence of even one of the conditions provided by the regulation, the material remains classified as waste with code "CER 01 04 13" and must be disposed of, obligatorily, according to the SISTRI system, in authorized landfills, in the ways prescribed by the Environmental Code if it is not recycled [21].

Many studies explore the reuse of SWS in various industrial contexts within the engineering field. For instance, one potential application involves using SWS as a neutralizing agent for acidic wastewater in the glass industry [22] or as a heavy metal removal on industrial wastewater [23]. Due to its finely reduced granularity, the SWS is expected to expedite and simplify the limestone suspension process required for neutralization. Additionally, it finds application in the desulfurization of combustion fumes in high-power industrial burners, utilizing both dry and wet technologies [24,25,26]. Moreover, SWS can be employed as a soil amendment for neutralizing acidic agricultural soils, enhancing their performance by raising the pH and impeding water evaporation through its significant hygroscopic properties [27,28]. In the realm of the construction industry, numerous studies highlight the utilization of stone processing waste as a secondary raw material in formulating innovative materials for the production of concrete [29,30,31,32,33,34,35,36,37,38,39,40,41,42,43], bricks [44], cement [45,46,47], tiles [48], and mortar [49,50,51,52,53,54,55,56,57,58]. SWS can replace cement and/or fine aggregate with different percentages due to its high fineness which provides good cohesiveness of the mix, increases the workability, and reduces the permeability of concrete. To increase the cement-based mortar's workability, lime is added in substitution of part of the cement, so in some studies, the replacement of the hydrated lime with SWS is tested [55]. In other studies, the replacement of part of sand with SWS is tested both in cement and lime based mortar [56] and in only lime-based mortars [57]. In addition, further research revealed the opportunity to use marble slurry as a binder to produce a calcitic air-hardening lime [58].

The paper presents the preliminary results of a research activity aimed at developing TLP-based green materials, such as mortars and plasters, by partial substitution of natural aggregates with stone processing waste, called SWS, from the Apricena limestone production district in Apulia. The innovativeness of the research lies in the fact that, as mentioned, this application is to date not much investigated in science. Preliminary studies therefore concern the characterization of SWS, the design of the mixtures and initial verifications of the behavior in the fresh state of the proposed mixtures.

2. Materials and Methods

2.1. Materials

TLP with an aging period of six months produced by Legnami Adriatica of Fasano (Brindisi, Apulia) was used for the preparation of the mixtures of green mortar and plaster. The company was founded in 1945 as a timber production company for the building and carpentry industry. A few years after its foundation, the wood-fired lime production line was added to the industrial carpentry activity to recover as a source of energy the large quantities of wood residues resulting from the debarking and sawing of wood logs.

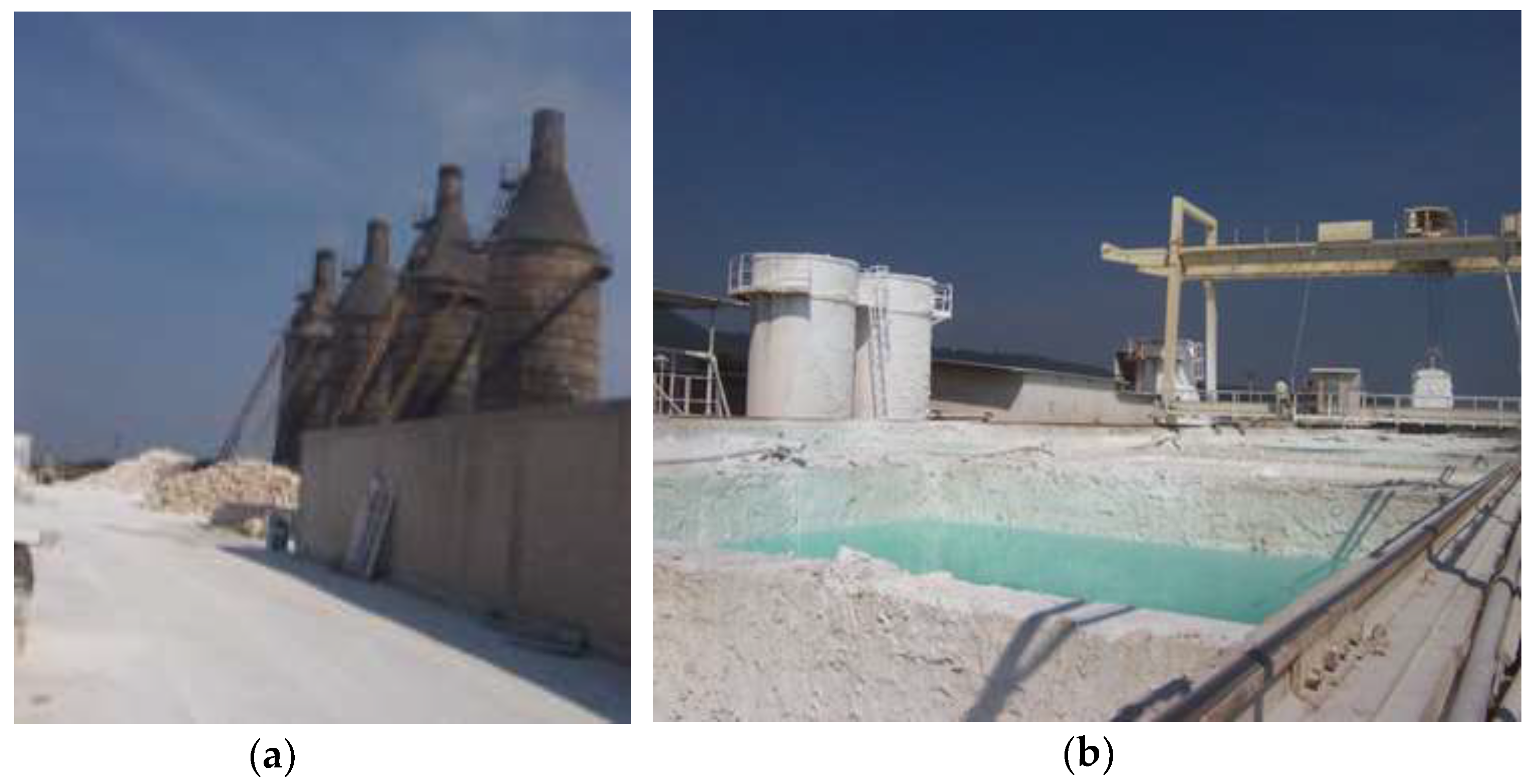

Figure 1 (a) shows the production kilns of the vertical type with four natural draught side fireplaces and automatic lifting skips for loading limestone pebbles from the top. Kilns use wood production waste as fuel and reach temperatures of 900-1000°C. The limestone pebbles descend into the kiln, encountering increasingly hot fumes in counterflow. In this way, a gradually fired, fat, white, and pure quicklime is produced. The quicklime is slaked in tanks where long-term aging of lime putty also takes place (Figure 1(b)).

Three different types of ground calcareous sand were used for sample preparation: 1) coarse sand with a maximum diameter of 3 mm; 2) fine sand with a maximum diameter of 2 mm; 3) fine white sand with a maximum diameter of 1 mm obtained from the Carovigno limestone.

The selected aggregates are usually used for the preparation of commercial premixed products of the company.

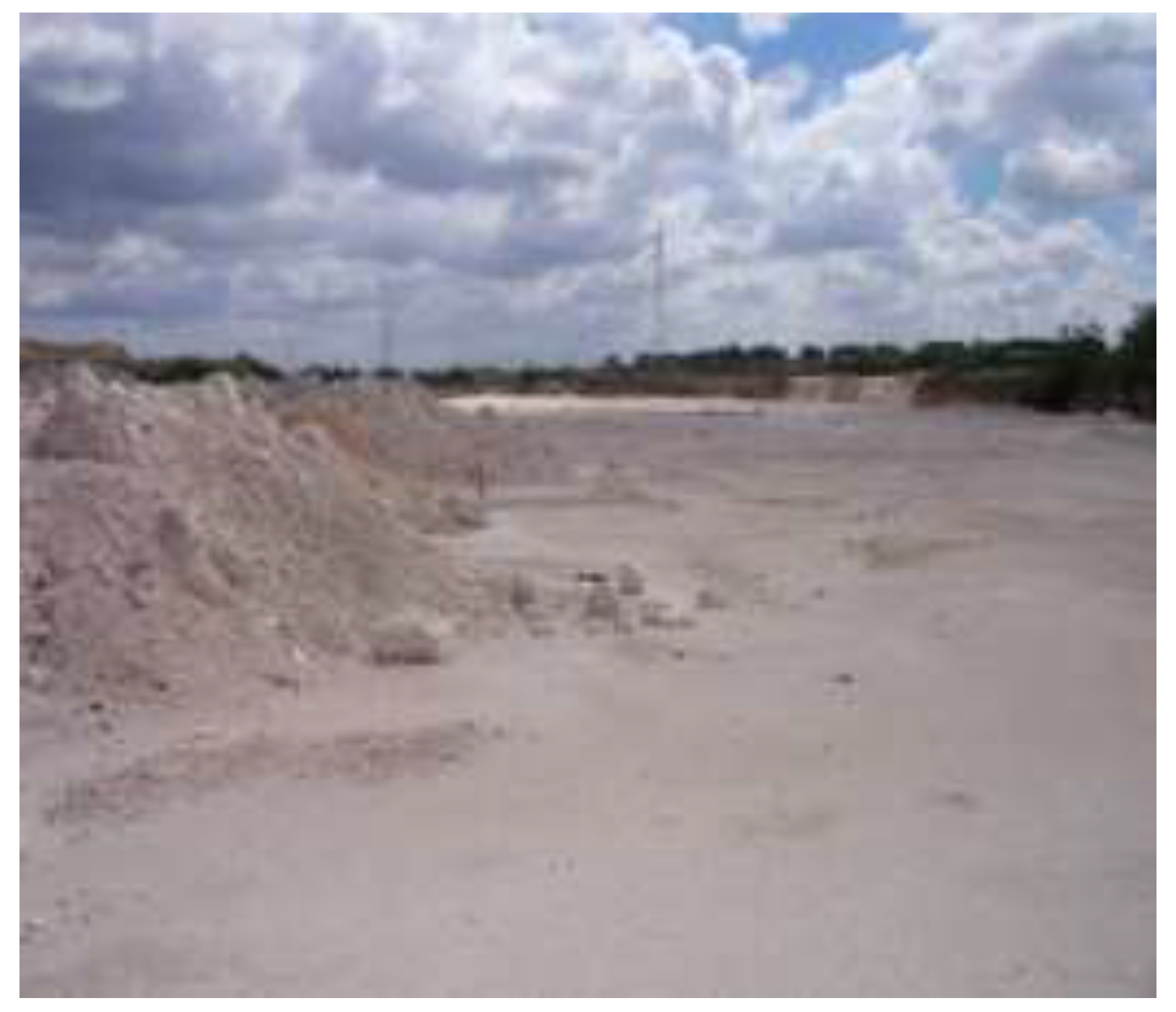

The stone waste was taken from the San Sabino landfill in Apricena. Apricena stone comes from the extraction and processing of carbonate rock in quarries located near the town of Apricena from which it takes its name. It’s a white stone material belonging to the local construction tradition that is still widely used in the building industry and that generates a large amount of waste with a low rate of recovery. In 2022, in the extraction district of Apricena, a total of 17.800 tons of SWS were disposed of in the quarry.

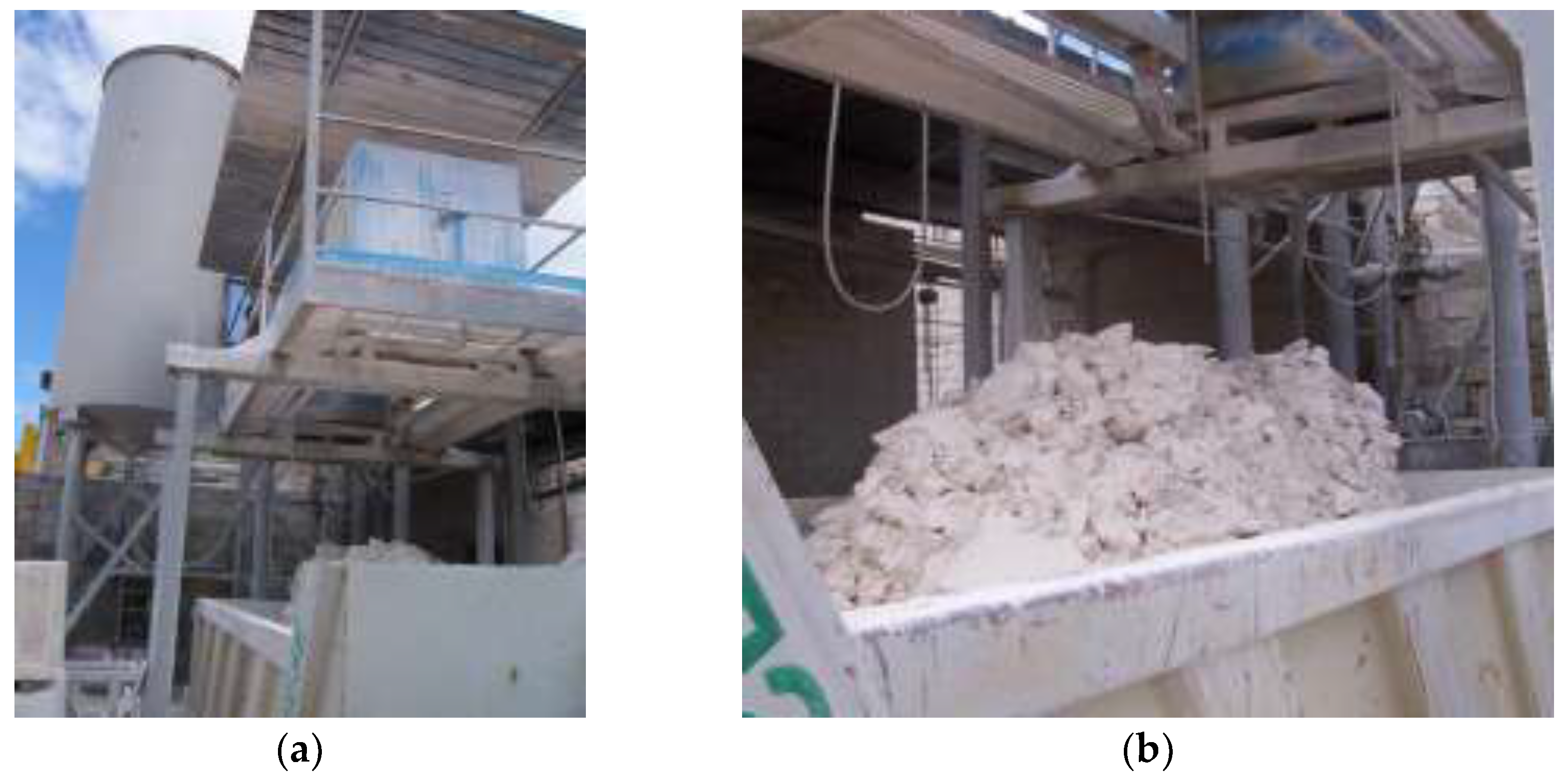

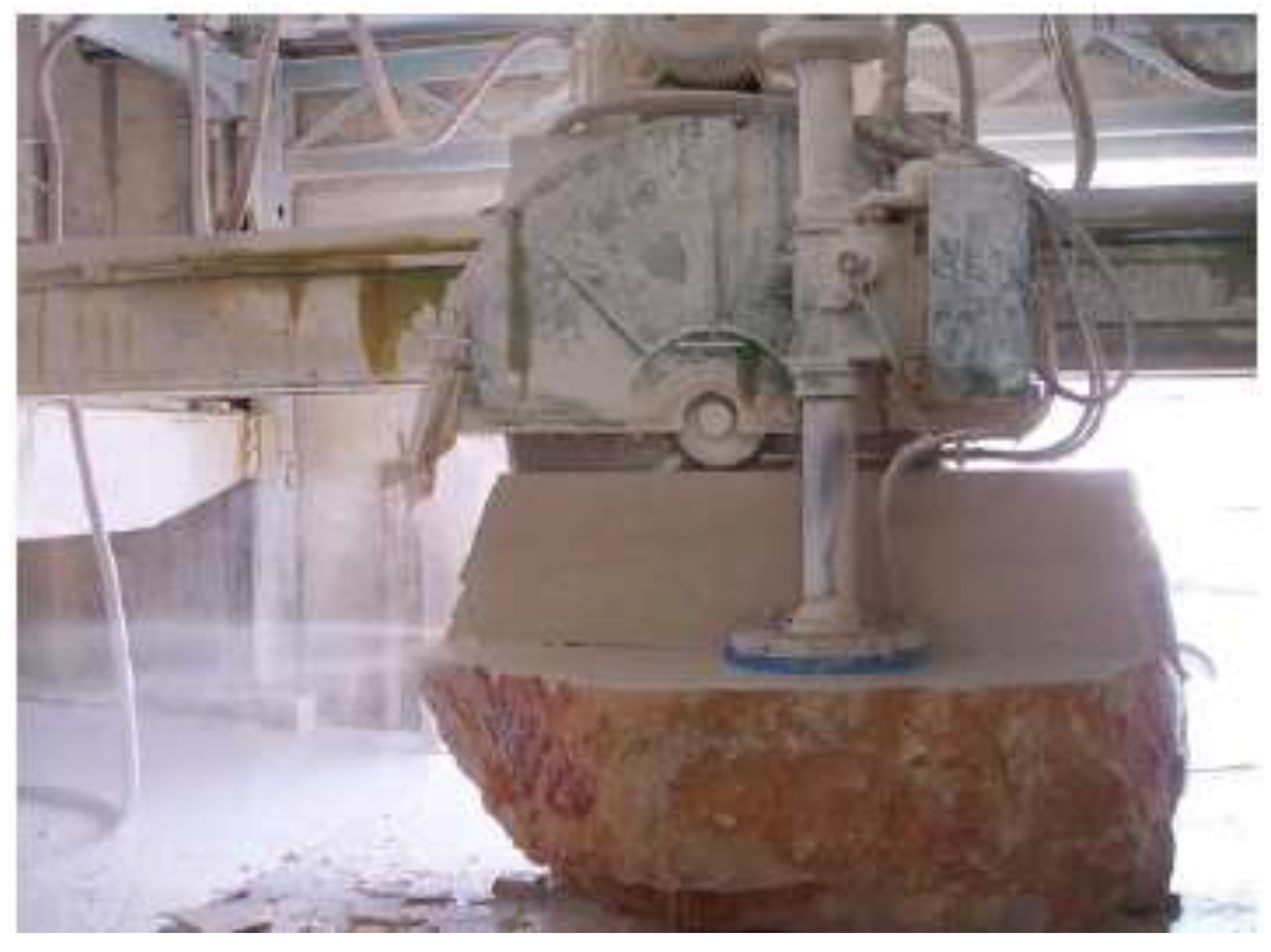

Figure 2 shows the tool with a water-cooled diamond blade used in the cutting and processing of the limestone rock. The sawing sludge is first subjected to sedimentation in a settler and then filter pressed. Figure 3, (a) and (b) illustrate, respectively, the filter-pressing system filter and the stone waste, SWS, at the end of treatment. A polyelectrolyte solution (flocculant) is added to sawdust sludge with a dosage of 70-80 mg per 1 kg of dry material before entering the settler to enhance the settling speed of solid particles. The cutting of 1 m² of stone requires an average of 10 l/min of water and produces around 18.5 kg of filter-pressed SWS. The collected SWS is transported to landfills for inert materials, typically located in decommissioned quarries, and utilized until their filling (Figure 4).

2.2 Analytical Techniques for Mineralogical, Chemical, and Physical Characterization of Apricena SWS

The mineralogical and chemical characterization of the SWS was carried out using the X-ray diffraction (XRD) technique and thermogravimetry differential thermal analysis (TG-DTA). A powder diffractometer, Philips PW 3710, with monochromatic CuK α radiation (λ = 0.154056 nm) at 40 kV and 30 mA was used for the identification of mineralogical phases. The diffraction data were collected from 0 to 60° of 2θ at a scan rate of 2° 2θ per minute. A simultaneous thermal analyzer, Netzsch STA 400, equipped with a computerized data processing system was used for TG-DTA. The heating test was performed at the maximum temperature of 1100°C with a fixed rate of 10°C/minute in static air. The value of non-carbonate impurities was also verified by acid attack of the sample with a 3% solution of hydrochloric acid and subsequent filtration of the solution with a paper filter.

The chemical composition of SWS was determined by X-ray fluorescence spectrometry using a Siemens SRS 303 sequential spectrometer.

To verify the non-hazardous classification of the SWS, according to the reference standard, it was subjected to an eluate analysis according to UNI 10802:2023. [59]

The specific weight of the sample was calculated using a pycnometer with a wide neck and distilled water.

The sample's moisture content was calculated through successive measurements of the mass of a sample heated in a ventilated oven at a temperature of 110°C until a constant mass value was reached.

The ISO test was also performed to evaluate the Brightness [60,61].

The particle size distribution of SWS was evaluated using the sedimentation method of liquid dispersions of samples in demineralized water. In addition, considering the fineness of the sawdust sludge, the laser diffraction method with Mastersize-S equipment from Malvern Instruments was employed to measure the particle sizes of stone waste. The technique is based on the principle that particles illuminated by a laser beam scatter light at an angle related to their size. As the particle size decreases, the observed angle of scattering (diffusion) increases logarithmically.

The specific surface of the SWS was also assessed using the Blaine Method according to UNI EN 196-6:2019 [62]. The equipment used is a Blaine’s Air Permeameter from Controls Srl, model 62-L0042/A. Under normalized conditions, the specific surface area of the sample is directly proportional to √t, where t is the time required for a certain amount of air to pass through the sample. To calibrate the instrument, a Portland cement with the specific weight ϱo =3.15 [gr/cm3], √to =9.92 [s 1/2], specific surface area So=3774 [cm2/gr].

2.3 Preparation of Mortars and Plasters Based on TLP and SWS

For the preparation of mortar and plaster samples, an analytical balance, volumetric dosing containers, and a propeller stainless mixer were used.

The behavior of three types of fresh plasters based on TLP and stone waste has been evaluated. The first mixture is a coarse plaster containing 6 parts in volume of coarse sand (dmax = 3 mm) and 1 part in volume of SWS with a volume ratio of aggregate and lime putty of 3.5. The second mixture is a fine plaster containing 6 parts in volume of sand (dmax = 2 mm) and 1 part in volume of SWS with a volume ratio of aggregate and lime putty of 3.5. The third mixture is a finishing plaster containing 2 parts in volume of white fine sand (dmax = 1 mm) and 0.5 part in volume of SWS with a volume ratio of aggregate and lime putty of 2.5, as shown in Table 1.

Table 2 shows the bulk density of the mixtures’ components measured using the weight of the dried samples contained in a graduated transparent cylinder of 200 cc. Table 3 shows the composition in parts by volume and by mass of the mixtures.

The masses of the components were obtained by multiplying the bulk density by the volume parts of the mix design. The mass percentages of the components were obtained from the total mass of the mixtures. The dosage of SWS in the coarse plaster, fine plaster, and finishing plaster are equal, respectively, to 12.90% in mass of total mix and 16.44 % in mass of aggregate, 17.94 % in mass of total mix, and 25.62 % in mass of aggregate, 18.24 % in mass of total mix and 28.42 % in mass of aggregate. A 2.25 kg sample was prepared for each mixture.

The mixtures were prepared according to volumetric dosages in accordance with the usual practice of the industry where the trials were carried out, with volumetric ratios of aggregate to plaster of 3.5 for coarse and fine plaster and 2.5 for finishing plaster. The percentage substitution of natural aggregates for waste was also based on the company's practice in preparing similar mixtures using artificial aggregates obtained from demolition waste of similar fineness.

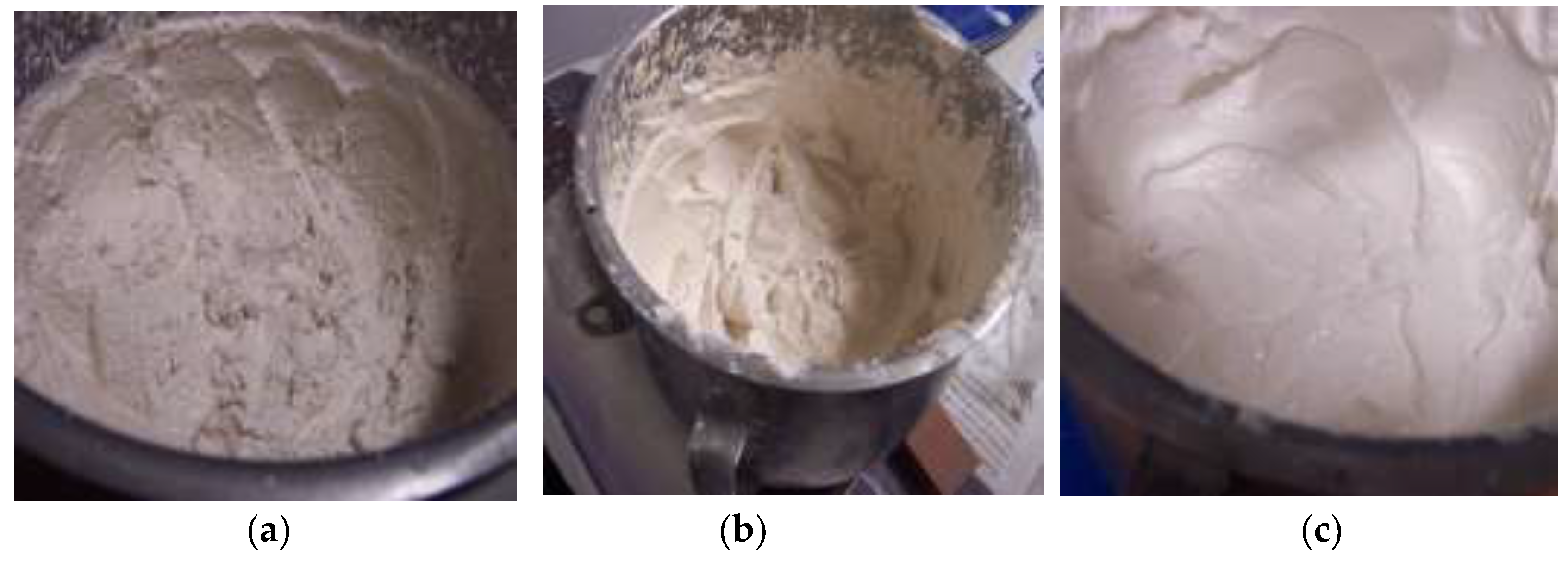

Figure 5 shows the appearance after mixing the three samples of coarse plaster, fine plaster, and finishing. For each sample, a mass of 900 grams was used for consistency measurement with the spreading test. The remaining quantity was used for the applicability tests on a perforated brick. The consistencies of the mortars are different from each other as the aggregates used are of decreasing grain size starting with the coarse mortar and ending with the finishing plaster.

The consistency of the samples was evaluated with the spreading test according to UNI EN 1015-3:2007 [63]. The equipment used to perform this test consists of a shake table with a drop height of 15 mm with a frequency of 60 drops per minute and a truncated cone mold in stainless steel with a height of 60 mm and diameters of 100 mm and 70 mm and the thickness of 2 mm. The test was performed on a sample of approximately 900 g of fresh mortar placed inside the truncated cone mold in two layers, each of which was compacted by at least 10 short pestle strokes to ensure an even filling of the mold. After about 15 seconds, the mold was slowly lifted vertically and the mortar was spread on the disc by vibrating the flow table 15 times at a constant frequency of about one blow per second. The diameter of the mortar in two mutually perpendicular directions was measured using a gauge. The average value of the two measurements is the consistency value of the test sample.

Plaster applicability tests were carried out on a ceramic slab using metal and wooden trowels.

3. Results and Discussion

3.1 Characterization of Apricena Stone Waste (SWS)

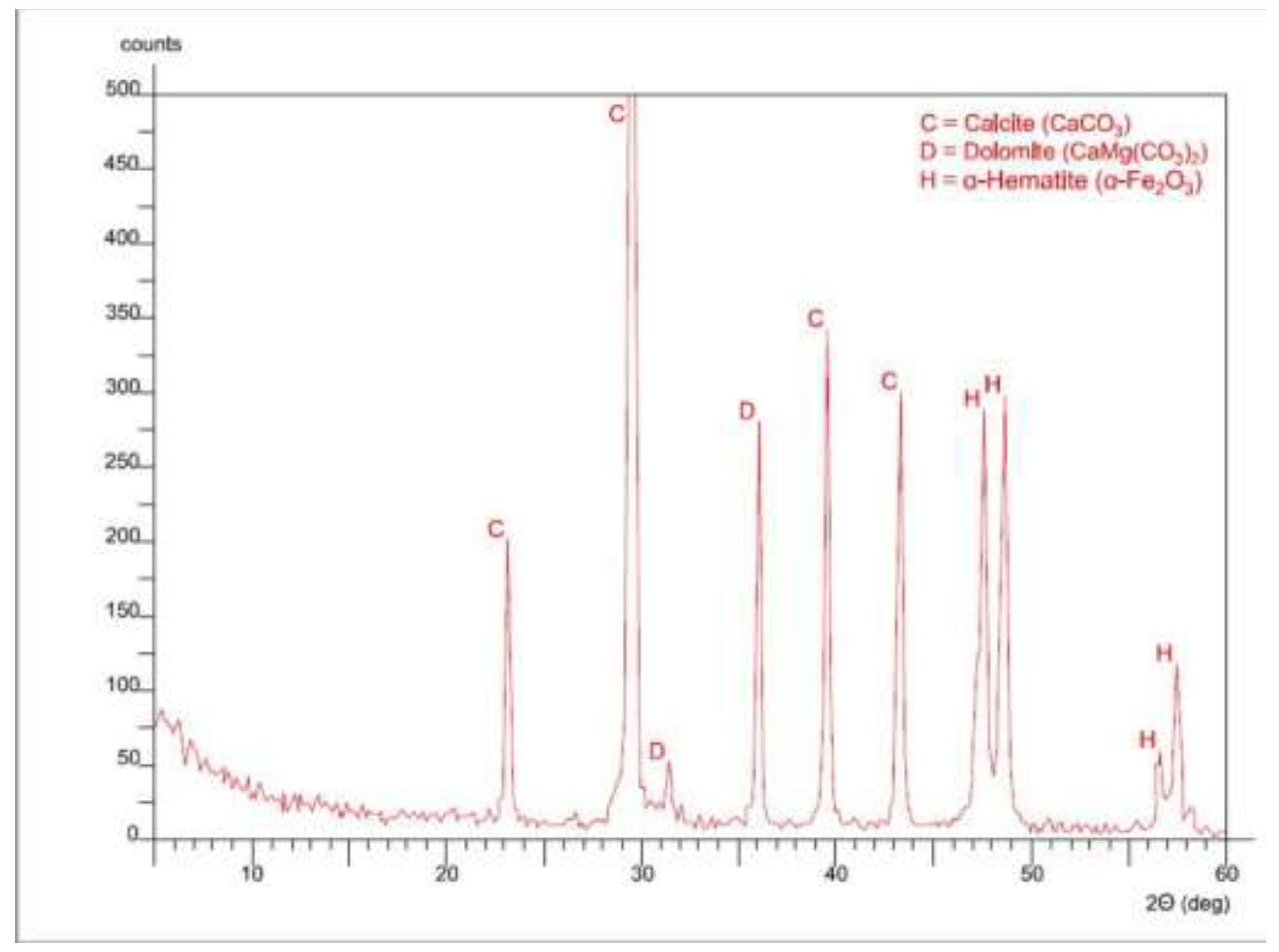

Mineralogical analysis was carried out by X-ray diffractometry. Figure 6 shows the diffraction pattern of the fine powder sample. The X-ray pattern was compared with the Jade Library Joint Committee on Powder Diffraction Standards (JCPDS) card. Results show that the main phase is calcite (CaCO₃), Dolomite (MgCa(CO₃)) and hematite (α- Fe₂O₃) were detected as compounds in traces.

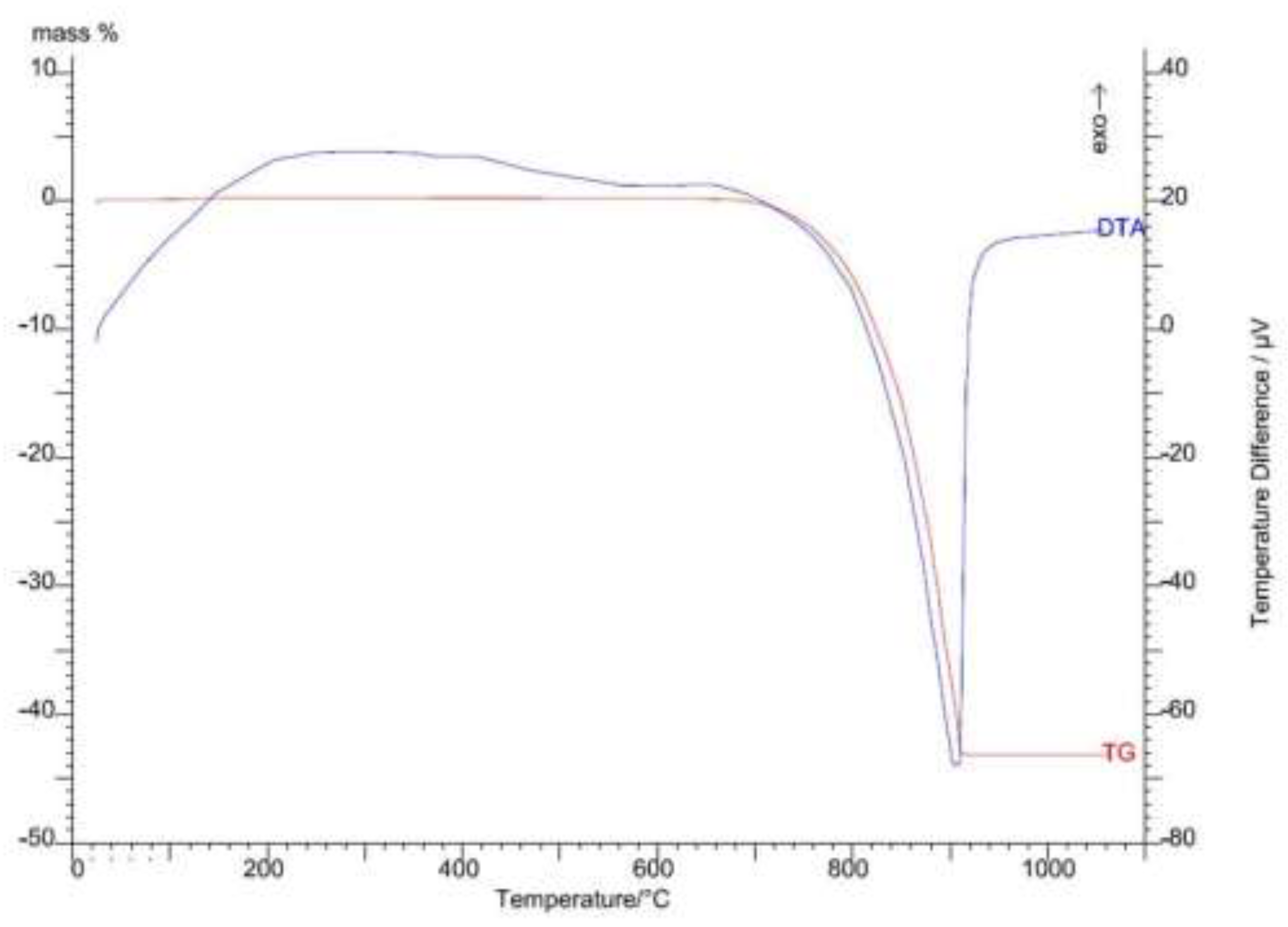

Figure 7 illustrates the results of TG-DTA. The differential temperature curve shows an endothermic peak at the temperature of 900°C at which the calcination reaction takes place with the formation of calcium oxide and the release of carbon dioxide [64,65], according to the following equation (1):

CaCO₃→CaO+CO₂

(1)

The thermogravimetric curve shows a sample mass loss of 43.30%. This value is below the stoichiometric mass loss equal to 44% of the calcination reaction. It indicates a calcium carbonate content of 98.41 % by mass. The experimental data was confirmed by the hydrochloric acid attack performed on two powder samples.

The results of the hydrochloric acid attack test on SWS samples to verify the presence of impurities, shown in Table 4, indicate an average value of non-carbonate impurities of 1.56% by mass and a calcium carbonate content equal to 98.44% by mass, which is in agreement with the experimental data obtained by TG-DTA. The nature of non-carbonated impurities of the sample can be investigated through further chemical analyses, but given the insignificance of the percentage, no further investigation was deemed necessary at this stage.

The chemical composition of SWS, as determined by X-ray fluorescence spectrometry, is shown in the Table 5. SWS is composed mainly of CaO, consistent with what has been observed in the other characterization tests. All other components are present in amounts less than 0.1% except MgO.

The results of the eluate analysis, aimed at verifying the presence or absence of hazardous elements within the SWS, are shown in Table 6. In relation to these results and with reference to the Italian Regulations [66], the SWS is found not to be "non-hazardous waste" and can be destined for recovery.

The specific gravity measured with the use of a pycnometer and an analytical balance gave the value of 2.80 gr/cm3.

The moisture content of the SWS was measured by using a ventilated oven and an analytical balance was equal to 23.5%.

The test conducted to measure the ISO Brightness Level indicated a very high and nearly pure degree of whiteness with a value of 93.5% ± 1.

Table 7 illustrates the particle size distribution of solid particles obtained by the method of sedimentation of liquid dispersions in the water of the sample of SWS. According to the AGI Classification [67], it can be defined as weakly sandy and clayey silt.

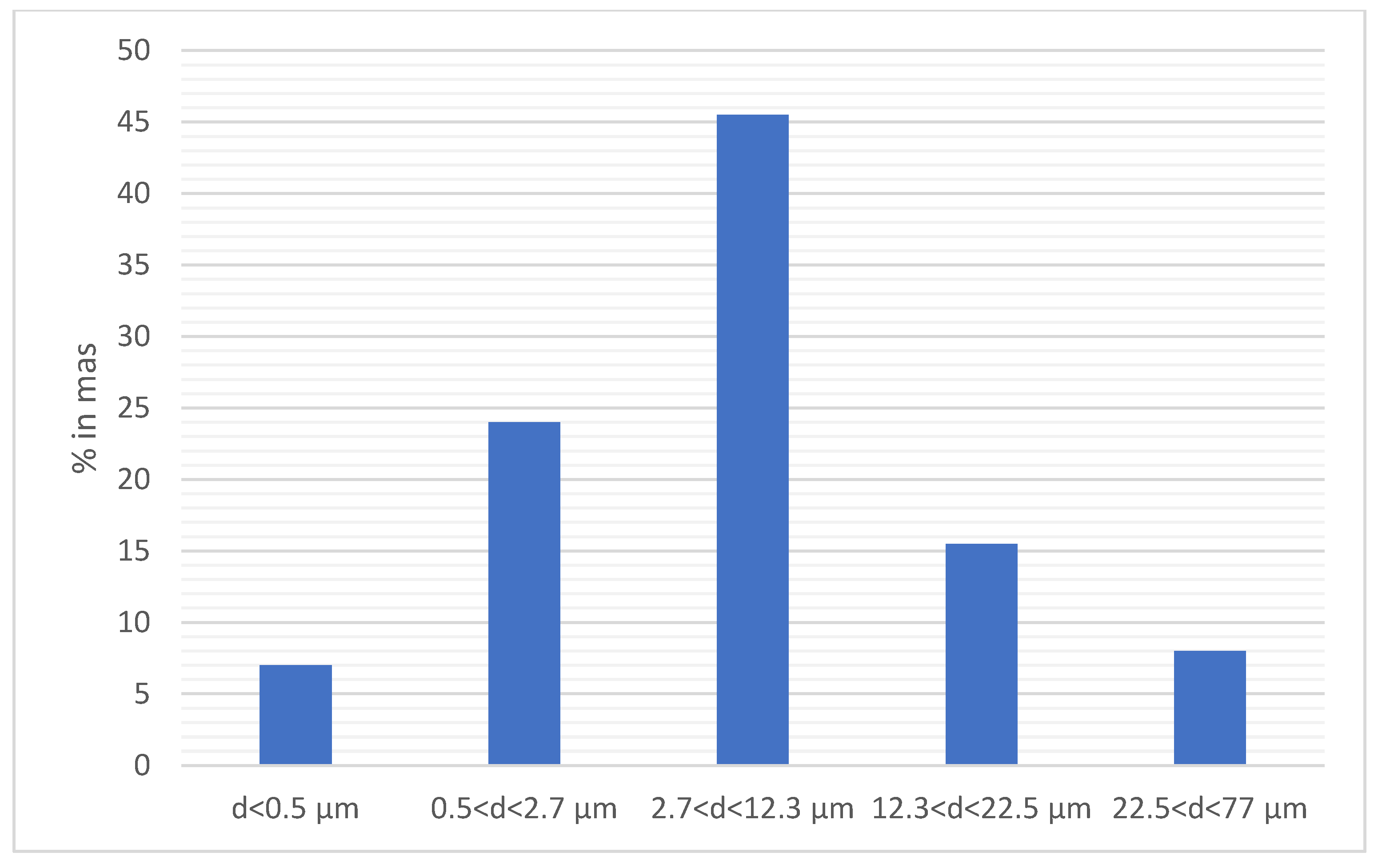

Figure 8 shows the particle distribution obtained by the laser diffraction method. The maximum particle size, expressed as equivalent diameter, is equal to 77 μm. It can be observed that only 8% in mass have a particle size ranging between 22.5μm and 77μm, while the remaining 92% in mass have a particle size below 22.5μm, with 7% in mass having a particle size below 0.5μm.

Five measurements were performed to calculate the specific surface area using the Blaine method: A1 and A2 on the same sample, A3, B1 and B2 on three different samples. For each measurement, the temperature, measurement time and the time t taken for the air to pass through the sample were recorded. The specific surface area of each sample was calculated using the following formula (2):

$$S_i=K\sqrt{t}$$

(2)

where the constant K is equal to 1198,40 [cm-1∙s-1/2] using the following formula (3):

$$K={\displaystyle \frac{{\rho }_o}{\rho }}{\displaystyle \frac{S_o}{\sqrt{t_o}}}$$

(3)

with

• ϱo =3.15 [gr/cm3], specific weight of Portland cement
• ϱ =2.80 [gr/cm3], specific weight of SWS
• So=3.774 [cm2/gr], specific surface area of Portland cement
• √to =9.92 [s 1/2], time required for the air passage through the Portland cement sample used for the equipment’s calibration.

Table 8 shows the experimental data of Blaine specific surface area values obtained by the Blaine method. The specific surface obtained by the overall average value over the five samples is 9273.79 cm2/gr. This value confirms the significant fineness of the SWS.

3.2 Evaluation of Fresh Plasters' Behavior

In regard to the particular research that examines the preparation of plasters and finishes, the behavior in the fresh state is of paramount importance, as these are materials that are primarily dependent on good workability and applicability. The workability of the materials was therefore evaluated through the use of spreading tests. Figure 9 shows the samples of coarse mortar, fine plaster, and finishing plaster after the mold lift during the spreading test.

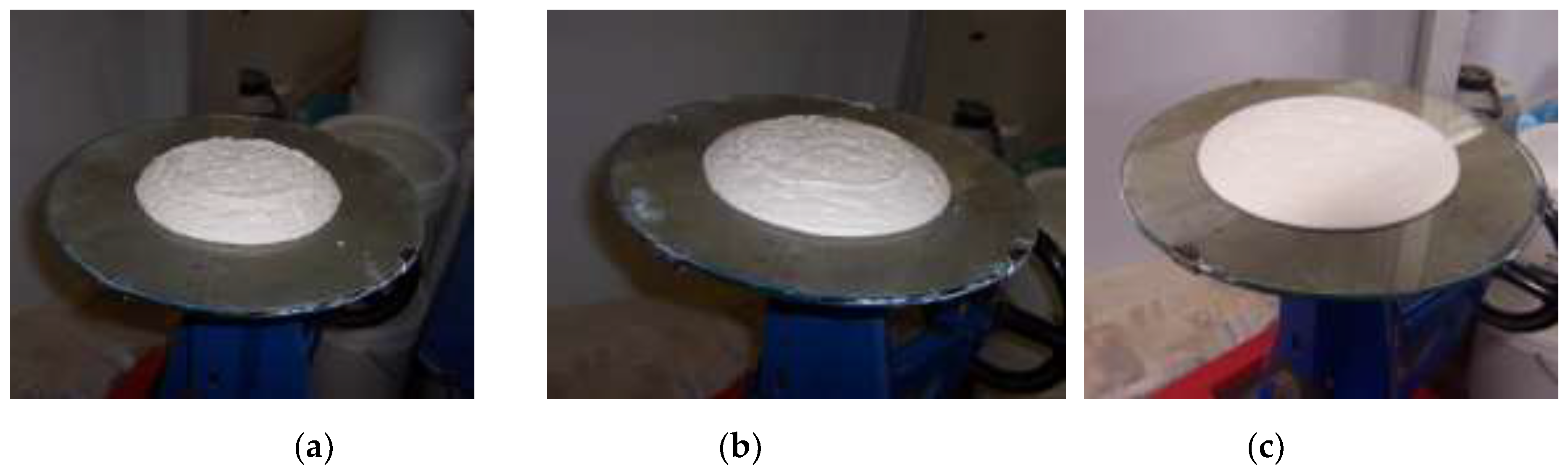

Table 9 shows the values of the two orthogonal diameters measured with a gauge and the average value of the two measurements. The latter value indicates the consistency of the mixtures. The finishing plaster has the highest consistency value of 235 mm. Fine plaster has a consistency of 205 mm, while coarse plaster has a value of 155 mm. These results are consistent with other studies on the fresh state of mortar. [68,69].

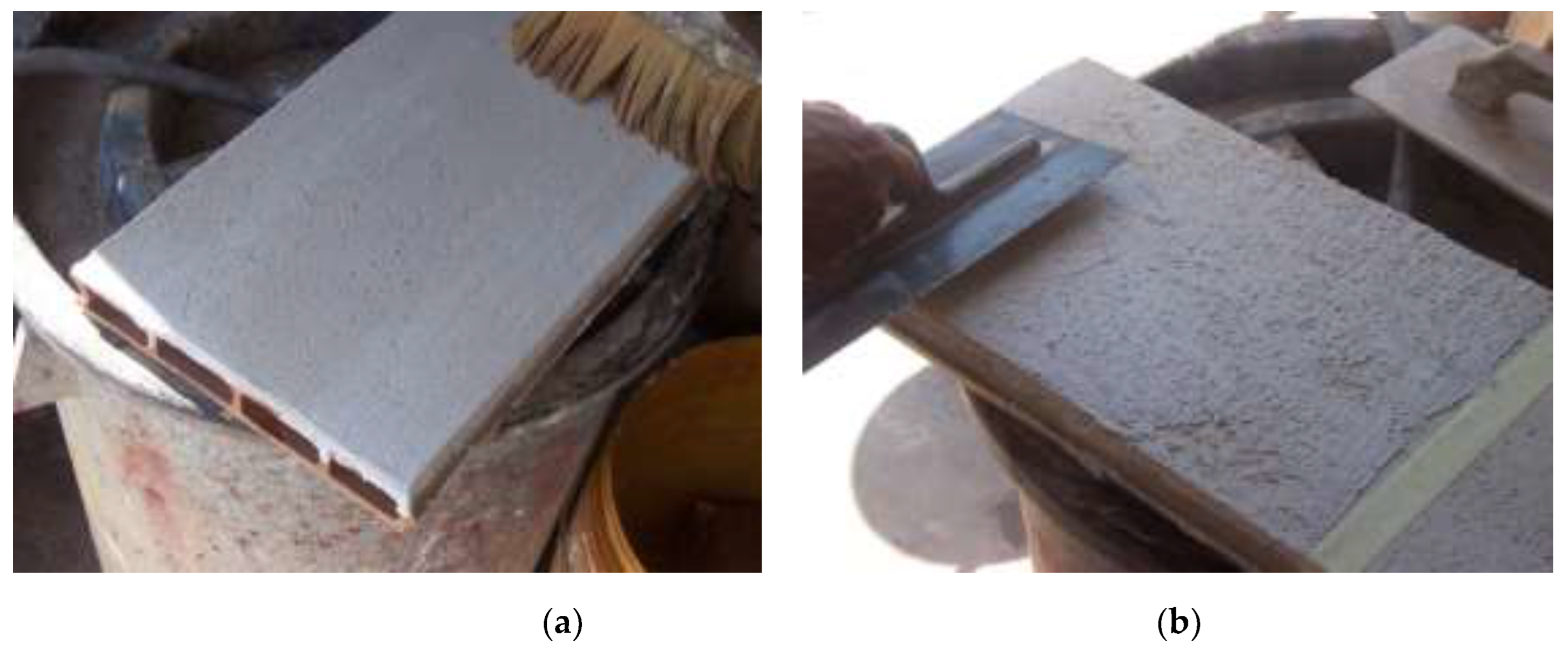

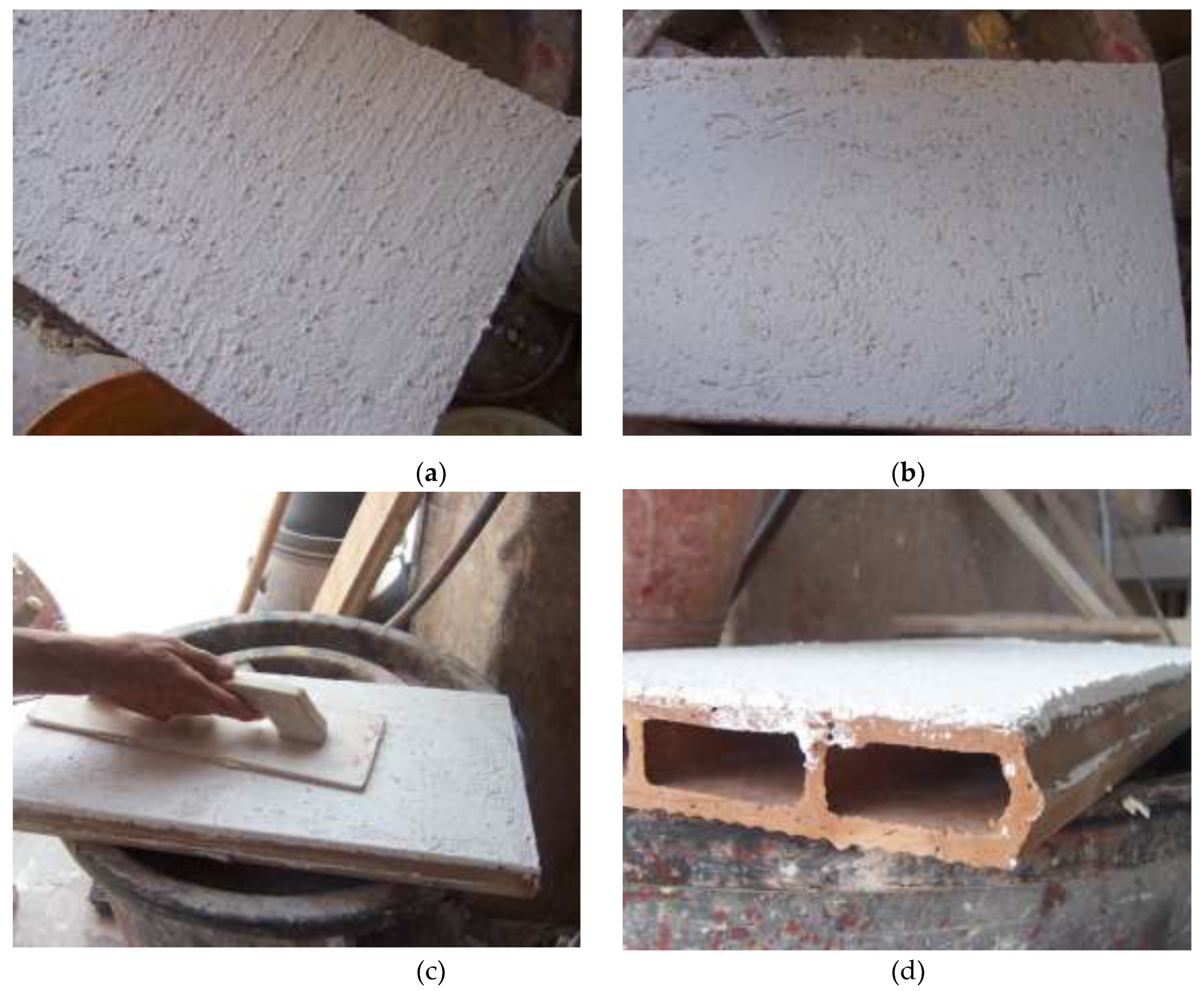

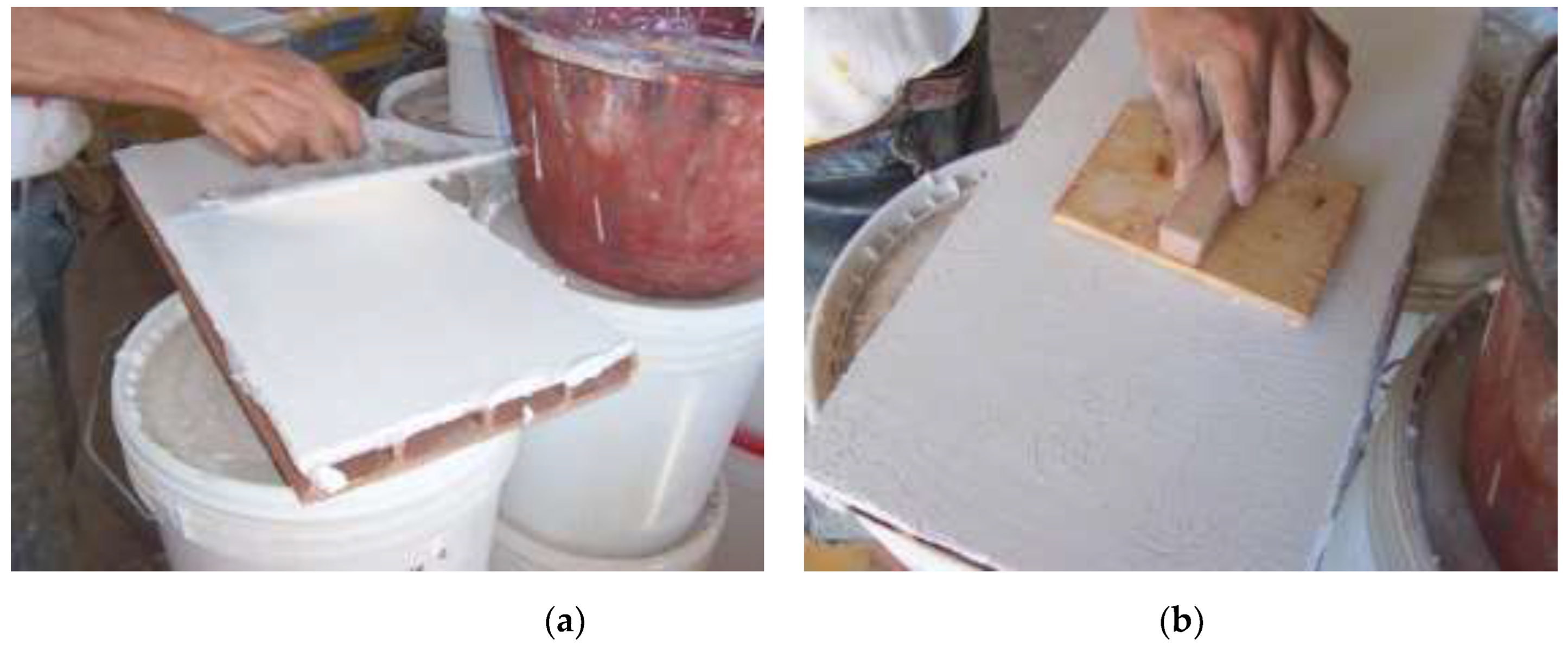

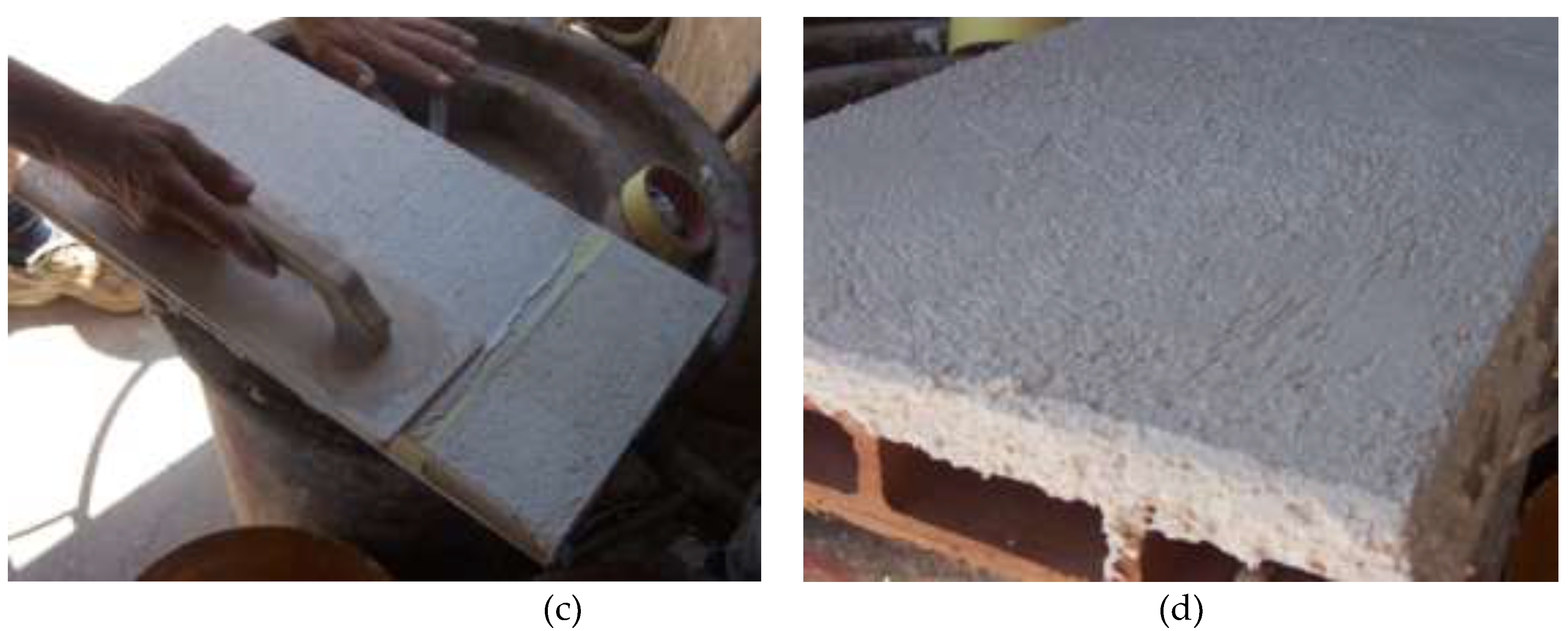

Figure 10, Figure 11, and Figure 12 show the applicability tests of coarse mortar, fine plaster, and finishing plaster, respectively. The sample of coarse mortar was applied on the surface of a perforated ceramic slab, previously impregnated with water applied with a brush. The first layer of 0.5 cm was applied using a steel trowel. The second layer of 0.5 was applied when the surface began to harden (whereby no more marks were left by touching the surface). Finally, before the second coat was completely dry, the surface was worked over with the wooden trowel with circular movements that allowed it to drag the larger granules of aggregate and give rise to small grooves on the surface. The roughness of the surfaces obtained in this way of application ensures good adhesion of the subsequent layers.

Fine plaster and finishing plaster were applied over the coarse plaster layer to a thickness of 2 mm and 1.5 mm, respectively. After thoroughly wetting the layer of hardened coarse plaster, the first coat of 1 mm of fine plaster was applied using a metal trowel. As the thickness of this first layer is very thin (approx. 1 mm), it starts setting very quickly. Once the first layer was set, the second one was applied, taking care to keep the layer of the total package equal to 2 mm. Finally, the surface is worked with the wooden trowel with circular movement to prepare it for the subsequent layers.

The finishing plaster was applied on the surface of the hardened and moistened coarse plaster in a single 1.5 mm layer. When it began to set, it was sponged with a special trowel, which in this case was chosen smaller than the one previously used so that the surface remains only slightly rough.

The preliminary results obtained on fresh mixture samples showed that the coarse plaster is suitable for the use of base plaster (arriccio) up to a thickness of approximately 1 cm. For greater thicknesses, it must be applied in successive layers, waiting until the previous layer has been set. Fine plaster is suitable for use as a second layer (tonachino) for a total thickness of 2 mm. It is perfectly applied over a base made with coarse mortar, of which, similar in composition and compatible in grain size of aggregates, it is a natural completion, allowing for the creation, not of simple overlapping of distinct layers, the cause of possible detachment and swelling, but rather a single body that ensures durability and resistance to external agents. Finishing plaster can be applied and also treated on the surface in the desired manner, for a maximum thickness of 1.5 mm. Moreover, finishing plaster is suitable for lime paints in restorations or recoveries of ancient masonry requiring white color.

Finally, the stability of the mixtures was evaluated in a qualitative manner, observing any developments related to the appearance of cracks and detachments from the support, following the approach used by JF Gonzales-Sanchez [69] at different ages after application. The observations were conducted at one-day, two-day, one-week, one-month, and two-month intervals. The results of these observations are presented in Table 10, which demonstrates that no instances of detachment or cracking were observed in any of the three typologies throughout the entire observation period.

4. Conclusions

In this study, the possibility of producing mortars by introducing SWS into the mix as a substitute for aggregate in various proportions was investigated. A preliminary characterization of SWS was carried out.

Analyses were conducted to verify the mineralogical and chemical composition, the particle size distribution, and the ISO Brightness Level; the main conclusions are summarized below:

• The SWS consisted of 98.4 % CaCO₃ by mass.
• The particle sizes are below 22.5 μm for the 92% by mass.
• ISO Brightness Level is 93.5% ± 1

The results of the evaluation of the behavior of fresh plasters produced from lime putty, aged for 6 months, and from SWS partially replacing sand, have proven to be extremely interesting as they provided a preliminary overview of the potential of the mortar, both in terms of workability and applicability of the plasters in the different subsequent layers. Therefore, this material has considerable potential for use as green material for plastering and finishing building surfaces in both new construction and historic heritage conservation. In the next phase, after the evaluation of the fresh behavior, which is particularly important for plasters and finishes, the mechanical characteristics, durability and adhesion of the mixtures selected with the best fresh behavior will be evaluated. The mixtures have been designed using lime putties produced in a traditional way, using as fuel the wood waste produced in the immediate vicinity of the kiln, according to a good practice of industrial synergy. In addition, replacing natural aggregates with stone processing waste, the disposal of which is a major environmental issue, reduces the environmental impact. This applies both to the environmental impact caused by the disposal of the waste and to the environ-mental impact caused by the extraction of the otherwise necessary raw materials. However, a rigorous study entirely dedicated to the LCA is of fundamental importance and will be carried out in relation to further developments in research and the selection of mixtures with the best behavior in the fresh state.
