New Multifunctional Polyacrylonitrile (PAN)-Based Porous Carbons for the Removal of Industrial Wood Dyes from Aqueous Solutions

1. Introduction

Water pollution is actual and increasing every day [1,2], therefore, the presence of metals, dyes, and pharmaceuticals, among other compounds, in untreated industrial effluent that ends up in our rivers, lakes, and oceans represent alarming environmental pollution. Many process industries from different sectors produce a large quantity of coloured wastewater [3]. In particular, the dyeing and finishing processes in the textile industries are an important pollution source of their wastewaters, discharging significant amounts of coloured compounds [4], and presenting high suspended solids content, chemical oxygen demand, biochemical oxygen demand, pH changes, and other inorganic contaminants. The existence of colour reduces aquatic biodiversity by interfering the transit of light through the water, consequently, avoiding the photosynthesis of aqueous flora [5]. In some cases, dye concentration lower than 1 mg L−1 is enough to produce an evident water coloration. Moreover, most of these compounds can cause skin irritation [6] and are toxic, carcinogenic, and mutagenic to human beings [7,8]. Consequently, different treatments of effluents containing dyes were developed to reduce the adverse conditions due to the release of untreated effluents directly into the environment and the concern for human health [5].

In this way, various physical and physicochemical processes as coagulation, flocculation, biodegradation, adsorption, membrane separation, ion exchange, oxidation, and advanced oxidation process have been widely used for dyes removal [5,9,10]. However, dyes are highly resistant to degradation due to their complex chemical structures [11]. Among existing technologies, those based on adsorption are the most common and have shown good efficiencies for dye removal [12]. Many studies on finding the best adsorbent materials have been carried out in recent decades. In this respect, carbons are the most extensively used with good results [13]. Their behaviour can be hydrophobic or organophilic depending on the polarity on their surface, which arises from the complexity of the surface chemical groups and thus they are widely used in the adsorption of organic compounds, as dyes, in water recovery and purification systems. Another important factor, in addition to the surface chemistry of the adsorbent, is its internal porous structure that directly affects the dye capture. Also, the precursor used for carbon manufacturing is very important because affects its internal structure. As an example, Table 1 shows representative precursors to obtain carbons and their adsorption capacities for common dyes, observing that the use of lignocellulosic materials is common due to their low cost. However, their main disadvantage is the impossibility of controlling the internal structure of the carbonaceous matrix. On the other hand, the use of polymers allows to control the pore size and provides larger surface areas.

Polyacrylonitrile (PAN) is used as a good precursor for producing carbon materials with an extraordinary graphitization degree and a high surface area but relatively low porosity. These characteristics are owing to the formation of a tightly stacked and low-defect structure during the PAN pre-oxidation process. Moreover, PAN is a polymer with nitrogen atoms, which can contribute to proportionate functionalities into the carbon structure [22,23]. Also, doping with heteroatoms (N, S, B, P, Se) causes structural changes modifying the carbon physicochemical properties, which is used to provide carbon materials with adjustable functions for different applications [24]. In particular, the incorporation of sulphur to the carbon frameworks can play a double role, acting both as a morphology stabilizer and as a dopant, facilitating the formation of N, S-co-doped nanocarbons with a great specific surface area and controlled pore size [25]. Moreover, it has been found that the sulphur doping provides to the carbons of appropriate characteristics to be used as heavy metals or dyes adsorbents and supercapacitors. [26,27]. In addition, physical or chemical activation increases the porosity and specific surface of the porous carbon [14,28], which together with the surface chemistry of the activated carbon, has a significant effect on the adsorption process.

In this work, three doped porous carbons manufactured from polyacrylonitrile, N-doped carbon (PAN-C), N-doped activated carbon (PAN-C-Act) and N, S-co-doped carbon (PAN-S-C) were used as adsorbents of an industrial wood dye. The influence of pH, initial dye concentration and solid/liquid ratio was analysed on the adsorption capacity of each carbon. Kinetics and diffusion mechanisms were also evaluated.

2. Materials and Methods

2.1. Preparation of Porous Carbons

Three porous carbons were manufactured using the same experimental procedure than a previous work [29] using PAN as precursor (150,000 g mol−1): N-doped carbon (PAN-C), N-doped activated carbon with 4-fold excess of KOH (PAN-C-Act) and N, S-co-doped carbon with sulphur in a 1:1 weight ratio (PAN-S-C). The carbonization process consisted of two continuous stages, one at 553 K which stabilizes the PAN structure, and another at 1073 K where the polymer was completely pyrolyzed. For activation, PAN-C was ground with KOH (1:4 w/w) and carbonized in an inert N₂ atmosphere at 1073 K for 2 hours. In addition, commercial activated carbon (CAC) was used as a reference material (Merck, Kenilworth, NJ, USA). Porous carbons characterization including textural properties and morphological features can be found in the previous work [29].

2.2. Wood Red Dye

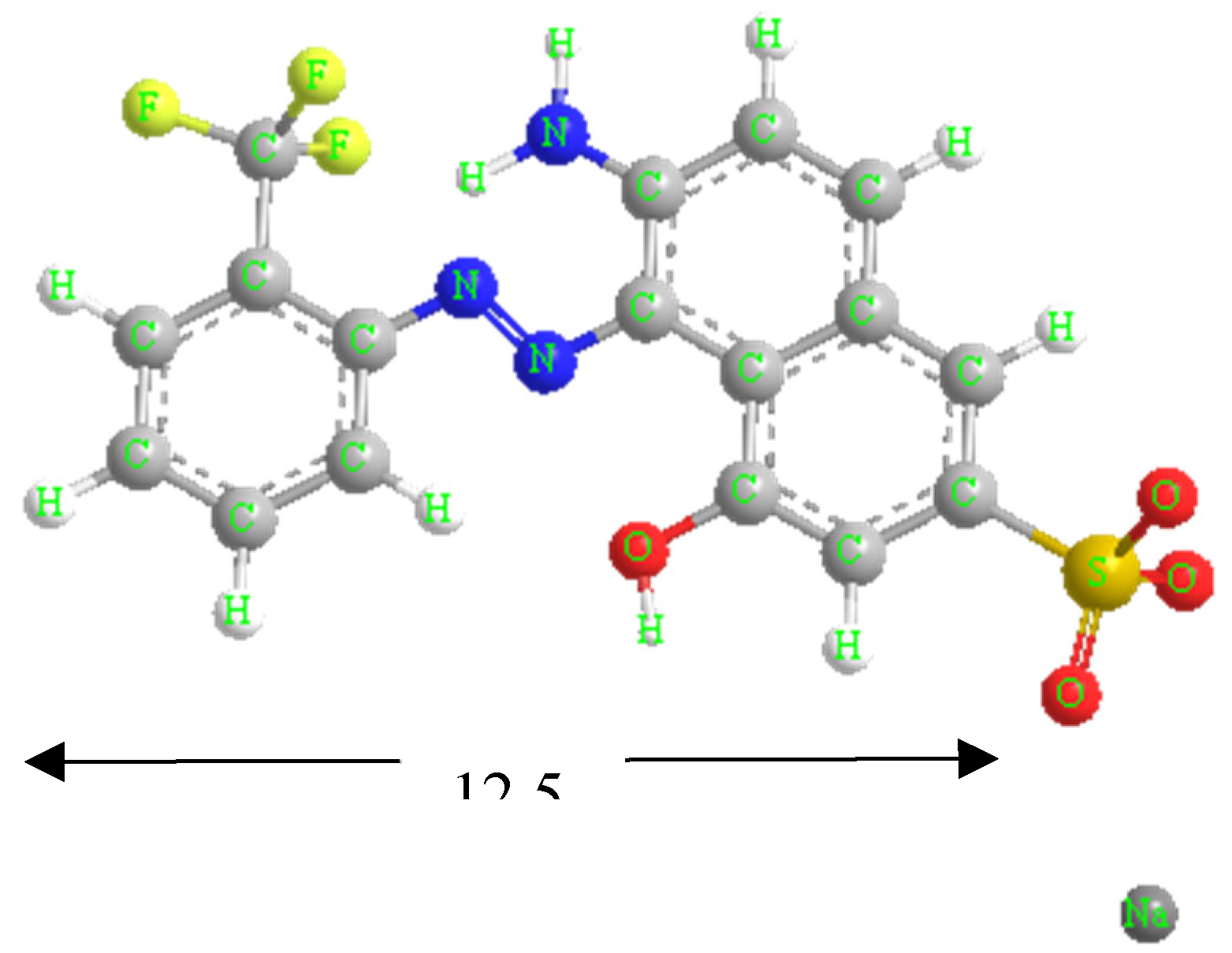

Red GRA 200% (433.34 g mol-1) is an industrial acidic and anionic wood dye provided by ASERPAL S.A. company (Grupo Losán S.A., Galicia, Spain) specialized in the preparation of wood veneers boards. Figure 1 shows the structural formula of the dye. A stock aqueous solution (500 mg L−1) was prepared by dissolving the red dye in distilled water, which was diluted to obtain the working solutions at required concentration. To adjust pH, 1 mol L−1 NaOH or HCl aqueous solutions were used. A scan of red dye solutions (10 mg L-1) between pH 1.5 - 12.5 was performed by UV/VIS spectroscopy, obtaining the maximum wavelength (λ_max) at 506 nm for pH from 1.5 to 8. At pH 8, the red dye solution changed to yellow at λ_max of 505 nm, and finally, the λ_max was 482 nm from pH 11.5. A previous study confirmed that dye solutions at all conditions of initial concentration and pH used were stable over time (48 h). The determination of the acid dissociation constant (pK_a) of the Red GRA-200% dye was previously performed by an UV–Visible spectroscopic method [30]. pK_a, which predicts the ionization state of the molecule concerning pH, is 10.6.

2.3. Adsorption Kinetic Experiments

Figure 2 shows a scheme of the process followed to carry out the adsorption kinetics experiments using PAN-C, PAN-S-C, PAN-C-Act and CAC as adsorbents. For studying the dye adsorption, various batch experiments were carried out in 25 mL Erlenmeyer flasks. The suspensions were kept in an orbital mini shaker (VWR, Cienytech) with temperature control at 400 rpm, 25 ºC and at different times (up 48 h), pH (acidic, 1.9-2.3; natural, 6-6.8; alkaline, 11.8-12.6), adsorbent dosage (S/L, 0.43-0.53 and 1.73-1.91 g L−1) and initial dye concentration (C_i, 24 - 28 mg L−1 and 231 - 285 mg L−1). Finally, samples were centrifuged (Alresa Microcen) at 9,000 rpm for 6 min. The supernatant was collected, and the dye concentration was measured at the λ_max previously indicated using an UV-Vis spectrophotometer (V-630 Jasco). All the experiments were done in duplicate. For comparison, a commercial carbon was used for dye adsorption experiments under the same conditions.

The adsorption capacity, q_t (mg g−1), was calculated as the amount of dye adsorbed at time t per mass unit of carbon following Equation (1):

$$q_t={\displaystyle \frac{\left(C_i-C_t\right)·V}{m}}$$

(1)

where C_i is the initial dye concentration (mg L−1), C_t is the dye concentration at any time t (h), V is the volume of solution (L), and m is the mass of adsorbent (g of oven dried (o.d.) carbon). The maximum q_t is referred to as q_max and corresponds with the experimental maximum adsorption capacity.

The dye removal efficiency was determined as Equation (2):

$$Dyeadsorbed(\%)={\displaystyle \frac{\left(C_i-C_t\right)}{C_i}}·100$$

(2)

Lagergren’s first order model, Equation (3) [31] and Ho’s pseudo-second-order model, Equation (4) [32] were used to describe dye kinetic adsorption:

$$log\left(q_e-q_t\right)=log\left(q_e\right)-{\displaystyle \frac{k_1}{2.303}}·t$$

(3)

$${\displaystyle \frac{1}{q_t}}={\displaystyle \frac{1}{k_2·q_e^2}}+{\displaystyle \frac{1}{q_e}}·t$$

(4)

where q_t and q_e are the amounts of dye adsorbed (mg g−1) at time t and equilibrium (h), respectively. k₁ (h−1) and k₂ (g mg−1 h−1) represent the rate constants for pseudo-first and pseudo-second order models, respectively. The adsorption mechanism was also evaluated by the intra-particle diffusion model, Equation (5) [33].

$$q_t=K_{id}·t^{0.5}+I$$

(5)

where I (mg g−1) is the intercept and K_id is the rate constant of intra-particle diffusion (mg g−1 h−0.5).

3. Results and Discussion

Adsorbents characterization was carried out in a previous work [29]. BET surface areas, S_BET, of PAN-C, PAN-S-C, PAN-C-Act and CAC were 36.3, 150.5, 3154.9 and 1059.9 m2 g-1, respectively, determined from N₂ adsorption isotherms at 77 K. The nitrogen sorption isotherms for PAN-C and PAN-S-C carbons were type I isotherms. PAN-C-Act showed a combination of type I and IV isotherms and CAC presented a type II isotherms adsorption. XPS analysis was also performed to determine the presence of nitrogen and sulphur-containing functional groups, resulting that the porous carbons fabricated from polyacrylonitrile had N groups in their structure such as pyrrolic N and pyridinic N, as well as C-N bonds. However, PAN-C-Act lost pyridinic N-groups during activation. PAN-C-S also showed S-rich groups, C-SO₂-C, sulphur and disulfide bonds. Moreover, the oxidation and activation stages provided a higher formation of carbonyl and hydroxyl groups. CAC showed only C=O and COOH groups.

The presence of hydroxyl groups determines the carbon acid-base character and reactivity. Moreover, the surface of carbon materials containing other surface groups, such as carboxylic, lactonic, phenolic, carbonyl, and etheric types makes their surface chemistry much more versatile than that of other adsorbents [34]. As consequence the pollutants adsorption from aqueous solutions using activated carbons is complex and involves many parameters as solution pH, ionic strength, solute-solute and solute-solvent interactions [35]. In this way, several series of dye adsorption experiments using the manufactured carbons and the commercial one have been carried out as a function of time at different conditions (Table 2).

3.2. Effect of Initial pH

Dye solution pH affects notably to the entire adsorption process and particularly to the adsorption capacity of the materials [15]. Hence, adsorption of red dye on carbons was studied as a function of pH at acid (1.9 – 2.3), natural (6 – 6.8) and alkaline pH (11.8 – 12.6) at the range of two initial concentrations (24 – 28 mg L−1 and 231 – 285 mg L−1) and carbon dosages essayed (0.43-0.53 and 1.73-1.91 g L−1) at 298 K and 48 h. Figure 3 compares the effect of pH on dye removal efficiency for PAN-C, PAN-S-C, PAN-C-Act and CAC. pH affected the maximum adsorption efficiency for all carbons, especially for PAN-C and PAN-S-C, and the higher adsorption percentages were obtained at acid pH. Moreover, the PAN-C-Act carbon showed the best removal performance, even better than the commercial one, with adsorption yield (%) of approximately 100%. Considering the point of zero charge of carbons, at acid and natural pH, lower than pH_PZC (8.3 and 8.2 for PAN-C and PAN-S-C, respectively, and 7.4 for both PAN-C-Act and CAC) [29], cationic functional groups predominate on the carbon surface while the surface is negatively charged at an alkaline pH. In addition, as found previously [30], the dye is a weak acid (pK_a of 10.6), therefore, it, is greater adsorbed on cationic surfaces due to its anionic form in aqueous solution. This behaviour has also been evidenced by Al-Degs et al. [36] with a commercial activated carbon F-400. Furthermore, the presence of oxygen functional groups, such as ketone and hydroxyl groups, gives basicity to the carbons surface with PAN-C-Act showing an increase in the oxygen content after KOH activation respect to the other two carbons [29]. By the contrary, PAN-C is the carbon with the lowest removal efficiency, being the higher yield of 36.2% (5.1 mg g−1) at pH 2, adsorbent dosage (S/L = 1.7 g L−1) and initial concentration of 24 mg L−1. Besides this carbon has the lower BET surface area (36.3 m2 g−1) and pore volume (0.018 cm3 g−1) [29], which can indicate that these characteristics are directly related to the adsorption capacity. The pH variations observed (Table 2) are because as the dye concentration was increased the solution became slightly alkaline.

3.3. Effect of Carbon Structural Properties

In general, it is usually considered that the materials with a greater surface area tend to adsorb better the molecules under study. To analyse more carefully the effect of surface area (measured by CO₂ at 273 K and N₂ at 77 K, [29]) on dye adsorption, the surface areas of each carbon (PAN-C, 36.3; PAN-S-C, 150.5; PAN-C-Act, 3154.9; and CAC, 1059.9 m2 g-1) were related to the red dye adsorption percentages at acid, natural and basic pH (1.9 - 2.3; 6 - 6.8; 11.8 - 12.6), higher initial concentration (Ci, 231 - 285 mg L−1) and lower carbon dosage (S/L, 0.43-0.53 g L−1), as shown in Figure 4a,b.

It can be observed that, in general, the adsorption percentage increases with the surface area increasing, independently of pH. As a result, in Figure 4a it was observed that as the N₂ surface area tends to very low values, the adsorption efficiency tends to zero, however, the results in Figure 4b indicate that the CO₂ surface area doesn’t contribute to the dye adsorption. So, adsorption percentages almost nil will be obtained, especially at alkaline pH, even with surface areas of nearly 150 m2 g−1. From previous studies [37], it was concluded that the surface area determined with CO₂ at 273 K is generated by those pores in the ultramicroporosity range (d_p < 0.7 nm). Therefore, the results found would agree that a part of the surface area is not available for the dye adsorption due to a size exclusion phenomenon. This fact is very clearly observed for PAN-C (36.3 m2 g−1 with N₂ at 77 K and 148.7 m2 g−1 with CO₂ at 273 K) for which the surface area due to ultramicropores represents the 80 % of the total area [29], and it is not available for dye access, showing low adsorption percentages in all conditions (Table 2). By the contrary, PAN-S-C, which is also a non-activated carbon, but doped with sulphur, showed higher adsorption percentages, being the highest value, 92.0% (q_max, 11.9 mg g−1) at pH 2, S/L 1.9 g L−1 and 24 mg L−1 of initial dye concentration. The presence of S causes the formation of mesopores (68% of total pore volume) [29] allowing the access of dye. As mentioned before, PAN-C-Act with a very large surface area containing high mesopore volume almost completely adsorbed the dye in all conditions essayed (Table 2). From Figure 4a, it possible to conclude that the results of dye adsorption correlate with the surface area determined with N₂ (without considering the area due to ultramicroporosity), and, therefore, making in a variable of major importance.

3.4. Effect of Initial Concentration and Adsorbent Dosage

The effect of initial dye concentration, which was varied from 24-28 mg L−1 to 231-285 mg L−1 depending on the carbon, affected to their adsorption performance (Table 2). As it can be observed, for a fixed pH and adsorbent dosage (S/L), an increase of the dye initial concentration increased, in general, the adsorption capacity of all carbons with values up to 70.5, 252.7, 602.3 and 556.1 mg g−1 for PAN-C, PAN-S-C, PAN-C-Act and CAC, respectively, at pH ~ 2 and S/L ~ 0.5 g L−1 and C_i = 231-285 mg L−1. This behaviour is also showed in function of time for PAN-C-Act at the initial dye concentrations and adsorbent doses essayed (Figure 4c).

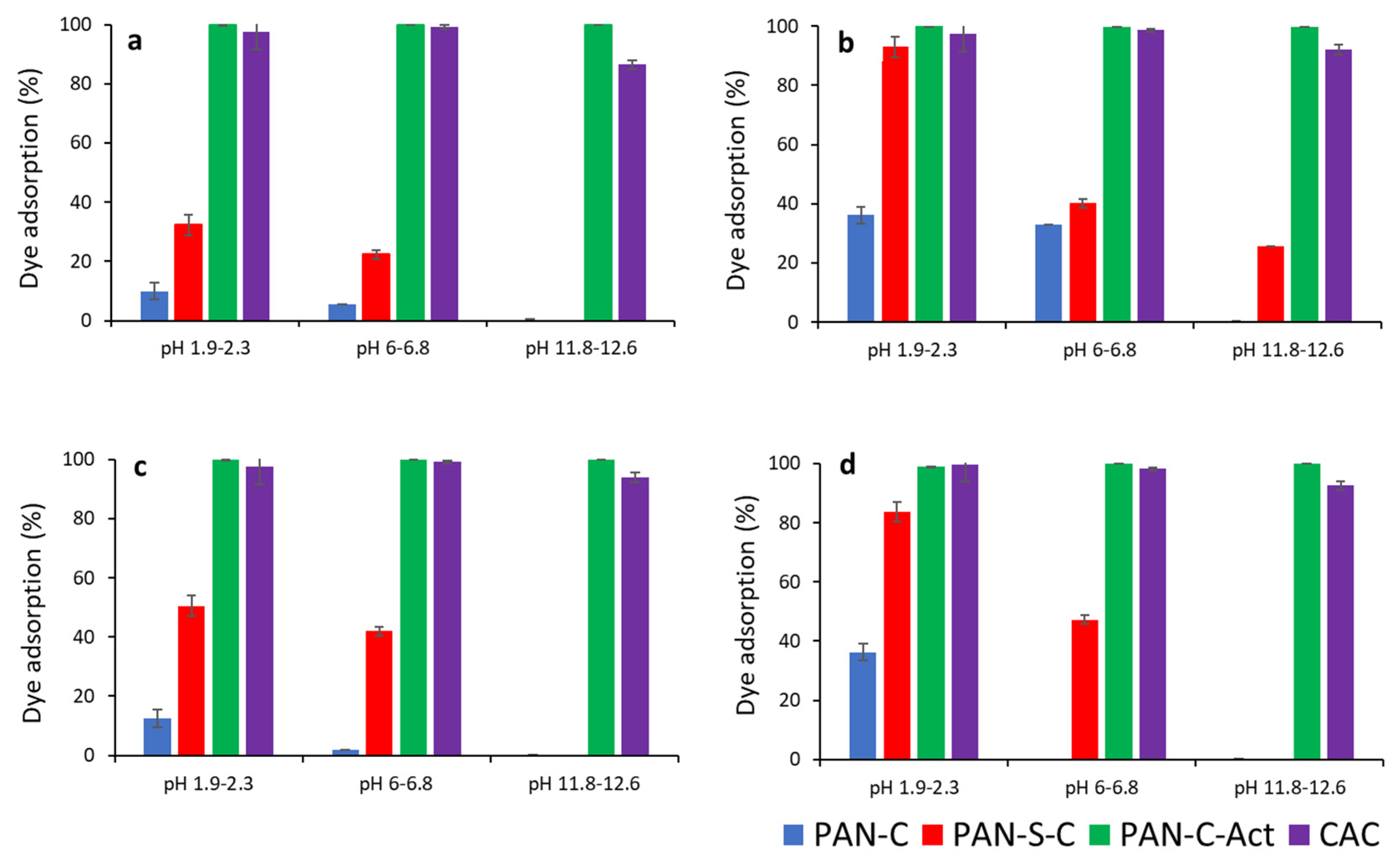

The adsorbent dosage had a positive effect on the adsorption percentage of the dye increasing these values as shown in Figure 3. If Figure 3a is compared with 3b and 3c is compared with 3d, a general improvement of the adsorption percentages is observed for PAN-C and PAN-C-S at acid and natural pH, and even at alkaline pH for lower initial concentration (Ci, 24 – 28 mg L-1). Increasing of adsorbent dosage provides more active sites for dye to be adsorbed and increases the adsorption percentage as observed in Table 2. On the contrary, the adsorption capacity of porous carbons decreases with increasing adsorbent dosage, as observed as well in Table 2 and, specifically, for PAN-C-Act adsorption in Figure 4c. Figure 4d shows the red dye adsorption kinetic data for all carbons and the effect of type of adsorbent on dye adsorption at 298 K and 48 h (C_i, 24 - 28 mg L−1 and 0.43-0.53 g L−1). The use of PAN-C-Act together the CAC led to the better adsorption performance.

3.5. Adsorption Kinetic Modelling

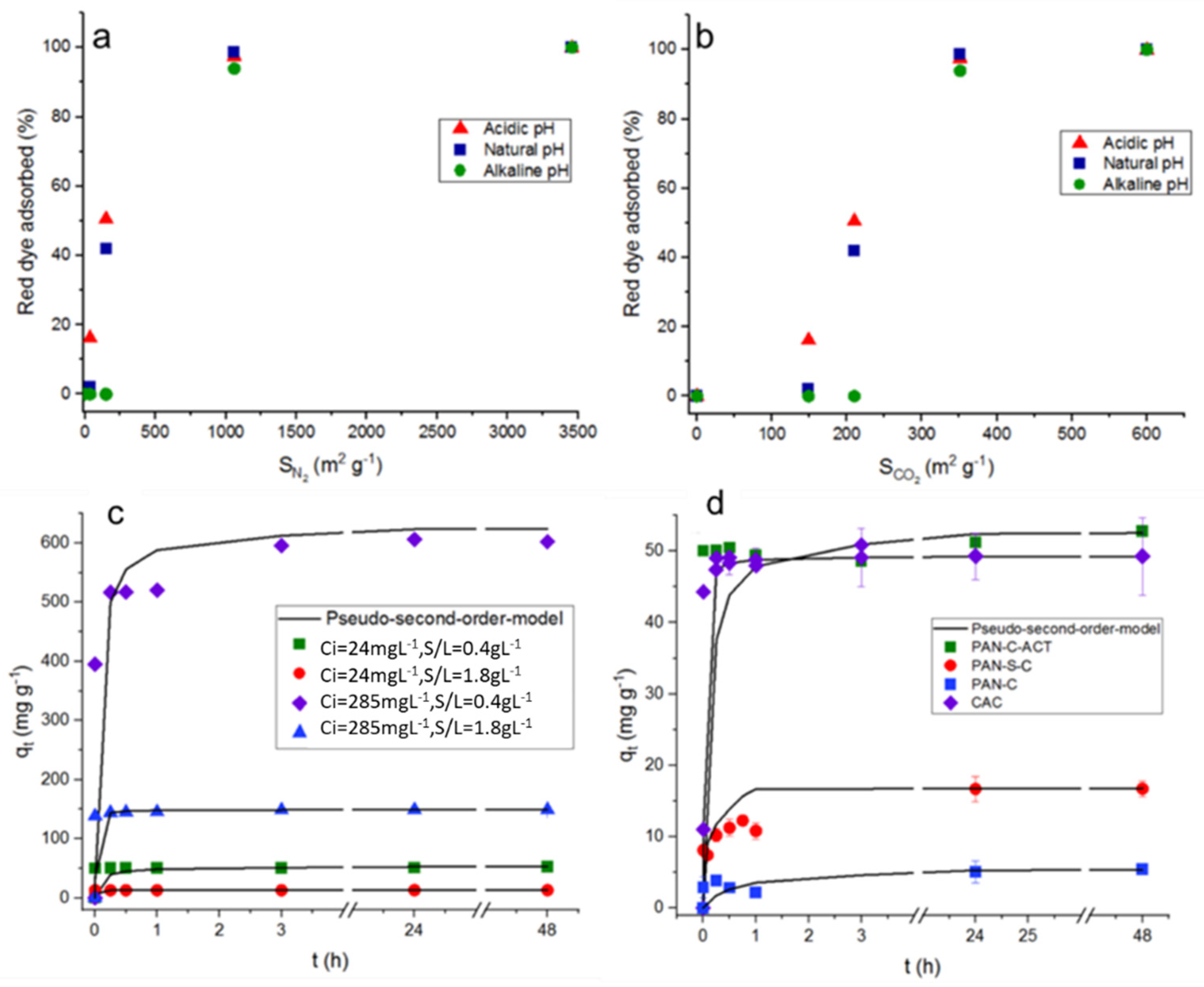

Kinetic studies are important because they provide valuable information on the mechanism of the adsorption process [38]. Figure 4d shows the influence of time on the red dye adsorption capacity of the porous carbons at pH ~ 2, observing a fast adsorption of the dye during the first minutes and reaching the maximum adsorption capacity after 24 h, 3 h and 15 minutes for PAN-C, PAN-S-C and PAN-C-Act, respectively, for all experiments performed. Moreover, although the PAN-C-Act reaches a slightly higher dye adsorption capacity than CAC, Figure 4d shows that the CAC has a more favourable kinetic. This fact is probably due to the presence of smaller porous inside PAN-C-Act [29] which significantly decreases the diffusivity of the dye in its porous structure.

Table 2 shows the kinetics parameters for the pseudo-second order and Table 3 shows the intraparticle diffusion models together with the corresponding coefficients of determination for all experiments performed. For all carbons essayed, the pseudo-first-order model did not fit well to the experimental data with low R2 values. On the contrary, the pseudo-second order kinetic model explained better the adsorption behaviour, except for PAN-C at natural pH, obtaining determination coefficients higher than 0.96 (Table 2). The dye diffusion mechanism into PAN-C and PAN-S-C has two simultaneous stages, external mass transfer followed by intraparticle diffusion as demonstrated by the fitting to the intraparticle diffusion model (Table 3). PAN-C-Act and commercial activated carbon show a two-step adsorption mechanism, where in the first step there is a fast adsorption of the dye by the carbon. In the case of these materials do not fit well to the intraparticle diffusion model since in many cases the determination coefficients are lower than 0.5. In general, it is observed a good agreement between the calculated and experimental adsorption capacities for the pseudo-second order kinetic model (Table 2 and Figure 4c,d).

The adsorption process can be controlled by many factors including the nature of the functional groups present in the adsorbate and adsorbent, the textural and surface properties of the adsorbent, the diffusion behaviour of the adsorbate into the adsorbent, and the mechanism of the adsorbate-adsorbent interaction. In this work, the results suggested that the overall rate of red wood dye adsorption could be controlled by chemical processes between dye and carbons.

Table 4 shows dye adsorption capacities for commercial activated carbons published by other authors. It can be observed that the activated carbon PAN-C-Act prepared in this work showed, in general, higher adsorption capacity that those commercial ones and those prepared from other precursors (Table 1), although, obviously, these values can be dependent on the type of dye used and the conditions applied.

4. Conclusions

Three porous carbons produced using PAN as precursor were used as adsorbents of a red wood dye present in aqueous solutions. pH affected the dye adsorption and, in general, the adsorption capacity for all carbons increased at acid pH. In addition, the initial dye concentration and carbon dosage affected considerably only the adsorption performance of N-doped carbon (PAN-C) and N,S co-doped carbon with sulphur (PAN-S-C). In case of N-doped activated carbon (PAN-C-Act) the maximum sorption yield (approximately 100%) was reached for all conditions essayed, with values higher than those obtained for the commercial activated carbon (CAC). This achievement was probably due to the development of porosity and a higher specific surface area. The pseudo-second order model fitted better the adsorption kinetics and the existence of external mass transfer followed by intra-particle diffusion was confirmed by the intraparticular diffusion model.

In general, the results obtained in the present work allow to conclude that the presence of microporosity in the materials, especially in the range of ultramicroporosity, has a negative effect on the dye adsorption since the size exclusion was observed. Despite the availability of surface area (mainly into the solid particles), adsorption is not attained because dye molecules do not have access to the carbon porous structure. Therefore, selection of carbons for the red dye removal must be done based not only in the chemical characteristics of the carbon surface and the total surface area available but also on pore size distribution to avoid dyes size exclusion.
