Anionic Hydrogels from Date Palm Waste for Dye Adsorption in Wastewater Treatment

1. Introduction

The rapid development of varying industrial activities has created pressing environmental problems and prompted the urgent need to develop sustainable technologies to remediate these problems. In the case of water pollution problems, the use of natural sources for water treatments has gained a great deal of interest as these treatments can be sustainable and low cost. The existing pollutants in water from industrial activities are very diverse, including organic and inorganic particles, chemicals (e.g., detergents, pesticides, heavy metals, per- and polyfluoroalkyl substances (PFAS), and dyes), biomolecules (e.g., pharmaceuticals) and micro-plastics [1]. In addition to chemical pollution [2], natural pollution from events such as wind dust, emissions of volatile organic compounds from plants, and volcanic eruptions that can greatly alter the properties of water has also been recognized as notable environmental challenges [3].

In this study, we aim to demonstrate a potentially low-cost material to remediate the contaminant problems involving azo dyes in textile, printing, and petroleum industries [1,2,3,4,5]. The common usage of azo dyes is because of their strong binding ability with the substrates (e.g., natural and synthetic fibers); such that the resulting colors would not be affected by light, washing, oxygen, acids, and bases [4]. The characteristic functionality of azo dyes [5] is the presence of n-n chromophoric group [6,7]. Among the different remediation techniques to remove azo dyes from water, the adsorption approach is considered the simplest and most energy-efficient approach [8], where its cost-efficiency can be greatly improved by the development of low-cost adsorption materials [9]. In the current study, methylene blue is chosen as a model azo dye, which has been found in large amount in many regions around the globe when the safe environmental practices are not strictly followed.

One promising candidate of low-cost adsorption materials is nanostructured bio-adsorbent derived from natural biomass sources, such as relatively underutilized agriculture residues, because they are abundant, sustainable and environmentally friendly [10,11]. Several bio-adsorbents have already been demonstrated for purification of polluted water resulting from paper industry [12], leather tanning [13,14], food processing, plastics, cosmetics, rubber, printing, and dye manufacturing industries [15,16,17,18,19]. Owing to its high adsorption capacity for a variety of pollutants in aqueous solutions, the utilization of activated carbon is widely acknowledged among bio-adsorbents [19]. The high adsorptivity is mainly due to the presence of heteroatoms like oxygen, nitrogen, and sulfur on the surface which enables adsorption interaction through various interactions such as hydrogen bonding, π-π interactions, and dipole-dipole interactions [20,21]. There are two fundamental mechanisms by which the substances adhere to the surface of an adsorbent namely, chemisorption and physisorption. Chemisorption involves the formation of strong chemical bonds between the adsorbate and the adsorbent. The chemical bonds formed in chemisorption are often difficult to break, making the process largely irreversible under normal conditions. In contrast, physisorption is characterized by weaker interactions, such as van der Waals forces. Due to its weaker interaction, physical adsorption is often reversible, allowing the adsorbate to be easily desorbed from the adsorbent surface under appropriate conditions.

The adsorption ability of bio-adsorbents derived from agricultural residues can contain both physical and chemical adsorptive interactions (if the adsorbent surface is ionically charged). The main physical interactions involve van der Waals forces, hydrogen bonds, polar interactions, Π-Π interaction, etc. The conversion of natural biomass feedstocks into effective bio-adsorbents requires proper treatments. For production of activated carbon, the approach usually involves the use of pyrolysis to treat dense biomass feedstock (e.g. coconut shell and wood), followed by an activation step [22]. However, such an approach is generally not economically beneficial to treat porous biomass feedstock (i.e. leaves, agricultural stalks…). As all plant-based biomass feedstocks contains linear cellulose polymers with β-1,4-linked D-glucose repeating units, the recent treatments to produce anionic CNF will be appropriate to produce a different kind of bio-adsorbent with abundant hydroxyl (and other functional) groups that can create intermolecular and intramolecular interactions to remove contaminants [23]. These adsorbents are typically in the suspension state, and thus can be used more as coagulants/flocculants instead of solid adsorbents (e.g., activated carbon) for water purification.

The biomass feedstocks most suitable for low energy anionic CNF production include leaves, grasses, natural fibers, and marine algae [24]. This is because these feedstocks have relatively loose structure, high porosity and low lignin content, where high surface area can be produced in even mild defibrillation conditions, yielding high adsorption efficiency. These are several interesting examples in the literature using agricultural biomass for dye removal. For example, the performance of several cellulose-based aerogels prepared from Pomelo fruit to adsorb different dyes (i.e., methylene blue, malachite green, rhodamine 6G, rose bengal, and methyl orange) have been studied. These aerogels include cellulose (CA), graphene oxide (GOA), and cellulose-graphene oxide composite (CGA). It was found that the adsorption efficiency of CGA aerogels (98%) against methylene blue dyes is higher than those of GOA (95%) and CA (74%) aerogels [25]. The adsorption of methylene blue dye in an aqueous solution using a polyester nonwoven modified by cross-linked carboxymethyl cellulose and synthesized ZIF-8 has also been investigated [26].

The study involved the change of dye concentration and contact time in both batch and continuous fixed bed conditions. The result showed that there is slight variation in performance between continuous and batch systems. For continuous system, the adsorption capacity of 0.824 mg/g was observed whereas for batch system, it was found to be 0.829 mg/g. Both results were obtained at initial concentration ranging from 2 to 8 mg/l. With increasing initial dye concentration from 2 to 8 mg/l, the adsorption capacity was increased about 80 and 90% in batch and continuous systems, respectively. In another example, regenerated cellulose (RC) has been used as an adsorbent for wastewater streams containing varying dyes. The RC adsorbent was produced by the cellulose dissolution waste stream, where the maximum adsorption capacity of RC against crystal violet was 398.41mg.g^-1 and its maximum adsorption capacity against methylene blue was 367.65mg.g^-1 [27]. Finally, hydrogel with an average particle size of around 14.9 μm was synthesized from carboxymethyl cellulose nanocrystals and L-cystenine, where the composite hydrogel was used as an adsorbent for methylene blue removal. The maximum adsorption capacity of this hydrogel system could reach 756 mg/gm at pH ꞊11 [28].

In this study, we aimed to demonstrate the production of cellulose nanofibers using a typical method from renewable natural resources such as palm date leaflets, which are abundant in the local environment but often considered as waste. The resulting anionic CNF was tested as a bio-adsorbent for dye removal using MB as a model dye contaminant. The optimal condition for the maximum removal efficiency was evaluated and compared with other bio-adsorbents. The broader impact of this study includes the waste upcycling and sustainable remediation materials development to tackle industrial water pollution challenges.

2. Experimental

2.1. Materials

Palm tree leaflets, as a renewable cellulose-rich material, were collected from a local farm in our region. MB dye was supplied by the Aldrich Chemical Company, USA. Sodium hydroxide (NaOH); potassium hydroxide (KOH); sulphuric acid (H₂SO₄); acetic acid (CH₃COOH); and sodium chlorite (NaClO₂) were high-grade laboratory chemicals, purchased from BDH Chemicals. All chemicals were used as received without further purification.

2.2. Preparation of Cellulose

A detailed and methodical approach to the preparation of cellulose pulp from palm date leaflets is explained in this section. This procedure involves several critical steps that ensure the removal of non-cellulosic components such as hemicellulose, lignin, and silica, which are typical in lignocellulosic biomass. Initially, the palm date leaflets are thoroughly washed with distilled water to remove dust and impurities and followed with one day air-dried. They are subsequently cut and ground into smaller pieces, followed by milling to achieve a uniform size of less than 5mm. The ground fibers are then treated with sulfuric acid under reflux conditions, which helps in hydrolyzing and removing hemicellulose. In this step, 150g of ground leaflet fiber was mixed in a 1-liter round-bottom flask, where 40g of sulfuric acid was added gradually under reflux for 2h at 90^oC. The mixture is then filtered and washed using deionized water until a neutral pH is achieved.

After the removal of hemicellulose, an alkaline hydrolysis step is executed employing 20% of KOH solution to break down and remove lignin and silica. This process also involves refluxing, filtration, and thorough washing to reach a neutral pH. A liquid-solid ratio of 10:1 at the same refluxing temperature and time (90^oC for 2h) was used. The next step is bleaching of the cellulose pulp using a NaClO₂ solution at an acidic pH adjusted with acetic acid, which helps in removing the remaining lignin and amorphous cellulose. The solution is stirred at 75°C for 4 hours. Finally, the bleached pulp is filtered, washed to neutrality, and dried in an oven at 80°C until a constant weight is obtained, indicating the removal of all moisture.

2.3. Preparation of Anionic Cellulose Nanofiber (CNF)

To ensure the production of high-quality CNF, we hydrolyzed never-dried cellulose pulp under controlled acidic conditions, followed by several purification and homogenization steps. Here is the procedure. Initially, the cellulose pulp was hydrolyzed with a 60wt% H₂SO₄ solution at a liquid-to-solid ratio of 1:10. The acid solution was added slowly to the cellulose suspension, and the reaction was conducted at a temperature of 45°C for 60 minutes. The hydrolyzed product was extensively washed with cold deionized water to remove any residual sulfuric acid. This was done by centrifuging the mixture at 5,000 rpm for 20 minutes, repeated seven times. The washed suspension was then placed into dialysis tubes with a molecular weight cut-off (MWCO) of 6-8 kDa and dialyzed against deionized water for 48 hours to equilibrate to a neutral pH of 6.7-6.9. To ensure homogeneous dispersion of the CNF suspension, the hydrolyzed product was sonicated at a frequency of 20 kHz for 10 minutes at a temperature of 10°C. The ratio of the suspension to water was maintained at 20:1. The sonicated suspension was then centrifuged at 10,000 rpm for 10 minutes to collect the CNF and followed with drying in the an oven at 60°C for 2 hours. The dried CNF was finally stored in sealed containers to prevent contamination and moisture uptake.

2.4. CNF Characterization

The scanning electron microscopic (SEM) imaging on the prepared cellulose and CNF samples using of was done using JSM-IT 500 HR (JEOL, Japan) instrument operated at an accelerating voltage of 10 kV. Prior to SEM, the samples were mounted on metal holders and sputter-coated with a thin layer of gold. The coating was applied for 45 minutes to enhance the electrical conductivity of the sample surface, which is essential for SEM imaging to prevent charging effects and obtain high-quality images.

The X-ray diffraction (XRD) of the different samples was investigated utilizing D8 Brucker X-ray diffractometer, with the Cu-Kα radiation with a wavelength (λ) of 1.54178 Ǻ and operated over a 2θ range of 10-70 degrees with a step size of 0.02 degrees. XRD patterns were collected for the raw material, cellulose pulp, and CNF to investigate their crystalline structures and to identify any changes in crystallinity due to the treatment and processing of the samples.

Corresponding Fourier transfer infrared (FTIR) spectroscopy of different samples (the raw material, cellulose and CNF) was carried out using a Nicolet 6700 instrument in the transmission mode, where the FTIR spectra were recorded between 4500 and 400 cm^-1 with a spectral resolution of 4 cm^-1.

2.5. Dye Adsorption Study

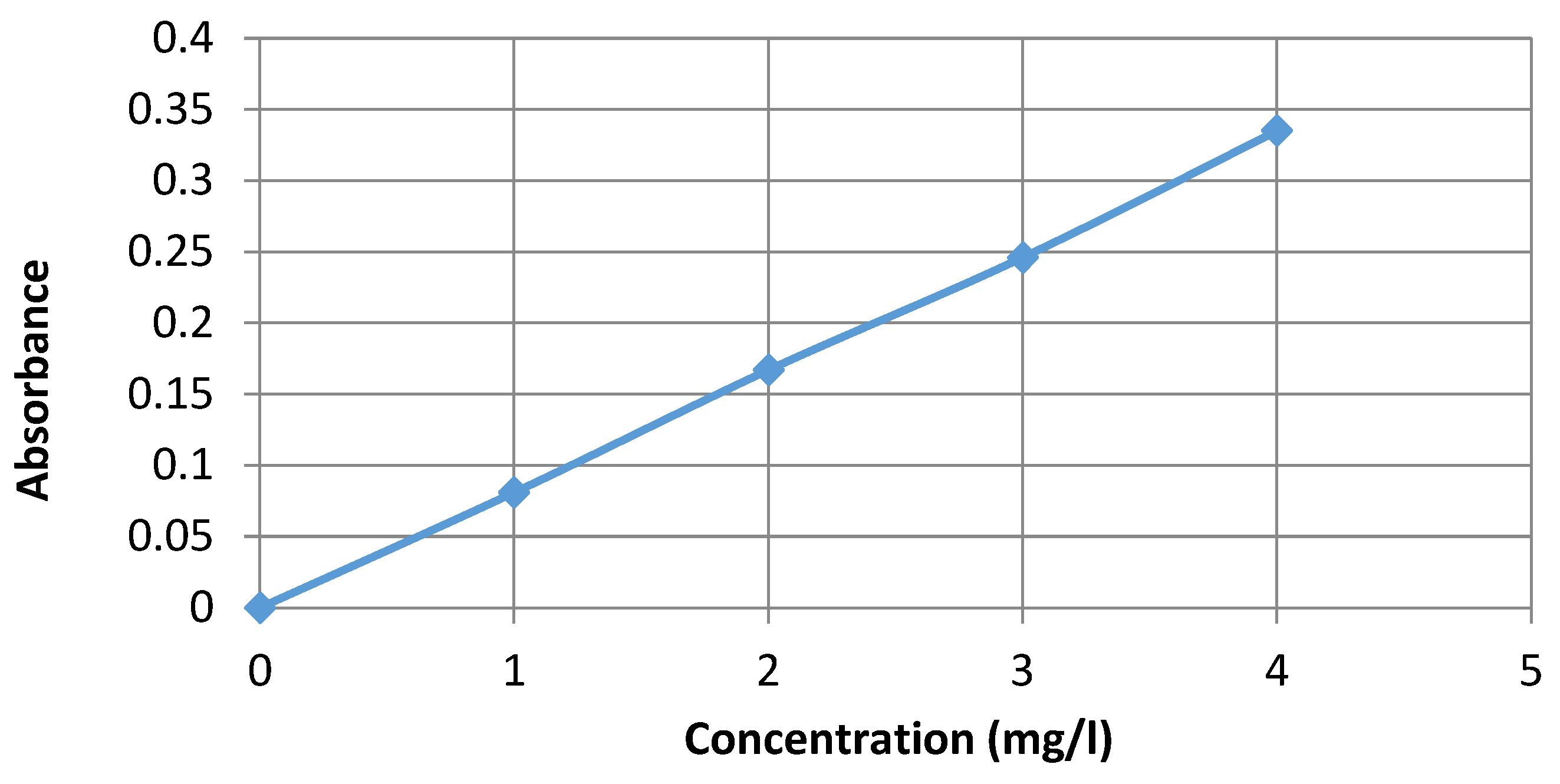

Before the dye adsorption study using bio-adsorbents, the following light adsorption measurement was first carried out. A spectrophotometer (Spectronicgenesys 5, model 336008, U.S.A) was used to determine the maximum wavelength at which the highest dye absorption efficiency occurred (the max. wavelength was 664 nm for MB). For determining the sensitivity range of the spectrophotometer in measuring the absorbance of MB dye, a calibration curve was first established. The absorbance of MB dye concentrations was measured in the range of 1- 4 ppm at the maximum wavelength of 664 nm. Following Beer’s law, a linear relationship between the absorbance and the dye concentration was obtained Figure 1, which allowed the determination of MB dye concentration between 1 to 7 mg/l. For higher concentrations, the tested solutions were diluted accordingly.

2.6. Experimental Adsorption Equilibrium Isotherm

The adsorption experiments to evaluate the dye removal efficiency of CNF adsorbents were carried out in a 250ml stoppered conical flask containing 50ml of dye solution at varying concentrations. The adsorption equilibrium isotherm data were obtained from the batch adsorption experiments at an agitation speed 250 rpm. The initial dye concentration was prepared by diluting a stock solution with a known concentration of 1000 mg/L. To calculate the amount of dye adsorbed at equilibrium per unit mass of the adsorbent, the following equation is used

$$q_e=V\frac{\left(C_o—C_e\right)}{m}$$

(1)

Where: , V (l) is the volume of solution, m (g) is the mass of the adsorbent used C_o and C_e (mg.l^-1) are the initial and final concentrations of dye in the aqueous solution, respectively.

There are several experimental factors such as pH of the solution, the initial concentration of the dye, and contact Time. pH influences both the surface charge of the adsorbent and the ionization state of the dye molecules thus it can significantly affect the adsorption process. By varying the initial concentration of the dye, the adsorbtion capacity of the CNF at different concentrations can be studied. Meanwhile, duration of the interaction between the dye solution and the CNF can determine how quickly equilibrium is reached and the efficiency of adsorption over time. Figure 2 presents the equilibrium between the amount of adsorbed MB on the CNF and concentration of MB in the solution.

2.7. Kinetic Experiments

It is important to measure the adsorption rate precisely during the kinetics experiments. The below procedure was methodically structured to evaluate the influence of agitation speed and initial MB concentration on the adsorption kinetics. To initiate the adsorption process, 1 gram of anionic CNF is added to 50 ml of the MB solution. Initial concentrations of MB are prepared and placed into special bottles. These bottles are then situated in a thermostat-controlled shaker to ensure a constant temperature throughout the experiment, which is crucial for maintaining consistent experimental conditions. The adsorption process is monitored over a period of 90 minutes. During this time, the agitation speed is controlled and maintained at a specific rate. Typically, the adsorption rate is higher at the beginning due to the abundance of available adsorption sites and decreases gradually as these sites are occupied, until equilibrium is reached where no further adsorption occurs. At predetermined time intervals during the 90-minute shaking period, samples are taken from the shaker. These samples are immediately filtered to separate the CNF from the MB solution to measure the remaining amount of MB.

The agitation speed plays an important role in the adsorption process. The agitation is needed to mix the solution which in turn affects the mass transfer of the adsorbate to the adsorbent. In our work, the procedure that was previously explained was done for various agitation speeds and initial MB concentrations. The adsorption experiments were conducted with agitation speeds set at 100 rpm, 200 rpm, and 250 rpm. These speeds were chosen to represent a range of mixing intensities that could influence the mass transfer rate of MB to the anionic CNF. The resulting data of concentration against time was plotted as shown in Figure 3. Meanwhile, to assess the effect of initial MB concentration on the adsorption process, concentrations varied from 100 ppm to 600 ppm. During these experiments, the agitation speed was consistently maintained at 200 rpm, ensuring that the only variable affecting the adsorption rate was the initial concentration of MB. Similarly, the resulting data of concentration against time was also plotted as shown in Figure 4.

2.8. Adsorption Equilibrium Isotherm Models

The Langmuir & Freundlich isotherms are two commonly employed models for characterizing the adsorption process of contaminants such as dyes on various adsorbents.

2.8.1. Langmuir Isotherm Model

The Langmuir isotherm model is based on the assumption that adsorption occurs at specific homogeneous sites within the adsorbent and that once a dye molecule occupies a site, no further adsorption can take place at that site. The relation is expressed as follows:

$$q_e=\frac{K{C}_e}{1+b{C}_e}$$

(2)

The model can be linearized as follow:

$$\frac{{\mathrm{C}}_{\mathrm{e}}}{{\mathrm{q}}_{\mathrm{e}}}=\frac{1}{\mathrm{K}}+\left(\frac{\mathrm{b}}{\mathrm{K}}\right){\mathrm{C}}_{\mathrm{e}}$$

(3)

Hence, a plot of C_e/q_e versus C_e provides the equilibrium-constant K and b, for the adsorption process obtained from the slope and intercept of the linear plot.

2.8.2. Freundlich Isotherm Model

The Freundlich isotherm model, on the other hand, assumes a heterogeneous surface with a non-uniform distribution of heat of adsorption over the surface. The Freundlich isotherm is an empirical equation that can be represented as:

$$q_e=K_F{C}_e^{1/n}$$

(4)

The linearization of Freundlich model is expressed as follows:

$$\log \mathrm{q}\mathrm{e}=\log \mathrm{KF}+\left(\frac{1}{\mathrm{n}}\right)\log \mathrm{Ce}$$

(5)

The constants, K_F and n are obtained from the intercept and slope of linear plot log q_e against log C_e.

To validate experimental results, one would typically fit the experimental data to both the Langmuir and Freundlich isotherm models and determine the corresponding parameters for each model. The goodness of fit is often assessed using statistical metrics such as the coefficient of determination (R²) or the chi-square test. The model that best describes the adsorption process is determined by the higher correlation coefficients and the conformity of the model assumptions with the experimental observations.

2.9. Kinetic Models

Kinetic models including those in which chemical reaction is considered as the rate limiting step are also used to explain the experimental data.

2.9.1. Describing the Batch Adsorption Process Using Reaction Models

Many researchers used pseudo-first order, pseudo-second order and Elovich model to study dyes-adsorption that involves chemical reactions as the rate limiting step [29,30,31,32,33,34,35,36,37,38,39].

Pseudo-First-Order Model

In the case of pseudo-first order model, the adsorption rate of MB on CNF is assumed to be proportional to the amount of adsorbed MB. The model is expressed as follows:

$$\left(\frac{{\mathrm{dq}}_{\mathrm{t}}}{\mathrm{dt}}\right)={\mathrm{k}}_1 {\mathrm{q}}_{\mathrm{e}}-{\mathrm{q}}_{\mathrm{t}}$$

(6)

Where: q_e and q_t are the adsorption capacities (mg/g) of MB at equilibrium and time t, respectively. Whereas, k₁ is the pseudo-first-order adsorption-rate constant (1/min). by integrating equation (6) and using initial condition q_t = 0 at t = 0, one can obtain:

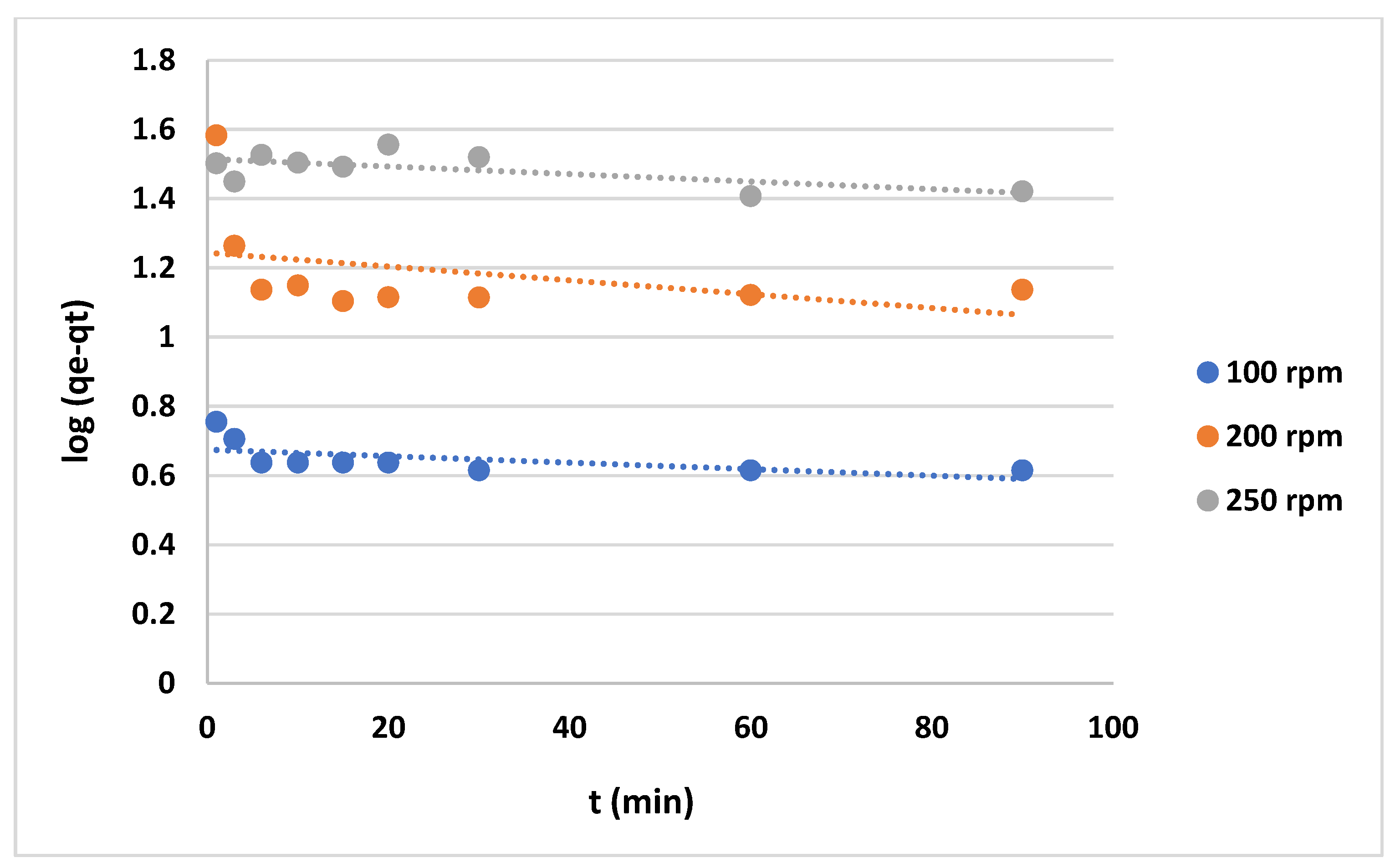

$$ln(q_e-q_t)=ln{q}_e-k_{1}t$$

(7)

Here, q_t can be found using the following method:

$$q_t=\frac{V\left(C_0-C_t\right)}{M}$$

(8)

In addition, q_e can be calculated as follows:

$$q_e=\frac{V\left(C_0-C_e\right)}{M}$$

(9)

Where:

C_o = initial concentration of methylene blue (mg/L)

C_t = concentration of methylene blue at time t (mg/L);

C_e = concentration of methylene blue at equilibrium (mg/L).

Pseudo-Second-Order Model

MB adsorption can also be described using modified second order pseudo equation. It can be written as:

$$\frac{{dq}_t}{dt}=k_2{\left(q_e-q_t\right)}^2$$

(10)

Where: q_e and q_t are the adsorption capacities (mg/g) of MB at equilibrium and time t, respectively. Meanwhile k₂ (g/mg·min) is pseudo-second-order adsorption-rate constant. Equation (10) can be integrated, using the boundary condition of q_t= 0 at t= 0 and q_t= q_t at t= t, one can obtain the following equation:

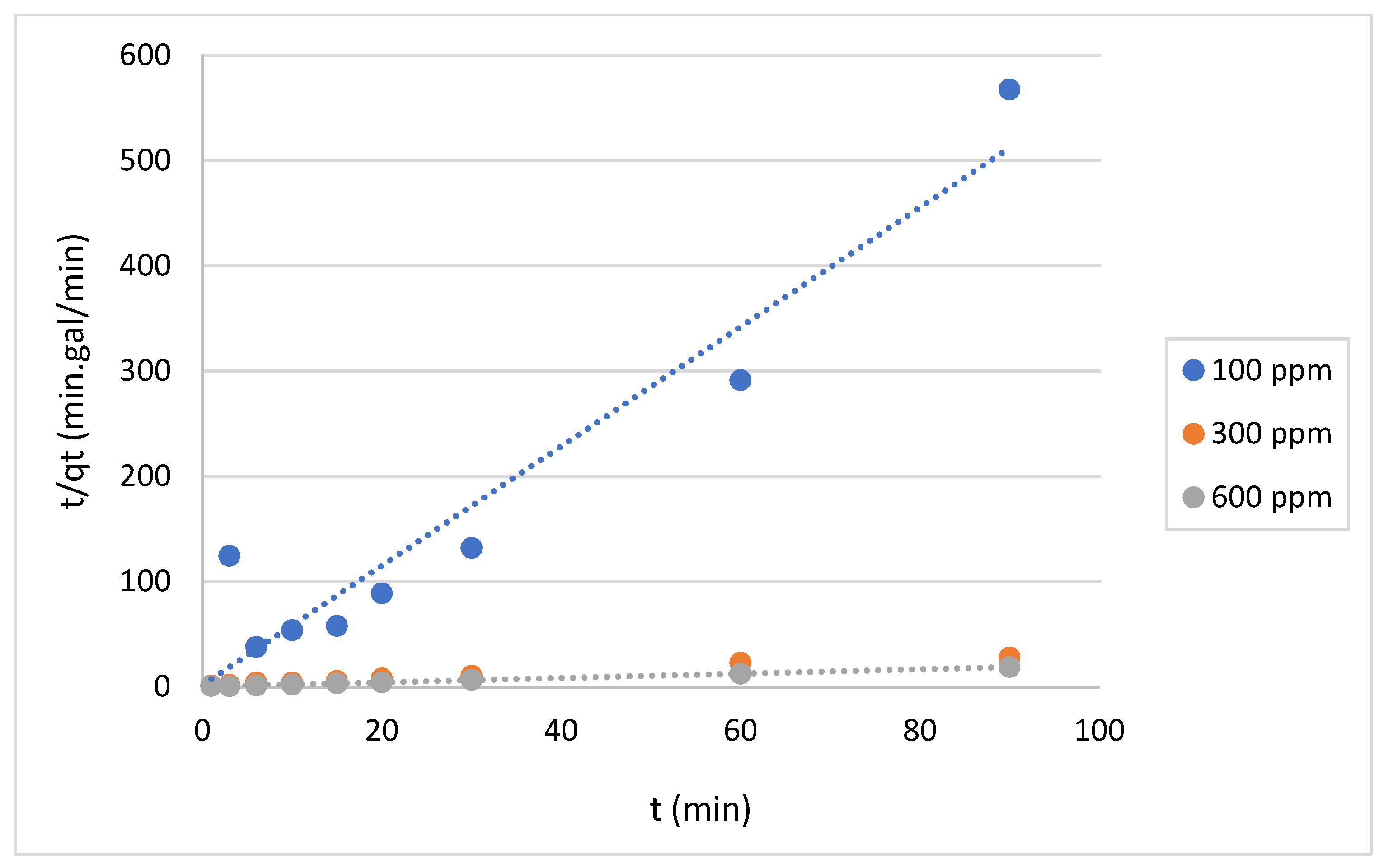

$$\left(\frac{{\displaystyle \mathrm{t}}}{{{\displaystyle q}}_t}\right)=\left(\frac{1}{{{\displaystyle k}}_2{{\displaystyle q}}_e^2}\right)+\left(\frac{1}{{{\displaystyle q}}_e}\right){\displaystyle t}$$

(11)

As shown, if the data fits the model, one can obtain linear relationship with a slope of 1/q_e and an intercept of ($1/k_2{q}_e^2$) by plotting (t/q_t) versus t.

Elovich Model

The Elovich equation is expressed as follows:

$$\left(\frac{{\mathrm{dq}}_{\mathrm{t}}}{\mathrm{dt}}\right)=\mathsf{œ}\exp (-\mathsf{ß}{\mathrm{q}}_{\mathrm{t}})$$

(12)

Where: it is the methylene blue amount adsorbed on anionic CNF at time t, œ is the initial MB adsorption rate (mg/g·min), and ß is the desorption constant (g/mg) for a given experiment period. For the simplification of the Elovich equation, assuming ß >> 1, the boundary condition q_t= 0 is applied when t= 0, and q_t= q_t is applied when t= t, then Equation (12) becomes:

q_t = ß ln (œ ß) + ß ln t

(13)

To determine the Elovich equations that fit the kinetics, Equation (13) was used to represent the adsorption rate of methylene blue on anionic CNF. Thereafter, constant values can be obtained from the linear slope and intercept of the plot of q_t versus ln t.

3. Results and Discussion

3.1. Characterization of Anionic CNF

The change in the raw material structure resulting from the chemical and thermal treatment was studied using electron microscopy imaging Figure 5. From the images,

The change in the ratio between the amorphous and crystalline forms during the chemical and thermal treatment process was studied by X-ray spectrometry. It is well known that natural cellulose is cellulose I. It converts to cellulose II under the effect of an alkaline treatment. Knowing that cellulose ‘I’ is metastable and cellulose ‘II’ is stable, it is possible to form cellulose III and cellulose IV with the progress in the alkaline treatment. The transformation of cellulose I to cellulose II can be investigated by x-ray. The XRD diffraction of the cellulose has been recorded at the different characteristic peaks 2θ Figure 6 that are corresponding to the lattice crystal. It can be seen that the fibers of palm tree leaflet are soft and long, and they have a smooth surface Figure 5a.

Also, the SEM images Figure 5b confirm that the fibers have become shorter in length and their width has been reduced as a result of the cooking or hydrolysis process, where lignin and minerals are removed. It can also be noted that the radius of the fibers is up to 30 microns, and that the size decreases with progress in hydrolysis processes until it reaches a size of less than 60 nanometers with a highly homogeneous shape. The presence of the characteristic two peaks around (2θ= 22.6^o and 16^o) indicates the cellulose nano-structure [40].

The degree of crystallinity was calculated according to the following equations.

$$CI\left(\mathrm{\%}\right)=\frac{\mathit{A}crystalinity}{\mathit{A}amorphous+\mathit{A}crystalinity}x100$$

(14)

Where: A_amorphous represents the area under the curve of the amorphous, A_crystalline is the area under the curve of the sample.

The Crystal size:

L = λk / c β θ

(15)

Where: λ=0.1540 nm, k represents the correction factor of 0.91, θ represents diffraction angle in radians and β represents full width at half maximum

The FTIR analysis shown in Figure 7 provides valuable information regarding the chemical composition and functional groups present in the raw material, extracted cellulose, and CNF. The broad spectral band in the range of 3630-3105 cm^-1 is indicative of O-H stretching vibrations, which are typically associated with the hydroxyl groups present in the cellulose and other polysaccharides [41]. The peak observed at the wavenumber of 1692 cm^-1 is attributed to C=C stretching vibrations, which are characteristic of aromatic structures found in lignin. The absorption peak at 1160 cm^-1 is associated with C–O–C asymmetric stretching vibrations. This peak is characteristic of the glycosidic linkages between sugar units in cellulose, hemicellulose, and lignin. It confirms the presence of these polysaccharides in the samples and is a strong indication of the polysaccharide backbone structure [42,43].

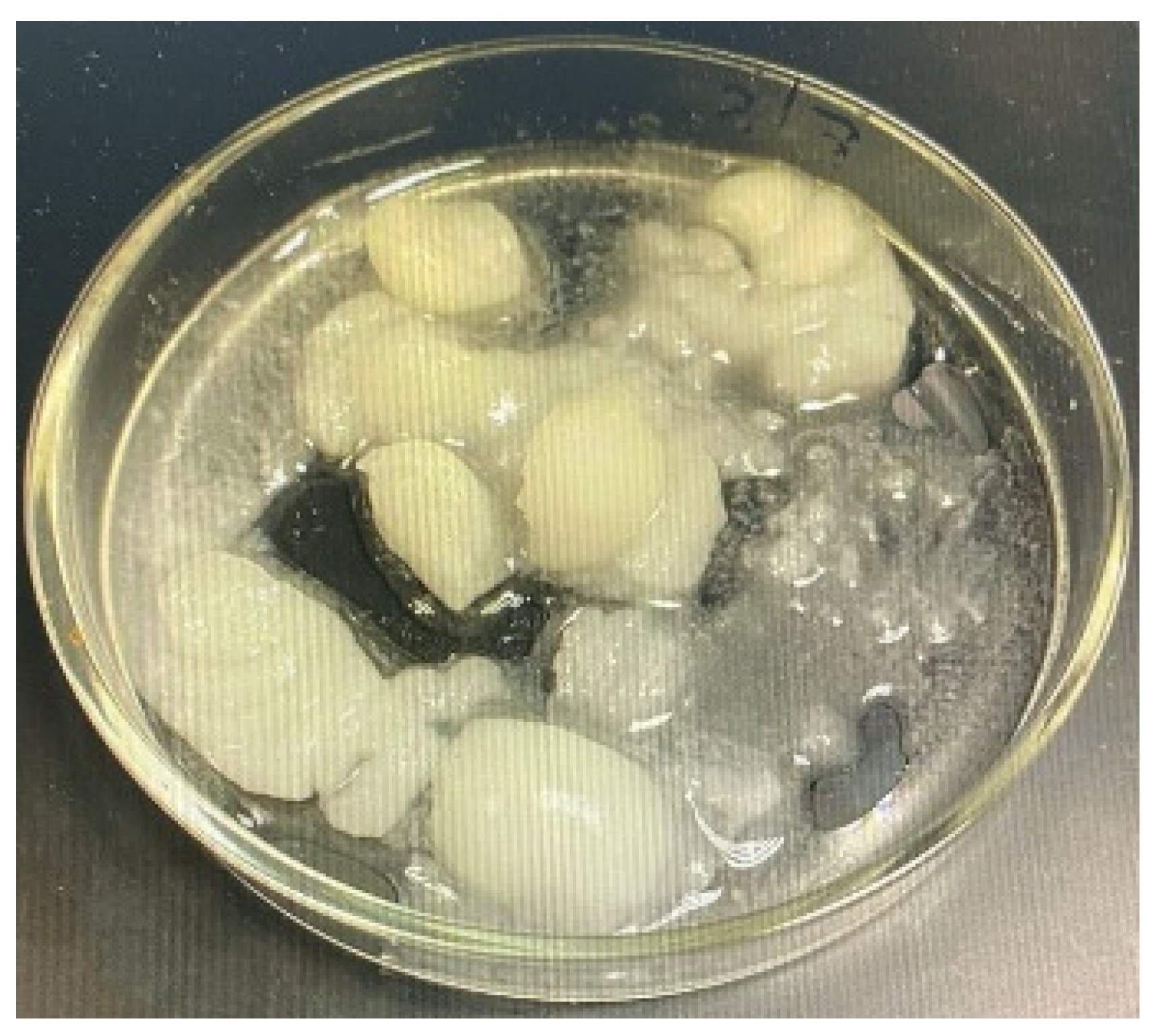

It is clear from Figure 8 that the sample is a gel-like suspended solution, which confirms the obtaining of the characteristic gel generation of nanomaterial.

3.2. Equilibrium Time Experiments

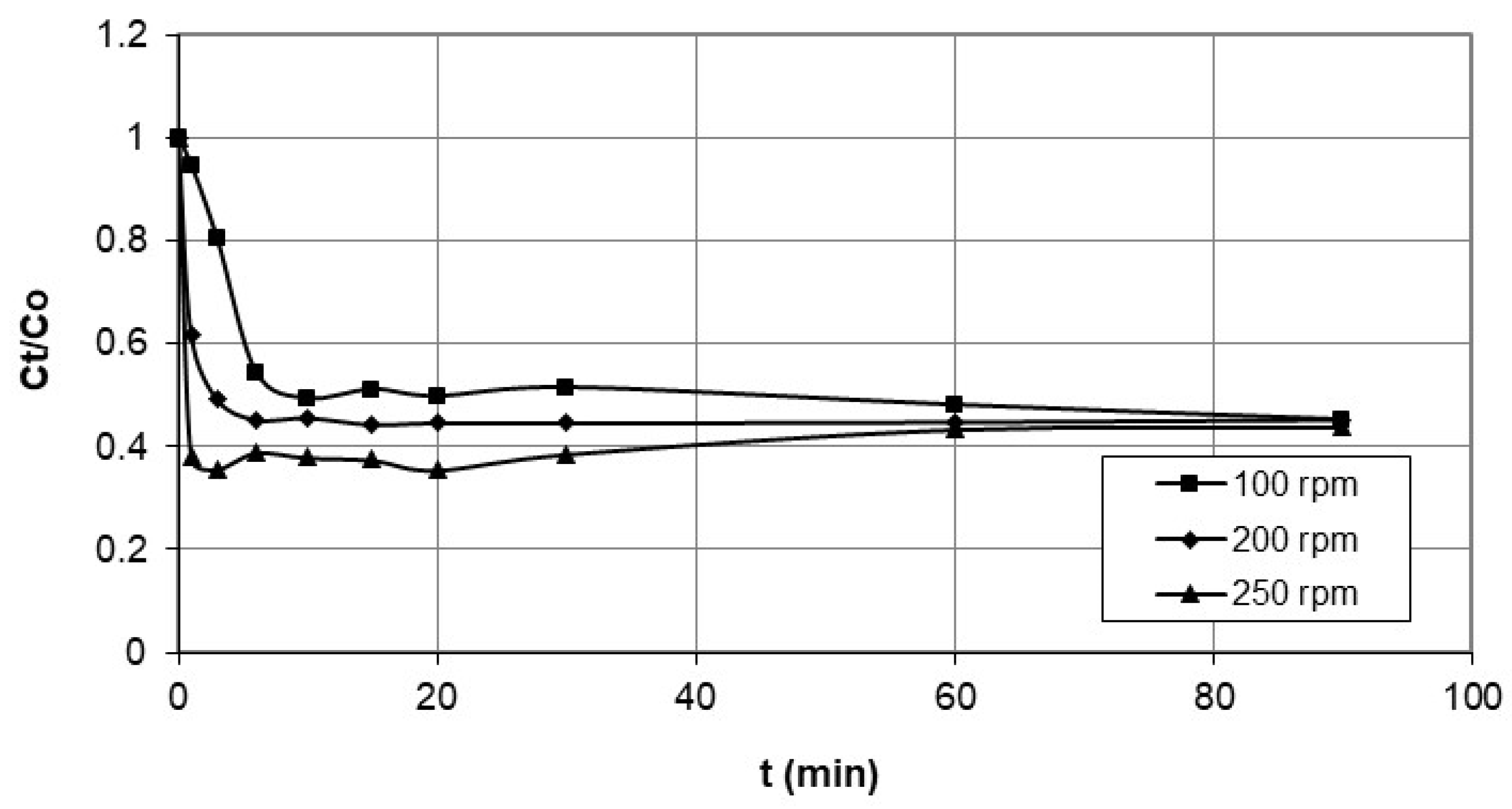

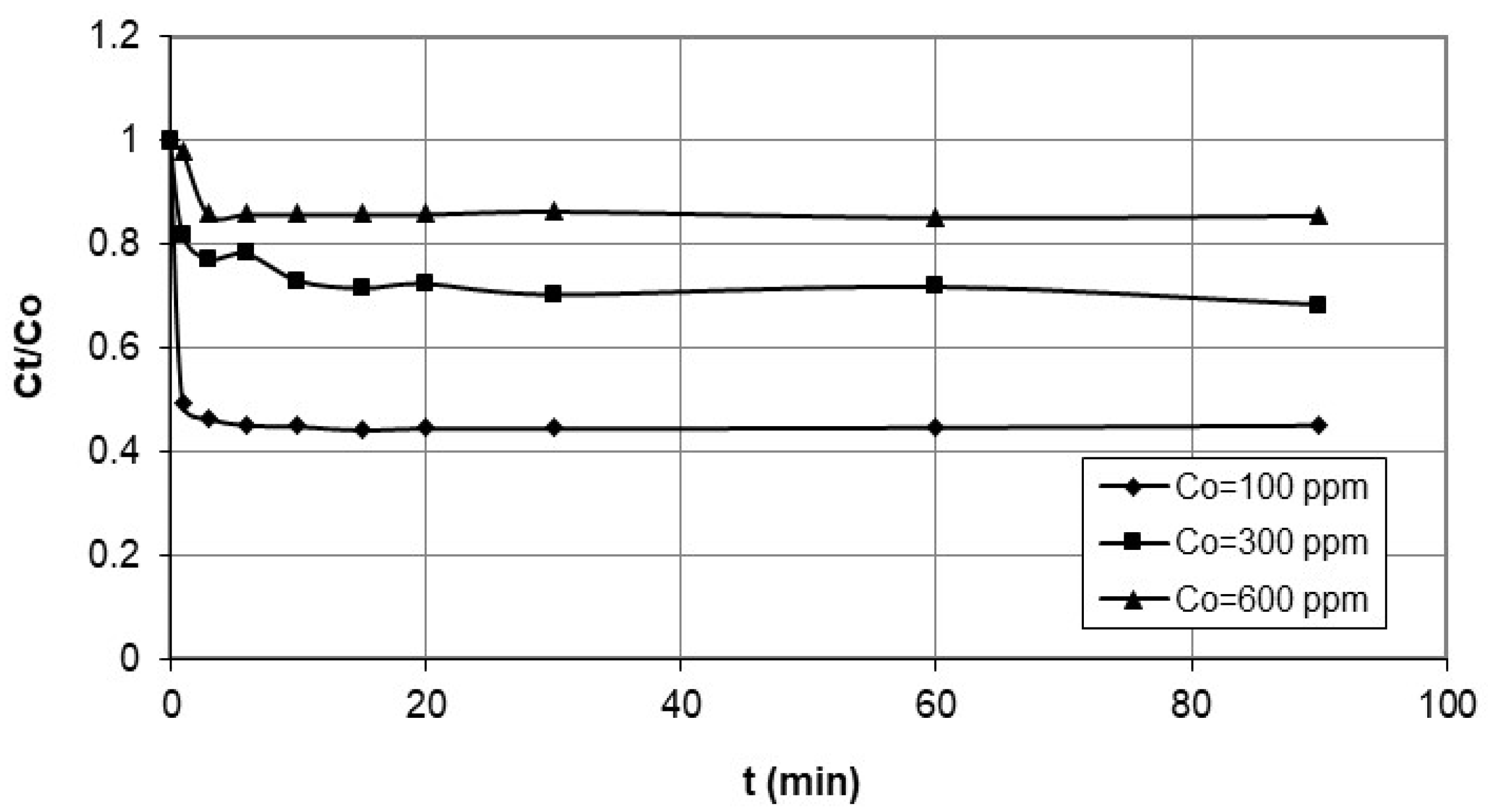

To ascertain the equilibrium time, Figure 3 and Figure 4 indicate that it takes 40 minutes for the dye/anionic CNF to reach equilibrium.

3.3. The Effect of pH

The observation of the effect of the pH on removal efficiency was investigated in the range 2 and 12. The use of 0.5 M NaOH and 0.5 M HCl is a frequent practice to adjust the pH value. It is apparent from the data shown in the Figure 9 that the adsorption efficiency of the anionic CNF for the positively charged dye increases with pH from 3 to 5. The maximum dye uptake has been recognized at pH of 6. This phenomenon is due to enhanced electrostatic attractions at this pH level.

3.4. The Effect of the Dye Equilibrium Constant

Understanding adsorption characteristics is crucial for optimizing the use of the nanomaterial in practical applications. For that purpose, we studied the equilibrium adsorption isotherm which is a graphical representation that plots the amount of dye adsorbed (often expressed in mg of dye per g of adsorbent) against the equilibrium concentration of the dye in the solution. We investigated the isotherm at various temperatures (20°C, 30°C, and 40°C). The result showed that the maximum adsorption capacity of the dye on the surface of the anionic CNF was found to be 4.25 mg/g at 20°C.

3.5. The Effect of Temperature

The impact of temperature on the adsorption was examined at temperatures ranging from 20^oC to 60^oC. The Data in Figure 2 shows that the adsorption capacities increase at higher temperatures. Since the adsorption process is exothermic. Increasing the temperature of the adsorption of dye on CNF is favorable. In this work, the maximum dye removal has been recognized at 5 mg/g.

3.6. The Adsorption Mechanism

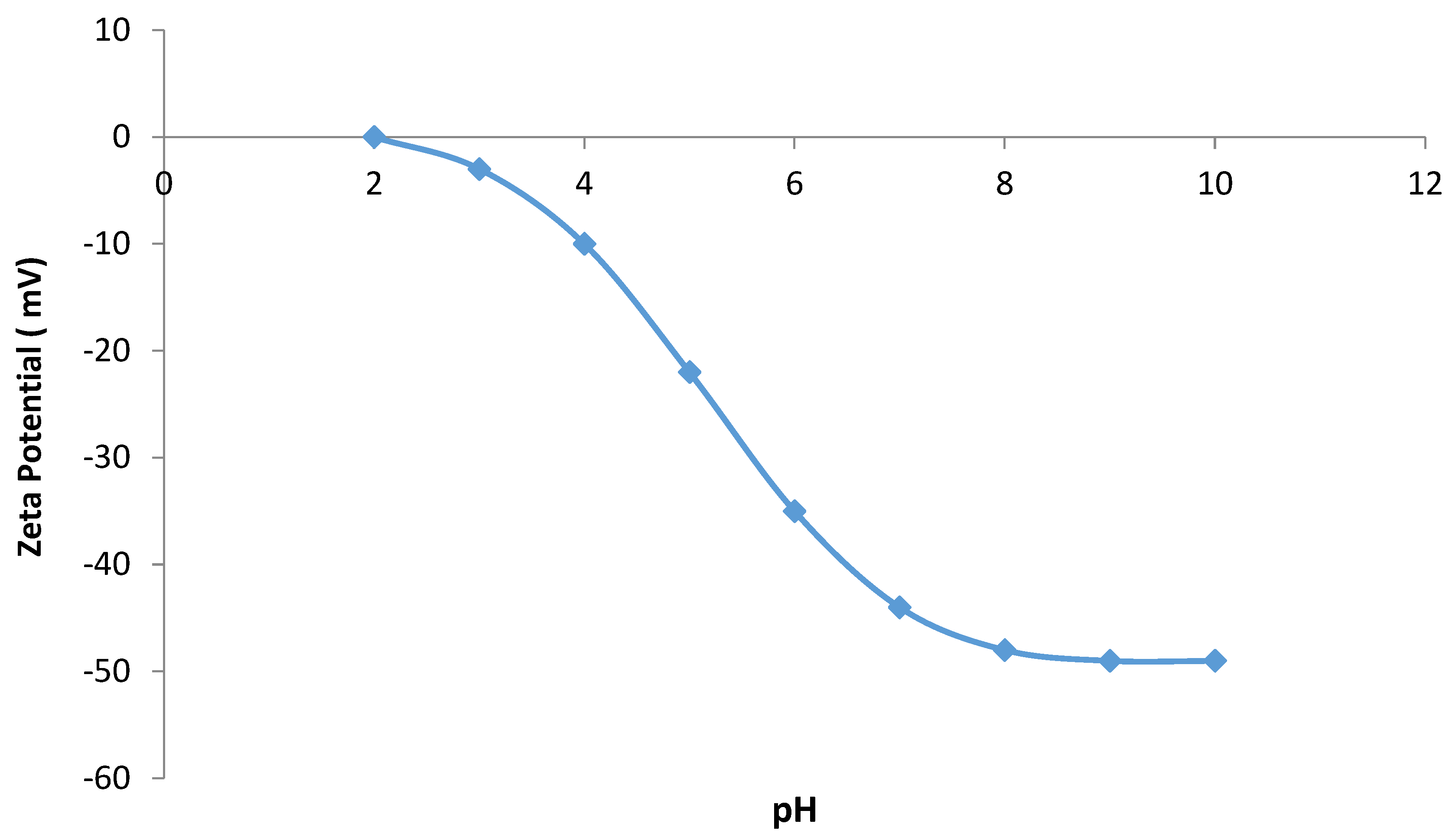

The variation of the zeta potential of the anionic CNF concerning pH has been studied to determine the surface charge of the adsorbent. The results of variable zeta potential as a function of pH are shown in Figure 10. The dye adsorption on anionic CNF is influenced by the pH of the solution. The charge on the surface of the anionic CNF varied with the pH change, which results in variations in removal efficiency. The negative charges at the surface of the anionic CNF increase at higher pH value, therefore the molecules of the cationic dye will be more attractable to surface; accordingly the dye removal efficiency will be enhanced.

3.7. Adsorption-Equilibrium Isotherm

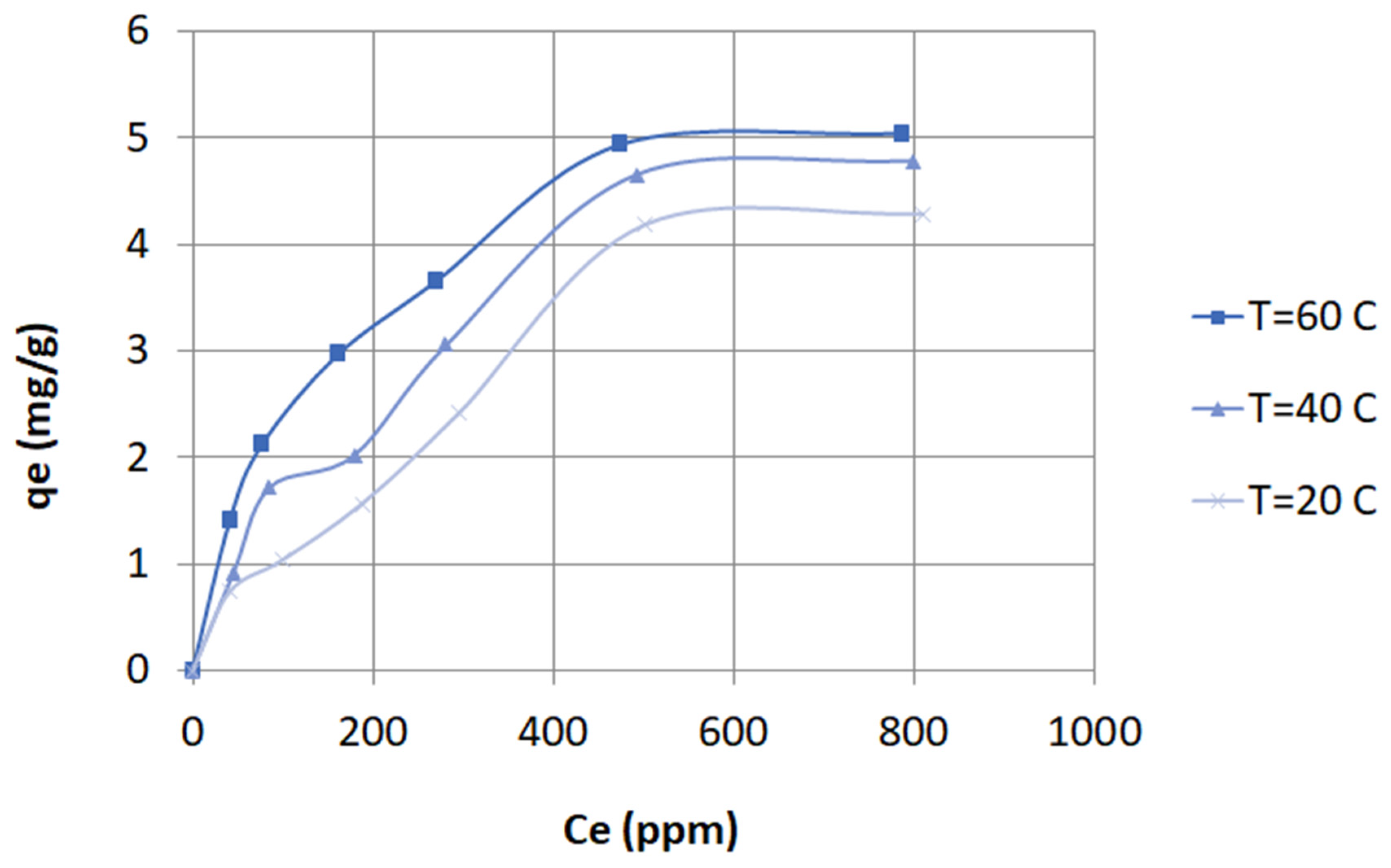

The resulting data showing the equilibrium-adsorption isotherm is plotted in Figure 2. The isotherm illustrates the relationship between the amount of adsorbed MB on CNF and the equilibrium MB concentration in the solution under the experimental conditions. That the maximum adsorption capacity of MB on anionic CNF is founds to be 4.25 mg/g at 20°C. This result suggests a strong interaction between the dye molecules and the surface of the nanofibers at this temperature.

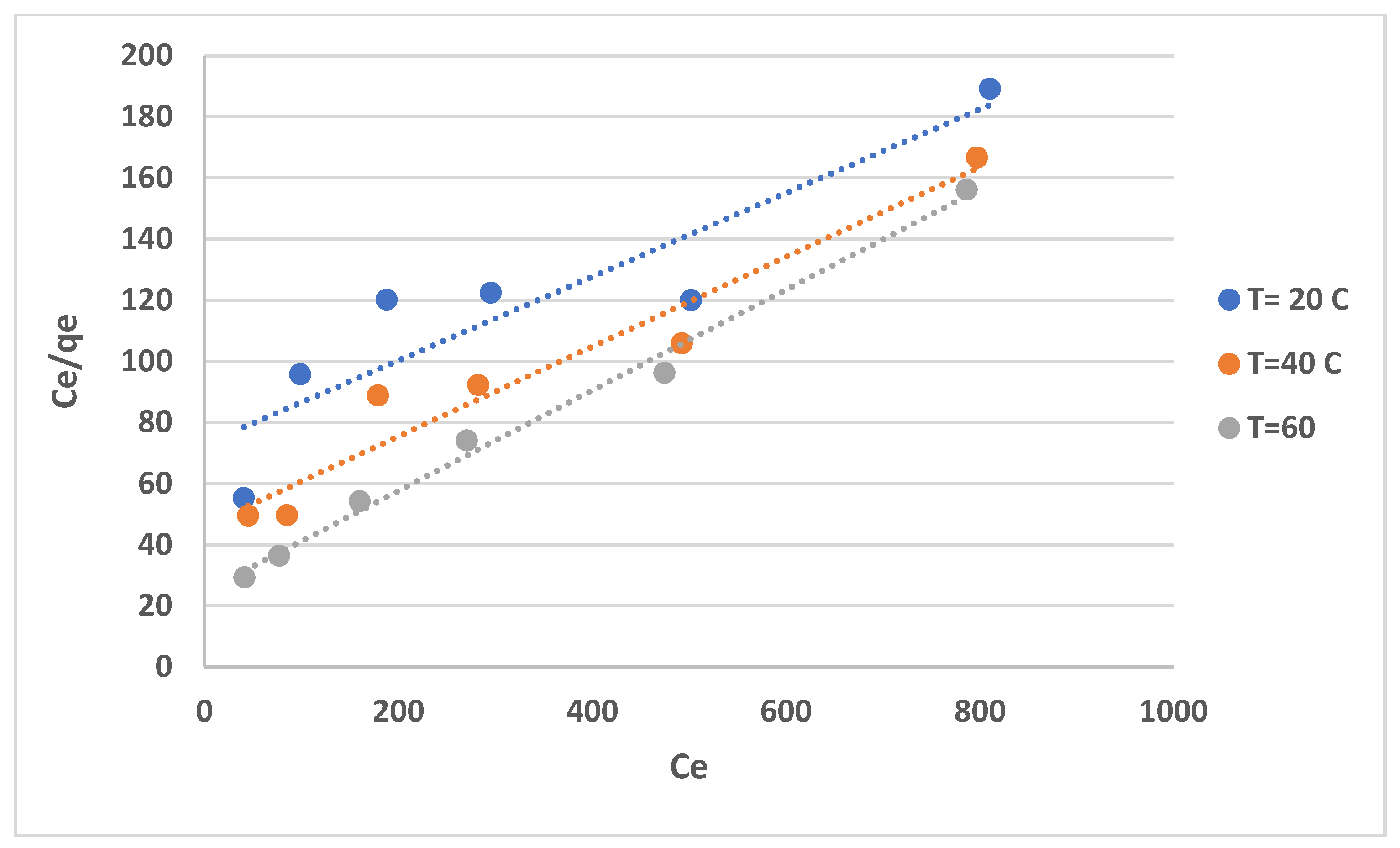

The use of equilibrium adsorption isotherms, such as the Langmuir and Freundlich models, to analyze the adsorption process is a well-established method. The determination of the Langmuir isotherm constants (K and b) and the Freundlich isotherm constants (KF and n) through the linearized plots provides a quantitative measure of the adsorption process. For instance, plotting the Ce/qe versus Ce using linearized Langmuir model, shown in Figure 11), allows the determination of the equilibrium-constant parameters for the adsorption process based on the calculated slope and intercept. The Langmuir equilibrium parameters, K and b, of the system were listed in Table 1. The result suggests that Langmuir model satisfactorily explained the experimental data According to the value of the adjusted coefficient of determination R², the Langmuir model sufficiently explained the experimental data.

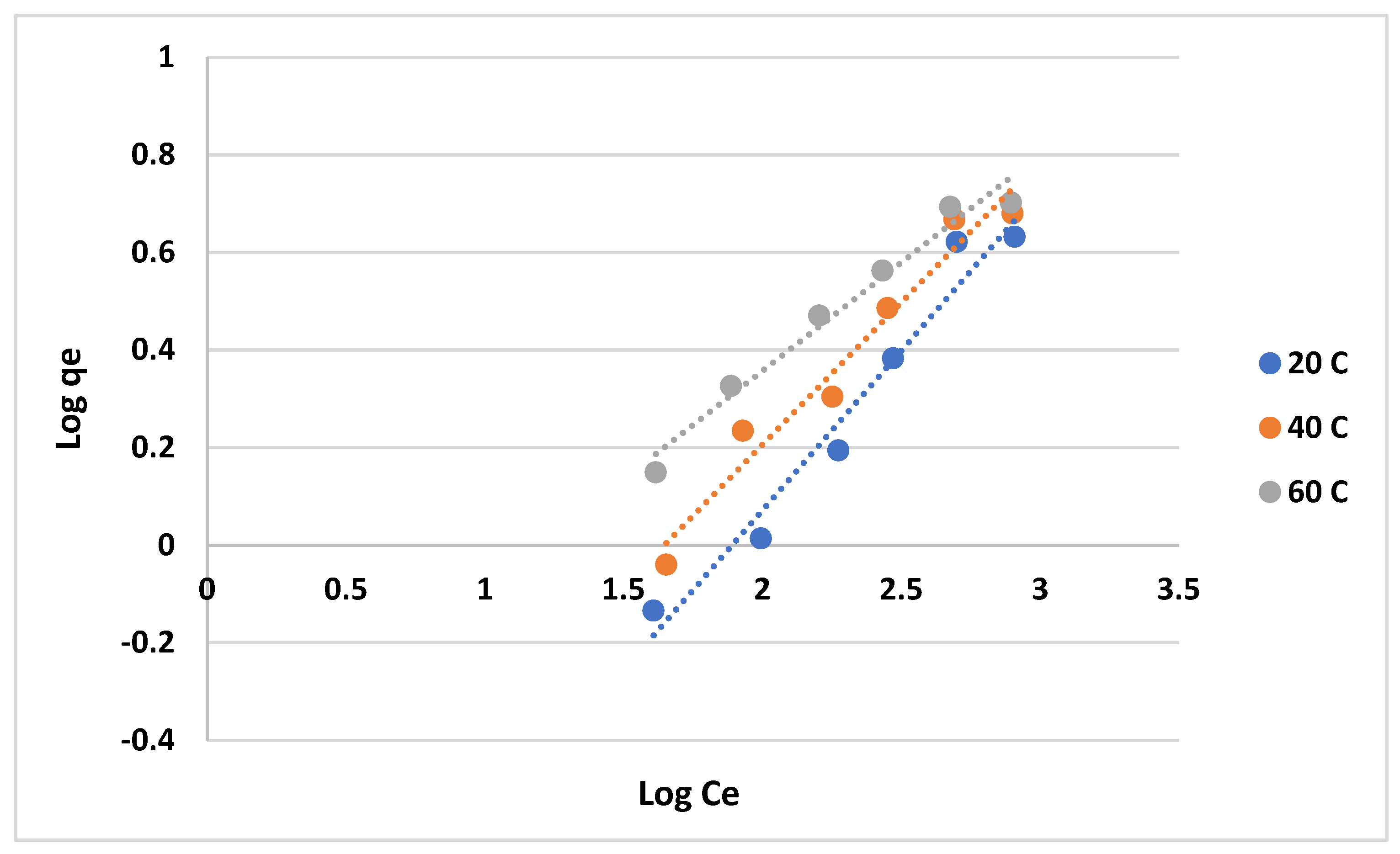

Similarly, Freundlich isotherm was also used to study the adsorption mechanism and all its equilibrium-constant parameters, i.e. KF and n, was obtained from the slope and intercept of linearized Freundlich model. Figure 12 shows that Freundlich model better fits the experimental data rather than Langmuir model. It is also supported by comparing R² value shown in Table 1. However, the observation on both isotherms is intriguing as the Langmuir model fits the experimental data better at higher temperatures, while the Freundlich model provides a better fit at lower temperatures. This could suggest that the adsorption mechanism of MB onto anionic CNF may transition from a monolayer adsorption process (Langmuir) at higher temperatures to a multilayer or heterogeneous adsorption process (Freundlich) at lower temperatures. Another observation was the value of n that is greater than unity indicates MB is readily adsorbed on anionic CNF [44].

3.8. Kinetic Studies

As shown in Figure 3 and Figure 4, the amount of MB in the wastewater gradually decreases due to it are binding to anionic CNF surface. The initial concentration of methylene blue in the wastewater is one of the factors influencing the adsorption of MB onto the anionic CNF from wastewater. In general, the lower initial concentrations of MB show more quickly concentration decrease than the higher initial concentrations. This is because at lower initial MB concentration, less binding sites are occupied by MB molecules thus there are more remaining vacant binding sites available for the adsorption. This results in higher rate of adsorption. Because of this higher rate of adsorption, the concentration of MB drops quickly [45]. Agitation plays a crucial role in the kinetics of adsorption by influencing the mass transfer of MB on the anionic CNF. At higher agitation speeds, the increased turbulence within the solution reduces the boundary layer thickness around the adsorbent particles, enhancing the mass transfer rate. Thus, the MB concentration decreases more quickly. On the other hand, mass transfer may end up being the rate-limiting step in the adsorption process at low agitation speeds due to thicker boundary layer around the adsorbent providing more resistance on transfer process [46].

3.8.1. Discussion of the Effect of the Chemical-Reaction as “a Rate Controlling Step” Using “Reaction Models” to Describe the Chemical Reaction Mechanism

The use of various kinetic models, such as the “pseudo-first-order”, “pseudo-second-order”, and “Elovich models”, is a robust approach to further reveal and explain the adsorption mechanism which may include chemical reaction. The results showed that the agitation speed and the initial MB concentration also significantly affect the adsorption rate.

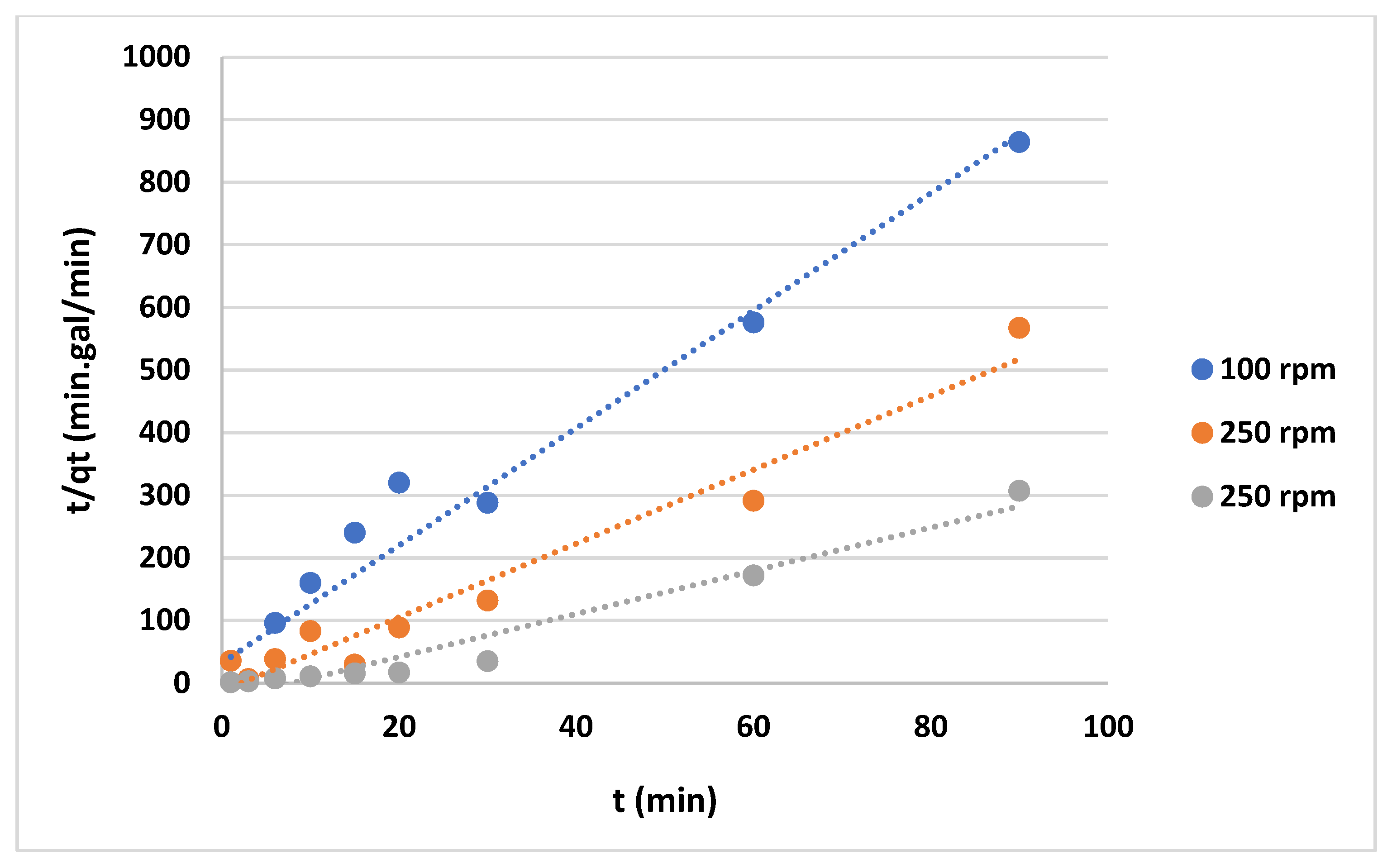

The data shown in Figure 13 and Figure 14 represent the results for various initial concentrations and agitation speeds for the pseudo-first-order model. Whereas Table 2 list of the corresponding parameters. The correlation coefficient (R²-value) suggests very poor fitting between the model and the experimental data. Meanwhile, the data presented in Figure 15 and Figure 16, show the results for “pseudo second-order model”. The R²-value for this model is presented in Table 2 suggesting that the model accurately represents the experimental data. The Pseudo second-order model exhibits even better fitting compared to Elovich model (see Figure 17–18). In general, it is clear that both the “pseudo-second-order” model and the Elovich equation have been found to be more suitable for representing the experimental results, as opposed to the “pseudo-first-order model”. Thus, chemisorption could be the mechanism of adsorption occurs in the adsorption of MB using CNF [47].

3.8.2. Comparison between the Kinetic Models

As for mentioned, to ascertain the rate of the chemical reaction between MB and anionic CNF as the prime controlling step, the kinetic adsorption of MB on CNF was examined using a variety of models, including the pseudo-first-order, pseudo-second-order, and Elovich models. A statistical indicator of the linear relationship between two variables is the R². In comparison to the experimental values, the pseudo-first-order model's correlation coefficient R² was comparatively low, as demonstrated by the results. A low correlation coefficient suggests that there may be other unaccounted factors affecting the adsorption process. In contrast, the second-order equation fits well the experimental data. This suggests that the latter is more suitable for describing the adsorption kinetics of MB on CNF. This is further supported by the higher adsorption-rate constant (k₂) in the pseudo-second-order model, suggesting chemisorption as the rate-limiting step.

The findings from Gomaa et al. regarding MB adsorption on the CuO@BSS nanocomposite [48] and Fe^3+ adsorption on a hybrid spongy-like porous carbon material [49] reinforce the utility of the pseudo-second-order kinetic model in describing adsorption processes that are likely controlled by chemisorption. The agreement of the maximum saturation capacity (qe) with experimental data further validates the model's applicability.

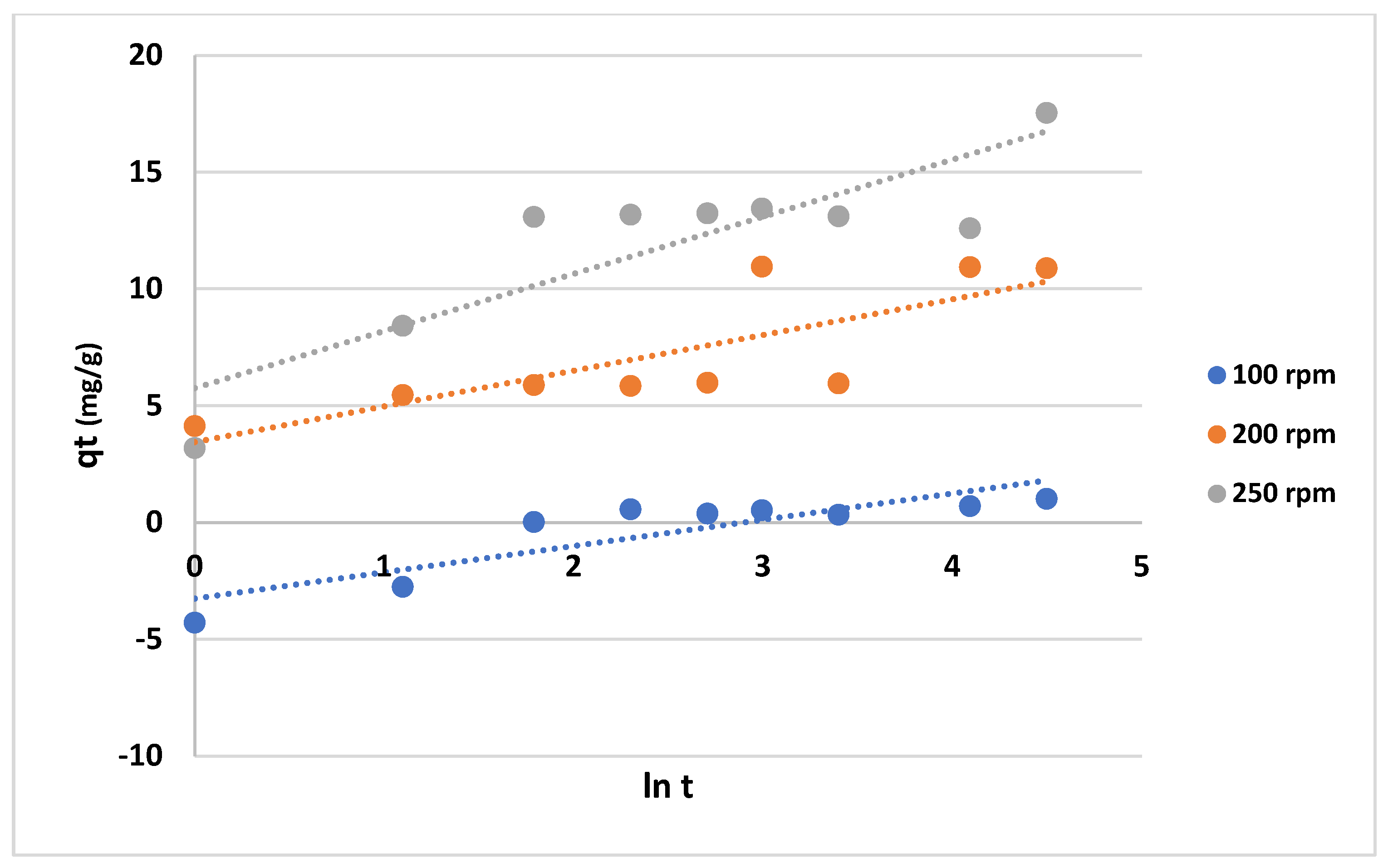

Aside from the above two models, elovich equation was also examined against the experimental data. The moderate fit of the Elovich model to the experimental data, indicated by rather higher R² values, suggests that it may also be a relevant model to describe the chemisorption process of MB on anionic CNF. The increase in the Elovich parameter β with agitation speed, while keeping the concentration constant, aligns with the expected decrease in available active sites, corroborating the findings of Gomaa et al. in their study of selective Fe³⁺ adsorption [49].

3.9. Adsorption Process Thermodynamics

There are several thermodynamic properties such as enthalpy (ΔH), the standard Gibbs free energy (ΔG), and the entropy (ΔS) changes, which are essential for understanding the nature of the adsorption process. It can explain the increase of the MB adsorption on anionic CNF with temperature elevated from 20^oC to 60^oC. The enthalpy change ($\mathsf{\Delta }H$) is calculated using the following equation [50]:

$$\ln K=\ln {{\displaystyle \mathrm{k}}}_{\mathrm{o}}+\left(\frac{-{\displaystyle \mathsf{\Delta }H}}{{\displaystyle R}{\displaystyle T}}\right)$$

(16)

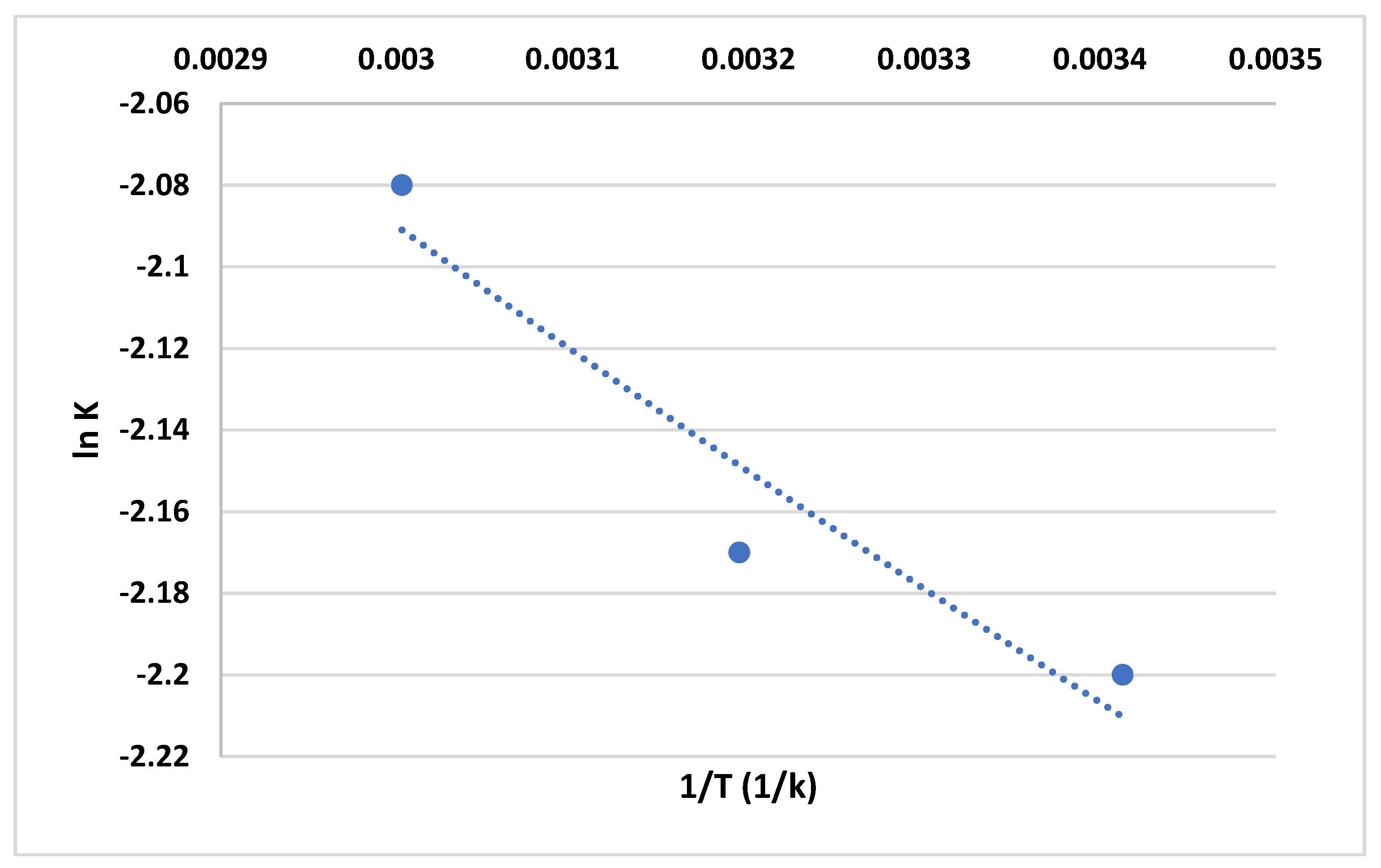

The enthalpy change (ΔH) can be determined by constructing a Van't Hoff plot, which is a graph of the natural logarithm of the equilibrium constant (ln K) versus the reciprocal of the absolute temperature (1/T) as shown in Figure 19 and also listed in Table 3. Meanwhile, The standard Gibbs free energy change (ΔG) is calculated using the Gibbs equation, which relates ΔG to the equilibrium constant (K), the gas constant (R), and the absolute temperature (T) [50]:

$${\displaystyle \mathsf{\Delta }G}=-{\displaystyle R}{\displaystyle T}{\displaystyle \ln K}$$

(17)

The equilibrium constant (K) can be dimensionless and is calculated using the ratio of the concentration of MB adsorbed by anionic CNF at equilibrium (Csm) to the concentration of MB in the solution at equilibrium (Cem), as expressed in equation (18) [51]:

K = Cs_m/Ce_m

(18)

Lastly, the entropy change (ΔS) is calculated using the Gibbs-Helmholtz equation, which relates ΔS to ΔH, ΔG, and T [50] as follows:

$${\displaystyle \mathsf{\Delta }S}=\left(\frac{{\displaystyle \mathsf{\Delta }H}-{\displaystyle \mathsf{\Delta }G}}{{\displaystyle T}}\right)$$

(19)

The negative values of $\mathsf{\Delta }H$ indicate exothermic adsorption process. Hence increasing the temperature causes the increase of the MB adsorption on anionic CNF. The sign of ΔS can provide information about the disorder or randomness associated with the adsorption process. The negative values of ΔS, as shown in Table 3, typically indicate a decrease in disorder upon adsorption. It means the MB-anionic CNF adsorption process may be favorable [52]. The Gibbs equation is a fundamental equation in thermodynamics that provides insight into the spontaneity of a process. A positive ΔG indicates a non-spontaneous process under standard conditions.

3.10. Comparison of Waste Palm Leaves-Derived Anionic CNF as an Adsorbent with Literature-Reported Adsorbents

The utilization of agricultural waste such as palm leaves for the extraction of high-value materials like anionic CNF not only contributes to waste reduction but also offers a cost-effective alternative to traditional raw materials. The fact that the performance of anionic CNF derived from waste palm leaves is on par with other adsorbents mentioned in the literature (see Table 4) is a indication to the potential of this approach. It is encouraging to note that the local and inexpensive nature of the raw material does not detract from the efficacy of the product.

4. Conclusions

Highly efficient bio-sorbent for MB dye; has been developed by extracting the cellulose pulp from the leaflet of a palm date tree and transferring it into nano–cellulose via multi-chemical treatment. The obtained nano-material shows significant dye removal performance. The temperature and pH are the significant parameters in the dye removal. Therefore, the adsorption process is endothermic, the maximum removal efficiency has been recognized at pH= 6 and temperature= 60^oC. It was also found that the electrostatic changes of the solution resulting from the pH change greatly affect the dye removal. The electrostatic changes at the maximum capacity of the nano-cellulose in adsorption of the dye were 4.25 mg/g at room temperature.

Two equilibrium models, the Langmuir and Freundlich models were employed. The use of equilibrium models like Langmuir and Freundlich to describe the adsorption isotherms is a standard approach in adsorption studies. It is noteworthy that the Langmuir model, which assumes monolayer adsorption on a homogeneous surface with a finite number of identical sites, was consistent with the experimental data. This suggests that the adsorption sites on the anionic CNF are uniform and that each site binds to one dye molecule. The highest removal efficiency was obtained at 60^oC and was 5 mg/g.

Kinetic studies involving various models such as pseudo-first-order, pseudo-second-order, and Elovich equations are crucial for understanding the dynamics of the adsorption process. The pseudo-second-order model fitting the experimental data well suggests that the rate-limiting step may be chemical adsorption involving valency forces through sharing or exchange of electrons between the adsorbent and the adsorbate. The Elovich equation further supports the chemical nature of the adsorption, indicating a reaction between the MB dye and the anionic CNF.

Overall, the study’s findings contribute valuable insights into the potential use of renewable natural waste sources for environmental remediation, particularly in the removal of cationic contaminants. It also underscores the importance of understanding the adsorption kinetics and mechanism to optimize the process for practical applications. The use of anionic CNF from palm date leaves as an adsorbent is an innovative approach that combines sustainability with effective wastewater treatment.
