Implications of the Spin-Induced Accretion Disk Truncation on the X-ray Binary Broadband Emission

1. Introduction

Active Galactic Nuclei (AGNs) are the center of nearly every galaxy and are our universe’s most powerful particle accelerators. They consist of a supermassive black hole surrounded by an accretion disk of nearby gas and matter attracted by gravitational forces. Black hole X-ray binary systems (BHXRBs) are scaled-down systems of AGNs that host stellar instead of supermassive black holes. The mass supplier, in this case, is the secondary stellar component of the initial binary system instead of the galaxy host of the AGN.

The particle acceleration occurs inside the relativistic jets launched perpendicularly to the accretion disk’s plane. They often form observable radio lobes when interacting with the interstellar medium [1]. Depending on the nature of the accelerated particles, the jet emission mechanisms vary from synchrotron radiation and inverse comptonization (leptonic jet models) to proton-proton or proton-photon interactions, leading to a pion/muon distribution production (hadronic jet models). The latter mechanisms lead to higher-energy gamma-ray emission in addition to neutrino production [2,3,4]. Such energetically rich spectra can be detected by Earth-bound or space detectors that are continuously upgraded to reach even higher sensitivities [5,6].

In the current work, we present a lepto-hadronic jet emission model that integrates a variety of non-thermal emission mechanisms. Those include synchrotron emission from both leptons and hadrons accelerated by the system’s magnetic field, inverse compton scattering of thermal emission (mainly from the accretion disk and the companion star) due to interaction with the energetic jet electron distribution, and proton-proton interactions inside the co-moving jet frame. Photon annihilation due to pair (electron-positron) production occurs frequently in the vicinity of the black hole, leading to a substantial decrease in the produced spectra as seen by distant observers [7].

In many attempts at fitting the emitted spectra, a static black hole is often assumed regarding the accretion disk modeling, ignoring the Kerr metric properties that significantly impact the geometry around the black hole. The fact that most of the observed black holes, especially those involved in XRBs, exhibit extreme spin parameters poses the question of how long we can neglect the spin contribution in the XRB emission modeling [8]. Hence, we examine the possible implications of involving the black hole spin in our calculations through the disk truncation effect induced by the shifting radius of the innermost stable circular orbit (i.e., ISCO). The latter is often assumed to be the inner boundary of the accretion disk in the standard Shakura-Suniaev model.

We will first introduce the jet emission model and the accretion disk spectral aspects. Then, we will present our results for a common XRB similar to Cygnus X-1 while demonstrating the impact of one aspect of the Kerr metric input from general relativity. That aspect is the radius of the innermost stable circular orbit. Finally, we summarize and conclude while setting our next research targets.

2. Photon-Lepton/Hadron Interactions Inside the Jet Frame

Shock waves inside the jet co-moving frame cause additional acceleration to a particle fraction, leading to power-law energy distributions. The present work assumes equivalence between the leptonic and hadronic jet’s content. Hence, the emission mechanisms involved are synchrotron radiation, inverse comptonization, and proton-proton collisions between the power-law distribution and the rest of the cold proton density inside the jet.

The synchrotron spectrum component by a single particle accelerated by a magnetic field $B\left(z\right)$, where z the distance of the acceleration region from the black hole, is given by

$$q_{syn}={\displaystyle \frac{\sqrt{3}{e}^{3}B\left(z\right)}{hm{c}^2}}{\displaystyle \frac{ϵ}{{ϵ}_{cr}}}{\int }_{ϵ/{ϵ}_{cr}}^{\infty }{K}_{5/3}\left(\zeta \right)d\zeta .$$

(1)

The energy of the emitted photon is $ϵ$ and the critical energy ${ϵ}_{cr}$ is defined as

$${ϵ}_{cr}={\displaystyle \frac{3heB\left(z\right)sin{a}_p}{4\pi mc}}{\gamma }^2,$$

(2)

where $\gamma ={ϵ}_{e,p}/m{c}^2$ and $a_p$ denotes the pitch angle. The total spectrum emitted by a distribution of particles is calculated through multiplication with the distribution and integration over the particle energy and the solid angle corresponding to the pitch angle.

Respectively, the IC (inverse compton) component is obtained by employing the spectrum emitted by a single particle given by

$$q_{IC}={\displaystyle \frac{3{\sigma }_T{m}^2{c}^5}{4\gamma }}{\displaystyle \frac{dn}{ϵdϵ}}\left[2flnf+(1+2f)(1-f)+F\right].$$

(3)

The Thomson cross-section is denoted as ${\sigma }_T$. In addition, it holds $\gamma \gg 1$ and $f=ϵ{ϵ}_e/4{ϵ}_0{\gamma }^2({ϵ}_e-ϵ)$. Also, $F=\left(k^2(1-f)\right)/\left(2(1+k)\right)$ where $k=ϵ/({ϵ}_e-ϵ)$. The total spectrum is obtained by integration over the energy ${ϵ}_e$ of the electron distribution and the initial photon energy ${ϵ}_0$. The energy-dependent photon density scattered off the lepton distribution is given by $dn/dϵ$.

Regarding the hadron-induced mechanisms, we assume predominantly the contribution of the proton-proton interactions, resulting in neutral and charged pion production. Our interest lies mainly in the emission of gamma-rays, so we take into account only the neutral pions that decay into gamma-ray photons with the following emissivity

$$q_{\gamma }=cn\left(z\right){\int }_{ϵ/{ϵ}_{p,max}}^1{\displaystyle \frac{d(ϵ/{ϵ}_p)}{ϵ/{ϵ}_p}}{N}_p({ϵ}_p,z)F_{\gamma }(ϵ/{ϵ}_p,{ϵ}_p){\sigma }_{pp}^{\left(inel\right)}\left({ϵ}_p\right).$$

(4)

In the above equation, $n\left(z\right)$ stands for the cold proton density inside the jet and $F_{\gamma }$ denotes the gamma-ray spectrum emitted per p-p collision [9].

2.1. Black-Body Spectrum of the Accretion Disk

The photon density emitted by the accretion disk in the standard Shakura-Suniaev model is approximated by a sum of black-body spectra. Given the torque-free inner boundary condition, which is a usual assumption, a single disk surface area emits a black-body spectrum with an effective temperature given by [10]

$$T\left(\overline{r}\right)={\left({\displaystyle \frac{3G{M}_{bh}\dot{M}}{8\pi {\sigma }_{SB}{r}_g^3}}\right)}^{1/4}{\left[{\displaystyle \frac{\overline{r}-2/3}{\overline{r}{(\overline{r}-2)}^3}}\left(1-{\displaystyle \frac{3^{3/2}(\overline{r}-2)}{2^{1/2}{\overline{r}}^{3/2}}}\right)\right]}^{1/4}.$$

(5)

Here, $\overline{r}=r/r_g$ is the radius in units of $r_g=G{M}_{bh}/c^2$. The disk temperature profile of Eq. (5) is derived by assuming a Paczyński–Wiita pseudo-Newtonian potential around a Schwarzschild black hole. A more realistic approach requires the incorporation of the black hole spin input in the calculations since most of the compact objects in BHXRBs are rotating black holes with significant spin parameter values.

The inner disk edge is located at the radius of the innermost stable circular orbit (i.e., $r_{ISCO}$), which for a static black hole is $6r_g$. Nonetheless, the incorporation of the Kerr metric in general relativity dictates the following ISCO radius depending on the dimensionless spin parameter ${\alpha }_{*}$

$$r_{ISCO}={\displaystyle \frac{G{M}_{bh}}{c^2}}\left(3+{\lambda }_2\pm \sqrt{(3-{\lambda }_1)(3+{\lambda }_1+2{\lambda }_2)}\right).$$

(6)

In the above equation, it holds

$$\begin{array}{cc}\hfill {\lambda }_1& =1+{\left(1-{\alpha }_{*}^2\right)}^{1/3}\left[{\left(1+{\alpha }_{*}\right)}^{1/3}+{\left(1-{\alpha }_{*}\right)}^{1/3}\right],\hfill \end{array}$$

(7)

$$\begin{array}{cc}\hfill {\lambda }_2& ={\left({\lambda }_1^2+3{\alpha }_{*}^2\right)}^{1/2}.\hfill \end{array}$$

(8)

In this work, we only incorporate this aspect of the general relativity (i.e., the location of the $r_{ISCO}$), aiming to demonstrate its contribution. We neglect the necessary modifications of the gravitational potential, which will be studied thoroughly in future works.

3. Results

We apply the aforementioned jet emission model to an X-ray binary system similar to Cygnus X-1, which is characterized by the parameters of Table 1. The black hole accretes with a sub-Eddington rate that justifies the Shakura-Suniaev disk description.

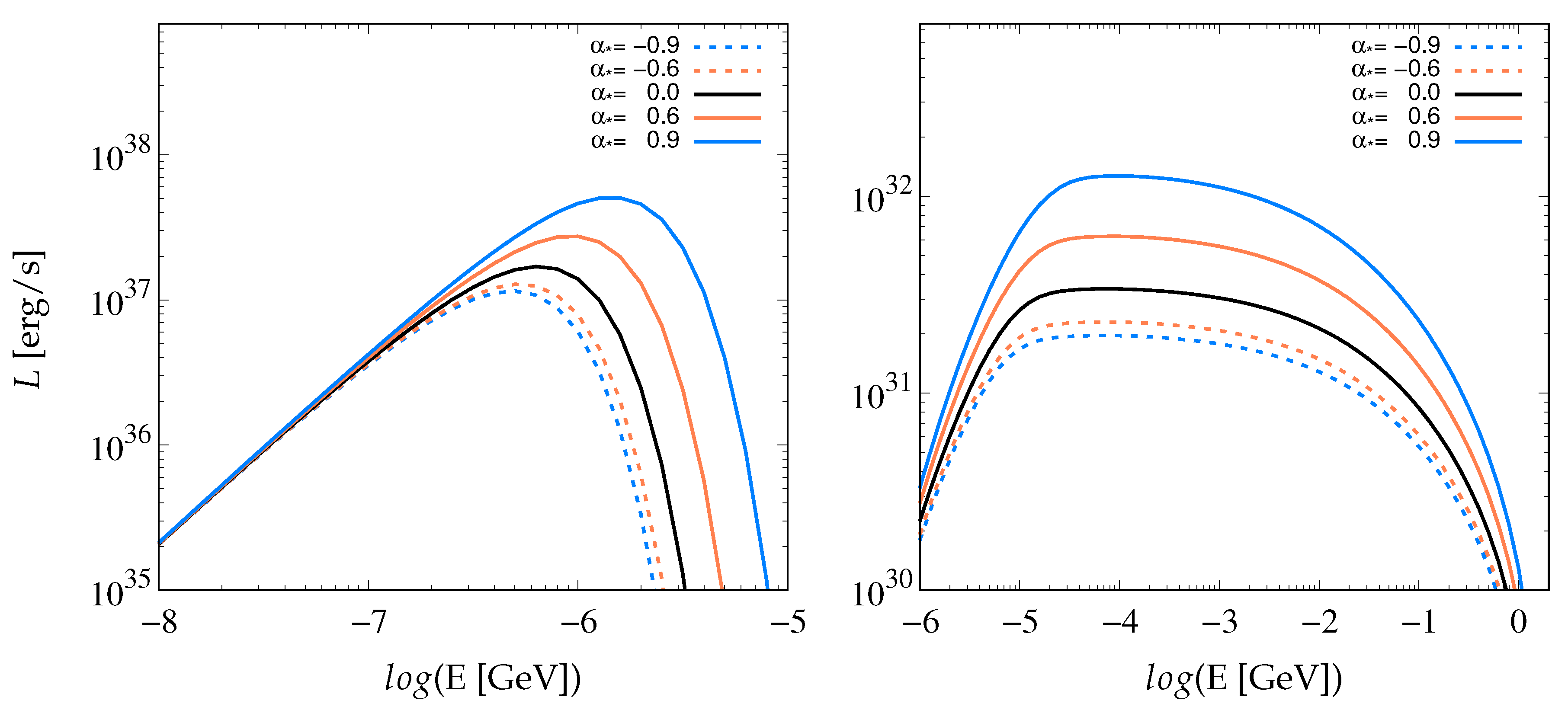

The left panel of Figure 1 demonstrates the spin’s impact on the total disk luminosity. Co-rotating accretion disks around rapidly rotating black holes exhibit an amplified peak shifted to higher energies, while the opposite happens in the counter-rotation case. The respective IC emission component of the spectrum (right panel of Figure 1) also experiences a substantial increase that makes it comparable to the synchrotron counterpart (accelerated leptons cause both) in some cases.

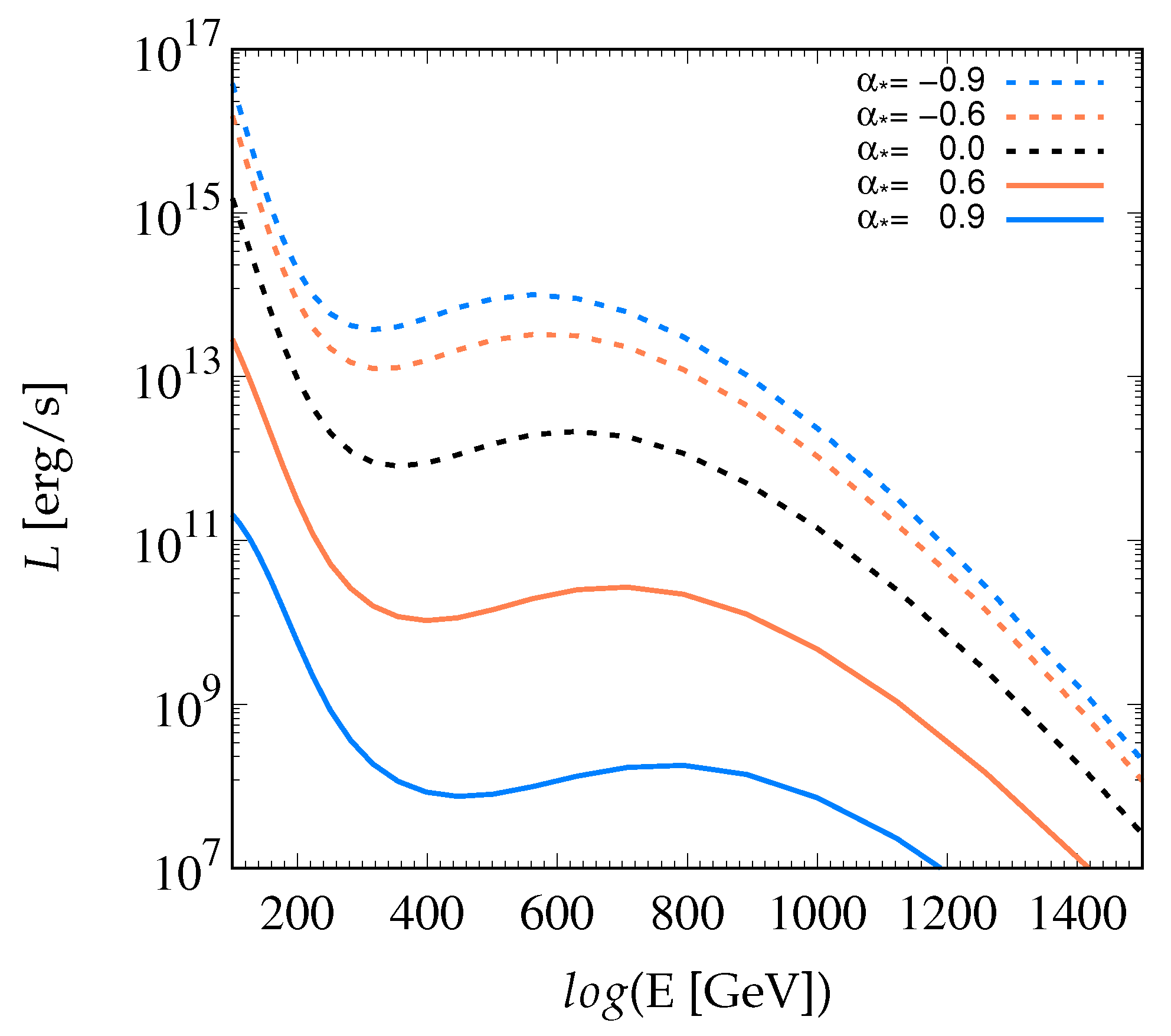

The substantial increase in the photon annihilation rate for energies above 100 GeV due to the disk truncation at lower $r_{ISCO}$ is displayed in Figure 2. The emission mechanisms contributing to this energy regime are primarily hadronic, such as the p-p collisions and synchrotron emission of accelerated protons.

The reason for such a steep drop in the luminosity is that the additional disk surface in close proximity to the black hole (i.e., $\overline{r}<6$) provides an additional source of higher-frequency photons capable of annihilating the jet-emitted ones. This portion of the disk surface assumes significantly higher temperatures than the rest, reaching $T\approx {10}^6-{10}^7$ K depending on the black hole mass and the mass accretion rate.

4. Conclusions

Black hole X-ray binary systems (BHXRBs) are smaller versions of AGNs that host stellar instead of supermassive black holes. An accretion disk is formed when the compact object accretes mass out of its binary companion, and two relativistic jets are launched perpendicularly as a result. One of those is inclined towards the Earth, leading to a multi-wavelength emission detection caused by the highly accelerated particle interactions inside the jet frame.

Adopting a static compact object is a usual simplification in modeling the accretion disk and jet emission. However, that does not account for the additional rotational energy transferred to the accretion disk through the Kerr modification of a static curved spacetime. In the present work, we examine the implications of the spin-induced accretion disk truncation on the X-ray binary broadband emission. For that reason, we employ a jet lepto-hadronic emission model and a standard disk description.

Our findings show a substantial increase in the accretion disk luminosity and the hardening of its respective X-ray spectrum. That also affects the emitted inverse compton component due to the disk’s scattered photons off jet-accelerated leptons. The very high energy (i.e., VHE) gamma-ray spectrum counterpart experiences a substantially amplified quenching caused by photon annihilation (leading to pair production) with the disk-emitted photons. Our analysis is limited to the shift of the innermost stable circular orbit radius, neglecting the required modifications to the pseudo-Newtonian potential of Paczyński–Wiita. Our future goal is to derive a more complex spin-dependent temperature profile and integrate the angular dependence predicted by general relativity without further modifications of the standard disk model.
