Enhancing Sustainability: Brewer's Spent Grain-based Biochar as a Renewable Energy Source and Agriculture Substrate

1. Introduction

Beer is the most widespread alcoholic beverage, and the third most consumed beverage in the world [1], and the brewer’s spent grain (BSG) from beer production is the first by-product generated [2]. In recent years, the number of microbreweries in Argentina has increased substantially in response to the growing demand for craft beer, an alternative to traditional beer that has been widely accepted by the local market.

Argentina has an installed capacity of 23.9 million hectoliters of beer, producing about 20 million hectoliters per year, whose main raw material is malted barley [3]. The BSG is the main waste generated by the brewery industry, representing 85% of the total process waste [4]. This solid lignocellulosic waste is generated after the mashing of malted barley, where the starch is converted into fermentable sugars by the addition of water and, then BSG is separated from the malted barley wort by filtration. BSG composition is characterized by being rich in protein (15-25% on a dry basis) and fiber (around 70% on a dry basis) and also contains different vitamins (especially those of the B complex: thiamine, riboflavin, niacin, pantothenic acid, pyridoxine, biotin, and folic acid) [5], therefore different works focus on its incorporation in the human diet [6].

Although the BSG has several applications [7,8,9], due to the large amount that is generated, it is necessary to find new applications that also promote a circular economy. Biochar production is therefore an alternative that should be explored to find new opportunities for converting such waste into carbon-based materials.

Through pyrolysis, it is possible to produce different biofuels such as gas, bio-oil, and biochar. In all cases, the biomass usually is densified considering the calorific value of the bio-waste and three products [10]. In this thermochemical process, the temperature is one of the variables affecting the physicochemical characteristics of biochar [11]. To obtain a higher yield of biochar than other by-products, relatively low temperatures are required, due to the carbonization reactions [12]. Other important variables that modify the product distribution in pyrolysis and their characteristics are the particle size of the sample, the nitrogen flow rate used to remove the air from the reactor used, the gas and solid residence time, and the process heating rate [13,14]. Biochar has several uses such as energy vector, amendment soil, substrate in soilless cultivation, and additive on composite materials, among others [15,16]. At the same time, the chemical and physical properties of biochar depend largely on the biomass and the operating conditions of the process [11].

Considering the biochar use as an energy vector, it is possible to evaluate the potential of biofuels (e.g., biomass or biochar) for heat generation, by using bioenergy indices that allow comparing their energetic characteristics with those of classical fossil fuels and also, with other biofuels [17]. In addition, it has been shown that biochar can be used as a substrate for the cultivation of various vegetables [18], with the production of sprouts being an alternative crop that has gained importance in human diets, as well as fodders in animal feed, since sprouts have a nutritional quality superior to dry cereals, with a high content of proteins, vitamins, and bioactive compounds [19,20].

Given the versatility of this bio-waste, it has recently regained interest. Dessì et al. [21] studied the triplet kinetics and reaction mechanism of pyrolysis, determining a multistage reaction model for its thermal valorization. Likewise, Sobek et al. [22] analyzed the kinetic mechanism of pyrolysis with a focus on the recovery of phenolic compounds and fatty acids. Ashman et al. [23] proposed an integrated biorefinery through the addition of catalysis precursor in BSG biomass, to improve biofuel components, in addition to producing bio-template silver particles. On the other hand, a review by Jo-vine et al. [24] discusses in depth the use of BSG to obtain biogas and consequently reduce the use of fossil fuels. Olszewiski et al. [25] and De Araújo et al. [26] studied the hydrothermal carbonization of the same bio-waste, the first emphasizing the pretreatment while the latter studied its activation and its application to treat wastewater.

Although BSG has been studied and reviewed extensively, little is known about the pyrolysis temperature effect of bio-waste and its application as a biofuel and substrate constituent. Hence, this current study explores sustainable alternatives for its valorization considering its use as an energy vector and substrate for sprout production. Therefore, first, a comprehensive characterization of BSG and its biochar produced by slow pyrolysis at 673, 773, and 873 K was carried out, considering proximate analysis (for moisture, volatile matter (VM), fixed carbon, and ash contents) and elemental analysis (carbon (C), hydrogen (H), nitrogen (N), oxygen (O), and sulfur (S) contents) together with the higher heating value (HHV). In addition, Fourier Transform Infrared (FTIR) spectroscopy was applied to identify BSG biochar chemical bonds, and the methods of Brunauer- Emmett- Teller (BET) specific surface area, Scanning Electron Microscopy (SEM) and Energy Dispersive X-ray Spectroscopy (EDS) were implemented for the study of BSG biochar surface. Four bioenergy indices were then calculated to compare BSG and its biochar with classical fossil fuels. Finally, the BSG biochar obtained at each temperature was assessed using germination assay to establish its application as a substrate constituent and to produce sprout. A logic diagram of this research is presented in Figure 1.

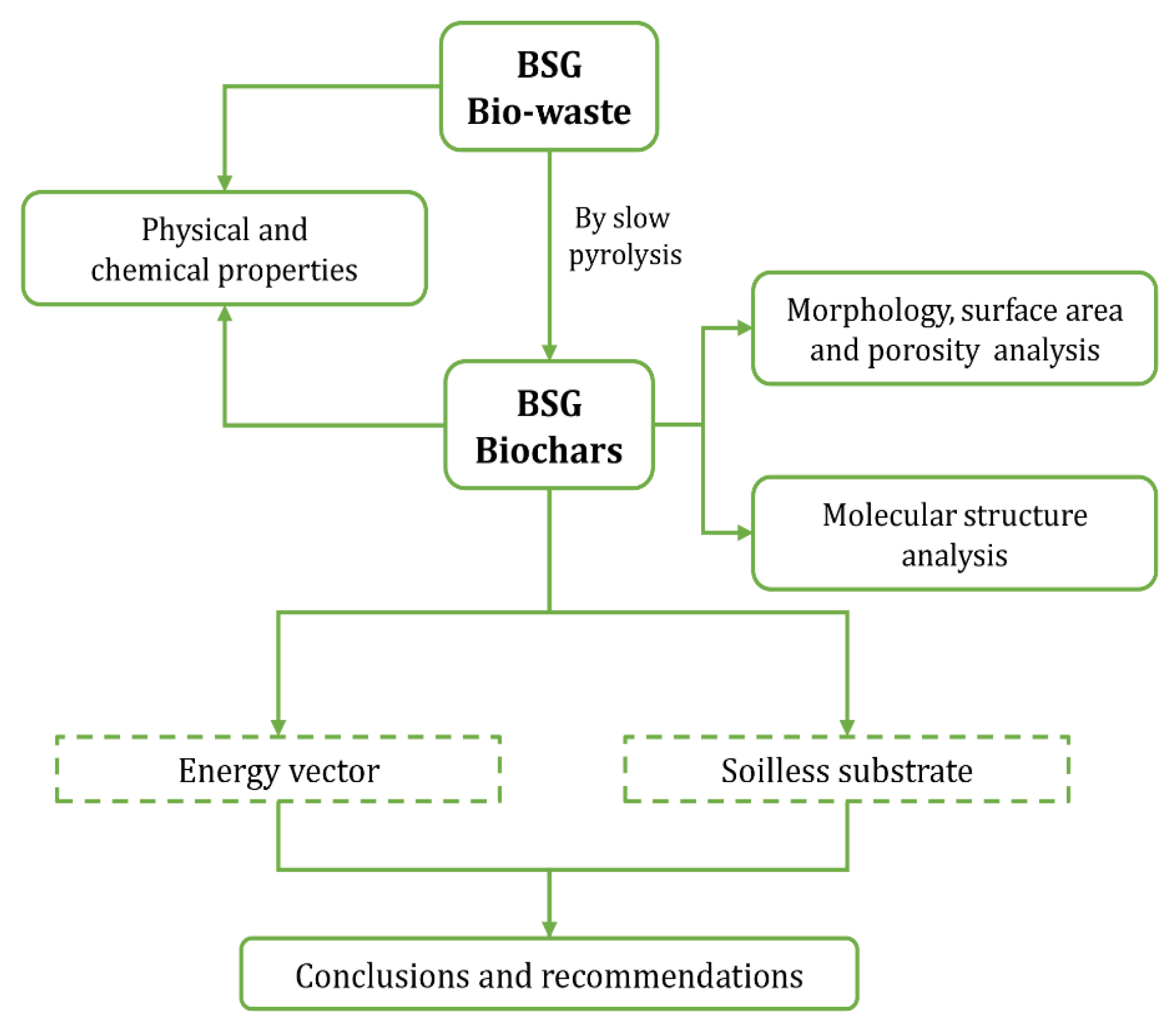

2. Materials and Methods

2.1. Bio-Waste Characterization

In this work, BSG was used as pyrolysis feedstock. The BSG was acquired from “Cumbre” brewery, located in San Juan Province, Argentina.

To transform the BSG using the slow pyrolysis process, it is necessary to dry it up to a humidity of less than 10%, (initial moisture: 60-80%), according to Maqhuzu et al. [27] and Capossio et al. [28]. Proximate analysis (moisture, ash, and VM) was determined according to ASTM standards (ASTM E872-82 and ASTM D1102-84) [29,30], and ultimate analysis was performed using an elemental analyzer (AuroEA3000). The higher heating value (HHV) was calculated according to the work of Lorente et al. [31]. The apparent density of BSG was determined following the ASTM standards (ASTM E873-82) [32]. The pH and electrical conductivity (EC) were determined in a suspension of biochar in distilled water at a ratio of 1:10 (w/v) as recommended by Bu et al. [33].

2.2. Pyrolysis Experiments for Biochar Production

The experiments were carried out in a cylindrical reactor as described by Rodriguez-Ortiz et al. [11]. The reactor had a capacity of 4 kg of feedstock. The dried BSG samples were introduced to the reactor with a moisture content of 6% by weight. The energy to heat the reactor was supplied by an electrical resistance with a power of approximately 2000 W. The thermochemical process occurs under an inert atmosphere (N₂ atmosphere) at temperatures equal to 673, 773, and 873 K, with a residence time of 2 hours [34,35]. To evaluate only the influence of temperature on the biochar characteristics, the BSG was introduced into the reactor when it reached the desired temperature.

2.3. Physical and Chemical Properties of the Biochar

The proximate analysis and HHV, as well as apparent density, pH, and EC, were determined following the procedures described in Section 2.1. BSG biochar yield on a dry basis was calculated as described by De Araújo et al. [26]. In addition, carbon retention, water holding capacity (WHC), stable C mass fraction, aromaticity factor, recalcitrance potential, and carbon sequestration potential for BSG biochars were calculated using Equations (S1)–(S6) shown in the Supplementary Materials.

The biochar FTIR spectra were acquired by an Infralum FT-08 FTIR spectrometer using the KBr pressed pellet method. All spectra were collected at room temperature using 60 scans in the range of 4000-400 1/cm. SEM-EDS analysis (carried out by the Laboratory for Analysis of Materials by X-ray Spectrometry, Cordoba University, Argentina) was carried out to observe the microscopic structures of BSG and to identify different elements present in it. A scanning electron microscope (SEM-EDS, EVO MA10W, Carl Zeiss) with a Bruker X-ray energy dispersion (EDS) microanalysis system (Quantax 200) and an SDD XFlash 6/30 analytical detector were employed. Textural characteristics were performed by nitrogen adsorption isotherms, obtained at 77 K (boiling point of nitrogen) using Micromeritics Sortometer (ASAP 2050, America). The specific surface area and pore volume were determined by the Brunauer–Emmet–Teller (BET) method.

2.4. Bioenergy Indices for BSG and BSG Biochar

The bioenergy indices provide a characterization of biomass and biochar in energy terms. They allow evaluate the calorific value in terms of energy density, the capacity of biomass and biochar as biofuel, and CO₂ emission compared to fossil fuels [36].

The indices calculated were the bioenergy density (BD), which is an indicator of the energy released during incomplete combustion per unit volume of biofuel [17]; the fuel value index (FVI), which expresses the fuel potential of biofuel in terms of flammability and heat generation, this depends on the low heat value (LHV), ash content, and apparent density in the samples [36]. The fossil fuel equivalent volume (FFEV), an equivalence index, provides information on the volume, expressed in liters, of fossil fuel, required to produce the same amount of energy as a cubic meter of biofuel [37]. FFEV depends on the association between biofuel BD and fossil fuel BD [36]. Finally, the potential CO₂ retention (PCOR), calculates the mass of CO₂ released from combustion that could potentially be suppressed by replacing certain fossil fuels with their equivalent in biofuel [27,38]. These bioenergy indices were presented in Equations (S7)–(S14) in the Supplementary Materials.

2.5. Germination Assay and Growth Seedling

To evaluate the effect of biochar on germination seeds and growing seedlings, germination tests were carried out according to the methodology proposed by Ali et al. [39]. Each biochar (obtained at three temperatures 673, 773, and 873 K) was added in Petri dishes at different doses of 0, 0.5, 1.0, 2.5, and 5.0 g/Petri dishes and 20 mL of water, corresponding to 0, 10, 20, 50, and 100 t/ha on a volume basis at 10 cm soil depth or 0%, 1%, 2%, 5%, and 10%, respectively [40]. Fifteen seeds of the lens (Lens culinaris var. vulgaris) were sown in Petri dishes. Seed germination percentage (GP), germination rate (GR), mean emergence time (MET), and seed vigor (SV) were calculated as follows equations:

$$\mathrm{Germination}\mathrm{Percentage}\left(\mathrm{GP}\right)=\left(\frac{\mathrm{SNG}}{\mathrm{SN}0}\right)·100$$

(1)

SNG and SN0 are germinated seeds in the total and the total number of viable seeds, respectively [41].

$$\mathrm{Germination}\mathrm{Rate}\left(\mathrm{GR}\right)=\frac{\sum \mathrm{N}}{\sum (\mathrm{n}·\mathrm{g})}$$

(2)

N is the number of germinated seeds; n is the seeds germinated on growth day and g is the total number of germinated seeds.

$$\mathrm{Mean}\mathrm{Emergence}\mathrm{Time}\left(\mathrm{MET}\right)=\frac{\sum \mathrm{Dn}}{\sum \mathrm{n}}$$

(3)

n is the germinated seeds and D is the total number of days [42].

$$\mathrm{Seed}\mathrm{Vigor}\left(\mathrm{SV}\right)=\mathrm{GP}\times \mathrm{Seedling}\mathrm{length}$$

(4)

The emergence index was calculated as AOSA [43]:

$$\mathrm{Emergence}\mathrm{Index}\left(\mathrm{EI}\right)=\frac{\mathrm{Germinated}\mathrm{seeds}}{\mathrm{No}\mathrm{of}\mathrm{days}\mathrm{of}\mathrm{first}\mathrm{count}}+\frac{\mathrm{Germinated}\mathrm{seeds}}{\mathrm{No}\mathrm{of}\mathrm{days}\mathrm{of}\mathrm{final}\mathrm{count}}$$

(5)

In addition, the time required for 50% emergence of seeds (E50) was calculated by Farooq et al. [44]:

$${\mathrm{E}}_{50}={\mathrm{t}}_{\mathrm{i}}+\left[\raisebox{1ex}{$\left(\mathrm{N}/2-{\mathrm{n}}_{\mathrm{i}}\right)\left({\mathrm{t}}_{\mathrm{j}}-{\mathrm{t}}_{\mathrm{i}}\right)$}\!\left/ \!\raisebox{-1ex}{$({\mathrm{n}}_{\mathrm{j}}-{\mathrm{n}}_{\mathrm{i}})$}\right.\right]$$

(6)

where N is the final number of germinating seeds and n_j and n_i are the cumulative number of seeds germinated by the adjacent count at times t_j and t_i, respectively, when n_i < N/2 < n_j. According International Seed Testing Association (ISTA) lentils were used ten days after sowing for measurement of the different variables [45].

2.6. Statistical Analyses

Data analysis was performed using Infostat Software (InfoStat Group, Facultad de Ciencias Agropecuarias, Universidad Nacional de Córdoba, Argentina). The influence of the pyrolysis temperature on the characterization of BSG biochar was tested by one-way ANOVA (Section 3.2) and pyrolysis temperature and the dose of BSG biochar on germination test was tested by two-way ANOVA (Section 3.5) and Tukey’s HSD test was used to found differences among media. All tests of significance were conducted at p < 0.05.

Response surface methodology was fitted using MATLAB R2015a software (The Mathworks Inc, Massachusetts, USA). The germination parameters such as GP, GR, MET, SV, EI, and E50 were predicted as a function of the dose of BSG biochar (%) and pyrolysis temperature (K). The goodness of fit and accuracy of the models were assessed and compared using statistical parameters such as the sum of squared errors (SSE), root-mean-squared error (RSME), and coefficient of determination (R²) applying the formulas given in the Equations (7-9). The model giving the minimum values of SSE and RSME, but also presenting the highest R² was selected as the best model to express the corresponding responses.

$$\mathrm{SSE}=\sum _{\mathrm{i}=1}^{\mathrm{n}}{(\mathrm{y}\mathrm{p}-\mathrm{y}\mathrm{e})}^2$$

(7)

$$\mathrm{RSME}=\sqrt{\frac{1}{\mathrm{n}}\sum _{\mathrm{i}=1}^{\mathrm{n}}{(\mathrm{y}\mathrm{p}-\mathrm{y}\mathrm{e})}^2}$$

(8)

$${\mathrm{R}}^2=1-\left(\sum _{\mathrm{i}=1}^{\mathrm{n}}{(\mathrm{y}\mathrm{p}-\mathrm{y}\mathrm{e})}^2/\sum _{\mathrm{i}=1}^{\mathrm{n}}{(\mathrm{y}\mathrm{p}-\mathrm{y}\mathrm{m})}^2\right)$$

(9)

where y_p and y_e are the predicted and experimental data, respectively; y_m is the mean value of the experimental data, evaluated over a number n of experiments.

3. Results and Discussion

3.1. Bio-Waste Characterization

Table 1 shows the results of the proximate and ultimate analyses, pH, and EC of BSG. This biowaste had higher values of VM and lower values of ash, moisture, and FC than reported in the literature (Table 1). The results obtained for ash content were much lower than those reported by Zhang and Wang [46] and Sobek et al. [22], and similar values to those reported by Dudek et al. [47] and De Araújo et al. [26].

It is important to note that, if ash content is less than 5–6%, the produced bio-oil does not exhibit knocking behavior [11]. As regards the ultimate analysis, the main components in BSG were C and O, while H and N were presented in minor proportions. Zhang and Wang [46] and De Araújo et al. [26] reported similar values of C and N content. Regarding the pH values, this was lower than those reported by Zhang and Wang [46] and De Araújo et al. [26] for BSG, while EC was lower than informed by Yoo et al. [48]. Differences presented could be due to barley variety, harvest time, geographic area, and conditions in the brewing process.

3.2. Yields and Properties of Obtained Biochars

Pyrolysis temperature influences the biochar properties. Biochar obtained at low temperatures is suitable for agricultural uses [49], while higher temperatures can improve particle porosity and thus improve its efficiency in adsorbing pollutants [50]. The biochar yield and physicochemical properties also vary with feedstock type, pyrolysis temperature, particle size, heating rate, residence time, operating pressure, and carrier gas flow rate [51,52,53]. The physicochemical properties of biochar determined were: ash content, pH, surface area, pore volume, and elemental composition such as C, H, N, O, and S [54,55]. The pyrolysis temperature (673, 773, and 873 K) significantly influenced the physicochemical properties of the BSG biochar (Table 2). The yield of BSG biochar decreased with increasing temperature due to the substantial release of volatile gases [56]. The yield of biochar obtained at 773 K was similar to that reported by Yinxin et al. [35]. The increase in pyrolysis temperature promotes a higher mass release, leading to biochar with higher ash and FC content. Consequently, due to the increase in FC content, biochar is more resistant to biological and thermal decomposition [56,57]. Similarly, Sánchez et al. [58] reported an increase in ash and FC contents of biochar compared to the original biomass and a decrease in moisture and VM contents.

The increase in ash content with pyrolysis temperature promotes the accumulation of inorganic mineral compounds, thereby enhancing the characteristics of BSG biochar for agricultural applications. To use biochar as an energy vector, low ash content is necessary due to the incrustation and corrosion problems [59]. The experimental biochar is composed primarily of C and O, followed by smaller proportions of N and H. Ultimate analysis of the samples revealed that C and N contents increased with the pyrolysis temperature, while O and H contents decreased with this variable. C content increased due to the carbonization process being more important, while O and H contents decreased as a consequence of the high pyrolysis temperature promoting the formation of aromatic compounds [60,61].

A significant decrease in the H/C and O/C atomic ratios was observed compared to the original bio-waste as pyrolysis temperature increased, evidencing a loss of oxygenated groups, a decrease of hydrophilicity and, an increase of carbonization degree and stability of biochar [11]. Consequently, the C-C bonds increased, and C-H and C-O bonds decreased due to dehydration, decarboxylation, and decarbonylation [59]. The N content increased from 8 to 10%. Similar results were obtained by Rodriguez-Ortiz et al. [11]. This aspect might be related to the recalcitrant nitrogen of the heterocyclic compounds in BSG and its carbonization [62]. In contrast, this result differs from that reported by Zhang and Wang [46] for the same biochar. The C/N ratios were 7.68, 7.62, and 6.93, for biochars obtained at 673, 773, and 873 K, respectively. With the increase of this ratio, the organic carbon of soil is strengthened, and the mineralization intensity of nitrogen decreases. The addition of biochar promotes the cation exchange capacity of the soil, adsorbing cations such as NH⁴⁺ and NO^3-, and decreases the N²O release from the soil [63].

The pH values varied with the pyrolysis temperature, remaining around neutral pH, as the carbon forms carboxyl groups during the pyrolysis process, which lowers this parameter. This trend was not consistent with previous works [46,56]. According to pH values, the biochar obtained could be recommended for disposal in soils with an acidic, neutral, or slightly alkaline pH. It is important to note that biochar can be added to soil to buffer pH [64].

In addition, the EC values showed no clear trend concerning pyrolysis temperature, as was also observed by Rodriguez-Ortiz et al. [11] in nut and almond shells-based biochar. The obtained values indicated that a significant quantity of soluble salts was released.

For plant growth, WHC is very important because a high value of this parameter may improve water use in soilless cultivation [65]. Moreover, the WHC of BSG biochar increased with pyrolysis temperature due to the increased specific surface area. It is recognized that the stable C mass fraction present in the BSG biochar composition can increase soil stability due to its persistence. As expected, this characteristic increased with the pyrolysis temperature, although smoothly. The obtained R₅₀ values increased with the temperature, and also, therefore, the stability of the BSG biochar. This parameter showed that the BSG biochar is similar to uncharred waste (intermediate stability) [11]. The CS of BSG biochar varies with the C aromaticity and interaction between organic C and mineral matter. When biochar is added to soil, its stability is improved as a consequence of the oxidation and formation of new mineral compounds or organic complexes. Considering the obtained results, it is observed that this parameter was highest at 873 K indicating high minerals covering the biochar surface [66].

As the majority of soil components, soil minerals enhance the stability of biochar towards oxidation by forming new minerals or organometallic complexes [67].

The highest retention value was observed for the BSG biochar obtained at 673 K; it can retain about 51.93% of the C content of BSG in the soil, with the consequent reduction of CO₂ release. Higher stable C mass fraction, carbon retention, R₅₀, and CS make BSG biochar a promising choice for carbon sequestration.

3.3. FTIR, EDS/SEM, and Specific Surface Area Analysis of BSG Biochar

The infrared spectra of the BSG biochar obtained at 673, 773, and 873 K are shown in Figure 2. The O-H-related peaks are located around 3500 1/cm, aliphatic C-H functional groups between 2900-2800 1/cm, and C=O functional groups between 1700-1600 1/cm. The presence of the 1200-1100 1/cm band revealed the presence of the C-O group, this peak increased at 873 K temperature. Peaks between 900 and 700 1/cm showed the presence of carboxylic acids and compounds with sulfur and/or halogens. The bands corresponding to 1588 and 1091 1/cm are typical of compounds with oxygenated and nitrogenous functional groups. The aliphatic groups tend to disappear with increasing temperature pyrolysis, this was observed by other authors in different biochars operating at different temperatures of the pyrolysis process [11,56].

It should be remarked that the peak intensity between 1700-1600 1/cm increased at 873 K, showing the formation of C=C bonds of a carbonaceous structure. At the same pyrolysis temperature, the peak intensity located around 3500 1/cm is intensified showing an increment of O-H bonds, confirming the obtained pH value.

The results of EDS analysis for the BSG biochar at 673, 773, and 873 K showed high C, Si, P, and K contents on the three examination surfaces (Figure 3). BSG biochar contained not only C, O, and Si, but also small amounts of different elements (Na, Mg, Ca, and K). These values were in agreement with Zhang and Wang [46], these authors reported similar values of Mg, Ca, and P contents.

Elements associated with the inorganic fraction of the BSG biochar could participate in the carbonization reaction and thus affect the pH, ash content, elemental composition, structure, and morphology of biochar [46]. It is observed that the intensity of the O peak decreased (decrease of O presence) with the pyrolysis temperature, which could be due to the high carbonization.

From Figure 4, the SEM images show that the carbonization promoted internal pores and cracks when BSG was pyrolyzed. This biochar presented an appreciable porous and tubular morphology. The average pore diameter of the BSG biochar increased with the pyrolysis temperature (8.88, 12.27, and 18.61 µm, at 673, 773, and 873 K respectively).

With the temperature increase, the BSG organic matter was gradually consumed, leading to an increase in the number of porous structures on the surface of the biochar [68].

The surface morphology of the BSG biochar was highly heterogeneous and structurally complex. Several authors concluded that structural changes in biochar particles were caused by variations in temperature, residence time, and gas circulation, leading to the deposition of condensed aromatic structures and biochar cracking [11,69,70]. The specific surface total areas, determined by the BET analysis corresponding to BSG biochar obtained at 673, 773, and 873 K were 3.50, 17.36, and 18.82 m²/g, respectively. The highest surface area is observed at 873 K due to the highest gas release [11]. The specific surface area is a useful property to acknowledge the ability of soils to retain and transport nutrients and water [71]. In this sense, the incorporation of biochar in a soilless substrate would improve these aforementioned properties.

3.4. Bioenergy Indices

Table 3 shows the bioenergy indices obtained for BSG and its biochar. For bioenergy production, a high BD value is a key property. The HHV was close to those reported by Dudek et al. [47] for the same waste type. The HHV values for BSG biochar ranged from 29.6 to 31.8 MJ/kg, according to the available reported experimental data [72].

It is observed that the HHV value of BSG biochar increased significantly with the pyrolysis temperature due to the carbonization process. Regarding the BSG biochar use as an energy vector, the HHV values were higher than those of raw BSG, evidencing the upgrading of this waste after the pyrolysis process. A similar trend was observed for the LHV values of BSG biochar. The obtained LHVs were comparable to those reported for coal reported by Sessa et al. [73].

The BD result of BSG was similar to those of its biochar obtained at pyrolysis temperatures of 773 and 873 K. Comparing the BD values for BSG and its biochar, it is observed that these biofuels have less capacity to generate energy than fossil fuels (37.03, 36.27, 39.93, and 32.62 GJ/m³ for petroleum, diesel fuel, fuel oil, and gasoline, respectively). BSG presented a significantly higher FVI index than its biochar, primarily as a consequence of the higher ash content. Regarding FFEV and PCOR results, BSG biochar obtained at 673 K showed the best-performing biofuel. One cubic meter of this biochar generates bioenergy equivalent to 143.19, 146.17, 132.77, or 162.55 liters of petroleum, diesel fuel, fuel oil, and gasoline, respectively. Moreover, the use of this material as an energy vector can avoid the emission of up to 640 kg CO₂/m³ biofuel, considering that it comes from lignocellulosic biomass which is a CO₂-neutral energy resource. From an environmental point of view, the use of any of these biofuels is advantageous, since they directly affect a reduction in the use of conventional non-renewable fuels.

The E_d values indicated that the HHV of BSG biochar was 26% to 42% higher compared to the HHV of raw BSG, although this increase was not statistically significant. This parameter increased with the pyrolysis temperature because H/C and O/C atomic ratios significantly decreased. E_y values of BSG biochar decreased with the pyrolysis temperature due to the decrease in yield associated with the mass loss caused by the carbonization reactions [59].

3.5. Germination and Growth of Lentil Seedlings

Figure 5 shows the photographs of the lentil germination assay in Petri dishes using four doses of BSG biochar at three different temperatures. In the soilless Petri dish trial, the pyrolysis temperature and its application dose significantly affected the germination of lentil seeds (Table 4, p < 0.001). In general, greater stability of the GR, EI, SV, and E₅₀ variables was observed for the treatments with the BSG biochar obtained at 673 K.

Germination of lentil seeds started on the fifth day, and the highest number of germinated seeds (total germinated seeds) was obtained when the doses of BSG biochar obtained at 673 K, 773 K, and 873 K, were 10%, 5%, and 2%, respectively. On the other hand, GR values were significant when the lentil seeds were germinated with doses equal to 2% and 10% of BSG biochar obtained at 673 K, and 773 K, respectively. The use of BSG biochar obtained at 873 K presented the lowest values of GR. A significant improvement in MET values was observed when the seeds were germinated with BSG biochar compared to the control. However, the lowest value of MET was found for the BSG biochar obtained at 773 K, added at 10%. Similarly, the results of SV demonstrated that lentil seedlings growing in substrates with BSG biochar were longer than those in the control ones. Moreover, EI values were higher when the lentil seeds were germinated using the BSG biochar substrate with a dose of 2% (obtained at 673 K) and 1% (obtained at 773 and 873 K). The addition of BSG biochar had a positive influence on E50, except for the treatment with the highest rate of biochar (10%, obtained at 873 K). Ali et al. [39] reported that intermediate values of biochar ratios presented positive effects on seed germination and growth of corn seedlings. They worked with biochar obtained at 623 K and expressed that it improved the GR compared to the control treatment, while it caused a reduction in the MET value. The addition of biochar to sand at a ratio of 1.5% (w/w) significantly increased the dry biomass of the seedlings, the PG, and SV too, compared to the control treatment. Moreover, Solaiman et al. [40] demonstrated ratio-dependent negative effects of biochar on the germination and growth of wheat seedlings. This inhibition of seedling growth can be attributed to the reduced rate of cell division and cell elongation. Hafeez et al. [74] investigated the influence of corn cob biochar produced at 673 K on seed germination and seedling growth of soybean (Glycine max L. Merr.) under drought conditions, showing that when high ratios of biochar were applied (20 t/ha), SV, GP, and shoot length improved. The obtained results in this research are also consistent with those obtained by Ali et al. [39]. They evaluated the influence of biochar addition to the soil during corn seedling at a low rate (1.5% w/w), and reported an improvement in SV of 85%, while E50 did not show significative differences. Table 5 shows the fresh and dry weights of the harvested sprouts for each treatment.

In addition, it was determined that the temperature and the dose of biochar in Petri dishes did not significative influence lentils’ weight. In contrast, Ali et al. [39] reported that at low doses (1.5% w/w) of corn cob biochar, maize seedlings recorded higher fresh weights than the control group, without biochar. Seed germination and emergence are essential for crop establishment. The positive effects of biochar on germination have been well documented in the literature [75,76,77]. The results revealed that in general, the addition of biochar improved germination parameters compared to the control. However, at the same pyrolysis temperature, the parameter values decreased with increasing doses of BSG biochar. Likewise, the pyrolysis temperature increase generated a decrease in these parameters. The causes of such best results adding BSG biochar could be related to the contents of 1) ash and 2) mineral elements, thus the biochar also contributed to their availability in the substrate, improving and accelerating the germination period, and finally 3) average internal pores present in the BSG biochar, allowing water to fill the empty places, and maintaining the moisture in the Petri dishes. Based on the obtained results, it is suggested that BSG biochar could be employed as a component in soilless cultivation.

3.6. Variation of Germination Parameters with BSG Biochar Dose and Temperature

Table 6 shows the proposed models and their goodness of fit (x is pyrolysis temperature expressed in K and y is BSG biochar dose expressed in %). Most of the R² values were higher than 0.80, and SSE and RMSE parameters were low, indicating the good fit of the model to the experimental data. Hence, these models agree with the results obtained in this work. It is observed that GP and EI decreased with the BSG biochar dose and it is lowest at 773 K. At experimental conditions, GR is highest at the lowest BSG dose and pyrolysis temperature. MET showed the highest value at 873 K and 2% of the BSG biochar dose. On the other hand, SV is lowest at 773 K and increased with the BSG biochar dose. Finally, E₅₀ increased with the pyrolysis temperature, and the BSG dose decreased. As can be seen, the BSG biochar obtained at 773 K presented the lowest indices, perhaps related to the P content on the surface. Figure 6 presents the parameters of germination assay under the studied conditions, using the response surface model.

4. Conclusions

This research evaluates the potential use of BSG biochar as an energy vector and soilless constituent. The influence of the pyrolysis temperature on several main biochar physicochemical properties was investigated. All the BSG biochar obtained had high C content (> 62%) and low N content (< 10.52%), and an HHV higher than 23 MJ/kg, characteristics that indicate that the BSG biochar can be used as an energy vector. Considering the pyrolysis temperature effect, E_d increased with this parameter showing that the HHV of BSG biochar was higher than that of raw BSG, however, E_y decreased due to a drop in the yield of BSG biochar.

On the other hand, the pH values of BSG biochar obtained at all pyrolysis temperatures were about 7. Therefore, the BSG biochar can be added to neutral or slightly alkaline soil to buffer pH. WHC, R_50, and CS increased with the temperature pyrolysis showed that the BSG biochar obtained at 873 K is the most stable biochar and should improve the water use in soilless cultivation. The highest carbon retention was found for the BSG biochar obtained at 673 K, indicating the lowest CO₂ release. Consequently, BSG biochar is a promising choice for carbon sequestration due to the values of stable C mass fraction, carbon retention, R_50, and CS. The surface morphology of the BSG biochar was highly heterogeneous and structurally complex and the specific surface total area increased with the pyrolysis temperature. Moreover, BSG biochar contains small amounts of different elements such as Na, Mg, Ca, and K.

Based on BD, FVI, FFEV, and PCOR evaluations, biochar obtained at 673 K is optimal as an energy vector. It provides more energy per unit volume than biochar obtained at 773 and 873 K, with lower ash content, thereby enhancing its fuel efficiency, flammability, and heat generation characteristics. Compared to fossil fuels, it exhibits greater potential for CO₂ retention, contributing to its environmental sustainability as a renewable energy source.

From the germination test, the possible use of BSG biochar added at different doses as a constituent substrate is highlighted. The variables GP, MET, and SV showed good results when BSG biochar obtained at 773 K was applied at a dose of 5% w/w.

During the pyrolysis process, not only is biochar obtained, but also gas and bio-oil. Depending on their characteristics, these byproducts can be used as energy vectors or as raw materials for various processes to produce other value-added products. This process can be employed in countryside areas, promoting the development of companies that will obtain energy vectors and substrate for soilless cultivation and offer solutions for generated BSG management, with a high and positive social, economic, and environmental impact. The sustainable valorization of BSG through pyrolysis not only diverts waste from landfills but also contributes to renewable energy production and sustainable agricultural practices. By transforming industrial by-products into valuable resources, this approach aligns with global sustainability goals and fosters environmental stewardship. Additionally, the process supports rural development by creating opportunities for local enterprises and enhancing resource efficiency.
