Synthesis and Anti-Cancer Activity of Novel Selective Glucocorticoid Receptor Agonists of Phenylethanolamine Series

1. Introduction

Glucocorticoids (GCs) are essential regulators of many physiological processes including homeostasis, embryonic and post-embryonic development as well as stress response and modulation of immunity [1]. Specific cytotoxic effects of GCs on a number of immune cells are responsible for their usage in the treatment of hematological malignancies [2]. Combined GC-based therapies remain the mainstay treatment of blood cancers for the last decades, however, their long-term therapeutic administration is limited by major debilitating side effects: skin and muscle atrophy, osteoporosis, Cushing syndrome and steroid-induced diabetes [3,4,5,6,7,8].

Pleiotropic effects of GCs are realized through the glucocorticoid receptor (GR), a well-known transcription factor. In the absence of ligand, GR is located in cytoplasm in multi-chaperone complex. Upon GC binding, GR can regulate the transcription of target genes through: (i) GC-responsive element (GRE)-mediated direct transactivation (TA), or (ii) transrepression (TR) of transcriptional activators, such as NFκB, AP1, and STAT3 [9,10,11,12]. Therapeutic anti-cancer and anti-inflammatory activity of GCs is mostly associated with GR TR, whereas GC-induced metabolic complications are mediated via GR TA. Selective GR agonists (SEGRAs) that shift GR function towards TR appear to be a safer option for treatment of hematological malignancies. Several SEGRAs were discovered, synthesized and characterized during the past two decades: mapracorat [13], CpdA [14], CpdX [12,15,16], ZK 216348 [17], AL-438 [18], Org 214007–0 [19], and AZD9567 [20]. Some of them entered the clinical trials as anti-inflammatory agents with reduced side effects [21,22], however, none of them reached clinical practice, in particular, cancer treatment.

2-(4-acetoxyphenyl)-2-chloro-N-methylethylammonium-chloride also called Compound A (CpdA) is a synthetic analogue of hydroxyphenyl aziridine precursor isolated from the Namibian shrub Salsola tuberculatiformis Botschantzev [23]. It was demonstrated that CpdA competes with GCs for GR binding, does not induce GR TA but activates GR TR, reveals anti-cancer and anti-inflammatory effects in different models in vitro and in vivo [8,14,24] and, in contrast to GCs, has fewer side effects related to maintenance of hypothalamic-pituitary-adrenal (HPA) axis, and bone metabolism [8,24]. However, it was also shown that in water solution CpdA decomposes to azidirine derivative [25] referred as 2B carcinogen according to the classification of International Agency for Research on Cancer (IARC) [26]. Stable CpdA analogues have not been described.

Here we report the synthesis of eight CpdA chemical derivatives and evaluation of their and putative SEGRA cytotoxic effects. Two alternative synthetic strategies were applied to obtain the test compounds. One of the new compounds, Cpda-03, revealed the most prominent cytotoxic effects in vitro, demonstrating SEGRA properties and anti-lymphoma activity in vitro and in vivo.

2. Results

2.1. Synthesis of CpdA Chemical Derivatives

CpdA derivatives synthesized and tested here as well as template molecule, CpdA, are the analogues of synephrine, natural alkaloid from citrus fruits, widely used for weight loss/weight management, sports performance, appetite control, energy, and mental focus and cognition [27,28]. An efficient method based on the use of commercially available compounds has been proposed for the synthesis of analogs of CpdA (CpdA-01-04, Figure 1). To minimize the content of impurities, first, heavy metal impurities, all stages of this synthesis were optimized. The second synthetic protocol (the synthesis of CpdA-05-08, Figure 2) is based on an approach where the key step is the preparation of amino alcohols by the reaction of azomethine ylide with aromatic aldehydes [29]. However, in order to improve the yields of the target compounds and eliminate additional purification at the last stage, each step of this synthetic protocol was optimized.

2.2. Screening of Cytotoxic Effects of Newly Synthesized CpdA Derivatives

Screening for cytotoxicity was performed for eight CpdA derivatives in three cell lines originated from hematological malignancies: acute lymphoblastic leukemia CCRF-CEM (CEM) cells, chronic myeloid leukemia K562 cells and mantle cell lymphoma Granta-519 (Granta). All three cell lines differ in sensitivity to tested compound including active comparators Dex and CpdA. Specifically, cytotoxicity of CpdA derivatives was higher in CEM and Granta cells characterized earlier by the high GR expression level (Table 1). K562 cells were less sensitive and, therefore, were used further only in ligand binding assay to keep the maximal amount of GR for competitive binding. Among the novel CpdA derivatives, CpdA-03 was the most cytotoxic. Due to the multiplicity of tests in our study, we performed the further experiments with CpdA-03.

2.3. Affinity of CpdA-03 to GR

CpdA-03 was tested in radioligand binding assay for the affinity to GR. For this purpose, CpdA-03 was tested at concentration range of 0.001 - 10 uM. We have demonstrated that binding IC50 for reference GR ligands Dex and CpdA were 0.23 uM and 2.5 uM, respectively, which is in accordance with literature data [30,31,32] and proved the accuracy of the assay used. CpdA-03 showed a relative binding affinity to the GR with the IC50 values of 0.15 uM (Figure 3). These data demonstrated that CpdA-03 affinity was higher than original compound and, therefore, worth to be further investigated.

2.4. Anti-Cancer Effect of CpdA-03 In Vitro and In Vivo

To evaluate anti-cancer potential of CpdA-03, we studied CpdA-03 effect on the proliferation of CEM and Granta cells in comparison with template compound CpdA and reference GC Dex. CpdA and Dex were used in the concentration of 1 uM, which we tested in the previous work [24,33]. Growth inhibitory effect of CpdA-03 first was studied at wide concentration range of 10 nM-10 µM in three cell lines (Table 1). We have chosen the concentration of 1 uM for CpdA-03 as close to IC50 and proved that CpdA-03 exerted significant cytotoxic effects at similar 1 uM concentrations (Figure 4B). Importantly, GR blockage by shGR-expressing lentivirus (Figure 4A), resulted in a drastic loss of sensitivity to CpdA-03 as well as CpdA and Dex in both cell lines (Figure 4B). These data provide an additional proof that CpdA-03 is GR ligand and its anti-lymphoma effects are realized via GR activation.

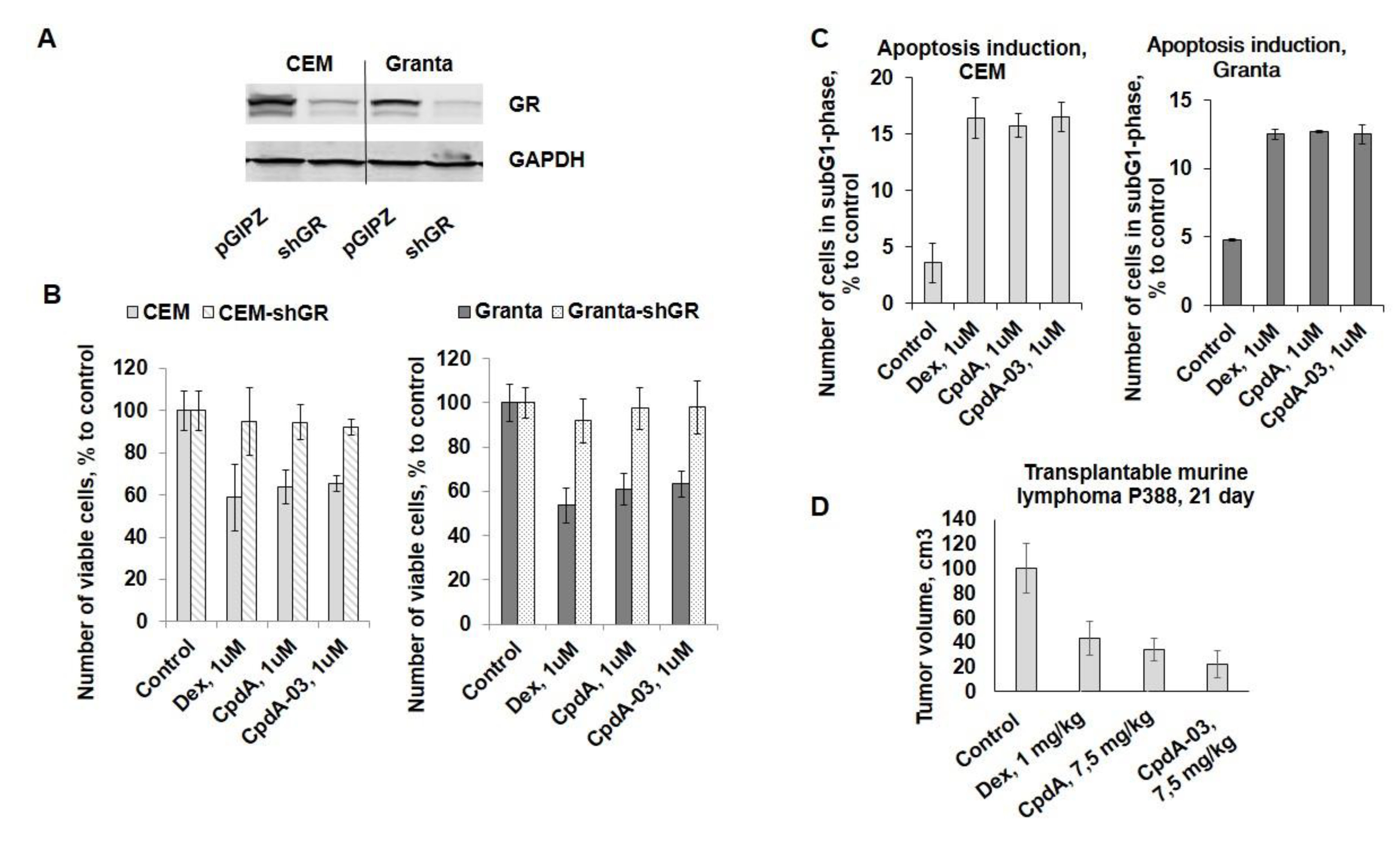

Next, we examined CpdA-03 effect on cell survival and demonstrated that this CpdA derivative induced apoptosis in both cell lines. More specific, flow cytometry analysis revealed that the number of apoptotic cells (sub-G1-phase cell population) reached 15-17% after 48 h incubation with CpdA-03 compared to 2-4% in control (Figure 4C). These results were comparable with the level of apoptosis induction caused by CpdA and Dex (Figure 4C).

For the experiment in vivo we used P388 murine lymphoma model, which could grow both subcutaneously and intraperitoneally, and was described in previous studies for the evaluation of GC anti-cancer effect in comparison with different cytostatic drugs [34,35]. We have chosen subcutaneous grafting of P388 cells to make possible the comparison of tumor growth in dynamics in groups treated with Dex (1 mg/kg), CpdA (7,5 mg/kg), CpdA-03 (7,5 mg/kg) and vehicle (5% DMSO in PBS). Dex and CpdA doses were selected previously in the studies of our and some other research groups [8,36]. I.p. injections of CpdA, Dex and CpdA-03 were started on the 11th day after P388 implantation (after the formation of the first tumor nodules). Comparative analysis of tumor volume on the 12th day of injection (the 23rd day of experiment) demonstrated the statistically significant tumor growth inhibition by 57% in the group treated with Dex, by 66% in the group treated with CpdA and by 78% in the group treated with CpdA-03 (Figure 4D).

2.5. Effects of CpdA-03 on GR Functions

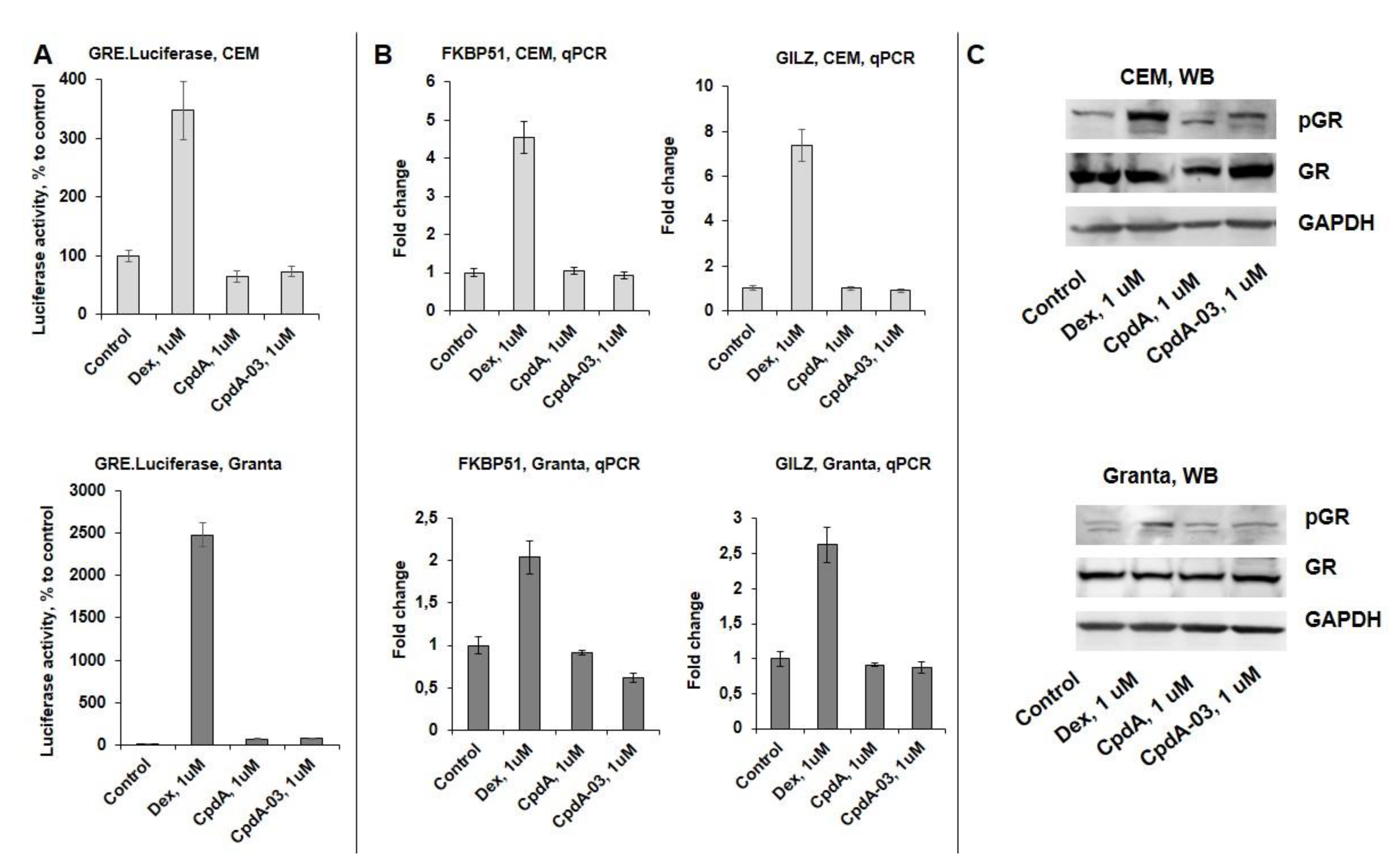

To assess the effect of CpdA-03 on GR TA function, we used CEM and Granta cells transduced with GRE.Luc reporter, Dex and CpdA were used for comparative analysis. CpdA-03 as well as CpdA and in contrast with Dex did not induced GRE.Luciferase activity in both cell lines (Figure 5A). Attenuation of GR TA was further confirmed by Q-PCR analysis of known GR-target genes including GR chaperone FKBP51 [24,37] and mediator of GC anti-inflammatory effects GILZ [38,39] (Figure 5B) as well as by Western blot analysis of the amount of phosphorylated GR (Ser211) in cells (Figure 5C).

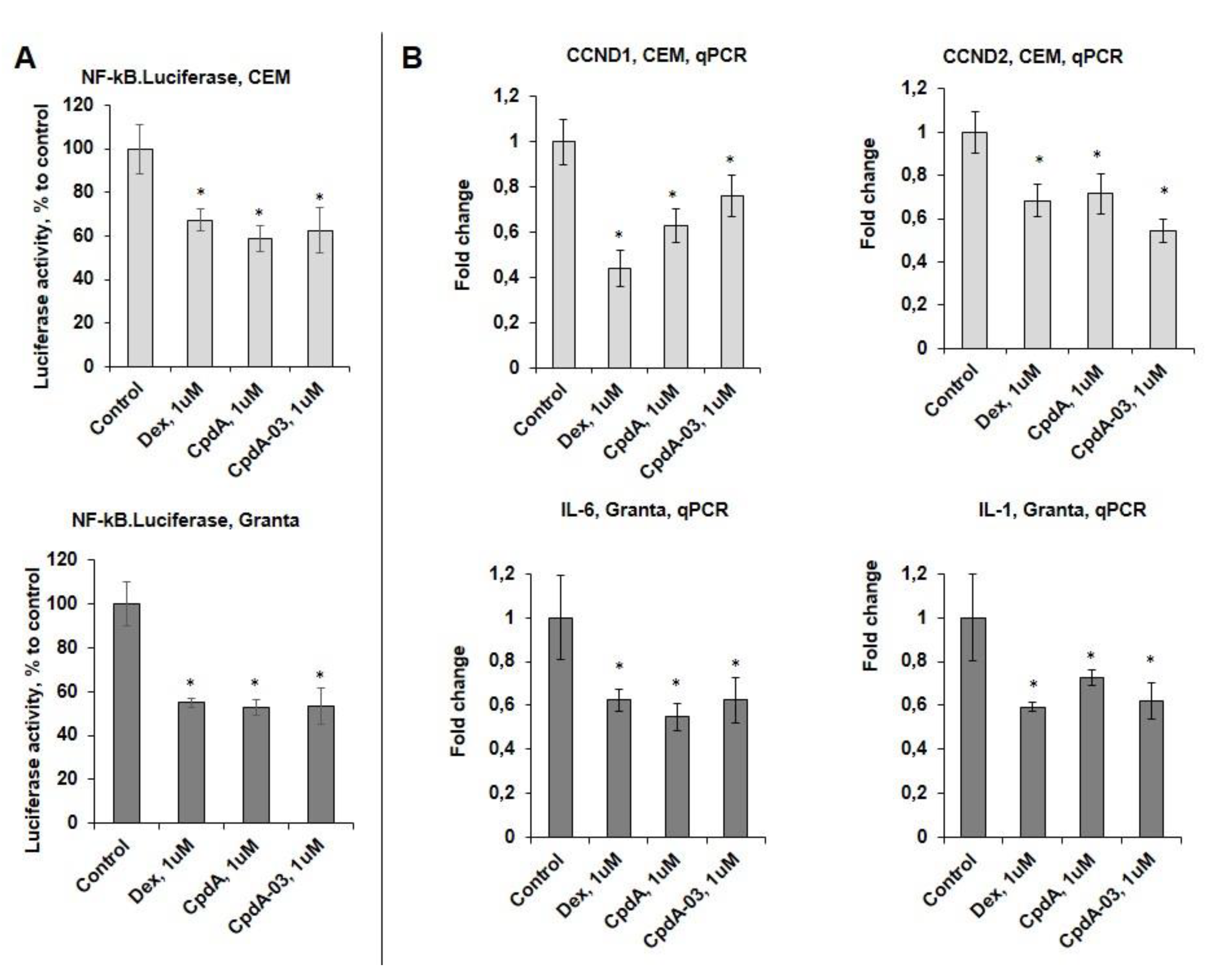

GR TR function was analyzed using NF-kB.Luc reporter assay. NF-kB activity was strongly reduced by CpdA-03 according to NF-kB.Luciferase test. Dex and CpdA also inhibited the Luciferase activity (Figure 6A), which is in accordance with our previous papers [8,24,33]. This finding was further corroborated by Q-PCR analysis of negative regulation of several endogenous genes such as cell cycle regulators cyclins CCND1/D2 [40,41,42] in CEM cells, and interleukins IL1 and IL6 involved in lymphoid cell survival for Granta cell line (Figure 6B).

3. Discussion

It should be mentioned that identification of novel methods that decrease GC-induced side effects is a critically important clinical problem. There are two major approaches to attenuate GR TA induction and decrease the development of metabolic and atrophic complications: (i) combination of GCs with the compounds protecting tissues against steroid adverse effects [37,42,43], (ii) development of SEGRAs that shift GR activity towards TR [12,13,14,15,16,18,19,20,44].

Previous studies of our research group was focused on the anti-cancer effects of Compound A (CpdA), a unique non-steroidal SEGRA, which is a stable synthetic analogue of a compound found in the Namibian shrub, Salsola tuberculatiformis Botschantzev [23]. However, CpdA is very labile and decomposes in aqueous medium to mutagen aziridine and then to polyphenol synephrine [25]. In spite of this fact that CpdA can be stabilized by binding to plasma proteins and remain biologically active in vivo [25], decomposition can occur during storage and preparation of medication, and, therefore, affect the activity of the compound.

Here we proposed to modify CpdA molecule in such a manner that allowed to increase the stability of the compound but reserve the relative negative electron charges facilitating the formation of H-bonds with several amino acids lining these binding cavities of GR (Asn564 and Arg611) [31]. An advantage of the developed approach to the synthesis of CpdA analogues (CpdA-01-04) is the use of commercially available compounds and the exclusion of the use of metal-containing catalysts and toxic solvents.

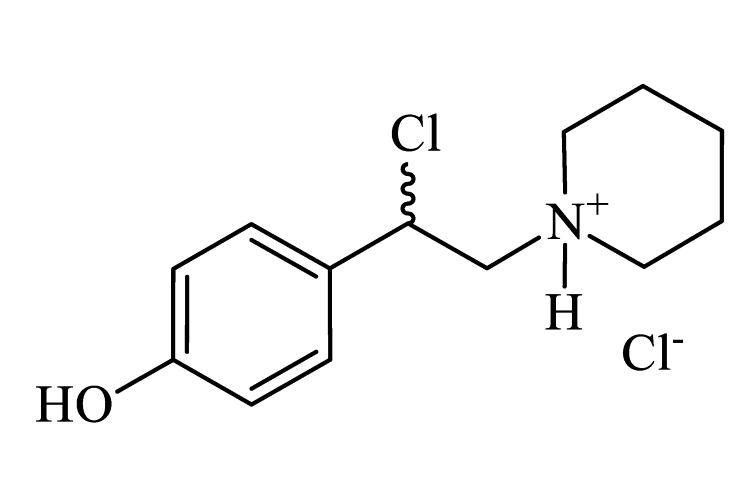

The most prospective compound from the CpdA modification list, CpdA-03, is more inert and stable analogue of alkaloid synephrine, unable to form the aziridine derivative because of the absence of proton at the nitrogen atom. CpdA-04, the chemical derivative of CpdA with less affinity to GR, is more hydrophilic synephrine analogue. CpdA-01, CpdA-02, and CpdA-05-08 are characterized by a large number of substituting groups, which could impede the binding of the molecule with Asn564 and Arg611 in GR active center.

CpdA-03 revealed anti-cancer activity in vitro and in vivo comparable with Dex and CpdA (Figure 4, [8,24]). In addition, CpdA-03 was less likely to induce therapy resistance, as it did not activate FKBP51, the direct GR target gene [45] involved in feedback control of GR signaling via retention of GR in the cytoplasm and associated with GC resistance in patients with brain and prostate cancer, melanomas and lymphomas [46,47].

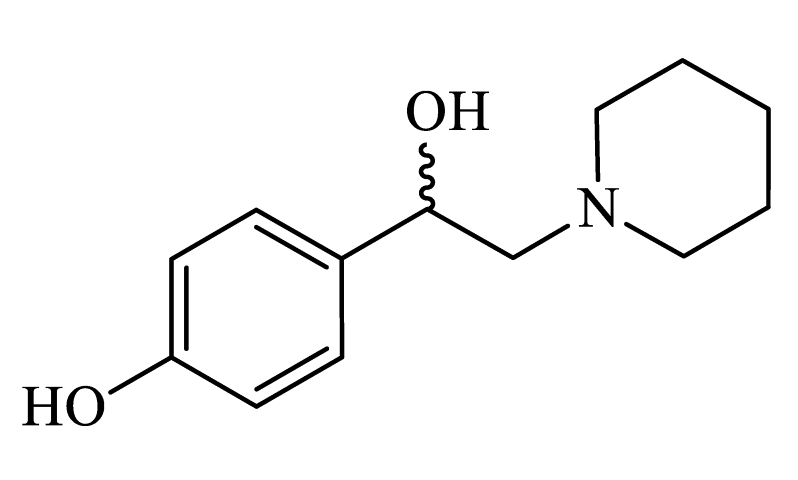

In conclusion, novel SEGRA, 4-(1-hydroxy-2-(piperidin-1-yl)ethyl)phenol or CpdA-03, retains the therapeutic anti-cancer potential of GCs and, more important, of template compound CpdA, along with abrogation of GR TA and, therefore, potential decrease in the induction of side effects and therapy resistance. Taken together with the data of molecule stability, this makes CpdA-03 a very attractive candidate for further investigations of future therapeutic applications in the treatment of hematological malignancies.

4. Materials and Methods

4.1. Chemistry

4.1.1. General Information

The structures of compounds were established using 1D NMR (1H, 13C) spectroscopy (for spectra see Supplementary Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6, Figure 7 and Figure 8). NMR spectra were acquired on Bruker 300 spectrometers at 293; the chemical shifts were measured in ppm relative to the solvent (1H: DMSO-d6, d 2.50 ppm; 13C: DMSO-d6, d 39.50 ppm). Splitting patterns are designated as s, singlet; d, doublet; t, triplet; q, quartet; m, multiplet; dd, double doublet; ddd, double double doublet; dt, doublet triplet. The coupling constants (J) are in Hertz. High-resolution mass spectra (HRMS) were measured using electrospray ionization (ESI) in positive ion mode (interface capillary voltage 4,500V); the mass range was from m/z 50 to 3,000 Da; external/internal calibration was performed using an electrospray calibrant solution. A syringe injection was used for solutions in CH3CN (flow rate 3 ml/min). Melting points were measured on a Boetius capillary melting point apparatus and are uncorrected. Analytical thin-layer chromatography (TLC) was carried out on silica gel plates (silica gel 60 F254 aluminum supported plates); the visualization was accomplished with an UV lamp (254/365 nm). All chemicals and anhydrous solvents were purchased from commercial sources and used without further purification. Silica column chromatography was performed using silica gel 60 (70-230 mesh); TLC analysis was conducted on silica gel 60 F254 plates.

4.1.2. Synthesis and Characterization of CpdA-01 – CpdA-04

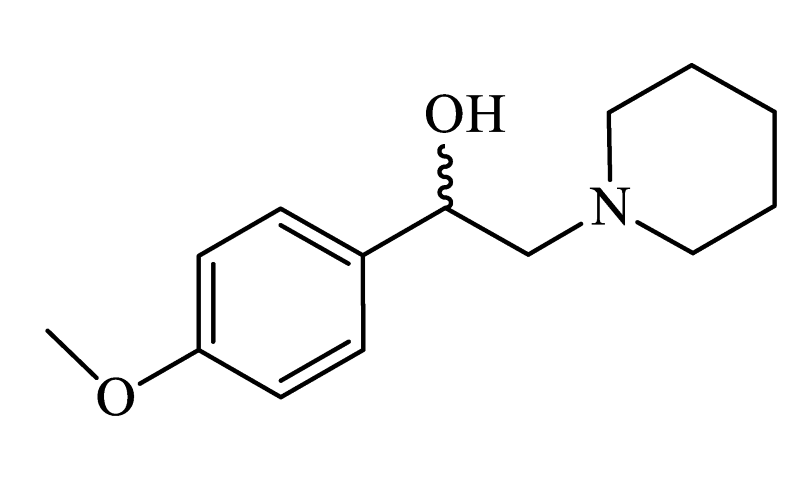

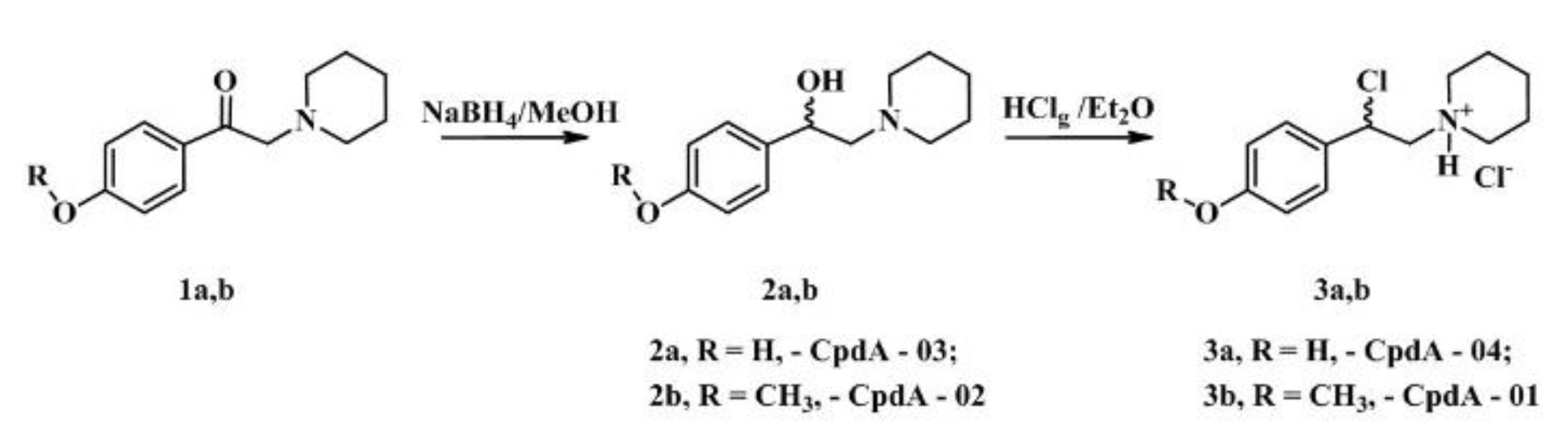

The amino alcohol 2 was obtained by reduction ketone 1 with sodium borohydride (Figure 1). The target compound 3 was obtained by reflux previously synthesized amino alcohol in a stream of dry hydrogen chloride in absolute diethyl ether. The characteristics of piperidine analogues of CpdA are summarized in Table 2.

Stage 1. To a solution of aminoketone 1 (3.0 mmol) cooled to 10°С in abs. methanol (30 ml) was added portionwise sodium borohydride (30 mmol) and the solution was stirred at room temperature for 5 hours. The reaction mixture was poured into water (150 ml), extracted with ethyl acetate (3 × 30 ml), the extract was washed with water (50 ml) and evaporated. The residue was purified by chromatography (petroleum ether/EtOAc/Et3N 1:1:0.05), the diastereomers were not separated. The residue was recrystallized from methylene chloride-heptane mixture.

Stage 2. Through a solution of amino alcohol 2 (3.0 mmol) in abs. diethyl ether (60 ml), dry hydrogen chloride was passed with stirring, after which the reaction mixture was refluxed for 20 hours. After cooling the reaction mixture, the precipitated white precipitate was filtered off and thoroughly washed with absolute diethyl ether. The residue was dried under vacuum at room temperature.

4.1.3. Synthesis and Characterization of CpdA-05 – CpdA-08

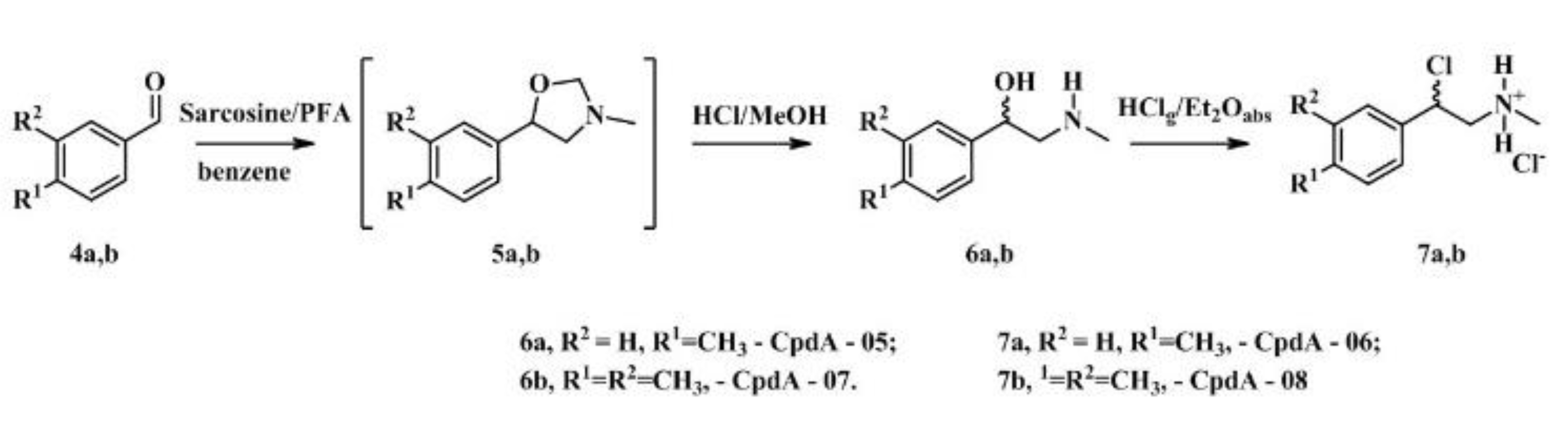

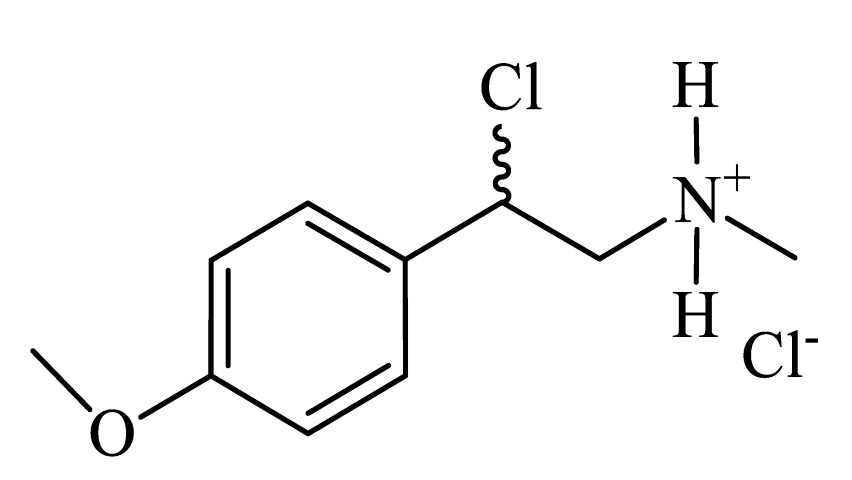

These analogues of the CpdA were prepared according previously reported method [48] from corresponding aromatic aldehydes (Figure 2). The characteristics of CpdA-05 – CpdA-08 are summarized in Table 2.

A mixture of the corresponding aromatic aldehyde (1.0 mmol), finely ground sarcosine (0.13 g, 1.5 mmol), and paraformaldehyde (0.09 g, 3.0 mmol) was refluxed in dry benzene (3.3 mL), with magnetic stirring and removal of formed water by means of a Dean-Stark trap, for 6-8 h. The resulting solution was evaporated in vacuo to give the oily 5-aryl-3-methyloxazolidines. The oxazolidine 5 was dissolved in MeOH (1 mL) and treated with concentrated HCl (0.10 mL, 1.2 mmol). The resulting mixture was refluxed in a fume hood with partial evaporation of the solvent for 1.5 h (for the removing of dimethoxymethane). The MeOH was evaporated in vacuo and H2O (0.5 mL) was added. The mixture was extracted with Et2O (2 × 1 mL) followed by basification with an excess of a cold concentrated solution of NaOH. Extraction with CH2Cl2 (2 × 2 mL), drying over Na2SO4, and evaporation gave the crude 1-aryl-2-(methylamino)ethanol, which was recrystallized from CH2Cl2-heptane mixture. Ammonium salts 7a,b were obtained as described above.

4.2. Biology

4.2.1. Cell Cultures and Treatments

Acute lymphoblastic leukemia cell line CCRF-CEM, chronic myeloid leukemia cell line K562 and mantle cell lymphoma cell line Granta-519 (hereinafter – CEM, K562, and Granta) were obtained from ATCC and cultured as described [24]. Cells were treated with Dexamethasone (Dex), CpdA, CpdA-01-08 or vehicle (0.01% DMSO) for 24 h.

4.2.2. MTT Cytotoxicity Assay

Cell cultures were seeded into 96-well plates and incubated overnight under 5% CO2 at 37°C for 24 h. Then cells were treated with Dex, CpdA, CpdA-01-08 (0.1–100 μM) or vehicle for 24 h. Then, 20 μL MTT solution was added to each well and mixed. After 4 h, the supernatants were removed and 100 μL DMSO was added to each well to dissolve the precipitate. The cells viability was estimated by measuring absorbance at 570 nm using the MultiScan MCC 340 spectrophotometer (Thermo Fisher, Waltham, MA, USA). The IC50 values of on various cell lines were determined using GraphPad Prizm software, Ver.7.0. Results are presented as the mean ± standard deviation (SD).

4.2.3. Western Blot Analysis

Western blot analysis was performed as described previously [24,49]. Proteins were resolved by SDS-PAGE. Membranes were blocked with 5% nonfat milk solution and then incubated with primary antibodies against GR (H-300) and phosphor-GR (pGR) (Santa Cruz Biotechnology) overnight at 4°C. To verify equal protein loading and adequate transfer, the membranes were probed with GAPDH antibodies (Cell Signaling). Goat anti-rabbit IgGs (Jackson Immuno Research) were used as secondary antibodies. Signals were detected using the ECL reagent and an ImageQuant LAS4000 system (GE HealthCare). ImageJ software (NIH) was used for densitometry.

4.2.4. Cell Viability

Cell viability was measured by direct cell counting. Cells were plated at 104 cells/well onto 24-well plates and cultured in complete medium in the presence of CpdA, CpdA-03, Dex or vehicle for 24 h.

4.2.5. Distribution of Cells by Cell Cycle Phases

Distribution of cells by cell cycle phases was evaluated using propidium iodide (PI) staining as described in [24]. Cells were resuspended in 70% ethanol, fixed for 2h at 4°C, placed in PBS containing 50 mg/mL PI, 0.1% sodium citrate and 0.3% NP-40 and incubated for 30 min at room temperature. Analysis by FACScan flow cytometer (Becton Dickinson) was carried out to discriminate between live and apoptotic cells.

4.2.6. RNA Extraction and Q-PCR

Total RNA isolation, reverse transcription and Q-PCR were performed as described in [42]. Primers were designed with NCBI Primer-BLAST (Supplementary Table 1). Results were normalized to the expression of the housekeeping RPL27 gene [42,43]

4.2.7. Lentiviral Technology

Lentiviral stocks were generated using lentiviral expression vectors obtained from Northwestern University SDRC DNA/RNA delivery Core as described previously [24,49]: pGIPZ encoding short hairpin RNA (shRNA) against GR or empty vector as control (Open Biosystems); NF-kB.Luc and GRE.Luc encoding Firefly Luciferase reporters or Firefly Luciferase under minimal CMV promoter as control (System Biosciences). Lymphoma cells lines stably infected with lentiviruses were selected 0.5 ug/ml puromycin.

4.2.8. Luciferase Assay

Cells (104 cells/well in 24well plate), stably expressing Firefly Luciferase under NF-kB or GRE promoters, were treated for 24h with CpdA, CpdA-03, Dex or vehicle. Luciferase activity was measured as described [42,43] using commercial Luciferase Assay (Promega) and Luminometer TD 20/20 (Turner Design Instruments). Cells stably expressing Firefly Luciferase under minimal CMV promoter were used as a control to adjust for non-specific toxicity. The results were normalized by total protein amount in each sample.

4.2.9. GR Binding Affinity Assay

The K562 cells (2.5 million cells/ml) were cultured in a serum-free culture medium in the presence of 0.5 uM [3H]Dex and unlabeled Dex, CpdA or CpdA-03 in various concentrations. After 90 minutes of incubation, cells were washed twice by centrifugation in a cold serum-free medium (1500 rpm, 5 min). Then cells were lysed with RIPA buffer (50 mM Tris (pH 8.0) 150 mM NaCl, 1 mM ethylenediaminetetraacetic acid, 0.1% sodium dodecyl sulfate, 0.5% sodium deoxycholate, 1% triton-X100, 10% glycerin, protease inhibitor) for 20 min. Lysates were transferred to a scintillation liquid, and radioactivity was measured by a RackBeta 1215 LC spectrometer for 4 minutes. The relative binding percentages of Dex, CpdA, and CpdA-03 were measured. IC50 was determined by using GraphPad Prizm software, Ver.7.0. Measured values represented in dpm (decay per minute) of different concentrations of Dex were calculated using a method of non-linear regression (curve fit) with equation - [Inhibitor] vs response (three parameters: «top», «bottom», IC50). «Top» meant the highest value in dpm and was equal to 100%, while the «bottom» was considered as the lowest value (0%). Dpm for CpdA and CpdA-03 compounds were calculated in the same way using the «bottom» of Dex in the individual biological repeat. These calculations led to plotting curves, the most precisely fit the pattern of competitive inhibition by a ligand of binding [3H]Dex to GR. The IC50 values for each ligand were determined based on the plotting of these curves.

4.2.10. Anti-cancer Study In Vivo

The protocols for the experiments involving mice were approved by the Animal Care and Use Committee of the N.N. Blokhin National Research Center of Oncology and corresponded to the guidelines for the welfare and use of animals in cancer research adopted by The United Kingdom Coordinating Committee on Cancer Prevention Research [50]. P388 cells were injected i.p. in 5 weeks old female DBA/2 mice (Stolbovaya Farm, Moscow region, Russia, http://www.scbmt.ru). After 15 days, cells were collected from the peritoneum, washed and resuspended in PBS. For experiments, 0.1 ml containing 2 million cells obtained from the ascites was inoculated s.c. in BDF1 mice (Stolbovaya Farm, Moscow region, Russia, http://www.scbmt.ru). Mice were randomly divided into four groups, 10 animals per group, and treated i.p. 3 times/week with Dex (1 mg/kg), CpdA (7.5 mg/kg), CpdA-03 (7.5 mg/kg) of vehicle (1% DMSO in PBS). Tumor size was measured twice a week by digital calipers.

4.2.11. Statistical Analysis

Mean and standard deviation values were calculated using Microsoft Excel and GraphPad Prizm (Ver.7.0) software. The treatment effects in each experiment were compared by one-way ANOVA or t-test. Differences between groups were considered significant at p<0.05. All experiments were repeated three times. In animal experiments, we used 10 animals/experimental group.
