Optimization of Grayscale Lithography for the Fabrication of Flat Diffractive Infrared Lenses on Silicon Wafers

1. Introduction

Grayscale lithography offers the ability to fabricate arbitrary multilevel three-dimensional (3D) structures in a single photolithographic step. The traditional default approach, Binary lithography (BL), uses an on-off modulation in the exposing and etching steps. The PR is either fully exposed or not. During development, depending on whether the PR type is positive or negative, a part of it will be removed. During the etching step, the exposed area of the underlying wafer will be etched away, leaving behind an etched substrate. After removing the remaining photoresist, one will have a structure with two different depth levels, thus the “binary” in its name. To increase the number of height levels, the same process must be followed again with a new mask. This will increase the complexity of the fabrication process and the chances that accumulated errors will render the device unusable.

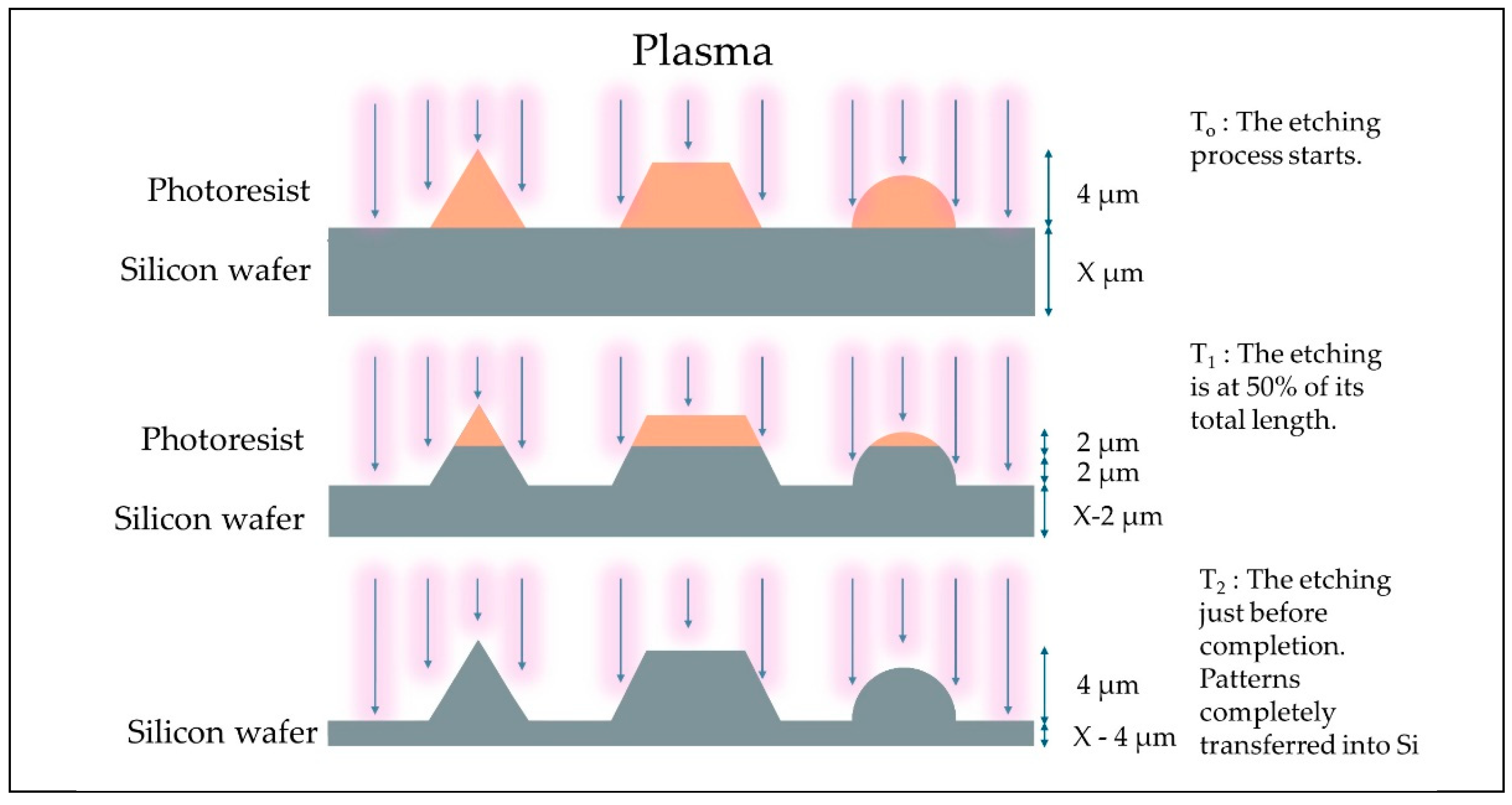

During GSL, the PR is scanned pixel by pixel and exposed with a modulated dose of a laser beam, reaching varying depths in the PR. After development, a 3D patterned PR is obtained. For the etching step, a fully anisotropic approach is required to preserve the relief’s geometry. The patterned PR must be etched into the substrate by etching the PR and the substrate simultaneously and with a controlled etch rate for both. The nature of GSL requires well-controlled steps, and any discrepancy from the desired conditions will result in fabrication errors that will be amplified by the subsequent steps, rendering the final device unfit for use.

GSL is not a new concept and has existed for over 30 years [1] and has attracted the interest of many research groups for the capabilities it offers. The ability of GSL to fabricate arbitrary 3D structures makes it a noteworthy technique, suitable for several applications. MEMS devices [2,3,4,5,6], microfluidic devices with variable dimensions channels [7], mold creation for nanoimprint techniques [11], non-binary topography of many photonic devices and more [8,9,10] make GSL a suitable fabrication technique. Microlenses [12,13,14] , circular Dammann gratings [15], multispectral filters arrays [16] and spectrometer chips [17] have been fabricated using GSL. Hakkel et al. patterned flat polymeric layers to varying thickness on top of pixels to fine tune their spectral response individually [18]. Fresnel lens for the LWIR and Short Wave Infrared have also been fabricated using GSL [19,20,21]. A thermal scanning probe has been used in grayscale lithography to achieve extremely high resolution with step heights of 6 nm and 32 nm step width [22].

One of the most important parameters to control in GSL is the ratio of etch rates of Si over PR, named Etch Selectivity. Khazi et al. [23] explored different etching parameters for etch selectivity control and anisotropy. The selectivity intervals explored were relatively large, and the etching rate of the PR was low enough to extend the etching duration to more than 4 hours for a 4 μm deep Fresnel lens when using their proposed recipe for 1:1 etch selectivity. Nachmias et al. [24] used Deep Reactive Ion Etching (DRIE) and Reactive Ion Etching (RIE) to fabricate Silicon Fresnel Lenses. On the RIE process, the ratio of SF₆ / O₂ was not explored as it is an important aspect of GSL to control the selectivity. Additionally, they used a low selectivity of 0.55:1 to compress the Si etch depth to his desired height of 600 nm, which is much less than needed for Infrared lenses in our case. Yi-Hsiang Huang et al. used a digital micromirror device to create a mask pattern. The design was consisted of just 3 grayscale levels [3] .Loomis et al. [25] and LeCompte et al. [26] approached the linearization of the photoresist behavior against exposure dose but their approach is slightly more complicated. Kaste et al. analyzed the behavior of PR and its relation to developer concentration, soft baking and development duration and energy dosage but the resulting patterned PR has high surface roughness and it was a single continuous slope [27]. Dunkel et al. linearized the PR’s behavior and fabricated lenses and blazed grating but their features’ dimensions are far larger than the ones that exist in LWIR Fresnel lens [28]. For example, the blazed grating that can be similar to the lens’ rings, have width of 800 μm and the lenses were not Fresnel type. Similarly for [29], the lateral periodicity of the gratings was 1 mm. Overall, even though GSL has been the subject of research of various groups, it has always been treated in a more isolated approach, meaning that the various issues that are present in GSL are not treated collectively.

For our case study, we examined various aspects of GSL to accurately fabricate monochromatic Silicon Fresnel lenses, designed for use in LWIR imaging optical systems. The surface topography of a Fresnel lens consists of concentric rings of varying widths, having the same maximum height and a cross-section profile that follows a specific phase profile equation (usually a parabolic or hyperbolic phase profile). In the lens, central rings are wider and “flatter,” and as the ring’s distance increases from the center increases, they become narrower and steeper. The coexistence of these different features makes the Fresnel lens an appropriate and relative complex structure to apply to GSL and proved to be an issue for achieving uniform development but was eventually resolved. These different geometries can be interpreted as “standalone” structures that have different fabrication demands and must be taken into consideration for a successful device.

The nature of the GSL imposes careful planning of each step. The steps that are common with BL, can be divided into: design, exposing, and etching. In the design step, the photolithographic mask is created from a given phase profile. This can be done in many ways, depending on the software capabilities of the available equipment. It can be CAD models, GDS files, simple grayscale bitmap, or tiff files. The photolithographic mask requires an adjustment step that will compensate for the non-linear response of the PR to the exposure dosage. Exposing and developing the PR also requires extensive study because this step will greatly impact the final device. Many parameters need to be tuned for their optimal values. All the parameters are cross-linked with each other, and the optimal combination must be determined. These parameters are: laser writer exposure mode, soft baking conditions, exposure dosage range, and other machine-related parameters and finally the PR development. In the etching step, one desires to transfer the patterned PR into the substrate as accurately as possible. Having a process that has controllable selectivity as well as full anisotropy is quite important. Finally, all features must survive the etching step regardless of shape, size, or height. In this work, a detailed approach to how to treat each step is presented.

1.1. Background of grayscale Lithgraphy

In GSL, a linear response of the exposure dosage and PR development depth is required to be able to accurately control the developed height of the PR. While binary lithography makes use of high contrast RPs, GSL benefits from low contrast PRs that exhibit a more linear behavior. Although GSL specific PR exists, their linearity still lacks perfection, and it will benefit from a calibration step during the grayscale mask design. There are many cases when GSL is used while the PR photochemical behavior is neglected resulting in PR patterns that do not match the design file [4]. The thought process behind the linearization is simple. Since the exposure depth is continuous for a continuous exposure dosage, there will be a specific dosage required to achieve a specific exposure depth. Calculating and selecting a range of specific dosages can result in a custom exposure curve that can convert a nonlinear response to a linear one.

After exposure, a consistent development over the device or wafer is required. All areas that share the same exposing dosage, according to the design, must have the same PR height. We observed that this was not the case, while it is crucial for good imaging performance of the lens. Additionally, any height differences will be amplified during the etching process when selectivity (Si:PR etching rates) is higher than 1:1, degrading furthermore the quality of the lens. Etching is the last step of the GSL process and has its own requirements. The grayscale etching process must exhibit and maintain controlled behavior throughout its duration. Precise selectivity is needed to accurately convert the height of the patterned PR into patterned Si. Usually, selectivity of 1:1 is sought after, as any etch scaling is not required in general. Although there are cases where scaling is necessary, as presented later in this work. Anisotropy is equally important as lateral etching will destroy or shrink features that are present on the wafer. For this purpose, a passivating gas is included in the etching gas chemistry. It will adhere to the wafer surface, but due to the vertical etching being more impactful due to ion bombardment, the passivation layer will be etched away from horizontal surfaces but will remain on the vertical sidewalls. Figure 1 shows how the patterned PR slowly transfers into the Si substrate. The etchant gases mix reacts equivalently with the PR and the Si substrate, slowly transferring the pattern into the wafer.

In our work, a Silicon Frensel lens was chosen as a case study because of its interesting surface topography as previously explained. A monochromatic focusing lens’ phase is described by the following equation,

$$\phi \left(r\right)=\left(-\frac{2\pi }{\lambda }\right)\left(\sqrt{r^2+f^2}-f\right)$$

(1)

where r is the radial distance across the aperture, λ the operating wavelength and f is the focal distance. The phase undergoes wrapping, keeping the values within the -π to π radian boundaries. The actual phase applied to radiation when travelling through a medium and surrounded by air is given by

$$\phi \left(h\right)=h\ast \left(n_s-1\right)2\pi /\lambda$$

(2)

where n_s is the refractive index of the substrate and h the etch depth of the medium. For Si with n_s ~3.5 at 10 μm wavelength, an etch thickness of 4 μm is required to acquire 2π phase.

2. Materials and Methods

2.1. Mask Design

The test structures design files were created using MATLAB and saved as 8-bit bitmap files. Each pixel value of the BMP files is represented by a value between 0 to 255, which will be referred to as “grayscale power levels”. For the lens design, a column text file starting from the center of the lens and ending at the edge of the lens was created in MATLAB. Then it is later rotated around the center, creating the circularly symmetric lens. This step was done using the software provided with the maskless writer, Picomaster 150i with a 375 nm laser source from Raith Nanofabrication. Creating an entire 2D lens design on a bitmap file was not an option due to file size limitations that appeared. A pixel on the BMP file represents an actual area of the lens, and a highly dense resolution mask was desired for an accurate profile design. Using the column approach, a very densely pixelated lens was designed, with each “pixel” of the column matching the step size parameter of the maskless writer. Fresnel lenses of up to 2 cm in diameter with a pixel size of 225 nm were fabricated using this approach.

2.2. Linearization of the Photoresist

The GSL PR ma-P 1225G from Micro Resist Technology was used for the development of the linearization process for the PR and for obtaining the selectivity data. Later experiments and final devices used a thicker variant, the 1275G. The thinner PR (1225G) was spin-coated at 1000 rpm and soft-baked at 100°C for 45 seconds. Then it was loaded onto the maskless writer. An initial step is to determine the appropriate dose that will result in a 4 μm developed depth, measured with the profilometer Dektak 150 Stylus ProfilerScan from Veeco Instruments Inc. An automated built-in feature was used for this purpose. The resolution mode of the maskless writer was set to “medium resolution,” and it affects the spot size, which is 550 nm in this case. The medium resolution mode has a better depth of focus, giving better exposure in the thick photoresist. The step size was set as half of the spot size, at 225 nm. The scanning speed was set at 300 mm/s, and the duty cycle was set to 6. After exposure, the PR was developed in ma-D 331 developer for 45 seconds with gentle stirring. It was determined that a dose of around 225-235 mJ/cm² is sufficient to reach the required depth in the PR. It must be noted that a new linearization is required whenever soft-baking conditions change, as the PR will behave and develop with a slightly different profile.

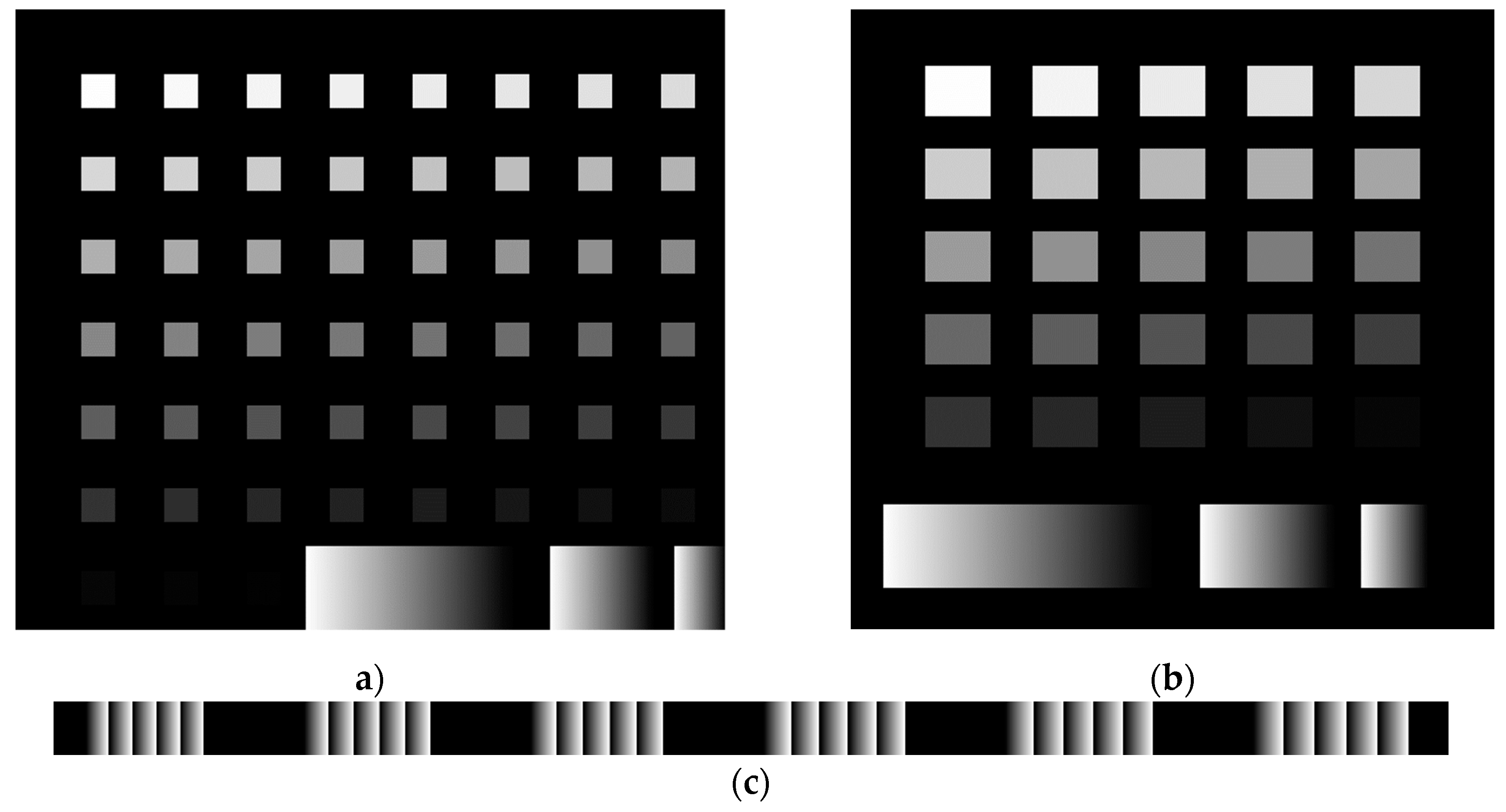

For the linearization, the test structure A shown in Figure 2.a was used. It consists of 51 separated squares. The boxes' grayscale power level decreases in value in steps of 5. The whitest areas are exposed with the maximum dosage, and the blackest with the minimum. After development, the height of each individual box was measured and then imported into MATLAB. The missing GS values between each square were interpolated, and then a polynomial fit was applied to minimize any big deviations. After obtaining the exposure curve, the actual calibration takes place.

The linearization algorithm retrieves the GS power values of specific pixel “A” from the mask under optimization and the developed depth of the corresponding area. Also, by taking the minimum and maximum developed depths, a straight line connecting these two points is used as a reference for the ideal behavior. The algorithm continues and searches for a developed depth among the data that has the depth value that was expected from the specific pixel area. The closest match is selected, and the GS power value of that pixel “B” is retrieved and substitutes the value of the pixel “A”. This step is repeated for all the pixels of the mask.

2.3. Photolithography

2.3.1. Exposing

Optimizing this step appeared to be challenging. The initial parameters are mentioned in the previous section, but it was necessary to change them as it was observed that the development of the PR was not optimal, resulting in an etched structure that lacked accuracy. There was a height difference between the inner and outer rings of the Fresnel lens. A difference of up to 1.5 μm was observed, which is a 38% phase discrepancy between the designed and actual height. Such a height difference will result in wavefront aberrations and degrade the image quality of the fabricated lens.

The initial photoresist was swapped for the thicker version 1275G. It was spin-coated at 6500 rpm and soft-baked for 3 minutes, resulting in a 5 μm thick PR. A new test structure C was designed, shown in Figure 2.c, consisting of sets of linear ramps of different widths, starting from 14 μm up to 140 μm, increasing in various step sizes and was calibrated for the new PR. Two versions of it were created. One has gaps between each ramp of a set while the other had no gaps, simulating more closely the rings of a lens. It was determined that to have the least possible height difference between rings, exposure dosage and development time must change. A dosage of 155-165 mJ/cm² was found to be the suitable range with the development time being 80 seconds. After exposure, the height difference between rings was measured to be around 0.2 μm, which is a substantial reduction from the initial 1.5 μm. The developed depth is in the range of 3.5 to 3.8 μm which requires etching with selectivity slightly higher than 1:1 so the target 4 μm height in Si is reached. Furthermore, since the PR has a thickness of 5 μm, this leaves a layer of ~1.5 μm beneath the patterned PR which will be required to etch away as well.

In the Table 1, it can be seen that the height of narrow and wider ramps differed and was not consistent with development time. The height difference was best when the duration was 75 seconds, but even then, the obtained height was not repeatable. Yet, a relatively higher selectivity of 1.37:1 would be required to scale the structures to 4 μm. The preferred height that was selected was 3.3-3.4 μm, requiring a selectivity of 1.2:1.

2.3.1. Reactive Ion Etching – Parameter optimization

A Reactive Ion Etching process was chosen to transfer our patterns from PR to Si. A constant flow of SF₆, O₂, and CHF₃ was supplied in the etching chamber (100 Estrelas from Oxford Instruments). SF₆ is mainly used to etch the Si, CHF₃ for sidewall passivation, and O₂ for the predominant etching of the PR and removal of the passivation from “flat” surfaces. CHF₃ flow rate was set to 15 sccm and was kept constant throughout this study. The temperature was set to 5°C, pressure at 10 mTorr, and Radio Frequency power at 150 watts. The solution for the non-uniform PR development involves higher selectivity and longer etching duration as height scaling and the additional PR thickness etching needs to be addressed.

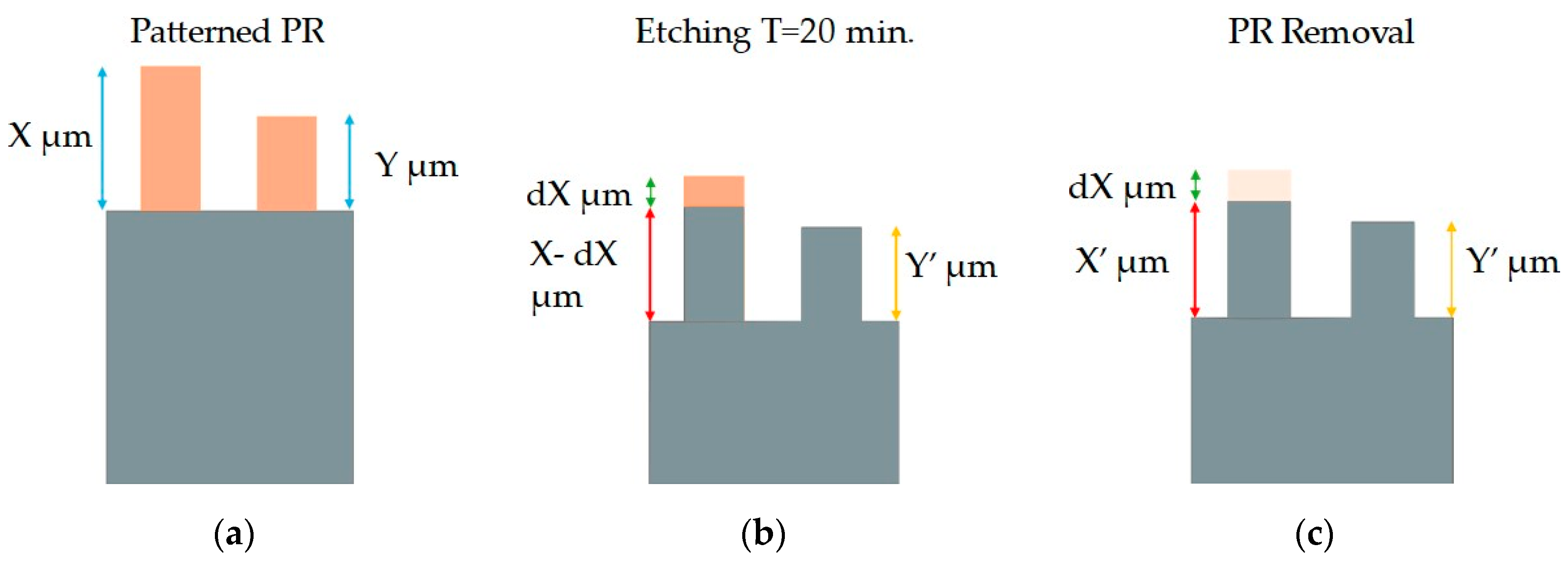

Depending on the available materials, designs, and desired structure height, one may have to scale the PR pattern to the desired height by a different amount. For accurate scaling calibration, two sets of etching experiments were conducted. Initially, the parameters for selectivity 1:1 were determined. Then, one set kept the SF₆ flow rate constant while varying the O₂ flow rate, and the opposite for the other set of experiments, examining the effect of the flow rates on selectivity. Flow rates with selectivity of less than 1:1 were also examined.

To obtain the selectivity dataset, the PR 1225G was exposed with the mask (test structure B) shown in Figure 2.b. Multiple structures were exposed on each wafer and then cut into pieces of 1.5 by 1.5 cm. The sample is developed enough to expose the silicon area between the squares. After development, the height of each square is measured, and then the sample is placed on a Si handling wafer. The sample is held in place by vacuum oil and undergoes etching for 20 minutes. After completion, the squares’ height is measured again. Lastly, since the etching time is not long enough to completely etch away the PR, the remaining residue is cleaned with acetone, and the height is measured again. The squares that changed in height were used to calculate the etching rate of PR and Si independently. The procedure is depicted in Figure 3. To calculate the selectivity, all squares were used except the three darkest squares. Since their darkest square PR heights were in the range of 80 to 300 nm, any small deviations in the height after etching, that could be a result of measurement errors or the process itself, will result in vastly altered selectivity compared to the rest of the squares.

The need for high control in selectivity and thus in height scaling, a selectivity chart with minor variation per flow rate was needed. In Set 1, O₂ flow rate is changed in steps of 1 sccm, from 5 to 15 sccm. In Set 2, SF₆ is increased in steps of 2 sccm, from 14.5 to 34.5 sccm.

2.3.2. Image acquisition

We evaluated the performance of the Si Fresnel Lenses using an uncooled long-wave infrared camera from Simtrum with a detection band of 8-14 µm, STPLUG 612R. Its stock lens was removed, and a custom-designed holder was screwed into the threads of the camera. The holder consists of two parts that screw together. Each of them has a recess (gap) that can fit a rectangular Si piece of up to 2 cm in each direction. The lower part can adjust its distance from the microbolometer, focusing the image on the sensor. Various lenses were tested, ranging in diameter and f/#. The images were taken without any bandpass filter, while our lenses were designed without taking into consideration any chromatic aberrations. The formed images were a result of the full LWIR band passing through the lens, thus not displaying the full potential of the lens. Wavelengths outside the operating band of the lens form erroneous images on the bolometer due to chromatic aberrations, lowering the quality of the final image.

3. Results

3.1. Dose Linearization of PR and Exposing

The evaluation of the dose linearization of PR was done by comparing the profile of three linear ramps of different widths (500, 250, 125 µm). The designs were exposed in the same area on the wafer and developed simultaneously. There is a substantial improvement in the behavior of the PR after linearization. In Figure 4, the green dotted line represents a theoretical perfectly linear height profile of the PR after exposure and development. The calibrated profile of the PR (red line) follows the ideal case very closely. On the other hand, the unoptimized design (blue) lags enough that this mismatch cannot be ignored. The discrepancy between the ideal ramp and the measured uncalibrated ramp can reach in the range of 1 µm for the wider ramp and for the narrowest ramp, it is 1.25 µm, which is a 25% and 31% deviation from the desired profile respectively. The linearization was also applied to our Fresnel lens case-study, altering the GS Mask power values accordingly during exposure. A comparison can be seen in Figure 5, where unoptimized and optimized lens designs are compared.

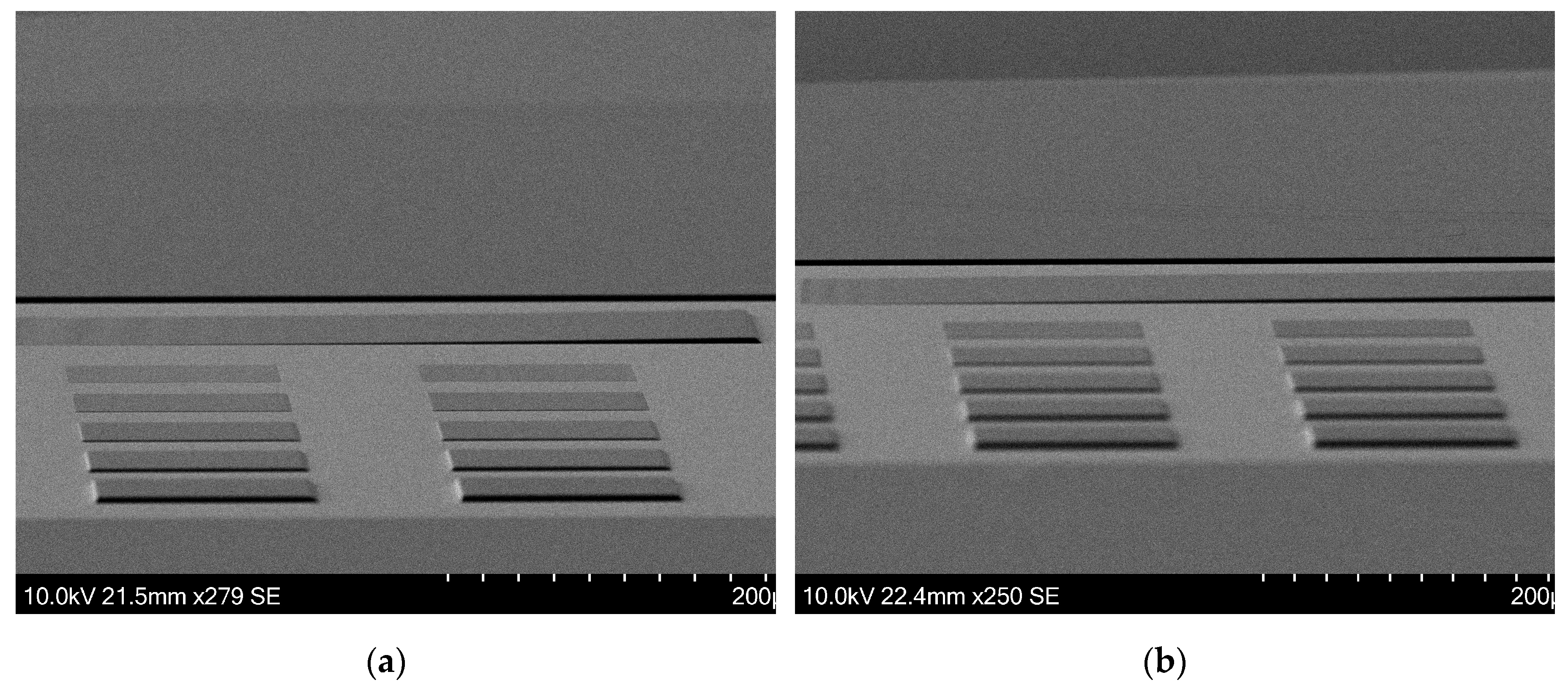

Even though the linearization was calculated based on standalone squares of test structure A, it is nicely transferable to structures that are continuous as evident below. The SEM images in Figure 6 show a comparison of the etching test structures. The unoptimized ramp does not gain height according to the mask design and lags compared to the optimized one. The sidewalls of the ramp are visible earlier in the optimized version of the mask, indicating that the ramp begins to gain height early. This behavior is similar to the one observed in Figure 4.

3.2. Reactive Ion Etching of Si

3.2.1. Etch Selectivity control

In these experiments, our objective was to establish an etching process that could provide precise control over selectivity so that the etch height scaling in Si could be as accurate as possible. Both set of experiments exhibit an almost linear response to the changes in the gas flow under investigation.

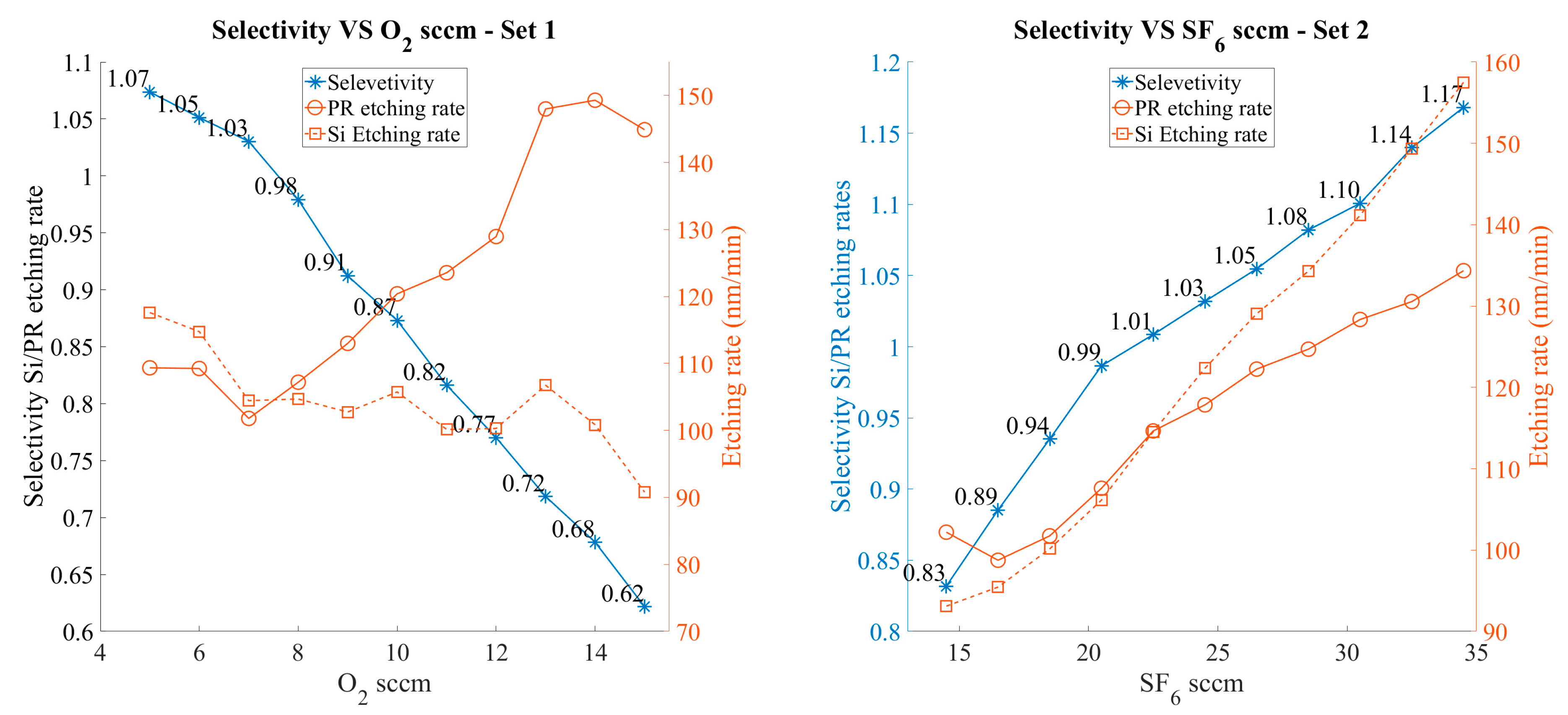

In Figure 7, Set 1, the flow rate of O₂ was varied by 1 sccm. From 5 to 15 sccm, the average selectivity change for each step was 4.5%, with values ranging from 1.07:1 to 0.62:1. Selectivity increments diminished when the O₂ flow rate was below 8 sccm. The etching rate of PR increased with the increasing flow rate of O₂ as expected, starting from 109 nm/min to 145 nm/min. The etching rate of Si was slowly reduced, ranging from 117 nm/min to 91 nm/min. The reduction in Si etching rate can be attributed to the congestion of the etchant gases.

In Set 2, the flow rate of SF₆ was increased in steps of 2 sccm, from 14.5 to 34.5 sccm. Selectivity increments were, on average, 3.4%, ranging from 0.83:1 to 1.17:1. The response to the SF₆ flow rate was again almost linear. The etching rates of both PR and Si increased in a similar way as Selectivity. For PR, the etch rates ranged from 102 nm/min to 134 nm/min, while for Si, they ranged from 93 nm/min to 157 nm/min. The etch rates increase for both materials as SF₆ etches Si but it physically etches the PR as well.

3.2.1. Accuracy of pattern transfer:

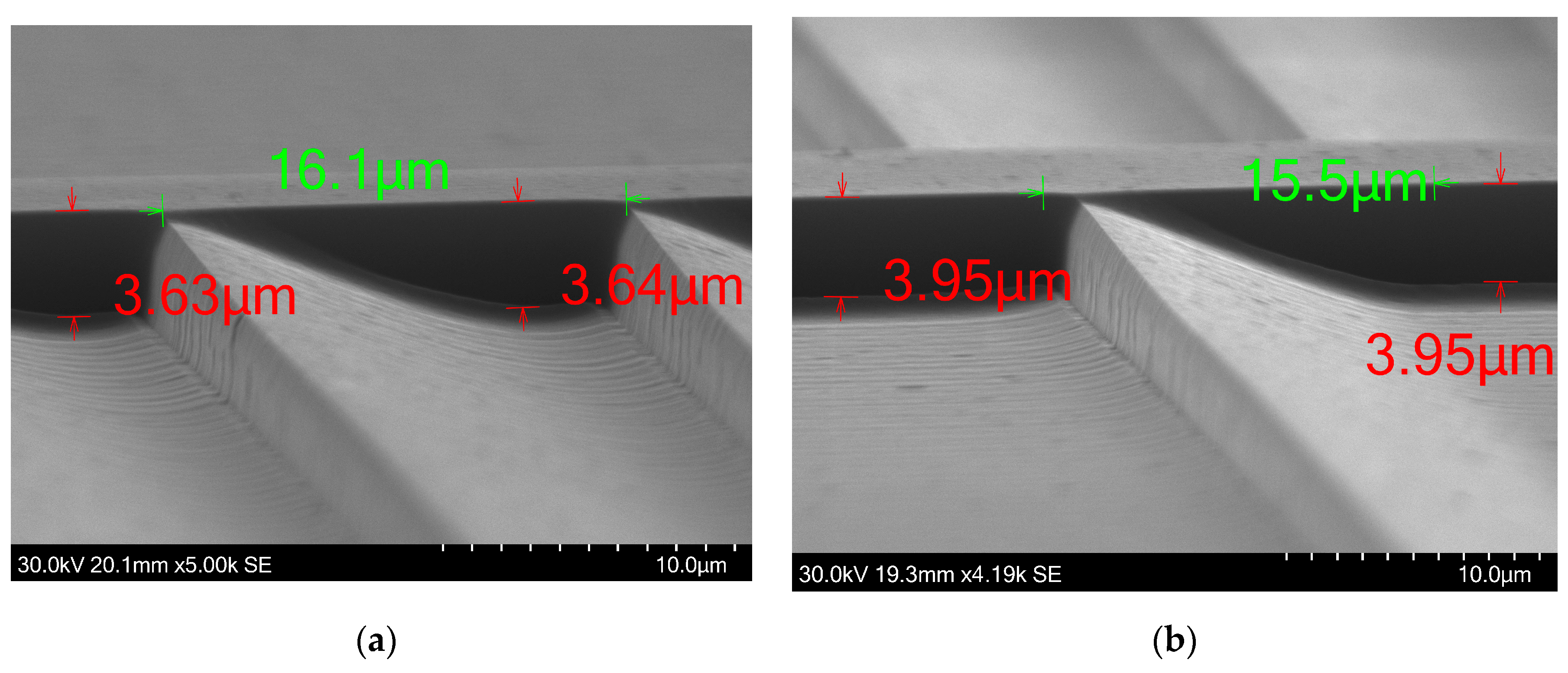

The evaluation of the quality and accuracy of the Si etching was necessary. Our aim was to evaluate the uniformity of etching performance across both narrow and wide ramps. To achieve this, a Si wafer was spin coated with the thick PR 1275G. Subsequently, the test structure C underwent exposure, development, and etching procedures spanning a duration of 1 hour. Following these steps, we conducted measurements to determine the heights of the narrowest and widest ramps within the PR layer and the Si substrate. It was observed that the step height of the wider ramps remained consistent, while a marginal decrease of approximately 100 nm in step height was noted in the narrowest ramp relative to the PR layer. Importantly, this deviation is within an acceptable error margin.

The average surface roughness was measured utilizing an Atomic Force Microscope (AFM XE-200 from Park Systems Co). The surface roughness value was measured to be 3.5 nm as depicted in Figure 10.b, is deemed insignificant in terms of performance impairments to the imaging lens, as the operational wavelength is several magnitudes larger than any surface imperfections. Figure 8 shows the Si surface after etching the 1275G PR variant.

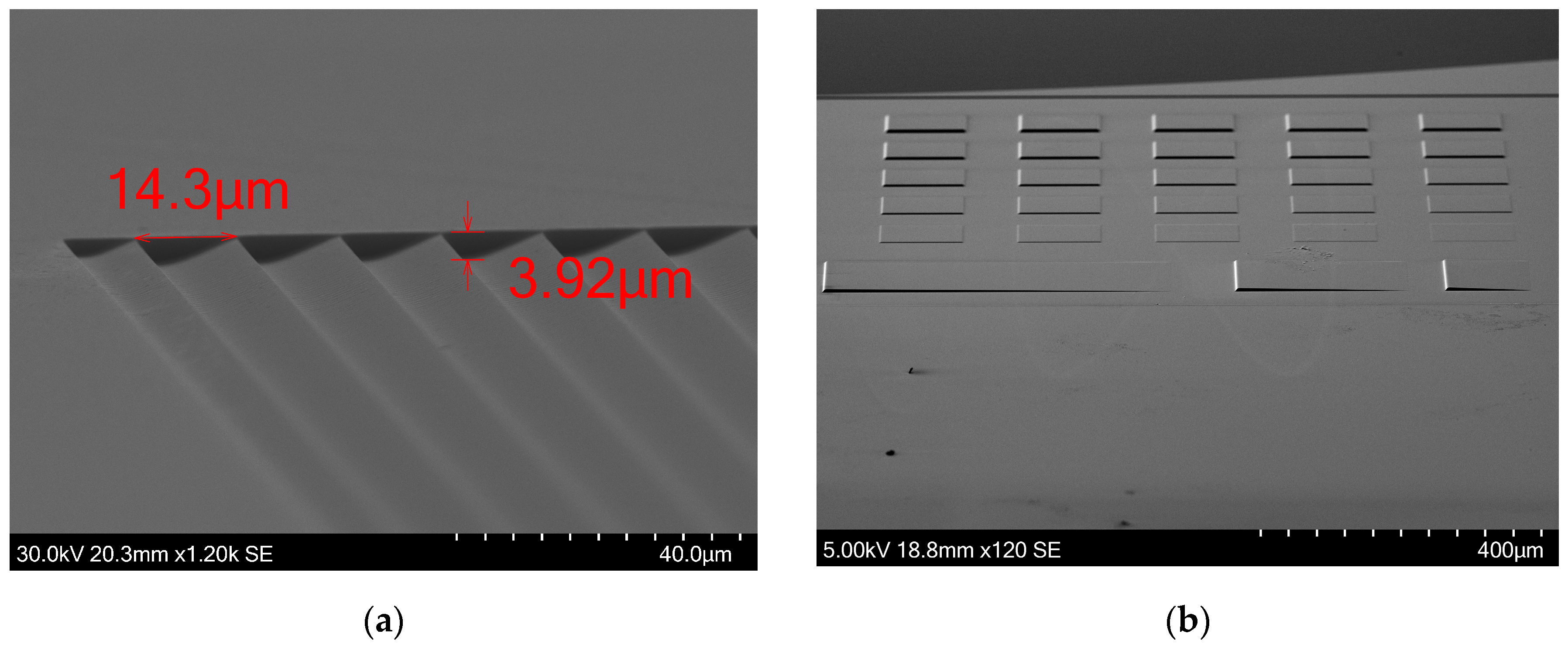

We further evaluated the etching performance in areas adjacent to steep height changes. We used the test structure C as it has repetitive height drops with and without gaps between each ramp. The 16 μm-wide ramps were selected due to their dense distribution. It is observed that in areas adjacent to a steep height change, the lower surface flattens, deviating from the intended design profile. When each ramp is separated by some space between nearby ramps, the measured step height averages approximately 3.95 μm. When ramps are not spaced, the maximum recorded step height reaches approximately 3.55 μm. The flattened area experiences a slight increase in height upon reaching the sudden height increase, a feature that is present throughout our fabricated structure. However, the magnitude of this height increase is negligible when the sudden change in etched depth is located within an open area. In Figure 9.a, successful fabrication of 14 μm-wide ramps is also demonstrated. Ramps of that width are present in the outer rings of fast Fresel lenses, in the range of F#/0.5 as seen in Figure 10.a. The verticality of the steep height changes is good, representing steep 2π phase jump with negligible transition zone. In our case study, a Fresnel lens consists of many concentric rings and height jumps occupy a significant area of the lens. The vertically that is shown here is high, avoiding any performance issues from this aspect.

The RIE etching process is capable of etching both high and short structures successfully. An etched test structure is shown Figure 10.b. The shortest square with a height of around 80 nm is present along with all the taller structures, of up to 4 μm height. With an etching duration of ~45 minutes, the small square was successfully transferred into the silicon substrate. The pattern was etched into the silicon within a minute, and for the remaining 44 minutes, it is constantly etched as a Si square, without any PR on top of it. It manages to survive the remainder etch duration while etching for the rest of the structure is ongoing. Anisotropy was found to be excellent, with the lateral dimensions of the features remaining unchanged.

3.1. Case Study - Fresnel Lens

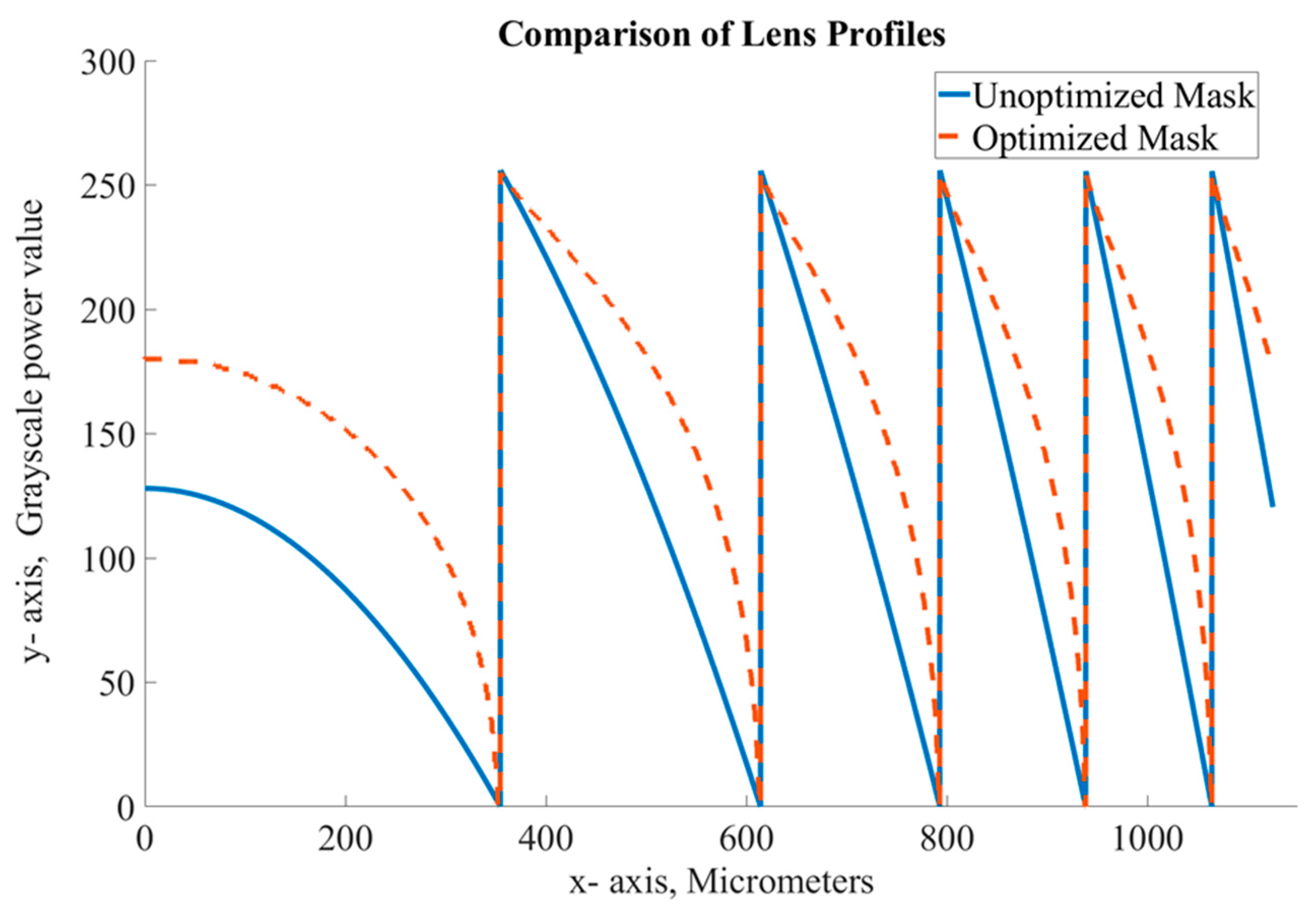

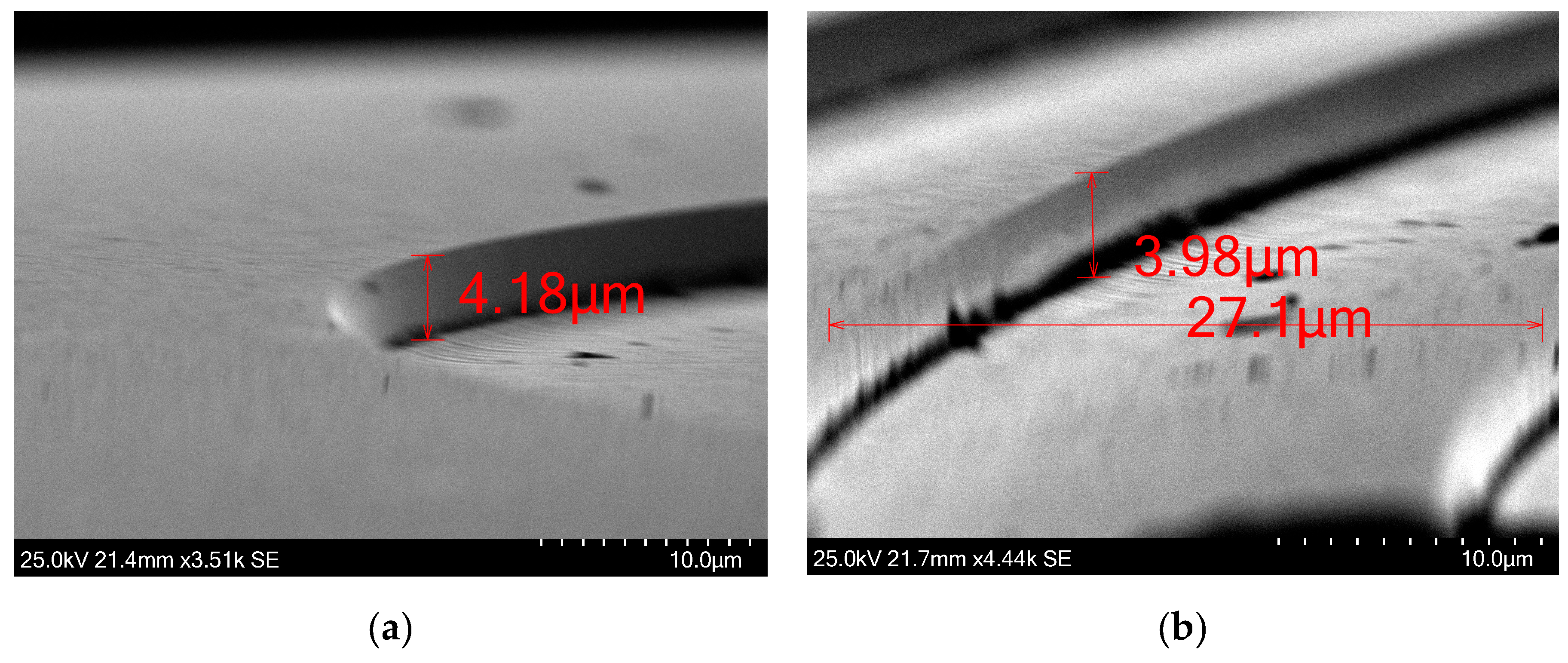

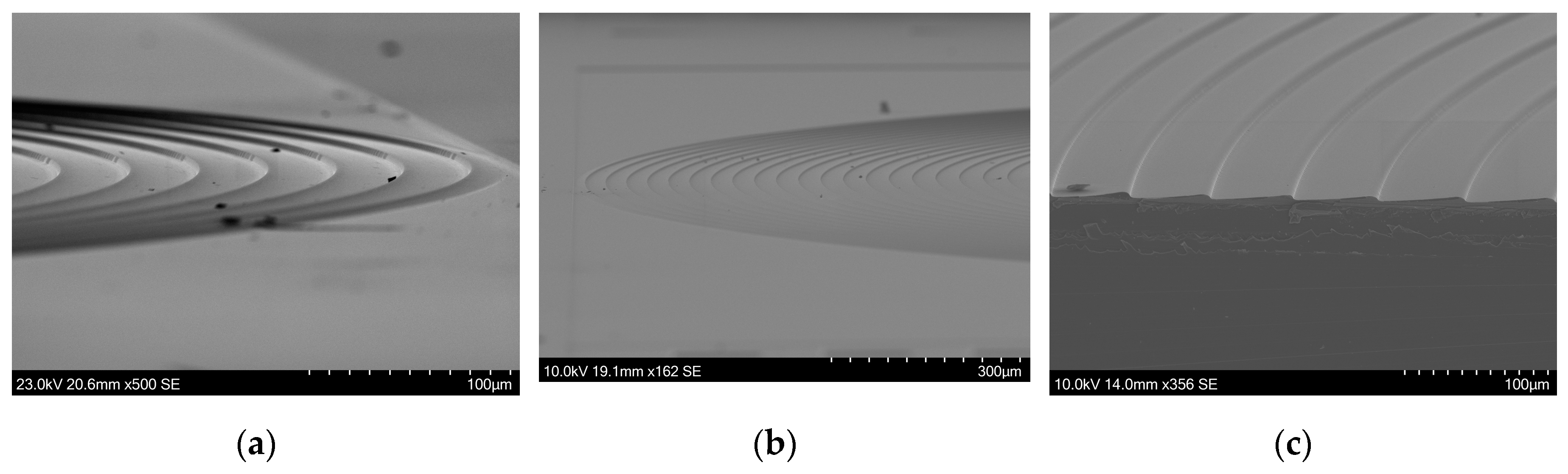

We applied the developed GSL process to fabricate Si Fresnel lenses. Results of lenses, with and without optimization are presented. They exhibit characteristics mentioned in the previous sections. One of the most important aspects of a Fresnel Lens is to maintain the appropriate 2π step height throughout the surface. In initial fabrication attempts using thin PR, big disparities between experimental results and designs were observed. The step height varied from 2.41 μm for a ramp of width of ~14.6 μm, 3.03 μm for a ramp of width of ~16.6 μm and 3.9 μm for a ramp of a width of ~60.4 μm width, as shown in Figure 11 where the cross-sections of these ramps are depicted. This is a substantial fabrication error that was overcome. This unequal etching was solved by using the thicker photoresist and developing to a smaller depth of the PR.

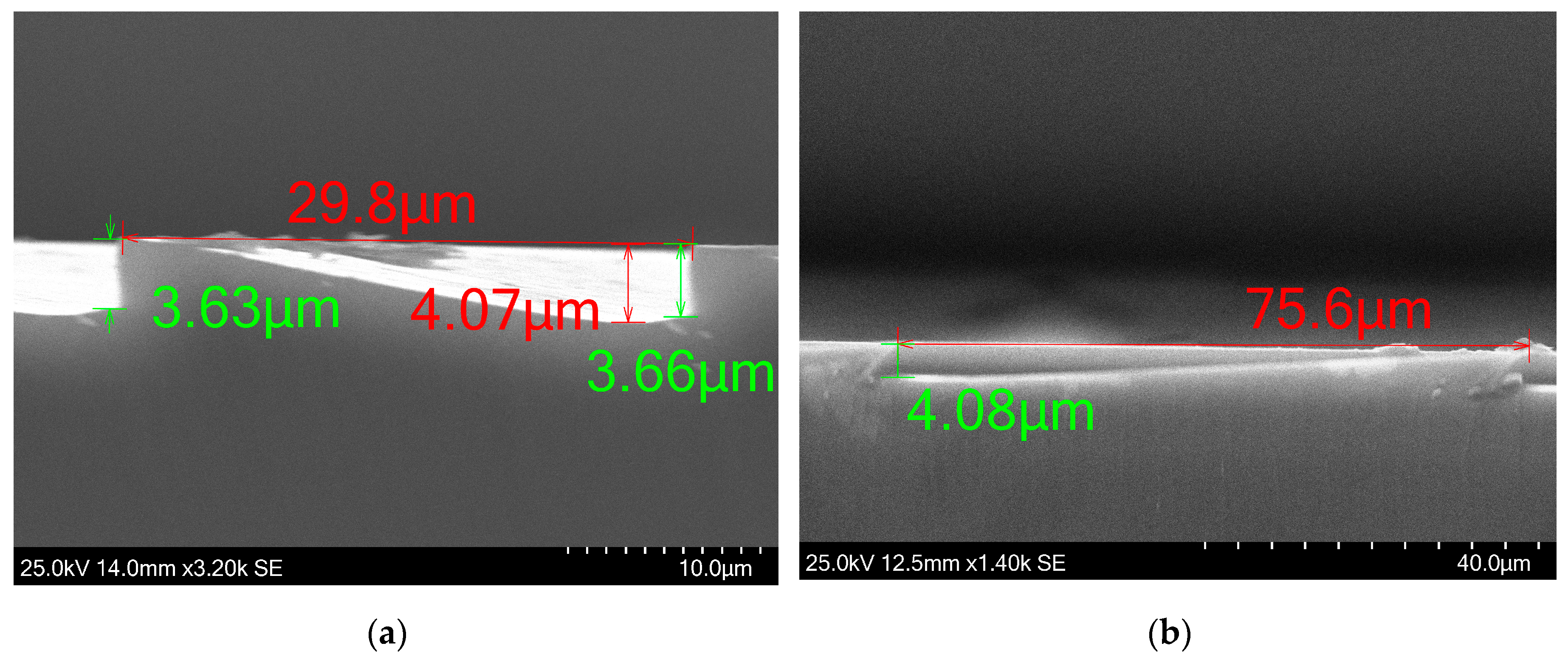

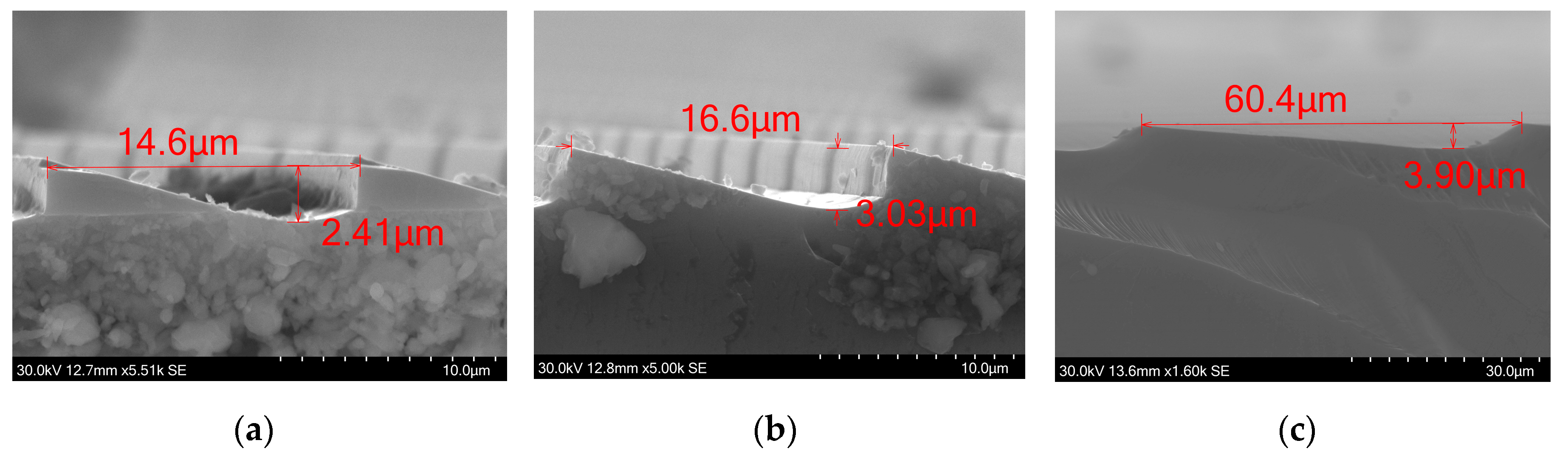

Below, in Figure 12, we show that utilizing the test structure C, partially shown in Figure 2 and Figure 8, helped solve this issue and the solution proved to be applicable to the lens structure. The step heights for rings with approximate widths of ~29.8 and ~75.2 μm are found to be identical, at ~4.0 μm. Minor height variations are expected due to positioning of measuring arrows. Such small differences shown here are rare instances and, in most cases, the variance is around 10%, from central to the outer rings. Figure 13 shows the central ring and an outer ring. The step height change is sharp and narrow, minimizing any potential negative effects it could have on performance.

The flattening of the slope that was observed in the test structure C was also observed in the cross-sections shown in Figure 11 and less in Figure 12, as well as the small uphill slope just next to the step height change. This issue remains unresolved. The verticality is similar to what was observed in the test structures. The following SEM images in Figure 14 show larger areas of various fabricated lenses.

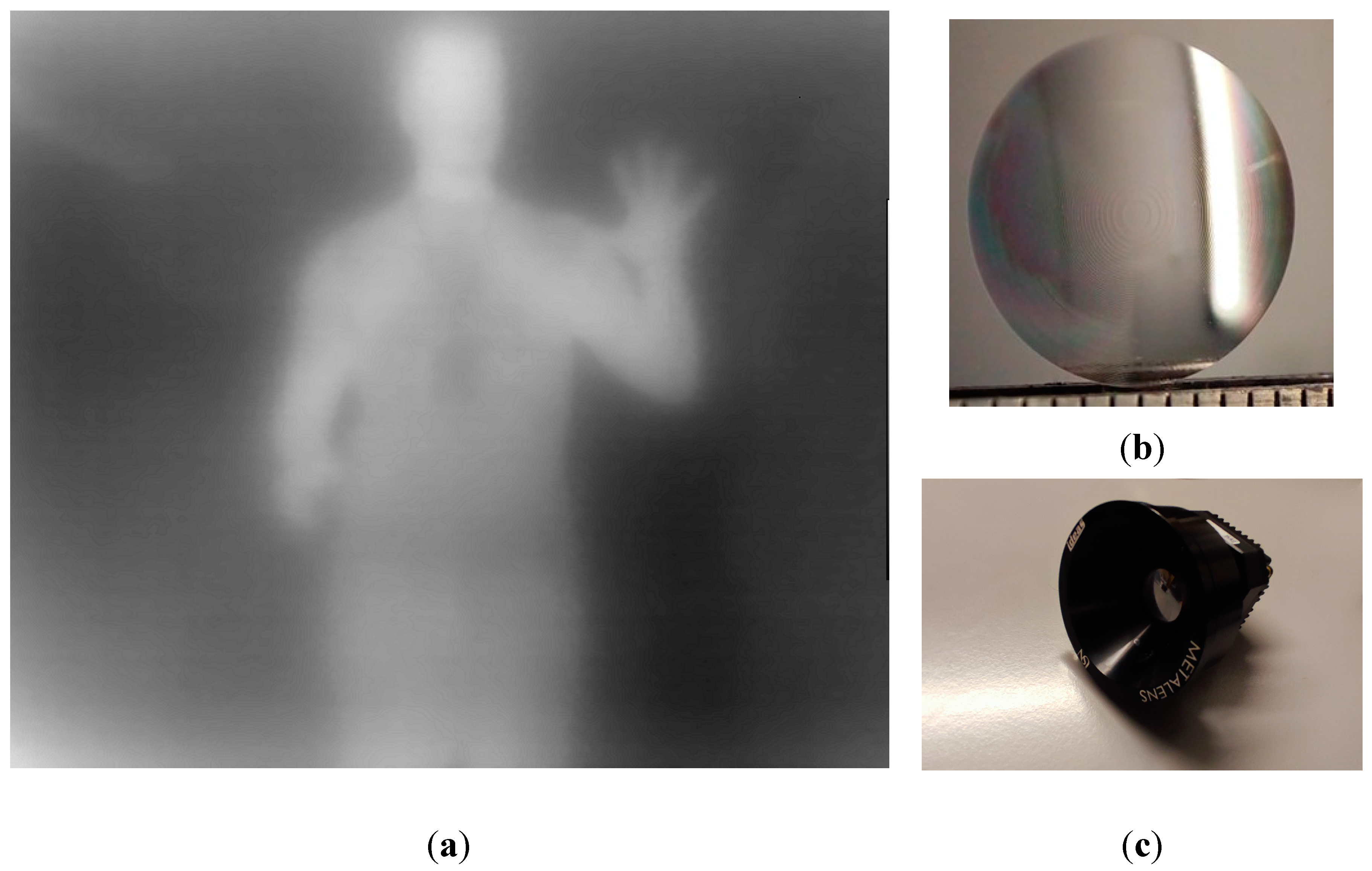

Various fabricated lenses were tested, ranging in diameter, F/#, and focal length. The widest lens was 2 cm in diameter, up to F#/0.5 and focal length of 2 cm. In Figure 15.a, an image taken by a F#/1, 1.2 cm in diameter (Figure 15.b) is used to form an image. The lens is held in place using the custom mount and threaded into the LWIR camera (Figure 15.c). As the lens phase profile is based on a monochromatic (10 μm) focusing equation, the lack of a bandpass filter hinders the ability to showcase the true performance of the lens. The full LWIR band propagates and forms slightly blurred images at the bolometer surface. The thermal differences between clothing and skin are observable. The lanyard on the chest is distinguishable as well as the card at the end of it. Facial features are not observable, but the cooler hair is distinguishable.

4. Discussion

In this study, results for each step of the fabrication process of GSL are presented. When observing this work from a fabrication point of view with non-specific application purpose, it can be seen as a technique to transfer arbitrary 3D patterns into a Si substrate. The non-linear response of the photoresist is the initial issue that one will encounter, which leads to inaccurate PR patterning. Our approach returned results that follow closely the ideal linear response of PR vs exposure dosage. The uneven development of the Fresnel Lens inner and outer rings was resolved by developing the PR pattern to a lesser depth and then scaling to the desired height by choosing Selectivity > 1.0 in the RIE process. Both central and outer rings now show a variance of around 10% on the rings’ maximum step height which gives peak wavefront error of $0.1\lambda$. The RIE process is capable of etching and transferring nano and micro size vertical structures simultaneously into the Si wafer with a high degree of accuracy when the PR pattern does not have steep changes in height levels. When the pattern is steep, such as in areas near narrow vertical changes in height, the etched Si exhibits a slight flattening of the slope which needs further investigation as this is a deviation from the desired shape. This could lead to some image degradation and should be resolved in the future to further improve the transferring accuracy of the proposed method. The lateral extend of the steep height changes is quite small, preventing it from affecting the image quality in the case study of the Fresnel lens. Lenses of 1 cm in diameter and F#/1 were successfully fabricated, and we displayed images acquired using them. The absence of an achromatic lens solution means that the chromatic aberration present in Fresnel lenses hinders the full potential of the fabricated lens as the full LWIR band (8-12um) propagates through the lens and forms a blurred final image on the bolometer sensor.

5. Conclusions

The grayscale lithography procedure has been adjusted to the needs of the fabrication of high NA Si Fresnel Lenses. Previous published work has tackled some of the issues presented here but were treated as isolated cases, as mentioned in the introduction. In this work, we treated all issued simultaneously, necessary for a successful fabrication of a Fresnel lens. We applied a linearizing calibration on the PR resulting in very linear ramps. The uneven PR development which will lead to increased aberrations was minimized, with a maximum of 10% deviation from the desired height. Ramps of 14 um width that are present in F/#0.5 were accurately controlled and fabricated. The etching parameters are capable of providing low increments in selectivity, crucial for scaling the PR height to the correct Si height while also maintaining very low surface roughness and transfer into Si accurately. Lastly, we applied our approach to fabricate a 1.2 cm diameter and F/#1 lens and obtain images with it. The lack of a bandpass filter did not allow for a more accurate representation of the imaging quality of the lens.

An unresolved issue is the flat area that occurs near abrupt changes of PR thickness. This discrepancy is insignificant when they are located in the wider inner ring as their slope’s angle is very small and the aforementioned area’s height does not change significantly. On the other hand, the angle of the slope of the outer rings is larger and thus the height variation is greater which results in 10% maximum deviation in height. An improvement is needed to reduce the extent of the flat area in the outermost rings of the Fresnel lens. Excluding this, the final fabricated structures followed very closely the design. The low deviation from the original design is an important step to successfully incorporate lens with multiple lenses to reduce aberrations.
