Characteristics of Umami Taste of Soy Sauce Using Electronic Tongue, Amino Acid Analyzer, and MALDI-TOF MS

1. Introduction

Soy sauce is a traditional condiment with a long history of more than 5000 years. It is produced primarily from soybeans and wheat under the fermentation of microorganisms including Aspergillus oryzae, Aspergillus sojae, etc. [1,2,3]. Soy sauce not only has a unique color, aroma, taste, and nutritional value but also has the effect of harmonizing food flavor, improving food color, and removing the fishy taste of food. Therefore, soy sauce has become an indispensable seasoning all over the world [4,5,6]. Fermentation plays a critical role in forming the unique flavor of soy sauce [7]. The traditional fermentation of soy sauce is mainly natural sunbaked night dew fermentation and salt-free solid-state fermentation. However, with the development of fermentation technology, high-salt liquid fermentation and low-salt solid fermentation are mostly used now [8]. Compared with low-salt solid-state fermented soy sauce with high production efficiency and low cost [9], high-salt liquid fermented soy sauce has a strong flavor and better quality. Therefore, high-salt liquid fermented soy sauce is more loved and concerned by people [10].

The taste of soy sauce generally consists of umami, salty, sweet, sour, bitter, and kokumi [11]. Although the overall flavor of soy sauce is a result of the balance of the various flavors, the umami is the most important taste [12]. What should be noted is that the taste of soy sauces varies greatly due to the raw materials, microorganisms, and manufacturing technologies used [13]. It is generally considered that the quality of soy sauce depends on the amino acid nitrogen content. However, the major components that contribute to the taste, especially the umami, of soy sauce and the characteristics of the umami taste of soy sauces with different amino acid nitrogen contents are not well known.

Umami, known as the fifth taste, makes the overall taste of food softer, more harmonious, and full-bodied, helping improve the overall sensory characteristics of food [14]. It is known that the umami taste of soy sauce is highly associated with the amino acids, peptides, nucleotides, and other flavor substances [15]. Especially, it is generally believed that the free amino acids of Glu, Asp, Phe, Ala, Gly, and Tyr have umami taste or umami-enhancing effects [16,17]. In addition, some gamma-glutamyl peptides and the peptides containing umami amino acids such as Glu, Asp, and Gly produced by soy protein by fermentation have been found with umami tastes and play important roles in the unique flavor of soy sauce [15,18,19]. Consequently, the interest in discovering novel umami peptides from soy sauce and other food sources is rising. For instance, the short peptides γ-Glu-Glu, Glu-Glu, γ-Glu-Cys, γ-Glu-Leu, Glu-Leu, and Ile-Glu were demonstrated to exhibit umami taste [17]. The peptides LPEEV, AQALQAQA, EQQQQ, ALPEEV, and EAGIQ that were identified from soy sauce were also determined to show umami taste and umami-enhancing effects [11]. Nevertheless, the amino acid and peptide profiles underlying the umami taste of soy sauce with different amino acid nitrogen contents have not been reported

Therefore, the purpose of this study was to elucidate the umami characteristics of soy sauces with different amino acid nitrogen contents. The umami peptides from soy sauces were first isolated using XAD-16 macroporous resin adsorption combined with ethanol elution. Then, the umami characteristics of the soy sauce peptides were analyzed by electronic tongue, amino acid analyzer, and Matrix-assisted laser desorption ionization-time of flight mass spectrometry (MALDI-TOF MS).

2. Materials and Methods

2.1. Materials and Chemicals

Twelve kinds of brewed soy sauces were purchased from a local supermarket in Yangling, Shaanxi, China, and stored at room temperature. The fermentation technology, amino acid nitrogen content, and raw materials of soy sauce are shown in Table SThe XAD-16 macroporous resin was purchased from Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). All other chemicals were of analytical grade.

2.2. Isolation of soy sauce peptides by XAD-16 macroporous resin

Before the experiment, the monomers and chemical reagents were removed from the XAD-16 macroporous resin according to the previous method [20]. The XAD-16 macroporous resin was soaked in 95% (v/v) ethanol for 24 h followed by 5% (m/v) NaOH for 5 h and then 5% (v/v) HCl for another 5 h. Then, the XAD-16 macroporous resin was washed using distilled water and dried at 60°C for 48 h in an oven (DHG-9240A, Shanghai Jing Hong Experimental Equipment Co. Ltd., Shanghai, China) and stored at room temperature until use.

The soy sauce peptides were isolated using XAD-16 macroporous resin referring to the previous method with slight modifications [11]. Briefly, 5 g of the XAD-16 macroporous resin was immersed in 95% ethanol for 12 h for activation. After the resin was washed using distilled water until the ethanol was completely removed., 100 mL of the soy sauce was thoroughly mixed with the resin at 30°C for 10 h in an incubator with constant shaking at 150 r/min. The soy sauce peptides were sequentially eluted with distilled water (0% ethanol), 20% (v/v) ethanol, 40% (v/v) ethanol, 60% (v/v) ethanol, and 80% (v/v) ethanol and the result fractions (SS-0%, SS-20%, SS-40%, SS-60%, and SS-80%) were collected respectively and then lyophilized and stored at -20°C until further analysis.

2.3. Electronic Tongue Analysis

The differences in taste characteristics of soy sauce peptides were analyzed using the Astree II electronic tongue system equipped with seven sensors (ZZ, JE, BB, CA, GA, HA, and JB) (Alpha MOS, Toulouse, France) according to the described method with a slight modification [21]. Before the experiment, the electronic tongue system was calibrated and diagnosed using distilled water, 0.01 mol/L HCl, 0.01 mol/L NaCl, and 0.01 mol/L monosodium glutamate (MSG), respectively. The soy sauce peptides were diluted to 0.01 mg/mL using deionized water, and then filtered using a Millex® PVDF needle filter (0.45um). Then, 70 mL of the sample was analyzed and the taste profile was measured with 7 replications and the last four repeated data were selected for analysis using the PCA method.

Furthermore, the taste scores of soy sauce peptides including sourness, bitterness, astringency, aftertaste-B, aftertaste-A, richness, umami, and saltiness were analyzed using the SA402B electronic tongue (INSENT, Atsugi City, Kanagawa Prefecture, Japan) according to the previous method [22]. Briefly, 100 mg of the sample was dissolved in 100 mL deionized water, and then sequentially filtered using 0.45 µm and 0.22 µm Millex® PVDF needle filters. The sample solution was then taken into a beaker and tested four times using the SA402B electronic tongue. The procedure was set to 30 s for taste collection, aftertaste collection time of 30 s, and cleaning time of 300 s. The last three data were collected for analysis.

2.4. Determination of Amino acid Composition

The determination of the amino acid composition of soy sauce peptides was performed according to the previous method with some modifications [23,24]. The sample was dissolved in distilled water at 5 mg/mL and placed at room temperature for 30 min. Then, the sample solution was mixed with 10% sulfosalicylic acid at a volume ratio of -4:1 (v/v) and incubated at 4°C for 60 min for deproteinization. After centrifugation at 10000 r/m and 4°C for 10 min, the supernatant was collected and filtered with a 0.22 μm Millex® PVDF needle filter. For the free amino acids, the obtained supernatant was directly analyzed using an automatic amino acid analyzer (A300 advanced, Membrapure, Germany). For the hydrolyzed amino acids, the sample t was first hydrolyzed with 10 mL 6 M HCl at 110°C for 24 h and then deacidified by Nitrogen blowing at 70°C before the analysis.

2.5. MALDI-TOF MS Analysis

The soy sauce peptides were determined by MALDI-TOF MS according to the method of Wang et al. with some modifications [25]. Briefly, the sample was dissolved in the matrix solution (MeOH) (2 mg/mL) and subsequently mixed with 4-cyano-α-hydroxy cinnamic acid (CHCA) (1 mg/mL) before being applied to the metal target plate. After drying, the MALDI-TOF MS technique employs air as a collision gas for high-resolution determination of samples in positive mode, utilizing 20 kV collision-induced dissociation. The sample and matrix undergo sublimation and ionization through MALDI. Subsequently, the resulting ions were separated based on their m/z values using a TOF analyzer (Autoflex, Bruker, Germany), while MS software generated and analyzed the spectral characteristics of these ions, ultimately yielding an MS spectrogram.

2.6. Statistical Analysis

All data were presented as the mean ± SD and analyzed using Origin 9.5 software (Origin Lab Corporation, Massachusetts, U.S.A.). The Origin 9.5 software was also used for the Pearson correlation analysis. The difference was carried out by one-way analysis of variance (ANOVA) followed by Duncan’s test with the significance value of P < 0.05 by SPSS 26 software (IBM, Chicago, USA).

3. Results and Discussion

3.1. PCA Analysis of the Taste Property of Soy Sauce Peptides

Macroporous resins are usually used to isolate bioactive components from natural products due to their large specific surface area, optimal pore structure, and unique adsorption properties [26]. It had been confirmed that XAD-16 macroporous resin was appropriate for the purification and enrichment of soy sauce peptides with high adsorption and desorption capacities [27,28]. In this study, the soy sauce peptides were first adsorbed using XAD-16 macroporous resin and then sequentially eluted by 0%, 20%, 40%, 60%, and 80% ethanol solution. The taste profiles of the soy sauce peptide fractions were evaluated using Astree II electronic tongue as shown in Figure 1 Four repeated data points of SS-0%, SS-20%, SS-40%, SS-60%, and SS-80% of all soy sauce were aggregated into an independent population, indicating that the experimental data had a high repeatability. The cumulative contribution rate of PC1 and PC2 exceeded 80%, indicating that PC1 and PC2 reflected the taste characteristics of the soy sauce peptide fractions well. In the plot, when the Euclidean distance of two samples was small, the taste was likely to be identified as similar [29]. It was found that the taste profiles of the soy sauce peptide fractions SS-0%, SS-20%, SS-40%, SS-60%, and SS-80% were almost all separated from each other and the overlap was only observed between the SS-60% and SS-80% fractions of SS1, SS4, and SS9 in the PCA plots, indicating clear differences in the overall taste.

Ethanol has a very low polarity. When the eluent varies from water to ethanol, the resin environment is changed from polar to weak-polar, thus achieving the desorption of amino acids and peptides of different polarity. Zhuang et al. explored the desorption rate of peptides adsorbed on the resin by ethanol with different concentrations and the results showed that the desorption rate of 80% ethanol was the lowest, and the desorption rate of 0, 20%, 40%, and 60% ethanol increased gradually [27]. Similarly, the results of Yang et al. showed that after gradient elution on the XAD-16 resin column, free phenolics were most enriched in 50% ethanol, while the least enriched in 90% ethanol [28]. In the present study, the soy sauce peptides were mainly eluted by less than 60% ethanol solution, while the 80% ethanol had a very low yield of soy sauce peptides. Therefore, the soy sauce peptide fractions SS-0%, SS-20%, SS-40%, and SS-60% were selected for further analysis.

3.2. Sensory Scores of Soy Sauce Peptides

SA402B series taste analysis system comprises an artificial lipid membrane sensor that can mimic the human tongue taste. It is widely used in the objective and digital evaluation of the basic taste sensory indexes such as bitter, astringent, sour, salty, and umami taste of food [30]. The tasteless point for different tastes of the SA204B electronic tongue was 0, except for sourness (−13), and saltiness (−6) [31]. Taste scores above the tasteless point are generally considered to be meaningful, while scores below the tasteless point are considered tasteless compared to the reference liquid. In the present study, the radar plots of the taste scores of the soy sauce peptide fractions SS-0%, SS-20%, SS-40%, and SS-60% were as shown in Figure S2. The tastes including sourness, saltiness, and astringency were under their tasteless points, indicating that soy sauce peptides were tasteless in sourness, saltiness, and astringency. However, it was interesting to find that the soy sauce peptide fractions SS-0%, SS-20%, SS-40%, and SS-60% showed significant differences in umami taste but not in bitterness, aftertaste-B, aftertaste-A, and richness.

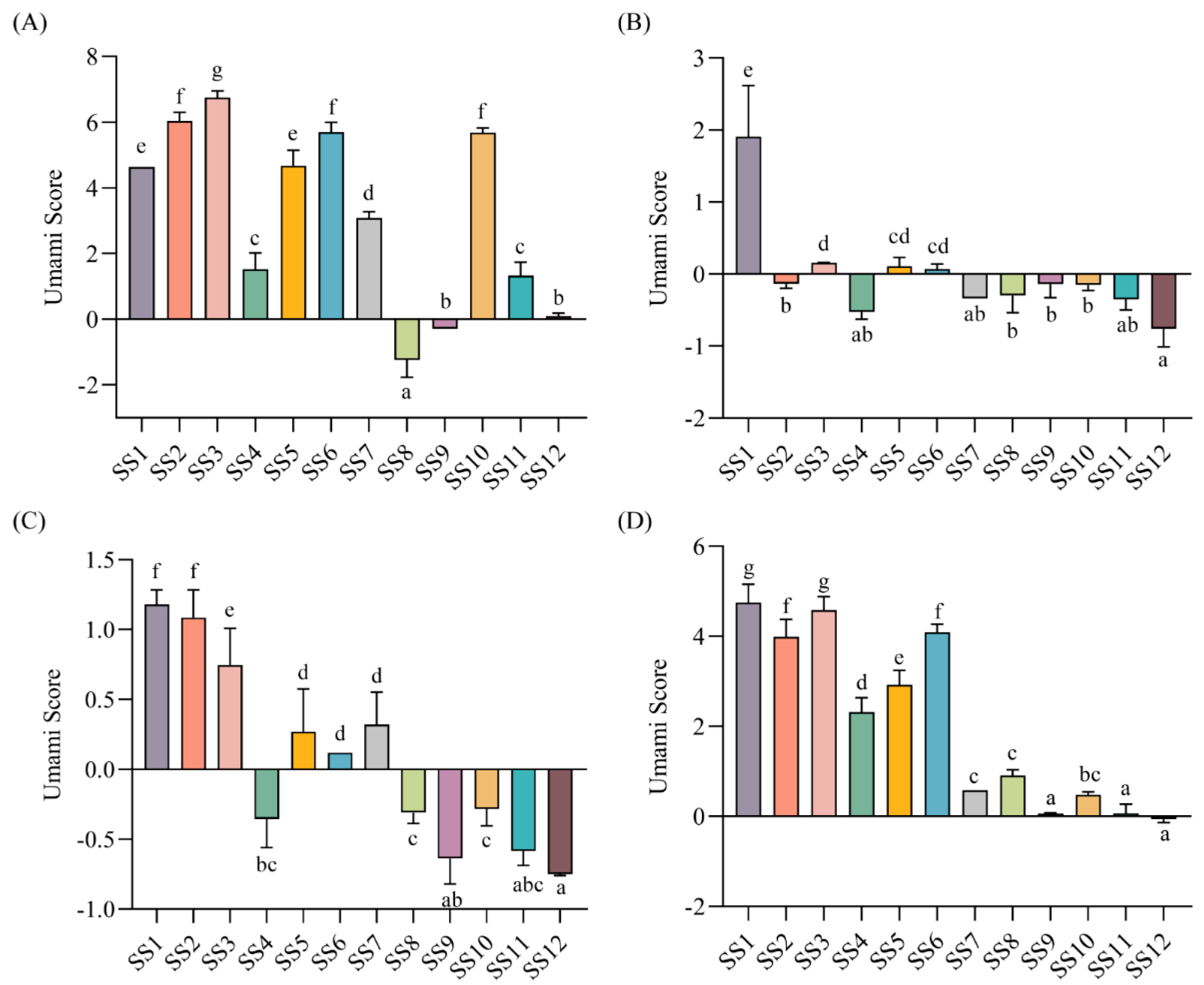

The umami taste is the most important flavor of soy sauce [32]. Thus, the umami scores of soy sauce peptide fractions were further analyzed. Results showed that, formost of the soy sauces, the umami scores of SS-0% and SS-60% were generally higher than those of SS-20% and SS-40% (Figure S2). In addition, the umami intensities of soy sauce peptide fractions eluted with the same concentration of ethanol from 12 soy sauces were compared as shown in Figure 2 It was obvious to find that most of the peptide fractions eluted with 20% ethanol and half of the peptide fractions eluted with 40% ethanol did not show significant umami taste with the scores below the tasteless point. In contrast, most of the peptide fractions eluted with 0% and 60% ethanol exhibited a prominent umami taste.

Furthermore, the correlation between the umami intensities of soy sauce peptide fractions and the amino acid nitrogen contents of soy sauce were analyzed as shown in Figure 3 It was found that the umami scores of the peptide fractions SS-60% were positively correlated with the amino acid nitrogen contents of soy sauces with the highest coefficient value (r = 0.9273, P < 0.0001) compared with the peptide fractions SS-0% (r = 0.5980, P < 0.04), SS-20% (r = 0.6228, P < 0.0305), and SS-40% (r = 0.8619, P < 0.0003). It suggested that the soy sauce peptide fraction SS-60% might reflect the umami characteristics of soy sauce well and could be used in the quality evaluation of soy sauce.

3.3. Amino Acid Composition of Soy Sauce Peptide Fraction SS-60%

Amino acids in soy sauce are mainly derived from the hydrolysis of soy protein by fermentation and are vital for the umami taste [33]. The FAAs and HAAs of 12 kinds of soy sauce peptide fractions SS-60% were presented in Figure 4 A total of 16 amino acids were detected. The total FAA and HAA of the 12 kinds of soy sauce peptide fraction SS-60% ranged from 0.270 to 5.544 mg/100 mg (Table S2) and 2.299 to 10.799 mg/100 mg (Table S3), respectively. Among these amino acids, Glu had the highest contents, while Met showed the lowest level. As expected, the soy sauce peptide fractions all showed a high proportion of umami amino acids (UAA) including Glu, Asp, Phe, Tyr, Ala, and Gly.

It was interesting to find that the peptide fractions SS-60% from SS1, SS2, SS3, SS4, SS5, SS6, and SS7 showed obvious higher levels of FAA and HAA than that of others (Figure 4). This result was consistent with that SS1 to SS7 all had amino acid nitrogen contents ranging from 0.8 g/100 mL to 1.25 g/100 mL, while the others showed amino acid nitrogen contents less than 0.8 g/100 mL. In general, the content of Glu accounted for 18%-25% of the total FAA in brewed soy sauce [34]. However, in our present study, most of the peptide fractions SS-60% from 12 kinds of soy sauces had excessive Glu levels of over 25% of the total FAA (Table S4). In contrast, most of the peptide fractions SS-60% showed normal Glu levels less than 25% of the total HAA (Table S5). This might be due to the addition of sodium glutamate in the production process. Thus, it was necessary to analyze the other 15 amino acid contents excluding Glu. It was found that the peptide fractions SS-60% from SS1 to SS7 showed the highest Phe, followed by His, Leu, and Ile for FAA and followed by Leu, Pro, Leu, His, Ile, and Asp for HAA. It was speculated that the amino acid composition might be used as an alternative indicator to the amino acid content to evaluate the quality and umami flavor of soy sauces.

3.4. Correlation of amino Acid Contents with Umami Taste of Soy Sauce Peptide Fraction SS-60%

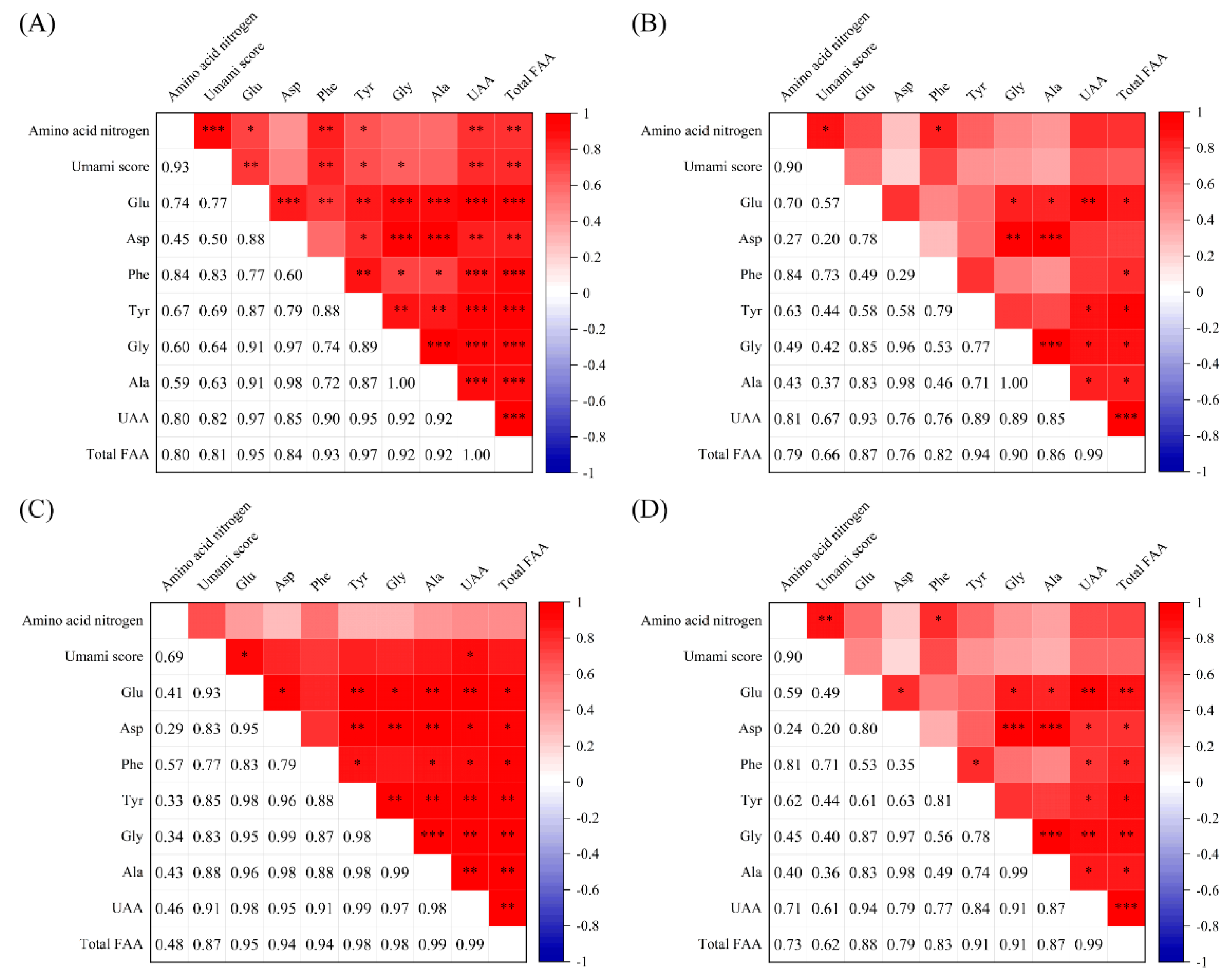

To explore the relationship between the amino acid contents and the umami taste of the soy sauce peptide fraction SS-60%, the correlation of FAA contents with umami taste was analyzed using the Pearson correlation analysis, as shown in Figure 5 There were strong positive correlations between the amino acid contents and the umami scores as well as the amino acid nitrogen contents of the soy sauce peptide fraction SS-60%. Particularly, it was found that the umami scores were significantly positively correlated with the contents of Phe, Glu, Ile, Leu, His, Tyr, Arg, Lys, Val, Met, Thr, Gly, and Ala as well as the UAA and total FAA (P < 0.05). Similar results were also observed for HAA (Figure S3).

It was noted that, for FAA, the umami scores did not show the highest correlation with Glu, the most recognized umami amino acid, compared with other amino acids. It might be due to the fact that, on one hand, the addition of sodium glutamate affected the original Glu level of soy sauce; on the other hand, not all soy sauces tested in this study had been added sodium glutamate. In contrast, the highest correlation was observed between the umami scores and Phe contents. Previous studies have revealed that Phe, sodium salt, and free Glu/MSG exhibited a strong umami taste [35]. In fact, Phe and Tyr, as L-α-aromatic amino acids, were important components of the flavor substances of soy sauce, and it had been confirmed that aromatic amino acids could enhance umami or salty taste [36].

The taste properties of soy sauce are affected by the raw materials used. For instance, sodium glutamate is usually used to improve the umami taste of soy sauce [37]. In this study, the correlation between the umami scores and the UAA contents of FAA of the peptide fraction SS-60% from 10 soy sauces added sodium glutamate was further analyzed and a relatively high correlation was observed compared with that of the peptide fraction SS-60% from 12 soy sauces including 2 of them with sodium glutamate (Figure 6A). In addition, the yeast extract is rich in amino acids, peptides, and other substances with umami taste or umami-enhancing effects. As a consequence, yeast extract is also widely added directly to soy sauce to enhance the flavor of the soy sauce [38]. In our present study, the umami scores of the peptide fraction SS-60% from 6 soy sauces without adding yeast extract showed lower correlations with the UAA contents (Figure 6B-D). These results confirmed that the addition of sodium glutamate and yeast extract altered the original UAA contents of soy sauces and maked the correlations between the umami scores and UAA contents of the peptide fraction SS-60% more complex. However, no similar results were observed for HAA (Figure S4). It suggested that the addition of sodium glutamate and yeast extract mainly altered the FAA, not the HAA.

3.5. The Mass Characteristics of Soy Sauce Peptide Fraction SS-60%

In our study, soy sauce peptide fraction SS-60% had relatively higher contents of HAA than FAA, indicating that a portion of amino acids existed as peptides. Therefore, the potential peptide compositions of the soy sauce peptide fraction SS-60% from SS1, SS2, SS3, SS5, SS9, and SS10 were analyzed by MALDI-TOF MS.

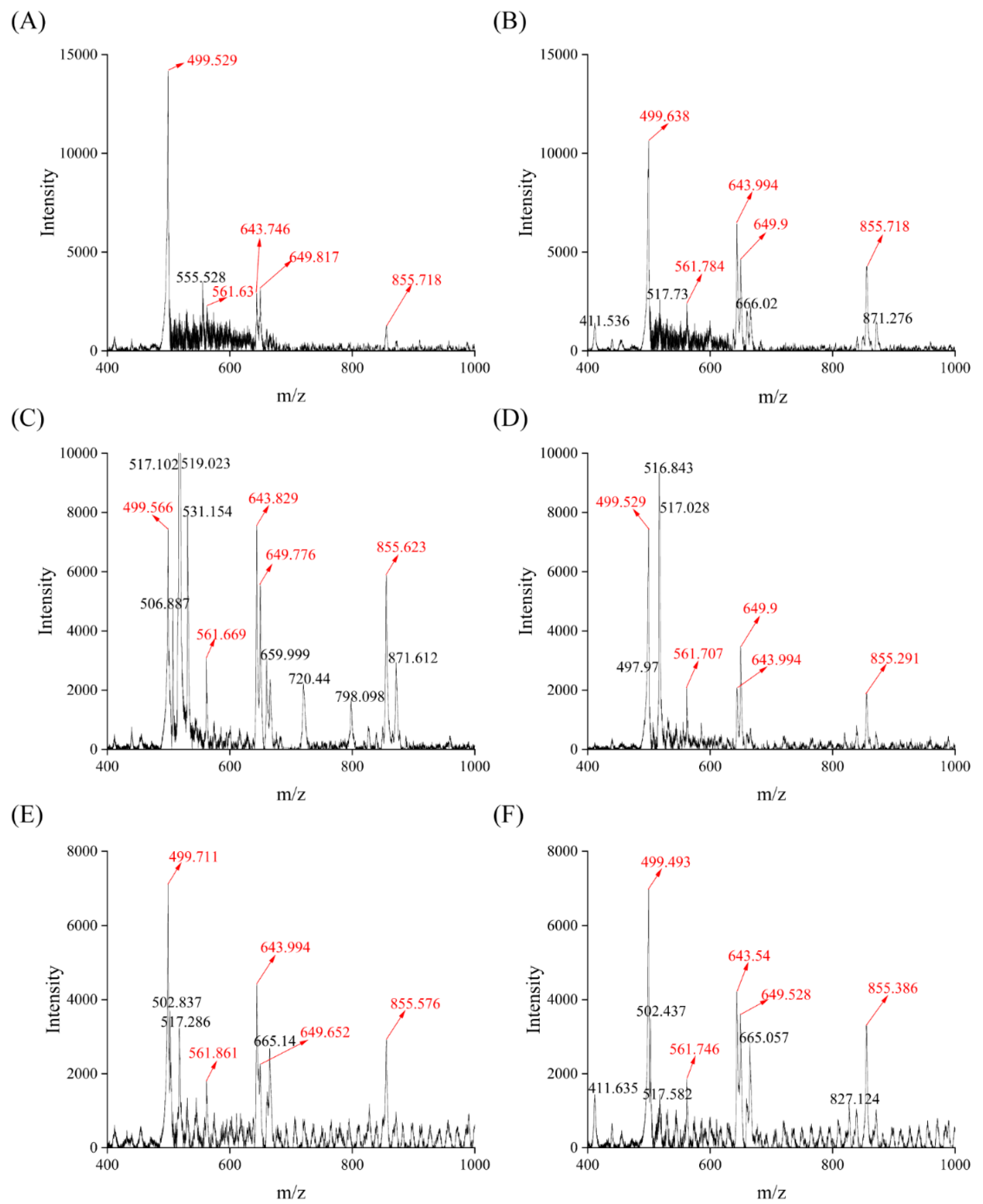

Figure 7. Mass spectra of soy sauce peptide fraction of soy sauce peptide fraction SS-60%. A: SS1; B: SS2; C: SS3; D: SS5; E: SS9; F: SS10.

Figure 7. Mass spectra of soy sauce peptide fraction of soy sauce peptide fraction SS-60%. A: SS1; B: SS2; C: SS3; D: SS5; E: SS9; F: SS10.

In the present study, the m/z scan range was 400 to 5000 but the characteristic ion peaks of the soy sauce peptide fraction SS-60% mainly had m/z in the range of 400~Meanwhile, the peptide fraction SS-60% from SS5, SS9, and SS10 showed a similar distribution of ion peaks with relatively low intensity, within the m/z range of 1500-3500 (Figure S5). In order to evaluate the difference of soy sauce peptides more accurately, the characteristic ion peaks with m/z in the range of 400~1000 of the six soy sauce peptide fractions were analyzed and labeled as shown in Figure 7. It was found that there were these six soy sauce peptide fractions all had five noteworthy ion peaks with m/z at 499, 561, 643, 649, and 855 respectively. Among them, the ion peak with m/z at 499 showed the highest intensity and the intensity decreased with the amino acid contents of soy sauces. It indicated that these five ion peaks might be selected as the characteristic ion peaks in the peptide mass fingerprinting of soy sauce peptide fraction SS-60%.

4. Conclusions

This study found that the peptide fraction SS-60% isolated from soy sauce using XAD-16 macroporous resin adsorption combined with 60% ethanol elution showed a prominent umami taste and the umami scores were highly positive correlated with the amino acid nitrogen contents of soy sauces. Amino acid composition analysis revealed that the amino acid contents of soy sauce peptide fraction SS-60% varied greatly, with Glu and Phe being the highest amino acids. The content of Phe showed the highest positively correlation with the umami scores. In contrast, the content of Glu had a relatively low correlation with the umami scores due to the addition of sodium glutamate and yeast extract, which had a great impact on the Glu contents and umami taste. Moreover, 5 characteristic ion peaks with m/z at 499, 561, 643, 649, and 855 were identified from the soy sauce peptide fraction SS-60% by MALDI-TOF MS. Overall, this study provides new insights on the umami characteristics of soy sauce with different amino acid nitrogen contents, showing the potential usage in the reality identification of soy sauce.
