Trajectory Analysis of 6-DOF Industrial Robot Manipulators by Using Artificial Neural Networks

1. Introduction

Industrial robots are capable of performing many different processes and operations accurately and do not need complex supporting elements as humans need. Robot manipulators are powerful electromechanical systems which provide effective solutions to the recent industrial applications such as picking, placing, packing, painting and welding. Especially, robot manipultors with multi-DOF are widely used at all stages of production processes such as automation systems due to their ability of performing industrial operations effectively without the need of humans. In addition, significant advantages in terms of occupational health and safety have been provided by switching from the operator-assisted production model to robot manipulator-supported structures in processes involving chemicals and carcinogens.

One of the most important problems encountered in robot manipulator systems is the ability to achieve high-accuracy positioning even large disturbances such as mechanical friction of the mechanical parts, ambient ventilation and mechanical strength misalignment. In this study, ANN-based detailed trajectory analyzes were carried out to enable the robot manipulator end processor to monitor the full trajectory with the highest accuracy during the denim fabric grinding process.

In the literature, there are several studies including different application areas of robot manipulator systems. Saad et al. have been developed an ANN based adaptive controller for robot manipulator applications in [1]. A geometric algorithm for fixed directional working area calculation in 6-PRRS structured robot manipulators was proposed by Boney and Ryu and its applications were analyzed [2]. In study conducted by Bonev et al. [3] on the kinematics of parallel robot manipulators with linear sensors and optimal positioning, a closed-form solution approach was developed. Detailed researches on the singularities of 3-DOF parallel robot manipulator mechanisms were carried out by Boney and his research group [4]. Tombul and Sarıtaş presented a detailed research which was conducted on inverse kinematic calculations and trajectory planning for a five-axis Edubot robot [5]. On the other hand, Khayati et al., carried out analysis on multi-stage position/force control for friction-constrained robotic systems [6]. Lessard et al. carried out analyzes on static balancing optimization by designing position and force controllers for biomedical applications, especially 3-dimensional ultrasound imaging [7]. Karahan obtained the robot inertia parameters by performing detailed dynamic model analysis for the Staubli RX-60 robot in his master thesis [8]. In another study, Janvier et al. performed detailed performance analyzes for medical robotic 3-dimensional ultrasound imaging systems [9]. A parallel medical robot design and its static balancing optimization were carried out by Lessard et al. for medical robotic applications [10]. An updated formulation and its related applications improved for a KUKA type industrial robot manipulator were presented by Bigras et al. [11]. Moreover, Yu et al. proposed a geometric approach for accuracy analysis of 3-DOF planar parallel robots [12]. Furthermore, accuracy analysis of a 3-DOF planar parallel robot structure was performed by Briot and Bonev [13]. On the other hand, parallel kinematic analyzes were carried out by Liu et al. on a two-joint robot structure and then detailed analyzes on adaptability, error optimization and size optimization were realized [14]. Bigras et al. performed detailed mathematical equation analyzes for an industrial robot and applied the results to force control [15]. Furthermore, autonomous movement capabilities of 3-DOF planar parallel robot structures were investigated in detail and then relevant analysis were carried out by Briot and Boney [16]. A novel controller structure combining the adaptive neural networks and proportional-integral-derivative (PID) control approach was presented by Perez et al. to optimize the trajectory behaivour of robot manipulators [17]. An ANN based method which is able to adapt to the characteristics of both known and unknown trajectories of 6-DOF robot manipulators was improved by Tang et al. [18]. Pham and Wang improved a robust radial basis function neural network (RBFANN) based adaptive control approach to optimize the joint position control and trajectory tracking control of robot manipulators [19]. An inverse dynamic model estimation approach based on ANNs was proposed by Moldovan et el. in study [20] to optimize the trajectory performance of a 6-DOF robot manipulator. Mahajan et al. improved an ANN based structure to optimize the trajectory tracking of a 2-DOF robotic arm by using the inverse kinematics equations [21]. Moreover, Son et al. proposed an adaptive ANN model which was strengthened by differential evolution algorithm in order to optimize the non-linear dynamics of a 5-DOF robot manipulator [22]. An ANN based control process with optimal number of hidden nodes and less computation was proposed by Liu et al. to overcome the system uncertainities and track the trajectory of robot manipulator with high accuracy [23]. Truong et al. proposed a novel adaptive tracking ANN with deadzone robust compensator for industrial robot manipulators to achieve the high precision position tracking performance [24]. On the other hand, Elsisi et al. proposed an ANN based modified adaptive tuning algorithm in order to track the trajectories of robot manipulator arms with high accuracy [25]. Finally, a multi-objective design mechanism was introduced by Kouritem to determine the optimal material type and optimal physical dimensions of the robot arm to withstand loads at vulnerable locations using stress analysis [26].

2. Materials and Methods

In this study, detailed trajectory planing and analysis of a real time 6-DOF industrial robot manipulator system were realized by using DBD, OBP, QBP and RBP based improved ANN network structures. The properties of the industrial robot manipulator system analyzed and the structure of the improved ANN networks can be explained in detail as follows.

2.1. Industrial Robot Manipulators

One of the most important stages in the production of jeans trousers is the chemical spraying process. In classical human based chemical spraying process, which was shown in Figure 1, undesirable effects such as health problems and color tone differences may occur.

In order to overcome the undesirable effects of human based spraying process, industrial robot manipulators can be preferred. In this study, firstly, kinematic analyzes of a Universal Robots UR5e model 6-DOF robot manipulator for chemical spraying were performed and then ANN based trajectory optimization was carried out. The structure and rotation axes of the 6-DOF industrial robot analyzed in this study are shown in Figure 2. As seen from the figure, the 6-DOF industrial robot structure analyzed in this study has 6 joint angels of ${\theta }_1,{\theta }_2,{\theta }_3,{\theta }_4,{\theta }_5$ and ${\theta }_6$.

The technical properties and parameters of the industrial robot manipulator analyzed and designed within the scope of this study are shown in Table 2 [27]. As understood from table, the 6-DOF industrial robot structure analyzed in this study is capable of contributing significantly to production speed and precision. In addition, the fact that the robot manipulator has ($\pm {360}^{\circ }$) rotation angle in all its joints means that the points it can reach in the working space are at the maximum level. In addition, since the operating noise level is too low, even if many robots are used in a production line, noise-related disturbances will not occur and total system performance will not negatively be affected.

Table 1. The technical properties of the Universal Robots UR5e model 6-DOF robot manipulator.

Weight	18.4 kg
Payload Capacity	5 kg
Reachability Distance	850 mm
Max-Min rotation angles	+/- 360° at all joints
Angular Velocity	Joints - maximum 180° per second Vehicle - about 1 m per second
Repeatability	+/- 0.1 mm
Volume Diameter	Ø 149 mm
Number of Joint	6 rotational joints
Control Box Size	475 mm x 423 mm x 268 mm (W x H x D)
I/O Ports	18 digital inputs, 18 digital outputs, 4 analog inputs, 2 analog outputs
I/O Power Supply	24V-2A in control box and 12V/24V-600 mA in vehicle
Communication	TCP/IP - Modbus TCP
Programming	Polyscope graphical user interface on 12 inch touch screen
Noise	Low noise levels
IP Classification	IP54
Power Consumption	$\cong$ 200 W
Materials	Aluminum, PP plastic
Working Temperatures	0 - 50°C
Power Source	100-240 V (AC), 50-60 Hz

Table 1. The technical properties of the Universal Robots UR5e model 6-DOF robot manipulator.

Weight	18.4 kg
Payload Capacity	5 kg
Reachability Distance	850 mm
Max-Min rotation angles	+/- 360° at all joints
Angular Velocity	Joints - maximum 180° per second Vehicle - about 1 m per second
Repeatability	+/- 0.1 mm
Volume Diameter	Ø 149 mm
Number of Joint	6 rotational joints
Control Box Size	475 mm x 423 mm x 268 mm (W x H x D)
I/O Ports	18 digital inputs, 18 digital outputs, 4 analog inputs, 2 analog outputs
I/O Power Supply	24V-2A in control box and 12V/24V-600 mA in vehicle
Communication	TCP/IP - Modbus TCP
Programming	Polyscope graphical user interface on 12 inch touch screen
Noise	Low noise levels
IP Classification	IP54
Power Consumption	$\cong$ 200 W
Materials	Aluminum, PP plastic
Working Temperatures	0 - 50°C
Power Source	100-240 V (AC), 50-60 Hz

The Denavit-Hartenberg (D-H) parameters representing the kinematic parameters of the robot manipulator are shown in Table 2 below. Each joint of the robot manipulator has the feature of a rotary joint and structurally there is no joint misalignment or second adjacent axis angle. Therefore, it is obvious that this structure will provide an important advantage, especially in exact positioning.

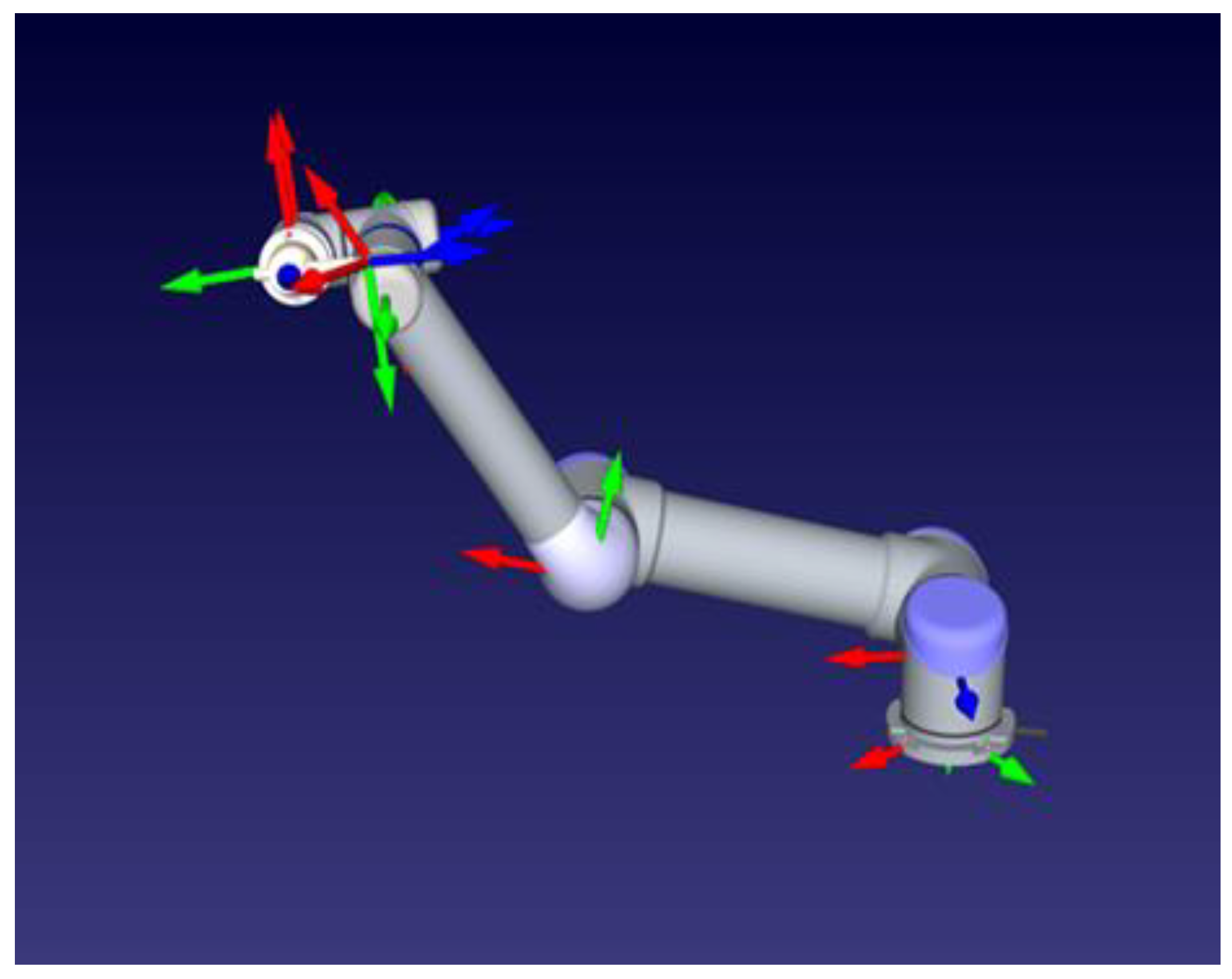

The industrial robot manipulator structure designed in this study consists of totally 6 joints, including the body, shoulder, elbow and wrist joints, as seen in Figure 3.

2.2. Artificial Neural Networks

ANNs are nonlinear mapping systems with a structure based on the principles observed in biological nervous systems. A basic ANN structure consists of input layer ($x_i$), weights ($w_{ki},w_{kj}$), activation level (${\varphi }_j$) and output layer ($y_j$) as represented in Figure 4.

In this network structure, the input vector is updated via a Gaussian activation function which performs a nonlinear transformation and defined in Equation 1.

$${\varphi }_j=\exp \left[-{\left(\frac{\Vert x_i-g_c\Vert }{\sigma }\right)}^2\right]$$

(1)

where; $x_i$is the input vector, $g_c$ is the centre of the$j$th Gaussian function, $\sigma >0$ is the spread constant parameter, finally, $\Vert x_i-g_c\Vert$ defines the Euclidean distance between the two relevent vector. Afterwards, in the second level, each output of the network can be calculated via a linear transformation as defined in Equation 2.

$$y_j={\displaystyle \sum _{j=1}^N{w}_{kj}.{\varphi }_j}$$

(2)

where; $N$ is the number of hidden layers and $w_{kj}$ are the weight values between the hidden and output neurons.

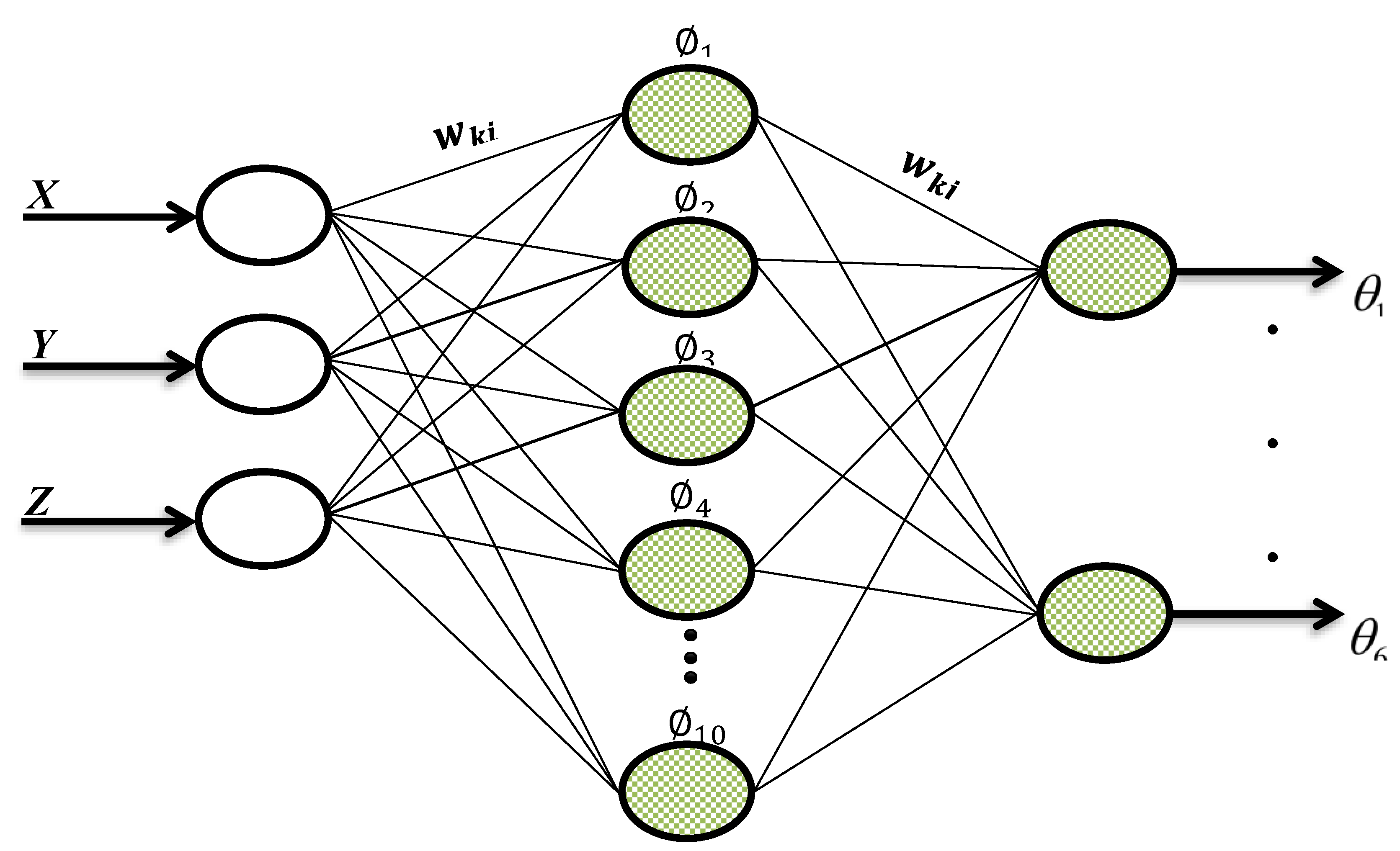

In this study, analyzes were carried out by using an ANN network structure including two hidden layers. For rotation angle analysis of each joint of the robotic manipulator system, ANN network structures including 3 input layer cells, totally 10 hidden layer cells and 6 output layer cells were improved (3-10-6 ANN network structure). The spread constant parameter directly effects the approximating performance of the ANN network structure. In order to find the most appropriate value the simulations based on test data (30% of the experimental data) were performed for 0.1 step sizes in the range (0,1] in line with the problem structure and the optimal value of $\sigma$ which produces the minimum root mean squared error (RMSE) was obtained as 0.1.

In order to determine the optimum ANN network structure, the performances of the Delta-Bar-Delta (DBD), Online Back Propagation (OBP), Quick Back Propagation (QBP) and Random Back Propagation (RBP).

DBD learning algorithm is an adaptive method in which each weight has its own learning rate. The learning rates are updated based on the change in the sign of the gradient on consecutive iterations. If the sign of the gradient does not change, the step size will be increased linearly. In contrast, if the gradient sign changes, the learning rate will be decreased exponentially. In some cases DBD seems to learn much faster than non-adaptive methods. In DBD learning algorithm, the learning rates are updated by using Equation 3,

$$\Delta w_{ij}(t+1)=\{\begin{array}{l}K, if{\delta }^{\text{'}}(t-1)\delta (t)>0\\ -\varphi \eta (t), if{\delta }^{\text{'}}(t-1)\delta (t)<0\\ 0, else\end{array}$$

(3)

where; $K$ and $\varphi$are the positive constants, $\eta$ is the learning rate and finally, $\delta (t)=\frac{\partial E(t)}{\partial w_{ji}(t)}$ in which $E(t)$ represents the instantaneous sum of the squared errors. In DBD learning algorithm, the value of the $\eta$ parameter was taken as 0.1.

BP is the most widely used training algorithm for ANNs. The weights of the network are set as represented in Equation 4.

$$\Delta w_{ij}(t)=-\eta \frac{\partial E(t)}{\partial w_{ij}(t)}+\alpha \Delta w_{ij}(t-1)$$

(4)

where; $\eta$ is the learning rate, $E(t)$ represents the instantaneous sum of the squared errors and $\alpha$determines the momentum term. In the simulations, the value of the $\eta$ and $\alpha$ parameters were taken as 0.1 and 0, respectively. On the other hand, in OBP learning algorithm, unlike the BP algorithm, the weight values are updated after the model is presented to the ANN. OBP algorithm with randomly selected input layout order makes the learning process stochastic and is preferred in most cases.

QBP is an improved version of BP which uses the hyperbolic tangent function instead of sigmoid function. In other words, in QBP all the hidden layer neurons and all the output layer neurons use the hyperbolic tangent function while training of the network. The weights of the network are updated by using the Equation 5 at each iteration,

$$\Delta w(t)=\frac{s(t)}{s(t-1)-s(t)}\Delta w(t-1)-\eta s(t)$$

(5)

where; $s(t)=\frac{\partial E(t)}{\partial w(t)}$ in which $E(t)$ represents the instantaneous sum of the squared errors and $\eta$ represents the learning rate which was defined as 0.1.

RBP is an adaptive learning rate method where weight updates are based on the sign of the local gradients, not their magnitudes. In RBP, each weight has its own step size or update value which varies with time according to Equation 6,

$$\Delta w_{ij}(t+1)=\{\begin{array}{l}{\eta }^{+}\Delta w_{ij}(t-1), if\frac{\partial E(t-1)}{w_{ij}(t-1)}\frac{\partial E(t)}{w_{ij}(t)}>0\\ {\eta }^{-}\Delta w_{ij}(t-1), if\frac{\partial E(t-1)}{w_{ij}(t-1)}\frac{\partial E(t)}{w_{ij}(t)}<0\\ \Delta w_{ij}(t-1), else\end{array}$$

(6)

where; $\eta$ defines the learning rate with the rule of $0<{\eta }^{-}<1<{\eta }^{+}$and $E(t)$ can be defined as the instantaneous sum of the squared errors.

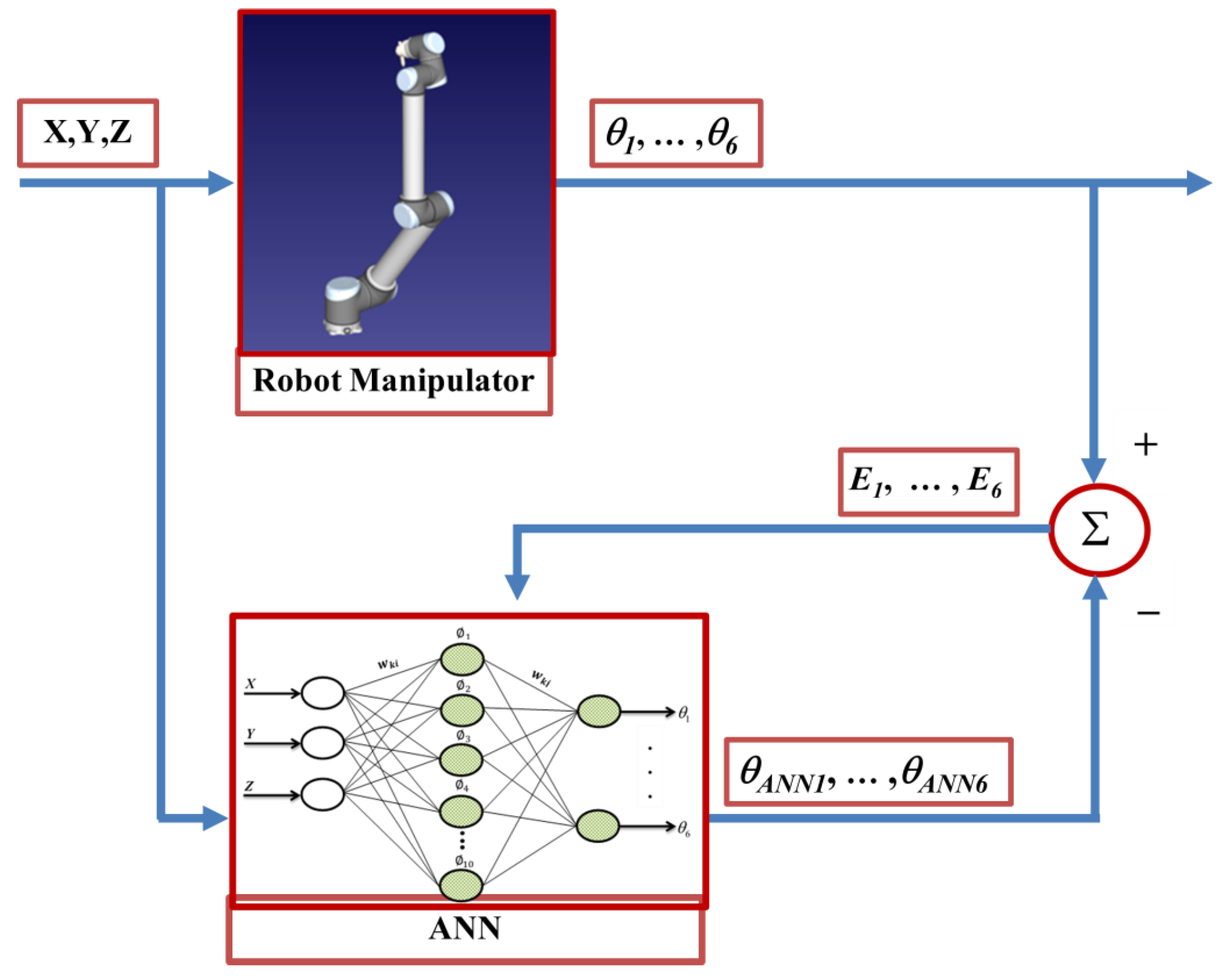

The structure of the ANN based analysis carried out to determine and optimize the 6 joint angels of a specifically determined trajectory for a robot manipulator is given as a block diagram in Figure 5. As seen from the figure, the learning process was optimized by using the RMSE values that are the difference between the actual angular values ​​and the angular values produced by ANN. The expression of the RMSE can be defined as given in Equation 7,

$$RMSE=\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^{MI}{(Y_{Actual}-Y_{ANN})}^2}}$$

(7)

where; MI defines the maximum number of iterations and N is the number of data which is equal to maximum number of the test data set.

3. Simulation Results

In the simulations carried out the ANN structure consists of 3 input cells (position of the end function - X, Y, Z), 10 hidden layer cells and 6 output layer cells (joint angels -${\theta }_1,{\theta }_2,{\theta }_3,{\theta }_4,{\theta }_5$ and ${\theta }_6$) are formed. Furthermore, randomly selected %70 of the entire data set was used for the training of the ANN and the remaining %30 data were used for test phase. In all the simulations the iteration number was taken as 1000000.

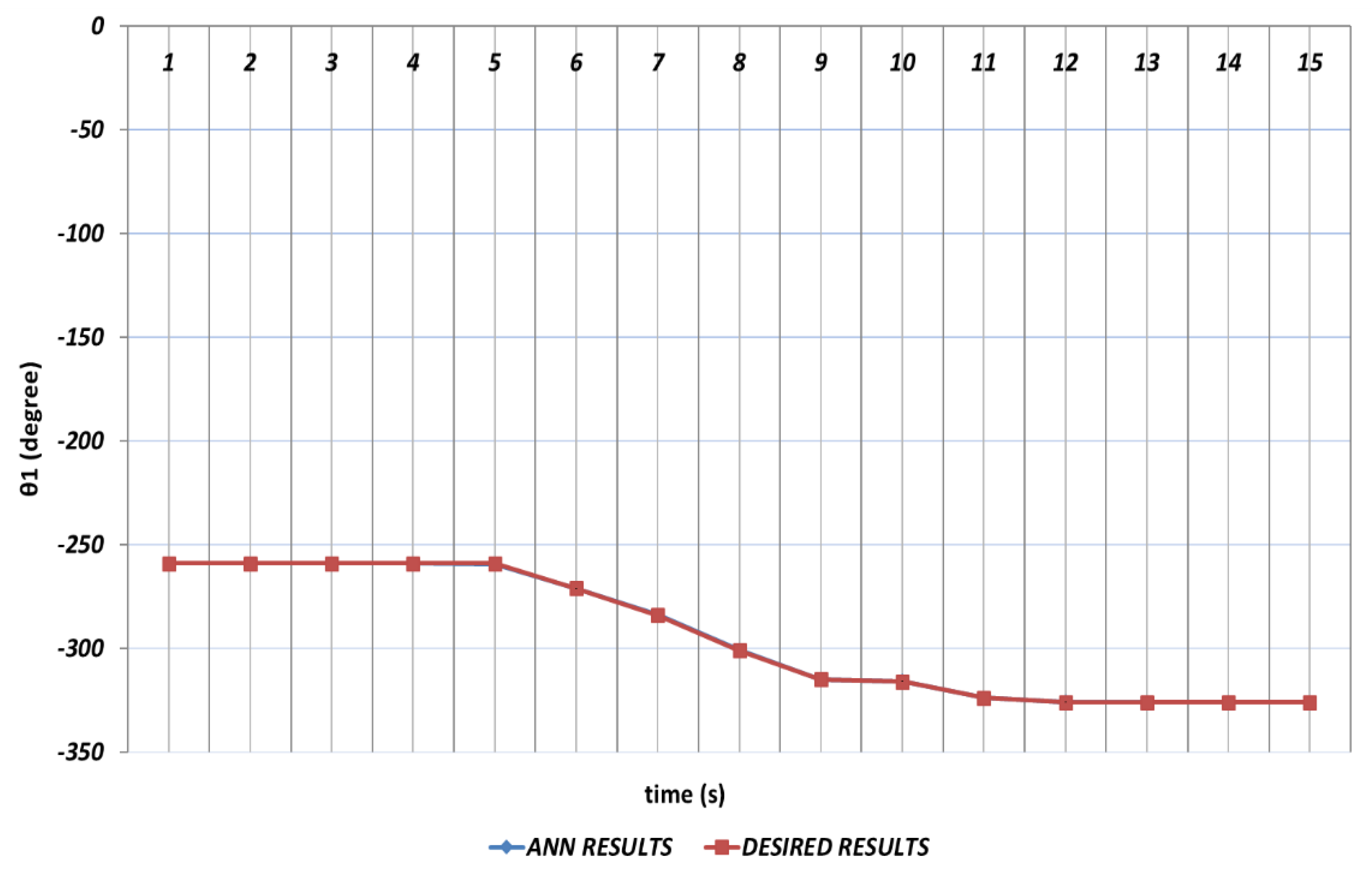

In Figure 6, Figure 7, Figure 8, Figure 9, Figure 10 and Figure 11, DBD learning algorithm based simulations results are presented. As seen from the Figure 6, which represents the modelling performance for ${\theta }_1$, DBD algorithm is able to predict the theoretical data with high accuracy. Although there are instantaneous angular changes at the 5^th and 9^th seconds, the DBD can follow these changes successfully.

Figure 7 shows the DBD based prediction result for ${\theta }_2$. Since it is used as the shoulder angle, it is seen that there are significant prediction errors in the intervals of 2^nd and 4^th seconds, 6^th and 8^th seconds and similarly 14^th and 16^th seconds. Namely, DBD based estimation seems a bit insufficient in predicting instantaneous changes in the time intervals mentioned. This situation shows that an unexpected position difference will occur in serial chemical application between the fabric where the chemical will be sprayed and the ideal position.

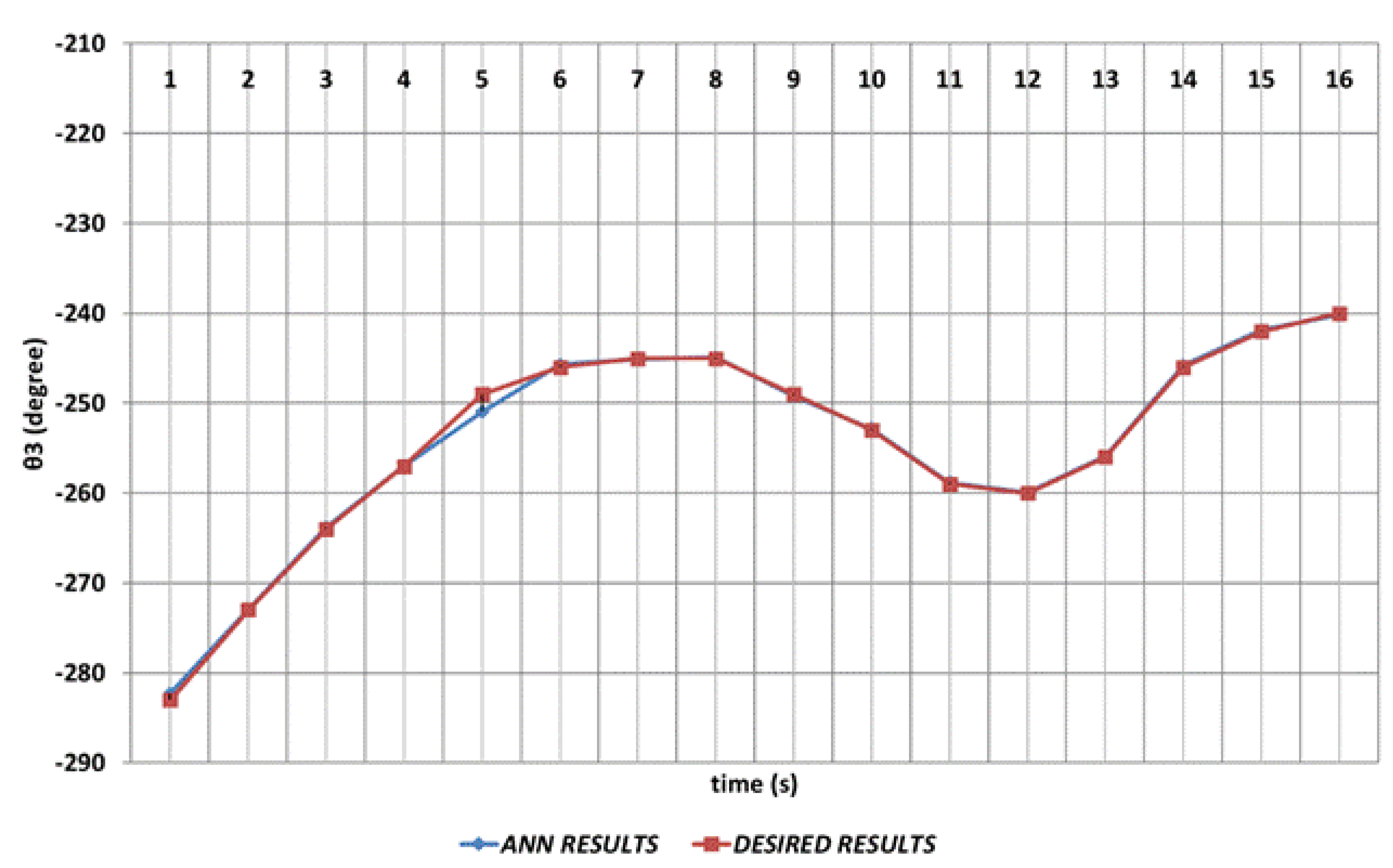

DBD based prediction results of the ${\theta }_3$, which performs the elbow function in the human structure, is demonstrated in Figure 8. Since the shoulder angle appearing after the angular change is used as the next period angle at the same time, instantaneous changes in the time intervals of 1^st and 2^nd seconds and also 4^th and 6^th seconds observed. It can be concluded that significant spray errors will occur will be observed, especially in the time interval of 4^th and 6^th seconds, in serial chemical applications. On the other hand, despite the errors that occur during instantaneous angular changes, the prediction performance seems successful outside of these two time intervals.

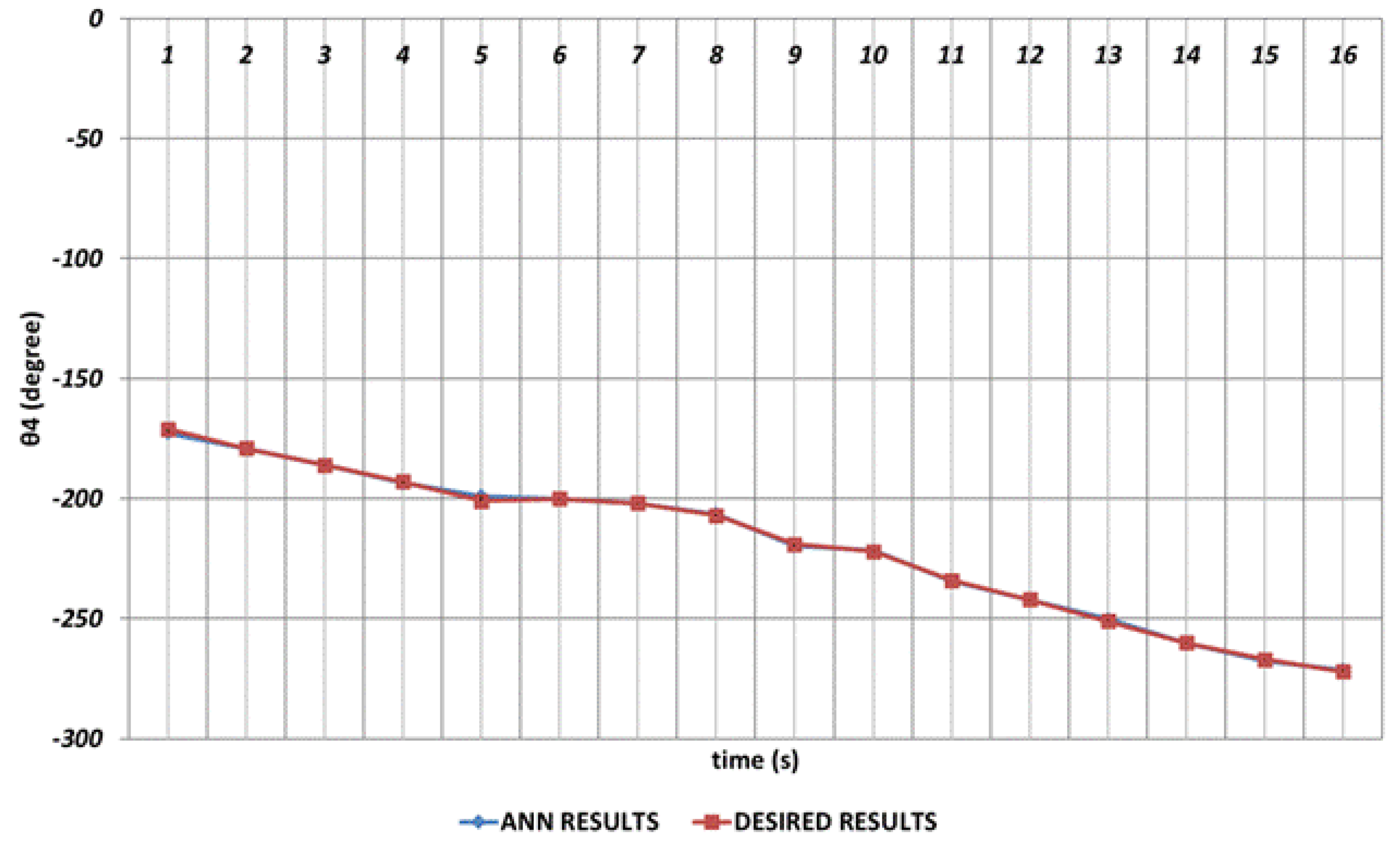

The ${\theta }_4$ joint angle corresponds to the rotation angle of the robot gripper. When the DBD based prediction results anlayzed, it can be emphasized that the theoretical data can be predicted with high accuracy even in the intervals of 4^th and 6^th seconds and 8^th and 10^th seconds at which instantaneous angular changes appeared.

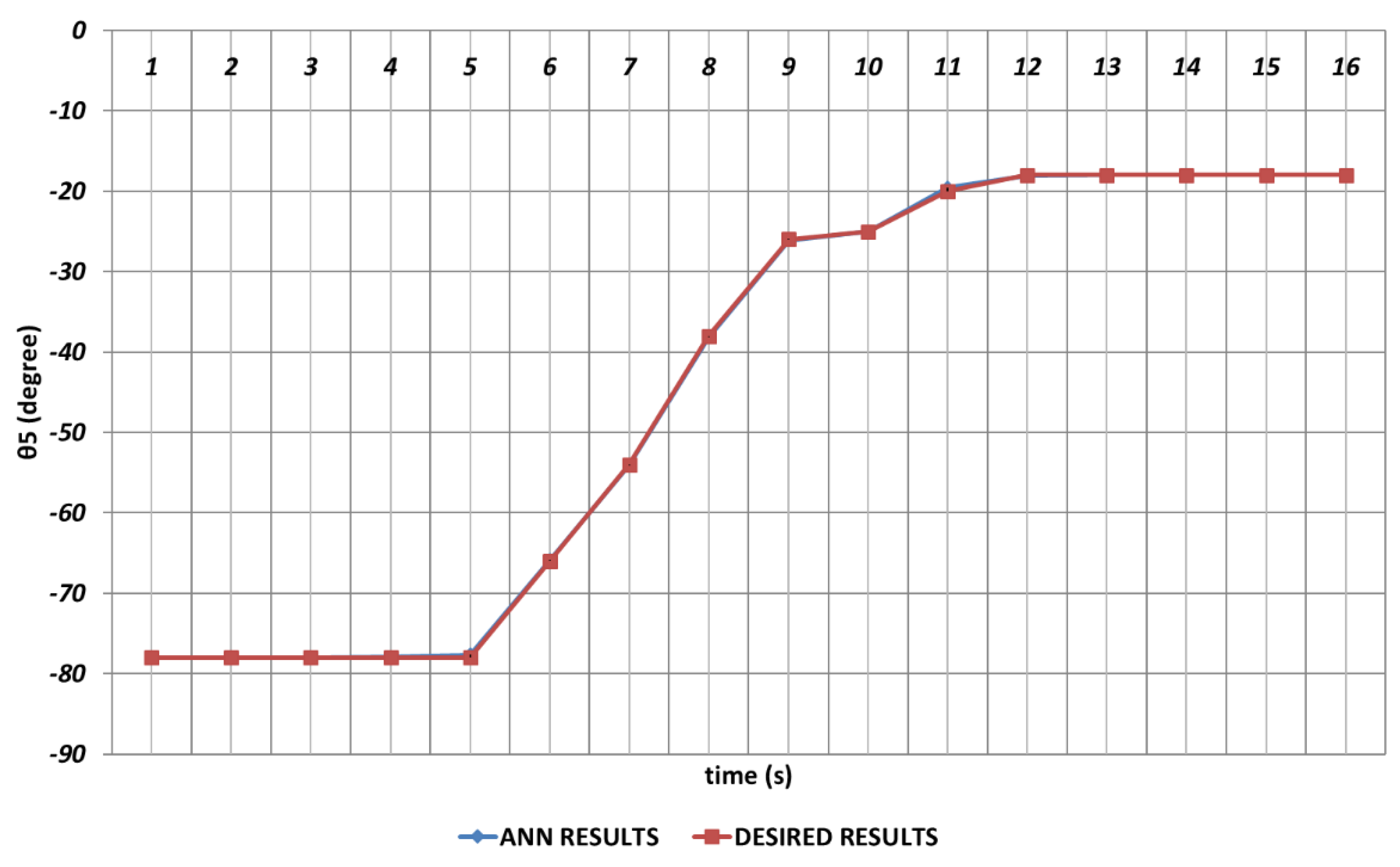

Especially the fifth joint angle has an important role in positioning structure and rotation angle and even small prediction errors for ${\theta }_5$ are not acceptable. Firstly, instantaneous angular changes occur in the intervals of 4^th and 5^th seconds and similarly in the 10^th and 12^th seconds, as seen in Figure 10. As a result of these instantaneous angular changes, it is seen that deviations with too small magnitudes are occurring in the DBD based prediction results. When the prediction performance is evaluated in a general manner, it can be expressed that DBD can successfully predict the theoretical data for ${\theta }_5$.

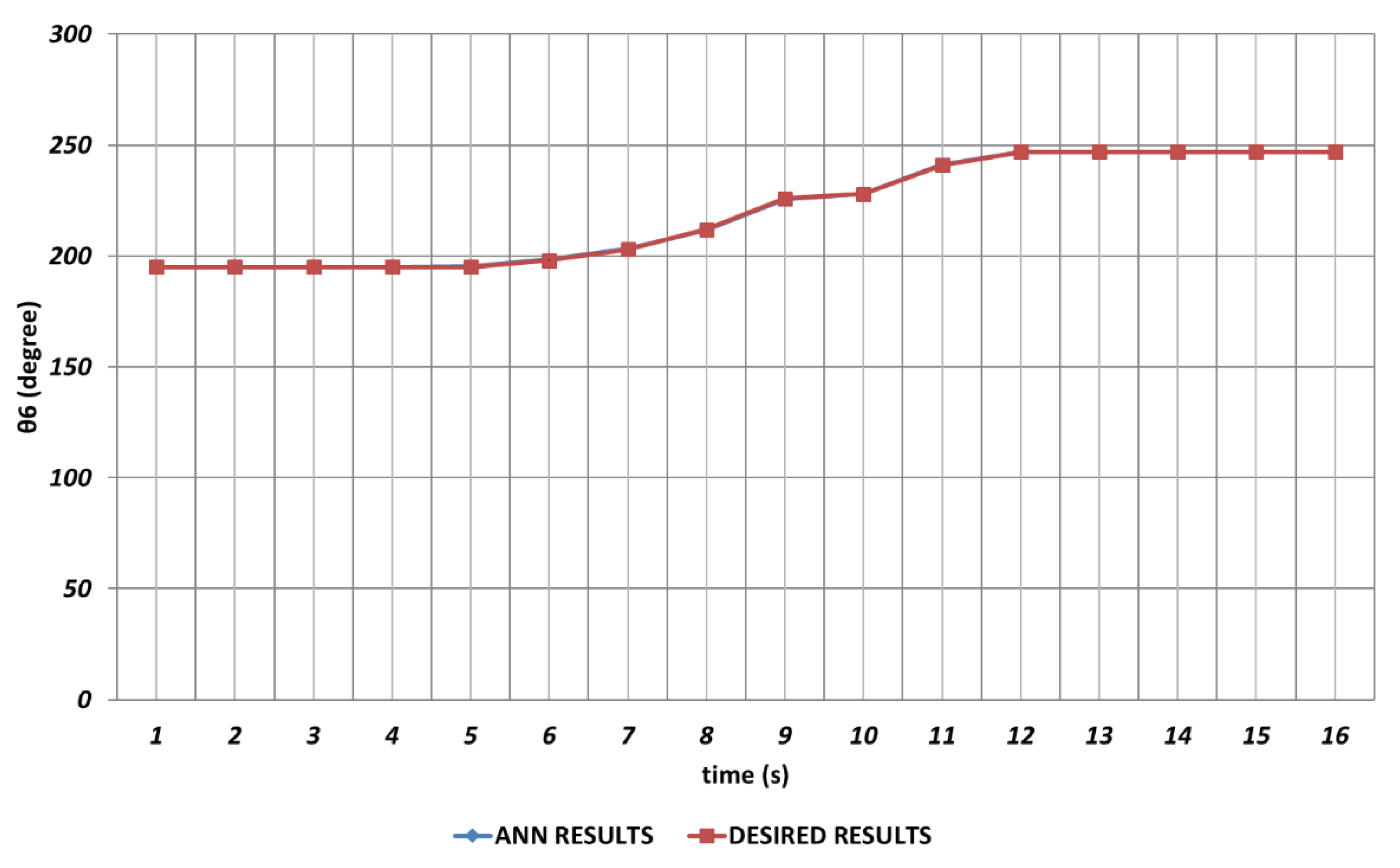

Figure 11 shows the prediction results obtained for ${\theta }_6$ which is the last rotation angle of the robot manipulator. It is seen that small prediction errors are almost non-existent for the sixth joint angle. The reason of this can be expressed as no instantaneous angular changes are occurring during the entire time interval.

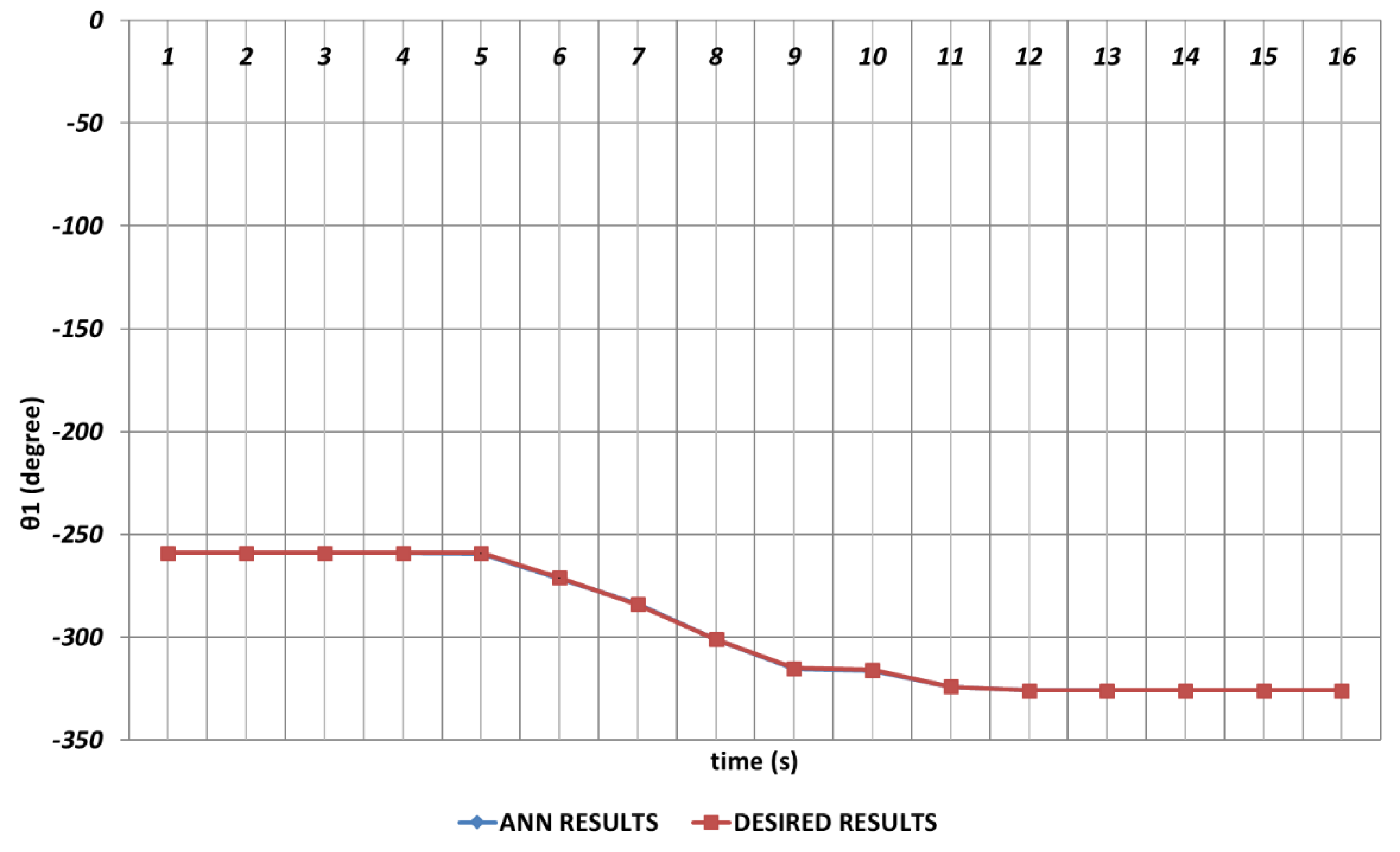

The analysis results obtained for the OBP learning algorithm are given in Figure 12, Figure 13, Figure 14, Figure 15, Figure 16 and Figure 17. The prediction performance for the ${\theta }_1$ joint angel is presented in Figure 12. From the figure, it is seen that OBP is able to produce superior prediction result for the first joint angle which is the body rotation angular of the robot manipulator. In other words, no instantaneous angular changes are occurring and the OBP based results converges to the theoretical results with high accuracy during the entire time interval.

In Figure 13, the prediction performance of the OBP learning algorithm is shown for the ${\theta }_2$ joint angle which corresponds to the corresponds to the shoulder angle. It is seen that there are significant prediction errors in the time intervals of 2^nd and 4^th seconds, 6^th and 8^th seconds and 11^th and 16^th seconds due to the instantaneous angular changes. These angular differences will cause the chemical spraying process to be carried out with incorrect angle values.

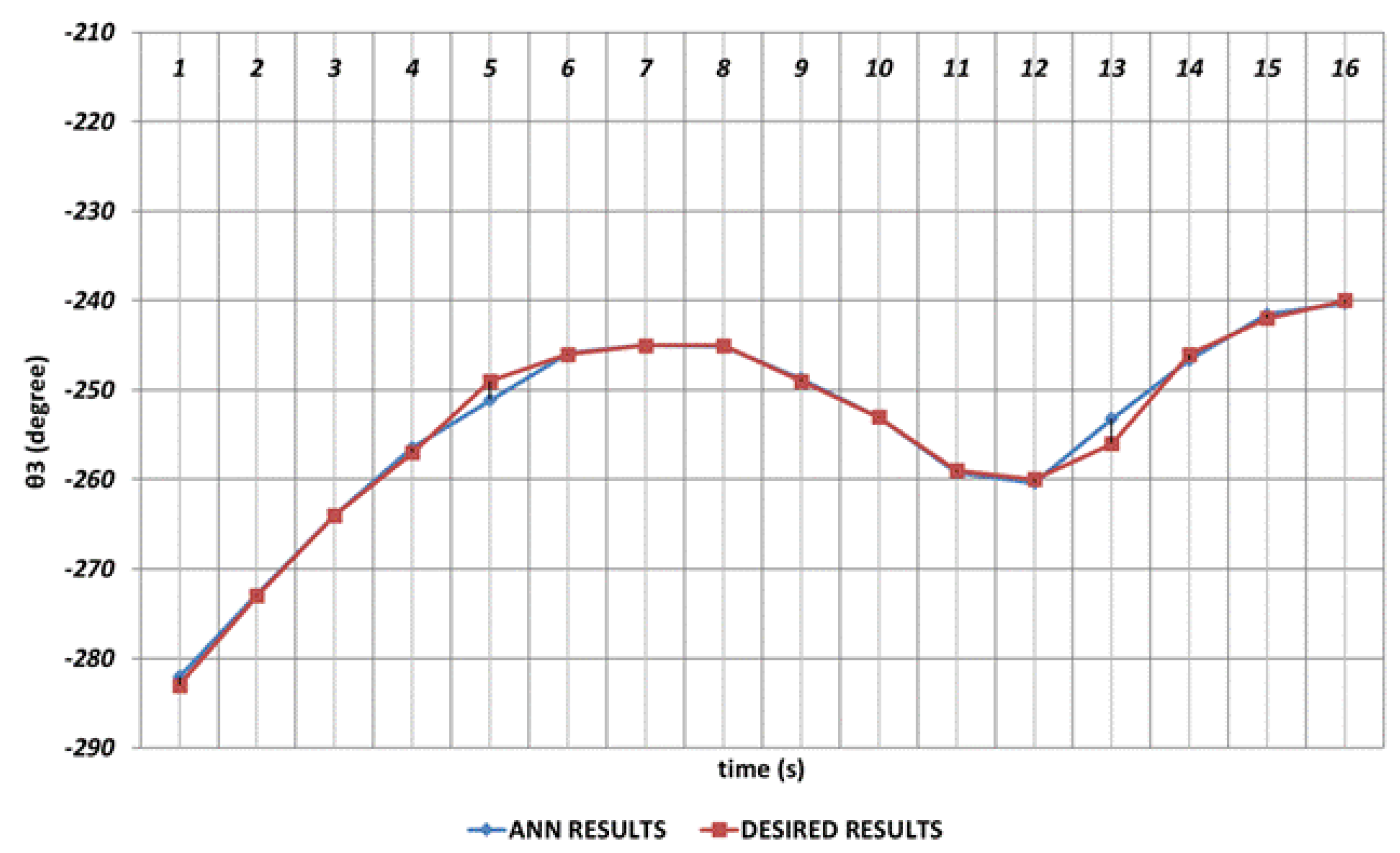

Figure 14 demonstrates the OBP based prediction results obtained for ${\theta }_3$ which is the third joint angle of the robot manipulator. Since the shoulder angle obtained after the angular change is used as the next period angle at the same time, it is observed that significant deviations from the theoretical data are appeared in the time intervals of 1^st and 2^nd seconds, 4^th and 6^th seconds and also 11^th and 16^th seconds. As a result, it can be emphasized that the prediction performance for the third joint angle seems insufficient when the OBP learning algorithm used. In contrast, OBP is able to provide better prediction performances outside of the time intervals that include instantaneous angular changes.

In Figure 15, the simulation results produced by OBP in prediction of ${\theta }_4$ joint angle are presented. From the results, it can be expressed that the rotation angle of the robot gripper can successfully be predicted with high accuracy via OBP learning algorithm. However, although instantaneous angular changes have no significant effect, it is seen that prediction errors are occurring between the theoretical and ANN approach at certain rates in the time intervals of 4^th and 6^th seconds and 14^th and 16^th seconds.

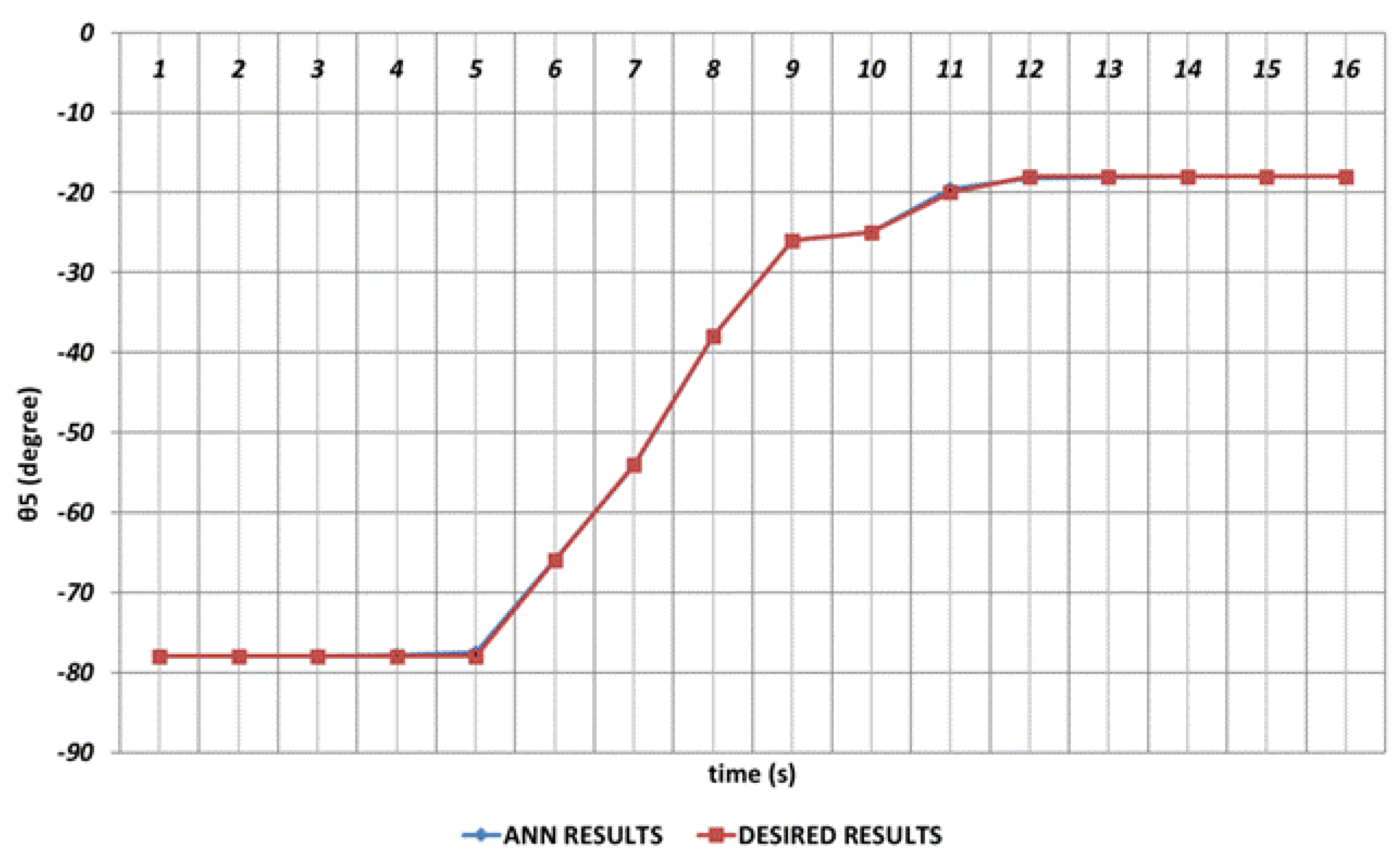

${\theta }_5$ joint angle is extremely important for the positioning of the end effector used in the chemical spray system. Due to its critical role in optimizing the positioning structure of the entire system, even small prediction errors are not acceptable for this angle as mentioned before. As seen from the prediction results given in Figure 16, deviations with too small magnitudes occurring especially in the time intervals of 3^rd and 6^th seconds and 10^th and 13^th seconds

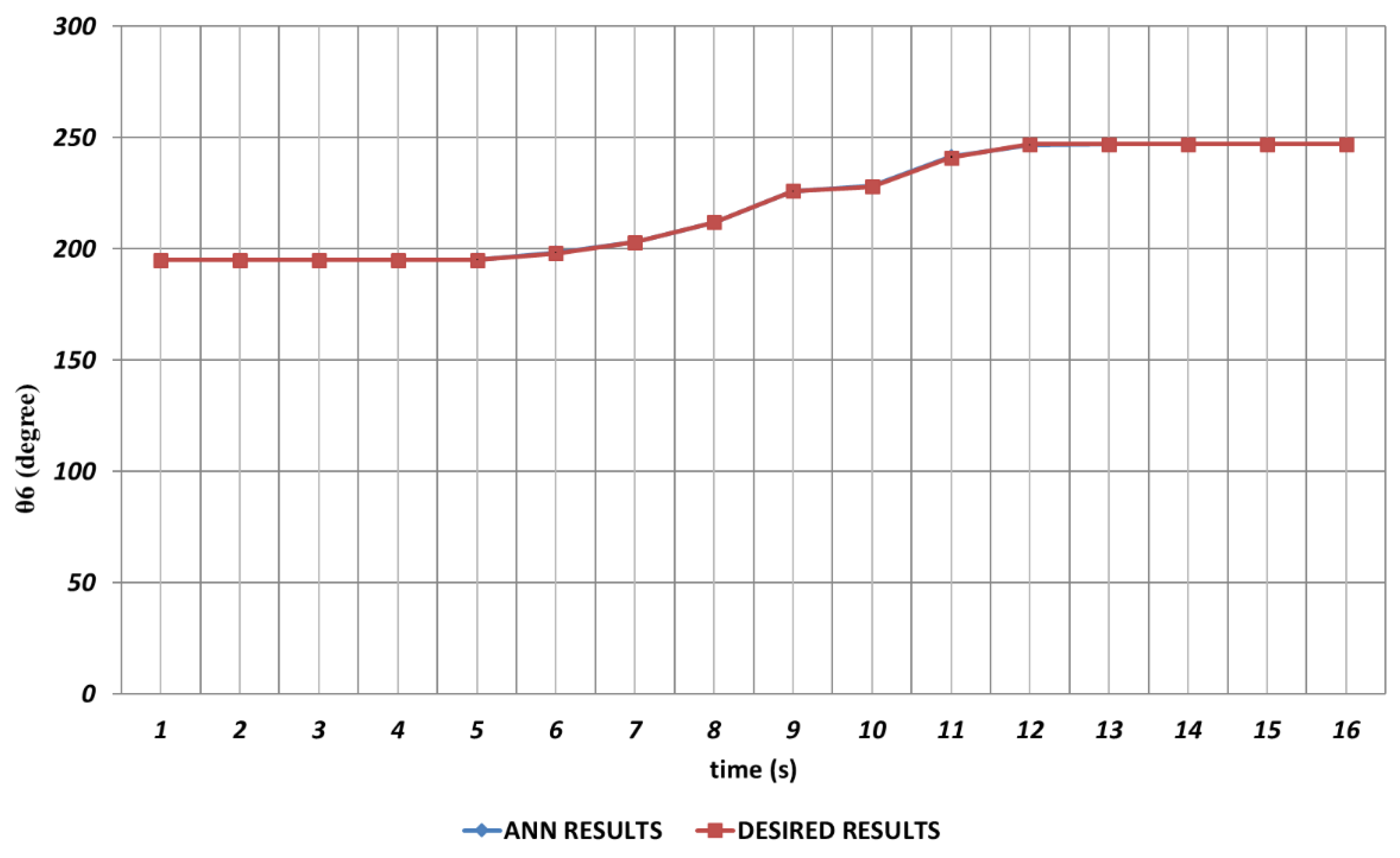

As seen from the Figure 17, which represents the OBP based prediction results obtained for ${\theta }_6$, an excellent prediction performance can be provided. The limited number of instantaneous position changes in the theoretical data ensures an effective prediction process during the entire time interval.

The prediction performance of QBP learning algorithm in terms of the joint angles are represented in Figure 18, Figure 19, Figure 20, Figure 21, Figure 22 and Figure 23. Figure 18 proves that QBP is able to provide an excellent prediction performance for ${\theta }_1$ during the entire time interval, including instantaneous angular changes.

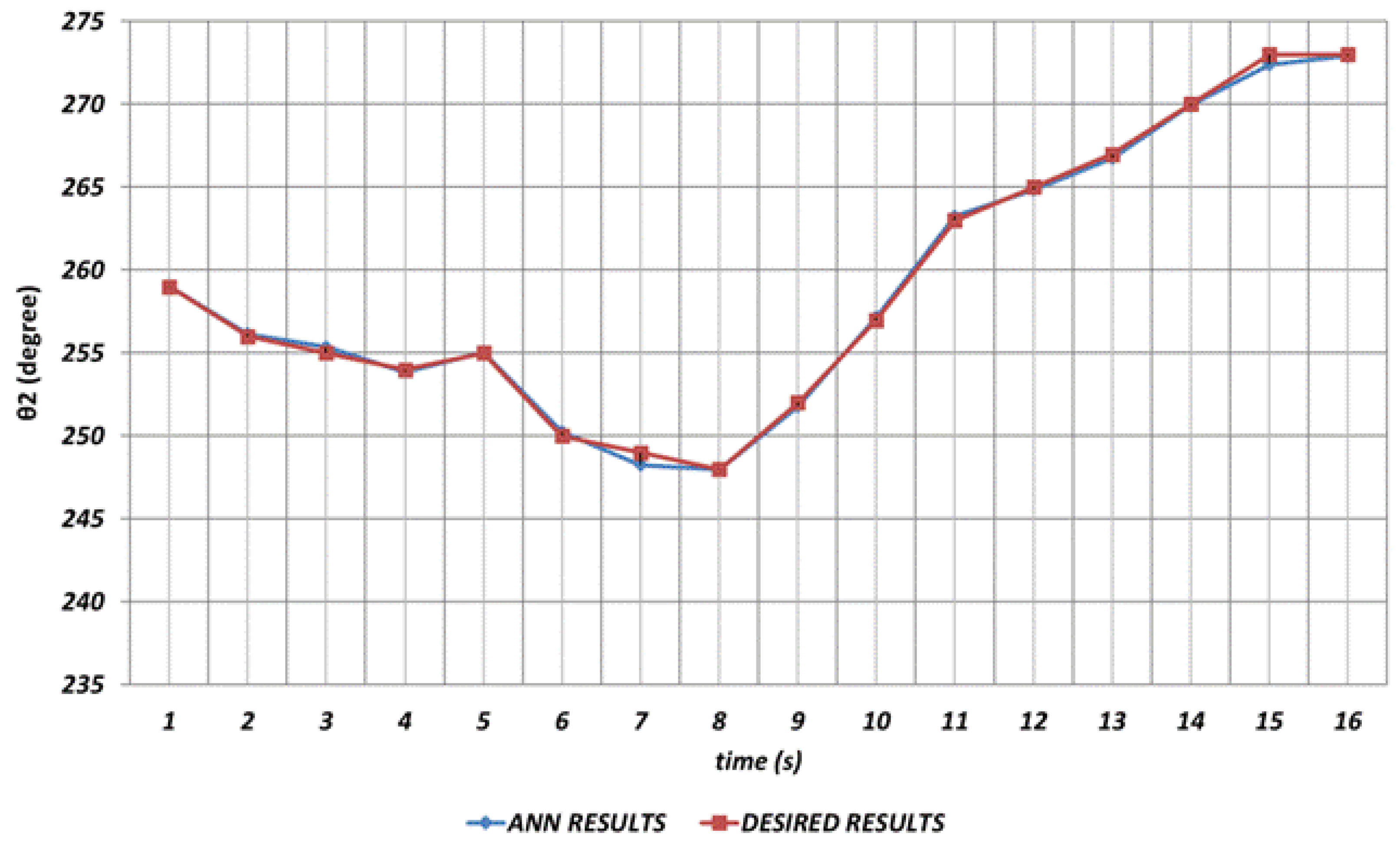

QBP based prediction results for the robot manipulator shoulder angle ${\theta }_2$ is shown in Figure 19. As can be seen from the figure, there are significant prediction errors especially in the time intervals of 2^nd and 4^th seconds, 6^th and 8^th seconds and 14^th and 16^th seconds due to the effect of instantaneous angular changes. In other words, the prediction results for ${\theta }_2$ should not be used directly in serial chemical applications.

Figure 20 demonstrates the QBP based prediction result for the ${\theta }_3$ joint angle which simulates the elbow function of humans. Due to the instantaneous angular changes in the time intervals of 1^st and 2^nd seconds, 4^th and 6^th seconds and 11^th and 14^th seconds, the therotical data cannot be predicted successfully. As a result, it can be emphasized that the prediction for the third joint angle is not very effective and the performance of the QBP seems insufficient at the relevant time intervals.

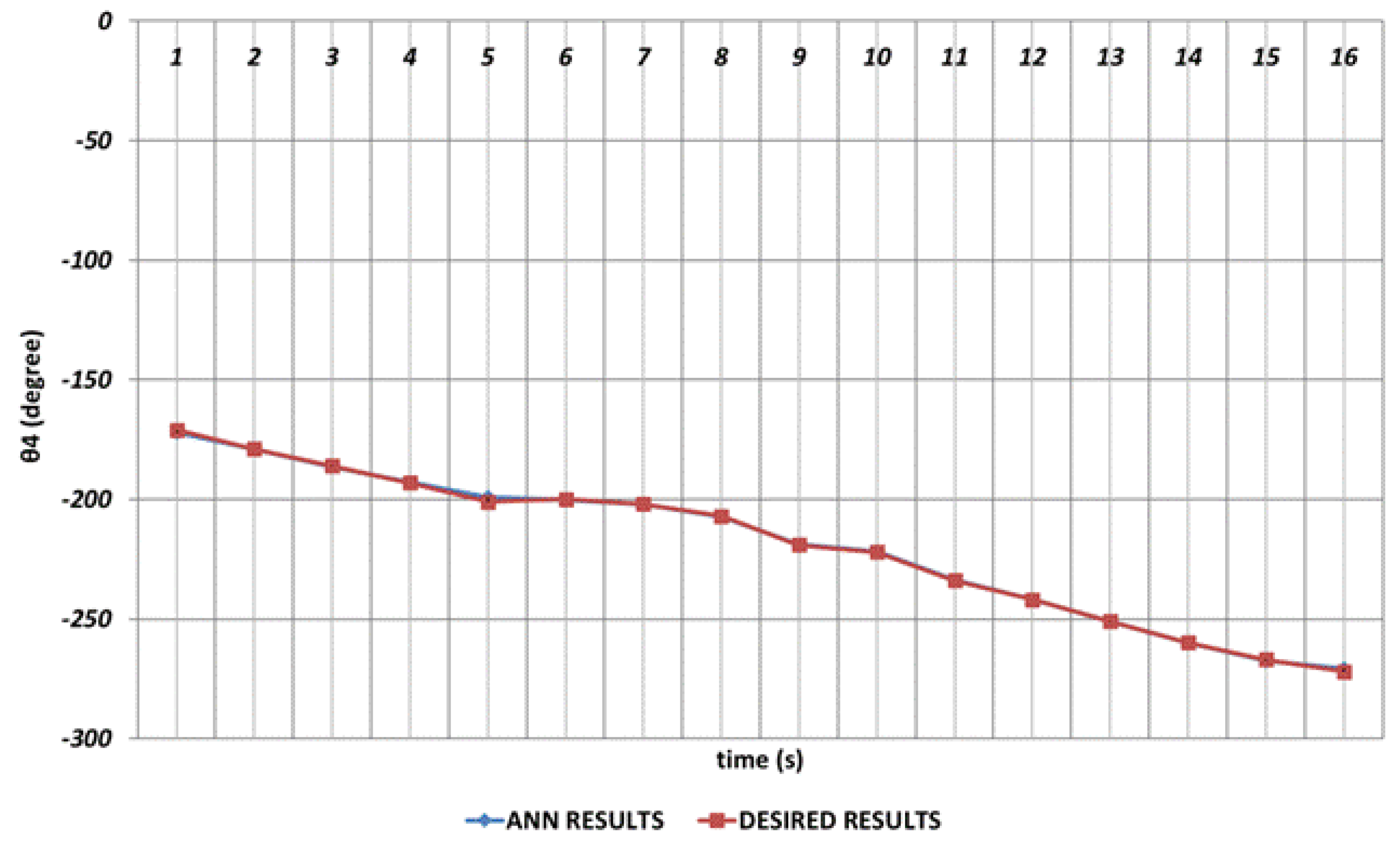

In Figure 21, the QBP prediction results obtained for the ${\theta }_4$ joint angle are given. In general, it can be said that QBP can successfully converge to the theoretical data except the time intervals of 4^th and 6^th seconds and 14^th and 16^th seconds. On the other hand, it can also be stated that the deviations from the theoretical data are occurring with too small magnitudes in the relevant time intervals.

Due to its importance mentioned before, the prediction of the ${\theta }_5$ joint angle with high accuracy is crucial. Figure 22 represents the prediction performance of the QBP learning algorithm. Due to the effect of instantaneous angular changes, it is seen that prediction errors with small magnitudes are occurring between the theoretical data and QBP approach in the time intervals of 4^th and 6^th seconds and 10^th and 12^th seconds. When the prediction performance is evaluated in a general manner, it can be expressed that QBP can successfully predict the theoretical data for ${\theta }_5$.

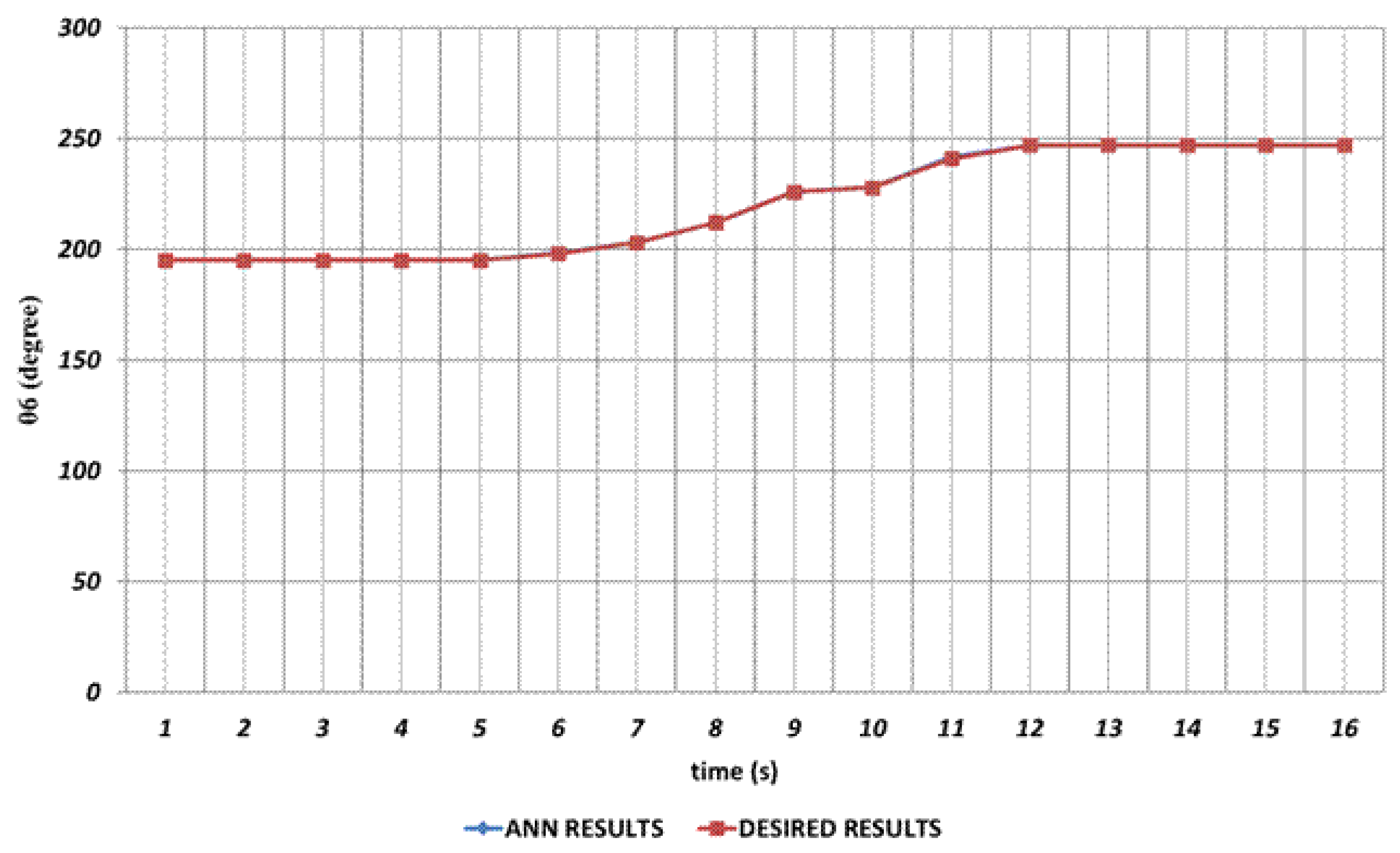

When the proposed QBP based approach applied to the prediction of sixth joint angel, it is seen that the ${\theta }_6$ can successfully be predicted. As seen from the Figure 23, QBP is able to produce a prediction performance that almost overlapped with the theoretical data during the entire time interval. The reason for this situation may be expressed as the lack of instantaneous angular changes or their occurrence with too small magnitudes.

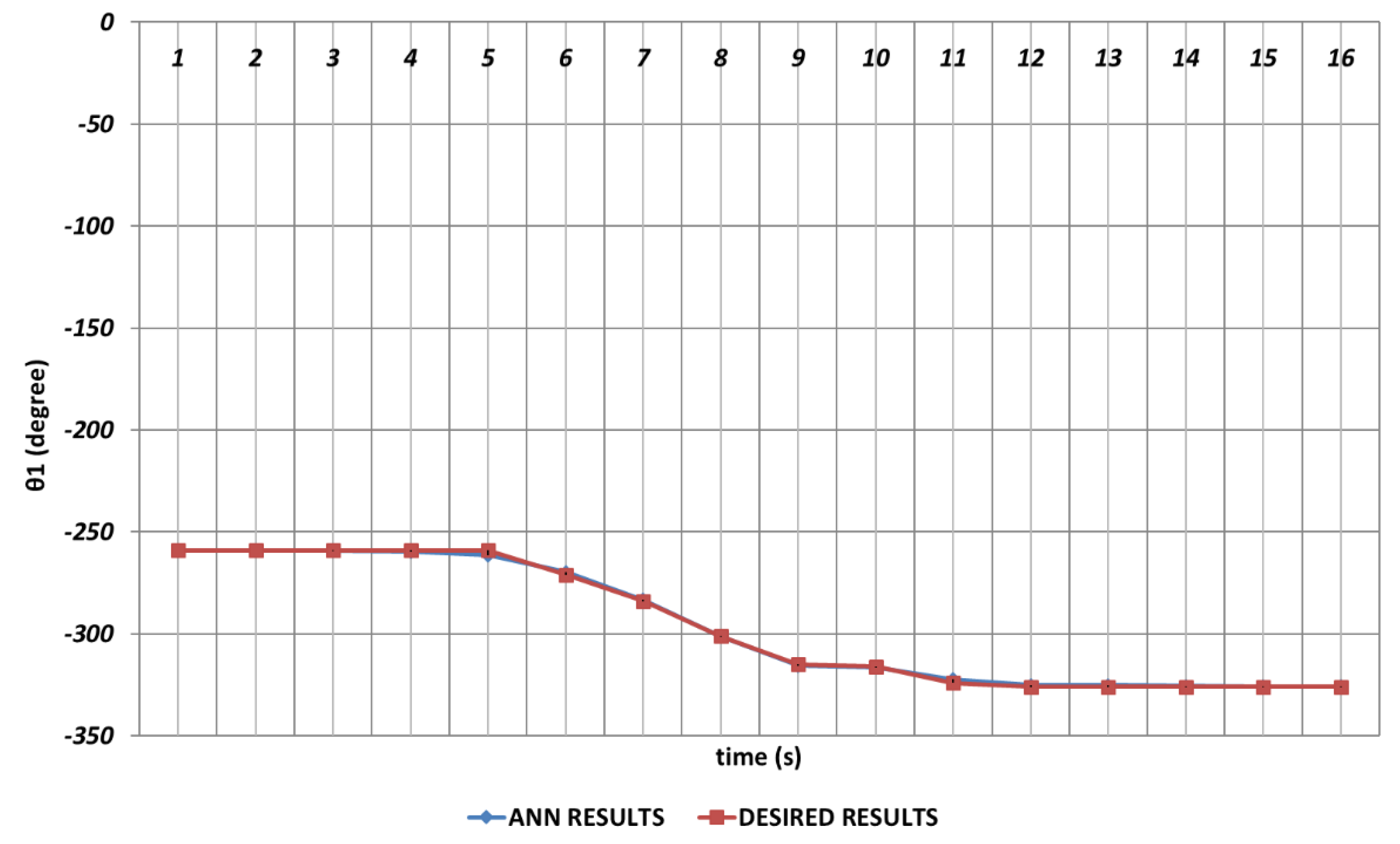

Figure 24, Figure 25, Figure 26, Figure 27, Figure 28 and Figure 29 represent the analysis results obtained by using RBP learning algorithm. As seen from the Figure 24, which shows the modelling performance for ${\theta }_1$, RBP is able to predict the theoretical data with high accuracy. Although there are instantaneous angular changes at the 4^th and 6^th seconds, the RBP can also converge to these changes successfully.

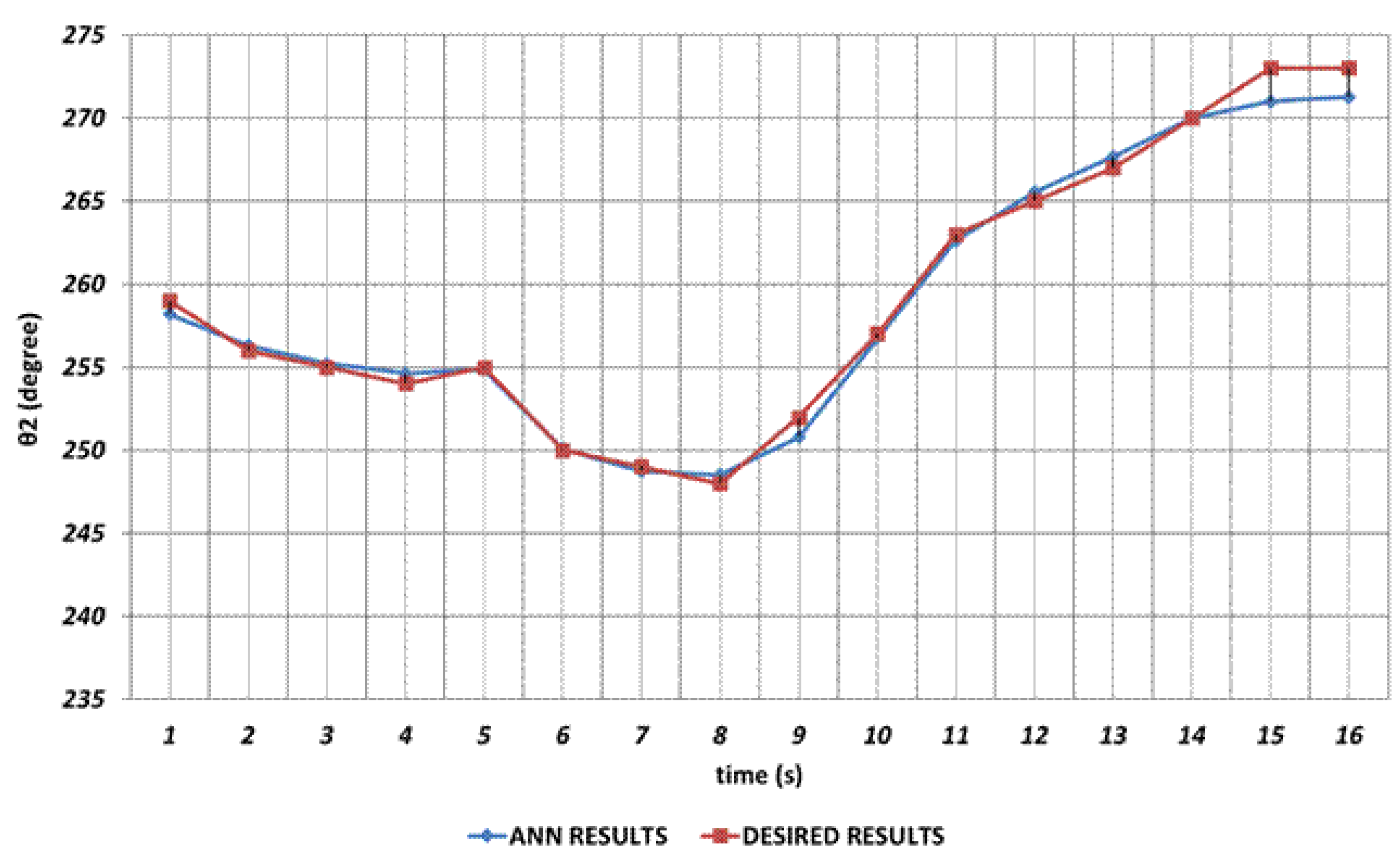

Figure 25 demonstrates the RBP based prediction result for ${\theta }_2$. As seen from the figure, the deviations with high amplitudes from the theoretical data are occurring during the entire time interval. ${\theta }_2$ corresponds to the shoulder angle of the robot manipulator and it is seen that the prediction performance of the RBP in terms of ${\theta }_2$ decreases significiantly as a result of the instantaneous angular changes. In other words, it will be inevitable that the lack of high prediction performance for the second joint angle will cause significant errors in chemical applications in the production process.

In Figure 26, the prediction results obtained for ${\theta }_3$ by using RBP based ANN are shown. As in the prediction process of the second joint angle, the RBP produces worse prediction results during the entire time interval and also cannot converge to the theoretical data of the ${\theta }_3$ joint angle enough. Namely, basic RBP learning algorithm seems insufficient in predicting the theoretical data of the third joint angle.

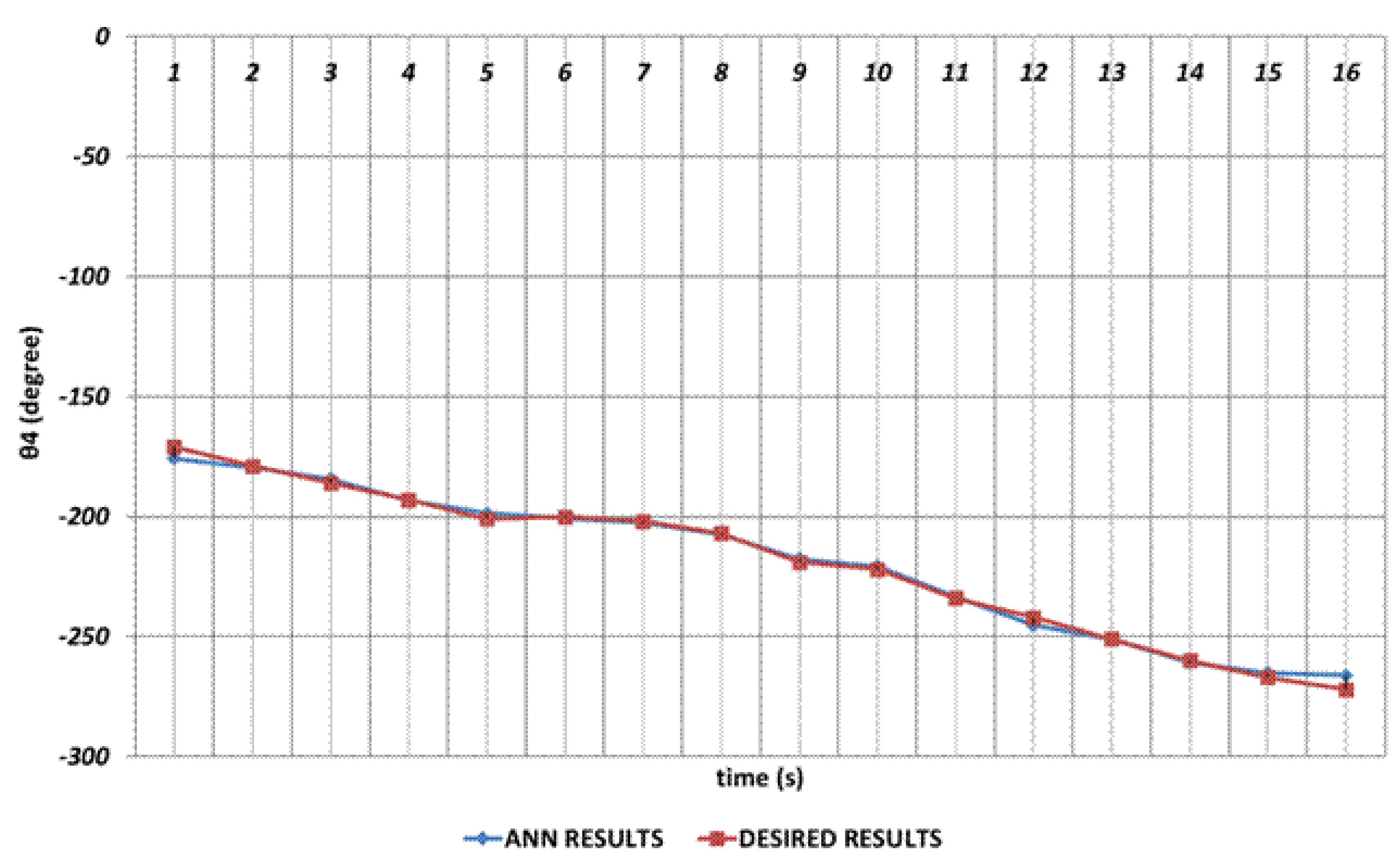

In predicting of ${\theta }_4$ joint angle, RBP learning algorithm cannot provide a completely adequate performance as shown in Figure 27. Especially, deviations having high magnitudes from the theoretical data are occurring in the time intervals of 1^st and 2^nd seconds, 11^th and 13^th seconds and 15^th and 16^th seconds due to the instantaneous angular changes. In addition, deviations having small magnitudes are also observed in the time intervals of 4^th and 7^th seconds and 8^th and 11^th seconds

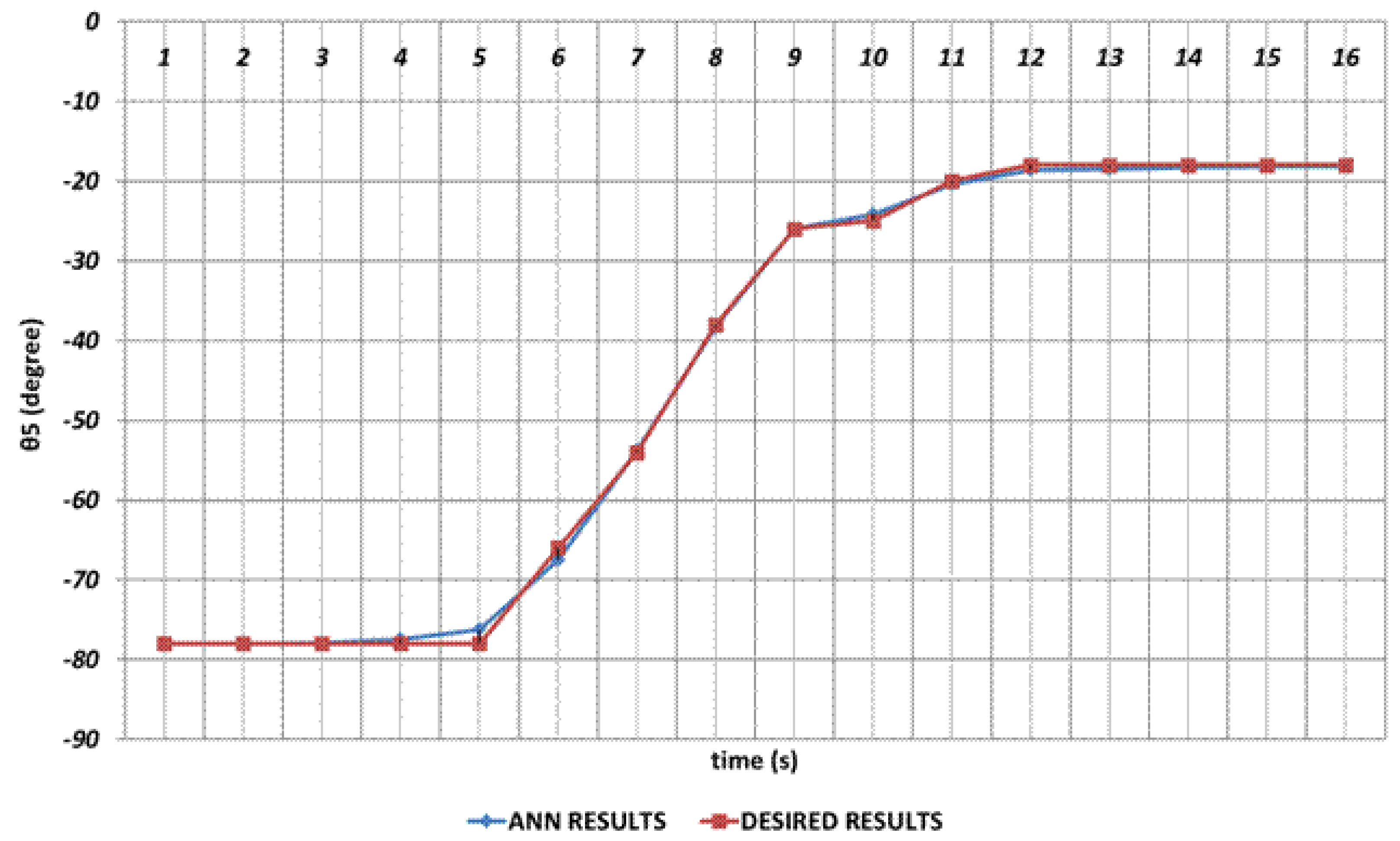

RBP based prediction performance for the ${\theta }_5$ joint angle is given in Figure 28. Due to the effect of instantaneous angular changes, it is seen that prediction errors are occurring at unacceptable rates between the theoretical and RBP approaches in the time intervals of 3^rd and 7^th seconds and 9^th and 16^th seconds.

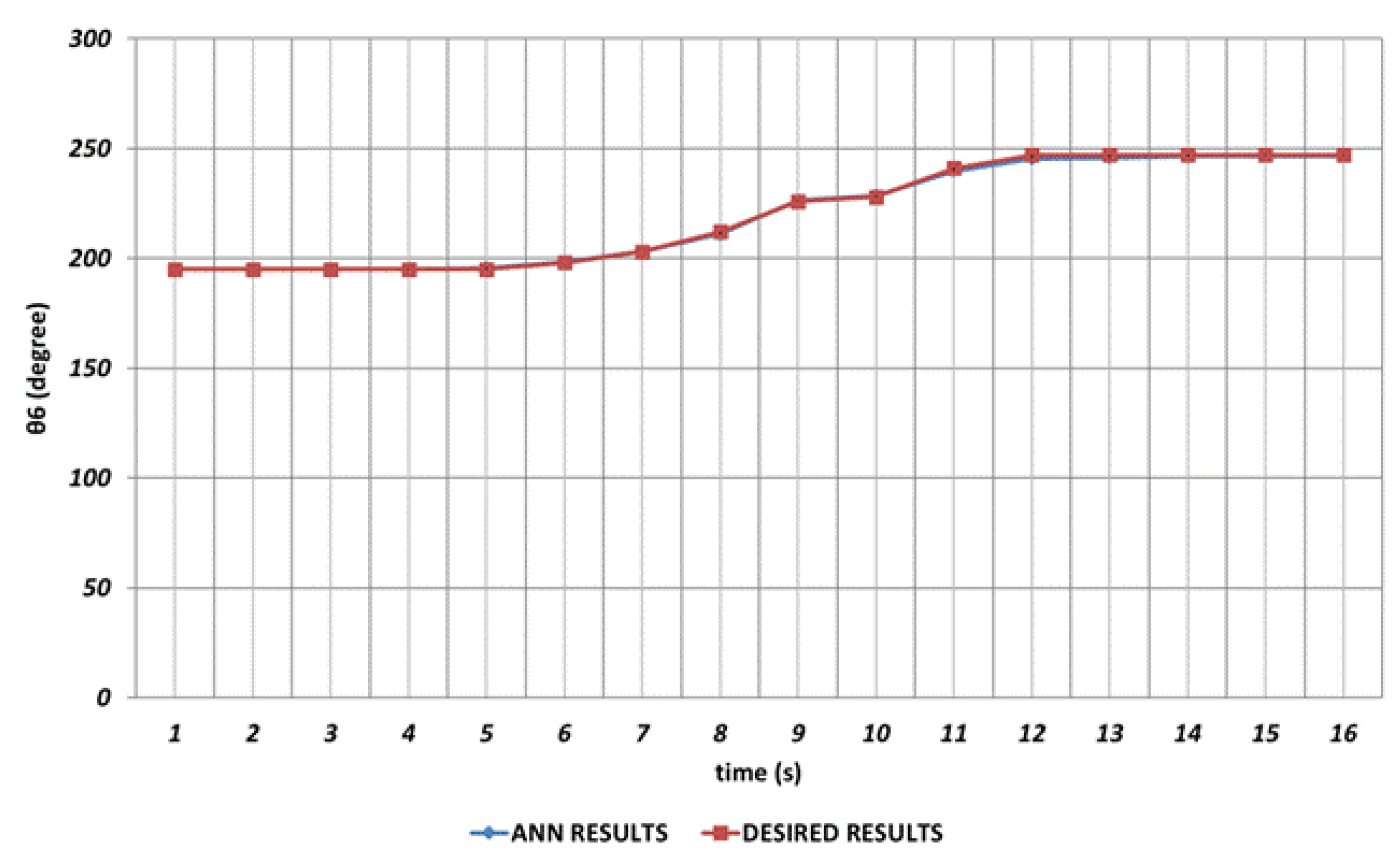

The the prediction results obtained for ${\theta }_6$ are shown in Figure 29. From the figure, it can be seen that RBP learning algorithm is able to provide an effective prediction performance during the entire time interval except the 11^th and 14^th seconds. It can also be concluded that the lack of instantaneous angular changes or their occurrence with too small magnitudes results in an effective prediction performance.

In order to present a more detailed analysis, in addition to the 3-10-6 ANN network structure including 10 nonlinear cells in the hidden layer, the performance of the 3-5-6 network structure which includes 5 nonlinear cells in its hidden layer is also analyzed. The results obtained are presented in Table 3. From the results, it is seen that that the network structure including 5 nonlinear cells in its hidden layer can provide a faster learning effect. However, it is also seen that as the number of nonlinear cells in the hidden layer decreases, the error performance and therefore the prediction performance decrease. When the results are evaluated in general, it can be expressed that the QBP produces the best prediction results fot the 3-10-6 network structure while the DBD produces the best prediction results for 3-5-6 network structure.

The statistical performances of the improved ANN network structures are another important performance metric. In this study, the R² statistical analysis approach was applied to test the reliability and stability of the results obtained. In Equation 8 given for R²,

$$R^2=1-\frac{{\displaystyle \sum {(idea{l}_i-id\widehat{e}a{l}_i)}^2}}{{\displaystyle \sum {(idea{l}_i-id\tilde{e}a{l}_i)}^2}}$$

(8)

$idea{l}_i$ can be defined as the ideal values of the joint angels, $id\widehat{e}a{l}_i$ represents the joint angel values obtained from the regression equation and finally $id\tilde{e}a{l}_i$ is the mean value of the ideal joint angels. The value of the R² parameter changes in the interval of [0,1], The R² values close to 1 prove the effectiveness of the model. From the Table 4 which represents the statistical performances of each algorithm, it can be concluded that all the learning algorithms are able to provide statistically superior performance. In other words, each learning algorithm exhibits stable behavior by converging to approximately the same results at each run.

4. Conclusions

In this study, ANN based positioning analyzes were carried out to predict joint angles of a 6-DOF industrial robot manipulator system for trajectory analysis. DBD, OBP, QBP and RBP learning algorithms based ANN network structures were improved and then applied for the prediction of six joint angels with high accuracy. The applicability of ANNs in multi-DOF robot manipulator trajectory prediction was demonstrated and the superiority of ANN based apoproaches in trajectory prediction was proved.

In addition to the 3-10-6 type ANN structure, the 3-5-6 type ANN structure was also improved and applied to the prediction trajectory analysis. The simulation results obtained for the 3-10-6 type ANN structure represent that all learning algorithms can successfully predict the ${\theta }_1,{\theta }_4,{\theta }_5$and ${\theta }_6$ joint angels with high accuracy. When the prediction results obtained for these joint angles are examined, it is seen that instantaneous deviations are occurring only at certain time intervals and with low magnitudes. On the other hand, the prediction performances of the algorithms for ${\theta }_2$ and ${\theta }_3$ seems too weak due to the instantaneous deviations with high magnitudes that occur during the entire time interval.

In order to present a detailed performance comparison between the 3-10-6 and 3-5-6 type ANN structures the RMSE and the statistical R² values reached were also compared. The mean and maximum RMSE values reached by the algorithms represent that QBP produces the best results for the 3-10-6 ANN structure and DBD produces the best results for the 3-5-6 ANN structure. When the results are evaluated in terms of the RMSE performance, it can be expressed that RBP produces the worst results among four learning algorithms. The R² values reached by the algorithms show that each learning algorithm is able to produce similar statistical performances but the reliability and stability of the DBD based ANN structure seems a bit better when compared to other learning algorithms.

Consequently, it can be stated that the ANN based approaches proposed in this study can be used effectively even in the optimal trajectory analysis of real-time robot manipulators operating under large disturbances.
