Pore Structure Characterization and Fractal Characteristics of Tight Limestone Based on Low Temperature Nitrogen Adsorption and Nuclear Magnetic Resonance

1. Introduction

Inspired by the economic and efficient development of North American marine tight oil, China began to explore and develop tight oil and gas resources (Hughes 2013; Wang et al. 2017; Hu et al. 2018; Zhou et al. 2019; Shen et al. 2018, 2019). In China, tight oil resources are mainly distributed in the Ordos Basin, Sichuan Basin, and Songliao Basin et al. (Sun et al. 2015; Luo et al. 2019; Guo et al. 2019; Yang et al. 2019; Pang et al. 2019). For example, the tight oil resources are abundant in the Jurassic Da’anzhai Member, Sichuan Basin, and are the typical lacustrine carbonate tight oil resource (Wang et al. 2019). In the development of tight oil, the accurate pore structure characterization of tight reservoir is not only a comprehensive understanding of oil storage space, but also the basis for its efficient development.

At present, there are many techniques for characterizing the pore structure of tight reservoirs, such as scanning electron microscopy (SEM), X-ray Computed Tomography (X-CT), high-pressure mercury injection (HPMI), constant-pressure mercury injection (CPMI), low-temperature nitrogen adsorption (LTNA), and nuclear magnetic resonance (NMR) and so on. Generally, HPMI test is prone to making micro-fractures in rocks due to high mercury entry pressure (Zhao et al. 2015; Wu et al. 2018). At the same time, CPMI test can only characterize the pore ssize distribution above 120nm (Zhao et al. 2019a, b). Tian et al. (2017) used SEM to explore the pore structure of tight limestone in Da’anzhai Member in Jurassic Ziliujing Formation, central Sichuan Basin. He believed that multi-type nano- to micro-meter micropores or microfractures develop in tight limestone. Additionally, Volery et al. (2010) used SEM to study the factors controlling the difference between microporous and tight facies in the tight limestone of the Urgonian Formation of the French Jura Mountains. Liu et al. (2018) analyzed the full-scale distribution map of tight limestone by using capillary pressure curve test data and LTNA experimental data, and compared it with NMR data. They found that the main peak of tight limestone pores in central Sichuan Basin was in the range of 10–50 nm; the average pore diameter was 27–967 nm, and the average was 235 nm. However, their study did not explain how to establish a full-scale map. Zhao et al. (2018) used CPMI test to study the pore size distribution characteristics of tight limestone and tight sandstone in central Sichuan Basin, and also discussed the fractal characteristics of these two types of rocks. He found that the fractal dimension of tight limestone was greater than the fractal dimension of tight sandstone, indicating that the pore structure of tight sandstone was simpler than that of tight limestone.

In this study, LTNA and NMR are employed to characterize the pore structure and pore size distribution of tight limestone. Furthermore, based on LTNA and NMR data, the fractal theory is used to calculate the fractal dimensions of tight limestone pores, and the fractal characteristics of tight limestone pores is discussed. These comprehensive results help to reveal the pore space characteristics of the tight limestone reservoirs.

2. Experiment and Samples

2.1. Experimental Samples

In this study, LTNA experiments and NMR experiments are carried out on the 35 cores collected from the typical tight oil areas of SW, China. In the LTNA experiment, the core porosity ranges from 0.89% to 3.47%, with an average of 1.72%. In addition, the permeability is between 0.00079-0.25×10^-3μm² with an average of 0.03276×10^-3μm². In the NMR experiment, the tight limestone core plug porosity ranges from 0.85% to 3.47%, with an average of 1.61%. The core plug permeability is between 0.00098-0.435 ×10^-3μm² with an average of 0.08009×10^-3μm². Moreover, all of these tight limestone cores come from the same research block. It can be known that these cores are typical tight limestones (Permeability<1×10^-3μm² and porosity<10%). According to the previous study, we can know that the pores of the tight limestone in the target area can be divided into three types: intragranular pores (Figure 1d), intergranular pores (Figure 1e), and microfractures (Figure 1b, f) (Wei, 2018).

2.2. LTNA Experiment

For the analysis on the distribution of micropores and mesopores, LTNA is carried out using USA autosor-6B automatic isothermal adsorption instrument of Quantachrome under 77.35 K and a relative pressure of 0.01–1. In LTNA test, the critical step is to measure the equilibrium pressure (P) and quantity adsorption (V) of nitrogen from a series of given pressures under a constant temperature (T) for generating the isothermal adsorption curve. It can be applied to obtain specific surface areas, as well as pore diameter and pore volume of tight samples by using the BET adsorption isotherm (Brunauer et al. 1938), and determine the pore size distribution curve through the BJH model (Barrett et al. 1951; Haul et al. 1969).

2.3. NMR Experiment

In the NMR experiment, a small RecCore04 low-field NMR core analyzer is used, which was independently produced by the Institute of Porous Flow and Fluid Mechanics, Chinese Academy of Sciences. The specific parameters are set up as follows, main frequency is 3.841 MHz, the echo interval time is 600 μs, the waiting time is 3000 ms, the number of echoes is 1024, the number of scans is 64, the gain is 50, and the experimental ambient temperature is 24 ℃.

3. Fractal Dimension Calculation Method

We apply the Frenkel-Halsey-Hill (FHH) model proposed by PFEIFER et al. (Naveen et al. 2018) to calculate the LTNA fractal dimension of tight limestone (D_L).

$$\ln \left(\frac{V}{V_0}\right)=\mathrm{A}[\mathrm{l}\mathrm{n}(\mathrm{l}\mathrm{n}\frac{P_0}{P}\left)\right]+\mathrm{C}$$

(1)

where, V is the volume of gas molecules adsorbed under equilibrium pressure P, cm³/g; V₀ is the volume of monomolecular adsorption gas, cm³/g; P₀ is the saturated vapor pressure of gas adsorption, MPa; P is equilibrium pressure, MPa; A and C are undetermined coefficients, and their values are related to the adsorption mechanism of gas molecules. Furthermore, D_L is obtained by Equation (2).

$$D_L=A+3$$

(2)

In the calculations of the NMR fractal dimensions, we refer to the previous practices (Zhang et al. 2014; Wang et al. 2018; Lai et al. 2018; Zheng et al. 2018; Zhang et al. 2019; Li et al. 2019; Chen et al. 2019). Firstly, the relationship between the capillary pressure and the pore radius can be calculated according to the Washburn equation (Mandelbrot et al. 1998):

$$p_c=\frac{2\sigma cos\theta }{r}$$

(3)

where p_c is the capillary pressure, MPa; σ is the surface tension, N/m; and θ is the contact angle between the water molecules and the surface of the sandstone.

The relationship between the Sv and the p_c and p_cmin can be calculated according to the Chen et al. equation (Chen et al. 2019).

$$S_V={\left(\frac{p_c}{p_{cmin}}\right)}^{D-3}$$

(4)

where Sv is the volume fraction of pores occupied by a wetting phase when the capillary pressure is equal to P_c, and P_cmin is the capillary pressure corresponding to the maximum diameter, MPa.

The relaxation time T₂ can be expressed as follows:

$$\frac{1}{T_2}=F_s.\frac{\rho }{r}$$

(5)

where T₂ is relaxation time, ms; Fs is the geometry factor, and r is the pore diameter. For spherical pores, Fs = 3. For a columnar pipe, Fs = 2.

The relationship between the p_c and T₂ can be calculated as follows.

$$p_c=C\frac{1}{T_2}$$

(6)

The conversion coefficient C can be expressed as:

$$C=\frac{2\sigma cos\theta }{F_s\rho }$$

(7)

Hence:

$$p_{cmin}=C\frac{1}{T_{2max}}$$

(8)

where T_2max is maximum relaxation time, ms.

By substituting Equation (6) and Equation (8) into Equation (4), Equation (9) is obtained:

$$V_c={\left(\frac{T_2}{T_{2max}}\right)}^{3-D}$$

(9)

where V_c is the percent of cumulative pore volume with a transverse relaxation time less than T₂ in terms of the total pore volume.

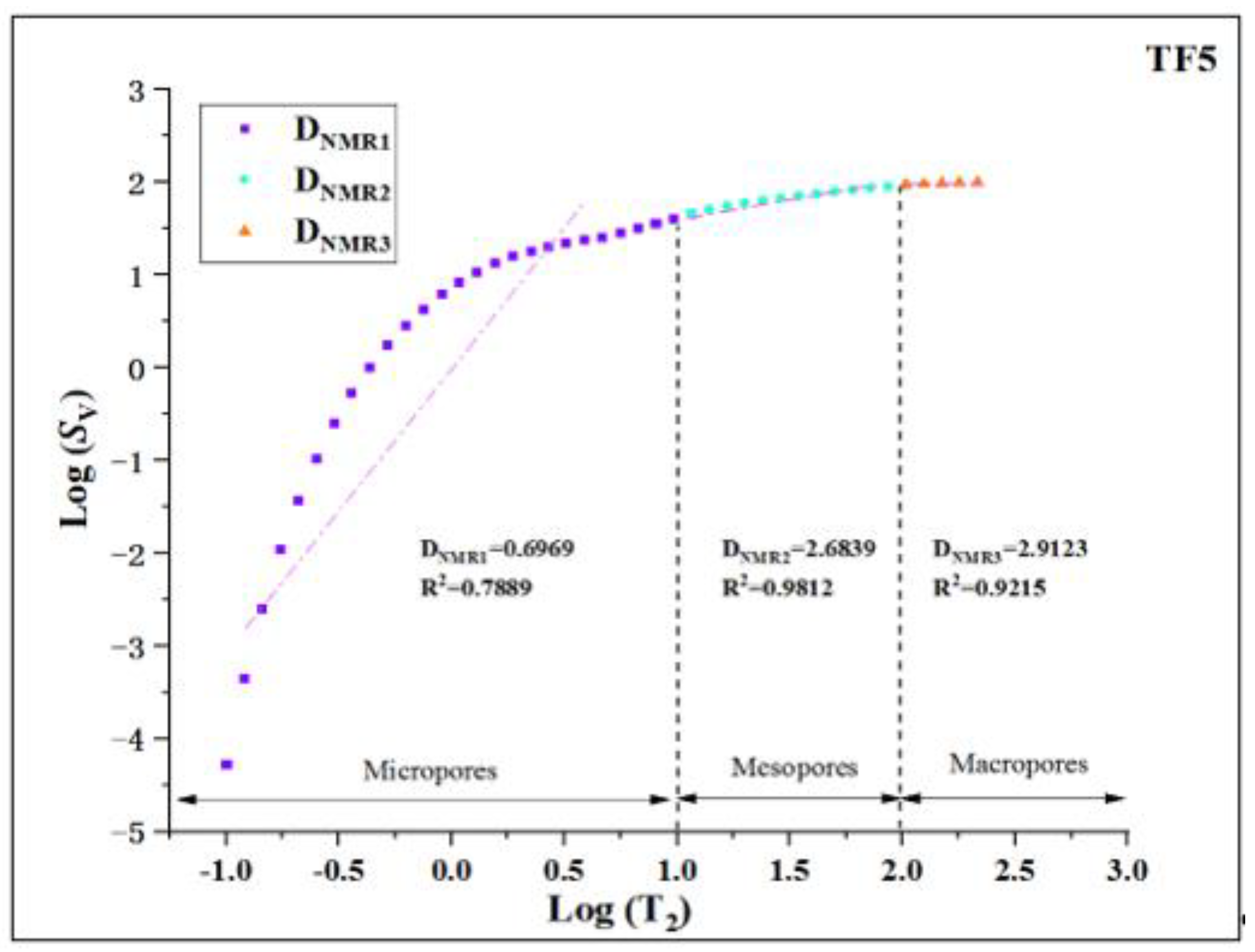

Taking the logarithm of both sides of Equation (9), an approximate fractal geometry formula for the NMR T₂ spectra can be expressed as follows:

$$\log V_c=\left(D-3\right)\log P_c-\left(\mathrm{D}-3\right)\log P_{c min}$$

(10)

where, D is the fractal dimension, dimensionless; P_{c min} is the capillary pressure related to the largest pore radius, MPa.

4. Results and Discussion

4.1. LTNA Characterization

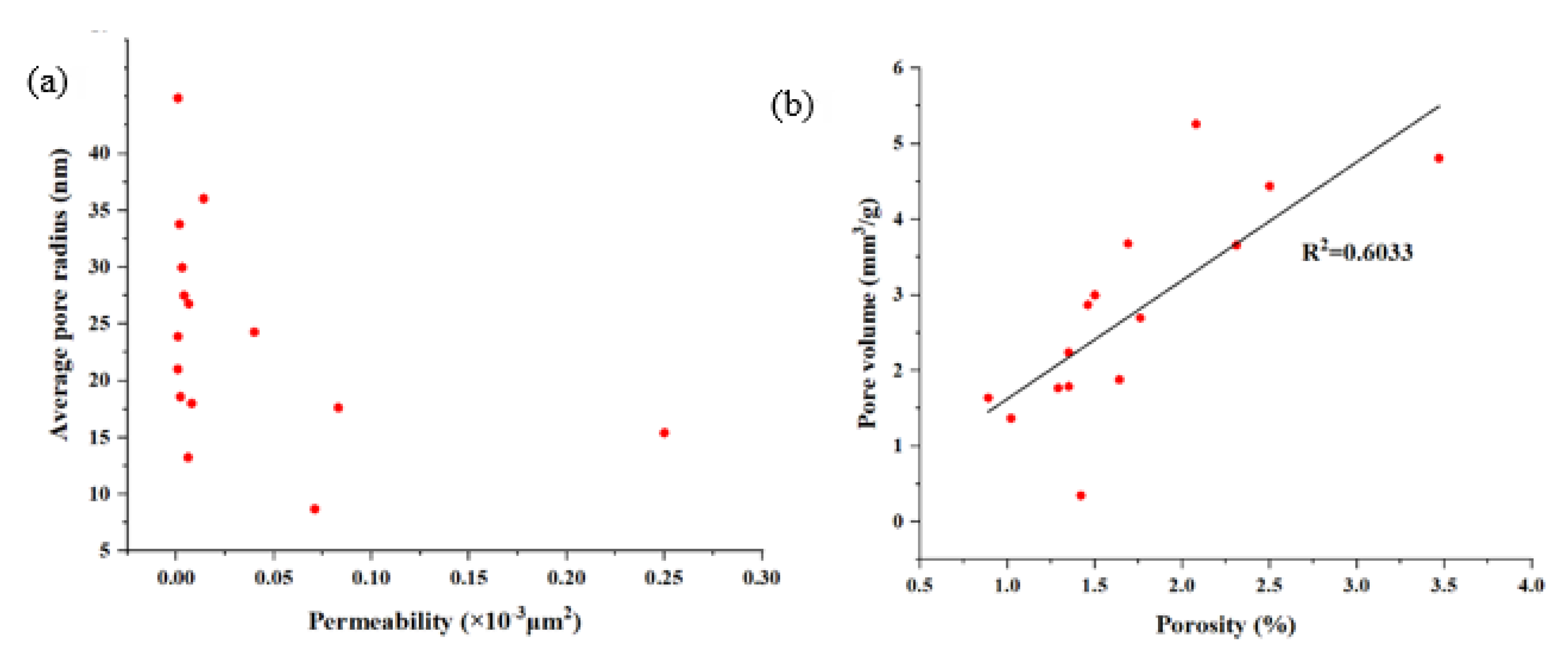

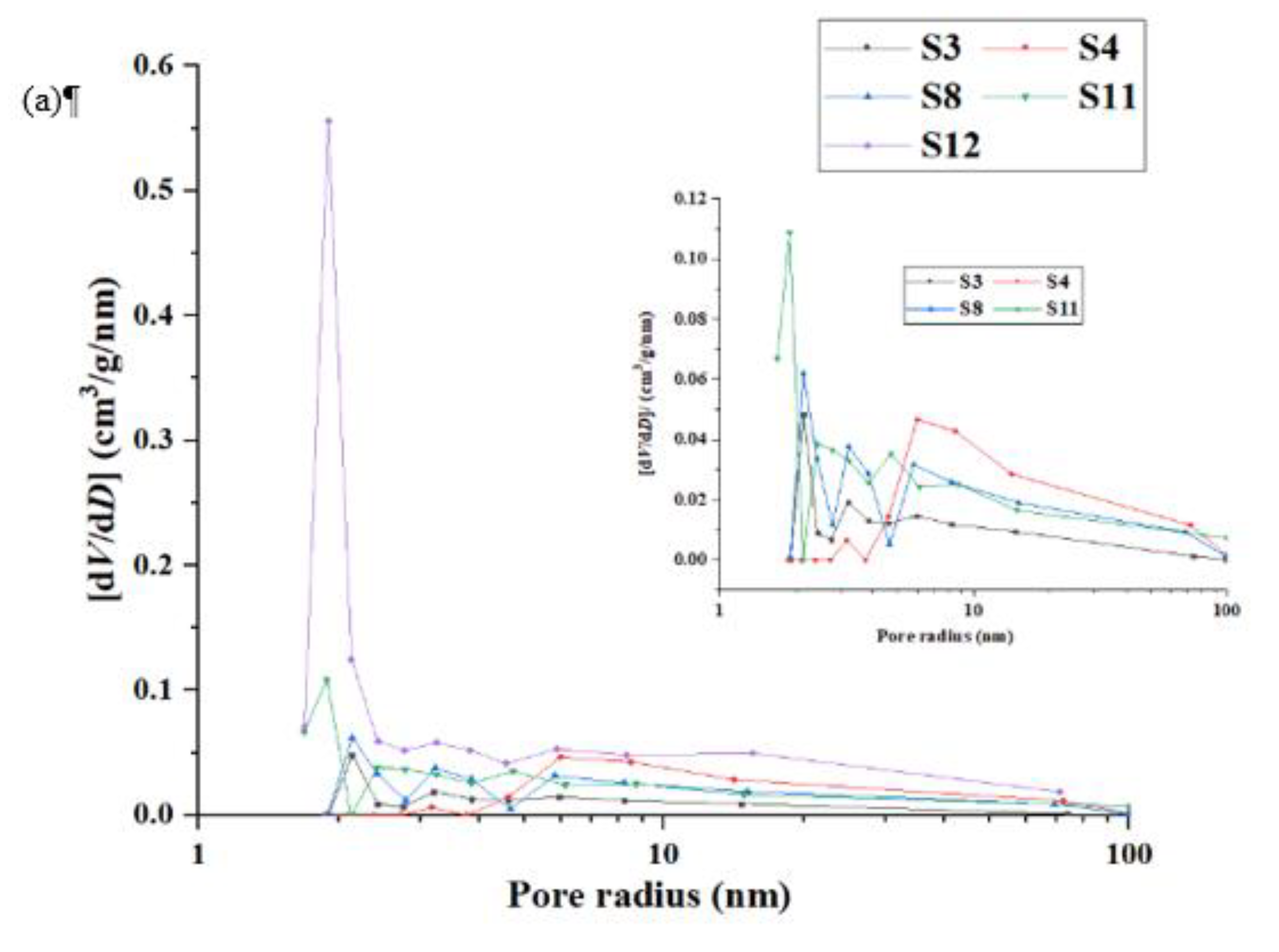

The LTNA experiment can quantitatively characterize the pore size distribution and calculate the specific surface area (A_p) of tight limestone. The detailed LTNA test data of the tight limestones is shown in Table 1. Among them, the specific surface area of the rock sample is between 0.11-2.06 m²/g, with an average of 0.76 m²/g. Chen et al. (2019) measured the specific surface area of shale in southwest China between 7.67 m²/g and 26.33 m²/g. It can be seen that the specific surface area of the tight limestone sample is much smaller than the specific surface area of the shale. In other words, the pore throat structure of shale is complex with respect to tight limestone. In addition, the pore radius (r_a) of the tight limestone sample is between 8.71 nm and 44.89 nm, with an average of 23.99 nm. Its pore volume (V_c) is between 0.35 and 5.26 mm³/g, with an average of 2.76 mm³/g.

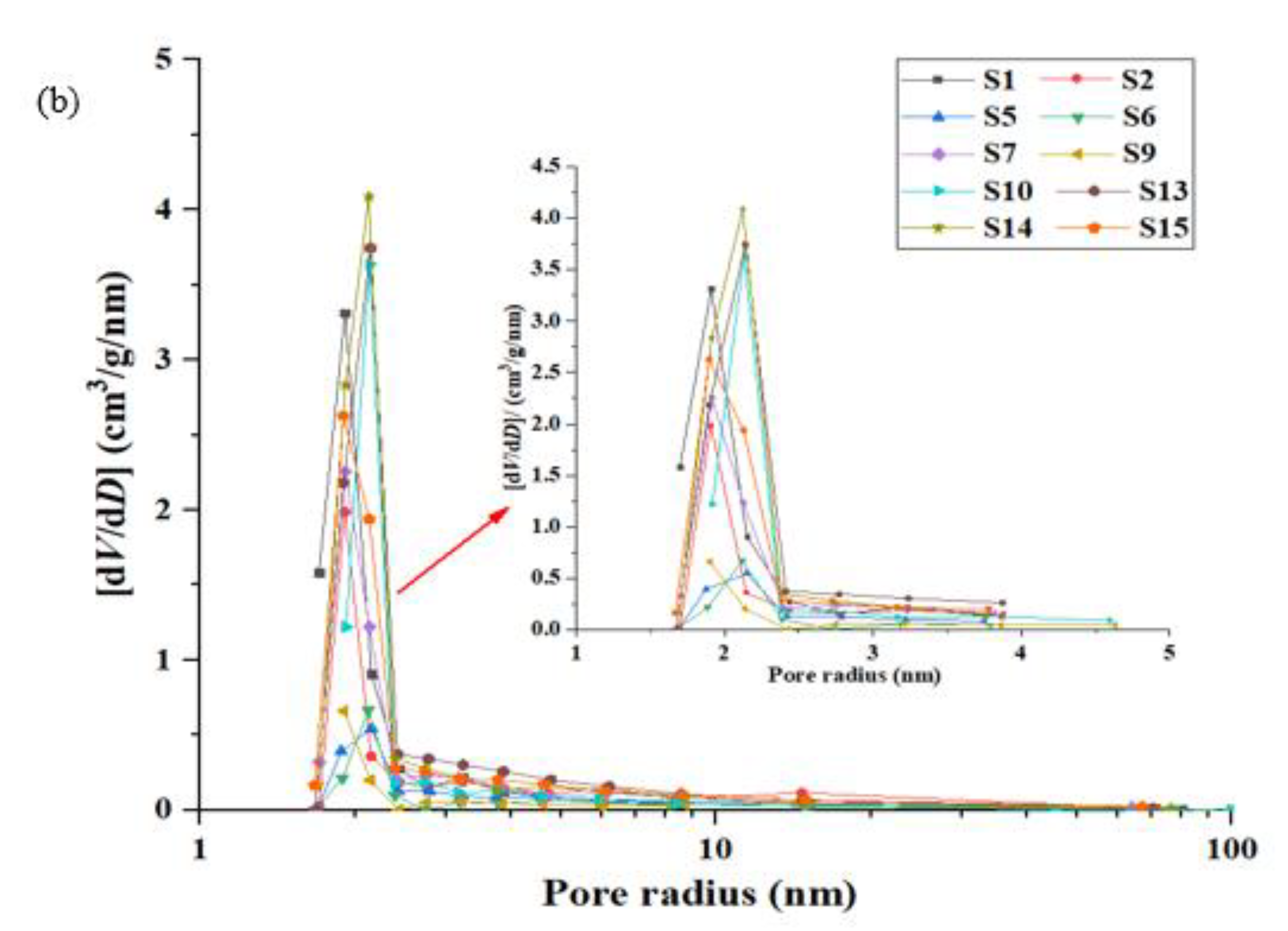

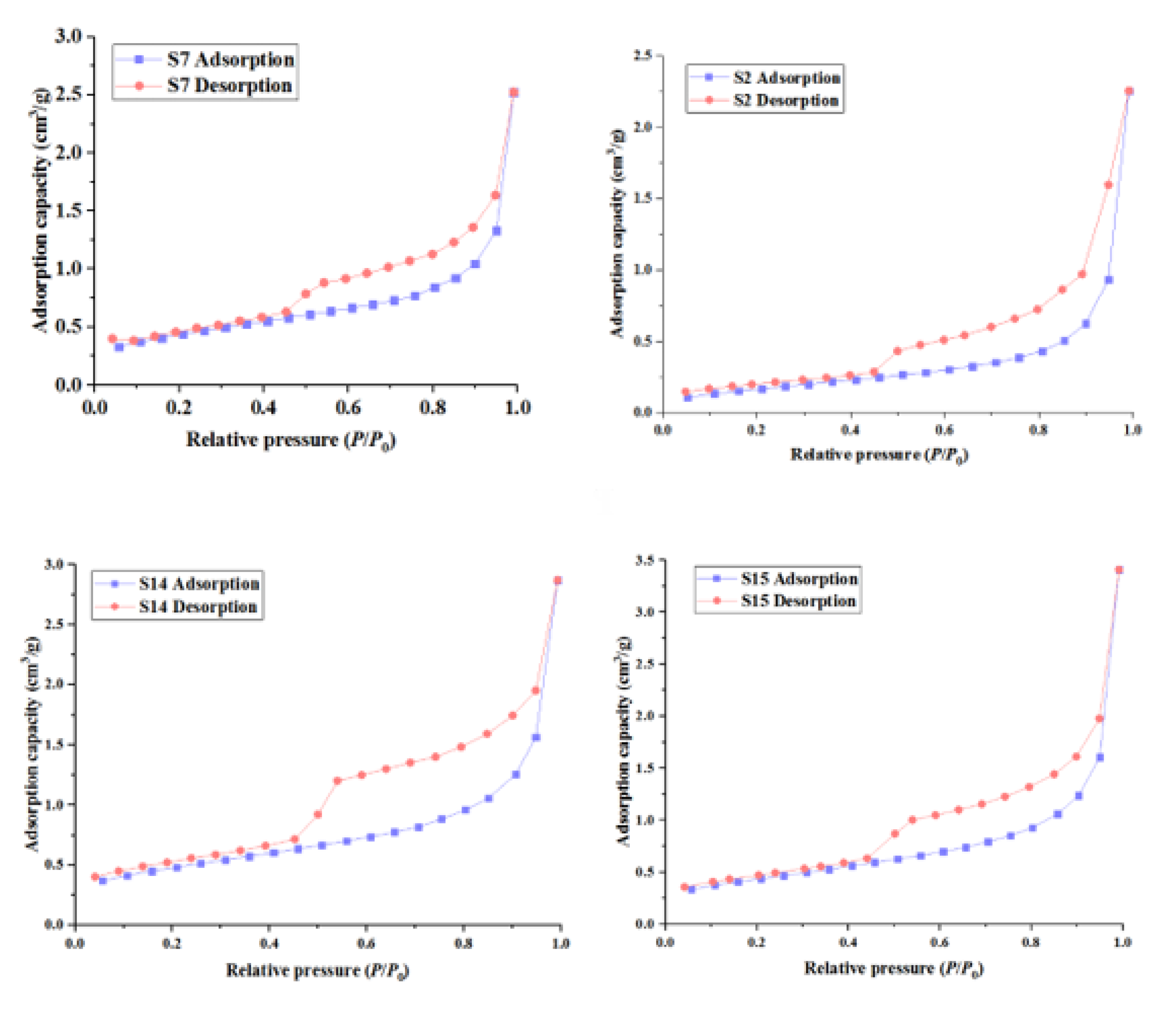

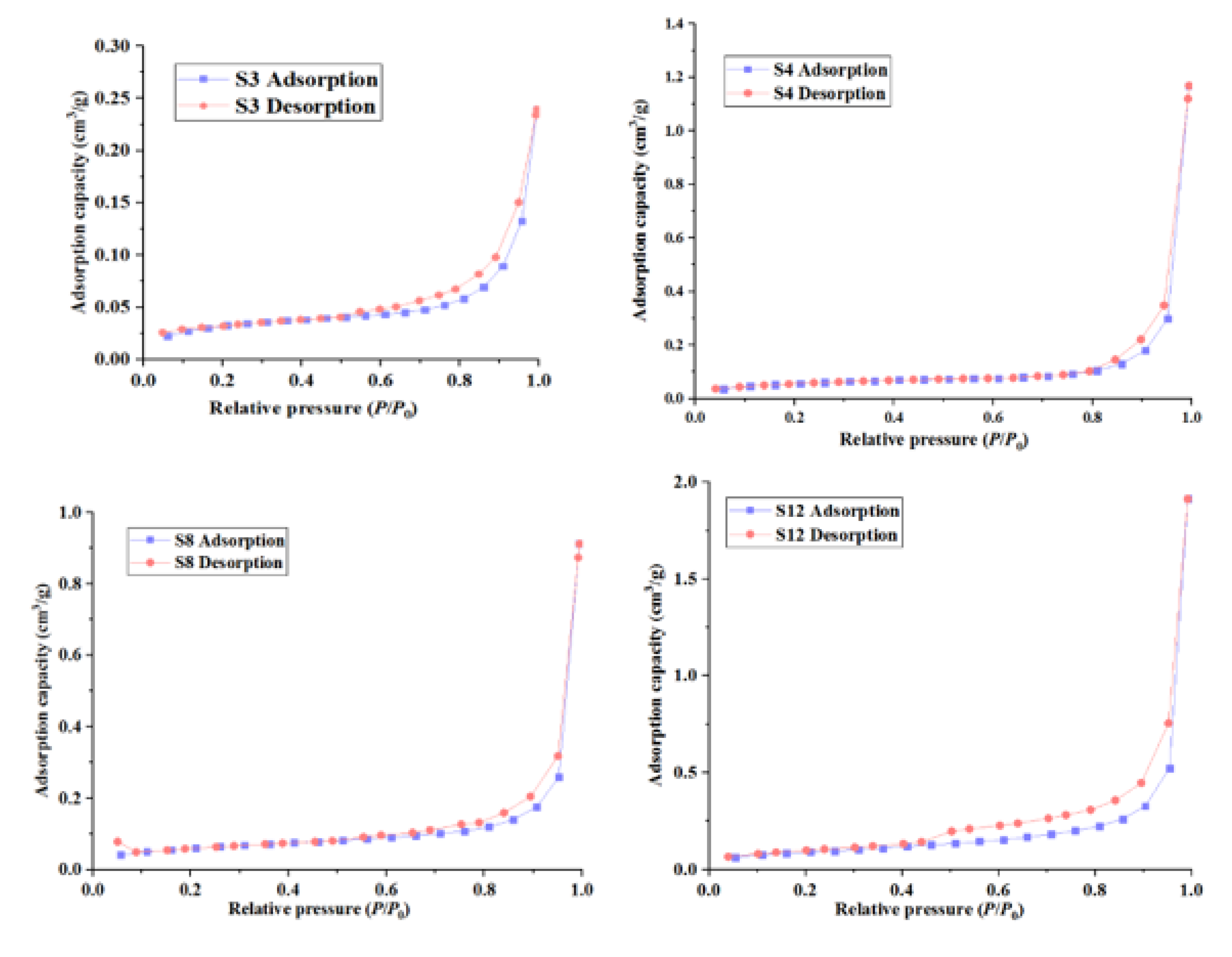

A large number of studies have shown that the shape of the adsorption and desorption curves obtained by LTNA experiments can qualitatively evaluate the pore size distribution of tight rock samples (Ojha et al. 2017; Zhao et al. 2019, 2020). At the same time, based on the IUPAC classification criteria, the isothermal adsorption curves of the tight rock samples in this study block can be divided into two categories (Figure 2) (Thommes et al. 2015). The first type is the H3 hysteresis loop, it mainly includes five rock samples of S3, S4, S8, S11 and S12. In addition, the other 10 tight reservoir rock samples belong to the H4 hysteresis loop. Due to the complexity of tight reservoirs, its pore type is diverse. It can be seen from Figure 3(a) that the H3 type pore radius distribution is mainly between 2nm and 15 nm. The H4 type pore radius is mainly distributed between 1.7nm and 5 nm (Figure 3b). Simultaneously, H3 type samples have multiple peaks, while H4 type samples are single peaks. This indicates that there is a bimodal type of rock sample (H3) whose micropores are more developed. It is worth noting that the permeability decreases as the average pore radius increases (Figure 4a). This suggests that when the pore space of tight oil rock exists in the form of micropores, although micropores provide reservoir space, they do not contribute much to rock seepage capability. In addition, there is a positive correlation between porosity and pore volume (Figure 4b).

4.2. NMR Characterization

NMR technology has unique advantages in studying the pore structure of tight limestones (eg, non-destructive testing), it obtains the pore size distribution of the core by detecting the relaxation time (T2 spectrum) of the hydrogen protons in core with the 100% saturated water. In this study, NMR experiments are carried out using 20 tight reservoir cores with 100% saturated formation water. At the same time, according to the NMR test principle, the large pores have a long T₂ relaxation time; in turn, the small pores have a short T₂ relaxation time. Therefore, we can characterize the pores with a T₂ relaxation time between 0.1ms and10ms as micropores; the pores having a T₂ relaxation time between 10ms and 100 ms are characterized as mesopores. Finally, we define pores with a T₂ relaxation time greater than 100 ms as macropores.

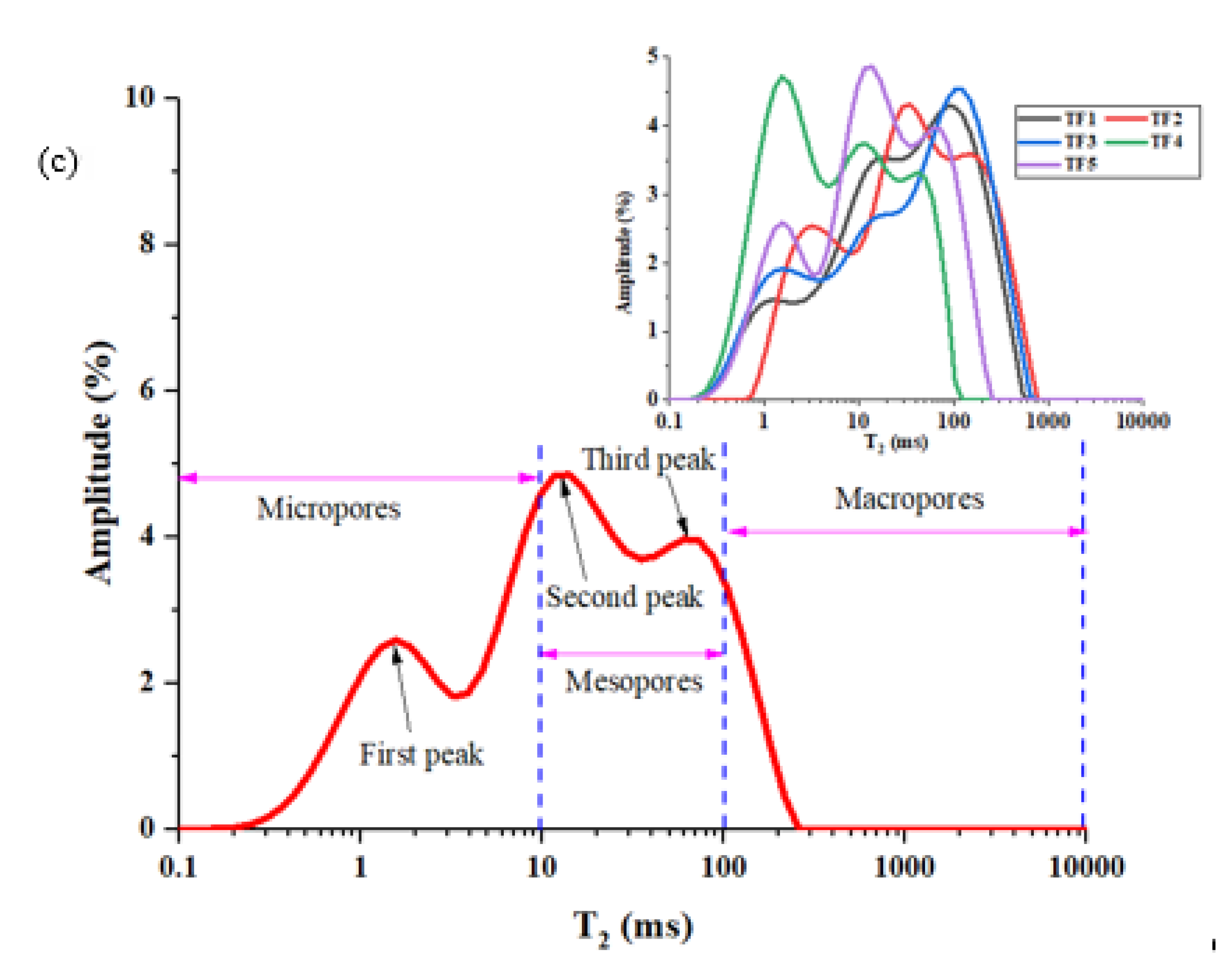

According to the experimental test results (Figure 5), the tight limestone cores are divided into three types; the first type is that there is only one peak in the core (DF); the second type is that there are two peaks in the core (SF); the third type is the presence of three peaks in the core (TF). It can be seen from Figure 5 that in the tight limestone core, these three types of cores contain micropores, mesopores and macropores, and the pore size exhibits a continuous distribution. In addition, we define three different pores (micropores, mesopores and macropores) in proportions of Ω₁, Ω₂ and Ω₃, respectively. Among them, the calculation method of Ω₁, Ω₂ and Ω₃ is as follows (Chen et al. 2018):

$${\Omega }_1=\frac{{\int }_{T_{2,min}}^{T_{\mathrm{2,10}}}{S}_{i}dS}{{\int }_{T_{2,min}}^{T_{2,max}}{S}_{i}dS}\times 100\mathrm{\%}$$

(11)

$${\Omega }_2=\frac{{\int }_{T_{\mathrm{2,10}}}^{T_{\mathrm{2,100}}}{S}_{i}dS}{{\int }_{T_{2,min}}^{T_{2,max}}{S}_{i}dS}\times 100\mathrm{\%}$$

(12)

$${\Omega }_3=\frac{{\int }_{T_{\mathrm{2,100}}}^{T_{2,max}}{S}_{i}dS}{{\int }_{T_{2,min}}^{T_{2,max}}{S}_{i}dS}\times 100\mathrm{\%}$$

(13)

where, Ω₁, Ω₂ and Ω₃ represent the volume ratio of the micropores, mesopores and macropores, respectively, %; T_2,10 and T_2,100 are relaxation time 10ms, 100ms respectively; T_2,min and T_2,max are minimum and maximum relaxation times, respectively, ms; S_i is the amplitude value corresponding to each point on the saturated water T2 curve, %.

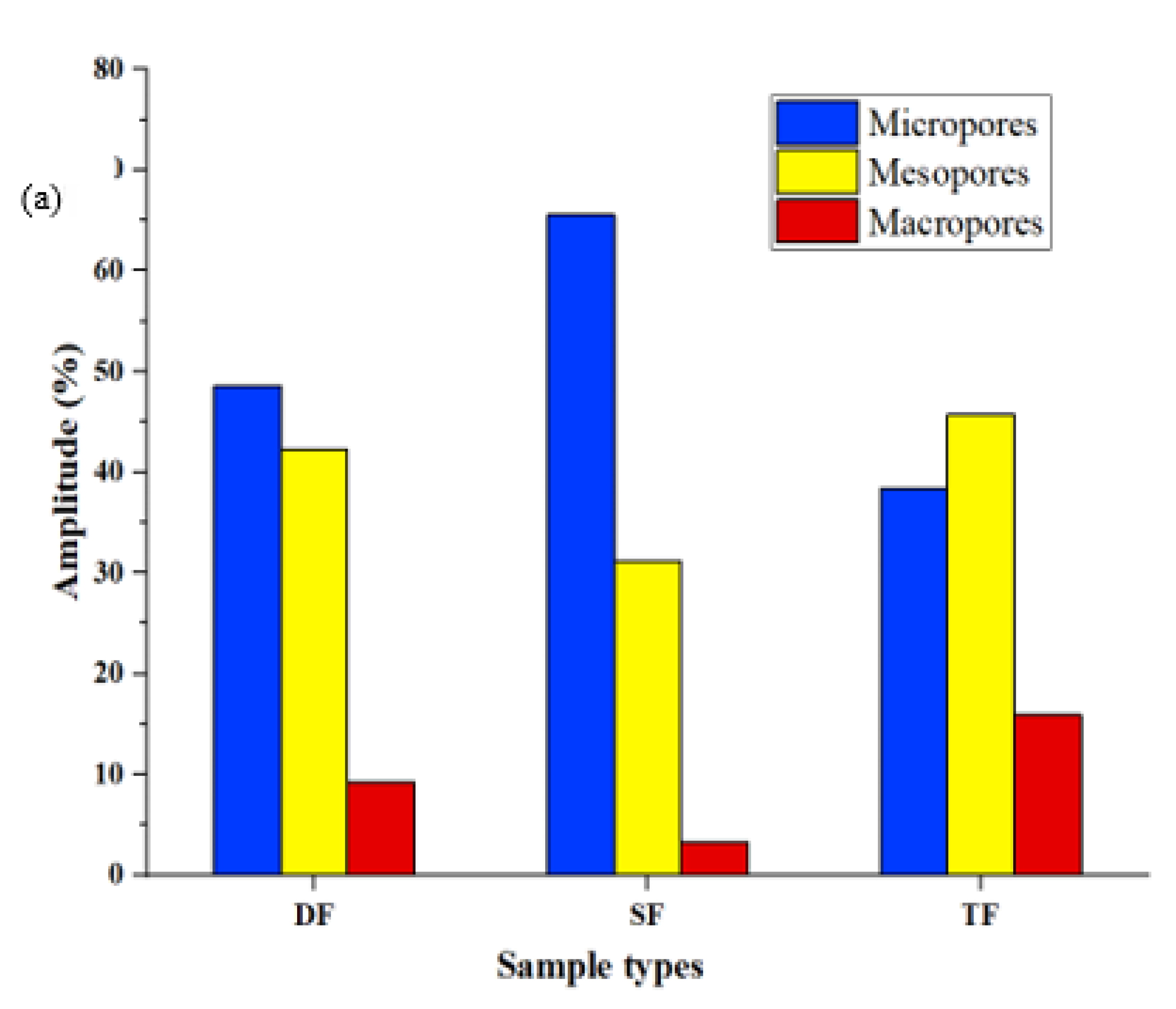

Table 1 is a calculated statistical table of the volume fraction of each tight limestone core. Figure 6 is a statistical plot of the average proportion of different pore types in three types of cores. It can be seen from Figure 5 that the average proportion of micropores of DF, SF and TF are 48.55%, 42.19% and 9.26%, respectively; the average mesopores of the three types of cores are 65.52%, 31.21% and 3.27%; the average proportion of macro holes in the three types of cores is 38.43%, 45.68% and 15.89%. It can be seen that the content of mesopores and macropores in TF type cores is more than 60%, so the TF type core pore development is better than the other two types of cores.

4.3. Fractal Characterization

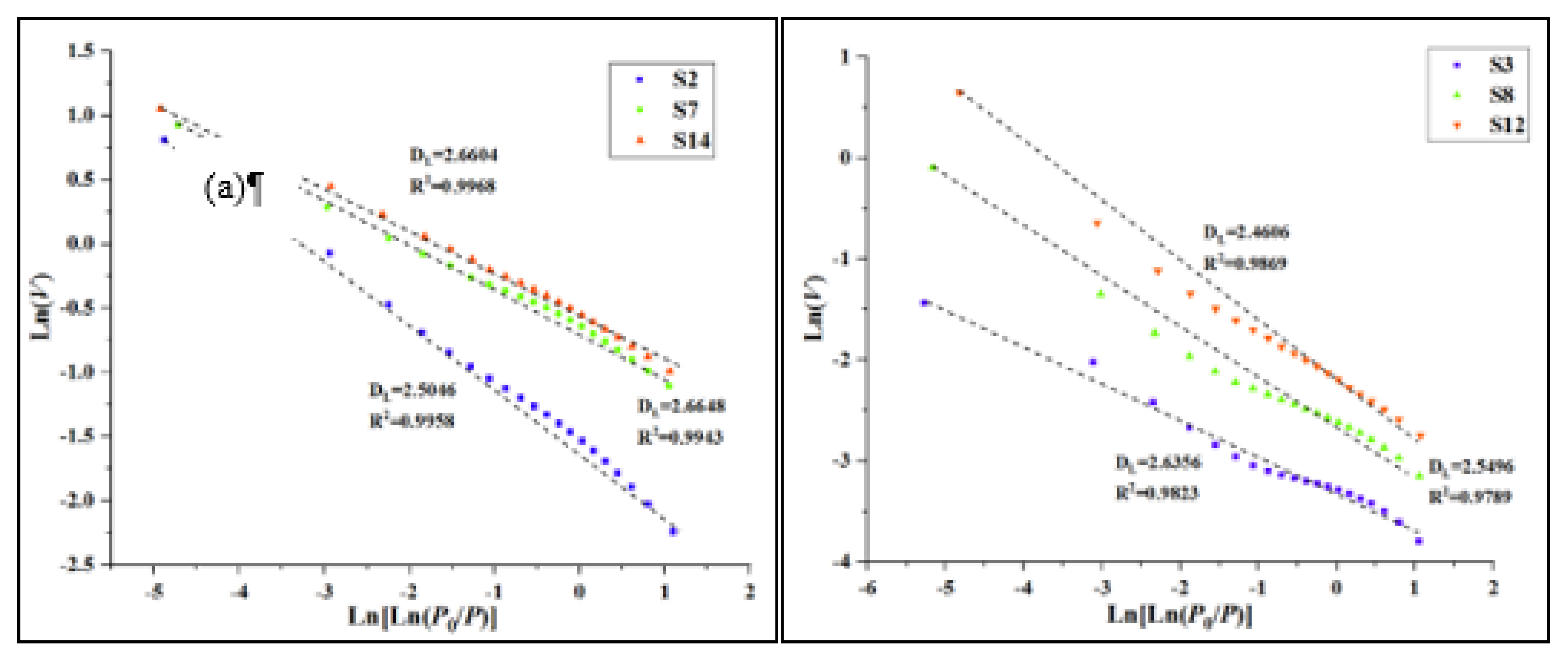

LTNA data is analyzed by the fractal theory, we linearly fit the ln V/V₀ and ln[ln(P₀/P)] data. It can be seen from Figure 7 that the correlation curve (R²) of the two types of cores is greater than 0.9, indicating that the tight limestone reservoir core has obvious fractal features. The fractal dimension of LTNA (D_L) is between 2.4446-2.7688, with an average of 2.5729 (Table 1). At the same time, we calculate the multi-scale fractal dimension of the limestone cores by using NMR data (Table 2). The fractal dimension fitting lines of the three types of cores DF, SF and TF are shown in Figure 8. Among them, the mesopores fractal dimension (D_NMR2) of the DF type tight limestone core is between 2.4263 and 2.8420, with an average of 2.6889; and the macropores fractal dimension (D_NMR3) is between 2.6582 and 2.9794, with an average of 2.8875. The mesopores fractal dimension of the SF type tight limestone core is between 2.6752 and 2.9395, with an average of 2.8156; the macropores fractal dimension is between 2.8701 and 2.9989, with an average of 2.9551. The mesopores fractal dimension of the TF type tight reservoir core is between 2.5509 and 2.7859, with an average of 2.6519; the macropores fractal dimension is between 2.8111 and 2.9123, with an average of 2.8442. It can be seen that the fractal dimension of macropores in the TF type core is smaller than that of the other two types of cores, so the pore structure is relatively simple and the pore surface is relatively smooth.

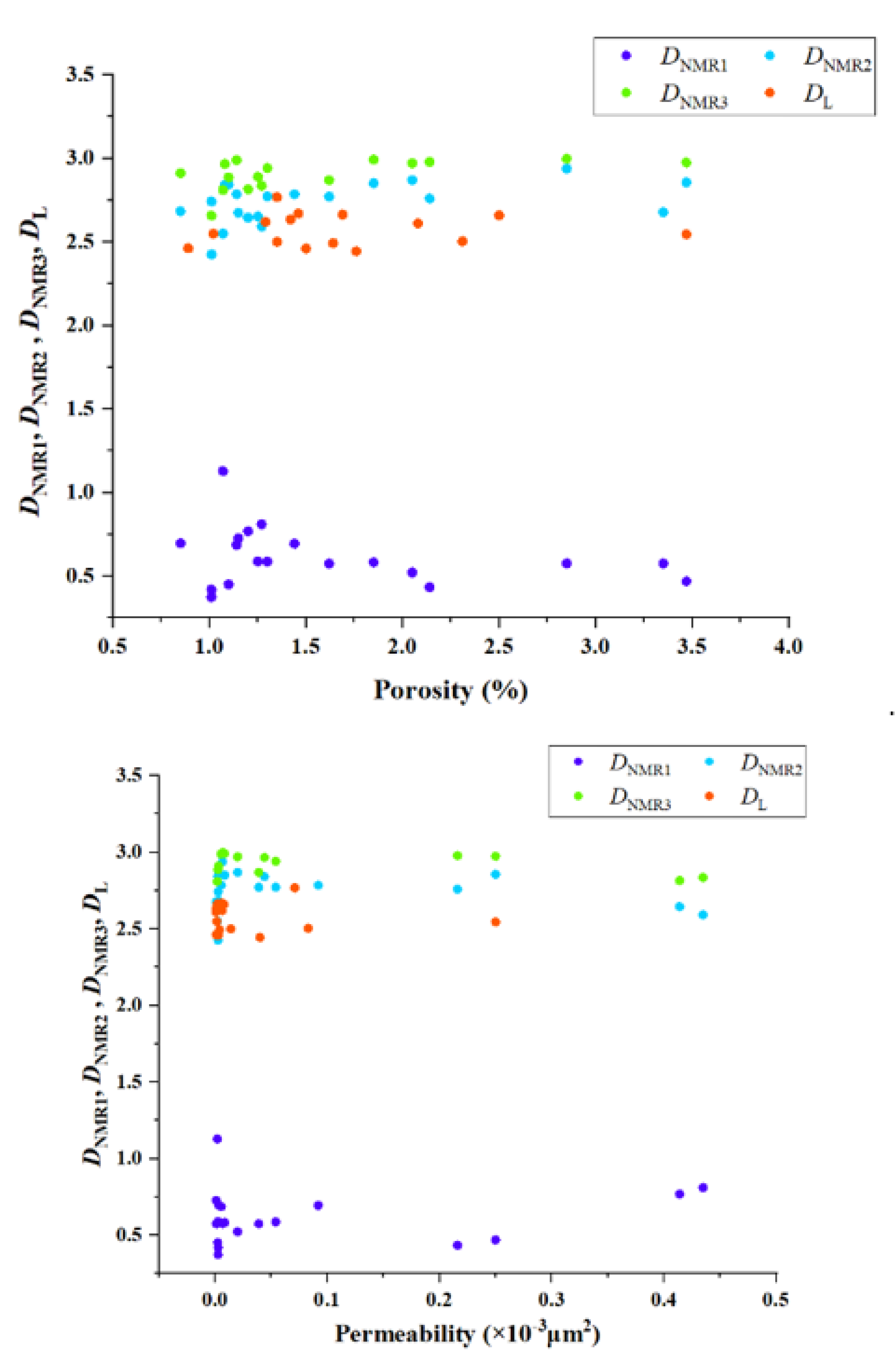

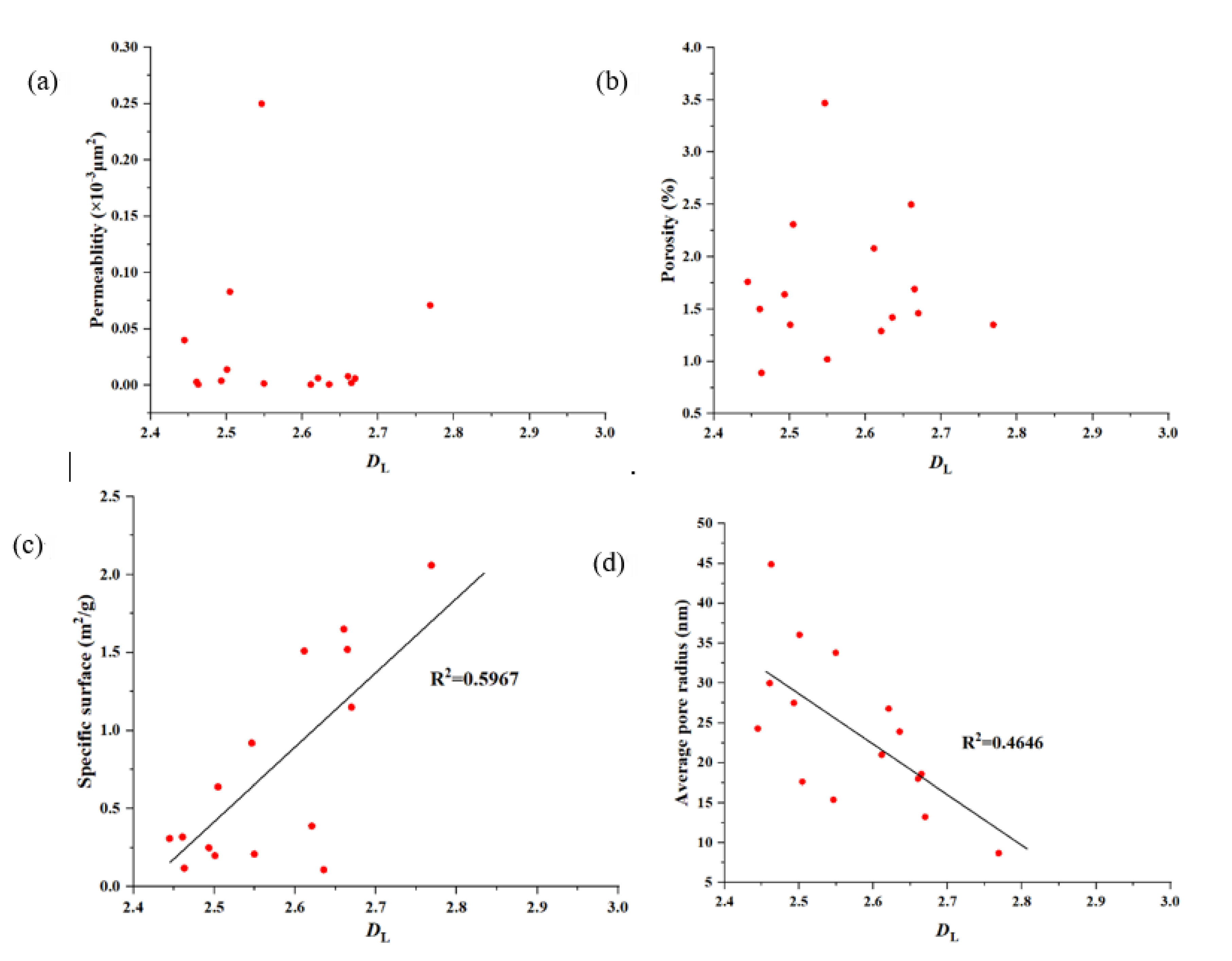

What is more, we discuss the correlation relationship between the fractal dimension and permeability, porosity etc. An obvious phenomenon is that there is no specific relationship between the fractal dimension and permeability and porosity in the tight limestone (Figure 9a, b; Figure 11), which is consistent with the results of other scholars (Sun et al. 2019; Wang et al. 2019). Besides, there is a positive correlation between the fractal dimension calculated from the LTNA data and the specific surface (Figure 8c). This indicates that as the specific surface area of tight limestone becomes larger, the complexity of its pore structure becomes higher. In addition, as the fractal dimension increases, the average pore radius of tight limestone shows a decreasing trend (Figure 8d). At the same time, by analyzing the fractal dimension calculated by the NMR data, it can be seen that D_NMR2 has a positive correlation with the content of micropores in tight limestone (Figure 10a), and a negative correlation with the content of mesopores and macropores (Figure 9a). Moreover, D_NMR3 also has a positive correlation with the content of micropores in tight limestone(Figure 10b) , and a negative correlation with the content of mesopores and macropores (Figure 9b). In other words, with the increase of micropore content in tight limestone, its fractal dimension tends to increase, as the content of micropores is a significant factor affecting the fractal dimension in tight limestone.

5. Conclusions

In this work, the LTNA and NMR are applied to characterize the pore structure of tight limestone, while these experimental data are used to analyze the fractal features of the tight limestone, the following conclusions can be drawn:

(1)

The tight limestones have intergranular pore, intragranular pore and microfracture, their LTNA test data indicates that the pores of tight limestone have H3 and H4 types, and the pore radius of tight limestone is between 8.71nm and 44.89 nm, with an average of 23.99 nm.

(2)

The NMR results of tight limestones show that there are three types of T₂ distribution curve: DF, SF and TF, and the contents of micropores, mesopores and macropores of the three types of cores are different. Among them, the SF type tight limestone core has the most micropores content, with an average of 65.52%. In addition, the average content of macropores in TF type tight limestone is 45.68%.

(3)

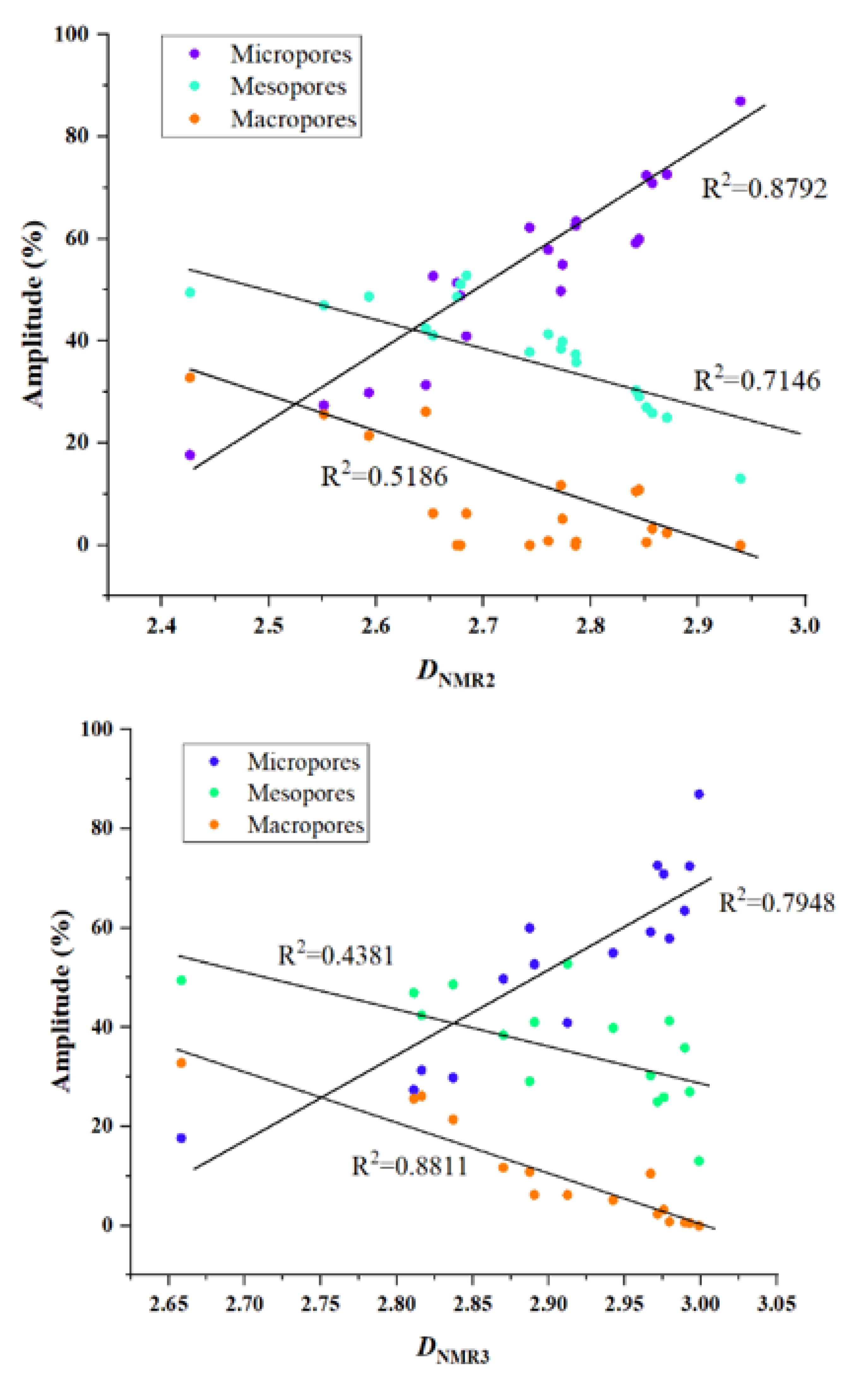

The fractal dimension of LTNA (D_L) is between 2.4446 and 2.7688, with an average of 2.5729. There is a good positive correlation between D_L and specific surface area of tight limestone, and there is a good positive correlation between D_NMR2, D_NMR3 and the content of micropores in the tight limestone, which shows that with the increase of micropores content, the surface roughness of the pores in the tight limestone is more complex.
