Pancreatectomy With En Bloc Superior Mesenteric Vein And All Its Tributaries Resection Without PV/SMV Reconstruction For “Low” Locally Advanced Pancreatic Cancer

1. Introduction

Based on GLOBOCAN 2020 data, pancreatic ductal adenocarcinoma (PDAC) is ranked 14th in frequency and 7th in mortality among all oncological diseases [1]. It is estimated that by 2030, PDAC may be ranked significantly higher in terms of mortality, being second only to lung cancer [2]. The relative 5-year survival rate for all stages of PDAC is quite low— 11.6%, often making it a fatal disease [3]. For 40-45% of patients with non-metastatic forms, the postoperative outcomes are better with 5-year survival rate of 38.8% for localized and 14.9% for LA PDAC [3]. Better survival is based on recent advances in perioperative cytotoxic chemotherapy and more aggressive surgical approaches for the achievement of clean margins (R0 resection).

Resection of the superior mesenteric (SMV) and portal veins (PV) with reconstruction in case of their involvement has been an accepted practice for borderline resectable PDAC since the 2000s when studies demonstrated 1) equivalent survival of patients undergoing margin-negative venous resection compared to patients undergoing standard pancreatectomy (PE) and 2) superiority of PE with vein resection compared to nonsurgical treatment (4,5,6,7,8).

Currently, PDAC with SMV and/or PV involvement of more than 180 degrees is considered borderline resectable if the SMV-PV flow can be restored. If the PV-SMV route is not reconstructable after PE, this cancer is considered locally advanced [9]. LA PDAC comprises approximately 30% of PDACs with a 5-year survival rate of 12-40% in surgical series [10,11,12,13], although that series presented patients with cancers united by “arterial” and not “venous” definition of the LA PDAC.

Only few case reports on PE with resection of SMV with all the tributaries are presented in the literature (14,15,16,17,18) with 11 PDAC patients in total. We presented our experience of 19 cases of resection of SMV with all its tributaries without SMV-PV reconstruction. The feasibility and safety of such procedures are strictly dependent on the preoperative assessment of the venous anatomy and intraoperative estimation of the venous collaterals function.

2. Patients and Methods

Current NCCN guidelines definitions of borderline resectable and LA PDAC are based on tumor relationship with surrounding vessels [9]. The crucial surrounding vessels are the celiac trunk (CT), superior mesenteric artery (SMA), common hepatic artery (CHA), and the SMV-PV route. Concerning the SMV/PV involvement or thrombosis, guidelines define borderline resectable cancer with an option of vascular reconstruction after venous resection (“venous definition for borderline resectable PDAC”) and locally advanced disease with “unreconstructable SMV/PV due to tumor involvement or occlusion” (“venous definition for LA PDAC”).

Nineteen consecutive patients with pancreatic head ductal adenocarcinoma underwent SMV resection with all its tributaries without PV-SMV reconstruction in addition to partial or total pancreaticoduodenectomy from November 2006 to December 2023. Demographic and perioperative data of all the patients were retrospectively explored from medical records, follow-up charts, and radiological reports. All the patients with thrombosis/involvement of the SMV and all its tributaries were discussed at multidisciplinary meetings, and all the procedures were undertaken to perform R0-resection. The resectability assessment was based on NCCN definitions, imaging data, and the surgeon’s experience. From 2006 to 2018 PE with excision of the SMV and all the tributaries due to the well-developed left-sided collaterals was considered a borderline rather than unresectable situation in our department. Because of this, before 2019 patients received 6 cycles of neoadjuvant treatment, and since 2020 all the patients were operated on after 12 cycles of chemotherapy. Chemoradiation was not used.

All patients had biopsy-confirmed PDAC via endoscopic ultrasonography verified by our pathologists. Tumor size delineated in mm was measured using computer tomography before surgery and at pathohistological examination after surgery. Postoperative 90-day complications were graded according to Clavien-Dindo as minor (Grade ≤ 2) or major (Grade ≥ 3A) [19]. Postoperative pancreatic fistula (POPF) was defined according to the International Study Group on Pancreatic Fistula classification [20], and post-pancreatectomy hemorrhage (PPH) was determined using guidelines given by the International Study Group of Pancreatic Surgery (ISGPS) [21]. Resection margins, including transection and circumferential margins, were categorized according to the Royal College of Pathologists definition and classified as R0 (no residual tumor, distance margin to tumor ≥ 1 mm), R1 (residual tumor, distance margin to tumor < 1 mm), and R2 (residual tumor, macroscopically positive margin) [22]. The grade of tumor regression at postoperative pathological assessment was categorized according to the College of American Pathologists [23]. Ischemic morbidity was defined as an abdominal organ complication caused by surgery-related ischemia. Complications, readmissions, and mortality were collated up to 90 days postoperatively. Overall (OS) and progression-free (PFS) survival was measured from the date of tissue diagnosis until death or unless otherwise specified [9,24]. Survival data were collected based on the last CT or MRI results (PFS), last visit to the hospital, or follow-up phone calls. The last data collection was performed in March 2024.

2.1. Radiology

The combination of CT, MRI, PET/CT, and blood CA 19-9 was used as the best modality for the selection of candidates for radical surgery in patients with LA PDAC [11] by the evaluation of vascular involvement and distant metastases. Interpretation of the standardized digital images from the preoperative multiphase pancreatic MDCTs, MRIs, and PET/CTs (when available) of all 19 patients were independently performed by three abdominal image readers (PP, AD, EK). High-quality CT-based pancreatic protocol was the standard method of the anatomical resectability assessment with the analysis of four phases: native, arterial (pancreatic), portal venous, and delayed phases following high concentrated (350-400 mg/ml) non-ionic iodinated contrast media injection at the rate of 2.5-5.0 ml/s. CT examinations were performed between 2006 and 2024, using 32- to 256-detector scanners Philips Ingenuity, Philips iCT, GE optima ct 540, Philips Brilliance CT, Philips iCT, Toshiba Aqullion, and GE Revolution, with machine-specific image acquisition ranging from 0.625 to 3 mm axial slice thickness. Since 2008 3D abdominal vein reconstructions have become useful and necessary components for decision-making on possible radical surgery for “low” pancreatic cancers with SMV thrombosis/involvement (Figure 1 a-d). After ruling out the distant metastases, only patients with specific vein anatomy can be candidates for radical surgery. The mandatory anatomical conditions for the procedure were the following: 1) preserved SMV-SV confluence; 2) occluded SMV for any reason (tumor or thrombus); 3) well-developed inferior mesenteric vein (IMV) collaterals with dilated intestinal veins; 4) no right-sided vein collaterals (which will be sacrificed); 5) no varices in the upper abdomen.

2.2. Surgery

All patients (excluding one who was a non-secretor) were operated on after the significant decrease or normalization of the serum CA 19-9 (Table S1). Staging laparoscopy was performed during the same procedure, followed by bilateral subcostal or midline laparotomy, if no metastases were found. Intraoperative ultrasonography (IOUS) and frozen-section biopsy were used in cases of doubtful structures in the liver or peritoneum. All the tributaries of the SMV, which were planned to be resected, were visualized and clamped for 30 minutes using vascular instruments. The adequacy of the collateral flow to the IMV was assessed at a 30-minutes occlusion test: the test was considered “positive” and resection without PV-SMV reconstruction – safe in patients with no or mild edema of the small intestine without or with a short-term (during the test time) color change. If only the short (up to 30 cm) proximal jejunum segment was congestive, it can be safely resected. If the intestine looked slightly edematous after 30 minutes of clamping and its color is normal, we considered it safe to proceed with radical surgery. In cases with longer venous congestion, especially with a changing of the color of the intestine to cyanotic, it was reasonable to stop with radical surgery. During the occlusion test, the adequacy of the collateral flow to the liver was assessed using Doppler IOUS measurements from the liver parenchyma. Detection of the adequate portal intraparenchymal flow velocity ≥ 12 cm/s after clamping of the SMV tributaries and “positive” intestinal occlusion test were considered sufficient conditions for resection without PV-SMV reconstruction.

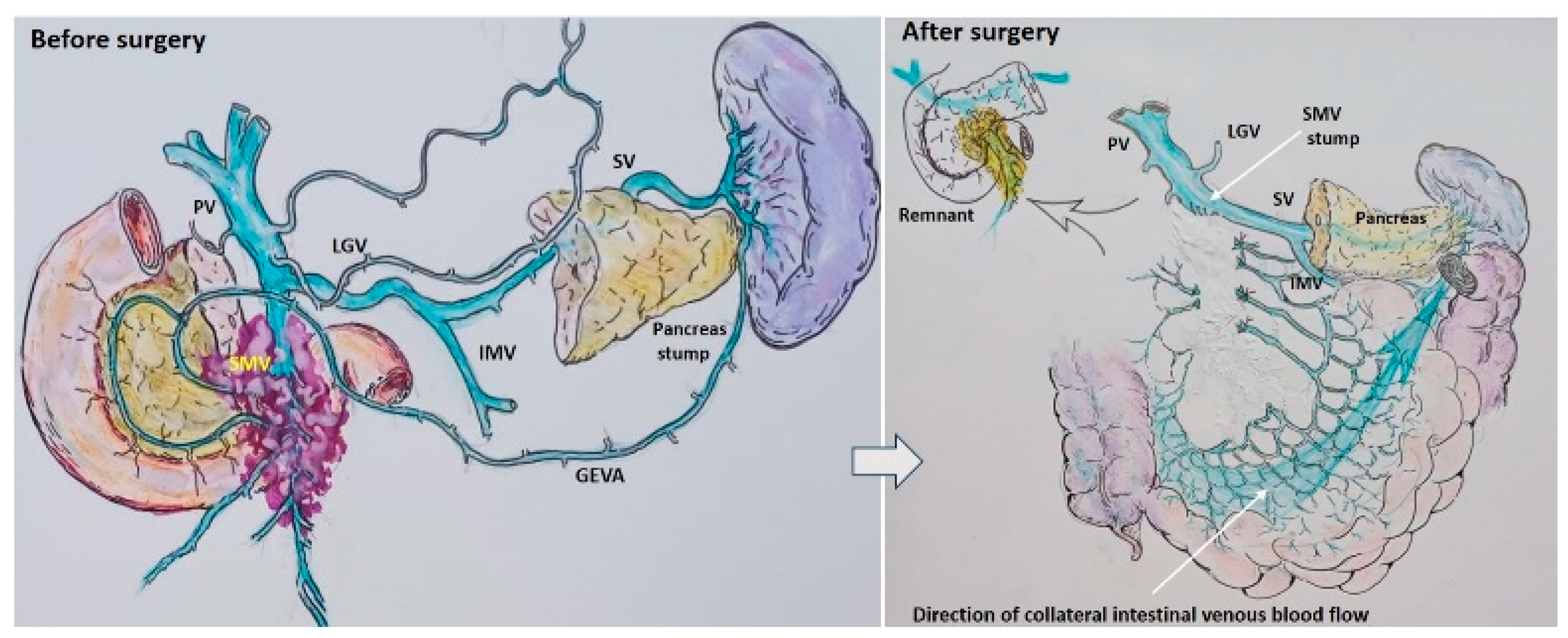

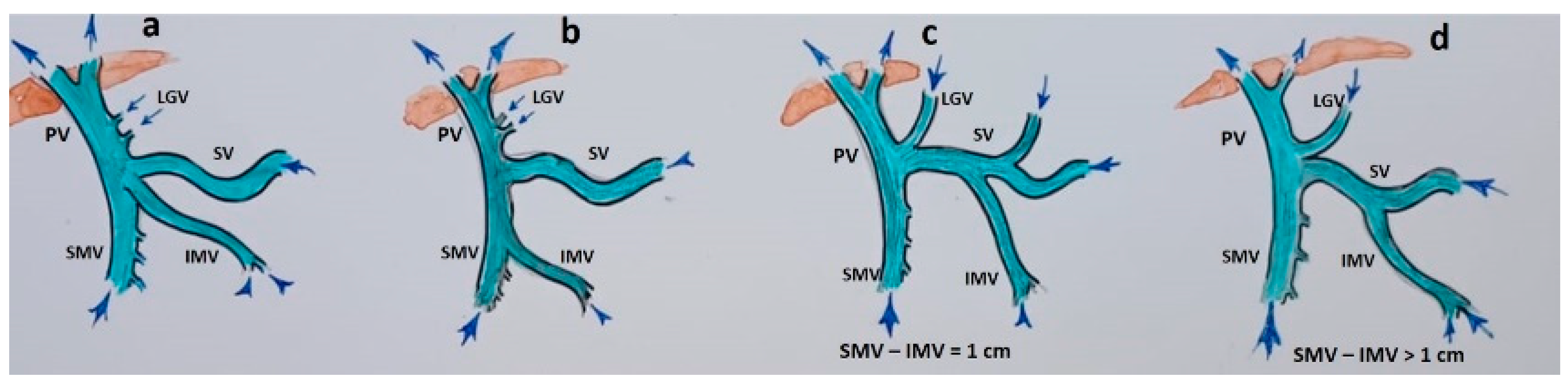

After a favorable decision on resectability, two scenarios were possible, depending on the patient’s anatomy (Figure 2) and tumor spread on IMV. Scenario 1: if the IMV was not involved in the tumor, the SMV with all its tributaries was resected without reconstruction (Figure 3).

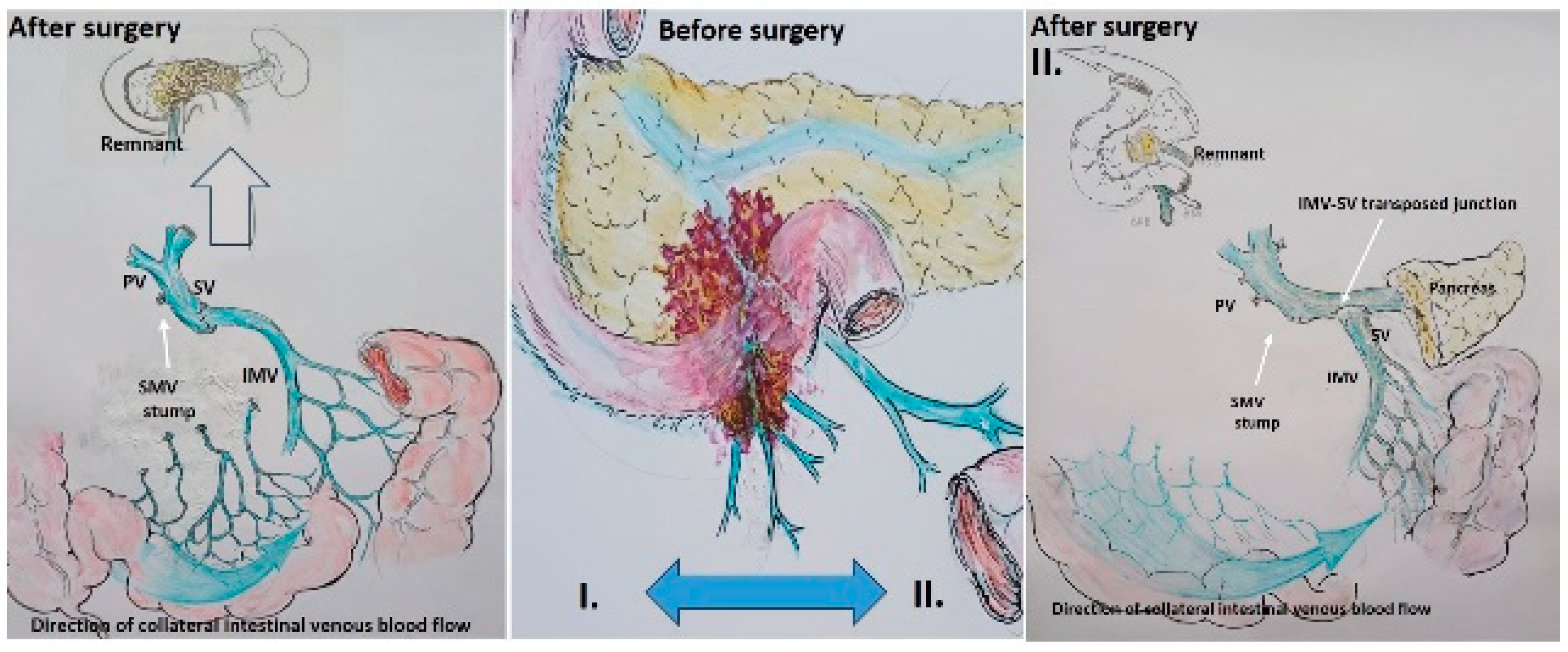

Scenario 2: If the IMV was involved, it was resected and replanted in the splenic vein end-to-end in the cases of total duodenopancreatectomy, or end-to-side in the case of pancreatoduodenectomy (Figure 4).

The superior mesenteric artery in two cases and the common hepatic artery (Michels IX anatomy) in one case were also resected and reconstructed for the achievement of the R0 procedure. The Cattell-Braasch maneuver, including the extended Kocher maneuver, was performed when concomitant arterial resection was planned.

Partial or total pancreatectomy was performed with extended lymph node dissection, which included the removal of lymph nodes of groups 16 a,b (Figure 5 and Figure 7), or without aorto-caval dissection (Figure 6), if there were no suspicious lymph nodes detected on imaging before surgery.

All operations were performed under 2.5–4.5 magnification. Transabdominal ultrasonography examination, including Doppler ultrasonography, was performed for the first three postoperative days. Liver function tests were taken on postoperative days 1, 2, 7, and 14. All patients received somatostatin inhibitors percutaneously 100 mkg three times daily for three days postoperatively and proton pump inhibitors for three months. Patients were discharged with a drain if it produced more than 500 ml of fluid and/or it had elevated amylase levels. The drains were removed between postoperative days 12 and 31. Follow-up consisted of physical examination, laboratory studies, CA-19-9 blood tests, and CT imaging at 3-month intervals for the first two years, at 6-month intervals for years 3 through 5, and then yearly. At the final assessment (January 2024), not a single patient had been lost to follow-up evaluation. Liver function tests (ALT, AST, bilirubin, albumin, GGTP) were carried out on days 1, 2, 7, and 14.

2.3. Statistics

Statistical processing of the study results was carried out using IBM SPSS Statistics 27 (IBM, USA). The following methods of descriptive statistics were used for categorical variables: analysis of frequency distribution tables and constructing conjugacy tables. For quantitative indicators, parametric statistics were used as measures of descriptive statistics: arithmetic average, standard deviation, minimum and maximum value, and distribution quartile for non-parametric statistics. Verification of distributions for normality was carried out using the Shapiro–Wilk test. The results of the analysis are presented using parametric statistics in the form M ± SD (mean and standard deviation) and through non-parametric statistics in the form: of Me [Q1; Q3] (Median and respectively 1 and 3 quarters of the distribution). A comparison of quantitative indicators between groups was performed using a parametric Student’s t-test and the non-parametric Mann–Whitney criterion. The relationship between categorical variables was analyzed using a non-parametric χ 2 -Pearson independence criterion and an accurate Fisher test for 2 × 2 conjugacy tables. The relationship between quantitative indicators was analyzed by constructing the scattering diagram and deriving paired correlation coefficients (parametric Pearson and non-parametric Spearman coefficients). Survival analysis was carried out for overall (OS) and progression-free survival (PFS). The construction of the survival plots was carried out using the Kaplan–Meier method. A comparison of survival in groups was performed using a long-rank criterion. The median survival time is presented as median and 95% confidence interval in months: Ме [95% CI: Me1; Me2]. The critical level of significance was set at p < 0.05.

3. Results

3.1. Patient Characteristics and Outcomes

Among 903 pancreatic resections performed from January 2006 to December 2023, 299 (33%) were accompanied by vein resections, and 19 of them – by SMV resections with all its tributaries without PV-SMV reconstruction (2%). All the procedures were performed after Gemcytabine- or FOLFIRINOX-based neoadjuvant chemotherapy for PDAC in 16 patients with Stage cT3NxM0 and in 3 patients with Stage cT4NxMo (UICC, 8th edition) [25].

Results for the patients with T3 (only veins involvement) and T4 (associated arterial involvement) were analyzed and presented separately. In two cases narrow additional SMV was found on the preoperative CT and at surgery.

3.2. T3 Group Results

Demographic, clinical, and perioperative data of patients with T3 are summarized in Table 1, Table 2, and Table S1. The mean age of patients was 62 ± 8 years (range 39–74), surgery time – 401 ± 75 min (range 195–475), and blood loss — 346 ± 168 ml (range 100–550 ml). Length of hospital stay was 13.6 ± 3.9 There were no R2-resections with an 81% R0-resection rate. In this group, we performed pancreatoduodenectomy more than twice as often compared to the total PE. The vein resection without any vascular reconstruction was done more than twice as often compared to the PE with reconstructions. Four IMV-SV reconstructions were done during the total PE and only once during the Whipple procedure. In 56% of cases, there were no metastases in removed lymph nodes.

There were no deaths, postoperative bleeding, blood transfusion, gastric, bowel, or liver ischemia. Postoperative serum ALT/AST > 250 U/l was observed in 11 cases (max 2140 U/l), and all the patients with IMV-SV reconstructions had aminotransferase elevation. ALT/AST levels significantly decreased or normalized after 3-5 postoperative days in all cases. In all patients except two, the pancreatic remnant was fibrotic and hard with a dilated duct, and Grade B POPF developed in only one patient who was discharged with the drain. One patient developed a severe complication – bile leakage on the 5^th postoperative day, which was successfully treated by relaparotomy and additional draining (#12, Table S1). The most frequent complication was lymphorrhea (44%) and 2-3 days-long small bowel edema (31%), but both events did not influence the patients’ condition and length of stay.

3.3. Long-Term Outcomes after Surgery for Patients with Stage cT3NxM0.

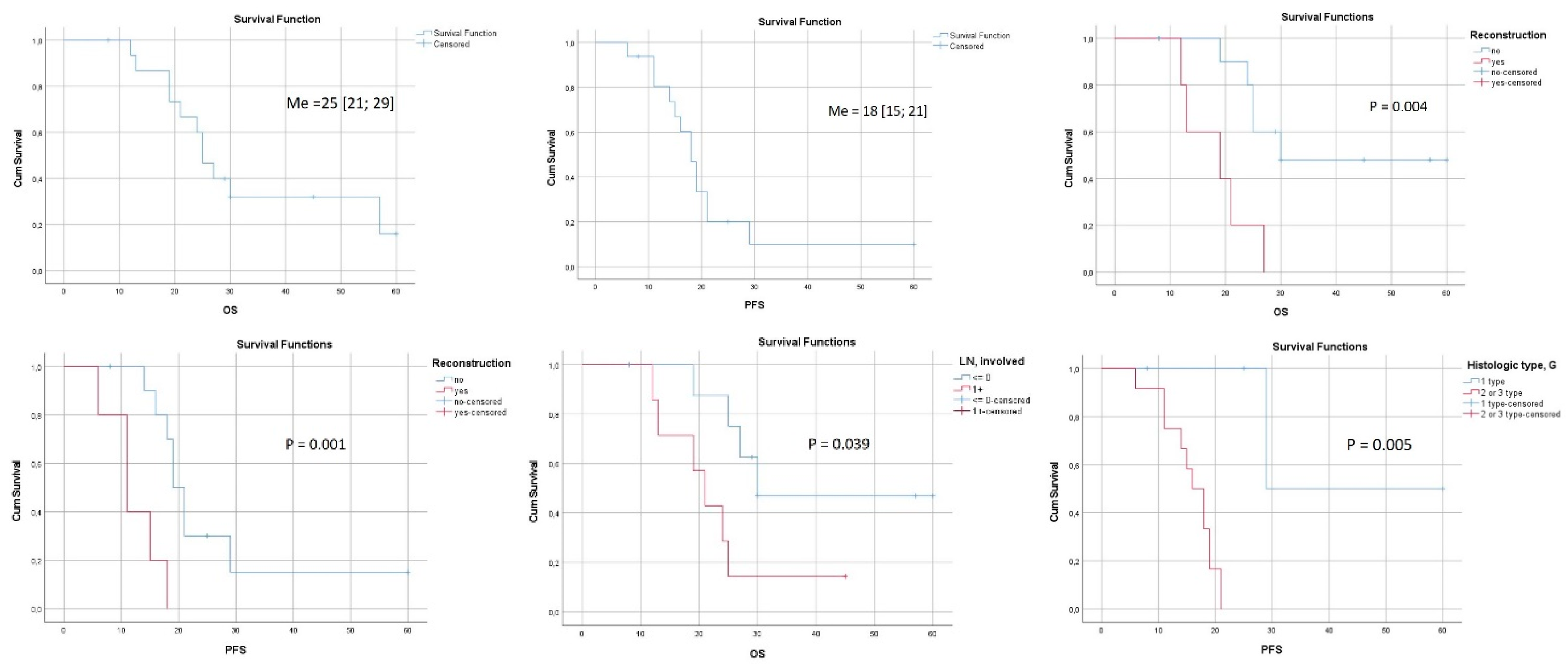

Survival was calculated for 15 patients with a follow-up period of 32 [95% CI: 21; 37] months (Figure 8 and Table S2). The last case was excluded because of the short time of follow-up. OS and PFS were 25 [95% CI:21; 29] and 18 [95% CI:15; 21] months, respectively (Figure 8 a,b). There were three long-term survivors with 57, 45, and 60 months of OS (#15,14,12), the last two of them are alive. Both OS and PFS were significantly lower in the presence of IMV-SV reconstruction (Figure 8 c,d). The significance of other perioperative factors for the OS and PFS are shown in Figure 8 e,f, and Table S2.

At the moment of the preparation of the manuscript, 5 patients are alive. Thirteen patients developed distant metastases, twice combined with local relapses. The most often first metastatic sites were the liver (n8) and peritoneum (n4). Two patients were relapse-free, with OS of 60 and 8 months (Table S1, #12,16). Portal vein thrombosis happened in one patient 9 months after surgery, possibly caused by liquid restrictions, and it was the reason for the sole readmission. Ten months later this patient died due to sepsis on the background of liver abscess perforation with no cancer relapse at surgery and autopsy (#9, Table S1).

At the final pathological evaluation mean tumor size was 35.8 ± 17.3 mm. There were no vein and perineural invasion in 3 cases with tumor regression grade Score ≤ 1. In two patients a complete response after 12 courses of FOLFIRINOX was achieved (#15,16), but in case #15 distant metastases appeared 15 months after surgery.

Pretreatment and preoperative CA 19-9 levels were 357.9 [136;532] and 34.3[21;44] U/l. The number of lymph nodes removed varied from 19 to 82 and was dependent on the extent of PE and lymphadenectomy. Nine patients had no regional lymph node invasion at pathological evaluation. Moderate differentiation of PDAC was the most common (n10). Gemcitabine-based neoadjuvant chemotherapy was performed in 7 patients, FOLFIRINOX in 9 patients, and both regimens – in 4 cases. The median number of neoadjuvant and adjuvant chemotherapy cycles were 6 [3;9] (range 6–12) and 6 [4;7] (range 4–28), respectively. Preoperative transaminase levels did not exceed 2 norms in all cases.

3.4. T4 Group Results

T4 group included three patients after the R0-total PE accompanied by arterial resection and SMV excision with all its tributaries. In case #1 SMA resection was followed by IMV-SV anastomosis and in two cases of SMA and common hepatic artery resection there were no venous reconstructions. Demographic, clinical, and perioperative data of patients with T4 are presented in Table 3 and Table S1. At the final pathological evaluation, vein, arterial, and perineural invasion without significant tumor regression were documented in all cases.

There were no postoperative deaths. One severe complication happened to patient #2 long-lasting (7 days) massive (up to 7 liters a day) lymphorrhea, which we tried to treat by three unsuccessful attempts of performing mesocaval shunts, and which was gradually cured after the dilation of existing and/or development of additional collaterals.

OS and PFS were 11, 23, and 18 months, and 11, 13 and 12 months, respectively. Patient #1 died of myocardial infarction having no relapse.

4. Discussion

Superior mesenteric and/or portal vein resection with reconstruction is a standard approach for localized pancreatic cancer as comparable survival was demonstrated after R0 PE with and without venous resection [26,27,28,29,30,31]. Resection of all except one first-order SMV branch could be performed without reconstruction if the remaining branch assures collateral mesenteric drainage and liver supply [32], but an acute block of the PV and/or SMV can lead to mesenteric and liver venous ischemia. If the meso-portal route seems unreconstructable after resection during PE, today’s guidelines consider it locally advanced [9] and unresectable. In case of slow-growing cancer and gradually developing SMV obstruction, collaterals are widening and bypassing the obstruction preserving intestine-to-liver blood flow [33]. In some cases, due to chemotherapy and/or non-metastatic phenotype, cancer remains localized, and the conditions mentioned above give a chance for radical PE with SMV resection and without PV-SMV reconstruction because of adequate collateral circulation. ISGPS elaborated the classification system for extrahepatic porto-mesenteric venous resections, but vein resections without reconstruction of the SMV-PV route were not mentioned in this work [34].

The selection of patients for such exclusive surgery cannot be overestimated. High-quality CT-based pancreatic protocol is the standard method for resectability assessment by the evaluation of vascular involvement and distant metastases with an accuracy of 77% [35,36]. MRI is an excellent modality for pancreatic cancer imaging and especially for liver metastases exclusion [37,38]. The likelihood of vascular invasion can be estimated based on the degree of circumferential tumor contact with the SMA, CHA, CT, PV-SMV and the vessel’s wall irregularity, narrowing, or vascular occlusion [39,40]. The likelihood of vein invasion is up to 40%, 80%, and 100% with tumor contact ≤180°, >180°, and 360° correspondingly. CT predicts an involvement of veins in 40% of all cases (41,42) and is becoming unreliable for this purpose after neoadjuvant therapy (9,42).

We used different post-processing CT techniques for the assessment of the peripancreatic vessels and collateral venous blood flow adequacy, such as shaded surface display, maximum intensity projection, and 3D volume rendered (VR) reconstruction imaging. Now, when planning SMV resection with excision of all its tributaries for “low” pancreatic cancer we consider CT-based 3D-VR reconstruction the best and necessary option for the depiction of the collateral venous system. Compared to the other rendering CT techniques, VR is superior in delineating vessels, pancreatic parenchyma, the tumor, and adjacent structures (Figure 1 a-d, 5 a,b, 6 a,b,d, 7 a,b) [43,44,45].

To date two relatively large (taking into consideration the rarity of the event) series of 5 [17] and 6 [46] PE combined with SMV resection without reconstruction were published. There was no mortality and severe morbidity in fifteen cases [14,15,16,17,18,47], in eleven cases out of fifteen authors dealt with ductal adenocarcinoma, in ten cases SMV-SV confluence was preserved, IMV was the main collateral way from the intestine and IMV was never transposed into the splenic vein. The work of Kulkarni et al. [36] is unusual because, except two cases of PDAC, it described four SMV-PV resections without reconstruction in tumors with low malignant potential (neuroendocrine and solid-pseudopapillary neoplasms) and preservation of the distal SMV and right-sided collaterals in some cases.

The low rate of severe morbidity and zero mortality in our series and in other works [14,15,16,17,18,46] suggest that compliance with selection criteria (see Methods) can make this exotic surgery safe. We met severe complications (Dindo-Clavin 3b) in two patients and in one of them, the massive and rapidly accumulated ascites was the reason for reoperation. This patient was the only one who did not have complete SMV occlusion (a filamentous gap remained). From this experience we concluded that the complete block of the SMV lumen is one of the prerequisites for the safe execution of PE with the SMV resection with all its tributaries without PV-SMV reconstruction.

Clinically relevant pancreatic fistula (long-standing drain) developed in only one patient (8%) after twelve Whipple procedures, mainly because the hard pancreas and wide duct were met in 10 of these cases (Table S1).

The additional left SMV [47], twice detected on CT (Figure 1d) and confirmed at surgery, was not considered a reliable collateral, because of its much smaller diameter compared to occluded SMV and dilated IMV.

The patients with combined arterial and vein involvement demonstrated the worst survival. At the same time, three patients of the T3 group (two of them alive) survived 45, 57, and 60 months. In the last case, there is no relapse and the patient is a candidate for cure, still showing a non-metastatic phenotype, despite the relatively small number of chemotherapy cycles. The survival after IMV-SV reconstructions was significantly lower compared to the cases without reconstruction (Figure 8 c,d). We consider that reconstruction is not the real cause of that, whereas being a reflection of the bigger tumor, total duodenopancreatectomy (5 of 6 cases), associated lower quality of life, and decreased chances for prolonged postoperative chemotherapy probably is. The role of chemotherapy in the survival of these patients is underlined by the difference between median PFS and OS (Figure 8 a,b) in the T3 group.

The presented series demonstrates that 1) under strictly definite conditions the PE with SMV resection with all its tributaries without PV-SMV reconstruction for locally advanced pancreatic cancer can be safely performed systematically; 2) resection of IMV followed by its anastomosis with splenic vein can be an option of such surgery; 3) the long-term results of such procedures can be non-inferior to the results of the same procedures with the superior mesenteric vein resection and reconstruction [26,27,28,29,30,31].

The criteria for selection and the results of all the series on this subject can be helpful not only for a surgeon, but also for the tumor board, when a complex situation is under discussion.

This series is the largest one dedicated to PE for ductal adenocarcinoma defined as locally advanced based on vein involvement criteria, and it gives an approximate explanation of the survival in this highly selected group. This extremal selection, the small number of patients included, and the retrospective nature of the analysis of the procedures performed during quite a long period are the limitations of the study. We have no experience with left-sided PE with vein resection and any PE with SMV-SV confluence resection without PV-SMV reconstruction [15,46,48].

5. Conclusions

The study of short- and long-term results of the relatively large series of PE with SMV resection without PV/SMV reconstruction for LA PDAC has shown zero mortality, acceptable morbidity, a relatively high level of radicality, and long-term results, non-inferior to the results of PE with the superior mesenteric vein resection and reconstruction. Strict selection based on rigorous mandatory criteria can make such surgery safe. CT-based preoperative reconstructions of the abdominal venous system are helpful instruments for the assessment of resectability, which cannot be underestimated. We hope that the data presented will be helpful for pancreatic surgeons dealing with LA PDAC.
